ns3::TapFdNetDeviceHelper Class Reference

build a set of FdNetDevice objects attached to a virtua TAP network interface More...

#include <tap-fd-net-device-helper.h>

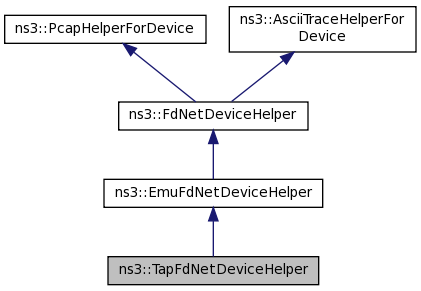

+ Inheritance diagram for ns3::TapFdNetDeviceHelper:

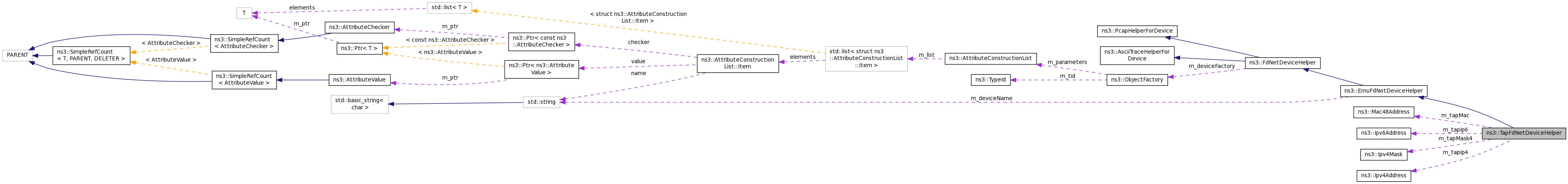

+ Collaboration diagram for ns3::TapFdNetDeviceHelper:

Public Member Functions

 TapFdNetDeviceHelper ()
 Construct a TapFdNetDeviceHelper. More...

virtual ~TapFdNetDeviceHelper ()

void SetModePi (bool pi)
 Set flag IFF_NO_PI on the device. More...

void SetTapIpv4Address (Ipv4Address address)
 Set the device IPv4 address. More...

void SetTapIpv4Mask (Ipv4Mask mask)
 Set the IPv4 network mask for the TAP device. More...

void SetTapIpv6Address (Ipv6Address address)
 Set the device IPv6 address. More...

void SetTapIpv6Prefix (int prefix)
 Set the IPv6 network mask for the TAP device. More...

void SetTapMacAddress (Mac48Address mac)
 Set the MAC address for the TAP device. More...

- Public Member Functions inherited from ns3::EmuFdNetDeviceHelper
 EmuFdNetDeviceHelper ()
 Construct a EmuFdNetDeviceHelper. More...

virtual ~EmuFdNetDeviceHelper ()

std::string GetDeviceName (void)
 Get the device name of this device. More...

void SetDeviceName (std::string deviceName)
 Set the device name of this device. More...

- Public Member Functions inherited from ns3::FdNetDeviceHelper
 FdNetDeviceHelper ()
 Construct a FdNetDeviceHelper. More...

virtual ~FdNetDeviceHelper ()

virtual NetDeviceContainer Install (Ptr< Node > node) const
 This method creates a FdNetDevice and associates it to a node. More...

virtual NetDeviceContainer Install (std::string name) const
 This method creates a FdNetDevice and associates it to a node. More...

virtual NetDeviceContainer Install (const NodeContainer &c) const
 This method creates a FdNetDevice and associates it to a node. More...

void SetAttribute (std::string n1, const AttributeValue &v1)

- Public Member Functions inherited from ns3::PcapHelperForDevice
 PcapHelperForDevice ()
 Construct a PcapHelperForDevice. More...

virtual ~PcapHelperForDevice ()
 Destroy a PcapHelperForDevice. More...

void EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
 Enable pcap output the indicated net device. More...

void EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
 Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More...

void EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
 Enable pcap output on each device in the container which is of the appropriate type. More...

void EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
 Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
 Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void EnablePcapAll (std::string prefix, bool promiscuous=false)
 Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

- Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
 AsciiTraceHelperForDevice ()
 Construct an AsciiTraceHelperForDevice. More...

virtual ~AsciiTraceHelperForDevice ()
 Destroy an AsciiTraceHelperForDevice. More...

void EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
 Enable ascii trace output on the indicated net device. More...

void EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
 Enable ascii trace output on the indicated net device. More...

void EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
 Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
 Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void EnableAscii (std::string prefix, NetDeviceContainer d)
 Enable ascii trace output on each device in the container which is of the appropriate type. More...

void EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
 Enable ascii trace output on each device in the container which is of the appropriate type. More...

void EnableAscii (std::string prefix, NodeContainer n)
 Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
 Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
 Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
 Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void EnableAsciiAll (std::string prefix)
 Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

void EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
 Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...


Protected Member Functions

virtual int CreateFileDescriptor (void) const
 Call out to a separate process running as suid root in order to create a TAP device and obtain the file descriptor associated to it. More...

Ptr< NetDeviceInstallPriv (Ptr< Node > node) const

virtual void SetFileDescriptor (Ptr< FdNetDevice > device) const
 Sets a file descriptor on the FileDescriptorNetDevice. More...


Protected Attributes

bool m_modePi

Ipv4Address m_tapIp4

Ipv6Address m_tapIp6

Mac48Address m_tapMac

Ipv4Mask m_tapMask4

int m_tapPrefix6

- Protected Attributes inherited from ns3::EmuFdNetDeviceHelper
std::string m_deviceName


Detailed Description

build a set of FdNetDevice objects attached to a virtua TAP network interface

Definition at line 41 of file tap-fd-net-device-helper.h.

Constructor & Destructor Documentation

ns3::TapFdNetDeviceHelper::TapFdNetDeviceHelper ( )

Construct a TapFdNetDeviceHelper.

Definition at line 63 of file tap-fd-net-device-helper.cc.

References ns3::Mac48Address::Allocate(), ns3::EmuFdNetDeviceHelper::m_deviceName, m_modePi, m_tapIp4, m_tapIp6, m_tapMac, m_tapMask4, and m_tapPrefix6.

+ Here is the call graph for this function:

virtual ns3::TapFdNetDeviceHelper::~TapFdNetDeviceHelper ( )
inlinevirtual

Definition at line 48 of file tap-fd-net-device-helper.h.

Member Function Documentation

int ns3::TapFdNetDeviceHelper::CreateFileDescriptor ( void  ) const
protectedvirtual

Call out to a separate process running as suid root in order to create a TAP device and obtain the file descriptor associated to it.

Reimplemented from ns3::EmuFdNetDeviceHelper.

Definition at line 146 of file tap-fd-net-device-helper.cc.

References ns3::BufferToString(), ns3::EmuFdNetDeviceHelper::m_deviceName, m_modePi, m_tapIp4, m_tapIp6, m_tapMac, m_tapMask4, m_tapPrefix6, NS_ABORT_MSG_IF, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, and TAP_MAGIC.

Referenced by SetFileDescriptor().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< NetDevice > ns3::TapFdNetDeviceHelper::InstallPriv ( Ptr< Node node) const
protectedvirtual
void ns3::TapFdNetDeviceHelper::SetFileDescriptor ( Ptr< FdNetDevice device) const
protectedvirtual

Sets a file descriptor on the FileDescriptorNetDevice.

Reimplemented from ns3::EmuFdNetDeviceHelper.

Definition at line 133 of file tap-fd-net-device-helper.cc.

References CreateFileDescriptor(), and NS_LOG_LOGIC.

Referenced by InstallPriv().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetModePi ( bool  pi)

Set flag IFF_NO_PI on the device.

Parameters
piSet the IFF_NO_PI flag if pi is false.

Definition at line 75 of file tap-fd-net-device-helper.cc.

References m_modePi.

Referenced by main().

+ Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetTapIpv4Address ( Ipv4Address  address)

Set the device IPv4 address.

Parameters
addressThe IPv4 address for the TAP device.

Definition at line 81 of file tap-fd-net-device-helper.cc.

References first::address, and m_tapIp4.

Referenced by main().

+ Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetTapIpv4Mask ( Ipv4Mask  mask)

Set the IPv4 network mask for the TAP device.

Parameters
maskThe IPv4 network mask for the TAP device.

Definition at line 87 of file tap-fd-net-device-helper.cc.

References m_tapMask4.

Referenced by main().

+ Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetTapIpv6Address ( Ipv6Address  address)

Set the device IPv6 address.

Parameters
addressThe IPv6 address for the TAP device.

Definition at line 93 of file tap-fd-net-device-helper.cc.

References first::address, and m_tapIp6.

Referenced by main().

+ Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetTapIpv6Prefix ( int  prefix)

Set the IPv6 network mask for the TAP device.

Parameters
prefixThe IPv6 network prefix for the TAP device.

Definition at line 99 of file tap-fd-net-device-helper.cc.

References m_tapPrefix6.

Referenced by main().

+ Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetTapMacAddress ( Mac48Address  mac)

Set the MAC address for the TAP device.

Parameters
macThe MAC address the TAP device.

Definition at line 105 of file tap-fd-net-device-helper.cc.

References m_tapMac.

Member Data Documentation

bool ns3::TapFdNetDeviceHelper::m_modePi
protected
Internal:

The TAP device flag IFF_NO_PI.

Definition at line 116 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), InstallPriv(), SetModePi(), and TapFdNetDeviceHelper().

Ipv4Address ns3::TapFdNetDeviceHelper::m_tapIp4
protected
Internal:

The IPv4 address for the TAP device.

Definition at line 123 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), SetTapIpv4Address(), and TapFdNetDeviceHelper().

Ipv6Address ns3::TapFdNetDeviceHelper::m_tapIp6
protected
Internal:

The IPv6 address for the TAP device.

Definition at line 130 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), SetTapIpv6Address(), and TapFdNetDeviceHelper().

Mac48Address ns3::TapFdNetDeviceHelper::m_tapMac
protected
Internal:

The TAP device MAC address.

Definition at line 153 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), SetTapMacAddress(), and TapFdNetDeviceHelper().

Ipv4Mask ns3::TapFdNetDeviceHelper::m_tapMask4
protected
Internal:

The network mask IPv4 for the TAP device.

Definition at line 138 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), SetTapIpv4Mask(), and TapFdNetDeviceHelper().

int ns3::TapFdNetDeviceHelper::m_tapPrefix6
protected
Internal:

The network prefix IPv6 for the TAP device.

Definition at line 145 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), SetTapIpv6Prefix(), and TapFdNetDeviceHelper().


The documentation for this class was generated from the following files:
