ns3::TdBetFfMacScheduler Class Reference
FF MAC Schedulers

Implements the SCHED SAP and CSCHED SAP for a Time Domain Blind Equal Throughput scheduler. More...

#include <tdbet-ff-mac-scheduler.h>

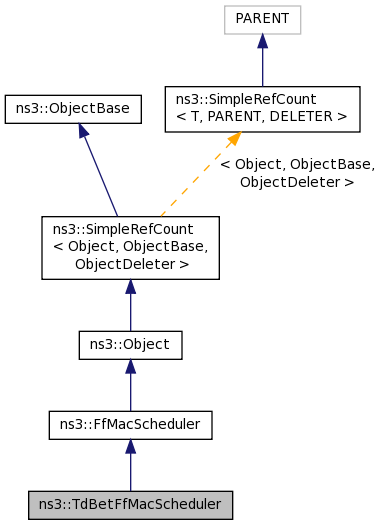

+ Inheritance diagram for ns3::TdBetFfMacScheduler:

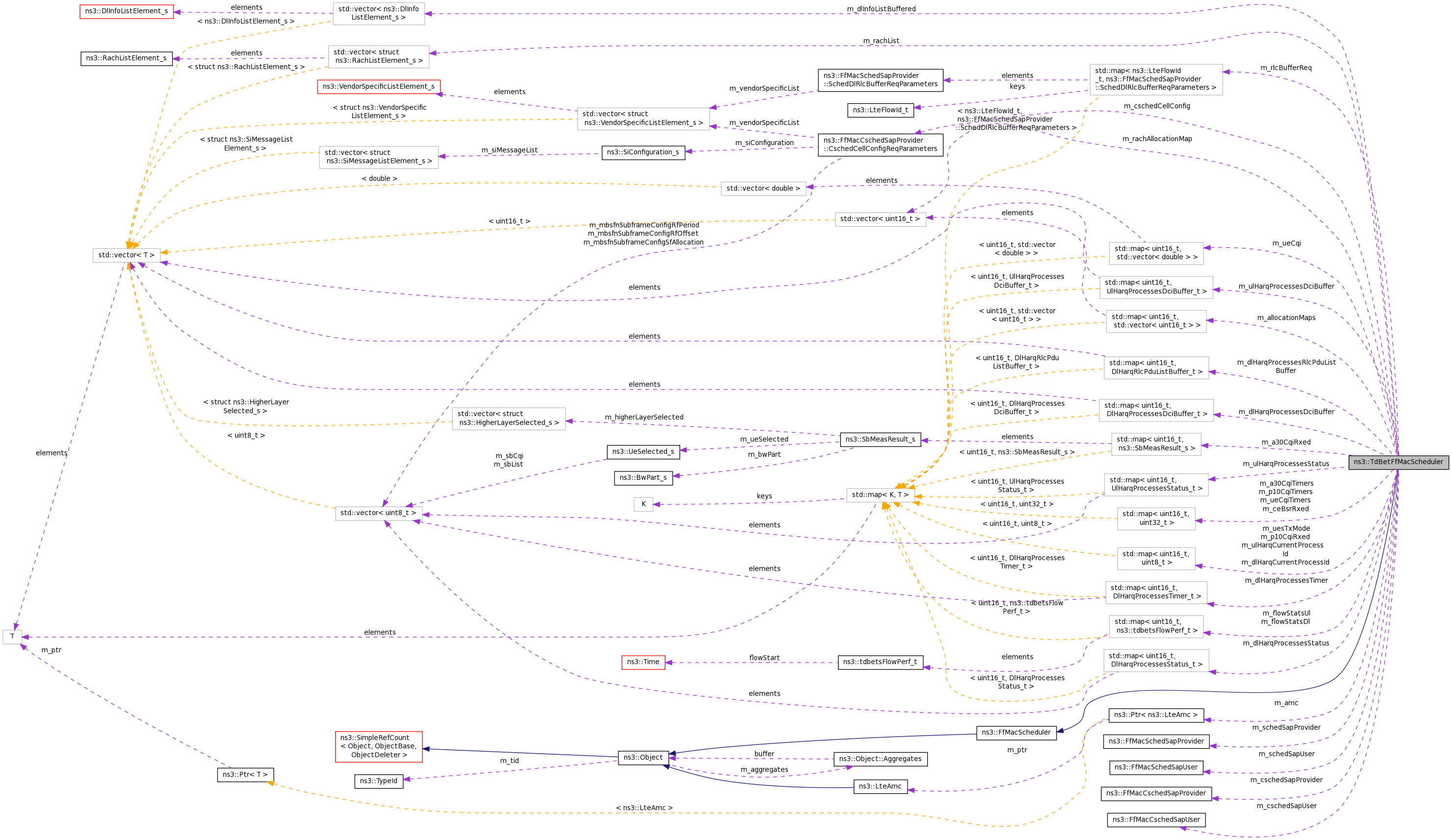

+ Collaboration diagram for ns3::TdBetFfMacScheduler:

Public Member Functions

 TdBetFfMacScheduler ()
 Constructor. More...

virtual ~TdBetFfMacScheduler ()
 Destructor. More...

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual FfMacCschedSapProvider * GetFfMacCschedSapProvider ()

virtual FfMacSchedSapProvider * GetFfMacSchedSapProvider ()

virtual void SetFfMacCschedSapUser (FfMacCschedSapUser *s)
 set the user part of the FfMacCschedSap that this Scheduler will interact with. More...

virtual void SetFfMacSchedSapUser (FfMacSchedSapUser *s)
 set the user part of the FfMacSchedSap that this Scheduler will interact with. More...

void TransmissionModeConfigurationUpdate (uint16_t rnti, uint8_t txMode)

- Public Member Functions inherited from ns3::FfMacScheduler
 FfMacScheduler ()
 constructor More...

virtual ~FfMacScheduler ()
 destructor More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::FfMacScheduler
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void DoCschedCellConfigReq (const struct FfMacCschedSapProvider::CschedCellConfigReqParameters &params)

void DoCschedLcConfigReq (const struct FfMacCschedSapProvider::CschedLcConfigReqParameters &params)

void DoCschedLcReleaseReq (const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters &params)

void DoCschedUeConfigReq (const struct FfMacCschedSapProvider::CschedUeConfigReqParameters &params)

void DoCschedUeReleaseReq (const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters &params)

void DoSchedDlCqiInfoReq (const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params)

void DoSchedDlMacBufferReq (const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters &params)

void DoSchedDlPagingBufferReq (const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters &params)

void DoSchedDlRachInfoReq (const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters &params)

void DoSchedDlRlcBufferReq (const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters &params)

void DoSchedDlTriggerReq (const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters &params)

void DoSchedUlCqiInfoReq (const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params)

void DoSchedUlMacCtrlInfoReq (const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters &params)

void DoSchedUlNoiseInterferenceReq (const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters &params)

void DoSchedUlSrInfoReq (const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters &params)

void DoSchedUlTriggerReq (const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters &params)

double EstimateUlSinr (uint16_t rnti, uint16_t rb)

int GetRbgSize (int dlbandwidth)

uint8_t HarqProcessAvailability (uint16_t rnti)
 Return the availability of free process for the RNTI specified. More...

int LcActivePerFlow (uint16_t rnti)

void RefreshDlCqiMaps (void)

void RefreshHarqProcesses ()
 Refresh HARQ processes according to the timers. More...

void RefreshUlCqiMaps (void)

void UpdateDlRlcBufferInfo (uint16_t rnti, uint8_t lcid, uint16_t size)

uint8_t UpdateHarqProcessId (uint16_t rnti)
 Update and return a new process Id for the RNTI specified. More...

void UpdateUlRlcBufferInfo (uint16_t rnti, uint16_t size)


Private Attributes

std::map< uint16_t,
SbMeasResult_s > 		m_a30CqiRxed

std::map< uint16_t, uint32_t > m_a30CqiTimers

std::map< uint16_t,
std::vector< uint16_t > > 		m_allocationMaps

Ptr< LteAmc > m_amc

std::map< uint16_t, uint32_t > m_ceBsrRxed

uint32_t m_cqiTimersThreshold

FfMacCschedSapProvider::CschedCellConfigReqParameters m_cschedCellConfig

FfMacCschedSapProvider * m_cschedSapProvider

FfMacCschedSapUser * m_cschedSapUser

std::map< uint16_t, uint8_t > m_dlHarqCurrentProcessId

std::map< uint16_t,
DlHarqProcessesDciBuffer_t > 		m_dlHarqProcessesDciBuffer

std::map< uint16_t,
DlHarqRlcPduListBuffer_t > 		m_dlHarqProcessesRlcPduListBuffer

std::map< uint16_t,
DlHarqProcessesStatus_t > 		m_dlHarqProcessesStatus

std::map< uint16_t,
DlHarqProcessesTimer_t > 		m_dlHarqProcessesTimer

std::vector< DlInfoListElement_s > m_dlInfoListBuffered

std::map< uint16_t,
tdbetsFlowPerf_t > 		m_flowStatsDl

std::map< uint16_t,
tdbetsFlowPerf_t > 		m_flowStatsUl

bool m_harqOn
 m_harqOn when false inhibit te HARQ mechanisms (by default active) More...

uint16_t m_nextRntiUl

std::map< uint16_t, uint8_t > m_p10CqiRxed

std::map< uint16_t, uint32_t > m_p10CqiTimers

std::vector< uint16_t > m_rachAllocationMap

std::vector< struct
RachListElement_s > 		m_rachList

std::map< LteFlowId_t,
FfMacSchedSapProvider::SchedDlRlcBufferReqParameters > 		m_rlcBufferReq

FfMacSchedSapProvider * m_schedSapProvider

FfMacSchedSapUser * m_schedSapUser

double m_timeWindow

std::map< uint16_t,
std::vector< double > > 		m_ueCqi

std::map< uint16_t, uint32_t > m_ueCqiTimers

std::map< uint16_t, uint8_t > m_uesTxMode

uint8_t m_ulGrantMcs

std::map< uint16_t, uint8_t > m_ulHarqCurrentProcessId

std::map< uint16_t,
UlHarqProcessesDciBuffer_t > 		m_ulHarqProcessesDciBuffer

std::map< uint16_t,
UlHarqProcessesStatus_t > 		m_ulHarqProcessesStatus


Friends

class TdBetSchedulerMemberCschedSapProvider

class TdBetSchedulerMemberSchedSapProvider


Additional Inherited Members

- Public Types inherited from ns3::FfMacScheduler
enum  UlCqiFilter_t { SRS_UL_CQI, PUSCH_UL_CQI, ALL_UL_CQI }
 The type of UL CQI to be filtered (ALL means accept all the CQI, where a new CQI of any type overwrite the old one, even of another type) More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...

- Protected Attributes inherited from ns3::FfMacScheduler
UlCqiFilter_t m_ulCqiFilter


Detailed Description

Implements the SCHED SAP and CSCHED SAP for a Time Domain Blind Equal Throughput scheduler.

This class implements the interface defined by the FfMacScheduler abstract class

Config Paths

ns3::TdBetFfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/FfMacScheduler/$ns3::TdBetFfMacScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/FfMacScheduler/$ns3::TdBetFfMacScheduler

Attributes

  • CqiTimerThreshold: The number of TTIs a CQI is valid (default 1000 - 1 sec.)
  • HarqEnabled: Activate/Deactivate the HARQ [by default is active].
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • UlGrantMcs: The MCS of the UL grant, must be [0..15] (default 0)

Attributes defined in parent class ns3::FfMacScheduler

  • UlCqiFilter: The filter to apply on UL CQIs received
    • Set with class: ns3::EnumValue
    • Underlying type:
    • Initial value: ALL_UL_CQI
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 72 of file tdbet-ff-mac-scheduler.h.

Constructor & Destructor Documentation

ns3::TdBetFfMacScheduler::TdBetFfMacScheduler ( )

Constructor.

Creates the MAC Scheduler interface implementation

Definition at line 216 of file tdbet-ff-mac-scheduler.cc.

References m_amc, m_cschedSapProvider, m_schedSapProvider, TdBetSchedulerMemberCschedSapProvider, and TdBetSchedulerMemberSchedSapProvider.

ns3::TdBetFfMacScheduler::~TdBetFfMacScheduler ( )
virtual

Destructor.

Definition at line 227 of file tdbet-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::TdBetFfMacScheduler::DoCschedCellConfigReq ( const struct FfMacCschedSapProvider::CschedCellConfigReqParameters &  params)
private

Definition at line 299 of file tdbet-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigCnf(), m_cschedCellConfig, m_cschedSapUser, m_rachAllocationMap, ns3::FfMacCschedSapUser::CschedUeConfigCnfParameters::m_result, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, NS_LOG_FUNCTION, and ns3::SUCCESS.

Referenced by ns3::TdBetSchedulerMemberCschedSapProvider::CschedCellConfigReq().

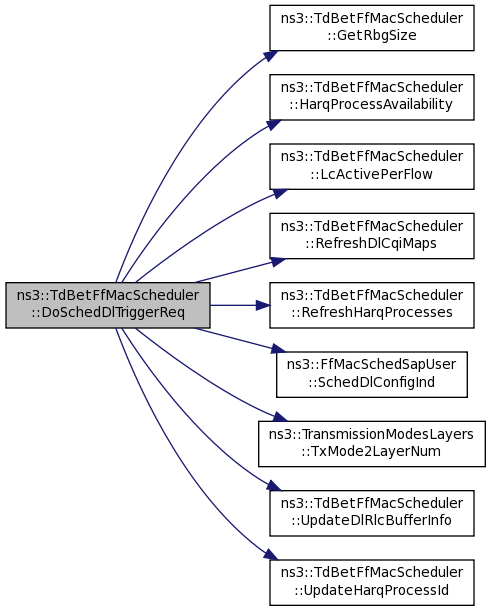

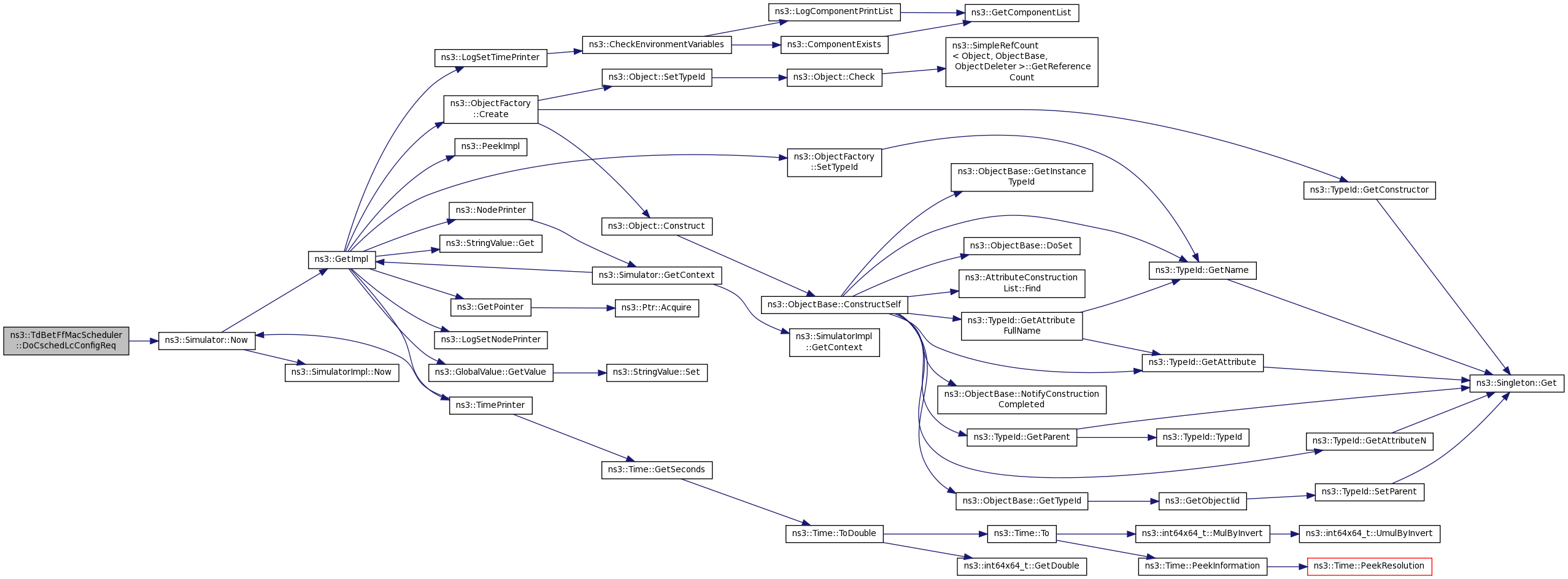

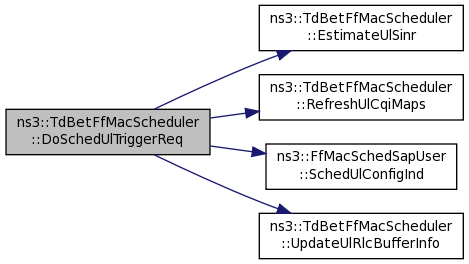

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoCschedLcConfigReq ( const struct FfMacCschedSapProvider::CschedLcConfigReqParameters &  params)
private

Definition at line 351 of file tdbet-ff-mac-scheduler.cc.

References ns3::tdbetsFlowPerf_t::flowStart, ns3::tdbetsFlowPerf_t::lastAveragedThroughput, ns3::tdbetsFlowPerf_t::lastTtiBytesTrasmitted, m_flowStatsDl, m_flowStatsUl, ns3::FfMacCschedSapProvider::CschedLcConfigReqParameters::m_logicalChannelConfigList, ns3::FfMacCschedSapProvider::CschedLcConfigReqParameters::m_rnti, ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::tdbetsFlowPerf_t::totalBytesTransmitted.

Referenced by ns3::TdBetSchedulerMemberCschedSapProvider::CschedLcConfigReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoCschedLcReleaseReq ( const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters &  params)
private

Definition at line 381 of file tdbet-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapProvider::CschedLcReleaseReqParameters::m_logicalChannelIdentity, m_rlcBufferReq, ns3::FfMacCschedSapProvider::CschedLcReleaseReqParameters::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::TdBetSchedulerMemberCschedSapProvider::CschedLcReleaseReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoCschedUeConfigReq ( const struct FfMacCschedSapProvider::CschedUeConfigReqParameters &  params)
private

Definition at line 312 of file tdbet-ff-mac-scheduler.cc.

References m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_rnti, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_transmissionMode, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

Referenced by ns3::TdBetSchedulerMemberCschedSapProvider::CschedUeConfigReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoCschedUeReleaseReq ( const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters &  params)
private

Definition at line 406 of file tdbet-ff-mac-scheduler.cc.

References m_ceBsrRxed, m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_flowStatsDl, m_flowStatsUl, m_nextRntiUl, m_rlcBufferReq, ns3::FfMacCschedSapProvider::CschedUeReleaseReqParameters::m_rnti, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

Referenced by ns3::TdBetSchedulerMemberCschedSapProvider::CschedUeReleaseReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::FfMacScheduler.

Definition at line 233 of file tdbet-ff-mac-scheduler.cc.

References m_cschedSapProvider, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesTimer, m_dlInfoListBuffered, m_schedSapProvider, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

void ns3::TdBetFfMacScheduler::DoSchedDlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &  params)
private

Definition at line 1237 of file tdbet-ff-mac-scheduler.cc.

References ns3::CqiListElement_s::A30, m_a30CqiRxed, m_a30CqiTimers, ns3::FfMacSchedSapProvider::SchedDlCqiInfoReqParameters::m_cqiList, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_LOG_ERROR, NS_LOG_FUNCTION, and ns3::CqiListElement_s::P10.

Referenced by ns3::TdBetSchedulerMemberSchedSapProvider::SchedDlCqiInfoReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoSchedDlMacBufferReq ( const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters &  params)
private

Definition at line 479 of file tdbet-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::TdBetSchedulerMemberSchedSapProvider::SchedDlMacBufferReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoSchedDlPagingBufferReq ( const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters &  params)
private

Definition at line 471 of file tdbet-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::TdBetSchedulerMemberSchedSapProvider::SchedDlPagingBufferReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoSchedDlRachInfoReq ( const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters &  params)
private

Definition at line 1227 of file tdbet-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRachInfoReqParameters::m_rachList, m_rachList, and NS_LOG_FUNCTION.

Referenced by ns3::TdBetSchedulerMemberSchedSapProvider::SchedDlRachInfoReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoSchedDlRlcBufferReq ( const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters &  params)
private

Definition at line 447 of file tdbet-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_logicalChannelIdentity, m_rlcBufferReq, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::TdBetSchedulerMemberSchedSapProvider::SchedDlRlcBufferReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoSchedDlTriggerReq ( const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters &  params)
private
Todo:
check correct value according the DCIs txed

Definition at line 632 of file tdbet-ff-mac-scheduler.cc.

References GetRbgSize(), HARQ_PROC_NUM, HarqProcessAvailability(), LcActivePerFlow(), ns3::UlDciListElement_s::m_aggrLevel, m_amc, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildDataList, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildRarList, ns3::UlDciListElement_s::m_cceIndex, ns3::UlDciListElement_s::m_cqiRequest, m_cschedCellConfig, ns3::UlDciListElement_s::m_dai, ns3::BuildDataListElement_s::m_dci, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_dlBandwidth, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, ns3::FfMacSchedSapProvider::SchedDlTriggerReqParameters::m_dlInfoList, m_dlInfoListBuffered, m_flowStatsDl, ns3::UlDciListElement_s::m_freqHopping, m_harqOn, ns3::DlDciListElement_s::m_harqProcess, ns3::UlDciListElement_s::m_hopping, ns3::RlcPduListElement_s::m_logicalChannelIdentity, ns3::DlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_n2Dmrs, ns3::DlDciListElement_s::m_ndi, ns3::UlDciListElement_s::m_ndi, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_nrOfPdcchOfdmSymbols, m_p10CqiRxed, ns3::UlDciListElement_s::m_pdcchPowerOffset, m_rachAllocationMap, m_rachList, ns3::DlDciListElement_s::m_rbBitmap, ns3::UlDciListElement_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::DlDciListElement_s::m_resAlloc, m_rlcBufferReq, ns3::BuildDataListElement_s::m_rlcPduList, ns3::DlDciListElement_s::m_rnti, ns3::UlDciListElement_s::m_rnti, ns3::BuildDataListElement_s::m_rnti, ns3::BuildRarListElement_s::m_rnti, ns3::DlDciListElement_s::m_rv, m_schedSapUser, ns3::FfMacSchedSapProvider::SchedDlTriggerReqParameters::m_sfnSf, ns3::RlcPduListElement_s::m_size, ns3::UlDciListElement_s::m_tbSize, ns3::DlDciListElement_s::m_tbsSize, m_timeWindow, ns3::UlDciListElement_s::m_tpc, m_uesTxMode, ns3::UlDciListElement_s::m_ueTxAntennaSelection, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, m_ulGrantMcs, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, ns3::UlDciListElement_s::m_ulIndex, ns3::DlInfoListElement_s::NACK, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, RefreshDlCqiMaps(), RefreshHarqProcesses(), ns3::FfMacSchedSapUser::SchedDlConfigInd(), ns3::TransmissionModesLayers::TxMode2LayerNum(), UpdateDlRlcBufferInfo(), and UpdateHarqProcessId().

Referenced by ns3::TdBetSchedulerMemberSchedSapProvider::SchedDlTriggerReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoSchedUlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &  params)
private

Definition at line 1763 of file tdbet-ff-mac-scheduler.cc.

References ns3::FfMacScheduler::ALL_UL_CQI, ns3::LteFfConverter::fpS11dot3toDouble(), m_allocationMaps, m_cqiTimersThreshold, m_cschedCellConfig, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_sfnSf, ns3::UlCqi_s::m_sinr, ns3::UlCqi_s::m_type, m_ueCqi, m_ueCqiTimers, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi, ns3::FfMacScheduler::m_ulCqiFilter, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_vendorSpecificList, NO_SINR, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::UlCqi_s::PRACH, ns3::UlCqi_s::PUCCH_1, ns3::UlCqi_s::PUCCH_2, ns3::UlCqi_s::PUSCH, ns3::FfMacScheduler::PUSCH_UL_CQI, ns3::UlCqi_s::SRS, SRS_CQI_RNTI_VSP, and ns3::FfMacScheduler::SRS_UL_CQI.

Referenced by ns3::TdBetSchedulerMemberSchedSapProvider::SchedUlCqiInfoReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoSchedUlMacCtrlInfoReq ( const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters &  params)
private

Definition at line 1719 of file tdbet-ff-mac-scheduler.cc.

References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BsrId2BufferSize(), m_ceBsrRxed, ns3::FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters::m_macCeList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::TdBetSchedulerMemberSchedSapProvider::SchedUlMacCtrlInfoReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoSchedUlNoiseInterferenceReq ( const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters &  params)
private

Definition at line 1705 of file tdbet-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::TdBetSchedulerMemberSchedSapProvider::SchedUlNoiseInterferenceReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoSchedUlSrInfoReq ( const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters &  params)
private

Definition at line 1712 of file tdbet-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::TdBetSchedulerMemberSchedSapProvider::SchedUlSrInfoReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::DoSchedUlTriggerReq ( const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters &  params)
private

Definition at line 1329 of file tdbet-ff-mac-scheduler.cc.

References EstimateUlSinr(), HARQ_PERIOD, HARQ_PROC_NUM, ns3::UlDciListElement_s::m_aggrLevel, m_allocationMaps, m_amc, ns3::UlDciListElement_s::m_cceIndex, m_ceBsrRxed, ns3::UlDciListElement_s::m_cqiRequest, m_cschedCellConfig, ns3::UlDciListElement_s::m_dai, ns3::FfMacSchedSapUser::SchedUlConfigIndParameters::m_dciList, m_flowStatsUl, ns3::UlDciListElement_s::m_freqHopping, m_harqOn, ns3::UlDciListElement_s::m_hopping, ns3::UlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_n2Dmrs, ns3::UlDciListElement_s::m_ndi, m_nextRntiUl, ns3::UlDciListElement_s::m_pdcchPowerOffset, m_rachAllocationMap, ns3::UlDciListElement_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::UlDciListElement_s::m_rnti, m_schedSapUser, ns3::FfMacSchedSapProvider::SchedUlTriggerReqParameters::m_sfnSf, ns3::UlDciListElement_s::m_tbSize, m_timeWindow, ns3::UlDciListElement_s::m_tpc, m_ueCqi, ns3::UlDciListElement_s::m_ueTxAntennaSelection, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, ns3::UlDciListElement_s::m_ulIndex, ns3::FfMacSchedSapProvider::SchedUlTriggerReqParameters::m_ulInfoList, NO_SINR, ns3::UlInfoListElement_s::NotOk, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, RefreshUlCqiMaps(), s, ns3::FfMacSchedSapUser::SchedUlConfigInd(), and UpdateUlRlcBufferInfo().

Referenced by ns3::TdBetSchedulerMemberSchedSapProvider::SchedUlTriggerReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::TdBetFfMacScheduler::EstimateUlSinr ( uint16_t  rnti,
uint16_t  rb
)
private

Definition at line 1298 of file tdbet-ff-mac-scheduler.cc.

References m_cschedCellConfig, m_ueCqi, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, and NO_SINR.

Referenced by DoSchedUlTriggerReq().

+ Here is the caller graph for this function:

FfMacCschedSapProvider * ns3::TdBetFfMacScheduler::GetFfMacCschedSapProvider ( )
virtual
Returns
the Provider part of the FfMacCschedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 287 of file tdbet-ff-mac-scheduler.cc.

References m_cschedSapProvider.

FfMacSchedSapProvider * ns3::TdBetFfMacScheduler::GetFfMacSchedSapProvider ( )
virtual
Returns
the Provider part of the FfMacSchedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 293 of file tdbet-ff-mac-scheduler.cc.

References m_schedSapProvider.

int ns3::TdBetFfMacScheduler::GetRbgSize ( int  dlbandwidth)
private

Definition at line 487 of file tdbet-ff-mac-scheduler.cc.

References ns3::TdBetType0AllocationRbg.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

TypeId ns3::TdBetFfMacScheduler::GetTypeId ( void  )
static

Definition at line 248 of file tdbet-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_harqOn, m_ulGrantMcs, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

uint8_t ns3::TdBetFfMacScheduler::HarqProcessAvailability ( uint16_t  rnti)
private

Return the availability of free process for the RNTI specified.

Parameters
rntithe RNTI of the UE to be updated
Returns
the process id value

Definition at line 525 of file tdbet-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

int ns3::TdBetFfMacScheduler::LcActivePerFlow ( uint16_t  rnti)
private

Definition at line 502 of file tdbet-ff-mac-scheduler.cc.

References m_rlcBufferReq.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::RefreshDlCqiMaps ( void  )
private

Definition at line 1911 of file tdbet-ff-mac-scheduler.cc.

References m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::RefreshHarqProcesses ( )
private

Refresh HARQ processes according to the timers.

Definition at line 599 of file tdbet-ff-mac-scheduler.cc.

References HARQ_DL_TIMEOUT, HARQ_PROC_NUM, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::RefreshUlCqiMaps ( void  )
private

Definition at line 1964 of file tdbet-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_ueCqi, m_ueCqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::SetFfMacCschedSapUser ( FfMacCschedSapUser *  s)
virtual

set the user part of the FfMacCschedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters
s

Implements ns3::FfMacScheduler.

Definition at line 275 of file tdbet-ff-mac-scheduler.cc.

References m_cschedSapUser, and s.

void ns3::TdBetFfMacScheduler::SetFfMacSchedSapUser ( FfMacSchedSapUser *  s)
virtual

set the user part of the FfMacSchedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters
s

Implements ns3::FfMacScheduler.

Definition at line 281 of file tdbet-ff-mac-scheduler.cc.

References m_schedSapUser, and s.

void ns3::TdBetFfMacScheduler::TransmissionModeConfigurationUpdate ( uint16_t  rnti,
uint8_t  txMode
)

Definition at line 2071 of file tdbet-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigUpdateInd(), m_cschedSapUser, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_rnti, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_transmissionMode, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::TdBetFfMacScheduler::UpdateDlRlcBufferInfo ( uint16_t  rnti,
uint8_t  lcid,
uint16_t  size
)
private

Definition at line 1994 of file tdbet-ff-mac-scheduler.cc.

References m_rlcBufferReq, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

uint8_t ns3::TdBetFfMacScheduler::UpdateHarqProcessId ( uint16_t  rnti)
private

Update and return a new process Id for the RNTI specified.

Parameters
rntithe RNTI of the UE to be updated
Returns
the process id value

Definition at line 558 of file tdbet-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, m_harqOn, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::TdBetFfMacScheduler::UpdateUlRlcBufferInfo ( uint16_t  rnti,
uint16_t  size
)
private

Definition at line 2046 of file tdbet-ff-mac-scheduler.cc.

References m_ceBsrRxed, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

+ Here is the caller graph for this function:

Friends And Related Function Documentation

friend class TdBetSchedulerMemberCschedSapProvider
friend

Definition at line 97 of file tdbet-ff-mac-scheduler.h.

Referenced by TdBetFfMacScheduler().

friend class TdBetSchedulerMemberSchedSapProvider
friend

Definition at line 98 of file tdbet-ff-mac-scheduler.h.

Referenced by TdBetFfMacScheduler().

Member Data Documentation

std::map<uint16_t,SbMeasResult_s> ns3::TdBetFfMacScheduler::m_a30CqiRxed
private

Definition at line 211 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::map<uint16_t,uint32_t> ns3::TdBetFfMacScheduler::m_a30CqiTimers
private

Definition at line 215 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::map<uint16_t, std::vector <uint16_t> > ns3::TdBetFfMacScheduler::m_allocationMaps
private

Definition at line 221 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and DoSchedUlTriggerReq().

Ptr<LteAmc> ns3::TdBetFfMacScheduler::m_amc
private

Definition at line 180 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and TdBetFfMacScheduler().

std::map<uint16_t,uint32_t> ns3::TdBetFfMacScheduler::m_ceBsrRxed
private

Definition at line 235 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), DoSchedUlMacCtrlInfoReq(), DoSchedUlTriggerReq(), and UpdateUlRlcBufferInfo().

uint32_t ns3::TdBetFfMacScheduler::m_cqiTimersThreshold
private

Definition at line 252 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedUlCqiInfoReq(), GetTypeId(), RefreshDlCqiMaps(), and RefreshUlCqiMaps().

FfMacCschedSapProvider::CschedCellConfigReqParameters ns3::TdBetFfMacScheduler::m_cschedCellConfig
private

Definition at line 245 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), and EstimateUlSinr().

FfMacCschedSapProvider* ns3::TdBetFfMacScheduler::m_cschedSapProvider
private

Definition at line 240 of file tdbet-ff-mac-scheduler.h.

Referenced by DoDispose(), GetFfMacCschedSapProvider(), and TdBetFfMacScheduler().

FfMacCschedSapUser* ns3::TdBetFfMacScheduler::m_cschedSapUser
private

Definition at line 238 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), SetFfMacCschedSapUser(), and TransmissionModeConfigurationUpdate().

std::map<uint16_t, uint8_t> ns3::TdBetFfMacScheduler::m_dlHarqCurrentProcessId
private

Definition at line 261 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), HarqProcessAvailability(), and UpdateHarqProcessId().

std::map<uint16_t, DlHarqProcessesDciBuffer_t> ns3::TdBetFfMacScheduler::m_dlHarqProcessesDciBuffer
private

Definition at line 267 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

std::map<uint16_t, DlHarqRlcPduListBuffer_t> ns3::TdBetFfMacScheduler::m_dlHarqProcessesRlcPduListBuffer
private

Definition at line 268 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

std::map<uint16_t, DlHarqProcessesStatus_t> ns3::TdBetFfMacScheduler::m_dlHarqProcessesStatus
private

Definition at line 265 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoSchedDlTriggerReq(), HarqProcessAvailability(), RefreshHarqProcesses(), and UpdateHarqProcessId().

std::map<uint16_t, DlHarqProcessesTimer_t> ns3::TdBetFfMacScheduler::m_dlHarqProcessesTimer
private

Definition at line 266 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and RefreshHarqProcesses().

std::vector<DlInfoListElement_s> ns3::TdBetFfMacScheduler::m_dlInfoListBuffered
private

Definition at line 269 of file tdbet-ff-mac-scheduler.h.

Referenced by DoDispose(), and DoSchedDlTriggerReq().

std::map<uint16_t, tdbetsFlowPerf_t> ns3::TdBetFfMacScheduler::m_flowStatsDl
private

Definition at line 191 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

std::map<uint16_t, tdbetsFlowPerf_t> ns3::TdBetFfMacScheduler::m_flowStatsUl
private

Definition at line 196 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), DoCschedUeReleaseReq(), and DoSchedUlTriggerReq().

bool ns3::TdBetFfMacScheduler::m_harqOn
private

m_harqOn when false inhibit te HARQ mechanisms (by default active)

Definition at line 260 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), GetTypeId(), and UpdateHarqProcessId().

uint16_t ns3::TdBetFfMacScheduler::m_nextRntiUl
private

Definition at line 250 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), and DoSchedUlTriggerReq().

std::map<uint16_t,uint8_t> ns3::TdBetFfMacScheduler::m_p10CqiRxed
private

Definition at line 202 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

std::map<uint16_t,uint32_t> ns3::TdBetFfMacScheduler::m_p10CqiTimers
private

Definition at line 206 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::vector<uint16_t> ns3::TdBetFfMacScheduler::m_rachAllocationMap
private

Definition at line 281 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::vector<struct RachListElement_s> ns3::TdBetFfMacScheduler::m_rachList
private

Definition at line 280 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedDlRachInfoReq(), and DoSchedDlTriggerReq().

std::map<LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters> ns3::TdBetFfMacScheduler::m_rlcBufferReq
private

Definition at line 185 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedLcReleaseReq(), DoCschedUeReleaseReq(), DoSchedDlRlcBufferReq(), DoSchedDlTriggerReq(), LcActivePerFlow(), and UpdateDlRlcBufferInfo().

FfMacSchedSapProvider* ns3::TdBetFfMacScheduler::m_schedSapProvider
private

Definition at line 241 of file tdbet-ff-mac-scheduler.h.

Referenced by DoDispose(), GetFfMacSchedSapProvider(), and TdBetFfMacScheduler().

FfMacSchedSapUser* ns3::TdBetFfMacScheduler::m_schedSapUser
private

Definition at line 239 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetFfMacSchedSapUser().

double ns3::TdBetFfMacScheduler::m_timeWindow
private

Definition at line 248 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::map<uint16_t, std::vector <double> > ns3::TdBetFfMacScheduler::m_ueCqi
private

Definition at line 226 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), EstimateUlSinr(), and RefreshUlCqiMaps().

std::map<uint16_t, uint32_t> ns3::TdBetFfMacScheduler::m_ueCqiTimers
private

Definition at line 230 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and RefreshUlCqiMaps().

std::map<uint16_t,uint8_t> ns3::TdBetFfMacScheduler::m_uesTxMode
private

Definition at line 254 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

uint8_t ns3::TdBetFfMacScheduler::m_ulGrantMcs
private

Definition at line 282 of file tdbet-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and GetTypeId().

std::map<uint16_t, uint8_t> ns3::TdBetFfMacScheduler::m_ulHarqCurrentProcessId
private

Definition at line 271 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::map<uint16_t, UlHarqProcessesDciBuffer_t> ns3::TdBetFfMacScheduler::m_ulHarqProcessesDciBuffer
private

Definition at line 276 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::map<uint16_t, UlHarqProcessesStatus_t> ns3::TdBetFfMacScheduler::m_ulHarqProcessesStatus
private

Definition at line 275 of file tdbet-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedUlTriggerReq().

The documentation for this class was generated from the following files:
