ns3::Watchdog Class Reference

a very simple watchdog More...

#include <watchdog.h>

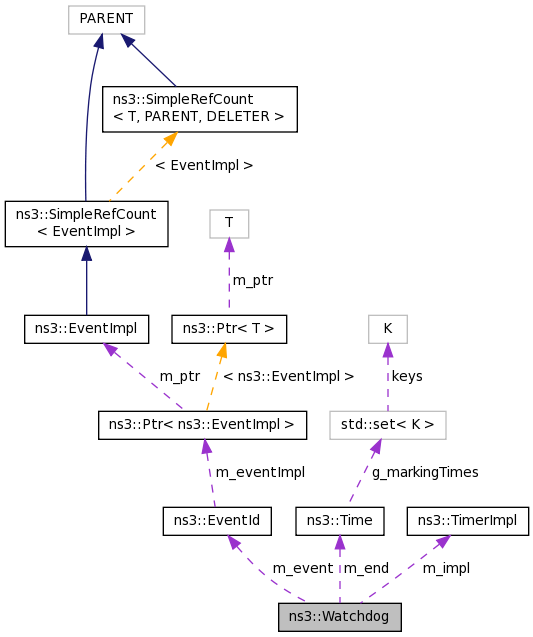

Collaboration diagram for ns3::Watchdog:

Public Member Functions
	Watchdog ()
	~Watchdog ()
void	Ping (Time delay)
template<typename T1 >
void	SetArguments (T1 a1)
template<typename T1 , typename T2 >
void	SetArguments (T1 a1, T2 a2)
template<typename T1 , typename T2 , typename T3 >
void	SetArguments (T1 a1, T2 a2, T3 a3)
template<typename T1 , typename T2 , typename T3 , typename T4 >
void	SetArguments (T1 a1, T2 a2, T3 a3, T4 a4)
template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
void	SetArguments (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
void	SetArguments (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)
template<typename FN >
void	SetFunction (FN fn)
template<typename MEM_PTR , typename OBJ_PTR >
void	SetFunction (MEM_PTR memPtr, OBJ_PTR objPtr)

Private Member Functions
void	Expire (void)

Private Attributes
Time	m_end
EventId	m_event
TimerImpl *	m_impl

Detailed Description

a very simple watchdog

If you don't ping the watchdog sufficiently often, it triggers its listening function.

Definition at line 37 of file watchdog.h.

Constructor & Destructor Documentation

ns3::Watchdog::Watchdog

(

)

Definition at line 27 of file watchdog.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::Watchdog::~Watchdog

(

)

Definition at line 35 of file watchdog.cc.

References m_impl, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::Watchdog::Expire ( void  )

private

Definition at line 55 of file watchdog.cc.

References ns3::TimerImpl::Invoke(), m_end, m_event, m_impl, ns3::Now(), ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by Ping().

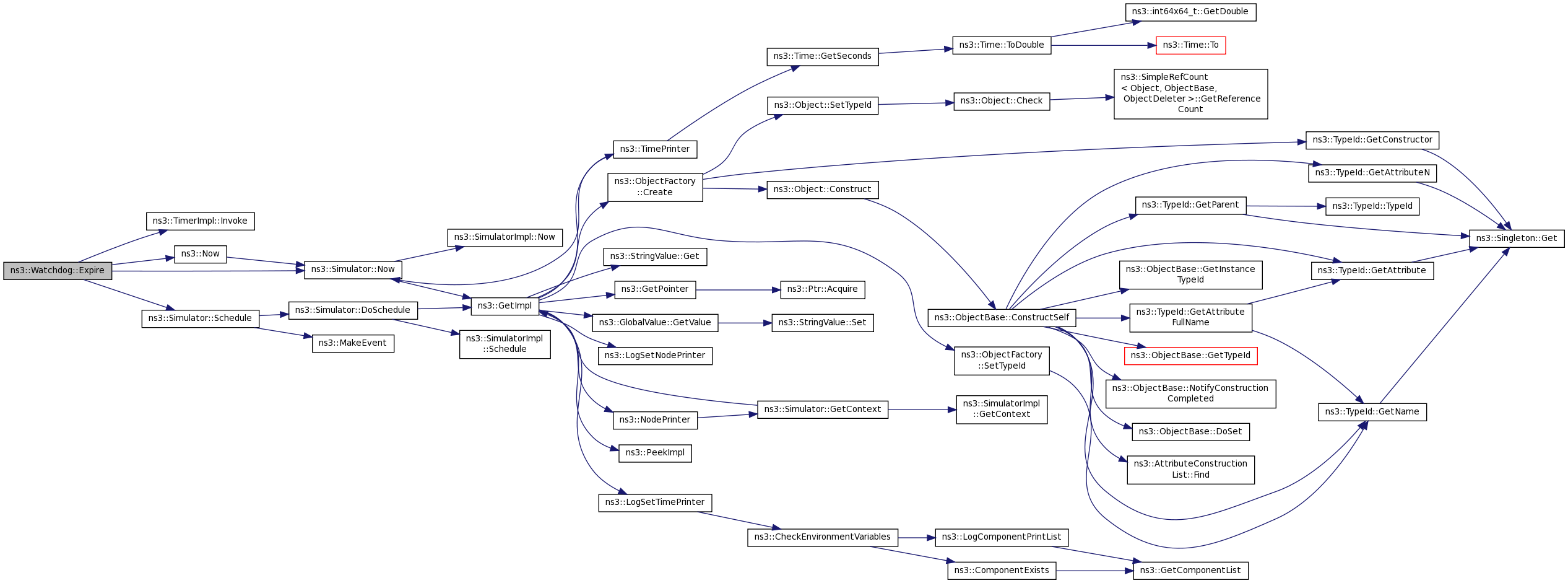

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Watchdog::Ping

(

Time

delay

)

Parameters

delay

the watchdog delay

After a call to this method, the watchdog will not be triggered until the delay specified has been expired. This operation is sometimes named "re-arming" a watchdog in some operating systems.

Definition at line 42 of file watchdog.cc.

References Expire(), ns3::EventId::IsRunning(), m_end, m_event, ns3::Now(), ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by WatchdogTestCase::DoRun().

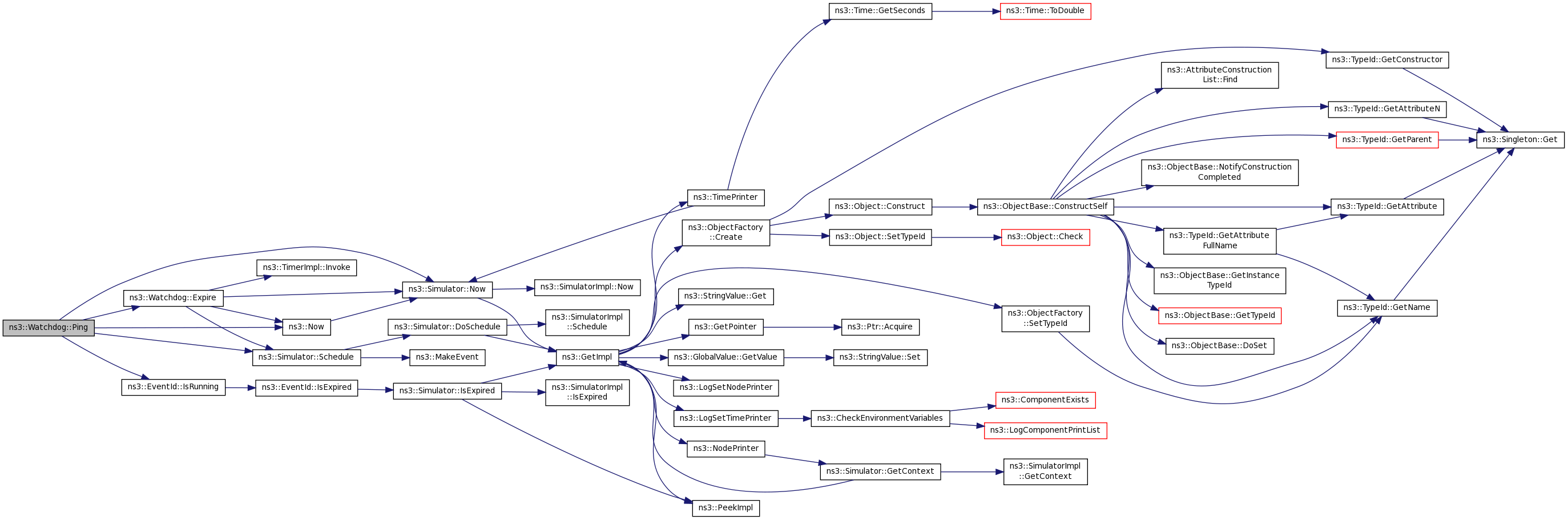

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename T1 >

void ns3::Watchdog::SetArguments

(

T1

a1

)

Parameters

a1	the first argument

Store this argument in this Timer for later use by Timer::Schedule.

Definition at line 159 of file watchdog.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Referenced by WatchdogTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename T1 , typename T2 >

void ns3::Watchdog::SetArguments	(	T1	a1,
		T2	a2
	)

Parameters

a1	the first argument
a2	the second argument

Store these arguments in this Timer for later use by Timer::Schedule.

Definition at line 170 of file watchdog.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Here is the call graph for this function:

template<typename T1 , typename T2 , typename T3 >

void ns3::Watchdog::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3
	)

Parameters

a1	the first argument
a2	the second argument
a3	the third argument

Store these arguments in this Timer for later use by Timer::Schedule.

Definition at line 182 of file watchdog.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Here is the call graph for this function:

template<typename T1 , typename T2 , typename T3 , typename T4 >

void ns3::Watchdog::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

Parameters

a1	the first argument
a2	the second argument
a3	the third argument
a4	the fourth argument

Store these arguments in this Timer for later use by Timer::Schedule.

Definition at line 194 of file watchdog.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Here is the call graph for this function:

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

void ns3::Watchdog::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

Parameters

a1	the first argument
a2	the second argument
a3	the third argument
a4	the fourth argument
a5	the fifth argument

Store these arguments in this Timer for later use by Timer::Schedule.

Definition at line 206 of file watchdog.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Here is the call graph for this function:

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

void ns3::Watchdog::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)

Parameters

a1	the first argument
a2	the second argument
a3	the third argument
a4	the fourth argument
a5	the fifth argument
a6	the sixth argument

Store these arguments in this Timer for later use by Timer::Schedule.

Definition at line 218 of file watchdog.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Here is the call graph for this function:

template<typename FN >

void ns3::Watchdog::SetFunction

(

FN

fn

)

Parameters

fn	the function

Store this function in this Timer for later use by Timer::Schedule.

Definition at line 144 of file watchdog.h.

References m_impl, and ns3::MakeTimerImpl().

Referenced by WatchdogTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename MEM_PTR , typename OBJ_PTR >

void ns3::Watchdog::SetFunction	(	MEM_PTR	memPtr,
		OBJ_PTR	objPtr
	)

Parameters

memPtr	the member function pointer
objPtr	the pointer to object

Store this function and object in this Timer for later use by Timer::Schedule.

Definition at line 151 of file watchdog.h.

References m_impl, and ns3::MakeTimerImpl().

Here is the call graph for this function:

Member Data Documentation

Time ns3::Watchdog::m_end

private

Definition at line 132 of file watchdog.h.

Referenced by Expire(), and Ping().

EventId ns3::Watchdog::m_event

private

Definition at line 131 of file watchdog.h.

Referenced by Expire(), and Ping().

TimerImpl* ns3::Watchdog::m_impl

private

Definition at line 130 of file watchdog.h.

Referenced by Expire(), SetArguments(), SetFunction(), and ~Watchdog().

---

The documentation for this class was generated from the following files:

• src/core/model/watchdog.h
• src/core/model/watchdog.cc
