Public Member Functions | List of all members
ns3::WifiPhyHelper Class Referenceabstract

create PHY objects More...

#include <wifi-helper.h>

+ Inheritance diagram for ns3::WifiPhyHelper:

Public Member Functions

virtual ~WifiPhyHelper ()

virtual Ptr< WifiPhy > Create (Ptr< Node > node, Ptr< WifiNetDevice > device) const =0


Detailed Description

create PHY objects

This base class must be implemented by new PHY implementation which wish to integrate with the ns3::WifiHelper class.

Definition at line 46 of file wifi-helper.h.

Constructor & Destructor Documentation

ns3::WifiPhyHelper::~WifiPhyHelper ( )
virtual

Definition at line 47 of file wifi-helper.cc.

Member Function Documentation

virtual Ptr<WifiPhy> ns3::WifiPhyHelper::Create ( Ptr< Node >  node,
Ptr< WifiNetDevice >  device
) const
pure virtual
Parameters
nodethe node on which the PHY object will reside
devicethe device within which the PHY object will reside
Returns
a new PHY object.

Subclasses must implement this method to allow the ns3::WifiHelper class to create PHY objects from ns3::WifiHelper::Install.

Implemented in ns3::YansWifiPhyHelper.

Referenced by ns3::MeshHelper::CreateInterface(), and ns3::WifiHelper::Install().

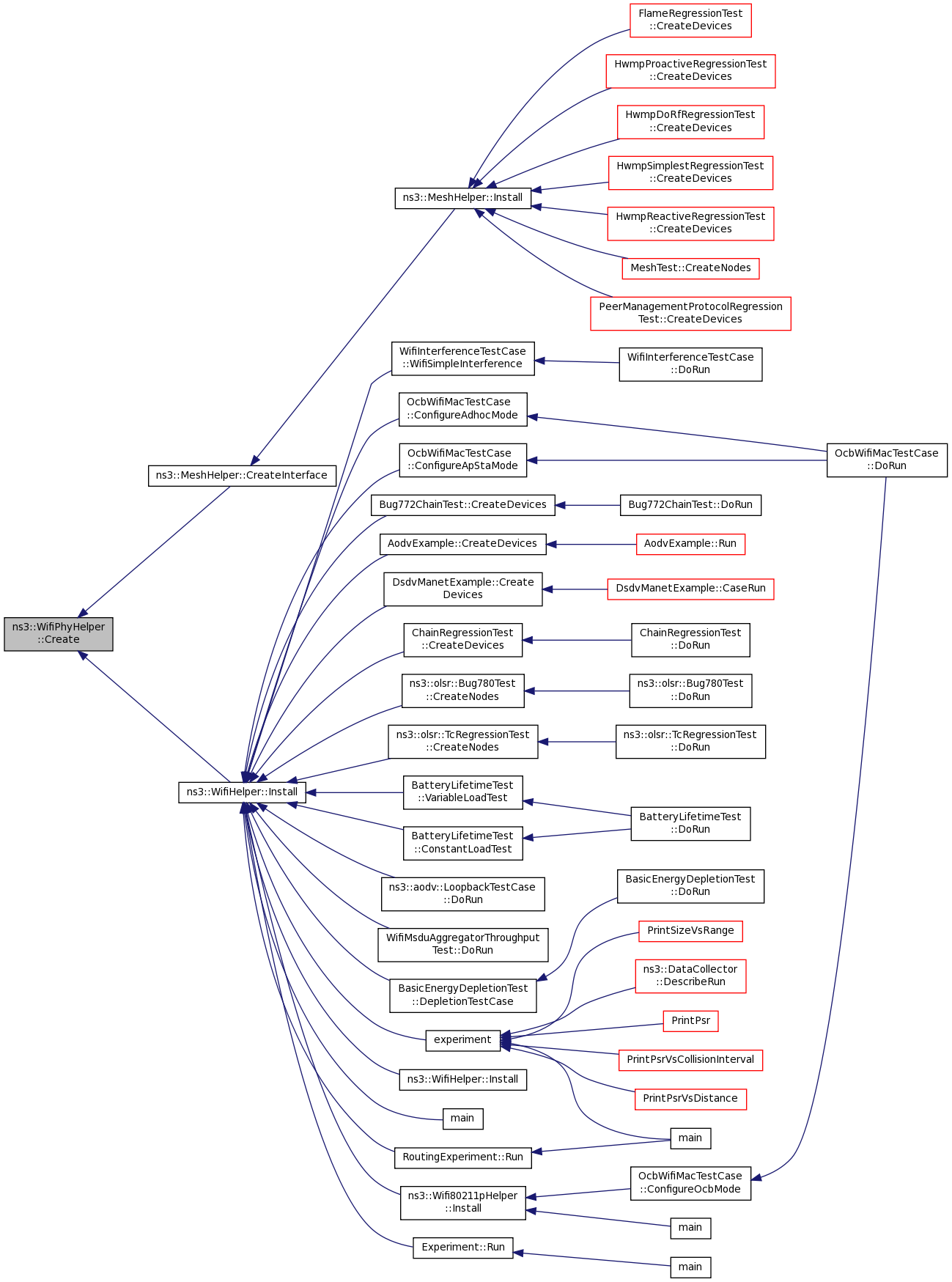

+ Here is the caller graph for this function:

The documentation for this class was generated from the following files:
