#include <wimax-phy.h>

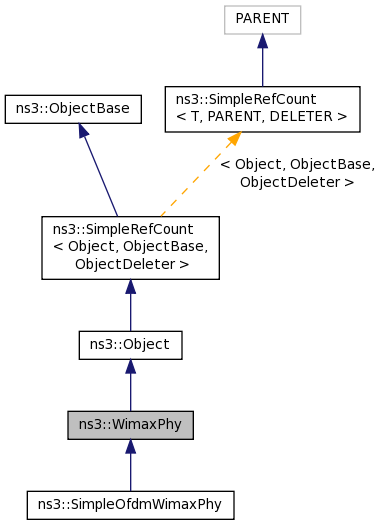

Inheritance diagram for ns3::WimaxPhy:

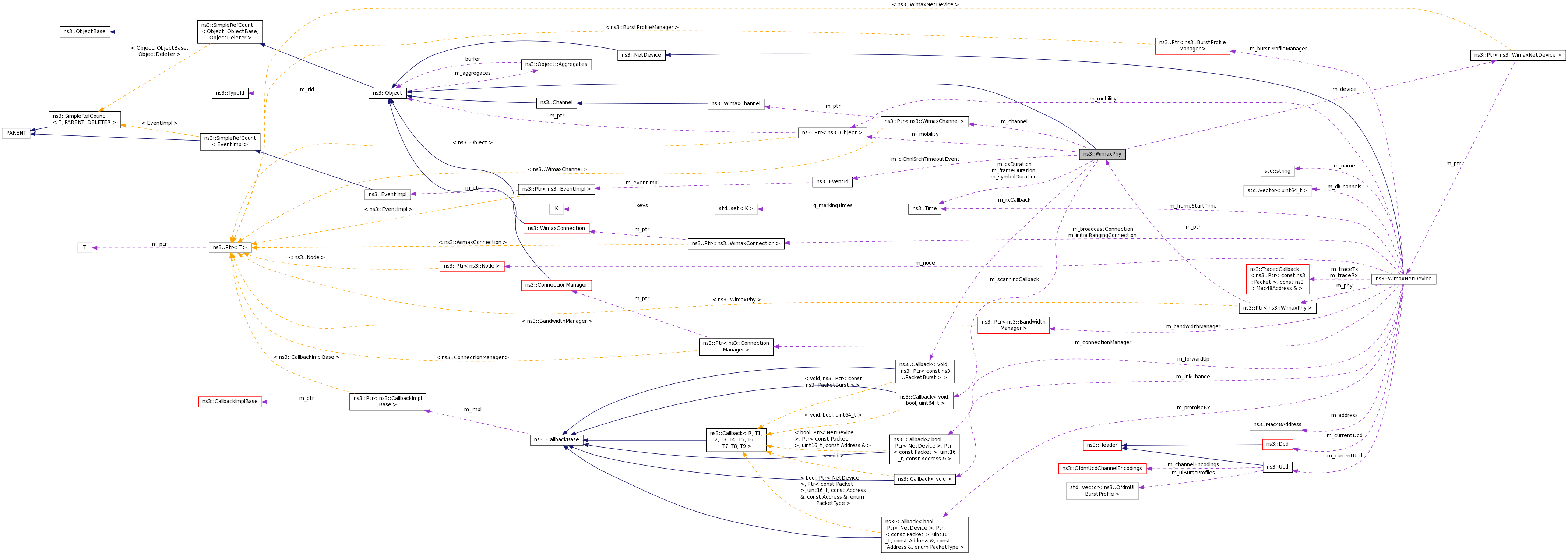

Collaboration diagram for ns3::WimaxPhy:

Public Types
enum	ModulationType { MODULATION_TYPE_BPSK_12, MODULATION_TYPE_QPSK_12, MODULATION_TYPE_QPSK_34, MODULATION_TYPE_QAM16_12, MODULATION_TYPE_QAM16_34, MODULATION_TYPE_QAM64_23, MODULATION_TYPE_QAM64_34 }

enum	PhyState { PHY_STATE_IDLE, PHY_STATE_SCANNING, PHY_STATE_TX, PHY_STATE_RX }

enum	PhyType { SimpleWimaxPhy, simpleOfdmWimaxPhy }

Public Member Functions
	WimaxPhy (void)

virtual	~WimaxPhy (void)

virtual int64_t	AssignStreams (int64_t stream)=0
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	Attach (Ptr< WimaxChannel > channel)
	Attach the physical layer to a channel. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Ptr< WimaxChannel >	GetChannel (void) const

uint32_t	GetChannelBandwidth (void) const

EventId	GetChnlSrchTimeoutEvent (void) const

uint32_t	GetDataRate (ModulationType modulationType) const

Ptr< NetDevice >	GetDevice (void) const

Time	GetFrameDuration (void) const

Time	GetFrameDuration (uint8_t frameDurationCode) const

uint8_t	GetFrameDurationCode (void) const

Time	GetFrameDurationSec (void) const

uint32_t	GetFrequency (void) const

double	GetGValue (void) const

virtual Ptr< Object >	GetMobility (void)

uint16_t	GetNfft (void) const

uint64_t	GetNrBytes (uint32_t symbols, ModulationType modulationType) const

uint8_t	GetNrCarriers (void) const

uint64_t	GetNrSymbols (uint32_t size, ModulationType modulationType) const

virtual PhyType	GetPhyType (void) const =0
	Get the type of the physical layer. More...

Time	GetPsDuration (void) const

uint16_t	GetPsPerFrame (void) const

uint16_t	GetPsPerSymbol (void) const

Callback< void, Ptr< const PacketBurst > >	GetReceiveCallback (void) const

uint16_t	GetRtg (void) const

uint64_t	GetRxFrequency (void) const

double	GetSamplingFactor (void) const

double	GetSamplingFrequency (void) const

uint64_t	GetScanningFrequency (void) const

PhyState	GetState (void) const

Time	GetSymbolDuration (void) const

uint32_t	GetSymbolsPerFrame (void) const

Time	GetTransmissionTime (uint32_t size, ModulationType modulationType) const

uint16_t	GetTtg (void) const

uint64_t	GetTxFrequency (void) const

bool	IsDuplex (void) const

virtual void	Send (SendParams *params)=0
	send a packet on the channel More...

void	SetChannelBandwidth (uint32_t channelBandwidth)
	Set the channel bandwidth. More...

void	SetDataRates (void)
	calculates the data rate of each modulation and save them for future use More...

void	SetDevice (Ptr< WimaxNetDevice > device)
	Set the device in which this physical layer is installed. More...

void	SetDuplex (uint64_t rxFrequency, uint64_t txFrequency)
	configure the physical layer in duplex mode More...

void	SetFrameDuration (Time frameDuration)
	Set the frame duration. More...

void	SetFrequency (uint32_t frequency)
	set the frequency on which the device should lock More...

virtual void	SetMobility (Ptr< Object > mobility)
	set the mobility model of the device More...

void	SetNrCarriers (uint8_t nrCarriers)
	Set the number of carriers in the physical frame. More...

void	SetPhyParameters (void)
	computes the Physical parameters and store them More...

void	SetPsDuration (Time psDuration)
	set the physical slot duration in seconds More...

void	SetPsPerFrame (uint16_t psPerFrame)
	set the number of physical slot per frame More...

void	SetPsPerSymbol (uint16_t psPerSymbol)
	set the number of physical slots per symbol More...

void	SetReceiveCallback (Callback< void, Ptr< const PacketBurst > > callback)
	set the callback function to call when a burst is received More...

void	SetScanningCallback (void) const
	calls the scanning call back function More...

void	SetSimplex (uint64_t frequency)
	configure the physical layer in simplex mode More...

void	SetState (PhyState state)
	set the state of the device More...

void	SetSymbolDuration (Time symbolDuration)
	set the OFMD symbol duration in second More...

void	SetSymbolsPerFrame (uint32_t symbolsPerFrame)
	set the number of symbols per frame More...

void	StartScanning (uint64_t frequency, Time timeout, Callback< void, bool, uint64_t > callback)
	scan the frequency frequency for maximum timeout seconds and calls callback if the frequency could be used More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoAttach (Ptr< WimaxChannel > channel)=0

virtual uint32_t	DoGetDataRate (ModulationType modulationType) const =0

virtual Time	DoGetFrameDuration (uint8_t frameDurationCode) const =0

virtual uint8_t	DoGetFrameDurationCode (void) const =0

virtual double	DoGetGValue (void) const =0

virtual uint16_t	DoGetNfft (void) const =0

virtual uint64_t	DoGetNrBytes (uint32_t symbols, ModulationType modulationType) const =0

virtual uint64_t	DoGetNrSymbols (uint32_t size, ModulationType modulationType) const =0

virtual uint16_t	DoGetRtg (void) const =0

virtual double	DoGetSamplingFactor (void) const =0

virtual double	DoGetSamplingFrequency (void) const =0

virtual Time	DoGetTransmissionTime (uint32_t size, ModulationType modulationType) const =0

virtual uint16_t	DoGetTtg (void) const =0

virtual void	DoSetDataRates (void)=0

virtual void	DoSetPhyParameters (void)=0

void	EndScanning (void)

void	GetModulationFecParams (ModulationType modulationType, uint8_t &bitsPerSymbol, double &fecCode) const

Private Attributes
Ptr< WimaxChannel >	m_channel

uint32_t	m_channelBandwidth

Ptr< WimaxNetDevice >	m_device

EventId	m_dlChnlSrchTimeoutEvent

bool	m_duplex

Time	m_frameDuration

uint32_t	m_frequency

Ptr< Object >	m_mobility

uint8_t	m_nrCarriers

Time	m_psDuration

uint16_t	m_psPerFrame

uint16_t	m_psPerSymbol

Callback< void, Ptr< const PacketBurst > >	m_rxCallback

uint64_t	m_rxFrequency

Callback< void, bool, uint64_t >	m_scanningCallback

uint64_t	m_scanningFrequency

PhyState	m_state

Time	m_symbolDuration

uint32_t	m_symbolsPerFrame

uint64_t	m_txFrequency

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Config Paths

ns3::WimaxPhy is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy

Attributes

Channel: Wimax channel
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxChannel>
- Initial value: 0
- Flags: construct write read
FrameDuration: The frame duration in seconds.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +10000000.0ns
- Flags: construct write read
Frequency: The central frequency in KHz.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 1000000:11000000
- Initial value: 5000000
- Flags: construct write read
Bandwidth: The channel bandwidth in Hz.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 5000000:30000000
- Initial value: 10000000
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 45 of file wimax-phy.h.

Member Enumeration Documentation

enum ns3::WimaxPhy::ModulationType

Enumerator
MODULATION_TYPE_BPSK_12
MODULATION_TYPE_QPSK_12
MODULATION_TYPE_QPSK_34
MODULATION_TYPE_QAM16_12
MODULATION_TYPE_QAM16_34
MODULATION_TYPE_QAM64_23
MODULATION_TYPE_QAM64_34

Definition at line 48 of file wimax-phy.h.

enum ns3::WimaxPhy::PhyState

Enumerator
PHY_STATE_IDLE
PHY_STATE_SCANNING
PHY_STATE_TX
PHY_STATE_RX

Definition at line 54 of file wimax-phy.h.

enum ns3::WimaxPhy::PhyType

Enumerator
SimpleWimaxPhy
simpleOfdmWimaxPhy

Definition at line 59 of file wimax-phy.h.

Constructor & Destructor Documentation

ns3::WimaxPhy::WimaxPhy ( void )

Definition at line 71 of file wimax-phy.cc.

References m_duplex, m_mobility, m_rxFrequency, and m_txFrequency.

ns3::WimaxPhy::~WimaxPhy ( void )

virtual

Definition at line 90 of file wimax-phy.cc.

Member Function Documentation

virtual int64_t ns3::WimaxPhy::AssignStreams ( int64_t stream )

pure virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implemented in ns3::SimpleOfdmWimaxPhy.

void ns3::WimaxPhy::Attach ( Ptr< WimaxChannel > channel )

Attach the physical layer to a channel.

Parameters

channel the channel to which the physical layer will be attached

Definition at line 102 of file wimax-phy.cc.

References DoAttach(), and m_channel.

Referenced by GetTypeId().

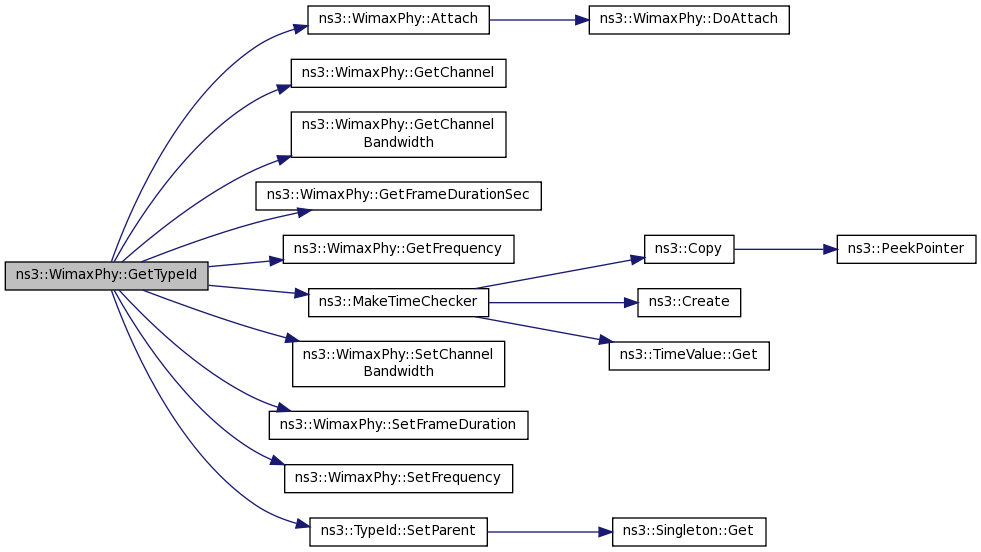

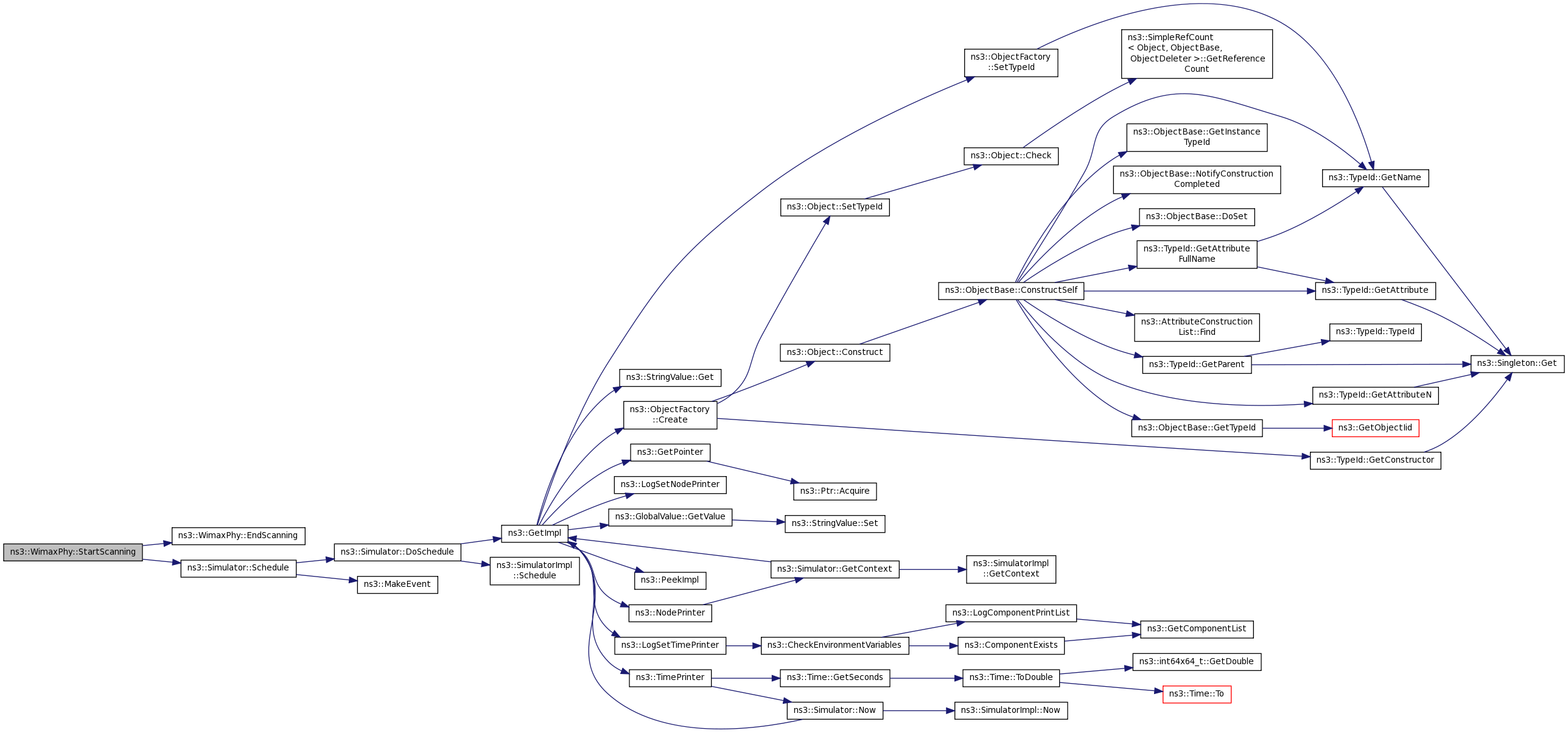

Here is the call graph for this function:

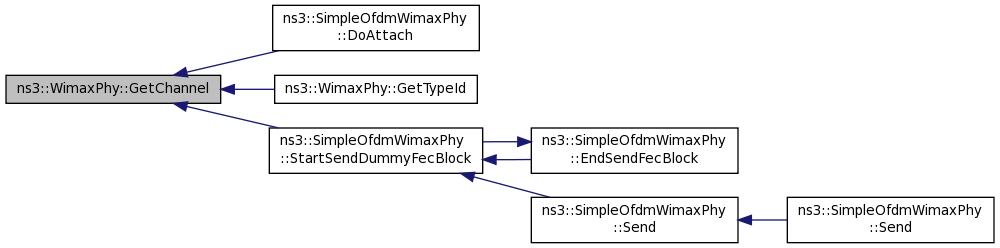

Here is the caller graph for this function:

virtual void ns3::WimaxPhy::DoAttach ( Ptr< WimaxChannel > channel )

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by Attach().

Here is the caller graph for this function:

void ns3::WimaxPhy::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::SimpleOfdmWimaxPhy.

Definition at line 95 of file wimax-phy.cc.

References m_channel, and m_device.

Referenced by ns3::SimpleOfdmWimaxPhy::DoDispose().

Here is the caller graph for this function:

virtual uint32_t ns3::WimaxPhy::DoGetDataRate ( ModulationType modulationType ) const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetDataRate().

Here is the caller graph for this function:

virtual Time ns3::WimaxPhy::DoGetFrameDuration ( uint8_t frameDurationCode ) const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetFrameDuration().

Here is the caller graph for this function:

virtual uint8_t ns3::WimaxPhy::DoGetFrameDurationCode ( void ) const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetFrameDurationCode().

Here is the caller graph for this function:

virtual double ns3::WimaxPhy::DoGetGValue ( void ) const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetGValue().

Here is the caller graph for this function:

virtual uint16_t ns3::WimaxPhy::DoGetNfft ( void ) const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetNfft().

Here is the caller graph for this function:

virtual uint64_t ns3::WimaxPhy::DoGetNrBytes	(	uint32_t	symbols,
		ModulationType	modulationType
	)		const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetNrBytes().

Here is the caller graph for this function:

virtual uint64_t ns3::WimaxPhy::DoGetNrSymbols	(	uint32_t	size,
		ModulationType	modulationType
	)		const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetNrSymbols().

Here is the caller graph for this function:

virtual uint16_t ns3::WimaxPhy::DoGetRtg ( void ) const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetRtg().

Here is the caller graph for this function:

virtual double ns3::WimaxPhy::DoGetSamplingFactor ( void ) const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetSamplingFactor().

Here is the caller graph for this function:

virtual double ns3::WimaxPhy::DoGetSamplingFrequency ( void ) const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetSamplingFrequency().

Here is the caller graph for this function:

virtual Time ns3::WimaxPhy::DoGetTransmissionTime	(	uint32_t	size,
		ModulationType	modulationType
	)		const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetTransmissionTime().

Here is the caller graph for this function:

virtual uint16_t ns3::WimaxPhy::DoGetTtg ( void ) const

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetTtg().

Here is the caller graph for this function:

virtual void ns3::WimaxPhy::DoSetDataRates ( void )

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by SetDataRates().

Here is the caller graph for this function:

virtual void ns3::WimaxPhy::DoSetPhyParameters ( void )

privatepure virtual

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by SetPhyParameters().

Here is the caller graph for this function:

void ns3::WimaxPhy::EndScanning ( void )

private

Definition at line 139 of file wimax-phy.cc.

References m_scanningCallback, and m_scanningFrequency.

Referenced by StartScanning().

Here is the caller graph for this function:

Ptr< WimaxChannel > ns3::WimaxPhy::GetChannel ( void ) const

Returns: the channel to which this physical layer is attached

Definition at line 109 of file wimax-phy.cc.

References m_channel.

Referenced by ns3::SimpleOfdmWimaxPhy::DoAttach(), GetTypeId(), and ns3::SimpleOfdmWimaxPhy::StartSendDummyFecBlock().

Here is the caller graph for this function:

uint32_t ns3::WimaxPhy::GetChannelBandwidth ( void ) const

Returns: the channel bandwidth

Definition at line 328 of file wimax-phy.cc.

References m_channelBandwidth.

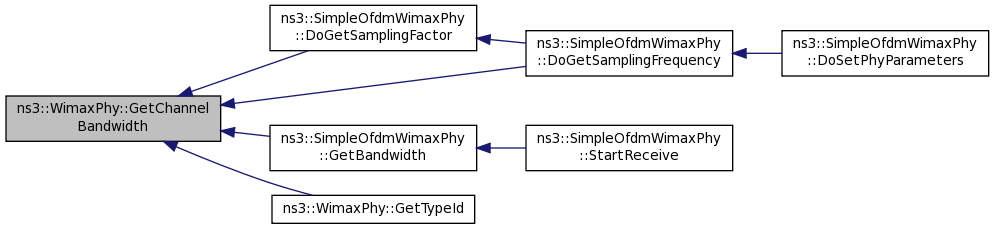

Referenced by ns3::SimpleOfdmWimaxPhy::DoGetSamplingFactor(), ns3::SimpleOfdmWimaxPhy::DoGetSamplingFrequency(), ns3::SimpleOfdmWimaxPhy::GetBandwidth(), and GetTypeId().

Here is the caller graph for this function:

EventId ns3::WimaxPhy::GetChnlSrchTimeoutEvent ( void ) const

Definition at line 206 of file wimax-phy.cc.

References m_dlChnlSrchTimeoutEvent.

Referenced by ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

uint32_t ns3::WimaxPhy::GetDataRate ( WimaxPhy::ModulationType modulationType ) const

Returns: the data rate of the modulation modulationType

Parameters

modulationType the modulation that you want to get its data rate

Definition at line 224 of file wimax-phy.cc.

References DoGetDataRate().

Here is the call graph for this function:

Ptr< NetDevice > ns3::WimaxPhy::GetDevice ( void ) const

Returns: the the device in which this physical layer is installed

Definition at line 121 of file wimax-phy.cc.

References m_device.

Time ns3::WimaxPhy::GetFrameDuration ( void ) const

Returns: the frame duration

Definition at line 298 of file wimax-phy.cc.

References GetFrameDurationSec().

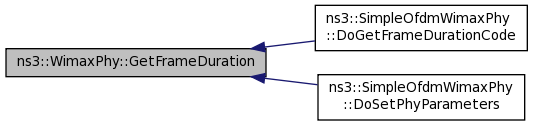

Referenced by ns3::SimpleOfdmWimaxPhy::DoGetFrameDurationCode(), and ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WimaxPhy::GetFrameDuration ( uint8_t frameDurationCode ) const

Definition at line 266 of file wimax-phy.cc.

References DoGetFrameDuration().

Here is the call graph for this function:

uint8_t ns3::WimaxPhy::GetFrameDurationCode ( void ) const

Definition at line 260 of file wimax-phy.cc.

References DoGetFrameDurationCode().

Here is the call graph for this function:

Time ns3::WimaxPhy::GetFrameDurationSec ( void ) const

Returns: the frame duration in seconds

Definition at line 304 of file wimax-phy.cc.

References m_frameDuration.

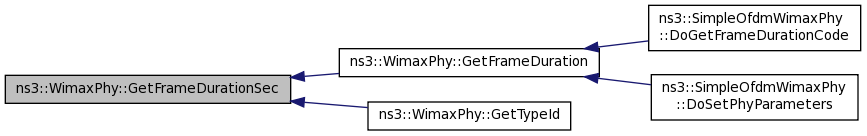

Referenced by GetFrameDuration(), and GetTypeId().

Here is the caller graph for this function:

uint32_t ns3::WimaxPhy::GetFrequency ( void ) const

Returns: the frequency on which the device is locked

Definition at line 316 of file wimax-phy.cc.

References m_frequency.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::WimaxPhy::GetGValue ( void ) const

Returns: the guard interval factor (The ratio TG/Td)

Definition at line 376 of file wimax-phy.cc.

References DoGetGValue().

Here is the call graph for this function:

Ptr< Object > ns3::WimaxPhy::GetMobility ( void )

virtual

Returns: the mobility model of the device

Definition at line 417 of file wimax-phy.cc.

References m_mobility.

void ns3::WimaxPhy::GetModulationFecParams	(	ModulationType	modulationType,
		uint8_t &	bitsPerSymbol,
		double &	fecCode
	)		const

private

uint16_t ns3::WimaxPhy::GetNfft ( void ) const

Returns: the size of the FFT

Definition at line 334 of file wimax-phy.cc.

References DoGetNfft().

Here is the call graph for this function:

uint64_t ns3::WimaxPhy::GetNrBytes	(	uint32_t	symbols,
		WimaxPhy::ModulationType	modulationType
	)		const

Returns: the maximum number of bytes that could be carried by symbols symbols using the modulation modulationType

Parameters

symbols	the number of symbols to use
modulationType	the modulation that will be used

Definition at line 242 of file wimax-phy.cc.

References DoGetNrBytes().

Here is the call graph for this function:

uint8_t ns3::WimaxPhy::GetNrCarriers ( void ) const

Returns: the number of carriers in the frame

Definition at line 286 of file wimax-phy.cc.

References m_nrCarriers.

Referenced by ns3::SimpleOfdmWimaxPhy::CalculateDataRate().

Here is the caller graph for this function:

uint64_t ns3::WimaxPhy::GetNrSymbols	(	uint32_t	size,
		WimaxPhy::ModulationType	modulationType
	)		const

Returns: the number of symbols needed to transmit size bytes using the modulation modulationType

Parameters

size	the number of byte to transmit
modulationType	the modulation that will be used to transmit the bytes

Definition at line 236 of file wimax-phy.cc.

References DoGetNrSymbols().

Here is the call graph for this function:

virtual PhyType ns3::WimaxPhy::GetPhyType ( void ) const

pure virtual

Get the type of the physical layer.

Implemented in ns3::SimpleOfdmWimaxPhy.

Time ns3::WimaxPhy::GetPsDuration ( void ) const

Returns: the physical slot duration

Definition at line 358 of file wimax-phy.cc.

References m_psDuration.

uint16_t ns3::WimaxPhy::GetPsPerFrame ( void ) const

Returns: the number of physical slot per frame

Definition at line 400 of file wimax-phy.cc.

References m_psPerFrame.

uint16_t ns3::WimaxPhy::GetPsPerSymbol ( void ) const

Returns: the number of physical slots per symbol

Definition at line 388 of file wimax-phy.cc.

References m_psPerSymbol.

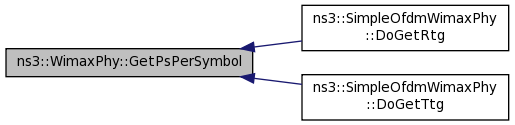

Referenced by ns3::SimpleOfdmWimaxPhy::DoGetRtg(), and ns3::SimpleOfdmWimaxPhy::DoGetTtg().

Here is the caller graph for this function:

Callback< void, Ptr< const PacketBurst > > ns3::WimaxPhy::GetReceiveCallback ( void ) const

Returns: the receive callback

Definition at line 151 of file wimax-phy.cc.

References m_rxCallback.

Referenced by ns3::SimpleOfdmWimaxPhy::EndReceive().

Here is the caller graph for this function:

uint16_t ns3::WimaxPhy::GetRtg ( void ) const

Returns: the receive/transmit transition gap

Definition at line 254 of file wimax-phy.cc.

References DoGetRtg().

Here is the call graph for this function:

uint64_t ns3::WimaxPhy::GetRxFrequency ( void ) const

Returns: the reception frequency

Definition at line 171 of file wimax-phy.cc.

References m_rxFrequency.

Referenced by ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

double ns3::WimaxPhy::GetSamplingFactor ( void ) const

Returns: the sampling factor

Definition at line 340 of file wimax-phy.cc.

References DoGetSamplingFactor().

Here is the call graph for this function:

double ns3::WimaxPhy::GetSamplingFrequency ( void ) const

Returns: the sampling frequency

Definition at line 346 of file wimax-phy.cc.

References DoGetSamplingFrequency().

Here is the call graph for this function:

uint64_t ns3::WimaxPhy::GetScanningFrequency ( void ) const

Returns: the scanning frequency

Definition at line 183 of file wimax-phy.cc.

References m_scanningFrequency.

Referenced by SetScanningCallback(), and ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

WimaxPhy::PhyState ns3::WimaxPhy::GetState ( void ) const

Returns: the state of the device (PHY_STATE_IDLE, PHY_STATE_SCANNING, PHY_STATE_TX, PHY_STATE_RX)

Definition at line 194 of file wimax-phy.cc.

References m_state.

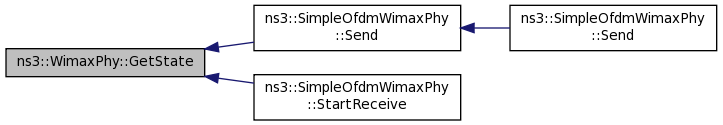

Referenced by ns3::SimpleOfdmWimaxPhy::Send(), and ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

Time ns3::WimaxPhy::GetSymbolDuration ( void ) const

Returns: the symbol duration in second

Definition at line 370 of file wimax-phy.cc.

References m_symbolDuration.

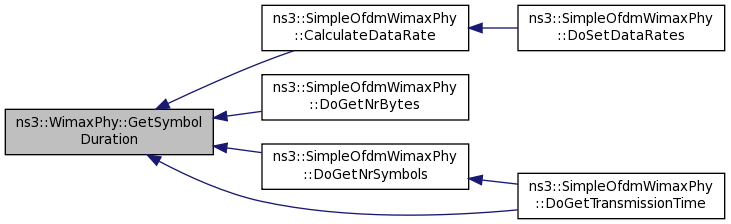

Referenced by ns3::SimpleOfdmWimaxPhy::CalculateDataRate(), ns3::SimpleOfdmWimaxPhy::DoGetNrBytes(), ns3::SimpleOfdmWimaxPhy::DoGetNrSymbols(), and ns3::SimpleOfdmWimaxPhy::DoGetTransmissionTime().

Here is the caller graph for this function:

uint32_t ns3::WimaxPhy::GetSymbolsPerFrame ( void ) const

Returns: the number of symbols per frame

Definition at line 412 of file wimax-phy.cc.

References m_symbolsPerFrame.

Time ns3::WimaxPhy::GetTransmissionTime	(	uint32_t	size,
		WimaxPhy::ModulationType	modulationType
	)		const

Returns: the time needed to transmit size bytes using the modulation modulationType

Parameters

size	the number of byte to transmit
modulationType	the modulation that will be used to transmit the bytes

Definition at line 230 of file wimax-phy.cc.

References DoGetTransmissionTime().

Here is the call graph for this function:

uint16_t ns3::WimaxPhy::GetTtg ( void ) const

Returns: the transmit/receive transition gap

Definition at line 248 of file wimax-phy.cc.

References DoGetTtg().

Here is the call graph for this function:

uint64_t ns3::WimaxPhy::GetTxFrequency ( void ) const

Returns: the transmission frequency

Definition at line 177 of file wimax-phy.cc.

References m_txFrequency.

Referenced by ns3::SimpleOfdmWimaxPhy::StartSendDummyFecBlock().

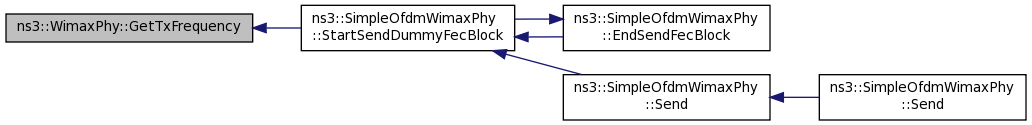

Here is the caller graph for this function:

TypeId ns3::WimaxPhy::GetTypeId ( void )

static

Definition at line 39 of file wimax-phy.cc.

References Attach(), GetChannel(), GetChannelBandwidth(), GetFrameDurationSec(), GetFrequency(), ns3::MakeTimeChecker(), SetChannelBandwidth(), SetFrameDuration(), SetFrequency(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::WimaxPhy::IsDuplex ( void ) const

Returns: true if the device is configured in duplex mode

Definition at line 200 of file wimax-phy.cc.

References m_duplex.

Referenced by ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

virtual void ns3::WimaxPhy::Send ( SendParams * params )

pure virtual

send a packet on the channel

Parameters

params the parameters used to send the packet

Implemented in ns3::SimpleOfdmWimaxPhy.

void ns3::WimaxPhy::SetChannelBandwidth ( uint32_t channelBandwidth )

Set the channel bandwidth.

Parameters

channelBandwidth The channel bandwidth

Definition at line 322 of file wimax-phy.cc.

References m_channelBandwidth.

Referenced by GetTypeId(), and ns3::SimpleOfdmWimaxPhy::SetBandwidth().

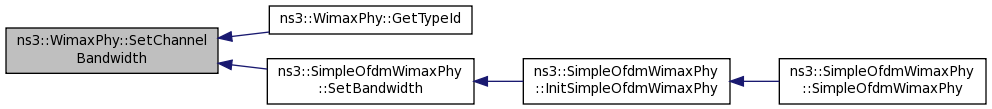

Here is the caller graph for this function:

void ns3::WimaxPhy::SetDataRates ( void )

calculates the data rate of each modulation and save them for future use

Definition at line 218 of file wimax-phy.cc.

References DoSetDataRates().

Here is the call graph for this function:

void ns3::WimaxPhy::SetDevice ( Ptr< WimaxNetDevice > device )

Set the device in which this physical layer is installed.

Parameters

device the device in which this physical layer is installed

Definition at line 115 of file wimax-phy.cc.

References m_device.

void ns3::WimaxPhy::SetDuplex	(	uint64_t	rxFrequency,
		uint64_t	txFrequency
	)

configure the physical layer in duplex mode

Parameters

rxFrequency	the reception frequency
txFrequency	the transmission frequency

Definition at line 157 of file wimax-phy.cc.

References m_rxFrequency, and m_txFrequency.

void ns3::WimaxPhy::SetFrameDuration ( Time frameDuration )

Set the frame duration.

Parameters

frameDuration the frame duration

Definition at line 292 of file wimax-phy.cc.

References m_frameDuration.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxPhy::SetFrequency ( uint32_t frequency )

set the frequency on which the device should lock

Parameters

frequency the frequency to configure

Definition at line 310 of file wimax-phy.cc.

References m_frequency.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxPhy::SetMobility ( Ptr< Object > mobility )

virtual

set the mobility model of the device

Parameters

mobility the mobility model to set

Definition at line 423 of file wimax-phy.cc.

References m_mobility.

void ns3::WimaxPhy::SetNrCarriers ( uint8_t nrCarriers )

Set the number of carriers in the physical frame.

Parameters

nrCarriers the number of carriers in the frame

Definition at line 280 of file wimax-phy.cc.

References m_nrCarriers.

Referenced by ns3::SimpleOfdmWimaxPhy::InitSimpleOfdmWimaxPhy().

Here is the caller graph for this function:

void ns3::WimaxPhy::SetPhyParameters ( void )

computes the Physical parameters and store them

Definition at line 274 of file wimax-phy.cc.

References DoSetPhyParameters().

Here is the call graph for this function:

void ns3::WimaxPhy::SetPsDuration ( Time psDuration )

set the physical slot duration in seconds

Parameters

psDuration the physical slot duration

Definition at line 352 of file wimax-phy.cc.

References m_psDuration.

Referenced by ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the caller graph for this function:

void ns3::WimaxPhy::SetPsPerFrame ( uint16_t psPerFrame )

set the number of physical slot per frame

Parameters

psPerFrame the number of physical slot per frame

Definition at line 394 of file wimax-phy.cc.

References m_psPerFrame.

Referenced by ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the caller graph for this function:

void ns3::WimaxPhy::SetPsPerSymbol ( uint16_t psPerSymbol )

set the number of physical slots per symbol

Parameters

psPerSymbol the number of physical slots per symbol

Definition at line 382 of file wimax-phy.cc.

References m_psPerSymbol.

Referenced by ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the caller graph for this function:

void ns3::WimaxPhy::SetReceiveCallback ( Callback< void, Ptr< const PacketBurst > > callback )

set the callback function to call when a burst is received

Parameters

callback the callback function to call when a burst is received

Definition at line 145 of file wimax-phy.cc.

References m_rxCallback.

void ns3::WimaxPhy::SetScanningCallback ( void ) const

calls the scanning call back function

Definition at line 212 of file wimax-phy.cc.

References GetScanningFrequency(), and m_scanningCallback.

Referenced by ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WimaxPhy::SetSimplex ( uint64_t frequency )

configure the physical layer in simplex mode

Parameters

frequency the frequency to be used for reception and transmission process

Definition at line 164 of file wimax-phy.cc.

References m_rxFrequency, and m_txFrequency.

Referenced by ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

void ns3::WimaxPhy::SetState ( PhyState state )

set the state of the device

Parameters

state the state to be set (PHY_STATE_IDLE, PHY_STATE_SCANNING, PHY_STATE_TX, PHY_STATE_RX)

Definition at line 189 of file wimax-phy.cc.

References m_state.

Referenced by ns3::SimpleOfdmWimaxPhy::EndReceiveFecBlock(), ns3::SimpleOfdmWimaxPhy::EndSend(), ns3::SimpleOfdmWimaxPhy::EndSendFecBlock(), ns3::SimpleOfdmWimaxPhy::StartReceive(), and ns3::SimpleOfdmWimaxPhy::StartSendDummyFecBlock().

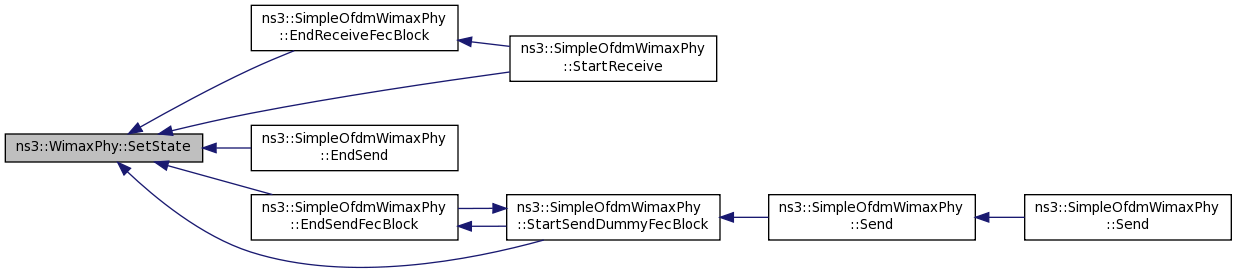

Here is the caller graph for this function:

void ns3::WimaxPhy::SetSymbolDuration ( Time symbolDuration )

set the OFMD symbol duration in second

Parameters

symbolDuration the symbol duration is second

Definition at line 364 of file wimax-phy.cc.

References m_symbolDuration.

Referenced by ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the caller graph for this function:

void ns3::WimaxPhy::SetSymbolsPerFrame ( uint32_t symbolsPerFrame )

set the number of symbols per frame

Parameters

symbolsPerFrame the number of symbols per frame

Definition at line 406 of file wimax-phy.cc.

References m_symbolsPerFrame.

Referenced by ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the caller graph for this function:

void ns3::WimaxPhy::StartScanning	(	uint64_t	frequency,
		Time	timeout,
		Callback< void, bool, uint64_t >	callback
	)

scan the frequency frequency for maximum timeout seconds and calls callback if the frequency could be used

Parameters

frequency	the frequency to scan
timeout	the timout before considering the channel as unusable
callback	the function to call if the channel could be used

Definition at line 127 of file wimax-phy.cc.

References EndScanning(), m_dlChnlSrchTimeoutEvent, m_scanningCallback, m_scanningFrequency, m_state, NS_ASSERT_MSG, PHY_STATE_IDLE, PHY_STATE_SCANNING, and ns3::Simulator::Schedule().

Here is the call graph for this function:

Member Data Documentation

Ptr<WimaxChannel> ns3::WimaxPhy::m_channel

private

Definition at line 339 of file wimax-phy.h.

Referenced by Attach(), DoDispose(), and GetChannel().

uint32_t ns3::WimaxPhy::m_channelBandwidth

private

Definition at line 354 of file wimax-phy.h.

Referenced by GetChannelBandwidth(), and SetChannelBandwidth().

Ptr<WimaxNetDevice> ns3::WimaxPhy::m_device

private

Definition at line 338 of file wimax-phy.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

EventId ns3::WimaxPhy::m_dlChnlSrchTimeoutEvent

private

Definition at line 344 of file wimax-phy.h.

Referenced by GetChnlSrchTimeoutEvent(), and StartScanning().

bool ns3::WimaxPhy::m_duplex

private

Definition at line 345 of file wimax-phy.h.

Referenced by IsDuplex(), and WimaxPhy().

Time ns3::WimaxPhy::m_frameDuration

private

Definition at line 352 of file wimax-phy.h.

Referenced by GetFrameDurationSec(), and SetFrameDuration().

uint32_t ns3::WimaxPhy::m_frequency

private

Definition at line 353 of file wimax-phy.h.

Referenced by GetFrequency(), and SetFrequency().

Ptr<Object> ns3::WimaxPhy::m_mobility

private

Definition at line 360 of file wimax-phy.h.

Referenced by GetMobility(), SetMobility(), and WimaxPhy().

uint8_t ns3::WimaxPhy::m_nrCarriers

private

Definition at line 351 of file wimax-phy.h.

Referenced by GetNrCarriers(), and SetNrCarriers().

Time ns3::WimaxPhy::m_psDuration

private

Definition at line 355 of file wimax-phy.h.

Referenced by GetPsDuration(), and SetPsDuration().

uint16_t ns3::WimaxPhy::m_psPerFrame

private

Definition at line 358 of file wimax-phy.h.

Referenced by GetPsPerFrame(), and SetPsPerFrame().

uint16_t ns3::WimaxPhy::m_psPerSymbol

private

Definition at line 357 of file wimax-phy.h.

Referenced by GetPsPerSymbol(), and SetPsPerSymbol().

Callback<void, Ptr<const PacketBurst> > ns3::WimaxPhy::m_rxCallback

private

Definition at line 348 of file wimax-phy.h.

Referenced by GetReceiveCallback(), and SetReceiveCallback().

uint64_t ns3::WimaxPhy::m_rxFrequency

private

Definition at line 342 of file wimax-phy.h.

Referenced by GetRxFrequency(), SetDuplex(), SetSimplex(), and WimaxPhy().

Callback<void, bool, uint64_t> ns3::WimaxPhy::m_scanningCallback

private

Definition at line 349 of file wimax-phy.h.

Referenced by EndScanning(), SetScanningCallback(), and StartScanning().

uint64_t ns3::WimaxPhy::m_scanningFrequency

private

Definition at line 343 of file wimax-phy.h.

Referenced by EndScanning(), GetScanningFrequency(), and StartScanning().

PhyState ns3::WimaxPhy::m_state

private

Definition at line 346 of file wimax-phy.h.

Referenced by GetState(), SetState(), and StartScanning().

Time ns3::WimaxPhy::m_symbolDuration

private

Definition at line 356 of file wimax-phy.h.

Referenced by GetSymbolDuration(), and SetSymbolDuration().

uint32_t ns3::WimaxPhy::m_symbolsPerFrame

private

Definition at line 359 of file wimax-phy.h.

Referenced by GetSymbolsPerFrame(), and SetSymbolsPerFrame().

uint64_t ns3::WimaxPhy::m_txFrequency

private

Definition at line 341 of file wimax-phy.h.

Referenced by GetTxFrequency(), SetDuplex(), SetSimplex(), and WimaxPhy().

The documentation for this class was generated from the following files:

src/wimax/model/wimax-phy.h
src/wimax/model/wimax-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
