Hold together all Wimax-related objects in a NetDevice. More...

#include <wimax-net-device.h>

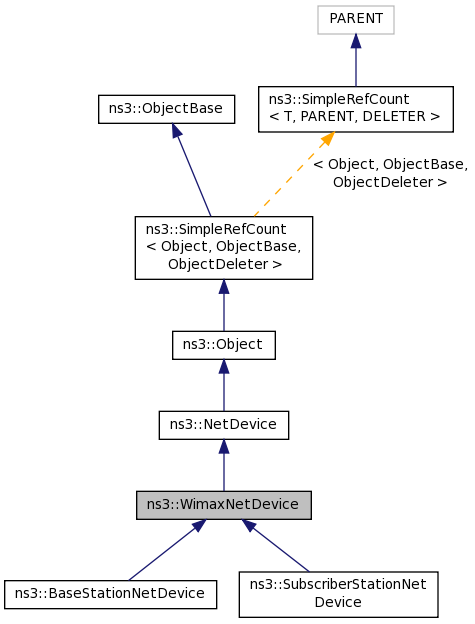

Inheritance diagram for ns3::WimaxNetDevice:

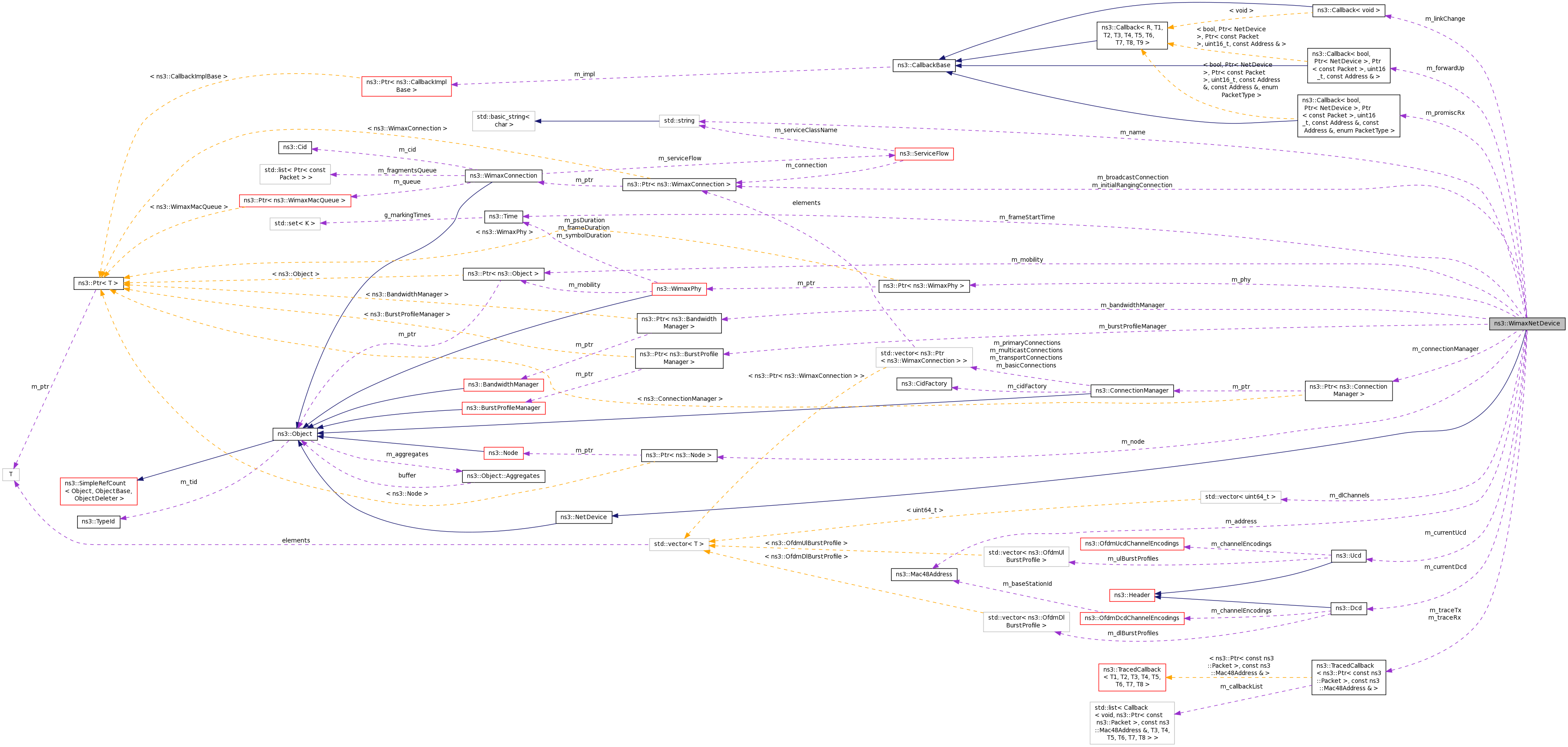

Collaboration diagram for ns3::WimaxNetDevice:

Public Types
enum	Direction { DIRECTION_DOWNLINK, DIRECTION_UPLINK }

enum	RangingStatus { RANGING_STATUS_EXPIRED, RANGING_STATUS_CONTINUE, RANGING_STATUS_ABORT, RANGING_STATUS_SUCCESS }

Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions
	WimaxNetDevice (void)

virtual	~WimaxNetDevice (void)

virtual void	AddLinkChangeCallback (Callback< void > callback)

void	Attach (Ptr< WimaxChannel > channel)

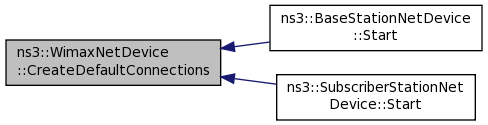

void	CreateDefaultConnections (void)

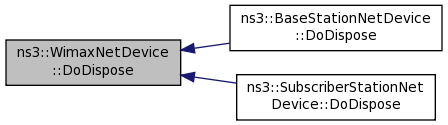

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual bool	Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, Ptr< WimaxConnection > connection)=0

void	ForwardDown (Ptr< PacketBurst > burst, WimaxPhy::ModulationType modulationType)

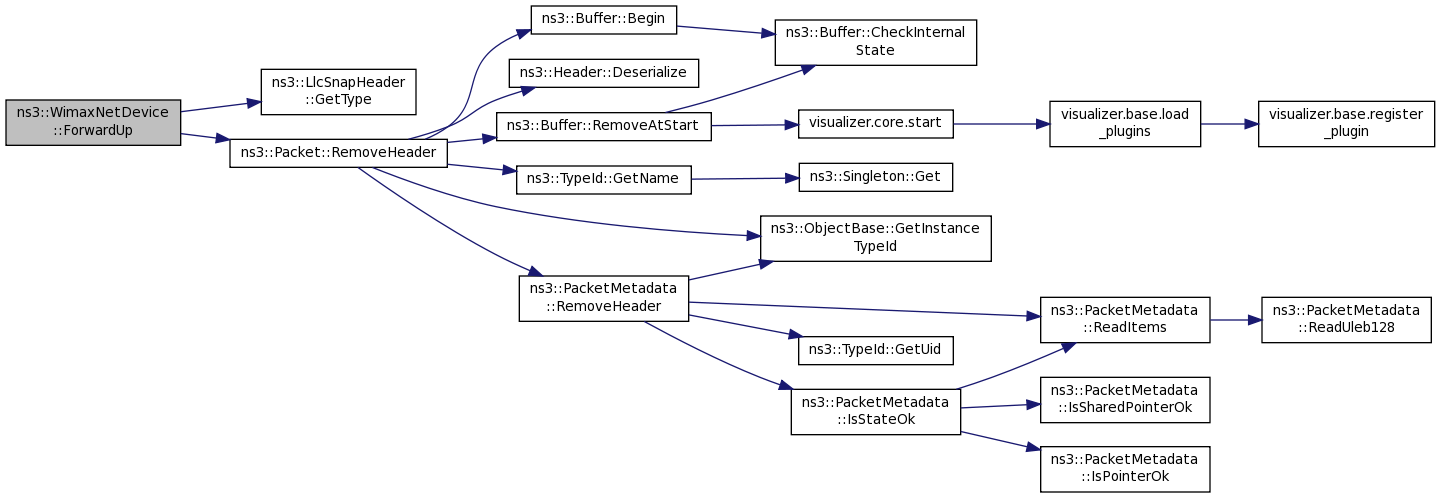

void	ForwardUp (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest)

virtual Address	GetAddress (void) const

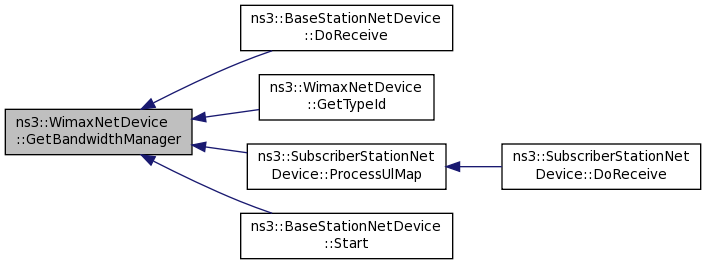

Ptr< BandwidthManager >	GetBandwidthManager (void) const

virtual Address	GetBroadcast (void) const

Ptr< WimaxConnection >	GetBroadcastConnection (void) const

Ptr< BurstProfileManager >	GetBurstProfileManager (void) const

uint64_t	GetChannel (uint8_t index) const

virtual Ptr< Channel >	GetChannel (void) const

Ptr< ConnectionManager >	GetConnectionManager (void) const

Dcd	GetCurrentDcd (void) const

Ucd	GetCurrentUcd (void) const

virtual uint32_t	GetIfIndex (void) const

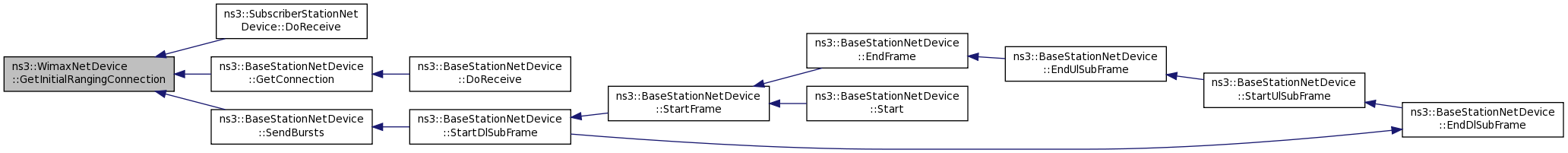

Ptr< WimaxConnection >	GetInitialRangingConnection (void) const

Mac48Address	GetMacAddress (void) const

virtual uint16_t	GetMtu (void) const

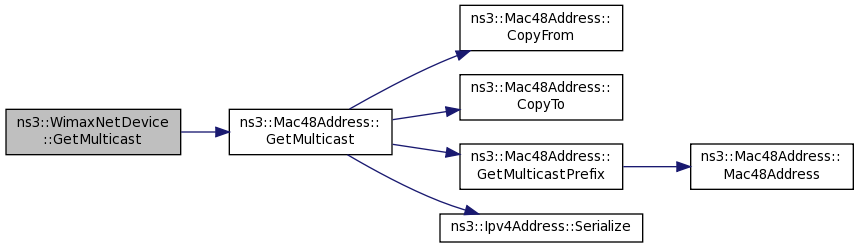

virtual Address	GetMulticast (void) const

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual std::string	GetName (void) const

virtual Ptr< Node >	GetNode (void) const

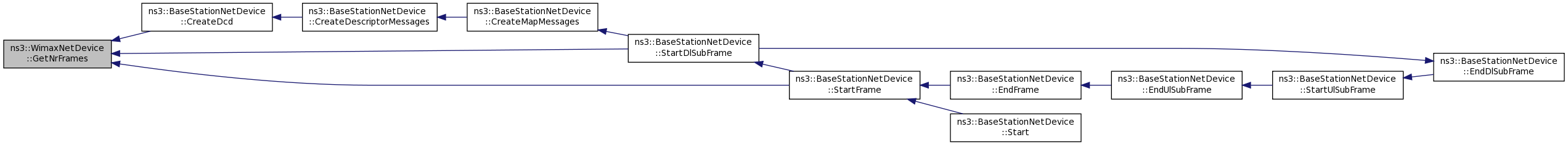

uint32_t	GetNrFrames (void) const

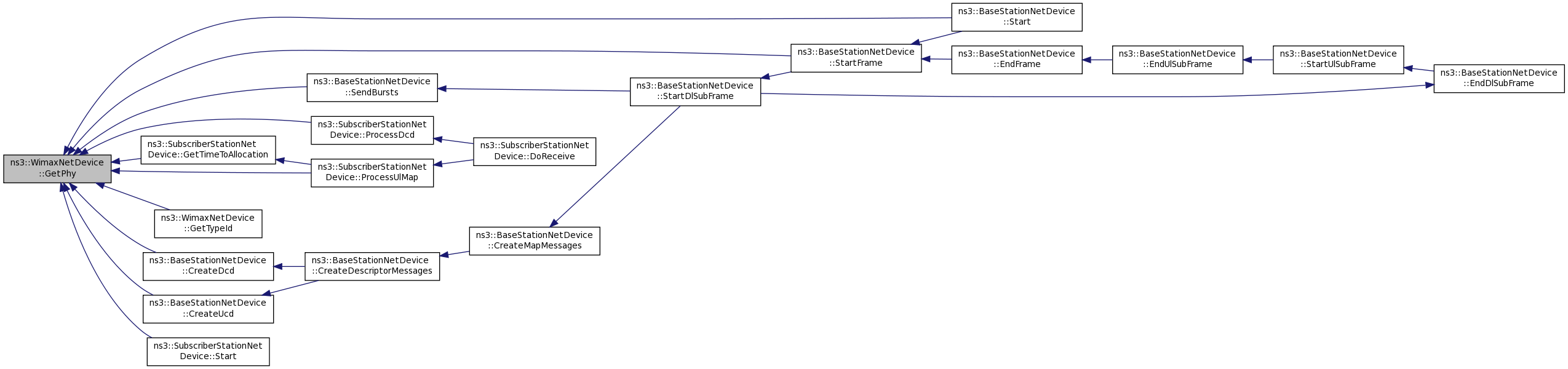

Ptr< WimaxPhy >	GetPhy (void) const

virtual Ptr< Channel >	GetPhyChannel (void) const

NetDevice::PromiscReceiveCallback	GetPromiscReceiveCallback (void)

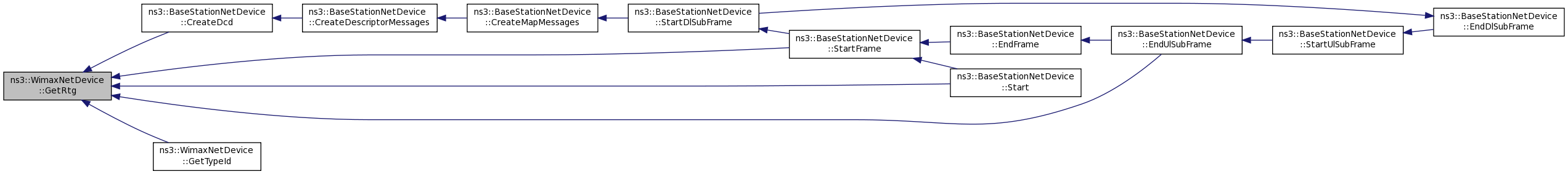

uint16_t	GetRtg (void) const

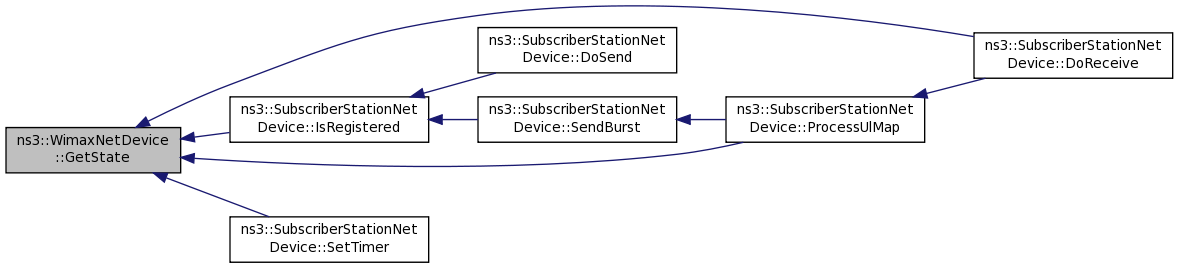

uint8_t	GetState (void) const

uint16_t	GetTtg (void) const

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

bool	IsPromisc (void)

virtual Address	MakeMulticastAddress (Ipv4Address multicastGroup) const

virtual bool	NeedsArp (void) const

void	NotifyPromiscTrace (Ptr< Packet > p)

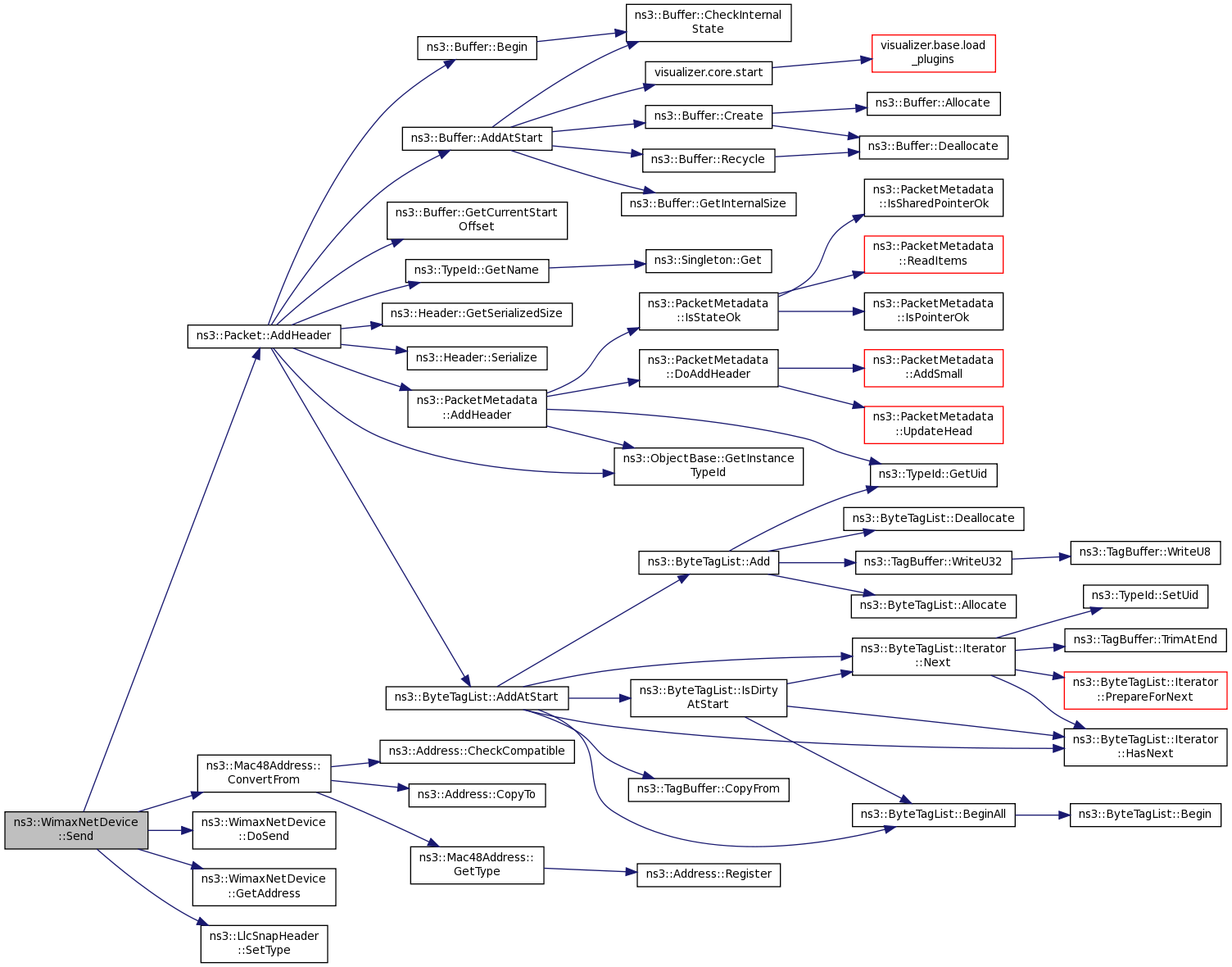

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

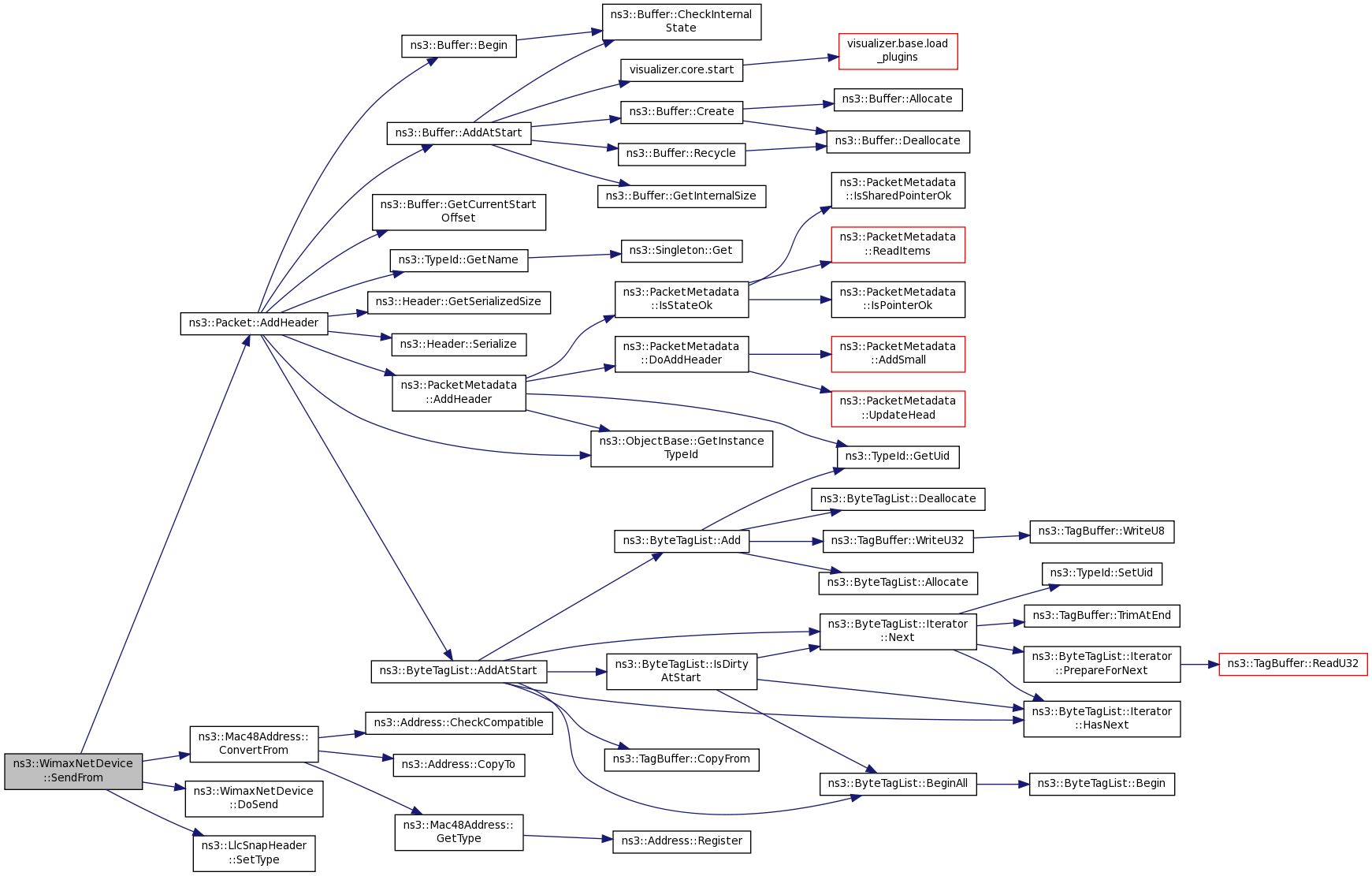

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

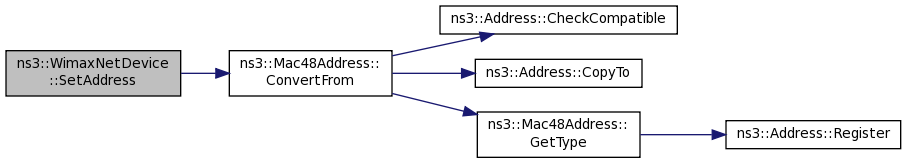

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

void	SetBandwidthManager (Ptr< BandwidthManager > bandwidthManager)

void	SetBurstProfileManager (Ptr< BurstProfileManager > burstProfileManager)

void	SetChannel (Ptr< WimaxChannel > wimaxChannel)

virtual void	SetConnectionManager (Ptr< ConnectionManager > connectionManager)

void	SetCurrentDcd (Dcd dcd)

void	SetCurrentUcd (Ucd ucd)

virtual void	SetIfIndex (const uint32_t index)

virtual void	SetLinkChangeCallback (Callback< void > callback)

void	SetMacAddress (Mac48Address address)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetName (const std::string name)

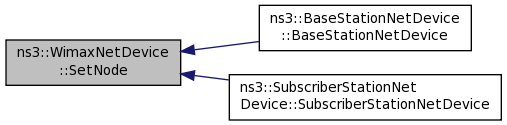

virtual void	SetNode (Ptr< Node > node)

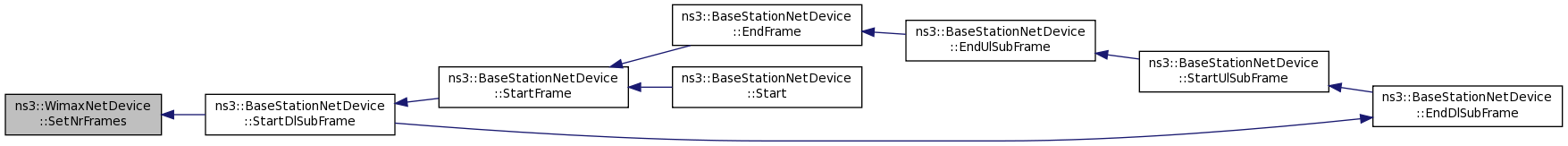

void	SetNrFrames (uint32_t nrFrames)

void	SetPhy (Ptr< WimaxPhy > phy)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

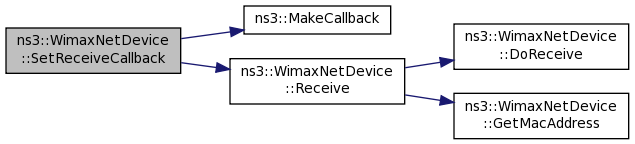

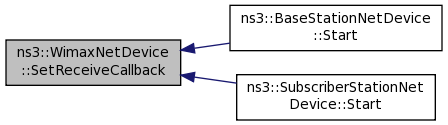

void	SetReceiveCallback (void)

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

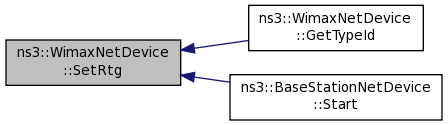

void	SetRtg (uint16_t rtg)

void	SetState (uint8_t state)

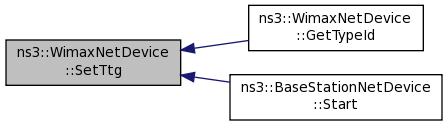

void	SetTtg (uint16_t ttg)

virtual void	Start (void)=0

virtual void	Stop (void)=0

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

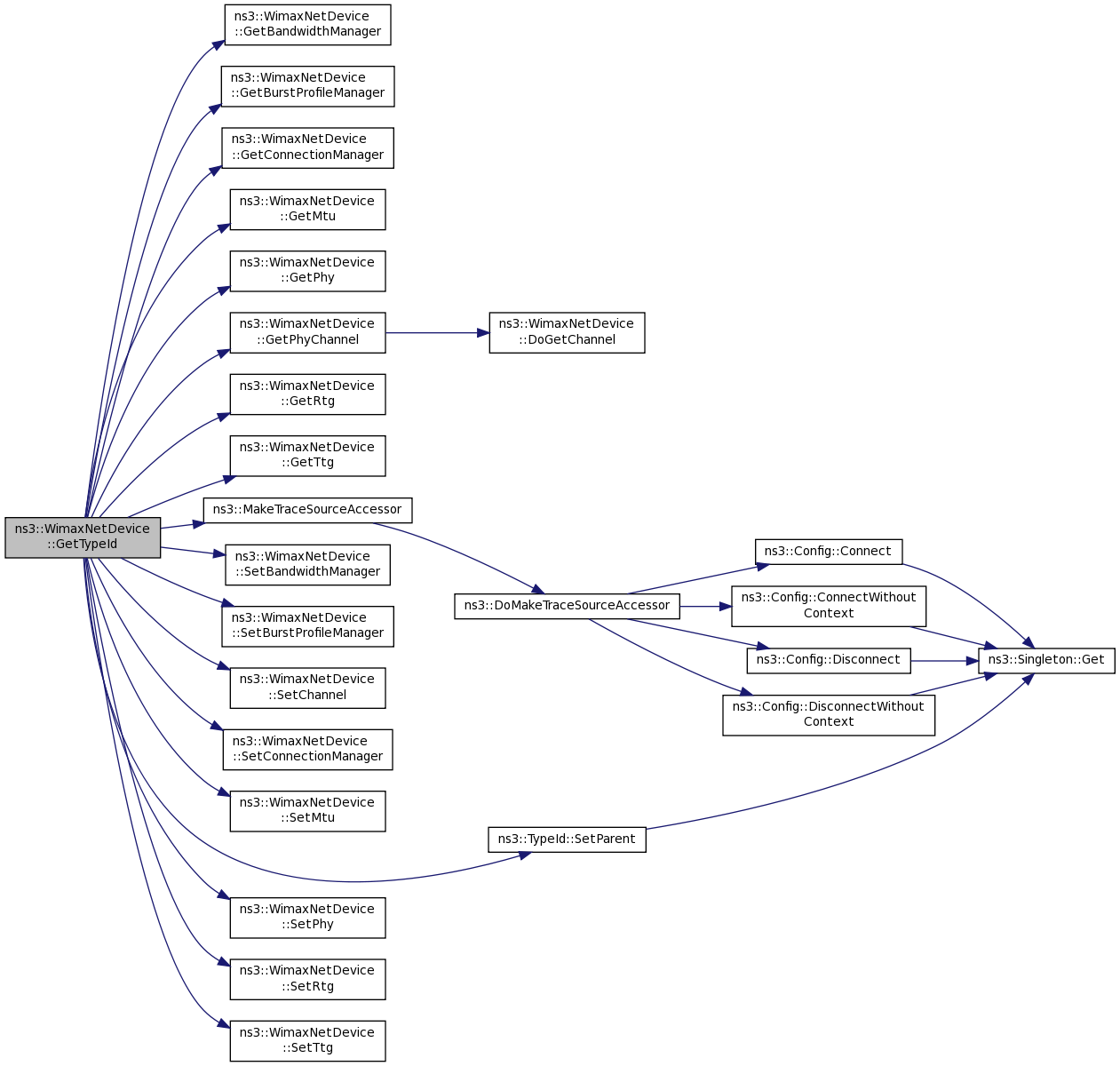

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Public Attributes
TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceRx

TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceTx

Static Public Attributes
static uint8_t	m_direction = ~0

static Time	m_frameStartTime = Seconds (0)

Private Member Functions
	WimaxNetDevice (const WimaxNetDevice &)

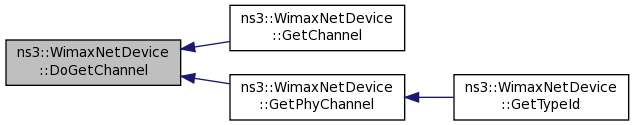

virtual Ptr< WimaxChannel >	DoGetChannel (void) const

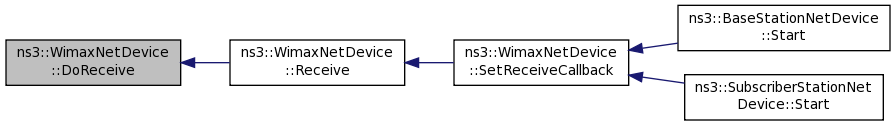

virtual void	DoReceive (Ptr< Packet > packet)=0

virtual bool	DoSend (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest, uint16_t protocolNumber)=0

void	InitializeChannels (void)

WimaxNetDevice &	operator= (const WimaxNetDevice &)

void	Receive (Ptr< const PacketBurst > burst)

Private Attributes
Mac48Address	m_address

Ptr< BandwidthManager >	m_bandwidthManager

Ptr< WimaxConnection >	m_broadcastConnection

Ptr< BurstProfileManager >	m_burstProfileManager

Ptr< ConnectionManager >	m_connectionManager

Dcd	m_currentDcd

Ucd	m_currentUcd

std::vector< uint64_t >	m_dlChannels

NetDevice::ReceiveCallback	m_forwardUp

uint32_t	m_ifIndex

Ptr< WimaxConnection >	m_initialRangingConnection

Callback< void >	m_linkChange

bool	m_linkUp

Ptr< Object >	m_mobility

uint16_t	m_mtu

std::string	m_name

Ptr< Node >	m_node

Ptr< WimaxPhy >	m_phy

NetDevice::PromiscReceiveCallback	m_promiscRx

uint16_t	m_rtg

uint8_t	m_state

uint32_t	m_symbolIndex

uint16_t	m_ttg

Static Private Attributes
static const uint16_t	DEFAULT_MSDU_SIZE = 1400

static uint32_t	m_nrFrames = 0

static const uint16_t	MAX_MSDU_SIZE = 1500

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Hold together all Wimax-related objects in a NetDevice.

This class holds together ns3::WimaxPhy, ns3::WimaxConnection, ns3::ConectionManager, ns3::BurstProfileManager, and ns3::BandwidthManager.

Config Paths

ns3::WimaxNetDevice is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice

Attributes

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:1500
- Initial value: 1400
- Flags: construct write read
Phy: The PHY layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxPhy>
- Initial value: 0
- Flags: construct write read
Channel: The channel attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxChannel>
- Initial value: 0
- Flags: construct write read
RTG: receive/transmit transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
TTG: transmit/receive transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
ConnectionManager: The connection manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ConnectionManager>
- Initial value: 0
- Flags: construct write read
BurstProfileManager: The burst profile manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BurstProfileManager>
- Initial value: 0
- Flags: construct write read
BandwidthManager: The bandwidth manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BandwidthManager>
- Initial value: 0
- Flags: construct write read
InitialRangingConnection: Initial ranging connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection>
- Initial value: 0
- Flags: construct write read
BroadcastConnection: Broadcast connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection>
- Initial value: 0
- Flags: construct write read

TraceSources

Rx: Receive trace
Tx: Transmit trace

Definition at line 69 of file wimax-net-device.h.

Member Enumeration Documentation

enum ns3::WimaxNetDevice::Direction

Enumerator
DIRECTION_DOWNLINK
DIRECTION_UPLINK

Definition at line 72 of file wimax-net-device.h.

enum ns3::WimaxNetDevice::RangingStatus

Enumerator
RANGING_STATUS_EXPIRED
RANGING_STATUS_CONTINUE
RANGING_STATUS_ABORT
RANGING_STATUS_SUCCESS

Definition at line 77 of file wimax-net-device.h.

Constructor & Destructor Documentation

ns3::WimaxNetDevice::WimaxNetDevice ( void )

Definition at line 129 of file wimax-net-device.cc.

References InitializeChannels(), m_bandwidthManager, m_burstProfileManager, m_connectionManager, m_direction, m_frameStartTime, and m_nrFrames.

Here is the call graph for this function:

ns3::WimaxNetDevice::~WimaxNetDevice ( void )

virtual

Definition at line 144 of file wimax-net-device.cc.

ns3::WimaxNetDevice::WimaxNetDevice ( const WimaxNetDevice & )

private

Member Function Documentation

void ns3::WimaxNetDevice::AddLinkChangeCallback ( Callback< void > callback )

virtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 634 of file wimax-net-device.cc.

References NS_FATAL_ERROR.

void ns3::WimaxNetDevice::Attach ( Ptr< WimaxChannel > channel )

Definition at line 348 of file wimax-net-device.cc.

References m_phy.

void ns3::WimaxNetDevice::CreateDefaultConnections ( void )

Definition at line 502 of file wimax-net-device.cc.

References ns3::Cid::BROADCAST, ns3::Cid::Broadcast(), ns3::Cid::INITIAL_RANGING, ns3::Cid::InitialRanging(), m_broadcastConnection, and m_initialRangingConnection.

Referenced by ns3::BaseStationNetDevice::Start(), and ns3::SubscriberStationNetDevice::Start().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WimaxNetDevice::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

Definition at line 149 of file wimax-net-device.cc.

References ns3::Object::DoDispose(), m_bandwidthManager, m_broadcastConnection, m_burstProfileManager, m_connectionManager, m_initialRangingConnection, m_node, and m_phy.

Referenced by ns3::BaseStationNetDevice::DoDispose(), and ns3::SubscriberStationNetDevice::DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< WimaxChannel > ns3::WimaxNetDevice::DoGetChannel ( void ) const

privatevirtual

Definition at line 523 of file wimax-net-device.cc.

References m_phy.

Referenced by GetChannel(), and GetPhyChannel().

Here is the caller graph for this function:

virtual void ns3::WimaxNetDevice::DoReceive ( Ptr< Packet > packet )

privatepure virtual

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

Referenced by Receive().

Here is the caller graph for this function:

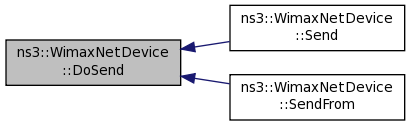

virtual bool ns3::WimaxNetDevice::DoSend	(	Ptr< Packet >	packet,
		const Mac48Address &	source,
		const Mac48Address &	dest,
		uint16_t	protocolNumber
	)

privatepure virtual

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

Referenced by Send(), and SendFrom().

Here is the caller graph for this function:

virtual bool ns3::WimaxNetDevice::Enqueue	(	Ptr< Packet >	packet,
		const MacHeaderType &	hdrType,
		Ptr< WimaxConnection >	connection
	)

pure virtual

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

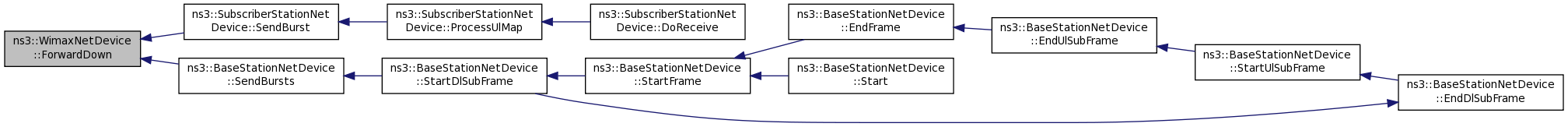

void ns3::WimaxNetDevice::ForwardDown	(	Ptr< PacketBurst >	burst,
		WimaxPhy::ModulationType	modulationType
	)

Definition at line 574 of file wimax-net-device.cc.

References m_direction, and m_phy.

Referenced by ns3::SubscriberStationNetDevice::SendBurst(), and ns3::BaseStationNetDevice::SendBursts().

Here is the caller graph for this function:

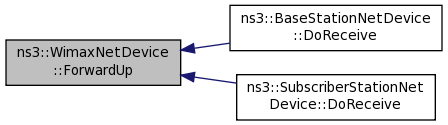

void ns3::WimaxNetDevice::ForwardUp	(	Ptr< Packet >	packet,
		const Mac48Address &	source,
		const Mac48Address &	dest
	)

Definition at line 339 of file wimax-net-device.cc.

References ns3::LlcSnapHeader::GetType(), m_forwardUp, m_traceRx, and ns3::Packet::RemoveHeader().

Referenced by ns3::BaseStationNetDevice::DoReceive(), and ns3::SubscriberStationNetDevice::DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

Address ns3::WimaxNetDevice::GetAddress ( void ) const

virtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 406 of file wimax-net-device.cc.

References m_address.

Referenced by Send().

Here is the caller graph for this function:

Ptr< BandwidthManager > ns3::WimaxNetDevice::GetBandwidthManager ( void ) const

Returns: the bandwidth manager installed on the device

Definition at line 490 of file wimax-net-device.cc.

References m_bandwidthManager.

Referenced by ns3::BaseStationNetDevice::DoReceive(), GetTypeId(), ns3::SubscriberStationNetDevice::ProcessUlMap(), and ns3::BaseStationNetDevice::Start().

Here is the caller graph for this function:

Address ns3::WimaxNetDevice::GetBroadcast ( void ) const

virtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 265 of file wimax-net-device.cc.

References ns3::Mac48Address::GetBroadcast().

Here is the call graph for this function:

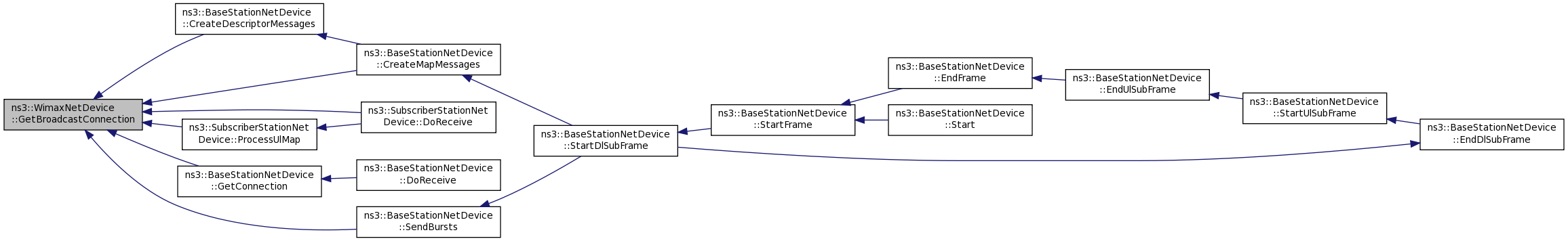

Ptr< WimaxConnection > ns3::WimaxNetDevice::GetBroadcastConnection ( void ) const

Returns: the broadcast connection

Definition at line 436 of file wimax-net-device.cc.

References m_broadcastConnection.

Referenced by ns3::BaseStationNetDevice::CreateDescriptorMessages(), ns3::BaseStationNetDevice::CreateMapMessages(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::GetConnection(), ns3::SubscriberStationNetDevice::ProcessUlMap(), and ns3::BaseStationNetDevice::SendBursts().

Here is the caller graph for this function:

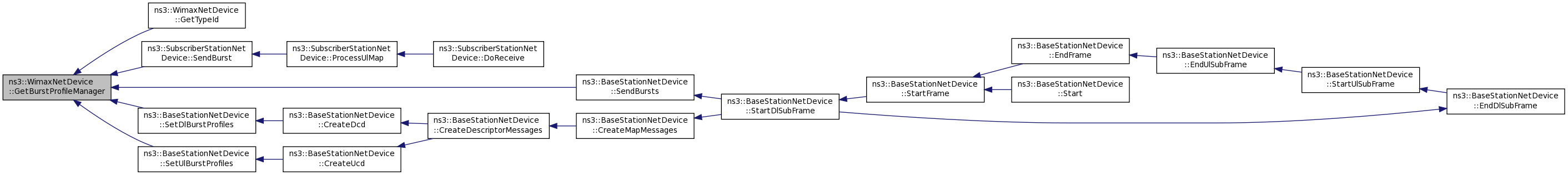

Ptr< BurstProfileManager > ns3::WimaxNetDevice::GetBurstProfileManager ( void ) const

Returns: the burst profile manager currently installed in the device

Definition at line 478 of file wimax-net-device.cc.

References m_burstProfileManager.

Referenced by GetTypeId(), ns3::SubscriberStationNetDevice::SendBurst(), ns3::BaseStationNetDevice::SendBursts(), ns3::BaseStationNetDevice::SetDlBurstProfiles(), and ns3::BaseStationNetDevice::SetUlBurstProfiles().

Here is the caller graph for this function:

uint64_t ns3::WimaxNetDevice::GetChannel ( uint8_t index ) const

Definition at line 376 of file wimax-net-device.cc.

References m_dlChannels.

Ptr< Channel > ns3::WimaxNetDevice::GetChannel ( void ) const

virtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 216 of file wimax-net-device.cc.

References DoGetChannel().

Here is the call graph for this function:

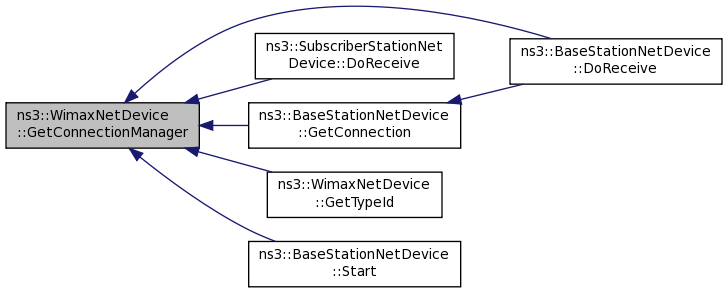

Ptr< ConnectionManager > ns3::WimaxNetDevice::GetConnectionManager ( void ) const

Returns: the connection manager of the device

Definition at line 466 of file wimax-net-device.cc.

References m_connectionManager.

Referenced by ns3::BaseStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::GetConnection(), GetTypeId(), and ns3::BaseStationNetDevice::Start().

Here is the caller graph for this function:

Dcd ns3::WimaxNetDevice::GetCurrentDcd ( void ) const

Definition at line 448 of file wimax-net-device.cc.

References m_currentDcd.

Referenced by ns3::SubscriberStationNetDevice::ProcessDcd().

Here is the caller graph for this function:

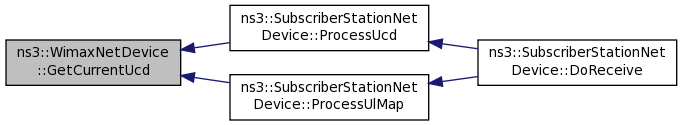

Ucd ns3::WimaxNetDevice::GetCurrentUcd ( void ) const

Definition at line 460 of file wimax-net-device.cc.

References m_currentUcd.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd(), and ns3::SubscriberStationNetDevice::ProcessUlMap().

Here is the caller graph for this function:

uint32_t ns3::WimaxNetDevice::GetIfIndex ( void ) const

virtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 210 of file wimax-net-device.cc.

References m_ifIndex.

Referenced by main().

Here is the caller graph for this function:

Ptr< WimaxConnection > ns3::WimaxNetDevice::GetInitialRangingConnection ( void ) const

Returns: the initial ranging connection

Definition at line 430 of file wimax-net-device.cc.

References m_initialRangingConnection.

Referenced by ns3::SubscriberStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::GetConnection(), and ns3::BaseStationNetDevice::SendBursts().

Here is the caller graph for this function:

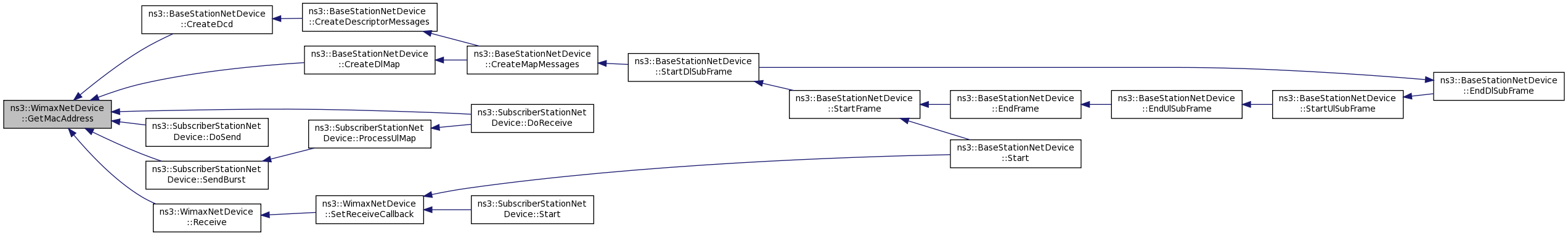

Mac48Address ns3::WimaxNetDevice::GetMacAddress ( void ) const

Returns: the mac address of the net device

Definition at line 412 of file wimax-net-device.cc.

References m_address.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::CreateDlMap(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoSend(), Receive(), and ns3::SubscriberStationNetDevice::SendBurst().

Here is the caller graph for this function:

uint16_t ns3::WimaxNetDevice::GetMtu ( void ) const

virtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 239 of file wimax-net-device.cc.

References m_mtu.

Referenced by GetTypeId().

Here is the caller graph for this function:

Address ns3::WimaxNetDevice::GetMulticast ( void ) const

virtual

Definition at line 277 of file wimax-net-device.cc.

Referenced by MakeMulticastAddress().

Here is the caller graph for this function:

Address ns3::WimaxNetDevice::GetMulticast ( Ipv6Address addr ) const

virtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 625 of file wimax-net-device.cc.

References ns3::Mac48Address::GetMulticast(), and NS_LOG_LOGIC.

Here is the call graph for this function:

Address ns3::WimaxNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

virtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: Ipv4Address; Address; NetDevice::IsMulticast

Implements ns3::NetDevice.

Definition at line 608 of file wimax-net-device.cc.

References ns3::Mac48Address::GetMulticast(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

std::string ns3::WimaxNetDevice::GetName ( void ) const

virtual

Definition at line 198 of file wimax-net-device.cc.

References m_name.

Ptr< Node > ns3::WimaxNetDevice::GetNode ( void ) const

virtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 315 of file wimax-net-device.cc.

References m_node.

uint32_t ns3::WimaxNetDevice::GetNrFrames ( void ) const

Definition at line 387 of file wimax-net-device.cc.

References m_nrFrames.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::StartDlSubFrame(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

Ptr< WimaxPhy > ns3::WimaxNetDevice::GetPhy ( void ) const

Returns: a pointer to the physical layer.

Definition at line 360 of file wimax-net-device.cc.

References m_phy.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::CreateUcd(), ns3::SubscriberStationNetDevice::GetTimeToAllocation(), GetTypeId(), ns3::SubscriberStationNetDevice::ProcessDcd(), ns3::SubscriberStationNetDevice::ProcessUlMap(), ns3::BaseStationNetDevice::SendBursts(), ns3::BaseStationNetDevice::Start(), ns3::SubscriberStationNetDevice::Start(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

Ptr< Channel > ns3::WimaxNetDevice::GetPhyChannel ( void ) const

virtual

Definition at line 222 of file wimax-net-device.cc.

References DoGetChannel().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

NetDevice::PromiscReceiveCallback ns3::WimaxNetDevice::GetPromiscReceiveCallback ( void )

uint16_t ns3::WimaxNetDevice::GetRtg ( void ) const

Returns: receive/transmit transition gap

Definition at line 186 of file wimax-net-device.cc.

References m_rtg.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::EndUlSubFrame(), GetTypeId(), ns3::BaseStationNetDevice::Start(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

uint8_t ns3::WimaxNetDevice::GetState ( void ) const

Definition at line 424 of file wimax-net-device.cc.

References m_state.

Referenced by ns3::SubscriberStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::IsRegistered(), ns3::SubscriberStationNetDevice::ProcessUlMap(), and ns3::SubscriberStationNetDevice::SetTimer().

Here is the caller graph for this function:

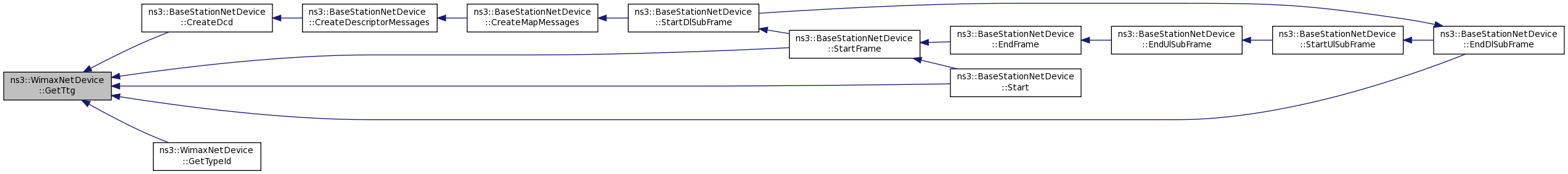

uint16_t ns3::WimaxNetDevice::GetTtg ( void ) const

Returns: transmit/receive transition gap

Definition at line 174 of file wimax-net-device.cc.

References m_ttg.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::EndDlSubFrame(), GetTypeId(), ns3::BaseStationNetDevice::Start(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

TypeId ns3::WimaxNetDevice::GetTypeId ( void )

static

Definition at line 52 of file wimax-net-device.cc.

References DEFAULT_MSDU_SIZE, GetBandwidthManager(), GetBurstProfileManager(), GetConnectionManager(), GetMtu(), GetPhy(), GetPhyChannel(), GetRtg(), GetTtg(), m_broadcastConnection, m_initialRangingConnection, m_traceRx, m_traceTx, ns3::MakeTraceSourceAccessor(), MAX_MSDU_SIZE, SetBandwidthManager(), SetBurstProfileManager(), SetChannel(), SetConnectionManager(), SetMtu(), ns3::TypeId::SetParent(), SetPhy(), SetRtg(), and SetTtg().

Here is the call graph for this function:

void ns3::WimaxNetDevice::InitializeChannels ( void )

private

Definition at line 582 of file wimax-net-device.cc.

References m_dlChannels.

Referenced by WimaxNetDevice().

Here is the caller graph for this function:

bool ns3::WimaxNetDevice::IsBridge ( void ) const

virtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 601 of file wimax-net-device.cc.

References NS_LOG_FUNCTION_NOARGS.

bool ns3::WimaxNetDevice::IsBroadcast ( void ) const

virtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 259 of file wimax-net-device.cc.

bool ns3::WimaxNetDevice::IsLinkUp ( void ) const

virtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 245 of file wimax-net-device.cc.

References m_linkUp, and m_phy.

bool ns3::WimaxNetDevice::IsMulticast ( void ) const

virtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 271 of file wimax-net-device.cc.

bool ns3::WimaxNetDevice::IsPointToPoint ( void ) const

virtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 289 of file wimax-net-device.cc.

bool ns3::WimaxNetDevice::IsPromisc ( void )

Definition at line 556 of file wimax-net-device.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), and m_promiscRx.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

Address ns3::WimaxNetDevice::MakeMulticastAddress ( Ipv4Address multicastGroup ) const

virtual

Definition at line 283 of file wimax-net-device.cc.

References GetMulticast().

Here is the call graph for this function:

bool ns3::WimaxNetDevice::NeedsArp ( void ) const

virtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 321 of file wimax-net-device.cc.

void ns3::WimaxNetDevice::NotifyPromiscTrace ( Ptr< Packet > p )

Definition at line 562 of file wimax-net-device.cc.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

Here is the caller graph for this function:

WimaxNetDevice& ns3::WimaxNetDevice::operator= ( const WimaxNetDevice & )

private

void ns3::WimaxNetDevice::Receive ( Ptr< const PacketBurst > burst )

private

Definition at line 509 of file wimax-net-device.cc.

References DoReceive(), GetMacAddress(), list, and NS_LOG_DEBUG.

Referenced by SetReceiveCallback().

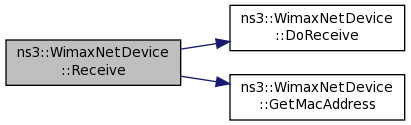

Here is the call graph for this function:

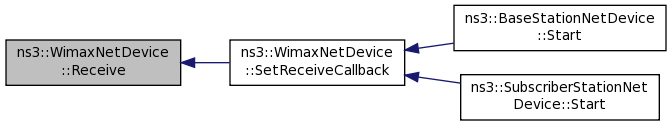

Here is the caller graph for this function:

bool ns3::WimaxNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 295 of file wimax-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Mac48Address::ConvertFrom(), DoSend(), GetAddress(), m_traceTx, and ns3::LlcSnapHeader::SetType().

Here is the call graph for this function:

bool ns3::WimaxNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 535 of file wimax-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Mac48Address::ConvertFrom(), DoSend(), m_traceTx, and ns3::LlcSnapHeader::SetType().

Here is the call graph for this function:

void ns3::WimaxNetDevice::SetAddress ( Address address )

virtual

Set the address of this interface.

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 394 of file wimax-net-device.cc.

References ns3::Mac48Address::ConvertFrom(), and m_address.

Here is the call graph for this function:

void ns3::WimaxNetDevice::SetBandwidthManager ( Ptr< BandwidthManager > bandwidthManager )

Parameters

bandwidthManager the bandwidth manager to be installed on the device

Definition at line 496 of file wimax-net-device.cc.

References m_bandwidthManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetBurstProfileManager ( Ptr< BurstProfileManager > burstProfileManager )

Parameters

burstProfileManager the burst profile manager to be installed on the device

Definition at line 484 of file wimax-net-device.cc.

References m_burstProfileManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetChannel ( Ptr< WimaxChannel > wimaxChannel )

Parameters

wimaxChannel the channel to be used

Definition at line 366 of file wimax-net-device.cc.

References m_phy.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetConnectionManager ( Ptr< ConnectionManager > connectionManager )

virtual

Parameters

connectionManager the commection manager to be installed in the device

Definition at line 472 of file wimax-net-device.cc.

References m_connectionManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetCurrentDcd ( Dcd dcd )

Definition at line 442 of file wimax-net-device.cc.

References m_currentDcd.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), and ns3::SubscriberStationNetDevice::ProcessDcd().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetCurrentUcd ( Ucd ucd )

Definition at line 454 of file wimax-net-device.cc.

References m_currentUcd.

Referenced by ns3::BaseStationNetDevice::CreateUcd(), and ns3::SubscriberStationNetDevice::ProcessUcd().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetIfIndex ( const uint32_t index )

virtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 204 of file wimax-net-device.cc.

References m_ifIndex.

void ns3::WimaxNetDevice::SetLinkChangeCallback ( Callback< void > callback )

virtual

Definition at line 253 of file wimax-net-device.cc.

References m_linkChange.

void ns3::WimaxNetDevice::SetMacAddress ( Mac48Address address )

Parameters

address the mac address of the net device

Definition at line 400 of file wimax-net-device.cc.

References first::address, and m_address.

bool ns3::WimaxNetDevice::SetMtu ( const uint16_t mtu )

virtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 228 of file wimax-net-device.cc.

References m_mtu, and MAX_MSDU_SIZE.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetName ( const std::string name )

virtual

Definition at line 192 of file wimax-net-device.cc.

References m_name.

void ns3::WimaxNetDevice::SetNode ( Ptr< Node > node )

virtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 309 of file wimax-net-device.cc.

References m_node.

Referenced by ns3::BaseStationNetDevice::BaseStationNetDevice(), and ns3::SubscriberStationNetDevice::SubscriberStationNetDevice().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetNrFrames ( uint32_t nrFrames )

Definition at line 382 of file wimax-net-device.cc.

References m_nrFrames.

Referenced by ns3::BaseStationNetDevice::StartDlSubFrame().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetPhy ( Ptr< WimaxPhy > phy )

Parameters

phy	the phy layer to use.

Definition at line 354 of file wimax-net-device.cc.

References m_phy.

Referenced by ns3::BaseStationNetDevice::BaseStationNetDevice(), GetTypeId(), and ns3::SubscriberStationNetDevice::SubscriberStationNetDevice().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 550 of file wimax-net-device.cc.

References m_promiscRx.

void ns3::WimaxNetDevice::SetReceiveCallback ( void )

Definition at line 529 of file wimax-net-device.cc.

References m_phy, ns3::MakeCallback(), and Receive().

Referenced by ns3::BaseStationNetDevice::Start(), and ns3::SubscriberStationNetDevice::Start().

Here is the call graph for this function:
