This device assumes 48-bit mac addressing; there is also the possibility to add an ErrorModel if you want to force losses on the device. More...

#include <simple-net-device.h>

Inheritance diagram for ns3::SimpleNetDevice:

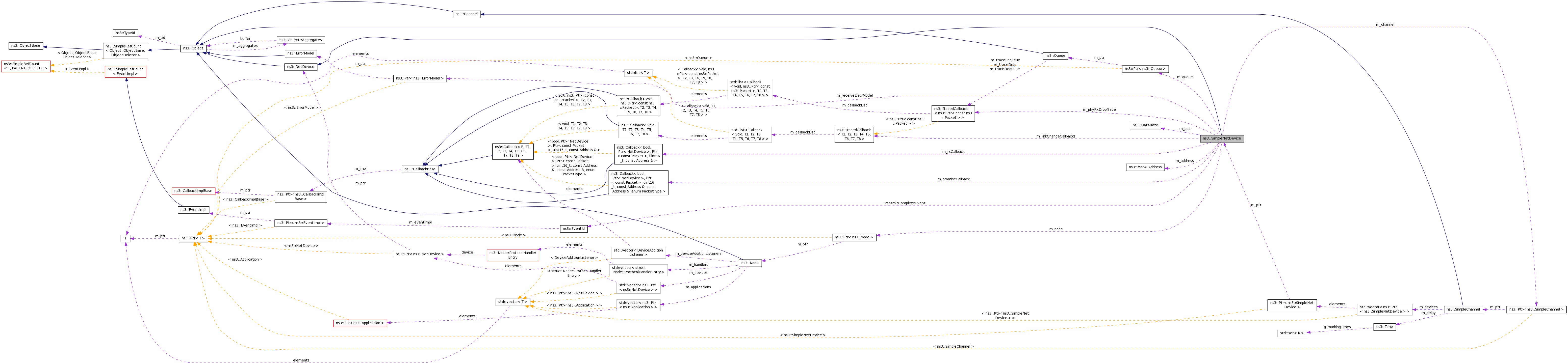

Collaboration diagram for ns3::SimpleNetDevice:

Public Member Functions
	SimpleNetDevice ()

virtual void	AddLinkChangeCallback (Callback< void > callback)

virtual Address	GetAddress (void) const

virtual Address	GetBroadcast (void) const

virtual Ptr< Channel >	GetChannel (void) const

virtual uint32_t	GetIfIndex (void) const

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Ptr< Node >	GetNode (void) const

Ptr< Queue >	GetQueue (void) const
	Get a copy of the attached Queue. More...

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

virtual bool	NeedsArp (void) const

void	Receive (Ptr< Packet > packet, uint16_t protocol, Mac48Address to, Mac48Address from)
	Receive a packet from a connected SimpleChannel. More...

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

void	SetChannel (Ptr< SimpleChannel > channel)
	Attach a channel to this net device. More...

virtual void	SetIfIndex (const uint32_t index)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetNode (Ptr< Node > node)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

void	SetQueue (Ptr< Queue > queue)
	Attach a queue to the SimpleNetDevice. More...

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

void	SetReceiveErrorModel (Ptr< ErrorModel > em)
	Attach a receive ErrorModel to the SimpleNetDevice. More...

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
void	TransmitComplete (void)
	The TransmitComplete method is used internally to finish the process of sending a packet out on the channel. More...

Private Attributes
Mac48Address	m_address
	MAC address. More...

DataRate	m_bps
	The device nominal Data rate. More...

Ptr< SimpleChannel >	m_channel
	the channel the device is connected to More...

uint32_t	m_ifIndex
	Interface index. More...

TracedCallback	m_linkChangeCallbacks
	List of callbacks to fire if the link changes state (up or down). More...

bool	m_linkUp
	Flag indicating whether or not the link is up. More...

uint16_t	m_mtu
	MTU. More...

Ptr< Node >	m_node
	Node this netDevice is associated to. More...

TracedCallback< Ptr< const Packet > >	m_phyRxDropTrace
	The trace source fired when the phy layer drops a packet it has received due to the error model being active. More...

bool	m_pointToPointMode
	Flag indicating whether or not the NetDevice is a Point to Point model. More...

NetDevice::PromiscReceiveCallback	m_promiscCallback
	Promiscuous receive callback. More...

Ptr< Queue >	m_queue
	The Queue for outgoing packets. More...

Ptr< ErrorModel >	m_receiveErrorModel
	Receive error model. More...

NetDevice::ReceiveCallback	m_rxCallback
	Receive callback. More...

EventId	TransmitCompleteEvent
	the Tx Complete event More...

Additional Inherited Members
Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Detailed Description

This device assumes 48-bit mac addressing; there is also the possibility to add an ErrorModel if you want to force losses on the device.

The device can be installed on a node through the SimpleNetDeviceHelper. In case of manual creation, the user is responsible for assigning an unique address to the device.

By default the device is in Broadcast mode, with infinite bandwidth.

simple net device for simple things and testing

Config Paths

ns3::SimpleNetDevice is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice

Attributes

ReceiveErrorModel: The receiver error model used to simulate packet loss
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ErrorModel>
- Initial value: 0
- Flags: construct write read
PointToPointMode: The device is configured in Point to Point mode
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
TxQueue: A queue to use as the transmit queue in the device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Queue>
- Initial value: 0x2472fb0
- Flags: construct write read
DataRate: The default data rate for point to point links. Zero means infinite
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 0bps
- Flags: construct write read

TraceSources

PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception

Definition at line 55 of file simple-net-device.h.

Constructor & Destructor Documentation

ns3::SimpleNetDevice::SimpleNetDevice ( )

Definition at line 189 of file simple-net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::SimpleNetDevice::AddLinkChangeCallback ( Callback< void > callback )

virtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 324 of file simple-net-device.cc.

References ns3::TracedCallback< T1, T2, T3, T4, T5, T6, T7, T8 >::ConnectWithoutContext(), m_linkChangeCallbacks, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::SimpleNetDevice::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::LteSimpleNetDevice.

Definition at line 501 of file simple-net-device.cc.

References ns3::EventId::Cancel(), ns3::Object::DoDispose(), ns3::EventId::IsRunning(), m_channel, m_node, m_queue, m_receiveErrorModel, NS_LOG_FUNCTION, and TransmitCompleteEvent.

Referenced by ns3::LteSimpleNetDevice::DoDispose().

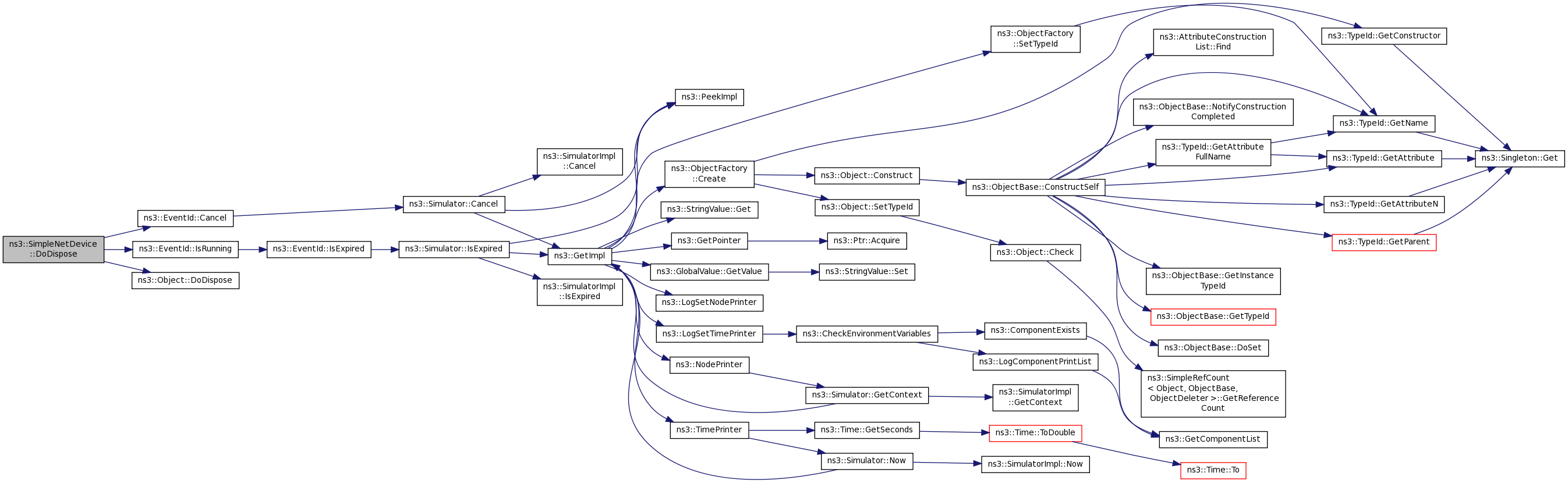

Here is the call graph for this function:

Here is the caller graph for this function:

Address ns3::SimpleNetDevice::GetAddress ( void ) const

virtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 296 of file simple-net-device.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by PacketSocketAppsTest::DoRun(), and main().

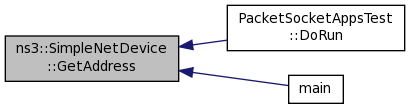

Here is the caller graph for this function:

Address ns3::SimpleNetDevice::GetBroadcast ( void ) const

virtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 340 of file simple-net-device.cc.

References NS_LOG_FUNCTION.

Ptr< Channel > ns3::SimpleNetDevice::GetChannel ( void ) const

virtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 284 of file simple-net-device.cc.

References m_channel, and NS_LOG_FUNCTION.

uint32_t ns3::SimpleNetDevice::GetIfIndex ( void ) const

virtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 278 of file simple-net-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

Referenced by PacketSocketAppsTest::DoRun(), and main().

Here is the caller graph for this function:

uint16_t ns3::SimpleNetDevice::GetMtu ( void ) const

virtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 312 of file simple-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by SendFrom().

Here is the caller graph for this function:

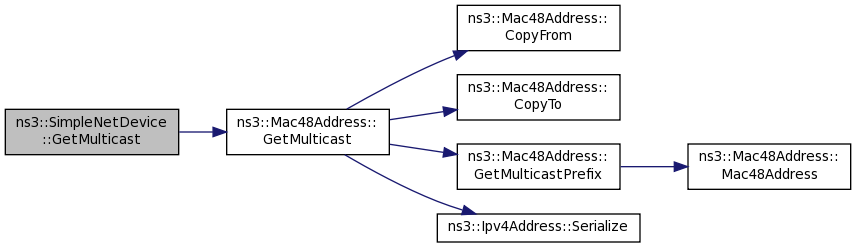

Address ns3::SimpleNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

virtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: Ipv4Address; Address; NetDevice::IsMulticast

Implements ns3::NetDevice.

Definition at line 356 of file simple-net-device.cc.

References ns3::Mac48Address::GetMulticast(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Address ns3::SimpleNetDevice::GetMulticast ( Ipv6Address addr ) const

virtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 362 of file simple-net-device.cc.

References ns3::Mac48Address::GetMulticast(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< Node > ns3::SimpleNetDevice::GetNode ( void ) const

virtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 472 of file simple-net-device.cc.

References m_node, and NS_LOG_FUNCTION.

Ptr< Queue > ns3::SimpleNetDevice::GetQueue ( void ) const

Get a copy of the attached Queue.

Returns: Ptr to the queue.

Definition at line 251 of file simple-net-device.cc.

References m_queue, and NS_LOG_FUNCTION.

TypeId ns3::SimpleNetDevice::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 157 of file simple-net-device.cc.

References m_bps, m_phyRxDropTrace, m_pointToPointMode, m_queue, m_receiveErrorModel, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

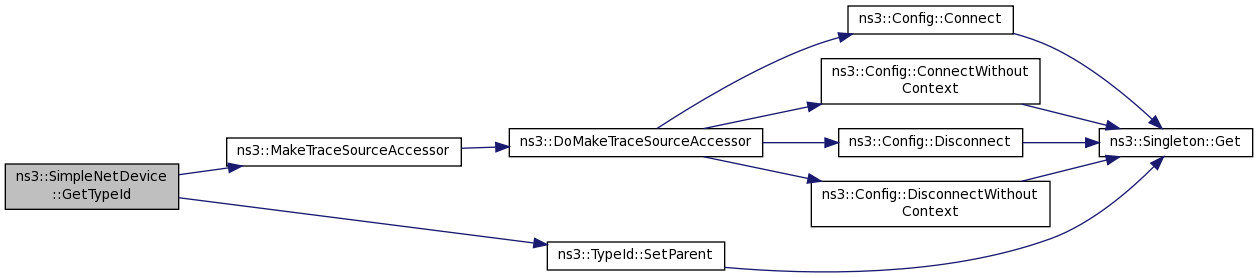

Here is the call graph for this function:

bool ns3::SimpleNetDevice::IsBridge ( void ) const

virtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 380 of file simple-net-device.cc.

References NS_LOG_FUNCTION.

bool ns3::SimpleNetDevice::IsBroadcast ( void ) const

virtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 330 of file simple-net-device.cc.

References m_pointToPointMode, and NS_LOG_FUNCTION.

bool ns3::SimpleNetDevice::IsLinkUp ( void ) const

virtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 318 of file simple-net-device.cc.

References m_linkUp, and NS_LOG_FUNCTION.

bool ns3::SimpleNetDevice::IsMulticast ( void ) const

virtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 346 of file simple-net-device.cc.

References m_pointToPointMode, and NS_LOG_FUNCTION.

bool ns3::SimpleNetDevice::IsPointToPoint ( void ) const

virtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 369 of file simple-net-device.cc.

References m_pointToPointMode, and NS_LOG_FUNCTION.

bool ns3::SimpleNetDevice::NeedsArp ( void ) const

virtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 484 of file simple-net-device.cc.

References m_pointToPointMode, and NS_LOG_FUNCTION.

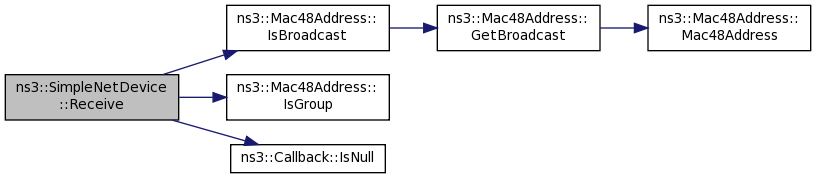

void ns3::SimpleNetDevice::Receive	(	Ptr< Packet >	packet,
		uint16_t	protocol,
		Mac48Address	to,
		Mac48Address	from
	)

Receive a packet from a connected SimpleChannel.

The SimpleNetDevice receives packets from its connected channel and then forwards them by calling its rx callback method

Parameters

packet	Packet received on the channel
protocol	protocol number
to	address packet should be sent to
from	address packet was sent from

Definition at line 200 of file simple-net-device.cc.

References ns3::Mac48Address::IsBroadcast(), ns3::Mac48Address::IsGroup(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_address, m_phyRxDropTrace, m_promiscCallback, m_receiveErrorModel, m_rxCallback, NS_LOG_FUNCTION, ns3::NetDevice::PACKET_BROADCAST, ns3::NetDevice::PACKET_HOST, ns3::NetDevice::PACKET_MULTICAST, and ns3::NetDevice::PACKET_OTHERHOST.

Referenced by ns3::ErrorChannel::Send(), ns3::ErrorChannelSixlow::Send(), and ns3::SimpleChannel::Send().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::SimpleNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Reimplemented in ns3::LteSimpleNetDevice.

Definition at line 387 of file simple-net-device.cc.

References m_address, NS_LOG_FUNCTION, and SendFrom().

Referenced by ns3::LteSimpleNetDevice::Send().

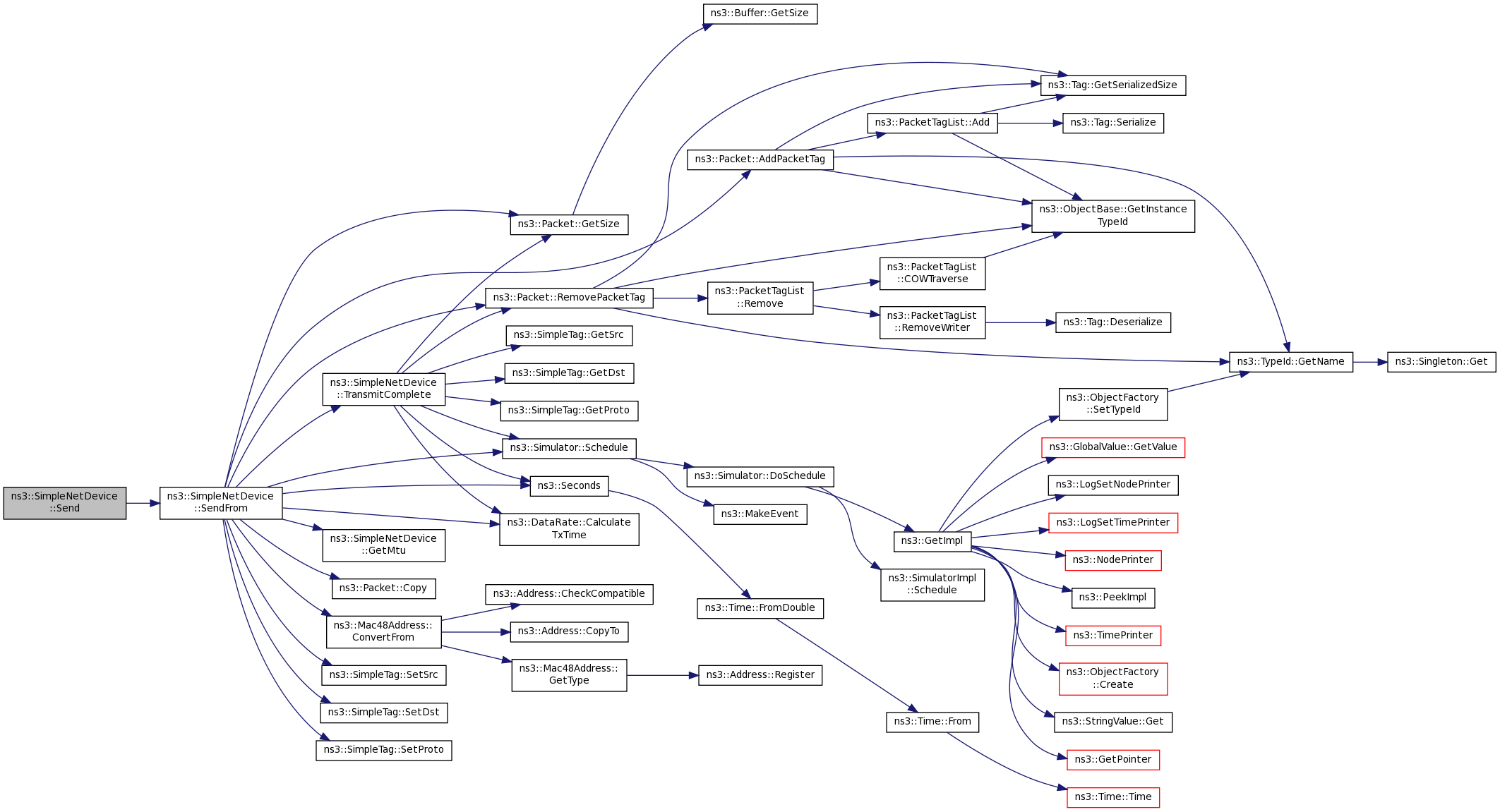

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::SimpleNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 395 of file simple-net-device.cc.

References ns3::Packet::AddPacketTag(), ns3::DataRate::CalculateTxTime(), ns3::Mac48Address::ConvertFrom(), ns3::Packet::Copy(), GetMtu(), ns3::Packet::GetSize(), m_bps, m_channel, m_queue, NS_LOG_FUNCTION, ns3::Packet::RemovePacketTag(), ns3::Simulator::Schedule(), ns3::Seconds(), ns3::SimpleTag::SetDst(), ns3::SimpleTag::SetProto(), ns3::SimpleTag::SetSrc(), TransmitComplete(), and TransmitCompleteEvent.

Referenced by Send().

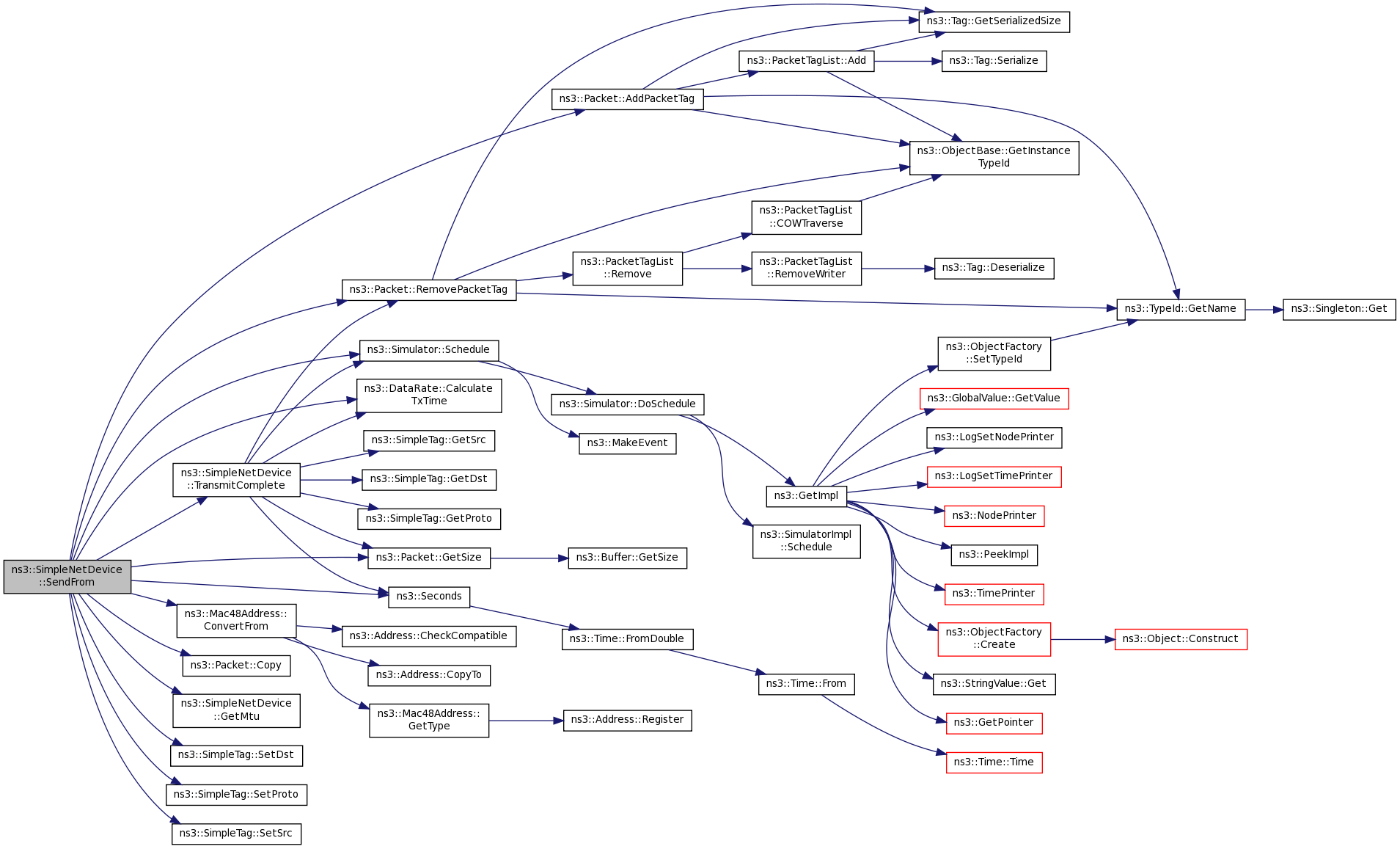

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SimpleNetDevice::SetAddress ( Address address )

virtual

Set the address of this interface.

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 290 of file simple-net-device.cc.

References ns3::Mac48Address::ConvertFrom(), m_address, and NS_LOG_FUNCTION.

Referenced by TcpTestCase::AddSimpleNetDevice(), AddSimpleNetDevice(), TcpTestCase::AddSimpleNetDevice6(), BuildSimpleTopology(), IpAddressHelperTestCasev6::DoRun(), Ipv4StaticRoutingSlash32TestCase::DoRun(), Ipv6RipngTest::DoRun(), Ipv4ForwardingTest::DoRun(), SixlowpanIphcImplTest::DoRun(), SixlowpanHc1ImplTest::DoRun(), Ipv4HeaderTest::DoRun(), SixlowpanFragmentationTest::DoRun(), Ipv6FragmentationTest::DoRun(), Ipv6RipngCountToInfinityTest::DoRun(), Ipv4GlobalRoutingSlash32TestCase::DoRun(), and Ipv6RipngSplitHorizonStrategyTest::DoRun().

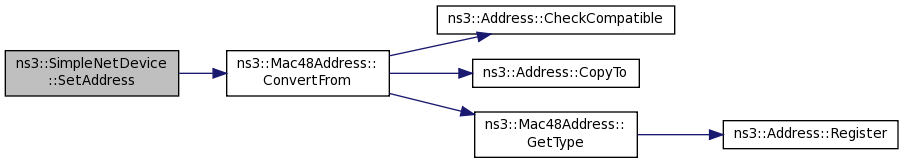

Here is the call graph for this function:

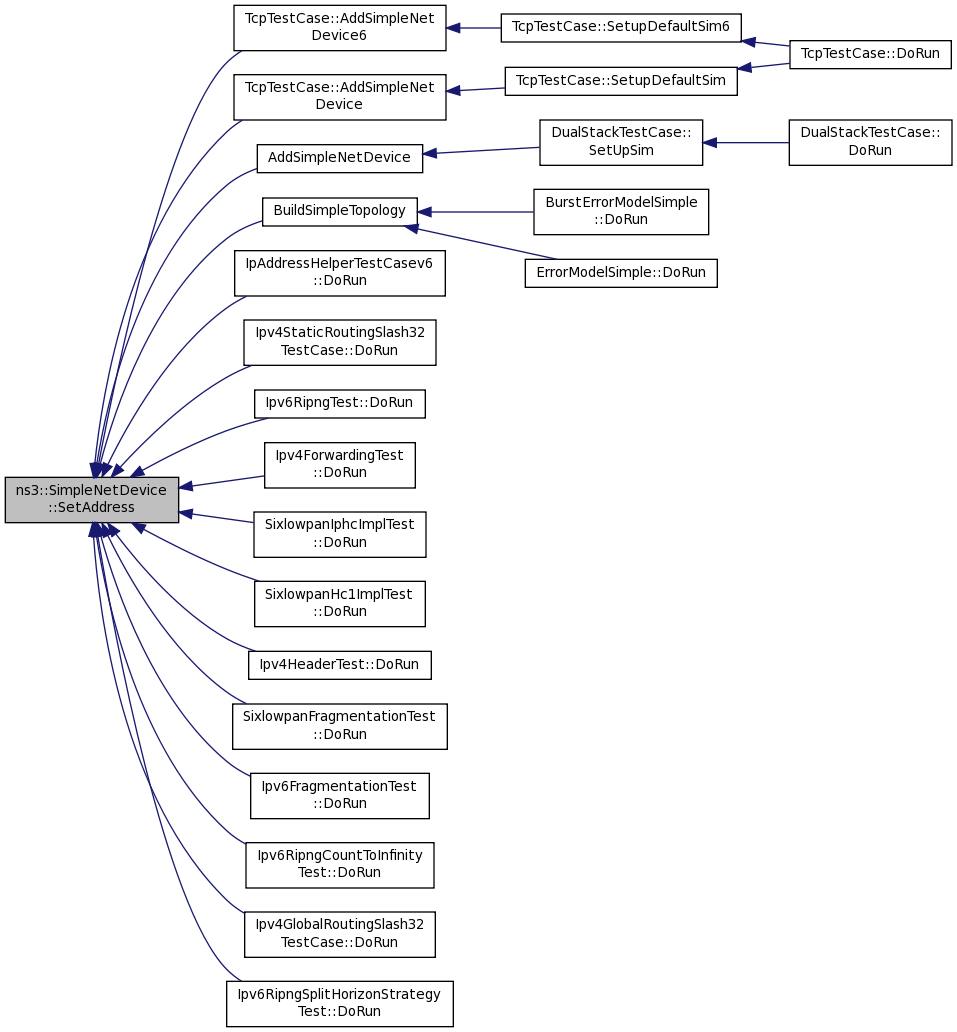

Here is the caller graph for this function:

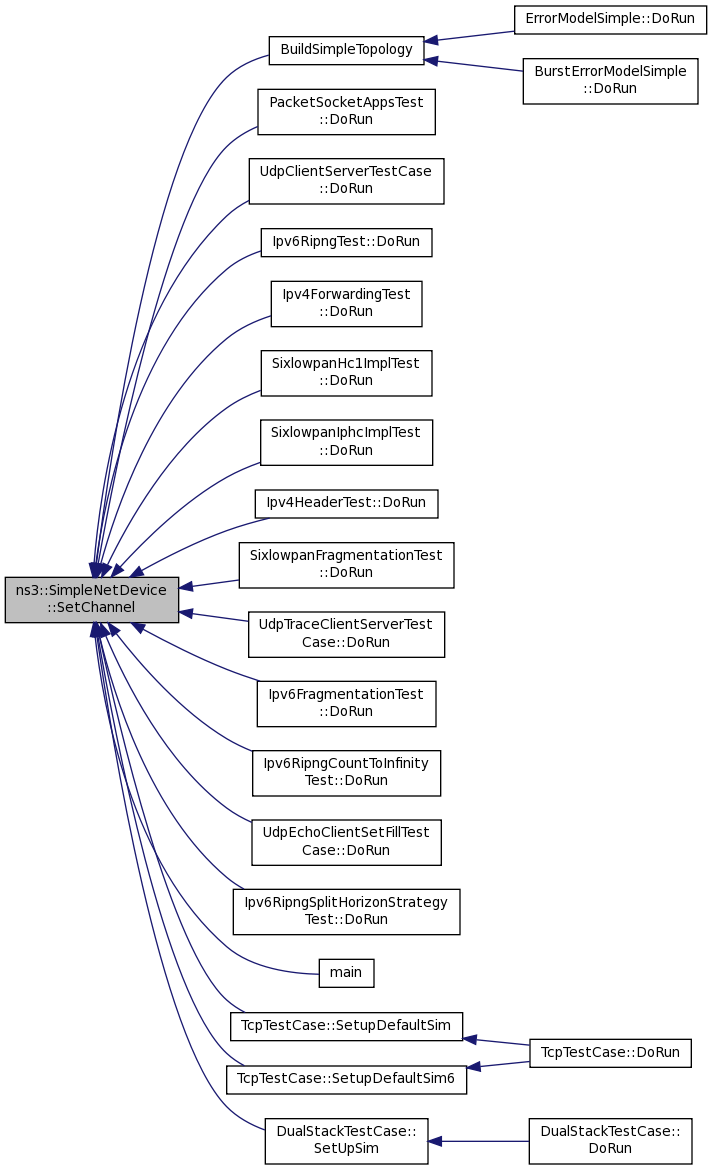

void ns3::SimpleNetDevice::SetChannel ( Ptr< SimpleChannel > channel )

Attach a channel to this net device.

This will be the channel the net device sends on

Parameters

channel channel to assign to this net device

Definition at line 241 of file simple-net-device.cc.

References m_channel, m_linkChangeCallbacks, m_linkUp, and NS_LOG_FUNCTION.

Referenced by BuildSimpleTopology(), PacketSocketAppsTest::DoRun(), UdpClientServerTestCase::DoRun(), Ipv6RipngTest::DoRun(), Ipv4ForwardingTest::DoRun(), SixlowpanHc1ImplTest::DoRun(), SixlowpanIphcImplTest::DoRun(), Ipv4HeaderTest::DoRun(), SixlowpanFragmentationTest::DoRun(), UdpTraceClientServerTestCase::DoRun(), Ipv6FragmentationTest::DoRun(), Ipv6RipngCountToInfinityTest::DoRun(), UdpEchoClientSetFillTestCase::DoRun(), Ipv6RipngSplitHorizonStrategyTest::DoRun(), main(), TcpTestCase::SetupDefaultSim(), TcpTestCase::SetupDefaultSim6(), and DualStackTestCase::SetUpSim().

Here is the caller graph for this function:

void ns3::SimpleNetDevice::SetIfIndex ( const uint32_t index )

virtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 272 of file simple-net-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

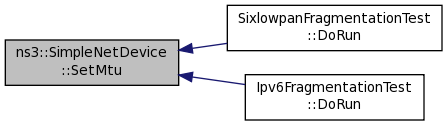

bool ns3::SimpleNetDevice::SetMtu ( const uint16_t mtu )

virtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 305 of file simple-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by SixlowpanFragmentationTest::DoRun(), and Ipv6FragmentationTest::DoRun().

Here is the caller graph for this function:

void ns3::SimpleNetDevice::SetNode ( Ptr< Node > node )

virtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 478 of file simple-net-device.cc.

References m_node, and NS_LOG_FUNCTION.

Referenced by BuildSimpleTopology(), PacketSocketAppsTest::DoRun(), ns3::LteSimpleNetDevice::LteSimpleNetDevice(), and main().

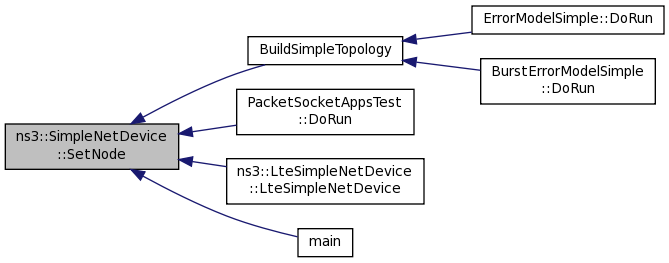

Here is the caller graph for this function:

void ns3::SimpleNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 517 of file simple-net-device.cc.

References m_promiscCallback, and NS_LOG_FUNCTION.

void ns3::SimpleNetDevice::SetQueue ( Ptr< Queue > queue )

Attach a queue to the SimpleNetDevice.

Parameters

queue Ptr to the new queue.

Definition at line 258 of file simple-net-device.cc.

References m_queue, and NS_LOG_FUNCTION.

void ns3::SimpleNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

virtual

Parameters
