Implement the header for management frames of type beacon. More...
#include <mgt-headers.h>

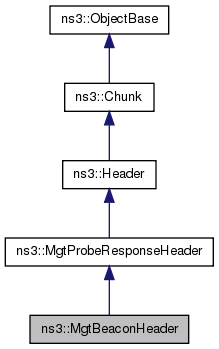

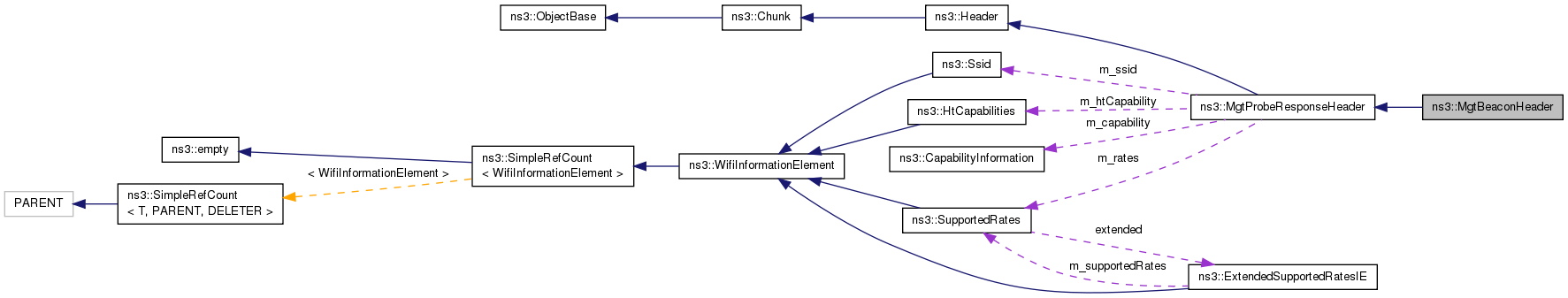

Inheritance diagram for ns3::MgtBeaconHeader: Collaboration diagram for ns3::MgtBeaconHeader:Additional Inherited Members | |
| Public Member Functions inherited from ns3::MgtProbeResponseHeader | |
| MgtProbeResponseHeader () | |
| ~MgtProbeResponseHeader () | |
| virtual uint32_t | Deserialize (Buffer::Iterator start) |
| uint64_t | GetBeaconIntervalUs (void) const |
| Return the beacon interval in microseconds unit. More... | |
| HtCapabilities | GetHtCapabilities (void) const |
| Return the HT capabilities. More... | |
| virtual TypeId | GetInstanceTypeId (void) const |
| Get the most derived TypeId for this Object. More... | |
| virtual uint32_t | GetSerializedSize (void) const |
| Ssid | GetSsid (void) const |
| Return the Service Set Identifier (SSID). More... | |
| SupportedRates | GetSupportedRates (void) const |
| Return the supported rates. More... | |
| uint64_t | GetTimestamp () |
| Return the time stamp. More... | |
| virtual void | Print (std::ostream &os) const |
| virtual void | Serialize (Buffer::Iterator start) const |
| void | SetBeaconIntervalUs (uint64_t us) |
| Set the beacon interval in microseconds unit. More... | |
| void | SetHtCapabilities (HtCapabilities htcapabilities) |
| Set the HT capabilities. More... | |
| void | SetSsid (Ssid ssid) |
| Set the Service Set Identifier (SSID). More... | |
| void | SetSupportedRates (SupportedRates rates) |
| Set the supported rates. More... | |
| Public Member Functions inherited from ns3::Header | |
| virtual | ~Header () |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
| Static Public Member Functions inherited from ns3::MgtProbeResponseHeader | |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::Header | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Chunk | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Implement the header for management frames of type beacon.
Definition at line 321 of file mgt-headers.h.
