This object represents the underlying nsc stack, which is aggregated to a Node object, and which provides access to the sysctls of the nsc stack through attributes. More...
#include <nsc-sysctl.h>

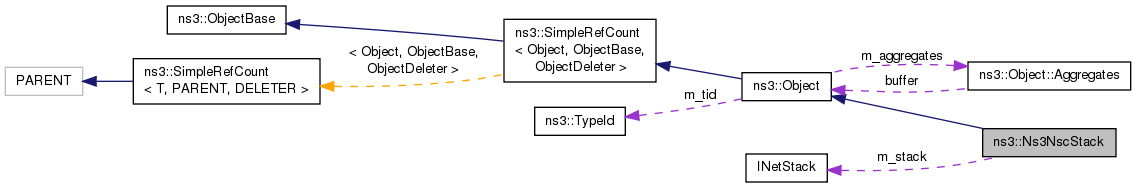

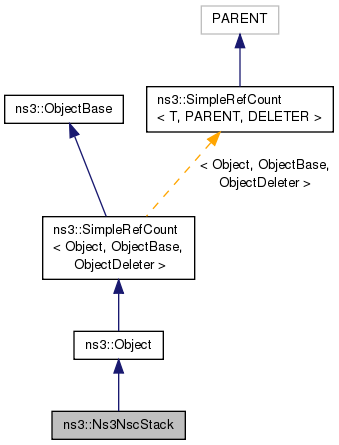

Inheritance diagram for ns3::Ns3NscStack: Collaboration diagram for ns3::Ns3NscStack:Public Member Functions | |
| virtual TypeId | GetInstanceTypeId (void) const |
| Implement the GetInstanceTypeId method defined in ObjectBase. More... | |
| void | SetStack (INetStack *stack) |
| Set the underlying stack. More... | |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. More... | |
| virtual | ~Object () |
| Destructor. More... | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. More... | |
| void | Dispose (void) |
| Dispose of this Object. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| Get an iterator to the Objects aggregated to this one. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| Get a pointer to the requested aggregated Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object. More... | |
| void | Initialize (void) |
| Invoke DoInitialize on all Objects aggregated to this one. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| static void | Cleanup (void) |
| Noop. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Member Functions | |
| std::string | Get (std::string name) const |
| Get an attribute. More... | |
| void | Set (std::string name, std::string value) |
| Set an attribute. More... | |
Private Attributes | |
| INetStack * | m_stack |
| the underlying stack More... | |
Friends | |
| class | NscStackStringAccessor |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. More... | |
| virtual void | DoDispose (void) |
| Destructor implementation. More... | |
| virtual void | DoInitialize (void) |
| Initialize() implementation. More... | |
| virtual void | NotifyNewAggregate (void) |
| Notify all Objects aggregated to this one of a new Object being aggregated. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
This object represents the underlying nsc stack, which is aggregated to a Node object, and which provides access to the sysctls of the nsc stack through attributes.
Definition at line 35 of file nsc-sysctl.h.
|
private |
Get an attribute.
| name | the attribute name |
Definition at line 135 of file nsc-sysctl.cc.
References m_stack, and INetStack::sysctl_get().
Referenced by ns3::NscStackStringAccessor::Get().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
Implement the GetInstanceTypeId method defined in ObjectBase.
Reimplemented from ns3::Object.
Definition at line 94 of file nsc-sysctl.cc.
References ns3::TypeId::AddAttribute(), INetStack::get_name(), GetTypeId(), ns3::TypeId::LookupByNameFailSafe(), m_stack, ns3::MakeStringChecker(), ns3::TypeId::SetParent(), INetStack::sysctl_get(), and INetStack::sysctl_getnum().

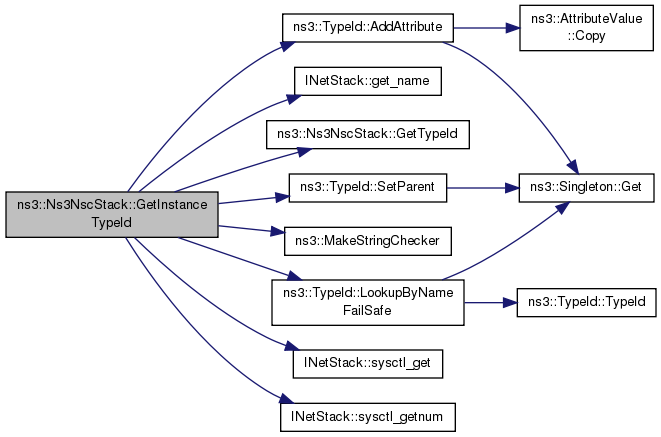

Here is the call graph for this function:
|
static |
Get the type ID.
Referenced by GetInstanceTypeId().
Here is the caller graph for this function:
|
private |
Set an attribute.
| name | the attribute name |
| value | the attribute value |
Definition at line 146 of file nsc-sysctl.cc.
References m_stack, NS_FATAL_ERROR, and INetStack::sysctl_set().
Referenced by ns3::NscStackStringAccessor::Set().
Here is the call graph for this function: Here is the caller graph for this function:
|
inline |
Set the underlying stack.
| stack | the stack |
Definition at line 48 of file nsc-sysctl.h.
References m_stack, and first::stack.
|
friend |
Definition at line 51 of file nsc-sysctl.h.
|
private |
the underlying stack
Definition at line 64 of file nsc-sysctl.h.
Referenced by Get(), GetInstanceTypeId(), Set(), and SetStack().
