#include <ofdm-downlink-frame-prefix.h>

Inheritance diagram for ns3::OfdmDownlinkFramePrefix:

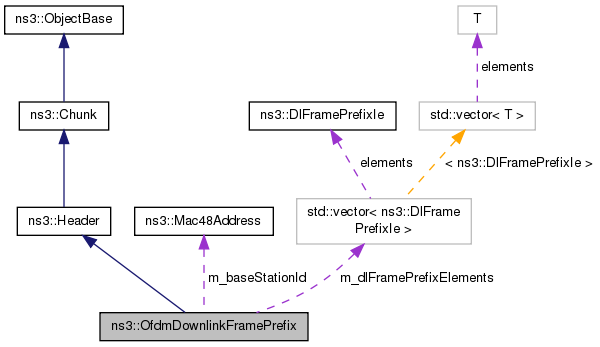

Collaboration diagram for ns3::OfdmDownlinkFramePrefix:

Public Member Functions
	OfdmDownlinkFramePrefix ()

	~OfdmDownlinkFramePrefix ()

void	AddDlFramePrefixElement (DlFramePrefixIe dlFramePrefixElement)

uint32_t	Deserialize (Buffer::Iterator start)

Mac48Address	GetBaseStationId (void) const

uint8_t	GetConfigurationChangeCount (void) const

std::vector< DlFramePrefixIe >	GetDlFramePrefixElements (void) const

uint32_t	GetFrameNumber (void) const

uint8_t	GetHcs (void) const

std::string	GetName (void) const

uint32_t	GetSerializedSize (void) const

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetBaseStationId (Mac48Address baseStationId)

void	SetConfigurationChangeCount (uint8_t configurationChangeCount)

void	SetFrameNumber (uint32_t frameNumber)

void	SetHcs (uint8_t hcs)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

virtual TypeId	GetInstanceTypeId (void) const =0
	Get the most derived TypeId for this Object. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Private Attributes
Mac48Address	m_baseStationId

uint8_t	m_configurationChangeCount

std::vector< DlFramePrefixIe >	m_dlFramePrefixElements

uint32_t	m_frameNumber

uint8_t	m_hcs

Additional Inherited Members
Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Definition at line 80 of file ofdm-downlink-frame-prefix.h.

Constructor & Destructor Documentation

ns3::OfdmDownlinkFramePrefix::OfdmDownlinkFramePrefix ( )

Definition at line 131 of file ofdm-downlink-frame-prefix.cc.

ns3::OfdmDownlinkFramePrefix::~OfdmDownlinkFramePrefix ( )

Definition at line 139 of file ofdm-downlink-frame-prefix.cc.

Member Function Documentation

void ns3::OfdmDownlinkFramePrefix::AddDlFramePrefixElement ( DlFramePrefixIe dlFramePrefixElement )

Definition at line 163 of file ofdm-downlink-frame-prefix.cc.

References m_dlFramePrefixElements.

Referenced by Deserialize().

Here is the caller graph for this function:

uint32_t ns3::OfdmDownlinkFramePrefix::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 255 of file ofdm-downlink-frame-prefix.cc.

References AddDlFramePrefixElement(), ns3::DlFramePrefixIe::GetDiuc(), GetSerializedSize(), m_baseStationId, m_configurationChangeCount, m_frameNumber, m_hcs, ns3::DlFramePrefixIe::Read(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

Mac48Address ns3::OfdmDownlinkFramePrefix::GetBaseStationId ( void ) const

Definition at line 176 of file ofdm-downlink-frame-prefix.cc.

References m_baseStationId.

uint8_t ns3::OfdmDownlinkFramePrefix::GetConfigurationChangeCount ( void ) const

Definition at line 188 of file ofdm-downlink-frame-prefix.cc.

References m_configurationChangeCount.

std::vector< DlFramePrefixIe > ns3::OfdmDownlinkFramePrefix::GetDlFramePrefixElements ( void ) const

Definition at line 194 of file ofdm-downlink-frame-prefix.cc.

References m_dlFramePrefixElements.

uint32_t ns3::OfdmDownlinkFramePrefix::GetFrameNumber ( void ) const

Definition at line 182 of file ofdm-downlink-frame-prefix.cc.

References m_frameNumber.

uint8_t ns3::OfdmDownlinkFramePrefix::GetHcs ( void ) const

Definition at line 200 of file ofdm-downlink-frame-prefix.cc.

References m_hcs.

std::string ns3::OfdmDownlinkFramePrefix::GetName ( void ) const

Definition at line 206 of file ofdm-downlink-frame-prefix.cc.

uint32_t ns3::OfdmDownlinkFramePrefix::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 222 of file ofdm-downlink-frame-prefix.cc.

References ns3::DlFramePrefixIe::GetSize(), and m_dlFramePrefixElements.

Referenced by Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::OfdmDownlinkFramePrefix::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 212 of file ofdm-downlink-frame-prefix.cc.

References m_baseStationId, m_configurationChangeCount, m_dlFramePrefixElements, m_frameNumber, and m_hcs.

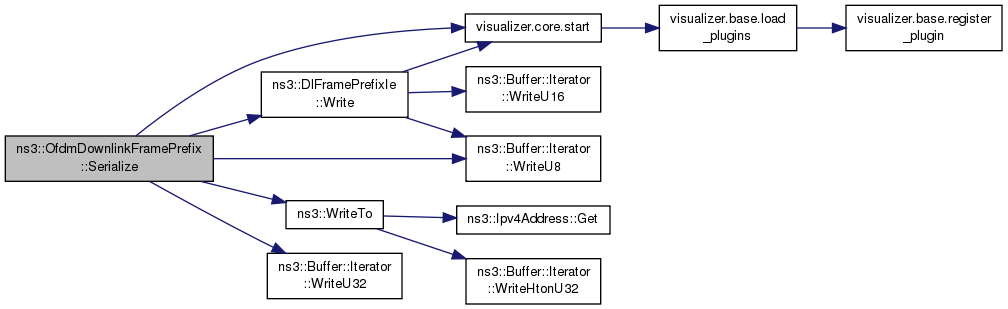

void ns3::OfdmDownlinkFramePrefix::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 237 of file ofdm-downlink-frame-prefix.cc.

References m_baseStationId, m_configurationChangeCount, m_dlFramePrefixElements, m_frameNumber, m_hcs, visualizer.core::start(), ns3::DlFramePrefixIe::Write(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().
