SpectrumPhy implementation that creates a customizable TV transmitter which transmits a PSD spectrum specified by user-set attributes. More...

#include <tv-spectrum-transmitter.h>

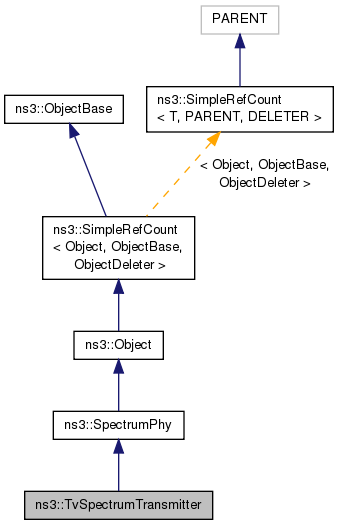

Inheritance diagram for ns3::TvSpectrumTransmitter:

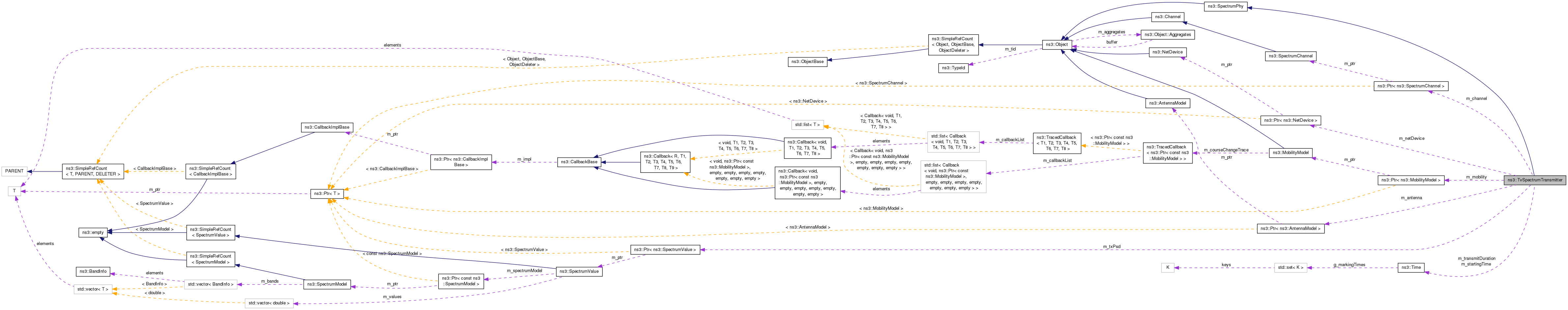

Collaboration diagram for ns3::TvSpectrumTransmitter:

Public Types
enum	TvType { TVTYPE_ANALOG, TVTYPE_8VSB, TVTYPE_COFDM }
	types of TV transmitters: analog, digital 8-VSB, or digital COFDM More...

Public Member Functions
	TvSpectrumTransmitter ()
	Default constructor. More...

virtual	~TvSpectrumTransmitter ()
	Destructor. More...

virtual void	CreateTvPsd ()
	Creates power spectral density (PSD) spectrum of the TV transmitter and sets it for transmission. More...

Ptr< SpectrumChannel >	GetChannel () const
	Get the spectrum channel. More...

Ptr< NetDevice >	GetDevice ()
	get the associated NetDevice instance More...

Ptr< MobilityModel >	GetMobility ()
	get the associated MobilityModel instance More...

Ptr< AntennaModel >	GetRxAntenna ()
	get the AntennaModel used by the NetDevice for reception More...

Ptr< const SpectrumModel >	GetRxSpectrumModel () const

Ptr< SpectrumValue >	GetTxPsd () const
	Get the power spectral density of the TV transmitter's signal. More...

void	SetChannel (Ptr< SpectrumChannel > c)
	Set the channel attached to this device. More...

void	SetDevice (Ptr< NetDevice > d)
	set the associated NetDevice instance More...

void	SetMobility (Ptr< MobilityModel > m)
	Set the mobility model associated with this device. More...

virtual void	Start ()
	Starts the TV Transmitter's transmission on the spectrum channel. More...

void	StartRx (Ptr< SpectrumSignalParameters > params)
	Notify the SpectrumPhy instance of an incoming signal. More...

virtual void	Stop ()
	Stops the TV Transmitter's transmission on the spectrum channel. More...

Public Member Functions inherited from ns3::SpectrumPhy
	SpectrumPhy ()

virtual	~SpectrumPhy ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	SetupTx ()
	Sets up signal to be transmitted. More...

Private Attributes
bool	m_active
	True if TV transmitter is transmitting. More...

Ptr< AntennaModel >	m_antenna
	Pointer to antenna model object. More...

double	m_basePsd
	Base power spectral density value (in dBm/Hz) of TV transmitter's signal. More...

Ptr< SpectrumChannel >	m_channel
	Pointer to spectrum channel object. More...

double	m_channelBandwidth
	Bandwidth (in Hz) of TV transmitter's signal. More...

Ptr< MobilityModel >	m_mobility
	Pointer to mobility model object. More...

Ptr< NetDevice >	m_netDevice
	Pointer to net device object. More...

double	m_startFrequency
	Start frequency (in Hz) of TV transmitter's signal. More...

Time	m_startingTime
	Timepoint after simulation begins that TV transmitter will begin transmitting. More...

Time	m_transmitDuration
	Length of time that TV transmitter will transmit for. More...

enum TvType	m_tvType
	Type of TV transmitter. More...

Ptr< SpectrumValue >	m_txPsd
	Pointer to power spectral density of TV transmitter's signal. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

SpectrumPhy implementation that creates a customizable TV transmitter which transmits a PSD spectrum specified by user-set attributes.

Introspection did not find any typical Config paths.

This PHY model supports a single antenna model instance which is used for transmission (this PHY model never receives).

Attributes

TvType: The type of TV transmitter/modulation to be used.
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: 8vsb
- Flags: construct write read
StartFrequency: The lower end frequency (in Hz) of the TV transmitter's signal. Must be greater than or equal to 0.
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1.79769e+308
- Initial value: 5e+08
- Flags: construct write read
ChannelBandwidth: The bandwidth (in Hz) of the TV transmitter's signal. Must be greater than or equal to 0.
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1.79769e+308
- Initial value: 6e+06
- Flags: construct write read
BasePsd: The base power spectral density (in dBm/Hz) of the TV transmitter's transmitted spectrum. Base PSD is the maximum PSD of the spectrum excluding pilots. For analog and COFDM transmitters this is the maximum PSD, but for 8-VSB transmitters this is the maximum PSD of the main signal spectrum (flat-top segment) since the pilot actually has the maximum PSD overall.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 20
- Flags: construct write read
Antenna: The AntennaModel to be used. Allows classes inherited from ns3::AntennaModel. Defaults to ns3::IsotropicAntennaModel.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::AntennaModel>
- Initial value: ns3::IsotropicAntennaModel
- Flags: construct write read
StartingTime: The time point after the simulation begins in which the TV transmitter will begin transmitting.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
TransmitDuration: The duration of time that the TV transmitter will transmit for.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +200000000.0ns
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 128 bytes (on a 64-bit architecture).

Definition at line 46 of file tv-spectrum-transmitter.h.

Constructor & Destructor Documentation

ns3::TvSpectrumTransmitter::TvSpectrumTransmitter ( )

Default constructor.

Definition at line 40 of file tv-spectrum-transmitter.cc.

References NS_LOG_FUNCTION.

ns3::TvSpectrumTransmitter::~TvSpectrumTransmitter ( )

virtual

Destructor.

Definition at line 57 of file tv-spectrum-transmitter.cc.

References m_antenna, m_channel, m_mobility, m_netDevice, m_txPsd, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::TvSpectrumTransmitter::CreateTvPsd ( )

virtual

Creates power spectral density (PSD) spectrum of the TV transmitter and sets it for transmission.

8-VSB PSD approximated from Figure 3 of the following article: Baron, Stanley.

Before calling this method, must set attributes and parameters that are applicable to your transmitter.

8-VSB PSD approximated from Figure 3 of the following article: Baron, Stanley. "First-Hand:Digital Television: The Digital Terrestrial Television Broadcasting (DTTB) Standard." IEEE Global History Network. <http://www.ieeeghn.org/wiki/index.php/First-Hand:Digital_Television:The Digital_Terrestrial_Television_Broadcasting_(DTTB)_Standard>.

COFDM PSD approximated from Figure 12 (8k mode) of the following article: Kopp, Carlo. "High Definition Television." High Definition Television. Air Power Australia. http://www.ausairpower.net/AC-1100.html.

Analog PSD approximated from Figure 4 of the following paper: Stephen Shellhammer, Ahmed Sadek, and Wenyi Zhang. "Technical Challenges for Cognitive Radio in the TV White Space Spectrum." Qualcomm Incorporated.

Returns: a pointer to the power spectral density of the TV transmitter

"First-Hand:Digital Television: The Digital Terrestrial Television Broadcasting (DTTB) Standard." IEEE Global History Network. <http://www.ieeeghn.org/wiki/index.php/First-Hand:Digital_Television:The Digital_Terrestrial_Television_Broadcasting_(DTTB)_Standard>.

COFDM PSD approximated from Figure 12 (8k mode) of the following article: Kopp, Carlo. "High Definition Television." High Definition Television. Air Power Australia. http://www.ausairpower.net/AC-1100.html.

Analog PSD approximated from Figure 4 of the following paper: Stephen Shellhammer, Ahmed Sadek, and Wenyi Zhang. "Technical Challenges for Cognitive Radio in the TV White Space Spectrum." Qualcomm Incorporated.

Definition at line 228 of file tv-spectrum-transmitter.cc.

References ns3::BandInfo::fc, ns3::BandInfo::fh, ns3::BandInfo::fl, m_basePsd, m_channelBandwidth, m_startFrequency, m_tvType, m_txPsd, NS_ASSERT, NS_LOG_ERROR, NS_LOG_FUNCTION, TVTYPE_8VSB, TVTYPE_ANALOG, and TVTYPE_COFDM.

Referenced by TvSpectrumTransmitterTestCase::DoRun().

Here is the caller graph for this function:

Ptr< SpectrumChannel > ns3::TvSpectrumTransmitter::GetChannel ( void ) const

Get the spectrum channel.

Returns: a pointer to the assigned spectrum channel

Definition at line 182 of file tv-spectrum-transmitter.cc.

References m_channel, and NS_LOG_FUNCTION.

Ptr< NetDevice > ns3::TvSpectrumTransmitter::GetDevice ( )

virtual

get the associated NetDevice instance

Returns: a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 154 of file tv-spectrum-transmitter.cc.

References m_netDevice, and NS_LOG_FUNCTION.

Ptr< MobilityModel > ns3::TvSpectrumTransmitter::GetMobility ( )

virtual

get the associated MobilityModel instance

Returns: a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 147 of file tv-spectrum-transmitter.cc.

References m_mobility, and NS_LOG_FUNCTION.

Ptr< AntennaModel > ns3::TvSpectrumTransmitter::GetRxAntenna ( )

virtual

get the AntennaModel used by the NetDevice for reception

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 168 of file tv-spectrum-transmitter.cc.

References m_antenna, and NS_LOG_FUNCTION.

Ptr< const SpectrumModel > ns3::TvSpectrumTransmitter::GetRxSpectrumModel ( ) const

virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 161 of file tv-spectrum-transmitter.cc.

References NS_LOG_FUNCTION.

Ptr< SpectrumValue > ns3::TvSpectrumTransmitter::GetTxPsd ( ) const

Get the power spectral density of the TV transmitter's signal.

Returns: a pointer to the PSD

Definition at line 542 of file tv-spectrum-transmitter.cc.

References m_txPsd, and NS_LOG_FUNCTION.

Referenced by TvSpectrumTransmitterTestCase::DoRun().

Here is the caller graph for this function:

TypeId ns3::TvSpectrumTransmitter::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 68 of file tv-spectrum-transmitter.cc.

References m_antenna, m_basePsd, m_channelBandwidth, m_startFrequency, m_startingTime, m_transmitDuration, m_tvType, ns3::MakeDoubleAccessor(), ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::Seconds(), ns3::TypeId::SetParent(), TVTYPE_8VSB, TVTYPE_ANALOG, and TVTYPE_COFDM.

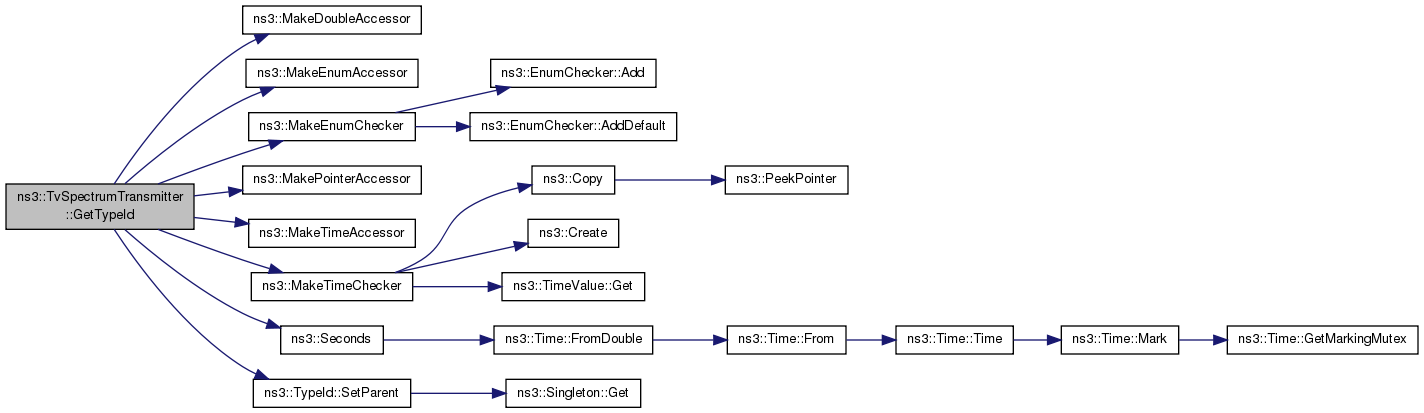

Here is the call graph for this function:

void ns3::TvSpectrumTransmitter::SetChannel ( Ptr< SpectrumChannel > c )

virtual

Set the channel attached to this device.

Parameters

c	the channel

Implements ns3::SpectrumPhy.

Definition at line 126 of file tv-spectrum-transmitter.cc.

References m_channel, and NS_LOG_FUNCTION.

void ns3::TvSpectrumTransmitter::SetDevice ( Ptr< NetDevice > d )

virtual

set the associated NetDevice instance

Parameters

d	the NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 140 of file tv-spectrum-transmitter.cc.

References m_netDevice, and NS_LOG_FUNCTION.

void ns3::TvSpectrumTransmitter::SetMobility ( Ptr< MobilityModel > m )

virtual

Set the mobility model associated with this device.

Parameters

m	the mobility model

Implements ns3::SpectrumPhy.

Definition at line 133 of file tv-spectrum-transmitter.cc.

References m_mobility, and NS_LOG_FUNCTION.

void ns3::TvSpectrumTransmitter::SetupTx ( )

privatevirtual

Sets up signal to be transmitted.

Definition at line 549 of file tv-spectrum-transmitter.cc.

References m_antenna, m_channel, m_transmitDuration, m_txPsd, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by Start().

Here is the caller graph for this function:

void ns3::TvSpectrumTransmitter::Start ( void )

virtual

Starts the TV Transmitter's transmission on the spectrum channel.

Definition at line 562 of file tv-spectrum-transmitter.cc.

References m_active, m_startingTime, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Simulator::Schedule(), and SetupTx().

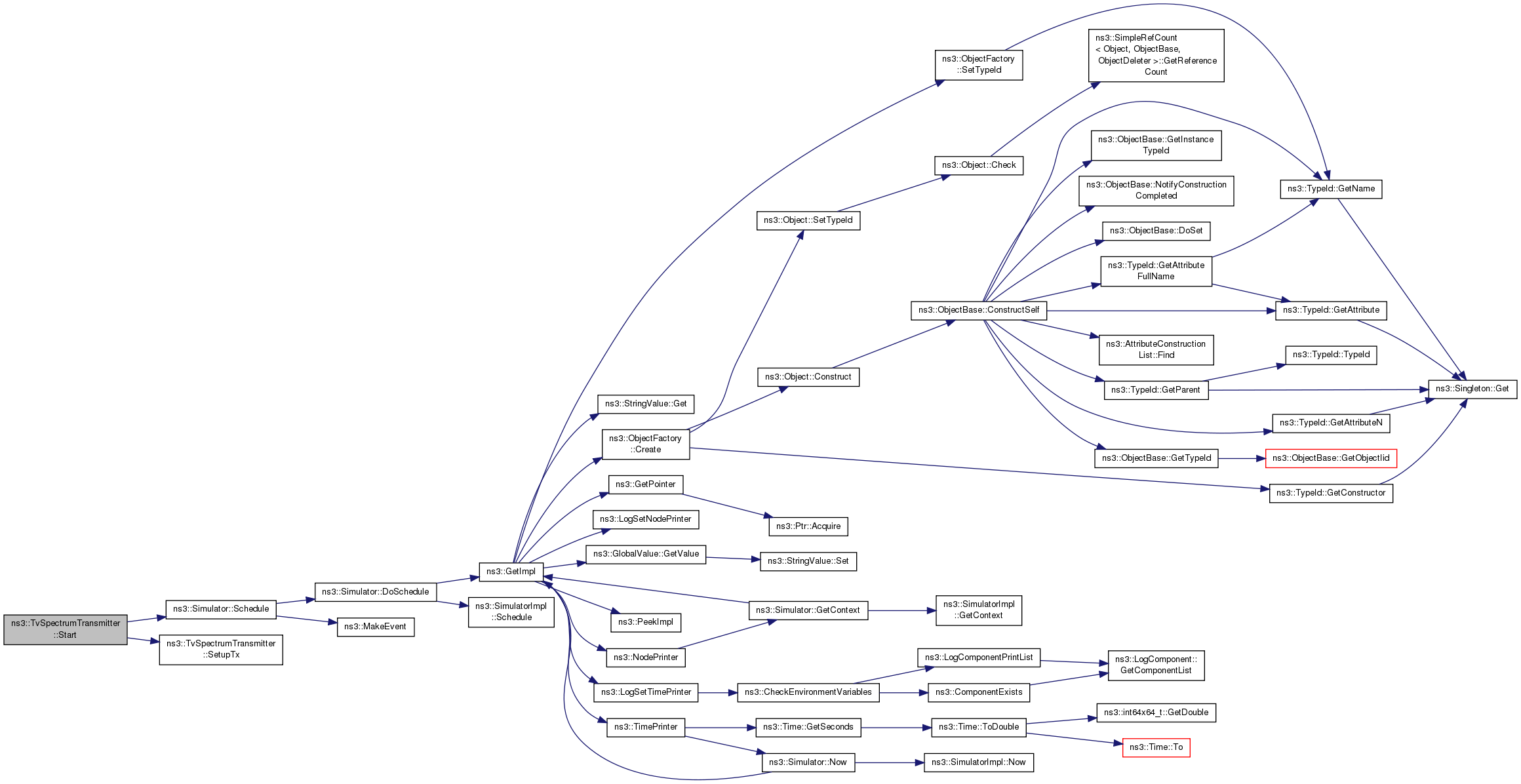

Here is the call graph for this function:

void ns3::TvSpectrumTransmitter::StartRx ( Ptr< SpectrumSignalParameters > params )

virtual

Notify the SpectrumPhy instance of an incoming signal.

Parameters

params the parameters of the signals being received

Implements ns3::SpectrumPhy.

Definition at line 175 of file tv-spectrum-transmitter.cc.

References NS_LOG_FUNCTION.

void ns3::TvSpectrumTransmitter::Stop ( void )

virtual

Stops the TV Transmitter's transmission on the spectrum channel.

Definition at line 574 of file tv-spectrum-transmitter.cc.

References m_active, and NS_LOG_FUNCTION.

Member Data Documentation

bool ns3::TvSpectrumTransmitter::m_active

private

True if TV transmitter is transmitting.

Definition at line 146 of file tv-spectrum-transmitter.h.

Referenced by Start(), and Stop().

Ptr<AntennaModel> ns3::TvSpectrumTransmitter::m_antenna

private

Pointer to antenna model object.

Definition at line 132 of file tv-spectrum-transmitter.h.

Referenced by GetRxAntenna(), GetTypeId(), SetupTx(), and ~TvSpectrumTransmitter().

double ns3::TvSpectrumTransmitter::m_basePsd

private

Base power spectral density value (in dBm/Hz) of TV transmitter's signal.

Definition at line 142 of file tv-spectrum-transmitter.h.

Referenced by CreateTvPsd(), and GetTypeId().

Ptr<SpectrumChannel> ns3::TvSpectrumTransmitter::m_channel

private

Pointer to spectrum channel object.

Definition at line 134 of file tv-spectrum-transmitter.h.

Referenced by GetChannel(), SetChannel(), SetupTx(), and ~TvSpectrumTransmitter().

double ns3::TvSpectrumTransmitter::m_channelBandwidth

private

Bandwidth (in Hz) of TV transmitter's signal.

Definition at line 141 of file tv-spectrum-transmitter.h.

Referenced by CreateTvPsd(), and GetTypeId().

Ptr<MobilityModel> ns3::TvSpectrumTransmitter::m_mobility

private

Pointer to mobility model object.

Definition at line 131 of file tv-spectrum-transmitter.h.

Referenced by GetMobility(), SetMobility(), and ~TvSpectrumTransmitter().

Ptr<NetDevice> ns3::TvSpectrumTransmitter::m_netDevice

private

Pointer to net device object.

Definition at line 133 of file tv-spectrum-transmitter.h.

Referenced by GetDevice(), SetDevice(), and ~TvSpectrumTransmitter().

double ns3::TvSpectrumTransmitter::m_startFrequency

private

Start frequency (in Hz) of TV transmitter's signal.

Definition at line 140 of file tv-spectrum-transmitter.h.

Referenced by CreateTvPsd(), and GetTypeId().

Time ns3::TvSpectrumTransmitter::m_startingTime

private

Timepoint after simulation begins that TV transmitter will begin transmitting.

Definition at line 144 of file tv-spectrum-transmitter.h.

Referenced by GetTypeId(), and Start().

Time ns3::TvSpectrumTransmitter::m_transmitDuration

private

Length of time that TV transmitter will transmit for.

Definition at line 145 of file tv-spectrum-transmitter.h.

Referenced by GetTypeId(), and SetupTx().

enum TvType ns3::TvSpectrumTransmitter::m_tvType

private

Type of TV transmitter.

Definition at line 139 of file tv-spectrum-transmitter.h.

Referenced by CreateTvPsd(), and GetTypeId().

Ptr<SpectrumValue> ns3::TvSpectrumTransmitter::m_txPsd

private

Pointer to power spectral density of TV transmitter's signal.

Definition at line 143 of file tv-spectrum-transmitter.h.

Referenced by CreateTvPsd(), GetTxPsd(), SetupTx(), and ~TvSpectrumTransmitter().

The documentation for this class was generated from the following files:

src/spectrum/model/tv-spectrum-transmitter.h
src/spectrum/model/tv-spectrum-transmitter.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
