Base class for UAN Phy models. More...

#include <uan-phy.h>

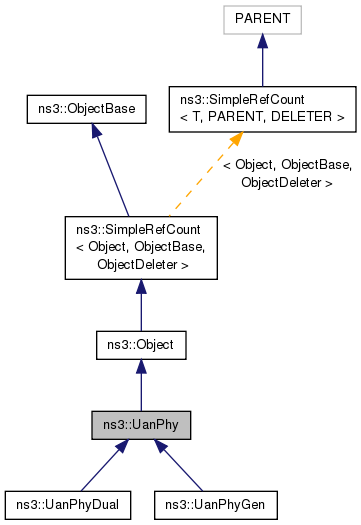

Inheritance diagram for ns3::UanPhy:

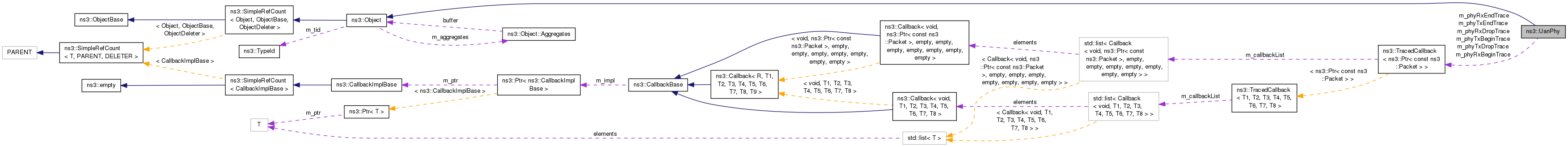

Collaboration diagram for ns3::UanPhy:

Public Types
typedef Callback< void, Ptr< Packet >, double >	RxErrCallback
	Packet receive error callback function type. More...

typedef Callback< void, Ptr< Packet >, double, UanTxMode >	RxOkCallback
	Packet received successfully callback function type. More...

enum	State { IDLE, CCABUSY, RX, TX, SLEEP }
	Enum defining possible Phy states. More...

typedef void(*	TracedCallback) (const Ptr< const Packet > pkt, const double sinr, const UanTxMode mode)
	TracedCallback signature for UanPhy packet send/receive events. More...

Public Member Functions
virtual int64_t	AssignStreams (int64_t stream)=0
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	Clear (void)=0
	Clear all pointer references. More...

virtual void	EnergyDepletionHandler (void)=0
	Handle the energy depletion event. More...

virtual double	GetCcaThresholdDb (void)=0
	Get the CCA threshold signal strength required to detect channel busy. More...

virtual Ptr< UanChannel >	GetChannel (void) const =0
	Get the attached channel. More...

virtual Ptr< UanNetDevice >	GetDevice (void)=0
	Get the device hosting this Phy. More...

virtual UanTxMode	GetMode (uint32_t n)=0
	Get a specific transmission mode. More...

virtual uint32_t	GetNModes (void)=0
	Get the number of transmission modes supported by this Phy. More...

virtual Ptr< Packet >	GetPacketRx (void) const =0
	Get the packet currently being received. More...

virtual double	GetRxGainDb (void)=0
	Get the receiver gain added to signal at receiver in dB. More...

virtual double	GetRxThresholdDb (void)=0
	Get the minimum received signal strength required to receive a packet without errors. More...

virtual Ptr< UanTransducer >	GetTransducer (void)=0
	Get the attached transducer. More...

virtual double	GetTxPowerDb (void)=0
	Get the current transmit power, in dB. More...

virtual bool	IsStateBusy (void)=0

virtual bool	IsStateCcaBusy (void)=0

virtual bool	IsStateIdle (void)=0

virtual bool	IsStateRx (void)=0

virtual bool	IsStateSleep (void)=0

virtual bool	IsStateTx (void)=0

virtual void	NotifyIntChange (void)=0
	Called when there has been a change in the ammount of interference this node is experiencing from other transmissions. More...

void	NotifyRxBegin (Ptr< const Packet > packet)
	Called when the Phy begins to receive a packet. More...

void	NotifyRxDrop (Ptr< const Packet > packet)
	Called when the Phy drops a packet. More...

void	NotifyRxEnd (Ptr< const Packet > packet)
	Called when a packet is received without error. More...

virtual void	NotifyTransStartTx (Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)=0
	Called when a transmission is beginning on the attched transducer. More...

void	NotifyTxBegin (Ptr< const Packet > packet)
	Called when the transducer begins transmitting a packet. More...

void	NotifyTxDrop (Ptr< const Packet > packet)
	Called when the transducer attempts to transmit a new packet while already transmitting a prior packet. More...

void	NotifyTxEnd (Ptr< const Packet > packet)
	Called when the transducer finishes transmitting a packet. More...

virtual void	RegisterListener (UanPhyListener *listener)=0
	Register a UanPhyListener to be notified of common UanPhy events. More...

virtual void	SendPacket (Ptr< Packet > pkt, uint32_t modeNum)=0
	Send a packet using a specific transmission mode. More...

virtual void	SetCcaThresholdDb (double thresh)=0
	Set the threshold for detecting channel busy. More...

virtual void	SetChannel (Ptr< UanChannel > channel)=0
	Attach to a channel. More...

virtual void	SetDevice (Ptr< UanNetDevice > device)=0
	Set the device hosting this Phy. More...

virtual void	SetEnergyModelCallback (DeviceEnergyModel::ChangeStateCallback callback)=0
	Set the DeviceEnergyModel callback for UanPhy device. More...

virtual void	SetMac (Ptr< UanMac > mac)=0
	Set the MAC forwarding messages to this Phy. More...

virtual void	SetReceiveErrorCallback (RxErrCallback cb)=0
	Set the callback to be used when a packet is received with errors. More...

virtual void	SetReceiveOkCallback (RxOkCallback cb)=0
	Set the callback to be used when a packet is received without error. More...

virtual void	SetRxGainDb (double gain)=0
	Set the receiver gain. More...

virtual void	SetRxThresholdDb (double thresh)=0
	Set the minimum SINR threshold to receive a packet without errors. More...

virtual void	SetSleepMode (bool sleep)=0
	Set the Phy SLEEP mode. More...

virtual void	SetTransducer (Ptr< UanTransducer > trans)=0
	Attach a transducer to this Phy. More...

virtual void	SetTxPowerDb (double txpwr)=0
	Set the transmit power. More...

virtual void	StartRxPacket (Ptr< Packet > pkt, double rxPowerDb, UanTxMode txMode, UanPdp pdp)=0
	Packet arriving from channel: i.e. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

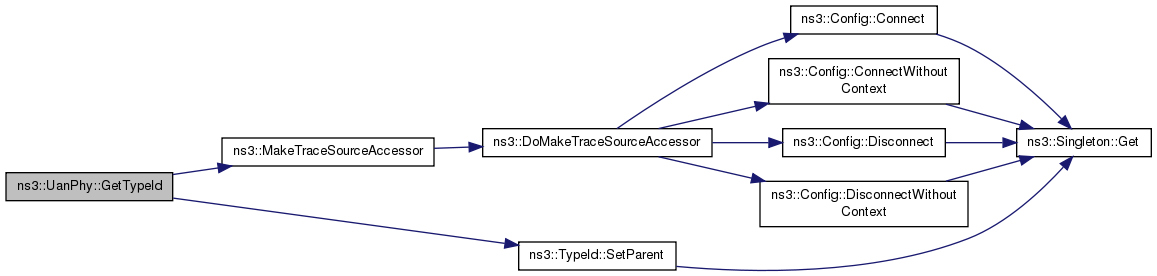

static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
ns3::TracedCallback< Ptr< const Packet > >	m_phyRxBeginTrace
	Trace source indicating a packet has begun being received from the channel medium by the device. More...

ns3::TracedCallback< Ptr< const Packet > >	m_phyRxDropTrace
	Trace source indicating a packet has been dropped by the device during reception. More...

ns3::TracedCallback< Ptr< const Packet > >	m_phyRxEndTrace
	Trace source indicating a packet has been completely received from the channel medium by the device. More...

ns3::TracedCallback< Ptr< const Packet > >	m_phyTxBeginTrace
	Trace source indicating a packet has begun transmitting over the channel medium. More...

ns3::TracedCallback< Ptr< const Packet > >	m_phyTxDropTrace
	Trace source indicating a packet has been dropped by the device during transmission. More...

ns3::TracedCallback< Ptr< const Packet > >	m_phyTxEndTrace
	Trace source indicating a packet has been completely transmitted over the channel. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Base class for UAN Phy models.

Config Paths

ns3::UanPhy is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy"

No Attributes are defined for this type.

TraceSources

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium.
Callback signature: ns3::Packet::TracedCallback
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel.
Callback signature: ns3::Packet::TracedCallback
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission.
Callback signature: ns3::Packet::TracedCallback
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device.
Callback signature: ns3::Packet::TracedCallback
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device.
Callback signature: ns3::Packet::TracedCallback
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception.
Callback signature: ns3::Packet::TracedCallback

Size of this type is 128 bytes (on a 64-bit architecture).

Definition at line 175 of file uan-phy.h.

Member Typedef Documentation

typedef Callback<void, Ptr<Packet>, double > ns3::UanPhy::RxErrCallback

Packet receive error callback function type.

arg1 Packet received successfully. arg2 SNIR of packet.

Definition at line 203 of file uan-phy.h.

typedef Callback<void, Ptr<Packet>, double, UanTxMode> ns3::UanPhy::RxOkCallback

Packet received successfully callback function type.

arg1 Packet received successfully. arg2 SNIR of packet. arg3 Mode of packet.

Definition at line 195 of file uan-phy.h.

typedef void(* ns3::UanPhy::TracedCallback) (const Ptr< const Packet > pkt, const double sinr, const UanTxMode mode)

TracedCallback signature for UanPhy packet send/receive events.

Parameters

[in]	pkt	The packet.
[in]	sinr	The SINR.
[in]	mode	The channel mode.

Definition at line 213 of file uan-phy.h.

Member Function Documentation

virtual int64_t ns3::UanPhy::AssignStreams ( int64_t stream )

pure virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream First stream index to use.

Returns: The number of stream indices assigned by this model.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::Clear ( void )

pure virtual

Clear all pointer references.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::EnergyDepletionHandler ( void )

pure virtual

Handle the energy depletion event.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual double ns3::UanPhy::GetCcaThresholdDb ( void )

pure virtual

Get the CCA threshold signal strength required to detect channel busy.

Returns: The CCA threshold signal strength in dB.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual Ptr<UanChannel> ns3::UanPhy::GetChannel ( void ) const

pure virtual

Get the attached channel.

Returns: The channel.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual Ptr<UanNetDevice> ns3::UanPhy::GetDevice ( void )

pure virtual

Get the device hosting this Phy.

Returns: The net device.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual UanTxMode ns3::UanPhy::GetMode ( uint32_t n )

pure virtual

Get a specific transmission mode.

Parameters

n	The mode number.

Returns: The mode.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual uint32_t ns3::UanPhy::GetNModes ( void )

pure virtual

Get the number of transmission modes supported by this Phy.

Returns: The number modes.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual Ptr<Packet> ns3::UanPhy::GetPacketRx ( void ) const

pure virtual

Get the packet currently being received.

Warning: Returns non-valid pointer if IsStateRx == false.

Returns: The packet.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual double ns3::UanPhy::GetRxGainDb ( void )

pure virtual

Get the receiver gain added to signal at receiver in dB.

Returns: The gain.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual double ns3::UanPhy::GetRxThresholdDb ( void )

pure virtual

Get the minimum received signal strength required to receive a packet without errors.

Returns: The minimum required signal strength, in dB.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual Ptr<UanTransducer> ns3::UanPhy::GetTransducer ( void )

pure virtual

Get the attached transducer.

Returns: The transducer.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual double ns3::UanPhy::GetTxPowerDb ( void )

pure virtual

Get the current transmit power, in dB.

Returns: The transmit power.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

TypeId ns3::UanPhy::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 73 of file uan-phy.cc.

References m_phyRxBeginTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_phyTxBeginTrace, m_phyTxDropTrace, m_phyTxEndTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

virtual bool ns3::UanPhy::IsStateBusy ( void )

pure virtual

Returns: True if Phy is neither IDLE nor SLEEP.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual bool ns3::UanPhy::IsStateCcaBusy ( void )

pure virtual

Returns: True if Phy is in CCABUSY state.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual bool ns3::UanPhy::IsStateIdle ( void )

pure virtual

Returns: True if Phy is in IDLE state.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual bool ns3::UanPhy::IsStateRx ( void )

pure virtual

Returns: True if Phy is currently in receive mode.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual bool ns3::UanPhy::IsStateSleep ( void )

pure virtual

Returns: True if Phy is in SLEEP state.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual bool ns3::UanPhy::IsStateTx ( void )

pure virtual

Returns: True if Phy is busy transmitting.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::NotifyIntChange ( void )

pure virtual

Called when there has been a change in the ammount of interference this node is experiencing from other transmissions.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

void ns3::UanPhy::NotifyRxBegin ( Ptr< const Packet > packet )

Called when the Phy begins to receive a packet.

This fires a PhyRxBegin trace. Implemented for encapsulation purposes.

Parameters

packet The packet.

Definition at line 132 of file uan-phy.cc.

References m_phyRxBeginTrace.

Referenced by ns3::UanPhyGen::StartRxPacket().

Here is the caller graph for this function:

void ns3::UanPhy::NotifyRxDrop ( Ptr< const Packet > packet )

Called when the Phy drops a packet.

This fires a PhyRxDrop trace. Implemented for encapsulation purposes.

Parameters

packet The packet.

Definition at line 144 of file uan-phy.cc.

References m_phyRxDropTrace.

Referenced by ns3::UanPhyGen::RxEndEvent(), and ns3::UanPhyGen::StartRxPacket().

Here is the caller graph for this function:

void ns3::UanPhy::NotifyRxEnd ( Ptr< const Packet > packet )

Called when a packet is received without error.

This fires a PhyRxEnd trace. Implemented for encapsulation purposes.

Parameters

packet The packet.

Definition at line 138 of file uan-phy.cc.

References m_phyRxEndTrace.

Referenced by ns3::UanPhyGen::RxEndEvent().

Here is the caller graph for this function:

virtual void ns3::UanPhy::NotifyTransStartTx	(	Ptr< Packet >	packet,
		double	txPowerDb,
		UanTxMode	txMode
	)

pure virtual

Called when a transmission is beginning on the attched transducer.

Parameters

packet	Packet that is beginning transmission.
txPowerDb	Transmit power of packet.
txMode	Transmission mode of packet.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

void ns3::UanPhy::NotifyTxBegin ( Ptr< const Packet > packet )

Called when the transducer begins transmitting a packet.

This fires a PhyTxBegin trace. Implemented for encapsulation purposes.

Parameters

packet The packet.

Definition at line 114 of file uan-phy.cc.

References m_phyTxBeginTrace.

void ns3::UanPhy::NotifyTxDrop ( Ptr< const Packet > packet )

Called when the transducer attempts to transmit a new packet while already transmitting a prior packet.

This fires a PhyTxDrop trace. Implemented for encapsulation purposes.

Parameters

packet The packet.

Definition at line 126 of file uan-phy.cc.

References m_phyTxDropTrace.

void ns3::UanPhy::NotifyTxEnd ( Ptr< const Packet > packet )

Called when the transducer finishes transmitting a packet.

This fires a PhyTxEnd trace. Implemented for encapsulation purposes.

Parameters

packet The packet.

Definition at line 120 of file uan-phy.cc.

References m_phyTxEndTrace.

Referenced by ns3::UanTransducerHd::Transmit().

Here is the caller graph for this function:

virtual void ns3::UanPhy::RegisterListener ( UanPhyListener * listener )

pure virtual

Register a UanPhyListener to be notified of common UanPhy events.

Parameters

listener New listener to register.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SendPacket	(	Ptr< Packet >	pkt,
		uint32_t	modeNum
	)

pure virtual

Send a packet using a specific transmission mode.

Parameters

pkt	Packet to transmit.
modeNum	Index of mode in SupportedModes list to use for transmission.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetCcaThresholdDb ( double thresh )

pure virtual

Set the threshold for detecting channel busy.

Parameters

thresh Signal power threshold at receiver.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetChannel ( Ptr< UanChannel > channel )

pure virtual

Attach to a channel.

Parameters

channel The channel to attach to.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetDevice ( Ptr< UanNetDevice > device )

pure virtual

Set the device hosting this Phy.

Parameters

device The device.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetEnergyModelCallback ( DeviceEnergyModel::ChangeStateCallback callback )

pure virtual

Set the DeviceEnergyModel callback for UanPhy device.

Parameters

callback The DeviceEnergyModel change state callback.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetMac ( Ptr< UanMac > mac )

pure virtual

Set the MAC forwarding messages to this Phy.

Parameters

mac The MAC.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetReceiveErrorCallback ( RxErrCallback cb )

pure virtual

Set the callback to be used when a packet is received with errors.

Parameters

cb	The callback.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetReceiveOkCallback ( RxOkCallback cb )

pure virtual

Set the callback to be used when a packet is received without error.

Parameters

cb	The callback.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetRxGainDb ( double gain )

pure virtual

Set the receiver gain.

Parameters

gain	Gain added at receiver, in dB.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetRxThresholdDb ( double thresh )

pure virtual

Set the minimum SINR threshold to receive a packet without errors.

Deprecated:: See UanPhyPer.

Parameters

thresh Threshold SINR for propper reception in dB re 1 uPa.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetSleepMode ( bool sleep )

pure virtual

Set the Phy SLEEP mode.

Parameters

sleep SLEEP on or off.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetTransducer ( Ptr< UanTransducer > trans )

pure virtual

Attach a transducer to this Phy.

Parameters

trans The transducer.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetTxPowerDb ( double txpwr )

pure virtual

Set the transmit power.

Parameters

txpwr Final output transmission power, in dB.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::StartRxPacket	(	Ptr< Packet >	pkt,
		double	rxPowerDb,
		UanTxMode	txMode,
		UanPdp	pdp
	)

pure virtual

Packet arriving from channel: i.e.

leading bit of packet has arrived.

Parameters

pkt	Packet which is arriving.
rxPowerDb	Signal power of incoming packet in dB re 1 uPa.
txMode	Transmission mode defining modulation of incoming packet.
pdp	Power delay profile of incoming packet.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Member Data Documentation

ns3::TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyRxBeginTrace

private

Trace source indicating a packet has begun being received from the channel medium by the device.

See also: class CallBackTraceSource

Definition at line 544 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyRxBegin().

ns3::TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyRxDropTrace

private

Trace source indicating a packet has been dropped by the device during reception.

See also: class CallBackTraceSource

Definition at line 560 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyRxDrop().

ns3::TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyRxEndTrace

private

Trace source indicating a packet has been completely received from the channel medium by the device.

See also: class CallBackTraceSource

Definition at line 552 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyRxEnd().

ns3::TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyTxBeginTrace

private

Trace source indicating a packet has begun transmitting over the channel medium.

See also: class CallBackTraceSource

Definition at line 520 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyTxBegin().

ns3::TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyTxDropTrace

private

Trace source indicating a packet has been dropped by the device during transmission.

See also: class CallBackTraceSource

Definition at line 536 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyTxDrop().

ns3::TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyTxEndTrace

private

Trace source indicating a packet has been completely transmitted over the channel.

See also: class CallBackTraceSource

Definition at line 528 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyTxEnd().

The documentation for this class was generated from the following files:

src/uan/model/uan-phy.h
src/uan/model/uan-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

TraceSources

Member Typedef Documentation

Member Function Documentation

Member Data Documentation
