Virtual base for Transducer objects. More...

#include <uan-transducer.h>

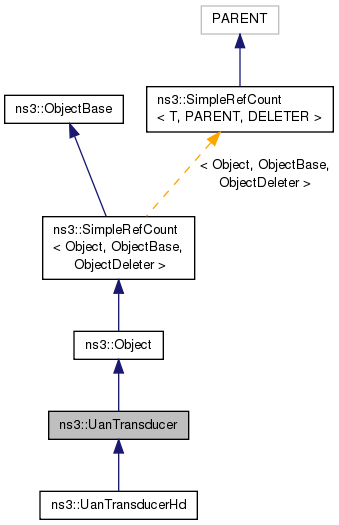

Inheritance diagram for ns3::UanTransducer:

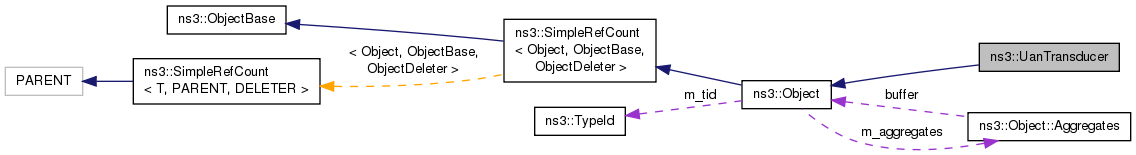

Collaboration diagram for ns3::UanTransducer:

Public Types
typedef std::list< UanPacketArrival >	ArrivalList
	List of arriving packets overlapping in time. More...

enum	State { TX, RX }
	Transducer state. More...

typedef std::list< Ptr< UanPhy > >	UanPhyList
	List of UanPhy objects. More...

Public Member Functions
virtual void	AddPhy (Ptr< UanPhy > phy)=0
	Attach a physical network layer above this transducer. More...

virtual void	Clear (void)=0
	Clears all pointer references. More...

virtual const ArrivalList &	GetArrivalList (void) const =0
	Get the list of overlapped (in time) packets at this transducer. More...

virtual Ptr< UanChannel >	GetChannel (void) const =0
	Get the attached channel. More...

virtual const UanPhyList &	GetPhyList (void) const =0
	Get the list of physical layer above this transducer. More...

virtual State	GetState (void) const =0
	Get the transducer state. More...

virtual bool	IsRx (void) const =0
	Is the state receiving (or available for reception)? More...

virtual bool	IsTx (void) const =0
	Is the state transmitting? More...

virtual void	Receive (Ptr< Packet > packet, double rxPowerDb, UanTxMode txMode, UanPdp pdp)=0
	Notify this object that a new packet has arrived at this nodes location. More...

virtual void	SetChannel (Ptr< UanChannel > chan)=0
	Attach this transducer to a channel. More...

virtual void	Transmit (Ptr< UanPhy > src, Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)=0
	Transmit a packet from this transducer. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Virtual base for Transducer objects.

The Transducer was added to support classes such as UanPhyDual. In a generic Phy setting, this class functions to hold information about all possibly interfering packets.
