802.11 PHY layer modelThis PHY implements a model of 802.11a. More...
#include <yans-wifi-phy.h>

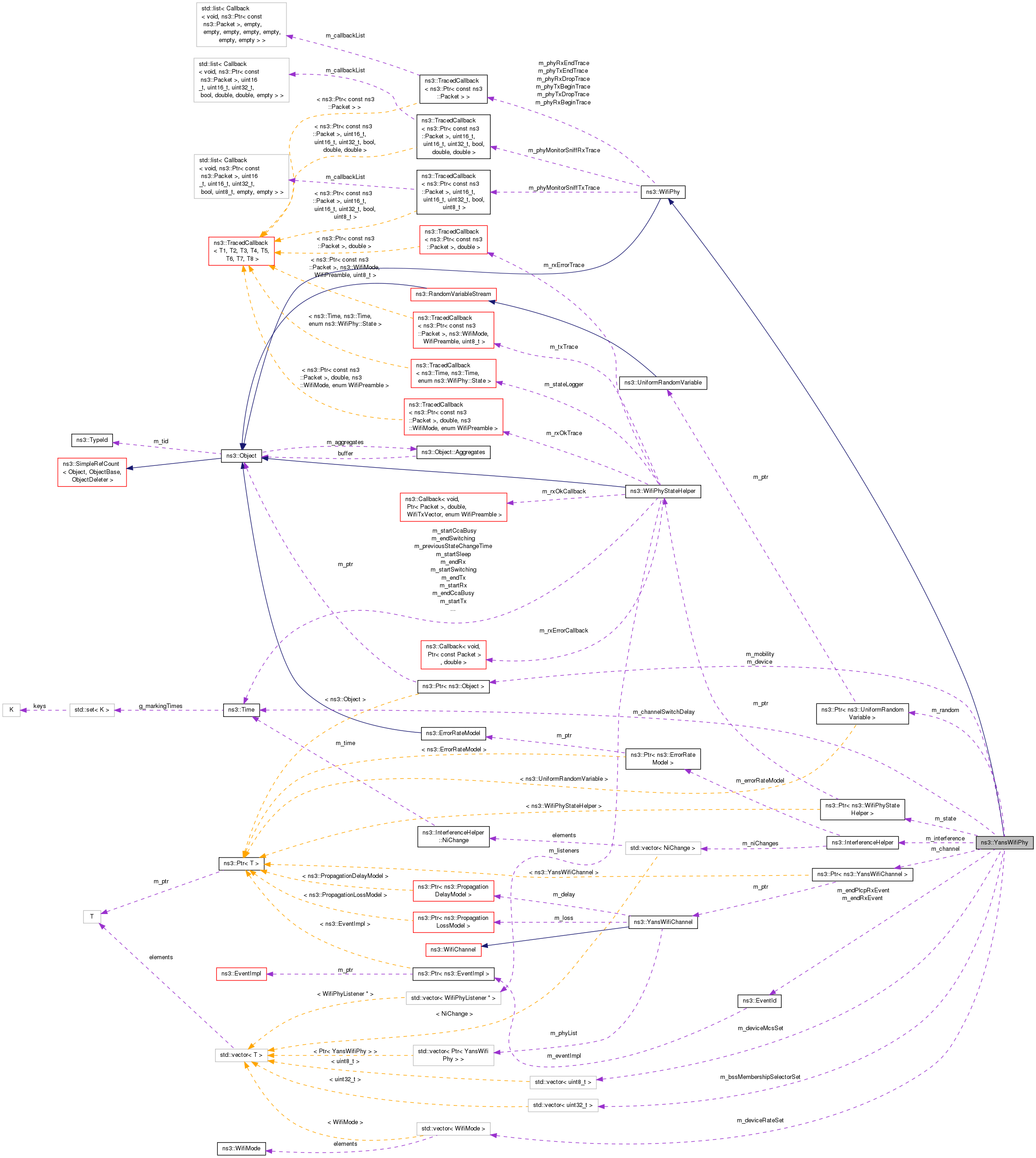

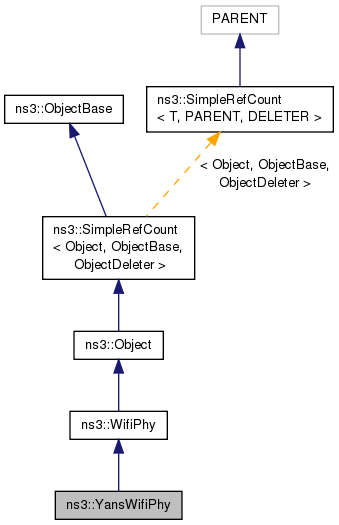

Inheritance diagram for ns3::YansWifiPhy: Collaboration diagram for ns3::YansWifiPhy:Public Member Functions | |
| YansWifiPhy () | |
| virtual | ~YansWifiPhy () |

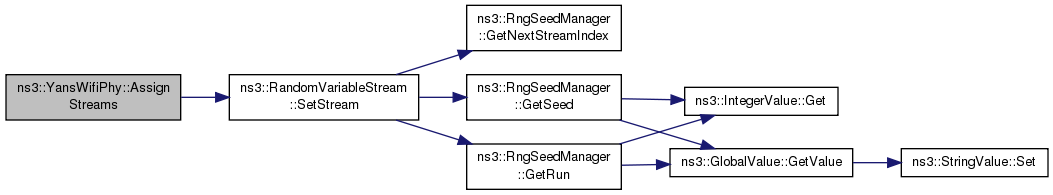

| int64_t | AssignStreams (int64_t stream) |
| Assign a fixed random variable stream number to the random variables used by this model. More... | |
| virtual double | CalculateSnr (WifiMode txMode, double ber) const |

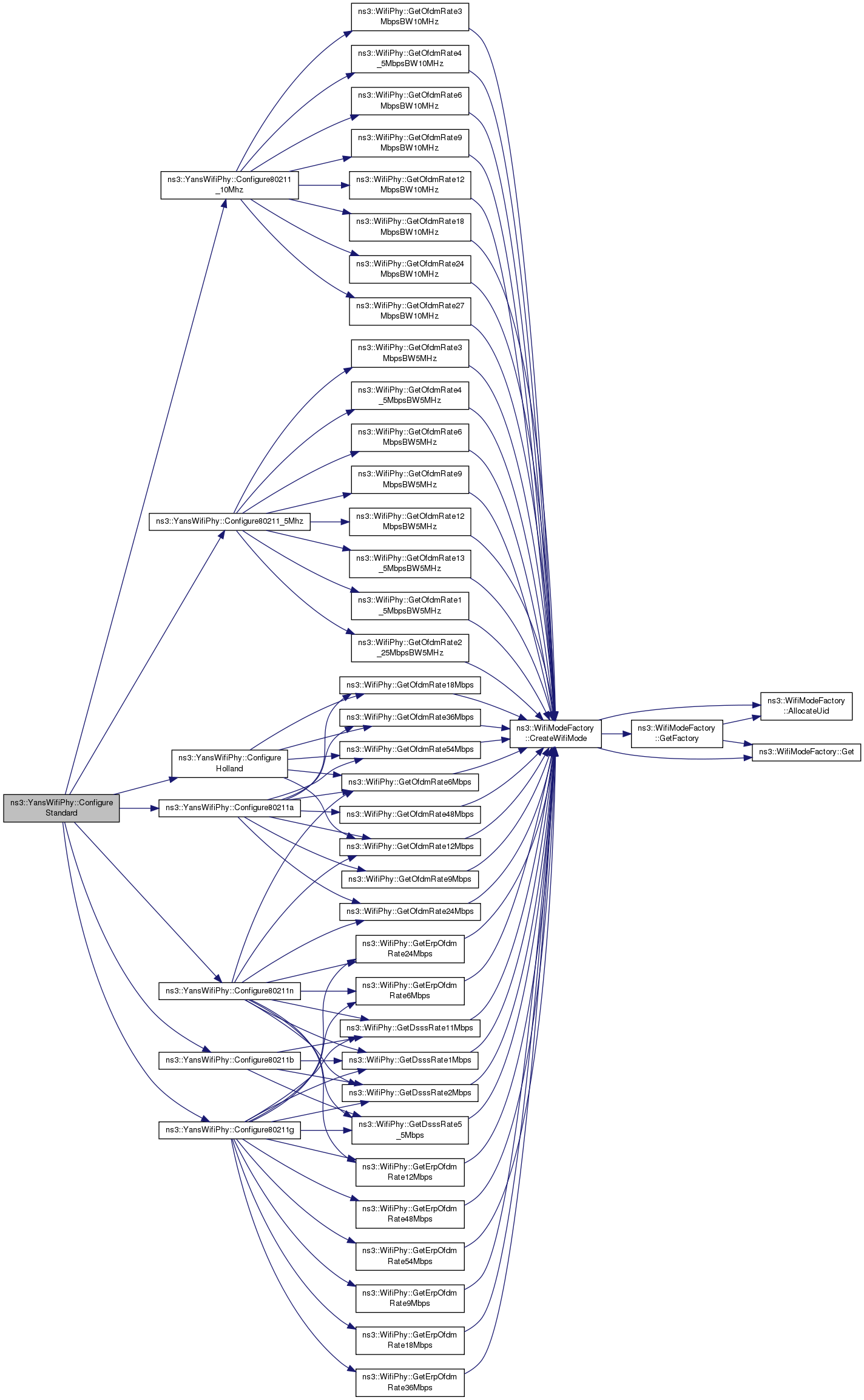

| virtual void | ConfigureStandard (enum WifiPhyStandard standard) |
| Configure the PHY-level parameters for different Wi-Fi standard. More... | |
| virtual uint32_t | GetBssMembershipSelector (uint32_t selector) const |
| The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More... | |
| double | GetCcaMode1Threshold (void) const |
| Return the CCA threshold (dBm). More... | |
| virtual Ptr< WifiChannel > | GetChannel (void) const |
| Return the WifiChannel this WifiPhy is connected to. More... | |

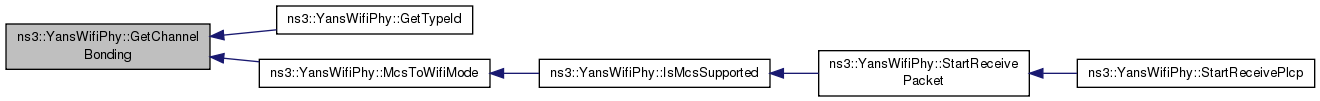

| virtual bool | GetChannelBonding (void) const |
| Return whether channel bonding is supported. More... | |
| double | GetChannelFrequencyMhz () const |
| Return current center channel frequency in MHz. More... | |

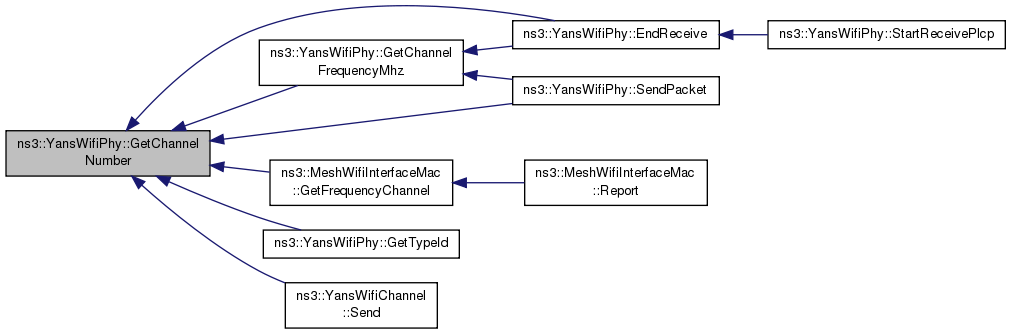

| uint16_t | GetChannelNumber (void) const |
| Return the current channel number. More... | |
| Time | GetChannelSwitchDelay (void) const |

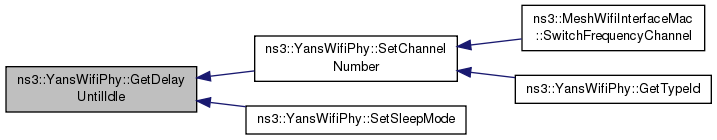

| virtual Time | GetDelayUntilIdle (void) |
| Ptr< Object > | GetDevice (void) const |
| Return the device this PHY is associated with. More... | |
| double | GetEdThreshold (void) const |
| Return the energy detection threshold (dBm). More... | |
| Ptr< ErrorRateModel > | GetErrorRateModel (void) const |
| Return the error rate model this PHY is using. More... | |
| virtual uint32_t | GetFrequency (void) const |
| virtual bool | GetGreenfield (void) const |
| Return whether Greenfield is supported. More... | |

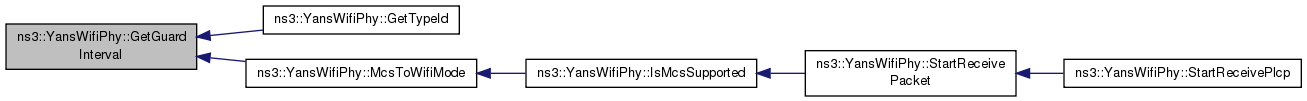

| virtual bool | GetGuardInterval (void) const |
| Return whether guard interval is being used. More... | |
| virtual Time | GetLastRxStartTime (void) const |
| Return the start time of the last received packet. More... | |
| virtual bool | GetLdpc (void) const |
| Return if LDPC is supported. More... | |
| virtual uint8_t | GetMcs (uint8_t mcs) const |
| The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More... | |

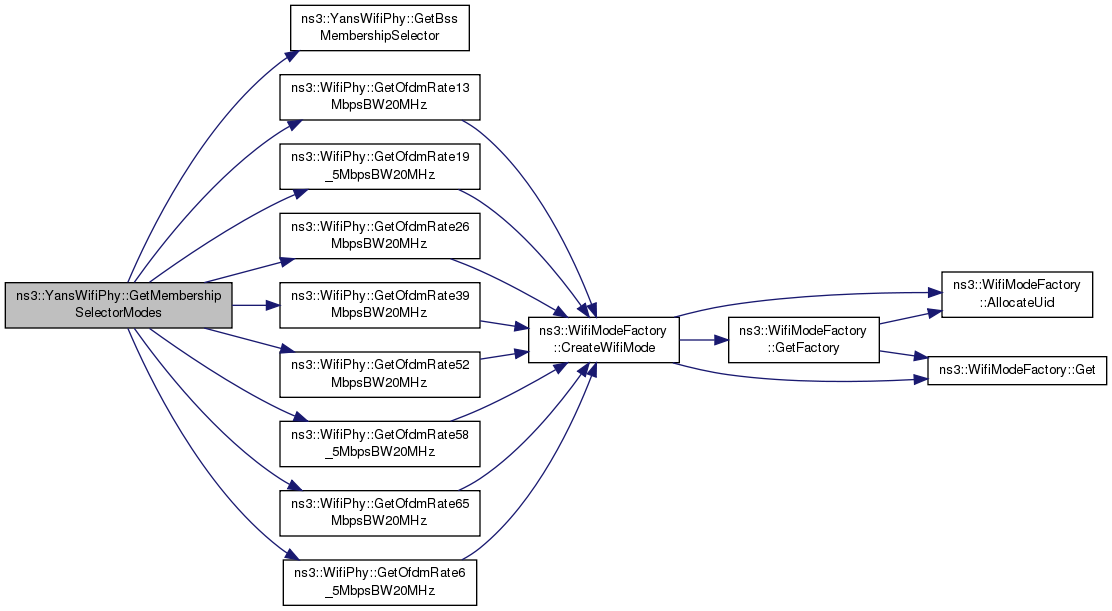

| virtual WifiModeList | GetMembershipSelectorModes (uint32_t selector) |
| The WifiPhy::GetMembershipSelectorModes() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More... | |
| Ptr< Object > | GetMobility (void) |
| Return the mobility model this PHY is associated with. More... | |
| virtual WifiMode | GetMode (uint32_t mode) const |
| The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More... | |
| virtual uint32_t | GetNBssMembershipSelectors (void) const |
| The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More... | |
| virtual uint8_t | GetNMcs (void) const |
| virtual uint32_t | GetNModes (void) const |
| The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More... | |
| virtual uint32_t | GetNTxPower (void) const |
| Return the number of available transmission power levels. More... | |
| virtual uint32_t | GetNumberOfReceiveAntennas (void) const |
| virtual uint32_t | GetNumberOfTransmitAntennas (void) const |
| double | GetRxGain (void) const |
| Return the reception gain (dB). More... | |

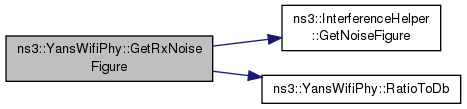

| double | GetRxNoiseFigure (void) const |
| Return the RX noise figure (dBm). More... | |
| virtual Time | GetStateDuration (void) |
| virtual bool | GetStbc (void) const |
| Return whether STBC is supported. More... | |
| double | GetTxGain (void) const |
| Return the transmission gain (dB). More... | |
| virtual double | GetTxPowerEnd (void) const |
| Return the maximum available transmission power level (dBm). More... | |
| virtual double | GetTxPowerStart (void) const |
| Return the minimum available transmission power level (dBm). More... | |

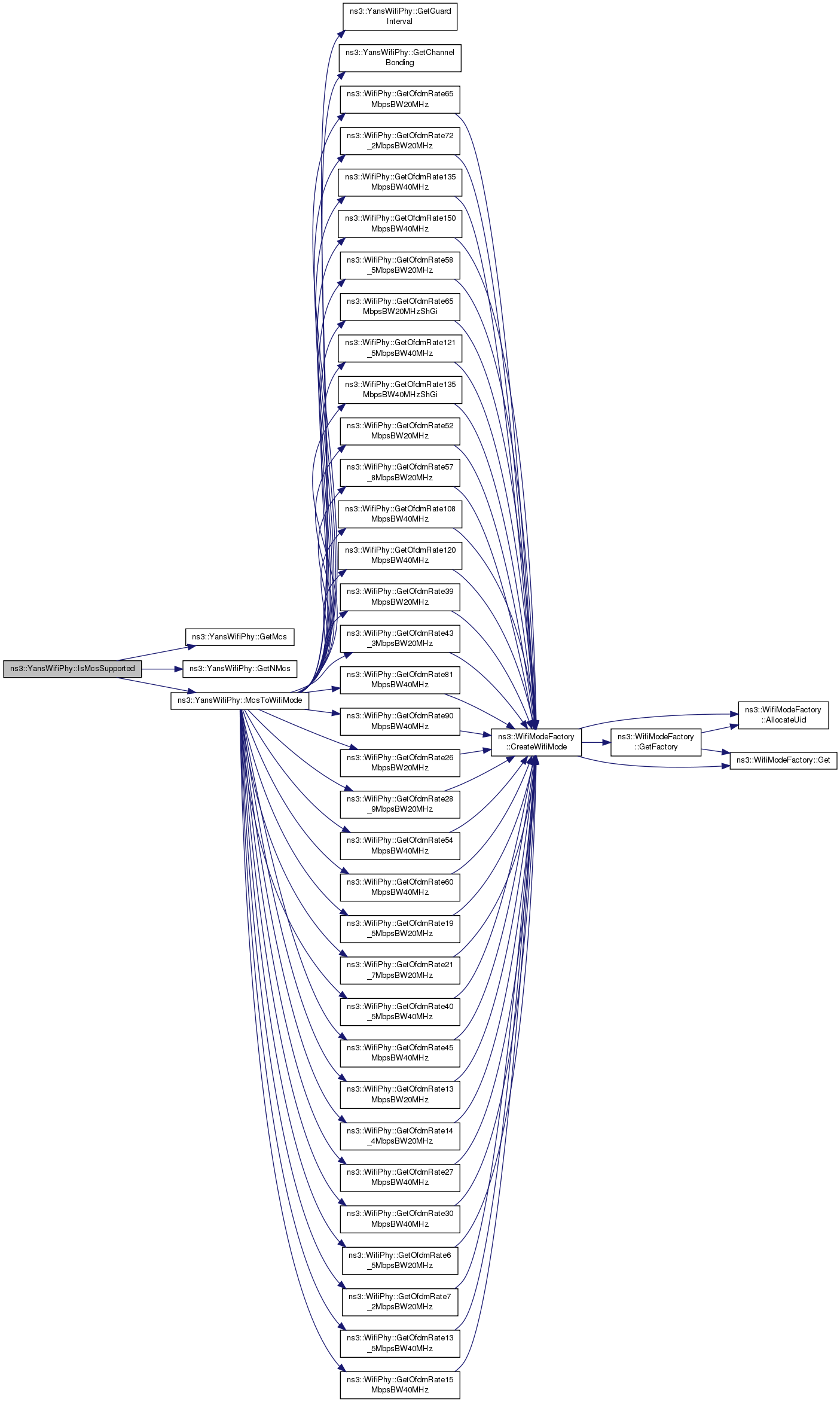

| virtual bool | IsMcsSupported (WifiMode mode) |
| virtual bool | IsModeSupported (WifiMode mode) const |
| Check if the given WifiMode is supported by the PHY. More... | |
| virtual bool | IsStateBusy (void) |
| virtual bool | IsStateCcaBusy (void) |
| virtual bool | IsStateIdle (void) |

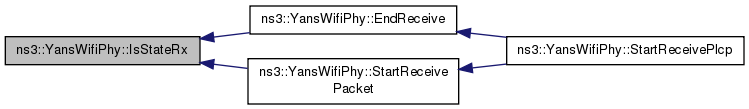

| virtual bool | IsStateRx (void) |
| virtual bool | IsStateSleep (void) |

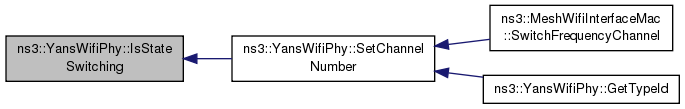

| virtual bool | IsStateSwitching (void) |
| virtual bool | IsStateTx (void) |
| virtual WifiMode | McsToWifiMode (uint8_t mcs) |
| For a given MCS finds the corresponding WifiMode and returns it as defined in the IEEE 802.11n standard. More... | |
| virtual void | RegisterListener (WifiPhyListener *listener) |

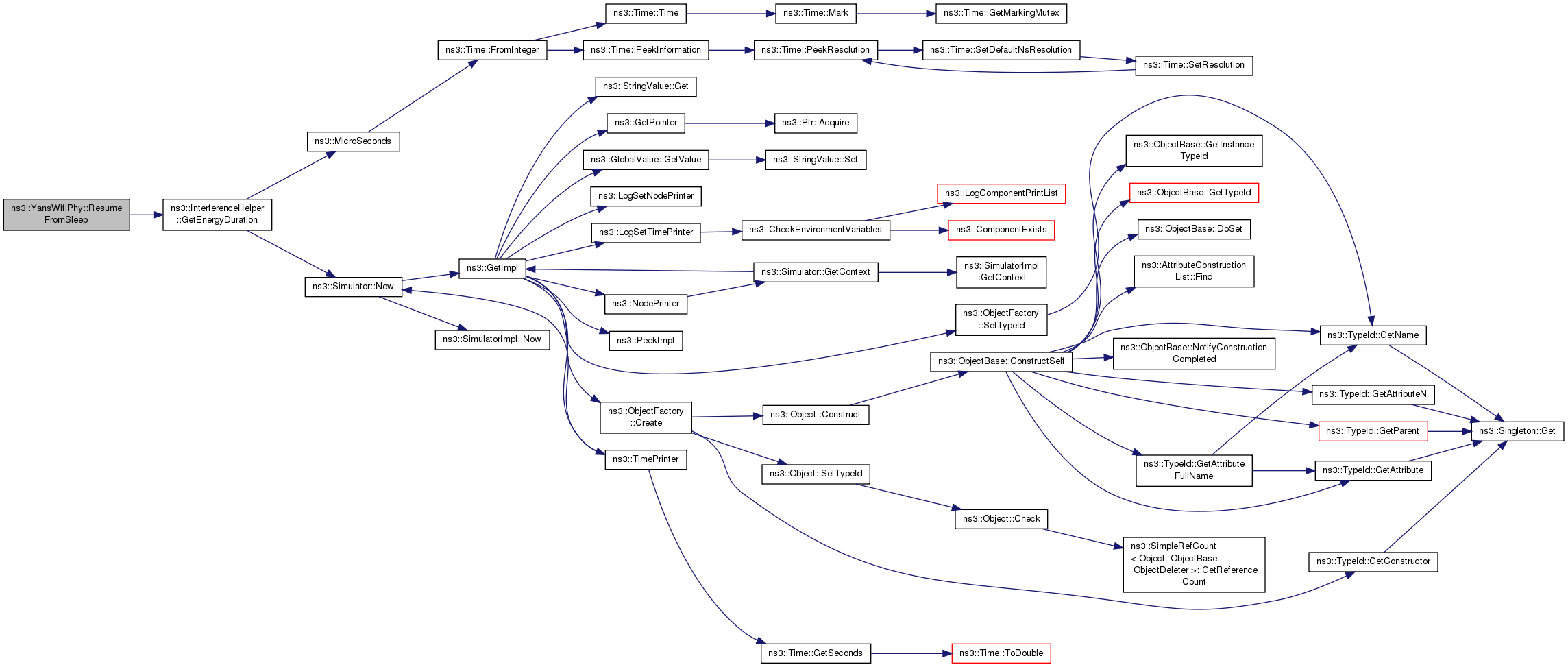

| virtual void | ResumeFromSleep (void) |
| Resume from sleep mode. More... | |

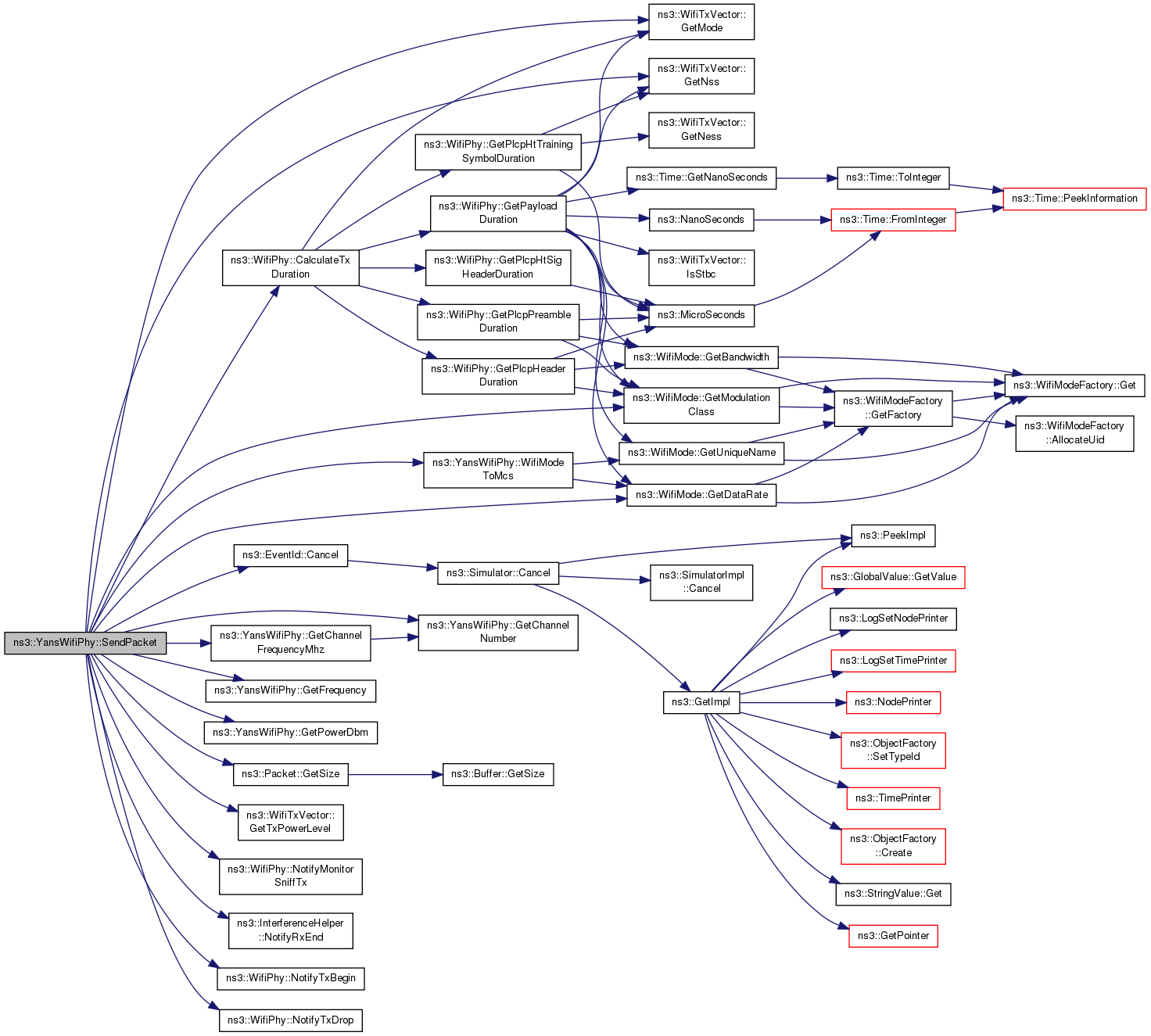

| virtual void | SendPacket (Ptr< const Packet > packet, WifiTxVector txvector, enum WifiPreamble preamble, uint8_t packetType) |
| void | SetCcaMode1Threshold (double threshold) |
| Sets the CCA threshold (dBm). More... | |

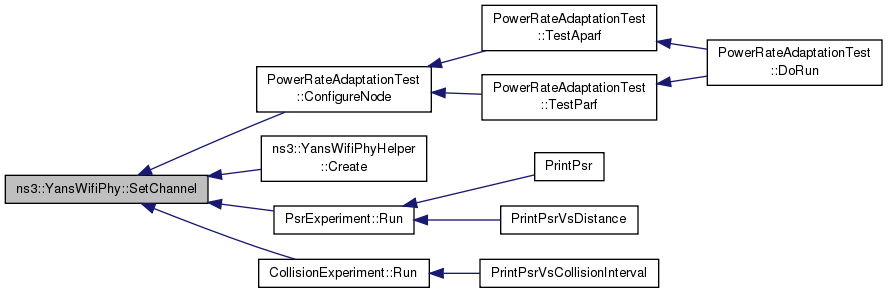

| void | SetChannel (Ptr< YansWifiChannel > channel) |
| Set the YansWifiChannel this YansWifiPhy is to be connected to. More... | |
| virtual void | SetChannelBonding (bool channelbonding) |
| Enable or disable channel bonding support. More... | |

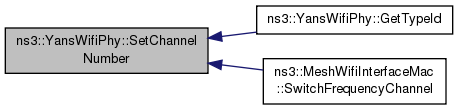

| void | SetChannelNumber (uint16_t id) |
| Set the current channel number. More... | |
| void | SetDevice (Ptr< Object > device) |
| Sets the device this PHY is associated with. More... | |
| void | SetEdThreshold (double threshold) |
| Sets the energy detection threshold (dBm). More... | |

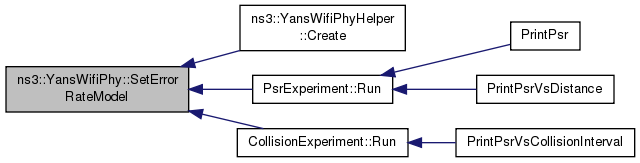

| void | SetErrorRateModel (Ptr< ErrorRateModel > rate) |
| Sets the error rate model. More... | |
| virtual void | SetFrequency (uint32_t freq) |
| virtual void | SetGreenfield (bool greenfield) |
| Enable or disable Greenfield support. More... | |
| virtual void | SetGuardInterval (bool guardInterval) |
| Enable or disable short/long guard interval. More... | |
| virtual void | SetLdpc (bool ldpc) |
| Enable or disable LDPC. More... | |

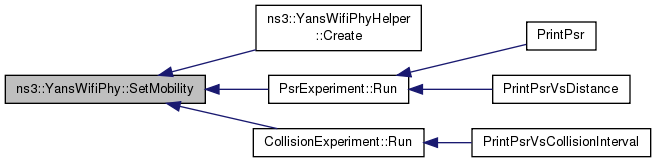

| void | SetMobility (Ptr< Object > mobility) |
| Sets the mobility model. More... | |
| void | SetNTxPower (uint32_t n) |
| Sets the number of transmission power levels available between the minimum level and the maximum level. More... | |
| virtual void | SetNumberOfReceiveAntennas (uint32_t rx) |
| virtual void | SetNumberOfTransmitAntennas (uint32_t tx) |
| virtual void | SetReceiveErrorCallback (WifiPhy::RxErrorCallback callback) |
| virtual void | SetReceiveOkCallback (WifiPhy::RxOkCallback callback) |
| void | SetRxGain (double gain) |
| Sets the reception gain (dB). More... | |

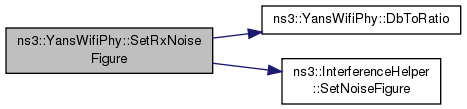

| void | SetRxNoiseFigure (double noiseFigureDb) |
| Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. More... | |

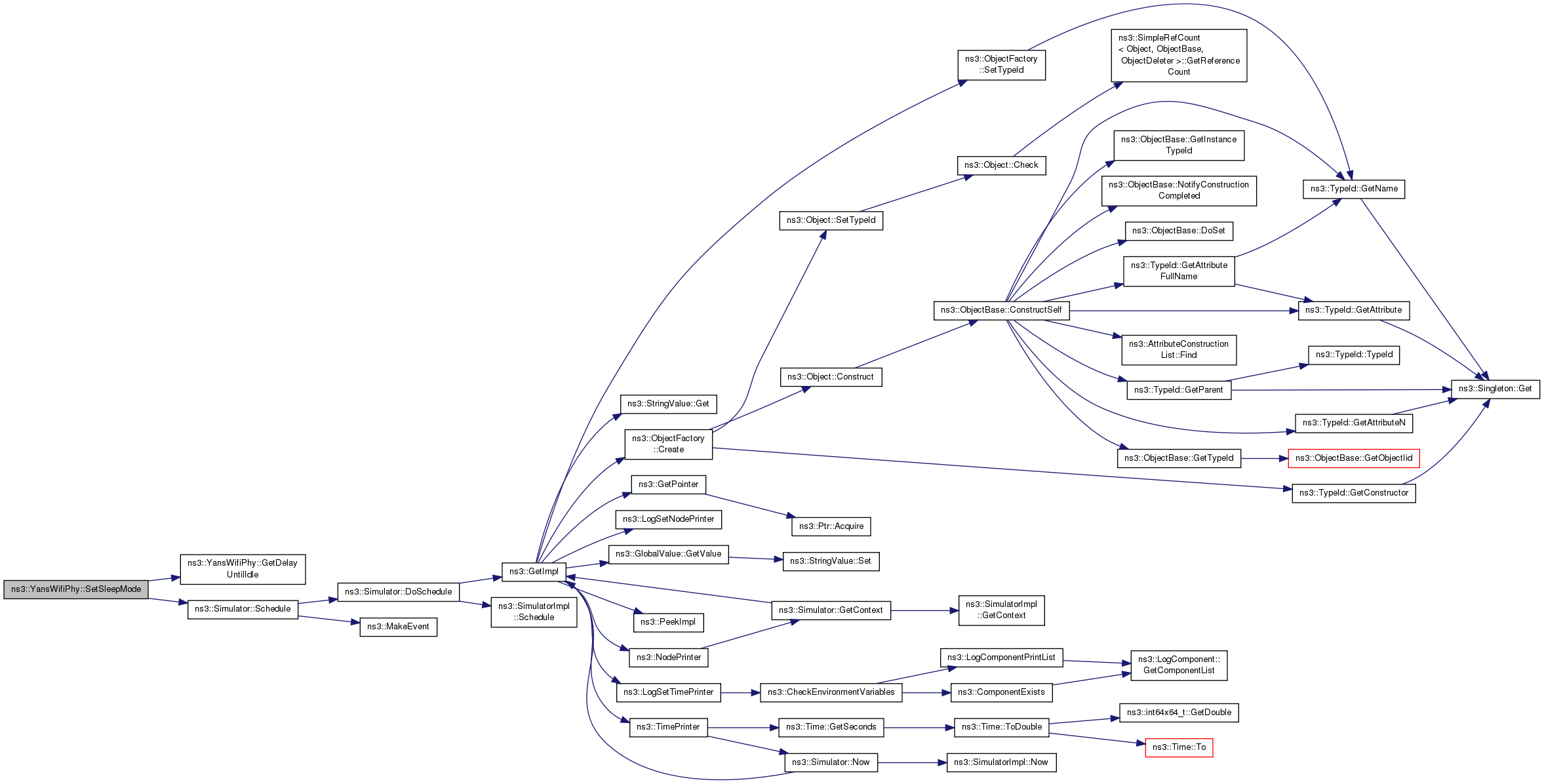

| virtual void | SetSleepMode (void) |
| Put in sleep mode. More... | |
| virtual void | SetStbc (bool stbc) |
| Enable or disable STBC. More... | |
| void | SetTxGain (double gain) |
| Sets the transmission gain (dB). More... | |
| void | SetTxPowerEnd (double end) |
| Sets the maximum available transmission power level (dBm). More... | |
| void | SetTxPowerStart (double start) |
| Sets the minimum available transmission power level (dBm). More... | |
| void | StartReceivePacket (Ptr< Packet > packet, WifiTxVector txVector, WifiPreamble preamble, uint8_t packetType, Ptr< InterferenceHelper::Event > event) |
| Starting receiving the payload of a packet (i.e. More... | |

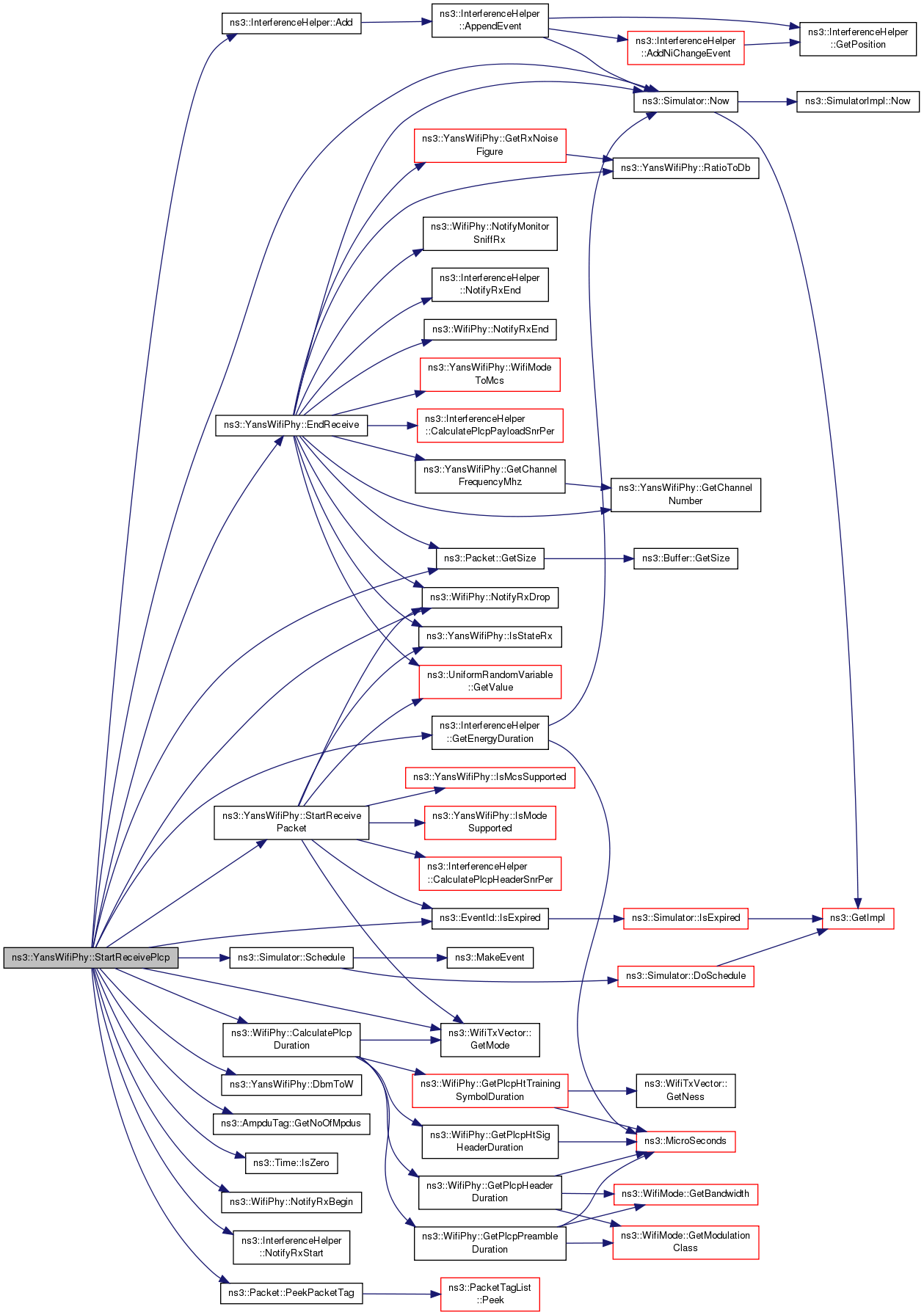

| void | StartReceivePlcp (Ptr< Packet > packet, double rxPowerDbm, WifiTxVector txVector, WifiPreamble preamble, uint8_t packetType, Time rxDuration) |
| Starting receiving the plcp of a packet (i.e. More... | |
| virtual void | UnregisterListener (WifiPhyListener *listener) |

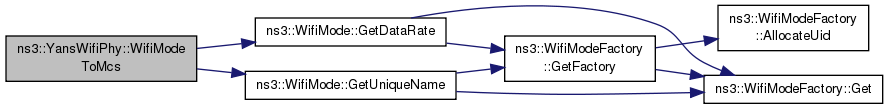

| virtual uint32_t | WifiModeToMcs (WifiMode mode) |
| For a given WifiMode finds the corresponding MCS value and returns it as defined in the IEEE 802.11n standard. More... | |
| Public Member Functions inherited from ns3::WifiPhy | |
| WifiPhy () | |
| virtual | ~WifiPhy () |
| Time | CalculatePlcpDuration (WifiTxVector txvector, enum WifiPreamble preamble) |
| Time | CalculateTxDuration (uint32_t size, WifiTxVector txvector, enum WifiPreamble preamble, double frequency, uint8_t packetType, uint8_t incFlag) |
| Time | GetPayloadDuration (uint32_t size, WifiTxVector txvector, WifiPreamble preamble, double frequency, uint8_t packetType, uint8_t incFlag) |
| void | NotifyMonitorSniffRx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, double signalDbm, double noiseDbm) |
| Public method used to fire a MonitorSniffer trace for a wifi packet being received. More... | |
| void | NotifyMonitorSniffTx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, uint8_t txPower) |
| Public method used to fire a MonitorSniffer trace for a wifi packet being transmitted. More... | |
| void | NotifyRxBegin (Ptr< const Packet > packet) |
| Public method used to fire a PhyRxBegin trace. More... | |
| void | NotifyRxDrop (Ptr< const Packet > packet) |
| Public method used to fire a PhyRxDrop trace. More... | |
| void | NotifyRxEnd (Ptr< const Packet > packet) |
| Public method used to fire a PhyRxEnd trace. More... | |
| void | NotifyTxBegin (Ptr< const Packet > packet) |
| Public method used to fire a PhyTxBegin trace. More... | |
| void | NotifyTxDrop (Ptr< const Packet > packet) |
| Public method used to fire a PhyTxDrop trace. More... | |
| void | NotifyTxEnd (Ptr< const Packet > packet) |
| Public method used to fire a PhyTxEnd trace. More... | |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. More... | |
| virtual | ~Object () |
| Destructor. More... | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. More... | |
| void | Dispose (void) |
| Dispose of this Object. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| Get an iterator to the Objects aggregated to this one. More... | |
| virtual TypeId | GetInstanceTypeId (void) const |
| Implement the GetInstanceTypeId method defined in ObjectBase. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| Get a pointer to the requested aggregated Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object. More... | |
| void | Initialize (void) |
| Invoke DoInitialize on all Objects aggregated to this one. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |

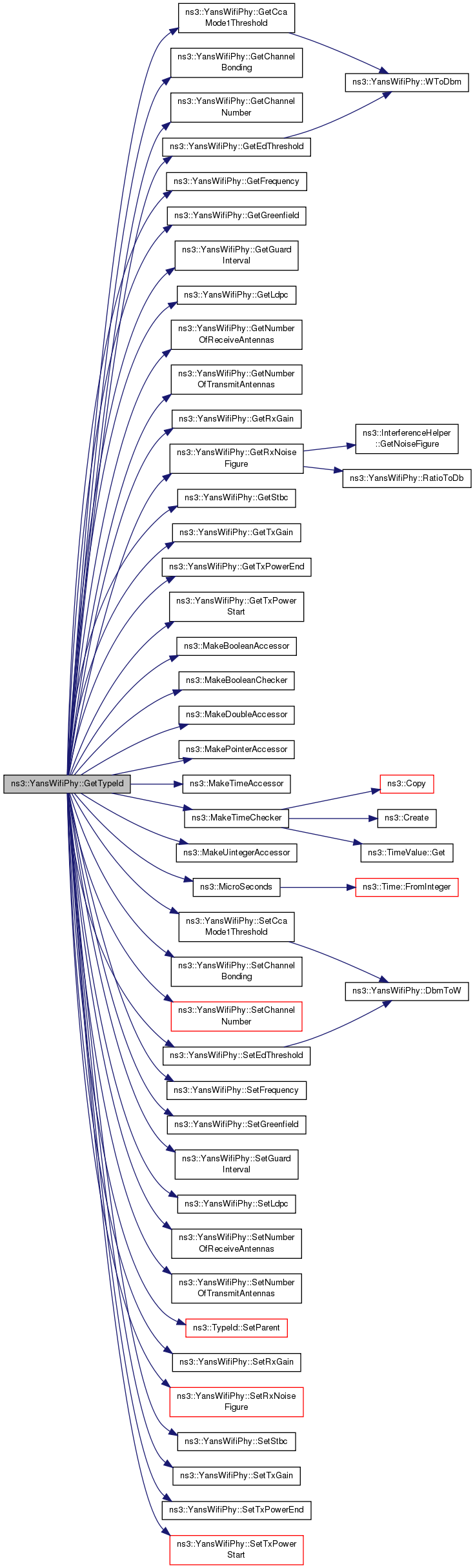

| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::WifiPhy | |
| static WifiMode | GetDsssRate11Mbps () |
| Return a WifiMode for DSSS at 11Mbps. More... | |
| static WifiMode | GetDsssRate1Mbps () |
| Return a WifiMode for DSSS at 1Mbps. More... | |
| static WifiMode | GetDsssRate2Mbps () |
| Return a WifiMode for DSSS at 2Mbps. More... | |
| static WifiMode | GetDsssRate5_5Mbps () |
| Return a WifiMode for DSSS at 5.5Mbps. More... | |
| static WifiMode | GetErpOfdmRate12Mbps () |
| Return a WifiMode for ERP-OFDM at 12Mbps. More... | |
| static WifiMode | GetErpOfdmRate18Mbps () |
| Return a WifiMode for ERP-OFDM at 18Mbps. More... | |
| static WifiMode | GetErpOfdmRate24Mbps () |
| Return a WifiMode for ERP-OFDM at 24Mbps. More... | |
| static WifiMode | GetErpOfdmRate36Mbps () |
| Return a WifiMode for ERP-OFDM at 36Mbps. More... | |
| static WifiMode | GetErpOfdmRate48Mbps () |
| Return a WifiMode for ERP-OFDM at 48Mbps. More... | |
| static WifiMode | GetErpOfdmRate54Mbps () |
| Return a WifiMode for ERP-OFDM at 54Mbps. More... | |
| static WifiMode | GetErpOfdmRate6Mbps () |
| Return a WifiMode for ERP-OFDM at 6Mbps. More... | |
| static WifiMode | GetErpOfdmRate9Mbps () |
| Return a WifiMode for ERP-OFDM at 9Mbps. More... | |
| static WifiMode | GetMFPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble) |
| static WifiMode | GetOfdmRate108MbpsBW40MHz () |
| Return a WifiMode for OFDM at 108Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate120MbpsBW40MHz () |
| Return a WifiMode for OFDM at 120Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate121_5MbpsBW40MHz () |
| Return a WifiMode for OFDM at 121.5Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate12Mbps () |
| Return a WifiMode for OFDM at 12Mbps. More... | |
| static WifiMode | GetOfdmRate12MbpsBW10MHz () |
| Return a WifiMode for OFDM at 12Mbps with 10MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate12MbpsBW5MHz () |
| Return a WifiMode for OFDM at 12Mbps with 5MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate135MbpsBW40MHz () |
| Return a WifiMode for OFDM at 135Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate135MbpsBW40MHzShGi () |
| Return a WifiMode for OFDM at 135Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate13_5MbpsBW40MHz () |
| Return a WifiMode for OFDM at 13.5Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate13_5MbpsBW5MHz () |
| Return a WifiMode for OFDM at 13.5Mbps with 5MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate13MbpsBW20MHz () |
| Return a WifiMode for OFDM at 13Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate14_4MbpsBW20MHz () |
| Return a WifiMode for OFDM at 14.4Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate150MbpsBW40MHz () |
| Return a WifiMode for OFDM at 150Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate15MbpsBW40MHz () |
| Return a WifiMode for OFDM at 15Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate18Mbps () |
| Return a WifiMode for OFDM at 18Mbps. More... | |
| static WifiMode | GetOfdmRate18MbpsBW10MHz () |
| Return a WifiMode for OFDM at 18Mbps with 10MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate19_5MbpsBW20MHz () |
| Return a WifiMode for OFDM at 19.5Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate1_5MbpsBW5MHz () |
| Return a WifiMode for OFDM at 1.5Mbps with 5MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate21_7MbpsBW20MHz () |
| Return a WifiMode for OFDM at 21.7Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate24Mbps () |
| Return a WifiMode for OFDM at 24Mbps. More... | |
| static WifiMode | GetOfdmRate24MbpsBW10MHz () |
| Return a WifiMode for OFDM at 24Mbps with 10MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate26MbpsBW20MHz () |
| Return a WifiMode for OFDM at 26Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate27MbpsBW10MHz () |
| Return a WifiMode for OFDM at 27Mbps with 10MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate27MbpsBW40MHz () |
| Return a WifiMode for OFDM at 27Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate28_9MbpsBW20MHz () |
| Return a WifiMode for OFDM at 28.9Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate2_25MbpsBW5MHz () |
| Return a WifiMode for OFDM at 2.25Mbps with 5MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate30MbpsBW40MHz () |
| Return a WifiMode for OFDM at 30Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate36Mbps () |
| Return a WifiMode for OFDM at 36Mbps. More... | |
| static WifiMode | GetOfdmRate39MbpsBW20MHz () |
| Return a WifiMode for OFDM at 39Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate3MbpsBW10MHz () |
| Return a WifiMode for OFDM at 3Mbps with 10MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate3MbpsBW5MHz () |
| Return a WifiMode for OFDM at 3Mbps with 5MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate40_5MbpsBW40MHz () |
| Return a WifiMode for OFDM at 40.5Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate43_3MbpsBW20MHz () |
| Return a WifiMode for OFDM at 43.3Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate45MbpsBW40MHz () |
| Return a WifiMode for OFDM at 45Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate48Mbps () |
| Return a WifiMode for OFDM at 48Mbps. More... | |
| static WifiMode | GetOfdmRate4_5MbpsBW10MHz () |
| Return a WifiMode for OFDM at 4.5Mbps with 10MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate4_5MbpsBW5MHz () |
| Return a WifiMode for OFDM at 4.5Mbps with 5MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate52MbpsBW20MHz () |
| Return a WifiMode for OFDM at 52Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate54Mbps () |
| Return a WifiMode for OFDM at 54Mbps. More... | |
| static WifiMode | GetOfdmRate54MbpsBW40MHz () |
| Return a WifiMode for OFDM at 54Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate57_8MbpsBW20MHz () |
| Return a WifiMode for OFDM at 57.8Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate58_5MbpsBW20MHz () |
| Return a WifiMode for OFDM at 58.5Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate60MbpsBW40MHz () |
| Return a WifiMode for OFDM at 60Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate65MbpsBW20MHz () |
| Return a WifiMode for OFDM at 65Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate65MbpsBW20MHzShGi () |
| Return a WifiMode for OFDM at 65Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate6_5MbpsBW20MHz () |
| Return a WifiMode for OFDM at 6.5Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate6Mbps () |
| Return a WifiMode for OFDM at 6Mbps. More... | |
| static WifiMode | GetOfdmRate6MbpsBW10MHz () |
| Return a WifiMode for OFDM at 6Mbps with 10MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate6MbpsBW5MHz () |
| Return a WifiMode for OFDM at 6Mbps with 5MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate72_2MbpsBW20MHz () |
| Return a WifiMode for OFDM at 72.2Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate7_2MbpsBW20MHz () |
| Return a WifiMode for OFDM at 7.2Mbps with 20MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate81MbpsBW40MHz () |
| Return a WifiMode for OFDM at 81Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate90MbpsBW40MHz () |
| Return a WifiMode for OFDM at 90Mbps with 40MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate9Mbps () |
| Return a WifiMode for OFDM at 9Mbps. More... | |
| static WifiMode | GetOfdmRate9MbpsBW10MHz () |
| Return a WifiMode for OFDM at 9Mbps with 10MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate9MbpsBW5MHz () |
| Return a WifiMode for OFDM at 9Mbps with 5MHz channel spacing. More... | |
| static Time | GetPlcpHeaderDuration (WifiMode payloadMode, WifiPreamble preamble) |
| static WifiMode | GetPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble) |
| static Time | GetPlcpHtSigHeaderDuration (WifiPreamble preamble) |
| static Time | GetPlcpHtTrainingSymbolDuration (WifiPreamble preamble, WifiTxVector txvector) |
| static Time | GetPlcpPreambleDuration (WifiMode payloadMode, WifiPreamble preamble) |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| static void | Cleanup (void) |
| Noop. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Member Functions | |

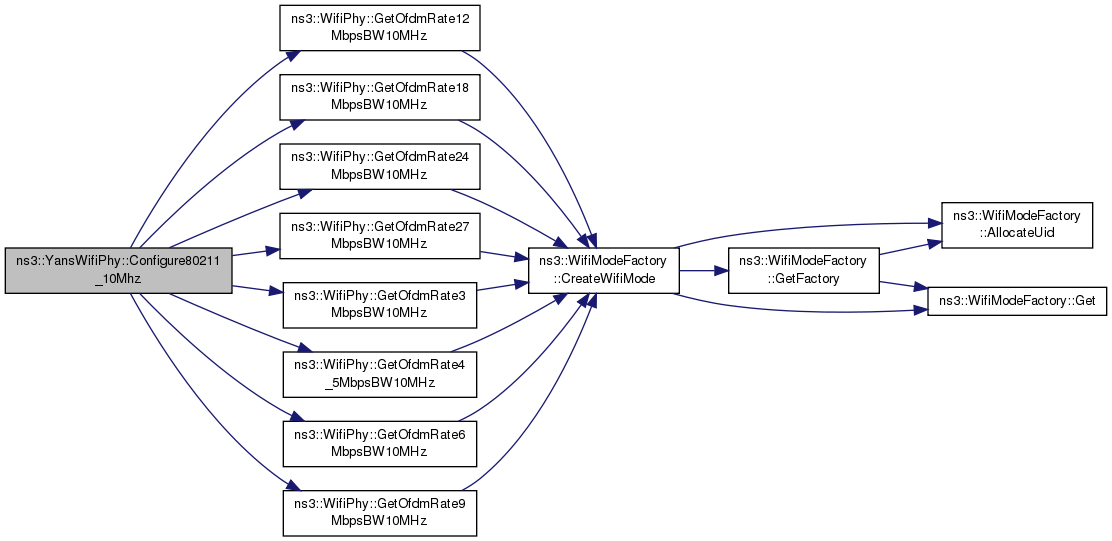

| void | Configure80211_10Mhz (void) |
| Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 10MHz channel spacing. More... | |

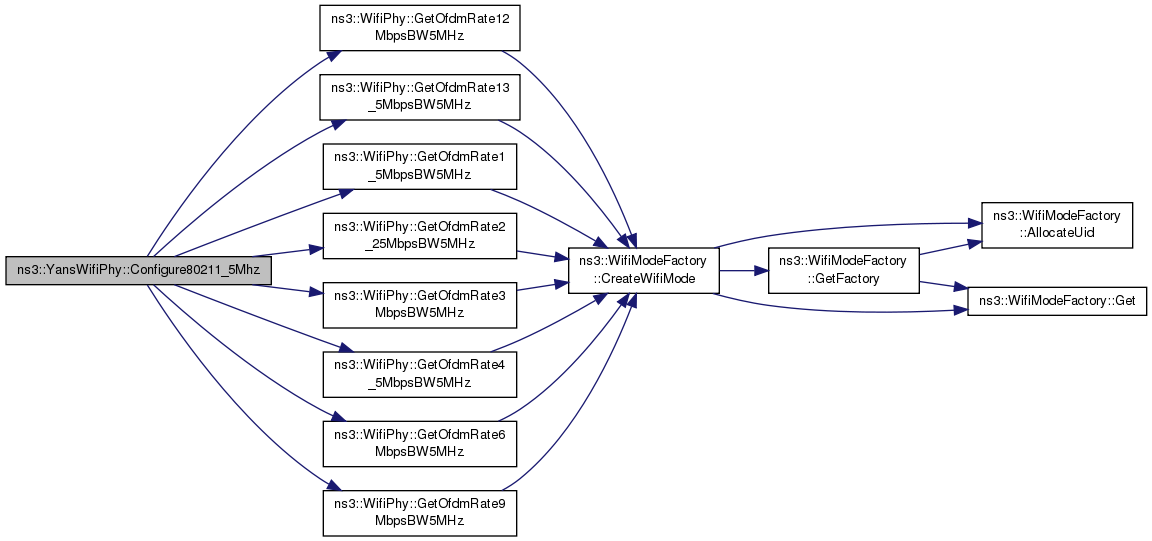

| void | Configure80211_5Mhz () |
| Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 5MHz channel spacing. More... | |

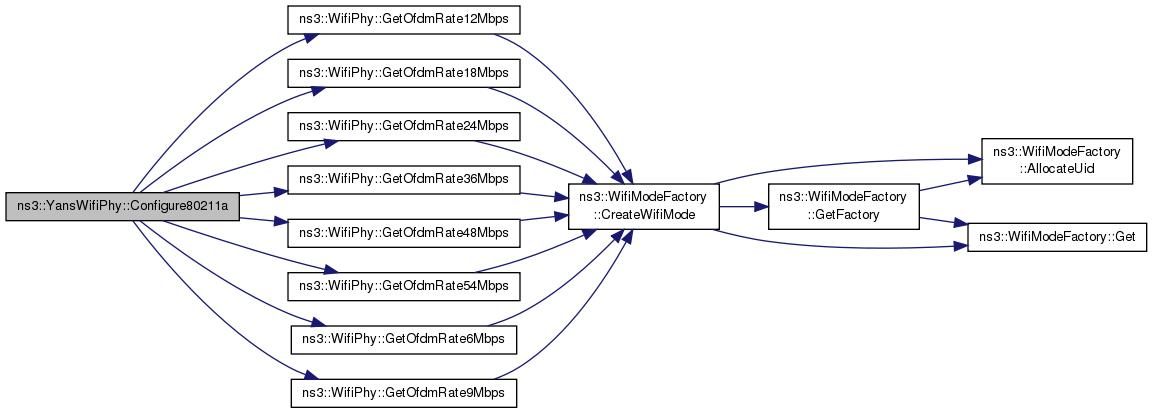

| void | Configure80211a (void) |
| Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard. More... | |

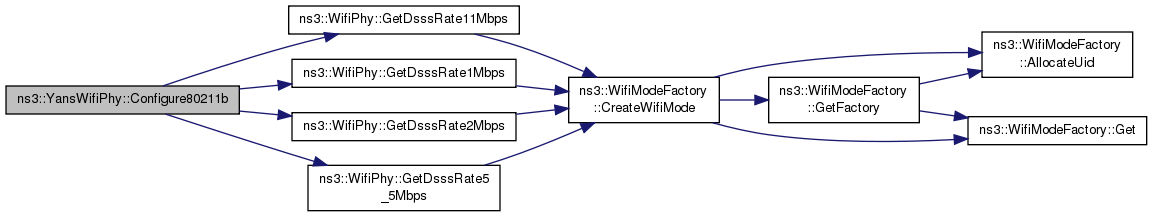

| void | Configure80211b (void) |
| Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11b standard. More... | |

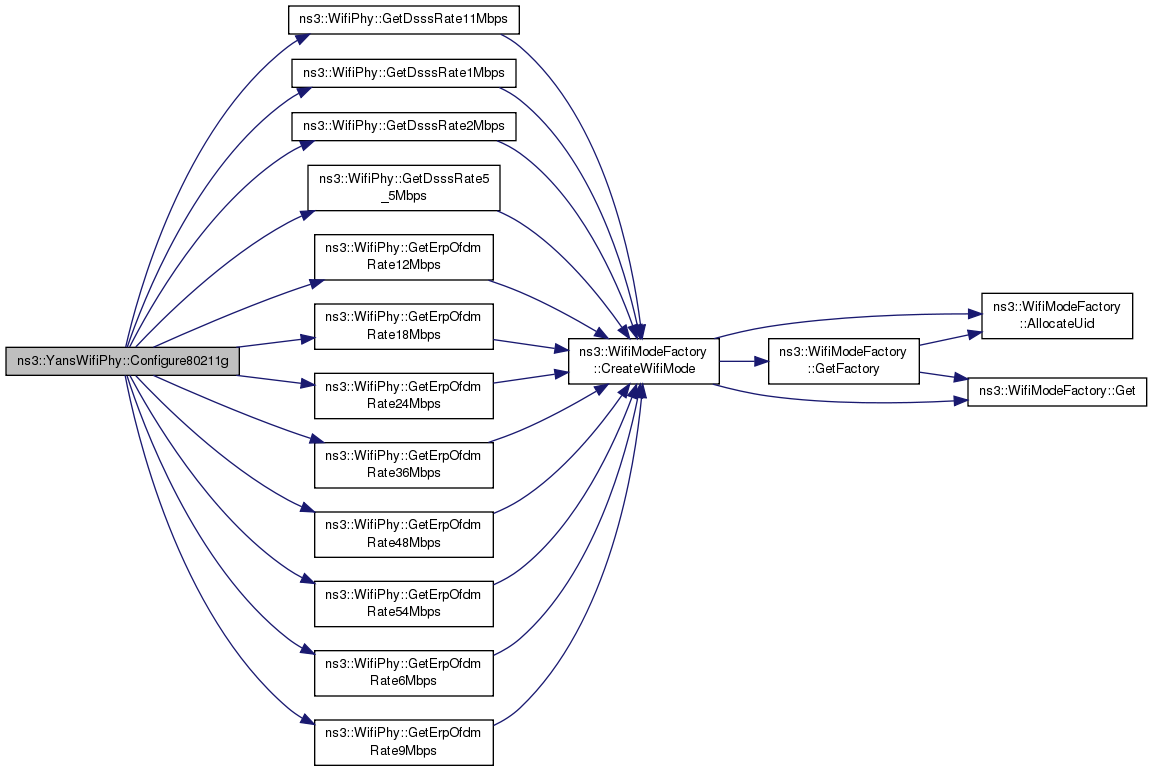

| void | Configure80211g (void) |
| Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11g standard. More... | |

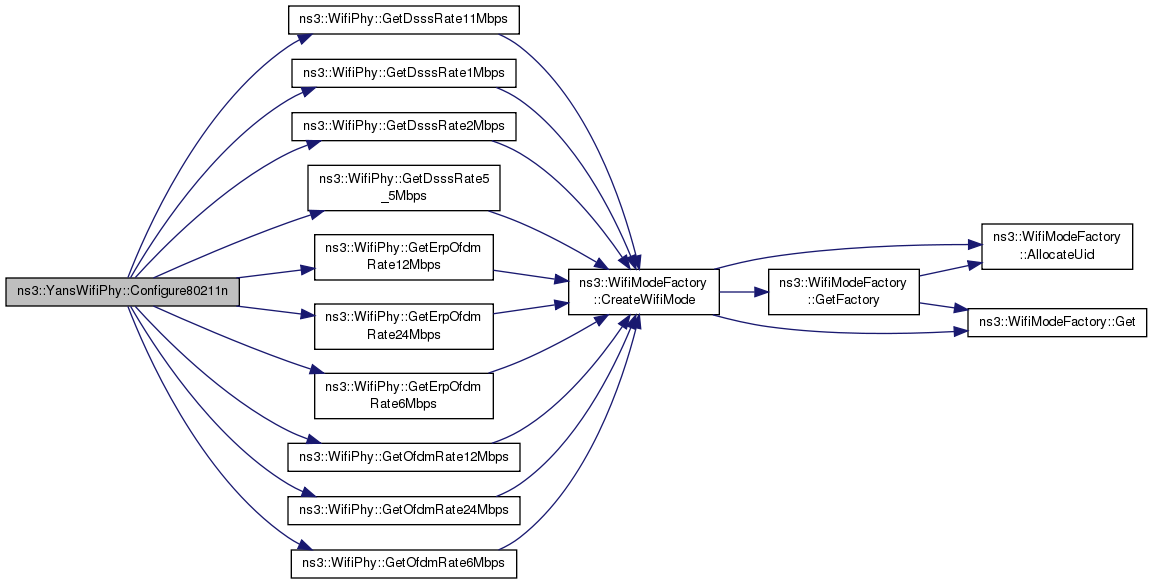

| void | Configure80211n (void) |
| Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11n standard. More... | |

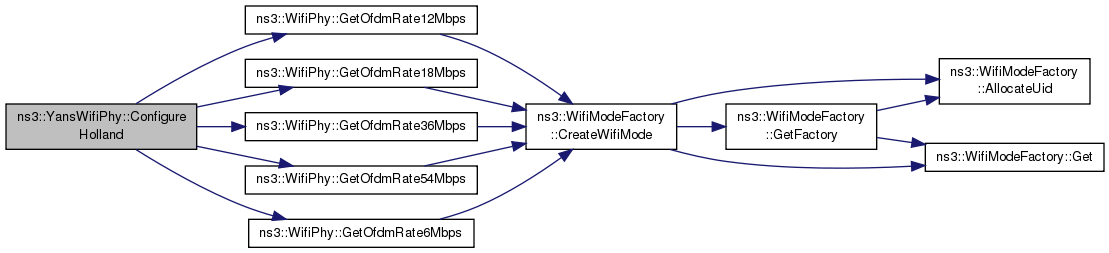

| void | ConfigureHolland (void) |

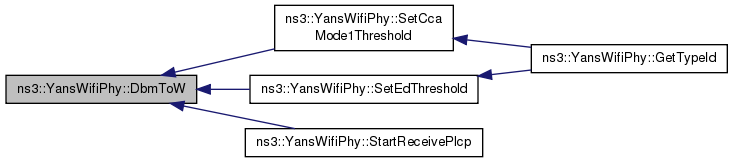

| double | DbmToW (double dbm) const |
| Convert from dBm to Watts. More... | |
| double | DbToRatio (double db) const |
| Convert from dB to ratio. More... | |
| virtual void | DoDispose (void) |
| Destructor implementation. More... | |
| virtual void | DoInitialize (void) |
| Initialize() implementation. More... | |

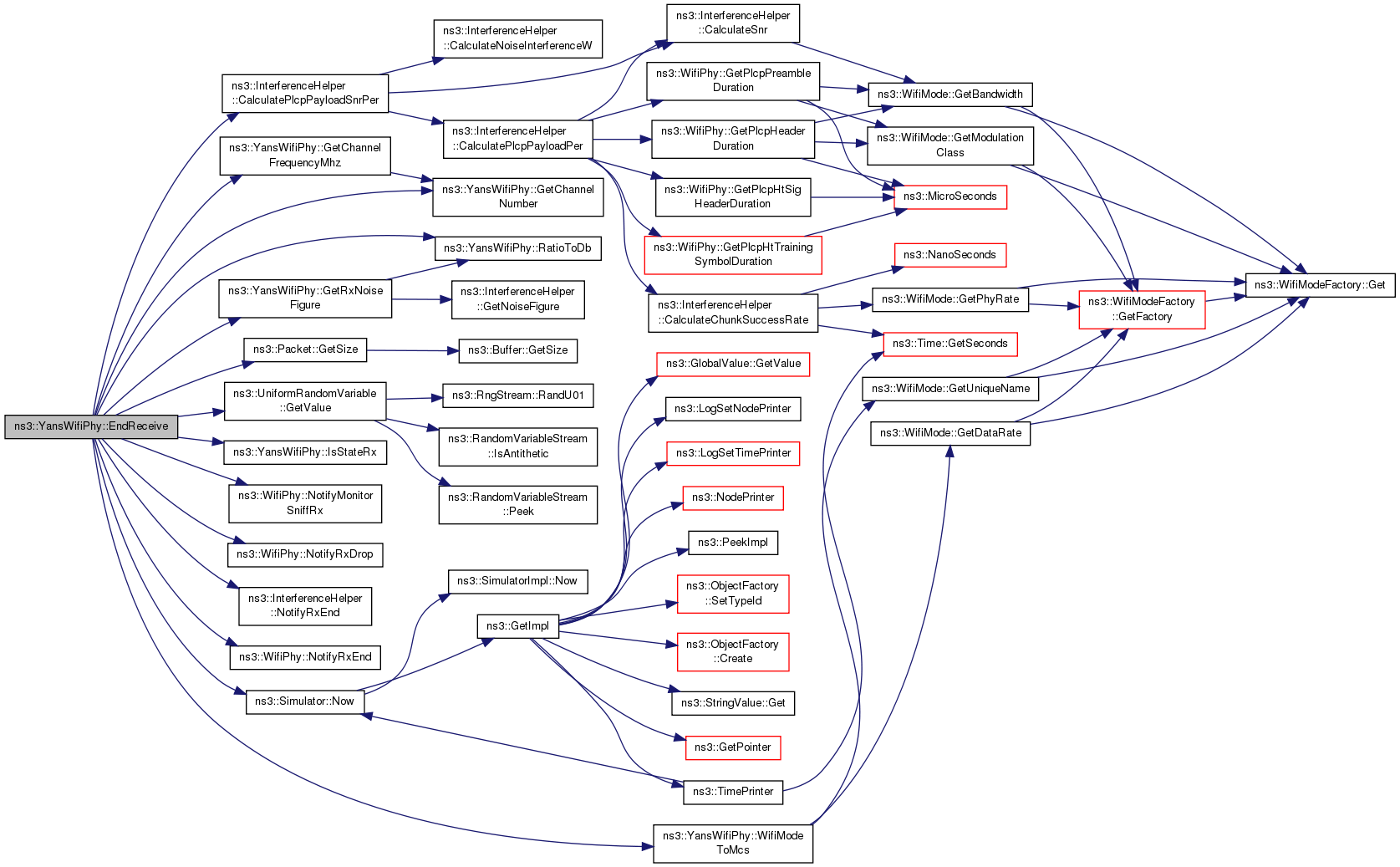

| void | EndReceive (Ptr< Packet > packet, enum WifiPreamble preamble, uint8_t packetType, Ptr< InterferenceHelper::Event > event) |
| The last bit of the packet has arrived. More... | |
| double | GetEdThresholdW (void) const |
| Return the energy detection threshold. More... | |
| double | GetPowerDbm (uint8_t power) const |
| Get the power of the given power level in dBm. More... | |

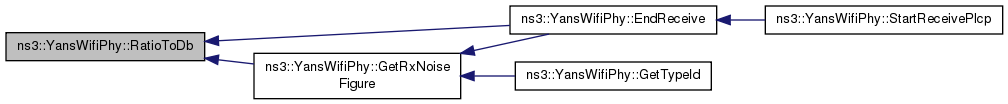

| double | RatioToDb (double ratio) const |
| Convert from ratio to dB. More... | |

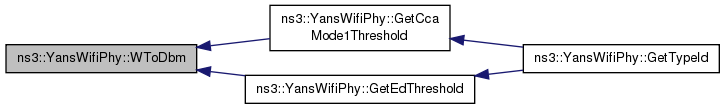

| double | WToDbm (double w) const |
| Convert from Watts to dBm. More... | |
Private Attributes | |
| std::vector< uint32_t > | m_bssMembershipSelectorSet |
| double | m_ccaMode1ThresholdW |
| Clear channel assessment (CCA) threshold in watts. More... | |
| Ptr< YansWifiChannel > | m_channel |
| YansWifiChannel that this YansWifiPhy is connected to. More... | |
| bool | m_channelBonding |
| Flag if channel bonding is used. More... | |
| uint16_t | m_channelNumber |
| Operating channel number. More... | |
| double | m_channelStartingFrequency |
| Standard-dependent center frequency of 0-th channel in MHz. More... | |
| Time | m_channelSwitchDelay |
| Time required to switch between channel. More... | |
| Ptr< Object > | m_device |
| Pointer to the device. More... | |
| std::vector< uint8_t > | m_deviceMcsSet |
| WifiModeList | m_deviceRateSet |
| This vector holds the set of transmission modes that this WifiPhy(-derived class) can support. More... | |
| double | m_edThresholdW |
| Energy detection threshold in watts. More... | |
| EventId | m_endPlcpRxEvent |
| EventId | m_endRxEvent |
| bool | m_greenfield |
| Flag if GreenField format is supported. More... | |
| bool | m_guardInterval |
| Flag if short guard interval is used. More... | |
| bool | m_initialized |
| Flag for runtime initialization. More... | |
| InterferenceHelper | m_interference |
| Pointer to InterferenceHelper. More... | |
| bool | m_ldpc |
| Flag if LDPC is used. More... | |
| Ptr< Object > | m_mobility |
| Pointer to the mobility model. More... | |
| uint16_t | m_mpdusNum |
| carries the number of expected mpdus that are part of an A-MPDU More... | |
| uint32_t | m_nTxPower |
| Number of available transmission power levels. More... | |
| uint32_t | m_numberOfReceivers |
| Number of receivers. More... | |
| uint32_t | m_numberOfTransmitters |
| Number of transmitters. More... | |
| bool | m_plcpSuccess |
| Flag if the PLCP of the packet or the first MPDU in an A-MPDU has been received. More... | |
| Ptr< UniformRandomVariable > | m_random |
| Provides uniform random variables. More... | |
| double | m_rxGainDb |
| Reception gain (dB) More... | |
| Ptr< WifiPhyStateHelper > | m_state |
| Pointer to WifiPhyStateHelper. More... | |
| bool | m_stbc |
| Flag if STBC is used. More... | |
| double | m_txGainDb |
| Transmission gain (dB) More... | |
| double | m_txPowerBaseDbm |
| Minimum transmission power (dBm) More... | |
| double | m_txPowerEndDbm |
| Maximum transmission power (dBm) More... | |
Additional Inherited Members | |
| Public Types inherited from ns3::WifiPhy | |
| typedef void(* | MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, double signalDbm, double noiseDbm) |
| TracedCallback signature for monitor mode receive events. More... | |
| typedef void(* | MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, uint8_t txPower) |
| TracedCallback signature for monitor mode transmit events. More... | |
| typedef Callback< void, Ptr< const Packet >, double > | RxErrorCallback |
| arg1: packet received unsuccessfully arg2: snr of packet More... | |
| typedef Callback< void, Ptr< Packet >, double, WifiTxVector, enum WifiPreamble > | RxOkCallback |
| arg1: packet received successfully arg2: snr of packet arg3: TXVECTOR of packet arg4: type of preamble used for packet. More... | |
| enum | State { IDLE, CCA_BUSY, TX, RX, SWITCHING, SLEEP } |
| The state of the PHY layer. More... | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. More... | |
| virtual void | NotifyNewAggregate (void) |
| Notify all Objects aggregated to this one of a new Object being aggregated. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
802.11 PHY layer model
This PHY implements a model of 802.11a.
The model implemented here is based on the model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf).
This PHY model depends on a channel loss and delay model as provided by the ns3::PropagationLossModel and ns3::PropagationDelayModel classes, both of which are members of the ns3::YansWifiChannel class.
ns3::YansWifiPhy is accessible through the following paths with Config::Set and Config::Connect:
No TraceSources are defined for this type.
Size of this type is 496 bytes (on a 64-bit architecture).
Definition at line 64 of file yans-wifi-phy.h.
| ns3::YansWifiPhy::YansWifiPhy | ( | ) |
Definition at line 172 of file yans-wifi-phy.cc.
References m_random, m_state, and NS_LOG_FUNCTION.
|
virtual |
Definition at line 186 of file yans-wifi-phy.cc.
References NS_LOG_FUNCTION.
|
virtual |
Assign a fixed random variable stream number to the random variables used by this model.
Return the number of streams (possibly zero) that have been assigned.
| stream | first stream index to use |
Implements ns3::WifiPhy.
Definition at line 1059 of file yans-wifi-phy.cc.
References m_random, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().
Here is the call graph for this function:
|
virtual |
| txMode | the transmission mode |
| ber | the probability of bit error rate |
Implements ns3::WifiPhy.
Definition at line 369 of file yans-wifi-phy.cc.
References ns3::InterferenceHelper::GetErrorRateModel(), and m_interference.
Here is the call graph for this function:
|
private |
Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 10MHz channel spacing.
Definition at line 846 of file yans-wifi-phy.cc.
References ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.
Referenced by ConfigureStandard().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 5MHz channel spacing.
Definition at line 862 of file yans-wifi-phy.cc.
References ns3::WifiPhy::GetOfdmRate12MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate13_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate1_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate2_25MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate9MbpsBW5MHz(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.
Referenced by ConfigureStandard().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard.
Definition at line 797 of file yans-wifi-phy.cc.
References ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate24Mbps(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate48Mbps(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), ns3::WifiPhy::GetOfdmRate9Mbps(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.
Referenced by ConfigureStandard().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11b standard.
Definition at line 814 of file yans-wifi-phy.cc.
References ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.
Referenced by ConfigureStandard().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11g standard.
Definition at line 826 of file yans-wifi-phy.cc.
References ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), ns3::WifiPhy::GetErpOfdmRate12Mbps(), ns3::WifiPhy::GetErpOfdmRate18Mbps(), ns3::WifiPhy::GetErpOfdmRate24Mbps(), ns3::WifiPhy::GetErpOfdmRate36Mbps(), ns3::WifiPhy::GetErpOfdmRate48Mbps(), ns3::WifiPhy::GetErpOfdmRate54Mbps(), ns3::WifiPhy::GetErpOfdmRate6Mbps(), ns3::WifiPhy::GetErpOfdmRate9Mbps(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.
Referenced by ConfigureStandard().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11n standard.
Definition at line 1158 of file yans-wifi-phy.cc.
References ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), ns3::WifiPhy::GetErpOfdmRate12Mbps(), ns3::WifiPhy::GetErpOfdmRate24Mbps(), ns3::WifiPhy::GetErpOfdmRate6Mbps(), ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate24Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), HT_PHY, m_bssMembershipSelectorSet, m_channelStartingFrequency, m_deviceMcsSet, m_deviceRateSet, and NS_LOG_FUNCTION.
Referenced by ConfigureStandard().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Definition at line 878 of file yans-wifi-phy.cc.
References ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.
Referenced by ConfigureStandard().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
Configure the PHY-level parameters for different Wi-Fi standard.
| standard | the Wi-Fi standard |
Implements ns3::WifiPhy.
Definition at line 211 of file yans-wifi-phy.cc.
References Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211n(), ConfigureHolland(), m_channelStartingFrequency, NS_ASSERT, NS_LOG_FUNCTION, ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ, and ns3::WIFI_PHY_STANDARD_holland.
Referenced by TwoLevelAggregationTest::DoRun().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Convert from dBm to Watts.
| dbm | the power in dBm |
Definition at line 963 of file yans-wifi-phy.cc.
Referenced by SetCcaMode1Threshold(), SetEdThreshold(), and StartReceivePlcp().
Here is the caller graph for this function:
|
private |
Convert from dB to ratio.
| db |
Definition at line 956 of file yans-wifi-phy.cc.
Referenced by SetRxNoiseFigure().
Here is the caller graph for this function:
|
privatevirtual |
Destructor implementation.
This method is called by Dispose() or by the Object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.
It is safe to call GetObject() from within this method.
Reimplemented from ns3::Object.
Definition at line 192 of file yans-wifi-phy.cc.
References m_channel, m_device, m_deviceMcsSet, m_deviceRateSet, m_mobility, m_state, and NS_LOG_FUNCTION.
|
privatevirtual |
Initialize() implementation.
This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.
Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.
Reimplemented from ns3::Object.
Definition at line 204 of file yans-wifi-phy.cc.
References m_initialized, and NS_LOG_FUNCTION.
|
private |
The last bit of the packet has arrived.
| packet | the packet that the last bit has arrived |
| preamble | the preamble of the arriving packet |
| packetType | The type of the received packet (values: 0 not an A-MPDU, 1 corresponds to any packets in an A-MPDU except the last one, 2 is the last packet in an A-MPDU) |
| event | the corresponding event of the first time the packet arrives |
Definition at line 1006 of file yans-wifi-phy.cc.
References ns3::InterferenceHelper::CalculatePlcpPayloadSnrPer(), GetChannelFrequencyMhz(), GetChannelNumber(), GetRxNoiseFigure(), ns3::Packet::GetSize(), ns3::UniformRandomVariable::GetValue(), IsStateRx(), m_interference, m_plcpSuccess, m_random, m_state, ns3::WifiPhy::NotifyMonitorSniffRx(), ns3::WifiPhy::NotifyRxDrop(), ns3::InterferenceHelper::NotifyRxEnd(), ns3::WifiPhy::NotifyRxEnd(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, RatioToDb(), ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_PREAMBLE_NONE, ns3::WIFI_PREAMBLE_SHORT, and WifiModeToMcs().
Referenced by StartReceivePlcp().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.
This was introduced with 11n
| selector | index in array of supported memberships |
Implements ns3::WifiPhy.
Definition at line 1190 of file yans-wifi-phy.cc.
References m_bssMembershipSelectorSet.
Referenced by GetMembershipSelectorModes().
Here is the caller graph for this function:| double ns3::YansWifiPhy::GetCcaMode1Threshold | ( | void | ) | const |
Return the CCA threshold (dBm).
Definition at line 347 of file yans-wifi-phy.cc.
References m_ccaMode1ThresholdW, and WToDbm().
Referenced by GetTypeId().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
Return the WifiChannel this WifiPhy is connected to.
Implements ns3::WifiPhy.
Definition at line 375 of file yans-wifi-phy.cc.
References m_channel.
|
virtual |
Return whether channel bonding is supported.
Implements ns3::WifiPhy.
Definition at line 1146 of file yans-wifi-phy.cc.
References m_channelBonding.
Referenced by GetTypeId(), and McsToWifiMode().
Here is the caller graph for this function:| double ns3::YansWifiPhy::GetChannelFrequencyMhz | ( | ) | const |
Return current center channel frequency in MHz.
Definition at line 452 of file yans-wifi-phy.cc.
References GetChannelNumber(), and m_channelStartingFrequency.
Referenced by EndReceive(), and SendPacket().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
Return the current channel number.
Implements ns3::WifiPhy.
Definition at line 440 of file yans-wifi-phy.cc.
References m_channelNumber.
Referenced by EndReceive(), GetChannelFrequencyMhz(), ns3::MeshWifiInterfaceMac::GetFrequencyChannel(), GetTypeId(), ns3::YansWifiChannel::Send(), and SendPacket().
Here is the caller graph for this function:
|
virtual |
Implements ns3::WifiPhy.
Definition at line 446 of file yans-wifi-phy.cc.
References m_channelSwitchDelay.
|
virtual |
The PHY will never become WifiPhy::IDLE before the delay returned by this method but it could become really idle later.
Implements ns3::WifiPhy.
Definition at line 944 of file yans-wifi-phy.cc.
References m_state.
Referenced by SetChannelNumber(), and SetSleepMode().
Here is the caller graph for this function:Return the device this PHY is associated with.
Definition at line 358 of file yans-wifi-phy.cc.
References m_device.
| double ns3::YansWifiPhy::GetEdThreshold | ( | void | ) | const |
Return the energy detection threshold (dBm).
Definition at line 341 of file yans-wifi-phy.cc.
References m_edThresholdW, and WToDbm().
Referenced by GetTypeId().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Return the energy detection threshold.
Definition at line 982 of file yans-wifi-phy.cc.
References m_edThresholdW.
| Ptr< ErrorRateModel > ns3::YansWifiPhy::GetErrorRateModel | ( | void | ) | const |
Return the error rate model this PHY is using.
Definition at line 353 of file yans-wifi-phy.cc.
References ns3::InterferenceHelper::GetErrorRateModel(), and m_interference.
Here is the call graph for this function:
|
virtual |
Implements ns3::WifiPhy.
Definition at line 1112 of file yans-wifi-phy.cc.
References m_channelStartingFrequency.
Referenced by GetTypeId(), and SendPacket().
Here is the caller graph for this function:
|
virtual |
Return whether Greenfield is supported.
Implements ns3::WifiPhy.
Definition at line 1140 of file yans-wifi-phy.cc.
References m_greenfield.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
virtual |
Return whether guard interval is being used.
Implements ns3::WifiPhy.
Definition at line 1101 of file yans-wifi-phy.cc.
References m_guardInterval.
Referenced by GetTypeId(), and McsToWifiMode().
Here is the caller graph for this function:
|
virtual |
Return the start time of the last received packet.
Implements ns3::WifiPhy.
Definition at line 950 of file yans-wifi-phy.cc.
References m_state.
|
virtual |
Return if LDPC is supported.
Implements ns3::WifiPhy.
Definition at line 1129 of file yans-wifi-phy.cc.
References m_ldpc.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
virtual |
The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet.
This was introduced with 11n
| mcs | index in array of supported MCS |
Implements ns3::WifiPhy.
Definition at line 1219 of file yans-wifi-phy.cc.
References m_deviceMcsSet.
Referenced by IsMcsSupported().
Here is the caller graph for this function:
|
virtual |
The WifiPhy::GetMembershipSelectorModes() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.
This was introduced with 11n
| selector | index in array of supported memberships |
Implements ns3::WifiPhy.
Definition at line 1195 of file yans-wifi-phy.cc.
References GetBssMembershipSelector(), ns3::WifiPhy::GetOfdmRate13MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate19_5MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate26MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate39MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate52MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate58_5MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate65MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate6_5MbpsBW20MHz(), and HT_PHY.
Here is the call graph for this function:Return the mobility model this PHY is associated with.
Definition at line 363 of file yans-wifi-phy.cc.
References m_mobility.
Referenced by ns3::YansWifiChannel::Send().
Here is the caller graph for this function:
|
virtual |
The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.
It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.
| mode | index in array of supported modes |
Implements ns3::WifiPhy.
Definition at line 762 of file yans-wifi-phy.cc.
References m_deviceRateSet.
Referenced by IsModeSupported().
Here is the caller graph for this function:
|
virtual |
The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.
This was introduced with 11n
Implements ns3::WifiPhy.
Definition at line 1185 of file yans-wifi-phy.cc.
References m_bssMembershipSelectorSet.
|
virtual |
Implements ns3::WifiPhy.
Definition at line 1214 of file yans-wifi-phy.cc.
References m_deviceMcsSet.
Referenced by IsMcsSupported().
Here is the caller graph for this function:
|
virtual |
The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.
It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.
Implements ns3::WifiPhy.
Definition at line 757 of file yans-wifi-phy.cc.
References m_deviceRateSet.
Referenced by IsModeSupported().
Here is the caller graph for this function:
|
virtual |
Return the number of available transmission power levels.
Implements ns3::WifiPhy.
Definition at line 791 of file yans-wifi-phy.cc.
References m_nTxPower.
|
virtual |
Implements ns3::WifiPhy.
Definition at line 1123 of file yans-wifi-phy.cc.
References m_numberOfReceivers.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
virtual |
Implements ns3::WifiPhy.
Definition at line 1118 of file yans-wifi-phy.cc.
References m_numberOfTransmitters.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
private |
Get the power of the given power level in dBm.
In YansWifiPhy implementation, the power levels are equally spaced (in dBm).
| power | the power level |
Definition at line 988 of file yans-wifi-phy.cc.
References m_nTxPower, m_txPowerBaseDbm, m_txPowerEndDbm, NS_ASSERT, and NS_ASSERT_MSG.
Referenced by SendPacket().
Here is the caller graph for this function:| double ns3::YansWifiPhy::GetRxGain | ( | void | ) | const |
Return the reception gain (dB).
Definition at line 335 of file yans-wifi-phy.cc.
References m_rxGainDb.
Referenced by GetTypeId().
Here is the caller graph for this function:| double ns3::YansWifiPhy::GetRxNoiseFigure | ( | void | ) | const |
Return the RX noise figure (dBm).
Definition at line 315 of file yans-wifi-phy.cc.
References ns3::InterferenceHelper::GetNoiseFigure(), m_interference, and RatioToDb().
Referenced by EndReceive(), and GetTypeId().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
Implements ns3::WifiPhy.
Definition at line 939 of file yans-wifi-phy.cc.
References m_state.
|
virtual |
Return whether STBC is supported.
Implements ns3::WifiPhy.
Definition at line 1134 of file yans-wifi-phy.cc.
References m_stbc.
Referenced by GetTypeId().
Here is the caller graph for this function:| double ns3::YansWifiPhy::GetTxGain | ( | void | ) | const |
Return the transmission gain (dB).
Definition at line 330 of file yans-wifi-phy.cc.
References m_txGainDb.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
virtual |
Return the maximum available transmission power level (dBm).
Implements ns3::WifiPhy.
Definition at line 325 of file yans-wifi-phy.cc.
References m_txPowerEndDbm.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
virtual |
Return the minimum available transmission power level (dBm).
Implements ns3::WifiPhy.
Definition at line 320 of file yans-wifi-phy.cc.
References m_txPowerBaseDbm.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
static |
Definition at line 49 of file yans-wifi-phy.cc.
References GetCcaMode1Threshold(), GetChannelBonding(), GetChannelNumber(), GetEdThreshold(), GetFrequency(), GetGreenfield(), GetGuardInterval(), GetLdpc(), GetNumberOfReceiveAntennas(), GetNumberOfTransmitAntennas(), GetRxGain(), GetRxNoiseFigure(), GetStbc(), GetTxGain(), GetTxPowerEnd(), GetTxPowerStart(), m_channelSwitchDelay, m_nTxPower, m_state, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeDoubleAccessor(), ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::MicroSeconds(), SetCcaMode1Threshold(), SetChannelBonding(), SetChannelNumber(), SetEdThreshold(), SetFrequency(), SetGreenfield(), SetGuardInterval(), SetLdpc(), SetNumberOfReceiveAntennas(), SetNumberOfTransmitAntennas(), ns3::TypeId::SetParent(), SetRxGain(), SetRxNoiseFigure(), SetStbc(), SetTxGain(), SetTxPowerEnd(), and SetTxPowerStart().
Here is the call graph for this function:
|
virtual |
Definition at line 779 of file yans-wifi-phy.cc.
References GetMcs(), GetNMcs(), and McsToWifiMode().
Referenced by StartReceivePacket().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
Check if the given WifiMode is supported by the PHY.
| mode | the wifi mode to check |
Implements ns3::WifiPhy.
Definition at line 767 of file yans-wifi-phy.cc.
References GetMode(), and GetNModes().
Referenced by StartReceivePacket().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
Implements ns3::WifiPhy.
Definition at line 913 of file yans-wifi-phy.cc.
References m_state.
|
virtual |
Implements ns3::WifiPhy.
Definition at line 902 of file yans-wifi-phy.cc.
References m_state.
|
virtual |
Implements ns3::WifiPhy.
Definition at line 908 of file yans-wifi-phy.cc.
References m_state.
|
virtual |
Implements ns3::WifiPhy.
Definition at line 918 of file yans-wifi-phy.cc.
References m_state.
Referenced by EndReceive(), and StartReceivePacket().
Here is the caller graph for this function:
|
virtual |
Implements ns3::WifiPhy.
Definition at line 933 of file yans-wifi-phy.cc.
References m_state.
|
virtual |
Implements ns3::WifiPhy.
Definition at line 928 of file yans-wifi-phy.cc.
References m_state.
Referenced by SetChannelNumber().
Here is the caller graph for this function:
|
virtual |
Implements ns3::WifiPhy.
Definition at line 923 of file yans-wifi-phy.cc.
References m_state.
|
virtual |
For a given MCS finds the corresponding WifiMode and returns it as defined in the IEEE 802.11n standard.
| mcs | the MCS number |
Implements ns3::WifiPhy.
Definition at line 1286 of file yans-wifi-phy.cc.
References GetChannelBonding(), GetGuardInterval(), ns3::WifiPhy::GetOfdmRate108MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate120MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate121_5MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate135MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate135MbpsBW40MHzShGi(), ns3::WifiPhy::GetOfdmRate13_5MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate13MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate14_4MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate150MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate15MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate19_5MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate21_7MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate26MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate28_9MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate30MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate39MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate40_5MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate43_3MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate45MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate52MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate54MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate57_8MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate58_5MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate60MbpsBW40MHz(), ns3::WifiPhy::GetOfdmRate65MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate65MbpsBW20MHzShGi(), ns3::WifiPhy::GetOfdmRate6_5MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate72_2MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate7_2MbpsBW20MHz(), ns3::WifiPhy::GetOfdmRate81MbpsBW40MHz(), and ns3::WifiPhy::GetOfdmRate90MbpsBW40MHz().
Referenced by IsMcsSupported().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Convert from ratio to dB.
| ratio |
Definition at line 976 of file yans-wifi-phy.cc.
Referenced by EndReceive(), and GetRxNoiseFigure().
Here is the caller graph for this function:
|
virtual |
| listener | the new listener |
Add the input listener to the list of objects to be notified of PHY-level events.
Implements ns3::WifiPhy.
Definition at line 890 of file yans-wifi-phy.cc.
References m_state.
|
virtual |
Resume from sleep mode.
Implements ns3::WifiPhy.
Definition at line 490 of file yans-wifi-phy.cc.
References ns3::WifiPhy::CCA_BUSY, ns3::InterferenceHelper::GetEnergyDuration(), ns3::WifiPhy::IDLE, m_ccaMode1ThresholdW, m_interference, m_state, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiPhy::RX, ns3::WifiPhy::SLEEP, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.
Here is the call graph for this function:
|
virtual |
| packet | the packet to send |
| txvector | the txvector that has tx parameters such as mode, the transmission mode to use to send this packet, and txPowerLevel, a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels |
| preamble | the type of preamble to use to send this packet. |
| packetType | the type of the packet 0 is not A-MPDU, 1 is a MPDU that is part of an A-MPDU and 2 is the last MPDU in an A-MPDU |
Implements ns3::WifiPhy.
Definition at line 715 of file yans-wifi-phy.cc.
References ns3::WifiPhy::CalculateTxDuration(), ns3::EventId::Cancel(), GetChannelFrequencyMhz(), GetChannelNumber(), ns3::WifiMode::GetDataRate(), GetFrequency(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiTxVector::GetNss(), GetPowerDbm(), ns3::Packet::GetSize(), ns3::WifiTxVector::GetTxPowerLevel(), m_channel, m_endPlcpRxEvent, m_endRxEvent, m_interference, m_state, m_txGainDb, ns3::WifiPhy::NotifyMonitorSniffTx(), ns3::InterferenceHelper::NotifyRxEnd(), ns3::WifiPhy::NotifyTxBegin(), ns3::WifiPhy::NotifyTxDrop(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_PREAMBLE_SHORT, and WifiModeToMcs().
Here is the call graph for this function:| void ns3::YansWifiPhy::SetCcaMode1Threshold | ( | double | threshold | ) |
Sets the CCA threshold (dBm).
The energy of a received signal should be higher than this threshold to allow the PHY layer to declare CCA BUSY state.
| threshold | the CCA threshold in dBm |
Definition at line 293 of file yans-wifi-phy.cc.
References DbmToW(), m_ccaMode1ThresholdW, and NS_LOG_FUNCTION.
Referenced by GetTypeId().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::YansWifiPhy::SetChannel | ( | Ptr< YansWifiChannel > | channel | ) |
Set the YansWifiChannel this YansWifiPhy is to be connected to.
| channel | the YansWifiChannel this YansWifiPhy is to be connected to |
Definition at line 380 of file yans-wifi-phy.cc.
References m_channel.
Referenced by PowerRateAdaptationTest::ConfigureNode(), ns3::YansWifiPhyHelper::Create(), PsrExperiment::Run(), and CollisionExperiment::Run().
Here is the caller graph for this function:
|
virtual |
Enable or disable channel bonding support.
| channelbonding | Enable or disable channel bonding |
Implements ns3::WifiPhy.
Definition at line 1152 of file yans-wifi-phy.cc.
References m_channelBonding.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
virtual |
Set the current channel number.
| id | the channel number |
Implements ns3::WifiPhy.
Definition at line 387 of file yans-wifi-phy.cc.
References ns3::EventId::Cancel(), ns3::WifiPhy::CCA_BUSY, ns3::InterferenceHelper::EraseEvents(), GetDelayUntilIdle(), ns3::WifiPhy::IDLE, IsStateSwitching(), m_channelNumber, m_channelSwitchDelay, m_endPlcpRxEvent, m_endRxEvent, m_initialized, m_interference, m_state, NS_ASSERT, NS_LOG_DEBUG, ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SLEEP, and ns3::WifiPhy::TX.
Referenced by GetTypeId(), and ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel().
Here is the call graph for this function: Here is the caller graph for this function:Sets the device this PHY is associated with.
| device | the device this PHY is associated with |
Definition at line 304 of file yans-wifi-phy.cc.
References m_device.
Referenced by ns3::YansWifiPhyHelper::Create().
Here is the caller graph for this function:| void ns3::YansWifiPhy::SetEdThreshold | ( | double | threshold | ) |
Sets the energy detection threshold (dBm).
The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to detect the signal.
| threshold | the energy detction threshold in dBm |
Definition at line 287 of file yans-wifi-phy.cc.
References DbmToW(), m_edThresholdW, and NS_LOG_FUNCTION.
Referenced by GetTypeId().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::YansWifiPhy::SetErrorRateModel | ( | Ptr< ErrorRateModel > | rate | ) |
Sets the error rate model.
| rate | the error rate model |
Definition at line 299 of file yans-wifi-phy.cc.
References m_interference, and ns3::InterferenceHelper::SetErrorRateModel().
Referenced by ns3::YansWifiPhyHelper::Create(), PsrExperiment::Run(), and CollisionExperiment::Run().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
| freq | the operating frequency on this node (2.4 GHz or 5GHz). |
Implements ns3::WifiPhy.
Definition at line 1067 of file yans-wifi-phy.cc.
References m_channelStartingFrequency.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
virtual |
Enable or disable Greenfield support.
| greenfield | Enable or disable Greenfield |
Implements ns3::WifiPhy.
Definition at line 1096 of file yans-wifi-phy.cc.
References m_greenfield.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
virtual |
Enable or disable short/long guard interval.
| guardInterval | Enable or disable guard interval |
Implements ns3::WifiPhy.
Definition at line 1106 of file yans-wifi-phy.cc.
References m_guardInterval.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
virtual |
Enable or disable LDPC.
| ldpc | Enable or disable LDPC |
Implements ns3::WifiPhy.
Definition at line 1084 of file yans-wifi-phy.cc.
References m_ldpc.
Referenced by GetTypeId().
Here is the caller graph for this function:Sets the mobility model.
| mobility | the mobility model this PHY is associated with |
Definition at line 309 of file yans-wifi-phy.cc.
References m_mobility.
Referenced by ns3::YansWifiPhyHelper::Create(), PsrExperiment::Run(), and CollisionExperiment::Run().
Here is the caller graph for this function:| void ns3::YansWifiPhy::SetNTxPower | ( | uint32_t | n | ) |
Sets the number of transmission power levels available between the minimum level and the maximum level.
Transmission power levels are equally separated (in dBm) with the minimum and the maximum included.
| n | the number of available levels |
Definition at line 269 of file yans-wifi-phy.cc.
References m_nTxPower, and NS_LOG_FUNCTION.
|
virtual |
| rx | the number of receivers on this node. |
Implements ns3::WifiPhy.
Definition at line 1078 of file yans-wifi-phy.cc.
References m_numberOfReceivers.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
virtual |
| tx | the number of transmitters on this node. |
Implements ns3::WifiPhy.
Definition at line 1073 of file yans-wifi-phy.cc.
References m_numberOfTransmitters.
Referenced by GetTypeId().
Here is the caller graph for this function:
|
virtual |
| callback | the callback to invoke upon erroneous packet reception. |
Implements ns3::WifiPhy.
Definition at line 516 of file yans-wifi-phy.cc.
References m_state.
|
virtual |
| callback | the callback to invoke upon successful packet reception. |
Implements ns3::WifiPhy.
Definition at line 511 of file yans-wifi-phy.cc.
References m_state.
| void ns3::YansWifiPhy::SetRxGain | ( | double | gain | ) |
Sets the reception gain (dB).
| gain | the reception gain in dB |
Definition at line 281 of file yans-wifi-phy.cc.
References m_rxGainDb, and NS_LOG_FUNCTION.
Referenced by GetTypeId().
Here is the caller graph for this function:| void ns3::YansWifiPhy::SetRxNoiseFigure | ( | double | noiseFigureDb | ) |
Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver.
| noiseFigureDb | noise figure in dB |
Definition at line 251 of file yans-wifi-phy.cc.
References DbToRatio(), m_interference, NS_LOG_FUNCTION, and ns3::InterferenceHelper::SetNoiseFigure().
Referenced by GetTypeId().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
Put in sleep mode.
Implements ns3::WifiPhy.
Definition at line 458 of file yans-wifi-phy.cc.
References ns3::WifiPhy::CCA_BUSY, GetDelayUntilIdle(), ns3::WifiPhy::IDLE, m_state, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SLEEP, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.
Here is the call graph for this function:
|
virtual |
Enable or disable STBC.
| stbc | Enable or disable STBC |
Implements ns3::WifiPhy.
Definition at line 1090 of file yans-wifi-phy.cc.
References m_stbc.
Referenced by GetTypeId().
Here is the caller graph for this function:| void ns3::YansWifiPhy::SetTxGain | ( | double | gain | ) |
Sets the transmission gain (dB).
| gain | the transmission gain in dB |
Definition at line 275 of file yans-wifi-phy.cc.
References m_txGainDb, and NS_LOG_FUNCTION.
Referenced by GetTypeId().
Here is the caller graph for this function:| void ns3::YansWifiPhy::SetTxPowerEnd | ( | double | end | ) |
Sets the maximum available transmission power level (dBm).
| end | the maximum transmission power level (dBm) |
Definition at line 263 of file yans-wifi-phy.cc.
References m_txPowerEndDbm, and NS_LOG_FUNCTION.
Referenced by GetTypeId().
Here is the caller graph for this function:| void ns3::YansWifiPhy::SetTxPowerStart | ( | double | start | ) |
Sets the minimum available transmission power level (dBm).
| start | the minimum transmission power level (dBm) |
Definition at line 257 of file yans-wifi-phy.cc.
References m_txPowerBaseDbm, NS_LOG_FUNCTION, and visualizer.core::start().
Referenced by GetTypeId().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::YansWifiPhy::StartReceivePacket | ( | Ptr< Packet > | packet, |
| WifiTxVector | txVector, | ||
| WifiPreamble | preamble, | ||
| uint8_t | packetType, | ||
| Ptr< InterferenceHelper::Event > | event | ||
| ) |
Starting receiving the payload of a packet (i.e.
the first bit of the packet has arrived).
| packet | the arriving packet |
| txVector | the TXVECTOR of the arriving packet |
| preamble | the preamble of the arriving packet |
| packetType | The type of the received packet (values: 0 not an A-MPDU, 1 corresponds to any packets in an A-MPDU except the last one, 2 is the last packet in an A-MPDU) |
| event | the corresponding event of the first time the packet arrives |
Definition at line 675 of file yans-wifi-phy.cc.
References ns3::InterferenceHelper::CalculatePlcpHeaderSnrPer(), ns3::WifiTxVector::GetMode(), ns3::UniformRandomVariable::GetValue(), ns3::EventId::IsExpired(), IsMcsSupported(), IsModeSupported(), IsStateRx(), m_endPlcpRxEvent, m_interference, m_plcpSuccess, m_random, ns3::WifiPhy::NotifyRxDrop(), NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.
Referenced by StartReceivePlcp().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::YansWifiPhy::StartReceivePlcp | ( | Ptr< Packet > | packet, |
| double | rxPowerDbm, | ||
| WifiTxVector | txVector, | ||
| WifiPreamble | preamble, | ||
| uint8_t | packetType, | ||
| Time | rxDuration | ||
| ) |
Starting receiving the plcp of a packet (i.e.
the first bit of the preamble has arrived).
| packet | the arriving packet |
| rxPowerDbm | the receive power in dBm |
| txVector | the TXVECTOR of the arriving packet |
| preamble | the preamble of the arriving packet |
| packetType | The type of the received packet (values: 0 not an A-MPDU, 1 corresponds to any packets in an A-MPDU except the last one, 2 is the last packet in an A-MPDU) |
| rxDuration | the duration needed for the reception of the packet |
Definition at line 522 of file yans-wifi-phy.cc.
References ns3::InterferenceHelper::Add(), ns3::WifiPhy::CalculatePlcpDuration(), ns3::WifiPhy::CCA_BUSY, DbmToW(), EndReceive(), ns3::InterferenceHelper::GetEnergyDuration(), ns3::WifiTxVector::GetMode(), ns3::AmpduTag::GetNoOfMpdus(), ns3::Packet::GetSize(), ns3::WifiPhy::IDLE, ns3::EventId::IsExpired(), ns3::Time::IsZero(), m_ccaMode1ThresholdW, m_edThresholdW, m_endPlcpRxEvent, m_endRxEvent, m_interference, m_mpdusNum, m_plcpSuccess, m_rxGainDb, m_state, ns3::WifiPhy::NotifyRxBegin(), ns3::WifiPhy::NotifyRxDrop(), ns3::InterferenceHelper::NotifyRxStart(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::PeekPacketTag(), ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SLEEP, StartReceivePacket(), ns3::WifiPhy::SWITCHING, ns3::WifiPhy::TX, and ns3::WIFI_PREAMBLE_NONE.
Here is the call graph for this function:
|
virtual |
| listener | the listener to be unregistered |
Remove the input listener from the list of objects to be notified of PHY-level events.
Implements ns3::WifiPhy.
Definition at line 896 of file yans-wifi-phy.cc.
References m_state.
|
virtual |
For a given WifiMode finds the corresponding MCS value and returns it as defined in the IEEE 802.11n standard.
| mode | the WifiMode |
Implements ns3::WifiPhy.
Definition at line 1224 of file yans-wifi-phy.cc.
References ns3::WifiMode::GetDataRate(), and ns3::WifiMode::GetUniqueName().
Referenced by EndReceive(), and SendPacket().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Convert from Watts to dBm.
| w | the power in Watts |
Definition at line 970 of file yans-wifi-phy.cc.
Referenced by GetCcaMode1Threshold(), and GetEdThreshold().
Here is the caller graph for this function:
|
private |
Definition at line 549 of file yans-wifi-phy.h.
Referenced by Configure80211n(), GetBssMembershipSelector(), and GetNBssMembershipSelectors().
|
private |
Clear channel assessment (CCA) threshold in watts.
Definition at line 490 of file yans-wifi-phy.h.
Referenced by GetCcaMode1Threshold(), ResumeFromSleep(), SetCcaMode1Threshold(), and StartReceivePlcp().
|
private |
YansWifiChannel that this YansWifiPhy is connected to.
Definition at line 497 of file yans-wifi-phy.h.
Referenced by DoDispose(), GetChannel(), SendPacket(), and SetChannel().
|
private |
Flag if channel bonding is used.
Definition at line 508 of file yans-wifi-phy.h.
Referenced by GetChannelBonding(), and SetChannelBonding().
|
private |
Operating channel number.
Definition at line 498 of file yans-wifi-phy.h.
Referenced by GetChannelNumber(), and SetChannelNumber().
|
private |
Standard-dependent center frequency of 0-th channel in MHz.
Definition at line 555 of file yans-wifi-phy.h.
Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211n(), ConfigureHolland(), ConfigureStandard(), GetChannelFrequencyMhz(), GetFrequency(), and SetFrequency().
|
private |
Time required to switch between channel.
Definition at line 558 of file yans-wifi-phy.h.
Referenced by GetChannelSwitchDelay(), GetTypeId(), and SetChannelNumber().
Pointer to the device.
Definition at line 499 of file yans-wifi-phy.h.
Referenced by DoDispose(), GetDevice(), and SetDevice().
|
private |
Definition at line 550 of file yans-wifi-phy.h.
Referenced by Configure80211n(), DoDispose(), GetMcs(), and GetNMcs().
|
private |
This vector holds the set of transmission modes that this WifiPhy(-derived class) can support.
In conversation we call this the DeviceRateSet (not a term you'll find in the standard), and it is a superset of standard-defined parameters such as the OperationalRateSet, and the BSSBasicRateSet (which, themselves, have a superset/subset relationship).
Mandatory rates relevant to this WifiPhy can be found by iterating over this vector looking for WifiMode objects for which WifiMode::IsMandatory() is true.
A quick note is appropriate here (well, here is as good a place as any I can find)...
In the standard there is no text that explicitly precludes production of a device that does not support some rates that are mandatory (according to the standard) for PHYs that the device happens to fully or partially support.
This approach is taken by some devices which choose to only support, for example, 6 and 9 Mbps ERP-OFDM rates for cost and power consumption reasons (i.e., these devices don't need to be designed for and waste current on the increased linearity requirement of higher-order constellations when 6 and 9 Mbps more than meet their data requirements). The wording of the standard allows such devices to have an OperationalRateSet which includes 6 and 9 Mbps ERP-OFDM rates, despite 12 and 24 Mbps being "mandatory" rates for the ERP-OFDM PHY.
Now this doesn't actually have any impact on code, yet. It is, however, something that we need to keep in mind for the future. Basically, the key point is that we can't be making assumptions like "the Operational Rate Set will contain all the mandatory rates".
Definition at line 547 of file yans-wifi-phy.h.
Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211n(), ConfigureHolland(), DoDispose(), GetMode(), and GetNModes().
|
private |
Energy detection threshold in watts.
Definition at line 489 of file yans-wifi-phy.h.
Referenced by GetEdThreshold(), GetEdThresholdW(), SetEdThreshold(), and StartReceivePlcp().
|
private |
Definition at line 552 of file yans-wifi-phy.h.
Referenced by SendPacket(), SetChannelNumber(), StartReceivePacket(), and StartReceivePlcp().
|
private |
Definition at line 551 of file yans-wifi-phy.h.
Referenced by SendPacket(), SetChannelNumber(), and StartReceivePlcp().
|
private |
Flag if GreenField format is supported.
Definition at line 506 of file yans-wifi-phy.h.
Referenced by GetGreenfield(), and SetGreenfield().
|
private |
Flag if short guard interval is used.
Definition at line 507 of file yans-wifi-phy.h.
Referenced by GetGuardInterval(), and SetGuardInterval().
|
private |
Flag for runtime initialization.
Definition at line 488 of file yans-wifi-phy.h.
Referenced by DoInitialize(), and SetChannelNumber().
|
private |
Pointer to InterferenceHelper.
Definition at line 557 of file yans-wifi-phy.h.
Referenced by CalculateSnr(), EndReceive(), GetErrorRateModel(), GetRxNoiseFigure(), ResumeFromSleep(), SendPacket(), SetChannelNumber(), SetErrorRateModel(), SetRxNoiseFigure(), StartReceivePacket(), and StartReceivePlcp().
|
private |
Flag if LDPC is used.
Definition at line 504 of file yans-wifi-phy.h.
Pointer to the mobility model.
Definition at line 500 of file yans-wifi-phy.h.
Referenced by DoDispose(), GetMobility(), and SetMobility().
|
private |
carries the number of expected mpdus that are part of an A-MPDU
Definition at line 559 of file yans-wifi-phy.h.
Referenced by StartReceivePlcp().
|
private |
Number of available transmission power levels.
Definition at line 495 of file yans-wifi-phy.h.
Referenced by GetNTxPower(), GetPowerDbm(), GetTypeId(), and SetNTxPower().
|
private |
Number of receivers.
Definition at line 503 of file yans-wifi-phy.h.
Referenced by GetNumberOfReceiveAntennas(), and SetNumberOfReceiveAntennas().
|
private |
Number of transmitters.
Definition at line 502 of file yans-wifi-phy.h.
Referenced by GetNumberOfTransmitAntennas(), and SetNumberOfTransmitAntennas().
|
private |
Flag if the PLCP of the packet or the first MPDU in an A-MPDU has been received.
Definition at line 560 of file yans-wifi-phy.h.
Referenced by EndReceive(), StartReceivePacket(), and StartReceivePlcp().
|
private |
Provides uniform random variables.
Definition at line 554 of file yans-wifi-phy.h.
Referenced by AssignStreams(), EndReceive(), StartReceivePacket(), and YansWifiPhy().
|
private |
Reception gain (dB)
Definition at line 492 of file yans-wifi-phy.h.
Referenced by GetRxGain(), SetRxGain(), and StartReceivePlcp().
|
private |
Pointer to WifiPhyStateHelper.
Definition at line 556 of file yans-wifi-phy.h.
Referenced by DoDispose(), EndReceive(), GetDelayUntilIdle(), GetLastRxStartTime(), GetStateDuration(), GetTypeId(), IsStateBusy(), IsStateCcaBusy(), IsStateIdle(), IsStateRx(), IsStateSleep(), IsStateSwitching(), IsStateTx(), RegisterListener(), ResumeFromSleep(), SendPacket(), SetChannelNumber(), SetReceiveErrorCallback(), SetReceiveOkCallback(), SetSleepMode(), StartReceivePlcp(), UnregisterListener(), and YansWifiPhy().
|
private |
Flag if STBC is used.
Definition at line 505 of file yans-wifi-phy.h.
|
private |
Transmission gain (dB)
Definition at line 491 of file yans-wifi-phy.h.
Referenced by GetTxGain(), SendPacket(), and SetTxGain().
|
private |
Minimum transmission power (dBm)
Definition at line 493 of file yans-wifi-phy.h.
Referenced by GetPowerDbm(), GetTxPowerStart(), and SetTxPowerStart().
|
private |
Maximum transmission power (dBm)
Definition at line 494 of file yans-wifi-phy.h.
Referenced by GetPowerDbm(), GetTxPowerEnd(), and SetTxPowerEnd().
1.8.9.1
