Traffic control layer definition. More...

#include "traffic-control-layer.h"

Inheritance diagram for ns3::TrafficControlLayer:

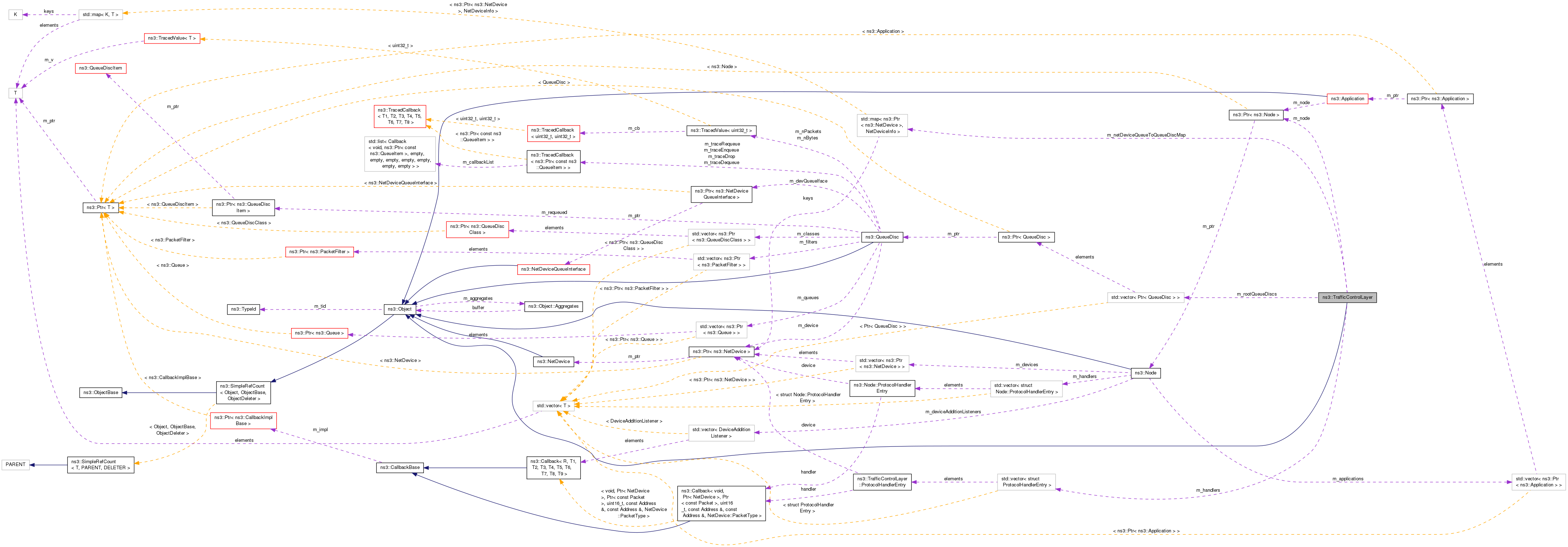

Collaboration diagram for ns3::TrafficControlLayer:

Classes
struct	ProtocolHandlerEntry
	Protocol handler entry. More...

Public Types
typedef std::vector< Ptr< QueueDisc > >	QueueDiscVector
	Typedef for queue disc vector. More...

Public Member Functions
	TrafficControlLayer ()
	Constructor. More...

virtual void	DeleteRootQueueDiscOnDevice (Ptr< NetDevice > device)
	This method can be used to remove the root queue disc (and associated filters, classes and queues) installed on a device. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID for the instance. More...

virtual Ptr< QueueDisc >	GetRootQueueDiscOnDevice (Ptr< NetDevice > device)
	This method can be used to get the root queue disc installed on a device. More...

virtual void	Receive (Ptr< NetDevice > device, Ptr< const Packet > p, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
	Called by NetDevices, incoming packet. More...

void	RegisterProtocolHandler (Node::ProtocolHandler handler, uint16_t protocolType, Ptr< NetDevice > device)
	Register an IN handler. More...

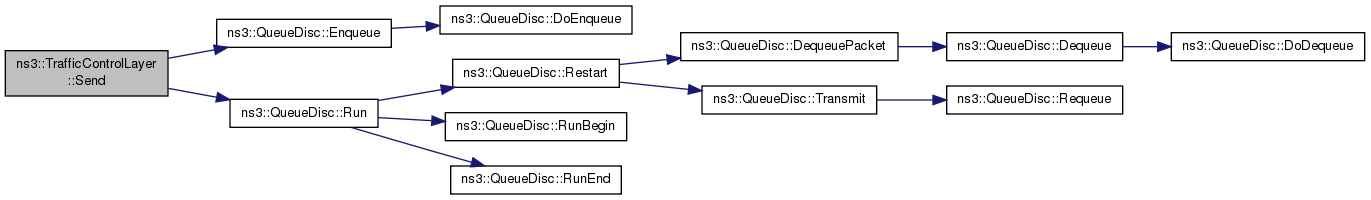

virtual void	Send (Ptr< NetDevice > device, Ptr< QueueDiscItem > item)
	Called from upper layer to queue a packet for the transmission. More...

void	SetNode (Ptr< Node > node)
	Set node associated with this stack. More...

virtual void	SetRootQueueDiscOnDevice (Ptr< NetDevice > device, Ptr< QueueDisc > qDisc)
	This method can be used to set the root queue disc installed on a device. More...

virtual void	SetupDevice (Ptr< NetDevice > device)
	Perform the operations that the traffic control layer needs to do when an IPv4/v6 interface is added to a device. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::pair< Ptr< NetDeviceQueueInterface >, QueueDiscVector >	NetDeviceInfo
	Typedef for queue disc vector. More...

typedef std::vector< struct ProtocolHandlerEntry >	ProtocolHandlerList
	Typedef for protocol handlers container. More...

Private Member Functions
	TrafficControlLayer (TrafficControlLayer const &)
	Copy constructor Disable default implementation to avoid misuse. More...

uint32_t	GetDeviceIndex (Ptr< NetDevice > device)
	Lookup a given Ptr<NetDevice> in the node's list of devices. More...

TrafficControlLayer &	operator= (TrafficControlLayer const &)
	Assignment operator Disable default implementation to avoid misuse. More...

Private Attributes
ProtocolHandlerList	m_handlers
	List of upper-layer handlers. More...

std::map< Ptr< NetDevice >, NetDeviceInfo >	m_netDeviceQueueToQueueDiscMap
	This map plays the role of the qdisc field of the netdev_queue struct in Linux. More...

Ptr< Node >	m_node
	The node this TrafficControlLayer object is aggregated to. More...

QueueDiscVector	m_rootQueueDiscs
	This vector stores the root queue discs installed on all the devices of the node. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Traffic control layer definition.

Introspection did not find any typical Config paths.

This layer stays between NetDevices (L2) and any network protocol (e.g. IP). When enabled, it is responsible to analyze packets and to perform actions on them: the most common is scheduling.

Basically, we manage both IN and OUT directions (sometimes called RX and TX, respectively). The OUT direction is easy to follow, since it involves direct calls: upper layer (e.g. IP) calls the Send method on an instance of this class, which then calls the Enqueue method of the QueueDisc associated with the device. The Dequeue method of the QueueDisc finally calls the Send method of the NetDevice.

The IN direction uses a little trick to reduce dependencies between modules. In simple words, we use Callbacks to connect upper layer (which should register their Receive callback through RegisterProtocolHandler) and NetDevices.

An example of the IN connection between this layer and IP layer is the following:

Ptr<TrafficControlLayer> tc = m_node->GetObject<TrafficControlLayer> ();

NS_ASSERT (tc != 0);

m_node->RegisterProtocolHandler (MakeCallback (&TrafficControlLayer::Receive, tc),
                                 Ipv4L3Protocol::PROT_NUMBER, device);
m_node->RegisterProtocolHandler (MakeCallback (&TrafficControlLayer::Receive, tc),
                                 ArpL3Protocol::PROT_NUMBER, device);

tc->RegisterProtocolHandler (MakeCallback (&Ipv4L3Protocol::Receive, this),
                             Ipv4L3Protocol::PROT_NUMBER, device);
tc->RegisterProtocolHandler (MakeCallback (&ArpL3Protocol::Receive, PeekPointer (GetObject<ArpL3Protocol> ())),
                             ArpL3Protocol::PROT_NUMBER, device);

On the node, for IPv4 and ARP packet, is registered the TrafficControlLayer::Receive callback. At the same time, on the TrafficControlLayer object, is registered the callbacks associated to the upper layers (IPv4 or ARP).

When the node receives an IPv4 or ARP packet, it calls the Receive method on TrafficControlLayer, that calls the right upper-layer callback once it finishes the operations on the packet received.

Discrimination through callbacks (in other words: what is the right upper-layer callback for this packet?) is done through checks over the device and the protocol number.

Attributes

RootQueueDiscList: The list of root queue discs associated to this Traffic Control layer.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::QueueDisc>
- Flags: read

No TraceSources are defined for this type.
Size of this type is 136 bytes (on a 64-bit architecture).

Definition at line 83 of file traffic-control-layer.h.

Member Typedef Documentation

typedef std::pair<Ptr<NetDeviceQueueInterface>, QueueDiscVector> ns3::TrafficControlLayer::NetDeviceInfo

private

Typedef for queue disc vector.

Definition at line 222 of file traffic-control-layer.h.

typedef std::vector<struct ProtocolHandlerEntry> ns3::TrafficControlLayer::ProtocolHandlerList

private

Typedef for protocol handlers container.

Definition at line 219 of file traffic-control-layer.h.

typedef std::vector<Ptr<QueueDisc> > ns3::TrafficControlLayer::QueueDiscVector

Typedef for queue disc vector.

Definition at line 125 of file traffic-control-layer.h.

Constructor & Destructor Documentation

ns3::TrafficControlLayer::TrafficControlLayer ( )

Constructor.

Definition at line 53 of file traffic-control-layer.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::TrafficControlLayer::TrafficControlLayer ( TrafficControlLayer const & )

private

Copy constructor Disable default implementation to avoid misuse.

Member Function Documentation

void ns3::TrafficControlLayer::DeleteRootQueueDiscOnDevice ( Ptr< NetDevice > device )

virtual

This method can be used to remove the root queue disc (and associated filters, classes and queues) installed on a device.

Parameters

device the device on which the installed queue disc will be deleted

Definition at line 195 of file traffic-control-layer.cc.

References GetDeviceIndex(), m_rootQueueDiscs, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::TrafficControlLayer::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 60 of file traffic-control-layer.cc.

References ns3::Object::DoDispose(), m_handlers, m_netDeviceQueueToQueueDiscMap, m_node, m_rootQueueDiscs, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::TrafficControlLayer::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 71 of file traffic-control-layer.cc.

References ns3::Object::DoInitialize(), ns3::Node::GetDevice(), m_netDeviceQueueToQueueDiscMap, m_node, m_rootQueueDiscs, ns3::MakeCallback(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::QueueDisc::Run(), ns3::QueueDisc::WAKE_CHILD, and ns3::QueueDisc::WAKE_ROOT.

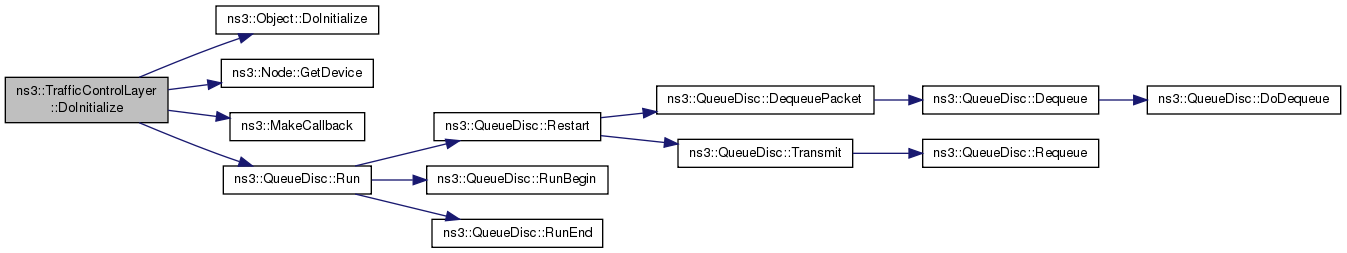

Here is the call graph for this function:

uint32_t ns3::TrafficControlLayer::GetDeviceIndex ( Ptr< NetDevice > device )

private

Lookup a given Ptr<NetDevice> in the node's list of devices.

Parameters

device the device to lookup

Returns: the index of device in the node's list of devices, if it is found, and the number of devices, otherwise

Definition at line 235 of file traffic-control-layer.cc.

References ns3::Node::GetDevice(), ns3::Node::GetNDevices(), m_node, and NS_LOG_FUNCTION.

Referenced by DeleteRootQueueDiscOnDevice(), GetRootQueueDiscOnDevice(), and SetRootQueueDiscOnDevice().

Here is the call graph for this function:

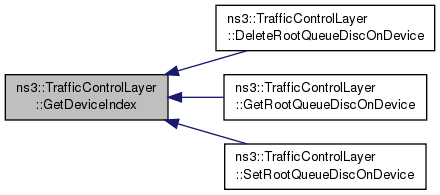

Here is the caller graph for this function:

TypeId ns3::TrafficControlLayer::GetInstanceTypeId ( void ) const

virtual

Get the type ID for the instance.

Returns: the instance TypeId

Reimplemented from ns3::Object.

Definition at line 48 of file traffic-control-layer.cc.

References GetTypeId().

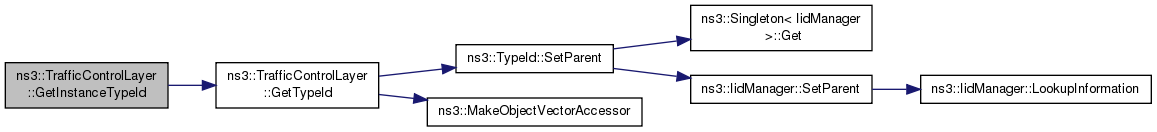

Here is the call graph for this function:

Ptr< QueueDisc > ns3::TrafficControlLayer::GetRootQueueDiscOnDevice ( Ptr< NetDevice > device )

virtual

This method can be used to get the root queue disc installed on a device.

Parameters

device the device on which the requested root queue disc is installed

Returns: the root queue disc installed on the given device

Definition at line 180 of file traffic-control-layer.cc.

References GetDeviceIndex(), m_rootQueueDiscs, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId ns3::TrafficControlLayer::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 33 of file traffic-control-layer.cc.

References m_rootQueueDiscs, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

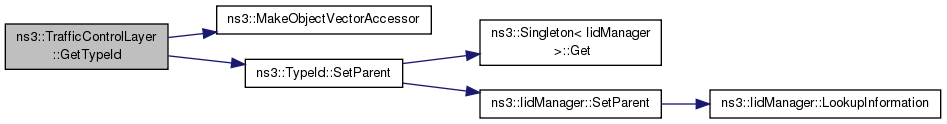

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TrafficControlLayer::NotifyNewAggregate ( void )

protectedvirtual

Notify all Objects aggregated to this one of a new Object being aggregated.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

This method is invoked whenever two sets of Objects are aggregated together. It is invoked exactly once for each Object in both sets. This method can be overriden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate() method.

It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 218 of file traffic-control-layer.cc.

References m_node, ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, and SetNode().

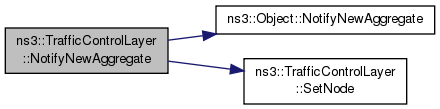

Here is the call graph for this function:

TrafficControlLayer& ns3::TrafficControlLayer::operator= ( TrafficControlLayer const & )

private

Assignment operator Disable default implementation to avoid misuse.

void ns3::TrafficControlLayer::Receive	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	p,
		uint16_t	protocol,
		const Address &	from,
		const Address &	to,
		NetDevice::PacketType	packetType
	)

virtual

Called by NetDevices, incoming packet.

After analyses and scheduling, this method will call the right handler to pass the packet up in the stack.

Parameters

device	network device
p	the packet
protocol	next header value
from	address of the correspondant
to	address of the destination
packetType	type of the packet

Definition at line 244 of file traffic-control-layer.cc.

References m_handlers, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::AddInterface(), and ns3::Ipv4L3Protocol::AddInterface().

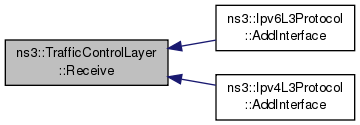

Here is the caller graph for this function:

void ns3::TrafficControlLayer::RegisterProtocolHandler	(	Node::ProtocolHandler	handler,
		uint16_t	protocolType,
		Ptr< NetDevice >	device
	)

Register an IN handler.

The handler will be invoked when a packet is received to pass it to upper layers.

Parameters

handler	the handler to register
protocolType	the type of protocol this handler is interested in. This protocol type is a so-called EtherType, as registered here: http://standards.ieee.org/regauth/ethertype/eth.txt the value zero is interpreted as matching all protocols.
device	the device attached to this handler. If the value is zero, the handler is attached to all devices.

Definition at line 143 of file traffic-control-layer.cc.

References ns3::TrafficControlLayer::ProtocolHandlerEntry::device, ns3::TrafficControlLayer::ProtocolHandlerEntry::handler, m_handlers, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::TrafficControlLayer::ProtocolHandlerEntry::promiscuous, and ns3::TrafficControlLayer::ProtocolHandlerEntry::protocol.
