LteRrcConnectionEstablishmentErrorTestCase Class Reference

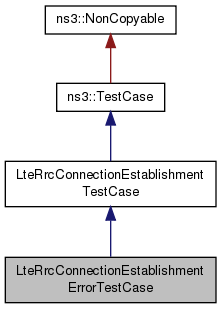

+ Inheritance diagram for LteRrcConnectionEstablishmentErrorTestCase:

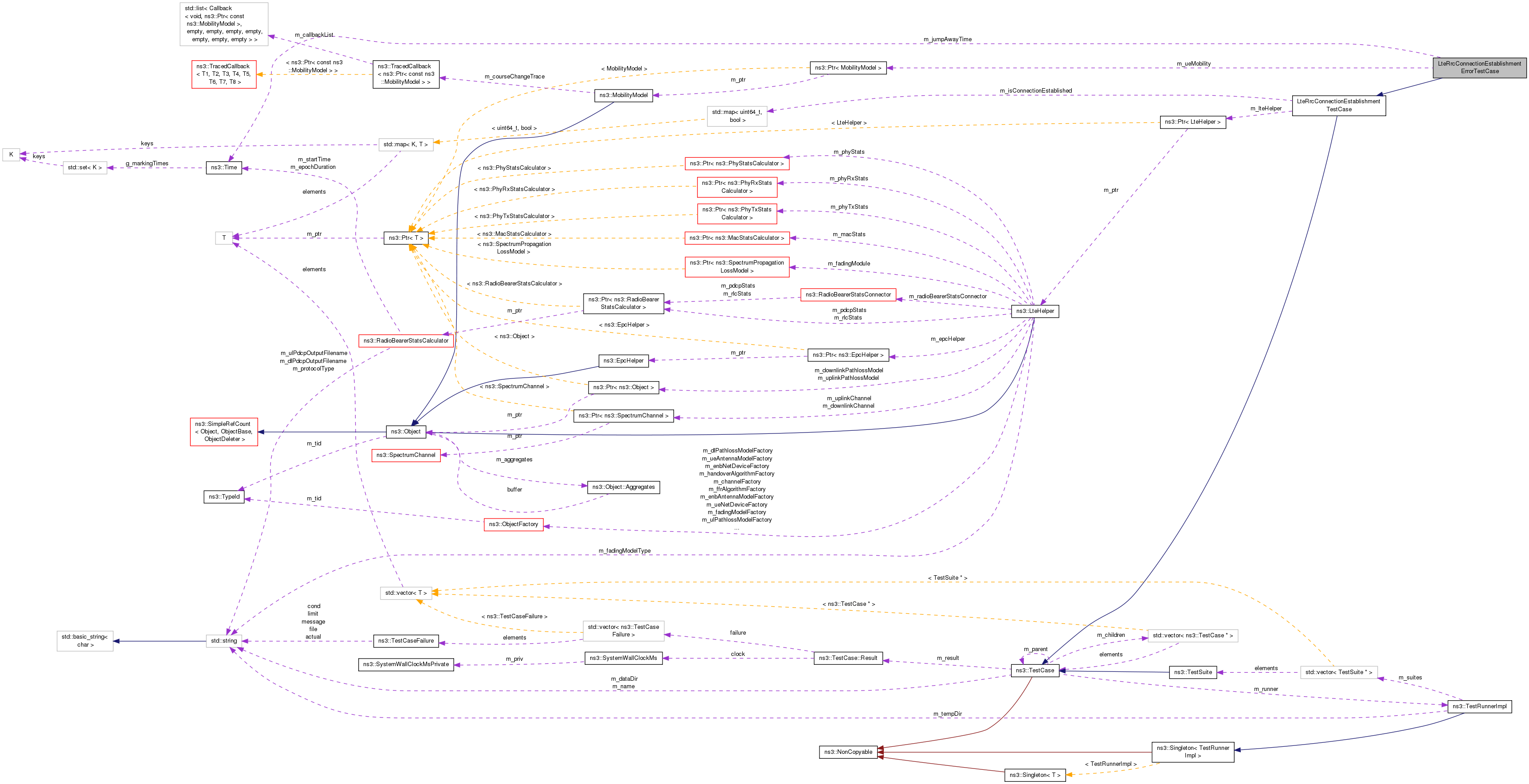

+ Collaboration diagram for LteRrcConnectionEstablishmentErrorTestCase:

Public Member Functions

 LteRrcConnectionEstablishmentErrorTestCase (Time jumpAwayTime, std::string description="")

- Public Member Functions inherited from LteRrcConnectionEstablishmentTestCase
 LteRrcConnectionEstablishmentTestCase (uint32_t nUes, uint32_t nBearers, uint32_t tConnBase, uint32_t tConnIncrPerUe, uint32_t delayDiscStart, bool errorExpected, bool useIdealRrc, bool admitRrcConnectionRequest, std::string description="")

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Protected Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...

- Protected Member Functions inherited from LteRrcConnectionEstablishmentTestCase
void CheckConnected (Ptr< NetDevice > ueDevice, Ptr< NetDevice > enbDevice)

void CheckNotConnected (Ptr< NetDevice > ueDevice, Ptr< NetDevice > enbDevice)

void Connect (Ptr< NetDevice > ueDevice, Ptr< NetDevice > enbDevice)

void ConnectionEstablishedCallback (std::string context, uint64_t imsi, uint16_t cellId, uint16_t rnti)

void ConnectionTimeoutCallback (std::string context, uint64_t imsi, uint16_t cellId, uint16_t rnti)

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, enum TestDuration duration)
 Add an individual child TestCase to this test suite. More...

TestCase * GetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Private Member Functions

void JumpAway ()

void JumpBack ()


Private Attributes

Time m_jumpAwayTime

Ptr< MobilityModel > m_ueMobility


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Static Protected Member Functions inherited from LteRrcConnectionEstablishmentTestCase
static std::string BuildNameString (uint32_t nUes, uint32_t nBearers, uint32_t tConnBase, uint32_t tConnIncrPerUe, uint32_t delayDiscStart, bool useIdealRrc, bool admitRrcConnectionRequest, std::string description="")

- Protected Attributes inherited from LteRrcConnectionEstablishmentTestCase
bool m_admitRrcConnectionRequest

uint32_t m_delayConnEnd

uint32_t m_delayDiscEnd

uint32_t m_delayDiscStart

std::map< uint64_t, bool > m_isConnectionEstablished

Ptr< LteHelper > m_lteHelper

uint32_t m_nBearers

uint32_t m_nUes

uint32_t m_tConnBase

uint32_t m_tConnIncrPerUe

bool m_useIdealRrc


Detailed Description

Definition at line 496 of file test-lte-rrc.cc.

Constructor & Destructor Documentation

LteRrcConnectionEstablishmentErrorTestCase::LteRrcConnectionEstablishmentErrorTestCase ( Time  jumpAwayTime,
std::string  description = ""
)
Parameters
jumpAwayTimethe time when all the UEs 'teleport' to a pre-defined high-interference position and stay there for 100 ms
descriptionadditional description of the test case

Definition at line 521 of file test-lte-rrc.cc.

References ns3::TestCase::GetName(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Member Function Documentation

void LteRrcConnectionEstablishmentErrorTestCase::DoRun ( void  )
protectedvirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Reimplemented from LteRrcConnectionEstablishmentTestCase.

Definition at line 532 of file test-lte-rrc.cc.

References ns3::LteHelper::AssignStreams(), ns3::NetDeviceContainer::Begin(), LteRrcConnectionEstablishmentTestCase::CheckConnected(), LteRrcConnectionEstablishmentTestCase::CheckNotConnected(), LteRrcConnectionEstablishmentTestCase::Connect(), ns3::Config::Connect(), LteRrcConnectionEstablishmentTestCase::ConnectionEstablishedCallback(), LteRrcConnectionEstablishmentTestCase::ConnectionTimeoutCallback(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::End(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::LteUeNetDevice::GetImsi(), ns3::TestCase::GetName(), ns3::Object::GetObject(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), JumpAway(), JumpBack(), LteRrcConnectionEstablishmentTestCase::m_admitRrcConnectionRequest, LteRrcConnectionEstablishmentTestCase::m_delayConnEnd, LteRrcConnectionEstablishmentTestCase::m_delayDiscEnd, LteRrcConnectionEstablishmentTestCase::m_delayDiscStart, LteRrcConnectionEstablishmentTestCase::m_isConnectionEstablished, m_jumpAwayTime, LteRrcConnectionEstablishmentTestCase::m_lteHelper, LteRrcConnectionEstablishmentTestCase::m_nUes, LteRrcConnectionEstablishmentTestCase::m_tConnBase, LteRrcConnectionEstablishmentTestCase::m_tConnIncrPerUe, m_ueMobility, LteRrcConnectionEstablishmentTestCase::m_useIdealRrc, ns3::MakeCallback(), max, ns3::MilliSeconds(), third::mobility, NS_LOG_FUNCTION, ns3::Config::Reset(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::MobilityHelper::SetMobilityModel(), and ns3::MobilityHelper::SetPositionAllocator().

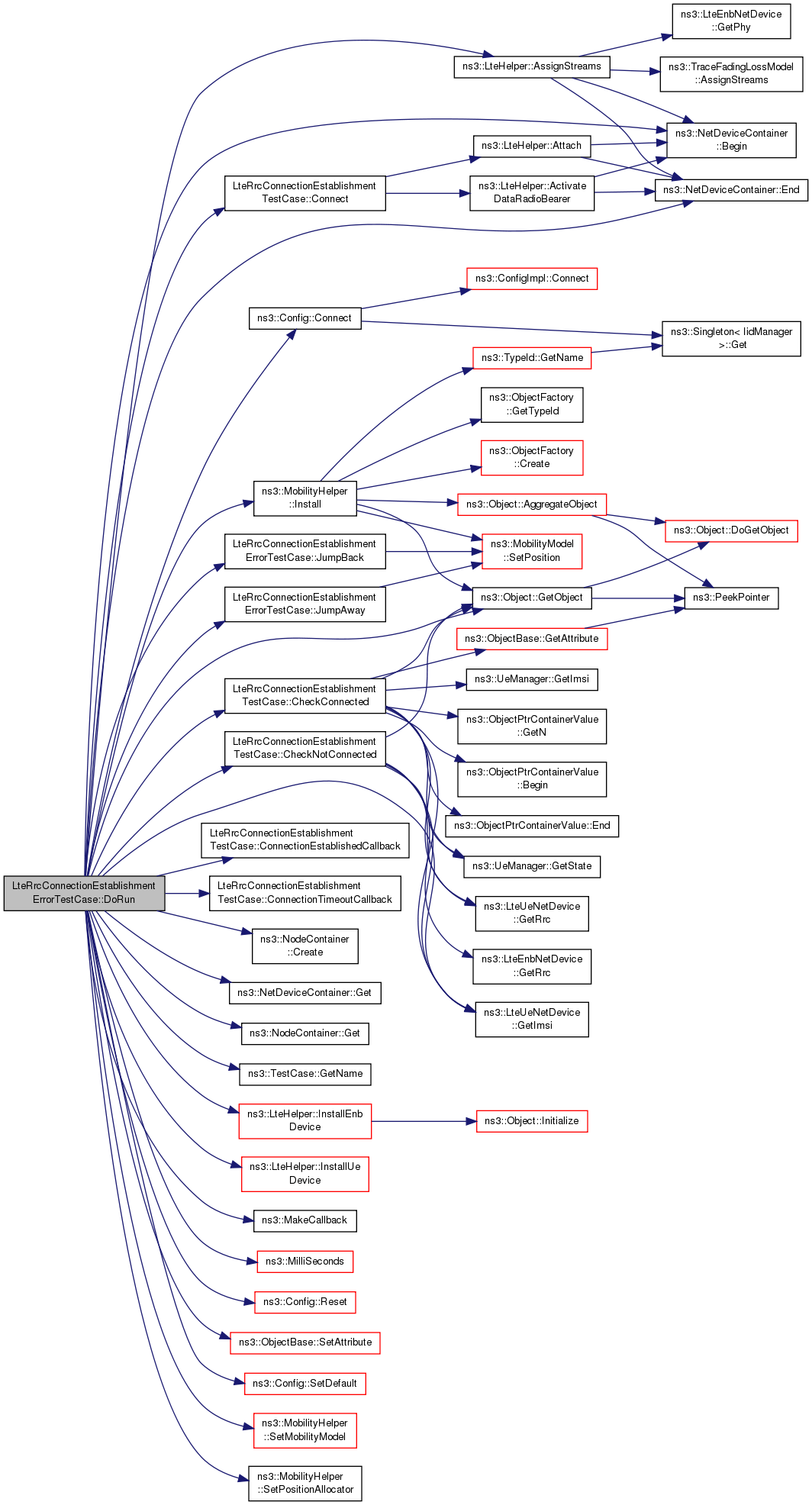

+ Here is the call graph for this function:

void LteRrcConnectionEstablishmentErrorTestCase::JumpAway ( )
private

Definition at line 659 of file test-lte-rrc.cc.

References m_ueMobility, NS_LOG_FUNCTION, and ns3::MobilityModel::SetPosition().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void LteRrcConnectionEstablishmentErrorTestCase::JumpBack ( )
private

Definition at line 668 of file test-lte-rrc.cc.

References m_ueMobility, NS_LOG_FUNCTION, and ns3::MobilityModel::SetPosition().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

Time LteRrcConnectionEstablishmentErrorTestCase::m_jumpAwayTime
private

Definition at line 516 of file test-lte-rrc.cc.

Referenced by DoRun().

Ptr<MobilityModel> LteRrcConnectionEstablishmentErrorTestCase::m_ueMobility
private

Definition at line 517 of file test-lte-rrc.cc.

Referenced by DoRun(), JumpAway(), and JumpBack().

The documentation for this class was generated from the following file:
