NetAnimExperiment Class Reference

Helper class for UAN CW MAC example. More...

#include "uan-animation.h"

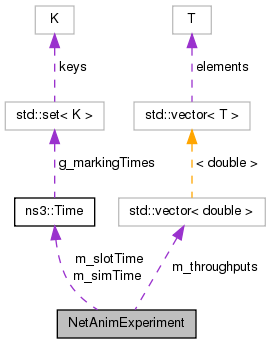

Collaboration diagram for NetAnimExperiment:

Public Member Functions
	NetAnimExperiment ()
void	IncrementCw (uint32_t cw)
void	ReceivePacket (Ptr< Socket > socket)
void	ResetData ()
void	Run (UanHelper &uan)
void	UpdatePositions (NodeContainer &nodes)

Public Attributes
uint32_t	m_avgs
double	m_boundary
uint32_t	m_bytesTotal
uint32_t	m_cwMax
uint32_t	m_cwMin
uint32_t	m_cwStep
uint32_t	m_dataRate
double	m_depth
uint32_t	m_numNodes
uint32_t	m_packetSize
Time	m_simTime
Time	m_slotTime
std::vector< double >	m_throughputs

Detailed Description

Helper class for UAN CW MAC example.

Definition at line 34 of file uan-animation.h.

Constructor & Destructor Documentation

NetAnimExperiment::NetAnimExperiment

(

)

Definition at line 52 of file uan-animation.cc.

Member Function Documentation

void NetAnimExperiment::IncrementCw

(

uint32_t

cw

)

Definition at line 77 of file uan-animation.cc.

References m_avgs, m_cwStep, m_throughputs, NS_ASSERT, NS_LOG_DEBUG, and ns3::Config::Set().

Referenced by Run().

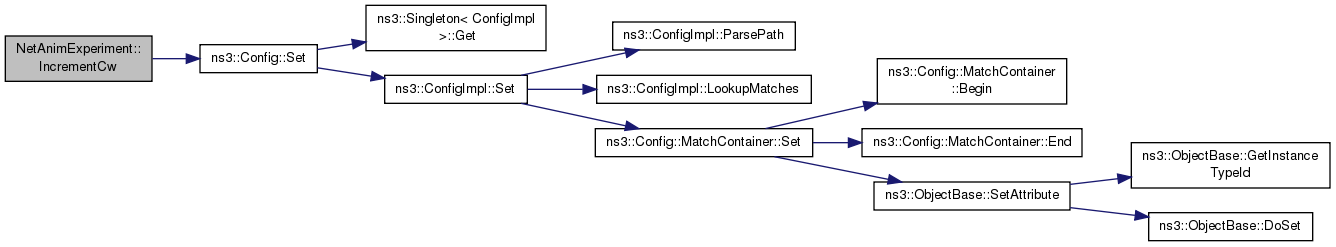

Here is the call graph for this function:

Here is the caller graph for this function:

void NetAnimExperiment::ReceivePacket

(

Ptr< Socket >

socket

)

Definition at line 112 of file uan-animation.cc.

References ns3::Packet::GetSize(), m_bytesTotal, and ns3::Socket::Recv().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

void NetAnimExperiment::ResetData

(

)

Definition at line 69 of file uan-animation.cc.

References ns3::Time::GetSeconds(), m_bytesTotal, m_simTime, m_throughputs, ns3::Now(), and NS_LOG_DEBUG.

Referenced by Run().

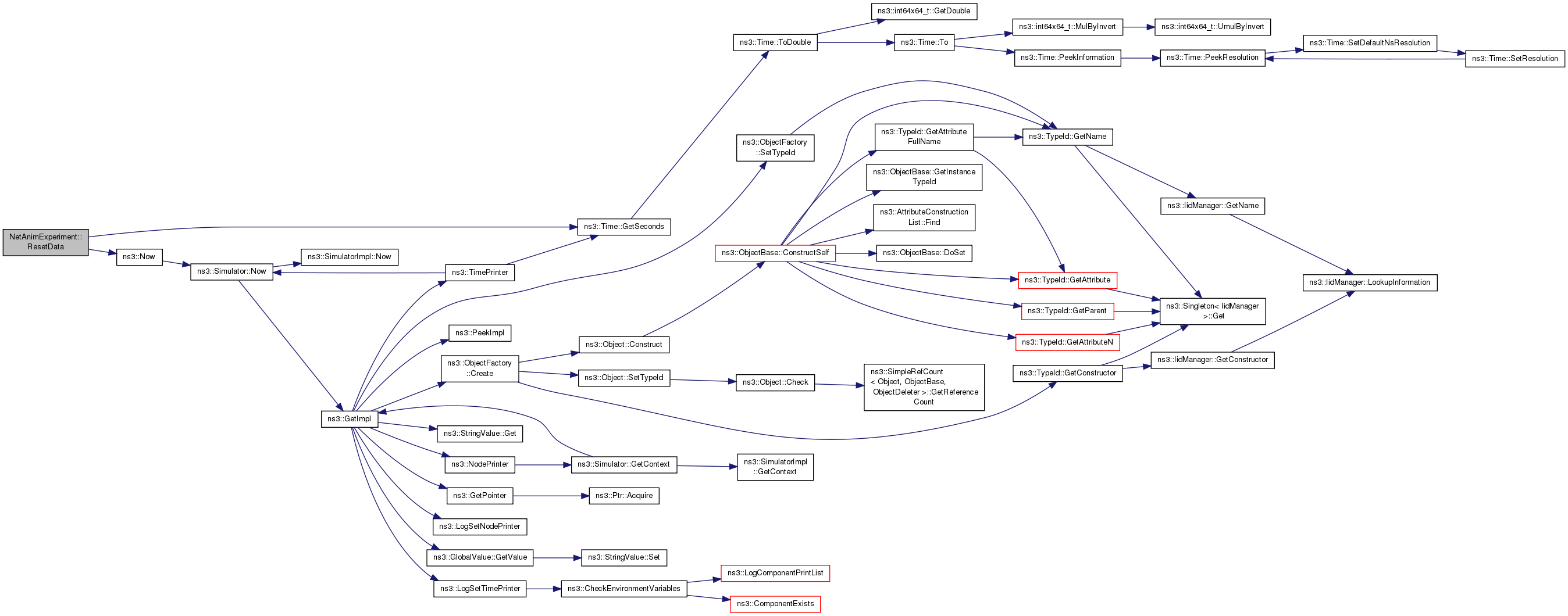

Here is the call graph for this function:

Here is the caller graph for this function:

void NetAnimExperiment::Run

(

UanHelper &

uan

)

Definition at line 124 of file uan-animation.cc.

References ns3::ListPositionAllocator::Add(), ns3::Object::AggregateObject(), ns3::Socket::Bind(), third::channel, ns3::NodeContainer::Create(), first::devices, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::NetDeviceContainer::GetN(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), GetPosition(), ns3::UniformRandomVariable::GetValue(), IncrementCw(), ns3::PacketSocketHelper::Install(), ns3::OnOffHelper::Install(), ns3::MobilityHelper::Install(), ns3::UanHelper::Install(), m_avgs, m_boundary, m_bytesTotal, m_cwMax, m_cwMin, m_cwStep, m_dataRate, m_depth, m_numNodes, m_packetSize, m_simTime, m_slotTime, ns3::MakeCallback(), min, third::mobility, NS_LOG_DEBUG, ReceivePacket(), ResetData(), ns3::Seconds(), ns3::OnOffHelper::SetAttribute(), ns3::ObjectBase::SetAttribute(), ns3::UanHelper::SetMac(), ns3::MobilityHelper::SetMobilityModel(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::MobilityHelper::SetPositionAllocator(), ns3::PacketSocketAddress::SetProtocol(), ns3::Socket::SetRecvCallback(), ns3::PacketSocketAddress::SetSingleDevice(), sink, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), UpdatePositions(), and sample-rng-plot::x.

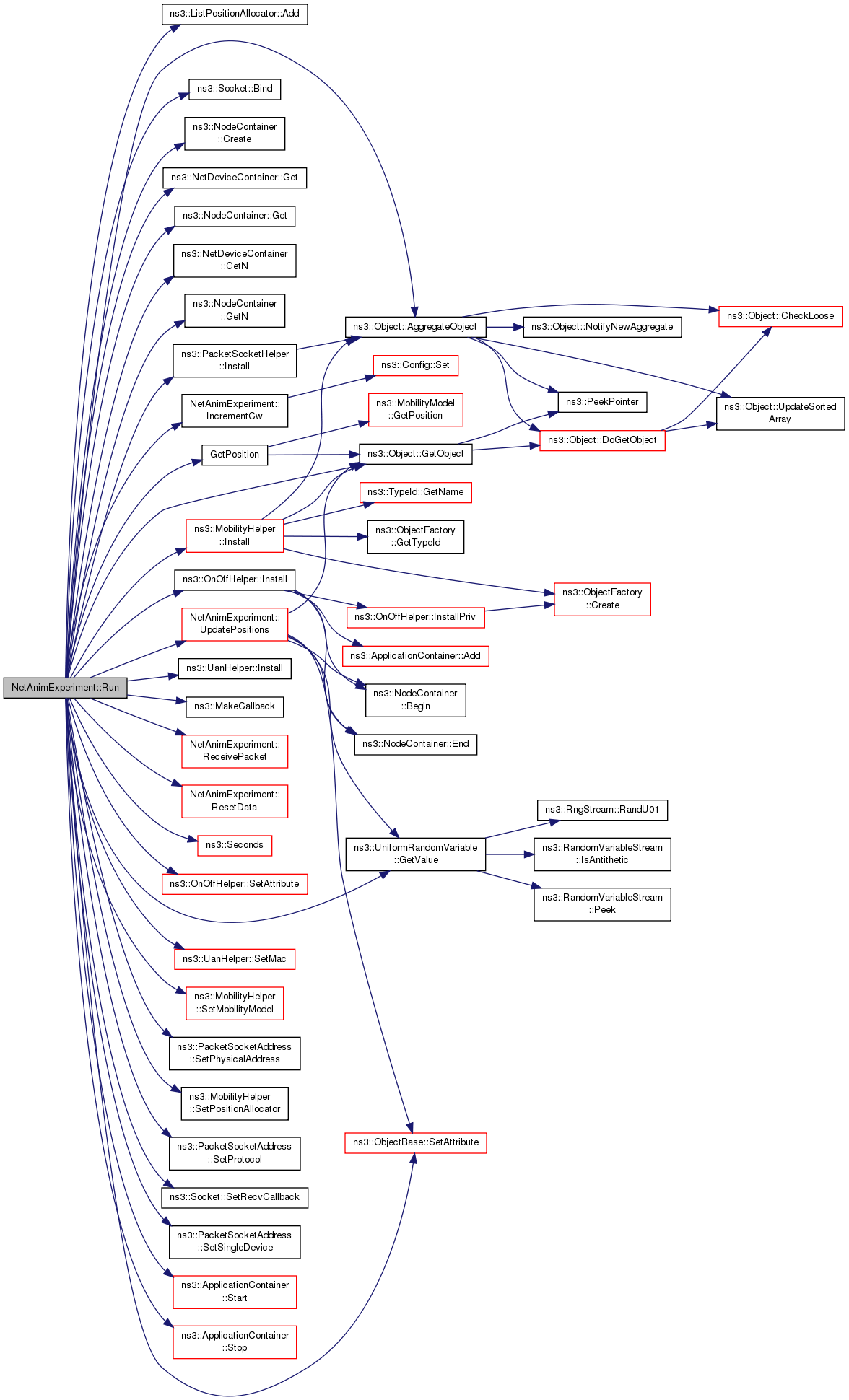

Here is the call graph for this function:

void NetAnimExperiment::UpdatePositions

(

NodeContainer &

nodes

)

Definition at line 96 of file uan-animation.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), ns3::Object::GetObject(), ns3::UniformRandomVariable::GetValue(), m_boundary, ns3::Now(), NS_LOG_DEBUG, ns3::ObjectBase::SetAttribute(), and ns3::MobilityModel::SetPosition().

Referenced by Run().

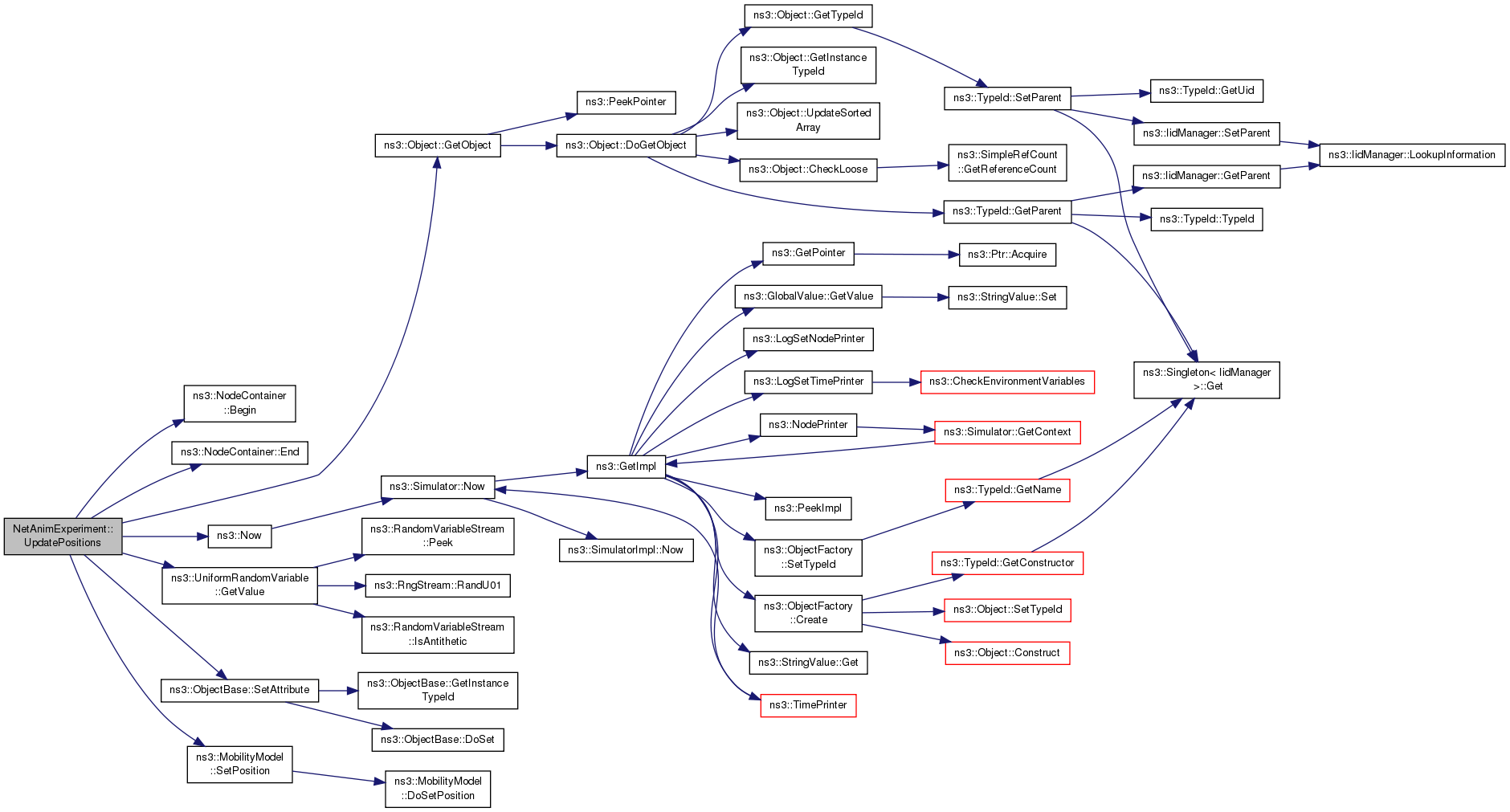

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint32_t NetAnimExperiment::m_avgs

Definition at line 51 of file uan-animation.h.

Referenced by IncrementCw(), and Run().

double NetAnimExperiment::m_boundary

Definition at line 45 of file uan-animation.h.

Referenced by Run(), and UpdatePositions().

uint32_t NetAnimExperiment::m_bytesTotal

Definition at line 47 of file uan-animation.h.

Referenced by ReceivePacket(), ResetData(), and Run().

uint32_t NetAnimExperiment::m_cwMax

Definition at line 49 of file uan-animation.h.

Referenced by Run().

uint32_t NetAnimExperiment::m_cwMin

Definition at line 48 of file uan-animation.h.

Referenced by Run().

uint32_t NetAnimExperiment::m_cwStep

Definition at line 50 of file uan-animation.h.

Referenced by IncrementCw(), and Run().

uint32_t NetAnimExperiment::m_dataRate

Definition at line 43 of file uan-animation.h.

Referenced by Run().

double NetAnimExperiment::m_depth

Definition at line 44 of file uan-animation.h.

Referenced by Run().

uint32_t NetAnimExperiment::m_numNodes

Definition at line 42 of file uan-animation.h.

Referenced by Run().

uint32_t NetAnimExperiment::m_packetSize

Definition at line 46 of file uan-animation.h.

Referenced by Run().

Time NetAnimExperiment::m_simTime

Definition at line 54 of file uan-animation.h.

Referenced by ResetData(), and Run().

Time NetAnimExperiment::m_slotTime

Definition at line 53 of file uan-animation.h.

Referenced by Run().

std::vector<double> NetAnimExperiment::m_throughputs

Definition at line 56 of file uan-animation.h.

Referenced by IncrementCw(), and ResetData().

---

The documentation for this class was generated from the following files:

• src/netanim/examples/uan-animation.h
• src/netanim/examples/uan-animation.cc
