receive notifications about channel coordination events. More...

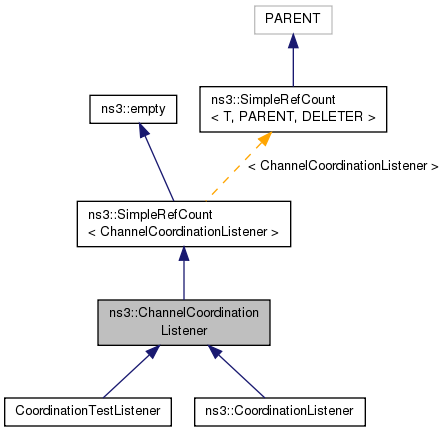

Inheritance diagram for ns3::ChannelCoordinationListener:

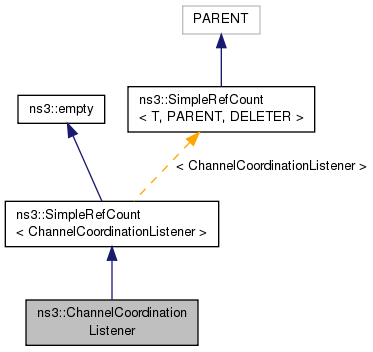

Collaboration diagram for ns3::ChannelCoordinationListener:

Public Member Functions
virtual	~ChannelCoordinationListener (void)

virtual void	NotifyCchSlotStart (Time duration)=0

virtual void	NotifyGuardSlotStart (Time duration, bool cchi)=0

virtual void	NotifySchSlotStart (Time duration)=0

Public Member Functions inherited from ns3::SimpleRefCount< ChannelCoordinationListener >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< ChannelCoordinationListener >
static void	Cleanup (void)
	Noop. More...

Detailed Description

receive notifications about channel coordination events.

Definition at line 29 of file channel-coordinator.h.

Constructor & Destructor Documentation

ns3::ChannelCoordinationListener::~ChannelCoordinationListener ( void )

virtual

Definition at line 30 of file channel-coordinator.cc.

virtual void ns3::ChannelCoordinationListener::NotifyCchSlotStart ( Time duration )

pure virtual

Parameters

duration the CCH access time (CCHI - GI) continues,

virtual void ns3::ChannelCoordinationListener::NotifyGuardSlotStart	(	Time	duration,
		bool	cchi
	)

pure virtual

Parameters

duration	the time Guard access time (GI) continues
cchi	indicate whether the guard slot is in the GI of CCHI or SCHI.

virtual void ns3::ChannelCoordinationListener::NotifySchSlotStart ( Time duration )

pure virtual

Parameters

duration the SCH access time (SCHI - GI) continues,

The documentation for this class was generated from the following files:
