ns3::CoordinationListener Class Reference

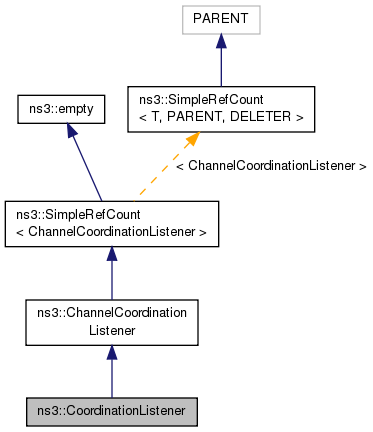

Inheritance diagram for ns3::CoordinationListener:

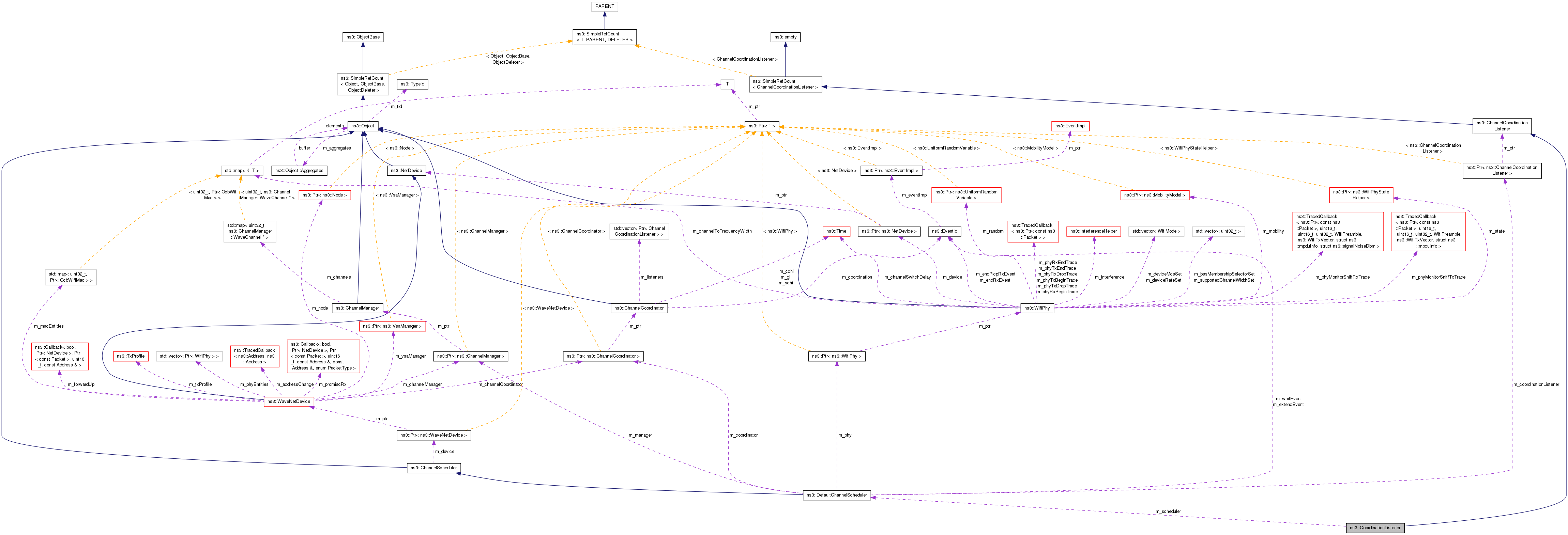

Collaboration diagram for ns3::CoordinationListener:

Public Member Functions
	CoordinationListener (DefaultChannelScheduler *scheduler)
virtual	~CoordinationListener ()
virtual void	NotifyCchSlotStart (Time duration)
virtual void	NotifyGuardSlotStart (Time duration, bool cchi)
virtual void	NotifySchSlotStart (Time duration)
Public Member Functions inherited from ns3::ChannelCoordinationListener
virtual	~ChannelCoordinationListener (void)
Public Member Functions inherited from ns3::SimpleRefCount< ChannelCoordinationListener >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
DefaultChannelScheduler *	m_scheduler

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< ChannelCoordinationListener >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Definition at line 28 of file default-channel-scheduler.cc.

Constructor & Destructor Documentation

ns3::CoordinationListener::CoordinationListener ( DefaultChannelScheduler *  scheduler )

inline

Definition at line 31 of file default-channel-scheduler.cc.

virtual ns3::CoordinationListener::~CoordinationListener ( )

inlinevirtual

Definition at line 35 of file default-channel-scheduler.cc.

Member Function Documentation

virtual void ns3::CoordinationListener::NotifyCchSlotStart ( Time  duration )

inlinevirtual

Parameters

duration

the CCH access time (CCHI - GI) continues,

Implements ns3::ChannelCoordinationListener.

Definition at line 38 of file default-channel-scheduler.cc.

References m_scheduler, and ns3::DefaultChannelScheduler::NotifyCchSlotStart().

Here is the call graph for this function:

virtual void ns3::CoordinationListener::NotifyGuardSlotStart ( Time  duration, bool  cchi  )

inlinevirtual

Parameters

duration	the time Guard access time (GI) continues
cchi	indicate whether the guard slot is in the GI of CCHI or SCHI.

Implements ns3::ChannelCoordinationListener.

Definition at line 46 of file default-channel-scheduler.cc.

References m_scheduler, and ns3::DefaultChannelScheduler::NotifyGuardSlotStart().

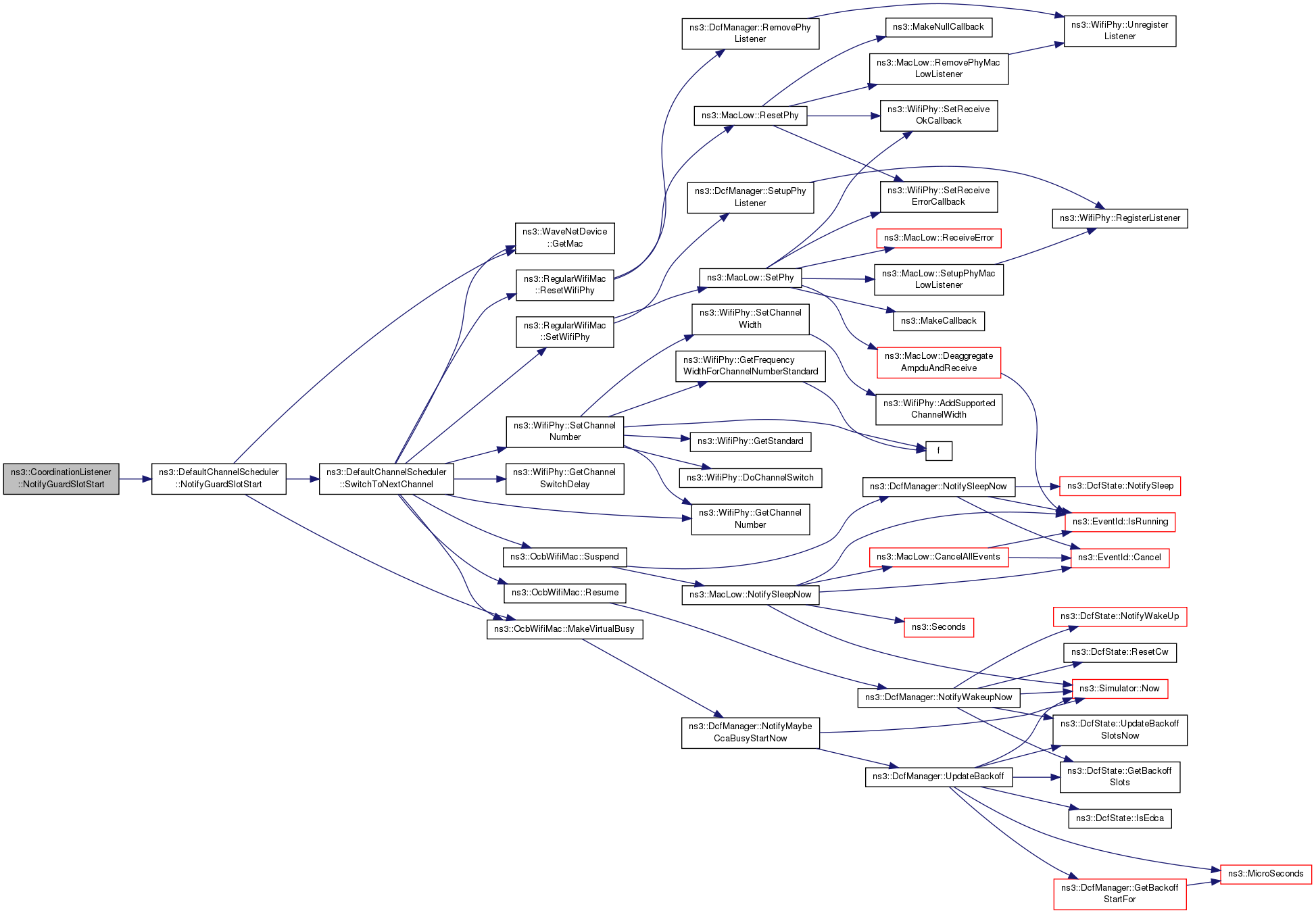

Here is the call graph for this function:

virtual void ns3::CoordinationListener::NotifySchSlotStart ( Time  duration )

inlinevirtual

Parameters

duration

the SCH access time (SCHI - GI) continues,

Implements ns3::ChannelCoordinationListener.

Definition at line 42 of file default-channel-scheduler.cc.

References m_scheduler, and ns3::DefaultChannelScheduler::NotifySchSlotStart().

Here is the call graph for this function:

Member Data Documentation

DefaultChannelScheduler* ns3::CoordinationListener::m_scheduler

private

Definition at line 51 of file default-channel-scheduler.cc.

Referenced by NotifyCchSlotStart(), NotifyGuardSlotStart(), and NotifySchSlotStart().

---

The documentation for this class was generated from the following file:

• src/wave/model/default-channel-scheduler.cc
