ns3::Ipv4StaticRoutingHelper Class Reference

Helper class that adds ns3::Ipv4StaticRouting objects. More...

#include "ipv4-static-routing-helper.h"

+ Inheritance diagram for ns3::Ipv4StaticRoutingHelper:
+ Collaboration diagram for ns3::Ipv4StaticRoutingHelper:

Public Member Functions

 Ipv4StaticRoutingHelper ()

 Ipv4StaticRoutingHelper (const Ipv4StaticRoutingHelper &)
 Construct an Ipv4StaticRoutingHelper from another previously initialized instance (Copy Constructor). More...

void AddMulticastRoute (Ptr< Node > n, Ipv4Address source, Ipv4Address group, Ptr< NetDevice > input, NetDeviceContainer output)
 Add a multicast route to a node and net device using explicit Ptr<Node> and Ptr<NetDevice> More...

void AddMulticastRoute (std::string n, Ipv4Address source, Ipv4Address group, Ptr< NetDevice > input, NetDeviceContainer output)
 Add a multicast route to a node and device using a name string previously associated to the node using the Object Name Service and a Ptr<NetDevice> More...

void AddMulticastRoute (Ptr< Node > n, Ipv4Address source, Ipv4Address group, std::string inputName, NetDeviceContainer output)
 Add a multicast route to a node and device using a Ptr<Node> and a name string previously associated to the device using the Object Name Service. More...

void AddMulticastRoute (std::string nName, Ipv4Address source, Ipv4Address group, std::string inputName, NetDeviceContainer output)
 Add a multicast route to a node and device using name strings previously associated to both the node and device using the Object Name Service. More...

Ipv4StaticRoutingHelperCopy (void) const

virtual Ptr< Ipv4RoutingProtocolCreate (Ptr< Node > node) const

Ptr< Ipv4StaticRoutingGetStaticRouting (Ptr< Ipv4 > ipv4) const
 Try and find the static routing protocol as either the main routing protocol or in the list of routing protocols associated with the Ipv4 provided. More...

void SetDefaultMulticastRoute (Ptr< Node > n, Ptr< NetDevice > nd)
 Add a default route to the static routing protocol to forward packets out a particular interface. More...

void SetDefaultMulticastRoute (Ptr< Node > n, std::string ndName)
 Add a default route to the static routing protocol to forward packets out a particular interface. More...

void SetDefaultMulticastRoute (std::string nName, Ptr< NetDevice > nd)
 Add a default route to the static routing protocol to forward packets out a particular interface. More...

void SetDefaultMulticastRoute (std::string nName, std::string ndName)
 Add a default route to the static routing protocol to forward packets out a particular interface. More...

- Public Member Functions inherited from ns3::Ipv4RoutingHelper
virtual ~Ipv4RoutingHelper ()


Private Member Functions

Ipv4StaticRoutingHelperoperator= (const Ipv4StaticRoutingHelper &)
 Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own. More...


Additional Inherited Members

- Static Public Member Functions inherited from ns3::Ipv4RoutingHelper
template<class T >
static Ptr< T > GetRouting (Ptr< Ipv4RoutingProtocol > protocol)
 Request a specified routing protocol <T> from Ipv4RoutingProtocol protocol. More...

static void PrintNeighborCacheAllAt (Time printTime, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of all nodes at a particular time. More...

static void PrintNeighborCacheAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of all nodes at regular intervals specified by user. More...

static void PrintNeighborCacheAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of a node at a particular time. More...

static void PrintNeighborCacheEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of a node at regular intervals specified by user. More...

static void PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream)
 prints the routing tables of all nodes at a particular time. More...

static void PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream)
 prints the routing tables of all nodes at regular intervals specified by user. More...

static void PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
 prints the routing tables of a node at a particular time. More...

static void PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
 prints the routing tables of a node at regular intervals specified by user. More...


Detailed Description

Helper class that adds ns3::Ipv4StaticRouting objects.

This class is expected to be used in conjunction with ns3::InternetStackHelper::SetRoutingHelper

Definition at line 42 of file ipv4-static-routing-helper.h.

Constructor & Destructor Documentation

ns3::Ipv4StaticRoutingHelper::Ipv4StaticRoutingHelper ( )

Definition at line 36 of file ipv4-static-routing-helper.cc.

Referenced by Copy().

+ Here is the caller graph for this function:

ns3::Ipv4StaticRoutingHelper::Ipv4StaticRoutingHelper ( const Ipv4StaticRoutingHelper o)

Construct an Ipv4StaticRoutingHelper from another previously initialized instance (Copy Constructor).

Definition at line 40 of file ipv4-static-routing-helper.cc.

Member Function Documentation

void ns3::Ipv4StaticRoutingHelper::AddMulticastRoute ( Ptr< Node n,
Ipv4Address  source,
Ipv4Address  group,
Ptr< NetDevice input,
NetDeviceContainer  output
)

Add a multicast route to a node and net device using explicit Ptr<Node> and Ptr<NetDevice>

Definition at line 88 of file ipv4-static-routing-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), ns3::Object::GetObject(), GetStaticRouting(), and NS_ASSERT_MSG.

Referenced by AddMulticastRoute(), and CsmaMulticastTestCase::DoRun().

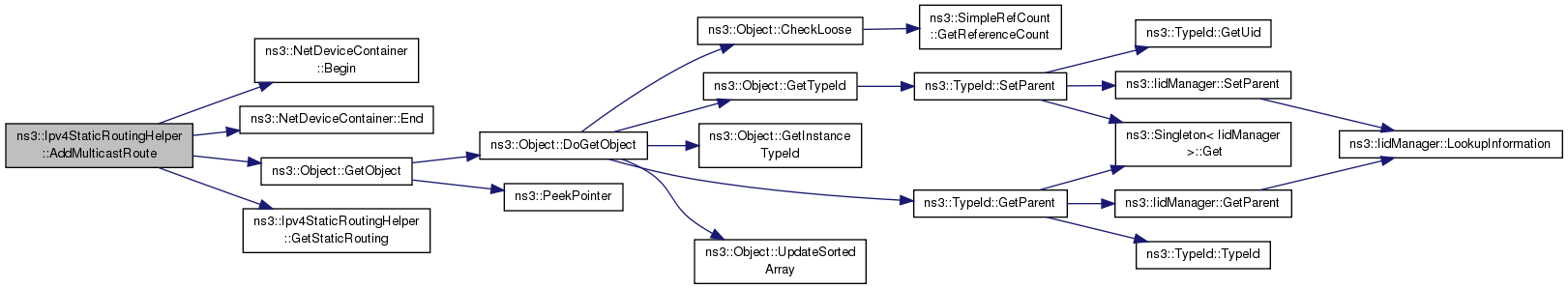

+ Here is the call graph for this function:

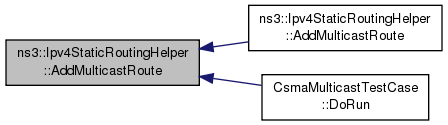

+ Here is the caller graph for this function:

void ns3::Ipv4StaticRoutingHelper::AddMulticastRoute ( std::string  n,
Ipv4Address  source,
Ipv4Address  group,
Ptr< NetDevice input,
NetDeviceContainer  output
)

Add a multicast route to a node and device using a name string previously associated to the node using the Object Name Service and a Ptr<NetDevice>

Definition at line 138 of file ipv4-static-routing-helper.cc.

References AddMulticastRoute().

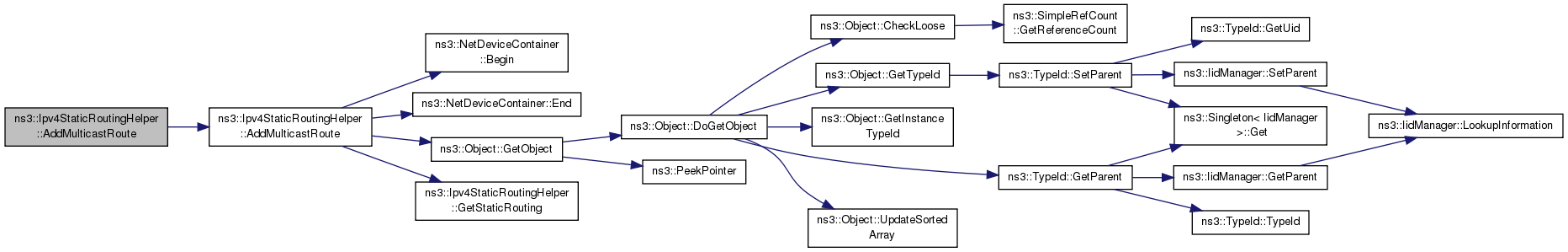

+ Here is the call graph for this function:

void ns3::Ipv4StaticRoutingHelper::AddMulticastRoute ( Ptr< Node n,
Ipv4Address  source,
Ipv4Address  group,
std::string  inputName,
NetDeviceContainer  output
)

Add a multicast route to a node and device using a Ptr<Node> and a name string previously associated to the device using the Object Name Service.

Definition at line 126 of file ipv4-static-routing-helper.cc.

References AddMulticastRoute().

+ Here is the call graph for this function:

void ns3::Ipv4StaticRoutingHelper::AddMulticastRoute ( std::string  nName,
Ipv4Address  source,
Ipv4Address  group,
std::string  inputName,
NetDeviceContainer  output
)

Add a multicast route to a node and device using name strings previously associated to both the node and device using the Object Name Service.

Definition at line 150 of file ipv4-static-routing-helper.cc.

References AddMulticastRoute().

+ Here is the call graph for this function:

Ipv4StaticRoutingHelper * ns3::Ipv4StaticRoutingHelper::Copy ( void  ) const
virtual
Returns
pointer to clone of this Ipv4StaticRoutingHelper

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Implements ns3::Ipv4RoutingHelper.

Definition at line 45 of file ipv4-static-routing-helper.cc.

References Ipv4StaticRoutingHelper().

+ Here is the call graph for this function:

Ptr< Ipv4RoutingProtocol > ns3::Ipv4StaticRoutingHelper::Create ( Ptr< Node node) const
virtual
Parameters
nodethe node on which the routing protocol will run
Returns
a newly-created routing protocol

This method will be called by ns3::InternetStackHelper::Install

Implements ns3::Ipv4RoutingHelper.

Definition at line 51 of file ipv4-static-routing-helper.cc.

Ipv4StaticRoutingHelper& ns3::Ipv4StaticRoutingHelper::operator= ( const Ipv4StaticRoutingHelper )
private

Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own.

Returns
void ns3::Ipv4StaticRoutingHelper::SetDefaultMulticastRoute ( Ptr< Node n,
Ptr< NetDevice nd
)

Add a default route to the static routing protocol to forward packets out a particular interface.

Functionally equivalent to: route add 224.0.0.0 netmask 240.0.0.0 dev nd

Parameters
nnode
nddevice of the node to add default route

Definition at line 163 of file ipv4-static-routing-helper.cc.

References ns3::Object::GetObject(), GetStaticRouting(), and NS_ASSERT_MSG.

Referenced by CsmaMulticastTestCase::DoRun(), and SetDefaultMulticastRoute().

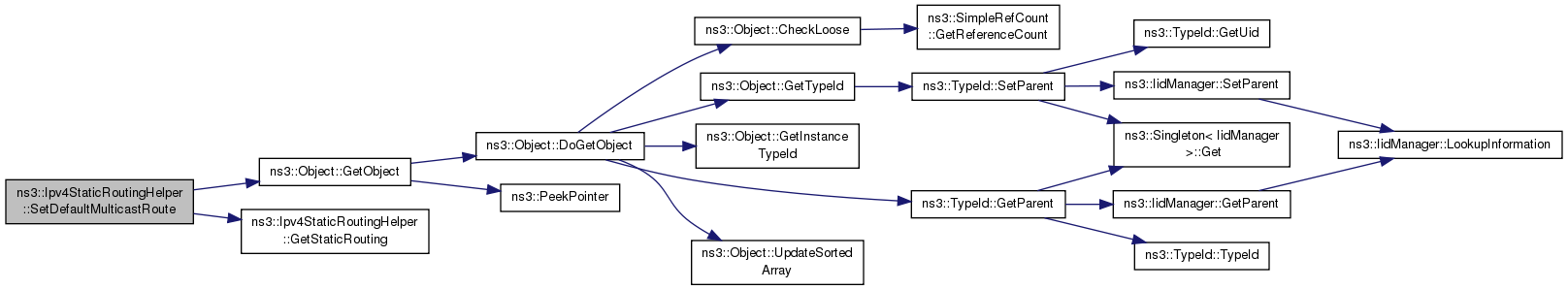

+ Here is the call graph for this function:

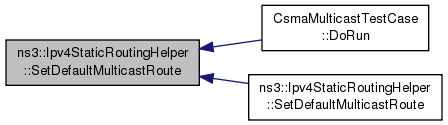

+ Here is the caller graph for this function:

void ns3::Ipv4StaticRoutingHelper::SetDefaultMulticastRoute ( Ptr< Node n,
std::string  ndName
)

Add a default route to the static routing protocol to forward packets out a particular interface.

Functionally equivalent to: route add 224.0.0.0 netmask 240.0.0.0 dev nd

Parameters
nnode
ndNamestring with name previously associated to device using the Object Name Service

Definition at line 184 of file ipv4-static-routing-helper.cc.

References SetDefaultMulticastRoute().

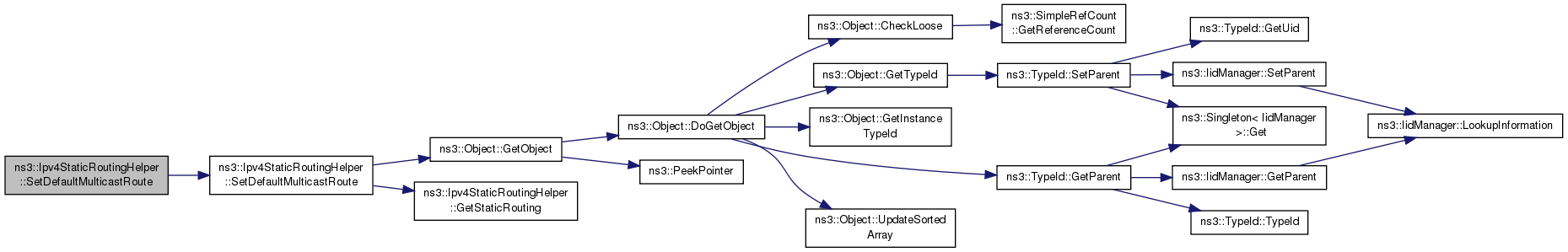

+ Here is the call graph for this function:

void ns3::Ipv4StaticRoutingHelper::SetDefaultMulticastRoute ( std::string  nName,
Ptr< NetDevice nd
)

Add a default route to the static routing protocol to forward packets out a particular interface.

Functionally equivalent to: route add 224.0.0.0 netmask 240.0.0.0 dev nd

Parameters
nNamestring with name previously associated to node using the Object Name Service
nddevice of the node to add default route

Definition at line 193 of file ipv4-static-routing-helper.cc.

References SetDefaultMulticastRoute().

+ Here is the call graph for this function:

void ns3::Ipv4StaticRoutingHelper::SetDefaultMulticastRoute ( std::string  nName,
std::string  ndName
)

Add a default route to the static routing protocol to forward packets out a particular interface.

Functionally equivalent to: route add 224.0.0.0 netmask 240.0.0.0 dev nd

Parameters
nNamestring with name previously associated to node using the Object Name Service
ndNamestring with name previously associated to device using the Object Name Service

Definition at line 202 of file ipv4-static-routing-helper.cc.

References SetDefaultMulticastRoute().

+ Here is the call graph for this function:
