ns3::LowDcfListener Class Reference

Listener for NAV events. More...

Inheritance diagram for ns3::LowDcfListener:

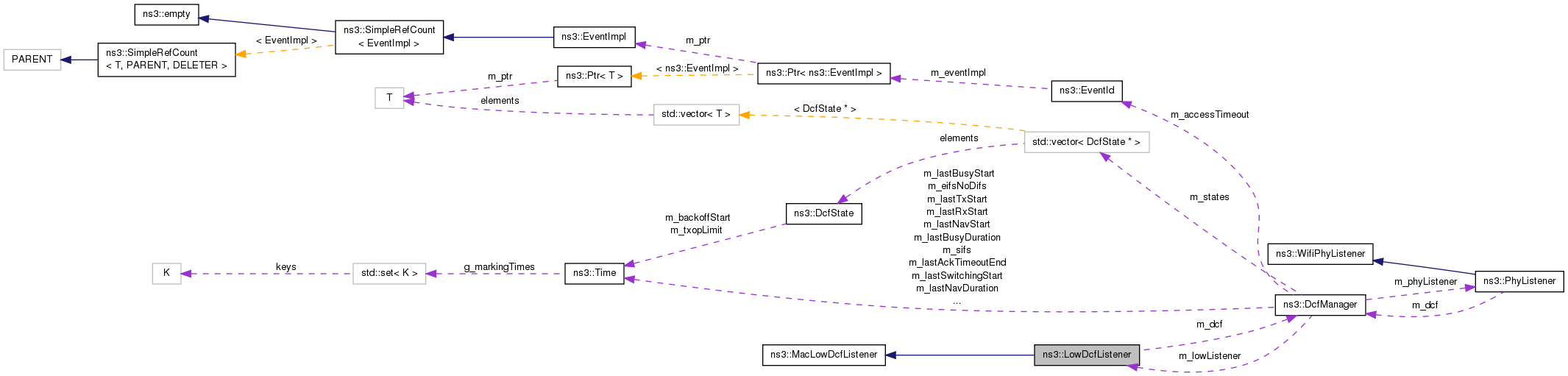

Collaboration diagram for ns3::LowDcfListener:

Public Member Functions
	LowDcfListener (ns3::DcfManager *dcf)
	Create a LowDcfListener for the given DcfManager. More...
virtual	~LowDcfListener ()
virtual void	AckTimeoutReset ()
	Notify that ACK timeout has resetted. More...
virtual void	AckTimeoutStart (Time duration)
	Notify that ACK timeout has started for a given duration. More...
virtual void	CtsTimeoutReset ()
	Notify that CTS timeout has resetted. More...
virtual void	CtsTimeoutStart (Time duration)
	Notify that CTS timeout has started for a given duration. More...
virtual void	NavReset (Time duration)
	Notify that NAV has resetted. More...
virtual void	NavStart (Time duration)
	Norify that NAV has started for the given duration. More...
Public Member Functions inherited from ns3::MacLowDcfListener
	MacLowDcfListener ()
virtual	~MacLowDcfListener ()

Private Attributes
ns3::DcfManager *	m_dcf
	DcfManager to forward events to. More...

Detailed Description

Listener for NAV events.

Forwards to DcfManager

Definition at line 221 of file dcf-manager.cc.

Constructor & Destructor Documentation

ns3::LowDcfListener::LowDcfListener ( ns3::DcfManager *  dcf )

inline

Create a LowDcfListener for the given DcfManager.

Parameters

dcf

Definition at line 229 of file dcf-manager.cc.

virtual ns3::LowDcfListener::~LowDcfListener ( )

inlinevirtual

Definition at line 233 of file dcf-manager.cc.

Member Function Documentation

virtual void ns3::LowDcfListener::AckTimeoutReset ( )

inlinevirtual

Notify that ACK timeout has resetted.

Implements ns3::MacLowDcfListener.

Definition at line 248 of file dcf-manager.cc.

References m_dcf, and ns3::DcfManager::NotifyAckTimeoutResetNow().

Here is the call graph for this function:

virtual void ns3::LowDcfListener::AckTimeoutStart ( Time  duration )

inlinevirtual

Notify that ACK timeout has started for a given duration.

Parameters

duration

duration of ACK timeout

Implements ns3::MacLowDcfListener.

Definition at line 244 of file dcf-manager.cc.

References m_dcf, and ns3::DcfManager::NotifyAckTimeoutStartNow().

Here is the call graph for this function:

virtual void ns3::LowDcfListener::CtsTimeoutReset ( )

inlinevirtual

Notify that CTS timeout has resetted.

Implements ns3::MacLowDcfListener.

Definition at line 256 of file dcf-manager.cc.

References m_dcf, and ns3::DcfManager::NotifyCtsTimeoutResetNow().

Here is the call graph for this function:

virtual void ns3::LowDcfListener::CtsTimeoutStart ( Time  duration )

inlinevirtual

Notify that CTS timeout has started for a given duration.

Parameters

duration

duration of CTS timeout

Implements ns3::MacLowDcfListener.

Definition at line 252 of file dcf-manager.cc.

References m_dcf, and ns3::DcfManager::NotifyCtsTimeoutStartNow().

Here is the call graph for this function:

virtual void ns3::LowDcfListener::NavReset ( Time  duration )

inlinevirtual

Notify that NAV has resetted.

Parameters

duration

duration of NAV timer

Implements ns3::MacLowDcfListener.

Definition at line 240 of file dcf-manager.cc.

References m_dcf, and ns3::DcfManager::NotifyNavResetNow().

Here is the call graph for this function:

virtual void ns3::LowDcfListener::NavStart ( Time  duration )

inlinevirtual

Norify that NAV has started for the given duration.

Parameters

duration

duration of NAV timer

Implements ns3::MacLowDcfListener.

Definition at line 236 of file dcf-manager.cc.

References m_dcf, and ns3::DcfManager::NotifyNavStartNow().

Here is the call graph for this function:

Member Data Documentation

ns3::DcfManager* ns3::LowDcfListener::m_dcf

private

DcfManager to forward events to.

Definition at line 262 of file dcf-manager.cc.

Referenced by AckTimeoutReset(), AckTimeoutStart(), CtsTimeoutReset(), CtsTimeoutStart(), NavReset(), and NavStart().

---

The documentation for this class was generated from the following file:

• src/wifi/model/dcf-manager.cc
