ns3::LteTestMac Class Reference

This class implements a testing loopback MAC layer. More...

#include "lte-test-entities.h"

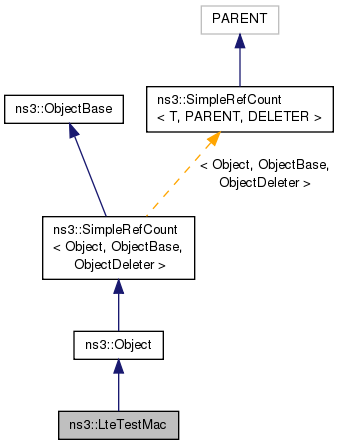

+ Inheritance diagram for ns3::LteTestMac:

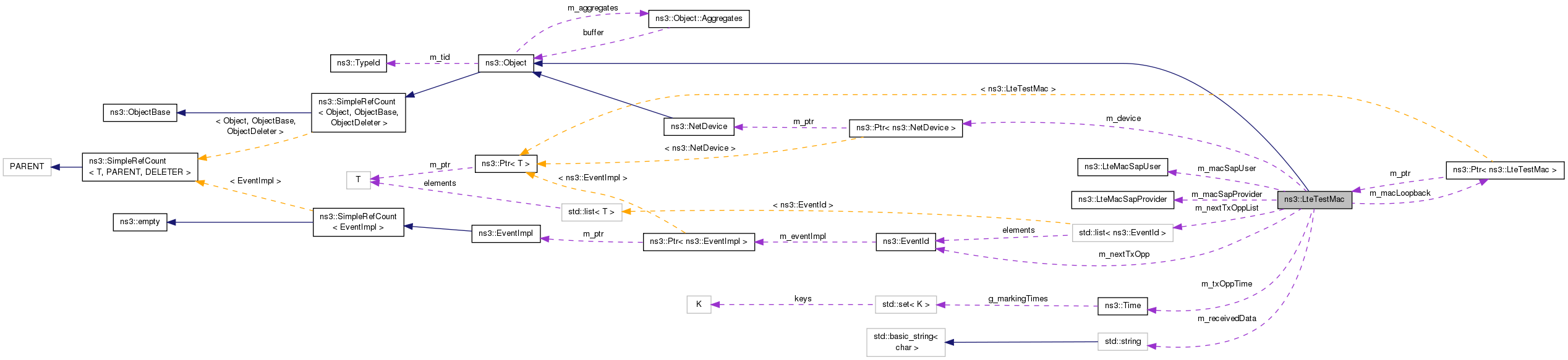

+ Collaboration diagram for ns3::LteTestMac:

Public Types

enum  RlcHeaderType_t { UM_RLC_HEADER = 0, AM_RLC_HEADER = 1 }

enum  TxOpportunityMode_t { MANUAL_MODE = 0, AUTOMATIC_MODE = 1, RANDOM_MODE = 2 }


Public Member Functions

 LteTestMac (void)

virtual ~LteTestMac (void)

virtual void DoDispose (void)
 Destructor implementation. More...

std::string GetDataReceived (void)

LteMacSapProviderGetLteMacSapProvider (void)
 Get the MAC SAP provider. More...

uint32_t GetRxBytes (void)

uint32_t GetRxPdus (void)

uint32_t GetTxBytes (void)

uint32_t GetTxPdus (void)

bool Receive (Ptr< NetDevice > nd, Ptr< const Packet > p, uint16_t protocol, const Address &addr)

void SendTxOpportunity (Time, uint32_t)

void SetDevice (Ptr< NetDevice > device)

void SetLteMacLoopback (Ptr< LteTestMac > s)
 Set the other side of the MAC Loopback. More...

void SetLteMacSapUser (LteMacSapUser *s)
 Set the MAC SAP user. More...

void SetPdcpHeaderPresent (bool present)

void SetRlcHeaderType (uint8_t rlcHeaderType)

void SetTxOpportunityMode (uint8_t mode)

void SetTxOppSize (uint32_t txOppSize)

void SetTxOppTime (Time txOppTime)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void DoReportBufferStatus (LteMacSapProvider::ReportBufferStatusParameters)

void DoTransmitPdu (LteMacSapProvider::TransmitPduParameters)
 MAC SAP. More...


Private Attributes

Ptr< NetDevicem_device

Ptr< LteTestMacm_macLoopback

LteMacSapProviderm_macSapProvider

LteMacSapUserm_macSapUser

EventId m_nextTxOpp

std::list< EventIdm_nextTxOppList

bool m_pdcpHeaderPresent

std::string m_receivedData

uint8_t m_rlcHeaderType

uint32_t m_rxBytes

uint32_t m_rxPdus

uint32_t m_txBytes

uint8_t m_txOpportunityMode

uint32_t m_txOppSize

Time m_txOppTime

uint32_t m_txPdus


Friends

class EnbMacMemberLteMacSapProvider< LteTestMac >


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

This class implements a testing loopback MAC layer.

Definition at line 158 of file lte-test-entities.h.

Member Enumeration Documentation

Enumerator
UM_RLC_HEADER
AM_RLC_HEADER

Definition at line 207 of file lte-test-entities.h.

Enumerator
MANUAL_MODE
AUTOMATIC_MODE
RANDOM_MODE

Definition at line 217 of file lte-test-entities.h.

Constructor & Destructor Documentation

ns3::LteTestMac::LteTestMac ( void  )
ns3::LteTestMac::~LteTestMac ( void  )
virtual

Definition at line 394 of file lte-test-entities.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteTestMac::DoDispose ( void  )
virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 400 of file lte-test-entities.cc.

References m_device, m_macSapProvider, and NS_LOG_FUNCTION.

std::string ns3::LteTestMac::GetDataReceived ( void  )

Definition at line 437 of file lte-test-entities.cc.

References m_receivedData, and NS_LOG_FUNCTION.

Referenced by LteRlcUmTransmitterTestCase::DoCheckDataReceived(), and LteRlcAmTransmitterTestCase::DoCheckDataReceived().

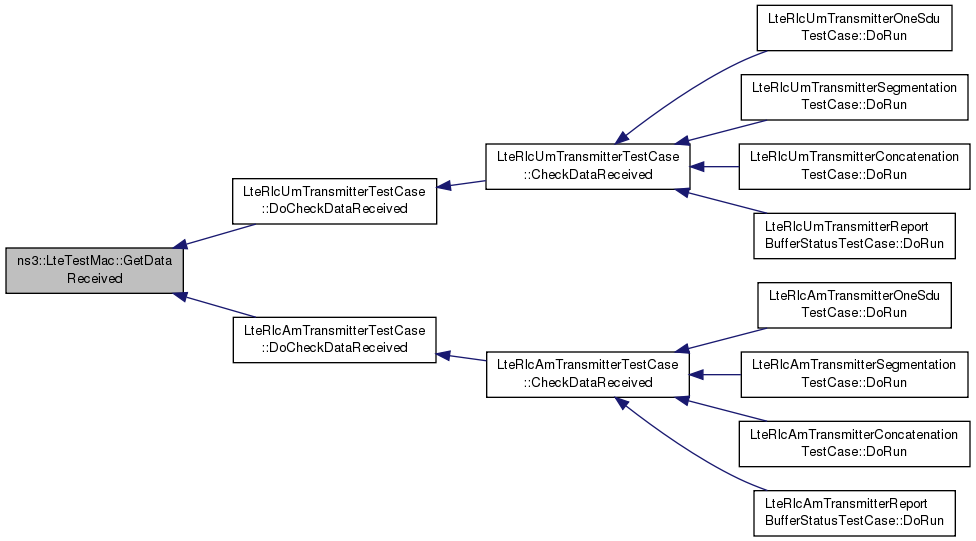

+ Here is the caller graph for this function:

LteMacSapProvider * ns3::LteTestMac::GetLteMacSapProvider ( void  )

Get the MAC SAP provider.

Returns
a pointer to the SAP provider of the MAC

Definition at line 425 of file lte-test-entities.cc.

References m_macSapProvider.

Referenced by LteRlcUmTransmitterTestCase::DoRun(), LteRlcAmTransmitterTestCase::DoRun(), ns3::LteSimpleHelper::InstallSingleEnbDevice(), and ns3::LteSimpleHelper::InstallSingleUeDevice().

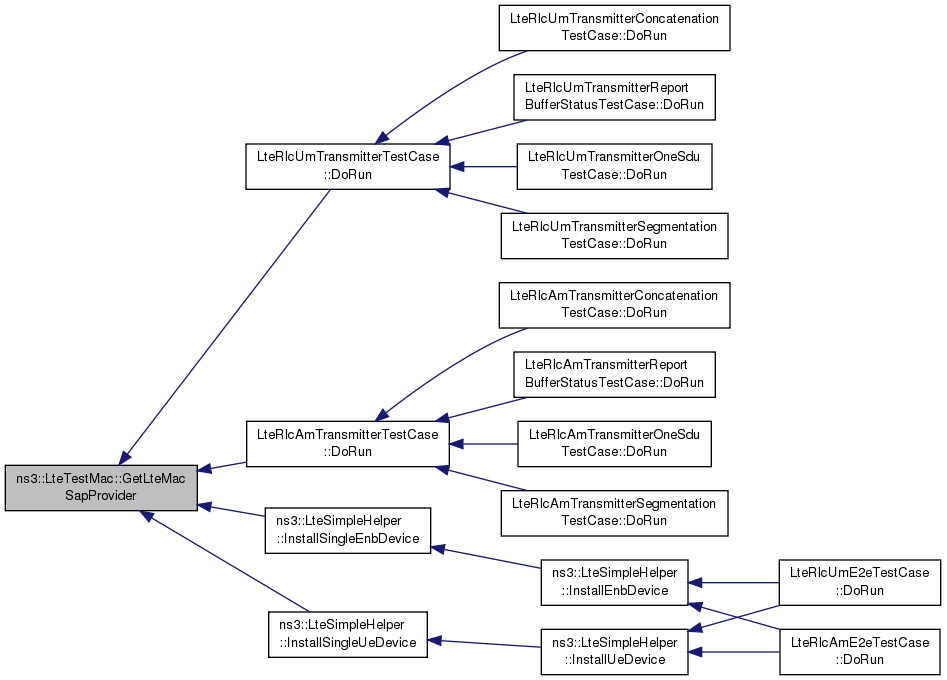

+ Here is the caller graph for this function:

uint32_t ns3::LteTestMac::GetRxBytes ( void  )

Definition at line 466 of file lte-test-entities.cc.

References m_rxBytes, and NS_LOG_FUNCTION.

uint32_t ns3::LteTestMac::GetRxPdus ( void  )

Definition at line 459 of file lte-test-entities.cc.

References m_rxPdus, and NS_LOG_FUNCTION.

Referenced by LteRlcAmE2eTestCase::DoRun().

+ Here is the caller graph for this function:

uint32_t ns3::LteTestMac::GetTxBytes ( void  )

Definition at line 452 of file lte-test-entities.cc.

References m_txBytes, and NS_LOG_FUNCTION.

uint32_t ns3::LteTestMac::GetTxPdus ( void  )

Definition at line 445 of file lte-test-entities.cc.

References m_txPdus, and NS_LOG_FUNCTION.

Referenced by LteRlcAmE2eTestCase::DoRun().

+ Here is the caller graph for this function:

TypeId ns3::LteTestMac::GetTypeId ( void  )
static

Definition at line 360 of file lte-test-entities.cc.

References ns3::TypeId::SetParent().

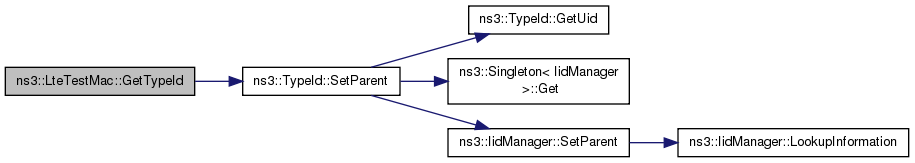

+ Here is the call graph for this function:

bool ns3::LteTestMac::Receive ( Ptr< NetDevice nd,
Ptr< const Packet p,
uint16_t  protocol,
const Address addr
)

Definition at line 639 of file lte-test-entities.cc.

References ns3::Packet::Copy(), ns3::Packet::GetSize(), m_macSapUser, m_rxBytes, m_rxPdus, NS_LOG_FUNCTION, and ns3::LteMacSapUser::ReceivePdu().

Referenced by ns3::LteSimpleHelper::InstallSingleEnbDevice(), and ns3::LteSimpleHelper::InstallSingleUeDevice().

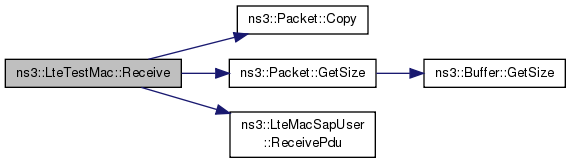

+ Here is the call graph for this function:

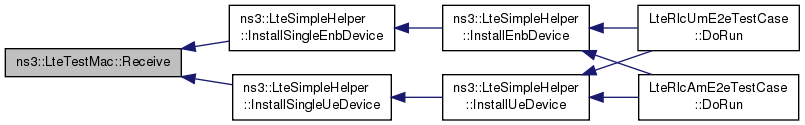

+ Here is the caller graph for this function:

void ns3::LteTestMac::SetDevice ( Ptr< NetDevice device)

Definition at line 413 of file lte-test-entities.cc.

References m_device.

Referenced by ns3::LteSimpleHelper::InstallSingleEnbDevice(), and ns3::LteSimpleHelper::InstallSingleUeDevice().

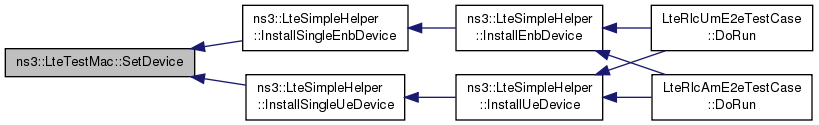

+ Here is the caller graph for this function:

void ns3::LteTestMac::SetLteMacLoopback ( Ptr< LteTestMac s)

Set the other side of the MAC Loopback.

Parameters
sa pointer to the other side of the MAC loopback

Definition at line 431 of file lte-test-entities.cc.

References m_macLoopback.

void ns3::LteTestMac::SetLteMacSapUser ( LteMacSapUser s)

Set the MAC SAP user.

Parameters
sa pointer to the MAC SAP user

Definition at line 419 of file lte-test-entities.cc.

References m_macSapUser.

Referenced by LteRlcUmTransmitterTestCase::DoRun(), LteRlcAmTransmitterTestCase::DoRun(), ns3::LteSimpleHelper::InstallSingleEnbDevice(), and ns3::LteSimpleHelper::InstallSingleUeDevice().

+ Here is the caller graph for this function:

void ns3::LteTestMac::SetPdcpHeaderPresent ( bool  present)

Definition at line 506 of file lte-test-entities.cc.

References m_pdcpHeaderPresent, and NS_LOG_FUNCTION.

void ns3::LteTestMac::SetRlcHeaderType ( uint8_t  rlcHeaderType)

Definition at line 513 of file lte-test-entities.cc.

References m_rlcHeaderType, and NS_LOG_FUNCTION.

Referenced by LteRlcUmTransmitterTestCase::DoRun(), and LteRlcAmTransmitterTestCase::DoRun().

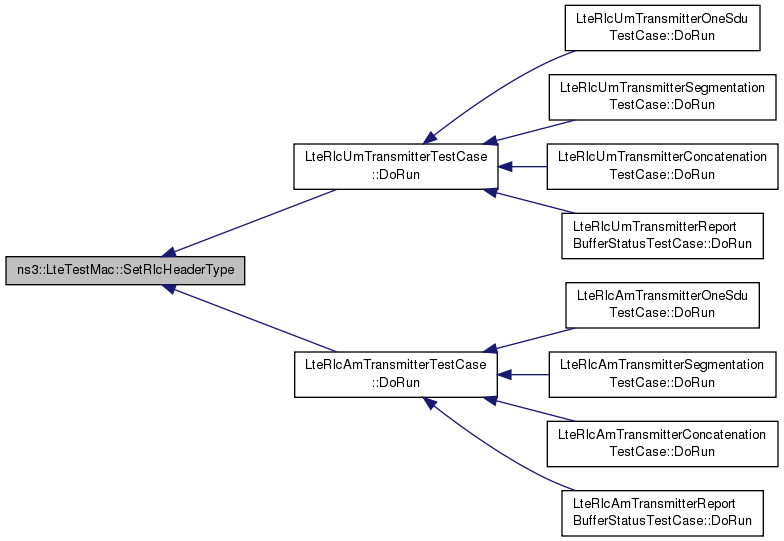

+ Here is the caller graph for this function:

void ns3::LteTestMac::SetTxOpportunityMode ( uint8_t  mode)

Definition at line 520 of file lte-test-entities.cc.

References m_txOpportunityMode, m_txOppSize, m_txOppTime, NS_LOG_FUNCTION, RANDOM_MODE, ns3::Seconds(), and SendTxOpportunity().

Referenced by LteRlcUmE2eTestCase::DoRun(), and LteRlcAmE2eTestCase::DoRun().

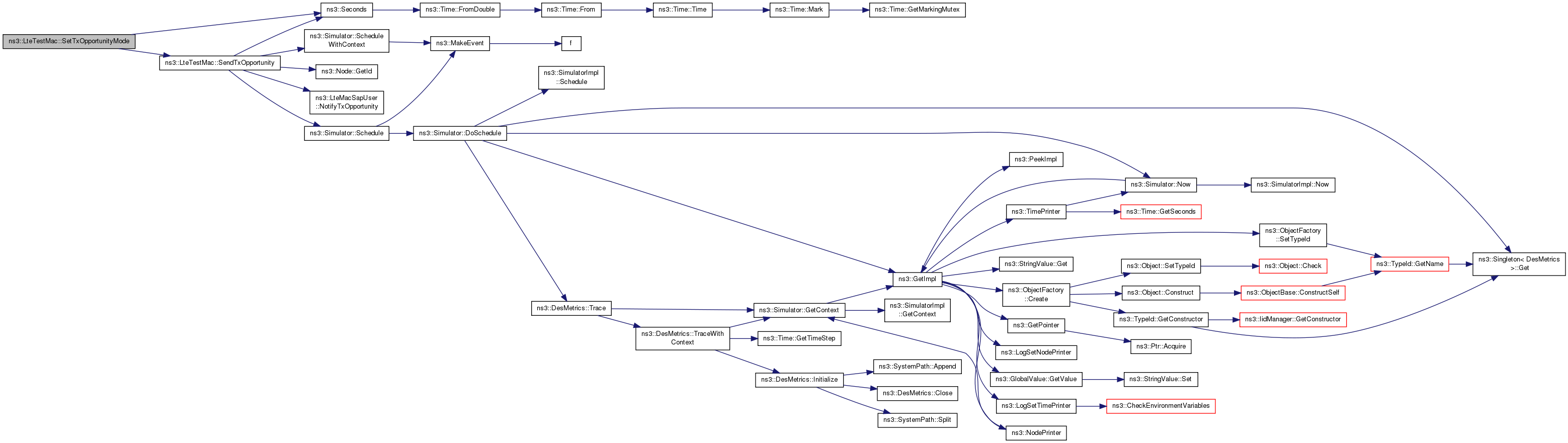

+ Here is the call graph for this function:

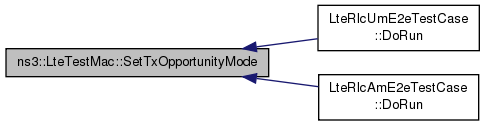

+ Here is the caller graph for this function:

void ns3::LteTestMac::SetTxOppSize ( uint32_t  txOppSize)

Definition at line 542 of file lte-test-entities.cc.

References m_txOppSize, and NS_LOG_FUNCTION.

Referenced by LteRlcUmE2eTestCase::DoRun(), and LteRlcAmE2eTestCase::DoRun().

+ Here is the caller graph for this function:

void ns3::LteTestMac::SetTxOppTime ( Time  txOppTime)

Definition at line 535 of file lte-test-entities.cc.

References m_txOppTime, and NS_LOG_FUNCTION.

Referenced by LteRlcUmE2eTestCase::DoRun(), and LteRlcAmE2eTestCase::DoRun().

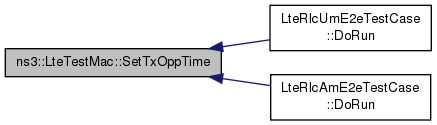

+ Here is the caller graph for this function:

Friends And Related Function Documentation

friend class EnbMacMemberLteMacSapProvider< LteTestMac >
friend

Definition at line 161 of file lte-test-entities.h.

Member Data Documentation

Ptr<NetDevice> ns3::LteTestMac::m_device
private
Ptr<LteTestMac> ns3::LteTestMac::m_macLoopback
private

Definition at line 239 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), LteTestMac(), and SetLteMacLoopback().

LteMacSapProvider* ns3::LteTestMac::m_macSapProvider
private

Definition at line 237 of file lte-test-entities.h.

Referenced by DoDispose(), GetLteMacSapProvider(), and LteTestMac().

LteMacSapUser* ns3::LteTestMac::m_macSapUser
private
EventId ns3::LteTestMac::m_nextTxOpp
private

Definition at line 250 of file lte-test-entities.h.

std::list<EventId> ns3::LteTestMac::m_nextTxOppList
private

Definition at line 253 of file lte-test-entities.h.

Referenced by DoReportBufferStatus().

bool ns3::LteTestMac::m_pdcpHeaderPresent
private

Definition at line 244 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), LteTestMac(), and SetPdcpHeaderPresent().

std::string ns3::LteTestMac::m_receivedData
private

Definition at line 241 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), and GetDataReceived().

uint8_t ns3::LteTestMac::m_rlcHeaderType
private

Definition at line 243 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), LteTestMac(), and SetRlcHeaderType().

uint32_t ns3::LteTestMac::m_rxBytes
private

Definition at line 259 of file lte-test-entities.h.

Referenced by GetRxBytes(), LteTestMac(), and Receive().

uint32_t ns3::LteTestMac::m_rxPdus
private

Definition at line 258 of file lte-test-entities.h.

Referenced by GetRxPdus(), LteTestMac(), and Receive().

uint32_t ns3::LteTestMac::m_txBytes
private

Definition at line 257 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), GetTxBytes(), and LteTestMac().

uint8_t ns3::LteTestMac::m_txOpportunityMode
private
uint32_t ns3::LteTestMac::m_txOppSize
private
Time ns3::LteTestMac::m_txOppTime
private
uint32_t ns3::LteTestMac::m_txPdus
private

Definition at line 256 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), GetTxPdus(), and LteTestMac().


The documentation for this class was generated from the following files:
