ns3::PhyMacLowListener Class Reference

Listener for PHY events. More...

+ Inheritance diagram for ns3::PhyMacLowListener:

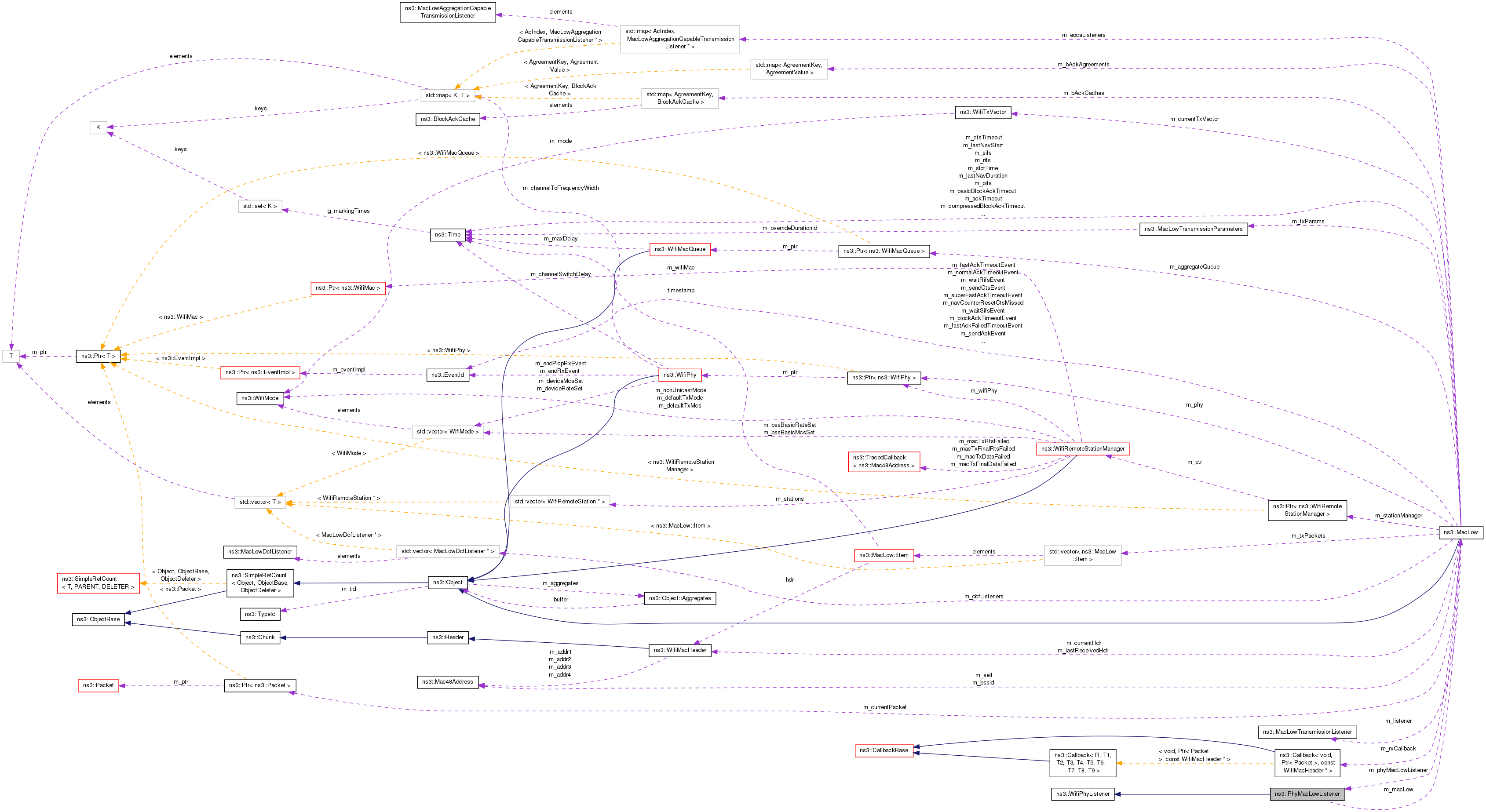

+ Collaboration diagram for ns3::PhyMacLowListener:

Public Member Functions

 PhyMacLowListener (ns3::MacLow *macLow)
 Create a PhyMacLowListener for the given MacLow. More...

virtual ~PhyMacLowListener ()

virtual void NotifyMaybeCcaBusyStart (Time duration)

virtual void NotifyRxEndError (void)
 We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has not been successfully received. More...

virtual void NotifyRxEndOk (void)
 We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has been successfully received. More...

virtual void NotifyRxStart (Time duration)

virtual void NotifySleep (void)
 Notify listeners that we went to sleep. More...

virtual void NotifySwitchingStart (Time duration)

virtual void NotifyTxStart (Time duration, double txPowerDbm)

virtual void NotifyWakeup (void)
 Notify listeners that we woke up. More...

- Public Member Functions inherited from ns3::WifiPhyListener
virtual ~WifiPhyListener ()


Private Attributes

ns3::MacLowm_macLow


Detailed Description

Listener for PHY events.

Forwards to MacLow

Definition at line 310 of file mac-low.cc.

Constructor & Destructor Documentation

ns3::PhyMacLowListener::PhyMacLowListener ( ns3::MacLow macLow)
inline

Create a PhyMacLowListener for the given MacLow.

Parameters
macLow

Definition at line 318 of file mac-low.cc.

virtual ns3::PhyMacLowListener::~PhyMacLowListener ( )
inlinevirtual

Definition at line 322 of file mac-low.cc.

Member Function Documentation

virtual void ns3::PhyMacLowListener::NotifyMaybeCcaBusyStart ( Time  duration)
inlinevirtual
Parameters
durationthe expected busy duration.

This method does not really report a real state change as opposed to the other methods in this class. It merely reports that, unless the medium is reported busy through NotifyTxStart or NotifyRxStart/End, it will be busy as defined by the currently selected CCA mode.

Typical client code which wants to have a clear picture of the CCA state will need to keep track of the time at which the last NotifyCcaBusyStart method is called and what duration it reported.

Implements ns3::WifiPhyListener.

Definition at line 337 of file mac-low.cc.

virtual void ns3::PhyMacLowListener::NotifyRxEndError ( void  )
inlinevirtual

We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has not been successfully received.

Implements ns3::WifiPhyListener.

Definition at line 331 of file mac-low.cc.

virtual void ns3::PhyMacLowListener::NotifyRxEndOk ( void  )
inlinevirtual

We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has been successfully received.

Implements ns3::WifiPhyListener.

Definition at line 328 of file mac-low.cc.

virtual void ns3::PhyMacLowListener::NotifyRxStart ( Time  duration)
inlinevirtual
Parameters
durationthe expected duration of the packet reception.

We have received the first bit of a packet. We decided that we could synchronize on this packet. It does not mean we will be able to successfully receive completely the whole packet. It means that we will report a BUSY status until one of the following happens:

  • NotifyRxEndOk
  • NotifyRxEndError
  • NotifyTxStart

Implements ns3::WifiPhyListener.

Definition at line 325 of file mac-low.cc.

virtual void ns3::PhyMacLowListener::NotifySleep ( void  )
inlinevirtual

Notify listeners that we went to sleep.

Implements ns3::WifiPhyListener.

Definition at line 344 of file mac-low.cc.

References m_macLow, and ns3::MacLow::NotifySleepNow().

+ Here is the call graph for this function:

virtual void ns3::PhyMacLowListener::NotifySwitchingStart ( Time  duration)
inlinevirtual
Parameters
durationthe expected channel switching duration.

We do not send any event to notify the end of channel switching. Listeners should assume that the channel implicitely reverts to the idle or busy states.

Implements ns3::WifiPhyListener.

Definition at line 340 of file mac-low.cc.

References m_macLow, and ns3::MacLow::NotifySwitchingStartNow().

+ Here is the call graph for this function:

virtual void ns3::PhyMacLowListener::NotifyTxStart ( Time  duration,
double  txPowerDbm
)
inlinevirtual
Parameters
durationthe expected transmission duration.
txPowerDbmthe nominal tx power in dBm

We are about to send the first bit of the packet. We do not send any event to notify the end of transmission. Listeners should assume that the channel implicitely reverts to the idle state unless they have received a cca busy report.

Implements ns3::WifiPhyListener.

Definition at line 334 of file mac-low.cc.

virtual void ns3::PhyMacLowListener::NotifyWakeup ( void  )
inlinevirtual

Notify listeners that we woke up.

Implements ns3::WifiPhyListener.

Definition at line 348 of file mac-low.cc.

Member Data Documentation

ns3::MacLow* ns3::PhyMacLowListener::m_macLow
private

Definition at line 352 of file mac-low.cc.

Referenced by NotifySleep(), and NotifySwitchingStart().


The documentation for this class was generated from the following file:
