RIP Routing Protocol, defined in RFC 2453. More...

#include "rip.h"

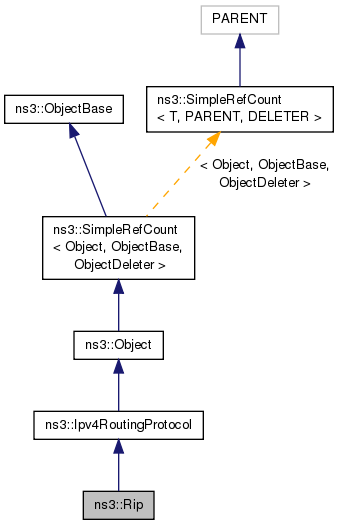

Inheritance diagram for ns3::Rip:

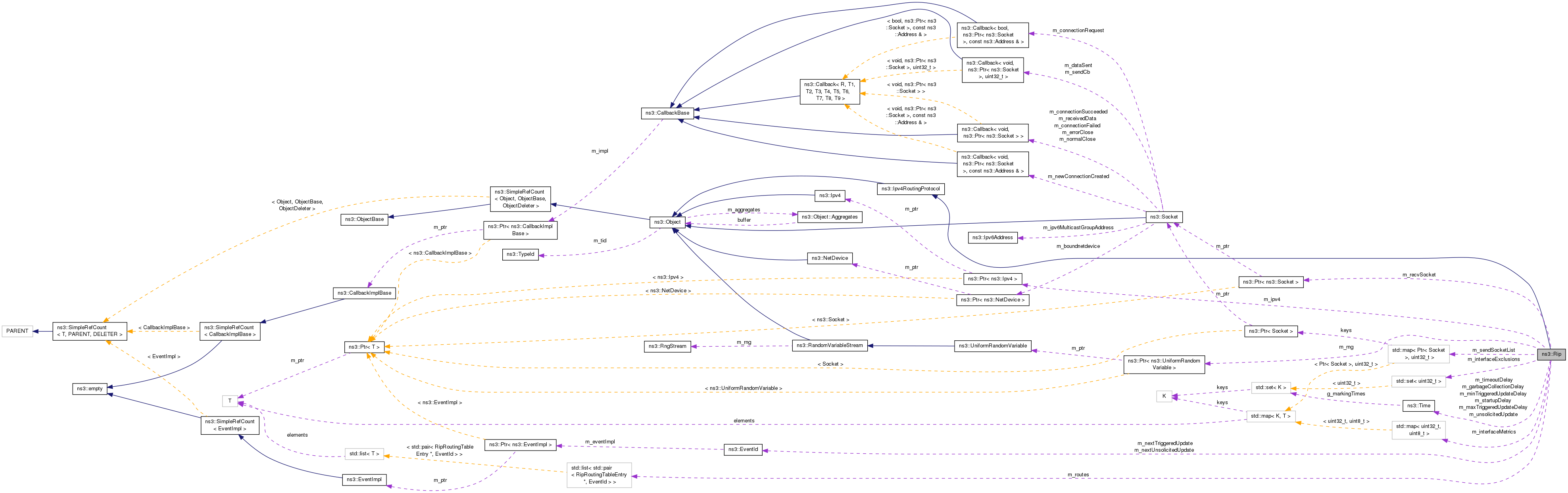

Collaboration diagram for ns3::Rip:

Public Types
enum	SplitHorizonType_e { NO_SPLIT_HORIZON, SPLIT_HORIZON, POISON_REVERSE }
	Split Horizon strategy type. More...

Public Types inherited from ns3::Ipv4RoutingProtocol
typedef Callback< void, Ptr< const Packet >, const Ipv4Header &, Socket::SocketErrno >	ErrorCallback
	Callback for routing errors (e.g., no route found) More...

typedef Callback< void, Ptr< const Packet >, const Ipv4Header &, uint32_t >	LocalDeliverCallback
	Callback for packets to be locally delivered. More...

typedef Callback< void, Ptr< Ipv4MulticastRoute >, Ptr< const Packet >, const Ipv4Header & >	MulticastForwardCallback
	Callback for multicast packets to be forwarded. More...

typedef Callback< void, Ptr< Ipv4Route >, Ptr< const Packet >, const Ipv4Header & >	UnicastForwardCallback
	Callback for unicast packets to be forwarded. More...

Public Member Functions
	Rip ()

virtual	~Rip ()

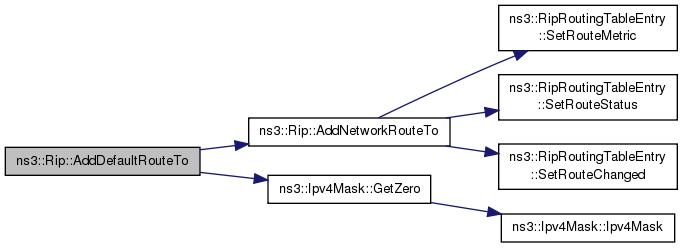

void	AddDefaultRouteTo (Ipv4Address nextHop, uint32_t interface)
	Add a default route to the router through the nextHop located on interface. More...

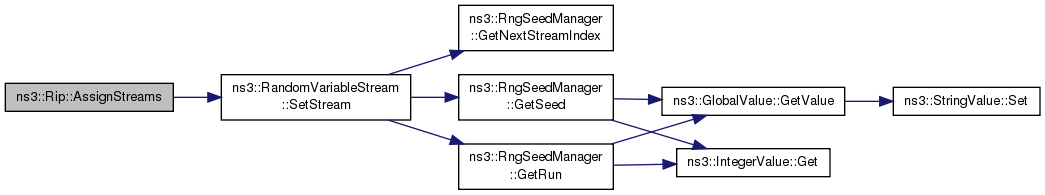

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

std::set< uint32_t >	GetInterfaceExclusions () const
	Get the set of interface excluded from the protocol. More...

uint8_t	GetInterfaceMetric (uint32_t interface) const
	Get the metric for an interface. More...

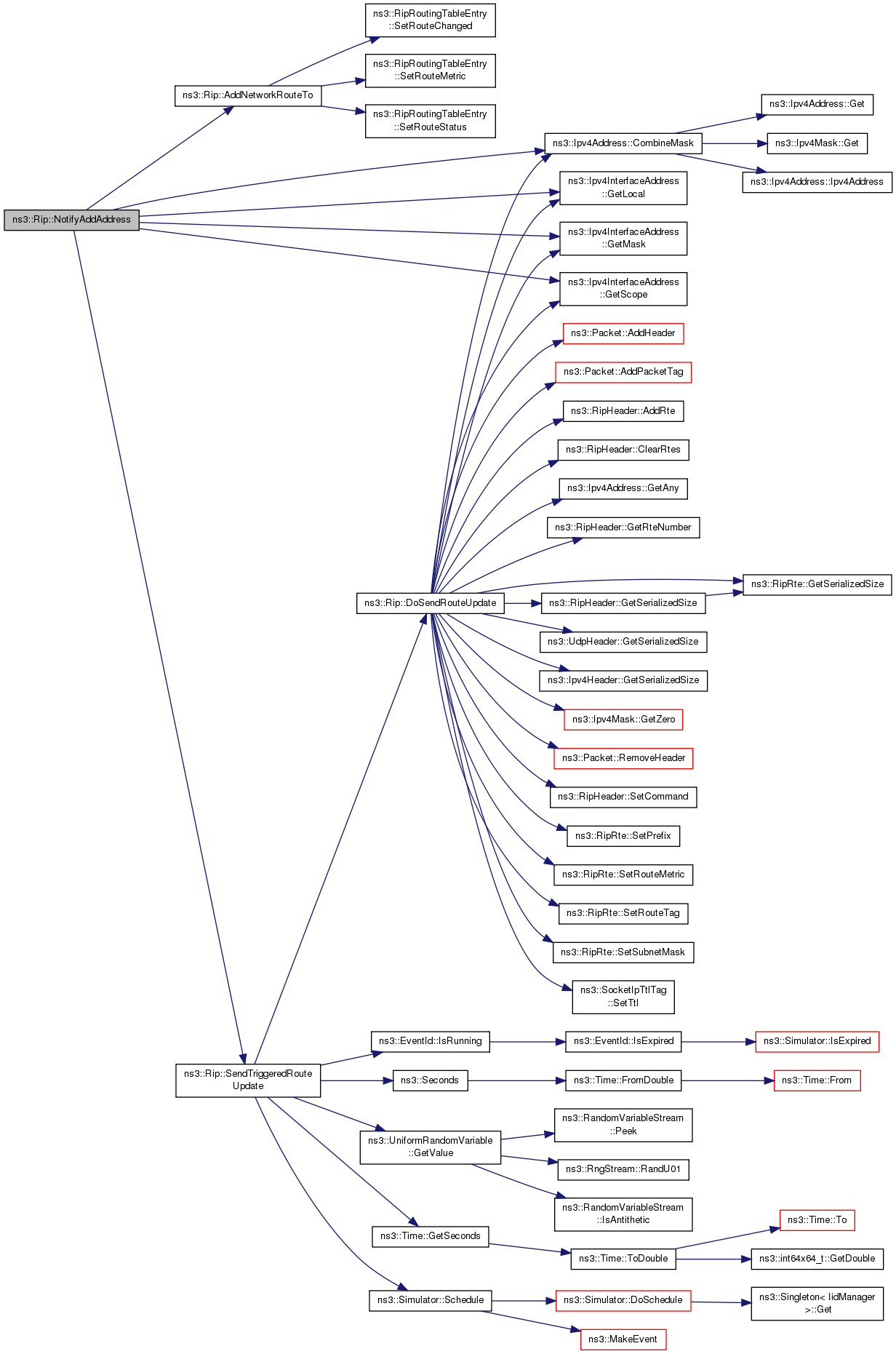

virtual void	NotifyAddAddress (uint32_t interface, Ipv4InterfaceAddress address)

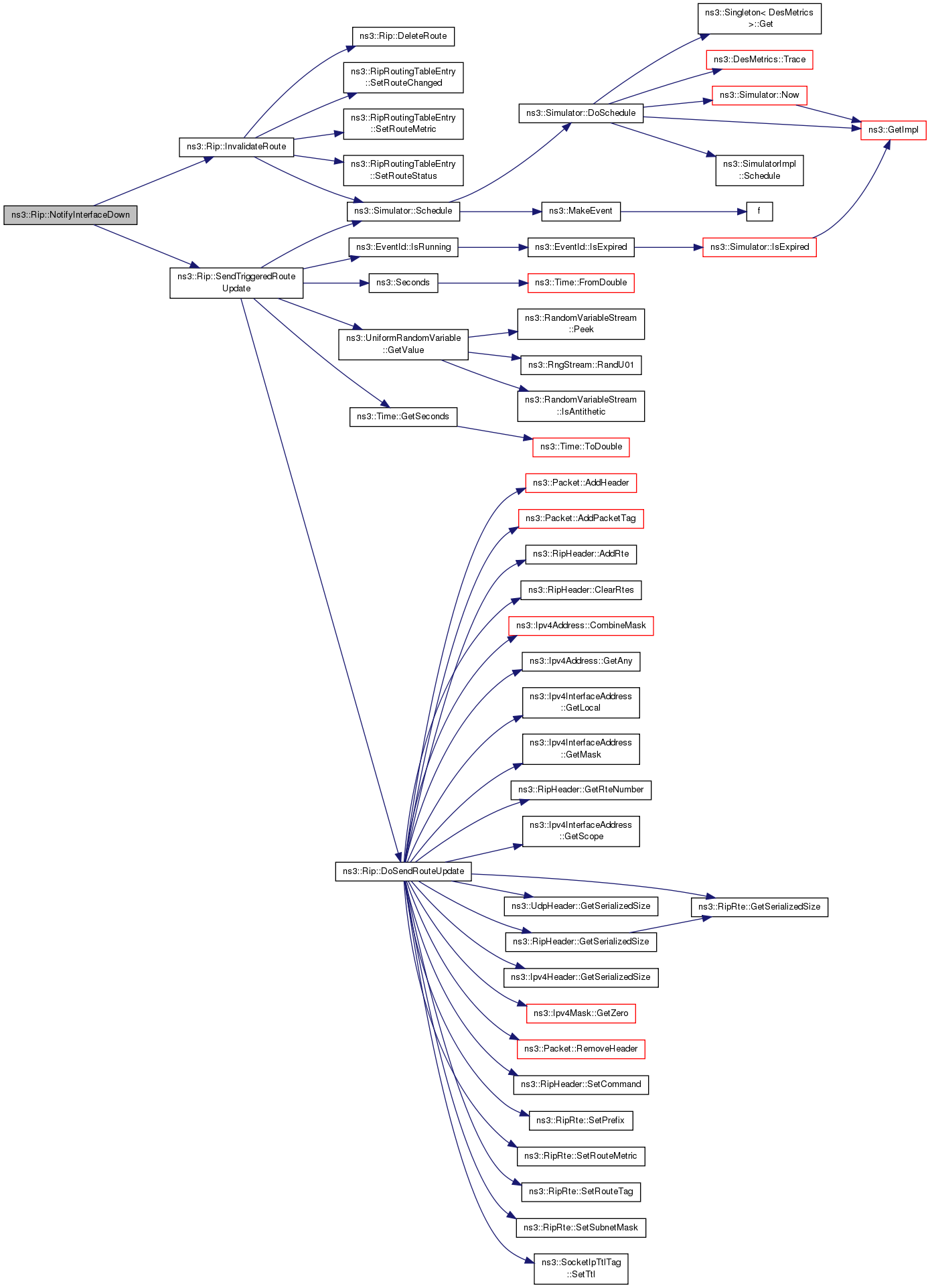

virtual void	NotifyInterfaceDown (uint32_t interface)

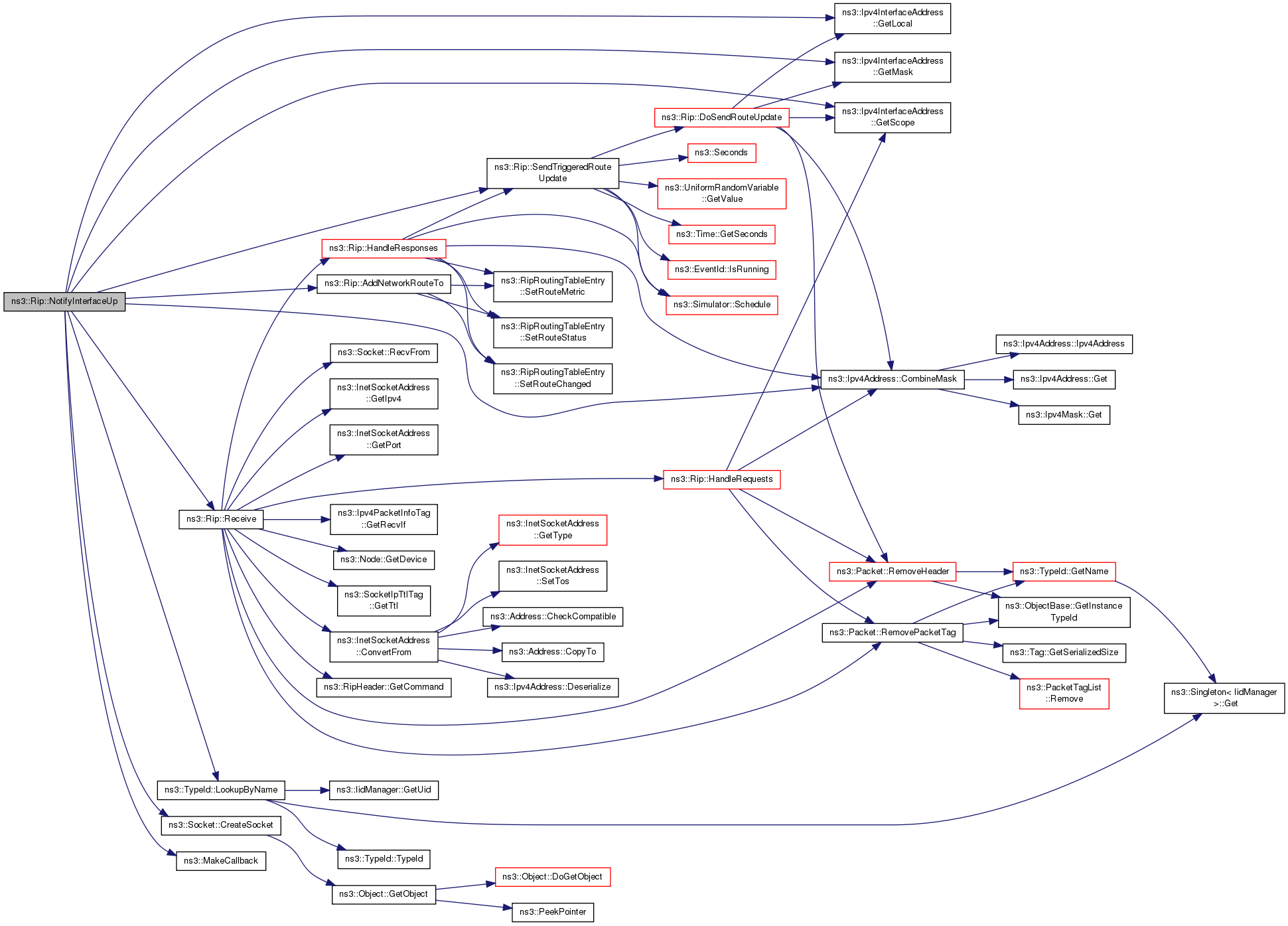

virtual void	NotifyInterfaceUp (uint32_t interface)

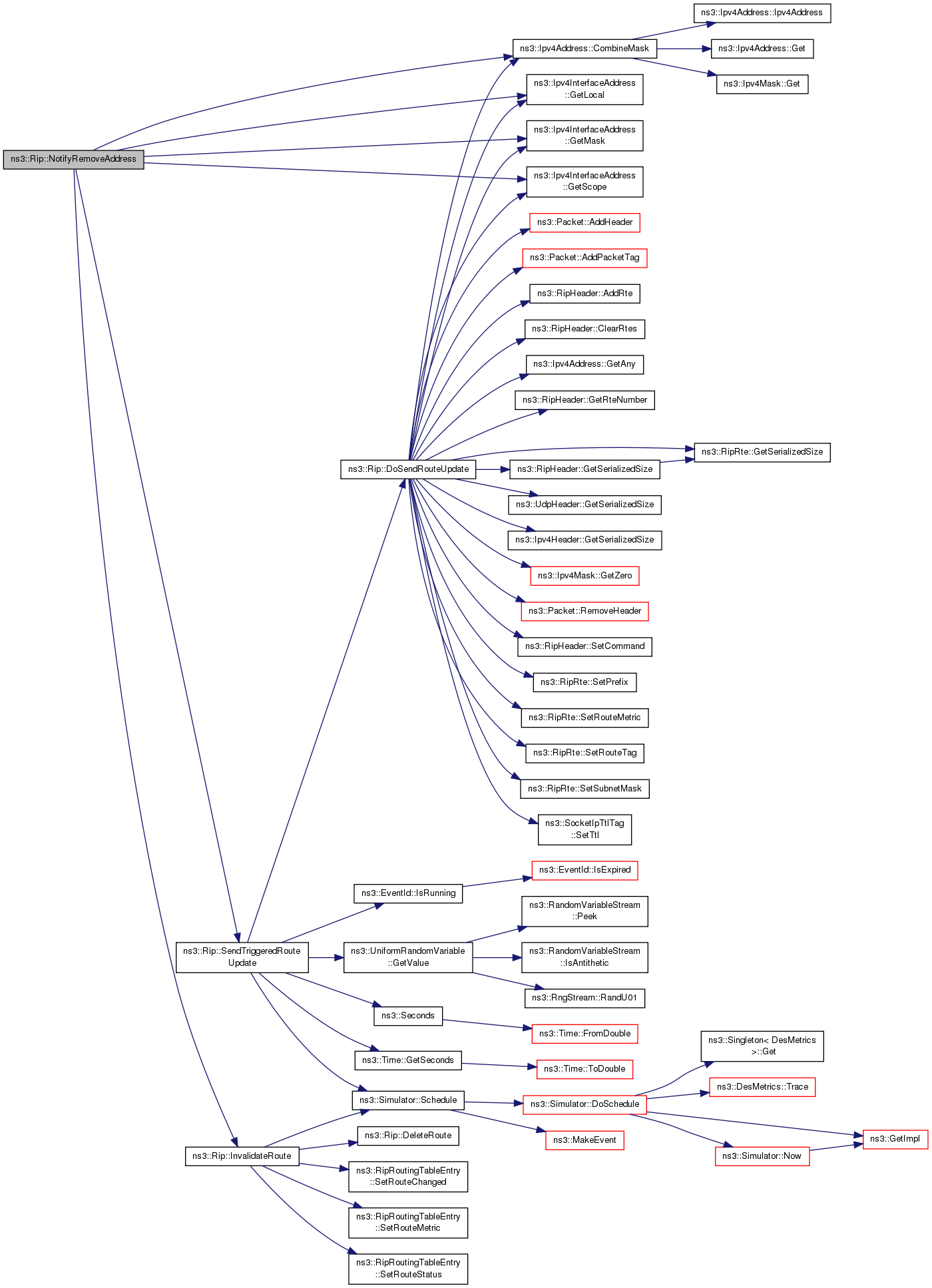

virtual void	NotifyRemoveAddress (uint32_t interface, Ipv4InterfaceAddress address)

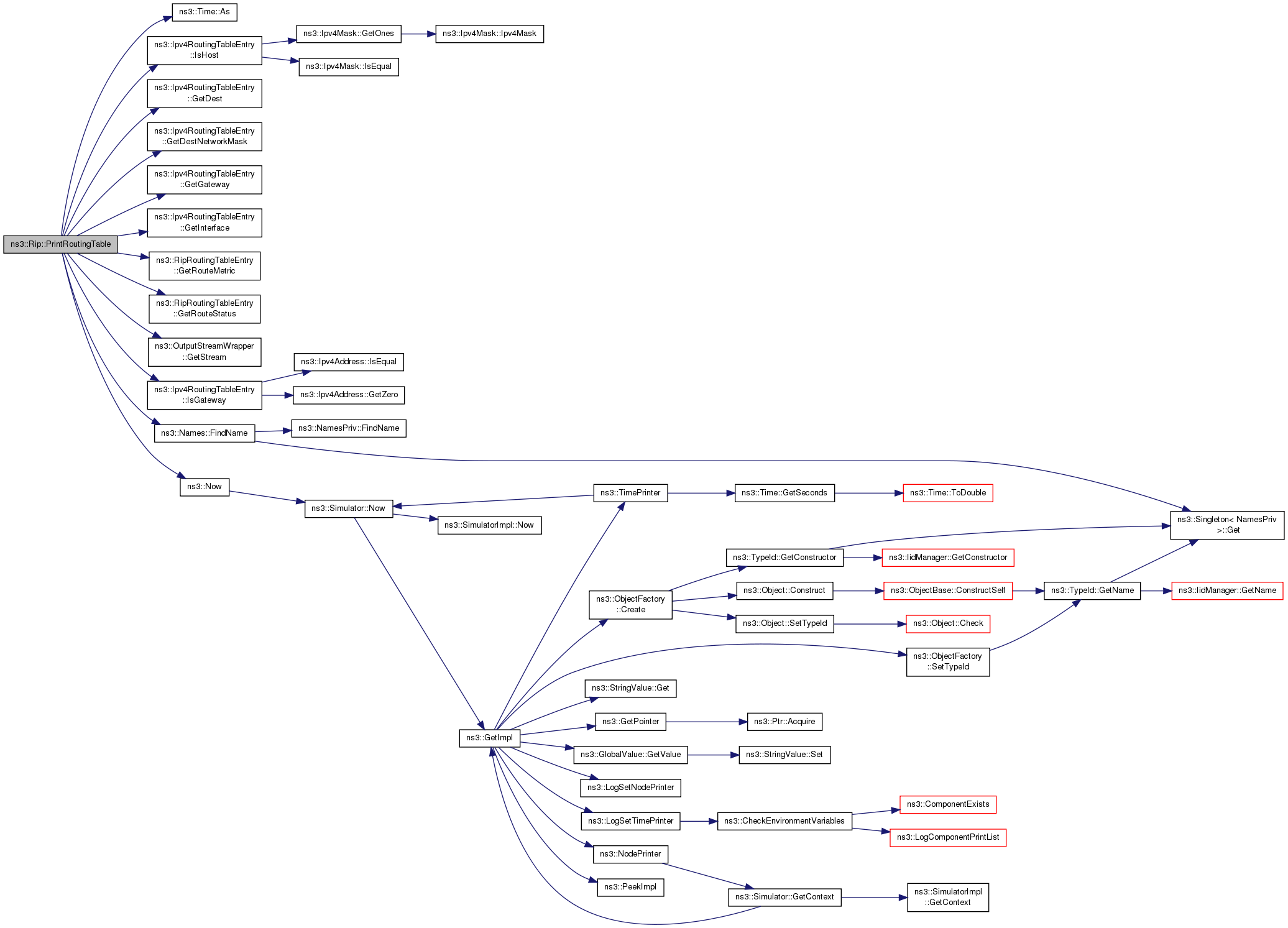

virtual void	PrintRoutingTable (Ptr< OutputStreamWrapper > stream) const
	Print the Routing Table entries. More...

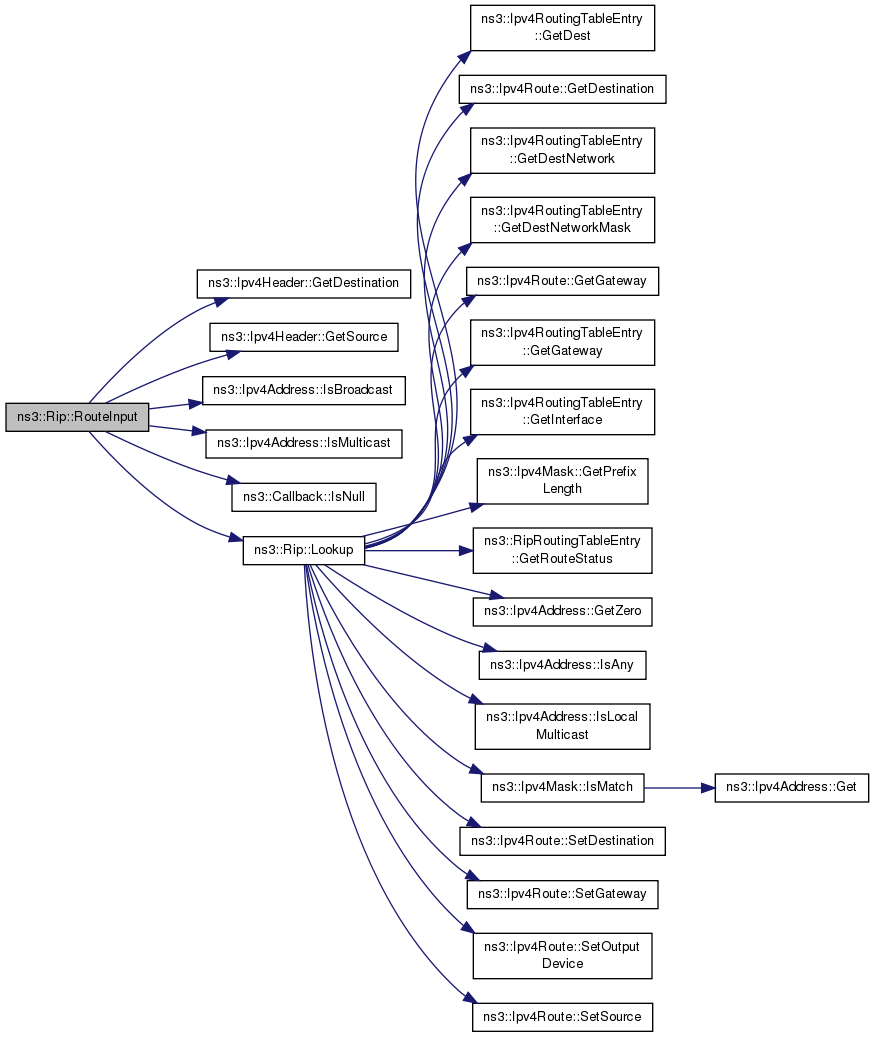

bool	RouteInput (Ptr< const Packet > p, const Ipv4Header &header, Ptr< const NetDevice > idev, UnicastForwardCallback ucb, MulticastForwardCallback mcb, LocalDeliverCallback lcb, ErrorCallback ecb)
	Route an input packet (to be forwarded or locally delivered) More...

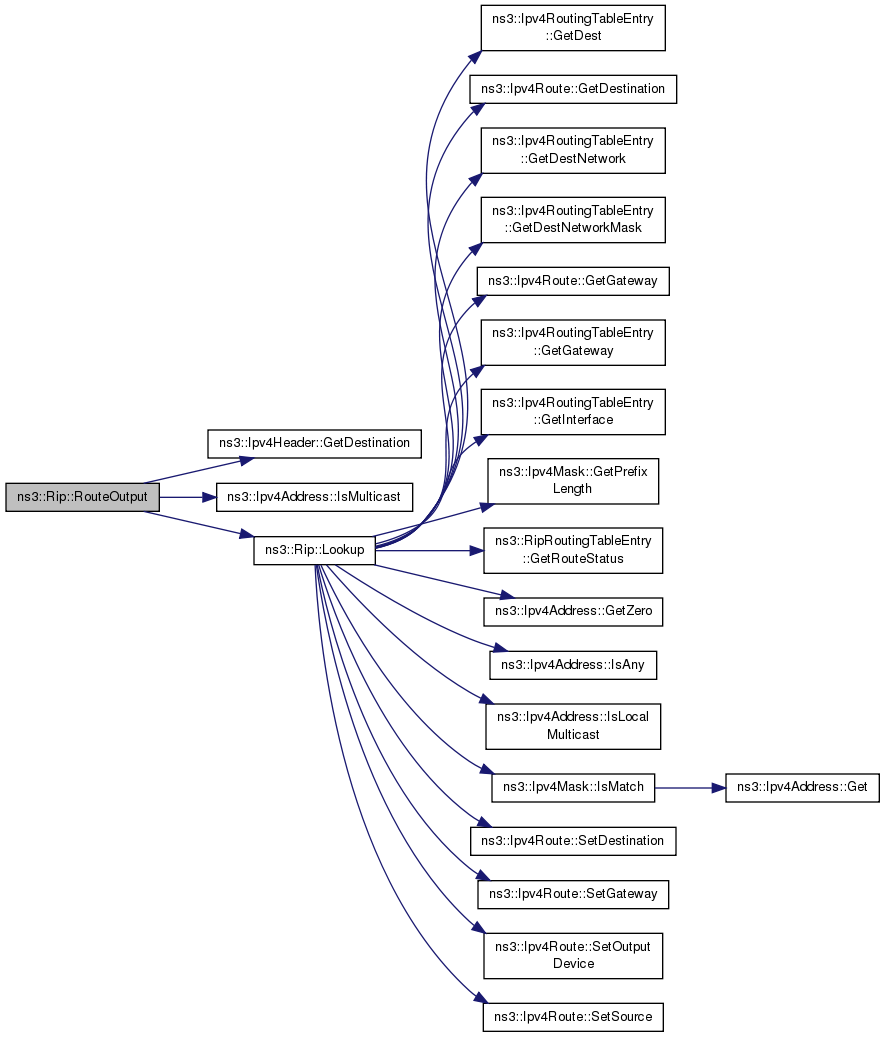

Ptr< Ipv4Route >	RouteOutput (Ptr< Packet > p, const Ipv4Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)
	Query routing cache for an existing route, for an outbound packet. More...

void	SetInterfaceExclusions (std::set< uint32_t > exceptions)
	Set the set of interface excluded from the protocol. More...

void	SetInterfaceMetric (uint32_t interface, uint8_t metric)
	Set the metric for an interface. More...

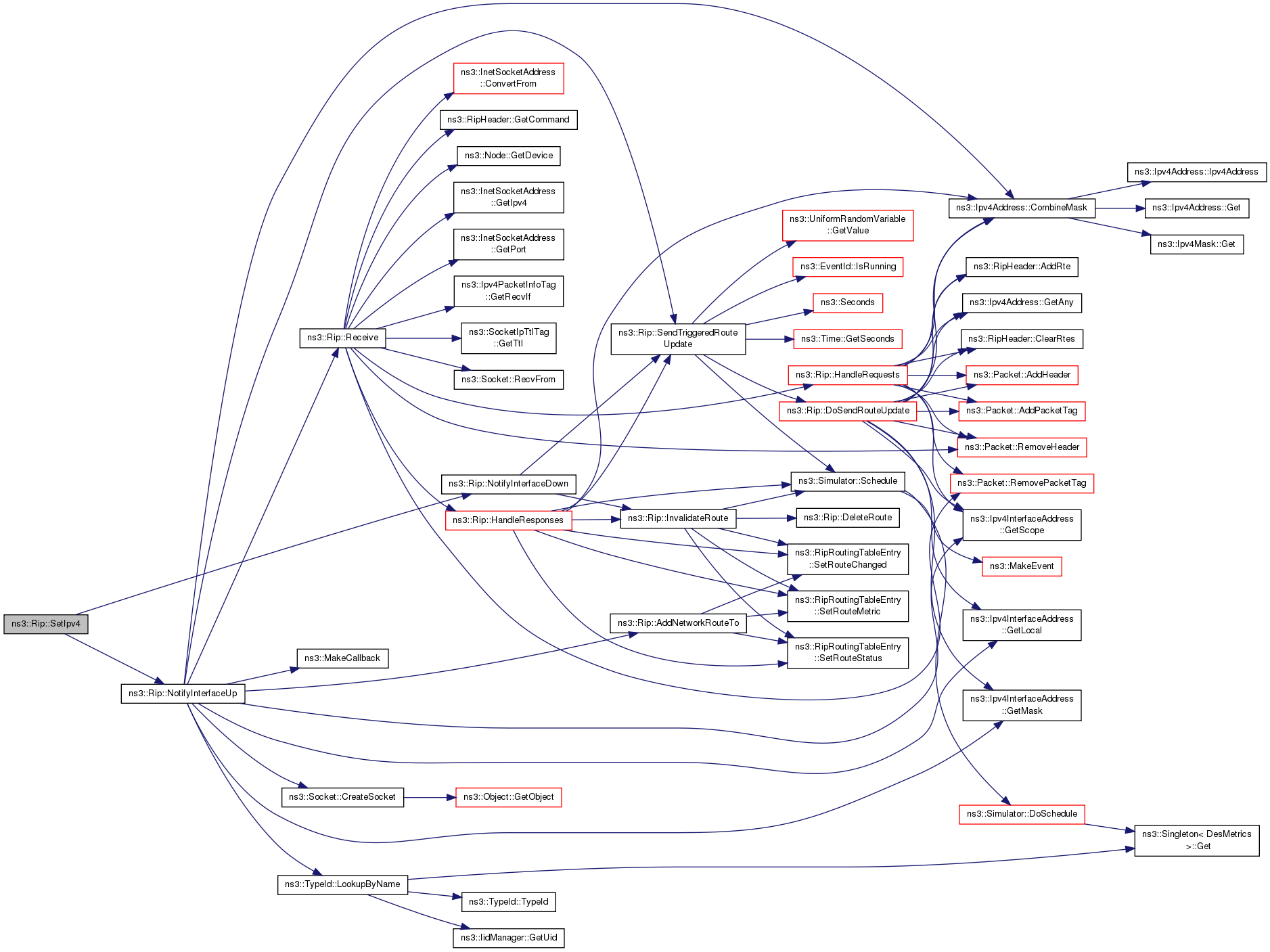

virtual void	SetIpv4 (Ptr< Ipv4 > ipv4)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

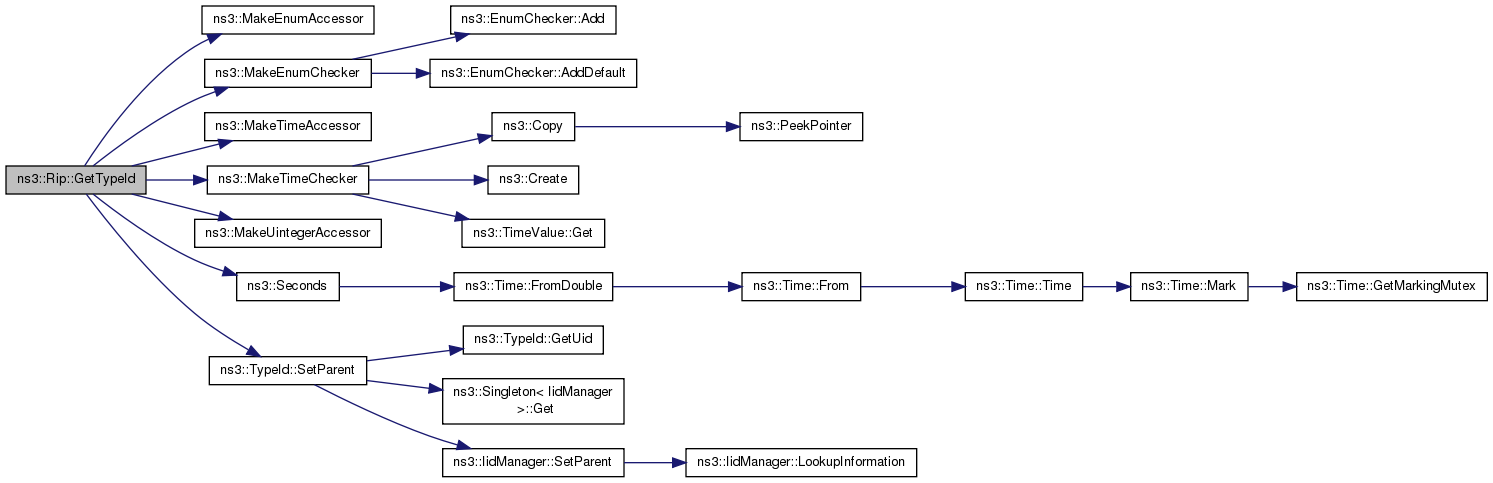

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Ipv4RoutingProtocol
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions

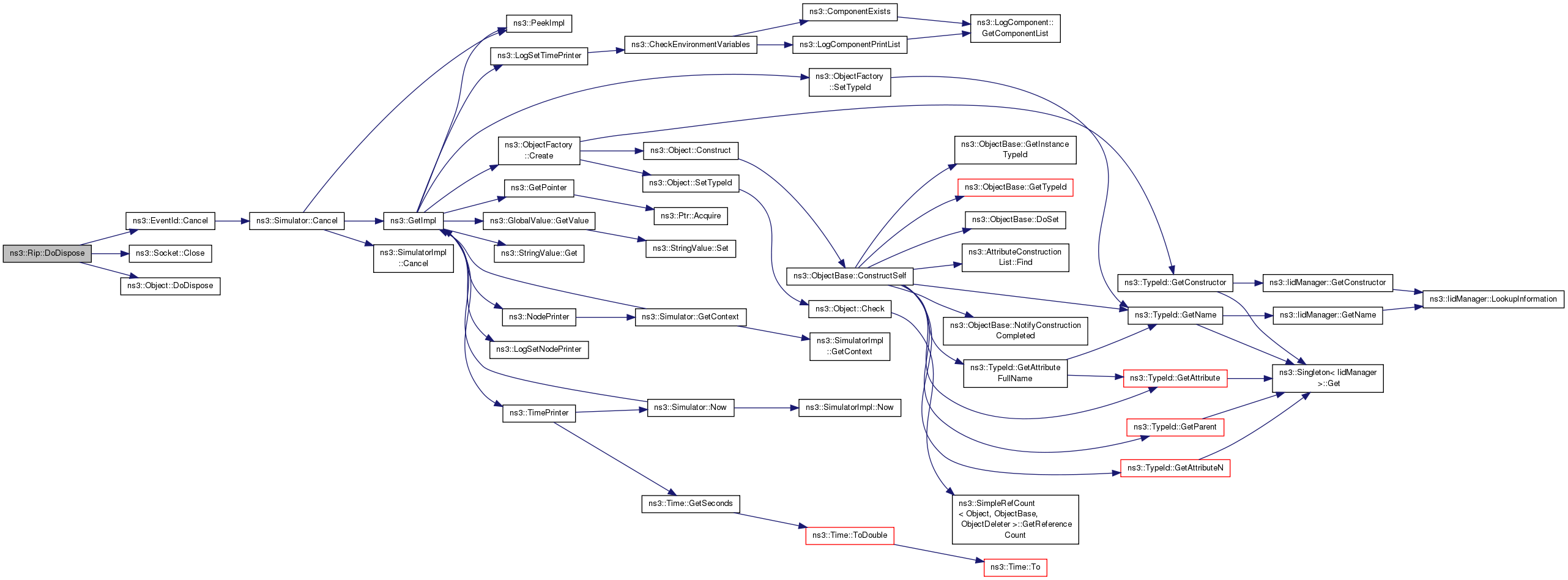

virtual void	DoDispose ()
	Dispose this object. More...

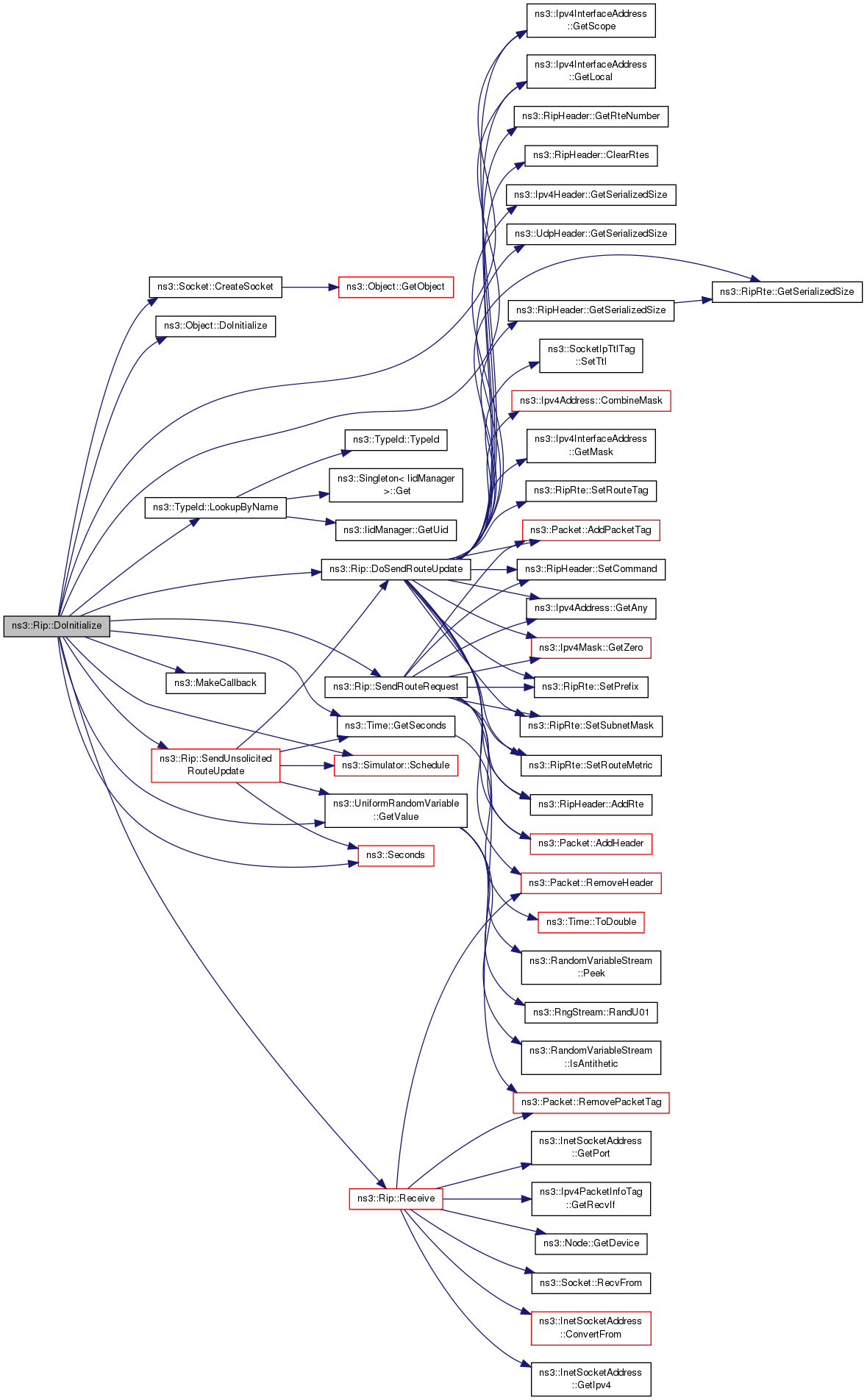

void	DoInitialize ()
	Start protocol operation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::list< std::pair< RipRoutingTableEntry *, EventId > >	Routes
	Container for the network routes - pair RipRoutingTableEntry *, EventId (update event) More...

typedef std::list< std::pair< RipRoutingTableEntry *, EventId > >::const_iterator	RoutesCI
	Const Iterator for container for the network routes. More...

typedef std::list< std::pair< RipRoutingTableEntry *, EventId > >::iterator	RoutesI
	Iterator for container for the network routes. More...

typedef std::map< Ptr< Socket >, uint32_t >	SocketList
	Socket list type. More...

typedef std::map< Ptr< Socket >, uint32_t >::const_iterator	SocketListCI
	Socket list type const iterator. More...

typedef std::map< Ptr< Socket >, uint32_t >::iterator	SocketListI
	Socket list type iterator. More...

Private Member Functions

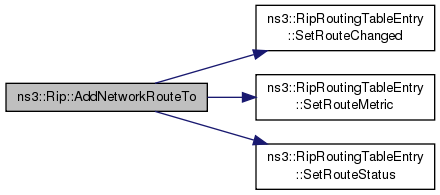

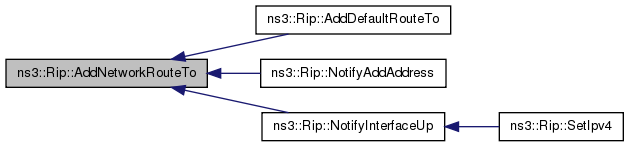

void	AddNetworkRouteTo (Ipv4Address network, Ipv4Mask networkPrefix, Ipv4Address nextHop, uint32_t interface)
	Add route to network. More...

void	AddNetworkRouteTo (Ipv4Address network, Ipv4Mask networkPrefix, uint32_t interface)
	Add route to network. More...

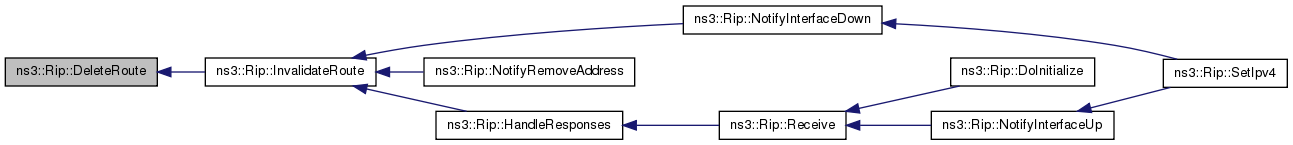

void	DeleteRoute (RipRoutingTableEntry *route)
	Delete a route. More...

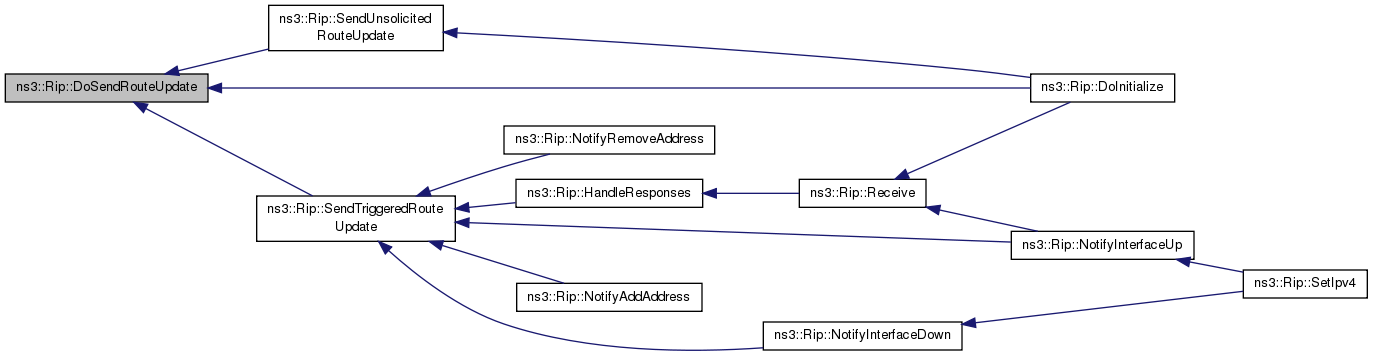

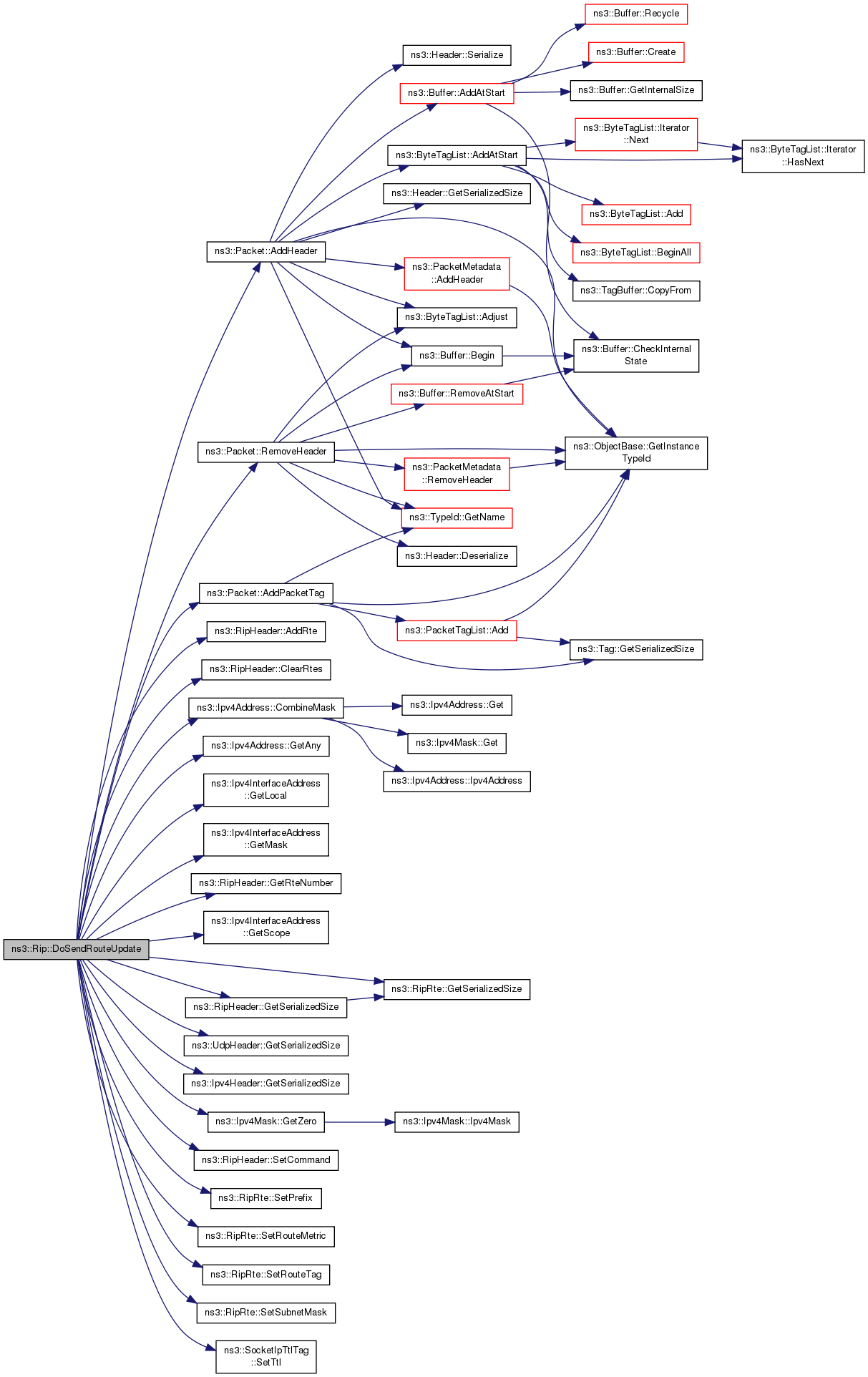

void	DoSendRouteUpdate (bool periodic)
	Send Routing Updates on all interfaces. More...

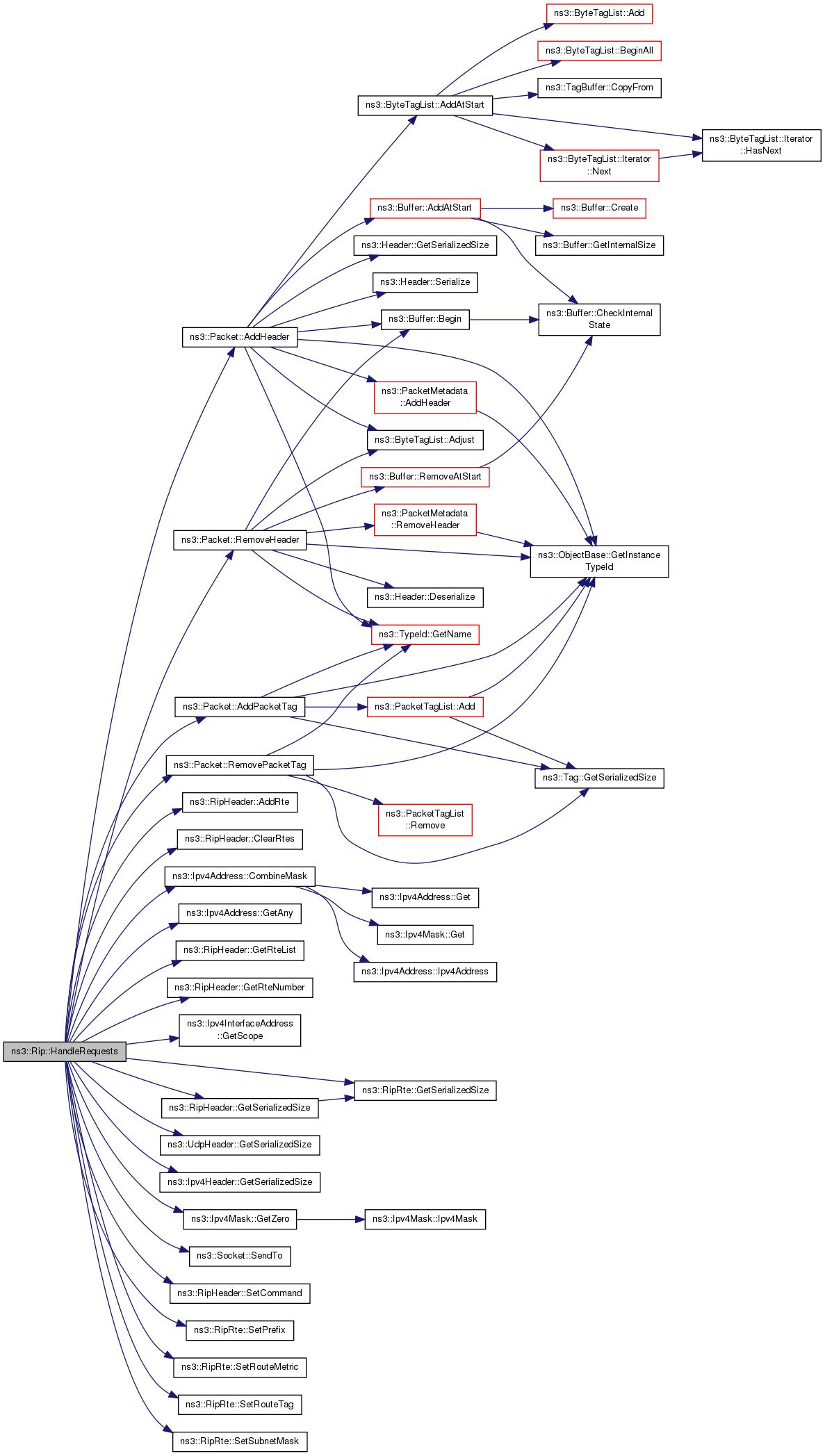

void	HandleRequests (RipHeader hdr, Ipv4Address senderAddress, uint16_t senderPort, uint32_t incomingInterface, uint8_t hopLimit)
	Handle RIP requests. More...

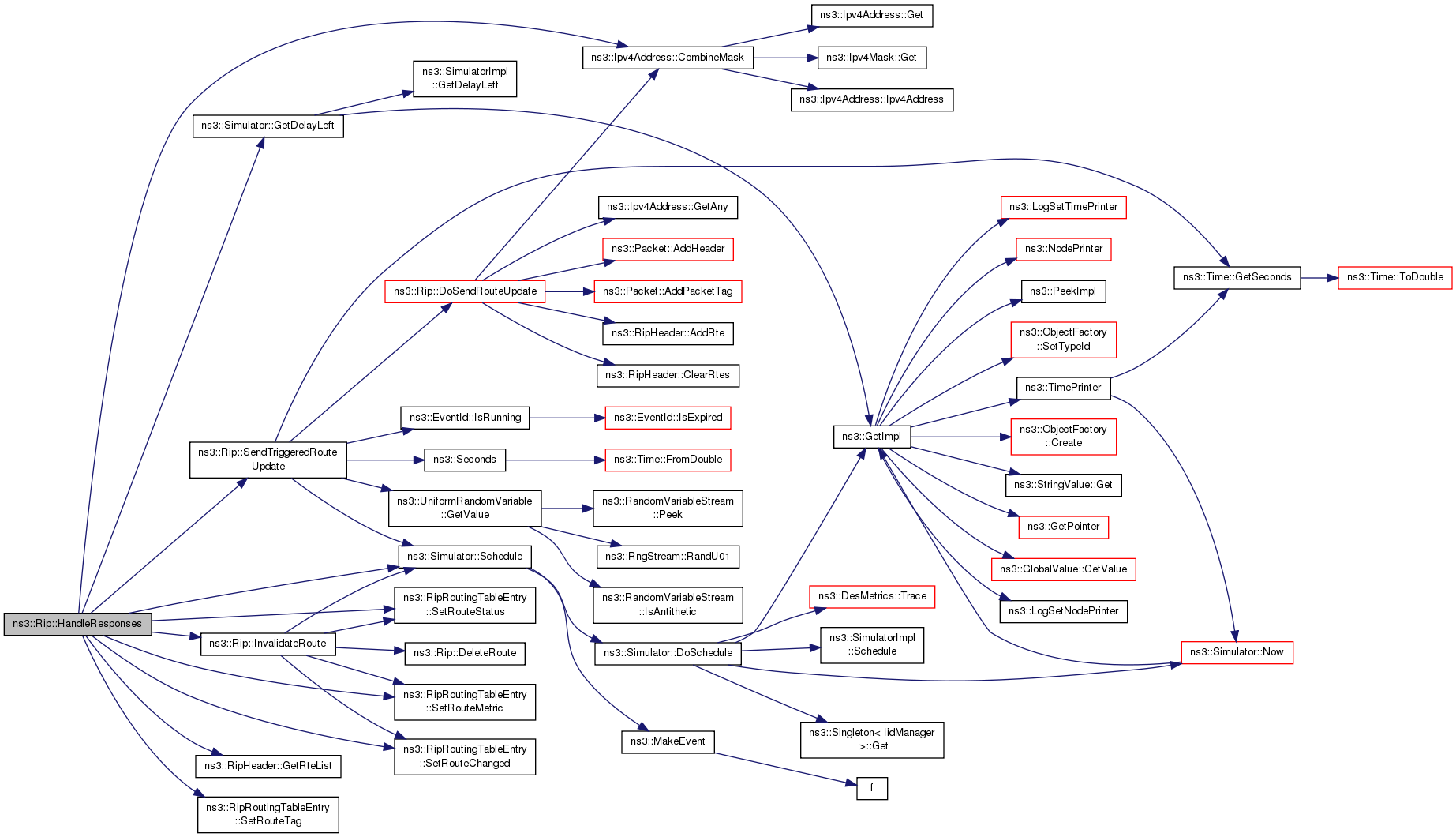

void	HandleResponses (RipHeader hdr, Ipv4Address senderAddress, uint32_t incomingInterface, uint8_t hopLimit)
	Handle RIP responses. More...

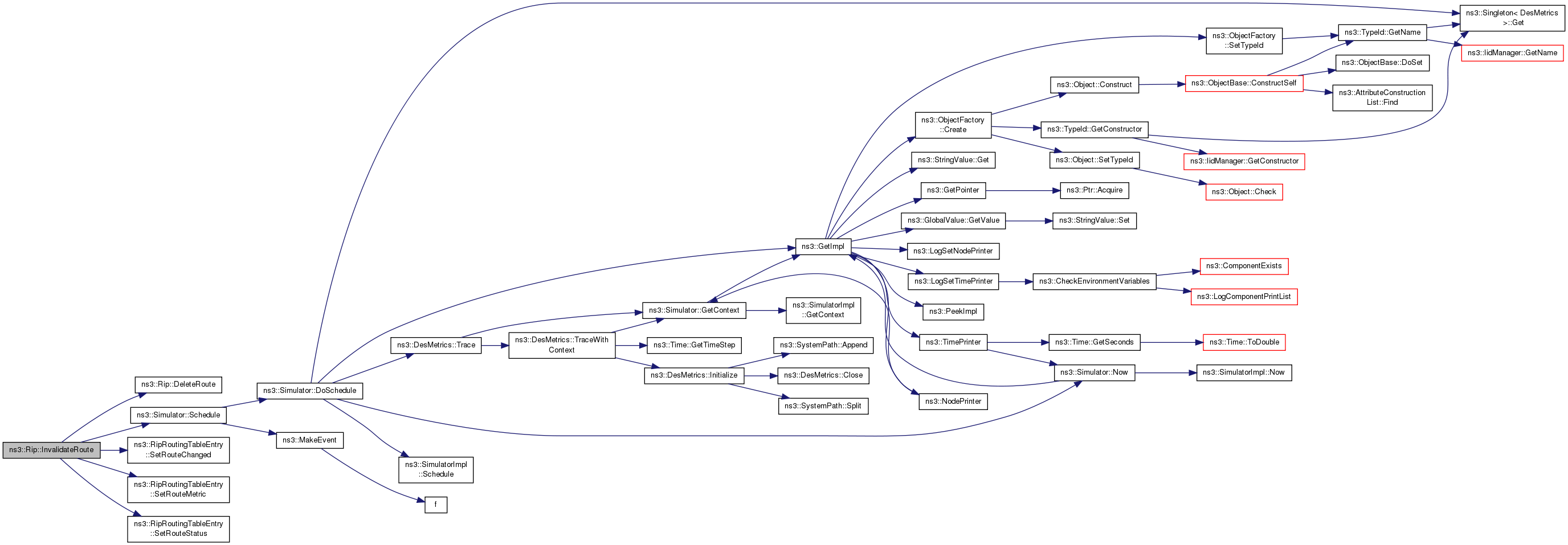

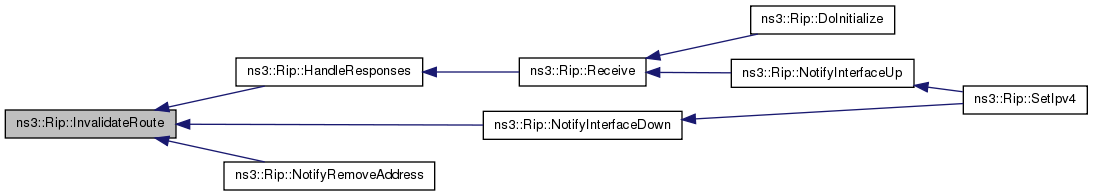

void	InvalidateRoute (RipRoutingTableEntry *route)
	Invalidate a route. More...

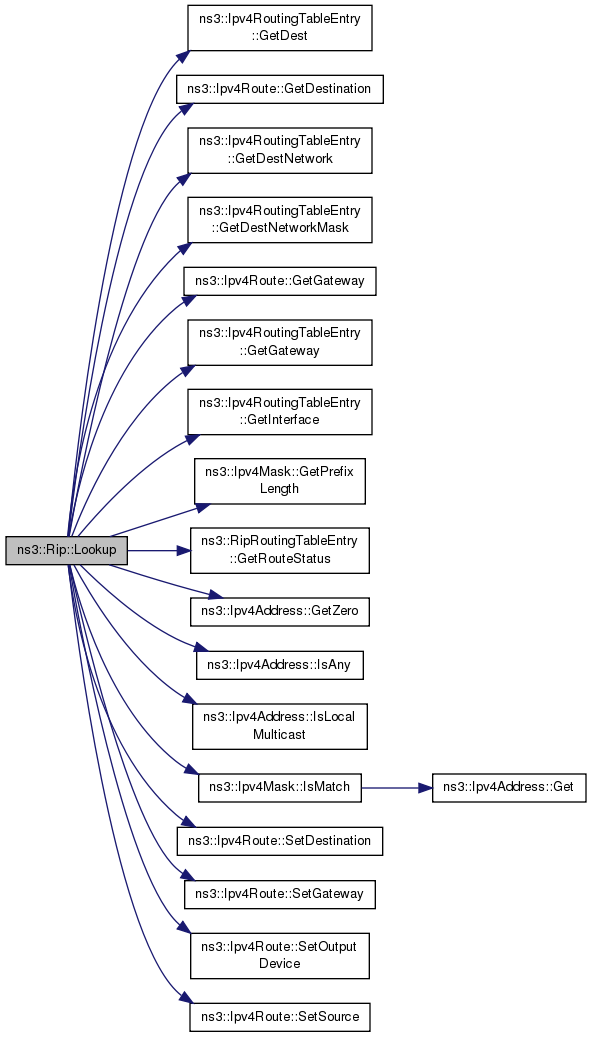

Ptr< Ipv4Route >	Lookup (Ipv4Address dest, Ptr< NetDevice >=0)
	Lookup in the forwarding table for destination. More...

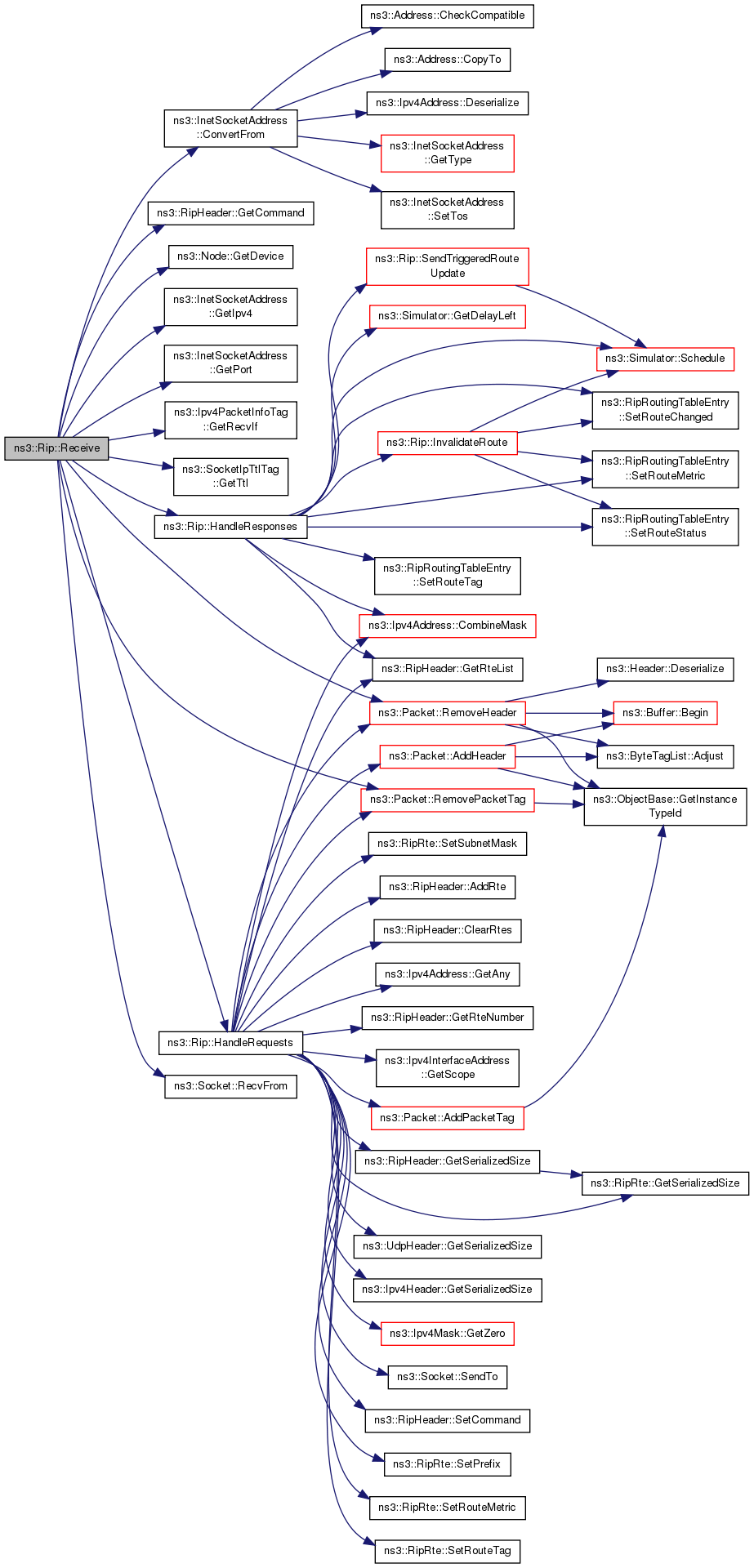

void	Receive (Ptr< Socket > socket)
	Receive RIP packets. More...

void	RecvMulticastRip (Ptr< Socket > socket)
	Receive and process multicast packet. More...

void	RecvUnicastRip (Ptr< Socket > socket)
	Receive and process unicast packet. More...

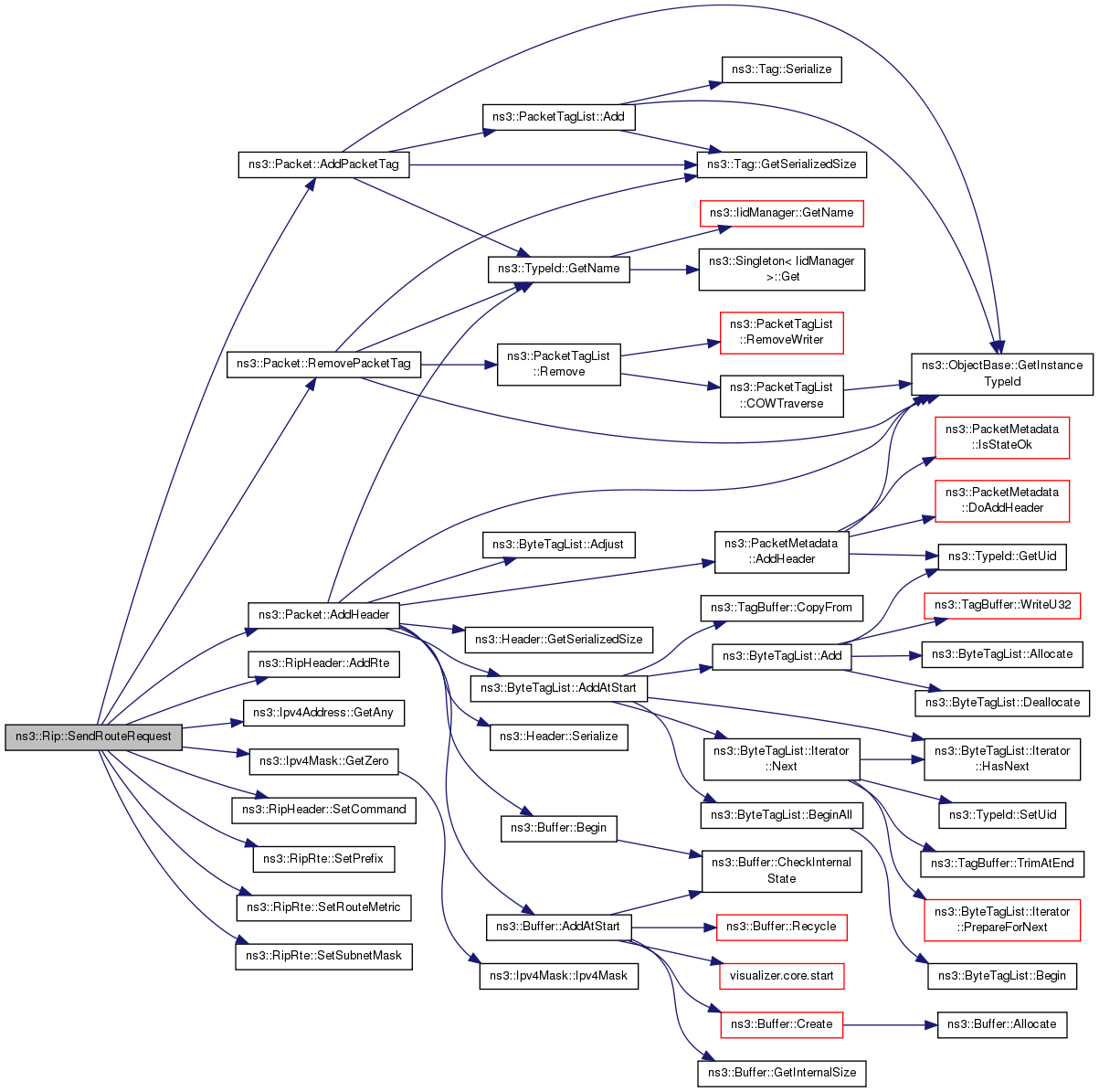

void	SendRouteRequest ()
	Send Routing Request on all interfaces. More...

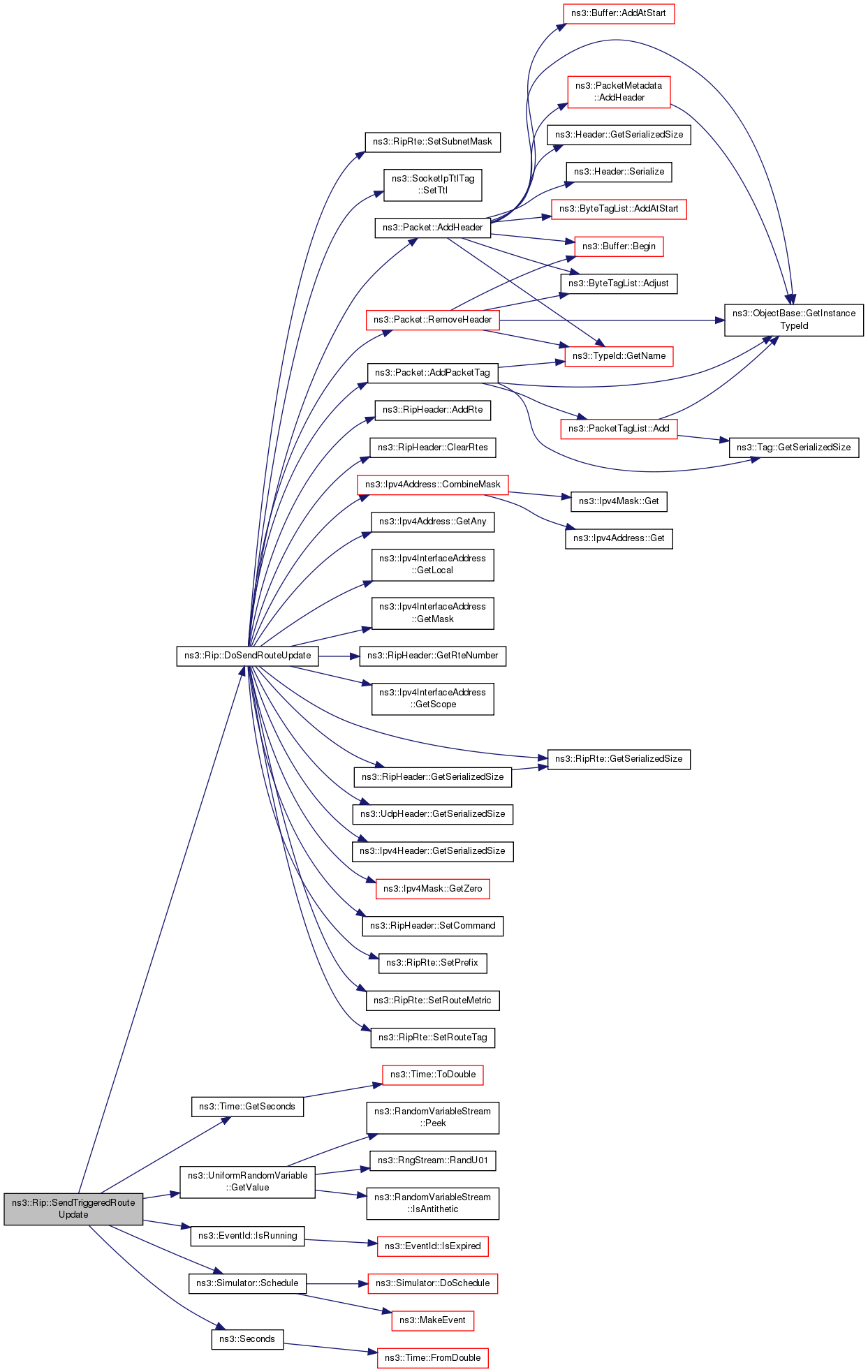

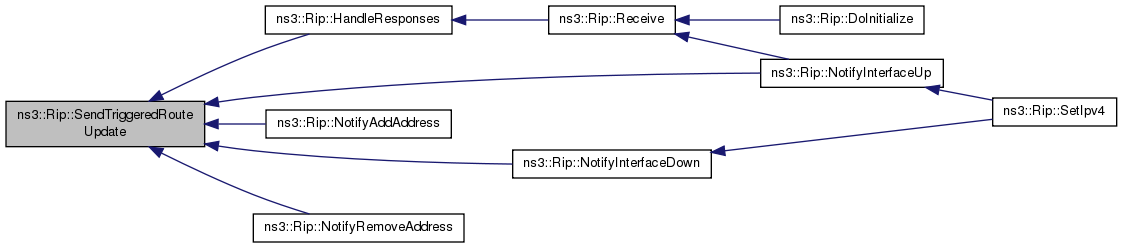

void	SendTriggeredRouteUpdate ()
	Send Triggered Routing Updates on all interfaces. More...

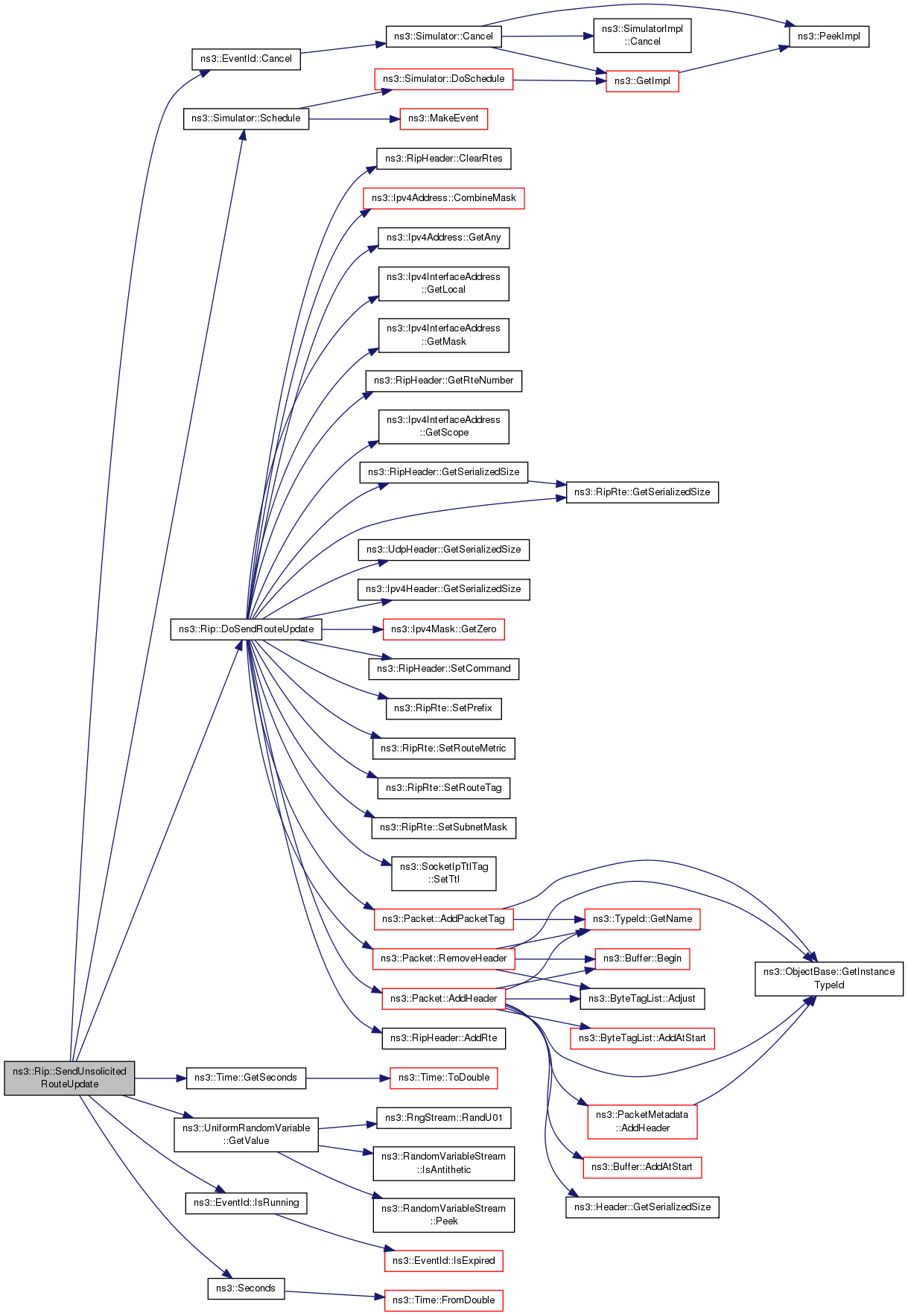

void	SendUnsolicitedRouteUpdate (void)
	Send Unsolicited Routing Updates on all interfaces. More...

Private Attributes
Time	m_garbageCollectionDelay
	Delay before deleting an INVALID route. More...

bool	m_initialized
	flag to allow socket's late-creation. More...

std::set< uint32_t >	m_interfaceExclusions
	Set of excluded interfaces. More...

std::map< uint32_t, uint8_t >	m_interfaceMetrics
	Map of interface metrics. More...

Ptr< Ipv4 >	m_ipv4
	IPv4 reference. More...

uint32_t	m_linkDown
	Link down value. More...

Time	m_maxTriggeredUpdateDelay
	Max cooldown delay after a Triggered Update. More...

Time	m_minTriggeredUpdateDelay
	Min cooldown delay after a Triggered Update. More...

EventId	m_nextTriggeredUpdate
	Next Triggered Update event. More...

EventId	m_nextUnsolicitedUpdate
	Next Unsolicited Update event. More...

Ptr< Socket >	m_recvSocket
	receive socket More...

Ptr< UniformRandomVariable >	m_rng
	Rng stream. More...

Routes	m_routes
	the forwarding table for network. More...

SocketList	m_sendSocketList
	list of sockets for sending (socket, interface index) More...

SplitHorizonType_e	m_splitHorizonStrategy
	Split Horizon strategy. More...

Time	m_startupDelay
	Random delay before protocol startup. More...

Time	m_timeoutDelay
	Delay before invalidating a route. More...

Time	m_unsolicitedUpdate
	time between two Unsolicited Routing Updates More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

RIP Routing Protocol, defined in RFC 2453.

Introspection did not find any typical Config paths.

Attributes

UnsolicitedRoutingUpdate: The time between two Unsolicited Routing Updates.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +30000000000.0ns
- Flags: construct write read
StartupDelay: Maximum random delay for protocol startup (send route requests).
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
TimeoutDelay: The delay to invalidate a route.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +180000000000.0ns
- Flags: construct write read
GarbageCollectionDelay: The delay to delete an expired route.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +120000000000.0ns
- Flags: construct write read
MinTriggeredCooldown: Min cooldown delay after a Triggered Update.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
MaxTriggeredCooldown: Max cooldown delay after a Triggered Update.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5000000000.0ns
- Flags: construct write read
SplitHorizon: Split Horizon strategy.
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: PoisonReverse
- Flags: construct write read
LinkDownValue: Value for link down in count to infinity.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 16
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 328 bytes (on a 64-bit architecture).

Definition at line 173 of file rip.h.

Member Typedef Documentation

typedef std::list<std::pair <RipRoutingTableEntry *, EventId> > ns3::Rip::Routes

private

Container for the network routes - pair RipRoutingTableEntry *, EventId (update event)

Definition at line 268 of file rip.h.

typedef std::list<std::pair <RipRoutingTableEntry *, EventId> >::const_iterator ns3::Rip::RoutesCI

private

Const Iterator for container for the network routes.

Definition at line 271 of file rip.h.

typedef std::list<std::pair <RipRoutingTableEntry *, EventId> >::iterator ns3::Rip::RoutesI

private

Iterator for container for the network routes.

Definition at line 274 of file rip.h.

typedef std::map< Ptr<Socket>, uint32_t> ns3::Rip::SocketList

private

Socket list type.

Definition at line 385 of file rip.h.

typedef std::map<Ptr<Socket>, uint32_t>::const_iterator ns3::Rip::SocketListCI

private

Socket list type const iterator.

Definition at line 389 of file rip.h.

typedef std::map<Ptr<Socket>, uint32_t>::iterator ns3::Rip::SocketListI

private

Socket list type iterator.

Definition at line 387 of file rip.h.

Constructor & Destructor Documentation

ns3::Rip::Rip ( )

Definition at line 47 of file rip.cc.

References m_rng.

ns3::Rip::~Rip ( )

virtual

Definition at line 53 of file rip.cc.

Member Function Documentation

void ns3::Rip::AddDefaultRouteTo	(	Ipv4Address	nextHop,
		uint32_t	interface
	)

Add a default route to the router through the nextHop located on interface.

The default route is usually installed manually, or it is the result of some "other" routing protocol (e.g., BGP).

Parameters

nextHop	the next hop
interface	the interface

Definition at line 1269 of file rip.cc.

References AddNetworkRouteTo(), ns3::Ipv4Mask::GetZero(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Rip::AddNetworkRouteTo	(	Ipv4Address	network,
		Ipv4Mask	networkPrefix,
		Ipv4Address	nextHop,
		uint32_t	interface
	)

private

Add route to network.

Parameters

network	network address
networkPrefix	network prefix
nextHop	next hop address to route the packet.
interface	interface index

Definition at line 647 of file rip.cc.

References m_routes, NS_LOG_FUNCTION, ns3::RipRoutingTableEntry::RIP_VALID, ns3::RipRoutingTableEntry::SetRouteChanged(), ns3::RipRoutingTableEntry::SetRouteMetric(), and ns3::RipRoutingTableEntry::SetRouteStatus().

Referenced by AddDefaultRouteTo(), NotifyAddAddress(), and NotifyInterfaceUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Rip::AddNetworkRouteTo	(	Ipv4Address	network,
		Ipv4Mask	networkPrefix,
		uint32_t	interface
	)

private

Add route to network.

Parameters

network	network address
networkPrefix	network prefix
interface	interface index

Definition at line 659 of file rip.cc.

References m_routes, NS_LOG_FUNCTION, ns3::RipRoutingTableEntry::RIP_VALID, ns3::RipRoutingTableEntry::SetRouteChanged(), ns3::RipRoutingTableEntry::SetRouteMetric(), and ns3::RipRoutingTableEntry::SetRouteStatus().

Here is the call graph for this function:

int64_t ns3::Rip::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 102 of file rip.cc.

References m_rng, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::Rip::DeleteRoute ( RipRoutingTableEntry * route )

private

Delete a route.

Parameters

route the route to be removed

Definition at line 693 of file rip.cc.

References m_routes, NS_ABORT_MSG, and NS_LOG_FUNCTION.

Referenced by InvalidateRoute().

Here is the caller graph for this function:

void ns3::Rip::DoDispose ( void )

protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 543 of file rip.cc.

References ns3::EventId::Cancel(), ns3::Socket::Close(), ns3::Object::DoDispose(), m_ipv4, m_nextTriggeredUpdate, m_nextUnsolicitedUpdate, m_recvSocket, m_routes, m_sendSocketList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Rip::DoInitialize ( void )

protectedvirtual

Start protocol operation.

Reimplemented from ns3::Object.

Definition at line 110 of file rip.cc.

References first::address, visualizer.higcontainer::check, ns3::Socket::CreateSocket(), ns3::Object::DoInitialize(), DoSendRouteUpdate(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetScope(), ns3::Time::GetSeconds(), ns3::UniformRandomVariable::GetValue(), ns3::Ipv4InterfaceAddress::GLOBAL, ns3::Ipv4InterfaceAddress::HOST, ns3::TypeId::LookupByName(), m_initialized, m_interfaceExclusions, m_ipv4, m_maxTriggeredUpdateDelay, m_minTriggeredUpdateDelay, m_nextTriggeredUpdate, m_nextUnsolicitedUpdate, m_recvSocket, m_rng, m_sendSocketList, m_startupDelay, m_unsolicitedUpdate, ns3::MakeCallback(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, Receive(), RIP_ALL_NODE, RIP_PORT, ns3::Simulator::Schedule(), ns3::Seconds(), SendRouteRequest(), and SendUnsolicitedRouteUpdate().

Here is the call graph for this function:

void ns3::Rip::DoSendRouteUpdate ( bool periodic )

private

Send Routing Updates on all interfaces.

Definition at line 1066 of file rip.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::RipHeader::AddRte(), ns3::RipHeader::ClearRtes(), ns3::Ipv4Address::CombineMask(), ns3::Ipv4Address::GetAny(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), ns3::RipHeader::GetRteNumber(), ns3::Ipv4InterfaceAddress::GetScope(), ns3::RipRte::GetSerializedSize(), ns3::UdpHeader::GetSerializedSize(), ns3::RipHeader::GetSerializedSize(), ns3::Ipv4Header::GetSerializedSize(), ns3::Ipv4Mask::GetZero(), ns3::Ipv4InterfaceAddress::GLOBAL, m_interfaceExclusions, m_ipv4, m_linkDown, m_routes, m_sendSocketList, m_splitHorizonStrategy, NS_LOG_DEBUG, NS_LOG_FUNCTION, POISON_REVERSE, ns3::Packet::RemoveHeader(), ns3::RipHeader::RESPONSE, RIP_ALL_NODE, RIP_PORT, ns3::RipHeader::SetCommand(), ns3::RipRte::SetPrefix(), ns3::RipRte::SetRouteMetric(), ns3::RipRte::SetRouteTag(), ns3::RipRte::SetSubnetMask(), ns3::SocketIpTtlTag::SetTtl(), and SPLIT_HORIZON.

Referenced by DoInitialize(), SendTriggeredRouteUpdate(), and SendUnsolicitedRouteUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

std::set< uint32_t > ns3::Rip::GetInterfaceExclusions ( ) const

Get the set of interface excluded from the protocol.

Returns: the set of excluded interfaces

Definition at line 1202 of file rip.cc.

References m_interfaceExclusions.

uint8_t ns3::Rip::GetInterfaceMetric ( uint32_t interface ) const

Get the metric for an interface.

Parameters

interface the interface

Returns: the interface metric

Definition at line 1214 of file rip.cc.

References m_interfaceMetrics, and NS_LOG_FUNCTION.

TypeId ns3::Rip::GetTypeId ( void )

static

Get the type ID.

Returns: type ID

Definition at line 58 of file rip.cc.

References m_garbageCollectionDelay, m_linkDown, m_maxTriggeredUpdateDelay, m_minTriggeredUpdateDelay, m_splitHorizonStrategy, m_startupDelay, m_timeoutDelay, m_unsolicitedUpdate, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), NO_SPLIT_HORIZON, POISON_REVERSE, ns3::Seconds(), ns3::TypeId::SetParent(), and SPLIT_HORIZON.

Here is the call graph for this function:

void ns3::Rip::HandleRequests	(	RipHeader	hdr,
		Ipv4Address	senderAddress,
		uint16_t	senderPort,
		uint32_t	incomingInterface,
		uint8_t	hopLimit
	)

private

Handle RIP requests.

Parameters

hdr	message header (including RTEs)
senderAddress	sender address
senderPort	sender port
incomingInterface	incoming interface
hopLimit	packet's hop limit

Definition at line 764 of file rip.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::RipHeader::AddRte(), ns3::RipHeader::ClearRtes(), ns3::Ipv4Address::CombineMask(), ns3::Ipv4Address::GetAny(), ns3::RipHeader::GetRteList(), ns3::RipHeader::GetRteNumber(), ns3::Ipv4InterfaceAddress::GetScope(), ns3::RipRte::GetSerializedSize(), ns3::UdpHeader::GetSerializedSize(), ns3::RipHeader::GetSerializedSize(), ns3::Ipv4Header::GetSerializedSize(), ns3::Ipv4Mask::GetZero(), ns3::Ipv4InterfaceAddress::GLOBAL, m_interfaceExclusions, m_ipv4, m_linkDown, m_recvSocket, m_routes, m_sendSocketList, m_splitHorizonStrategy, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, POISON_REVERSE, ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), ns3::RipHeader::RESPONSE, RIP_ALL_NODE, RIP_PORT, ns3::RipRoutingTableEntry::RIP_VALID, ns3::Socket::SendTo(), ns3::RipHeader::SetCommand(), ns3::RipRte::SetPrefix(), ns3::RipRte::SetRouteMetric(), ns3::RipRte::SetRouteTag(), ns3::RipRte::SetSubnetMask(), and SPLIT_HORIZON.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Rip::HandleResponses	(	RipHeader	hdr,
		Ipv4Address	senderAddress,
		uint32_t	incomingInterface,
		uint8_t	hopLimit
	)

private

Handle RIP responses.

Parameters

hdr	message header (including RTEs)
senderAddress	sender address
incomingInterface	incoming interface
hopLimit	packet's hop limit

Definition at line 926 of file rip.cc.

References ns3::Ipv4Address::CombineMask(), ns3::Simulator::GetDelayLeft(), ns3::RipHeader::GetRteList(), InvalidateRoute(), m_interfaceExclusions, m_interfaceMetrics, m_linkDown, m_routes, m_timeoutDelay, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::RipRoutingTableEntry::RIP_VALID, ns3::Simulator::Schedule(), SendTriggeredRouteUpdate(), ns3::RipRoutingTableEntry::SetRouteChanged(), ns3::RipRoutingTableEntry::SetRouteMetric(), ns3::RipRoutingTableEntry::SetRouteStatus(), and ns3::RipRoutingTableEntry::SetRouteTag().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Rip::InvalidateRoute ( RipRoutingTableEntry * route )

private

Invalidate a route.

Parameters

route the route to be removed

Definition at line 671 of file rip.cc.

References DeleteRoute(), m_garbageCollectionDelay, m_linkDown, m_routes, NS_ABORT_MSG, NS_LOG_FUNCTION, ns3::RipRoutingTableEntry::RIP_INVALID, ns3::Simulator::Schedule(), ns3::RipRoutingTableEntry::SetRouteChanged(), ns3::RipRoutingTableEntry::SetRouteMetric(), and ns3::RipRoutingTableEntry::SetRouteStatus().

Referenced by HandleResponses(), NotifyInterfaceDown(), and NotifyRemoveAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Ipv4Route > ns3::Rip::Lookup	(	Ipv4Address	dest,
		Ptr< NetDevice >	interface = `0`
	)

private

Lookup in the forwarding table for destination.

Parameters

dest	destination address
interface	output interface if any (put 0 otherwise)

Returns: Ipv4Route to route the packet to reach dest address

Definition at line 573 of file rip.cc.

References ns3::Ipv4RoutingTableEntry::GetDest(), ns3::Ipv4Route::GetDestination(), ns3::Ipv4RoutingTableEntry::GetDestNetwork(), ns3::Ipv4RoutingTableEntry::GetDestNetworkMask(), ns3::Ipv4Route::GetGateway(), ns3::Ipv4RoutingTableEntry::GetGateway(), ns3::Ipv4RoutingTableEntry::GetInterface(), ns3::Ipv4Mask::GetPrefixLength(), ns3::RipRoutingTableEntry::GetRouteStatus(), ns3::Ipv4Address::GetZero(), ns3::Ipv4Address::IsAny(), ns3::Ipv4Address::IsLocalMulticast(), ns3::Ipv4Mask::IsMatch(), m_ipv4, m_routes, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::RipRoutingTableEntry::RIP_VALID, ns3::Ipv4Route::SetDestination(), ns3::Ipv4Route::SetGateway(), ns3::Ipv4Route::SetOutputDevice(), and ns3::Ipv4Route::SetSource().

Referenced by RouteInput(), and RouteOutput().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Rip::NotifyAddAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

virtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 402 of file rip.cc.

References AddNetworkRouteTo(), ns3::Ipv4Address::CombineMask(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), ns3::Ipv4InterfaceAddress::GetScope(), ns3::Ipv4InterfaceAddress::GLOBAL, m_interfaceExclusions, m_ipv4, NS_LOG_FUNCTION, and SendTriggeredRouteUpdate().

Here is the call graph for this function:

void ns3::Rip::NotifyInterfaceDown ( uint32_t interface )

virtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 371 of file rip.cc.

References InvalidateRoute(), m_interfaceExclusions, m_routes, m_sendSocketList, NS_LOG_FUNCTION, NS_LOG_INFO, and SendTriggeredRouteUpdate().

Referenced by SetIpv4().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Rip::NotifyInterfaceUp ( uint32_t interface )

virtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 290 of file rip.cc.

References AddNetworkRouteTo(), first::address, visualizer.higcontainer::check, ns3::Ipv4Address::CombineMask(), ns3::Socket::CreateSocket(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), ns3::Ipv4InterfaceAddress::GetScope(), ns3::Ipv4InterfaceAddress::GLOBAL, ns3::Ipv4InterfaceAddress::HOST, ns3::TypeId::LookupByName(), m_initialized, m_interfaceExclusions, m_ipv4, m_recvSocket, m_sendSocketList, ns3::MakeCallback(), NS_LOG_FUNCTION, NS_LOG_LOGIC, Receive(), RIP_ALL_NODE, RIP_PORT, and SendTriggeredRouteUpdate().

Referenced by SetIpv4().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Rip::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

virtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 427 of file rip.cc.

References ns3::Ipv4Address::CombineMask(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), ns3::Ipv4InterfaceAddress::GetScope(), ns3::Ipv4InterfaceAddress::GLOBAL, InvalidateRoute(), m_interfaceExclusions, m_ipv4, m_routes, NS_LOG_FUNCTION, and SendTriggeredRouteUpdate().

Here is the call graph for this function:

void ns3::Rip::PrintRoutingTable ( Ptr< OutputStreamWrapper > stream ) const

virtual

Print the Routing Table entries.

Parameters

stream the ostream the Routing table is printed to

Implements ns3::Ipv4RoutingProtocol.

Definition at line 485 of file rip.cc.

References ns3::Time::As(), ns3::Names::FindName(), ns3::Ipv4RoutingTableEntry::GetDest(), ns3::Ipv4RoutingTableEntry::GetDestNetworkMask(), ns3::Ipv4RoutingTableEntry::GetGateway(), ns3::Ipv4RoutingTableEntry::GetInterface(), ns3::RipRoutingTableEntry::GetRouteMetric(), ns3::RipRoutingTableEntry::GetRouteStatus(), ns3::OutputStreamWrapper::GetStream(), ns3::Ipv4RoutingTableEntry::IsGateway(), ns3::Ipv4RoutingTableEntry::IsHost(), m_ipv4, m_routes, ns3::Now(), NS_LOG_FUNCTION, ns3::RipRoutingTableEntry::RIP_VALID, and ns3::Time::S.

Here is the call graph for this function:

void ns3::Rip::Receive ( Ptr< Socket > socket )

private

Receive RIP packets.

Parameters

socket the socket the packet was received to.

Definition at line 710 of file rip.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::RipHeader::GetCommand(), ns3::Node::GetDevice(), ns3::InetSocketAddress::GetIpv4(), ns3::InetSocketAddress::GetPort(), ns3::Ipv4PacketInfoTag::GetRecvIf(), ns3::SocketIpTtlTag::GetTtl(), HandleRequests(), HandleResponses(), m_ipv4, NS_ABORT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Socket::RecvFrom(), ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), ns3::RipHeader::REQUEST, and ns3::RipHeader::RESPONSE.

Referenced by DoInitialize(), and NotifyInterfaceUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Rip::RecvMulticastRip ( Ptr< Socket > socket )

private

Receive and process multicast packet.

Parameters

socket socket where packet is arrived

void ns3::Rip::RecvUnicastRip ( Ptr< Socket > socket )

private

Receive and process unicast packet.

Parameters

socket socket where packet is arrived

bool ns3::Rip::RouteInput	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		Ptr< const NetDevice >	idev,
		UnicastForwardCallback	ucb,
		MulticastForwardCallback	mcb,
		LocalDeliverCallback	lcb,
		ErrorCallback	ecb
	)

virtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv4RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input(). There are four valid outcomes, and a matching callbacks to handle each.

Parameters

p	received packet
header	input parameter used to form a search key for a route
idev	Pointer to ingress network device
ucb	Callback for the case in which the packet is to be forwarded as unicast
mcb	Callback for the case in which the packet is to be forwarded as multicast
lcb	Callback for the case in which the packet is to be locally delivered
ecb	Callback to call if there is an error in forwarding

Returns: true if the Ipv4RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implements ns3::Ipv4RoutingProtocol.

Definition at line 216 of file rip.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetSource(), ns3::Ipv4Address::IsBroadcast(), ns3::Ipv4Address::IsMulticast(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), Lookup(), m_ipv4, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

Ptr< Ipv4Route > ns3::Rip::RouteOutput	(	Ptr< Packet >	p,
		const Ipv4Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)

virtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output()

The header input parameter may have an uninitialized value for the source address, but the destination address should always be properly set by the caller.

Parameters

p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header	input parameter (used to form key to search for the route)
oif	Output interface Netdevice. May be zero, or may be bound via socket options to a particular output interface.
sockerr	Output parameter; socket errno
