This queue implements the timeout procedure described in (Section 9.19.2.6 "Retransmit procedures" paragraph 6; IEEE 802.11-2012). More...

#include "wifi-mac-queue.h"

Inheritance diagram for ns3::WifiMacQueue:

Collaboration diagram for ns3::WifiMacQueue:

Classes
struct	Item
	A struct that holds information about a packet for putting in a packet queue. More...

Public Types
enum	DropPolicy { DROP_NEWEST, DROP_OLDEST }

Public Member Functions
	WifiMacQueue ()

	~WifiMacQueue ()

Ptr< const Packet >	Dequeue (WifiMacHeader *hdr)
	Dequeue the packet in the front of the queue. More...

Ptr< const Packet >	DequeueByTidAndAddress (WifiMacHeader *hdr, uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr)
	Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid. More...

Ptr< const Packet >	DequeueFirstAvailable (WifiMacHeader hdr, Time &tStamp, const QosBlockedDestinations blockedPackets)
	Returns first available packet for transmission. More...

void	Enqueue (Ptr< const Packet > packet, const WifiMacHeader &hdr)
	Enqueue the given packet and its corresponding WifiMacHeader at the end of the queue. More...

void	Flush (void)
	Flush the queue. More...

Time	GetMaxDelay (void) const
	Return the maximum delay before the packet is discarded. More...

uint32_t	GetMaxSize (void) const
	Return the maximum queue size. More...

uint32_t	GetNPacketsByTidAndAddress (uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr)
	Returns number of QoS packets having tid equals to tid and address specified by type equals to addr. More...

uint32_t	GetSize (void)
	Return the current queue size. More...

bool	IsEmpty (void)
	Return if the queue is empty. More...

Ptr< const Packet >	Peek (WifiMacHeader *hdr)
	Peek the packet in the front of the queue. More...

Ptr< const Packet >	PeekByTidAndAddress (WifiMacHeader hdr, uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr, Time timestamp)
	Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid. More...

Ptr< const Packet >	PeekFirstAvailable (WifiMacHeader hdr, Time &tStamp, const QosBlockedDestinations blockedPackets)
	Returns first available packet for transmission. More...

void	PushFront (Ptr< const Packet > packet, const WifiMacHeader &hdr)
	Enqueue the given packet and its corresponding WifiMacHeader at the front of the queue. More...

bool	Remove (Ptr< const Packet > packet)
	If exists, removes packet from queue and returns true. More...

void	SetMaxDelay (Time delay)
	Set the maximum delay before the packet is discarded. More...

void	SetMaxSize (uint32_t maxSize)
	Set the maximum queue size. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Types
typedef std::list< struct Item >	PacketQueue
	typedef for packet (struct Item) queue. More...

typedef std::list< struct Item >::iterator	PacketQueueI
	typedef for packet (struct Item) queue iterator. More...

typedef std::list< struct Item >::reverse_iterator	PacketQueueRI
	typedef for packet (struct Item) queue reverse iterator. More...

Protected Member Functions
virtual void	Cleanup (void)
	Clean up the queue by removing packets that exceeded the maximum delay. More...

Mac48Address	GetAddressForPacket (enum WifiMacHeader::AddressType type, PacketQueueI it)
	Return the appropriate address for the given packet (given by PacketQueue iterator). More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
enum DropPolicy	m_dropPolicy
	Drop behavior of queue. More...

Time	m_maxDelay
	Time to live for packets in the queue. More...

uint32_t	m_maxSize
	Queue capacity. More...

PacketQueue	m_queue
	Packet (struct Item) queue. More...

uint32_t	m_size
	Current queue size. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This queue implements the timeout procedure described in (Section 9.19.2.6 "Retransmit procedures" paragraph 6; IEEE 802.11-2012).

When a packet is received by the MAC, to be sent to the PHY, it is queued in the internal queue after being tagged by the current time.

When a packet is dequeued, the queue checks its timestamp to verify whether or not it should be dropped. If dot11EDCATableMSDULifetime has elapsed, it is dropped. Otherwise, it is returned to the caller.

Config Paths

ns3::WifiMacQueue is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/DcaTxop/Queue"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VO_EdcaTxopN/Queue"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VI_EdcaTxopN/Queue"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BE_EdcaTxopN/Queue"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BK_EdcaTxopN/Queue"

Attributes

MaxPacketNumber: If a packet arrives when there are already this number of packets, it is dropped.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 400
- Flags: construct write read
MaxDelay: If a packet stays longer than this delay in the queue, it is dropped.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
DropPolicy: Upon enqueue with full queue, drop oldest (DropOldest) or newest (DropNewest) packet
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: DropNewest
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 51 of file wifi-mac-queue.h.

Member Typedef Documentation

typedef std::list<struct Item> ns3::WifiMacQueue::PacketQueue

protected

typedef for packet (struct Item) queue.

Definition at line 257 of file wifi-mac-queue.h.

typedef std::list<struct Item>::iterator ns3::WifiMacQueue::PacketQueueI

protected

typedef for packet (struct Item) queue iterator.

Definition at line 265 of file wifi-mac-queue.h.

typedef std::list<struct Item>::reverse_iterator ns3::WifiMacQueue::PacketQueueRI

protected

typedef for packet (struct Item) queue reverse iterator.

Definition at line 261 of file wifi-mac-queue.h.

Constructor & Destructor Documentation

ns3::WifiMacQueue::WifiMacQueue ( )

Definition at line 67 of file wifi-mac-queue.cc.

ns3::WifiMacQueue::~WifiMacQueue ( )

Definition at line 72 of file wifi-mac-queue.cc.

References Flush().

Here is the call graph for this function:

Member Function Documentation

void ns3::WifiMacQueue::Cleanup ( void )

protectedvirtual

Clean up the queue by removing packets that exceeded the maximum delay.

Definition at line 123 of file wifi-mac-queue.cc.

References m_maxDelay, m_queue, m_size, and ns3::Simulator::Now().

Referenced by Dequeue(), DequeueByTidAndAddress(), DequeueFirstAvailable(), Enqueue(), GetNPacketsByTidAndAddress(), GetSize(), IsEmpty(), Peek(), PeekByTidAndAddress(), PeekFirstAvailable(), and PushFront().

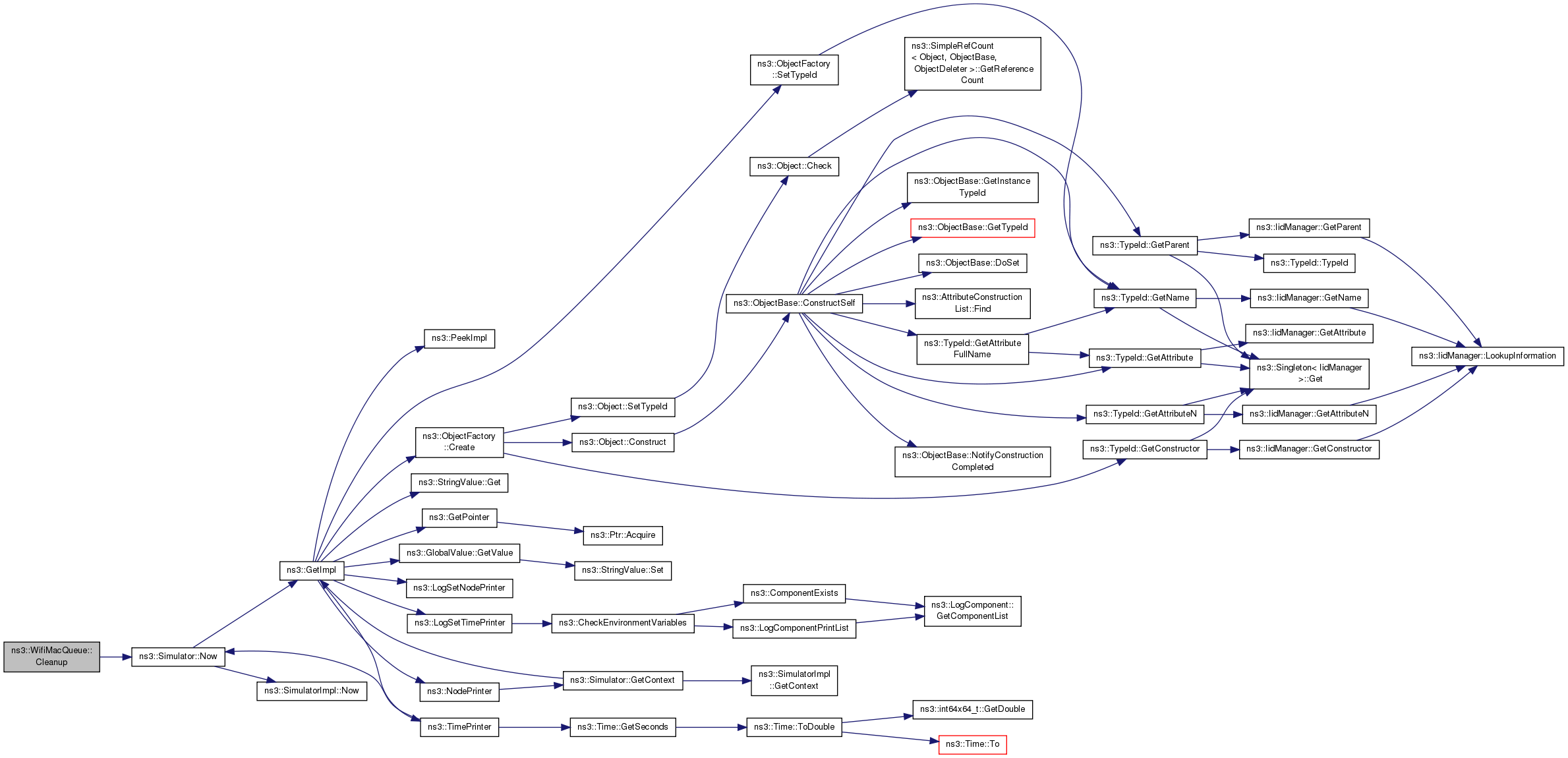

Here is the call graph for this function:

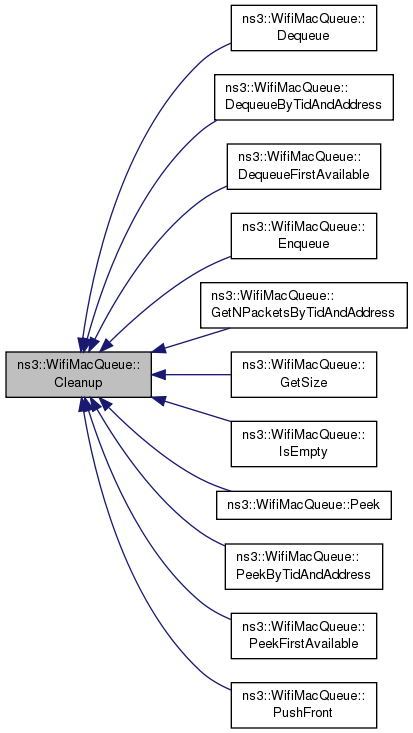

Here is the caller graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::Dequeue ( WifiMacHeader * hdr )

Dequeue the packet in the front of the queue.

Parameters

hdr	the WifiMacHeader of the packet

Returns: the packet

Definition at line 148 of file wifi-mac-queue.cc.

References Cleanup(), ns3::WifiMacQueue::Item::hdr, m_queue, m_size, and ns3::WifiMacQueue::Item::packet.

Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::DequeueByTidAndAddress	(	WifiMacHeader *	hdr,
		uint8_t	tid,
		WifiMacHeader::AddressType	type,
		Mac48Address	addr
	)

Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid.

This method removes the packet from this queue. Is typically used by ns3::EdcaTxopN in order to perform correct MSDU aggregation (A-MSDU).

Parameters

hdr	the header of the dequeued packet
tid	the given TID
type	the given address type
addr	the given destination

Returns: packet

Definition at line 176 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), m_queue, and m_size.

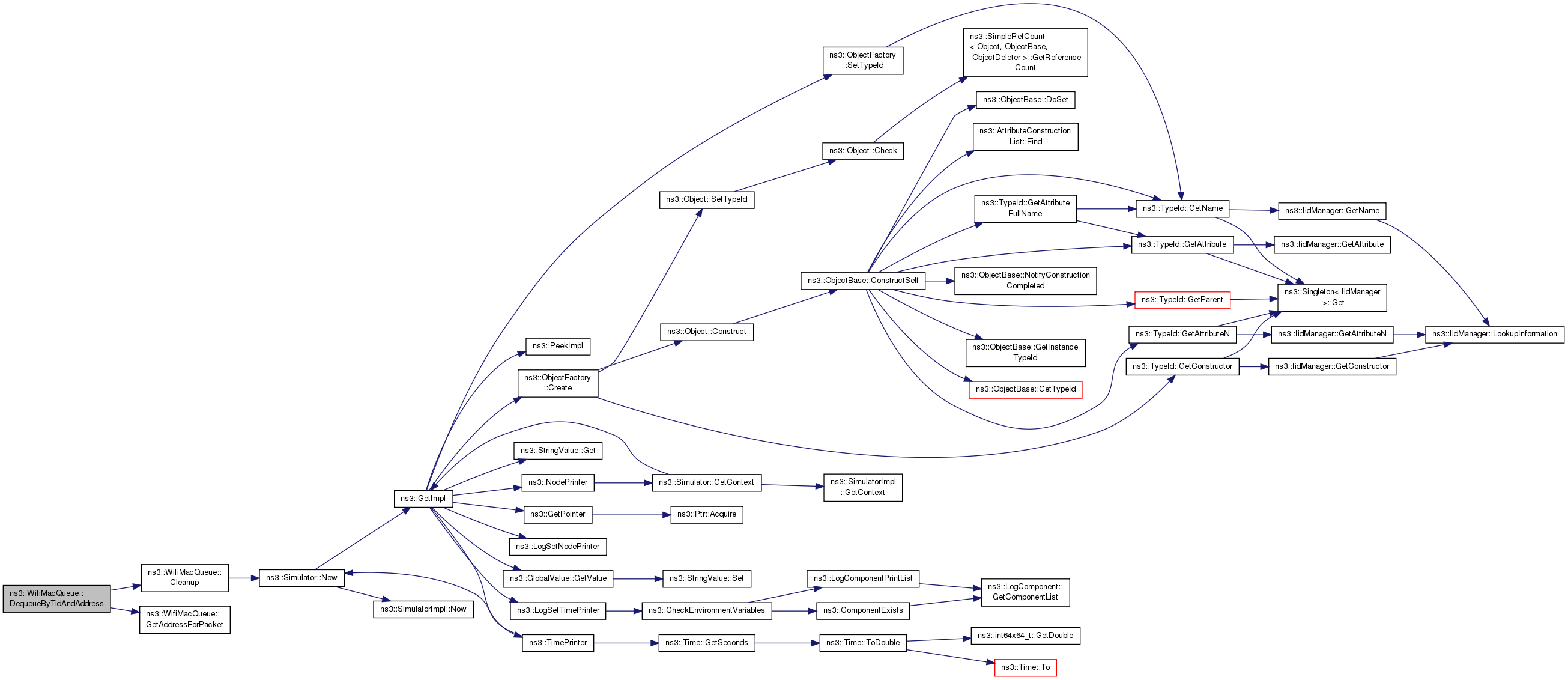

Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::DequeueFirstAvailable	(	WifiMacHeader *	hdr,
		Time &	tStamp,
		const QosBlockedDestinations *	blockedPackets
	)

Returns first available packet for transmission.

A packet could be no available if it's a QoS packet with a tid and an address1 fields equal to tid and addr respectively that index a pending agreement in the BlockAckManager object. So that packet must not be transmitted until reception of an ADDBA response frame from station addressed by addr. This method removes the packet from queue.

Parameters

hdr	the header of the dequeued packet
tStamp
blockedPackets

Returns: packet

Definition at line 320 of file wifi-mac-queue.cc.

References Cleanup(), ns3::QosBlockedDestinations::IsBlocked(), m_queue, and m_size.

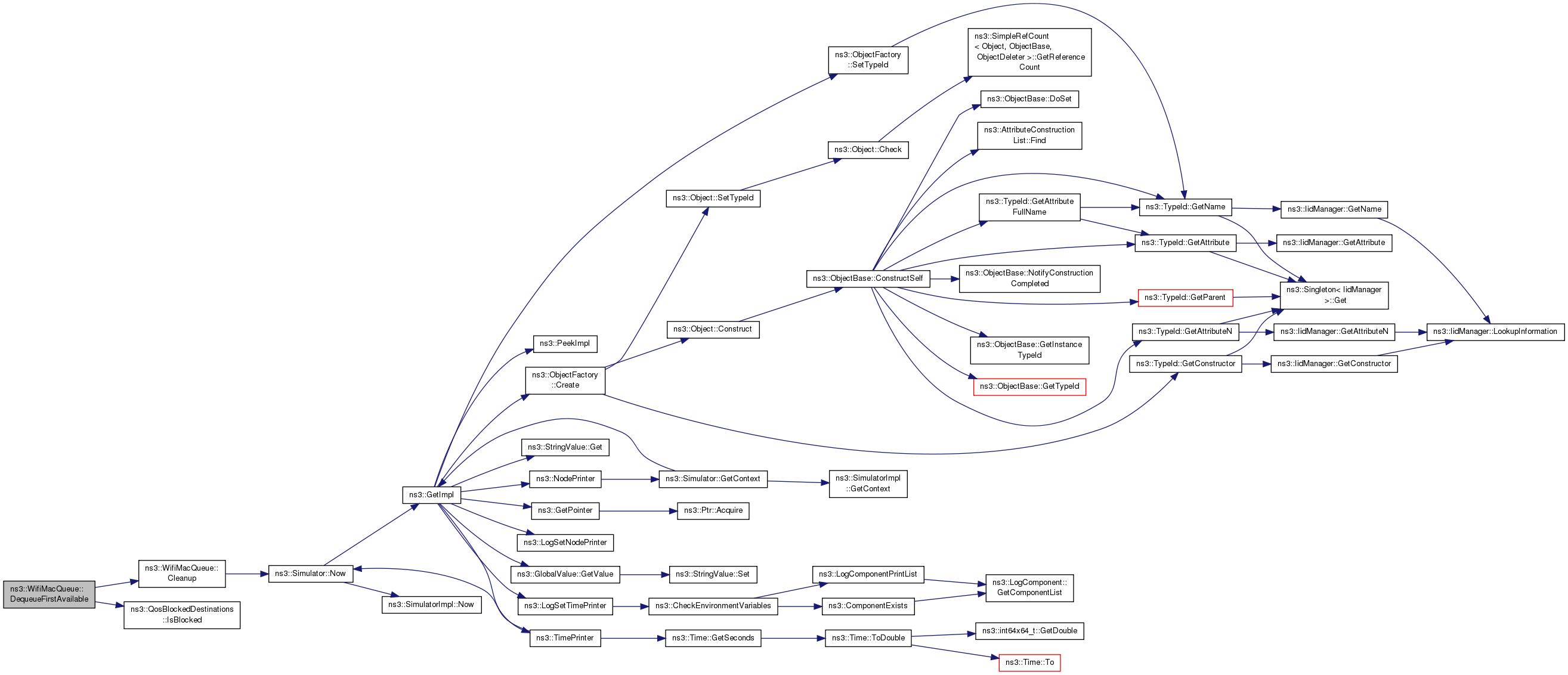

Here is the call graph for this function:

void ns3::WifiMacQueue::Enqueue	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Enqueue the given packet and its corresponding WifiMacHeader at the end of the queue.

Parameters

packet	the packet to be euqueued at the end
hdr	the header of the given packet

Definition at line 102 of file wifi-mac-queue.cc.

References Cleanup(), DROP_NEWEST, DROP_OLDEST, m_dropPolicy, m_maxSize, m_queue, m_size, and ns3::Simulator::Now().

Here is the call graph for this function:

void ns3::WifiMacQueue::Flush ( void )

Flush the queue.

Definition at line 243 of file wifi-mac-queue.cc.

References m_queue, and m_size.

Referenced by ~WifiMacQueue().

Here is the caller graph for this function:

Mac48Address ns3::WifiMacQueue::GetAddressForPacket	(	enum WifiMacHeader::AddressType	type,
		PacketQueueI	it
	)

protected

Return the appropriate address for the given packet (given by PacketQueue iterator).

Parameters

type
it

Returns: the address

Definition at line 250 of file wifi-mac-queue.cc.

References ns3::WifiMacHeader::ADDR1, ns3::WifiMacHeader::ADDR2, and ns3::WifiMacHeader::ADDR3.

Referenced by DequeueByTidAndAddress(), GetNPacketsByTidAndAddress(), and PeekByTidAndAddress().

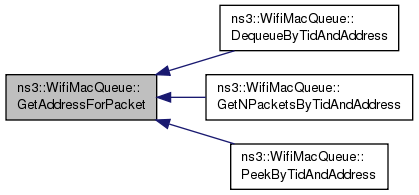

Here is the caller graph for this function:

Time ns3::WifiMacQueue::GetMaxDelay ( void ) const

Return the maximum delay before the packet is discarded.

Returns: the maximum delay

Definition at line 96 of file wifi-mac-queue.cc.

References m_maxDelay.

uint32_t ns3::WifiMacQueue::GetMaxSize ( void ) const

Return the maximum queue size.

Returns: the maximum queue size

Definition at line 90 of file wifi-mac-queue.cc.

References m_maxSize.

uint32_t ns3::WifiMacQueue::GetNPacketsByTidAndAddress	(	uint8_t	tid,
		WifiMacHeader::AddressType	type,
		Mac48Address	addr
	)

Returns number of QoS packets having tid equals to tid and address specified by type equals to addr.

Parameters

tid	the given TID
type	the given address type
addr	the given destination

Returns: the number of QoS packets

Definition at line 297 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), and m_queue.

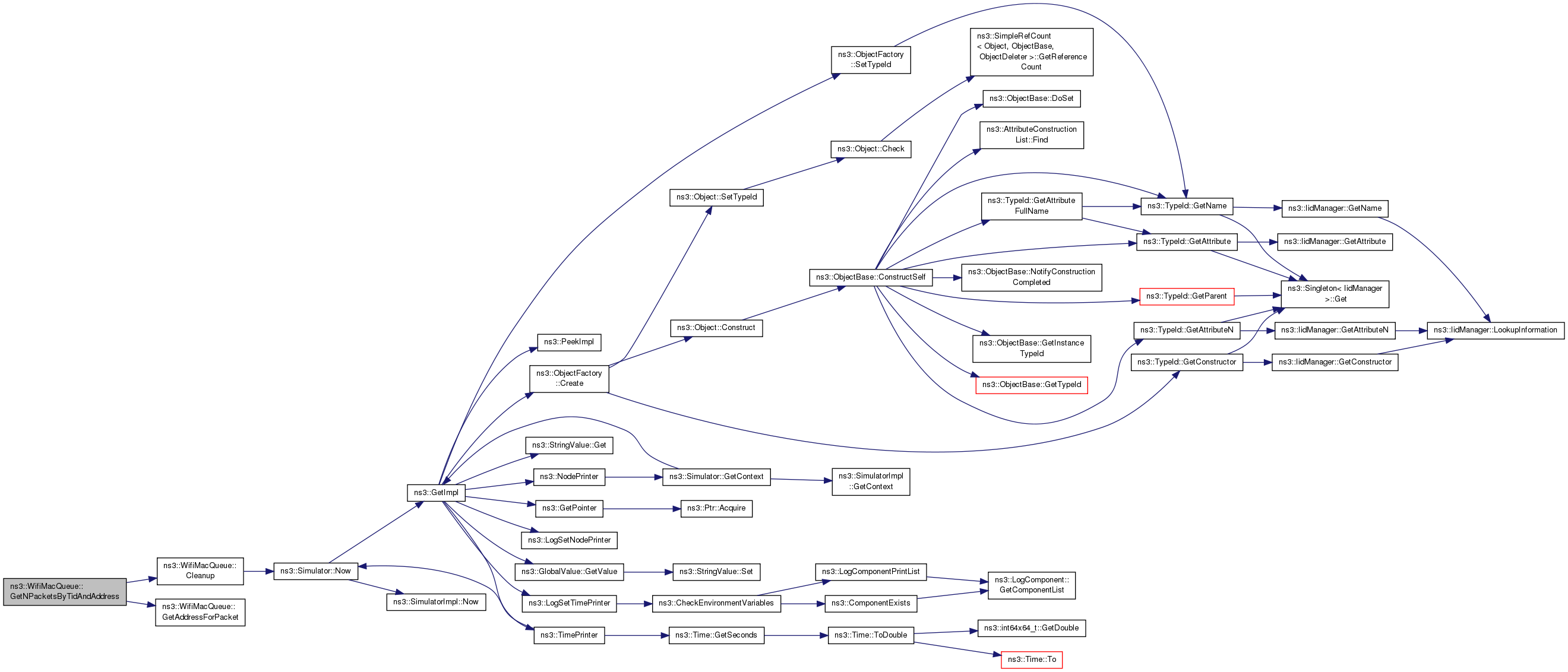

Here is the call graph for this function:

uint32_t ns3::WifiMacQueue::GetSize ( void )

Return the current queue size.

Returns: the current queue size

Definition at line 236 of file wifi-mac-queue.cc.

References Cleanup(), and m_size.

Here is the call graph for this function:

TypeId ns3::WifiMacQueue::GetTypeId ( void )

static

Definition at line 44 of file wifi-mac-queue.cc.

References DROP_NEWEST, DROP_OLDEST, m_dropPolicy, m_maxDelay, m_maxSize, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), and ns3::TypeId::SetParent().

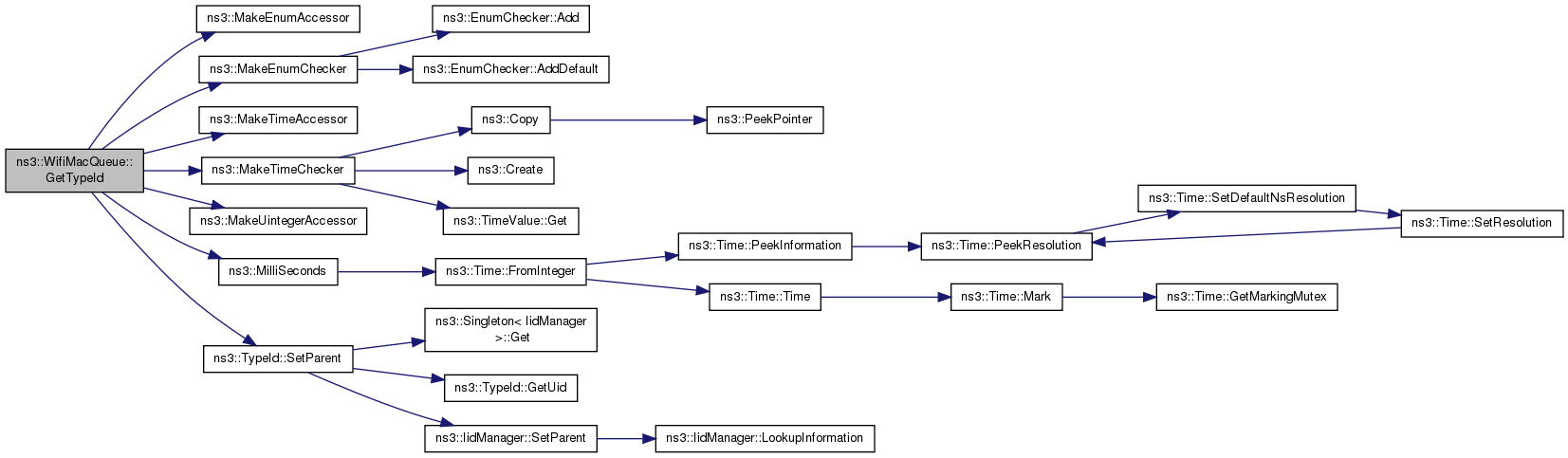

Here is the call graph for this function:

bool ns3::WifiMacQueue::IsEmpty ( void )

Return if the queue is empty.

Returns: true if the queue is empty, false otherwise

Definition at line 229 of file wifi-mac-queue.cc.

References Cleanup(), and m_queue.

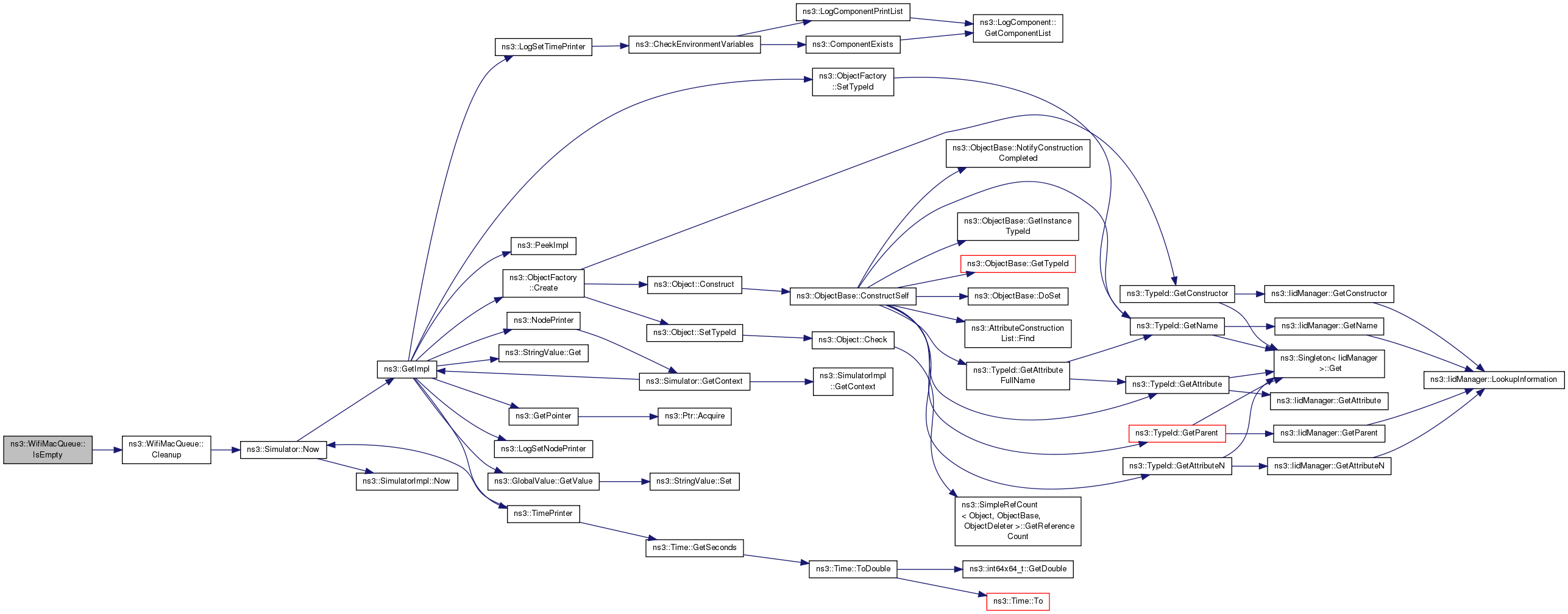

Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::Peek ( WifiMacHeader * hdr )

Peek the packet in the front of the queue.

The packet is not removed.

Parameters

hdr	the WifiMacHeader of the packet

Returns: the packet

Definition at line 163 of file wifi-mac-queue.cc.

References Cleanup(), ns3::WifiMacQueue::Item::hdr, m_queue, and ns3::WifiMacQueue::Item::packet.

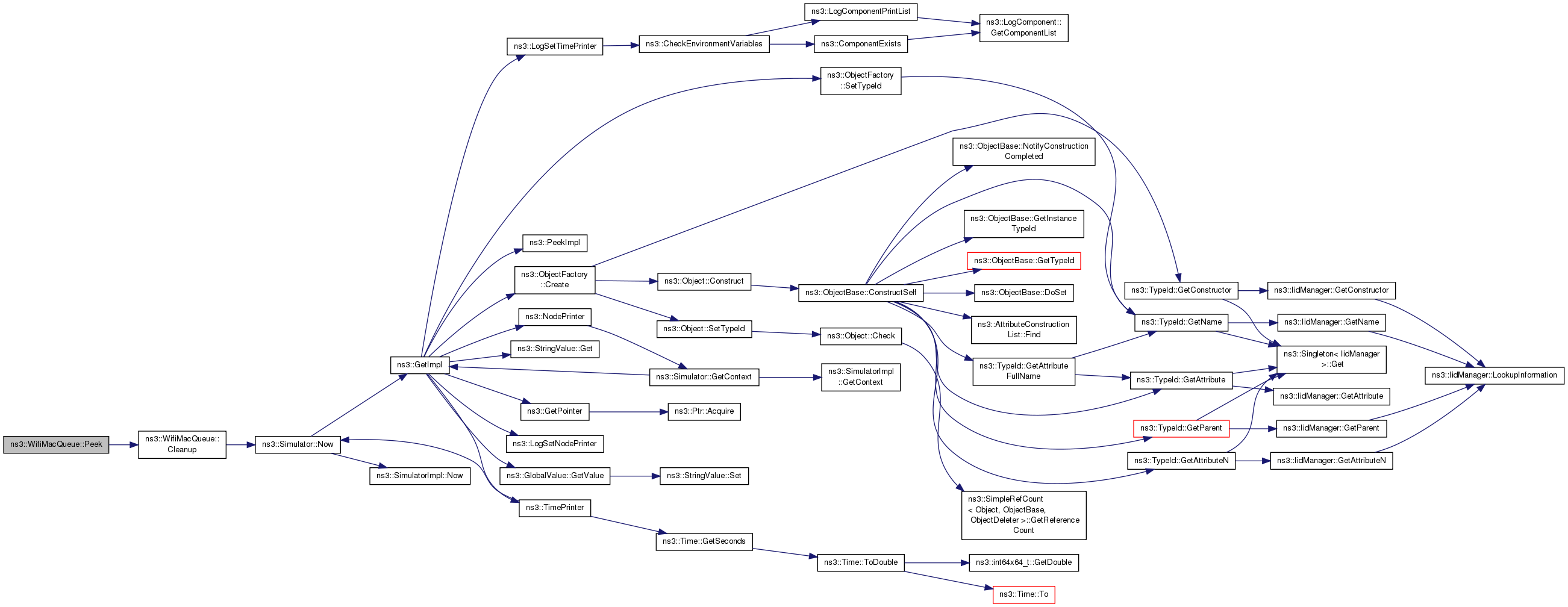

Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::PeekByTidAndAddress	(	WifiMacHeader *	hdr,
		uint8_t	tid,
		WifiMacHeader::AddressType	type,
		Mac48Address	addr,
		Time *	timestamp
	)

Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid.

This method doesn't remove the packet from this queue. Is typically used by ns3::EdcaTxopN in order to perform correct MSDU aggregation (A-MSDU).

Parameters

hdr	the header of the dequeued packet
tid	the given TID
type	the given address type
addr	the given destination
timestamp

Returns: packet

Definition at line 204 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), and m_queue.

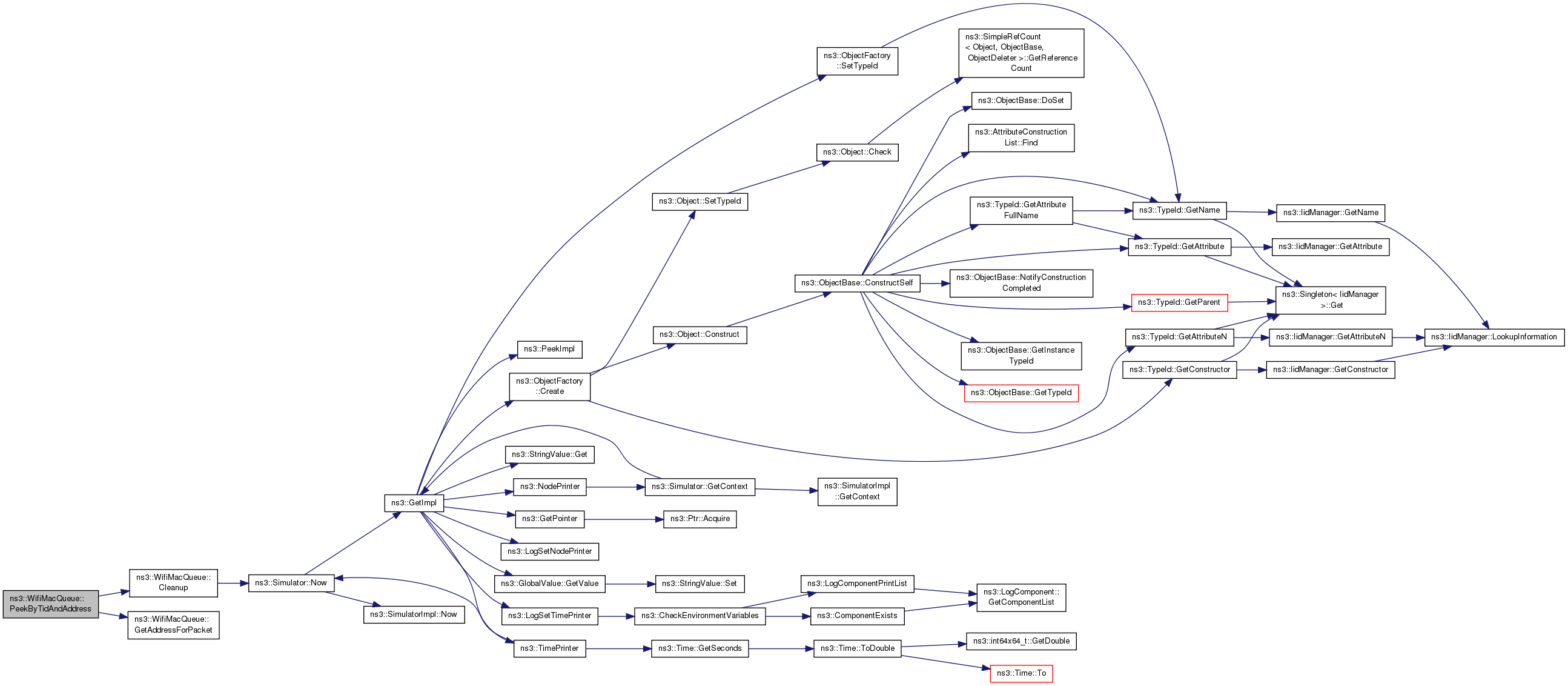

Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::PeekFirstAvailable	(	WifiMacHeader *	hdr,
		Time &	tStamp,
		const QosBlockedDestinations *	blockedPackets
	)

Returns first available packet for transmission.

The packet isn't removed from queue.

Parameters

hdr	the header of the dequeued packet
tStamp
blockedPackets

Returns: packet

Definition at line 342 of file wifi-mac-queue.cc.

References Cleanup(), ns3::QosBlockedDestinations::IsBlocked(), and m_queue.

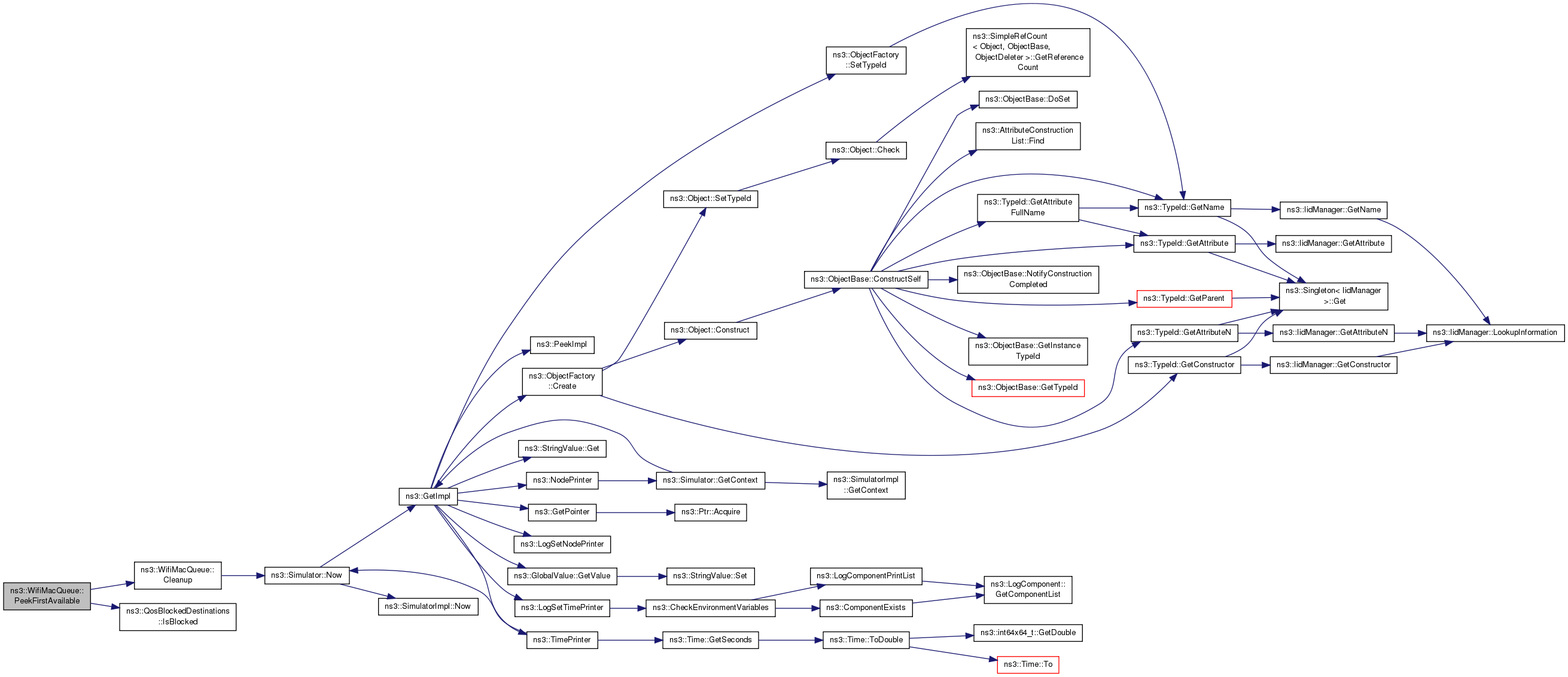

Here is the call graph for this function:

void ns3::WifiMacQueue::PushFront	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Enqueue the given packet and its corresponding WifiMacHeader at the front of the queue.

Parameters

packet	the packet to be euqueued at the end
hdr	the header of the given packet

Definition at line 284 of file wifi-mac-queue.cc.

References Cleanup(), m_maxSize, m_queue, m_size, and ns3::Simulator::Now().

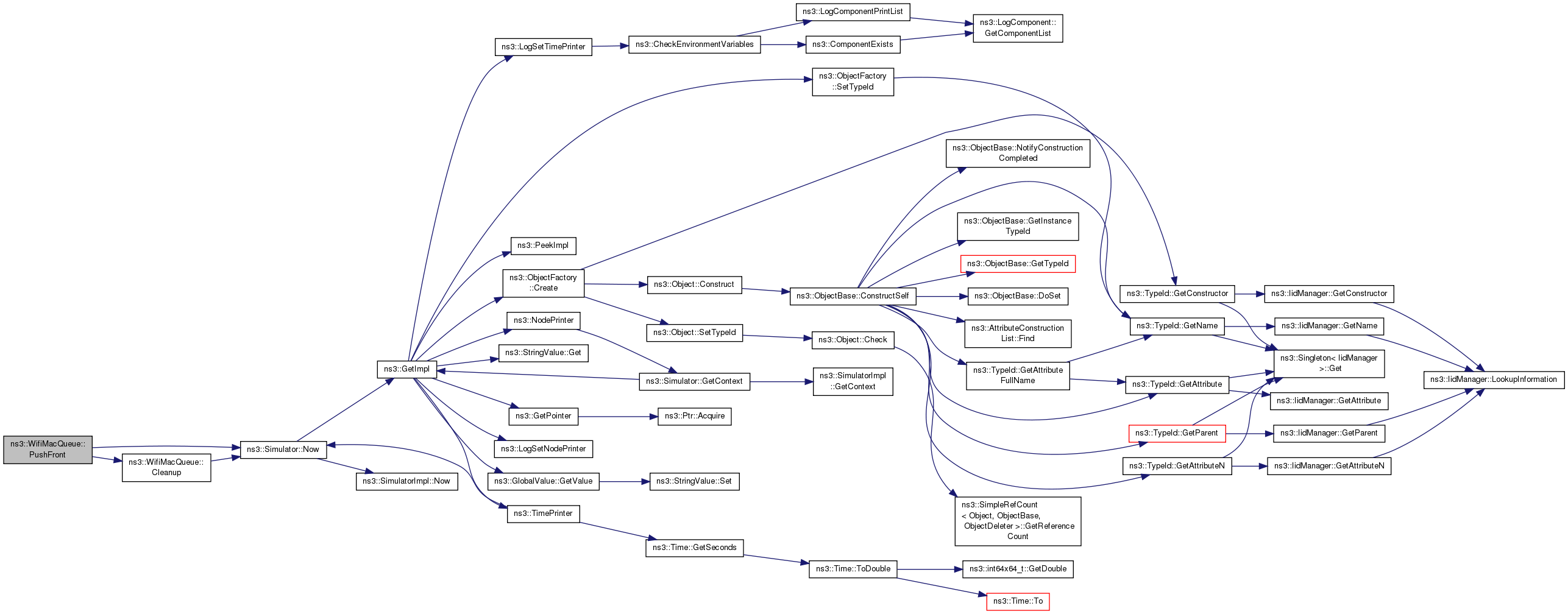

Here is the call graph for this function:

bool ns3::WifiMacQueue::Remove ( Ptr< const Packet > packet )

If exists, removes packet from queue and returns true.

Otherwise it takes no effects and return false. Deletion of the packet is performed in linear time (O(n)).

Parameters

packet the packet to be removed

Returns: true if the packet was removed, false otherwise

Definition at line 268 of file wifi-mac-queue.cc.

References m_queue, and m_size.

void ns3::WifiMacQueue::SetMaxDelay ( Time delay )

Set the maximum delay before the packet is discarded.

Parameters

delay the maximum delay

Definition at line 84 of file wifi-mac-queue.cc.

References m_maxDelay.

void ns3::WifiMacQueue::SetMaxSize ( uint32_t maxSize )

Set the maximum queue size.

Parameters

maxSize the maximum queue size

Definition at line 78 of file wifi-mac-queue.cc.

References m_maxSize.

Member Data Documentation

enum DropPolicy ns3::WifiMacQueue::m_dropPolicy

protected

Drop behavior of queue.

Definition at line 280 of file wifi-mac-queue.h.

Referenced by Enqueue(), and GetTypeId().

Time ns3::WifiMacQueue::m_maxDelay

protected

Time to live for packets in the queue.

Definition at line 279 of file wifi-mac-queue.h.

Referenced by Cleanup(), GetMaxDelay(), GetTypeId(), and SetMaxDelay().

uint32_t ns3::WifiMacQueue::m_maxSize

protected

Queue capacity.

Definition at line 278 of file wifi-mac-queue.h.

Referenced by Enqueue(), GetMaxSize(), GetTypeId(), PushFront(), and SetMaxSize().

PacketQueue ns3::WifiMacQueue::m_queue

protected

Packet (struct Item) queue.

Definition at line 276 of file wifi-mac-queue.h.

Referenced by Cleanup(), Dequeue(), DequeueByTidAndAddress(), DequeueFirstAvailable(), Enqueue(), Flush(), GetNPacketsByTidAndAddress(), IsEmpty(), Peek(), PeekByTidAndAddress(), PeekFirstAvailable(), PushFront(), and Remove().

uint32_t ns3::WifiMacQueue::m_size

protected

Current queue size.

Definition at line 277 of file wifi-mac-queue.h.

Referenced by Cleanup(), Dequeue(), DequeueByTidAndAddress(), DequeueFirstAvailable(), Enqueue(), Flush(), GetSize(), PushFront(), and Remove().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mac-queue.h
src/wifi/model/wifi-mac-queue.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
