802.11 PHY layer modelThis PHY implements a model of 802.11a. More...

#include "yans-wifi-phy.h"

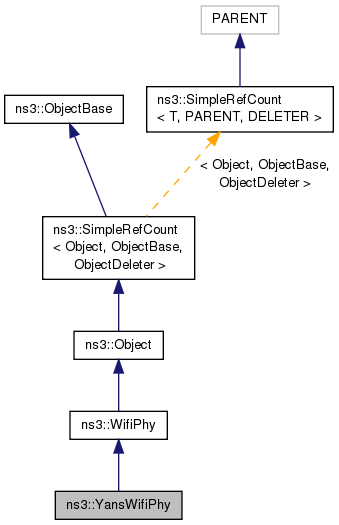

Inheritance diagram for ns3::YansWifiPhy:

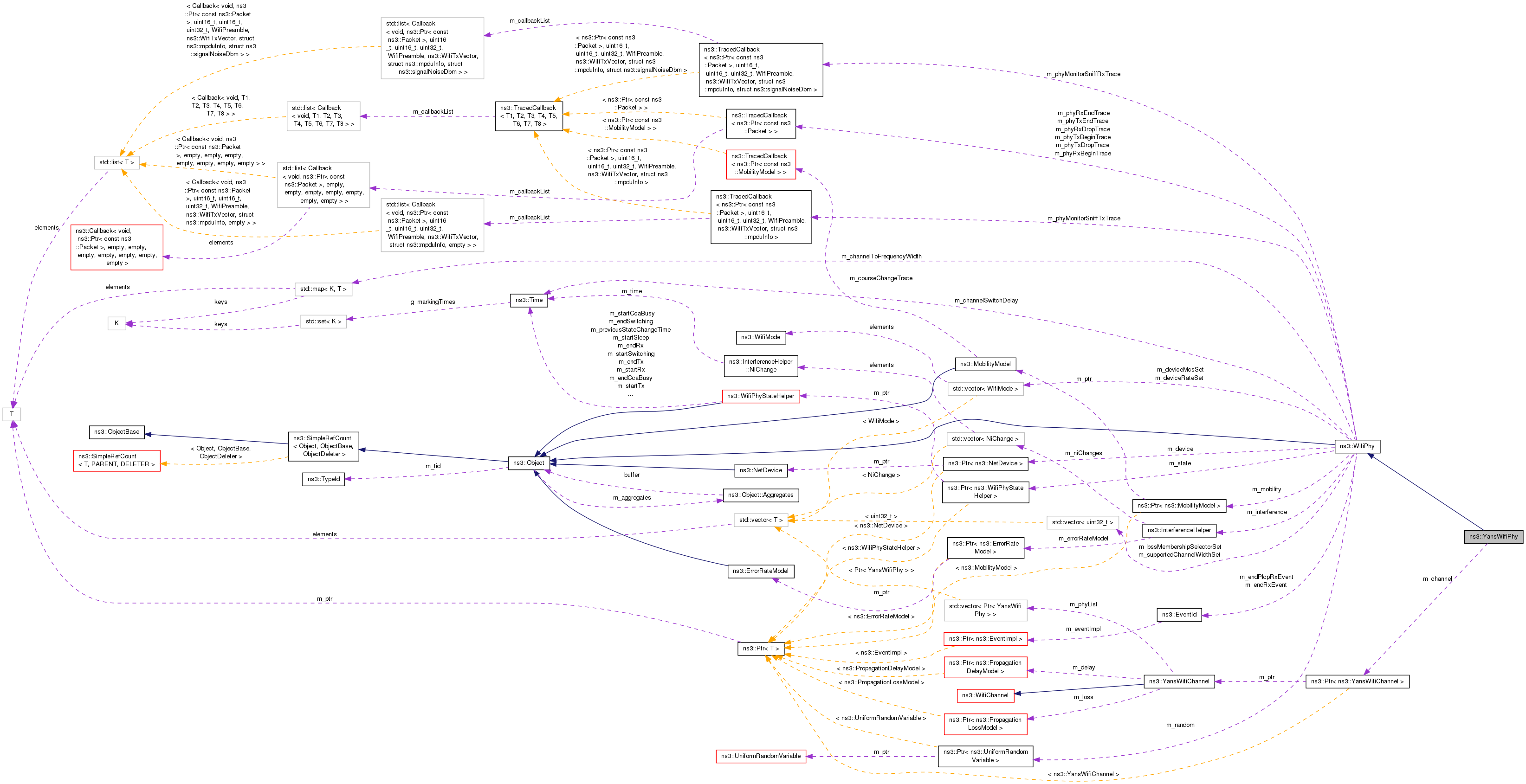

Collaboration diagram for ns3::YansWifiPhy:

Public Member Functions
	YansWifiPhy ()

virtual	~YansWifiPhy ()

virtual Ptr< WifiChannel >	GetChannel (void) const
	Return the WifiChannel this WifiPhy is connected to. More...

virtual void	RegisterListener (WifiPhyListener *listener)

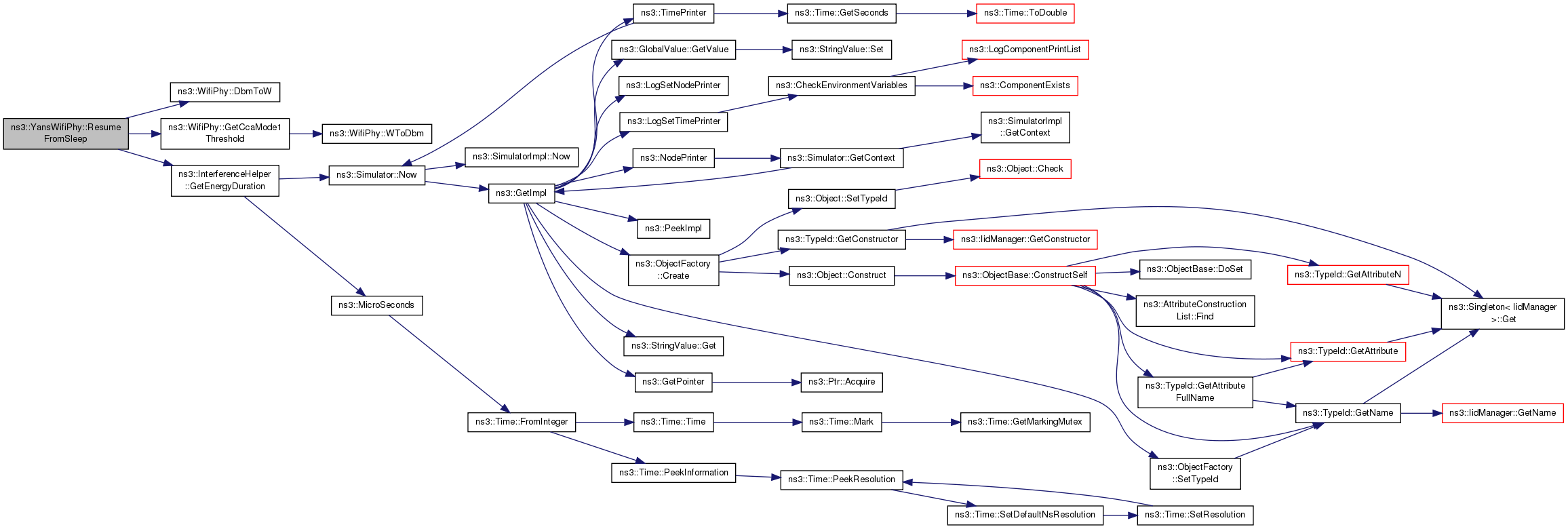

virtual void	ResumeFromSleep (void)
	Resume from sleep mode. More...

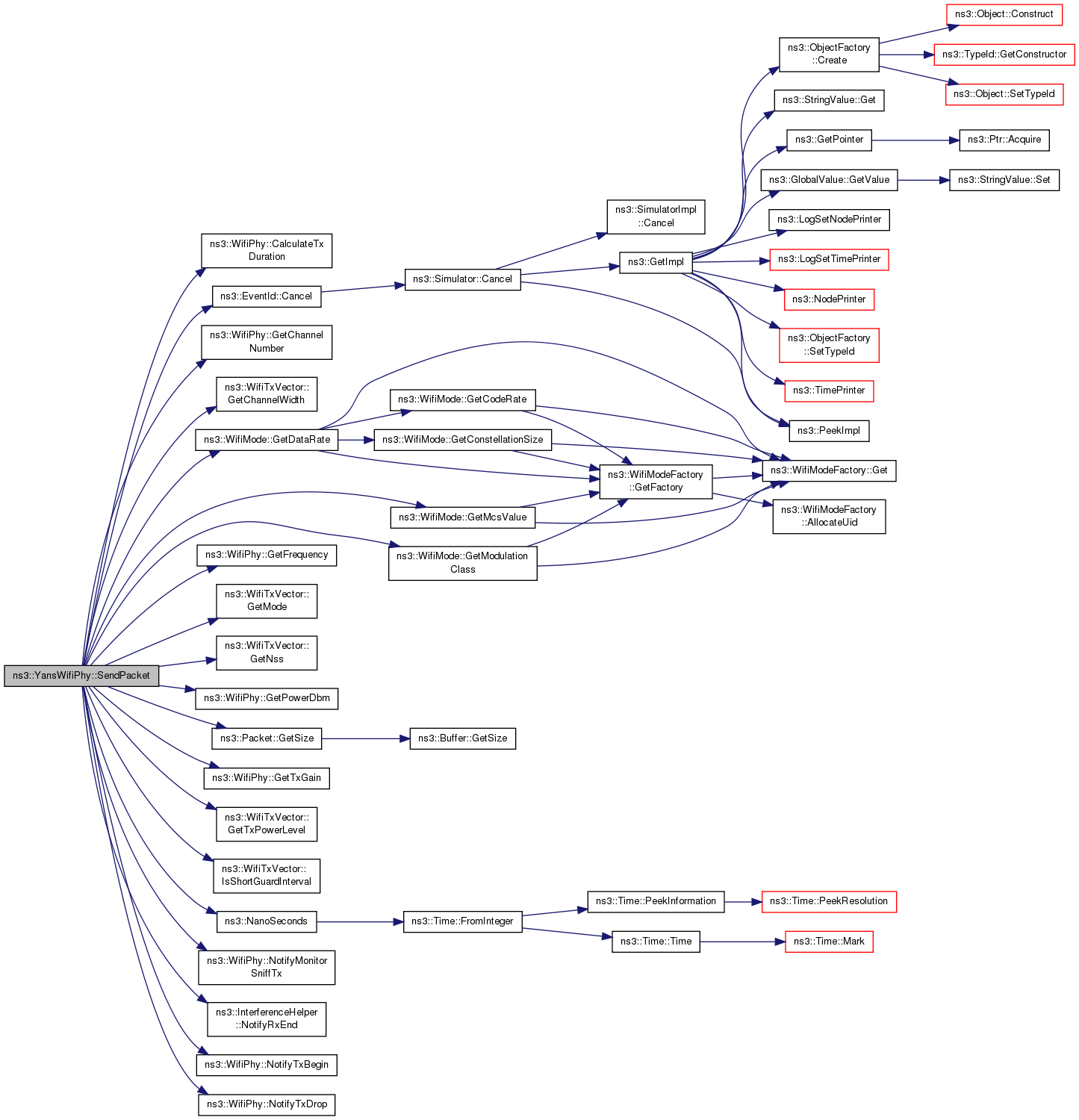

virtual void	SendPacket (Ptr< const Packet > packet, WifiTxVector txVector, enum WifiPreamble preamble)

virtual void	SendPacket (Ptr< const Packet > packet, WifiTxVector txVector, enum WifiPreamble preamble, enum mpduType mpdutype)

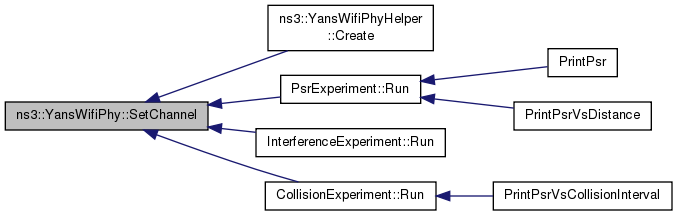

void	SetChannel (Ptr< YansWifiChannel > channel)
	Set the YansWifiChannel this YansWifiPhy is to be connected to. More...

virtual void	SetReceiveErrorCallback (WifiPhy::RxErrorCallback callback)

virtual void	SetReceiveOkCallback (WifiPhy::RxOkCallback callback)

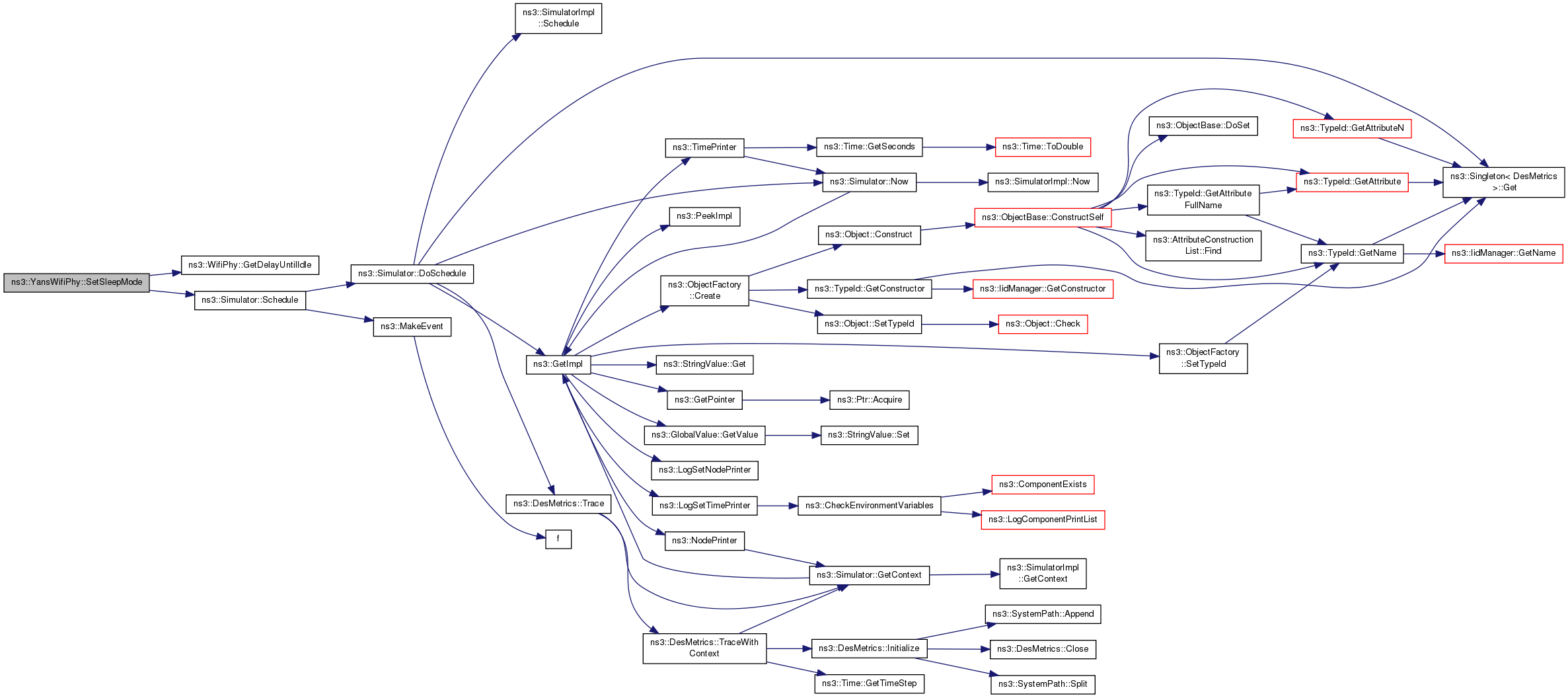

virtual void	SetSleepMode (void)
	Put in sleep mode. More...

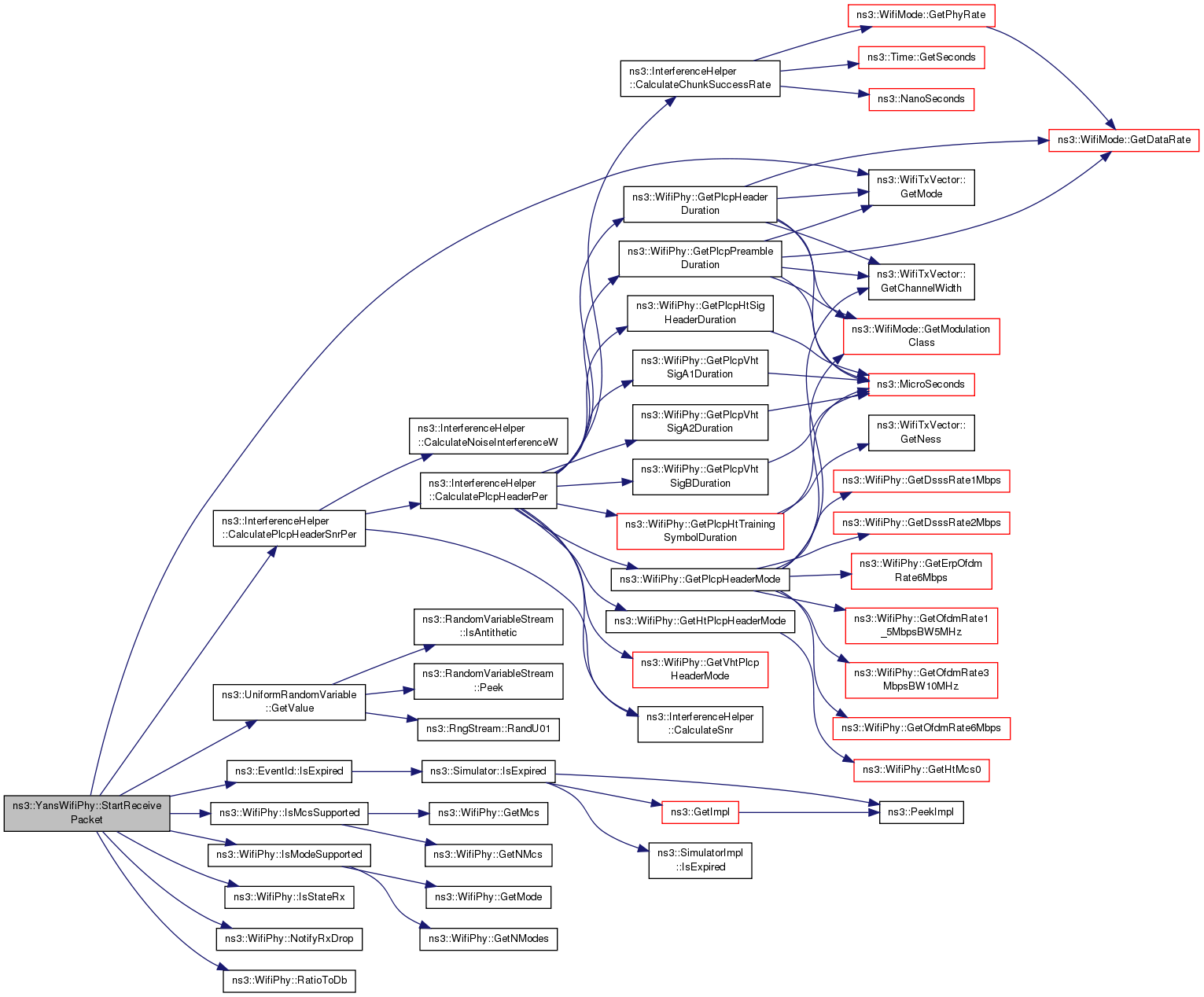

void	StartReceivePacket (Ptr< Packet > packet, WifiTxVector txVector, WifiPreamble preamble, enum mpduType mpdutype, Ptr< InterferenceHelper::Event > event)
	Starting receiving the payload of a packet (i.e. More...

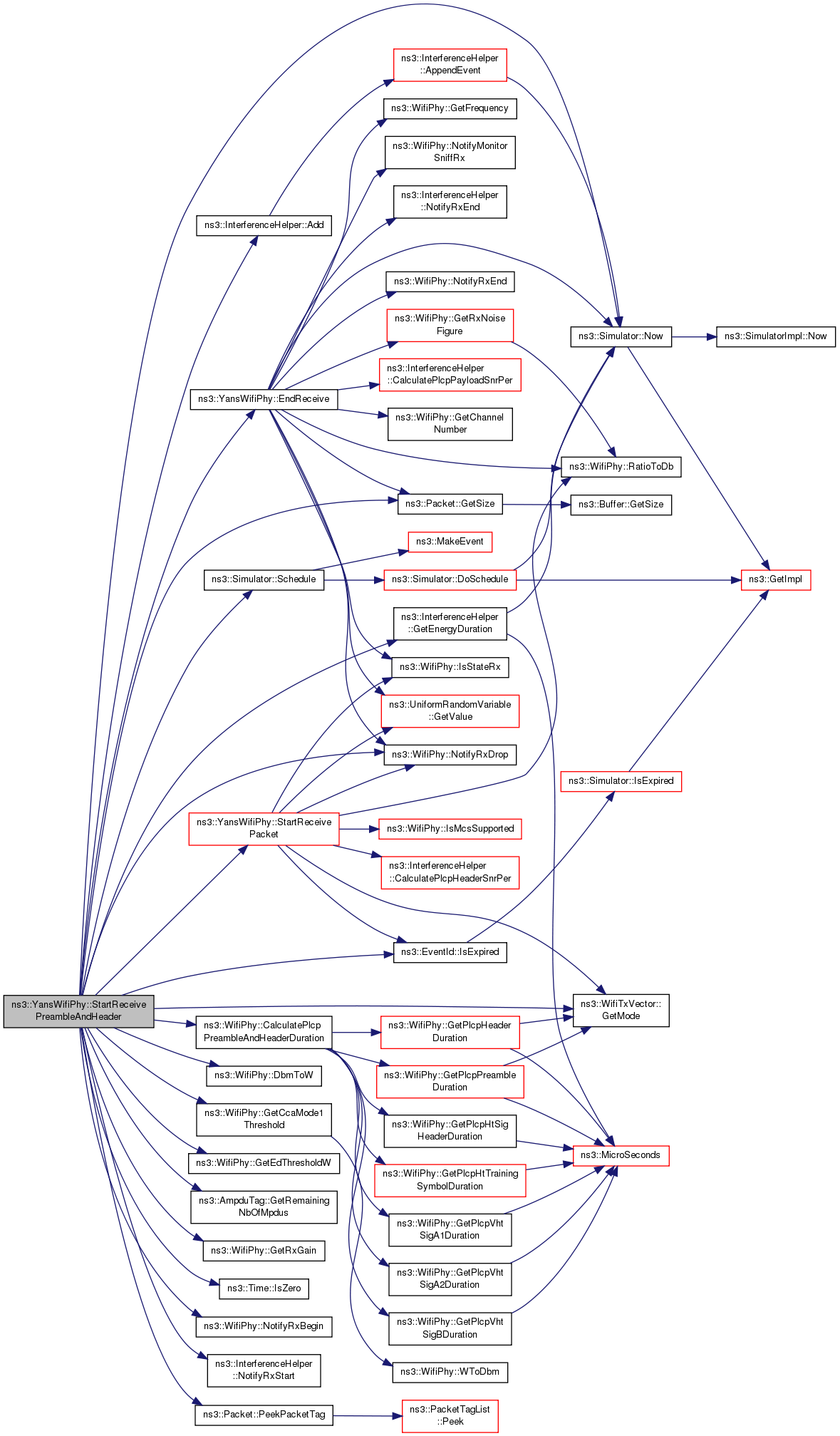

void	StartReceivePreambleAndHeader (Ptr< Packet > packet, double rxPowerDbm, WifiTxVector txVector, WifiPreamble preamble, enum mpduType mpdutype, Time rxDuration)
	Starting receiving the plcp of a packet (i.e. More...

virtual void	UnregisterListener (WifiPhyListener *listener)

Public Member Functions inherited from ns3::WifiPhy
	WifiPhy ()

virtual	~WifiPhy ()

virtual void	AddSupportedChannelWidth (uint32_t channelwidth)

virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

Time	CalculatePlcpPreambleAndHeaderDuration (WifiTxVector txVector, enum WifiPreamble preamble)

virtual double	CalculateSnr (WifiTxVector txVector, double ber) const

Time	CalculateTxDuration (uint32_t size, WifiTxVector txVector, enum WifiPreamble preamble, double frequency)

Time	CalculateTxDuration (uint32_t size, WifiTxVector txVector, enum WifiPreamble preamble, double frequency, enum mpduType mpdutype, uint8_t incFlag)

virtual void	ConfigureStandard (enum WifiPhyStandard standard)
	Configure the PHY-level parameters for different Wi-Fi standard. More...

double	DbmToW (double dbm) const
	Convert from dBm to Watts. More...

double	DbToRatio (double db) const
	Convert from dB to ratio. More...

bool	DefineChannelNumber (uint16_t channelNumber, enum WifiPhyStandard standard, uint32_t frequency, uint32_t channelWidth)
	Add a channel definition to the WifiPhy. More...

virtual uint32_t	GetBssMembershipSelector (uint32_t selector) const
	The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

double	GetCcaMode1Threshold (void) const
	Return the CCA threshold (dBm). More...

virtual uint16_t	GetChannelNumber (void) const
	Return current channel number. More...

virtual Time	GetChannelSwitchDelay (void) const

virtual uint32_t	GetChannelWidth (void) const

virtual Time	GetDelayUntilIdle (void)

Ptr< NetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

double	GetEdThreshold (void) const
	Return the energy detection threshold (dBm). More...

double	GetEdThresholdW (void) const
	Return the energy detection threshold. More...

Ptr< ErrorRateModel >	GetErrorRateModel (void) const
	Return the error rate model this PHY is using. More...

virtual uint32_t	GetFrequency (void) const

virtual bool	GetGreenfield (void) const
	Return whether Greenfield is supported. More...

virtual bool	GetGuardInterval (void) const
	Return whether guard interval is being used. More...

virtual Time	GetLastRxStartTime (void) const
	Return the start time of the last received packet. More...

virtual bool	GetLdpc (void) const
	Return if LDPC is supported. More...

virtual WifiMode	GetMcs (uint8_t mcs) const
	The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

virtual WifiModeList	GetMembershipSelectorModes (uint32_t selector)
	The WifiPhy::GetMembershipSelectorModes() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

Ptr< MobilityModel >	GetMobility (void)
	Return the mobility model this PHY is associated with. More...

virtual WifiMode	GetMode (uint32_t mode) const
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

virtual uint32_t	GetNBssMembershipSelectors (void) const
	The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

virtual uint8_t	GetNMcs (void) const
	The WifiPhy::GetNMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

virtual uint32_t	GetNModes (void) const
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

virtual uint32_t	GetNTxPower (void) const
	Return the number of available transmission power levels. More...

virtual uint32_t	GetNumberOfReceiveAntennas (void) const

virtual uint32_t	GetNumberOfTransmitAntennas (void) const

Time	GetPayloadDuration (uint32_t size, WifiTxVector txVector, WifiPreamble preamble, double frequency)

Time	GetPayloadDuration (uint32_t size, WifiTxVector txVector, WifiPreamble preamble, double frequency, enum mpduType mpdutype, uint8_t incFlag)

double	GetRxGain (void) const
	Return the reception gain (dB). More...

double	GetRxNoiseFigure (void) const
	Return the RX noise figure (dBm). More...

virtual bool	GetShortPlcpPreambleSupported (void) const
	Return whether short PLCP preamble is supported. More...

virtual enum WifiPhyStandard	GetStandard (void) const
	Get the configured Wi-Fi standard. More...

virtual Time	GetStateDuration (void)

virtual bool	GetStbc (void) const
	Return whether STBC is supported. More...

virtual std::vector< uint32_t >	GetSupportedChannelWidthSet (void) const

virtual uint8_t	GetSupportedRxSpatialStreams (void) const

virtual uint8_t	GetSupportedTxSpatialStreams (void) const

double	GetTxGain (void) const
	Return the transmission gain (dB). More...

virtual double	GetTxPowerEnd (void) const
	Return the maximum available transmission power level (dBm). More...

virtual double	GetTxPowerStart (void) const
	Return the minimum available transmission power level (dBm). More...

virtual bool	IsMcsSupported (WifiMode mcs) const
	Check if the given WifiMode is supported by the PHY. More...

virtual bool	IsModeSupported (WifiMode mode) const
	Check if the given WifiMode is supported by the PHY. More...

virtual bool	IsStateBusy (void)

virtual bool	IsStateCcaBusy (void)

virtual bool	IsStateIdle (void)

virtual bool	IsStateRx (void)

virtual bool	IsStateSleep (void)

virtual bool	IsStateSwitching (void)

virtual bool	IsStateTx (void)

void	NotifyMonitorSniffRx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu, struct signalNoiseDbm signalNoise)
	Public method used to fire a MonitorSniffer trace for a wifi packet being received. More...

void	NotifyMonitorSniffTx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu)
	Public method used to fire a MonitorSniffer trace for a wifi packet being transmitted. More...

void	NotifyRxBegin (Ptr< const Packet > packet)
	Public method used to fire a PhyRxBegin trace. More...

void	NotifyRxDrop (Ptr< const Packet > packet)
	Public method used to fire a PhyRxDrop trace. More...

void	NotifyRxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyRxEnd trace. More...

void	NotifyTxBegin (Ptr< const Packet > packet)
	Public method used to fire a PhyTxBegin trace. More...

void	NotifyTxDrop (Ptr< const Packet > packet)
	Public method used to fire a PhyTxDrop trace. More...

void	NotifyTxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyTxEnd trace. More...

double	RatioToDb (double ratio) const
	Convert from ratio to dB. More...

void	SetCcaMode1Threshold (double threshold)
	Sets the CCA threshold (dBm). More...

virtual void	SetChannelNumber (uint16_t id)
	Set channel number. More...

virtual void	SetChannelWidth (uint32_t channelwidth)

void	SetDevice (Ptr< NetDevice > device)
	Sets the device this PHY is associated with. More...

void	SetEdThreshold (double threshold)
	Sets the energy detection threshold (dBm). More...

void	SetErrorRateModel (Ptr< ErrorRateModel > rate)
	Sets the error rate model. More...

virtual void	SetFrequency (uint32_t freq)

virtual void	SetGreenfield (bool greenfield)
	Enable or disable Greenfield support. More...

virtual void	SetGuardInterval (bool guardInterval)
	Enable or disable short/long guard interval. More...

virtual void	SetLdpc (bool ldpc)
	Enable or disable LDPC. More...

void	SetMobility (Ptr< MobilityModel > mobility)
	assign a mobility model to this device More...

void	SetNTxPower (uint32_t n)
	Sets the number of transmission power levels available between the minimum level and the maximum level. More...

virtual void	SetNumberOfReceiveAntennas (uint32_t rx)

virtual void	SetNumberOfTransmitAntennas (uint32_t tx)

void	SetRxGain (double gain)
	Sets the reception gain (dB). More...

void	SetRxNoiseFigure (double noiseFigureDb)
	Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. More...

virtual void	SetShortPlcpPreambleSupported (bool preamble)
	Enable or disable short PLCP preamble. More...

virtual void	SetStbc (bool stbc)
	Enable or disable STBC. More...

void	SetTxGain (double gain)
	Sets the transmission gain (dB). More...

void	SetTxPowerEnd (double end)
	Sets the maximum available transmission power level (dBm). More...

void	SetTxPowerStart (double start)
	Sets the minimum available transmission power level (dBm). More...

double	WToDbm (double w) const
	Convert from Watts to dBm. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

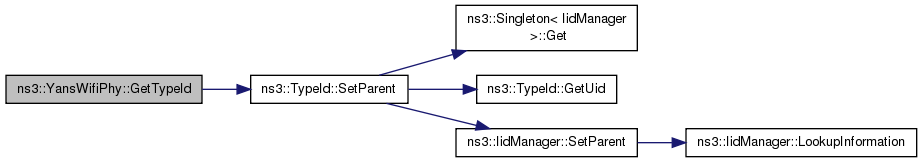

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WifiPhy
static WifiMode	GetDsssRate11Mbps ()
	Return a WifiMode for DSSS at 11Mbps. More...

static WifiMode	GetDsssRate1Mbps ()
	Return a WifiMode for DSSS at 1Mbps. More...

static WifiMode	GetDsssRate2Mbps ()
	Return a WifiMode for DSSS at 2Mbps. More...

static WifiMode	GetDsssRate5_5Mbps ()
	Return a WifiMode for DSSS at 5.5Mbps. More...

static WifiMode	GetErpOfdmRate12Mbps ()
	Return a WifiMode for ERP-OFDM at 12Mbps. More...

static WifiMode	GetErpOfdmRate18Mbps ()
	Return a WifiMode for ERP-OFDM at 18Mbps. More...

static WifiMode	GetErpOfdmRate24Mbps ()
	Return a WifiMode for ERP-OFDM at 24Mbps. More...

static WifiMode	GetErpOfdmRate36Mbps ()
	Return a WifiMode for ERP-OFDM at 36Mbps. More...

static WifiMode	GetErpOfdmRate48Mbps ()
	Return a WifiMode for ERP-OFDM at 48Mbps. More...

static WifiMode	GetErpOfdmRate54Mbps ()
	Return a WifiMode for ERP-OFDM at 54Mbps. More...

static WifiMode	GetErpOfdmRate6Mbps ()
	Return a WifiMode for ERP-OFDM at 6Mbps. More...

static WifiMode	GetErpOfdmRate9Mbps ()
	Return a WifiMode for ERP-OFDM at 9Mbps. More...

static WifiMode	GetHtMcs0 ()
	Return MCS 0 from HT MCS values. More...

static WifiMode	GetHtMcs1 ()
	Return MCS 1 from HT MCS values. More...

static WifiMode	GetHtMcs10 ()
	Return MCS 10 from HT MCS values. More...

static WifiMode	GetHtMcs11 ()
	Return MCS 11 from HT MCS values. More...

static WifiMode	GetHtMcs12 ()
	Return MCS 12 from HT MCS values. More...

static WifiMode	GetHtMcs13 ()
	Return MCS 13 from HT MCS values. More...

static WifiMode	GetHtMcs14 ()
	Return MCS 14 from HT MCS values. More...

static WifiMode	GetHtMcs15 ()
	Return MCS 15 from HT MCS values. More...

static WifiMode	GetHtMcs16 ()
	Return MCS 16 from HT MCS values. More...

static WifiMode	GetHtMcs17 ()
	Return MCS 17 from HT MCS values. More...

static WifiMode	GetHtMcs18 ()
	Return MCS 18 from HT MCS values. More...

static WifiMode	GetHtMcs19 ()
	Return MCS 19 from HT MCS values. More...

static WifiMode	GetHtMcs2 ()
	Return MCS 2 from HT MCS values. More...

static WifiMode	GetHtMcs20 ()
	Return MCS 20 from HT MCS values. More...

static WifiMode	GetHtMcs21 ()
	Return MCS 21 from HT MCS values. More...

static WifiMode	GetHtMcs22 ()
	Return MCS 22 from HT MCS values. More...

static WifiMode	GetHtMcs23 ()
	Return MCS 23 from HT MCS values. More...

static WifiMode	GetHtMcs24 ()
	Return MCS 24 from HT MCS values. More...

static WifiMode	GetHtMcs25 ()
	Return MCS 25 from HT MCS values. More...

static WifiMode	GetHtMcs26 ()
	Return MCS 26 from HT MCS values. More...

static WifiMode	GetHtMcs27 ()
	Return MCS 27 from HT MCS values. More...

static WifiMode	GetHtMcs28 ()
	Return MCS 28 from HT MCS values. More...

static WifiMode	GetHtMcs29 ()
	Return MCS 29 from HT MCS values. More...

static WifiMode	GetHtMcs3 ()
	Return MCS 3 from HT MCS values. More...

static WifiMode	GetHtMcs30 ()
	Return MCS 30 from HT MCS values. More...

static WifiMode	GetHtMcs31 ()
	Return MCS 31 from HT MCS values. More...

static WifiMode	GetHtMcs4 ()
	Return MCS 4 from HT MCS values. More...

static WifiMode	GetHtMcs5 ()
	Return MCS 5 from HT MCS values. More...

static WifiMode	GetHtMcs6 ()
	Return MCS 6 from HT MCS values. More...

static WifiMode	GetHtMcs7 ()
	Return MCS 7 from HT MCS values. More...

static WifiMode	GetHtMcs8 ()
	Return MCS 8 from HT MCS values. More...

static WifiMode	GetHtMcs9 ()
	Return MCS 9 from HT MCS values. More...

static WifiMode	GetHtPlcpHeaderMode (WifiMode payloadMode)

static WifiMode	GetOfdmRate12Mbps ()
	Return a WifiMode for OFDM at 12Mbps. More...

static WifiMode	GetOfdmRate12MbpsBW10MHz ()
	Return a WifiMode for OFDM at 12Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate12MbpsBW5MHz ()
	Return a WifiMode for OFDM at 12Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 13.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate18Mbps ()
	Return a WifiMode for OFDM at 18Mbps. More...

static WifiMode	GetOfdmRate18MbpsBW10MHz ()
	Return a WifiMode for OFDM at 18Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 1.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate24Mbps ()
	Return a WifiMode for OFDM at 24Mbps. More...

static WifiMode	GetOfdmRate24MbpsBW10MHz ()
	Return a WifiMode for OFDM at 24Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW10MHz ()
	Return a WifiMode for OFDM at 27Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
	Return a WifiMode for OFDM at 2.25Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate36Mbps ()
	Return a WifiMode for OFDM at 36Mbps. More...

static WifiMode	GetOfdmRate3MbpsBW10MHz ()
	Return a WifiMode for OFDM at 3Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate3MbpsBW5MHz ()
	Return a WifiMode for OFDM at 3Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate48Mbps ()
	Return a WifiMode for OFDM at 48Mbps. More...

static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
	Return a WifiMode for OFDM at 4.5Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 4.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate54Mbps ()
	Return a WifiMode for OFDM at 54Mbps. More...

static WifiMode	GetOfdmRate6Mbps ()
	Return a WifiMode for OFDM at 6Mbps. More...

static WifiMode	GetOfdmRate6MbpsBW10MHz ()
	Return a WifiMode for OFDM at 6Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate6MbpsBW5MHz ()
	Return a WifiMode for OFDM at 6Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate9Mbps ()
	Return a WifiMode for OFDM at 9Mbps. More...

static WifiMode	GetOfdmRate9MbpsBW10MHz ()
	Return a WifiMode for OFDM at 9Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate9MbpsBW5MHz ()
	Return a WifiMode for OFDM at 9Mbps with 5MHz channel spacing. More...

static Time	GetPlcpHeaderDuration (WifiTxVector txVector, WifiPreamble preamble)

static WifiMode	GetPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble, WifiTxVector txVector)

static Time	GetPlcpHtSigHeaderDuration (WifiPreamble preamble)

static Time	GetPlcpHtTrainingSymbolDuration (WifiPreamble preamble, WifiTxVector txVector)

static Time	GetPlcpPreambleDuration (WifiTxVector txVector, WifiPreamble preamble)

static Time	GetPlcpVhtSigA1Duration (WifiPreamble preamble)

static Time	GetPlcpVhtSigA2Duration (WifiPreamble preamble)

static Time	GetPlcpVhtSigBDuration (WifiPreamble preamble)

static TypeId	GetTypeId (void)

static WifiMode	GetVhtMcs0 ()
	Return MCS 0 from VHT MCS values. More...

static WifiMode	GetVhtMcs1 ()
	Return MCS 1 from VHT MCS values. More...

static WifiMode	GetVhtMcs2 ()
	Return MCS 2 from VHT MCS values. More...

static WifiMode	GetVhtMcs3 ()
	Return MCS 3 from VHT MCS values. More...

static WifiMode	GetVhtMcs4 ()
	Return MCS 4 from VHT MCS values. More...

static WifiMode	GetVhtMcs5 ()
	Return MCS 5 from VHT MCS values. More...

static WifiMode	GetVhtMcs6 ()
	Return MCS 6 from VHT MCS values. More...

static WifiMode	GetVhtMcs7 ()
	Return MCS 7 from VHT MCS values. More...

static WifiMode	GetVhtMcs8 ()
	Return MCS 8 from VHT MCS values. More...

static WifiMode	GetVhtMcs9 ()
	Return MCS 9 from VHT MCS values. More...

static WifiMode	GetVhtPlcpHeaderMode (WifiMode payloadMode)

static bool	IsValidTxVector (WifiTxVector txVector)
	The standard disallows certain combinations of WifiMode, number of spatial streams, and channel widths. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions

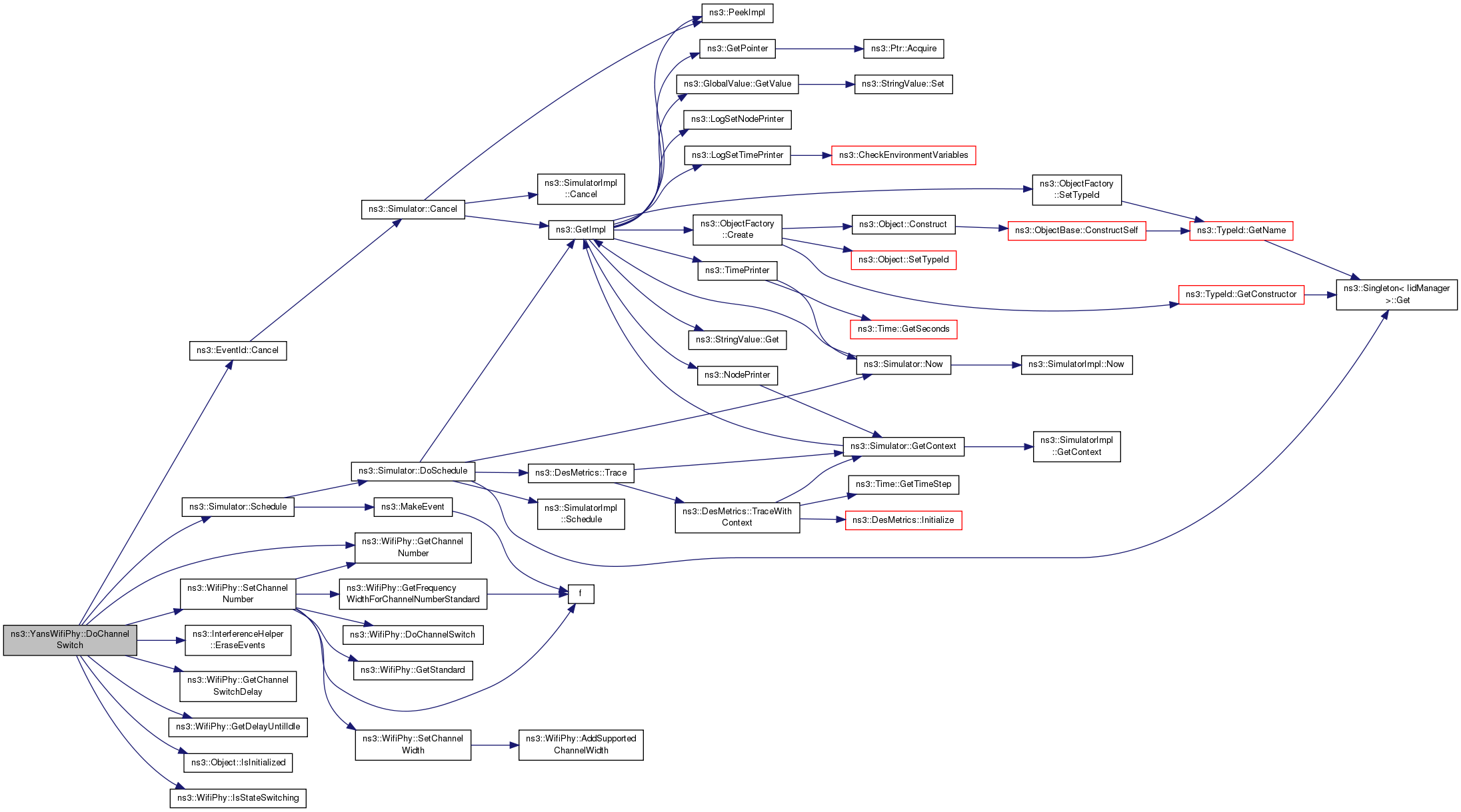

virtual bool	DoChannelSwitch (uint16_t id)
	The default implementation does nothing and returns true. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

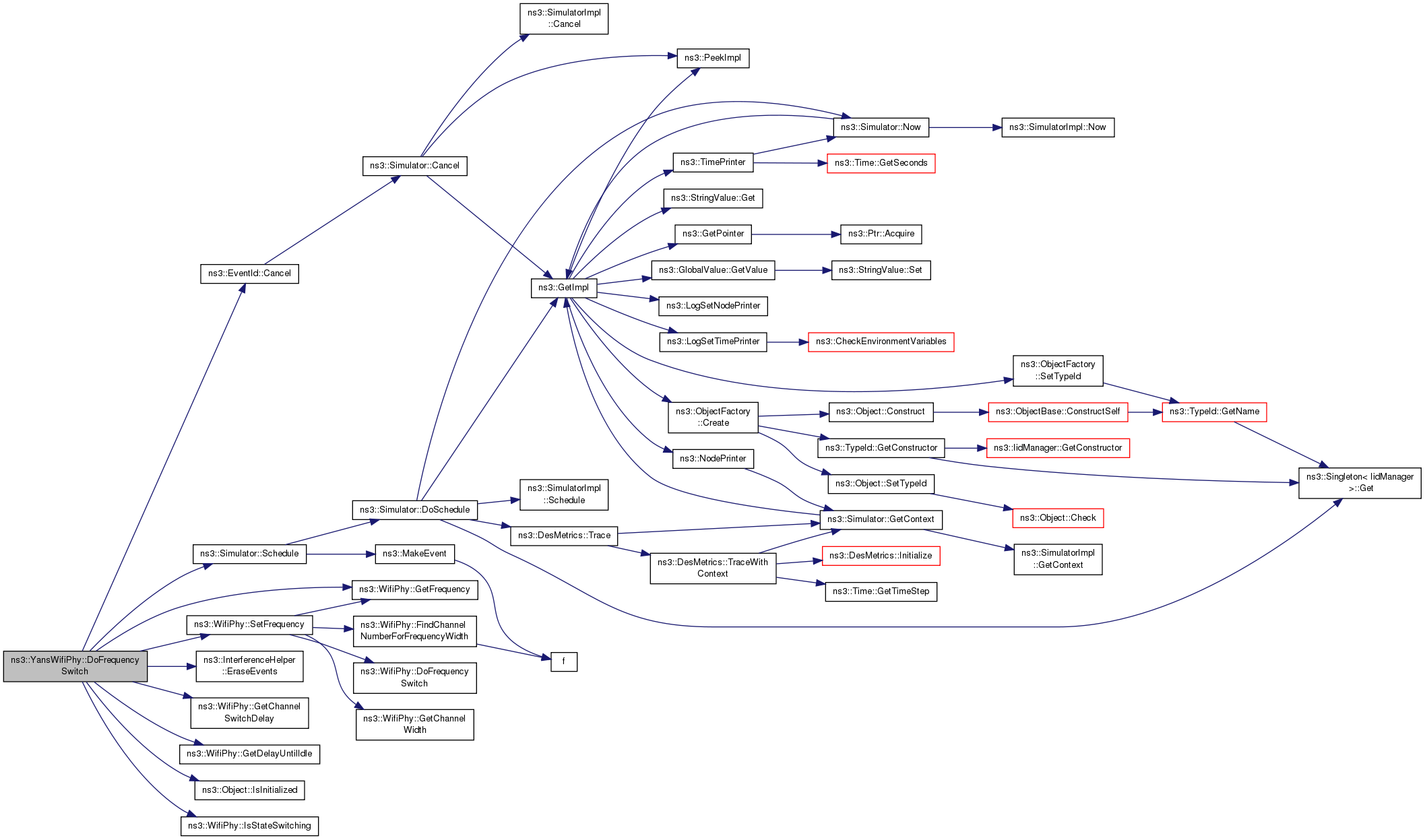

virtual bool	DoFrequencySwitch (uint32_t frequency)
	The default implementation does nothing and returns true. More...

Protected Member Functions inherited from ns3::WifiPhy
virtual void	DoInitialize (void)
	Initialize() implementation. More...

double	GetPowerDbm (uint8_t power) const
	Get the power of the given power level in dBm. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions

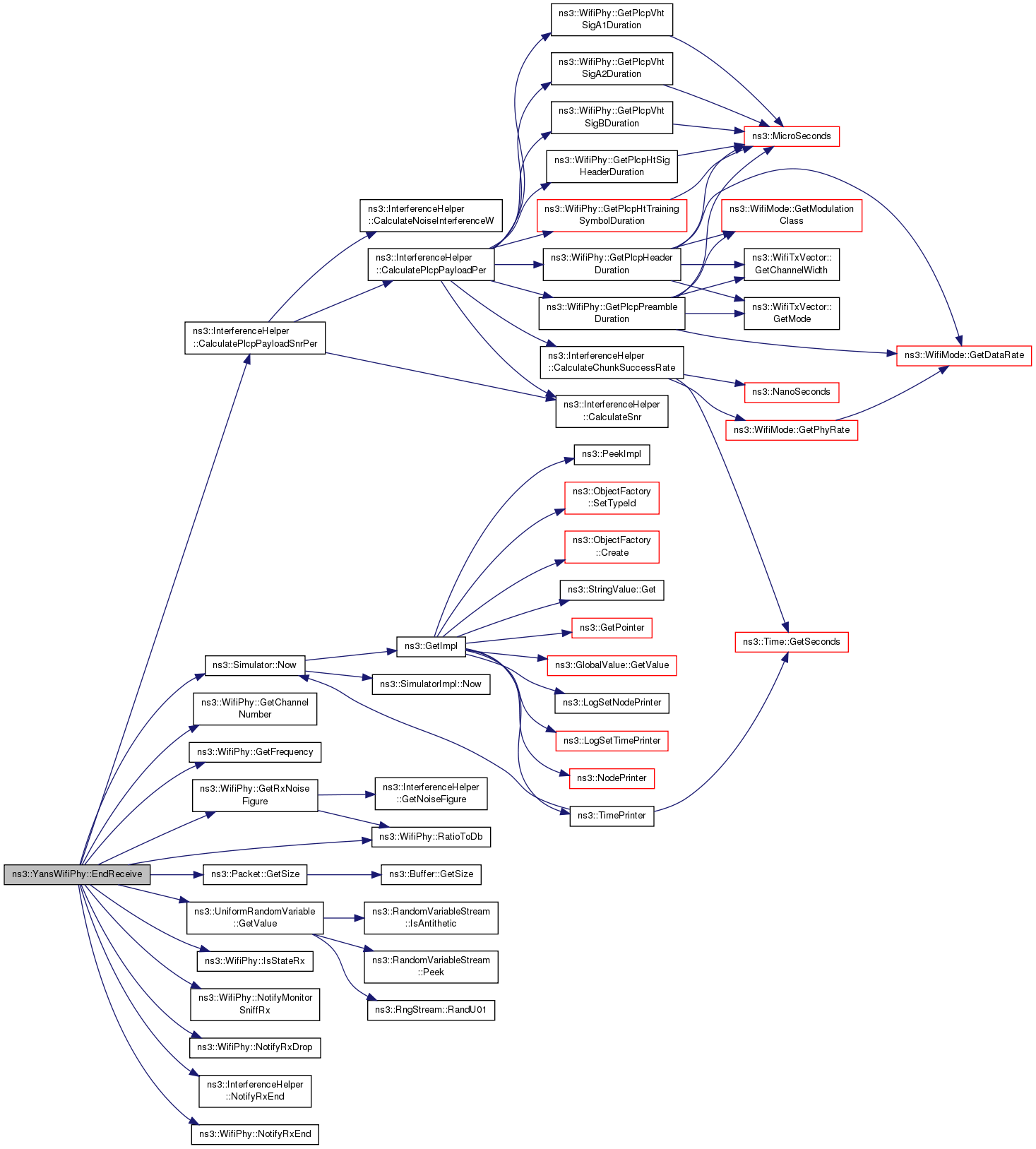

void	EndReceive (Ptr< Packet > packet, enum WifiPreamble preamble, enum mpduType mpdutype, Ptr< InterferenceHelper::Event > event)
	The last bit of the packet has arrived. More...

Private Attributes
Ptr< YansWifiChannel >	m_channel
	YansWifiChannel that this YansWifiPhy is connected to. More...

Additional Inherited Members
Public Types inherited from ns3::WifiPhy
typedef std::pair< uint16_t, enum WifiPhyStandard >	ChannelNumberStandardPair
	A pair of a ChannelNumber and WifiPhyStandard. More...

typedef std::pair< uint32_t, uint32_t >	FrequencyWidthPair
	A pair of a center Frequency and a ChannelWidth. More...

typedef void(*	MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu, struct signalNoiseDbm signalNoise)
	TracedCallback signature for monitor mode receive events. More...

typedef void(*	MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu)
	TracedCallback signature for monitor mode transmit events. More...

typedef Callback< void, Ptr< Packet >, double >	RxErrorCallback
	arg1: packet received unsuccessfully arg2: snr of packet More...

typedef Callback< void, Ptr< Packet >, double, WifiTxVector, enum WifiPreamble >	RxOkCallback
	arg1: packet received successfully arg2: snr of packet arg3: TXVECTOR of packet arg4: type of preamble used for packet. More...

enum	State { IDLE, CCA_BUSY, TX, RX, SWITCHING, SLEEP }
	The state of the PHY layer. More...

Protected Attributes inherited from ns3::WifiPhy
EventId	m_endPlcpRxEvent

EventId	m_endRxEvent

InterferenceHelper	m_interference
	Pointer to InterferenceHelper. More...

uint16_t	m_mpdusNum
	carries the number of expected mpdus that are part of an A-MPDU More...

bool	m_plcpSuccess
	Flag if the PLCP of the packet or the first MPDU in an A-MPDU has been received. More...

Ptr< UniformRandomVariable >	m_random
	Provides uniform random variables. More...

uint32_t	m_rxMpduReferenceNumber
	A-MPDU reference number to identify all received subframes belonging to the same received A-MPDU. More...

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper. More...

uint32_t	m_txMpduReferenceNumber
	A-MPDU reference number to identify all transmitted subframes belonging to the same received A-MPDU. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

802.11 PHY layer model

This PHY implements a model of 802.11a.

The model implemented here is based on the model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf).

This PHY model depends on a channel loss and delay model as provided by the ns3::PropagationLossModel and ns3::PropagationDelayModel classes, both of which are members of the ns3::YansWifiChannel class.

Config Paths

ns3::YansWifiPhy is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/$ns3::YansWifiPhy"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/$ns3::YansWifiPhy"

No Attributes are defined for this type.

Attributes defined in parent class ns3::WifiPhy

Frequency: The operating center frequency (MHz)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
ChannelWidth: Whether 5MHz, 10MHz, 20MHz, 22MHz, 40MHz, 80 MHz or 160 MHz.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 20
- Flags: construct write read
ChannelNumber: If set to non-zero defined value, will control Frequency and ChannelWidth assignment
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write read
EnergyDetectionThreshold: The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to detect the signal.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -96
- Flags: construct write read
CcaMode1Threshold: The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to declare CCA BUSY state.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -99
- Flags: construct write read
TxGain: Transmission gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
RxGain: Reception gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
TxPowerLevels: Number of transmission power levels available between TxPowerStart and TxPowerEnd included.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
TxPowerEnd: Maximum available transmission level (dbm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
TxPowerStart: Minimum available transmission level (dbm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
RxNoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0 (usually 290 K)".
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 7
- Flags: construct write read
State: The state of the PHY layer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiPhyStateHelper>
- Initial value: 0
- Flags: construct write read
ChannelSwitchDelay: Delay between two short frames transmitted on different frequencies.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +250000.0ns
- Flags: construct write read
TxAntennas: The number of supported Tx antennas.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
RxAntennas: The number of supported Rx antennas.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
ShortGuardEnabled: Whether or not short guard interval is enabled.This parameter is only valuable for 802.11n/ac STAs and APs.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
LdpcEnabled: Whether or not LDPC is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
STBCEnabled: Whether or not STBC is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
GreenfieldEnabled: Whether or not Greenfield is enabled.This parameter is only valuable for 802.11n STAs and APs.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
ShortPlcpPreambleSupported: Whether or not short PLCP preamble is supported.This parameter is only valuable for 802.11b STAs and APs.Note: 802.11g APs and STAs always support short PLCP preamble.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiPhy

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
Callback signature: ns3::Packet::TracedCallback
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel. NOTE: the only official WifiPhy implementation available to this date never fires this trace source.
Callback signature: ns3::Packet::TracedCallback
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
Callback signature: ns3::Packet::TracedCallback
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
Callback signature: ns3::Packet::TracedCallback
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
Callback signature: ns3::Packet::TracedCallback
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
Callback signature: ns3::Packet::TracedCallback
MonitorSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
Callback signature: ns3::WifiPhy::MonitorSnifferRxTracedCallback
MonitorSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted
Callback signature: ns3::WifiPhy::MonitorSnifferTxTracedCallback

Size of this type is 544 bytes (on a 64-bit architecture).

Definition at line 47 of file yans-wifi-phy.h.

Constructor & Destructor Documentation

ns3::YansWifiPhy::YansWifiPhy ( )

Definition at line 51 of file yans-wifi-phy.cc.

References NS_LOG_FUNCTION.

ns3::YansWifiPhy::~YansWifiPhy ( )

virtual

Definition at line 56 of file yans-wifi-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

bool ns3::YansWifiPhy::DoChannelSwitch ( uint16_t id )

protectedvirtual

The default implementation does nothing and returns true.

This method is typically called internally by SetChannelNumber ().

Perform any actions necessary when user changes channel number

Parameters

id	channel number to try to switch to

Returns: true if WifiPhy can actually change the number; false if not

See also: SetChannelNumber

Reimplemented from ns3::WifiPhy.

Definition at line 69 of file yans-wifi-phy.cc.

References ns3::EventId::Cancel(), ns3::WifiPhy::CCA_BUSY, ns3::InterferenceHelper::EraseEvents(), ns3::WifiPhy::GetChannelNumber(), ns3::WifiPhy::GetChannelSwitchDelay(), ns3::WifiPhy::GetDelayUntilIdle(), ns3::WifiPhy::IDLE, ns3::Object::IsInitialized(), ns3::WifiPhy::IsStateSwitching(), ns3::WifiPhy::m_endPlcpRxEvent, ns3::WifiPhy::m_endRxEvent, ns3::WifiPhy::m_interference, ns3::WifiPhy::m_state, NS_ASSERT, NS_LOG_DEBUG, ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SetChannelNumber(), ns3::WifiPhy::SLEEP, and ns3::WifiPhy::TX.

Here is the call graph for this function:

void ns3::YansWifiPhy::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::WifiPhy.

Definition at line 62 of file yans-wifi-phy.cc.

References m_channel, and NS_LOG_FUNCTION.

bool ns3::YansWifiPhy::DoFrequencySwitch ( uint32_t frequency )

protectedvirtual

The default implementation does nothing and returns true.

This method is typically called internally by SetFrequency ().

Perform any actions necessary when user changes frequency

Parameters

frequency frequency to try to switch to

Returns: true if WifiPhy can actually change the frequency; false if not

See also: SetFrequency

Reimplemented from ns3::WifiPhy.

Definition at line 121 of file yans-wifi-phy.cc.

References ns3::EventId::Cancel(), ns3::WifiPhy::CCA_BUSY, ns3::InterferenceHelper::EraseEvents(), ns3::WifiPhy::GetChannelSwitchDelay(), ns3::WifiPhy::GetDelayUntilIdle(), ns3::WifiPhy::GetFrequency(), ns3::WifiPhy::IDLE, ns3::Object::IsInitialized(), ns3::WifiPhy::IsStateSwitching(), ns3::WifiPhy::m_endPlcpRxEvent, ns3::WifiPhy::m_endRxEvent, ns3::WifiPhy::m_interference, ns3::WifiPhy::m_state, NS_ASSERT, NS_LOG_DEBUG, ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SetFrequency(), ns3::WifiPhy::SLEEP, and ns3::WifiPhy::TX.

Here is the call graph for this function:

void ns3::YansWifiPhy::EndReceive	(	Ptr< Packet >	packet,
		enum WifiPreamble	preamble,
		enum mpduType	mpdutype,
		Ptr< InterferenceHelper::Event >	event
	)

private

The last bit of the packet has arrived.

Parameters

packet	the packet that the last bit has arrived
preamble	the preamble of the arriving packet
mpdutype	the type of the MPDU as defined in WifiPhy::mpduType.
event	the corresponding event of the first time the packet arrives

Definition at line 528 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::CalculatePlcpPayloadSnrPer(), ns3::WifiPhy::GetChannelNumber(), ns3::WifiPhy::GetFrequency(), ns3::WifiPhy::GetRxNoiseFigure(), ns3::Packet::GetSize(), ns3::UniformRandomVariable::GetValue(), ns3::WifiPhy::IsStateRx(), ns3::LAST_MPDU_IN_AGGREGATE, ns3::WifiPhy::m_interference, ns3::WifiPhy::m_plcpSuccess, ns3::WifiPhy::m_random, ns3::WifiPhy::m_rxMpduReferenceNumber, ns3::WifiPhy::m_state, ns3::mpduInfo::mpduRefNumber, ns3::signalNoiseDbm::noise, ns3::WifiPhy::NotifyMonitorSniffRx(), ns3::WifiPhy::NotifyRxDrop(), ns3::InterferenceHelper::NotifyRxEnd(), ns3::WifiPhy::NotifyRxEnd(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiPhy::RatioToDb(), ns3::signalNoiseDbm::signal, ns3::mpduInfo::type, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_VHT, and ns3::WIFI_PREAMBLE_NONE.

Referenced by StartReceivePreambleAndHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< WifiChannel > ns3::YansWifiPhy::GetChannel ( void ) const

virtual

Return the WifiChannel this WifiPhy is connected to.

Returns: the WifiChannel this WifiPhy is connected to

Implements ns3::WifiPhy.

Definition at line 173 of file yans-wifi-phy.cc.

References m_channel.

TypeId ns3::YansWifiPhy::GetTypeId ( void )

static

Definition at line 41 of file yans-wifi-phy.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::YansWifiPhy::RegisterListener ( WifiPhyListener * listener )

virtual

Parameters

listener the new listener

Add the input listener to the list of objects to be notified of PHY-level events.

Implements ns3::WifiPhy.

Definition at line 516 of file yans-wifi-phy.cc.

References ns3::WifiPhy::m_state.

void ns3::YansWifiPhy::ResumeFromSleep ( void )

virtual

Resume from sleep mode.

Implements ns3::WifiPhy.

Definition at line 218 of file yans-wifi-phy.cc.

References ns3::WifiPhy::CCA_BUSY, ns3::WifiPhy::DbmToW(), ns3::WifiPhy::GetCcaMode1Threshold(), ns3::InterferenceHelper::GetEnergyDuration(), ns3::WifiPhy::IDLE, ns3::WifiPhy::m_interference, ns3::WifiPhy::m_state, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiPhy::RX, ns3::WifiPhy::SLEEP, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Here is the call graph for this function:

void ns3::YansWifiPhy::SendPacket	(	Ptr< const Packet >	packet,
		WifiTxVector	txVector,
		enum WifiPreamble	preamble
	)

virtual

Parameters

packet	the packet to send
txVector	the TXVECTOR that has tx parameters such as mode, the transmission mode to use to send this packet, and txPowerLevel, a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels
preamble	the type of preamble to use to send this packet.

Implements ns3::WifiPhy.

Definition at line 457 of file yans-wifi-phy.cc.

References ns3::NORMAL_MPDU.

void ns3::YansWifiPhy::SendPacket	(	Ptr< const Packet >	packet,
		WifiTxVector	txVector,
		enum WifiPreamble	preamble,
		enum mpduType	mpdutype
	)

virtual

Parameters

packet	the packet to send
txVector	the TXVECTOR that has tx parameters such as mode, the transmission mode to use to send this packet, and txPowerLevel, a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels
preamble	the type of preamble to use to send this packet.
mpdutype	the type of the MPDU as defined in WifiPhy::mpduType.

Implements ns3::WifiPhy.

Definition at line 463 of file yans-wifi-phy.cc.

References ns3::WifiPhy::CalculateTxDuration(), ns3::EventId::Cancel(), ns3::WifiPhy::GetChannelNumber(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetFrequency(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiTxVector::GetNss(), ns3::WifiPhy::GetPowerDbm(), ns3::Packet::GetSize(), ns3::WifiPhy::GetTxGain(), ns3::WifiTxVector::GetTxPowerLevel(), ns3::WifiTxVector::IsShortGuardInterval(), m_channel, ns3::WifiPhy::m_endPlcpRxEvent, ns3::WifiPhy::m_endRxEvent, ns3::WifiPhy::m_interference, ns3::WifiPhy::m_state, ns3::WifiPhy::m_txMpduReferenceNumber, ns3::MPDU_IN_AGGREGATE, ns3::mpduInfo::mpduRefNumber, ns3::NanoSeconds(), ns3::WifiPhy::NotifyMonitorSniffTx(), ns3::InterferenceHelper::NotifyRxEnd(), ns3::WifiPhy::NotifyTxBegin(), ns3::WifiPhy::NotifyTxDrop(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::mpduInfo::type, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_VHT, and ns3::WIFI_PREAMBLE_NONE.

Here is the call graph for this function:

void ns3::YansWifiPhy::SetChannel ( Ptr< YansWifiChannel > channel )

Set the YansWifiChannel this YansWifiPhy is to be connected to.

Parameters

channel the YansWifiChannel this YansWifiPhy is to be connected to

Definition at line 179 of file yans-wifi-phy.cc.

References third::channel, and m_channel.

Referenced by ns3::YansWifiPhyHelper::Create(), PsrExperiment::Run(), InterferenceExperiment::Run(), and CollisionExperiment::Run().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetReceiveErrorCallback ( WifiPhy::RxErrorCallback callback )

virtual

Parameters

callback the callback to invoke upon erroneous packet reception.

Implements ns3::WifiPhy.

Definition at line 254 of file yans-wifi-phy.cc.

References ns3::WifiPhy::m_state.

void ns3::YansWifiPhy::SetReceiveOkCallback ( WifiPhy::RxOkCallback callback )

virtual

Parameters

callback the callback to invoke upon successful packet reception.

Implements ns3::WifiPhy.

Definition at line 248 of file yans-wifi-phy.cc.

References ns3::WifiPhy::m_state.

void ns3::YansWifiPhy::SetSleepMode ( void )

virtual

Put in sleep mode.

Implements ns3::WifiPhy.

Definition at line 186 of file yans-wifi-phy.cc.

References ns3::WifiPhy::CCA_BUSY, ns3::WifiPhy::GetDelayUntilIdle(), ns3::WifiPhy::IDLE, ns3::WifiPhy::m_state, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SLEEP, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Here is the call graph for this function:

void ns3::YansWifiPhy::StartReceivePacket	(	Ptr< Packet >	packet,
		WifiTxVector	txVector,
		WifiPreamble	preamble,
		enum mpduType	mpdutype,
		Ptr< InterferenceHelper::Event >	event
	)

Starting receiving the payload of a packet (i.e.

the first bit of the packet has arrived).

Parameters

packet	the arriving packet
txVector	the TXVECTOR of the arriving packet
preamble	the preamble of the arriving packet
mpdutype	the type of the MPDU as defined in WifiPhy::mpduType.
event	the corresponding event of the first time the packet arrives

Definition at line 418 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::CalculatePlcpHeaderSnrPer(), ns3::WifiTxVector::GetMode(), ns3::UniformRandomVariable::GetValue(), ns3::EventId::IsExpired(), ns3::WifiPhy::IsMcsSupported(), ns3::WifiPhy::IsModeSupported(), ns3::WifiPhy::IsStateRx(), ns3::WifiPhy::m_endPlcpRxEvent, ns3::WifiPhy::m_interference, ns3::WifiPhy::m_plcpSuccess, ns3::WifiPhy::m_random, ns3::WifiPhy::NotifyRxDrop(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WifiPhy::RatioToDb().

Referenced by StartReceivePreambleAndHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::StartReceivePreambleAndHeader	(	Ptr< Packet >	packet,
		double	rxPowerDbm,
		WifiTxVector	txVector,
		WifiPreamble	preamble,
		enum mpduType	mpdutype,
		Time	rxDuration
	)

Starting receiving the plcp of a packet (i.e.

the first bit of the preamble has arrived).

Parameters

packet	the arriving packet
rxPowerDbm	the receive power in dBm
txVector	the TXVECTOR of the arriving packet
preamble	the preamble of the arriving packet
mpdutype	the type of the MPDU as defined in WifiPhy::mpduType.
rxDuration	the duration needed for the reception of the packet

Definition at line 260 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::Add(), ns3::WifiPhy::CalculatePlcpPreambleAndHeaderDuration(), ns3::WifiPhy::CCA_BUSY, ns3::WifiPhy::DbmToW(), EndReceive(), ns3::WifiPhy::GetCcaMode1Threshold(), ns3::WifiPhy::GetEdThresholdW(), ns3::InterferenceHelper::GetEnergyDuration(), ns3::WifiTxVector::GetMode(), ns3::AmpduTag::GetRemainingNbOfMpdus(), ns3::WifiPhy::GetRxGain(), ns3::Packet::GetSize(), ns3::WifiPhy::IDLE, ns3::EventId::IsExpired(), ns3::Time::IsZero(), ns3::WifiPhy::m_endPlcpRxEvent, ns3::WifiPhy::m_endRxEvent, ns3::WifiPhy::m_interference, ns3::WifiPhy::m_mpdusNum, ns3::WifiPhy::m_plcpSuccess, ns3::WifiPhy::m_rxMpduReferenceNumber, ns3::WifiPhy::m_state, ns3::WifiPhy::NotifyRxBegin(), ns3::WifiPhy::NotifyRxDrop(), ns3::InterferenceHelper::NotifyRxStart(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::PeekPacketTag(), ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SLEEP, StartReceivePacket(), ns3::WifiPhy::SWITCHING, ns3::WifiPhy::TX, and ns3::WIFI_PREAMBLE_NONE.

Here is the call graph for this function:

void ns3::YansWifiPhy::UnregisterListener ( WifiPhyListener * listener )

virtual

Parameters

listener the listener to be unregistered

Remove the input listener from the list of objects to be notified of PHY-level events.

Implements ns3::WifiPhy.

Definition at line 522 of file yans-wifi-phy.cc.

References ns3::WifiPhy::m_state.

Member Data Documentation

Ptr<YansWifiChannel> ns3::YansWifiPhy::m_channel

private

YansWifiChannel that this YansWifiPhy is connected to.

Definition at line 120 of file yans-wifi-phy.h.

Referenced by DoDispose(), GetChannel(), SendPacket(), and SetChannel().

The documentation for this class was generated from the following files:

src/wifi/model/yans-wifi-phy.h
src/wifi/model/yans-wifi-phy.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes defined in parent class ns3::WifiPhy

TraceSources defined in parent class ns3::WifiPhy

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
