ns3::dsr::DsrSendBuffEntry Class Reference

DSR Send Buffer Entry. More...

#include "dsr-rsendbuff.h"

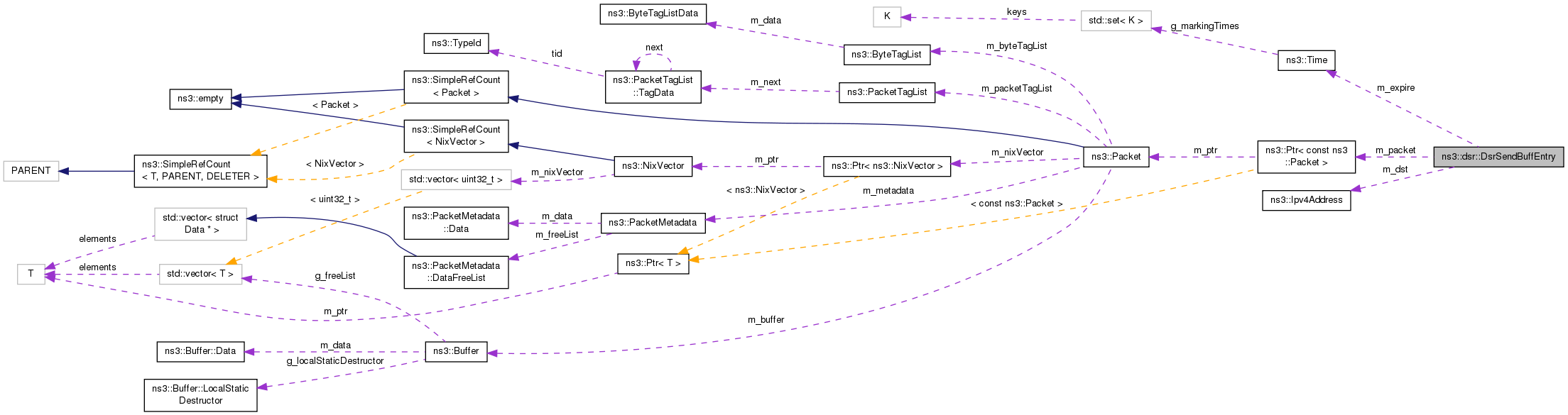

Collaboration diagram for ns3::dsr::DsrSendBuffEntry:

Public Member Functions
	DsrSendBuffEntry (Ptr< const Packet > pa=0, Ipv4Address d=Ipv4Address(), Time exp=Simulator::Now(), uint8_t p=0)
	Construct DsrSendBuffEntry with the given parameters. More...
Ipv4Address	GetDestination () const
Time	GetExpireTime () const
Ptr< const Packet >	GetPacket () const
uint8_t	GetProtocol () const
bool	operator== (DsrSendBuffEntry const &o) const
	Compare send buffer entries. More...
void	SetDestination (Ipv4Address d)
void	SetExpireTime (Time exp)
void	SetPacket (Ptr< const Packet > p)
void	SetProtocol (uint8_t p)

Private Attributes
Ipv4Address	m_dst
	Destination address. More...
Time	m_expire
	Expire time for queue entry. More...
Ptr< const Packet >	m_packet
	Data packet. More...
uint8_t	m_protocol
	The protocol number. More...

Detailed Description

DSR Send Buffer Entry.

Definition at line 45 of file dsr-rsendbuff.h.

Constructor & Destructor Documentation

ns3::dsr::DsrSendBuffEntry::DsrSendBuffEntry ( Ptr< const Packet >  pa = 0, Ipv4Address  d = Ipv4Address (), Time  exp = Simulator::Now (), uint8_t  p = 0  )

inline

Construct DsrSendBuffEntry with the given parameters.

Parameters

pa	packet
d	destination address
exp	expiration time
p	protocol number

Definition at line 56 of file dsr-rsendbuff.h.

Member Function Documentation

Ipv4Address ns3::dsr::DsrSendBuffEntry::GetDestination ( ) const

inline

Definition at line 83 of file dsr-rsendbuff.h.

References m_dst.

Referenced by ns3::dsr::DsrSendBuffer::Drop(), ns3::dsr::DsrSendBuffer::Enqueue(), and ns3::dsr::DsrSendBuffer::IsEqual().

Here is the caller graph for this function:

Time ns3::dsr::DsrSendBuffEntry::GetExpireTime ( ) const

inline

Definition at line 95 of file dsr-rsendbuff.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::dsr::IsExpired::operator()().

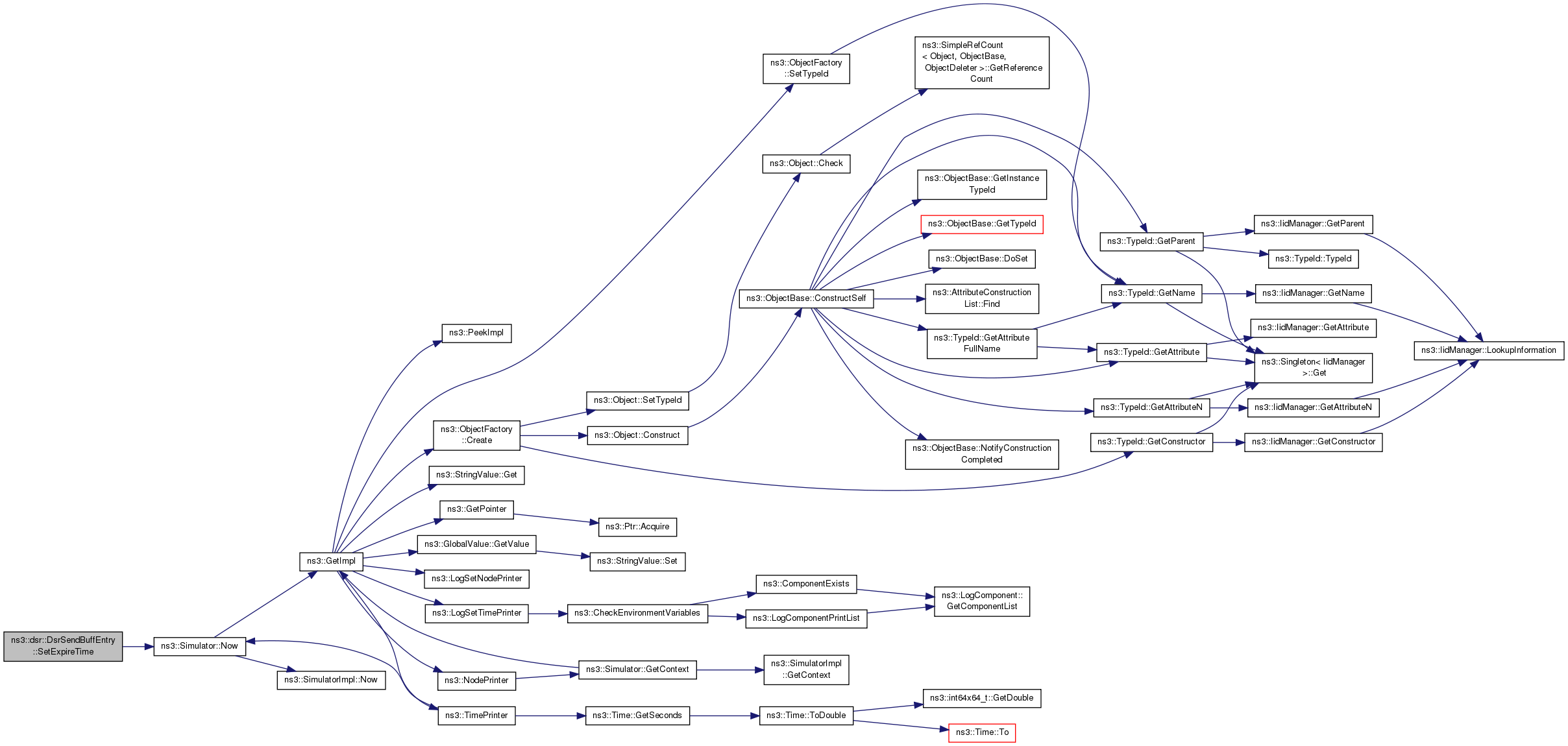

Here is the call graph for this function:

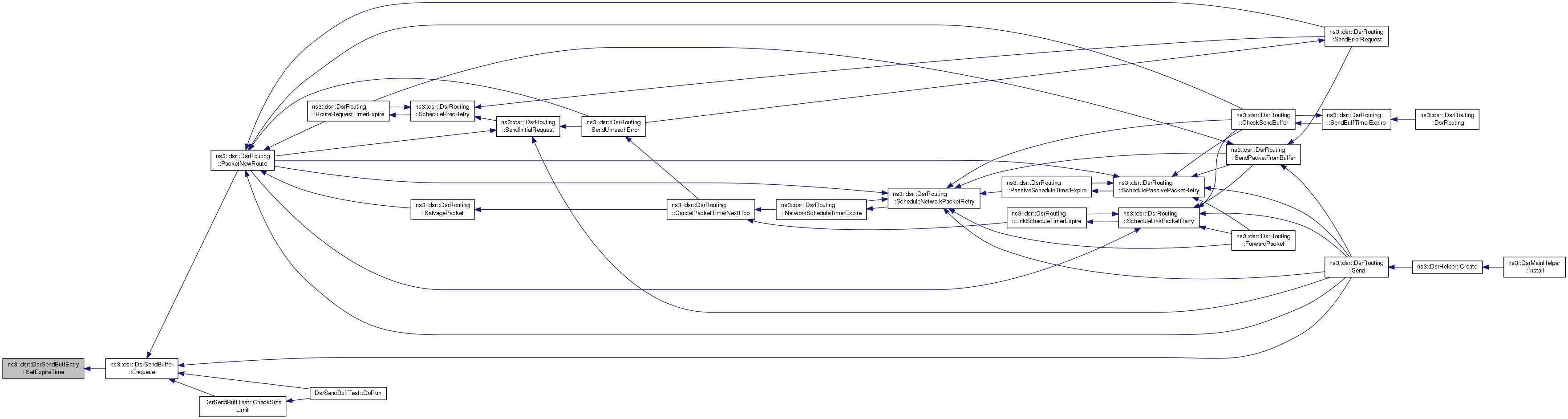

Here is the caller graph for this function:

Ptr<const Packet> ns3::dsr::DsrSendBuffEntry::GetPacket ( ) const

inline

Definition at line 75 of file dsr-rsendbuff.h.

References m_packet.

Referenced by ns3::dsr::DsrSendBuffer::Dequeue(), ns3::dsr::DsrSendBuffer::Drop(), ns3::dsr::DsrSendBuffer::Enqueue(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

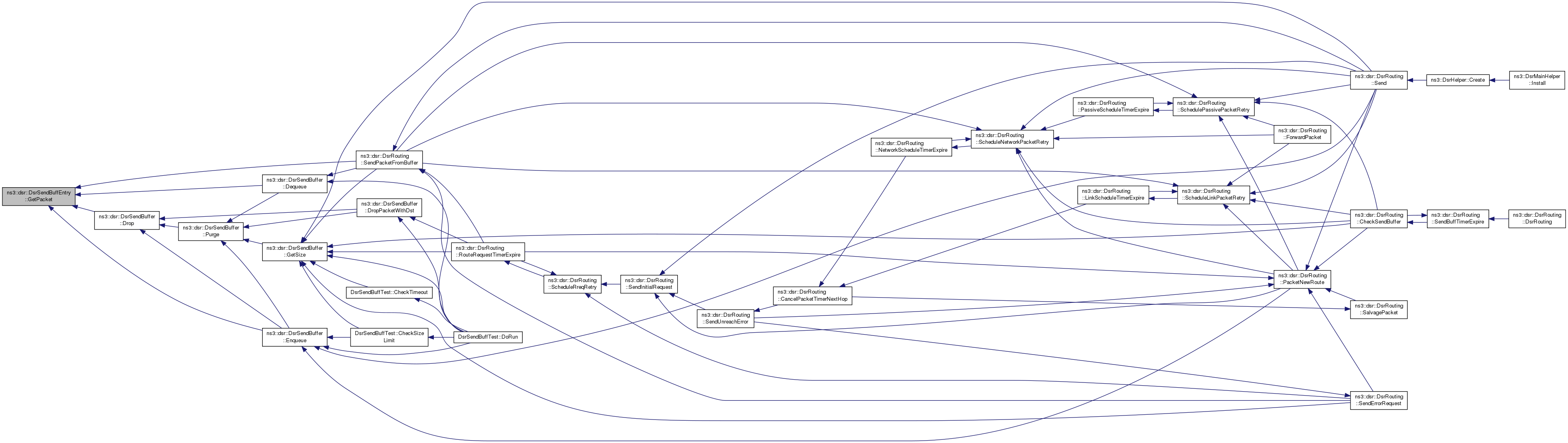

Here is the caller graph for this function:

uint8_t ns3::dsr::DsrSendBuffEntry::GetProtocol ( ) const

inline

Definition at line 103 of file dsr-rsendbuff.h.

References m_protocol.

bool ns3::dsr::DsrSendBuffEntry::operator== ( DsrSendBuffEntry const &  o ) const

inline

Compare send buffer entries.

Parameters

o	another DsrSendBuffEntry

Returns

true if equal

Definition at line 69 of file dsr-rsendbuff.h.

References m_dst, m_expire, and m_packet.

void ns3::dsr::DsrSendBuffEntry::SetDestination ( Ipv4Address  d )

inline

Definition at line 87 of file dsr-rsendbuff.h.

References m_dst.

void ns3::dsr::DsrSendBuffEntry::SetExpireTime ( Time  exp )

inline

Definition at line 91 of file dsr-rsendbuff.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::dsr::DsrSendBuffer::Enqueue().

Here is the call graph for this function:

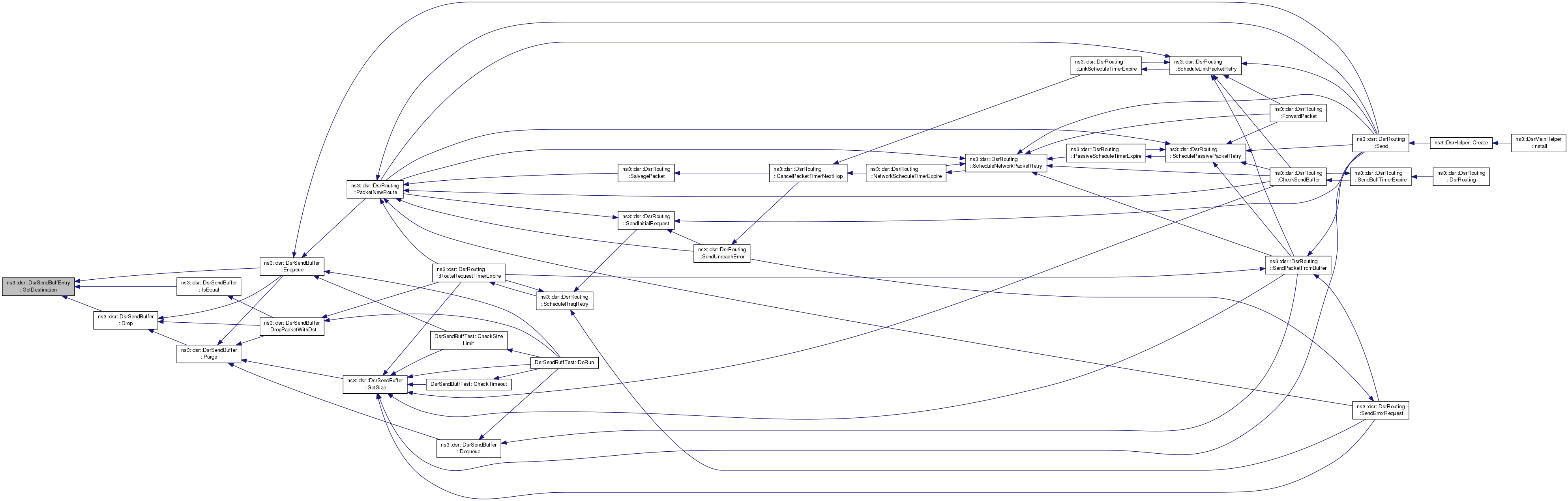

Here is the caller graph for this function:

void ns3::dsr::DsrSendBuffEntry::SetPacket ( Ptr< const Packet >  p )

inline

Definition at line 79 of file dsr-rsendbuff.h.

References m_packet.

void ns3::dsr::DsrSendBuffEntry::SetProtocol ( uint8_t  p )

inline

Definition at line 99 of file dsr-rsendbuff.h.

References m_protocol.

Member Data Documentation

Ipv4Address ns3::dsr::DsrSendBuffEntry::m_dst

private

Destination address.

Definition at line 112 of file dsr-rsendbuff.h.

Referenced by GetDestination(), operator==(), and SetDestination().

Time ns3::dsr::DsrSendBuffEntry::m_expire

private

Expire time for queue entry.

Definition at line 114 of file dsr-rsendbuff.h.

Referenced by GetExpireTime(), operator==(), and SetExpireTime().

Ptr<const Packet> ns3::dsr::DsrSendBuffEntry::m_packet

private

Data packet.

Definition at line 110 of file dsr-rsendbuff.h.

Referenced by GetPacket(), operator==(), and SetPacket().

uint8_t ns3::dsr::DsrSendBuffEntry::m_protocol

private

The protocol number.

Definition at line 116 of file dsr-rsendbuff.h.

Referenced by GetProtocol(), and SetProtocol().

---

The documentation for this class was generated from the following file:

• src/dsr/model/dsr-rsendbuff.h
