ns3::olsr::TcRegressionTest Class Reference

Less trivial test of OLSR Topology Control message generation. More...

#include "tc-regression-test.h"

Inheritance diagram for ns3::olsr::TcRegressionTest:

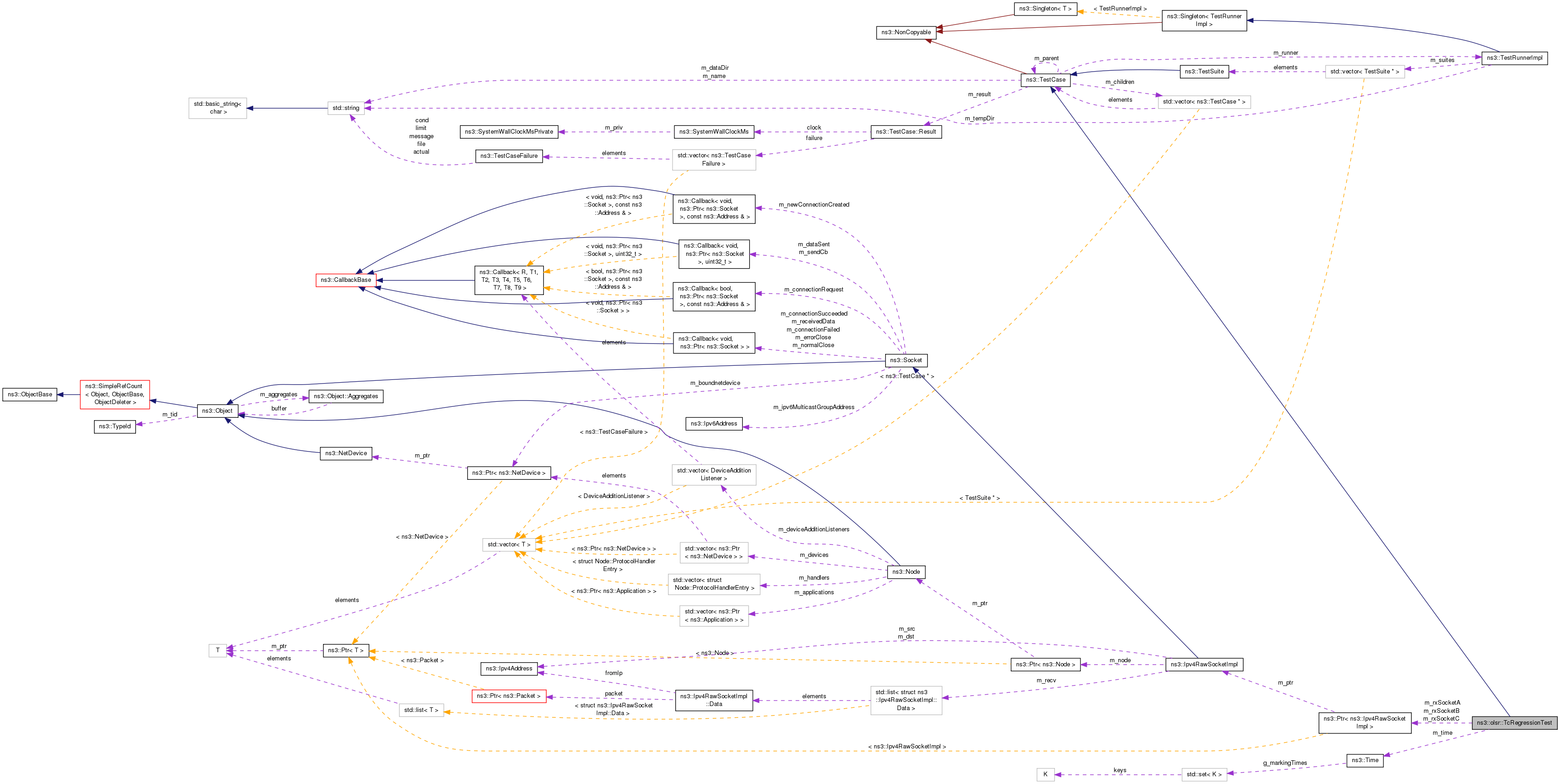

Collaboration diagram for ns3::olsr::TcRegressionTest:

Public Member Functions
	TcRegressionTest ()
	~TcRegressionTest ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	CreateNodes ()
	Create & configure test network. More...
void	DoRun ()
	Go. More...
void	ReceivePktProbeA (Ptr< Socket > socket)
	Receive raw data on node A. More...
void	ReceivePktProbeB (Ptr< Socket > socket)
	Receive raw data on node B. More...
void	ReceivePktProbeC (Ptr< Socket > socket)
	Receive raw data on node C. More...

Private Attributes
uint8_t	m_countA
	Packet counter on node A. More...
uint8_t	m_countB
	Packet counter on node B. More...
uint8_t	m_countC
	Packet counter on node C. More...
Ptr< Ipv4RawSocketImpl >	m_rxSocketA
	Receiving socket on node A. More...
Ptr< Ipv4RawSocketImpl >	m_rxSocketB
	Receiving socket on node B. More...
Ptr< Ipv4RawSocketImpl >	m_rxSocketC
	Receiving socket on node C. More...
const Time	m_time
	Total simulation time. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Less trivial test of OLSR Topology Control message generation.

This test simulates 3 Wi-Fi stations with chain topology and runs OLSR without any extra traffic. It is expected that only second station will send TC messages.

Expected trace (20 seconds, note random b-cast jitter):

       1       2       3
       |<------|------>|              HELLO (empty) src = 10.1.1.2
       |       |<------|------>       HELLO (empty) src = 10.1.1.3
<------|------>|       |              HELLO (empty) src = 10.1.1.1
<------|------>|       |              HELLO (Link Type: Asymmetric, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: Asymmetric, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<------|------>|              HELLO (Link Type: Asymmetric, Neighbor: 10.1.1.3; Link Type: Asymmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
       |<------|------>|              HELLO (Link Type: Asymmetric, Neighbor: 10.1.1.3; Link Type: Asymmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
<------|------>|       |              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: Symmetric, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<======|======>|              TC (10.1.1.3; 10.1.1.1) + HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
       |<======|======>|              TC (10.1.1.3; 10.1.1.1) src = 10.1.1.2
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2

Definition at line 75 of file tc-regression-test.h.

Constructor & Destructor Documentation

ns3::olsr::TcRegressionTest::TcRegressionTest

(

)

Definition at line 44 of file tc-regression-test.cc.

ns3::olsr::TcRegressionTest::~TcRegressionTest

(

)

Definition at line 51 of file tc-regression-test.cc.

Member Function Documentation

void ns3::olsr::TcRegressionTest::CreateNodes ( void  )

private

Create & configure test network.

Definition at line 72 of file tc-regression-test.cc.

References ns3::Ipv4AddressHelper::Assign(), ns3::OlsrHelper::AssignStreams(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), ns3::SimpleNetDeviceHelper::Install(), ns3::InternetStackHelper::Install(), m_rxSocketA, m_rxSocketB, m_rxSocketC, ns3::MakeCallback(), NS_TEST_EXPECT_MSG_EQ, ns3::UdpL4Protocol::PROT_NUMBER, ReceivePktProbeA(), ReceivePktProbeB(), ReceivePktProbeC(), ns3::Ipv4AddressHelper::SetBase(), ns3::SimpleNetDeviceHelper::SetChannelAttribute(), ns3::SimpleNetDeviceHelper::SetDeviceAttribute(), and ns3::InternetStackHelper::SetRoutingHelper().

Referenced by DoRun().

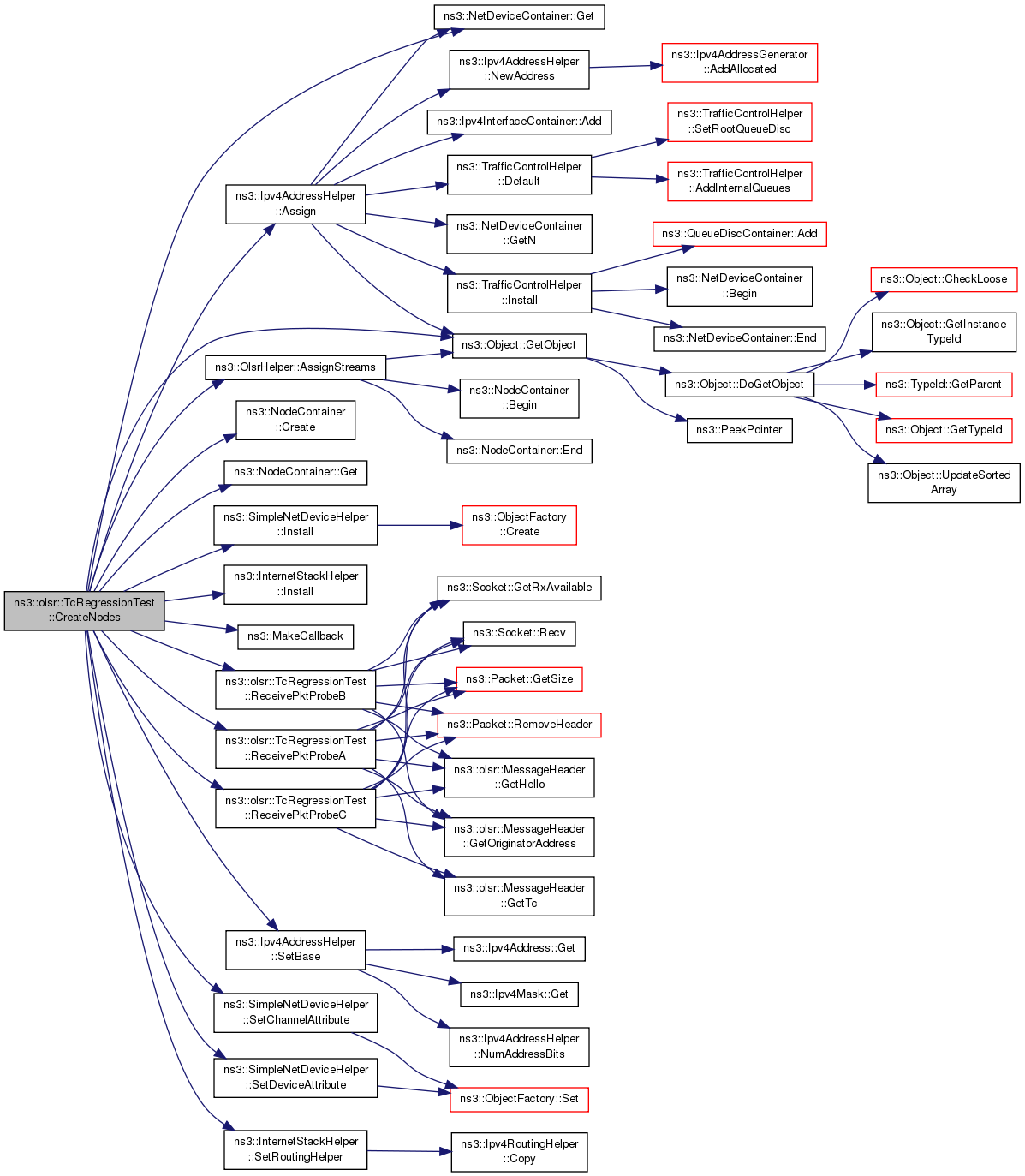

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::TcRegressionTest::DoRun ( void  )

privatevirtual

Go.

Implements ns3::TestCase.

Definition at line 56 of file tc-regression-test.cc.

References CreateNodes(), ns3::Simulator::Destroy(), m_rxSocketA, m_rxSocketB, m_rxSocketC, m_time, ns3::Simulator::Run(), ns3::RngSeedManager::SetRun(), ns3::RngSeedManager::SetSeed(), and ns3::Simulator::Stop().

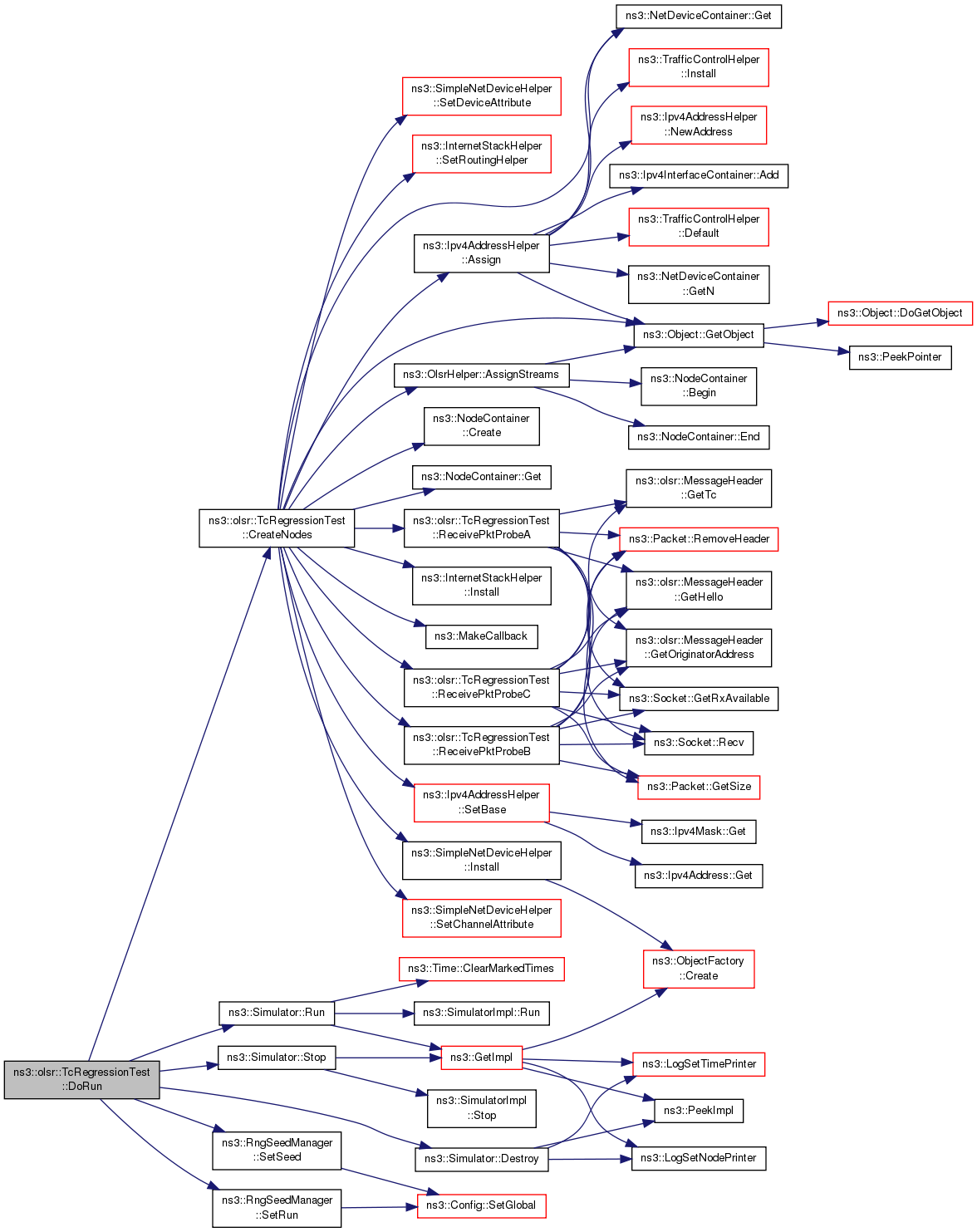

Here is the call graph for this function:

void ns3::olsr::TcRegressionTest::ReceivePktProbeA ( Ptr< Socket >  socket )

private

Receive raw data on node A.

Definition at line 123 of file tc-regression-test.cc.

References ns3::olsr::MessageHeader::GetHello(), ns3::olsr::MessageHeader::GetOriginatorAddress(), ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), ns3::olsr::MessageHeader::GetTc(), ns3::olsr::MessageHeader::Hello::linkMessages, m_countA, max, ns3::olsr::MessageHeader::Tc::neighborAddresses, NS_ASSERT, NS_TEST_EXPECT_MSG_EQ, ns3::Socket::Recv(), and ns3::Packet::RemoveHeader().

Referenced by CreateNodes().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::TcRegressionTest::ReceivePktProbeB ( Ptr< Socket >  socket )

private

Receive raw data on node B.

Definition at line 190 of file tc-regression-test.cc.

References ns3::olsr::MessageHeader::GetHello(), ns3::olsr::MessageHeader::GetOriginatorAddress(), ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), ns3::olsr::MessageHeader::Hello::linkMessages, m_countB, m_countC, max, NS_ASSERT, NS_TEST_EXPECT_MSG_EQ, ns3::Socket::Recv(), and ns3::Packet::RemoveHeader().

Referenced by CreateNodes().

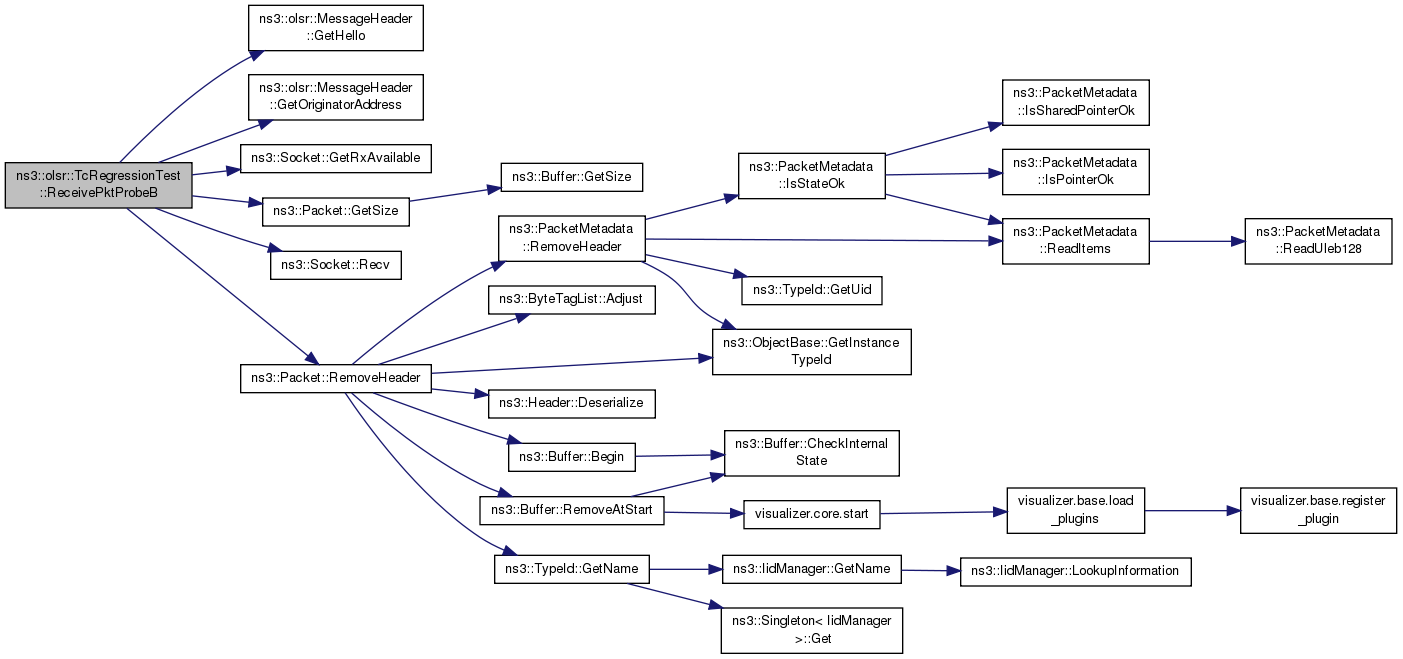

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::TcRegressionTest::ReceivePktProbeC ( Ptr< Socket >  socket )

private

Receive raw data on node C.

Definition at line 246 of file tc-regression-test.cc.

References ns3::olsr::MessageHeader::GetHello(), ns3::olsr::MessageHeader::GetOriginatorAddress(), ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), ns3::olsr::MessageHeader::GetTc(), ns3::olsr::MessageHeader::Hello::linkMessages, m_countC, max, ns3::olsr::MessageHeader::Tc::neighborAddresses, NS_ASSERT, NS_TEST_EXPECT_MSG_EQ, ns3::Socket::Recv(), and ns3::Packet::RemoveHeader().

Referenced by CreateNodes().

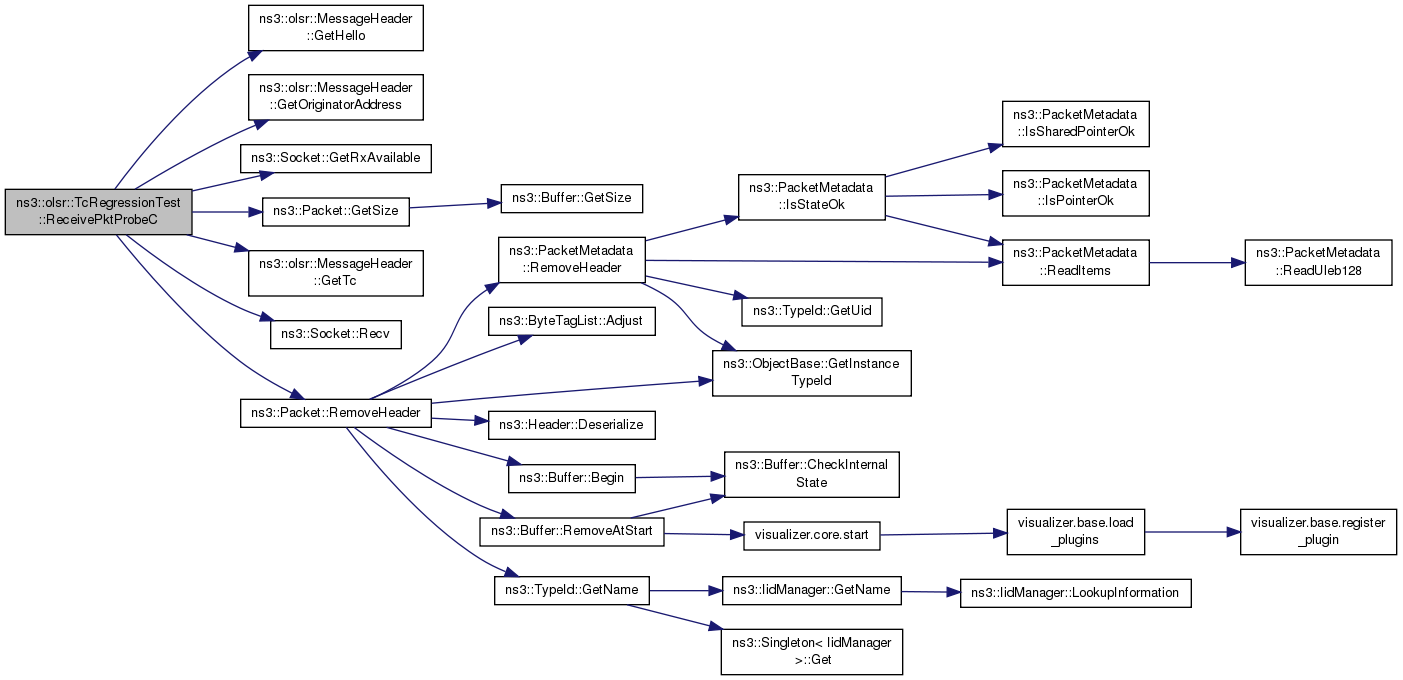

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::olsr::TcRegressionTest::m_countA

private

Packet counter on node A.

Definition at line 91 of file tc-regression-test.h.

Referenced by ReceivePktProbeA().

uint8_t ns3::olsr::TcRegressionTest::m_countB

private

Packet counter on node B.

Definition at line 98 of file tc-regression-test.h.

Referenced by ReceivePktProbeB().

uint8_t ns3::olsr::TcRegressionTest::m_countC

private

Packet counter on node C.

Definition at line 105 of file tc-regression-test.h.

Referenced by ReceivePktProbeB(), and ReceivePktProbeC().

Ptr<Ipv4RawSocketImpl> ns3::olsr::TcRegressionTest::m_rxSocketA

private

Receiving socket on node A.

Definition at line 93 of file tc-regression-test.h.

Referenced by CreateNodes(), and DoRun().

Ptr<Ipv4RawSocketImpl> ns3::olsr::TcRegressionTest::m_rxSocketB

private

Receiving socket on node B.

Definition at line 100 of file tc-regression-test.h.

Referenced by CreateNodes(), and DoRun().

Ptr<Ipv4RawSocketImpl> ns3::olsr::TcRegressionTest::m_rxSocketC

private

Receiving socket on node C.

Definition at line 107 of file tc-regression-test.h.

Referenced by CreateNodes(), and DoRun().

const Time ns3::olsr::TcRegressionTest::m_time

private

Total simulation time.

Definition at line 82 of file tc-regression-test.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/olsr/test/tc-regression-test.h
• src/olsr/test/tc-regression-test.cc
