ns3::NqosWifiMacHelper Class Reference

create non QoS-enabled MAC layers for a ns3::WifiNetDevice. More...

#include "nqos-wifi-mac-helper.h"

Inheritance diagram for ns3::NqosWifiMacHelper:

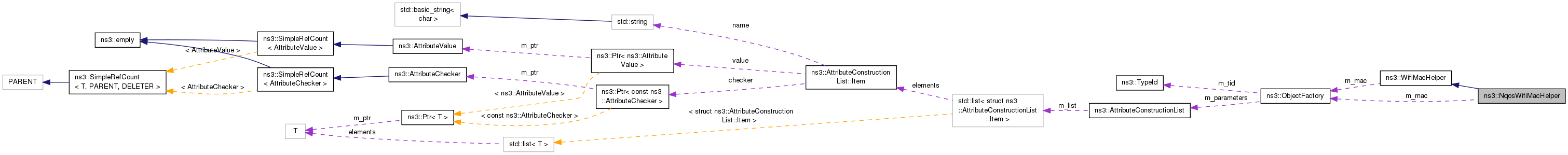

Collaboration diagram for ns3::NqosWifiMacHelper:

Public Member Functions
	NqosWifiMacHelper ()
	Create a NqosWifiMacHelper to make life easier for people who want to work with non-QOS Wifi MAC layers. More...
virtual	~NqosWifiMacHelper ()
	Destroy a NqosWifiMacHelper. More...
virtual void	SetType (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue(), std::string n10="", const AttributeValue &v10=EmptyAttributeValue())
Public Member Functions inherited from ns3::WifiMacHelper
	WifiMacHelper ()
	Create a WifiMacHelper to make life easier for people who want to work with Wifi MAC layers. More...
virtual	~WifiMacHelper ()
	Destroy a WifiMacHelper. More...

Static Public Member Functions
static NqosWifiMacHelper	Default (void)
	Create a mac helper in a default working state. More...

Protected Attributes
ObjectFactory	m_mac
	MAC object. More...
Protected Attributes inherited from ns3::WifiMacHelper
ObjectFactory	m_mac
	MAC object factory. More...

Private Member Functions
virtual Ptr< WifiMac >	Create (void) const

Detailed Description

create non QoS-enabled MAC layers for a ns3::WifiNetDevice.

This class can create MACs of type ns3::ApWifiMac, ns3::StaWifiMac, and, ns3::AdhocWifiMac, with QosSupported attribute set to False.

Deprecated:

This class deprecated and replaced by ns3::WifiMacHelper

Definition at line 37 of file nqos-wifi-mac-helper.h.

Constructor & Destructor Documentation

ns3::NqosWifiMacHelper::NqosWifiMacHelper

(

)

Create a NqosWifiMacHelper to make life easier for people who want to work with non-QOS Wifi MAC layers.

Definition at line 29 of file nqos-wifi-mac-helper.cc.

ns3::NqosWifiMacHelper::~NqosWifiMacHelper ( )

virtual

Destroy a NqosWifiMacHelper.

Definition at line 33 of file nqos-wifi-mac-helper.cc.

Member Function Documentation

Ptr< WifiMac > ns3::NqosWifiMacHelper::Create ( void  ) const

privatevirtual

Returns

a newly-created MAC object.

This method implements the pure virtual method defined in ns3::WifiMacHelper.

Reimplemented from ns3::WifiMacHelper.

Definition at line 78 of file nqos-wifi-mac-helper.cc.

References ns3::ObjectFactory::Create(), m_mac, and third::mac.

Here is the call graph for this function:

NqosWifiMacHelper ns3::NqosWifiMacHelper::Default ( void  )

static

Create a mac helper in a default working state.

i.e., this is an adhoc mac by default.

Returns

NqosWifiMacHelper

Definition at line 38 of file nqos-wifi-mac-helper.cc.

References SetType().

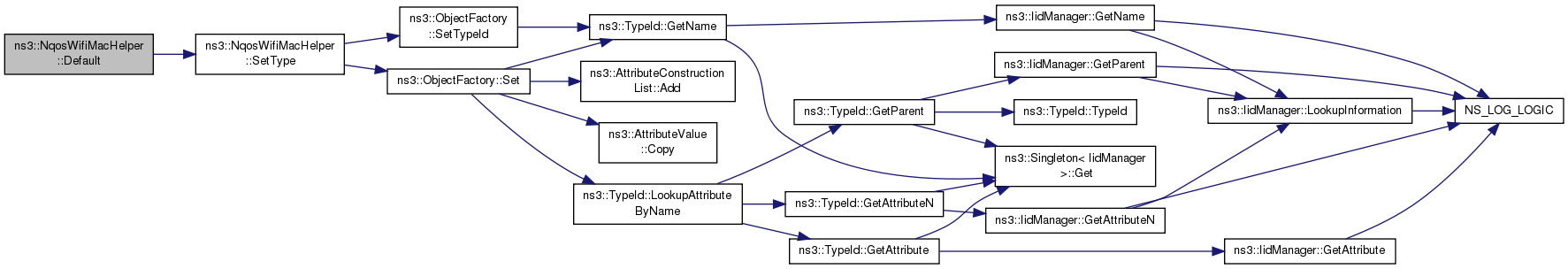

Here is the call graph for this function:

void ns3::NqosWifiMacHelper::SetType ( std::string  type, std::string  n0 = "", const AttributeValue &  v0 = EmptyAttributeValue (), std::string  n1 = "", const AttributeValue &  v1 = EmptyAttributeValue (), std::string  n2 = "", const AttributeValue &  v2 = EmptyAttributeValue (), std::string  n3 = "", const AttributeValue &  v3 = EmptyAttributeValue (), std::string  n4 = "", const AttributeValue &  v4 = EmptyAttributeValue (), std::string  n5 = "", const AttributeValue &  v5 = EmptyAttributeValue (), std::string  n6 = "", const AttributeValue &  v6 = EmptyAttributeValue (), std::string  n7 = "", const AttributeValue &  v7 = EmptyAttributeValue (), std::string  n8 = "", const AttributeValue &  v8 = EmptyAttributeValue (), std::string  n9 = "", const AttributeValue &  v9 = EmptyAttributeValue (), std::string  n10 = "", const AttributeValue &  v10 = EmptyAttributeValue ()  )

virtual

Parameters

type	the type of ns3::WifiMac to create.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set
n8	the name of the attribute to set
v8	the value of the attribute to set
n9	the name of the attribute to set
v9	the value of the attribute to set
n10	the name of the attribute to set
v10	the value of the attribute to set

All the attributes specified in this method should exist in the requested mac.

Reimplemented from ns3::WifiMacHelper.

Definition at line 50 of file nqos-wifi-mac-helper.cc.

References m_mac, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by Default().

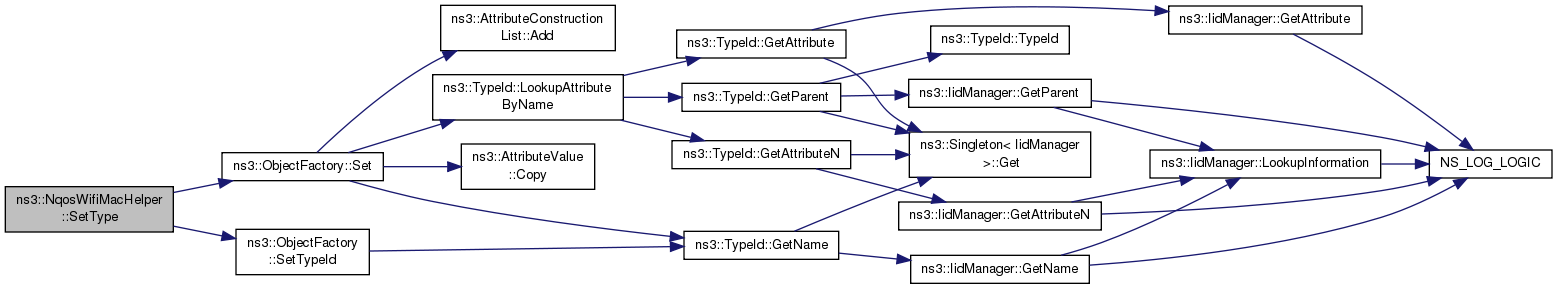

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

ObjectFactory ns3::NqosWifiMacHelper::m_mac

protected

MAC object.

Definition at line 98 of file nqos-wifi-mac-helper.h.

Referenced by Create(), and SetType().

---

The documentation for this class was generated from the following files:

• src/wifi/helper/nqos-wifi-mac-helper.h
• src/wifi/helper/nqos-wifi-mac-helper.cc
