ns3::UdpL4Protocol Class Reference

Implementation of the UDP protocol. More...

#include "udp-l4-protocol.h"

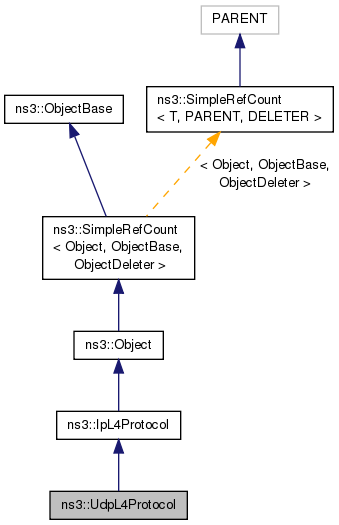

+ Inheritance diagram for ns3::UdpL4Protocol:

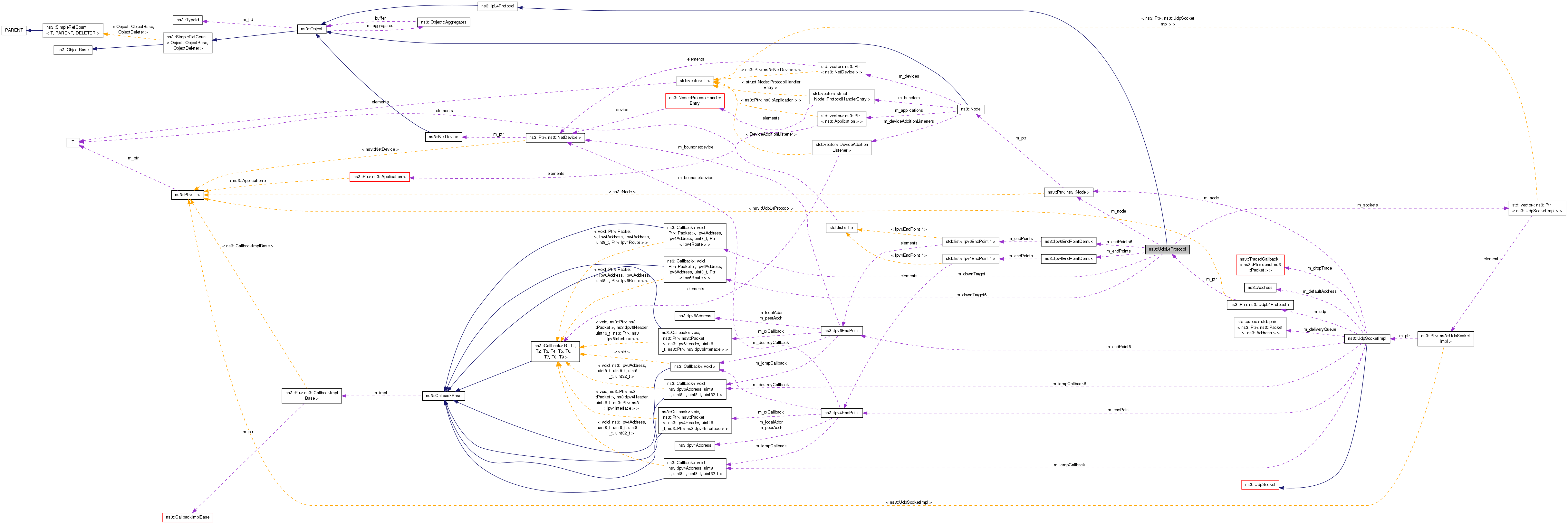

+ Collaboration diagram for ns3::UdpL4Protocol:

Public Member Functions

 UdpL4Protocol ()

virtual ~UdpL4Protocol ()

Ipv4EndPointAllocate (void)
 Allocate an IPv4 Endpoint. More...

Ipv4EndPointAllocate (Ipv4Address address)
 Allocate an IPv4 Endpoint. More...

Ipv4EndPointAllocate (Ptr< NetDevice > boundNetDevice, uint16_t port)
 Allocate an IPv4 Endpoint. More...

Ipv4EndPointAllocate (Ptr< NetDevice > boundNetDevice, Ipv4Address address, uint16_t port)
 Allocate an IPv4 Endpoint. More...

Ipv4EndPointAllocate (Ptr< NetDevice > boundNetDevice, Ipv4Address localAddress, uint16_t localPort, Ipv4Address peerAddress, uint16_t peerPort)
 Allocate an IPv4 Endpoint. More...

Ipv6EndPointAllocate6 (void)
 Allocate an IPv6 Endpoint. More...

Ipv6EndPointAllocate6 (Ipv6Address address)
 Allocate an IPv6 Endpoint. More...

Ipv6EndPointAllocate6 (Ptr< NetDevice > boundNetDevice, uint16_t port)
 Allocate an IPv6 Endpoint. More...

Ipv6EndPointAllocate6 (Ptr< NetDevice > boundNetDevice, Ipv6Address address, uint16_t port)
 Allocate an IPv6 Endpoint. More...

Ipv6EndPointAllocate6 (Ptr< NetDevice > boundNetDevice, Ipv6Address localAddress, uint16_t localPort, Ipv6Address peerAddress, uint16_t peerPort)
 Allocate an IPv6 Endpoint. More...

Ptr< SocketCreateSocket (void)

void DeAllocate (Ipv4EndPoint *endPoint)
 Remove an IPv4 Endpoint. More...

void DeAllocate (Ipv6EndPoint *endPoint)
 Remove an IPv6 Endpoint. More...

virtual IpL4Protocol::DownTargetCallback GetDownTarget (void) const
 This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case) More...

virtual IpL4Protocol::DownTargetCallback6 GetDownTarget6 (void) const
 This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case) More...

virtual int GetProtocolNumber (void) const
 Returns the protocol number of this protocol. More...

virtual enum IpL4Protocol::RxStatus Receive (Ptr< Packet > p, Ipv6Header const &header, Ptr< Ipv6Interface > interface)
 Called from lower-level layers to send the packet up in the stack. More...

virtual enum IpL4Protocol::RxStatus Receive (Ptr< Packet > p, Ipv4Header const &header, Ptr< Ipv4Interface > interface)
 Called from lower-level layers to send the packet up in the stack. More...

virtual void ReceiveIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv4Address payloadSource, Ipv4Address payloadDestination, const uint8_t payload[8])
 Called from lower-level layers to send the ICMP packet up in the stack. More...

virtual void ReceiveIcmp (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv6Address payloadSource, Ipv6Address payloadDestination, const uint8_t payload[8])
 Called from lower-level layers to send the ICMPv6 packet up in the stack. More...

void Send (Ptr< Packet > packet, Ipv4Address saddr, Ipv4Address daddr, uint16_t sport, uint16_t dport)
 Send a packet via UDP (IPv4) More...

void Send (Ptr< Packet > packet, Ipv4Address saddr, Ipv4Address daddr, uint16_t sport, uint16_t dport, Ptr< Ipv4Route > route)
 Send a packet via UDP (IPv4) More...

void Send (Ptr< Packet > packet, Ipv6Address saddr, Ipv6Address daddr, uint16_t sport, uint16_t dport)
 Send a packet via UDP (IPv6) More...

void Send (Ptr< Packet > packet, Ipv6Address saddr, Ipv6Address daddr, uint16_t sport, uint16_t dport, Ptr< Ipv6Route > route)
 Send a packet via UDP (IPv6) More...

virtual void SetDownTarget (IpL4Protocol::DownTargetCallback cb)
 This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case) More...

virtual void SetDownTarget6 (IpL4Protocol::DownTargetCallback6 cb)
 This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case) More...

void SetNode (Ptr< Node > node)
 Set node associated with this stack. More...

- Public Member Functions inherited from ns3::IpL4Protocol
virtual ~IpL4Protocol ()

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::IpL4Protocol
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Static Public Attributes

static const uint8_t PROT_NUMBER = 17
 protocol number (0x11) More...


Protected Member Functions

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Member Functions

 UdpL4Protocol (const UdpL4Protocol &)
 Copy constructor. More...

UdpL4Protocoloperator= (const UdpL4Protocol &)
 Copy constructor. More...


Private Attributes

IpL4Protocol::DownTargetCallback m_downTarget
 Callback to send packets over IPv4. More...

IpL4Protocol::DownTargetCallback6 m_downTarget6
 Callback to send packets over IPv6. More...

Ipv4EndPointDemuxm_endPoints
 A list of IPv4 end points. More...

Ipv6EndPointDemuxm_endPoints6
 A list of IPv6 end points. More...

Ptr< Nodem_node
 the node this stack is associated with More...

std::vector< Ptr< UdpSocketImpl > > m_sockets
 list of sockets More...


Additional Inherited Members

- Public Types inherited from ns3::IpL4Protocol
typedef Callback< void, Ptr< Packet >, Ipv4Address, Ipv4Address, uint8_t, Ptr< Ipv4Route > > DownTargetCallback
 callback to send packets over IPv4 More...

typedef Callback< void, Ptr< Packet >, Ipv6Address, Ipv6Address, uint8_t, Ptr< Ipv6Route > > DownTargetCallback6
 callback to send packets over IPv6 More...

enum  RxStatus { RX_OK, RX_CSUM_FAILED, RX_ENDPOINT_CLOSED, RX_ENDPOINT_UNREACH }
 Rx status codes. More...


Detailed Description

Implementation of the UDP protocol.

Config Paths

ns3::UdpL4Protocol is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/$ns3::UdpL4Protocol"

Attributes

Attributes defined in parent class ns3::IpL4Protocol

  • ProtocolNumber: The IP protocol number.

No TraceSources are defined for this type.
Size of this type is 96 bytes (on a 64-bit architecture).

Definition at line 61 of file udp-l4-protocol.h.

Constructor & Destructor Documentation

ns3::UdpL4Protocol::UdpL4Protocol ( )

Definition at line 67 of file udp-l4-protocol.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::UdpL4Protocol::~UdpL4Protocol ( )
virtual

Definition at line 73 of file udp-l4-protocol.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::UdpL4Protocol::UdpL4Protocol ( const UdpL4Protocol )
private

Copy constructor.

Defined and not implemented to avoid misuse

Member Function Documentation

Ipv4EndPoint * ns3::UdpL4Protocol::Allocate ( void  )

Allocate an IPv4 Endpoint.

Returns
the Endpoint

Definition at line 174 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

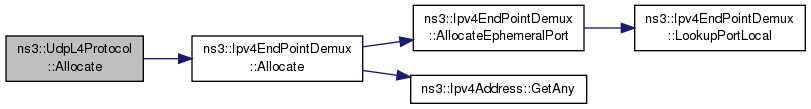

+ Here is the call graph for this function:

Ipv4EndPoint * ns3::UdpL4Protocol::Allocate ( Ipv4Address  address)

Allocate an IPv4 Endpoint.

Parameters
addressaddress to use
Returns
the Endpoint

Definition at line 181 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ipv4EndPoint * ns3::UdpL4Protocol::Allocate ( Ptr< NetDevice boundNetDevice,
uint16_t  port
)

Allocate an IPv4 Endpoint.

Parameters
boundNetDeviceBound NetDevice (if any)
portport to use
Returns
the Endpoint

Definition at line 188 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ipv4EndPoint * ns3::UdpL4Protocol::Allocate ( Ptr< NetDevice boundNetDevice,
Ipv4Address  address,
uint16_t  port
)

Allocate an IPv4 Endpoint.

Parameters
boundNetDeviceBound NetDevice (if any)
addressaddress to use
portport to use
Returns
the Endpoint

Definition at line 195 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ipv4EndPoint * ns3::UdpL4Protocol::Allocate ( Ptr< NetDevice boundNetDevice,
Ipv4Address  localAddress,
uint16_t  localPort,
Ipv4Address  peerAddress,
uint16_t  peerPort
)

Allocate an IPv4 Endpoint.

Parameters
boundNetDeviceBound NetDevice (if any)
localAddresslocal address to use
localPortlocal port to use
peerAddressremote address to use
peerPortremote port to use
Returns
the Endpoint

Definition at line 201 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ipv6EndPoint * ns3::UdpL4Protocol::Allocate6 ( void  )

Allocate an IPv6 Endpoint.

Returns
the Endpoint

Definition at line 219 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::Allocate(), m_endPoints6, and NS_LOG_FUNCTION.

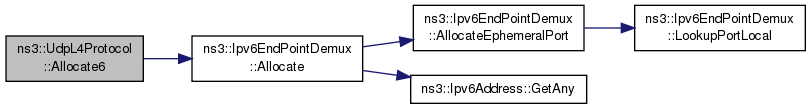

+ Here is the call graph for this function:

Ipv6EndPoint * ns3::UdpL4Protocol::Allocate6 ( Ipv6Address  address)

Allocate an IPv6 Endpoint.

Parameters
addressaddress to use
Returns
the Endpoint

Definition at line 226 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::Allocate(), m_endPoints6, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ipv6EndPoint * ns3::UdpL4Protocol::Allocate6 ( Ptr< NetDevice boundNetDevice,
uint16_t  port
)

Allocate an IPv6 Endpoint.

Parameters
boundNetDeviceBound NetDevice (if any)
portport to use
Returns
the Endpoint

Definition at line 233 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::Allocate(), m_endPoints6, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ipv6EndPoint * ns3::UdpL4Protocol::Allocate6 ( Ptr< NetDevice boundNetDevice,
Ipv6Address  address,
uint16_t  port
)

Allocate an IPv6 Endpoint.

Parameters
boundNetDeviceBound NetDevice (if any)
addressaddress to use
portport to use
Returns
the Endpoint

Definition at line 240 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::Allocate(), m_endPoints6, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ipv6EndPoint * ns3::UdpL4Protocol::Allocate6 ( Ptr< NetDevice boundNetDevice,
Ipv6Address  localAddress,
uint16_t  localPort,
Ipv6Address  peerAddress,
uint16_t  peerPort
)

Allocate an IPv6 Endpoint.

Parameters
boundNetDeviceBound NetDevice (if any)
localAddresslocal address to use
localPortlocal port to use
peerAddressremote address to use
peerPortremote port to use
Returns
the Endpoint

Definition at line 246 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::Allocate(), m_endPoints6, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ptr< Socket > ns3::UdpL4Protocol::CreateSocket ( void  )
Returns
A smart Socket pointer to a UdpSocket, allocated by this instance of the UDP protocol

Definition at line 163 of file udp-l4-protocol.cc.

References m_node, m_sockets, and NS_LOG_FUNCTION_NOARGS.

void ns3::UdpL4Protocol::DeAllocate ( Ipv4EndPoint endPoint)

Remove an IPv4 Endpoint.

Parameters
endPointthe end point to remove

Definition at line 212 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::DeAllocate(), m_endPoints, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::UdpL4Protocol::DeAllocate ( Ipv6EndPoint endPoint)

Remove an IPv6 Endpoint.

Parameters
endPointthe end point to remove

Definition at line 257 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPointDemux::DeAllocate(), m_endPoints6, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::UdpL4Protocol::DoDispose ( void  )
protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 134 of file udp-l4-protocol.cc.

References ns3::Object::DoDispose(), m_downTarget, m_downTarget6, m_endPoints, m_endPoints6, m_node, m_sockets, NS_LOG_FUNCTION_NOARGS, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

+ Here is the call graph for this function:

IpL4Protocol::DownTargetCallback ns3::UdpL4Protocol::GetDownTarget ( void  ) const
virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case)

Returns
current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 515 of file udp-l4-protocol.cc.

References m_downTarget.

IpL4Protocol::DownTargetCallback6 ns3::UdpL4Protocol::GetDownTarget6 ( void  ) const
virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case)

Returns
current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 528 of file udp-l4-protocol.cc.

References m_downTarget6.

int ns3::UdpL4Protocol::GetProtocolNumber ( void  ) const
virtual

Returns the protocol number of this protocol.

Returns
the protocol number.

Implements ns3::IpL4Protocol.

Definition at line 127 of file udp-l4-protocol.cc.

References PROT_NUMBER.

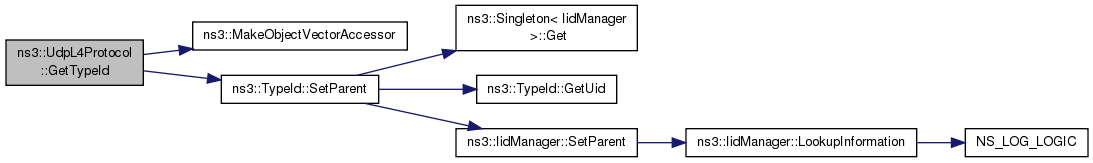

TypeId ns3::UdpL4Protocol::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 53 of file udp-l4-protocol.cc.

References m_sockets, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

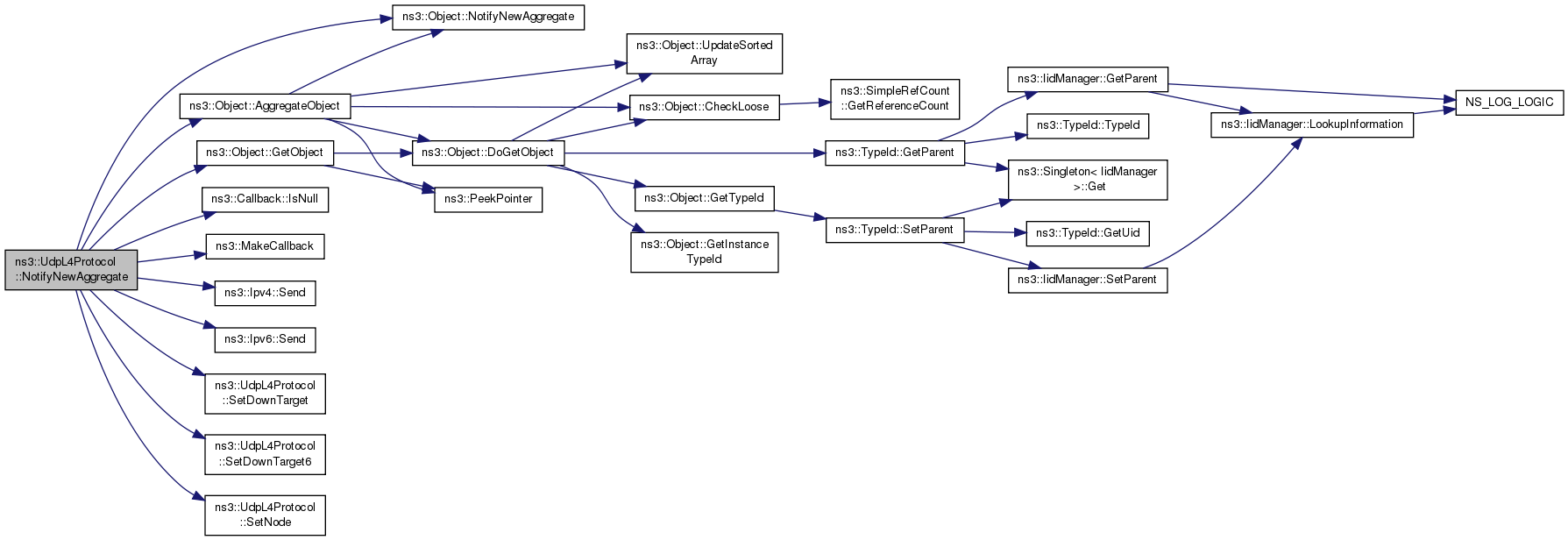

void ns3::UdpL4Protocol::NotifyNewAggregate ( void  )
protectedvirtual

Notify all Objects aggregated to this one of a new Object being aggregated.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

This method is invoked whenever two sets of Objects are aggregated together. It is invoked exactly once for each Object in both sets. This method can be overriden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate() method.

It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 90 of file udp-l4-protocol.cc.

References ns3::Object::AggregateObject(), ns3::Object::GetObject(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_downTarget, m_downTarget6, m_node, ns3::MakeCallback(), ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, ns3::Ipv4::Send(), ns3::Ipv6::Send(), SetDownTarget(), SetDownTarget6(), and SetNode().

+ Here is the call graph for this function:

UdpL4Protocol& ns3::UdpL4Protocol::operator= ( const UdpL4Protocol )
private

Copy constructor.

Defined and not implemented to avoid misuse

Returns

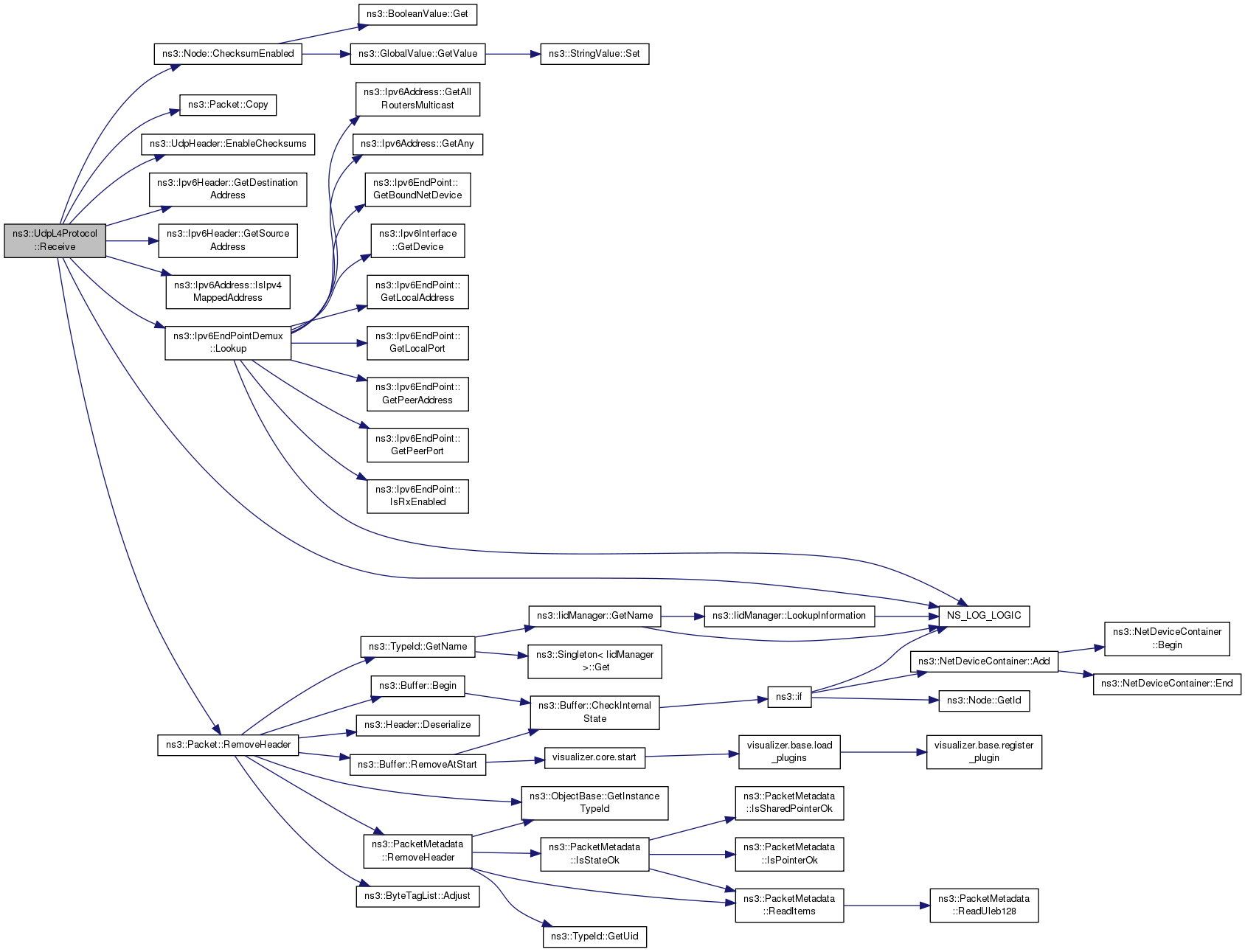

enum IpL4Protocol::RxStatus ns3::UdpL4Protocol::Receive ( Ptr< Packet p,
Ipv6Header const &  header,
Ptr< Ipv6Interface incomingInterface
)
virtual

Called from lower-level layers to send the packet up in the stack.

Parameters
ppacket to forward up
headerIPv6 Header information
incomingInterfacethe Ipv6Interface on which the packet arrived
Returns
Rx status code

Implements ns3::IpL4Protocol.

Definition at line 377 of file udp-l4-protocol.cc.

References ns3::Node::ChecksumEnabled(), ns3::Packet::Copy(), ns3::UdpHeader::EnableChecksums(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Header::GetSourceAddress(), ns3::Ipv6Address::IsIpv4MappedAddress(), ns3::Ipv6EndPointDemux::Lookup(), m_endPoints6, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC(), PROT_NUMBER, ns3::Packet::RemoveHeader(), ns3::IpL4Protocol::RX_CSUM_FAILED, ns3::IpL4Protocol::RX_ENDPOINT_UNREACH, and ns3::IpL4Protocol::RX_OK.

+ Here is the call graph for this function:

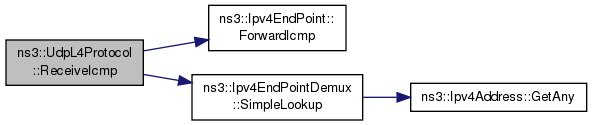

void ns3::UdpL4Protocol::ReceiveIcmp ( Ipv4Address  icmpSource,
uint8_t  icmpTtl,
uint8_t  icmpType,
uint8_t  icmpCode,
uint32_t  icmpInfo,
Ipv4Address  payloadSource,
Ipv4Address  payloadDestination,
const uint8_t  payload[8]
)
virtual

Called from lower-level layers to send the ICMP packet up in the stack.

Parameters
icmpSourcethe source address of the icmp message
icmpTtlthe ttl of the icmp message
icmpTypethe 'type' field of the icmp message
icmpCodethe 'code' field of the icmp message
icmpInfoextra information dependent on the icmp message generated by Icmpv4L4Protocol
payloadSourcethe source address of the packet which triggered the icmp message
payloadDestinationthe destination address of the packet which triggered the icmp message.
payloadthe first 8 bytes of the packet payload which triggered the icmp message.

Reimplemented from ns3::IpL4Protocol.

Definition at line 264 of file udp-l4-protocol.cc.

References ns3::Ipv4EndPoint::ForwardIcmp(), m_endPoints, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Ipv4EndPointDemux::SimpleLookup().

+ Here is the call graph for this function:

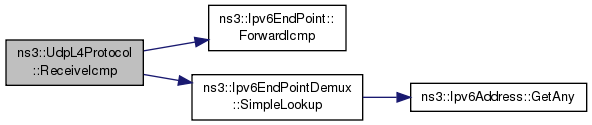

void ns3::UdpL4Protocol::ReceiveIcmp ( Ipv6Address  icmpSource,
uint8_t  icmpTtl,
uint8_t  icmpType,
uint8_t  icmpCode,
uint32_t  icmpInfo,
Ipv6Address  payloadSource,
Ipv6Address  payloadDestination,
const uint8_t  payload[8]
)
virtual

Called from lower-level layers to send the ICMPv6 packet up in the stack.

Parameters
icmpSourcethe source address of the icmp message
icmpTtlthe ttl of the icmp message
icmpTypethe 'type' field of the icmp message
icmpCodethe 'code' field of the icmp message
icmpInfoextra information dependent on the icmp message generated by Icmpv6L4Protocol
payloadSourcethe source address of the packet which triggered the icmp message
payloadDestinationthe destination address of the packet which triggered the icmp message.
payloadthe first 8 bytes of the packet payload which triggered the icmp message.

Reimplemented from ns3::IpL4Protocol.

Definition at line 291 of file udp-l4-protocol.cc.

References ns3::Ipv6EndPoint::ForwardIcmp(), m_endPoints6, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Ipv6EndPointDemux::SimpleLookup().

+ Here is the call graph for this function:

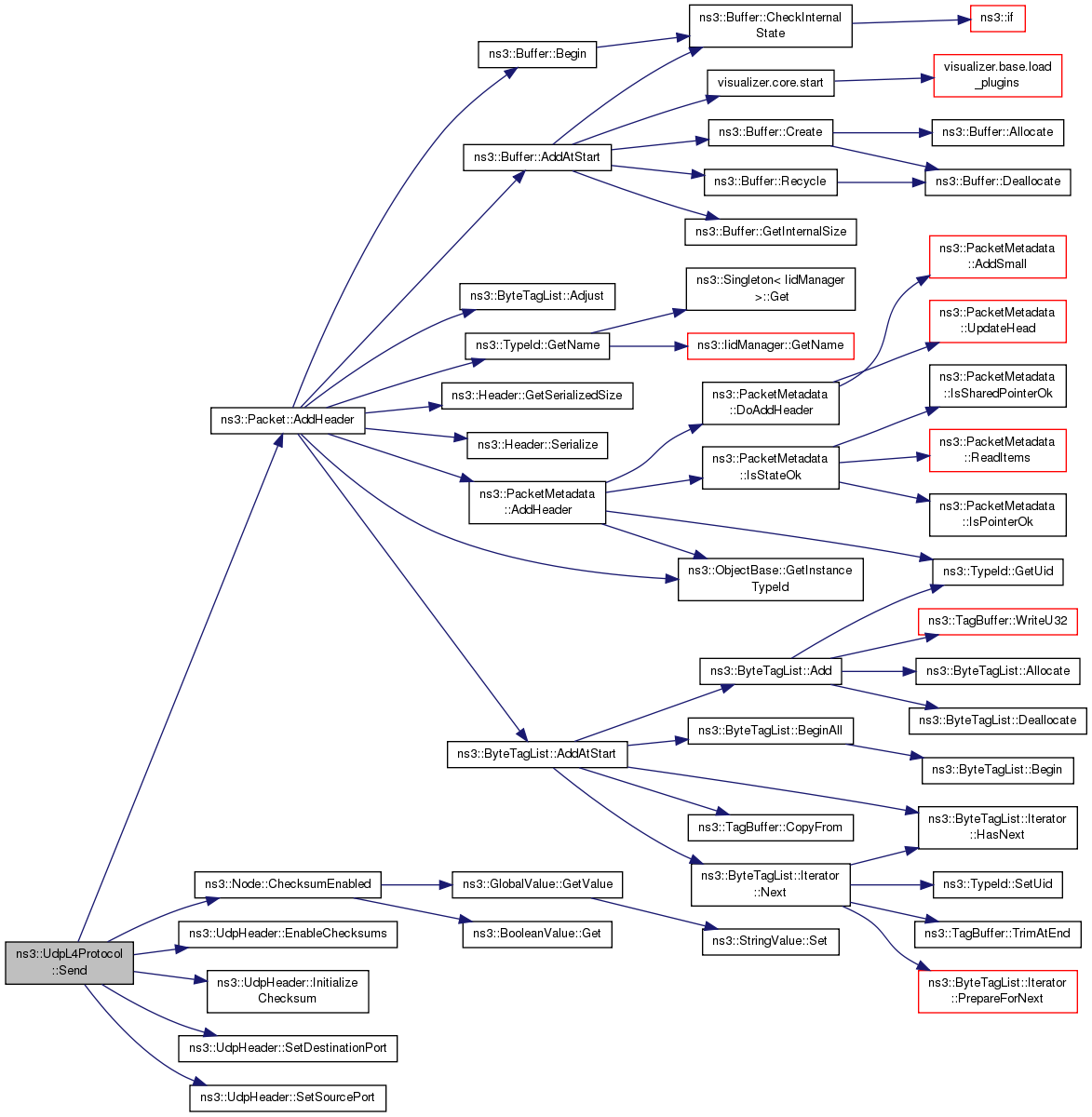

void ns3::UdpL4Protocol::Send ( Ptr< Packet packet,
Ipv4Address  saddr,
Ipv4Address  daddr,
uint16_t  sport,
uint16_t  dport
)

Send a packet via UDP (IPv4)

Parameters
packetThe packet to send
saddrThe source Ipv4Address
daddrThe destination Ipv4Address
sportThe source port number
dportThe destination port number

Definition at line 416 of file udp-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Node::ChecksumEnabled(), ns3::UdpHeader::EnableChecksums(), ns3::UdpHeader::InitializeChecksum(), m_downTarget, NS_LOG_FUNCTION, PROT_NUMBER, ns3::UdpHeader::SetDestinationPort(), and ns3::UdpHeader::SetSourcePort().

+ Here is the call graph for this function:

void ns3::UdpL4Protocol::Send ( Ptr< Packet packet,
Ipv4Address  saddr,
Ipv4Address  daddr,
uint16_t  sport,
uint16_t  dport,
Ptr< Ipv4Route route
)

Send a packet via UDP (IPv4)

Parameters
packetThe packet to send
saddrThe source Ipv4Address
daddrThe destination Ipv4Address
sportThe source port number
dportThe destination port number
routeThe route

Definition at line 439 of file udp-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Node::ChecksumEnabled(), ns3::UdpHeader::EnableChecksums(), ns3::UdpHeader::InitializeChecksum(), m_downTarget, NS_LOG_FUNCTION, PROT_NUMBER, ns3::UdpHeader::SetDestinationPort(), and ns3::UdpHeader::SetSourcePort().

+ Here is the call graph for this function:

void ns3::UdpL4Protocol::Send ( Ptr< Packet packet,
Ipv6Address  saddr,
Ipv6Address  daddr,
uint16_t  sport,
uint16_t  dport
)

Send a packet via UDP (IPv6)

Parameters
packetThe packet to send
saddrThe source Ipv4Address
daddrThe destination Ipv4Address
sportThe source port number
dportThe destination port number

Definition at line 462 of file udp-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Node::ChecksumEnabled(), ns3::UdpHeader::EnableChecksums(), ns3::UdpHeader::InitializeChecksum(), m_downTarget6, NS_LOG_FUNCTION, PROT_NUMBER, ns3::UdpHeader::SetDestinationPort(), and ns3::UdpHeader::SetSourcePort().

+ Here is the call graph for this function:

void ns3::UdpL4Protocol::Send ( Ptr< Packet packet,
Ipv6Address  saddr,
Ipv6Address  daddr,
uint16_t  sport,
uint16_t  dport,
Ptr< Ipv6Route route
)

Send a packet via UDP (IPv6)

Parameters
packetThe packet to send
saddrThe source Ipv4Address
daddrThe destination Ipv4Address
sportThe source port number
dportThe destination port number
routeThe route

Definition at line 485 of file udp-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Node::ChecksumEnabled(), ns3::UdpHeader::EnableChecksums(), ns3::UdpHeader::InitializeChecksum(), m_downTarget6, NS_LOG_FUNCTION, PROT_NUMBER, ns3::UdpHeader::SetDestinationPort(), and ns3::UdpHeader::SetSourcePort().

+ Here is the call graph for this function:

void ns3::UdpL4Protocol::SetDownTarget ( IpL4Protocol::DownTargetCallback  cb)
virtual

This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case)

Parameters
cbcurrent Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 508 of file udp-l4-protocol.cc.

References m_downTarget, and NS_LOG_FUNCTION.

Referenced by NotifyNewAggregate().

+ Here is the caller graph for this function:

void ns3::UdpL4Protocol::SetDownTarget6 ( IpL4Protocol::DownTargetCallback6  cb)
virtual

This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case)

Parameters
cbcurrent Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 521 of file udp-l4-protocol.cc.

References m_downTarget6, and NS_LOG_FUNCTION.

Referenced by NotifyNewAggregate().

+ Here is the caller graph for this function:

void ns3::UdpL4Protocol::SetNode ( Ptr< Node node)

Set node associated with this stack.

Parameters
nodethe node

Definition at line 79 of file udp-l4-protocol.cc.

References m_node.

Referenced by NotifyNewAggregate().

+ Here is the caller graph for this function:

Member Data Documentation

IpL4Protocol::DownTargetCallback ns3::UdpL4Protocol::m_downTarget
private

Callback to send packets over IPv4.

Definition at line 275 of file udp-l4-protocol.h.

Referenced by DoDispose(), GetDownTarget(), NotifyNewAggregate(), Send(), and SetDownTarget().

IpL4Protocol::DownTargetCallback6 ns3::UdpL4Protocol::m_downTarget6
private

Callback to send packets over IPv6.

Definition at line 276 of file udp-l4-protocol.h.

Referenced by DoDispose(), GetDownTarget6(), NotifyNewAggregate(), Send(), and SetDownTarget6().

Ipv4EndPointDemux* ns3::UdpL4Protocol::m_endPoints
private

A list of IPv4 end points.

Definition at line 257 of file udp-l4-protocol.h.

Referenced by Allocate(), DeAllocate(), DoDispose(), Receive(), and ReceiveIcmp().

Ipv6EndPointDemux* ns3::UdpL4Protocol::m_endPoints6
private

A list of IPv6 end points.

Definition at line 258 of file udp-l4-protocol.h.

Referenced by Allocate6(), DeAllocate(), DoDispose(), Receive(), and ReceiveIcmp().

Ptr<Node> ns3::UdpL4Protocol::m_node
private

the node this stack is associated with

Definition at line 256 of file udp-l4-protocol.h.

Referenced by CreateSocket(), DoDispose(), NotifyNewAggregate(), and SetNode().

std::vector<Ptr<UdpSocketImpl> > ns3::UdpL4Protocol::m_sockets
private

list of sockets

Definition at line 274 of file udp-l4-protocol.h.

Referenced by CreateSocket(), DoDispose(), and GetTypeId().


The documentation for this class was generated from the following files:
