AODV routing protocol. More...

#include "aodv-routing-protocol.h"

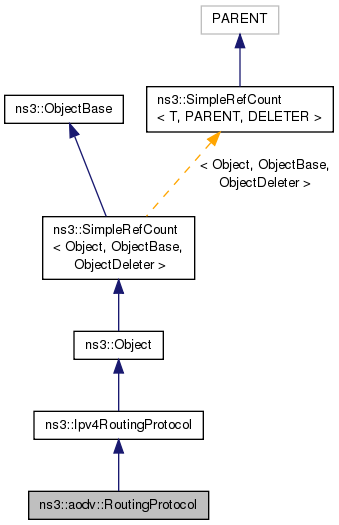

Inheritance diagram for ns3::aodv::RoutingProtocol:

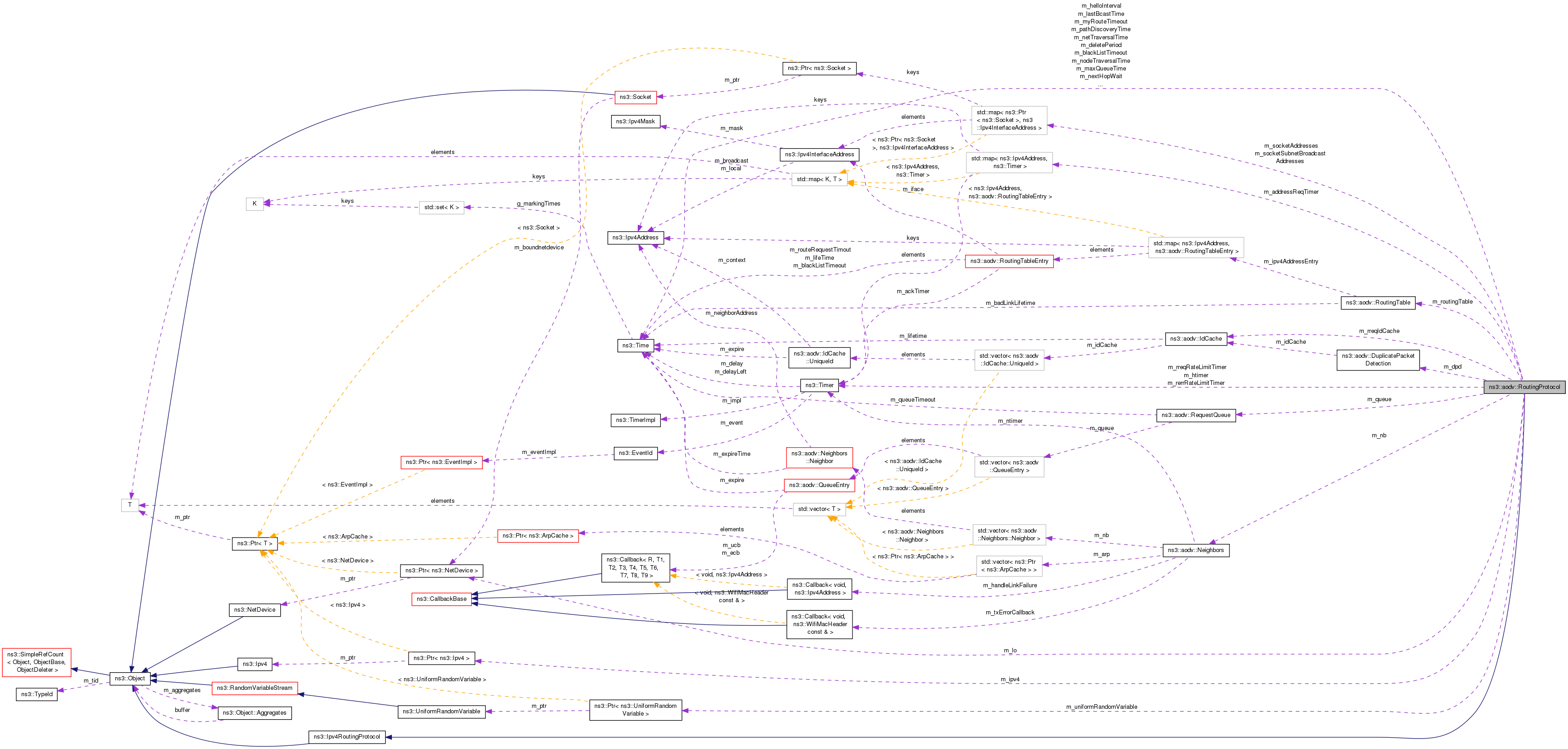

Collaboration diagram for ns3::aodv::RoutingProtocol:

Public Member Functions
	RoutingProtocol ()
	constructor More...

virtual	~RoutingProtocol ()

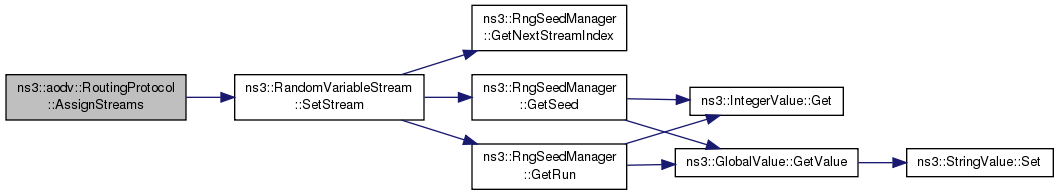

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	DoDispose ()
	Destructor implementation. More...

bool	GetBroadcastEnable () const
	Get broadcast enable flag. More...

bool	GetDestinationOnlyFlag () const
	Get destination only flag. More...

bool	GetGratuitousReplyFlag () const
	Get gratuitous reply flag. More...

bool	GetHelloEnable () const
	Get hello enable flag. More...

uint32_t	GetMaxQueueLen () const
	Get the maximum queue length. More...

Time	GetMaxQueueTime () const
	Get maximum queue time. More...

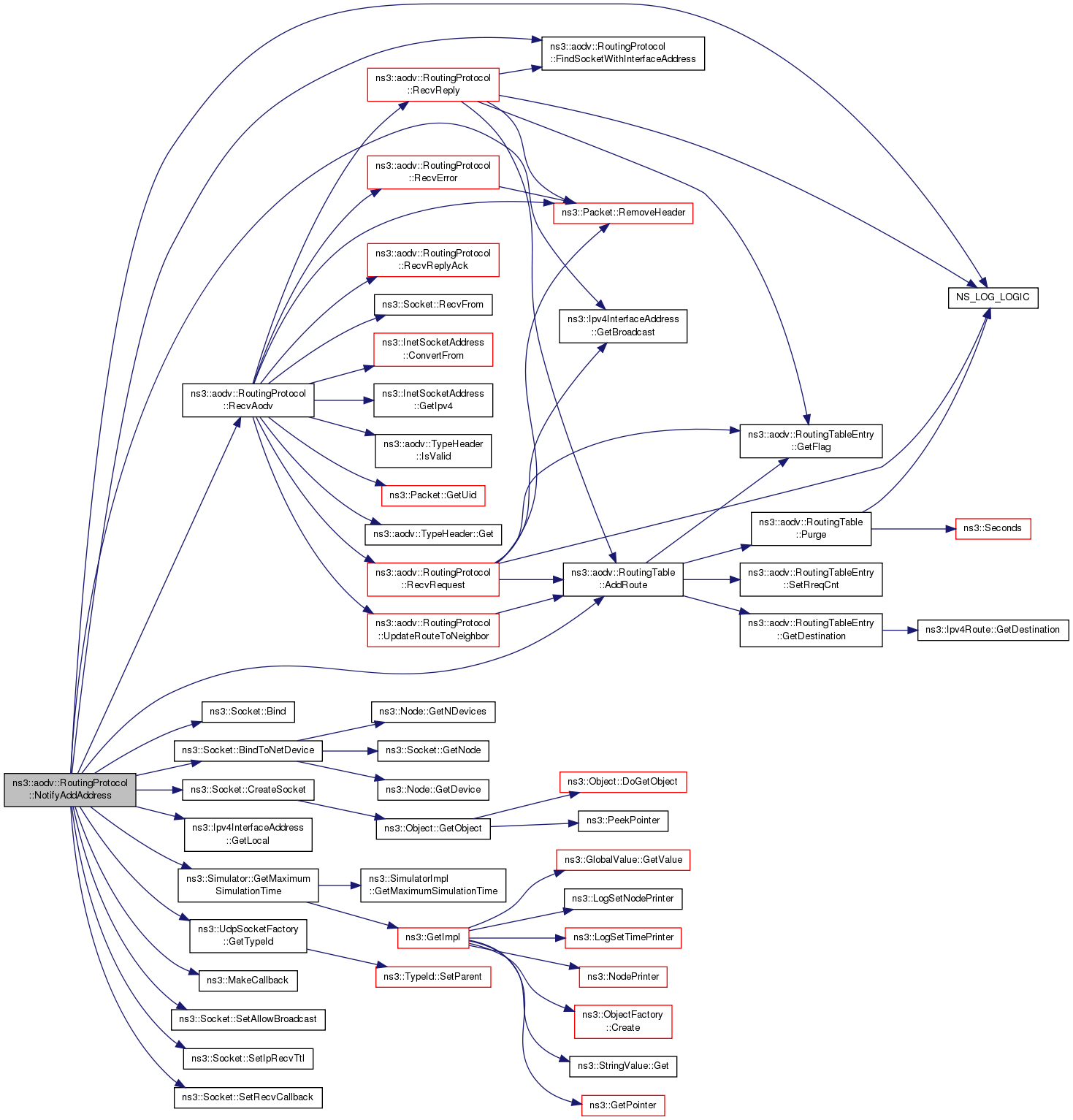

virtual void	NotifyAddAddress (uint32_t interface, Ipv4InterfaceAddress address)

virtual void	NotifyInterfaceDown (uint32_t interface)

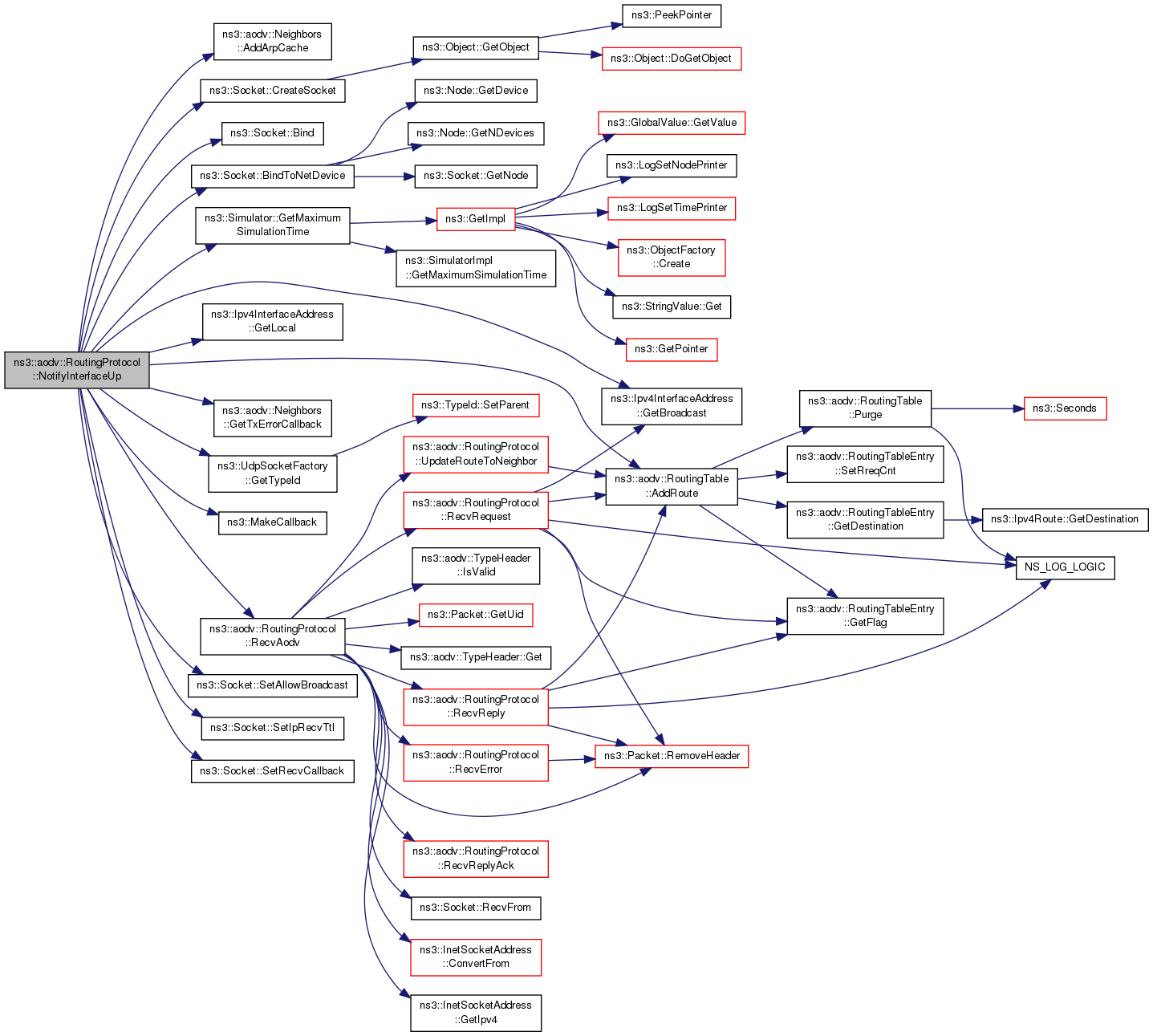

virtual void	NotifyInterfaceUp (uint32_t interface)

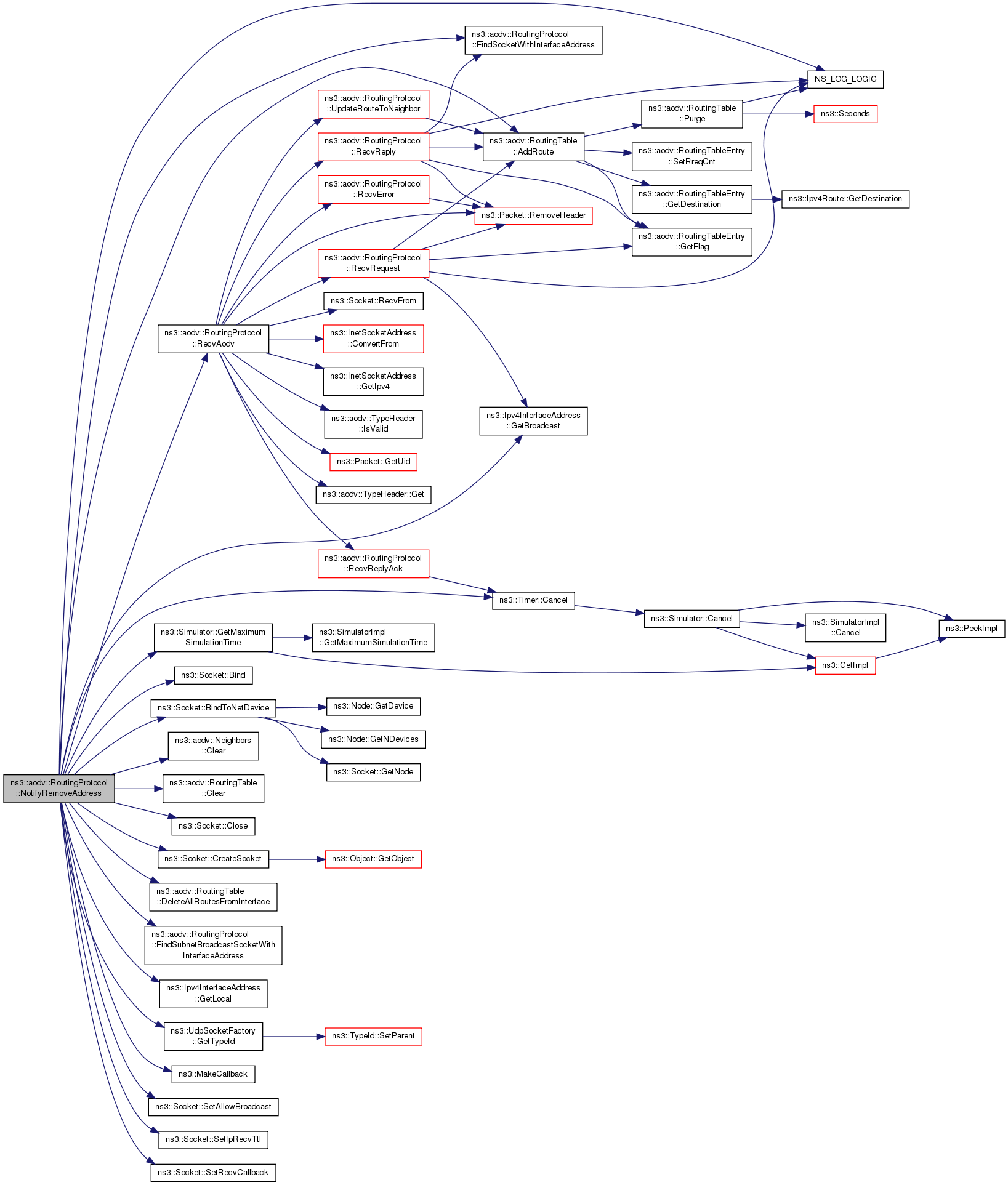

virtual void	NotifyRemoveAddress (uint32_t interface, Ipv4InterfaceAddress address)

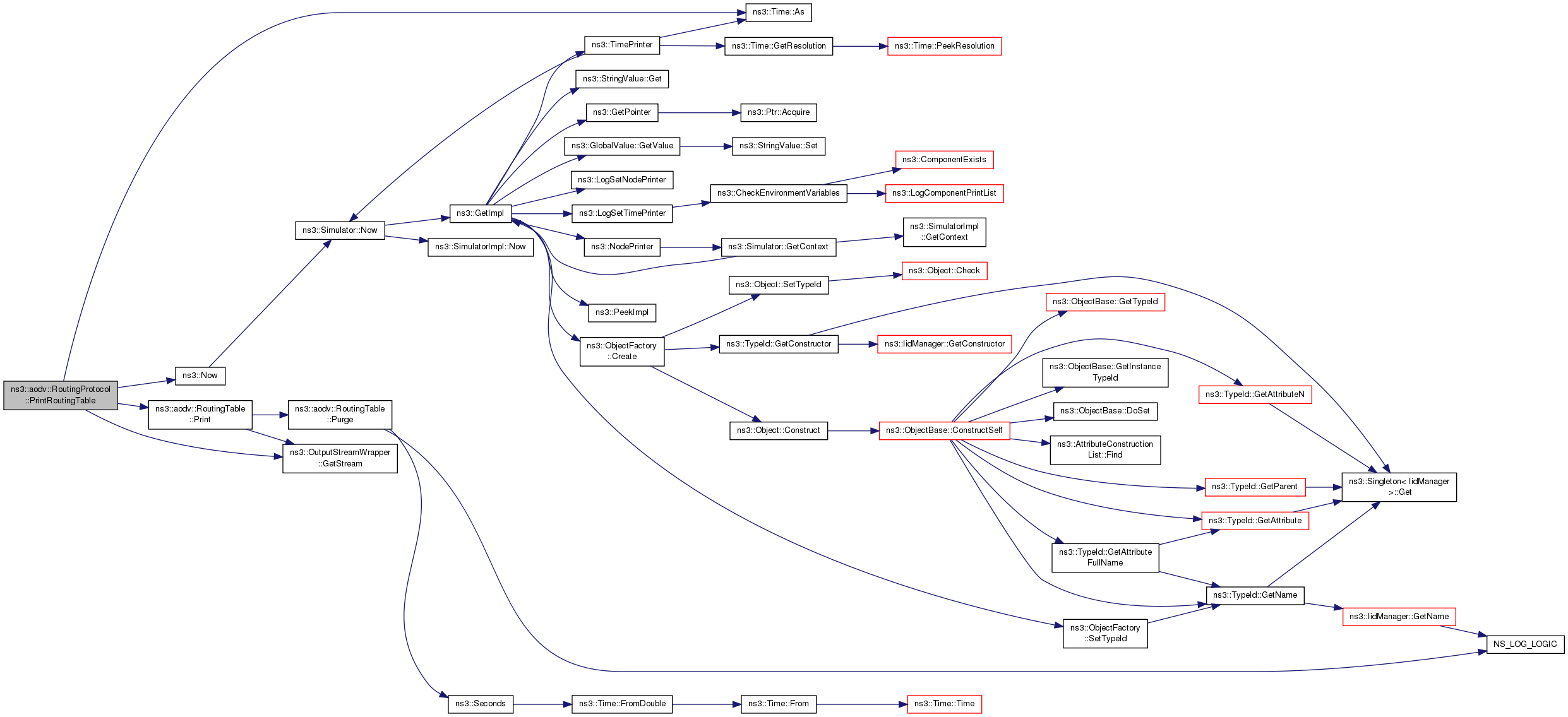

virtual void	PrintRoutingTable (Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S) const
	Print the Routing Table entries. More...

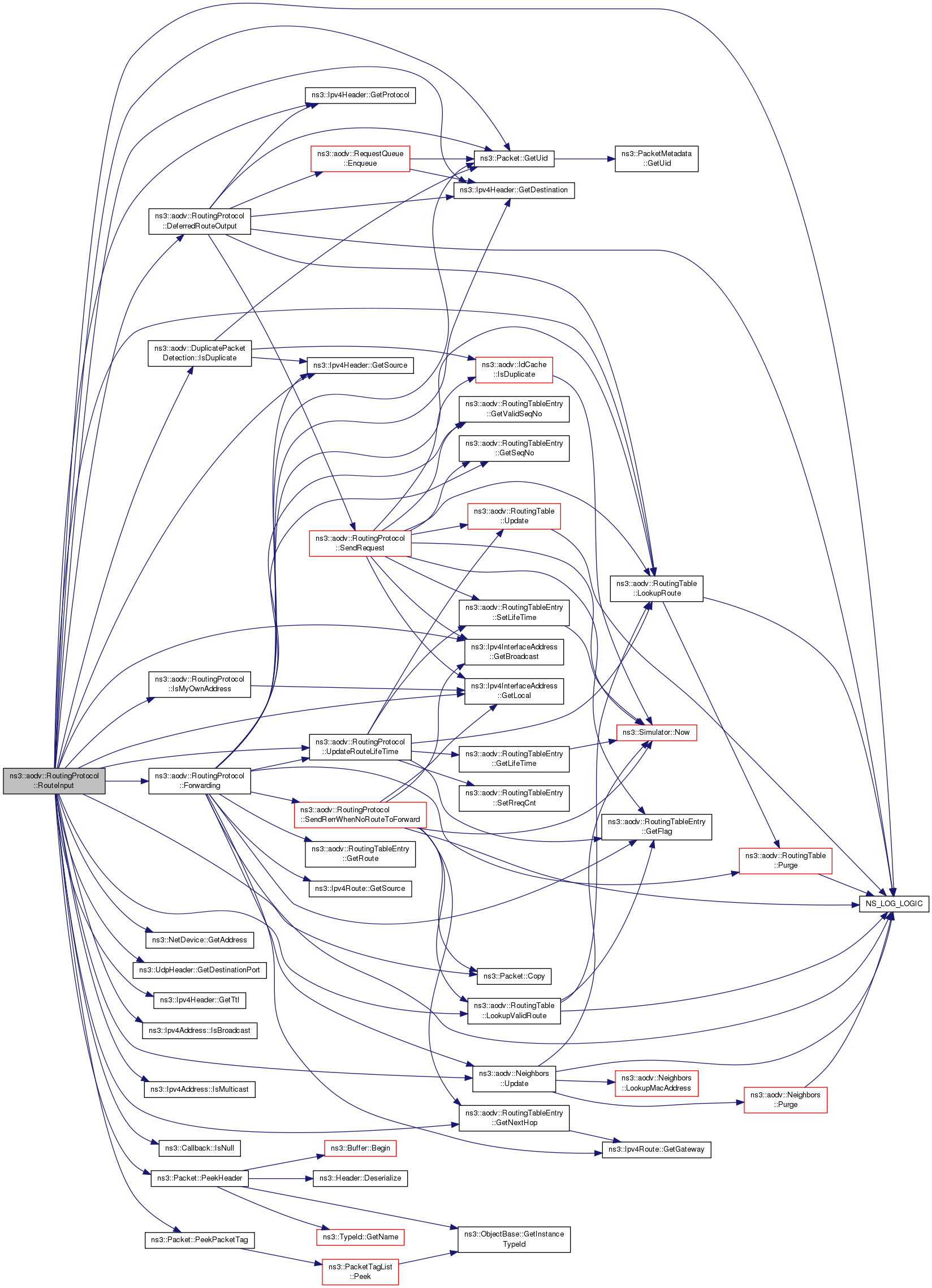

bool	RouteInput (Ptr< const Packet > p, const Ipv4Header &header, Ptr< const NetDevice > idev, UnicastForwardCallback ucb, MulticastForwardCallback mcb, LocalDeliverCallback lcb, ErrorCallback ecb)
	Route an input packet (to be forwarded or locally delivered) More...

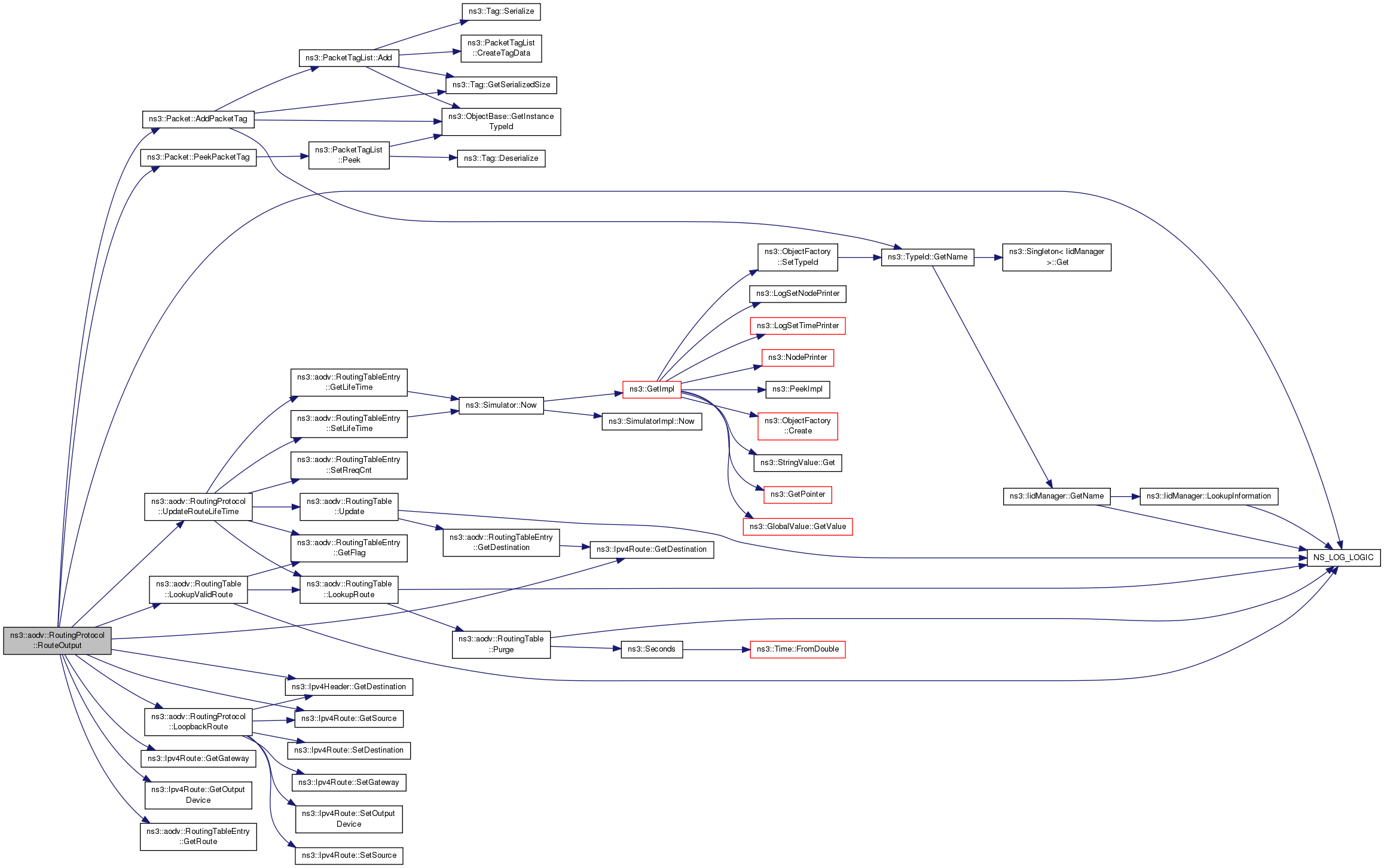

Ptr< Ipv4Route >	RouteOutput (Ptr< Packet > p, const Ipv4Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)
	Query routing cache for an existing route, for an outbound packet. More...

void	SetBroadcastEnable (bool f)
	Set broadcast enable flag. More...

void	SetDestinationOnlyFlag (bool f)
	Set destination only flag. More...

void	SetGratuitousReplyFlag (bool f)
	Set gratuitous reply flag. More...

void	SetHelloEnable (bool f)
	Set hello enable. More...

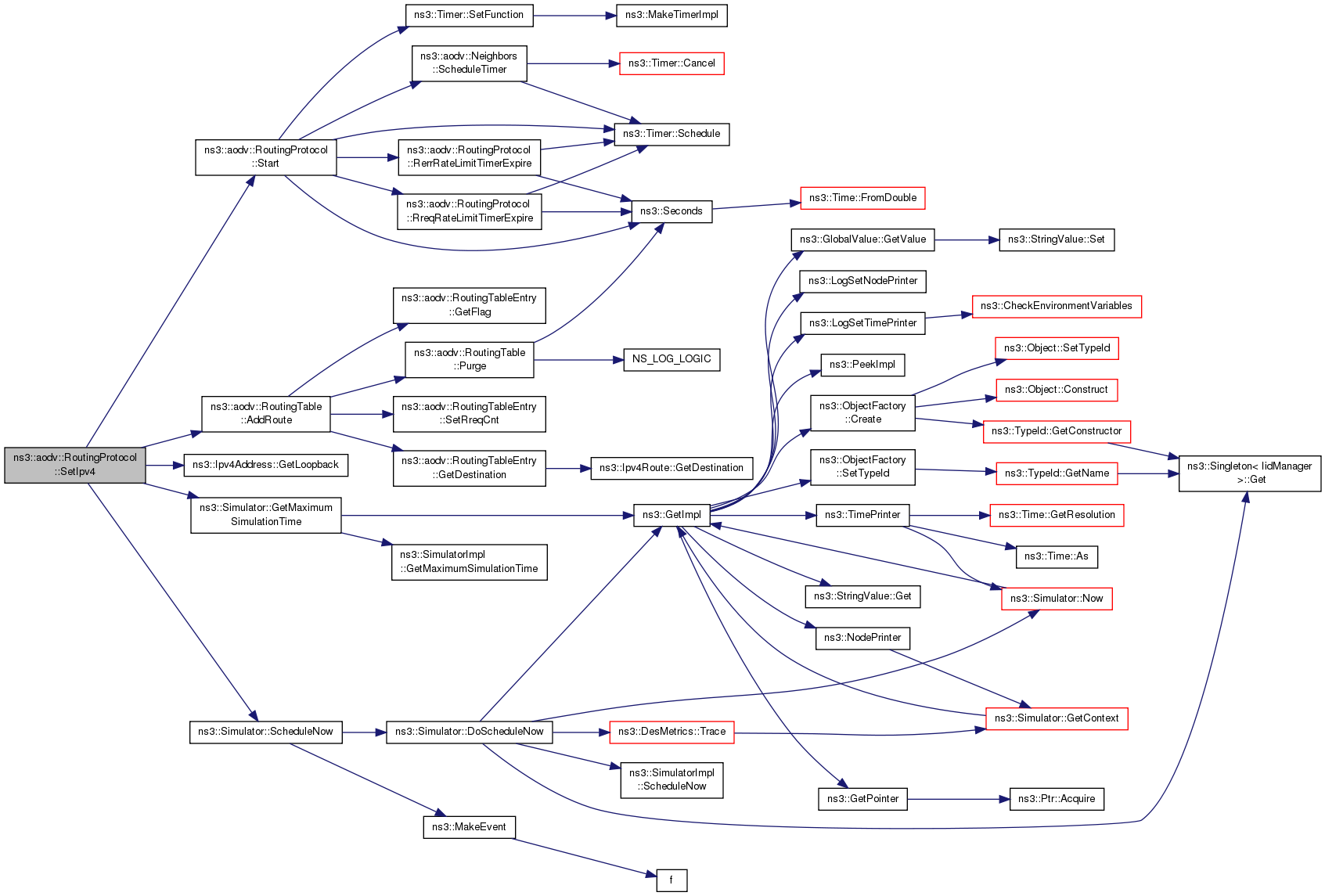

virtual void	SetIpv4 (Ptr< Ipv4 > ipv4)

void	SetMaxQueueLen (uint32_t len)
	Set the maximum queue length. More...

void	SetMaxQueueTime (Time t)
	Set the maximum queue time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

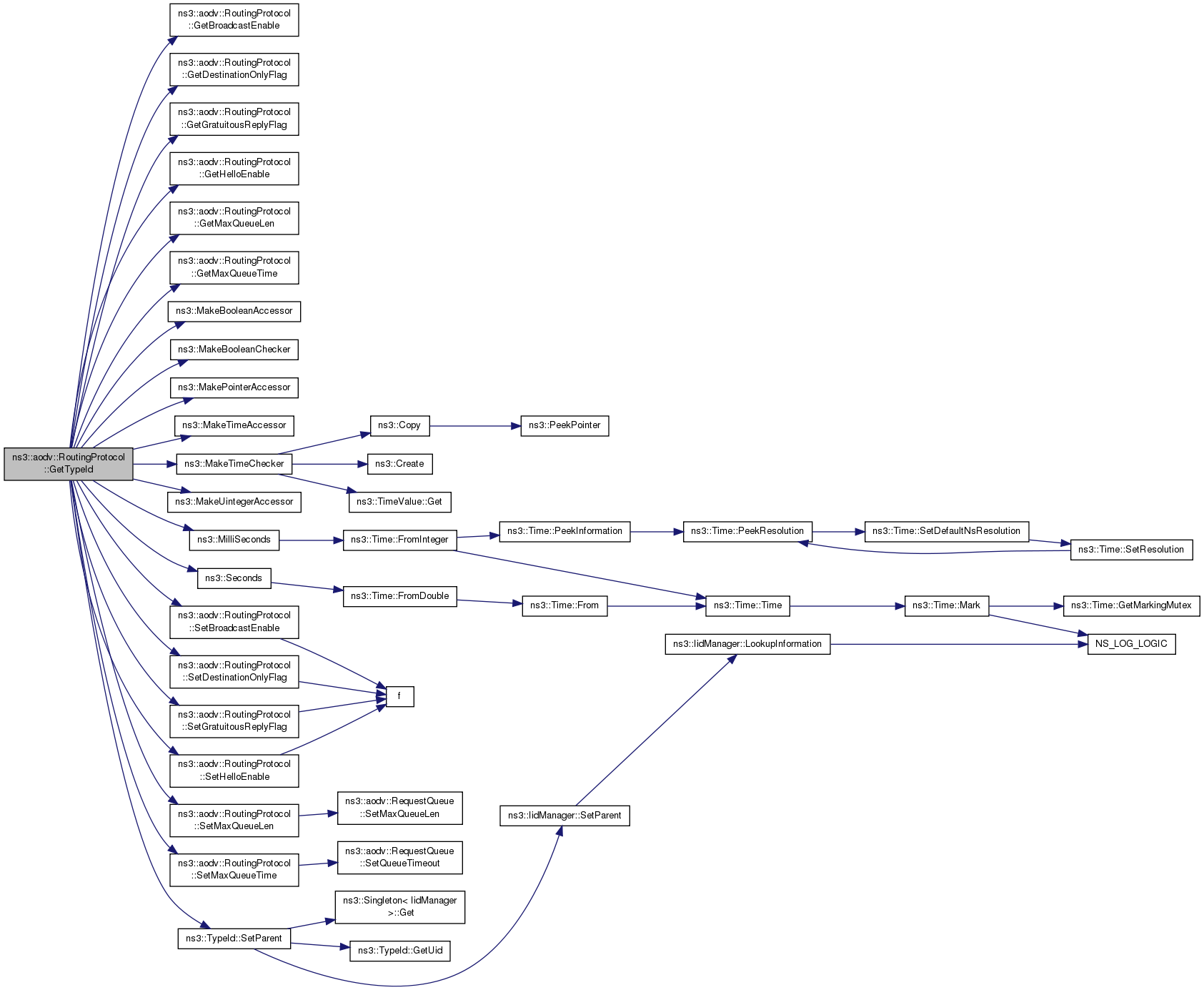

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Ipv4RoutingProtocol
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const uint32_t	AODV_PORT = 654
	UDP Port for AODV control traffic. More...

Protected Member Functions

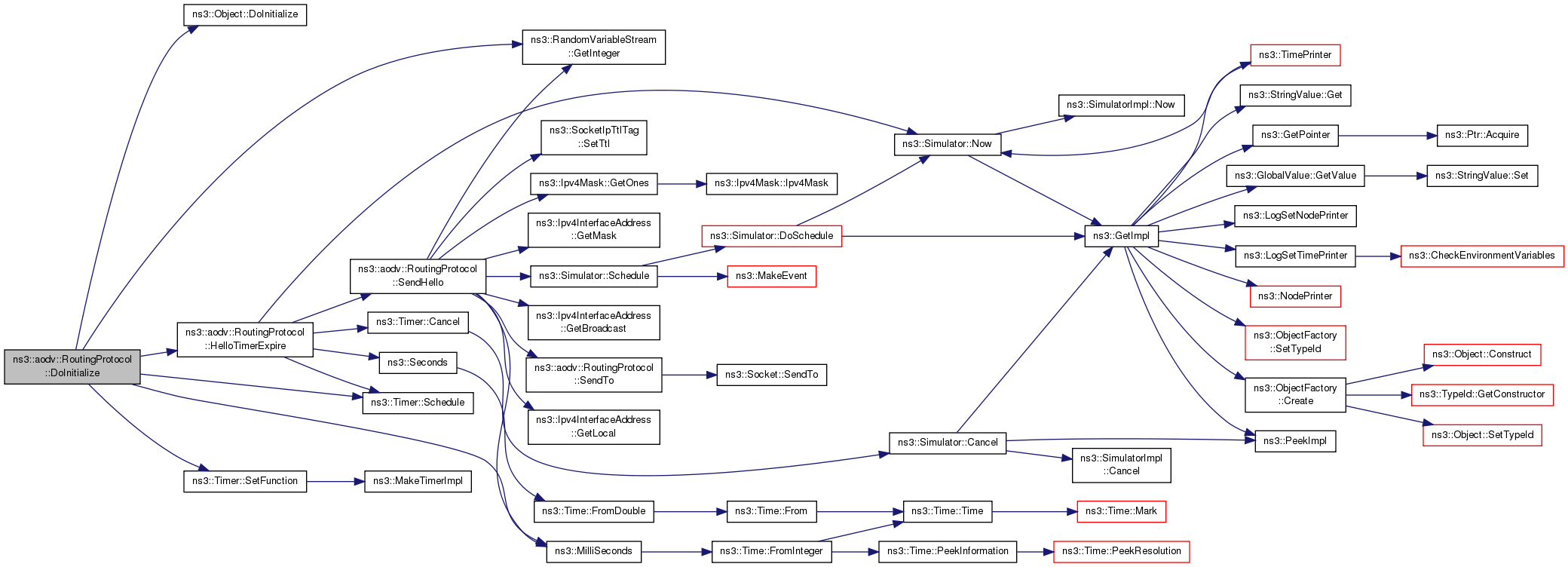

virtual void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions

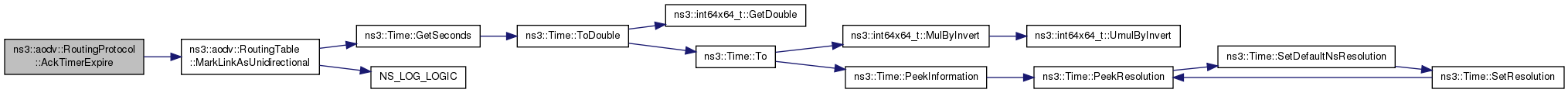

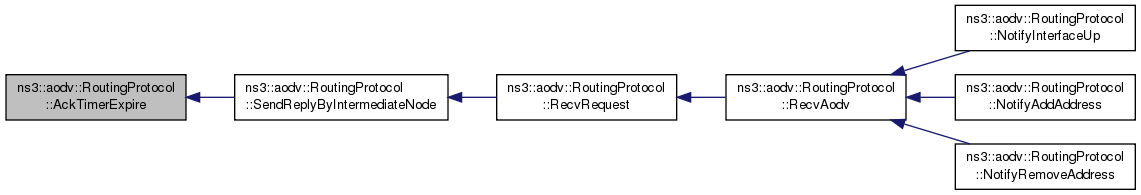

void	AckTimerExpire (Ipv4Address neighbor, Time blacklistTimeout)
	Mark link to neighbor node as unidirectional for blacklistTimeout. More...

void	DeferredRouteOutput (Ptr< const Packet > p, const Ipv4Header &header, UnicastForwardCallback ucb, ErrorCallback ecb)
	Queue packet and send route request. More...

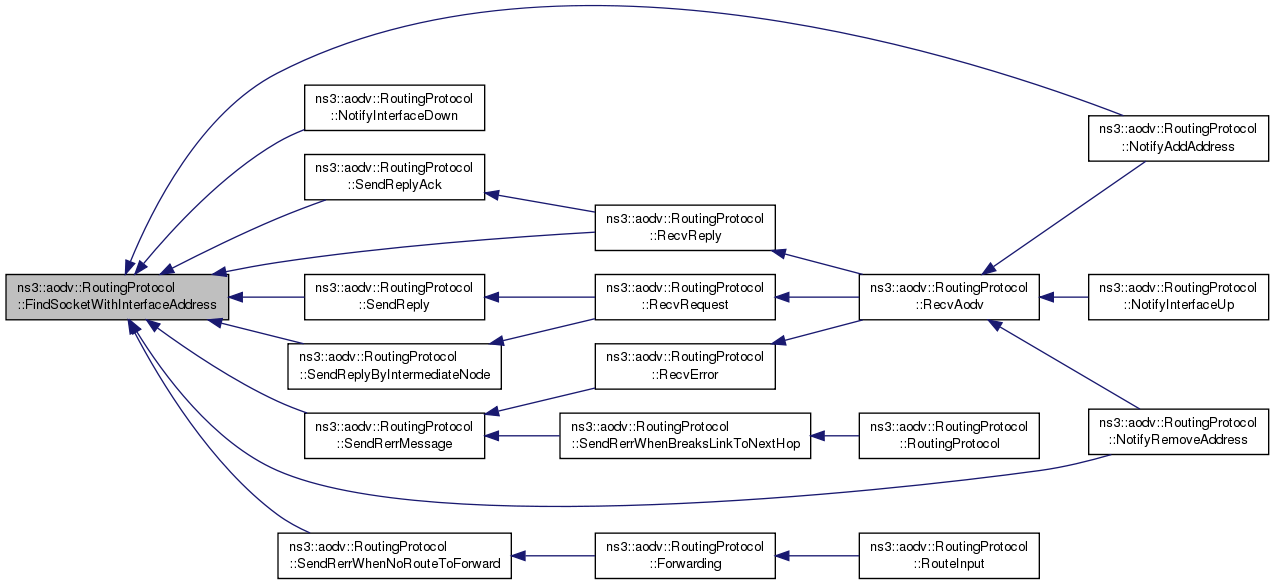

Ptr< Socket >	FindSocketWithInterfaceAddress (Ipv4InterfaceAddress iface) const
	Find unicast socket with local interface address iface. More...

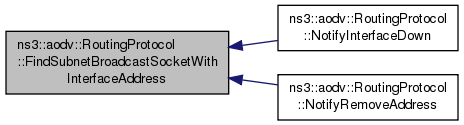

Ptr< Socket >	FindSubnetBroadcastSocketWithInterfaceAddress (Ipv4InterfaceAddress iface) const
	Find subnet directed broadcast socket with local interface address iface. More...

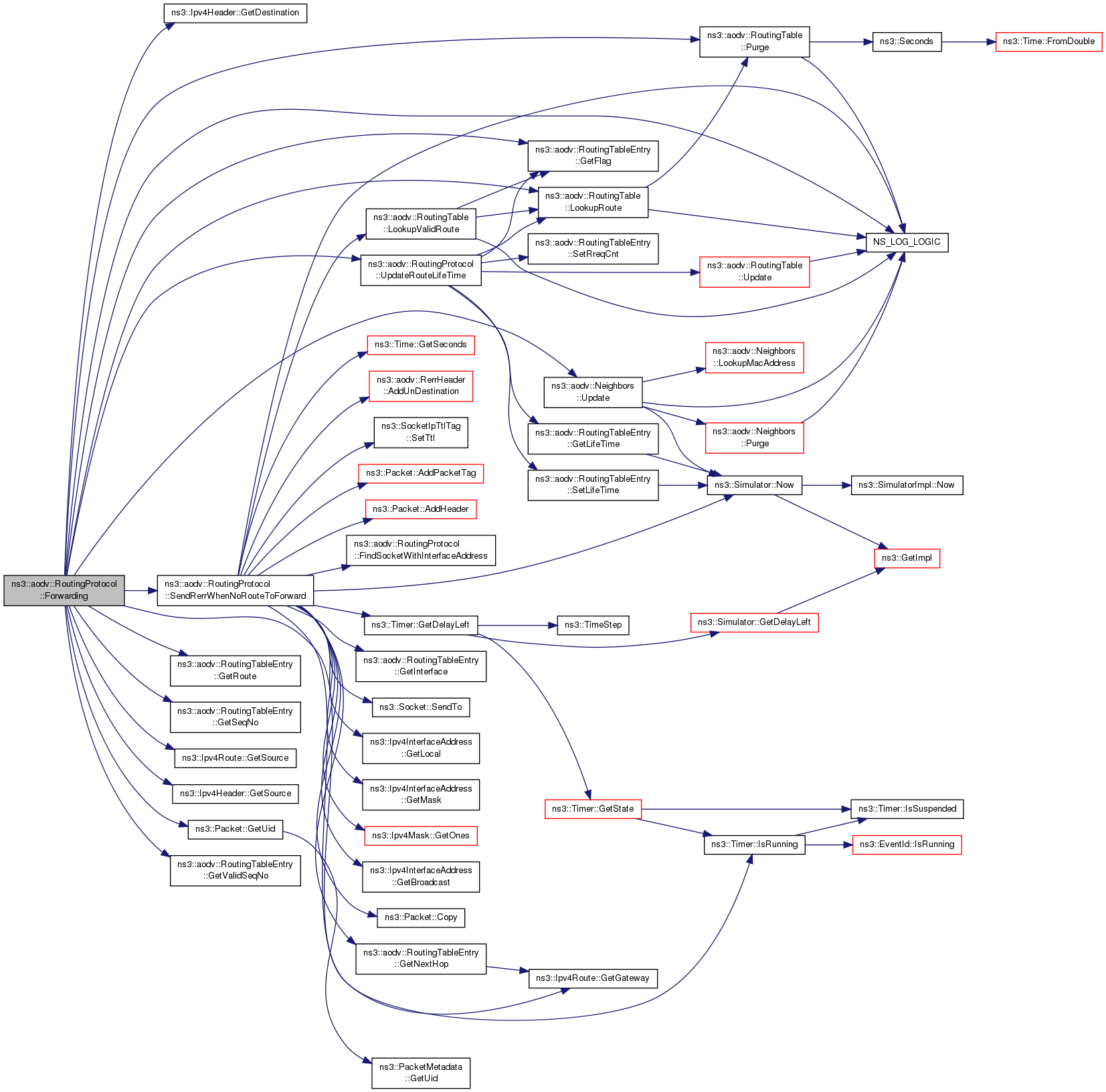

bool	Forwarding (Ptr< const Packet > p, const Ipv4Header &header, UnicastForwardCallback ucb, ErrorCallback ecb)
	If route exists and is valid, forward packet. More...

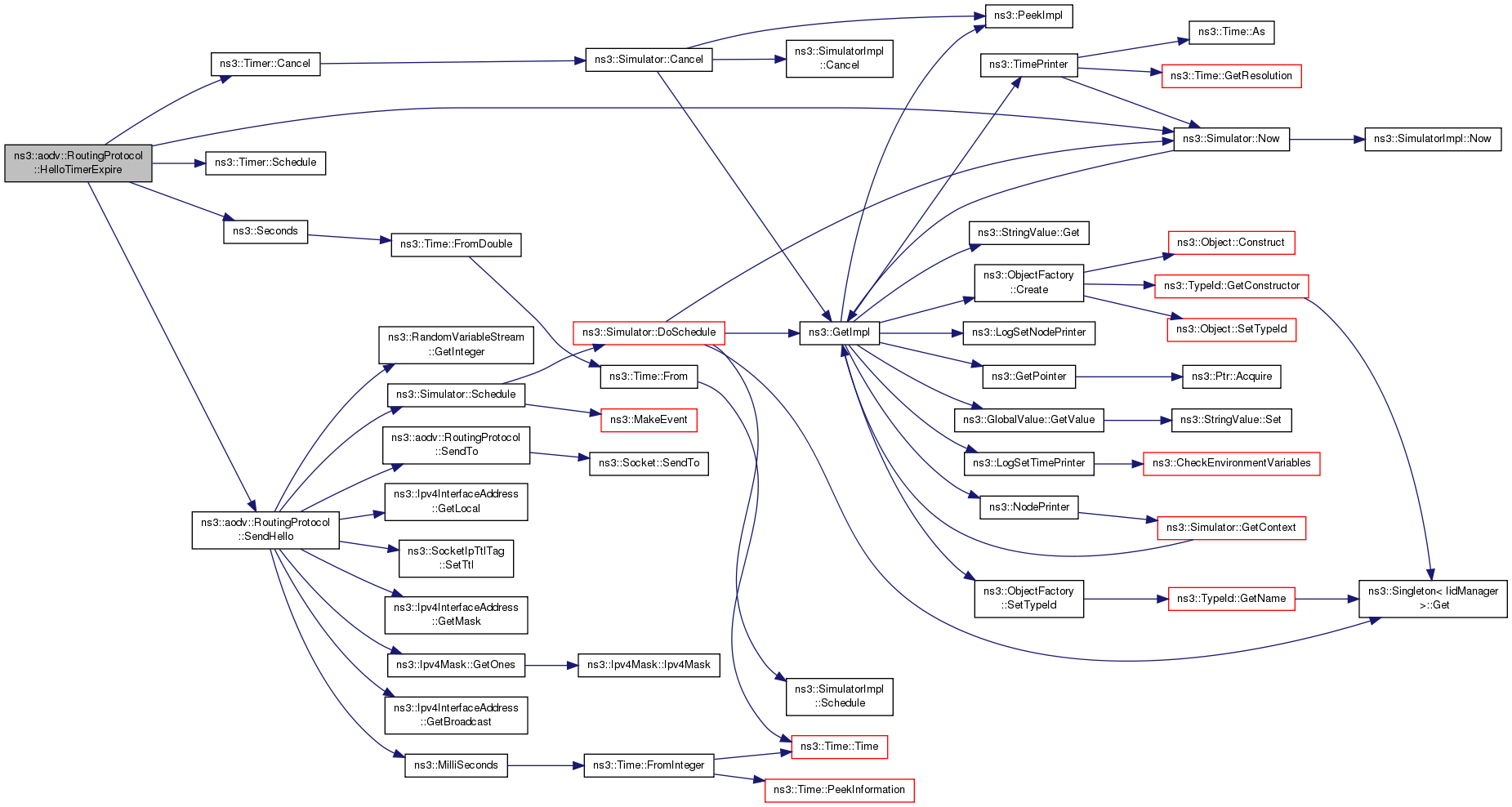

void	HelloTimerExpire ()
	Schedule next send of hello message. More...

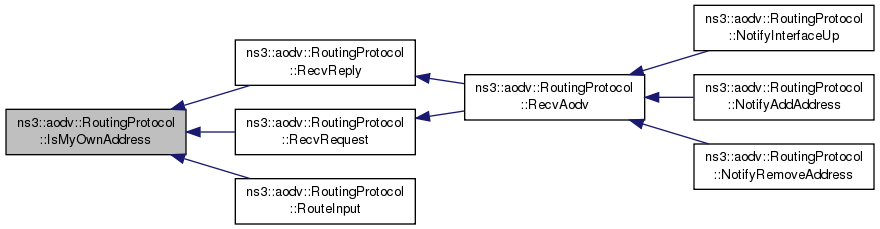

bool	IsMyOwnAddress (Ipv4Address src)
	Test whether the provided address is assigned to an interface on this node. More...

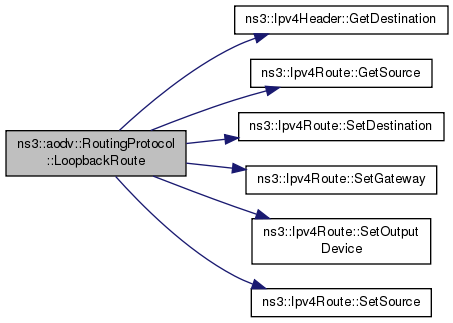

Ptr< Ipv4Route >	LoopbackRoute (const Ipv4Header &header, Ptr< NetDevice > oif) const
	Create loopback route for given header. More...

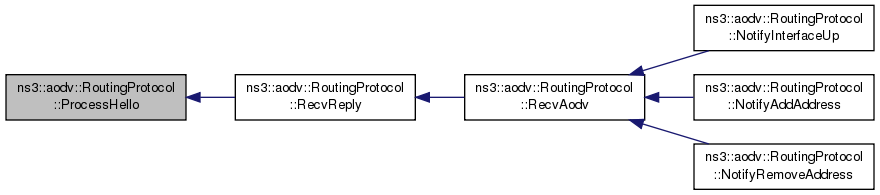

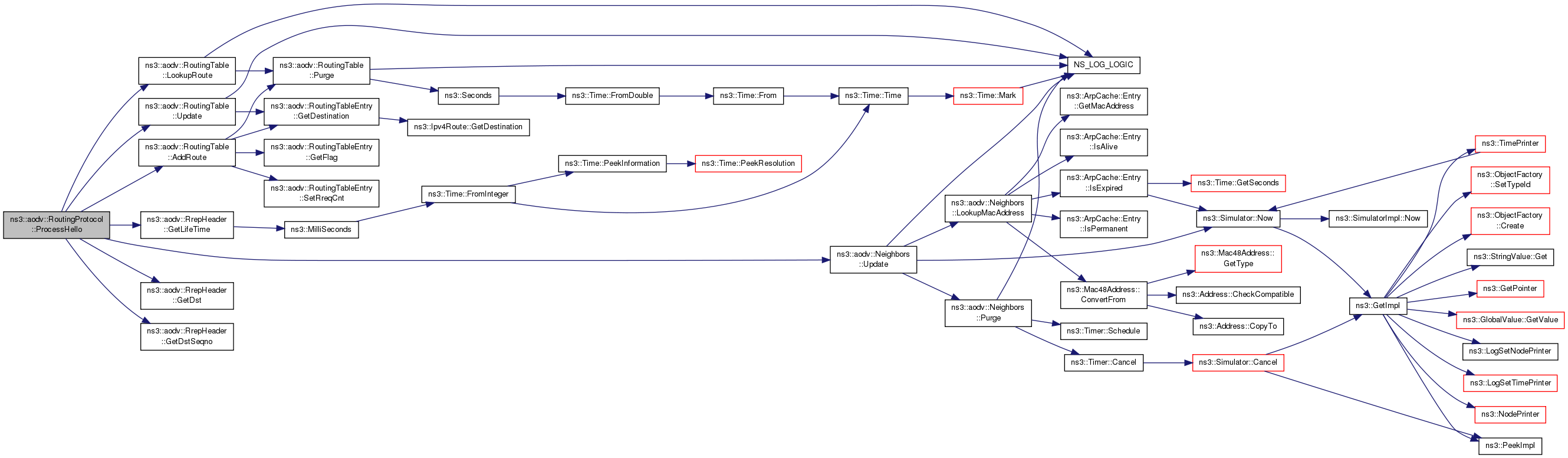

void	ProcessHello (RrepHeader const &rrepHeader, Ipv4Address receiverIfaceAddr)
	Process hello message. More...

void	RerrRateLimitTimerExpire ()
	Reset RERR count and schedule RERR rate limit timer with delay 1 sec. More...

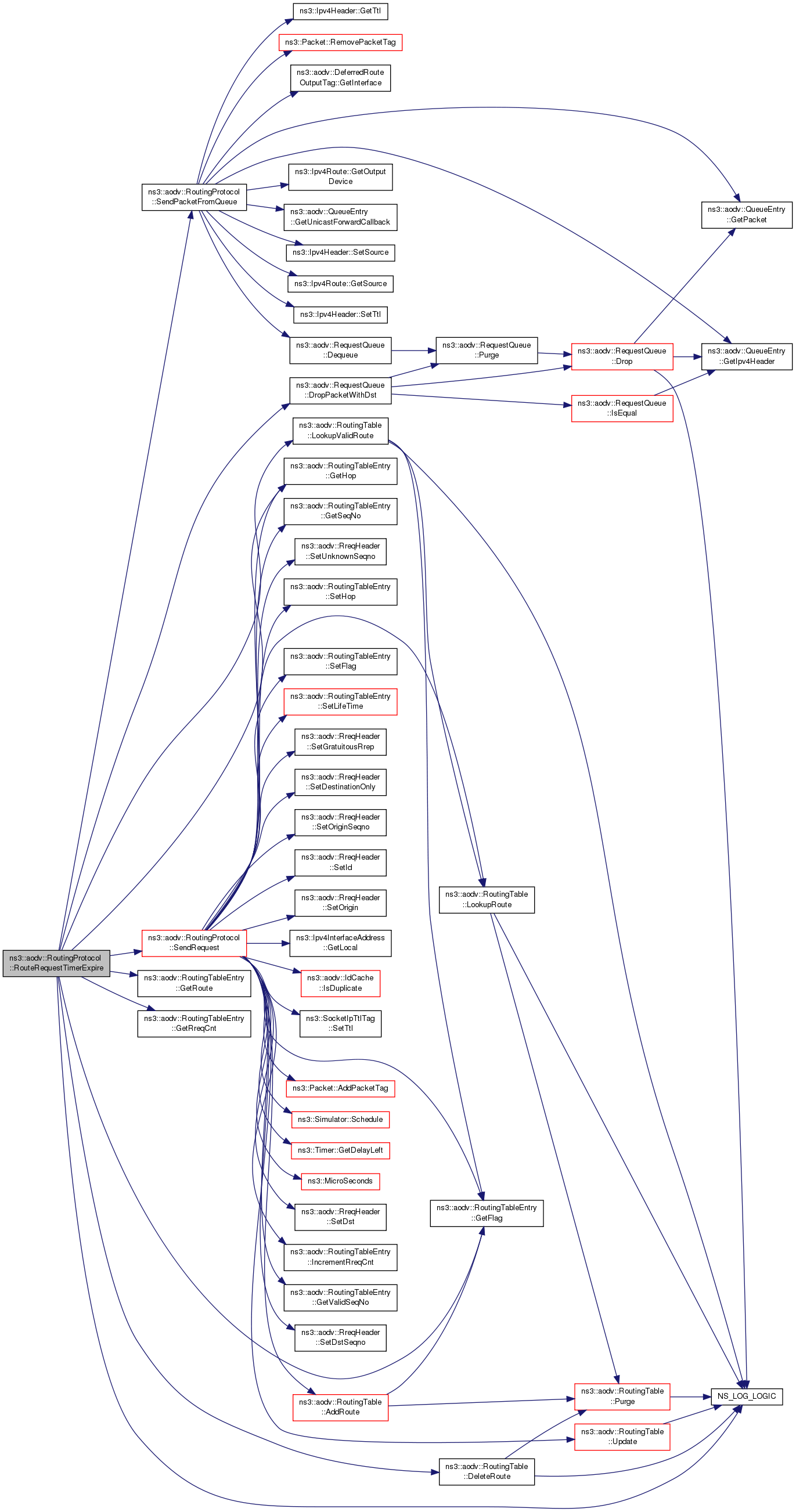

void	RouteRequestTimerExpire (Ipv4Address dst)
	Handle route discovery process. More...

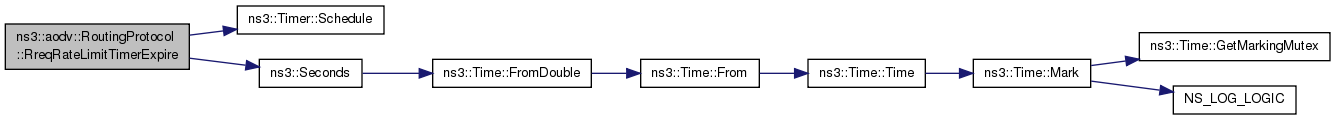

void	RreqRateLimitTimerExpire ()
	Reset RREQ count and schedule RREQ rate limit timer with delay 1 sec. More...

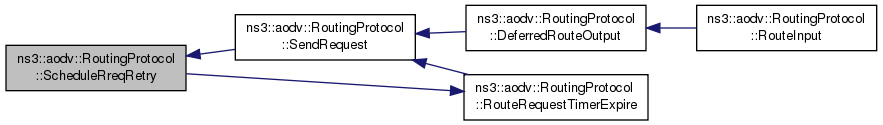

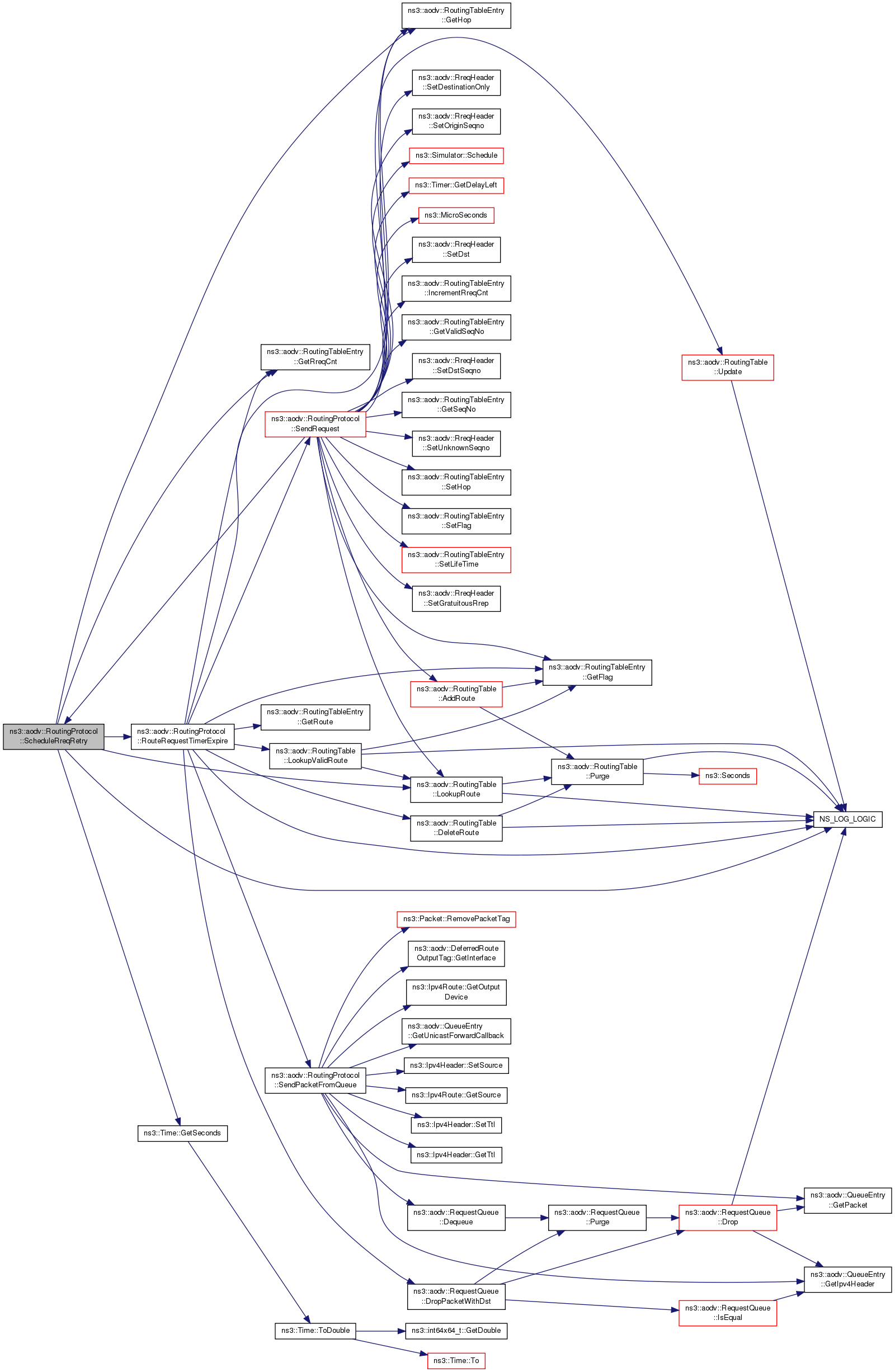

void	ScheduleRreqRetry (Ipv4Address dst)
	Repeated attempts by a source node at route discovery for a single destination use the expanding ring search technique. More...

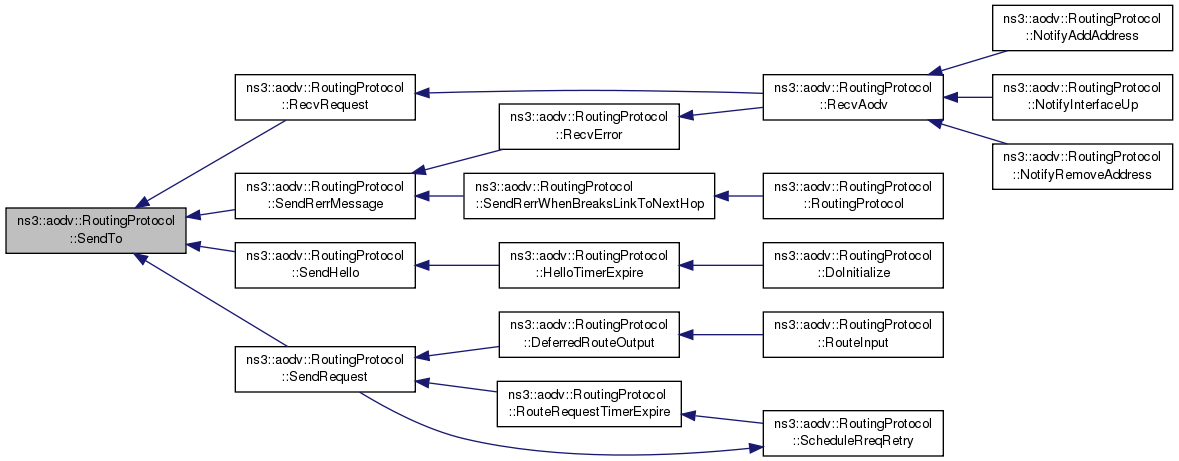

void	SendTo (Ptr< Socket > socket, Ptr< Packet > packet, Ipv4Address destination)
	Send packet to desitnation scoket. More...

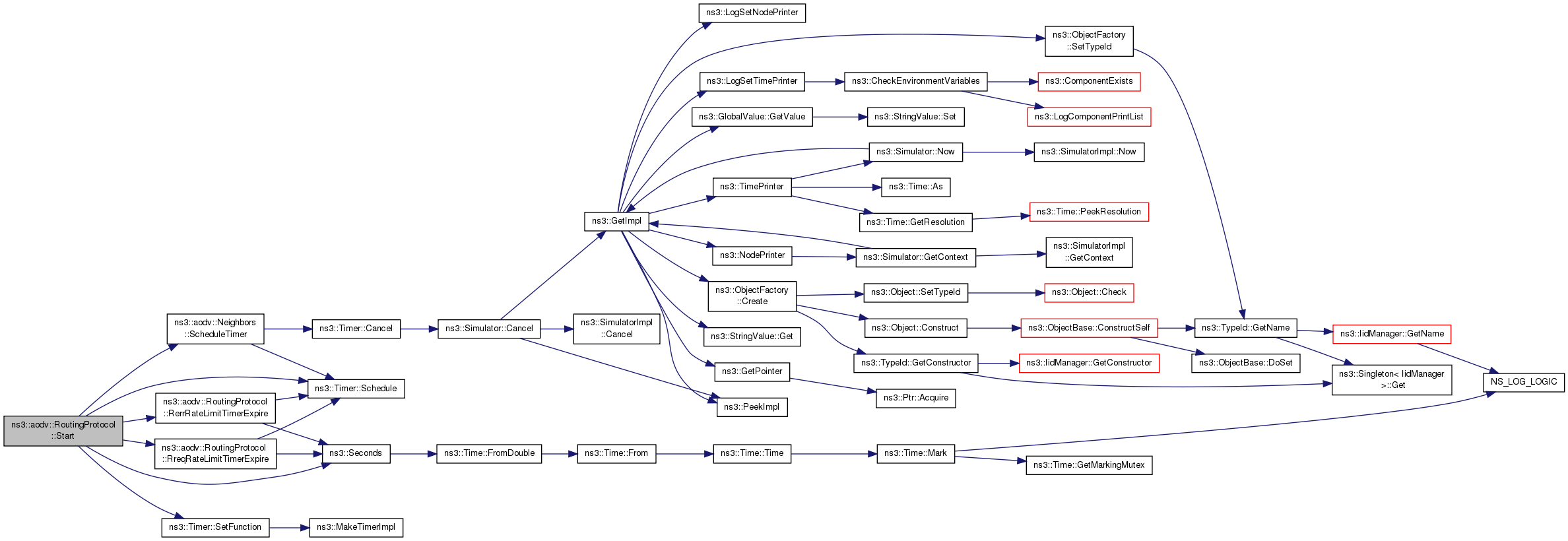

void	Start ()
	Start protocol operation. More...

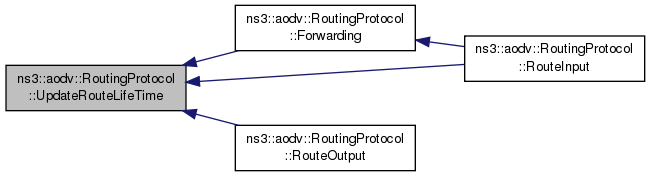

bool	UpdateRouteLifeTime (Ipv4Address addr, Time lt)
	Set lifetime field in routing table entry to the maximum of existing lifetime and lt, if the entry exists. More...

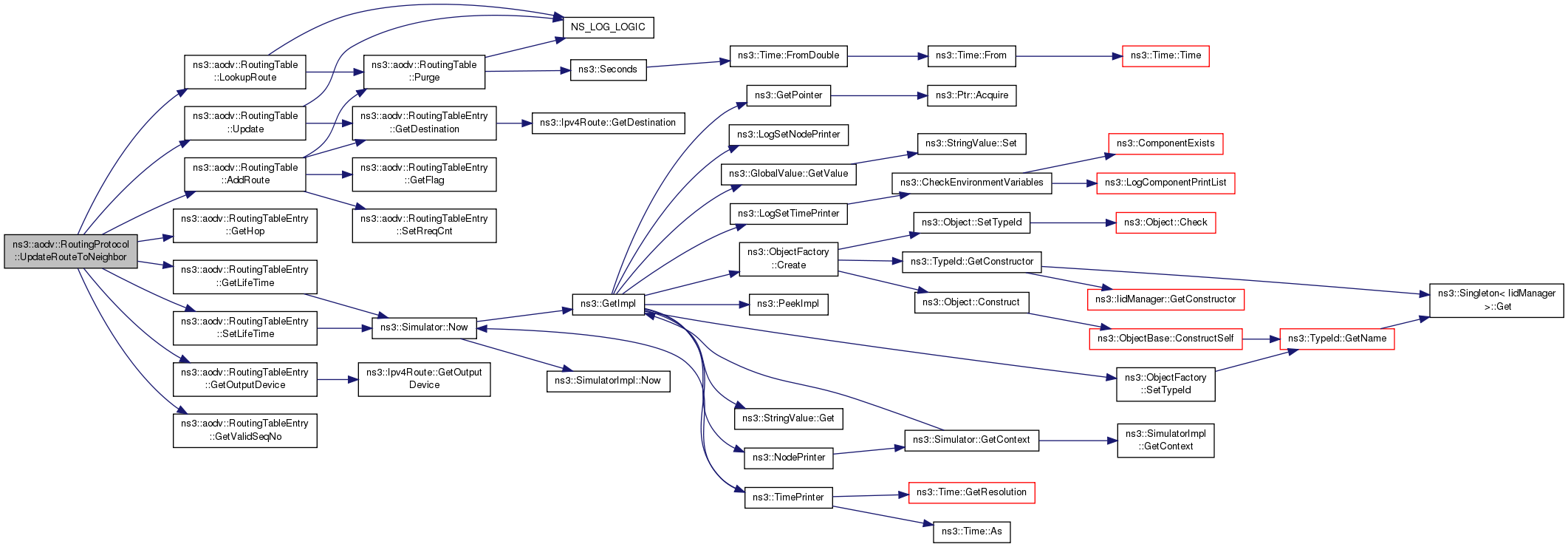

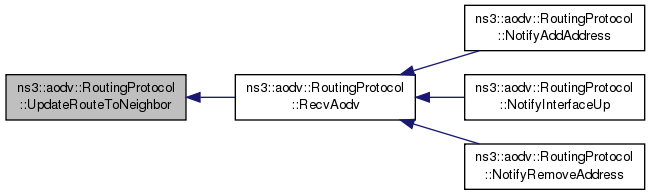

void	UpdateRouteToNeighbor (Ipv4Address sender, Ipv4Address receiver)
	Update neighbor record. More...

Receive control packets

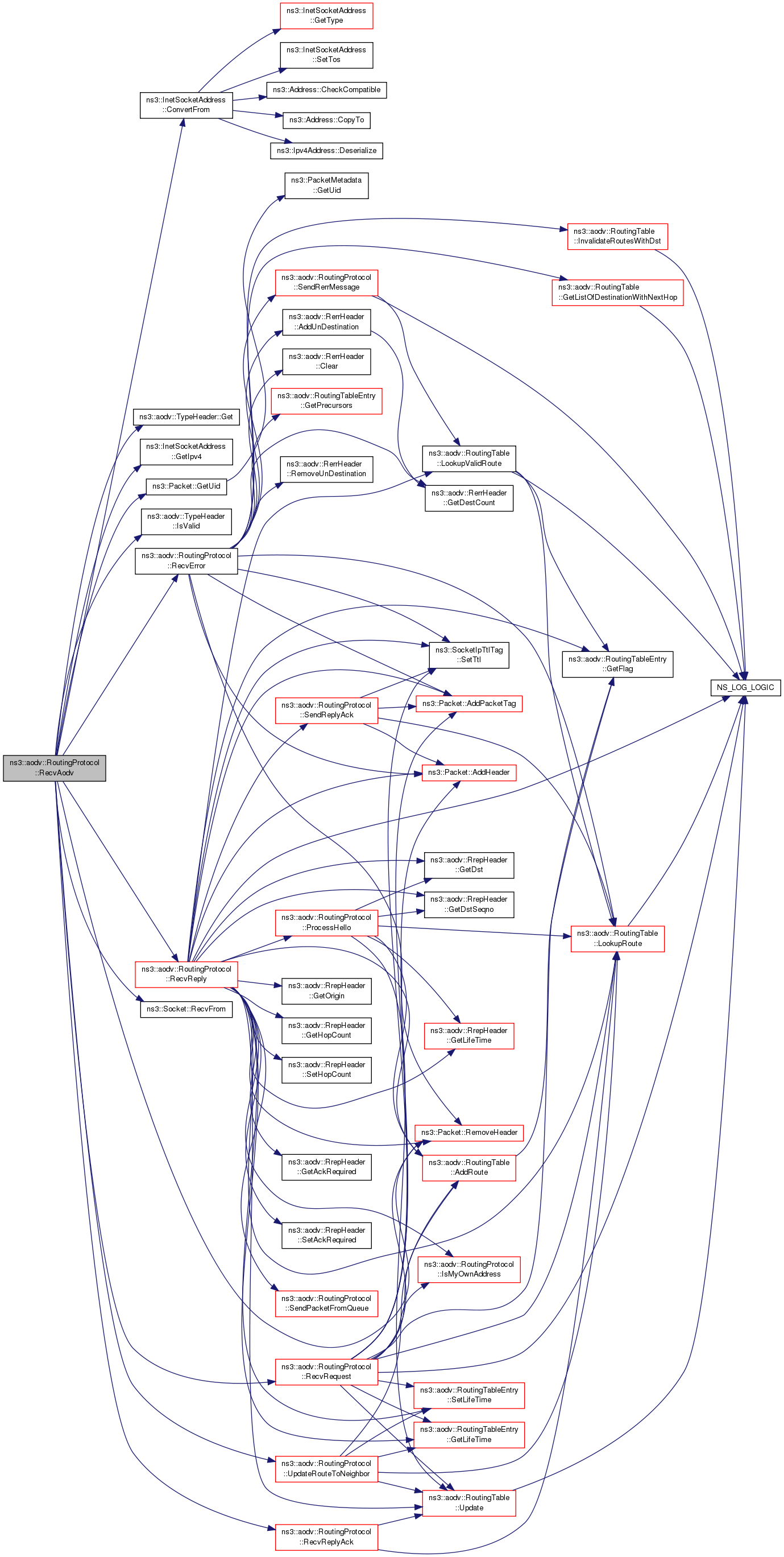

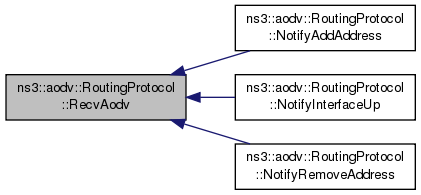

void	RecvAodv (Ptr< Socket > socket)
	Receive and process control packet. More...

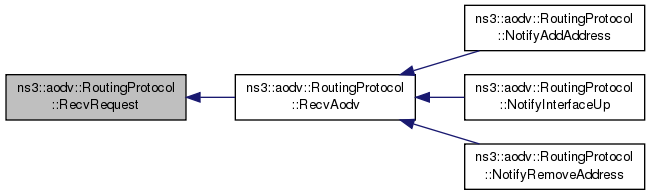

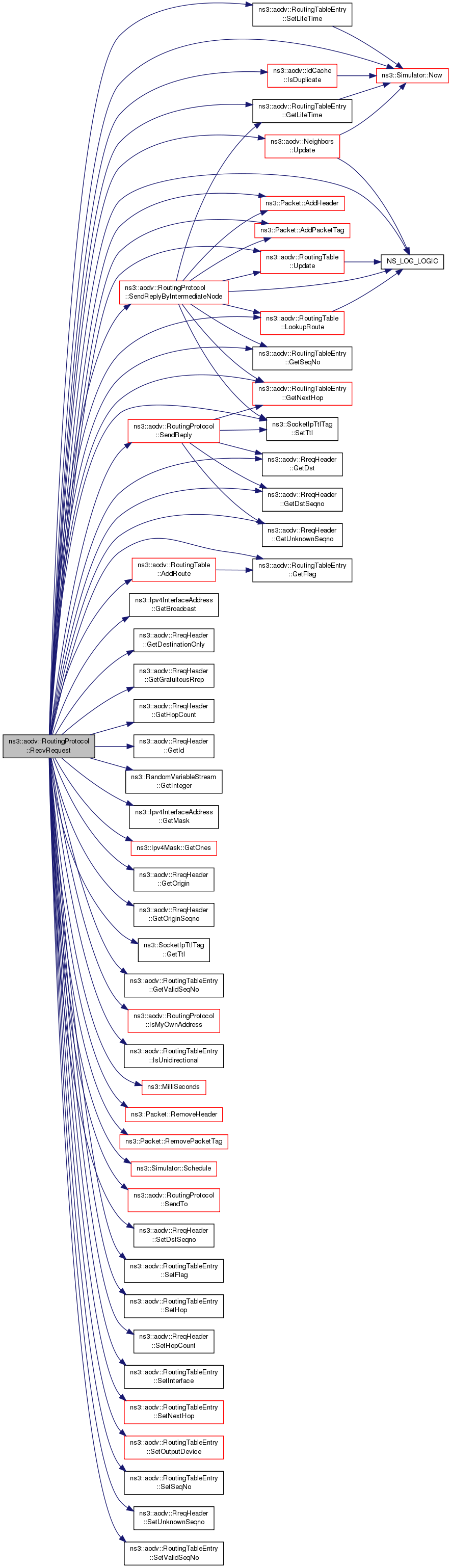

void	RecvRequest (Ptr< Packet > p, Ipv4Address receiver, Ipv4Address src)
	Receive RREQ. More...

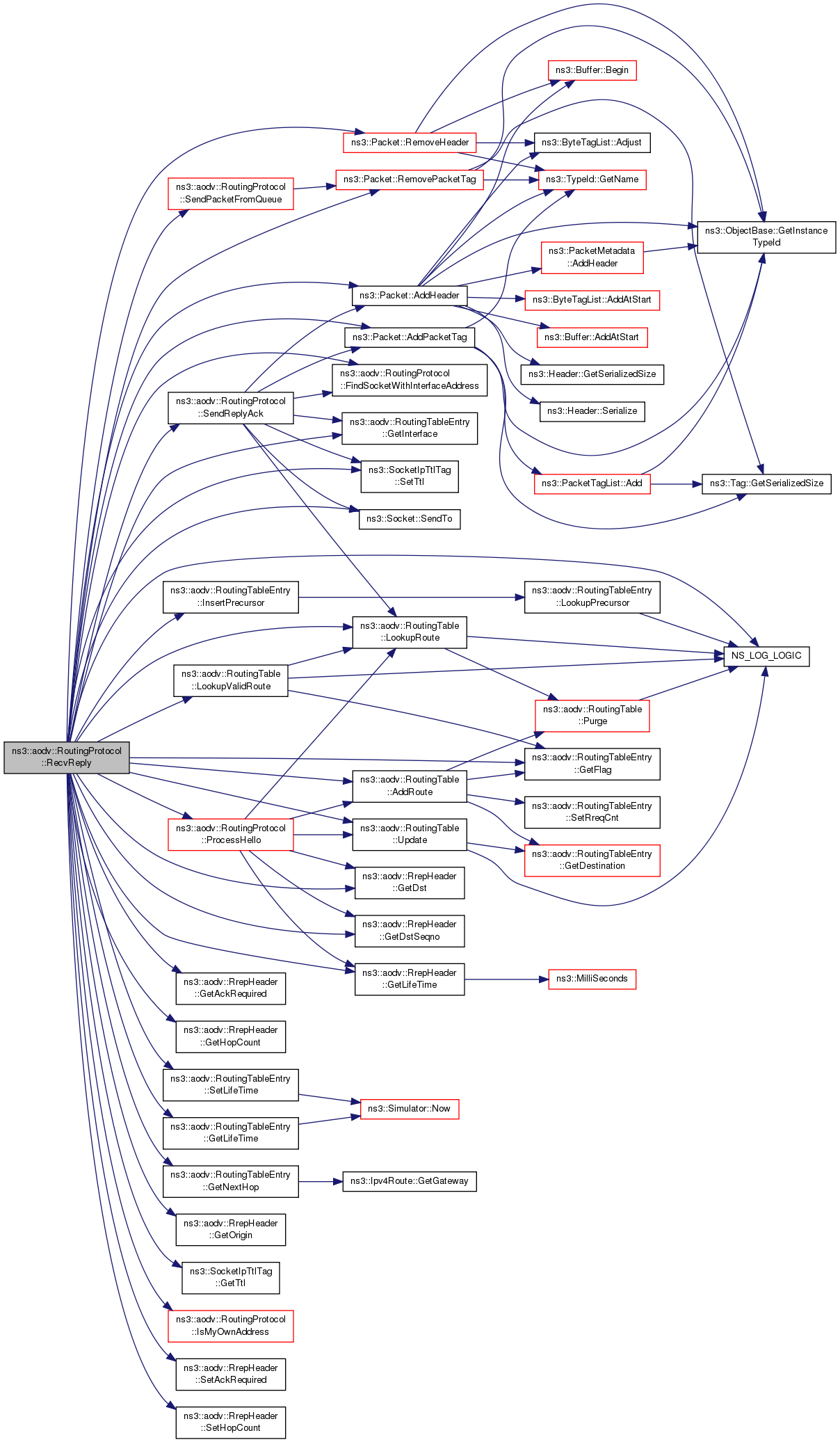

void	RecvReply (Ptr< Packet > p, Ipv4Address my, Ipv4Address src)
	Receive RREP. More...

void	RecvReplyAck (Ipv4Address neighbor)
	Receive RREP_ACK. More...

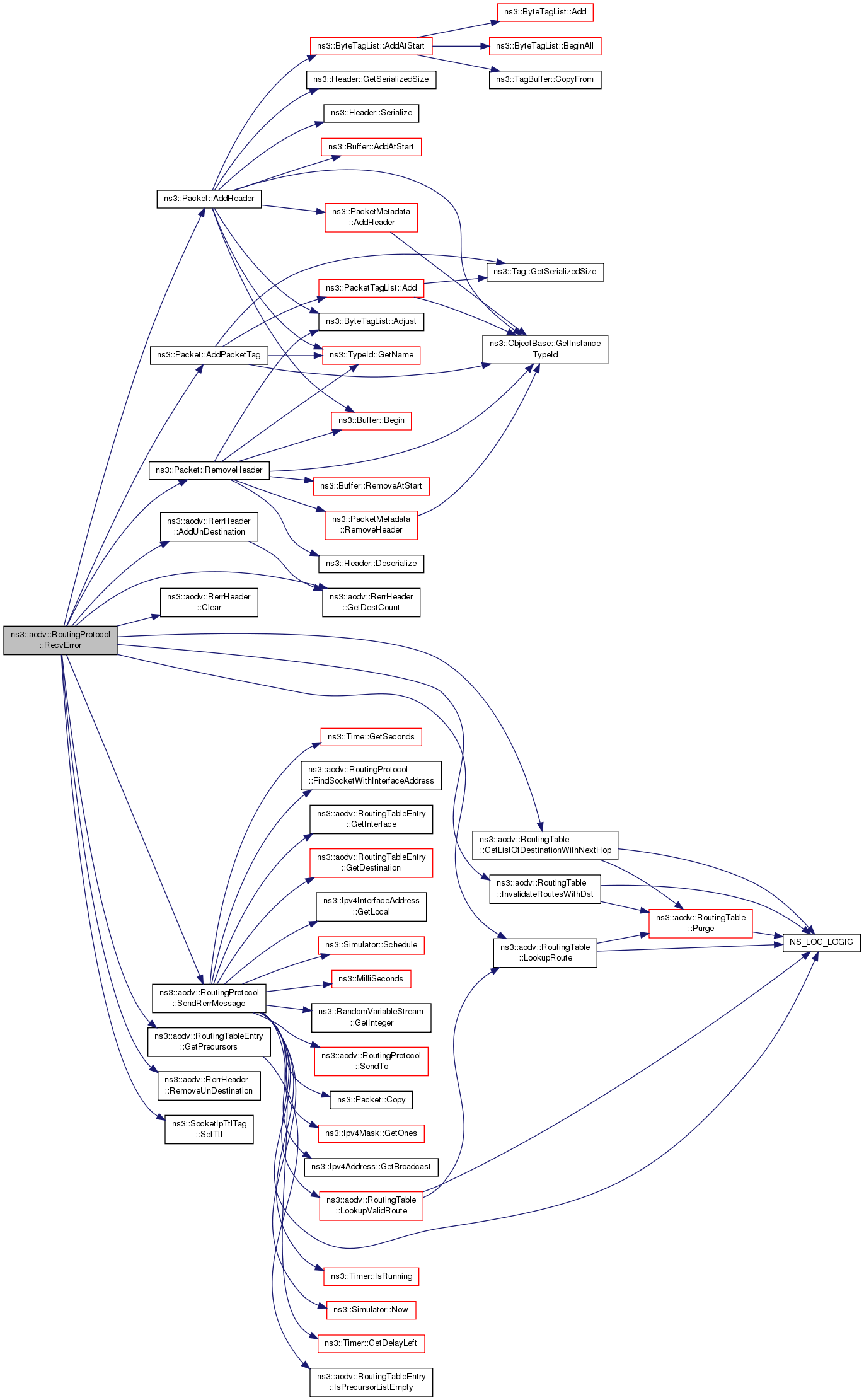

void	RecvError (Ptr< Packet > p, Ipv4Address src)
	Receive RERR from node with address src. More...

Send

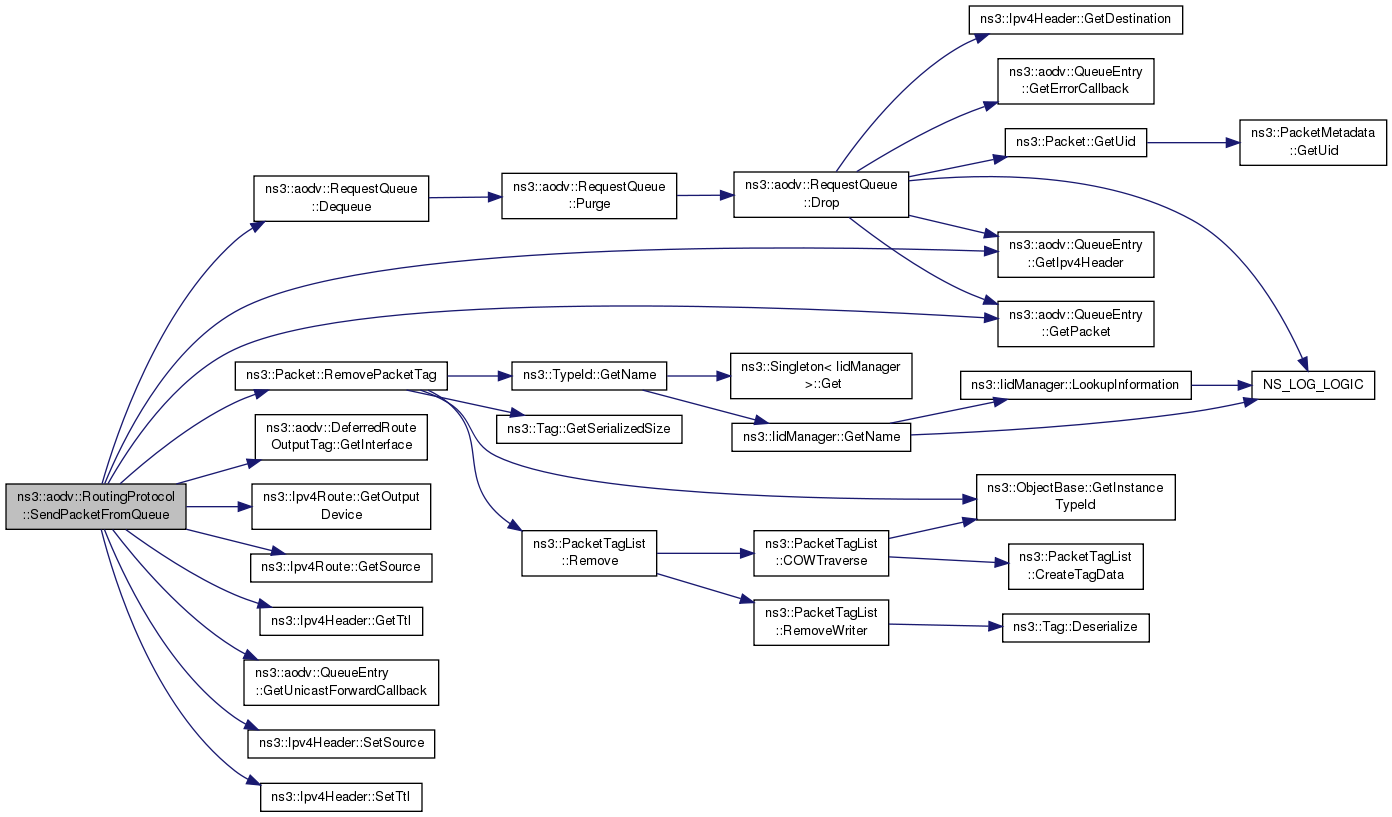

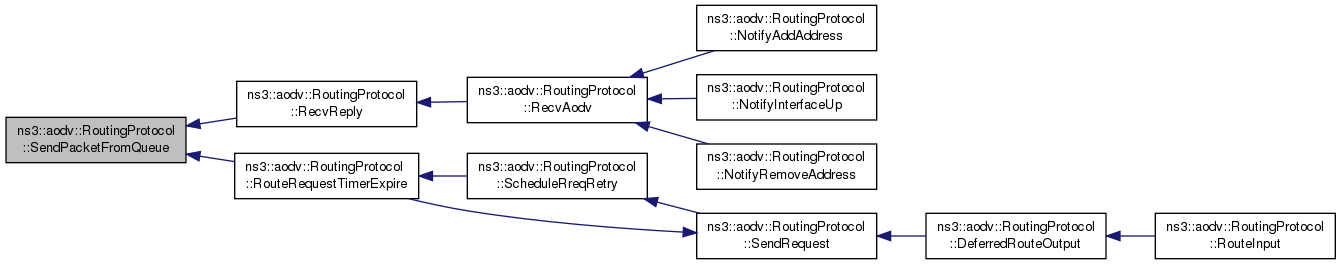

void	SendPacketFromQueue (Ipv4Address dst, Ptr< Ipv4Route > route)
	Forward packet from route request queue. More...

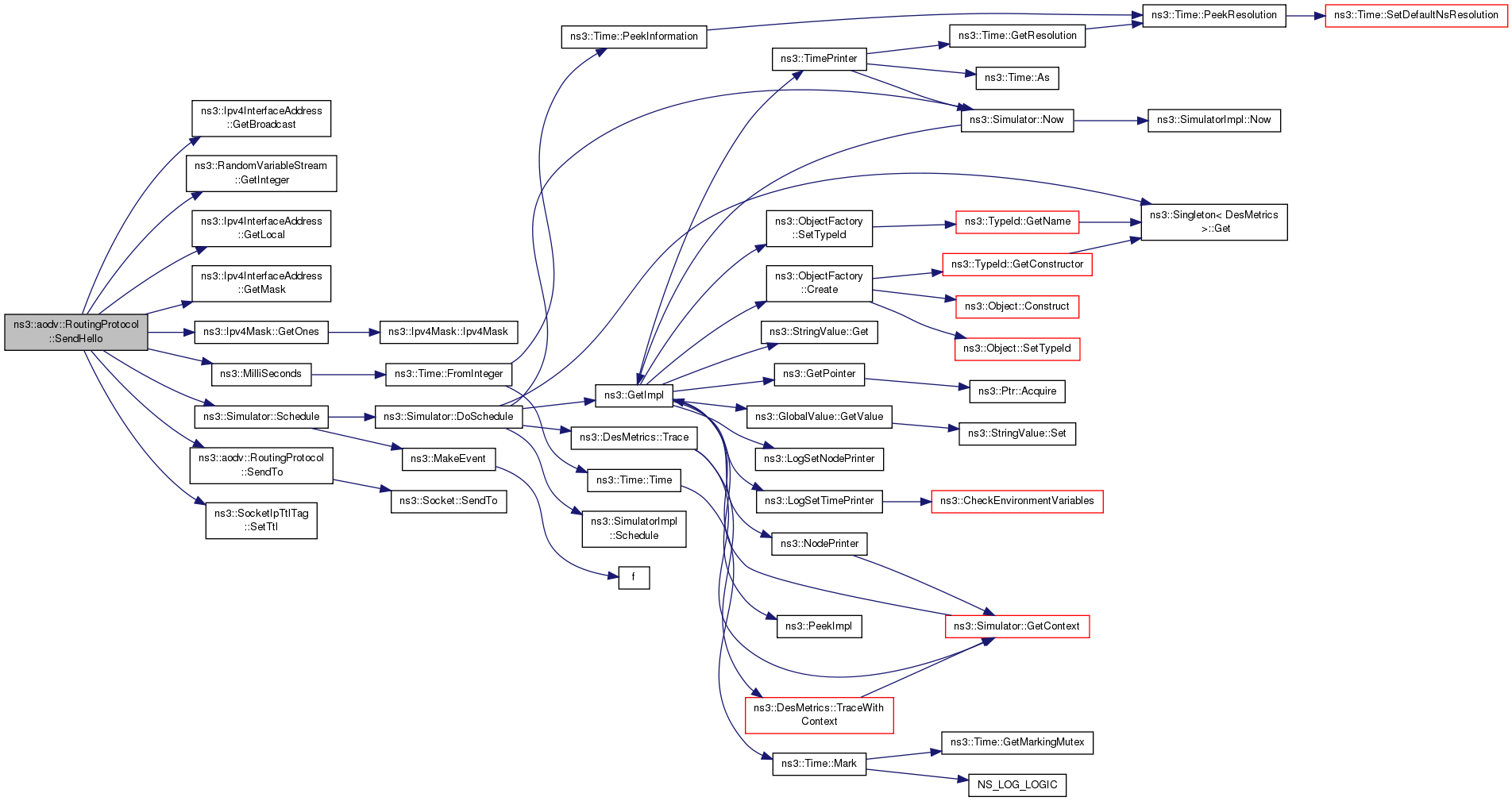

void	SendHello ()
	Send hello. More...

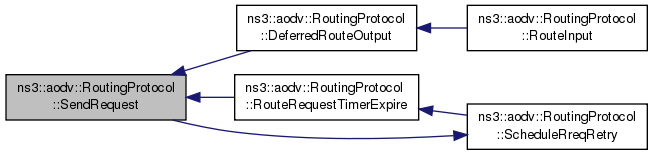

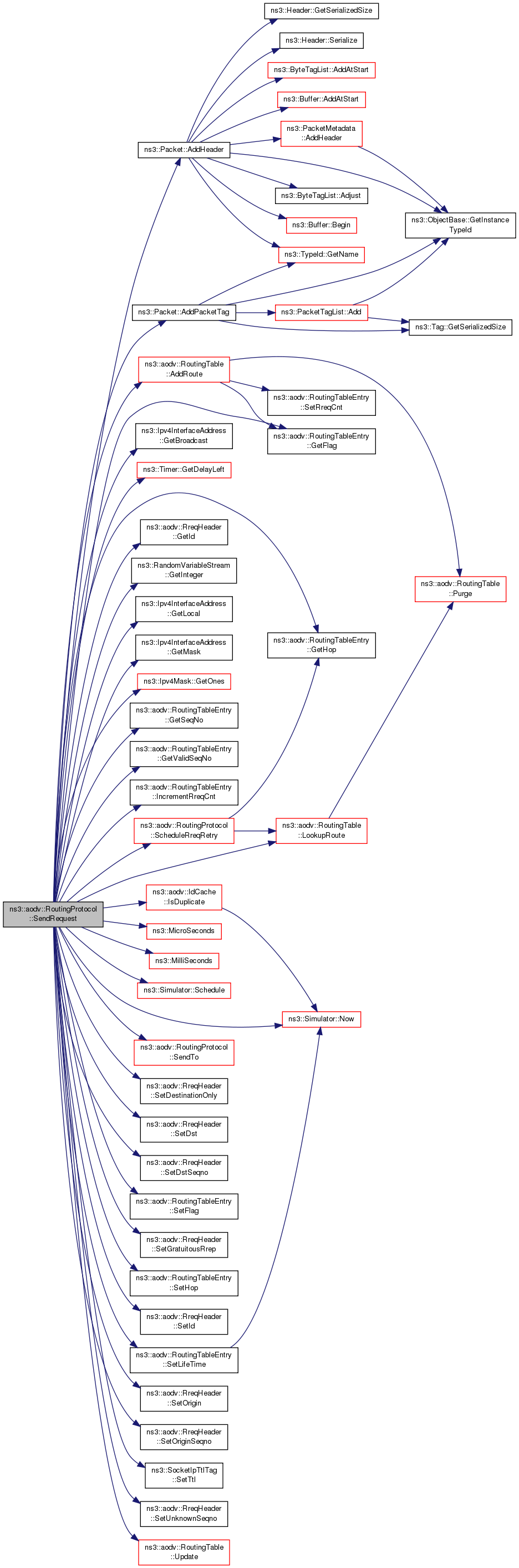

void	SendRequest (Ipv4Address dst)
	Send RREQ. More...

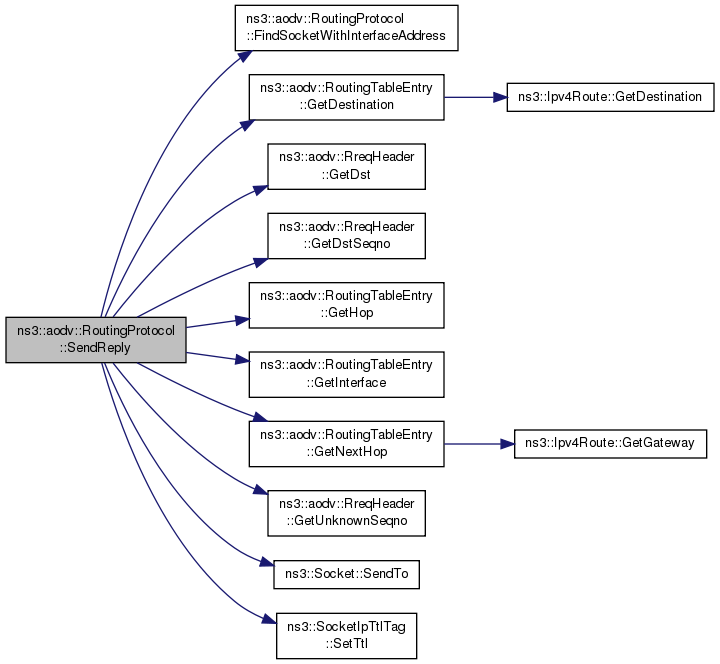

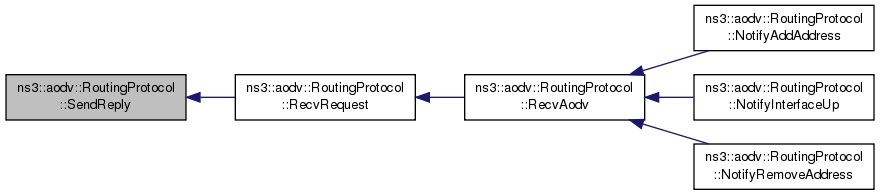

void	SendReply (RreqHeader const &rreqHeader, RoutingTableEntry const &toOrigin)
	Send RREP. More...

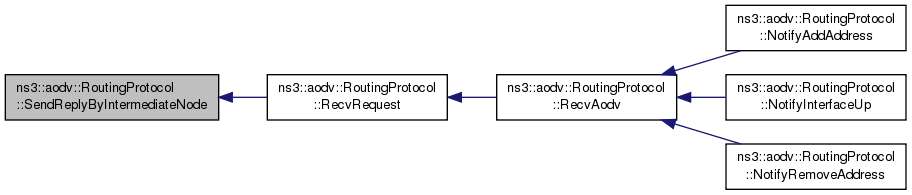

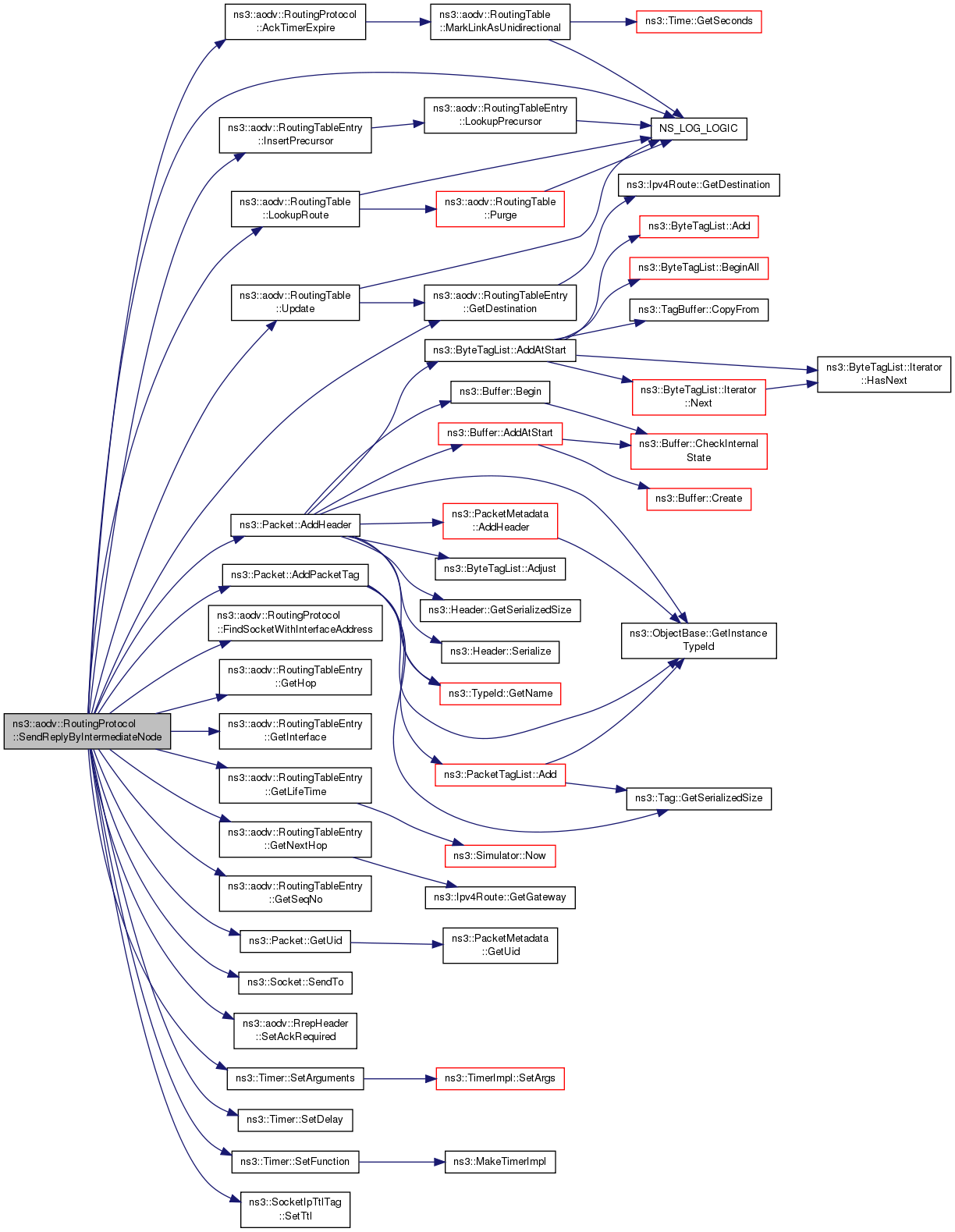

void	SendReplyByIntermediateNode (RoutingTableEntry &toDst, RoutingTableEntry &toOrigin, bool gratRep)
	Send RREP by intermediate node. More...

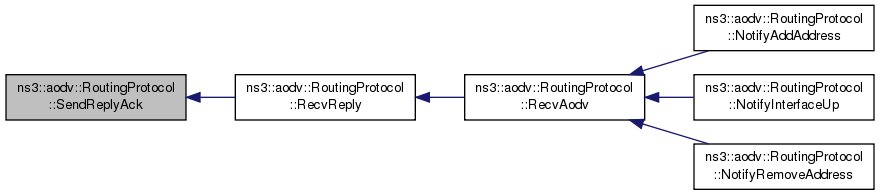

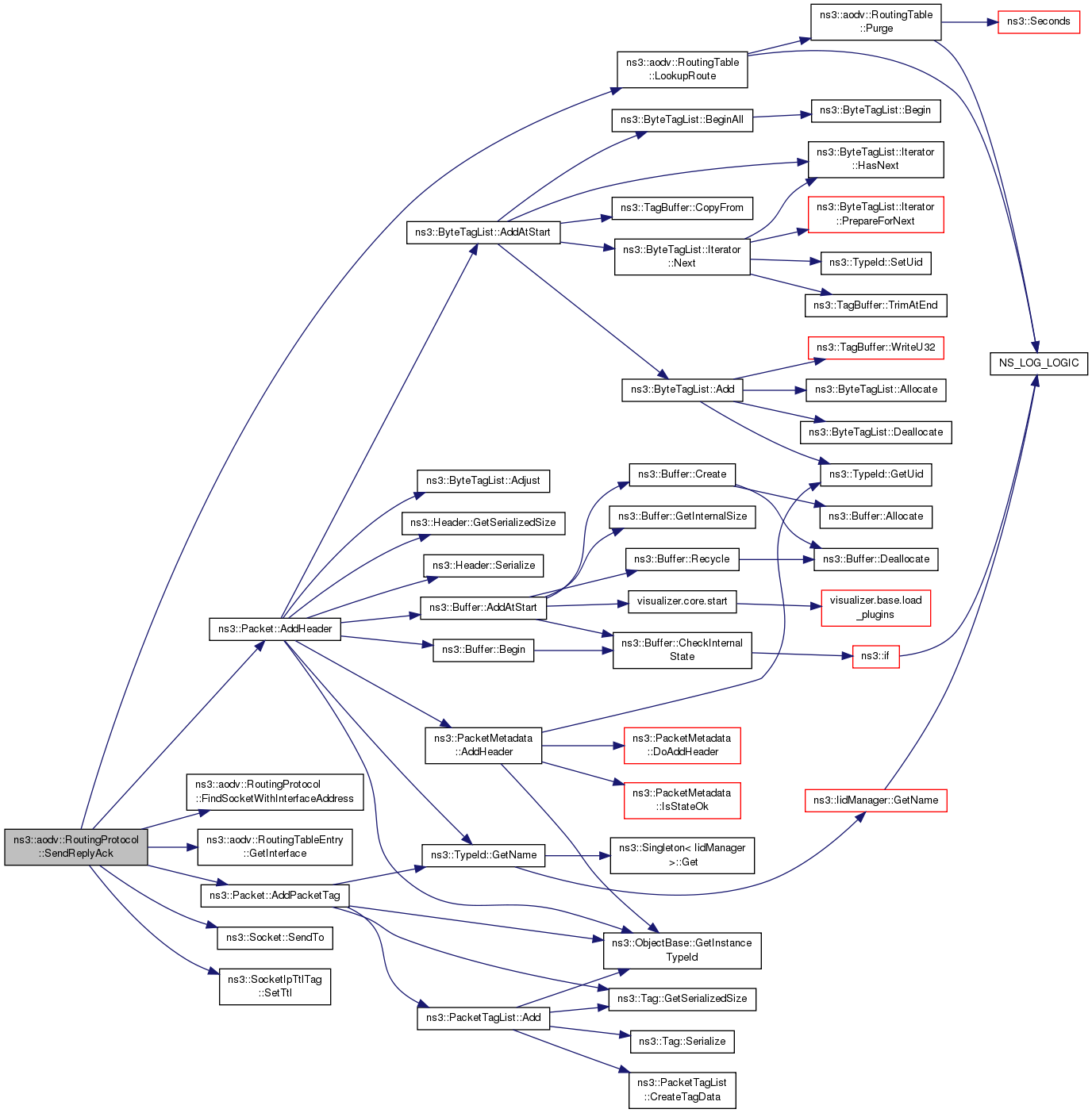

void	SendReplyAck (Ipv4Address neighbor)
	Send RREP_ACK. More...

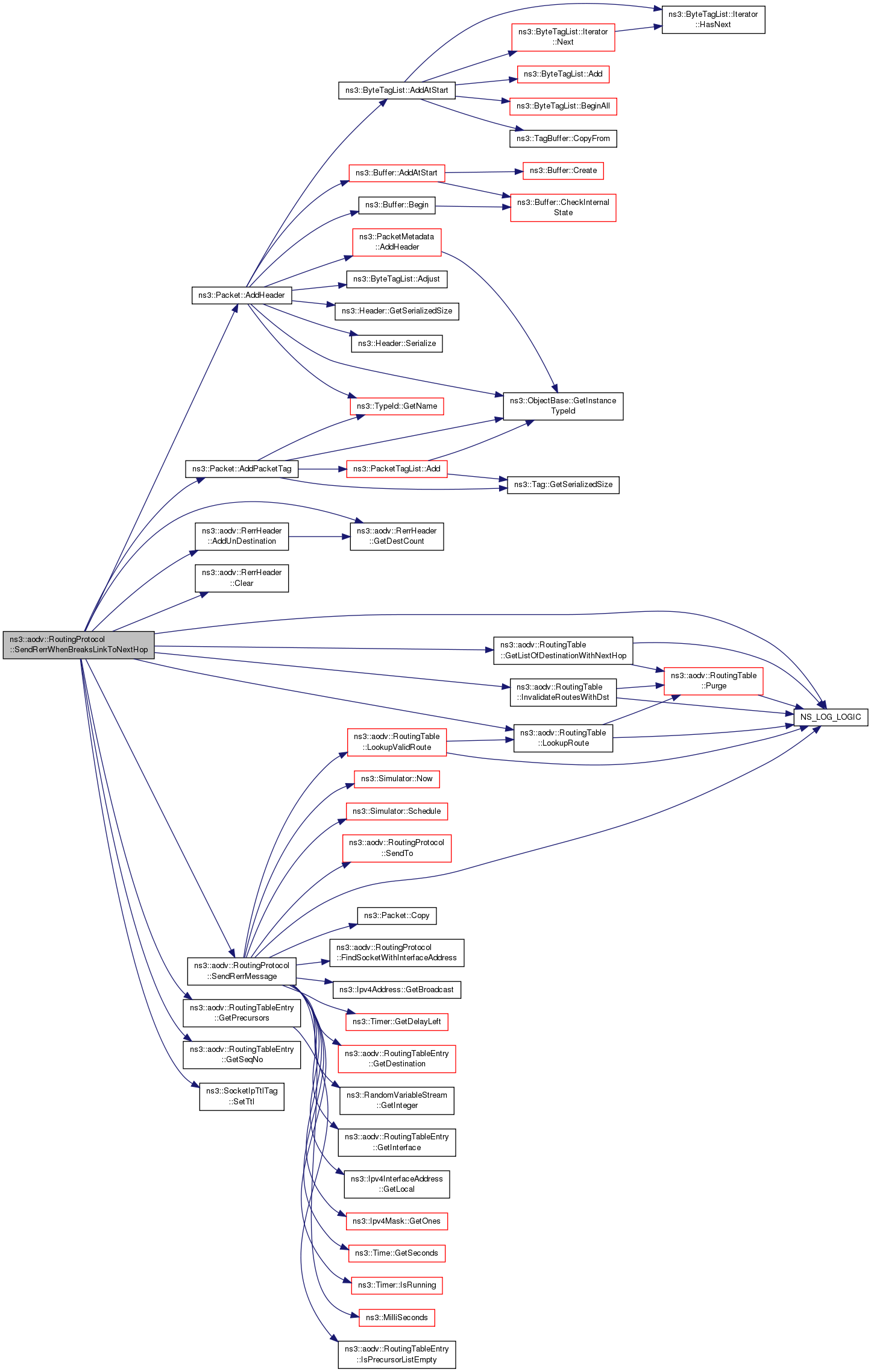

void	SendRerrWhenBreaksLinkToNextHop (Ipv4Address nextHop)
	Initiate RERR. More...

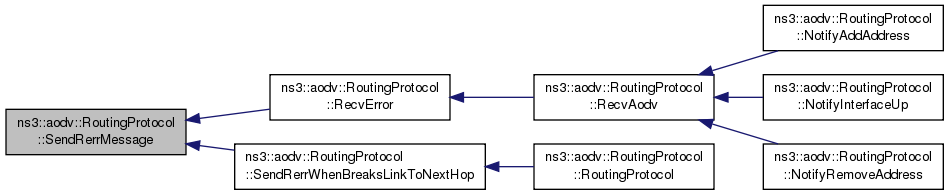

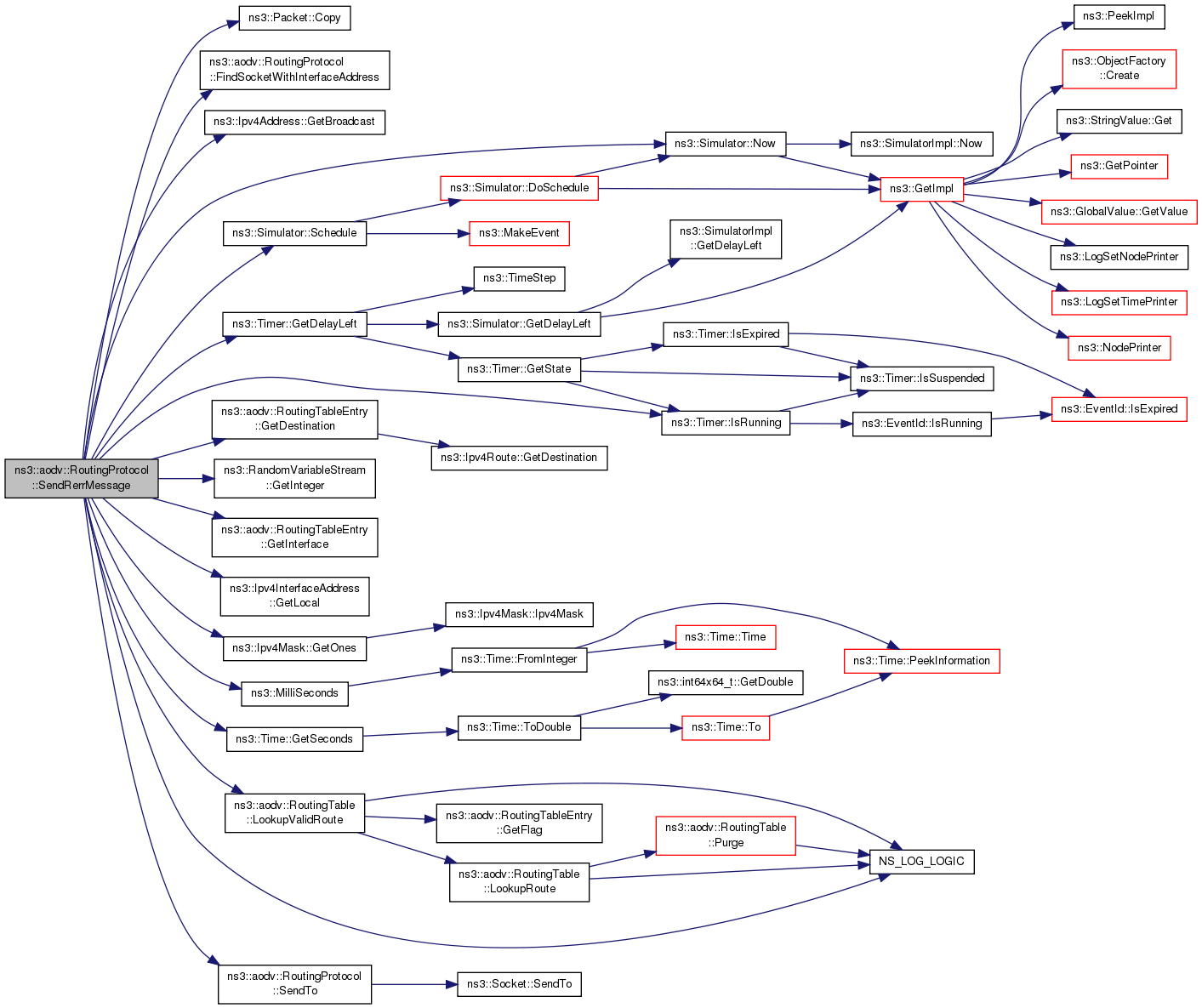

void	SendRerrMessage (Ptr< Packet > packet, std::vector< Ipv4Address > precursors)
	Forward RERR. More...

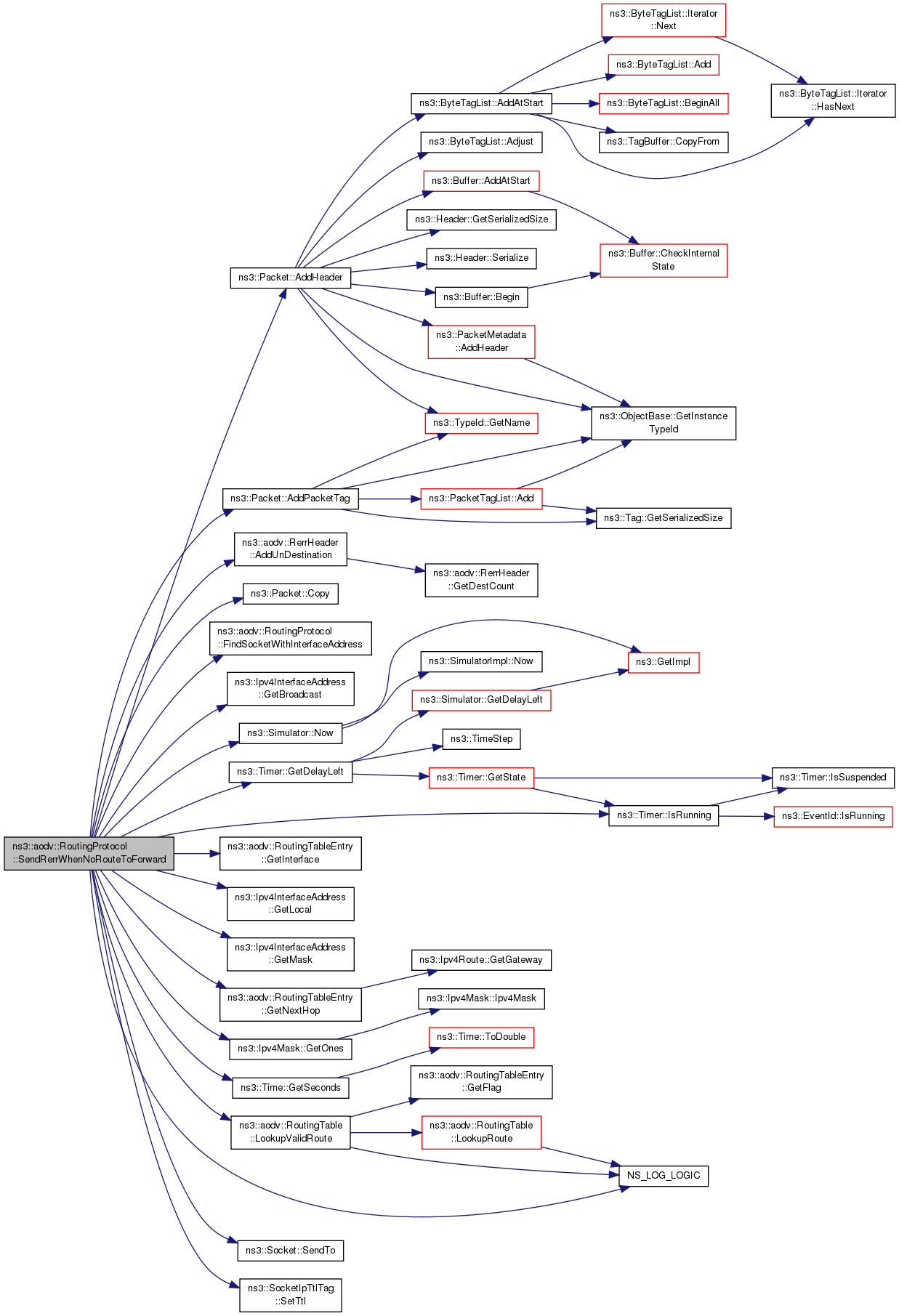

void	SendRerrWhenNoRouteToForward (Ipv4Address dst, uint32_t dstSeqNo, Ipv4Address origin)
	Send RERR message when no route to forward input packet. More...

Private Attributes
Time	m_activeRouteTimeout
	Period of time during which the route is considered to be valid. More...

std::map< Ipv4Address, Timer >	m_addressReqTimer
	Map IP address + RREQ timer. More...

uint32_t	m_allowedHelloLoss
	Number of hello messages which may be loss for valid link. More...

Time	m_blackListTimeout
	Time for which the node is put into the blacklist. More...

Time	m_deletePeriod
	DeletePeriod is intended to provide an upper bound on the time for which an upstream node A can have a neighbor B as an active next hop for destination D, while B has invalidated the route to D. More...

bool	m_destinationOnly
	Indicates only the destination may respond to this RREQ. More...

DuplicatePacketDetection	m_dpd
	Handle duplicated broadcast/multicast packets. More...

bool	m_enableBroadcast
	Indicates whether a a broadcast data packets forwarding enable. More...

bool	m_enableHello
	Indicates whether a hello messages enable. More...

bool	m_gratuitousReply
	Indicates whether a gratuitous RREP should be unicast to the node originated route discovery. More...

Time	m_helloInterval
	Every HelloInterval the node checks whether it has sent a broadcast within the last HelloInterval. More...

Timer	m_htimer
	Hello timer. More...

Ptr< Ipv4 >	m_ipv4
	IP protocol. More...

Time	m_lastBcastTime
	Keep track of the last bcast time. More...

Ptr< NetDevice >	m_lo
	Loopback device used to defer RREQ until packet will be fully formed. More...

uint32_t	m_maxQueueLen
	The maximum number of packets that we allow a routing protocol to buffer. More...

Time	m_maxQueueTime
	The maximum period of time that a routing protocol is allowed to buffer a packet for. More...

Time	m_myRouteTimeout
	Value of lifetime field in RREP generating by this node. More...

Neighbors	m_nb
	Handle neighbors. More...

uint32_t	m_netDiameter
	Net diameter measures the maximum possible number of hops between two nodes in the network. More...

Time	m_netTraversalTime
	Estimate of the average net traversal time. More...

Time	m_nextHopWait
	Period of our waiting for the neighbour's RREP_ACK. More...

Time	m_nodeTraversalTime
	NodeTraversalTime is a conservative estimate of the average one hop traversal time for packets and should include queuing delays, interrupt processing times and transfer times. More...

Time	m_pathDiscoveryTime
	Estimate of maximum time needed to find route in network. More...

RequestQueue	m_queue
	A "drop-front" queue used by the routing layer to buffer packets to which it does not have a route. More...

uint32_t	m_requestId
	Broadcast ID. More...

uint16_t	m_rerrCount
	Number of RERRs used for RERR rate control. More...

uint16_t	m_rerrRateLimit
	Maximum number of REER per second. More...

Timer	m_rerrRateLimitTimer
	RERR rate limit timer. More...

RoutingTable	m_routingTable
	Routing table. More...

uint16_t	m_rreqCount
	Number of RREQs used for RREQ rate control. More...

IdCache	m_rreqIdCache
	Handle duplicated RREQ. More...

uint16_t	m_rreqRateLimit
	Maximum number of RREQ per second. More...

Timer	m_rreqRateLimitTimer
	RREQ rate limit timer. More...

uint32_t	m_rreqRetries
	Maximum number of retransmissions of RREQ with TTL = NetDiameter to discover a route. More...

uint32_t	m_seqNo
	Request sequence number. More...

std::map< Ptr< Socket >, Ipv4InterfaceAddress >	m_socketAddresses
	Raw unicast socket per each IP interface, map socket -> iface address (IP + mask) More...

std::map< Ptr< Socket >, Ipv4InterfaceAddress >	m_socketSubnetBroadcastAddresses
	Raw subnet directed broadcast socket per each IP interface, map socket -> iface address (IP + mask) More...

uint16_t	m_timeoutBuffer
	Provide a buffer for the timeout. More...

uint16_t	m_ttlIncrement
	TTL increment for each attempt using the expanding ring search for RREQ dissemination. More...

uint16_t	m_ttlStart
	Initial TTL value for RREQ. More...

uint16_t	m_ttlThreshold
	Maximum TTL value for expanding ring search, TTL = NetDiameter is used beyond this value. More...

Ptr< UniformRandomVariable >	m_uniformRandomVariable
	Provides uniform random variables. More...

Additional Inherited Members
Public Types inherited from ns3::Ipv4RoutingProtocol
typedef Callback< void, Ptr< const Packet >, const Ipv4Header &, Socket::SocketErrno >	ErrorCallback
	Callback for routing errors (e.g., no route found) More...

typedef Callback< void, Ptr< const Packet >, const Ipv4Header &, uint32_t >	LocalDeliverCallback
	Callback for packets to be locally delivered. More...

typedef Callback< void, Ptr< Ipv4MulticastRoute >, Ptr< const Packet >, const Ipv4Header & >	MulticastForwardCallback
	Callback for multicast packets to be forwarded. More...

typedef Callback< void, Ptr< Ipv4Route >, Ptr< const Packet >, const Ipv4Header & >	UnicastForwardCallback
	Callback for unicast packets to be forwarded. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

AODV routing protocol.

Config Paths

ns3::aodv::RoutingProtocol is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/$ns3::aodv::RoutingProtocol"

Attributes

HelloInterval: HELLO messages emission interval.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
TtlStart: Initial TTL value for RREQ.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 1
- Flags: construct write read
TtlIncrement: TTL increment for each attempt using the expanding ring search for RREQ dissemination.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 2
- Flags: construct write read
TtlThreshold: Maximum TTL value for expanding ring search, TTL = NetDiameter is used beyond this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 7
- Flags: construct write read
TimeoutBuffer: Provide a buffer for the timeout.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 2
- Flags: construct write read
RreqRetries: Maximum number of retransmissions of RREQ to discover a route
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read
RreqRateLimit: Maximum number of RREQ per second.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
RerrRateLimit: Maximum number of RERR per second.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
NodeTraversalTime: Conservative estimate of the average one hop traversal time for packets and should include queuing delays, interrupt processing times and transfer times.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +40000000.0ns
- Flags: construct write read
NextHopWait: Period of our waiting for the neighbour's RREP_ACK = 10 ms + NodeTraversalTime
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +50000000.0ns
- Flags: construct write read
ActiveRouteTimeout: Period of time during which the route is considered to be valid
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3000000000.0ns
- Flags: construct write read
MyRouteTimeout: Value of lifetime field in RREP generating by this node = 2 * max(ActiveRouteTimeout, PathDiscoveryTime)
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +11199999999.0ns
- Flags: construct write read
BlackListTimeout: Time for which the node is put into the blacklist = RreqRetries * NetTraversalTime
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5599999999.0ns
- Flags: construct write read
DeletePeriod: DeletePeriod is intended to provide an upper bound on the time for which an upstream node A can have a neighbor B as an active next hop for destination D, while B has invalidated the route to D. = 5 * max (HelloInterval, ActiveRouteTimeout)
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +15000000000.0ns
- Flags: construct write read
NetDiameter: Net diameter measures the maximum possible number of hops between two nodes in the network
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 35
- Flags: construct write read
NetTraversalTime: Estimate of the average net traversal time = 2 * NodeTraversalTime * NetDiameter
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2799999999.0ns
- Flags: construct write read
PathDiscoveryTime: Estimate of maximum time needed to find route in network = 2 * NetTraversalTime
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5599999999.0ns
- Flags: construct write read
MaxQueueLen: Maximum number of packets that we allow a routing protocol to buffer.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 64
- Flags: construct write read
MaxQueueTime: Maximum time packets can be queued (in seconds)
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +30000000000.0ns
- Flags: construct write read
AllowedHelloLoss: Number of hello messages which may be loss for valid link.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 2
- Flags: construct write read
GratuitousReply: Indicates whether a gratuitous RREP should be unicast to the node originated route discovery.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
DestinationOnly: Indicates only the destination may respond to this RREQ.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
EnableHello: Indicates whether a hello messages enable.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
EnableBroadcast: Indicates whether a broadcast data packets forwarding enable.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
UniformRv: Access to the underlying UniformRandomVariable
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UniformRandomVariable>
- Initial value: ns3::UniformRandomVariable
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 800 bytes (on a 64-bit architecture).

Definition at line 51 of file aodv-routing-protocol.h.

Constructor & Destructor Documentation

ns3::aodv::RoutingProtocol::RoutingProtocol ( )

constructor

Definition at line 140 of file aodv-routing-protocol.cc.

References m_nb, ns3::MakeCallback(), SendRerrWhenBreaksLinkToNextHop(), and ns3::aodv::Neighbors::SetCallback().

Here is the call graph for this function:

ns3::aodv::RoutingProtocol::~RoutingProtocol ( )

virtual

Definition at line 315 of file aodv-routing-protocol.cc.

Member Function Documentation

void ns3::aodv::RoutingProtocol::AckTimerExpire	(	Ipv4Address	neighbor,
		Time	blacklistTimeout
	)

private

Mark link to neighbor node as unidirectional for blacklistTimeout.

Parameters

neighbor	the IP address of the neightbor node
blacklistTimeout	the black list timeout time

Definition at line 1826 of file aodv-routing-protocol.cc.

References m_routingTable, ns3::aodv::RoutingTable::MarkLinkAsUnidirectional(), and NS_LOG_FUNCTION.

Referenced by SendReplyByIntermediateNode().

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t ns3::aodv::RoutingProtocol::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 351 of file aodv-routing-protocol.cc.

References m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::DeferredRouteOutput	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		UnicastForwardCallback	ucb,
		ErrorCallback	ecb
	)

private

Queue packet and send route request.

Parameters

p	the packet to route
header	the IP header
ucb	the UnicastForwardCallback function
ecb	the ErrorCallback function

Definition at line 427 of file aodv-routing-protocol.cc.

References ns3::aodv::RequestQueue::Enqueue(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetProtocol(), ns3::Packet::GetUid(), ns3::aodv::IN_SEARCH, ns3::aodv::RoutingTable::LookupRoute(), m_queue, m_routingTable, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and SendRequest().

Referenced by RouteInput().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 320 of file aodv-routing-protocol.cc.

References ns3::Object::DoDispose(), m_ipv4, m_socketAddresses, and m_socketSubnetBroadcastAddresses.

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 2112 of file aodv-routing-protocol.cc.

References ns3::Object::DoInitialize(), ns3::RandomVariableStream::GetInteger(), HelloTimerExpire(), m_enableHello, m_htimer, m_uniformRandomVariable, ns3::MilliSeconds(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Timer::Schedule(), ns3::Timer::SetFunction(), and startTime.

Here is the call graph for this function:

Ptr< Socket > ns3::aodv::RoutingProtocol::FindSocketWithInterfaceAddress ( Ipv4InterfaceAddress iface ) const

private

Find unicast socket with local interface address iface.

Parameters

iface the interface

Returns: the socket associated with the interface

Definition at line 2076 of file aodv-routing-protocol.cc.

References m_socketAddresses, and NS_LOG_FUNCTION.

Referenced by NotifyAddAddress(), NotifyInterfaceDown(), NotifyRemoveAddress(), RecvReply(), SendReply(), SendReplyAck(), SendReplyByIntermediateNode(), SendRerrMessage(), and SendRerrWhenNoRouteToForward().

Here is the caller graph for this function:

Ptr< Socket > ns3::aodv::RoutingProtocol::FindSubnetBroadcastSocketWithInterfaceAddress ( Ipv4InterfaceAddress iface ) const

private

Find subnet directed broadcast socket with local interface address iface.

Parameters

iface the interface

Returns: the socket associated with the interface

Definition at line 2094 of file aodv-routing-protocol.cc.

References m_socketSubnetBroadcastAddresses, and NS_LOG_FUNCTION.

Referenced by NotifyInterfaceDown(), and NotifyRemoveAddress().

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::Forwarding	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		UnicastForwardCallback	ucb,
		ErrorCallback	ecb
	)

private

If route exists and is valid, forward packet.

Parameters

p	the packet to route
header	the IP header
ucb	the UnicastForwardCallback function
ecb	the ErrorCallback function

Returns: true if forwarded

Definition at line 591 of file aodv-routing-protocol.cc.

References ns3::Ipv4Header::GetDestination(), ns3::aodv::RoutingTableEntry::GetFlag(), ns3::Ipv4Route::GetGateway(), ns3::aodv::RoutingTableEntry::GetRoute(), ns3::aodv::RoutingTableEntry::GetSeqNo(), ns3::Ipv4Route::GetSource(), ns3::Ipv4Header::GetSource(), ns3::Packet::GetUid(), ns3::aodv::RoutingTableEntry::GetValidSeqNo(), ns3::aodv::RoutingTable::LookupRoute(), m_activeRouteTimeout, m_nb, m_routingTable, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::aodv::RoutingTable::Purge(), SendRerrWhenNoRouteToForward(), ns3::aodv::Neighbors::Update(), UpdateRouteLifeTime(), and ns3::aodv::VALID.

Referenced by RouteInput().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::GetBroadcastEnable ( ) const

inline

Get broadcast enable flag.

Returns: the broadcast enable flag

Definition at line 165 of file aodv-routing-protocol.h.

References m_enableBroadcast.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::GetDestinationOnlyFlag ( ) const

inline

Get destination only flag.

Returns: the destination only flag

Definition at line 109 of file aodv-routing-protocol.h.

References m_destinationOnly.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::GetGratuitousReplyFlag ( ) const

inline

Get gratuitous reply flag.

Returns: the gratuitous reply flag

Definition at line 125 of file aodv-routing-protocol.h.

References m_gratuitousReply.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::GetHelloEnable ( ) const

inline

Get hello enable flag.

Returns: the enable hello flag

Definition at line 149 of file aodv-routing-protocol.h.

References m_enableHello.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint32_t ns3::aodv::RoutingProtocol::GetMaxQueueLen ( ) const

inline

Get the maximum queue length.

Returns: the maximum queue length

Definition at line 96 of file aodv-routing-protocol.h.

References m_maxQueueLen.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::aodv::RoutingProtocol::GetMaxQueueTime ( ) const

inline

Get maximum queue time.

Returns: the maximum queue time

Definition at line 83 of file aodv-routing-protocol.h.

References m_maxQueueTime.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::aodv::RoutingProtocol::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 182 of file aodv-routing-protocol.cc.

References GetBroadcastEnable(), GetDestinationOnlyFlag(), GetGratuitousReplyFlag(), GetHelloEnable(), GetMaxQueueLen(), GetMaxQueueTime(), m_activeRouteTimeout, m_allowedHelloLoss, m_blackListTimeout, m_deletePeriod, m_helloInterval, m_myRouteTimeout, m_netDiameter, m_netTraversalTime, m_nextHopWait, m_nodeTraversalTime, m_pathDiscoveryTime, m_rerrRateLimit, m_rreqRateLimit, m_rreqRetries, m_timeoutBuffer, m_ttlIncrement, m_ttlStart, m_ttlThreshold, m_uniformRandomVariable, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), ns3::Seconds(), SetBroadcastEnable(), SetDestinationOnlyFlag(), SetGratuitousReplyFlag(), SetHelloEnable(), SetMaxQueueLen(), SetMaxQueueTime(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::HelloTimerExpire ( )

private

Schedule next send of hello message.

Definition at line 1790 of file aodv-routing-protocol.cc.

References ns3::Timer::Cancel(), m_helloInterval, m_htimer, m_lastBcastTime, max, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Timer::Schedule(), ns3::Seconds(), and SendHello().

Referenced by DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::IsMyOwnAddress ( Ipv4Address src )

private

Test whether the provided address is assigned to an interface on this node.

Parameters

src	the source IP address

Returns: true if the IP address is the node's IP address

Definition at line 896 of file aodv-routing-protocol.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), m_socketAddresses, and NS_LOG_FUNCTION.

Referenced by RecvReply(), RecvRequest(), and RouteInput().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Ipv4Route > ns3::aodv::RoutingProtocol::LoopbackRoute	(	const Ipv4Header &	header,
		Ptr< NetDevice >	oif
	)		const

private

Create loopback route for given header.

Parameters

header	the IP header
oif	the output interface net device

Returns: the route

Definition at line 912 of file aodv-routing-protocol.cc.

References ns3::Ipv4Header::GetDestination(), ns3::Ipv4Route::GetSource(), m_ipv4, m_lo, m_socketAddresses, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::Ipv4Route::SetDestination(), ns3::Ipv4Route::SetGateway(), ns3::Ipv4Route::SetOutputDevice(), and ns3::Ipv4Route::SetSource().

Referenced by RouteOutput().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::NotifyAddAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

virtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 775 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTable::AddRoute(), AODV_PORT, ns3::Socket::Bind(), ns3::Socket::BindToNetDevice(), ns3::Socket::CreateSocket(), FindSocketWithInterfaceAddress(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Simulator::GetMaximumSimulationTime(), ns3::UdpSocketFactory::GetTypeId(), m_ipv4, m_routingTable, m_socketAddresses, m_socketSubnetBroadcastAddresses, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC(), RecvAodv(), ns3::Socket::SetAllowBroadcast(), ns3::Socket::SetIpRecvTtl(), and ns3::Socket::SetRecvCallback().

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::NotifyInterfaceDown ( uint32_t interface )

virtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 732 of file aodv-routing-protocol.cc.

References ns3::Timer::Cancel(), ns3::aodv::Neighbors::Clear(), ns3::aodv::RoutingTable::Clear(), ns3::Socket::Close(), ns3::aodv::Neighbors::DelArpCache(), ns3::aodv::RoutingTable::DeleteAllRoutesFromInterface(), FindSocketWithInterfaceAddress(), FindSubnetBroadcastSocketWithInterfaceAddress(), ns3::aodv::Neighbors::GetTxErrorCallback(), m_htimer, m_ipv4, m_nb, m_routingTable, m_socketAddresses, m_socketSubnetBroadcastAddresses, third::mac, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and third::wifi.

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::NotifyInterfaceUp ( uint32_t interface )

virtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 669 of file aodv-routing-protocol.cc.

References ns3::aodv::Neighbors::AddArpCache(), ns3::aodv::RoutingTable::AddRoute(), AODV_PORT, ns3::Socket::Bind(), ns3::Socket::BindToNetDevice(), ns3::Socket::CreateSocket(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Simulator::GetMaximumSimulationTime(), ns3::aodv::Neighbors::GetTxErrorCallback(), ns3::UdpSocketFactory::GetTypeId(), m_ipv4, m_nb, m_routingTable, m_socketAddresses, m_socketSubnetBroadcastAddresses, third::mac, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_WARN, RecvAodv(), ns3::Socket::SetAllowBroadcast(), ns3::Socket::SetIpRecvTtl(), ns3::Socket::SetRecvCallback(), and third::wifi.

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

virtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 830 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTable::AddRoute(), AODV_PORT, ns3::Socket::Bind(), ns3::Socket::BindToNetDevice(), ns3::Timer::Cancel(), ns3::aodv::Neighbors::Clear(), ns3::aodv::RoutingTable::Clear(), ns3::Socket::Close(), ns3::Socket::CreateSocket(), ns3::aodv::RoutingTable::DeleteAllRoutesFromInterface(), FindSocketWithInterfaceAddress(), FindSubnetBroadcastSocketWithInterfaceAddress(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Simulator::GetMaximumSimulationTime(), ns3::UdpSocketFactory::GetTypeId(), m_htimer, m_ipv4, m_nb, m_routingTable, m_socketAddresses, m_socketSubnetBroadcastAddresses, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC(), RecvAodv(), ns3::Socket::SetAllowBroadcast(), ns3::Socket::SetIpRecvTtl(), and ns3::Socket::SetRecvCallback().

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::PrintRoutingTable	(	Ptr< OutputStreamWrapper >	stream,
		Time::Unit	unit = `Time::S`
	)		const

virtual

Print the Routing Table entries.

Parameters

stream	The ostream the Routing table is printed to
unit	The time unit to be used in the report

Implements ns3::Ipv4RoutingProtocol.

Definition at line 339 of file aodv-routing-protocol.cc.

References ns3::Time::As(), ns3::OutputStreamWrapper::GetStream(), m_ipv4, m_routingTable, ns3::Now(), and ns3::aodv::RoutingTable::Print().

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::ProcessHello	(	RrepHeader const &	rrepHeader,
		Ipv4Address	receiverIfaceAddr
	)

private

Process hello message.

Parameters

rrepHeader	RREP message header
receiverIfaceAddr	receiver interface IP address

Definition at line 1654 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTable::AddRoute(), ns3::aodv::RrepHeader::GetDst(), ns3::aodv::RrepHeader::GetDstSeqno(), ns3::aodv::RrepHeader::GetLifeTime(), ns3::aodv::RoutingTable::LookupRoute(), m_allowedHelloLoss, m_enableHello, m_helloInterval, m_ipv4, m_nb, m_routingTable, max, NS_LOG_FUNCTION, ns3::aodv::Neighbors::Update(), ns3::aodv::RoutingTable::Update(), and ns3::aodv::VALID.

Referenced by RecvReply().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RecvAodv ( Ptr< Socket > socket )

private

Receive and process control packet.

Definition at line 1111 of file aodv-routing-protocol.cc.

References ns3::aodv::AODVTYPE_RERR, ns3::aodv::AODVTYPE_RREP, ns3::aodv::AODVTYPE_RREP_ACK, ns3::aodv::AODVTYPE_RREQ, ns3::InetSocketAddress::ConvertFrom(), ns3::aodv::TypeHeader::Get(), ns3::InetSocketAddress::GetIpv4(), ns3::Packet::GetUid(), ns3::aodv::TypeHeader::IsValid(), m_socketAddresses, m_socketSubnetBroadcastAddresses, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, RecvError(), ns3::Socket::RecvFrom(), RecvReply(), RecvReplyAck(), RecvRequest(), ns3::Packet::RemoveHeader(), and UpdateRouteToNeighbor().

Referenced by NotifyAddAddress(), NotifyInterfaceUp(), and NotifyRemoveAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RecvError	(	Ptr< Packet >	p,
		Ipv4Address	src
	)

private

Receive RERR from node with address src.

Definition at line 1690 of file aodv-routing-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::aodv::RerrHeader::AddUnDestination(), ns3::aodv::AODVTYPE_RERR, ns3::aodv::RerrHeader::Clear(), ns3::aodv::RerrHeader::GetDestCount(), ns3::aodv::RoutingTable::GetListOfDestinationWithNextHop(), ns3::aodv::RoutingTableEntry::GetPrecursors(), ns3::aodv::RoutingTable::InvalidateRoutesWithDst(), ns3::aodv::RoutingTable::LookupRoute(), m_routingTable, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), ns3::aodv::RerrHeader::RemoveUnDestination(), SendRerrMessage(), and ns3::SocketIpTtlTag::SetTtl().

Referenced by RecvAodv().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RecvReply	(	Ptr< Packet >	p,
		Ipv4Address	my,
		Ipv4Address	src
	)

private

Receive RREP.

Definition at line 1505 of file aodv-routing-protocol.cc.

Referenced by RecvAodv().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RecvReplyAck ( Ipv4Address neighbor )

private

Receive RREP_ACK.

Definition at line 1641 of file aodv-routing-protocol.cc.

References ns3::Timer::Cancel(), ns3::aodv::RoutingTable::LookupRoute(), ns3::aodv::RoutingTableEntry::m_ackTimer, m_routingTable, NS_LOG_FUNCTION, ns3::aodv::RoutingTableEntry::SetFlag(), ns3::aodv::RoutingTable::Update(), and ns3::aodv::VALID.

Referenced by RecvAodv().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RecvRequest	(	Ptr< Packet >	p,
		Ipv4Address	receiver,
		Ipv4Address	src
	)

private

Receive RREQ.

Definition at line 1218 of file aodv-routing-protocol.cc.

Referenced by RecvAodv().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RerrRateLimitTimerExpire ( )

private

Reset RERR count and schedule RERR rate limit timer with delay 1 sec.

Definition at line 1818 of file aodv-routing-protocol.cc.

References m_rerrCount, m_rerrRateLimitTimer, NS_LOG_FUNCTION, ns3::Timer::Schedule(), and ns3::Seconds().

Referenced by Start().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::RouteInput	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		Ptr< const NetDevice >	idev,
		UnicastForwardCallback	ucb,
		MulticastForwardCallback	mcb,
		LocalDeliverCallback	lcb,
		ErrorCallback	ecb
	)

virtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv4RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input(). There are four valid outcomes, and a matching callbacks to handle each.

Parameters

p	received packet
header	input parameter used to form a search key for a route
idev	Pointer to ingress network device
ucb	Callback for the case in which the packet is to be forwarded as unicast
mcb	Callback for the case in which the packet is to be forwarded as multicast
lcb	Callback for the case in which the packet is to be locally delivered
ecb	Callback to call if there is an error in forwarding

Returns: true if the Ipv4RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implements ns3::Ipv4RoutingProtocol.

Definition at line 449 of file aodv-routing-protocol.cc.

References AODV_PORT, ns3::Packet::Copy(), DeferredRouteOutput(), ns3::Socket::ERROR_NOROUTETOHOST, Forwarding(), ns3::NetDevice::GetAddress(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4Header::GetDestination(), ns3::UdpHeader::GetDestinationPort(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::aodv::RoutingTableEntry::GetNextHop(), ns3::Ipv4Header::GetProtocol(), ns3::Ipv4Header::GetSource(), ns3::Ipv4Header::GetTtl(), ns3::Packet::GetUid(), ns3::Ipv4Address::IsBroadcast(), ns3::aodv::DuplicatePacketDetection::IsDuplicate(), ns3::Ipv4Address::IsMulticast(), IsMyOwnAddress(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::aodv::RoutingTable::LookupRoute(), ns3::aodv::RoutingTable::LookupValidRoute(), m_activeRouteTimeout, m_dpd, m_enableBroadcast, m_ipv4, m_lo, m_nb, m_routingTable, m_socketAddresses, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::Packet::PeekHeader(), ns3::Packet::PeekPacketTag(), ns3::UdpL4Protocol::PROT_NUMBER, ns3::aodv::Neighbors::Update(), and UpdateRouteLifeTime().

Here is the call graph for this function:

Ptr< Ipv4Route > ns3::aodv::RoutingProtocol::RouteOutput	(	Ptr< Packet >	p,
		const Ipv4Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)

virtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output()

The header input parameter may have an uninitialized value for the source address, but the destination address should always be properly set by the caller.

Parameters

p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header	input parameter (used to form key to search for the route)
oif	Output interface Netdevice. May be zero, or may be bound via socket options to a particular output interface.
sockerr	Output parameter; socket errno

Returns: a code that indicates what happened in the lookup

Implements ns3::Ipv4RoutingProtocol.

Definition at line 377 of file aodv-routing-protocol.cc.

References ns3::Packet::AddPacketTag(), ns3::Socket::ERROR_NOROUTETOHOST, ns3::Socket::ERROR_NOTERROR, ns3::Ipv4Route::GetDestination(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Route::GetGateway(), ns3::Ipv4Route::GetOutputDevice(), ns3::aodv::RoutingTableEntry::GetRoute(), ns3::Ipv4Route::GetSource(), ns3::aodv::RoutingTable::LookupValidRoute(), LoopbackRoute(), m_activeRouteTimeout, m_ipv4, m_routingTable, m_socketAddresses, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::Packet::PeekPacketTag(), and UpdateRouteLifeTime().

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::RouteRequestTimerExpire ( Ipv4Address dst )

private

Handle route discovery process.

Parameters

dst	the destination IP address

Definition at line 1750 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTable::DeleteRoute(), ns3::aodv::RequestQueue::DropPacketWithDst(), ns3::aodv::RoutingTableEntry::GetFlag(), ns3::aodv::RoutingTableEntry::GetHop(), ns3::aodv::RoutingTableEntry::GetRoute(), ns3::aodv::RoutingTableEntry::GetRreqCnt(), ns3::aodv::IN_SEARCH, ns3::aodv::RoutingTable::LookupValidRoute(), m_addressReqTimer, m_netDiameter, m_queue, m_routingTable, m_rreqRetries, NS_LOG_DEBUG, NS_LOG_LOGIC(), SendPacketFromQueue(), and SendRequest().

Referenced by ScheduleRreqRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RreqRateLimitTimerExpire ( )

private

Reset RREQ count and schedule RREQ rate limit timer with delay 1 sec.

Definition at line 1810 of file aodv-routing-protocol.cc.

References m_rreqCount, m_rreqRateLimitTimer, NS_LOG_FUNCTION, ns3::Timer::Schedule(), and ns3::Seconds().

Referenced by Start().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::ScheduleRreqRetry ( Ipv4Address dst )

private

Repeated attempts by a source node at route discovery for a single destination use the expanding ring search technique.

Parameters

dst	the destination IP address

Definition at line 1083 of file aodv-routing-protocol.cc.

References ns3::Timer::CANCEL_ON_DESTROY, ns3::aodv::RoutingTableEntry::GetHop(), ns3::aodv::RoutingTableEntry::GetRreqCnt(), ns3::Time::GetSeconds(), ns3::aodv::RoutingTable::LookupRoute(), m_addressReqTimer, m_netDiameter, m_netTraversalTime, m_nodeTraversalTime, m_routingTable, m_timeoutBuffer, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and RouteRequestTimerExpire().

Referenced by SendRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendHello ( )

private

Send hello.

Definition at line 1833 of file aodv-routing-protocol.cc.

References ns3::aodv::AODVTYPE_RREP, ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::RandomVariableStream::GetInteger(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), ns3::Ipv4Mask::GetOnes(), m_allowedHelloLoss, m_helloInterval, m_seqNo, m_socketAddresses, m_uniformRandomVariable, ns3::MilliSeconds(), NS_LOG_FUNCTION, ns3::Simulator::Schedule(), SendTo(), and ns3::SocketIpTtlTag::SetTtl().

Referenced by HelloTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendPacketFromQueue	(	Ipv4Address	dst,
		Ptr< Ipv4Route >	route
	)

private

Forward packet from route request queue.

Definition at line 1871 of file aodv-routing-protocol.cc.

References ns3::aodv::RequestQueue::Dequeue(), ns3::aodv::DeferredRouteOutputTag::GetInterface(), ns3::aodv::QueueEntry::GetIpv4Header(), ns3::Ipv4Route::GetOutputDevice(), ns3::aodv::QueueEntry::GetPacket(), ns3::Ipv4Route::GetSource(), ns3::Ipv4Header::GetTtl(), ns3::aodv::QueueEntry::GetUnicastForwardCallback(), m_ipv4, m_queue, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::RemovePacketTag(), ns3::Ipv4Header::SetSource(), and ns3::Ipv4Header::SetTtl().

Referenced by RecvReply(), and RouteRequestTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendReply	(	RreqHeader const &	rreqHeader,
		RoutingTableEntry const &	toOrigin
	)

private

Send RREP.

Definition at line 1406 of file aodv-routing-protocol.cc.

References AODV_PORT, ns3::aodv::AODVTYPE_RREP, FindSocketWithInterfaceAddress(), ns3::aodv::RoutingTableEntry::GetDestination(), ns3::aodv::RreqHeader::GetDst(), ns3::aodv::RreqHeader::GetDstSeqno(), ns3::aodv::RoutingTableEntry::GetHop(), ns3::aodv::RoutingTableEntry::GetInterface(), ns3::aodv::RoutingTableEntry::GetNextHop(), ns3::aodv::RreqHeader::GetUnknownSeqno(), m_myRouteTimeout, m_seqNo, NS_ASSERT, NS_LOG_FUNCTION, ns3::Socket::SendTo(), and ns3::SocketIpTtlTag::SetTtl().

Referenced by RecvRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendReplyAck ( Ipv4Address neighbor )

private

Send RREP_ACK.

Definition at line 1486 of file aodv-routing-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), AODV_PORT, ns3::aodv::AODVTYPE_RREP_ACK, FindSocketWithInterfaceAddress(), ns3::aodv::RoutingTableEntry::GetInterface(), ns3::aodv::RoutingTable::LookupRoute(), m_routingTable, NS_ASSERT, NS_LOG_FUNCTION, ns3::Socket::SendTo(), and ns3::SocketIpTtlTag::SetTtl().

Referenced by RecvReply().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode	(	RoutingTableEntry &	toDst,
		RoutingTableEntry &	toOrigin,
		bool	gratRep
	)

private

Send RREP by intermediate node.

Parameters

toDst	routing table entry to destination
toOrigin	routing table entry to originator
gratRep	indicates whether a gratuitous RREP should be unicast to destination

Definition at line 1432 of file aodv-routing-protocol.cc.

Referenced by RecvRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendRequest ( Ipv4Address dst )

private

Send RREQ.

Definition at line 960 of file aodv-routing-protocol.cc.

Referenced by DeferredRouteOutput(), and RouteRequestTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendRerrMessage	(	Ptr< Packet >	packet,
		std::vector< Ipv4Address >	precursors
	)

private

Forward RERR.

Definition at line 2007 of file aodv-routing-protocol.cc.

References ns3::Packet::Copy(), FindSocketWithInterfaceAddress(), ns3::Ipv4Address::GetBroadcast(), ns3::Timer::GetDelayLeft(), ns3::aodv::RoutingTableEntry::GetDestination(), ns3::RandomVariableStream::GetInteger(), ns3::aodv::RoutingTableEntry::GetInterface(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4Mask::GetOnes(), ns3::Time::GetSeconds(), ns3::Timer::IsRunning(), ns3::aodv::RoutingTable::LookupValidRoute(), m_rerrCount, m_rerrRateLimit, m_rerrRateLimitTimer, m_routingTable, m_uniformRandomVariable, ns3::MilliSeconds(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::Simulator::Schedule(), and SendTo().

Referenced by RecvError(), and SendRerrWhenBreaksLinkToNextHop().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendRerrWhenBreaksLinkToNextHop ( Ipv4Address nextHop )

private

Initiate RERR.

Definition at line 1895 of file aodv-routing-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::aodv::RerrHeader::AddUnDestination(), ns3::aodv::AODVTYPE_RERR, ns3::aodv::RerrHeader::Clear(), ns3::aodv::RerrHeader::GetDestCount(), ns3::aodv::RoutingTable::GetListOfDestinationWithNextHop(), ns3::aodv::RoutingTableEntry::GetPrecursors(), ns3::aodv::RoutingTableEntry::GetSeqNo(), ns3::aodv::RoutingTable::InvalidateRoutesWithDst(), ns3::aodv::RoutingTable::LookupRoute(), m_routingTable, NS_LOG_FUNCTION, NS_LOG_LOGIC(), SendRerrMessage(), and ns3::SocketIpTtlTag::SetTtl().

Referenced by RoutingProtocol().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward	(	Ipv4Address	dst,
		uint32_t	dstSeqNo,
		Ipv4Address	origin
	)

private

Send RERR message when no route to forward input packet.

Unicast if there is reverse route to originating node, broadcast otherwise.

Parameters

dst	- destination node IP address
dstSeqNo	- destination node sequence number
origin	- originating node IP address

Definition at line 1950 of file aodv-routing-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::aodv::RerrHeader::AddUnDestination(), AODV_PORT, ns3::aodv::AODVTYPE_RERR, ns3::Packet::Copy(), FindSocketWithInterfaceAddress(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Timer::GetDelayLeft(), ns3::aodv::RoutingTableEntry::GetInterface(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), ns3::aodv::RoutingTableEntry::GetNextHop(), ns3::Ipv4Mask::GetOnes(), ns3::Time::GetSeconds(), ns3::Timer::IsRunning(), ns3::aodv::RoutingTable::LookupValidRoute(), m_rerrCount, m_rerrRateLimit, m_rerrRateLimitTimer, m_routingTable, m_socketAddresses, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::Socket::SendTo(), and ns3::SocketIpTtlTag::SetTtl().

Referenced by Forwarding().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendTo	(	Ptr< Socket >	socket,
		Ptr< Packet >	packet,
		Ipv4Address	destination
	)

private

Send packet to desitnation scoket.

Parameters

socket	- destination node socket
packet	- packet to send
destination	- destination node IP address

Definition at line 1077 of file aodv-routing-protocol.cc.

References AODV_PORT, and ns3::Socket::SendTo().

Referenced by RecvRequest(), SendHello(), SendRequest(), and SendRerrMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetBroadcastEnable ( bool f )

inline

Set broadcast enable flag.

Parameters

f	enable broadcast flag

Definition at line 157 of file aodv-routing-protocol.h.

References f(), and m_enableBroadcast.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetDestinationOnlyFlag ( bool f )

inline

Set destination only flag.

Parameters

f	the destination only flag

Definition at line 117 of file aodv-routing-protocol.h.

References f(), and m_destinationOnly.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetGratuitousReplyFlag ( bool f )

inline

Set gratuitous reply flag.

Parameters

f	the gratuitous reply flag

Definition at line 133 of file aodv-routing-protocol.h.

References f(), and m_gratuitousReply.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetHelloEnable ( bool f )

inline

Set hello enable.

Parameters

f	the hello enable flag

Definition at line 141 of file aodv-routing-protocol.h.

References f(), and m_enableHello.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetIpv4 ( Ptr< Ipv4 > ipv4 )

virtual

Parameters

ipv4	the ipv4 object this routing protocol is being associated with

Typically, invoked directly or indirectly from ns3::Ipv4::SetRoutingProtocol

Implements ns3::Ipv4RoutingProtocol.

Definition at line 647 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTable::AddRoute(), ns3::Ipv4Address::GetLoopback(), ns3::Simulator::GetMaximumSimulationTime(), m_ipv4, m_lo, m_routingTable, NS_ASSERT, ns3::Simulator::ScheduleNow(), and Start().

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::SetMaxQueueLen ( uint32_t len )

Set the maximum queue length.

Parameters

len	the maximum queue length

Definition at line 303 of file aodv-routing-protocol.cc.

References m_maxQueueLen, m_queue, and ns3::aodv::RequestQueue::SetMaxQueueLen().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetMaxQueueTime ( Time t )

Set the maximum queue time.

Parameters

t	the maximum queue time

Definition at line 309 of file aodv-routing-protocol.cc.

References m_maxQueueTime, m_queue, and ns3::aodv::RequestQueue::SetQueueTimeout().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::Start ( )

private

Start protocol operation.

Definition at line 359 of file aodv-routing-protocol.cc.

References m_enableHello, m_nb, m_rerrRateLimitTimer, m_rreqRateLimitTimer, NS_LOG_FUNCTION, RerrRateLimitTimerExpire(), RreqRateLimitTimerExpire(), ns3::Timer::Schedule(), ns3::aodv::Neighbors::ScheduleTimer(), ns3::Seconds(), and ns3::Timer::SetFunction().

Referenced by SetIpv4().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::UpdateRouteLifeTime	(	Ipv4Address	addr,
		Time	lt
	)

private

Set lifetime field in routing table entry to the maximum of existing lifetime and lt, if the entry exists.

Parameters

addr	- destination address
lt	- proposed time for lifetime field in routing table entry for destination with address addr.

Returns: true if route to destination address addr exist

Definition at line 1168 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTableEntry::GetFlag(), ns3::aodv::RoutingTableEntry::GetLifeTime(), ns3::aodv::RoutingTable::LookupRoute(), m_routingTable, max, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::aodv::RoutingTableEntry::SetLifeTime(), ns3::aodv::RoutingTableEntry::SetRreqCnt(), ns3::aodv::RoutingTable::Update(), and ns3::aodv::VALID.

Referenced by Forwarding(), RouteInput(), and RouteOutput().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor	(	Ipv4Address	sender,
		Ipv4Address	receiver
	)

private

Update neighbor record.

Parameters

receiver	is supposed to be my interface
sender	is supposed to be IP address of my neighbor.

Definition at line 1187 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTable::AddRoute(), ns3::aodv::RoutingTableEntry::GetHop(), ns3::aodv::RoutingTableEntry::GetLifeTime(), ns3::aodv::RoutingTableEntry::GetOutputDevice(), ns3::aodv::RoutingTableEntry::GetValidSeqNo(), ns3::aodv::RoutingTable::LookupRoute(), m_activeRouteTimeout, m_ipv4, m_routingTable, max, NS_LOG_FUNCTION, ns3::aodv::RoutingTableEntry::SetLifeTime(), and ns3::aodv::RoutingTable::Update().

Referenced by RecvAodv().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

const uint32_t ns3::aodv::RoutingProtocol::AODV_PORT = 654

static

UDP Port for AODV control traffic.

Definition at line 59 of file aodv-routing-protocol.h.

Referenced by NotifyAddAddress(), NotifyInterfaceUp(), NotifyRemoveAddress(), RecvReply(), RouteInput(), SendReply(), SendReplyAck(), SendReplyByIntermediateNode(), SendRerrWhenNoRouteToForward(), and SendTo().

Time ns3::aodv::RoutingProtocol::m_activeRouteTimeout

private

Period of time during which the route is considered to be valid.

Definition at line 191 of file aodv-routing-protocol.h.

Referenced by Forwarding(), GetTypeId(), RecvReply(), RecvRequest(), RouteInput(), RouteOutput(), and UpdateRouteToNeighbor().

std::map<Ipv4Address, Timer> ns3::aodv::RoutingProtocol::m_addressReqTimer

private

Map IP address + RREQ timer.

Definition at line 393 of file aodv-routing-protocol.h.

Referenced by RecvReply(), RouteRequestTimerExpire(), and ScheduleRreqRetry().

uint32_t ns3::aodv::RoutingProtocol::m_allowedHelloLoss

private

Number of hello messages which may be loss for valid link.

Definition at line 206 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), ProcessHello(), RecvRequest(), and SendHello().

Time ns3::aodv::RoutingProtocol::m_blackListTimeout

private

Time for which the node is put into the blacklist.

Definition at line 213 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), and SendReplyByIntermediateNode().

Time ns3::aodv::RoutingProtocol::m_deletePeriod

private

DeletePeriod is intended to provide an upper bound on the time for which an upstream node A can have a neighbor B as an active next hop for destination D, while B has invalidated the route to D.

Definition at line 211 of file aodv-routing-protocol.h.

Referenced by GetTypeId().

bool ns3::aodv::RoutingProtocol::m_destinationOnly

private

Indicates only the destination may respond to this RREQ.

Definition at line 216 of file aodv-routing-protocol.h.

Referenced by GetDestinationOnlyFlag(), SendRequest(), and SetDestinationOnlyFlag().

DuplicatePacketDetection ns3::aodv::RoutingProtocol::m_dpd

private

Handle duplicated broadcast/multicast packets.

Definition at line 242 of file aodv-routing-protocol.h.

Referenced by RouteInput().

bool ns3::aodv::RoutingProtocol::m_enableBroadcast

private

Indicates whether a a broadcast data packets forwarding enable.

Definition at line 219 of file aodv-routing-protocol.h.

Referenced by GetBroadcastEnable(), RouteInput(), and SetBroadcastEnable().

bool ns3::aodv::RoutingProtocol::m_enableHello

private

Indicates whether a hello messages enable.

Definition at line 218 of file aodv-routing-protocol.h.

Referenced by DoInitialize(), GetHelloEnable(), ProcessHello(), SetHelloEnable(), and Start().

bool ns3::aodv::RoutingProtocol::m_gratuitousReply

private

Indicates whether a gratuitous RREP should be unicast to the node originated route discovery.

Definition at line 217 of file aodv-routing-protocol.h.

Referenced by GetGratuitousReplyFlag(), SendRequest(), and SetGratuitousReplyFlag().

Time ns3::aodv::RoutingProtocol::m_helloInterval

private

Every HelloInterval the node checks whether it has sent a broadcast within the last HelloInterval.

If it has not, it MAY broadcast a Hello message

Definition at line 205 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), HelloTimerExpire(), ProcessHello(), RecvRequest(), and SendHello().

Timer ns3::aodv::RoutingProtocol::m_htimer

private

Hello timer.

Definition at line 381 of file aodv-routing-protocol.h.

Referenced by DoInitialize(), HelloTimerExpire(), NotifyInterfaceDown(), and NotifyRemoveAddress().

Ptr<Ipv4> ns3::aodv::RoutingProtocol::m_ipv4

private

IP protocol.

Definition at line 223 of file aodv-routing-protocol.h.

Referenced by DoDispose(), LoopbackRoute(), NotifyAddAddress(), NotifyInterfaceDown(), NotifyInterfaceUp(), NotifyRemoveAddress(), PrintRoutingTable(), ProcessHello(), RecvReply(), RecvRequest(), RouteInput(), RouteOutput(), SendPacketFromQueue(), SetIpv4(), and UpdateRouteToNeighbor().

Time ns3::aodv::RoutingProtocol::m_lastBcastTime

private

Keep track of the last bcast time.

Definition at line 410 of file aodv-routing-protocol.h.

Referenced by HelloTimerExpire(), RecvRequest(), and SendRequest().

Ptr<NetDevice> ns3::aodv::RoutingProtocol::m_lo

private

Loopback device used to defer RREQ until packet will be fully formed.

Definition at line 229 of file aodv-routing-protocol.h.

Referenced by LoopbackRoute(), RouteInput(), and SetIpv4().

uint32_t ns3::aodv::RoutingProtocol::m_maxQueueLen

private

The maximum number of packets that we allow a routing protocol to buffer.

Definition at line 214 of file aodv-routing-protocol.h.

Referenced by GetMaxQueueLen(), and SetMaxQueueLen().

Time ns3::aodv::RoutingProtocol::m_maxQueueTime

private

The maximum period of time that a routing protocol is allowed to buffer a packet for.

Definition at line 215 of file aodv-routing-protocol.h.

Referenced by GetMaxQueueTime(), and SetMaxQueueTime().

Time ns3::aodv::RoutingProtocol::m_myRouteTimeout

private

Value of lifetime field in RREP generating by this node.

Definition at line 200 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), and SendReply().

Neighbors ns3::aodv::RoutingProtocol::m_nb

private

Handle neighbors.

Definition at line 244 of file aodv-routing-protocol.h.

Referenced by Forwarding(), NotifyInterfaceDown(), NotifyInterfaceUp(), NotifyRemoveAddress(), ProcessHello(), RecvRequest(), RouteInput(), RoutingProtocol(), and Start().

uint32_t ns3::aodv::RoutingProtocol::m_netDiameter

private

Net diameter measures the maximum possible number of hops between two nodes in the network.

Definition at line 192 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), RouteRequestTimerExpire(), ScheduleRreqRetry(), and SendRequest().

Time ns3::aodv::RoutingProtocol::m_netTraversalTime

private

Estimate of the average net traversal time.

Definition at line 198 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), RecvRequest(), and ScheduleRreqRetry().

Time ns3::aodv::RoutingProtocol::m_nextHopWait

private

Period of our waiting for the neighbour's RREP_ACK.

Definition at line 212 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), and SendReplyByIntermediateNode().

Time ns3::aodv::RoutingProtocol::m_nodeTraversalTime

private

NodeTraversalTime is a conservative estimate of the average one hop traversal time for packets and should include queuing delays, interrupt processing times and transfer times.

Definition at line 197 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), RecvRequest(), and ScheduleRreqRetry().

Time ns3::aodv::RoutingProtocol::m_pathDiscoveryTime

private

Estimate of maximum time needed to find route in network.

Definition at line 199 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), and SendRequest().

RequestQueue ns3::aodv::RoutingProtocol::m_queue

private

A "drop-front" queue used by the routing layer to buffer packets to which it does not have a route.

Definition at line 234 of file aodv-routing-protocol.h.

Referenced by DeferredRouteOutput(), RouteRequestTimerExpire(), SendPacketFromQueue(), SetMaxQueueLen(), and SetMaxQueueTime().
