Hybrid wireless mesh protocol – a mesh routing protocol defined in IEEE 802.11-2012 standard. More...

#include "hwmp-protocol.h"

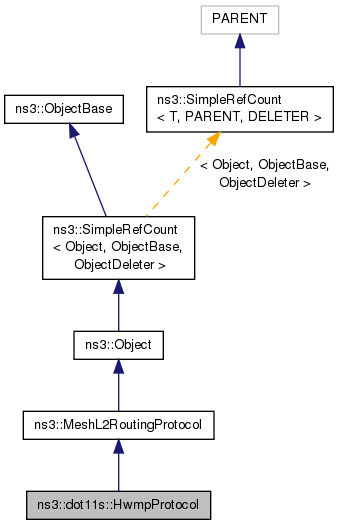

Inheritance diagram for ns3::dot11s::HwmpProtocol:

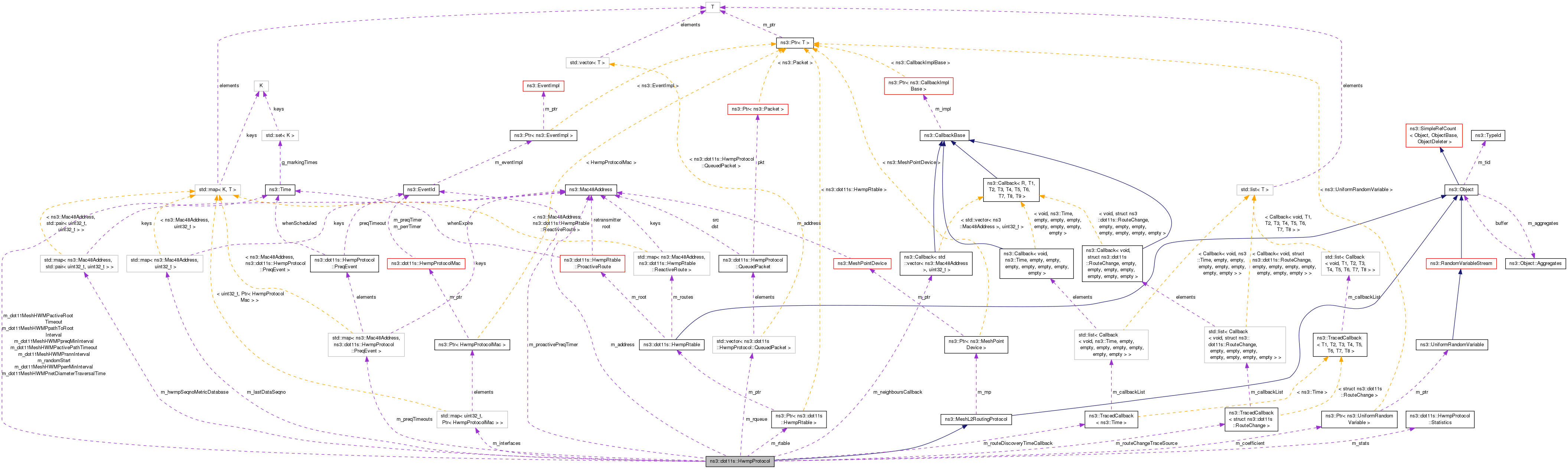

Collaboration diagram for ns3::dot11s::HwmpProtocol:

Classes
struct	FailedDestination
	structure of unreachable destination - address and sequence number More...

struct	PathError
	Structure of path error: IePerr and list of receivers: interfaces and MAC address. More...

struct	PreqEvent
	PreqEvent structure. More...

struct	QueuedPacket
	Packet waiting its routing information. More...

struct	Statistics
	Statistics structure. More...

Public Types
typedef struct FailedDestination	FailedDestination

Public Types inherited from ns3::MeshL2RoutingProtocol
typedef Callback< void, bool, Ptr< Packet >, Mac48Address, Mac48Address, uint16_t, uint32_t >	RouteReplyCallback
	Callback to be invoked when route discovery procedure is completed. More...

Public Member Functions
	HwmpProtocol ()

	~HwmpProtocol ()

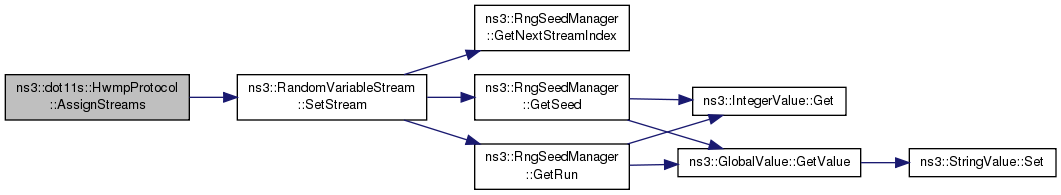

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	DoDispose ()
	Destructor implementation. More...

Ptr< HwmpRtable >	GetRoutingTable (void) const
	Get pointer to HWMP routing table. More...

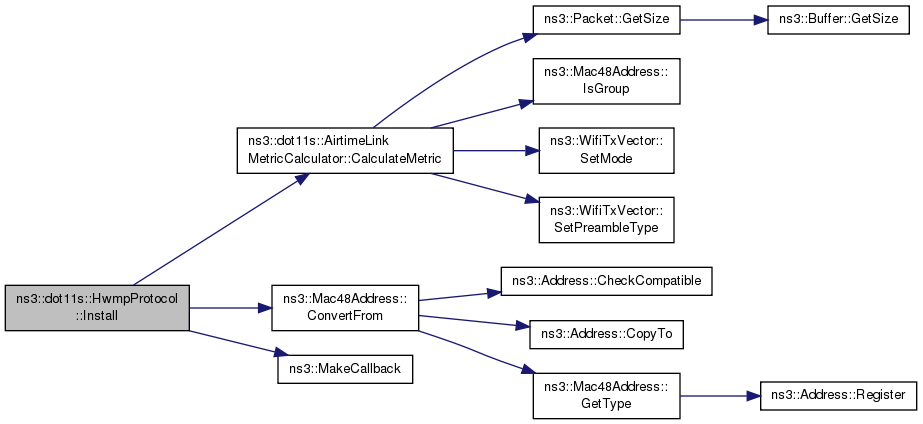

bool	Install (Ptr< MeshPointDevice >)
	Install HWMP on given mesh point. More...

void	PeerLinkStatus (Mac48Address meshPontAddress, Mac48Address peerAddress, uint32_t interface, bool status)
	Peer link status function. More...

bool	RemoveRoutingStuff (uint32_t fromIface, const Mac48Address source, const Mac48Address destination, Ptr< Packet > packet, uint16_t &protocolType)
	Clean HWMP packet tag from packet; only the packet parameter is used. More...

void	Report (std::ostream &) const
	Statistics: More...

bool	RequestRoute (uint32_t sourceIface, const Mac48Address source, const Mac48Address destination, Ptr< const Packet > packet, uint16_t protocolType, RouteReplyCallback routeReply)
	Route request, inherited from MeshL2RoutingProtocol. More...

void	ResetStats ()
	Reset Statistics: More...

void	SetNeighboursCallback (Callback< std::vector< Mac48Address >, uint32_t > cb)
	This callback is used to obtain active neighbours on a given interface. More...

Proactive PREQ mechanism:
void	SetRoot ()

void	UnsetRoot ()

Public Member Functions inherited from ns3::MeshL2RoutingProtocol
virtual	~MeshL2RoutingProtocol ()
	virtual D-tor for subclasses More...

Ptr< MeshPointDevice >	GetMeshPoint () const
	Each mesh protocol must be installed on the mesh point to work. More...

void	SetMeshPoint (Ptr< MeshPointDevice > mp)
	Set host mesh point, analog of SetNode (...) methods for upper layer protocols. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::MeshL2RoutingProtocol
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::map< uint32_t, Ptr< HwmpProtocolMac > >	HwmpProtocolMacMap
	HwmpProtocolMacMap typedef. More...

typedef TracedCallback< struct RouteChange >	RouteChangeTracedCallback
	RouteChangeTracedCallback typedef. More...

Private Member Functions
	HwmpProtocol (const HwmpProtocol &)
	type conversion More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

bool	ForwardUnicast (uint32_t sourceIface, const Mac48Address source, const Mac48Address destination, Ptr< Packet > packet, uint16_t protocolType, RouteReplyCallback routeReply, uint32_t ttl)
	Like RequestRoute, but for unicast packets. More...

Mac48Address	GetAddress ()

HwmpProtocol &	operator= (const HwmpProtocol &hwmp)
	assignment operator More...

Interaction with HWMP MAC plugin

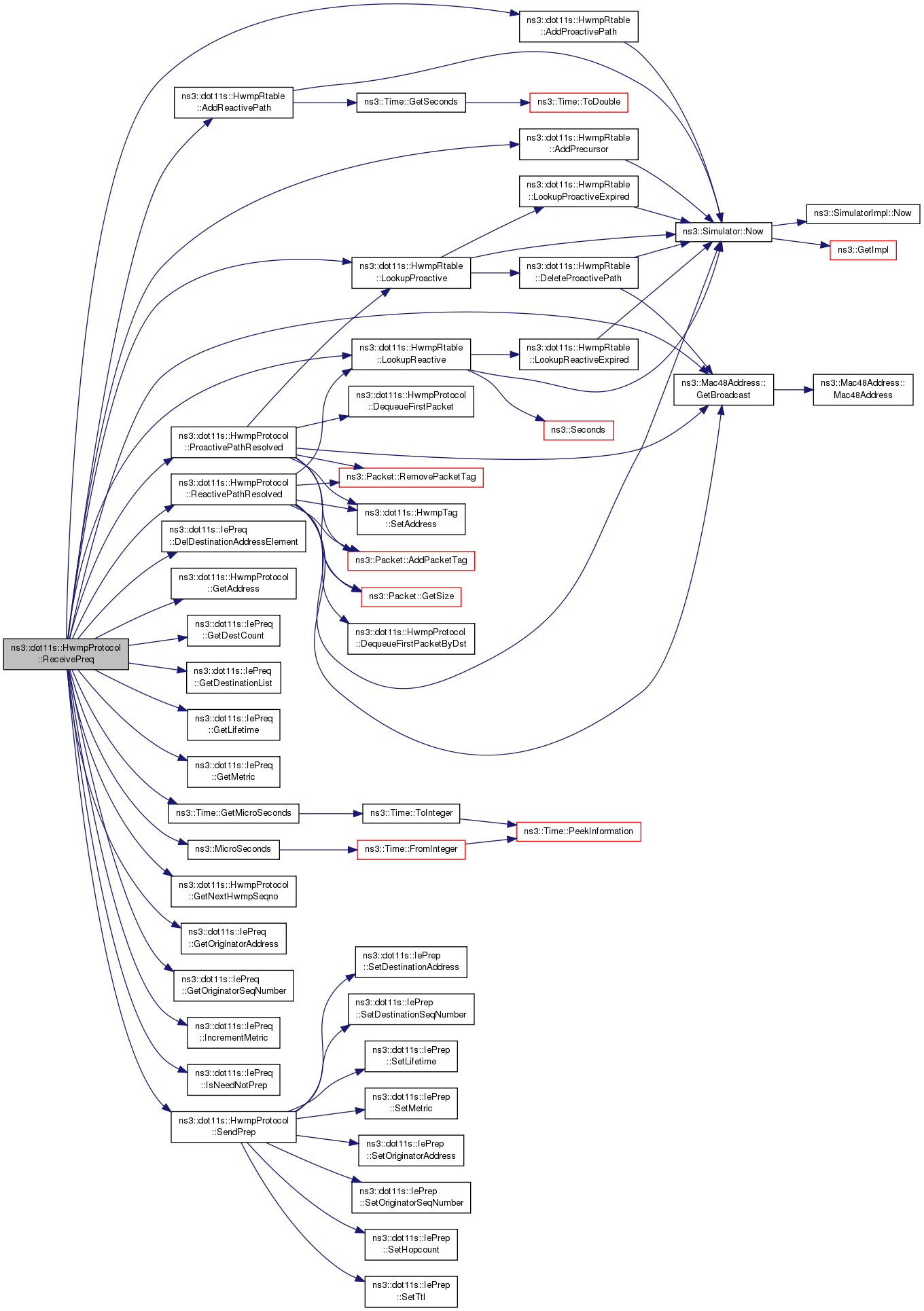

void	ReceivePreq (IePreq preq, Mac48Address from, uint32_t interface, Mac48Address fromMp, uint32_t metric)
	Handler for receiving Path Request. More...

void	ReceivePrep (IePrep prep, Mac48Address from, uint32_t interface, Mac48Address fromMp, uint32_t metric)
	Handler for receiving Path Reply. More...

void	ReceivePerr (std::vector< FailedDestination > destinations, Mac48Address from, uint32_t interface, Mac48Address fromMp)
	Handler for receiving Path Error. More...

void	SendPrep (Mac48Address src, Mac48Address dst, Mac48Address retransmitter, uint32_t initMetric, uint32_t originatorDsn, uint32_t destinationSN, uint32_t lifetime, uint32_t interface)
	Send Path Reply. More...

PathError	MakePathError (std::vector< FailedDestination > destinations)
	forms a path error information element when list of destination fails on a given interface More...

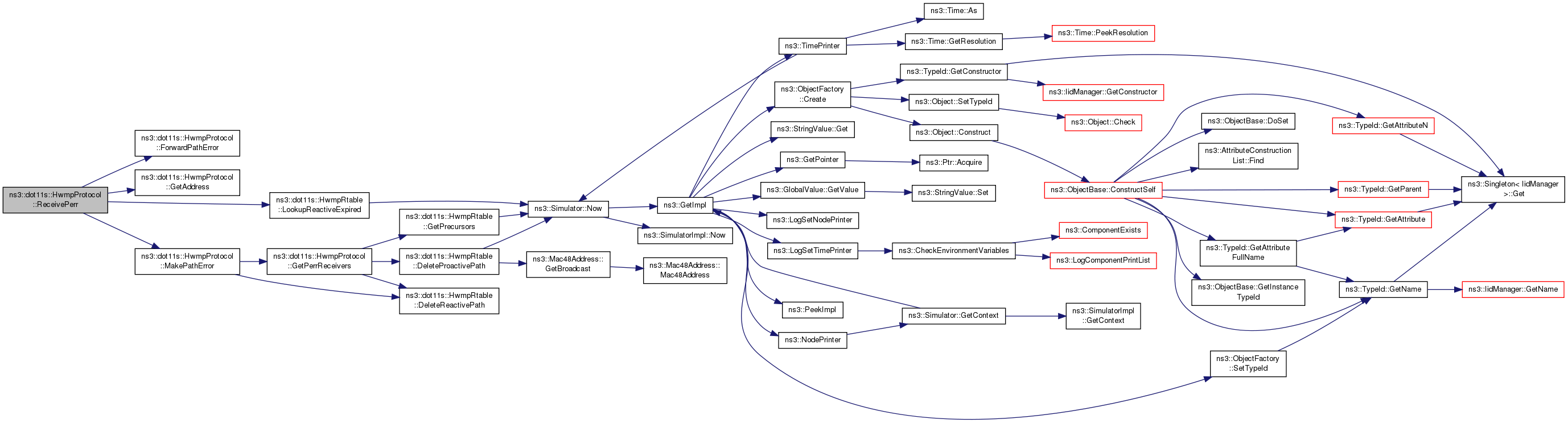

void	ForwardPathError (PathError perr)
	Forwards a received path error. More...

void	InitiatePathError (PathError perr)
	Passes a self-generated PERR to interface-plugin. More...

std::vector< std::pair< uint32_t, Mac48Address > >	GetPerrReceivers (std::vector< FailedDestination > failedDest)
	Get PERR receivers. More...

std::vector< Mac48Address >	GetPreqReceivers (uint32_t interface)
	Get PREQ receivers. More...

std::vector< Mac48Address >	GetBroadcastReceivers (uint32_t interface)
	Get broadcast receivers. More...

bool	DropDataFrame (uint32_t seqno, Mac48Address source)
	MAC-plugin asks whether the frame can be dropped. More...

Methods related to Queue/Dequeue procedures
bool	QueuePacket (QueuedPacket packet)

QueuedPacket	DequeueFirstPacketByDst (Mac48Address dst)

QueuedPacket	DequeueFirstPacket ()

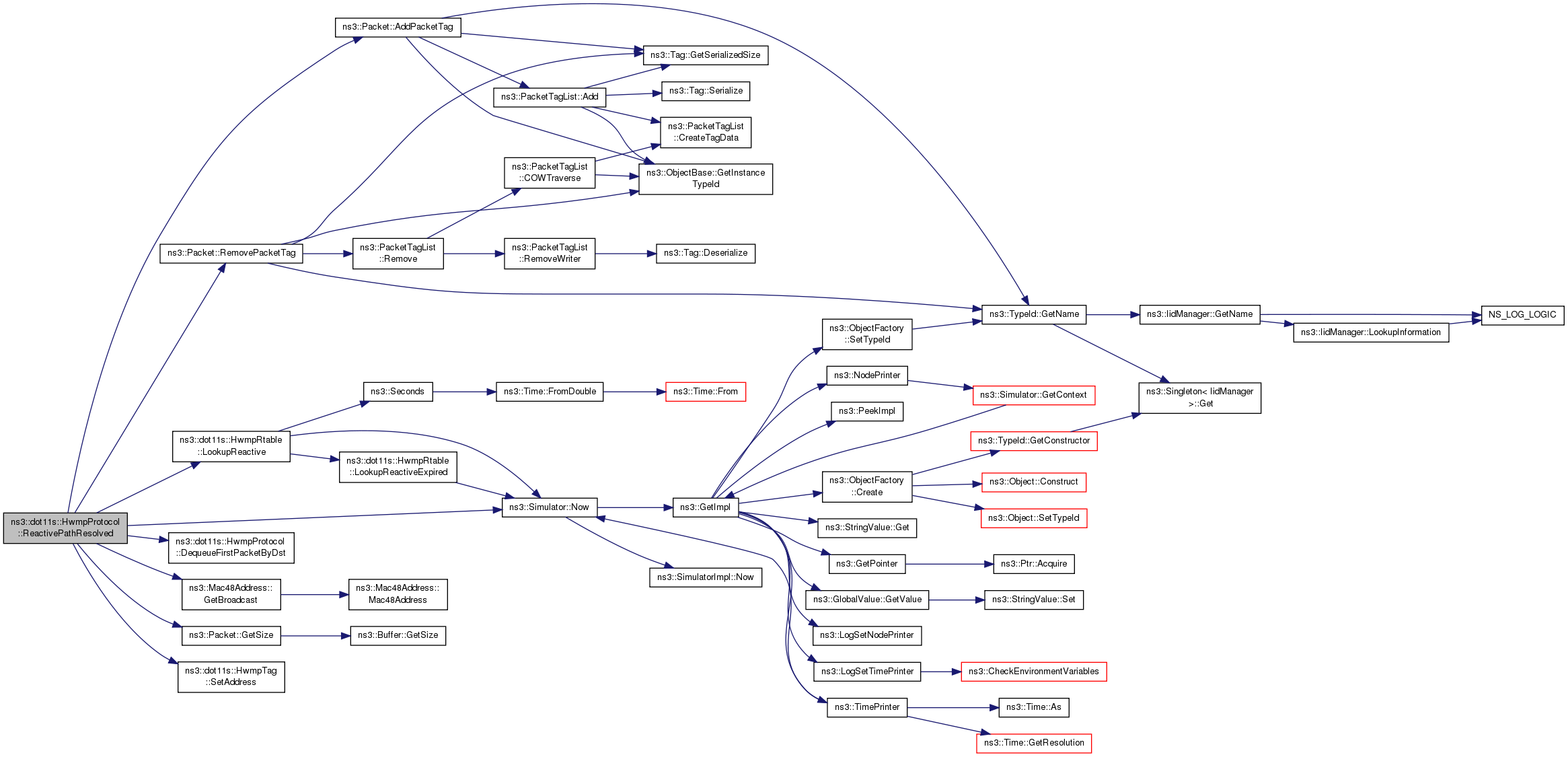

void	ReactivePathResolved (Mac48Address dst)

void	ProactivePathResolved ()

Methods responsible for path discovery retry procedure:
bool	ShouldSendPreq (Mac48Address dst)
	checks when the last path discovery procedure was started for a given destination. More...

void	RetryPathDiscovery (Mac48Address dst, uint8_t numOfRetry)
	Generates PREQ retry when retry timeout has expired and route is still unresolved. More...

void	SendProactivePreq ()
	Proactive Preq routines: More...

Private Attributes
Ptr< UniformRandomVariable >	m_coefficient
	Random variable for random start time. More...

Callback< std::vector< Mac48Address >, uint32_t >	m_neighboursCallback
	neighbors callback More...

std::map< Mac48Address, PreqEvent >	m_preqTimeouts
	PREQ timeouts. More...

EventId	m_proactivePreqTimer
	proactive PREQ timer More...

Time	m_randomStart
	Random start in Proactive PREQ propagation. More...

TracedCallback< struct RouteChange >	m_routeChangeTraceSource
	Route change trace source. More...

TracedCallback< Time >	m_routeDiscoveryTimeCallback
	Route discovery time: More...

std::vector< QueuedPacket >	m_rqueue
	Packet Queue. More...

Ptr< HwmpRtable >	m_rtable
	Routing table. More...

Sequence number filters
Data sequence number database
std::map< Mac48Address, uint32_t >	m_lastDataSeqno
	keeps HWMP seqno (first in pair) and HWMP metric (second in pair) for each address More...

std::map< Mac48Address, std::pair< uint32_t, uint32_t > >	m_hwmpSeqnoMetricDatabase
	keeps HWMP seqno (first in pair) and HWMP metric (second in pair) for each address More...

HWMP-protocol parameters
These are all Attributes
uint16_t	m_maxQueueSize

uint8_t	m_dot11MeshHWMPmaxPREQretries

Time	m_dot11MeshHWMPnetDiameterTraversalTime

Time	m_dot11MeshHWMPpreqMinInterval

Time	m_dot11MeshHWMPperrMinInterval

Time	m_dot11MeshHWMPactiveRootTimeout

Time	m_dot11MeshHWMPactivePathTimeout

Time	m_dot11MeshHWMPpathToRootInterval

Time	m_dot11MeshHWMPrannInterval

bool	m_isRoot

uint8_t	m_maxTtl

uint8_t	m_unicastPerrThreshold

uint8_t	m_unicastPreqThreshold

uint8_t	m_unicastDataThreshold

bool	m_doFlag

bool	m_rfFlag

Friends
class	HwmpProtocolMac
	allow HwmpProtocolMac class friend access More...

Methods needed by HwmpMacLugin to access protocol parameters:
Statistics	m_stats
	statistics More...

HwmpProtocolMacMap	m_interfaces
	interfaces More...

Mac48Address	m_address
	address More...

uint32_t	m_dataSeqno
	data sequence no More...

uint32_t	m_hwmpSeqno
	HWMP sequence no. More...

uint32_t	m_preqId
	PREQ ID. More...

bool	GetDoFlag ()
	Get do flag function. More...

bool	GetRfFlag ()
	Get rf flag function. More...

Time	GetPreqMinInterval ()
	Get PREQ minimum interval function. More...

Time	GetPerrMinInterval ()
	Get PERR minimum interval function. More...

uint8_t	GetMaxTtl ()
	Get maximum TTL function. More...

uint32_t	GetNextPreqId ()
	Get next period function. More...

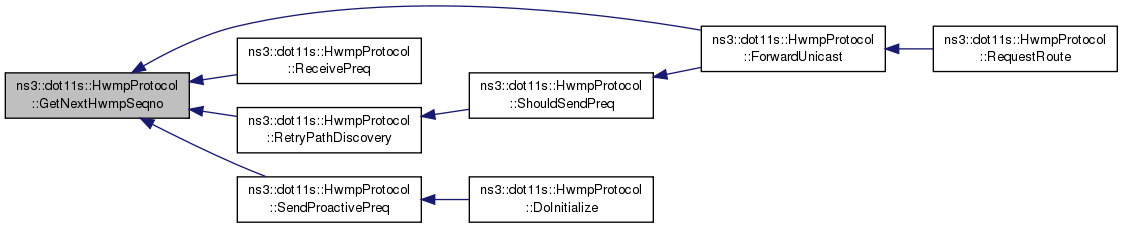

uint32_t	GetNextHwmpSeqno ()
	Get next HWMP sequence no function. More...

uint32_t	GetActivePathLifetime ()
	Get active path lifetime function. More...

uint8_t	GetUnicastPerrThreshold ()
	Get unicast PERR threshold function. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::MeshL2RoutingProtocol
Ptr< MeshPointDevice >	m_mp
	Host mesh point. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Hybrid wireless mesh protocol – a mesh routing protocol defined in IEEE 802.11-2012 standard.

Config Paths

ns3::dot11s::HwmpProtocol is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::MeshPointDevice/RoutingProtocol/$ns3::dot11s::HwmpProtocol"

Attributes

RandomStart: Random delay at first proactive PREQ
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +100000000.0ns
- Flags: construct write read
MaxQueueSize: Maximum number of packets we can store when resolving route
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 1:65535
- Initial value: 255
- Flags: construct write read
Dot11MeshHWMPmaxPREQretries: Maximum number of retries before we suppose the destination to be unreachable
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:255
- Initial value: 3
- Flags: construct write read
Dot11MeshHWMPnetDiameterTraversalTime: Time we suppose the packet to go from one edge of the network to another
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +102400000.0ns
- Flags: construct write read
Dot11MeshHWMPpreqMinInterval: Minimal interval between to successive PREQs
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +102400000.0ns
- Flags: construct write read
Dot11MeshHWMPperrMinInterval: Minimal interval between to successive PREQs
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +102400000.0ns
- Flags: construct write read
Dot11MeshHWMPactiveRootTimeout: Lifetime of poractive routing information
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5120000000.0ns
- Flags: construct write read
Dot11MeshHWMPactivePathTimeout: Lifetime of reactive routing information
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5120000000.0ns
- Flags: construct write read
Dot11MeshHWMPpathToRootInterval: Interval between two successive proactive PREQs
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2048000000.0ns
- Flags: construct write read
Dot11MeshHWMPrannInterval: Lifetime of poractive routing information
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5120000000.0ns
- Flags: construct write read
MaxTtl: Initial value of Time To Live field
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 2:255
- Initial value: 32
- Flags: construct write read
UnicastPerrThreshold: Maximum number of PERR receivers, when we send a PERR as a chain of unicasts
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:255
- Initial value: 32
- Flags: construct write read
UnicastPreqThreshold: Maximum number of PREQ receivers, when we send a PREQ as a chain of unicasts
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:255
- Initial value: 1
- Flags: construct write read
UnicastDataThreshold: Maximum number ofbroadcast receivers, when we send a broadcast as a chain of unicasts
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:255
- Initial value: 1
- Flags: construct write read
DoFlag: Destination only HWMP flag
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
RfFlag: Reply and forward flag
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

TraceSources

RouteDiscoveryTime: The time of route discovery procedure
Callback signature: ns3::Time::TracedCallback
RouteChange: Routing table changed
Callback signature: ns3::HwmpProtocol::RouteChangeTracedCallback

Size of this type is 464 bytes (on a 64-bit architecture).

Definition at line 62 of file hwmp-protocol.h.

Member Typedef Documentation

typedef struct FailedDestination ns3::dot11s::HwmpProtocol::FailedDestination

Definition at line 82 of file hwmp-protocol.h.

typedef std::map<uint32_t, Ptr<HwmpProtocolMac> > ns3::dot11s::HwmpProtocol::HwmpProtocolMacMap

private

HwmpProtocolMacMap typedef.

Definition at line 195 of file hwmp-protocol.h.

typedef TracedCallback<struct RouteChange> ns3::dot11s::HwmpProtocol::RouteChangeTracedCallback

private

RouteChangeTracedCallback typedef.

Definition at line 314 of file hwmp-protocol.h.

Constructor & Destructor Documentation

ns3::dot11s::HwmpProtocol::HwmpProtocol ( )

Definition at line 180 of file hwmp-protocol.cc.

References m_coefficient, and NS_LOG_FUNCTION.

ns3::dot11s::HwmpProtocol::~HwmpProtocol ( )

Definition at line 207 of file hwmp-protocol.cc.

References NS_LOG_FUNCTION.

ns3::dot11s::HwmpProtocol::HwmpProtocol ( const HwmpProtocol & )

private

type conversion

Returns: the HWMP protocol

Member Function Documentation

int64_t ns3::dot11s::HwmpProtocol::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 1280 of file hwmp-protocol.cc.

References m_coefficient, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

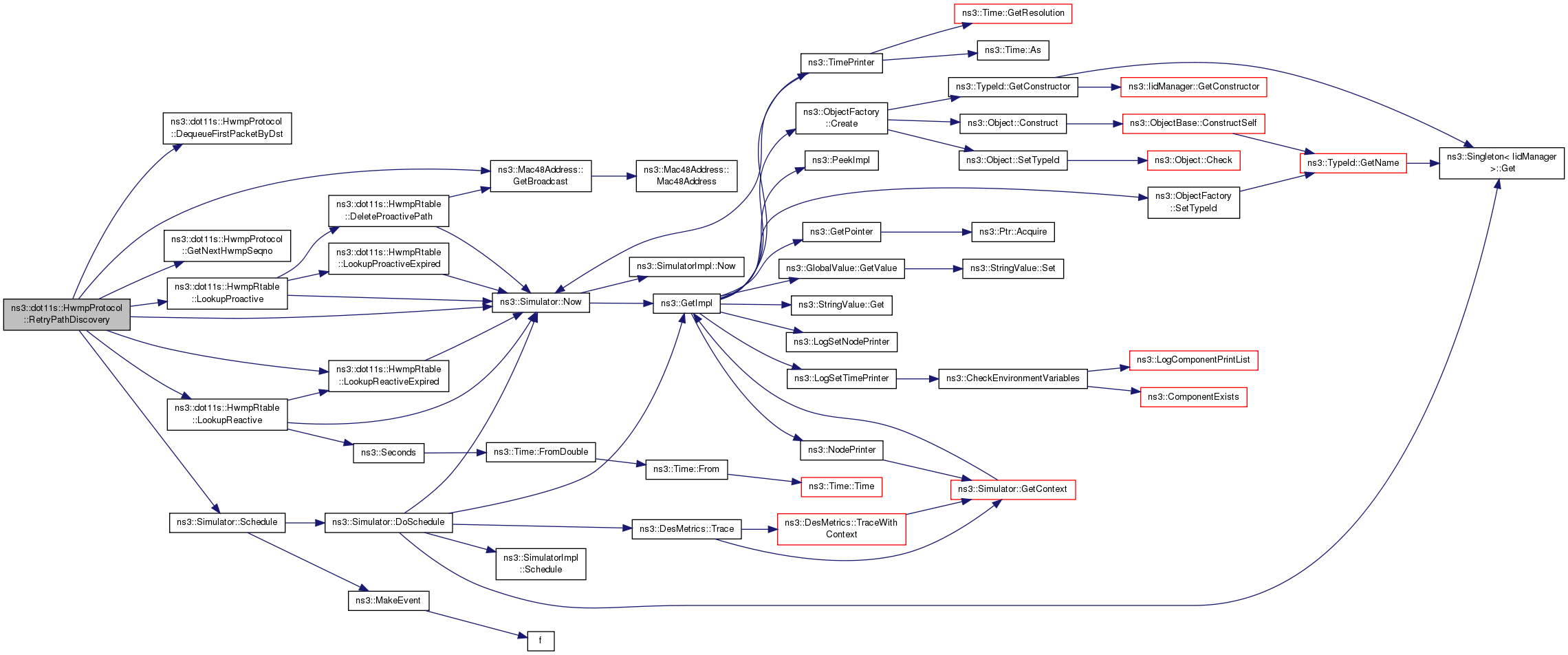

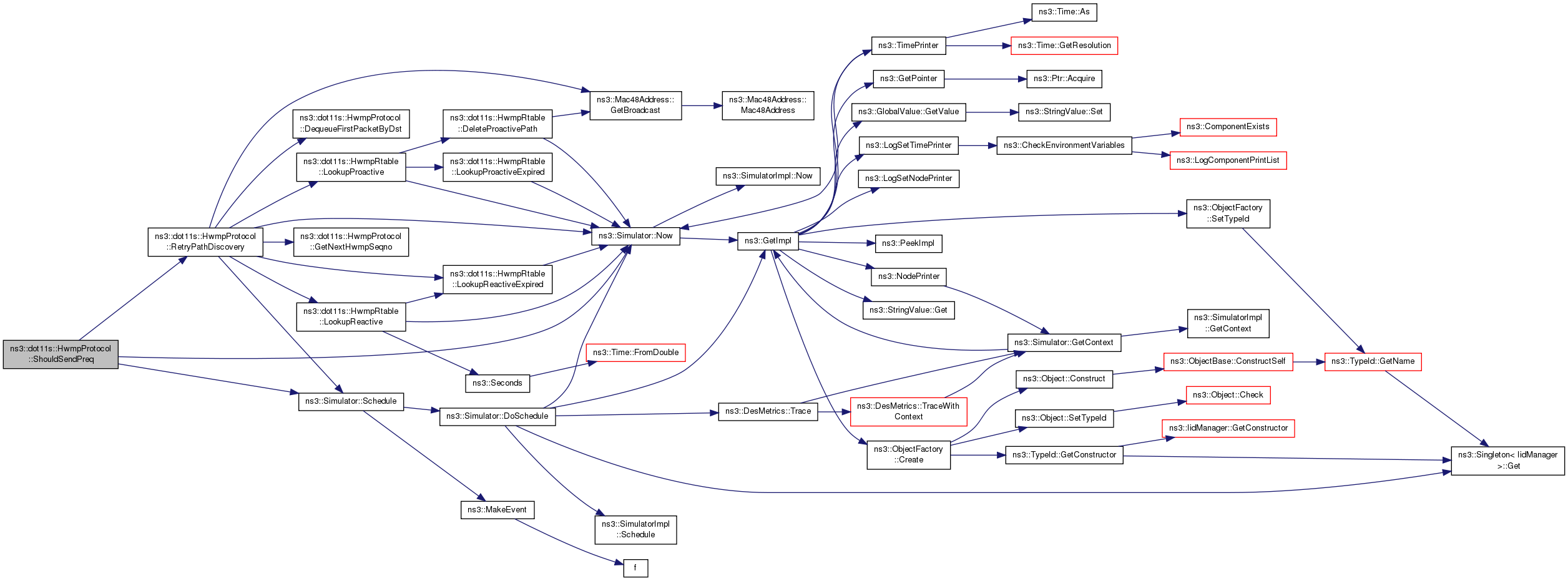

Here is the call graph for this function:

HwmpProtocol::QueuedPacket ns3::dot11s::HwmpProtocol::DequeueFirstPacket ( )

private

Definition at line 1002 of file hwmp-protocol.cc.

References m_rqueue, NS_LOG_FUNCTION, and ns3::dot11s::HwmpProtocol::QueuedPacket::pkt.

Referenced by ProactivePathResolved().

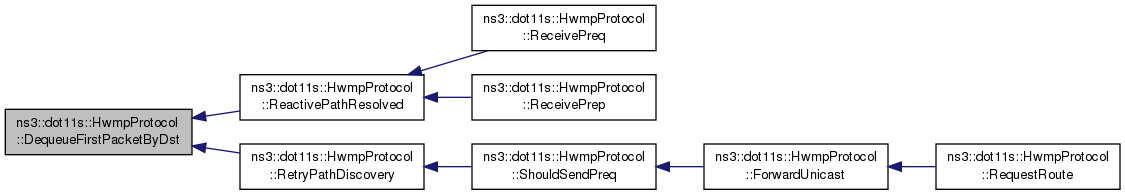

Here is the caller graph for this function:

HwmpProtocol::QueuedPacket ns3::dot11s::HwmpProtocol::DequeueFirstPacketByDst ( Mac48Address dst )

private

Definition at line 984 of file hwmp-protocol.cc.

References m_rqueue, NS_LOG_FUNCTION, and ns3::dot11s::HwmpProtocol::QueuedPacket::pkt.

Referenced by ReactivePathResolved(), and RetryPathDiscovery().

Here is the caller graph for this function:

void ns3::dot11s::HwmpProtocol::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 225 of file hwmp-protocol.cc.

References ns3::EventId::Cancel(), m_hwmpSeqnoMetricDatabase, m_interfaces, m_lastDataSeqno, ns3::MeshL2RoutingProtocol::m_mp, m_preqTimeouts, m_proactivePreqTimer, m_rqueue, m_rtable, and NS_LOG_FUNCTION.

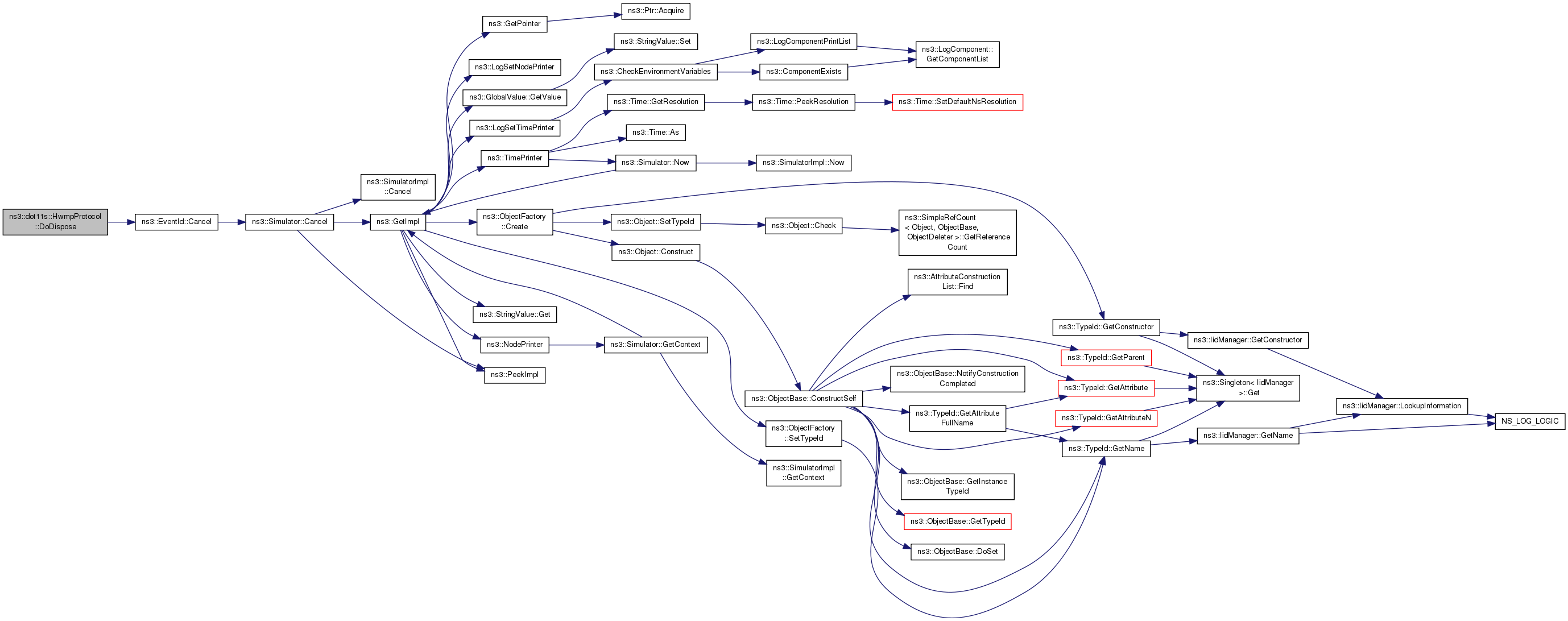

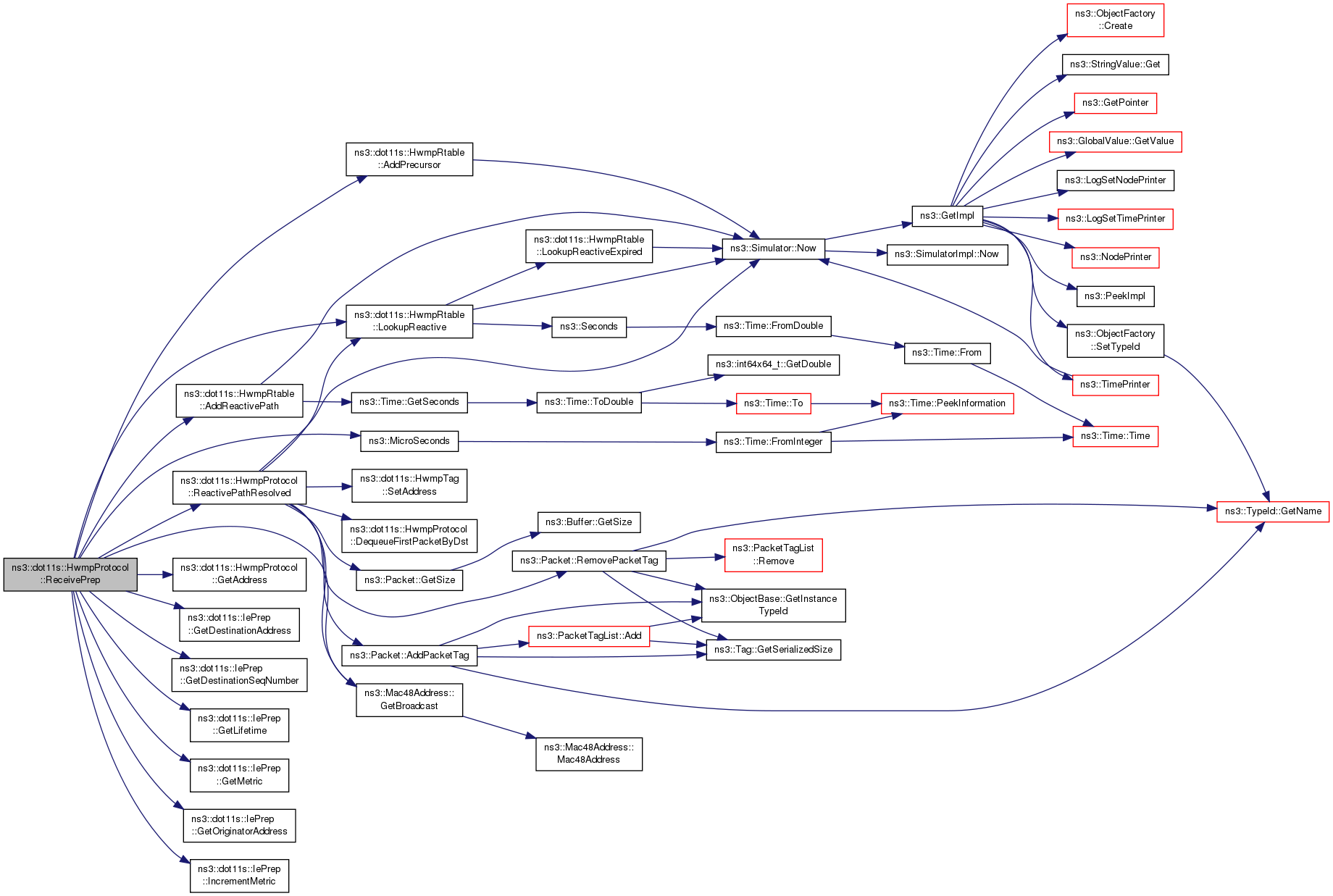

Here is the call graph for this function:

void ns3::dot11s::HwmpProtocol::DoInitialize ( void )

privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 213 of file hwmp-protocol.cc.

References ns3::Time::GetSeconds(), ns3::UniformRandomVariable::GetValue(), m_coefficient, m_isRoot, m_proactivePreqTimer, m_randomStart, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::Seconds(), SendProactivePreq(), and ns3::ObjectBase::SetAttribute().

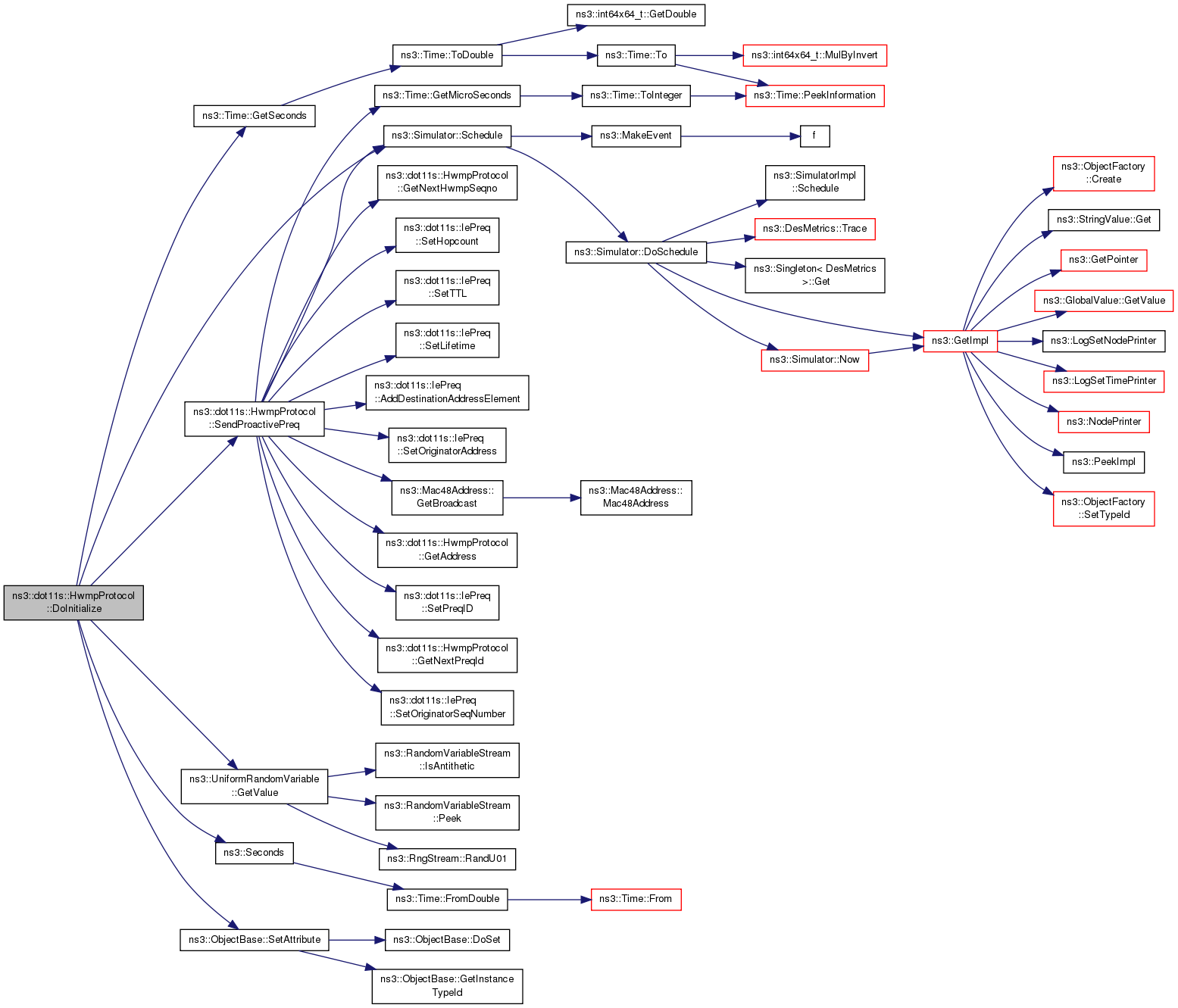

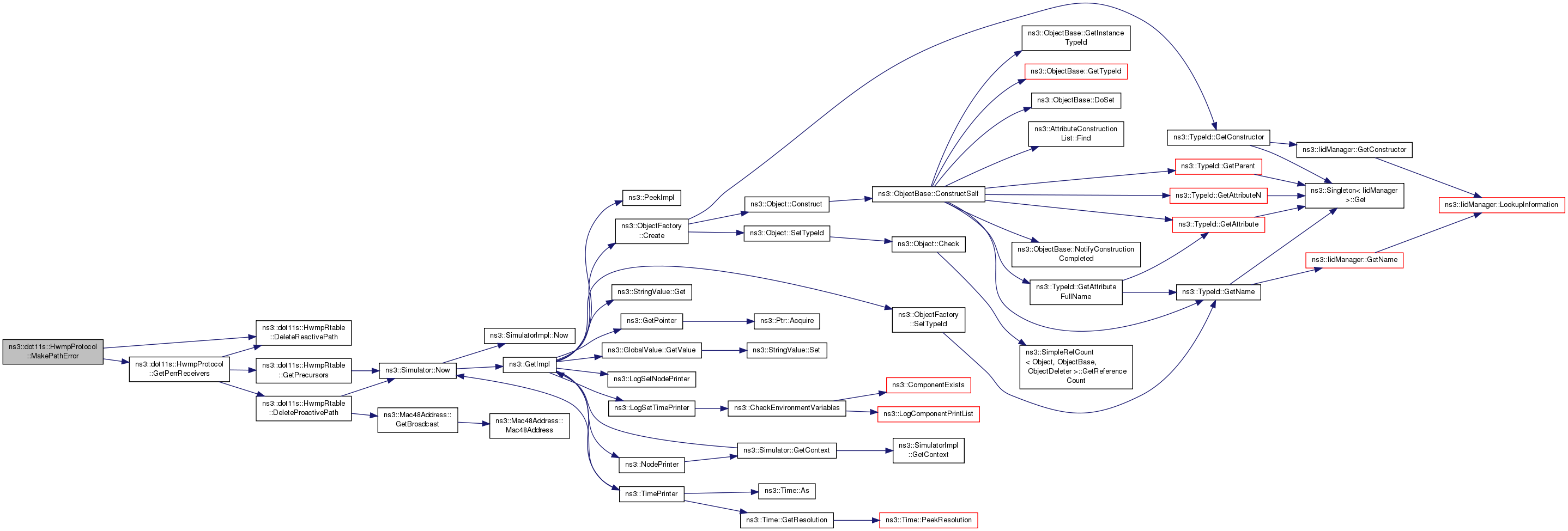

Here is the call graph for this function:

bool ns3::dot11s::HwmpProtocol::DropDataFrame	(	uint32_t	seqno,
		Mac48Address	source
	)

private

MAC-plugin asks whether the frame can be dropped.

Protocol automatically updates seqno.

Returns: true if frame can be dropped

Parameters

seqno	is the sequence number of source
source	is the source address

Definition at line 816 of file hwmp-protocol.cc.

References GetAddress(), m_lastDataSeqno, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::dot11s::HwmpProtocol::ForwardPathError ( PathError perr )

private

Forwards a received path error.

Parameters

perr	the path error

Definition at line 881 of file hwmp-protocol.cc.

References ns3::dot11s::HwmpProtocol::PathError::destinations, m_interfaces, NS_LOG_FUNCTION, and ns3::dot11s::HwmpProtocol::PathError::receivers.

Referenced by ReceivePerr().

Here is the caller graph for this function:

bool ns3::dot11s::HwmpProtocol::ForwardUnicast	(	uint32_t	sourceIface,
		const Mac48Address	source,
		const Mac48Address	destination,
		Ptr< Packet >	packet,
		uint16_t	protocolType,
		RouteReplyCallback	routeReply,
		uint32_t	ttl
	)

private

Like RequestRoute, but for unicast packets.

Parameters

sourceIface	the source interface
source	the source address
destination	the destination address
packet	the packet to route
protocolType	the protocol type
routeReply	the route reply callback
ttl	the TTL

Returns: true if forwarded

Definition at line 336 of file hwmp-protocol.cc.

Referenced by RequestRoute().

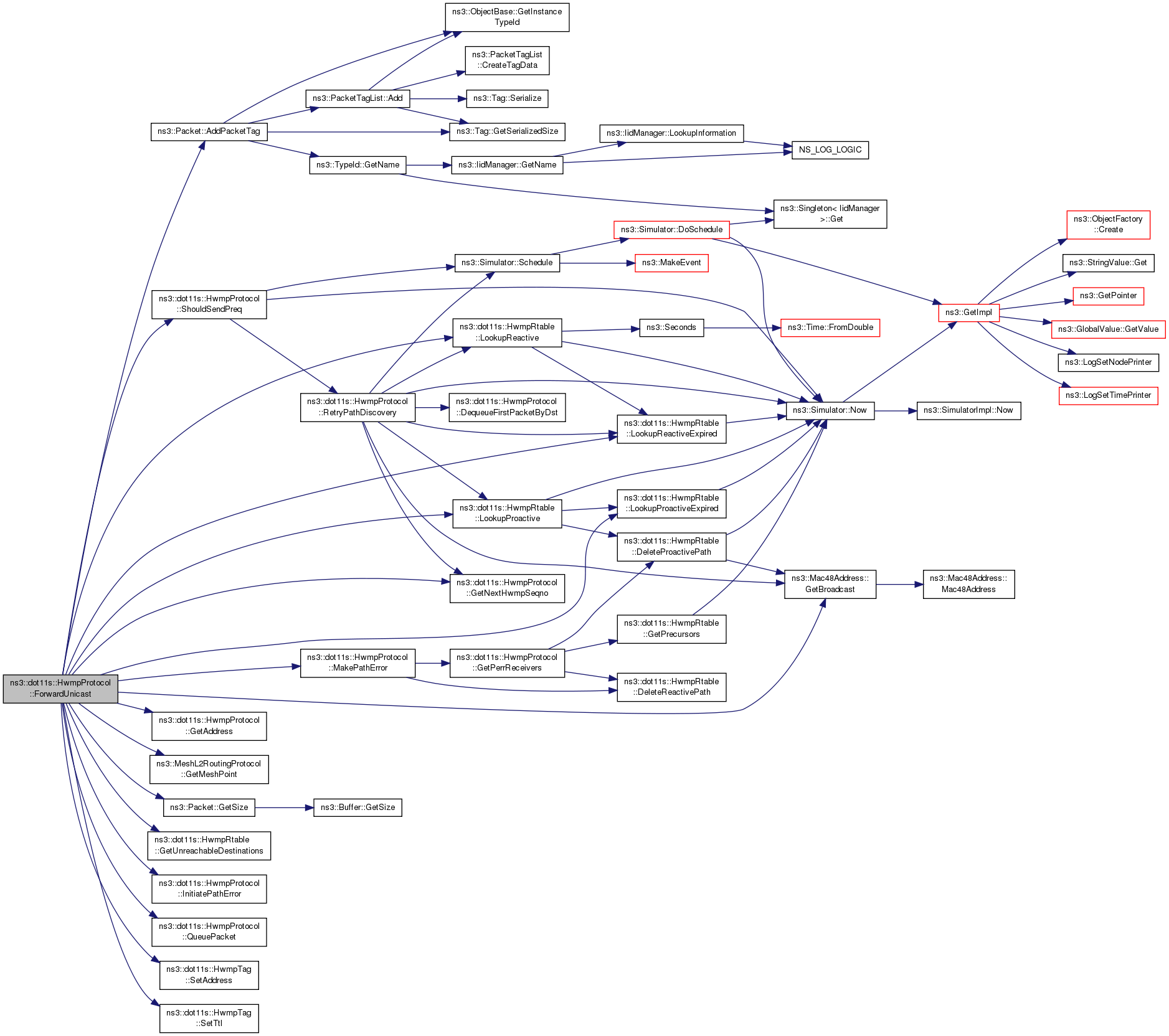

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::dot11s::HwmpProtocol::GetActivePathLifetime ( )

private

Get active path lifetime function.

Returns: the active path lifetime

Definition at line 1200 of file hwmp-protocol.cc.

References ns3::Time::GetMicroSeconds(), and m_dot11MeshHWMPactivePathTimeout.

Here is the call graph for this function:

Mac48Address ns3::dot11s::HwmpProtocol::GetAddress ( void )

private

Returns: address of MeshPointDevice

Definition at line 1210 of file hwmp-protocol.cc.

References m_address.

Referenced by DropDataFrame(), ForwardUnicast(), ReceivePerr(), ReceivePrep(), ReceivePreq(), and SendProactivePreq().

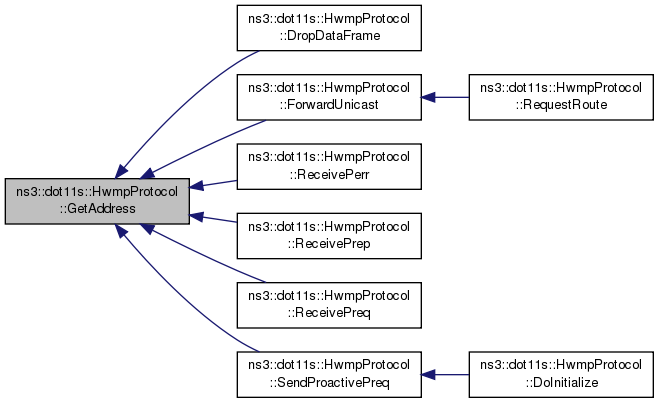

Here is the caller graph for this function:

std::vector< Mac48Address > ns3::dot11s::HwmpProtocol::GetBroadcastReceivers ( uint32_t interface )

private

Get broadcast receivers.

Parameters

interface

Returns: list of addresses where a broadcast should be retransmitted

Definition at line 955 of file hwmp-protocol.cc.

References ns3::Mac48Address::GetBroadcast(), m_neighboursCallback, m_unicastDataThreshold, and NS_LOG_FUNCTION.

Referenced by RequestRoute().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::dot11s::HwmpProtocol::GetDoFlag ( )

private

Get do flag function.

Returns: DO flag

Definition at line 1163 of file hwmp-protocol.cc.

References m_doFlag.

uint8_t ns3::dot11s::HwmpProtocol::GetMaxTtl ( )

private

Get maximum TTL function.

Returns: the maximum TTL

Definition at line 1183 of file hwmp-protocol.cc.

References m_maxTtl.

uint32_t ns3::dot11s::HwmpProtocol::GetNextHwmpSeqno ( )

private

Get next HWMP sequence no function.

Returns: the next HWMP sequence number

Definition at line 1194 of file hwmp-protocol.cc.

References m_hwmpSeqno.

Referenced by ForwardUnicast(), ReceivePreq(), RetryPathDiscovery(), and SendProactivePreq().

Here is the caller graph for this function:

uint32_t ns3::dot11s::HwmpProtocol::GetNextPreqId ( )

private

Get next period function.

Returns: the next period

Definition at line 1188 of file hwmp-protocol.cc.

References m_preqId.

Referenced by SendProactivePreq().

Here is the caller graph for this function:

Time ns3::dot11s::HwmpProtocol::GetPerrMinInterval ( )

private

Get PERR minimum interval function.

Returns: the PERR minimum interval

Definition at line 1178 of file hwmp-protocol.cc.

References m_dot11MeshHWMPperrMinInterval.

std::vector< std::pair< uint32_t, Mac48Address > > ns3::dot11s::HwmpProtocol::GetPerrReceivers ( std::vector< FailedDestination > failedDest )

private

Get PERR receivers.

Parameters

failedDest

Returns: list of addresses where a PERR should be sent to

Definition at line 899 of file hwmp-protocol.cc.

References ns3::dot11s::HwmpRtable::DeleteProactivePath(), ns3::dot11s::HwmpRtable::DeleteReactivePath(), ns3::dot11s::RouteChange::destination, ns3::dot11s::HwmpRtable::GetPrecursors(), m_routeChangeTraceSource, m_rtable, NS_LOG_FUNCTION, ns3::dot11s::RouteChange::seqnum, and ns3::dot11s::RouteChange::type.

Referenced by MakePathError().

Here is the call graph for this function:

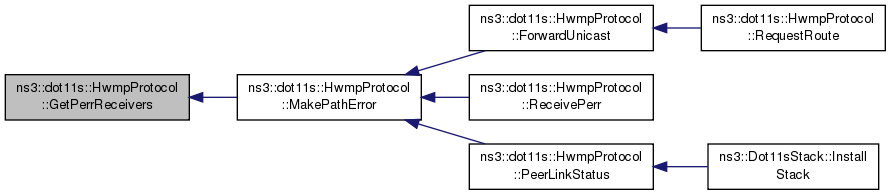

Here is the caller graph for this function:

Time ns3::dot11s::HwmpProtocol::GetPreqMinInterval ( )

private

Get PREQ minimum interval function.

Returns: the PREQ

Definition at line 1173 of file hwmp-protocol.cc.

References m_dot11MeshHWMPpreqMinInterval.

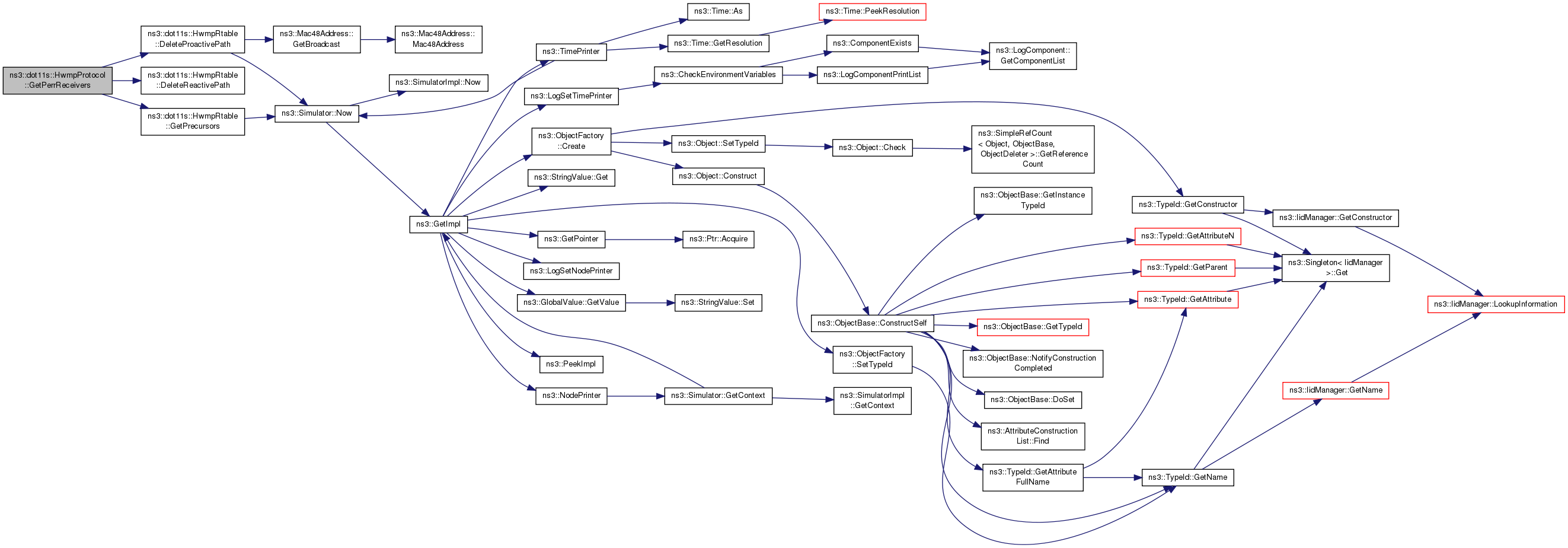

std::vector< Mac48Address > ns3::dot11s::HwmpProtocol::GetPreqReceivers ( uint32_t interface )

private

Get PREQ receivers.

Parameters

interface

Returns: list of addresses where a PREQ should be sent to

Definition at line 939 of file hwmp-protocol.cc.

References ns3::Mac48Address::GetBroadcast(), m_neighboursCallback, m_unicastPreqThreshold, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::dot11s::HwmpProtocol::GetRfFlag ( )

private

Get rf flag function.

Returns: the RF flag

Definition at line 1168 of file hwmp-protocol.cc.

References m_rfFlag.

Ptr< HwmpRtable > ns3::dot11s::HwmpProtocol::GetRoutingTable ( void ) const

Get pointer to HWMP routing table.

Returns: pointer to routing table

Definition at line 1288 of file hwmp-protocol.cc.

References m_rtable.

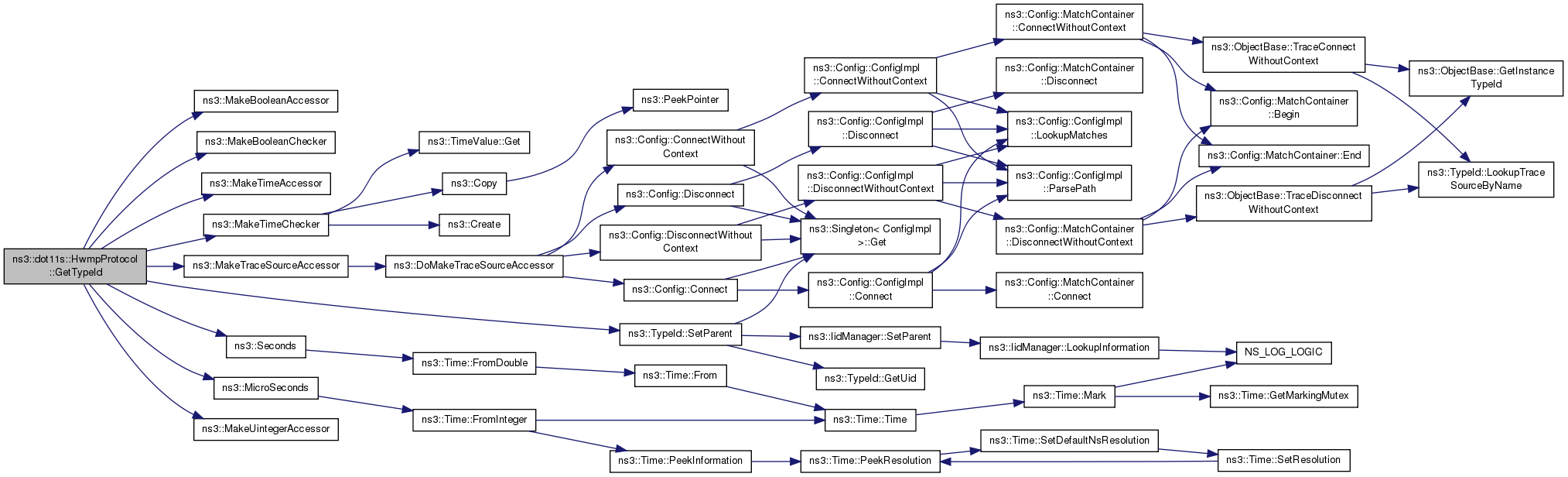

TypeId ns3::dot11s::HwmpProtocol::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 48 of file hwmp-protocol.cc.

References m_doFlag, m_dot11MeshHWMPactivePathTimeout, m_dot11MeshHWMPactiveRootTimeout, m_dot11MeshHWMPmaxPREQretries, m_dot11MeshHWMPnetDiameterTraversalTime, m_dot11MeshHWMPpathToRootInterval, m_dot11MeshHWMPperrMinInterval, m_dot11MeshHWMPpreqMinInterval, m_dot11MeshHWMPrannInterval, m_maxQueueSize, m_maxTtl, m_randomStart, m_rfFlag, m_routeChangeTraceSource, m_routeDiscoveryTimeCallback, m_unicastDataThreshold, m_unicastPerrThreshold, m_unicastPreqThreshold, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::MicroSeconds(), ns3::Seconds(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

uint8_t ns3::dot11s::HwmpProtocol::GetUnicastPerrThreshold ( )

private

Get unicast PERR threshold function.

Returns: the unicast PERR threshold

Definition at line 1205 of file hwmp-protocol.cc.

References m_unicastPerrThreshold.

void ns3::dot11s::HwmpProtocol::InitiatePathError ( PathError perr )

private

Passes a self-generated PERR to interface-plugin.

Parameters

perr	the path error

Definition at line 864 of file hwmp-protocol.cc.

References ns3::dot11s::HwmpProtocol::PathError::destinations, m_interfaces, NS_LOG_FUNCTION, and ns3::dot11s::HwmpProtocol::PathError::receivers.

Referenced by ForwardUnicast(), and PeerLinkStatus().

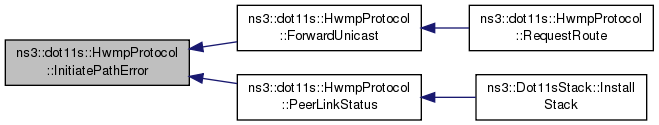

Here is the caller graph for this function:

bool ns3::dot11s::HwmpProtocol::Install ( Ptr< MeshPointDevice > mp )

Install HWMP on given mesh point.

Returns: true if successful

Installing protocol causes installation of its interface MAC plugins.

Also MP aggregates all installed protocols, HWMP protocol can be accessed via MeshPointDevice::GetObject<dot11s::HwmpProtocol>();

Definition at line 766 of file hwmp-protocol.cc.

References ns3::dot11s::AirtimeLinkMetricCalculator::CalculateMetric(), ns3::Mac48Address::ConvertFrom(), first::interfaces, m_address, m_interfaces, ns3::MeshL2RoutingProtocol::m_mp, third::mac, ns3::MakeCallback(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

HwmpProtocol::PathError ns3::dot11s::HwmpProtocol::MakePathError ( std::vector< FailedDestination > destinations )

private

forms a path error information element when list of destination fails on a given interface

Attention: removes all entries from routing table!

Parameters

destinations vector of failed destinations

Returns: PathError

Definition at line 839 of file hwmp-protocol.cc.

References ns3::dot11s::HwmpRtable::DeleteReactivePath(), ns3::dot11s::RouteChange::destination, ns3::dot11s::HwmpProtocol::PathError::destinations, GetPerrReceivers(), ns3::dot11s::HwmpProtocol::Statistics::initiatedPerr, m_routeChangeTraceSource, m_rtable, m_stats, NS_LOG_FUNCTION, ns3::dot11s::HwmpProtocol::PathError::receivers, ns3::dot11s::RouteChange::seqnum, and ns3::dot11s::RouteChange::type.

Referenced by ForwardUnicast(), PeerLinkStatus(), and ReceivePerr().

Here is the call graph for this function:

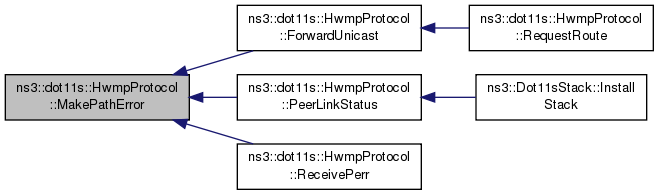

Here is the caller graph for this function:

HwmpProtocol& ns3::dot11s::HwmpProtocol::operator= ( const HwmpProtocol & hwmp )

private

assignment operator

Parameters

hwmp	the HWMP protocol to assign

Returns: the assigned value

void ns3::dot11s::HwmpProtocol::PeerLinkStatus	(	Mac48Address	meshPontAddress,
		Mac48Address	peerAddress,
		uint32_t	interface,
		bool	status
	)

Peer link status function.

Parameters

meshPontAddress	The MAC address of the mesh pont
peerAddress	The MAC address of the peer
interface	The interface number
status	The status of the peer link

Definition at line 799 of file hwmp-protocol.cc.

References ns3::dot11s::HwmpRtable::GetUnreachableDestinations(), InitiatePathError(), m_rtable, MakePathError(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::Dot11sStack::InstallStack().

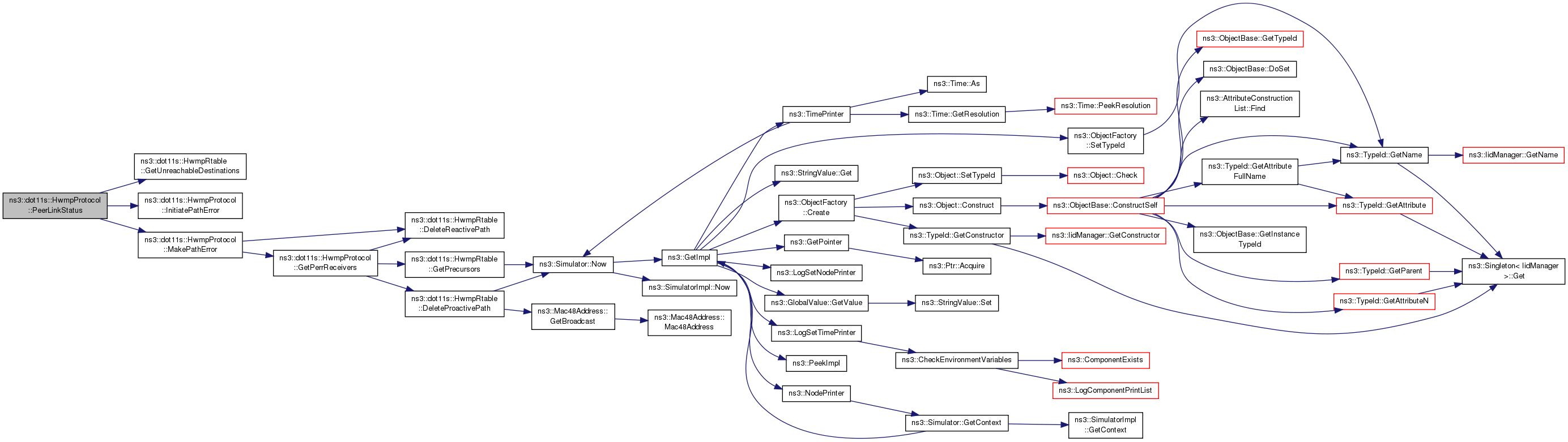

Here is the call graph for this function:

Here is the caller graph for this function:

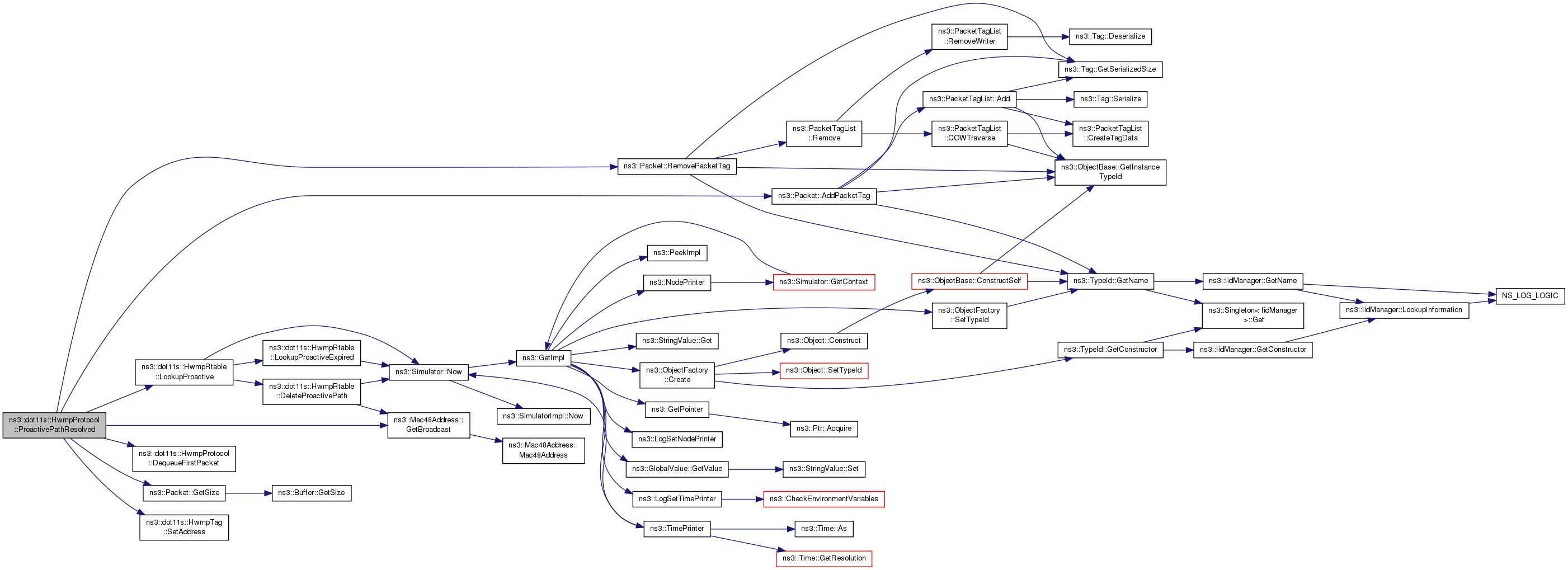

void ns3::dot11s::HwmpProtocol::ProactivePathResolved ( )

private

Definition at line 1044 of file hwmp-protocol.cc.

References ns3::Packet::AddPacketTag(), DequeueFirstPacket(), ns3::dot11s::HwmpProtocol::QueuedPacket::dst, ns3::Mac48Address::GetBroadcast(), ns3::Packet::GetSize(), ns3::dot11s::HwmpRtable::LookupResult::ifIndex, ns3::dot11s::HwmpRtable::LookupProactive(), m_rtable, m_stats, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::dot11s::HwmpProtocol::QueuedPacket::pkt, ns3::dot11s::HwmpProtocol::QueuedPacket::protocol, ns3::Packet::RemovePacketTag(), ns3::dot11s::HwmpProtocol::QueuedPacket::reply, ns3::dot11s::HwmpRtable::LookupResult::retransmitter, ns3::dot11s::HwmpTag::SetAddress(), ns3::dot11s::HwmpProtocol::QueuedPacket::src, ns3::dot11s::HwmpProtocol::Statistics::txBytes, and ns3::dot11s::HwmpProtocol::Statistics::txUnicast.

Referenced by ReceivePreq().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::dot11s::HwmpProtocol::QueuePacket ( QueuedPacket packet )

private

Definition at line 972 of file hwmp-protocol.cc.

References m_maxQueueSize, m_rqueue, and NS_LOG_FUNCTION.

Referenced by ForwardUnicast().

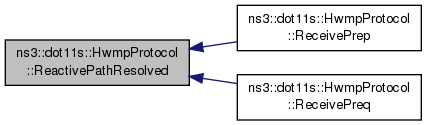

Here is the caller graph for this function:

void ns3::dot11s::HwmpProtocol::ReactivePathResolved ( Mac48Address dst )

private

Definition at line 1016 of file hwmp-protocol.cc.

References ns3::Packet::AddPacketTag(), DequeueFirstPacketByDst(), ns3::dot11s::HwmpProtocol::QueuedPacket::dst, ns3::Mac48Address::GetBroadcast(), ns3::Packet::GetSize(), ns3::dot11s::HwmpRtable::LookupResult::ifIndex, ns3::dot11s::HwmpRtable::LookupReactive(), m_preqTimeouts, m_routeDiscoveryTimeCallback, m_rtable, m_stats, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, ns3::dot11s::HwmpProtocol::QueuedPacket::pkt, ns3::dot11s::HwmpProtocol::QueuedPacket::protocol, ns3::Packet::RemovePacketTag(), ns3::dot11s::HwmpProtocol::QueuedPacket::reply, ns3::dot11s::HwmpRtable::LookupResult::retransmitter, ns3::dot11s::HwmpTag::SetAddress(), ns3::dot11s::HwmpProtocol::QueuedPacket::src, ns3::dot11s::HwmpProtocol::Statistics::txBytes, and ns3::dot11s::HwmpProtocol::Statistics::txUnicast.

Referenced by ReceivePrep(), and ReceivePreq().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dot11s::HwmpProtocol::ReceivePerr	(	std::vector< FailedDestination >	destinations,
		Mac48Address	from,
		uint32_t	interface,
		Mac48Address	fromMp
	)

private

Handler for receiving Path Error.

Parameters

destinations	the list of failed destinations
from	the from address
interface	the interface
fromMp	the from MP address

Definition at line 715 of file hwmp-protocol.cc.

References ForwardPathError(), GetAddress(), ns3::dot11s::HwmpRtable::LookupResult::ifIndex, ns3::dot11s::HwmpRtable::LookupReactiveExpired(), m_rtable, MakePathError(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::dot11s::HwmpRtable::LookupResult::retransmitter, and ns3::dot11s::HwmpRtable::LookupResult::seqnum.

Here is the call graph for this function:

void ns3::dot11s::HwmpProtocol::ReceivePrep	(	IePrep	prep,
		Mac48Address	from,
		uint32_t	interface,
		Mac48Address	fromMp,
		uint32_t	metric
	)

private

Handler for receiving Path Reply.

Parameters

prep	the IE prep
from	the from address
interface	the interface
fromMp	the 'from MP' address
metric	the metric

Definition at line 615 of file hwmp-protocol.cc.

References ns3::dot11s::HwmpRtable::AddPrecursor(), ns3::dot11s::HwmpRtable::AddReactivePath(), ns3::dot11s::RouteChange::destination, GetAddress(), ns3::Mac48Address::GetBroadcast(), ns3::dot11s::IePrep::GetDestinationAddress(), ns3::dot11s::IePrep::GetDestinationSeqNumber(), ns3::dot11s::IePrep::GetLifetime(), ns3::dot11s::IePrep::GetMetric(), ns3::dot11s::IePrep::GetOriginatorAddress(), ns3::dot11s::IePrep::IncrementMetric(), ns3::dot11s::RouteChange::interface, ns3::dot11s::RouteChange::lifetime, ns3::dot11s::HwmpRtable::LookupReactive(), m_hwmpSeqnoMetricDatabase, m_interfaces, m_routeChangeTraceSource, m_rtable, ns3::dot11s::RouteChange::metric, ns3::MicroSeconds(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ReactivePathResolved(), ns3::dot11s::RouteChange::retransmitter, ns3::dot11s::RouteChange::seqnum, and ns3::dot11s::RouteChange::type.

Here is the call graph for this function:

void ns3::dot11s::HwmpProtocol::ReceivePreq	(	IePreq	preq,
		Mac48Address	from,
		uint32_t	interface,
		Mac48Address	fromMp,
		uint32_t	metric
	)

private

Handler for receiving Path Request.

Parameters

preq	the IE preq
from	the from address
interface	the interface
fromMp	the 'from MP' address
metric	the metric

Definition at line 421 of file hwmp-protocol.cc.

Here is the call graph for this function:

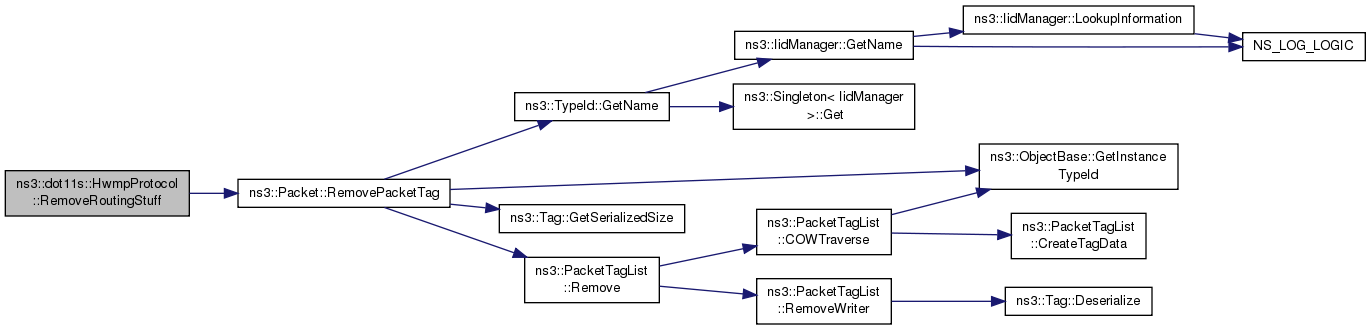

bool ns3::dot11s::HwmpProtocol::RemoveRoutingStuff	(	uint32_t	fromIface,
		const Mac48Address	source,
		const Mac48Address	destination,
		Ptr< Packet >	packet,
		uint16_t &	protocolType
	)

virtual

Clean HWMP packet tag from packet; only the packet parameter is used.

Parameters

fromIface	the from interface
source	the source address
destination	the destination address
packet	the packet to route
protocolType	the protocol type

Returns: true if successful

Implements ns3::MeshL2RoutingProtocol.

Definition at line 325 of file hwmp-protocol.cc.

References NS_FATAL_ERROR, and ns3::Packet::RemovePacketTag().

Here is the call graph for this function:

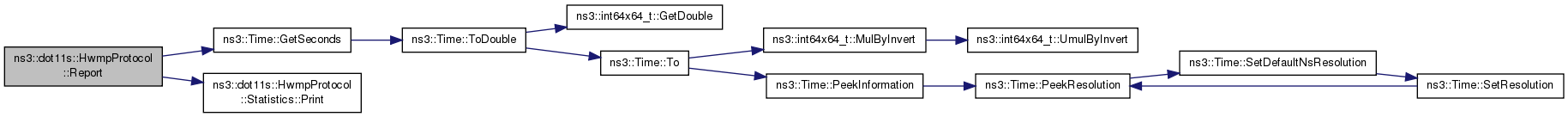

void ns3::dot11s::HwmpProtocol::Report ( std::ostream & os ) const

Statistics:

Definition at line 1241 of file hwmp-protocol.cc.

References ns3::Time::GetSeconds(), m_address, m_doFlag, m_dot11MeshHWMPactivePathTimeout, m_dot11MeshHWMPactiveRootTimeout, m_dot11MeshHWMPmaxPREQretries, m_dot11MeshHWMPnetDiameterTraversalTime, m_dot11MeshHWMPpathToRootInterval, m_dot11MeshHWMPperrMinInterval, m_dot11MeshHWMPpreqMinInterval, m_dot11MeshHWMPrannInterval, m_interfaces, m_isRoot, m_maxQueueSize, m_maxTtl, m_rfFlag, m_stats, m_unicastDataThreshold, m_unicastPerrThreshold, m_unicastPreqThreshold, and ns3::dot11s::HwmpProtocol::Statistics::Print().

Here is the call graph for this function:

bool ns3::dot11s::HwmpProtocol::RequestRoute	(	uint32_t	sourceIface,
		const Mac48Address	source,
		const Mac48Address	destination,
		Ptr< const Packet >	packet,
		uint16_t	protocolType,
		MeshL2RoutingProtocol::RouteReplyCallback	routeReply
	)

virtual

Route request, inherited from MeshL2RoutingProtocol.

Parameters

sourceIface	the source interface
source	the source address
destination	the destination address
packet	the packet to route
protocolType	the protocol type
routeReply	the route reply

Returns: true if route exists

Implements ns3::MeshL2RoutingProtocol.

Definition at line 243 of file hwmp-protocol.cc.

References ns3::Packet::AddPacketTag(), first::address, ns3::Packet::Copy(), ns3::dot11s::HwmpTag::DecrementTtl(), ns3::dot11s::HwmpProtocol::Statistics::droppedTtl, ForwardUnicast(), ns3::Mac48Address::GetBroadcast(), GetBroadcastReceivers(), ns3::MeshL2RoutingProtocol::GetMeshPoint(), ns3::Packet::GetSize(), ns3::dot11s::HwmpTag::GetTtl(), m_dataSeqno, m_interfaces, m_maxTtl, m_stats, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Packet::PeekPacketTag(), ns3::Packet::RemovePacketTag(), ns3::dot11s::HwmpTag::SetAddress(), ns3::dot11s::HwmpTag::SetSeqno(), ns3::dot11s::HwmpTag::SetTtl(), ns3::dot11s::HwmpProtocol::Statistics::txBroadcast, and ns3::dot11s::HwmpProtocol::Statistics::txBytes.

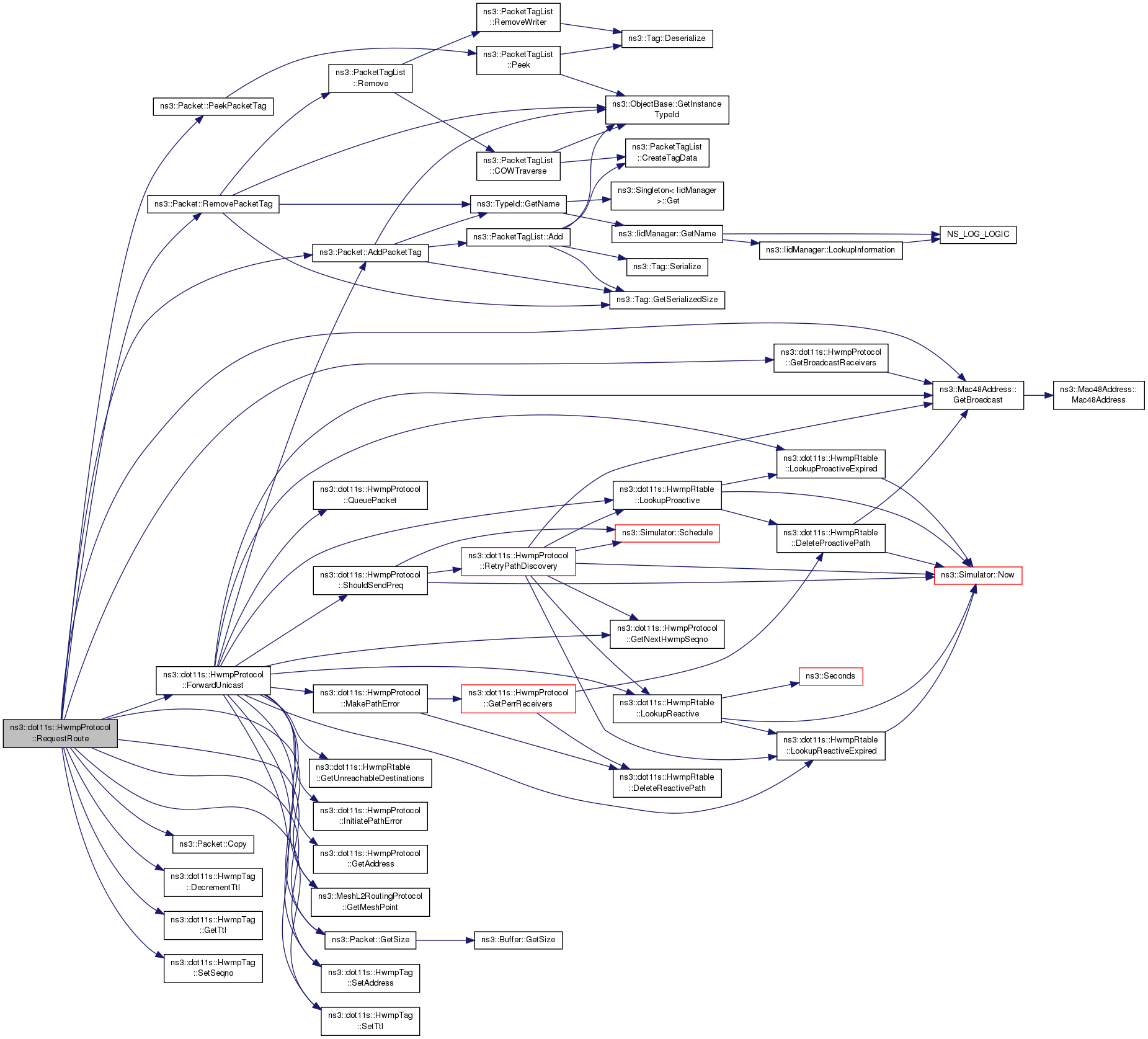

Here is the call graph for this function:

void ns3::dot11s::HwmpProtocol::ResetStats ( )

Reset Statistics:

Definition at line 1269 of file hwmp-protocol.cc.

References m_interfaces, m_stats, and NS_LOG_FUNCTION.

void ns3::dot11s::HwmpProtocol::RetryPathDiscovery	(	Mac48Address	dst,
		uint8_t	numOfRetry
	)

private

Generates PREQ retry when retry timeout has expired and route is still unresolved.

Parameters

dst	is the destination address
numOfRetry	is the number of retries

When PREQ retry has achieved the maximum level - retry mechanism should be canceled

Definition at line 1085 of file hwmp-protocol.cc.

References DequeueFirstPacketByDst(), ns3::dot11s::HwmpProtocol::QueuedPacket::dst, ns3::Mac48Address::GetBroadcast(), GetNextHwmpSeqno(), ns3::dot11s::HwmpRtable::LookupProactive(), ns3::dot11s::HwmpRtable::LookupReactive(), ns3::dot11s::HwmpRtable::LookupReactiveExpired(), m_dot11MeshHWMPmaxPREQretries, m_dot11MeshHWMPnetDiameterTraversalTime, m_interfaces, m_preqTimeouts, m_routeDiscoveryTimeCallback, m_rtable, m_stats, ns3::dot11s::HwmpRtable::MAX_METRIC, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, ns3::dot11s::HwmpProtocol::QueuedPacket::pkt, ns3::dot11s::HwmpProtocol::QueuedPacket::protocol, ns3::dot11s::HwmpProtocol::QueuedPacket::reply, ns3::dot11s::HwmpRtable::LookupResult::retransmitter, ns3::Simulator::Schedule(), ns3::dot11s::HwmpRtable::LookupResult::seqnum, ns3::dot11s::HwmpProtocol::QueuedPacket::src, and ns3::dot11s::HwmpProtocol::Statistics::totalDropped.

Referenced by ShouldSendPreq().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dot11s::HwmpProtocol::SendPrep	(	Mac48Address	src,
		Mac48Address	dst,
		Mac48Address	retransmitter,
		uint32_t	initMetric,
		uint32_t	originatorDsn,
		uint32_t	destinationSN,
		uint32_t	lifetime,
		uint32_t	interface
	)

private

Send Path Reply.

Parameters

src	the source address
dst	the destination address
retransmitter	the retransmitter address
initMetric	the initial metric
originatorDsn	the originator DSN
destinationSN	the destination DSN
lifetime	the lifetime
interface	the interface

Definition at line 741 of file hwmp-protocol.cc.

References ns3::dot11s::HwmpProtocol::Statistics::initiatedPrep, m_interfaces, m_maxTtl, m_stats, NS_ASSERT, ns3::dot11s::IePrep::SetDestinationAddress(), ns3::dot11s::IePrep::SetDestinationSeqNumber(), ns3::dot11s::IePrep::SetHopcount(), ns3::dot11s::IePrep::SetLifetime(), ns3::dot11s::IePrep::SetMetric(), ns3::dot11s::IePrep::SetOriginatorAddress(), ns3::dot11s::IePrep::SetOriginatorSeqNumber(), and ns3::dot11s::IePrep::SetTtl().

Referenced by ReceivePreq().

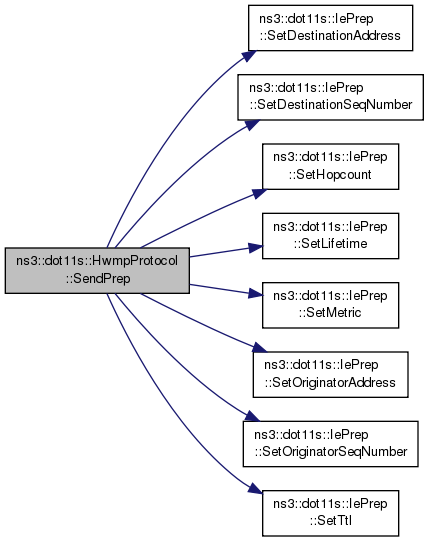

Here is the call graph for this function:

Here is the caller graph for this function:

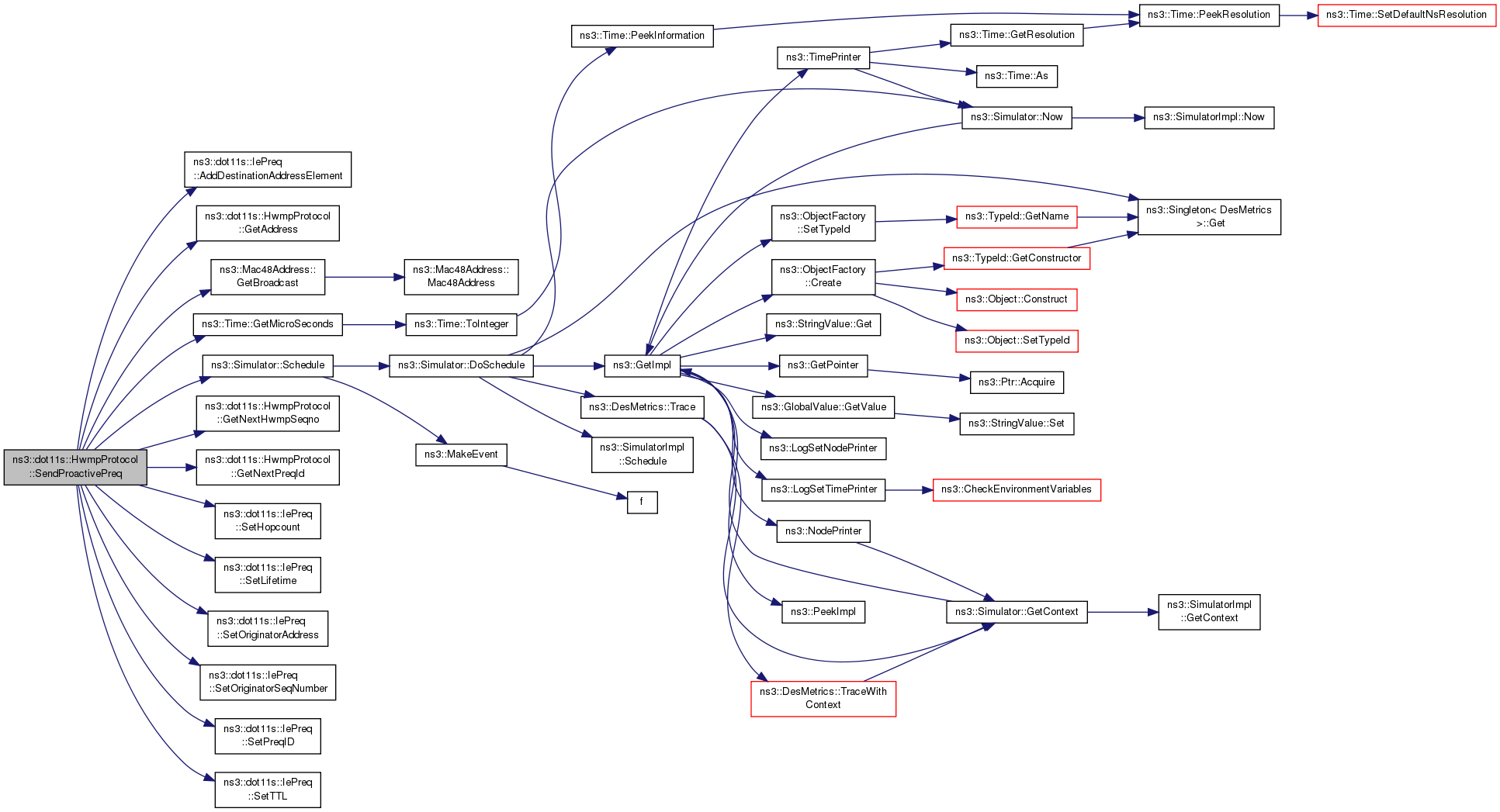

void ns3::dot11s::HwmpProtocol::SendProactivePreq ( )

private

Proactive Preq routines:

Definition at line 1142 of file hwmp-protocol.cc.

References ns3::dot11s::IePreq::AddDestinationAddressElement(), GetAddress(), ns3::Mac48Address::GetBroadcast(), ns3::Time::GetMicroSeconds(), GetNextHwmpSeqno(), GetNextPreqId(), m_dot11MeshHWMPactiveRootTimeout, m_dot11MeshHWMPpathToRootInterval, m_interfaces, m_maxTtl, m_proactivePreqTimer, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::dot11s::IePreq::SetHopcount(), ns3::dot11s::IePreq::SetLifetime(), ns3::dot11s::IePreq::SetOriginatorAddress(), ns3::dot11s::IePreq::SetOriginatorSeqNumber(), ns3::dot11s::IePreq::SetPreqID(), and ns3::dot11s::IePreq::SetTTL().

Referenced by DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dot11s::HwmpProtocol::SetNeighboursCallback ( Callback< std::vector< Mac48Address >, uint32_t > cb )

This callback is used to obtain active neighbours on a given interface.

Parameters

cb	is a callback, which returns a list of addresses on given interface (uint32_t)

Definition at line 811 of file hwmp-protocol.cc.

References m_neighboursCallback.

void ns3::dot11s::HwmpProtocol::SetRoot ( )

Definition at line 1129 of file hwmp-protocol.cc.

References m_address, m_isRoot, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

bool ns3::dot11s::HwmpProtocol::ShouldSendPreq ( Mac48Address dst )

private

checks when the last path discovery procedure was started for a given destination.

Returns: true if should send PREQ

Parameters

dst	is the destination address

If the retry counter has not achieved the maximum level - preq should not be sent

Definition at line 1070 of file hwmp-protocol.cc.

References m_dot11MeshHWMPnetDiameterTraversalTime, m_preqTimeouts, ns3::Simulator::Now(), NS_LOG_FUNCTION, RetryPathDiscovery(), and ns3::Simulator::Schedule().

Referenced by ForwardUnicast().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dot11s::HwmpProtocol::UnsetRoot ( )

Definition at line 1136 of file hwmp-protocol.cc.

References ns3::EventId::Cancel(), m_proactivePreqTimer, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Friends And Related Function Documentation

friend class HwmpProtocolMac

friend

allow HwmpProtocolMac class friend access

Definition at line 158 of file hwmp-protocol.h.

Member Data Documentation

Mac48Address ns3::dot11s::HwmpProtocol::m_address

private

address

Definition at line 420 of file hwmp-protocol.h.

Referenced by GetAddress(), Install(), Report(), and SetRoot().

Ptr<UniformRandomVariable> ns3::dot11s::HwmpProtocol::m_coefficient

private

Random variable for random start time.

coefficient

Definition at line 470 of file hwmp-protocol.h.

Referenced by AssignStreams(), DoInitialize(), and HwmpProtocol().

uint32_t ns3::dot11s::HwmpProtocol::m_dataSeqno

private

data sequence no

Definition at line 421 of file hwmp-protocol.h.

Referenced by RequestRoute().

bool ns3::dot11s::HwmpProtocol::m_doFlag

private

Definition at line 465 of file hwmp-protocol.h.

Referenced by GetDoFlag(), GetTypeId(), and Report().

Time ns3::dot11s::HwmpProtocol::m_dot11MeshHWMPactivePathTimeout

private

Definition at line 457 of file hwmp-protocol.h.

Referenced by GetActivePathLifetime(), GetTypeId(), and Report().

Time ns3::dot11s::HwmpProtocol::m_dot11MeshHWMPactiveRootTimeout

private

Definition at line 456 of file hwmp-protocol.h.

Referenced by GetTypeId(), Report(), and SendProactivePreq().

uint8_t ns3::dot11s::HwmpProtocol::m_dot11MeshHWMPmaxPREQretries

private

Definition at line 452 of file hwmp-protocol.h.

Referenced by GetTypeId(), Report(), and RetryPathDiscovery().

Time ns3::dot11s::HwmpProtocol::m_dot11MeshHWMPnetDiameterTraversalTime

private

Definition at line 453 of file hwmp-protocol.h.

Referenced by GetTypeId(), Report(), RetryPathDiscovery(), and ShouldSendPreq().

Time ns3::dot11s::HwmpProtocol::m_dot11MeshHWMPpathToRootInterval

private

Definition at line 458 of file hwmp-protocol.h.

Referenced by GetTypeId(), Report(), and SendProactivePreq().

Time ns3::dot11s::HwmpProtocol::m_dot11MeshHWMPperrMinInterval

private

Definition at line 455 of file hwmp-protocol.h.

Referenced by GetPerrMinInterval(), GetTypeId(), and Report().

Time ns3::dot11s::HwmpProtocol::m_dot11MeshHWMPpreqMinInterval

private

Definition at line 454 of file hwmp-protocol.h.

Referenced by GetPreqMinInterval(), GetTypeId(), and Report().

Time ns3::dot11s::HwmpProtocol::m_dot11MeshHWMPrannInterval

private

Definition at line 459 of file hwmp-protocol.h.

Referenced by GetTypeId(), and Report().

uint32_t ns3::dot11s::HwmpProtocol::m_hwmpSeqno

private

HWMP sequence no.

Definition at line 422 of file hwmp-protocol.h.

Referenced by GetNextHwmpSeqno().

std::map<Mac48Address, std::pair<uint32_t, uint32_t> > ns3::dot11s::HwmpProtocol::m_hwmpSeqnoMetricDatabase

private

keeps HWMP seqno (first in pair) and HWMP metric (second in pair) for each address

Definition at line 429 of file hwmp-protocol.h.

Referenced by DoDispose(), ReceivePrep(), and ReceivePreq().

HwmpProtocolMacMap ns3::dot11s::HwmpProtocol::m_interfaces

private

interfaces

Definition at line 419 of file hwmp-protocol.h.

Referenced by DoDispose(), ForwardPathError(), ForwardUnicast(), InitiatePathError(), Install(), ReceivePrep(), ReceivePreq(), Report(), RequestRoute(), ResetStats(), RetryPathDiscovery(), SendPrep(), and SendProactivePreq().

bool ns3::dot11s::HwmpProtocol::m_isRoot

private

Definition at line 460 of file hwmp-protocol.h.

Referenced by DoInitialize(), Report(), and SetRoot().

std::map<Mac48Address, uint32_t> ns3::dot11s::HwmpProtocol::m_lastDataSeqno

private

keeps HWMP seqno (first in pair) and HWMP metric (second in pair) for each address

Definition at line 427 of file hwmp-protocol.h.

Referenced by DoDispose(), and DropDataFrame().

uint16_t ns3::dot11s::HwmpProtocol::m_maxQueueSize

private

Definition at line 451 of file hwmp-protocol.h.

Referenced by GetTypeId(), QueuePacket(), and Report().

uint8_t ns3::dot11s::HwmpProtocol::m_maxTtl

private

Definition at line 461 of file hwmp-protocol.h.

Referenced by GetMaxTtl(), GetTypeId(), Report(), RequestRoute(), SendPrep(), and SendProactivePreq().

Callback<std::vector<Mac48Address>, uint32_t> ns3::dot11s::HwmpProtocol::m_neighboursCallback

private

neighbors callback

Definition at line 471 of file hwmp-protocol.h.

Referenced by GetBroadcastReceivers(), GetPreqReceivers(), and SetNeighboursCallback().

uint32_t ns3::dot11s::HwmpProtocol::m_preqId

private

PREQ ID.

Definition at line 423 of file hwmp-protocol.h.

Referenced by GetNextPreqId().

std::map<Mac48Address, PreqEvent> ns3::dot11s::HwmpProtocol::m_preqTimeouts

private

PREQ timeouts.

Definition at line 441 of file hwmp-protocol.h.

Referenced by DoDispose(), ReactivePathResolved(), RetryPathDiscovery(), and ShouldSendPreq().

EventId ns3::dot11s::HwmpProtocol::m_proactivePreqTimer

private

proactive PREQ timer

Definition at line 442 of file hwmp-protocol.h.

Referenced by DoDispose(), DoInitialize(), SendProactivePreq(), and UnsetRoot().

Time ns3::dot11s::HwmpProtocol::m_randomStart

private

Random start in Proactive PREQ propagation.

Definition at line 444 of file hwmp-protocol.h.

Referenced by DoInitialize(), and GetTypeId().

bool ns3::dot11s::HwmpProtocol::m_rfFlag

private

Definition at line 466 of file hwmp-protocol.h.

Referenced by GetRfFlag(), GetTypeId(), and Report().

TracedCallback<struct RouteChange> ns3::dot11s::HwmpProtocol::m_routeChangeTraceSource

private

Route change trace source.

Definition at line 316 of file hwmp-protocol.h.

Referenced by GetPerrReceivers(), GetTypeId(), MakePathError(), ReceivePrep(), and ReceivePreq().

TracedCallback<Time> ns3::dot11s::HwmpProtocol::m_routeDiscoveryTimeCallback

private

Route discovery time:

Definition at line 312 of file hwmp-protocol.h.

Referenced by GetTypeId(), ReactivePathResolved(), and RetryPathDiscovery().

std::vector<QueuedPacket> ns3::dot11s::HwmpProtocol::m_rqueue

private

Packet Queue.

Definition at line 446 of file hwmp-protocol.h.

Referenced by DequeueFirstPacket(), DequeueFirstPacketByDst(), DoDispose(), and QueuePacket().

Ptr<HwmpRtable> ns3::dot11s::HwmpProtocol::m_rtable

private

Routing table.

Definition at line 433 of file hwmp-protocol.h.

Referenced by DoDispose(), ForwardUnicast(), GetPerrReceivers(), GetRoutingTable(), MakePathError(), PeerLinkStatus(), ProactivePathResolved(), ReactivePathResolved(), ReceivePerr(), ReceivePrep(), ReceivePreq(), and RetryPathDiscovery().

Statistics ns3::dot11s::HwmpProtocol::m_stats

private

statistics

Definition at line 417 of file hwmp-protocol.h.

Referenced by ForwardUnicast(), MakePathError(), ProactivePathResolved(), ReactivePathResolved(), Report(), RequestRoute(), ResetStats(), RetryPathDiscovery(), and SendPrep().

uint8_t ns3::dot11s::HwmpProtocol::m_unicastDataThreshold

private

Definition at line 464 of file hwmp-protocol.h.

Referenced by GetBroadcastReceivers(), GetTypeId(), and Report().

uint8_t ns3::dot11s::HwmpProtocol::m_unicastPerrThreshold

private

Definition at line 462 of file hwmp-protocol.h.

Referenced by GetTypeId(), GetUnicastPerrThreshold(), and Report().

uint8_t ns3::dot11s::HwmpProtocol::m_unicastPreqThreshold

private

Definition at line 463 of file hwmp-protocol.h.

Referenced by GetPreqReceivers(), GetTypeId(), and Report().

The documentation for this class was generated from the following files:

src/mesh/model/dot11s/hwmp-protocol.h
src/mesh/model/dot11s/hwmp-protocol.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Methods needed by HwmpMacLugin to access protocol parameters:

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
