ns3::ComponentCarrierEnb Class Reference

Defines a single carrier for enb, and contains pointers to LteEnbPhy, LteEnbMac, LteFfrAlgorithm, and FfMacScheduler objects. More...

#include "component-carrier-enb.h"

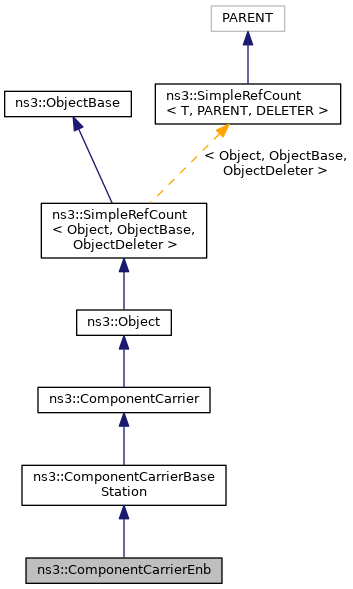

+ Inheritance diagram for ns3::ComponentCarrierEnb:

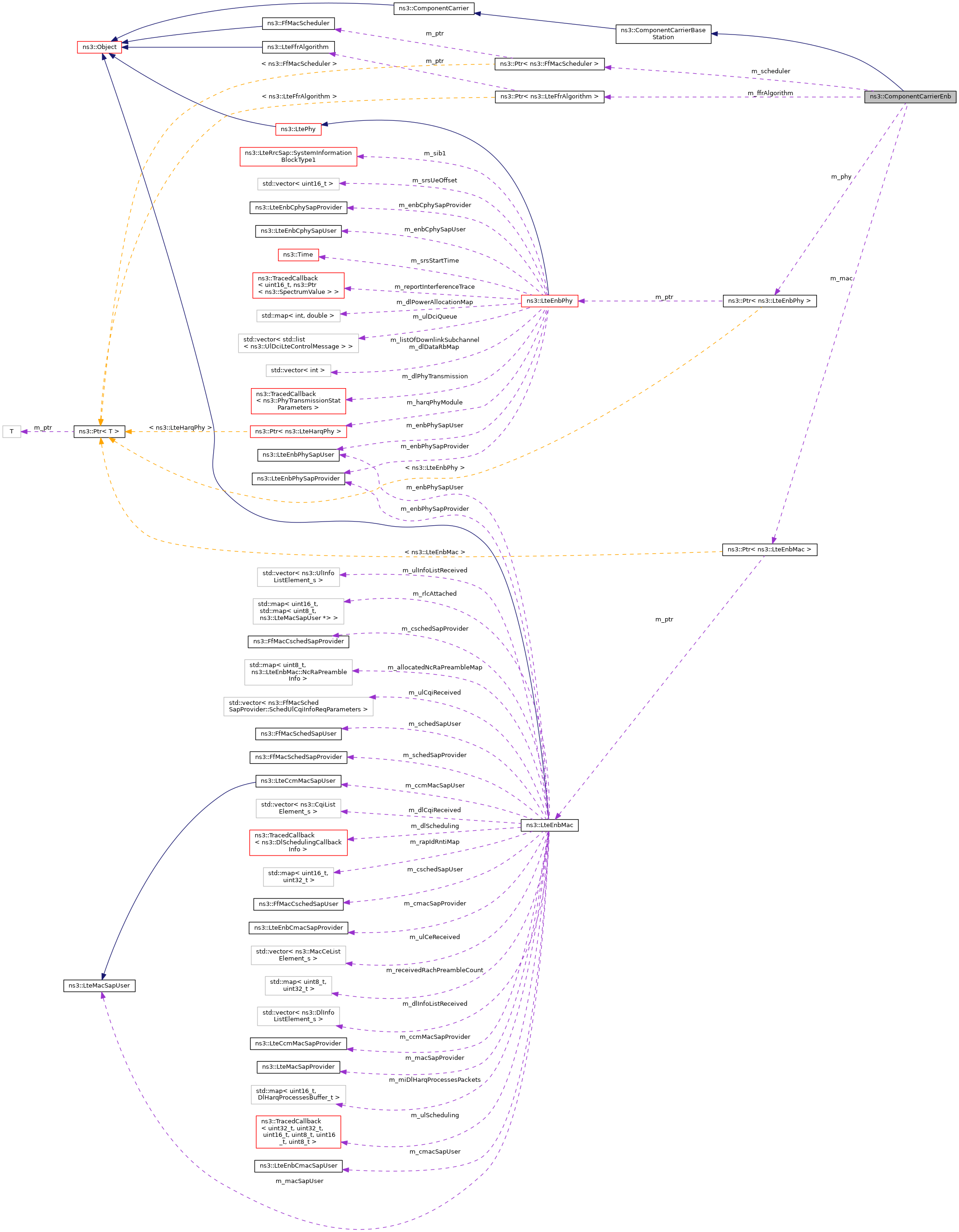

+ Collaboration diagram for ns3::ComponentCarrierEnb:

Public Member Functions

 ComponentCarrierEnb ()

virtual ~ComponentCarrierEnb (void)

virtual void DoDispose (void)
 Destructor implementation. More...

Ptr< FfMacSchedulerGetFfMacScheduler ()

Ptr< LteFfrAlgorithmGetFfrAlgorithm ()

Ptr< LteEnbMacGetMac (void)

Ptr< LteEnbPhyGetPhy (void)

void SetFfMacScheduler (Ptr< FfMacScheduler > s)
 Set the FfMacScheduler Algorithm. More...

void SetFfrAlgorithm (Ptr< LteFfrAlgorithm > s)
 Set the LteFfrAlgorithm. More...

void SetMac (Ptr< LteEnbMac > s)
 Set the LteEnbMac. More...

void SetPhy (Ptr< LteEnbPhy > s)
 Set the LteEnbPhy. More...

- Public Member Functions inherited from ns3::ComponentCarrierBaseStation
 ComponentCarrierBaseStation ()

virtual ~ComponentCarrierBaseStation (void)

uint16_t GetCellId ()
 Get cell identifier. More...

void SetCellId (uint16_t cellId)
 Set physical cell identifier. More...

- Public Member Functions inherited from ns3::ComponentCarrier
 ComponentCarrier ()

virtual ~ComponentCarrier (void)

uint32_t GetCsgId () const
 Returns the CSG ID of the eNodeB. More...

bool GetCsgIndication () const
 Returns the CSG indication flag of the eNodeB. More...

uint8_t GetDlBandwidth () const

uint32_t GetDlEarfcn () const

uint8_t GetUlBandwidth () const

uint32_t GetUlEarfcn () const

bool IsPrimary () const
 Checks if the carrier is the primary carrier. More...

void SetAsPrimary (bool primaryCarrier)
 Set as primary carrier. More...

void SetCsgId (uint32_t csgId)
 Associate the eNodeB device with a particular CSG. More...

void SetCsgIndication (bool csgIndication)
 Enable or disable the CSG indication flag. More...

virtual void SetDlBandwidth (uint8_t bw)

void SetDlEarfcn (uint32_t earfcn)

virtual void SetUlBandwidth (uint8_t bw)

void SetUlEarfcn (uint32_t earfcn)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ComponentCarrierBaseStation
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ComponentCarrier
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoInitialize (void)
 Initialize() implementation. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Attributes

Ptr< LteFfrAlgorithmm_ffrAlgorithm
 the FFR algorithm instance of this eNodeB component carrier More...

Ptr< LteEnbMacm_mac
 the MAC instance of this eNodeB component carrier More...

Ptr< LteEnbPhym_phy
 the Phy instance of this eNodeB component carrier More...

Ptr< FfMacSchedulerm_scheduler
 the scheduler instance of this eNodeB component carrier More...


Additional Inherited Members

- Public Attributes inherited from ns3::ComponentCarrier
uint8_t m_dlBandwidth
 downlink bandwidth in RBs More...

uint32_t m_dlEarfcn
 downlink carrier frequency More...

uint8_t m_ulBandwidth
 uplink bandwidth in RBs More...

uint32_t m_ulEarfcn
 uplink carrier frequency More...

- Protected Attributes inherited from ns3::ComponentCarrierBaseStation
uint16_t m_cellId
 Cell identifier. More...

- Protected Attributes inherited from ns3::ComponentCarrier
uint16_t m_csgId
 CSG ID. More...

bool m_csgIndication
 CSG indication. More...

bool m_isConstructed
 whether the instance is constructed More...

bool m_primaryCarrier
 whether the carrier is primary More...


Detailed Description

Defines a single carrier for enb, and contains pointers to LteEnbPhy, LteEnbMac, LteFfrAlgorithm, and FfMacScheduler objects.


Config Paths

ns3::ComponentCarrierEnb is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/ComponentCarrierMap/[i]"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/ComponentCarrierMap/[i]"

Attributes

Attributes defined in parent class ns3::ComponentCarrier

  • UlBandwidth: Uplink Transmission Bandwidth Configuration in number of Resource Blocks
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:255
    • Initial value: 25
    • Flags: construct write read
  • DlBandwidth: Downlink Transmission Bandwidth Configuration in number of Resource Blocks
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:255
    • Initial value: 25
    • Flags: construct write read
  • DlEarfcn: Downlink E-UTRA Absolute Radio Frequency Channel Number (EARFCN) as per 3GPP 36.101 Section 5.7.3.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:262143
    • Initial value: 100
    • Flags: construct write read
  • UlEarfcn: Uplink E-UTRA Absolute Radio Frequency Channel Number (EARFCN) as per 3GPP 36.101 Section 5.7.3.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 18000:262143
    • Initial value: 18100
    • Flags: construct write read
  • CsgId: The Closed Subscriber Group (CSG) identity that this eNodeB belongs to
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write read
  • CsgIndication: If true, only UEs which are members of the CSG (i.e. same CSG ID) can gain access to the eNodeB, therefore enforcing closed access mode. Otherwise, the eNodeB operates as a non-CSG cell and implements open access mode.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • PrimaryCarrier: If true, this Carrier Component will be the Primary Carrier Component (PCC) Only one PCC per eNodeB is (currently) allowed
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 48 of file component-carrier-enb.h.

Constructor & Destructor Documentation

◆ ComponentCarrierEnb()

ns3::ComponentCarrierEnb::ComponentCarrierEnb ( )

Definition at line 68 of file component-carrier-enb.cc.

References NS_LOG_FUNCTION.

◆ ~ComponentCarrierEnb()

ns3::ComponentCarrierEnb::~ComponentCarrierEnb ( void  )
virtual

Definition at line 73 of file component-carrier-enb.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::ComponentCarrierEnb::DoDispose ( void  )
virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::ComponentCarrier.

Definition at line 79 of file component-carrier-enb.cc.

References ns3::Object::DoDispose(), m_ffrAlgorithm, m_mac, m_phy, m_scheduler, and NS_LOG_FUNCTION.

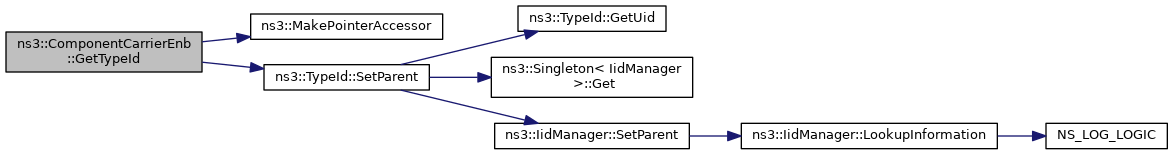

+ Here is the call graph for this function:

◆ DoInitialize()

void ns3::ComponentCarrierEnb::DoInitialize ( void  )
protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::ComponentCarrier.

Definition at line 108 of file component-carrier-enb.cc.

References m_ffrAlgorithm, ns3::ComponentCarrier::m_isConstructed, m_mac, m_phy, m_scheduler, and NS_LOG_FUNCTION.

◆ GetFfMacScheduler()

Ptr< FfMacScheduler > ns3::ComponentCarrierEnb::GetFfMacScheduler ( )
Returns
a pointer to the Mac Scheduler.

Definition at line 162 of file component-carrier-enb.cc.

References m_scheduler, and NS_LOG_FUNCTION.

◆ GetFfrAlgorithm()

Ptr< LteFfrAlgorithm > ns3::ComponentCarrierEnb::GetFfrAlgorithm ( )
Returns
a pointer to the Ffr Algorithm.

Definition at line 148 of file component-carrier-enb.cc.

References m_ffrAlgorithm, and NS_LOG_FUNCTION.

◆ GetMac()

Ptr< LteEnbMac > ns3::ComponentCarrierEnb::GetMac ( void  )
Returns
a pointer to the MAC layer.

Definition at line 135 of file component-carrier-enb.cc.

References m_mac, and NS_LOG_FUNCTION.

◆ GetPhy()

Ptr< LteEnbPhy > ns3::ComponentCarrierEnb::GetPhy ( void  )
Returns
a pointer to the physical layer.

Definition at line 120 of file component-carrier-enb.cc.

References m_phy, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::ComponentCarrierEnb::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 38 of file component-carrier-enb.cc.

References m_ffrAlgorithm, m_mac, m_phy, m_scheduler, ns3::MakePointerAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ SetFfMacScheduler()

void ns3::ComponentCarrierEnb::SetFfMacScheduler ( Ptr< FfMacScheduler s)

Set the FfMacScheduler Algorithm.

Parameters
sa pointer to the FfMacScheduler

Definition at line 169 of file component-carrier-enb.cc.

References m_scheduler, and NS_LOG_FUNCTION.

◆ SetFfrAlgorithm()

void ns3::ComponentCarrierEnb::SetFfrAlgorithm ( Ptr< LteFfrAlgorithm s)

Set the LteFfrAlgorithm.

Parameters
sa pointer to the LteFfrAlgorithm

Definition at line 155 of file component-carrier-enb.cc.

References m_ffrAlgorithm, and NS_LOG_FUNCTION.

◆ SetMac()

void ns3::ComponentCarrierEnb::SetMac ( Ptr< LteEnbMac s)

Set the LteEnbMac.

Parameters
sa pointer to the LteEnbMac

Definition at line 141 of file component-carrier-enb.cc.

References m_mac, and NS_LOG_FUNCTION.

◆ SetPhy()

void ns3::ComponentCarrierEnb::SetPhy ( Ptr< LteEnbPhy s)

Set the LteEnbPhy.

Parameters
sa pointer to the LteEnbPhy

Definition at line 128 of file component-carrier-enb.cc.

References m_phy, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_ffrAlgorithm

Ptr<LteFfrAlgorithm> ns3::ComponentCarrierEnb::m_ffrAlgorithm
private

the FFR algorithm instance of this eNodeB component carrier

Definition at line 113 of file component-carrier-enb.h.

Referenced by DoDispose(), DoInitialize(), GetFfrAlgorithm(), GetTypeId(), and SetFfrAlgorithm().

◆ m_mac

Ptr<LteEnbMac> ns3::ComponentCarrierEnb::m_mac
private

the MAC instance of this eNodeB component carrier

Definition at line 111 of file component-carrier-enb.h.

Referenced by DoDispose(), DoInitialize(), GetMac(), GetTypeId(), and SetMac().

◆ m_phy

Ptr<LteEnbPhy> ns3::ComponentCarrierEnb::m_phy
private

the Phy instance of this eNodeB component carrier

Definition at line 110 of file component-carrier-enb.h.

Referenced by DoDispose(), DoInitialize(), GetPhy(), GetTypeId(), and SetPhy().

◆ m_scheduler

Ptr<FfMacScheduler> ns3::ComponentCarrierEnb::m_scheduler
private

the scheduler instance of this eNodeB component carrier

Definition at line 112 of file component-carrier-enb.h.

Referenced by DoDispose(), DoInitialize(), GetFfMacScheduler(), GetTypeId(), and SetFfMacScheduler().


The documentation for this class was generated from the following files:
