Header of the GTPv2-C protocol. More...

#include "epc-gtpc-header.h"

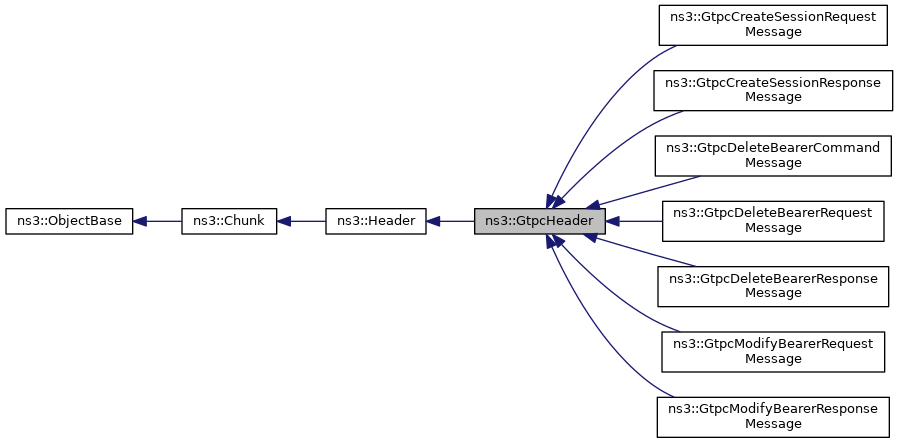

Inheritance diagram for ns3::GtpcHeader:

Collaboration diagram for ns3::GtpcHeader:

Classes
struct	Fteid_t
	FTEID structure. More...

Public Types
enum	InterfaceType_t { S1U_ENB_GTPU = 0, S5_SGW_GTPU = 4, S5_PGW_GTPU = 5, S5_SGW_GTPC = 6, S5_PGW_GTPC = 7, S11_MME_GTPC = 10 }
	Interface Type enumeration. More...

enum	MessageType_t { Reserved = 0, CreateSessionRequest = 32, CreateSessionResponse = 33, ModifyBearerRequest = 34, ModifyBearerResponse = 35, DeleteSessionRequest = 36, DeleteSessionResponse = 37, DeleteBearerCommand = 66, DeleteBearerRequest = 99, DeleteBearerResponse = 100 }
	Message Type enumeration. More...

Public Member Functions
	GtpcHeader ()

virtual	~GtpcHeader ()

void	ComputeMessageLength (void)

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint16_t	GetMessageLength () const
	Get message length. More...

virtual uint32_t	GetMessageSize (void) const

uint8_t	GetMessageType () const
	Get message type. More...

uint32_t	GetSequenceNumber () const
	Get sequence number. More...

virtual uint32_t	GetSerializedSize (void) const

uint32_t	GetTeid () const
	Get TEID. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

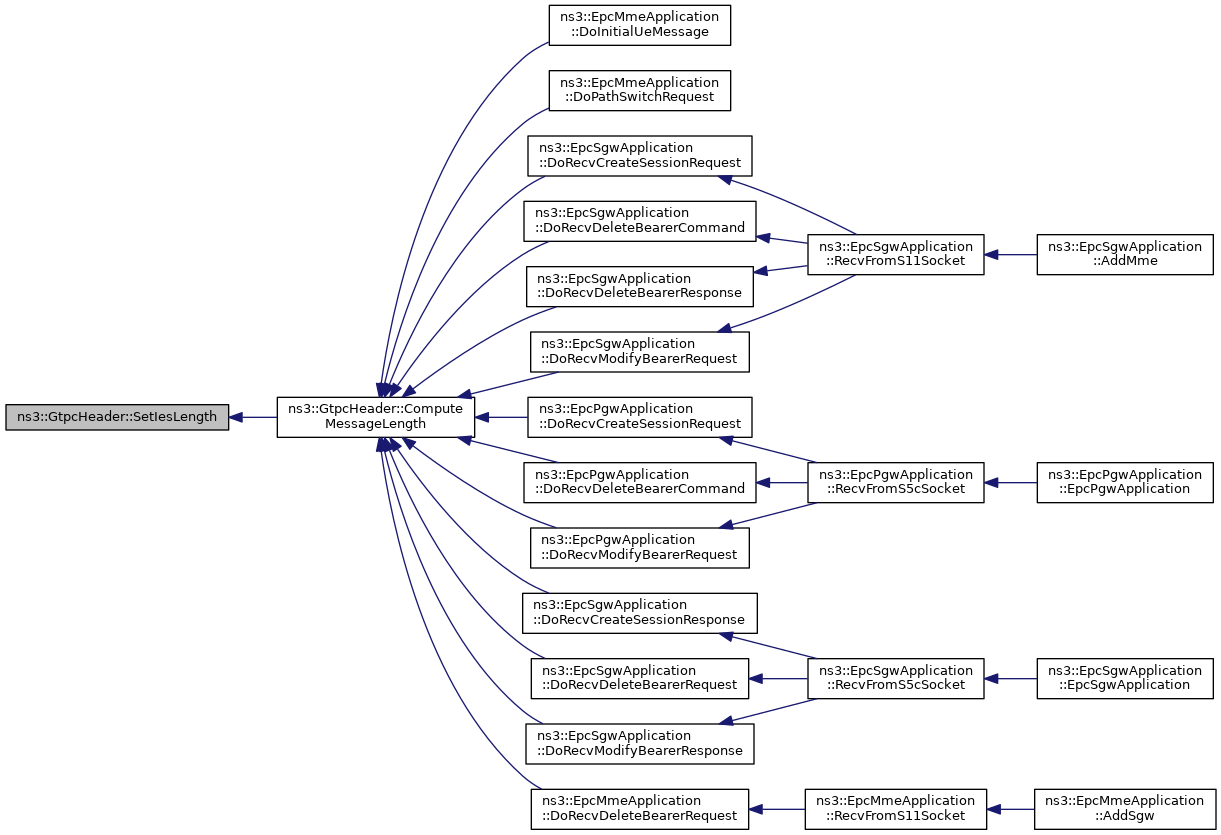

void	SetIesLength (uint16_t iesLength)
	Set IEs length. More...

void	SetMessageLength (uint16_t messageLength)
	Set message length. More...

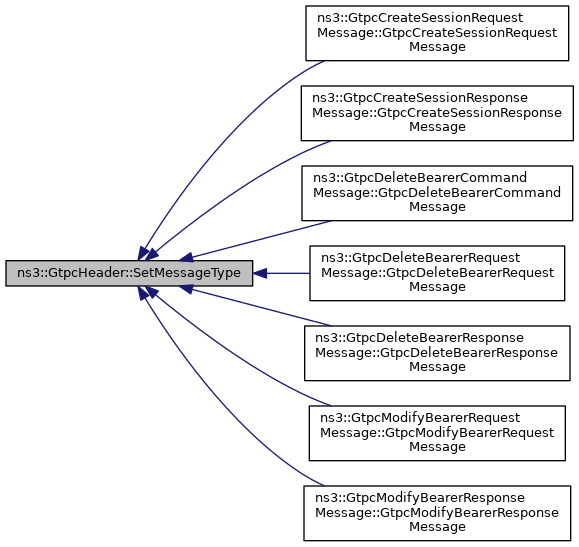

void	SetMessageType (uint8_t messageType)
	Set message type. More...

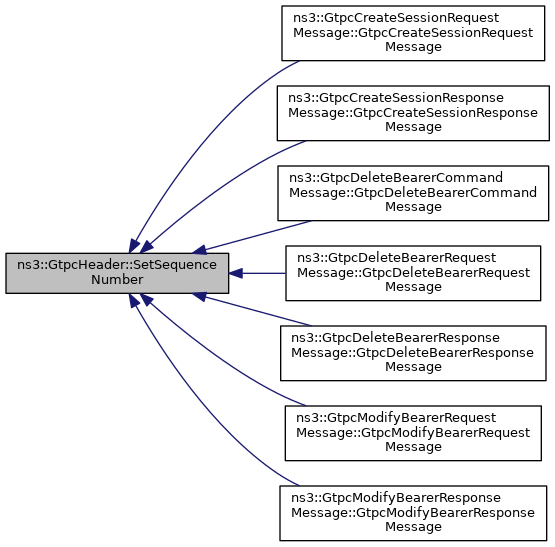

void	SetSequenceNumber (uint32_t sequenceNumber)
	Set sequence number. More...

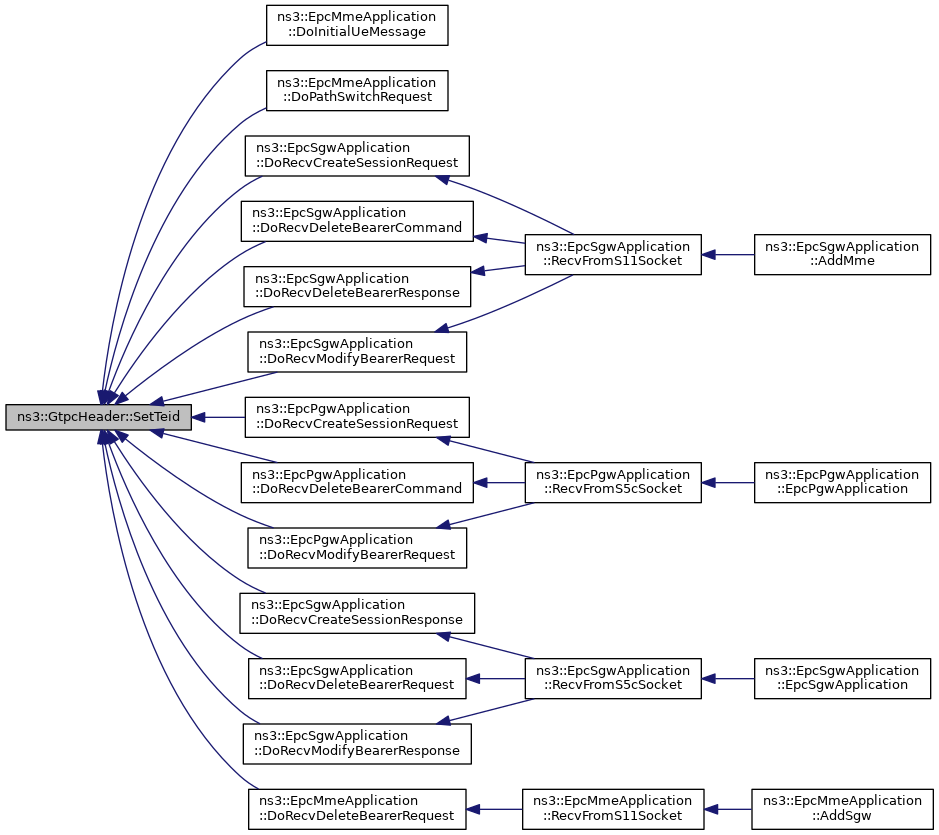

void	SetTeid (uint32_t teid)
	Set TEID. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
uint32_t	PreDeserialize (Buffer::Iterator &i)
	Deserialize the GTP-C header in the GTP-C messages. More...

void	PreSerialize (Buffer::Iterator &i) const
	Serialize the GTP-C header in the GTP-C messages. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
uint16_t	m_messageLength
	Message length field. More...

uint8_t	m_messageType
	Message type field. More...

uint32_t	m_sequenceNumber
	GTP Sequence number field. More...

uint32_t	m_teid
	Tunnel Endpoint Identifier (TEID) field. More...

bool	m_teidFlag
	TEID flag. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Header of the GTPv2-C protocol.

Introspection did not find any typical Config paths.

Implementation of the GPRS Tunnelling Protocol for Control Plane (GTPv2-C) header according to the 3GPP TS 29.274 document

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 38 of file epc-gtpc-header.h.

Member Enumeration Documentation

◆ InterfaceType_t

enum ns3::GtpcHeader::InterfaceType_t

Interface Type enumeration.

Enumerator
S1U_ENB_GTPU
S5_SGW_GTPU
S5_PGW_GTPU
S5_SGW_GTPC
S5_PGW_GTPC
S11_MME_GTPC

Definition at line 106 of file epc-gtpc-header.h.

◆ MessageType_t

enum ns3::GtpcHeader::MessageType_t

Message Type enumeration.

Enumerator
Reserved
CreateSessionRequest
CreateSessionResponse
ModifyBearerRequest
ModifyBearerResponse
DeleteSessionRequest
DeleteSessionResponse
DeleteBearerCommand
DeleteBearerRequest
DeleteBearerResponse

Definition at line 125 of file epc-gtpc-header.h.

Constructor & Destructor Documentation

◆ GtpcHeader()

ns3::GtpcHeader::GtpcHeader ( )

Definition at line 43 of file epc-gtpc-header.cc.

◆ ~GtpcHeader()

ns3::GtpcHeader::~GtpcHeader ( )

virtual

Definition at line 52 of file epc-gtpc-header.cc.

Member Function Documentation

◆ ComputeMessageLength()

void ns3::GtpcHeader::ComputeMessageLength ( void )

Definition at line 194 of file epc-gtpc-header.cc.

References GetMessageSize(), and SetIesLength().

Here is the call graph for this function:

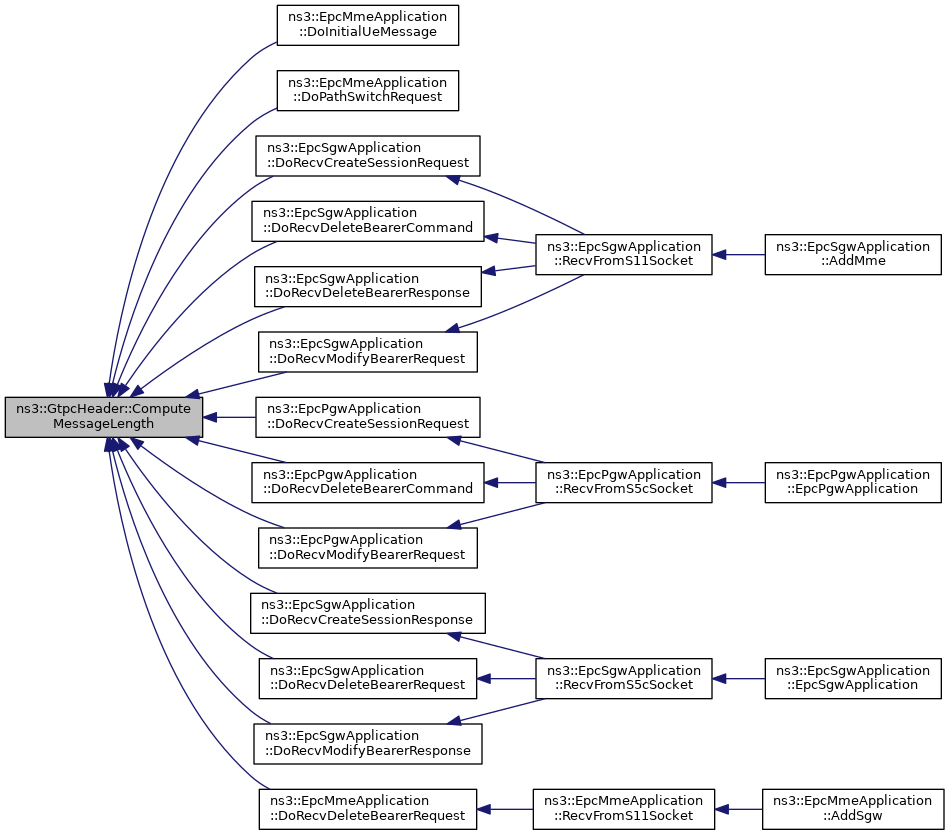

Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::GtpcHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Reimplemented in ns3::GtpcDeleteBearerResponseMessage, ns3::GtpcDeleteBearerRequestMessage, ns3::GtpcDeleteBearerCommandMessage, ns3::GtpcModifyBearerResponseMessage, ns3::GtpcModifyBearerRequestMessage, ns3::GtpcCreateSessionResponseMessage, and ns3::GtpcCreateSessionRequestMessage.

Definition at line 88 of file epc-gtpc-header.cc.

References PreDeserialize(), and visualizer.core::start().

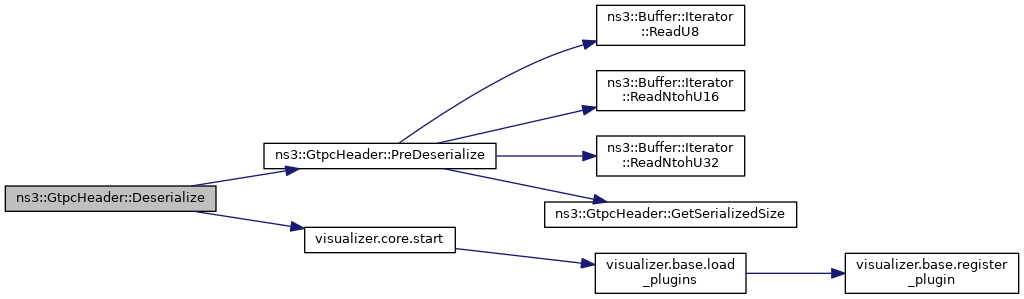

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::GtpcHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Reimplemented in ns3::GtpcDeleteBearerResponseMessage, ns3::GtpcDeleteBearerRequestMessage, ns3::GtpcDeleteBearerCommandMessage, ns3::GtpcModifyBearerResponseMessage, ns3::GtpcModifyBearerRequestMessage, ns3::GtpcCreateSessionResponseMessage, and ns3::GtpcCreateSessionRequestMessage.

Definition at line 57 of file epc-gtpc-header.cc.

References GetTypeId().

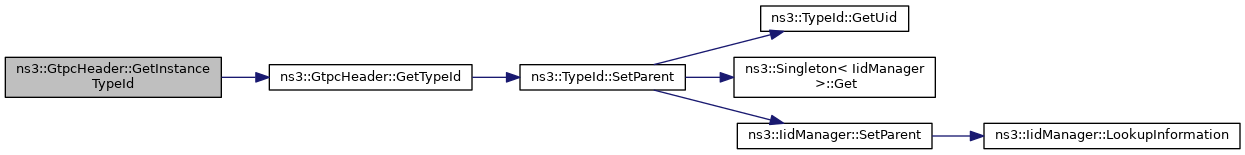

Here is the call graph for this function:

◆ GetMessageLength()

uint16_t ns3::GtpcHeader::GetMessageLength ( ) const

Get message length.

Returns: the message length

Definition at line 143 of file epc-gtpc-header.cc.

References m_messageLength.

◆ GetMessageSize()

uint32_t ns3::GtpcHeader::GetMessageSize ( void ) const

virtual

Reimplemented in ns3::GtpcDeleteBearerResponseMessage, ns3::GtpcDeleteBearerRequestMessage, ns3::GtpcDeleteBearerCommandMessage, ns3::GtpcModifyBearerResponseMessage, ns3::GtpcModifyBearerRequestMessage, ns3::GtpcCreateSessionResponseMessage, and ns3::GtpcCreateSessionRequestMessage.

Definition at line 131 of file epc-gtpc-header.cc.

Referenced by ComputeMessageLength().

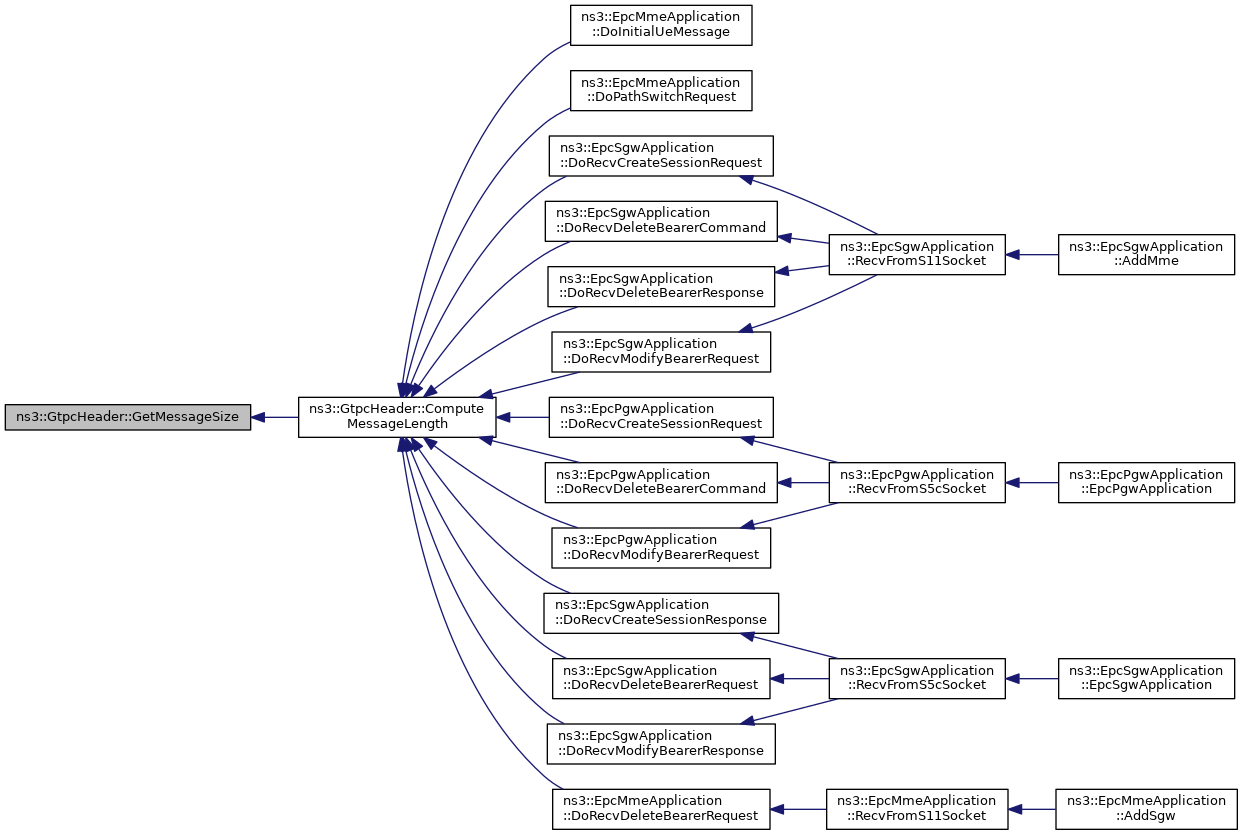

Here is the caller graph for this function:

◆ GetMessageType()

uint8_t ns3::GtpcHeader::GetMessageType ( ) const

Get message type.

Returns: the message type

Definition at line 137 of file epc-gtpc-header.cc.

References m_messageType.

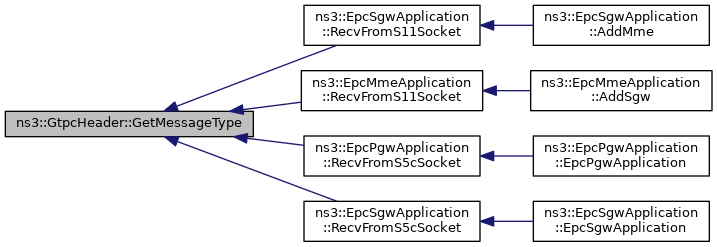

Referenced by ns3::EpcSgwApplication::RecvFromS11Socket(), ns3::EpcMmeApplication::RecvFromS11Socket(), ns3::EpcPgwApplication::RecvFromS5cSocket(), and ns3::EpcSgwApplication::RecvFromS5cSocket().

Here is the caller graph for this function:

◆ GetSequenceNumber()

uint32_t ns3::GtpcHeader::GetSequenceNumber ( void ) const

Get sequence number.

Returns: the sequence number

Definition at line 155 of file epc-gtpc-header.cc.

References m_sequenceNumber.

◆ GetSerializedSize()

uint32_t ns3::GtpcHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Reimplemented in ns3::GtpcDeleteBearerResponseMessage, ns3::GtpcDeleteBearerRequestMessage, ns3::GtpcDeleteBearerCommandMessage, ns3::GtpcModifyBearerResponseMessage, ns3::GtpcModifyBearerRequestMessage, ns3::GtpcCreateSessionResponseMessage, and ns3::GtpcCreateSessionRequestMessage.

Definition at line 63 of file epc-gtpc-header.cc.

References m_teidFlag.

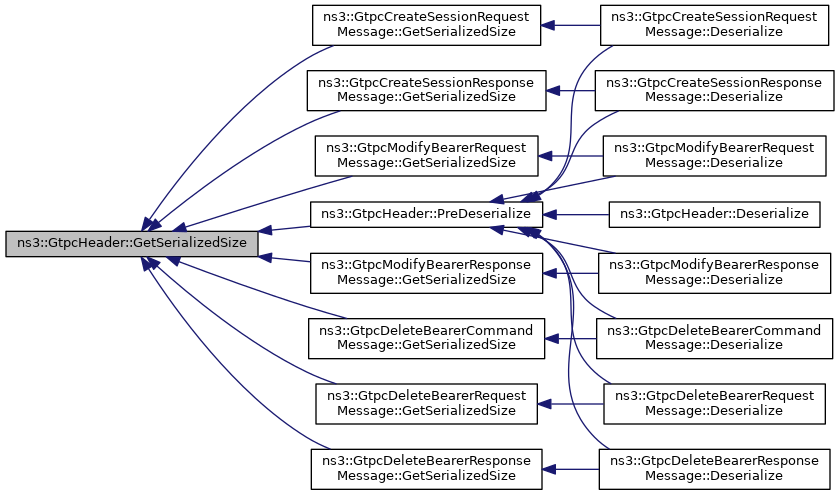

Referenced by ns3::GtpcCreateSessionRequestMessage::GetSerializedSize(), ns3::GtpcCreateSessionResponseMessage::GetSerializedSize(), ns3::GtpcModifyBearerRequestMessage::GetSerializedSize(), ns3::GtpcModifyBearerResponseMessage::GetSerializedSize(), ns3::GtpcDeleteBearerCommandMessage::GetSerializedSize(), ns3::GtpcDeleteBearerRequestMessage::GetSerializedSize(), ns3::GtpcDeleteBearerResponseMessage::GetSerializedSize(), and PreDeserialize().

Here is the caller graph for this function:

◆ GetTeid()

uint32_t ns3::GtpcHeader::GetTeid ( ) const

Get TEID.

Returns: the TEID

Definition at line 149 of file epc-gtpc-header.cc.

References m_teid.

Referenced by ns3::EpcMmeApplication::DoRecvCreateSessionResponse(), ns3::EpcSgwApplication::DoRecvCreateSessionResponse(), ns3::EpcSgwApplication::DoRecvDeleteBearerCommand(), ns3::EpcPgwApplication::DoRecvDeleteBearerCommand(), ns3::EpcMmeApplication::DoRecvDeleteBearerRequest(), ns3::EpcSgwApplication::DoRecvDeleteBearerRequest(), ns3::EpcSgwApplication::DoRecvDeleteBearerResponse(), ns3::EpcPgwApplication::DoRecvDeleteBearerResponse(), ns3::EpcMmeApplication::DoRecvModifyBearerResponse(), and ns3::EpcSgwApplication::DoRecvModifyBearerResponse().

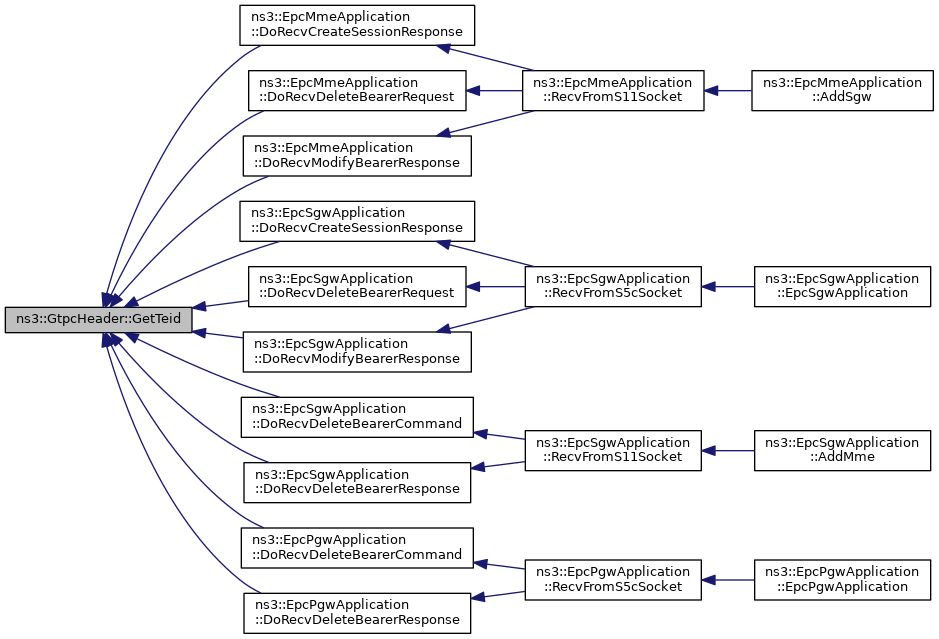

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::GtpcHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 34 of file epc-gtpc-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

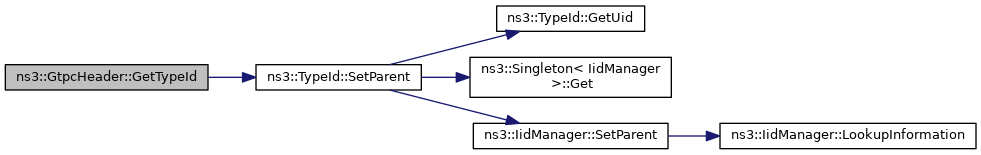

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PreDeserialize()

uint32_t ns3::GtpcHeader::PreDeserialize ( Buffer::Iterator & i )

protected

Deserialize the GTP-C header in the GTP-C messages.

Parameters

i	the buffer iterator

Definition at line 94 of file epc-gtpc-header.cc.

References GetSerializedSize(), m_messageLength, m_messageType, m_sequenceNumber, m_teid, m_teidFlag, NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and conf::version.

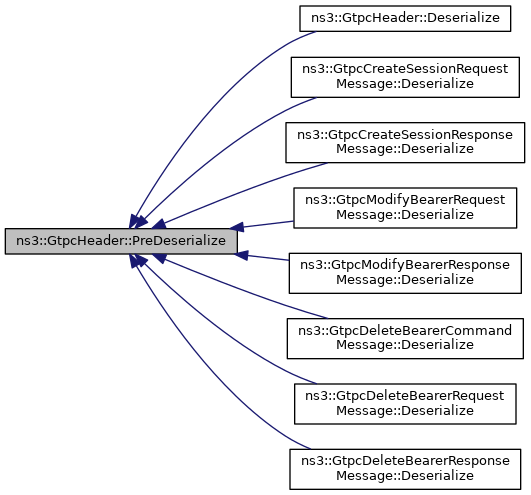

Referenced by Deserialize(), ns3::GtpcCreateSessionRequestMessage::Deserialize(), ns3::GtpcCreateSessionResponseMessage::Deserialize(), ns3::GtpcModifyBearerRequestMessage::Deserialize(), ns3::GtpcModifyBearerResponseMessage::Deserialize(), ns3::GtpcDeleteBearerCommandMessage::Deserialize(), ns3::GtpcDeleteBearerRequestMessage::Deserialize(), and ns3::GtpcDeleteBearerResponseMessage::Deserialize().

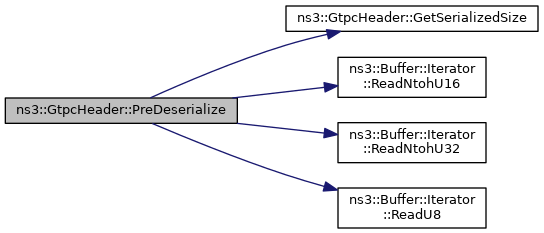

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PreSerialize()

void ns3::GtpcHeader::PreSerialize ( Buffer::Iterator & i ) const

protected

Serialize the GTP-C header in the GTP-C messages.

Parameters

i	the buffer iterator

Definition at line 75 of file epc-gtpc-header.cc.

References m_messageLength, m_messageType, m_sequenceNumber, m_teid, ns3::VERSION, ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::GtpcCreateSessionRequestMessage::Serialize(), ns3::GtpcCreateSessionResponseMessage::Serialize(), ns3::GtpcModifyBearerRequestMessage::Serialize(), ns3::GtpcModifyBearerResponseMessage::Serialize(), ns3::GtpcDeleteBearerCommandMessage::Serialize(), ns3::GtpcDeleteBearerRequestMessage::Serialize(), and ns3::GtpcDeleteBearerResponseMessage::Serialize().

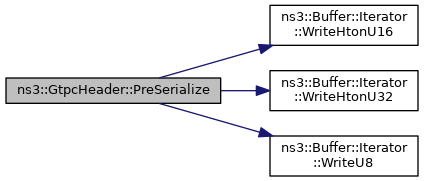

Here is the call graph for this function:

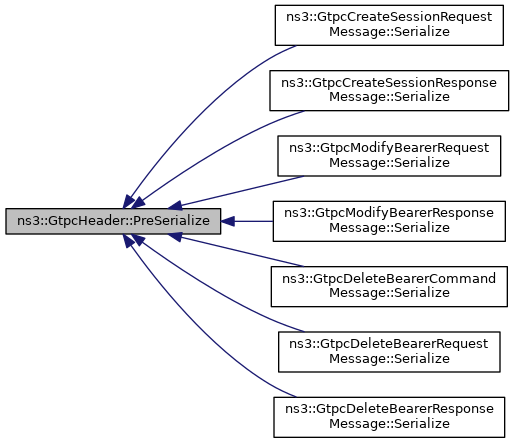

Here is the caller graph for this function:

◆ Print()

void ns3::GtpcHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Reimplemented in ns3::GtpcDeleteBearerResponseMessage, ns3::GtpcDeleteBearerRequestMessage, ns3::GtpcDeleteBearerCommandMessage, ns3::GtpcModifyBearerResponseMessage, ns3::GtpcModifyBearerRequestMessage, ns3::GtpcCreateSessionResponseMessage, and ns3::GtpcCreateSessionRequestMessage.

Definition at line 124 of file epc-gtpc-header.cc.

References m_messageLength, m_messageType, m_sequenceNumber, and m_teid.

◆ Serialize()

void ns3::GtpcHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Reimplemented in ns3::GtpcDeleteBearerResponseMessage, ns3::GtpcDeleteBearerRequestMessage, ns3::GtpcDeleteBearerCommandMessage, ns3::GtpcModifyBearerResponseMessage, ns3::GtpcModifyBearerRequestMessage, ns3::GtpcCreateSessionResponseMessage, and ns3::GtpcCreateSessionRequestMessage.

Definition at line 69 of file epc-gtpc-header.cc.

References NS_FATAL_ERROR.
