ns3::GtpcModifyBearerRequestMessage Class Reference

#include "epc-gtpc-header.h"

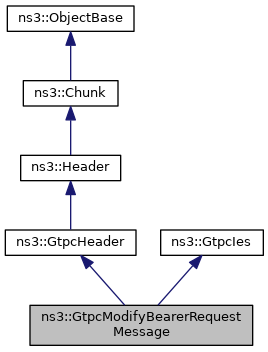

+ Inheritance diagram for ns3::GtpcModifyBearerRequestMessage:

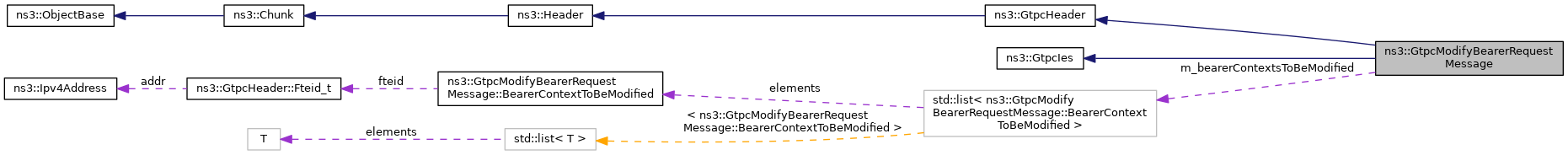

+ Collaboration diagram for ns3::GtpcModifyBearerRequestMessage:

Classes

struct  BearerContextToBeModified


Public Member Functions

 GtpcModifyBearerRequestMessage ()

virtual ~GtpcModifyBearerRequestMessage ()

virtual uint32_t Deserialize (Buffer::Iterator start)

std::list< BearerContextToBeModifiedGetBearerContextsToBeModified () const

uint64_t GetImsi () const

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

virtual uint32_t GetMessageSize (void) const

virtual uint32_t GetSerializedSize (void) const

uint32_t GetUliEcgi () const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetBearerContextsToBeModified (std::list< BearerContextToBeModified > bearerContexts)

void SetImsi (uint64_t imsi)

void SetUliEcgi (uint32_t uliEcgi)

- Public Member Functions inherited from ns3::GtpcHeader
 GtpcHeader ()

virtual ~GtpcHeader ()

void ComputeMessageLength (void)

uint16_t GetMessageLength () const
 Get message length. More...

uint8_t GetMessageType () const
 Get message type. More...

uint32_t GetSequenceNumber () const
 Get sequence number. More...

uint32_t GetTeid () const
 Get TEID. More...

void SetIesLength (uint16_t iesLength)
 Set IEs length. More...

void SetMessageLength (uint16_t messageLength)
 Set message length. More...

void SetMessageType (uint8_t messageType)
 Set message type. More...

void SetSequenceNumber (uint32_t sequenceNumber)
 Set sequence number. More...

void SetTeid (uint32_t teid)
 Set TEID. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...

- Public Member Functions inherited from ns3::GtpcIes
uint32_t DeserializeBearerContextHeader (Buffer::Iterator &i, uint16_t &length)

uint32_t DeserializeBearerQos (Buffer::Iterator &i, EpsBearer &bearerQos)

uint32_t DeserializeBearerTft (Buffer::Iterator &i, Ptr< EpcTft > epcTft)

uint32_t DeserializeCause (Buffer::Iterator &i, Cause_t &cause)

uint32_t DeserializeEbi (Buffer::Iterator &i, uint8_t &epsBearerId)

uint32_t DeserializeFteid (Buffer::Iterator &i, GtpcHeader::Fteid_t &fteid)

uint32_t DeserializeImsi (Buffer::Iterator &i, uint64_t &imsi)

uint32_t DeserializeUliEcgi (Buffer::Iterator &i, uint32_t &uliEcgi)

uint32_t GetSerializedSizeBearerTft (std::list< EpcTft::PacketFilter > packetFilters) const

uint64_t ReadNtohU40 (Buffer::Iterator &i)

void SerializeBearerContextHeader (Buffer::Iterator &i, uint16_t length) const

void SerializeBearerQos (Buffer::Iterator &i, EpsBearer bearerQos) const

void SerializeBearerTft (Buffer::Iterator &i, std::list< EpcTft::PacketFilter > packetFilters) const

void SerializeCause (Buffer::Iterator &i, Cause_t cause) const

void SerializeEbi (Buffer::Iterator &i, uint8_t epsBearerId) const

void SerializeFteid (Buffer::Iterator &i, GtpcHeader::Fteid_t fteid) const

void SerializeImsi (Buffer::Iterator &i, uint64_t imsi) const

void SerializeUliEcgi (Buffer::Iterator &i, uint32_t uliEcgi) const

void WriteHtonU40 (Buffer::Iterator &i, uint64_t data) const


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::GtpcHeader
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

std::list< BearerContextToBeModifiedm_bearerContextsToBeModified

uint64_t m_imsi

uint32_t m_uliEcgi


Additional Inherited Members

- Public Types inherited from ns3::GtpcHeader
enum  InterfaceType_t {
  S1U_ENB_GTPU = 0, S5_SGW_GTPU = 4, S5_PGW_GTPU = 5, S5_SGW_GTPC = 6,
  S5_PGW_GTPC = 7, S11_MME_GTPC = 10
}
 Interface Type enumeration. More...

enum  MessageType_t {
  Reserved = 0, CreateSessionRequest = 32, CreateSessionResponse = 33, ModifyBearerRequest = 34,
  ModifyBearerResponse = 35, DeleteSessionRequest = 36, DeleteSessionResponse = 37, DeleteBearerCommand = 66,
  DeleteBearerRequest = 99, DeleteBearerResponse = 100
}
 Message Type enumeration. More...

- Public Types inherited from ns3::GtpcIes
enum  Cause_t { RESERVED = 0, REQUEST_ACCEPTED = 16 }

- Public Attributes inherited from ns3::GtpcIes
const uint32_t serializedSizeBearerContextHeader = 4

const uint32_t serializedSizeBearerQos = 26

const uint32_t serializedSizeCause = 6

const uint32_t serializedSizeEbi = 5

const uint32_t serializedSizeFteid = 13

const uint32_t serializedSizeImsi = 12

const uint32_t serializedSizePacketFilter = 3 + 9 + 9 + 5 + 5 + 3

const uint32_t serializedSizeUliEcgi = 12

- Protected Member Functions inherited from ns3::GtpcHeader
uint32_t PreDeserialize (Buffer::Iterator &i)
 Deserialize the GTP-C header in the GTP-C messages. More...

void PreSerialize (Buffer::Iterator &i) const
 Serialize the GTP-C header in the GTP-C messages. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Definition at line 320 of file epc-gtpc-header.h.

Constructor & Destructor Documentation

◆ GtpcModifyBearerRequestMessage()

ns3::GtpcModifyBearerRequestMessage::GtpcModifyBearerRequestMessage ( )

Definition at line 794 of file epc-gtpc-header.cc.

References m_imsi, m_uliEcgi, ns3::GtpcHeader::ModifyBearerRequest, ns3::GtpcHeader::SetMessageType(), and ns3::GtpcHeader::SetSequenceNumber().

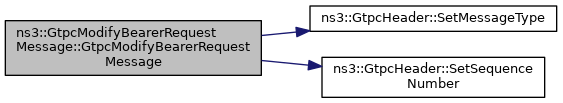

+ Here is the call graph for this function:

◆ ~GtpcModifyBearerRequestMessage()

ns3::GtpcModifyBearerRequestMessage::~GtpcModifyBearerRequestMessage ( )
virtual

Definition at line 802 of file epc-gtpc-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::GtpcModifyBearerRequestMessage::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Reimplemented from ns3::GtpcHeader.

Definition at line 847 of file epc-gtpc-header.cc.

References ns3::GtpcIes::DeserializeBearerContextHeader(), ns3::GtpcIes::DeserializeEbi(), ns3::GtpcIes::DeserializeFteid(), ns3::GtpcIes::DeserializeImsi(), ns3::GtpcIes::DeserializeUliEcgi(), ns3::GtpcModifyBearerRequestMessage::BearerContextToBeModified::epsBearerId, ns3::GtpcModifyBearerRequestMessage::BearerContextToBeModified::fteid, ns3::Buffer::Iterator::GetRemainingSize(), GetSerializedSize(), m_bearerContextsToBeModified, m_imsi, m_uliEcgi, ns3::GtpcHeader::PreDeserialize(), and visualizer.core::start().

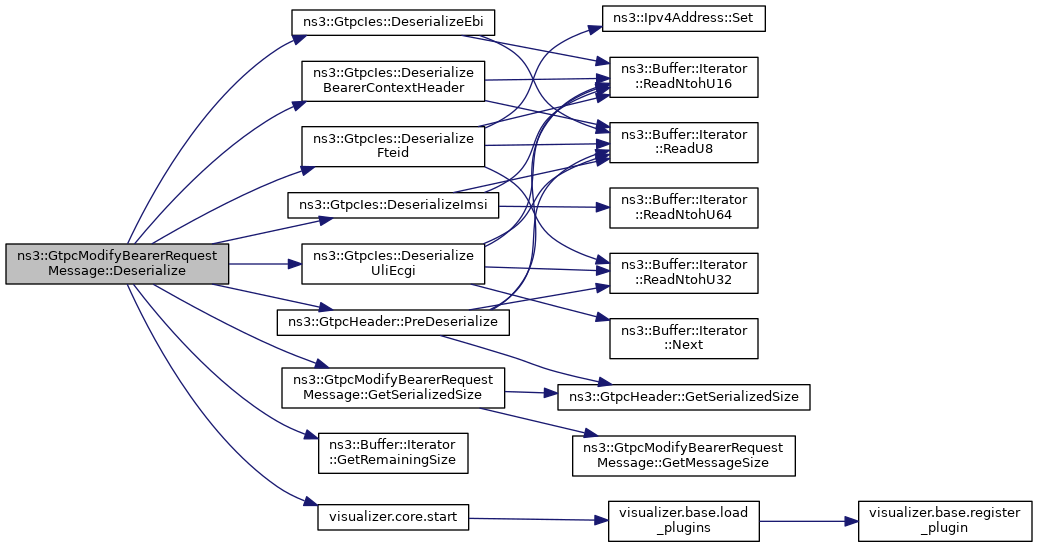

+ Here is the call graph for this function:

◆ GetBearerContextsToBeModified()

std::list< GtpcModifyBearerRequestMessage::BearerContextToBeModified > ns3::GtpcModifyBearerRequestMessage::GetBearerContextsToBeModified ( ) const

Definition at line 902 of file epc-gtpc-header.cc.

References m_bearerContextsToBeModified.

Referenced by ns3::EpcSgwApplication::DoRecvModifyBearerRequest(), and ns3::EpcPgwApplication::DoRecvModifyBearerRequest().

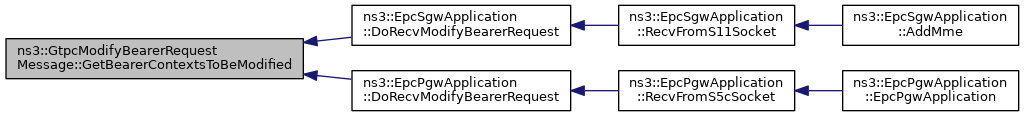

+ Here is the caller graph for this function:

◆ GetImsi()

uint64_t ns3::GtpcModifyBearerRequestMessage::GetImsi ( ) const

Definition at line 878 of file epc-gtpc-header.cc.

References m_imsi.

Referenced by ns3::EpcSgwApplication::DoRecvModifyBearerRequest(), and ns3::EpcPgwApplication::DoRecvModifyBearerRequest().

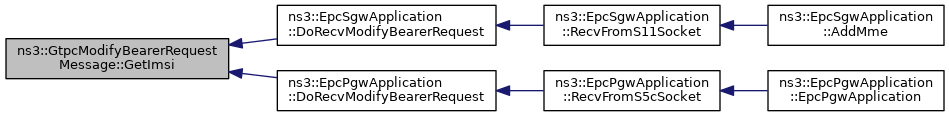

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::GtpcModifyBearerRequestMessage::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Reimplemented from ns3::GtpcHeader.

Definition at line 807 of file epc-gtpc-header.cc.

References GetTypeId().

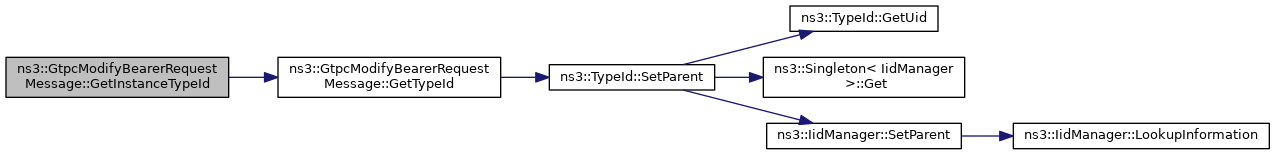

+ Here is the call graph for this function:

◆ GetMessageSize()

uint32_t ns3::GtpcModifyBearerRequestMessage::GetMessageSize ( void  ) const
virtual

◆ GetSerializedSize()

uint32_t ns3::GtpcModifyBearerRequestMessage::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Reimplemented from ns3::GtpcHeader.

Definition at line 823 of file epc-gtpc-header.cc.

References GetMessageSize(), and ns3::GtpcHeader::GetSerializedSize().

Referenced by Deserialize().

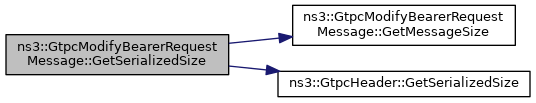

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::GtpcModifyBearerRequestMessage::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 785 of file epc-gtpc-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

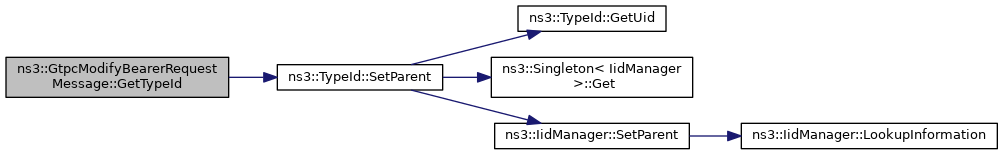

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetUliEcgi()

uint32_t ns3::GtpcModifyBearerRequestMessage::GetUliEcgi ( ) const

Definition at line 890 of file epc-gtpc-header.cc.

References m_uliEcgi.

Referenced by ns3::EpcSgwApplication::DoRecvModifyBearerRequest(), and ns3::EpcPgwApplication::DoRecvModifyBearerRequest().

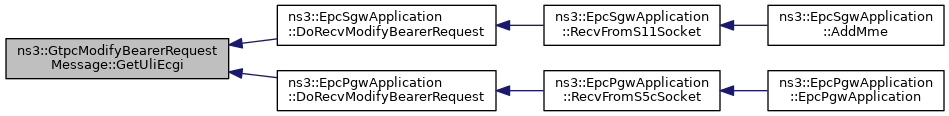

+ Here is the caller graph for this function:

◆ Print()

void ns3::GtpcModifyBearerRequestMessage::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Reimplemented from ns3::GtpcHeader.

Definition at line 872 of file epc-gtpc-header.cc.

References m_imsi, and m_uliEcgi.

◆ Serialize()

void ns3::GtpcModifyBearerRequestMessage::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Reimplemented from ns3::GtpcHeader.

Definition at line 829 of file epc-gtpc-header.cc.

References m_bearerContextsToBeModified, m_imsi, m_uliEcgi, ns3::GtpcHeader::PreSerialize(), ns3::GtpcIes::SerializeBearerContextHeader(), ns3::GtpcIes::serializedSizeEbi, ns3::GtpcIes::serializedSizeFteid, ns3::GtpcIes::SerializeEbi(), ns3::GtpcIes::SerializeFteid(), ns3::GtpcIes::SerializeImsi(), ns3::GtpcIes::SerializeUliEcgi(), and visualizer.core::start().

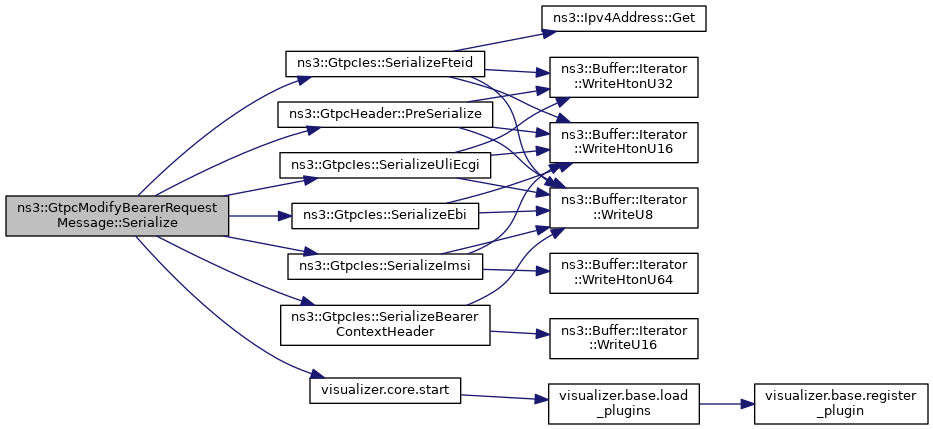

+ Here is the call graph for this function:

◆ SetBearerContextsToBeModified()

void ns3::GtpcModifyBearerRequestMessage::SetBearerContextsToBeModified ( std::list< BearerContextToBeModified bearerContexts)

Definition at line 908 of file epc-gtpc-header.cc.

References m_bearerContextsToBeModified.

Referenced by ns3::EpcMmeApplication::DoPathSwitchRequest().

+ Here is the caller graph for this function:

◆ SetImsi()

void ns3::GtpcModifyBearerRequestMessage::SetImsi ( uint64_t  imsi)

Definition at line 884 of file epc-gtpc-header.cc.

References m_imsi.

Referenced by ns3::EpcMmeApplication::DoPathSwitchRequest(), and ns3::EpcSgwApplication::DoRecvModifyBearerRequest().

+ Here is the caller graph for this function:

◆ SetUliEcgi()

void ns3::GtpcModifyBearerRequestMessage::SetUliEcgi ( uint32_t  uliEcgi)

Definition at line 896 of file epc-gtpc-header.cc.

References m_uliEcgi.

Referenced by ns3::EpcMmeApplication::DoPathSwitchRequest(), and ns3::EpcSgwApplication::DoRecvModifyBearerRequest().

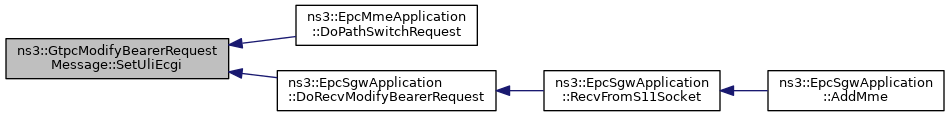

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_bearerContextsToBeModified

std::list<BearerContextToBeModified> ns3::GtpcModifyBearerRequestMessage::m_bearerContextsToBeModified
private

◆ m_imsi

uint64_t ns3::GtpcModifyBearerRequestMessage::m_imsi
private

◆ m_uliEcgi

uint32_t ns3::GtpcModifyBearerRequestMessage::m_uliEcgi
private

The documentation for this class was generated from the following files:
