A Discrete-Event Network Simulator
API
Public Member Functions | Static Public Member Functions | Private Member Functions | Private Attributes | List of all members
SimpleSource Class Reference

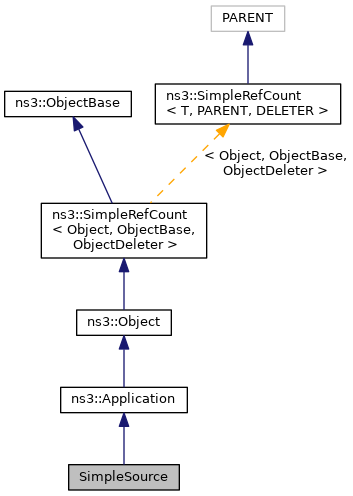

+ Inheritance diagram for SimpleSource:

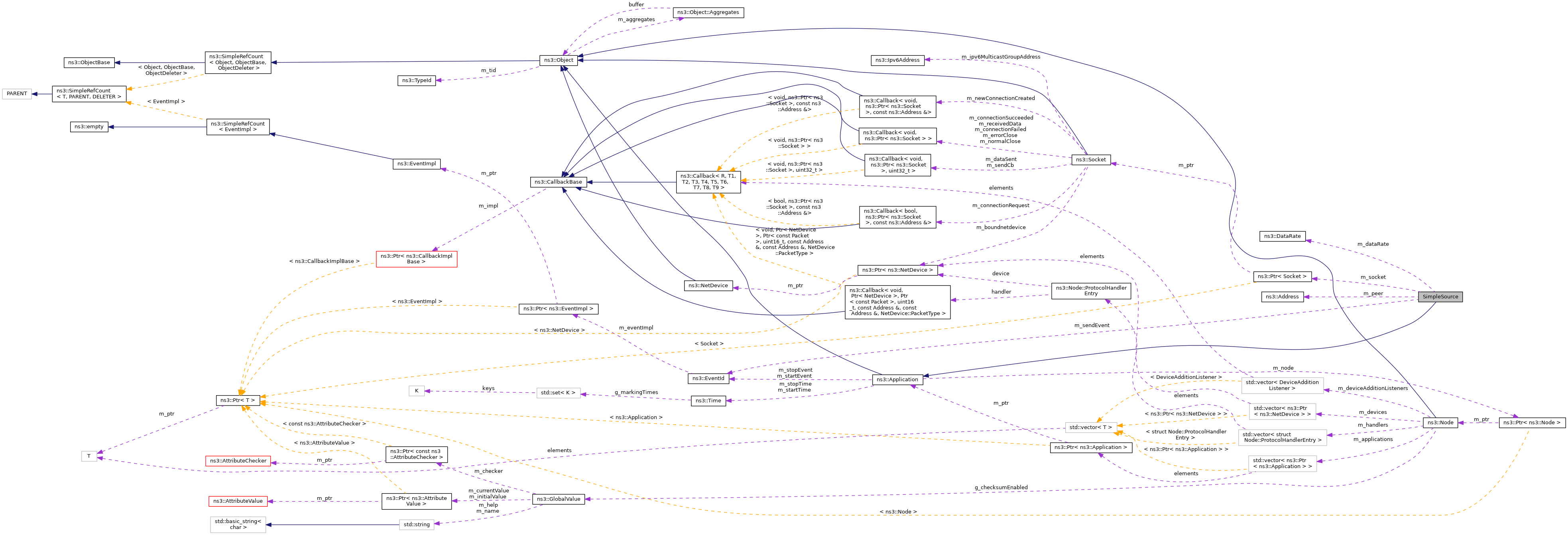

+ Collaboration diagram for SimpleSource:

Public Member Functions

 SimpleSource ()

virtual ~SimpleSource ()

void Setup (Ptr< Socket > socket, Address address, uint32_t packetSize, uint32_t nPackets, DataRate dataRate)

- Public Member Functions inherited from ns3::Application
 Application ()

virtual ~Application ()

Ptr< Node > GetNode () const

void SetNode (Ptr< Node > node)

void SetStartTime (Time start)
 Specify application start time. More...

void SetStopTime (Time stop)
 Specify application stop time. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object > GetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object > GetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Application
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void ScheduleTx (void)

void SendPacket (void)

virtual void StartApplication (void)
 Application specific startup code. More...

virtual void StopApplication (void)
 Application specific shutdown code. More...


Private Attributes

DataRate m_dataRate

uint32_t m_nPackets

uint32_t m_packetSize

uint32_t m_packetsSent

Address m_peer

bool m_running

EventId m_sendEvent

Ptr< Socket > m_socket


Additional Inherited Members

- Public Types inherited from ns3::Application
typedef void(* DelayAddressCallback) (const Time &delay, const Address &from)
 Common callback signature for packet delay and address. More...

typedef void(* StateTransitionCallback) (const std::string &oldState, const std::string &newState)
 Common signature used by callbacks to application's state transition trace source. More...

- Protected Member Functions inherited from ns3::Application
virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Protected Attributes inherited from ns3::Application
Ptr< Node > m_node
 The node that this application is installed on. More...

EventId m_startEvent
 The event that will fire at m_startTime to start the application. More...

Time m_startTime
 The simulation time that the application will start. More...

EventId m_stopEvent
 The event that will fire at m_stopTime to end the application. More...

Time m_stopTime
 The simulation time that the application will end. More...

- Related Functions inherited from ns3::ObjectBase
static TypeId GetObjectIid (void)
 Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...


Detailed Description

Definition at line 79 of file ns3tcp-cwnd-test-suite.cc.

Constructor & Destructor Documentation

◆ SimpleSource()

SimpleSource::SimpleSource ( )

Definition at line 111 of file ns3tcp-cwnd-test-suite.cc.

◆ ~SimpleSource()

SimpleSource::~SimpleSource ( )
virtual

Definition at line 123 of file ns3tcp-cwnd-test-suite.cc.

References m_socket.

Member Function Documentation

◆ GetTypeId()

TypeId SimpleSource::GetTypeId ( void  )
static

Register this type.

Returns
The TypeId.

Definition at line 130 of file ns3tcp-cwnd-test-suite.cc.

References ns3::TypeId::SetParent().

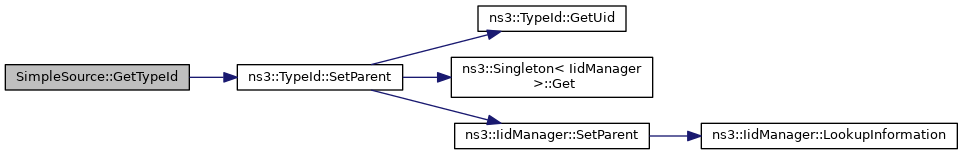

+ Here is the call graph for this function:

◆ ScheduleTx()

void SimpleSource::ScheduleTx ( void  )
private

Definition at line 189 of file ns3tcp-cwnd-test-suite.cc.

References ns3::DataRate::GetBitRate(), m_dataRate, m_packetSize, m_running, m_sendEvent, ns3::Seconds(), and SendPacket().

Referenced by SendPacket().

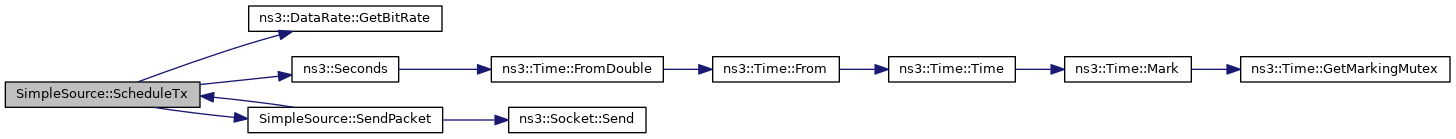

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SendPacket()

void SimpleSource::SendPacket ( void  )
private

Definition at line 177 of file ns3tcp-cwnd-test-suite.cc.

References m_nPackets, m_packetSize, m_packetsSent, m_socket, ScheduleTx(), and ns3::Socket::Send().

Referenced by ScheduleTx(), and StartApplication().

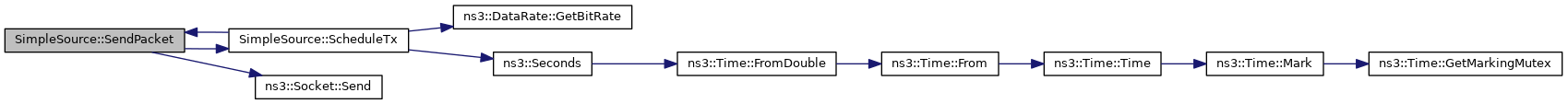

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Setup()

void SimpleSource::Setup ( Ptr< Socket >  socket,
Address  address,
uint32_t  packetSize,
uint32_t  nPackets,
DataRate  dataRate
)

Definition at line 141 of file ns3tcp-cwnd-test-suite.cc.

References first::address, m_dataRate, m_nPackets, m_packetSize, m_peer, m_socket, and packetSize.

Referenced by Ns3TcpCwndTestCase1::DoRun(), and Ns3TcpCwndTestCase2::DoRun().

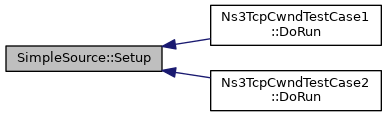

+ Here is the caller graph for this function:

◆ StartApplication()

void SimpleSource::StartApplication ( void  )
privatevirtual

Application specific startup code.

The StartApplication method is called at the start time specified by Start This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 151 of file ns3tcp-cwnd-test-suite.cc.

References ns3::Socket::Bind(), ns3::Socket::Connect(), m_packetsSent, m_peer, m_running, m_socket, and SendPacket().

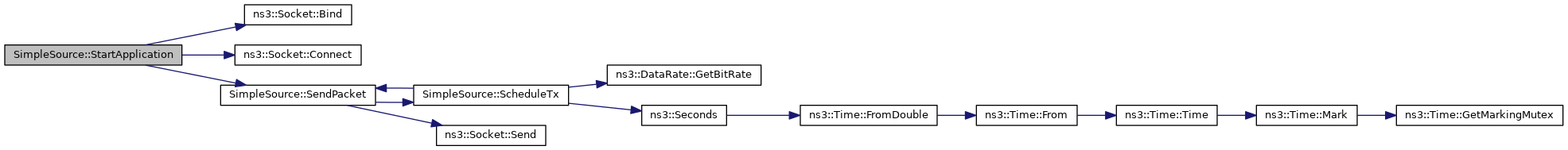

+ Here is the call graph for this function:

◆ StopApplication()

void SimpleSource::StopApplication ( void  )
privatevirtual

Application specific shutdown code.

The StopApplication method is called at the stop time specified by Stop This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 161 of file ns3tcp-cwnd-test-suite.cc.

References ns3::Socket::Close(), ns3::EventId::IsRunning(), m_running, m_sendEvent, and m_socket.

+ Here is the call graph for this function:

Member Data Documentation

◆ m_dataRate

DataRate SimpleSource::m_dataRate
private

Definition at line 105 of file ns3tcp-cwnd-test-suite.cc.

Referenced by ScheduleTx(), and Setup().

◆ m_nPackets

uint32_t SimpleSource::m_nPackets
private

Definition at line 104 of file ns3tcp-cwnd-test-suite.cc.

Referenced by SendPacket(), and Setup().

◆ m_packetSize

uint32_t SimpleSource::m_packetSize
private

Definition at line 103 of file ns3tcp-cwnd-test-suite.cc.

Referenced by ScheduleTx(), SendPacket(), and Setup().

◆ m_packetsSent

uint32_t SimpleSource::m_packetsSent
private

Definition at line 108 of file ns3tcp-cwnd-test-suite.cc.

Referenced by SendPacket(), and StartApplication().

◆ m_peer

Address SimpleSource::m_peer
private

Definition at line 102 of file ns3tcp-cwnd-test-suite.cc.

Referenced by Setup(), and StartApplication().

◆ m_running

bool SimpleSource::m_running
private

Definition at line 107 of file ns3tcp-cwnd-test-suite.cc.

Referenced by ScheduleTx(), StartApplication(), and StopApplication().

◆ m_sendEvent

EventId SimpleSource::m_sendEvent
private

Definition at line 106 of file ns3tcp-cwnd-test-suite.cc.

Referenced by ScheduleTx(), and StopApplication().

◆ m_socket

Ptr<Socket> SimpleSource::m_socket
private

Definition at line 101 of file ns3tcp-cwnd-test-suite.cc.

Referenced by SendPacket(), Setup(), StartApplication(), StopApplication(), and ~SimpleSource().

The documentation for this class was generated from the following file:
