PHY entity for HR/DSSS (11b)Refer to IEEE 802.11-2016, clause 16 (HR/DSSS). More...

#include "dsss-phy.h"

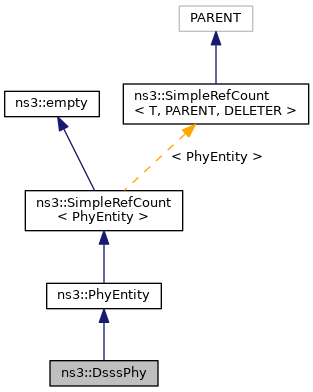

Inheritance diagram for ns3::DsssPhy:

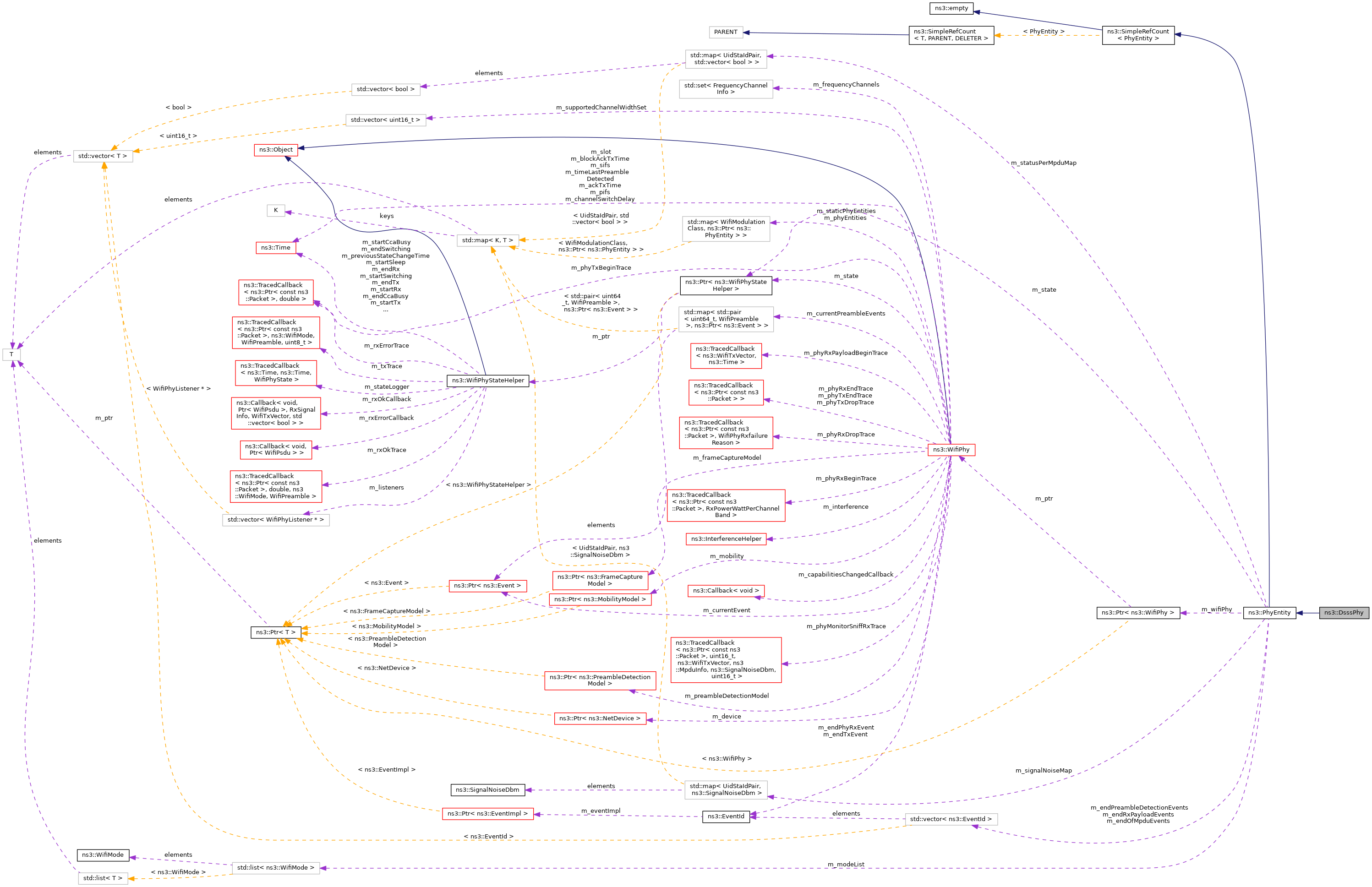

Collaboration diagram for ns3::DsssPhy:

Public Member Functions

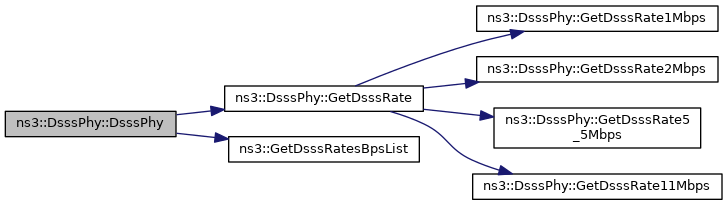

	DsssPhy ()
	Constructor for HR/DSSS PHY. More...

virtual	~DsssPhy ()
	Destructor for HR/DSSS PHY. More...

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU. More...

Time	GetDuration (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters. More...

uint32_t	GetMaxPsduSize (void) const override
	Get the maximum PSDU size in bytes. More...

Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const override

const PpduFormats &	GetPpduFormats (void) const override
	Return the PPDU formats of the PHY. More...

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field. More...

Public Member Functions inherited from ns3::PhyEntity
virtual	~PhyEntity ()
	Destructor for PHY entity. More...

std::list< WifiMode >::const_iterator	begin (void) const
	Return a const iterator to the first WifiMode. More...

Time	CalculatePhyPreambleAndHeaderDuration (const WifiTxVector &txVector) const

virtual Time	CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band) const

virtual void	CancelAllEvents (void)
	Cancel and clear all running events. More...

void	CancelRunningEndPreambleDetectionEvents (bool clear=false)
	Cancel and eventually clear all end preamble detection events. More...

std::list< WifiMode >::const_iterator	end (void) const
	Return a const iterator to past-the-last WifiMode. More...

void	EndReceiveField (WifiPpduField field, Ptr< Event > event)
	End receiving a given field. More...

void	EndReceivePayload (Ptr< Event > event)
	The last symbol of the PPDU has arrived. More...

virtual Ptr< const WifiPsdu >	GetAddressedPsduInPpdu (Ptr< const WifiPpdu > ppdu) const
	Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU). More...

Time	GetDurationUpToField (WifiPpduField field, const WifiTxVector &txVector) const
	Get the duration of the PPDU up to (but excluding) the given field. More...

virtual WifiMode	GetMcs (uint8_t index) const
	Get the WifiMode corresponding to the given MCS index. More...

virtual uint16_t	GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const
	Return the channel width used to measure the RSSI. More...

WifiPpduField	GetNextField (WifiPpduField currentField, WifiPreamble preamble) const
	Return the field following the provided one. More...

virtual uint8_t	GetNumModes (void) const

PhyHeaderSections	GetPhyHeaderSections (const WifiTxVector &txVector, Time ppduStart) const
	Return a map of PHY header chunk information per PPDU field. More...

Time	GetRemainingDurationAfterField (Ptr< const WifiPpdu > ppdu, WifiPpduField field) const
	Get the remaining duration of the PPDU after the end of the given field. More...

virtual uint16_t	GetStaId (const Ptr< const WifiPpdu > ppdu) const
	Return the STA ID that has been assigned to the station this PHY belongs to. More...

virtual WifiConstPsduMap	GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) const
	Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU. More...

virtual bool	HandlesMcsModes (void) const
	Check if the WifiModes handled by this PHY are MCSs. More...

virtual bool	IsMcsSupported (uint8_t index) const
	Check if the WifiMode corresponding to the given MCS index is supported. More...

virtual bool	IsModeSupported (WifiMode mode) const
	Check if the WifiMode is supported. More...

bool	NoEndPreambleDetectionEvents (void) const

void	ResetReceive (Ptr< Event > event)
	Reset PHY at the end of the PPDU under reception after it has failed the PHY header. More...

void	SetOwner (Ptr< WifiPhy > wifiPhy)
	Set the WifiPhy owning this PHY entity. More...

void	StartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field. More...

virtual void	StartReceivePreamble (Ptr< WifiPpdu > ppdu, RxPowerWattPerChannelBand rxPowersW, Time rxDuration)
	Start receiving the PHY preamble of a PPDU (i.e. More...

virtual void	StartTx (Ptr< WifiPpdu > ppdu)
	This function is called by SpectrumWifiPhy to send the PPDU while performing amendment-specific actions. More...

void	Transmit (Time txDuration, Ptr< WifiPpdu > ppdu, std::string type)
	This function prepares most of the WifiSpectrumSignalParameters parameters and invokes SpectrumWifiPhy's Transmit method. More...

Public Member Functions inherited from ns3::SimpleRefCount< PhyEntity >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Static Public Member Functions
static WifiCodeRate	GetCodeRate (const std::string &name)
	Return the WifiCodeRate from the DSSS or HR/DSSS mode's unique name using ModulationLookupTable. More...

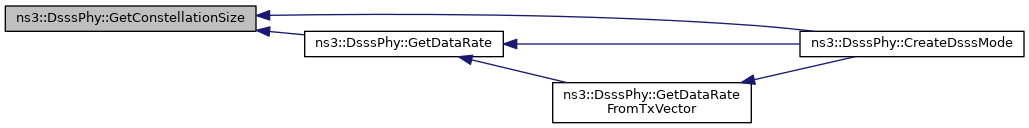

static uint16_t	GetConstellationSize (const std::string &name)
	Return the constellation size from the DSSS or HR/DSSS mode's unique name using ModulationLookupTable. More...

static uint64_t	GetDataRate (const std::string &name, WifiModulationClass modClass, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the data rate from the DSSS or HR/DSSS mode's unique name and the supplied parameters. More...

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR. More...

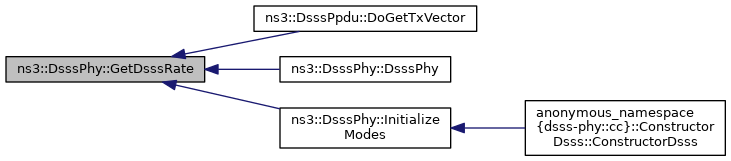

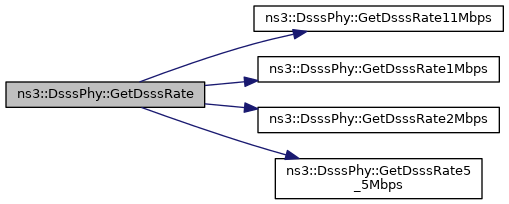

static WifiMode	GetDsssRate (uint64_t rate)
	Return a WifiMode for HR/DSSS corresponding to the provided rate. More...

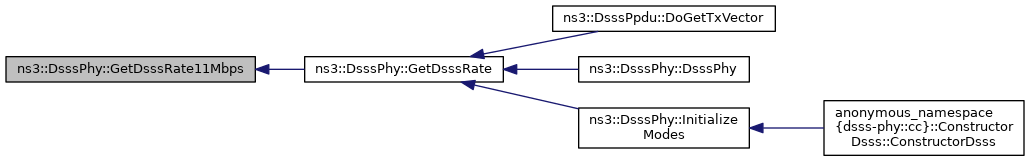

static WifiMode	GetDsssRate11Mbps (void)
	Return a WifiMode for HR/DSSS at 11 Mbps. More...

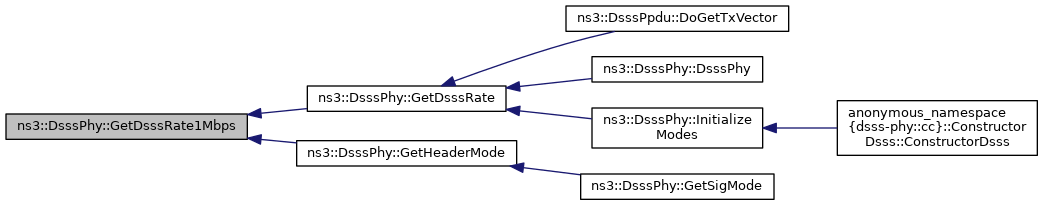

static WifiMode	GetDsssRate1Mbps (void)
	Return a WifiMode for DSSS at 1 Mbps. More...

static WifiMode	GetDsssRate2Mbps (void)
	Return a WifiMode for DSSS at 2 Mbps. More...

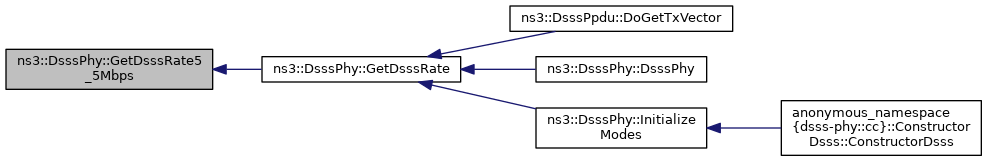

static WifiMode	GetDsssRate5_5Mbps (void)
	Return a WifiMode for HR/DSSS at 5.5 Mbps. More...

static void	InitializeModes (void)
	Initialize all HR/DSSS modes. More...

static bool	IsModeAllowed (uint16_t channelWidth, uint8_t nss)
	Check whether the combination of <WifiMode, channel width, NSS> is allowed. More...

Private Member Functions

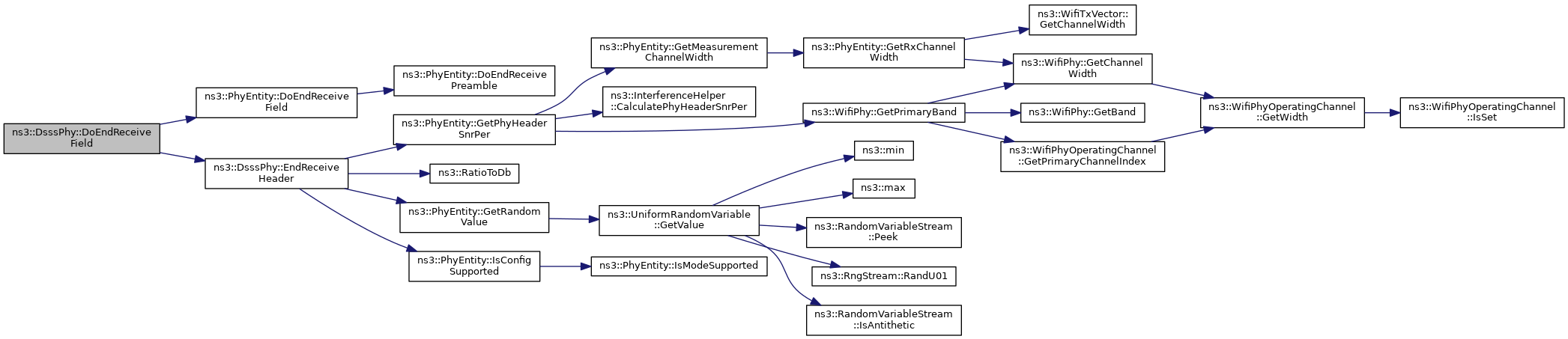

PhyFieldRxStatus	DoEndReceiveField (WifiPpduField field, Ptr< Event > event) override
	End receiving a given field, perform amendment-specific actions, and provide the status of the reception. More...

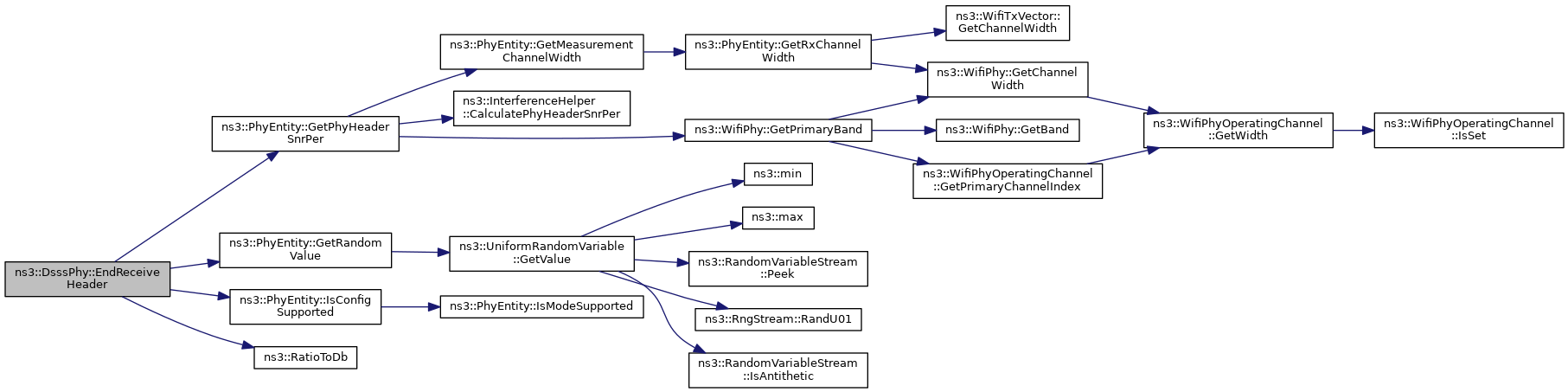

PhyFieldRxStatus	EndReceiveHeader (Ptr< Event > event)
	End receiving the header, perform DSSS-specific actions, and provide the status of the reception. More...

Time	GetHeaderDuration (const WifiTxVector &txVector) const

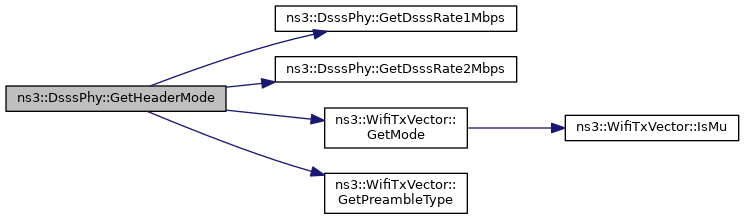

WifiMode	GetHeaderMode (const WifiTxVector &txVector) const

Time	GetPreambleDuration (const WifiTxVector &txVector) const

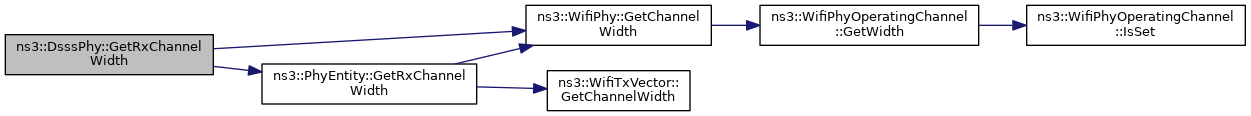

uint16_t	GetRxChannelWidth (const WifiTxVector &txVector) const override
	Return the channel width used in the reception spectrum model. More...

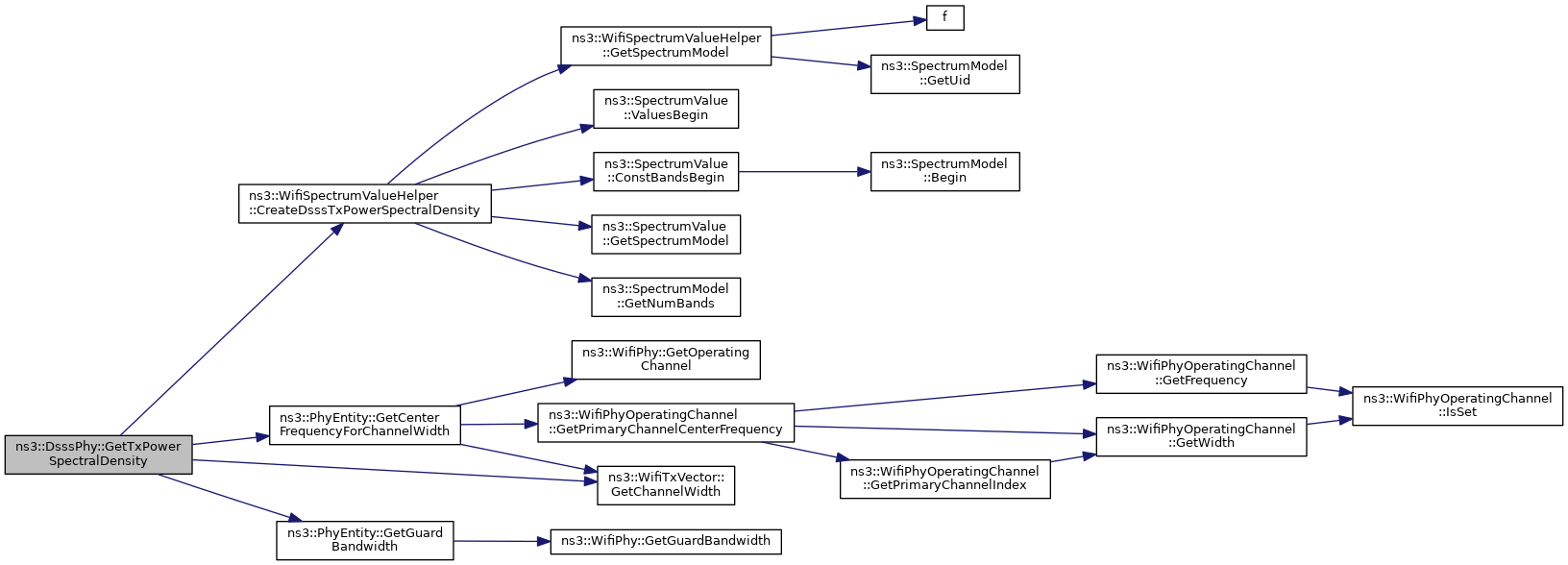

Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

Static Private Member Functions

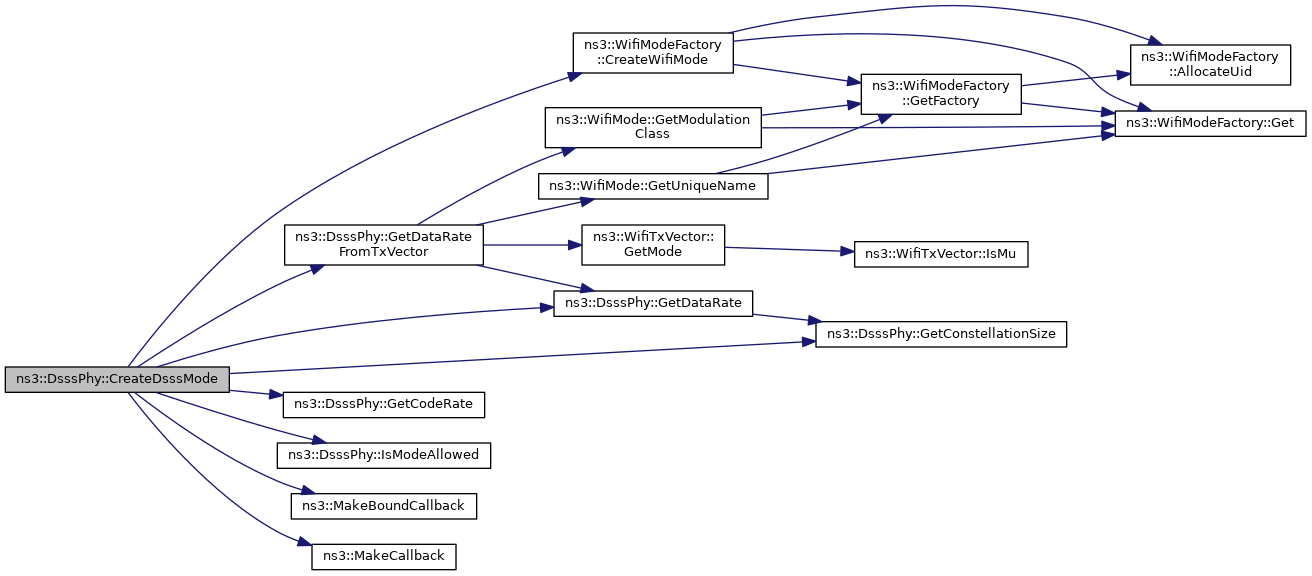

static WifiMode	CreateDsssMode (std::string uniqueName, WifiModulationClass modClass)
	Create a DSSS or HR/DSSS mode from a unique name, the unique name must already be contained inside ModulationLookupTable. More...

Static Private Attributes
static const ModulationLookupTable	m_dsssModulationLookupTable
	lookup table to retrieve code rate and constellation size corresponding to a unique name of modulation More...

static const PpduFormats	m_dsssPpduFormats
	DSSS and HR/DSSS PPDU formats. More...

Additional Inherited Members
Public Types inherited from ns3::PhyEntity
typedef std::pair< std::pair< Time, Time >, WifiMode >	PhyHeaderChunkInfo
	A pair containing information on the PHY header chunk, namely the start and stop times of the chunk and the WifiMode used. More...

typedef std::map< WifiPpduField, PhyHeaderChunkInfo >	PhyHeaderSections
	A map of PhyHeaderChunkInfo elements per PPDU field. More...

enum	PhyRxFailureAction { DROP = 0, ABORT, IGNORE }
	Action to perform in case of RX failure. More...

Protected Types inherited from ns3::PhyEntity
typedef std::pair< WifiCodeRate, uint16_t >	CodeRateConstellationSizePair
	A pair to hold modulation information: code rate and constellation size. More...

typedef std::map< std::string, CodeRateConstellationSizePair >	ModulationLookupTable
	A modulation lookup table using unique name of modulation as key. More...

typedef std::map< WifiPreamble, std::vector< WifiPpduField > >	PpduFormats
	A map of PPDU field elements per preamble type. More...

typedef std::pair< uint64_t, uint16_t >	UidStaIdPair
	A pair of a UID and STA_ID. More...

Protected Member Functions inherited from ns3::PhyEntity
void	AbortCurrentReception (WifiPhyRxfailureReason reason)
	Abort the current reception. More...

void	AddPreambleEvent (Ptr< Event > event)
	Add an entry to the map of current preamble events (stored in WifiPhy). More...

Ptr< Event >	CreateInterferenceEvent (Ptr< const WifiPpdu > ppdu, const WifiTxVector &txVector, Time duration, RxPowerWattPerChannelBand rxPower, bool isStartOfdmaRxing=false)
	Create an event using WifiPhy's InterferenceHelper class. More...

virtual void	DoAbortCurrentReception (WifiPhyRxfailureReason reason)
	Perform amendment-specific actions before aborting the current reception. More...

virtual void	DoEndReceivePayload (Ptr< const WifiPpdu > ppdu)
	Perform amendment-specific actions at the end of the reception of the payload. More...

virtual PhyFieldRxStatus	DoEndReceivePreamble (Ptr< Event > event)
	End receiving the preamble, perform amendment-specific actions, and provide the status of the reception. More...

virtual Ptr< Event >	DoGetEvent (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand rxPowersW)
	Get the event corresponding to the incoming PPDU. More...

virtual void	DoResetReceive (Ptr< Event > event)
	Perform amendment-specific actions before resetting PHY at the end of the PPDU under reception after it has failed the PHY header. More...

virtual bool	DoStartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field, perform amendment-specific actions, and signify if it is supported. More...

virtual void	DoStartReceivePayload (Ptr< Event > event)
	Start receiving the PSDU (i.e. More...

void	DropPreambleEvent (Ptr< const WifiPpdu > ppdu, WifiPhyRxfailureReason reason, Time endRx, uint16_t measurementChannelWidth)
	Drop the PPDU and the corresponding preamble detection event, but keep CCA busy state after the completion of the currently processed event. More...

void	EndOfMpdu (Ptr< Event > event, Ptr< const WifiPsdu > psdu, size_t mpduIndex, Time relativeStart, Time mpduDuration)
	The last symbol of an MPDU in an A-MPDU has arrived. More...

void	EndPreambleDetectionPeriod (Ptr< Event > event)
	End the preamble detection period. More...

void	ErasePreambleEvent (Ptr< const WifiPpdu > ppdu, Time rxDuration)
	Erase the event corresponding to the PPDU from the list of preamble events, but consider it as noise after the completion of the current event. More...

uint16_t	GetCenterFrequencyForChannelWidth (const WifiTxVector &txVector) const
	Get the center frequency of the channel corresponding the current TxVector rather than that of the supported channel width. More...

virtual std::pair< uint16_t, WifiSpectrumBand >	GetChannelWidthAndBand (const WifiTxVector &txVector, uint16_t staId) const
	Get the channel width and band to use (will be overloaded by child classes). More...

Ptr< const Event >	GetCurrentEvent (void) const
	Get the pointer to the current event (stored in WifiPhy). More...

const std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > > &	GetCurrentPreambleEvents (void) const
	Get the map of current preamble events (stored in WifiPhy). More...

uint16_t	GetGuardBandwidth (uint16_t currentChannelWidth) const

SnrPer	GetPhyHeaderSnrPer (WifiPpduField field, Ptr< Event > event) const
	Obtain the SNR and PER of the PPDU field from the WifiPhy's InterferenceHelper class. More...

double	GetRandomValue (void) const
	Obtain a random value from the WifiPhy's generator. More...

std::pair< bool, SignalNoiseDbm >	GetReceptionStatus (Ptr< const WifiPsdu > psdu, Ptr< Event > event, uint16_t staId, Time relativeMpduStart, Time mpduDuration)
	Get the reception status for the provided MPDU and notify. More...

double	GetRxPowerWForPpdu (Ptr< Event > event) const
	Obtain the received power (W) for a given band. More...

std::tuple< double, double, double >	GetTxMaskRejectionParams (void) const

virtual bool	IsConfigSupported (Ptr< const WifiPpdu > ppdu) const
	Checks if the signaled configuration (excluding bandwidth) is supported by the PHY. More...

void	NotifyInterferenceRxEndAndClear (bool reset)
	Notify WifiPhy's InterferenceHelper of the end of the reception, clear maps and end of MPDU event, and eventually reset WifiPhy. More...

virtual uint64_t	ObtainNextUid (const WifiTxVector &txVector)
	Obtain the next UID for the PPDU to transmit. More...

void	ScheduleEndOfMpdus (Ptr< Event > event)
	Schedule end of MPDUs events. More...

void	StartPreambleDetectionPeriod (Ptr< Event > event)
	Start the preamble detection period. More...

void	StartReceivePayload (Ptr< Event > event)
	Start receiving the PSDU (i.e. More...

void	UpdateInterferenceEvent (Ptr< Event > event, RxPowerWattPerChannelBand rxPower)
	Update an event in WifiPhy's InterferenceHelper class. More...

Protected Attributes inherited from ns3::PhyEntity
std::vector< EventId >	m_endOfMpduEvents
	the end of MPDU events (only used for A-MPDUs) More...

std::vector< EventId >	m_endPreambleDetectionEvents
	the end of preamble detection events More...

std::vector< EventId >	m_endRxPayloadEvents
	the end of receive events (only one unless UL MU reception) More...

std::list< WifiMode >	m_modeList
	the list of supported modes More...

std::map< UidStaIdPair, SignalNoiseDbm >	m_signalNoiseMap
	Map of the latest signal power and noise power in dBm (noise power includes the noise figure) More...

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper of the WifiPhy (to make it reachable for child classes) More...

std::map< UidStaIdPair, std::vector< bool > >	m_statusPerMpduMap
	Map of the current reception status per MPDU that is filled in as long as MPDUs are being processed by the PHY in case of an A-MPDU. More...

Ptr< WifiPhy >	m_wifiPhy
	Pointer to the owning WifiPhy. More...

Static Protected Attributes inherited from ns3::PhyEntity
static uint64_t	m_globalPpduUid = 0
	Global counter of the PPDU UID. More...

Detailed Description

PHY entity for HR/DSSS (11b)

Refer to IEEE 802.11-2016, clause 16 (HR/DSSS).

Note that DSSS rates (clause 15) are a subset of HR/DSSS rates.

Definition at line 45 of file dsss-phy.h.

Constructor & Destructor Documentation

◆ DsssPhy()

ns3::DsssPhy::DsssPhy ( )

Constructor for HR/DSSS PHY.

Definition at line 72 of file dsss-phy.cc.

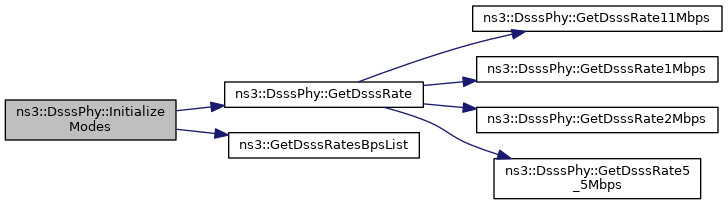

References GetDsssRate(), ns3::GetDsssRatesBpsList(), ns3::PhyEntity::m_modeList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ ~DsssPhy()

ns3::DsssPhy::~DsssPhy ( )

virtual

Destructor for HR/DSSS PHY.

Definition at line 83 of file dsss-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ BuildPpdu()

Ptr< WifiPpdu > ns3::DsssPhy::BuildPpdu	(	const WifiConstPsduMap &	psdus,
		const WifiTxVector &	txVector,
		Time	ppduDuration
	)

overridevirtual

Build amendment-specific PPDU.

Parameters

psdus	the PHY payloads (PSDUs)
txVector	the TXVECTOR that was used for the PPDU
ppduDuration	the transmission duration of the PPDU

Returns: the amendment-specific WifiPpdu

Reimplemented from ns3::PhyEntity.

Definition at line 181 of file dsss-phy.cc.

References NS_LOG_FUNCTION, and ns3::PhyEntity::ObtainNextUid().

Here is the call graph for this function:

◆ CreateDsssMode()

WifiMode ns3::DsssPhy::CreateDsssMode	(	std::string	uniqueName,
		WifiModulationClass	modClass
	)

staticprivate

Create a DSSS or HR/DSSS mode from a unique name, the unique name must already be contained inside ModulationLookupTable.

This method binds all the callbacks used by WifiMode.

Parameters

uniqueName	the unique name of the WifiMode
modClass	the modulation class of the WifiMode, must be either WIFI_MOD_CLASS_DSSS or WIFI_MOD_CLASS_HR_DSSS

Returns: the DSSS or HR/DSSS WifiMode

Definition at line 296 of file dsss-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), GetCodeRate(), GetConstellationSize(), GetDataRate(), GetDataRateFromTxVector(), IsModeAllowed(), m_dsssModulationLookupTable, ns3::MakeBoundCallback(), ns3::MakeCallback(), NS_ASSERT_MSG, ns3::WIFI_MOD_CLASS_DSSS, and ns3::WIFI_MOD_CLASS_HR_DSSS.

Here is the call graph for this function:

◆ DoEndReceiveField()

PhyEntity::PhyFieldRxStatus ns3::DsssPhy::DoEndReceiveField	(	WifiPpduField	field,
		Ptr< Event >	event
	)

overrideprivatevirtual

End receiving a given field, perform amendment-specific actions, and provide the status of the reception.

Parameters

field	the ending PPDU field
event	the event holding incoming PPDU's information

Returns: status of the reception of the PPDU field

Reimplemented from ns3::PhyEntity.

Definition at line 189 of file dsss-phy.cc.

References ns3::PhyEntity::DoEndReceiveField(), EndReceiveHeader(), NS_LOG_FUNCTION, and ns3::WIFI_PPDU_FIELD_NON_HT_HEADER.

Here is the call graph for this function:

◆ EndReceiveHeader()

PhyEntity::PhyFieldRxStatus ns3::DsssPhy::EndReceiveHeader ( Ptr< Event > event )

private

End receiving the header, perform DSSS-specific actions, and provide the status of the reception.

Parameters

event the event holding incoming PPDU's information

Returns: status of the reception of the header

Definition at line 200 of file dsss-phy.cc.

References ns3::PhyEntity::ABORT, ns3::PhyEntity::PhyFieldRxStatus::actionIfFailure, ns3::PhyEntity::DROP, ns3::PhyEntity::GetPhyHeaderSnrPer(), ns3::PhyEntity::GetRandomValue(), ns3::PhyEntity::IsConfigSupported(), ns3::PhyEntity::PhyFieldRxStatus::isSuccess, ns3::L_SIG_FAILURE, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::PhyEntity::SnrPer::per, ns3::RatioToDb(), ns3::PhyEntity::PhyFieldRxStatus::reason, ns3::PhyEntity::SnrPer::snr, ns3::UNSUPPORTED_SETTINGS, and ns3::WIFI_PPDU_FIELD_NON_HT_HEADER.

Referenced by DoEndReceiveField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCodeRate()

WifiCodeRate ns3::DsssPhy::GetCodeRate ( const std::string & name )

static

Return the WifiCodeRate from the DSSS or HR/DSSS mode's unique name using ModulationLookupTable.

This is mainly used as a callback for WifiMode operation.

Parameters

name	the unique name of the DSSS or HR/DSSS mode

Returns: WifiCodeRate corresponding to the unique name

Definition at line 317 of file dsss-phy.cc.

References m_dsssModulationLookupTable.

Referenced by CreateDsssMode().

Here is the caller graph for this function:

◆ GetConstellationSize()

uint16_t ns3::DsssPhy::GetConstellationSize ( const std::string & name )

static

Return the constellation size from the DSSS or HR/DSSS mode's unique name using ModulationLookupTable.

This is mainly used as a callback for WifiMode operation.

Parameters

name	the unique name of the DSSS or HR/DSSS mode

Returns: constellation size corresponding to the unique name

Definition at line 323 of file dsss-phy.cc.

References m_dsssModulationLookupTable.

Referenced by CreateDsssMode(), and GetDataRate().

Here is the caller graph for this function:

◆ GetDataRate()

uint64_t ns3::DsssPhy::GetDataRate	(	const std::string &	name,
		WifiModulationClass	modClass,
		uint16_t	channelWidth,
		uint16_t	guardInterval,
		uint8_t	nss
	)

static

Return the data rate from the DSSS or HR/DSSS mode's unique name and the supplied parameters.

This function is mainly used as a callback for WifiMode operation.

Parameters

name	the unique name of the DSSS or HR/DSSS mode
modClass	the modulation class, must be either WIFI_MOD_CLASS_DSSS or WIFI_MOD_CLASS_HR_DSSS
channelWidth	the considered channel width in MHz
guardInterval	the considered guard interval duration in nanoseconds
nss	the considered number of streams

Returns: the data bit rate of this signal in bps.

Definition at line 338 of file dsss-phy.cc.

References GetConstellationSize(), NS_FATAL_ERROR, ns3::WIFI_MOD_CLASS_DSSS, and ns3::WIFI_MOD_CLASS_HR_DSSS.

Referenced by CreateDsssMode(), and GetDataRateFromTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDataRateFromTxVector()

uint64_t ns3::DsssPhy::GetDataRateFromTxVector	(	const WifiTxVector &	txVector,
		uint16_t	staId
	)

static

Return the data rate corresponding to the supplied TXVECTOR.

This function is mainly used as a callback for WifiMode operation.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the station ID (only here to have a common signature for all callbacks)

Returns: the data bit rate in bps.

Definition at line 329 of file dsss-phy.cc.

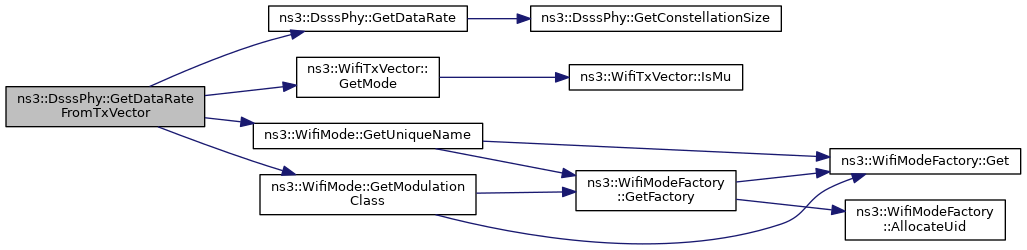

References GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), and ns3::WifiMode::GetUniqueName().

Referenced by CreateDsssMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDsssRate()

WifiMode ns3::DsssPhy::GetDsssRate ( uint64_t rate )

static

Return a WifiMode for HR/DSSS corresponding to the provided rate.

Parameters

rate	the rate in bps

Returns: a WifiMode for HR/DSSS

Definition at line 261 of file dsss-phy.cc.

References GetDsssRate11Mbps(), GetDsssRate1Mbps(), GetDsssRate2Mbps(), GetDsssRate5_5Mbps(), and NS_ABORT_MSG.

Referenced by ns3::DsssPpdu::DoGetTxVector(), DsssPhy(), and InitializeModes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDsssRate11Mbps()

static WifiMode ns3::DsssPhy::GetDsssRate11Mbps ( void )

static

Return a WifiMode for HR/DSSS at 11 Mbps.

Returns: a WifiMode for HR/DSSS at 11 Mbps

Referenced by GetDsssRate().

Here is the caller graph for this function:

◆ GetDsssRate1Mbps()

static WifiMode ns3::DsssPhy::GetDsssRate1Mbps ( void )

static

Return a WifiMode for DSSS at 1 Mbps.

Returns: a WifiMode for DSSS at 1 Mbps

Referenced by GetDsssRate(), and GetHeaderMode().

Here is the caller graph for this function:

◆ GetDsssRate2Mbps()

static WifiMode ns3::DsssPhy::GetDsssRate2Mbps ( void )

static

Return a WifiMode for DSSS at 2 Mbps.

Returns: a WifiMode for DSSS at 2 Mbps

Referenced by GetDsssRate(), and GetHeaderMode().

Here is the caller graph for this function:

◆ GetDsssRate5_5Mbps()

static WifiMode ns3::DsssPhy::GetDsssRate5_5Mbps ( void )

static

Return a WifiMode for HR/DSSS at 5.5 Mbps.

Returns: a WifiMode for HR/DSSS at 5.5 Mbps

Referenced by GetDsssRate().

Here is the caller graph for this function:

◆ GetDuration()

Time ns3::DsssPhy::GetDuration	(	WifiPpduField	field,
		const WifiTxVector &	txVector
	)		const

overridevirtual

Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters.

Parameters

field	the PPDU field (or group of fields)
txVector	the transmission parameters

Returns: the duration of the PPDU field

Reimplemented from ns3::PhyEntity.

Definition at line 124 of file dsss-phy.cc.

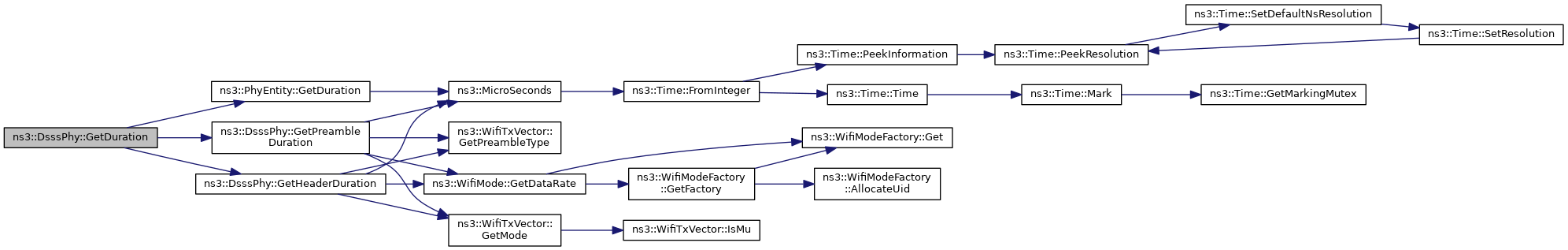

References ns3::PhyEntity::GetDuration(), GetHeaderDuration(), GetPreambleDuration(), ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, and ns3::WIFI_PPDU_FIELD_PREAMBLE.

Here is the call graph for this function:

◆ GetHeaderDuration()

Time ns3::DsssPhy::GetHeaderDuration ( const WifiTxVector & txVector ) const

private

Parameters

txVector the transmission parameters

Returns: the duration of the PHY header field

Definition at line 157 of file dsss-phy.cc.

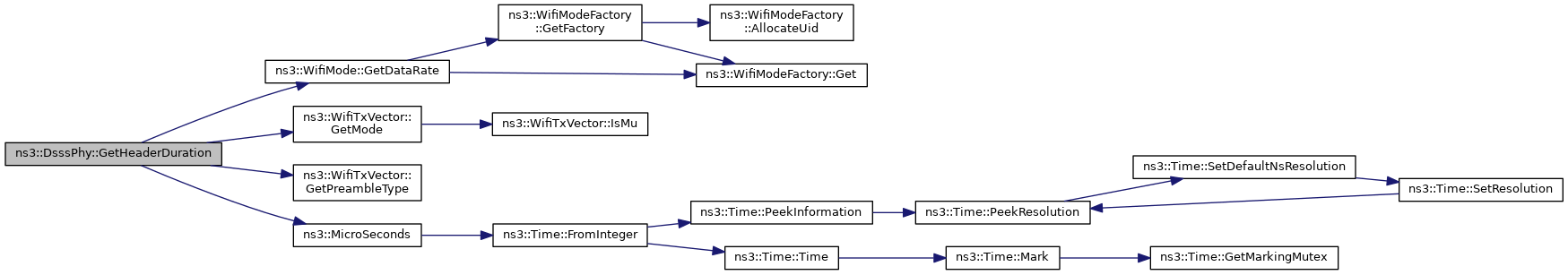

References ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetPreambleType(), ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_SHORT.

Referenced by GetDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeaderMode()

WifiMode ns3::DsssPhy::GetHeaderMode ( const WifiTxVector & txVector ) const

private

Parameters

txVector the transmission parameters

Returns: the WifiMode used for the PHY header field

Definition at line 102 of file dsss-phy.cc.

References GetDsssRate1Mbps(), GetDsssRate2Mbps(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetPreambleType(), and ns3::WIFI_PREAMBLE_LONG.

Referenced by GetSigMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMaxPsduSize()

uint32_t ns3::DsssPhy::GetMaxPsduSize ( void ) const

overridevirtual

Get the maximum PSDU size in bytes.

Returns: the maximum PSDU size in bytes

Implements ns3::PhyEntity.

Definition at line 366 of file dsss-phy.cc.

◆ GetPayloadDuration()

Time ns3::DsssPhy::GetPayloadDuration	(	uint32_t	size,
		const WifiTxVector &	txVector,
		WifiPhyBand	band,
		MpduType	mpdutype,
		bool	incFlag,
		uint32_t &	totalAmpduSize,
		double &	totalAmpduNumSymbols,
		uint16_t	staId
	)		const

overridevirtual

Parameters

size	the number of bytes in the packet to send
txVector	the TXVECTOR used for the transmission of this packet
band	the frequency band
mpdutype	the type of the MPDU as defined in WifiPhy::MpduType.
incFlag	this flag is used to indicate that the variables need to be update or not This function is called a couple of times for the same packet so variables should not be increased each time.
totalAmpduSize	the total size of the previously transmitted MPDUs for the concerned A-MPDU. If incFlag is set, this parameter will be updated.
totalAmpduNumSymbols	the number of symbols previously transmitted for the MPDUs in the concerned A-MPDU, used for the computation of the number of symbols needed for the last MPDU. If incFlag is set, this parameter will be updated.
staId	the STA-ID of the PSDU (only used for MU PPDUs)

Returns: the duration of the PSDU

Implements ns3::PhyEntity.

Definition at line 173 of file dsss-phy.cc.

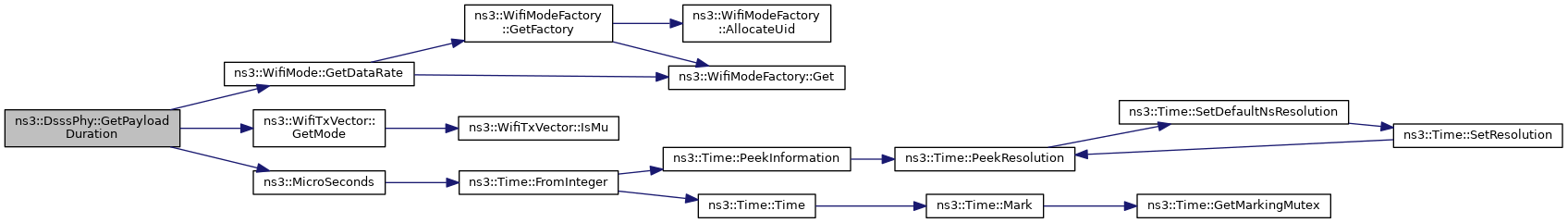

References ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), and ns3::MicroSeconds().

Here is the call graph for this function:

◆ GetPpduFormats()

const PhyEntity::PpduFormats & ns3::DsssPhy::GetPpduFormats ( void ) const

overridevirtual

Return the PPDU formats of the PHY.

Returns: the PPDU formats of the PHY

Implements ns3::PhyEntity.

Definition at line 118 of file dsss-phy.cc.

References m_dsssPpduFormats.

◆ GetPreambleDuration()

Time ns3::DsssPhy::GetPreambleDuration ( const WifiTxVector & txVector ) const

private

Parameters

txVector the transmission parameters

Returns: the duration of the PHY preamble field

See also: WIFI_PPDU_FIELD_PREAMBLE

Definition at line 141 of file dsss-phy.cc.

References ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetPreambleType(), ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_SHORT.

Referenced by GetDuration().

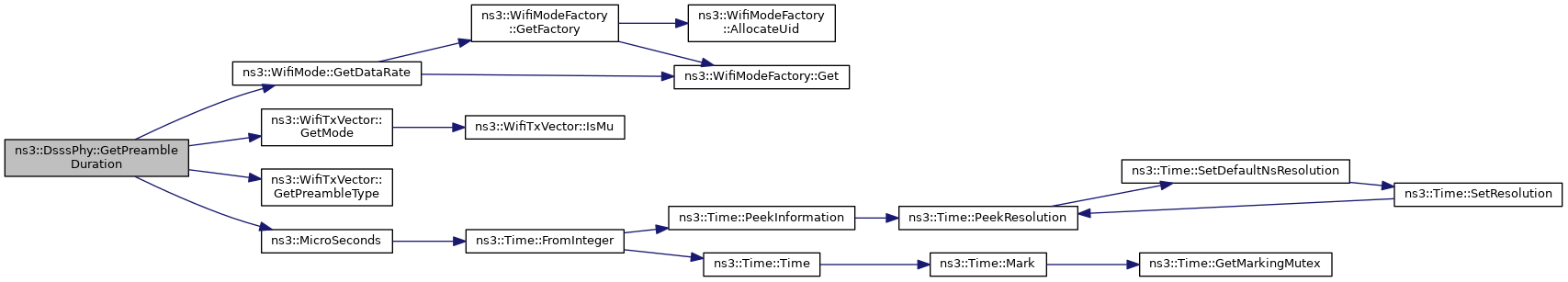

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRxChannelWidth()

uint16_t ns3::DsssPhy::GetRxChannelWidth ( const WifiTxVector & txVector ) const

overrideprivatevirtual

Return the channel width used in the reception spectrum model.

Parameters

txVector the TXVECTOR of the PPDU that is being received

Returns: the channel width (in MHz) used for RxSpectrumModel

Reimplemented from ns3::PhyEntity.

Definition at line 224 of file dsss-phy.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::PhyEntity::GetRxChannelWidth(), and ns3::PhyEntity::m_wifiPhy.

Here is the call graph for this function:

◆ GetSigMode()

WifiMode ns3::DsssPhy::GetSigMode	(	WifiPpduField	field,
		const WifiTxVector &	txVector
	)		const

overridevirtual

Get the WifiMode for the SIG field specified by the PPDU field.

Parameters

field	the PPDU field
txVector	the transmission parameters

Returns: the WifiMode used for the SIG field

Reimplemented from ns3::PhyEntity.

Definition at line 89 of file dsss-phy.cc.

References GetHeaderMode(), ns3::PhyEntity::GetSigMode(), ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, and ns3::WIFI_PPDU_FIELD_PREAMBLE.

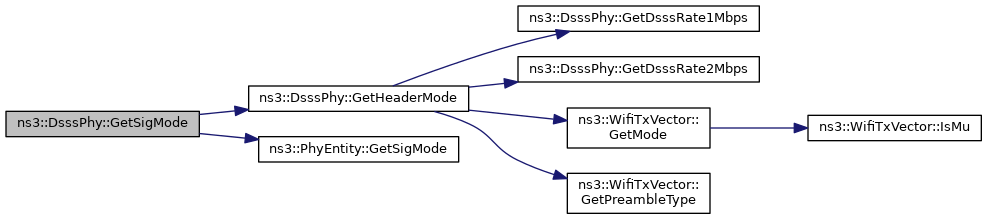

Here is the call graph for this function:

◆ GetTxPowerSpectralDensity()

Ptr< SpectrumValue > ns3::DsssPhy::GetTxPowerSpectralDensity	(	double	txPowerW,
		Ptr< const WifiPpdu >	ppdu
	)		const

overrideprivatevirtual

Parameters

txPowerW	power in W to spread across the bands
ppdu	the PPDU that will be transmitted

Returns: Pointer to SpectrumValue

This is a helper function to create the right TX PSD corresponding to the amendment of this PHY.

Implements ns3::PhyEntity.

Definition at line 240 of file dsss-phy.cc.

References ns3::WifiSpectrumValueHelper::CreateDsssTxPowerSpectralDensity(), ns3::PhyEntity::GetCenterFrequencyForChannelWidth(), ns3::WifiTxVector::GetChannelWidth(), ns3::PhyEntity::GetGuardBandwidth(), NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ InitializeModes()

void ns3::DsssPhy::InitializeModes ( void )

static

Initialize all HR/DSSS modes.

Definition at line 252 of file dsss-phy.cc.

References GetDsssRate(), and ns3::GetDsssRatesBpsList().

Referenced by anonymous_namespace{dsss-phy.cc}::ConstructorDsss::ConstructorDsss().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsModeAllowed()

bool ns3::DsssPhy::IsModeAllowed	(	uint16_t	channelWidth,
		uint8_t	nss
	)

static

Check whether the combination of <WifiMode, channel width, NSS> is allowed.

This function is used as a callback for WifiMode operation, and always returns true since there is no limitation for any mode in DsssPhy.

Parameters

channelWidth	the considered channel width in MHz
nss	the considered number of streams

Returns: true.

Definition at line 360 of file dsss-phy.cc.

Referenced by CreateDsssMode().

Here is the caller graph for this function:

Member Data Documentation

◆ m_dsssModulationLookupTable

const PhyEntity::ModulationLookupTable ns3::DsssPhy::m_dsssModulationLookupTable

staticprivate

Initial value:

{

  { "DsssRate1Mbps",   { WIFI_CODE_RATE_UNDEFINED, 2 } },
  { "DsssRate2Mbps",   { WIFI_CODE_RATE_UNDEFINED, 4 } },
  { "DsssRate5_5Mbps", { WIFI_CODE_RATE_UNDEFINED, 16 } },
  { "DsssRate11Mbps",  { WIFI_CODE_RATE_UNDEFINED, 256 } }
}

lookup table to retrieve code rate and constellation size corresponding to a unique name of modulation

Definition at line 203 of file dsss-phy.h.

Referenced by CreateDsssMode(), GetCodeRate(), and GetConstellationSize().

◆ m_dsssPpduFormats

const PhyEntity::PpduFormats ns3::DsssPhy::m_dsssPpduFormats

staticprivate

Initial value:

{
  { WIFI_PREAMBLE_LONG,  { WIFI_PPDU_FIELD_PREAMBLE,
                           WIFI_PPDU_FIELD_NON_HT_HEADER,
                           WIFI_PPDU_FIELD_DATA } },
  { WIFI_PREAMBLE_SHORT, { WIFI_PPDU_FIELD_PREAMBLE,
                           WIFI_PPDU_FIELD_NON_HT_HEADER,
                           WIFI_PPDU_FIELD_DATA } }
}

DSSS and HR/DSSS PPDU formats.

Definition at line 201 of file dsss-phy.h.

Referenced by GetPpduFormats().

The documentation for this class was generated from the following files:

src/wifi/model/non-ht/dsss-phy.h
src/wifi/model/non-ht/dsss-phy.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DsssPhy()

◆ ~DsssPhy()

Member Function Documentation

◆ BuildPpdu()

◆ CreateDsssMode()

◆ DoEndReceiveField()

◆ EndReceiveHeader()

◆ GetCodeRate()

◆ GetConstellationSize()

◆ GetDataRate()

◆ GetDataRateFromTxVector()

◆ GetDsssRate()

◆ GetDsssRate11Mbps()

◆ GetDsssRate1Mbps()

◆ GetDsssRate2Mbps()

◆ GetDsssRate5_5Mbps()

◆ GetDuration()

◆ GetHeaderDuration()

◆ GetHeaderMode()

◆ GetMaxPsduSize()

◆ GetPayloadDuration()

◆ GetPpduFormats()

◆ GetPreambleDuration()

◆ GetRxChannelWidth()

◆ GetSigMode()

◆ GetTxPowerSpectralDensity()

◆ InitializeModes()

◆ IsModeAllowed()

Member Data Documentation

◆ m_dsssModulationLookupTable

◆ m_dsssPpduFormats
