This objects implements the PHY state machine of the Wifi device. More...

#include "wifi-phy-state-helper.h"

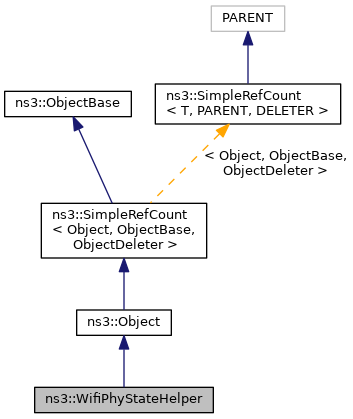

Inheritance diagram for ns3::WifiPhyStateHelper:

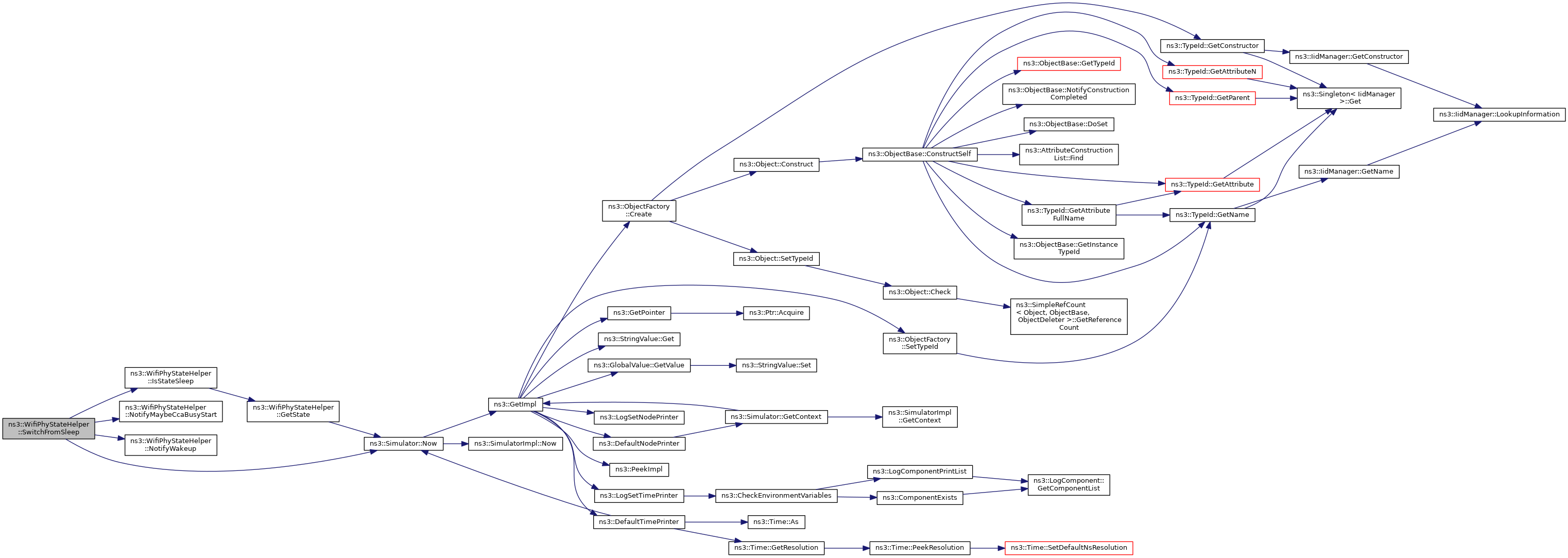

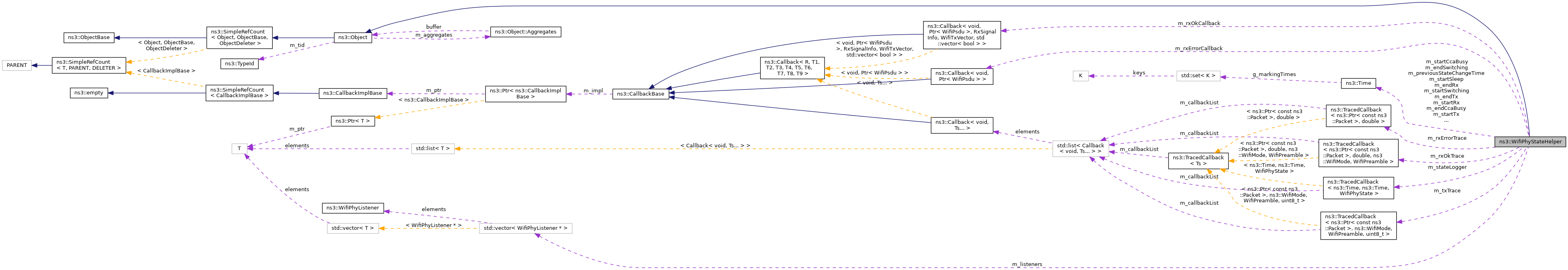

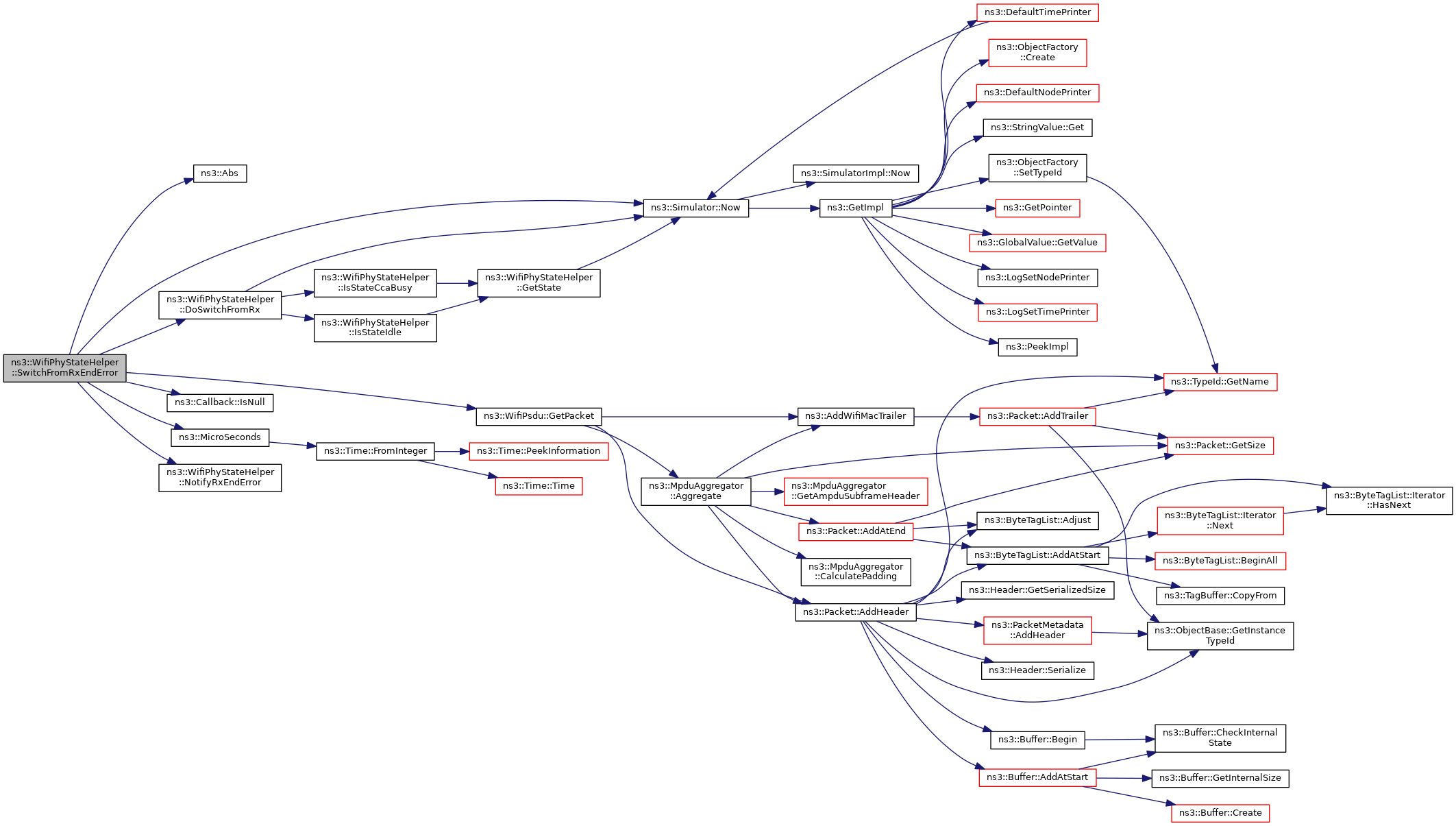

Collaboration diagram for ns3::WifiPhyStateHelper:

Public Types
typedef void(*	RxEndErrorTracedCallback) (Ptr< const Packet > packet, double snr)
	TracedCallback signature for receive end error event. More...

typedef void(*	RxOkTracedCallback) (Ptr< const Packet > packet, double snr, WifiMode mode, WifiPreamble preamble)
	TracedCallback signature for receive end OK event. More...

typedef void(*	StateTracedCallback) (Time start, Time duration, WifiPhyState state)
	TracedCallback signature for state changes. More...

typedef void(*	TxTracedCallback) (Ptr< const Packet > packet, WifiMode mode, WifiPreamble preamble, uint8_t power)
	TracedCallback signature for transmit event. More...

Public Member Functions
	WifiPhyStateHelper ()

void	ContinueRxNextMpdu (Ptr< WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector)
	Continue RX after the reception of an MPDU in an A-MPDU was successful. More...

Time	GetDelayUntilIdle (void) const
	Return the time before the state is back to IDLE. More...

Time	GetLastRxEndTime (void) const
	Return the time the last RX end. More...

Time	GetLastRxStartTime (void) const
	Return the time the last RX start. More...

WifiPhyState	GetState (void) const
	Return the current state of WifiPhy. More...

bool	IsStateCcaBusy (void) const
	Check whether the current state is CCA busy. More...

bool	IsStateIdle (void) const
	Check whether the current state is IDLE. More...

bool	IsStateOff (void) const
	Check whether the current state is OFF. More...

bool	IsStateRx (void) const
	Check whether the current state is RX. More...

bool	IsStateSleep (void) const
	Check whether the current state is SLEEP. More...

bool	IsStateSwitching (void) const
	Check whether the current state is SWITCHING. More...

bool	IsStateTx (void) const
	Check whether the current state is TX. More...

void	RegisterListener (WifiPhyListener *listener)
	Register WifiPhyListener to this WifiPhyStateHelper. More...

void	SetReceiveErrorCallback (RxErrorCallback callback)
	Set a callback for a failed reception. More...

void	SetReceiveOkCallback (RxOkCallback callback)
	Set a callback for a successful reception. More...

void	SwitchFromOff (Time duration)
	Switch from off mode. More...

void	SwitchFromRxAbort (void)
	Abort current reception. More...

void	SwitchFromRxEndError (Ptr< WifiPsdu > psdu, double snr)
	Switch from RX after the reception failed. More...

void	SwitchFromRxEndOk (Ptr< WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, uint16_t staId, std::vector< bool > statusPerMpdu)
	Switch from RX after the reception was successful. More...

void	SwitchFromSleep (Time duration)
	Switch from sleep mode. More...

void	SwitchMaybeToCcaBusy (Time duration)
	Switch to CCA busy. More...

void	SwitchToChannelSwitching (Time switchingDuration)
	Switch state to channel switching for the given duration. More...

void	SwitchToOff (void)
	Switch to off mode. More...

void	SwitchToRx (Time rxDuration)
	Switch state to RX for the given duration. More...

void	SwitchToSleep (void)
	Switch to sleep mode. More...

void	SwitchToTx (Time txDuration, WifiConstPsduMap psdus, double txPowerDbm, WifiTxVector txVector)
	Switch state to TX for the given duration. More...

void	UnregisterListener (WifiPhyListener *listener)
	Remove WifiPhyListener from this WifiPhyStateHelper. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::vector< WifiPhyListener * >	Listeners
	typedef for a list of WifiPhyListeners More...

typedef std::vector< WifiPhyListener * >::iterator	ListenersI
	typedef for a list of WifiPhyListeners iterator More...

Private Member Functions
void	DoSwitchFromRx (void)
	Switch the state from RX. More...

void	LogPreviousIdleAndCcaBusyStates (void)
	Log the ideal and CCA states. More...

void	NotifyMaybeCcaBusyStart (Time duration)
	Notify all WifiPhyListener that the CCA has started for the given duration. More...

void	NotifyOff (void)
	Notify all WifiPhyListener that we are going to switch off. More...

void	NotifyOn (void)
	Notify all WifiPhyListener that we are going to switch on. More...

void	NotifyRxEndError (void)
	Notify all WifiPhyListener that the reception was not successful. More...

void	NotifyRxEndOk (void)
	Notify all WifiPhyListener that the reception was successful. More...

void	NotifyRxStart (Time duration)
	Notify all WifiPhyListener that the reception has started for the given duration. More...

void	NotifySleep (void)
	Notify all WifiPhyListener that we are going to sleep. More...

void	NotifySwitchingStart (Time duration)
	Notify all WifiPhyListener that we are switching channel with the given channel switching delay. More...

void	NotifyTxStart (Time duration, double txPowerDbm)
	Notify all WifiPhyListener that the transmission has started for the given duration. More...

void	NotifyWakeup (void)
	Notify all WifiPhyListener that we woke up. More...

Private Attributes
Time	m_endCcaBusy
	end CCA busy More...

Time	m_endRx
	end receive More...

Time	m_endSwitching
	end switching More...

Time	m_endTx
	end transmit More...

bool	m_isOff
	switched off More...

Listeners	m_listeners
	listeners More...

Time	m_previousStateChangeTime
	previous state change time More...

RxErrorCallback	m_rxErrorCallback
	receive error callback More...

TracedCallback< Ptr< const Packet >, double >	m_rxErrorTrace
	receive error trace callback More...

RxOkCallback	m_rxOkCallback
	receive OK callback More...

TracedCallback< Ptr< const Packet >, double, WifiMode, WifiPreamble >	m_rxOkTrace
	receive OK trace callback More...

bool	m_sleeping
	sleeping More...

Time	m_startCcaBusy
	start CCA busy More...

Time	m_startRx
	start receive More...

Time	m_startSleep
	start sleep More...

Time	m_startSwitching
	start switching More...

Time	m_startTx
	start transmit More...

TracedCallback< Time, Time, WifiPhyState >	m_stateLogger
	The trace source fired when state is changed. More...

TracedCallback< Ptr< const Packet >, WifiMode, WifiPreamble, uint8_t >	m_txTrace
	transmit trace callback More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This objects implements the PHY state machine of the Wifi device.

Config Paths

ns3::WifiPhyStateHelper is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/State"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/State"

No Attributes are defined for this type.

TraceSources

State: The state of the PHY layer
Callback signature: ns3::WifiPhyStateHelper::StateTracedCallback
RxOk: A packet has been received successfully.
Callback signature: ns3::WifiPhyStateHelper::RxOkTracedCallback
RxError: A packet has been received unsuccessfully.
Callback signature: ns3::WifiPhyStateHelper::RxEndErrorTracedCallback
Tx: Packet transmission is starting.
Callback signature: ns3::WifiPhyStateHelper::TxTracedCallback

Size of this type is 224 bytes (on a 64-bit architecture).

Definition at line 65 of file wifi-phy-state-helper.h.

Member Typedef Documentation

◆ Listeners

typedef std::vector<WifiPhyListener *> ns3::WifiPhyStateHelper::Listeners

private

typedef for a list of WifiPhyListeners

Definition at line 289 of file wifi-phy-state-helper.h.

◆ ListenersI

typedef std::vector<WifiPhyListener *>::iterator ns3::WifiPhyStateHelper::ListenersI

private

typedef for a list of WifiPhyListeners iterator

Definition at line 293 of file wifi-phy-state-helper.h.

◆ RxEndErrorTracedCallback

typedef void(* ns3::WifiPhyStateHelper::RxEndErrorTracedCallback) (Ptr< const Packet > packet, double snr)

TracedCallback signature for receive end error event.

Parameters

[in]	packet	The received packet.
[in]	snr	The SNR of the received packet in linear scale.

Definition at line 271 of file wifi-phy-state-helper.h.

◆ RxOkTracedCallback

typedef void(* ns3::WifiPhyStateHelper::RxOkTracedCallback) (Ptr< const Packet > packet, double snr, WifiMode mode, WifiPreamble preamble)

TracedCallback signature for receive end OK event.

Parameters

[in]	packet	The received packet.
[in]	snr	The SNR of the received packet in linear scale.
[in]	mode	The transmission mode of the packet.
[in]	preamble	The preamble of the packet.

Definition at line 263 of file wifi-phy-state-helper.h.

◆ StateTracedCallback

typedef void(* ns3::WifiPhyStateHelper::StateTracedCallback) (Time start, Time duration, WifiPhyState state)

TracedCallback signature for state changes.

Parameters

[in]	start	Time when the state started.
[in]	duration	Amount of time we've been in (or will be in) the state.
[in]	state	The state.

Definition at line 253 of file wifi-phy-state-helper.h.

◆ TxTracedCallback

typedef void(* ns3::WifiPhyStateHelper::TxTracedCallback) (Ptr< const Packet > packet, WifiMode mode, WifiPreamble preamble, uint8_t power)

TracedCallback signature for transmit event.

Parameters

[in]	packet	The received packet.
[in]	mode	The transmission mode of the packet.
[in]	preamble	The preamble of the packet.
[in]	power	The transmit power level.

Definition at line 281 of file wifi-phy-state-helper.h.

Constructor & Destructor Documentation

◆ WifiPhyStateHelper()

ns3::WifiPhyStateHelper::WifiPhyStateHelper ( )

Definition at line 63 of file wifi-phy-state-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ContinueRxNextMpdu()

void ns3::WifiPhyStateHelper::ContinueRxNextMpdu	(	Ptr< WifiPsdu >	psdu,
		RxSignalInfo	rxSignalInfo,
		WifiTxVector	txVector
	)

Continue RX after the reception of an MPDU in an A-MPDU was successful.

Parameters

psdu	the successfully received PSDU
rxSignalInfo	the info on the received signal (

See also: RxSignalInfo)

Parameters

txVector TXVECTOR of the PSDU

Definition at line 468 of file wifi-phy-state-helper.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_rxOkCallback, and NS_LOG_FUNCTION.

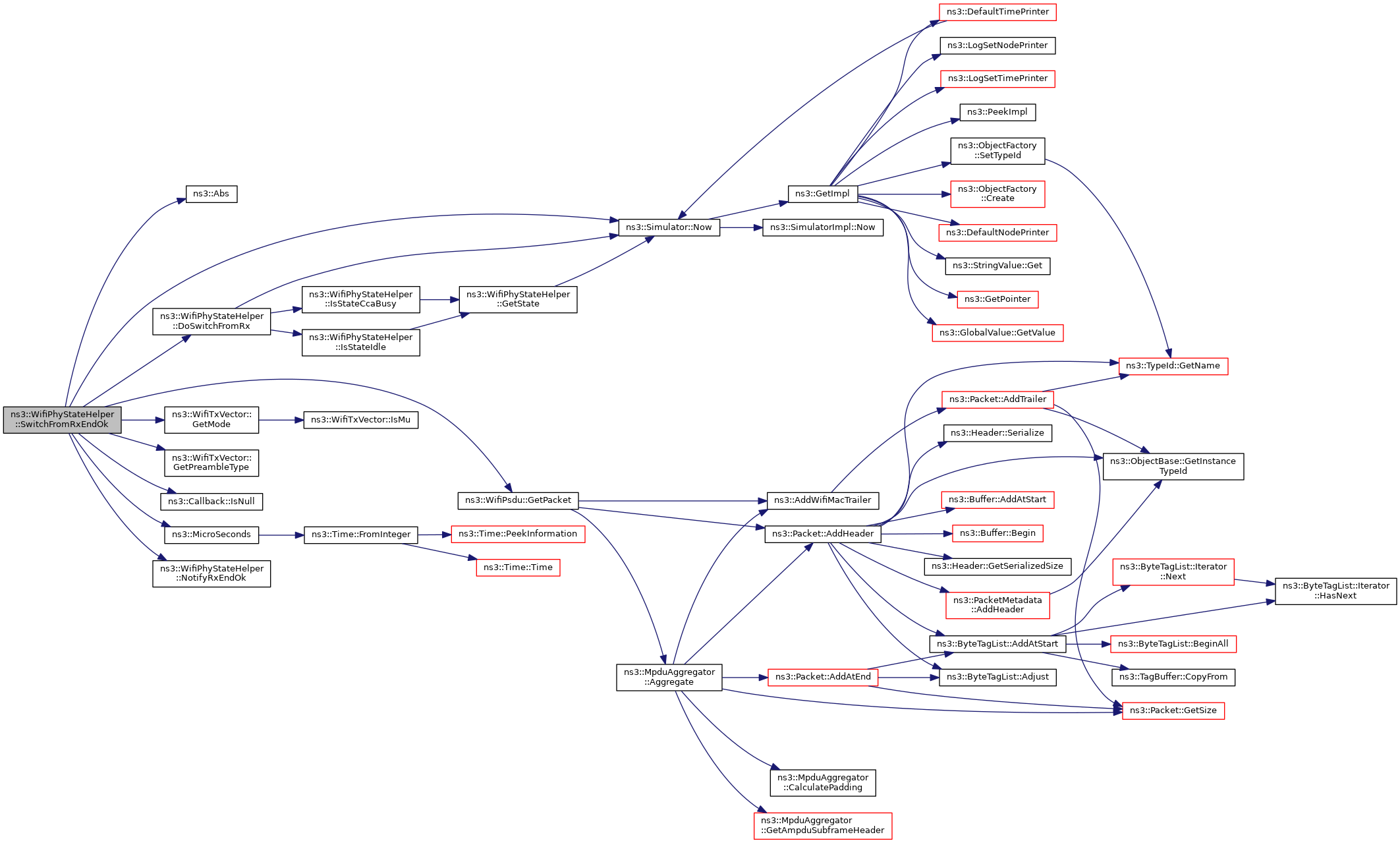

Here is the call graph for this function:

◆ DoSwitchFromRx()

void ns3::WifiPhyStateHelper::DoSwitchFromRx ( void )

private

Switch the state from RX.

Definition at line 511 of file wifi-phy-state-helper.cc.

References IsStateCcaBusy(), IsStateIdle(), m_endRx, m_previousStateChangeTime, m_startRx, m_stateLogger, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and RX.

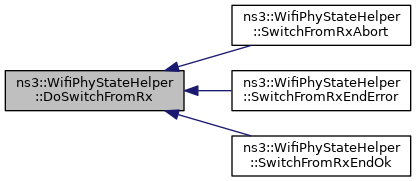

Referenced by SwitchFromRxAbort(), SwitchFromRxEndError(), and SwitchFromRxEndOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDelayUntilIdle()

Time ns3::WifiPhyStateHelper::GetDelayUntilIdle ( void ) const

Return the time before the state is back to IDLE.

Returns: the delay before the state is back to IDLE

Definition at line 151 of file wifi-phy-state-helper.cc.

References CCA_BUSY, GetState(), IDLE, m_endCcaBusy, m_endRx, m_endSwitching, m_endTx, ns3::Max(), ns3::Simulator::Now(), NS_FATAL_ERROR, OFF, RX, ns3::Seconds(), SLEEP, SWITCHING, and TX.

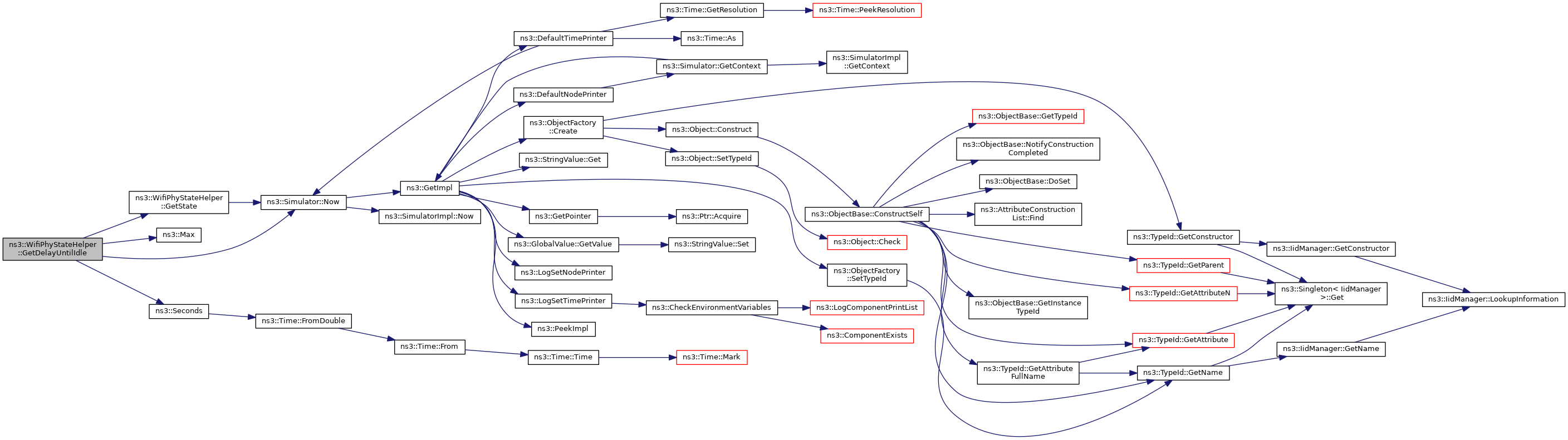

Here is the call graph for this function:

◆ GetLastRxEndTime()

Time ns3::WifiPhyStateHelper::GetLastRxEndTime ( void ) const

Return the time the last RX end.

Returns: the time the last RX end.

Definition at line 190 of file wifi-phy-state-helper.cc.

References m_endRx.

◆ GetLastRxStartTime()

Time ns3::WifiPhyStateHelper::GetLastRxStartTime ( void ) const

Return the time the last RX start.

Returns: the time the last RX start.

Definition at line 184 of file wifi-phy-state-helper.cc.

References m_startRx.

◆ GetState()

WifiPhyState ns3::WifiPhyStateHelper::GetState ( void ) const

Return the current state of WifiPhy.

Returns: the current state of WifiPhy

Definition at line 196 of file wifi-phy-state-helper.cc.

References CCA_BUSY, IDLE, m_endCcaBusy, m_endRx, m_endSwitching, m_endTx, m_isOff, m_sleeping, ns3::Simulator::Now(), OFF, RX, SLEEP, SWITCHING, and TX.

Referenced by TestInterBssConstantObssPdAlgo::CheckPhyState(), TestAmpduReception::CheckPhyState(), TestThresholdPreambleDetectionWithoutFrameCapture::DoCheckPhyState(), TestDlOfdmaPhyTransmission::DoCheckPhyState(), TestThresholdPreambleDetectionWithFrameCapture::DoCheckPhyState(), TestPhyHeadersReception::DoCheckPhyState(), TestUlOfdmaPhyTransmission::DoCheckPhyState(), GetDelayUntilIdle(), IsStateCcaBusy(), IsStateIdle(), IsStateOff(), IsStateRx(), IsStateSleep(), IsStateSwitching(), IsStateTx(), SwitchMaybeToCcaBusy(), SwitchToChannelSwitching(), SwitchToOff(), SwitchToRx(), SwitchToSleep(), and SwitchToTx().

Here is the call graph for this function:

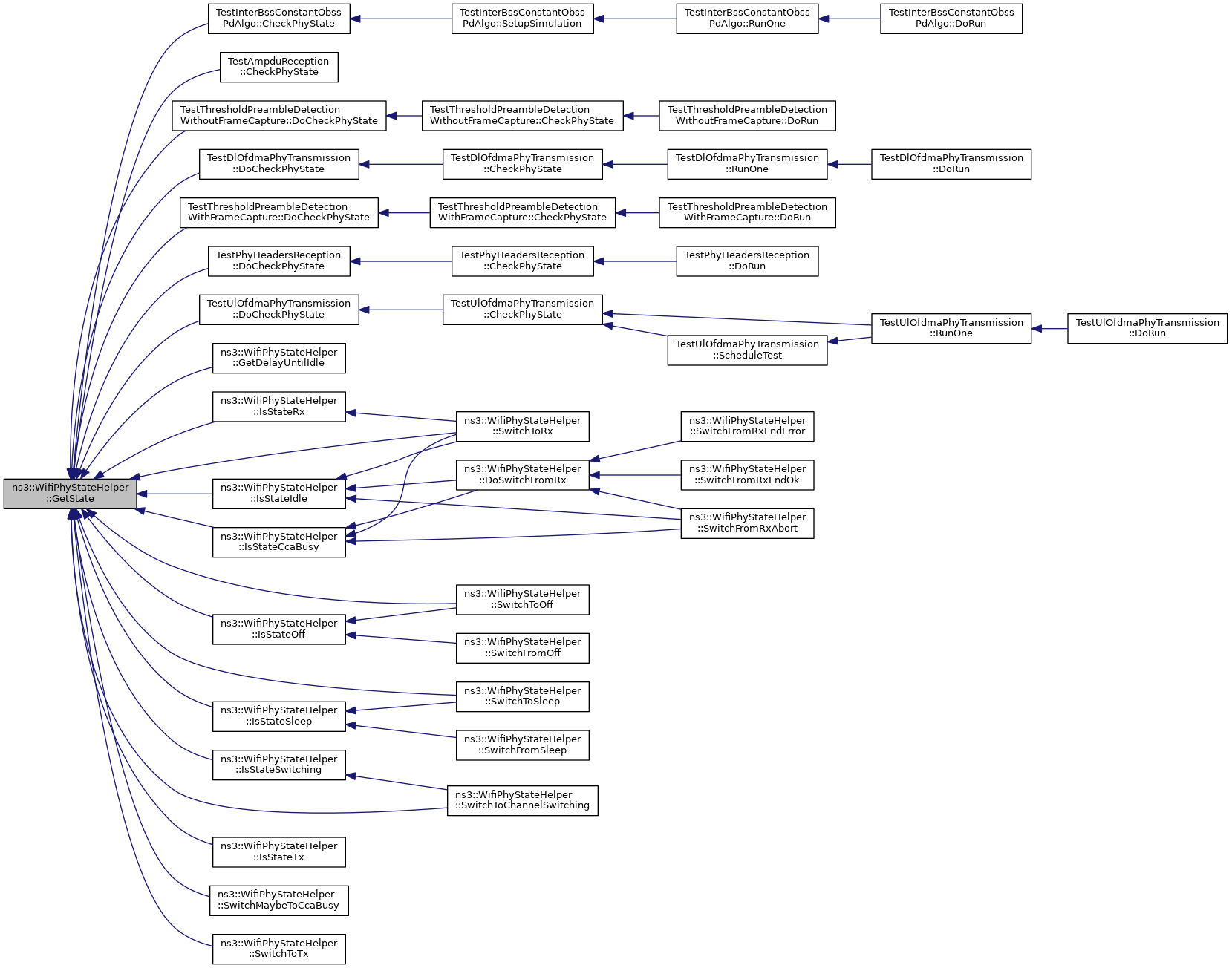

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::WifiPhyStateHelper::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 38 of file wifi-phy-state-helper.cc.

References m_rxErrorTrace, m_rxOkTrace, m_stateLogger, m_txTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

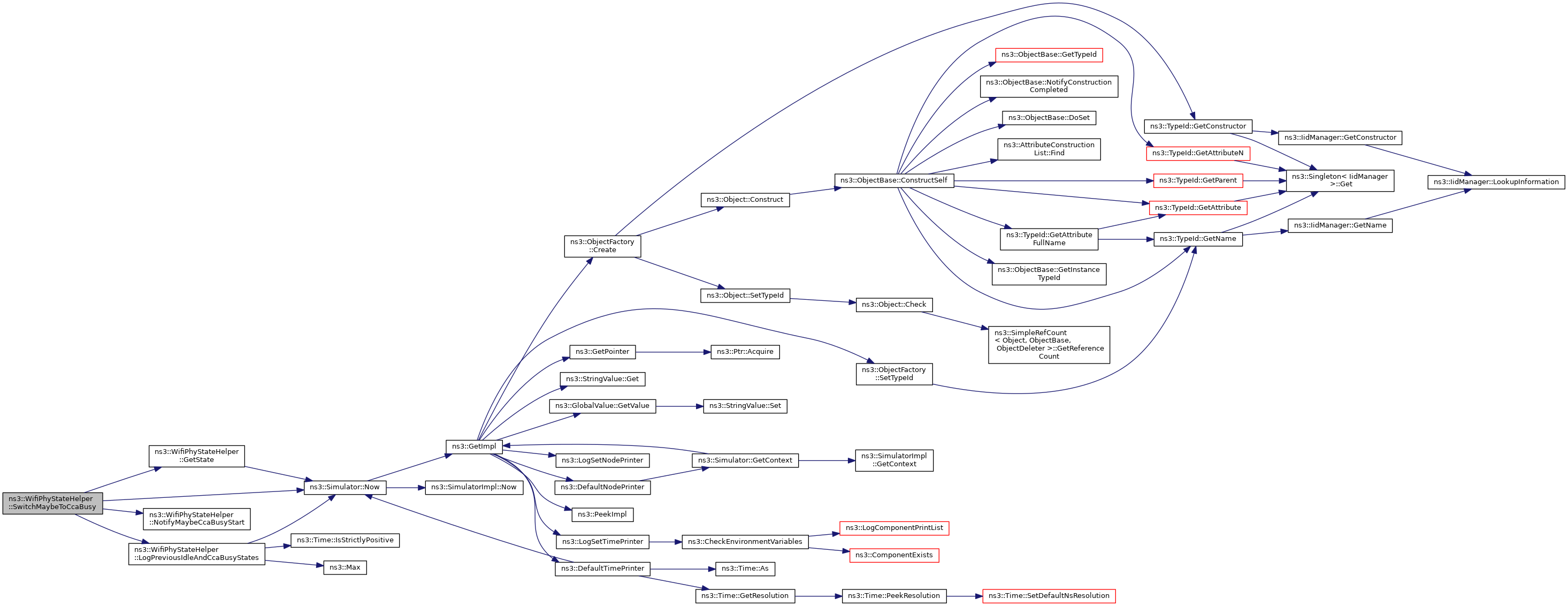

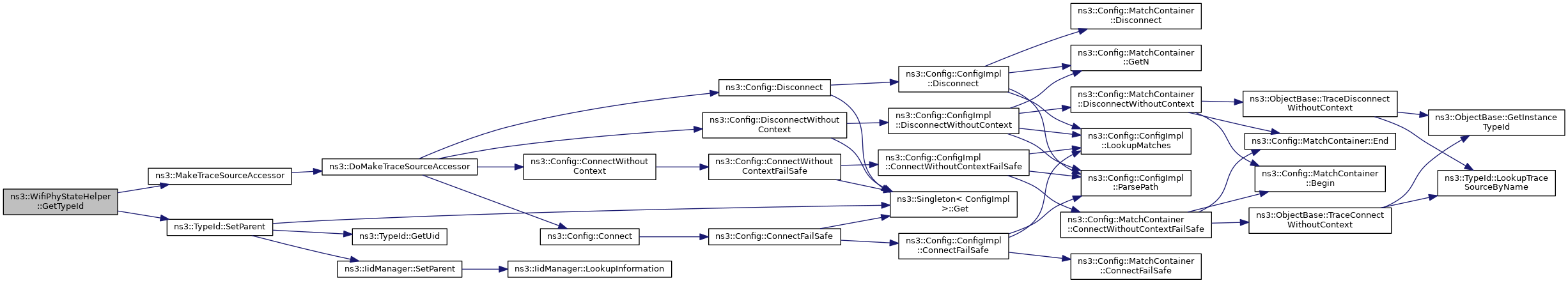

Here is the call graph for this function:

◆ IsStateCcaBusy()

bool ns3::WifiPhyStateHelper::IsStateCcaBusy ( void ) const

Check whether the current state is CCA busy.

Returns: true if the current state is CCA busy, false otherwise

Definition at line 115 of file wifi-phy-state-helper.cc.

References CCA_BUSY, and GetState().

Referenced by DoSwitchFromRx(), SwitchFromRxAbort(), and SwitchToRx().

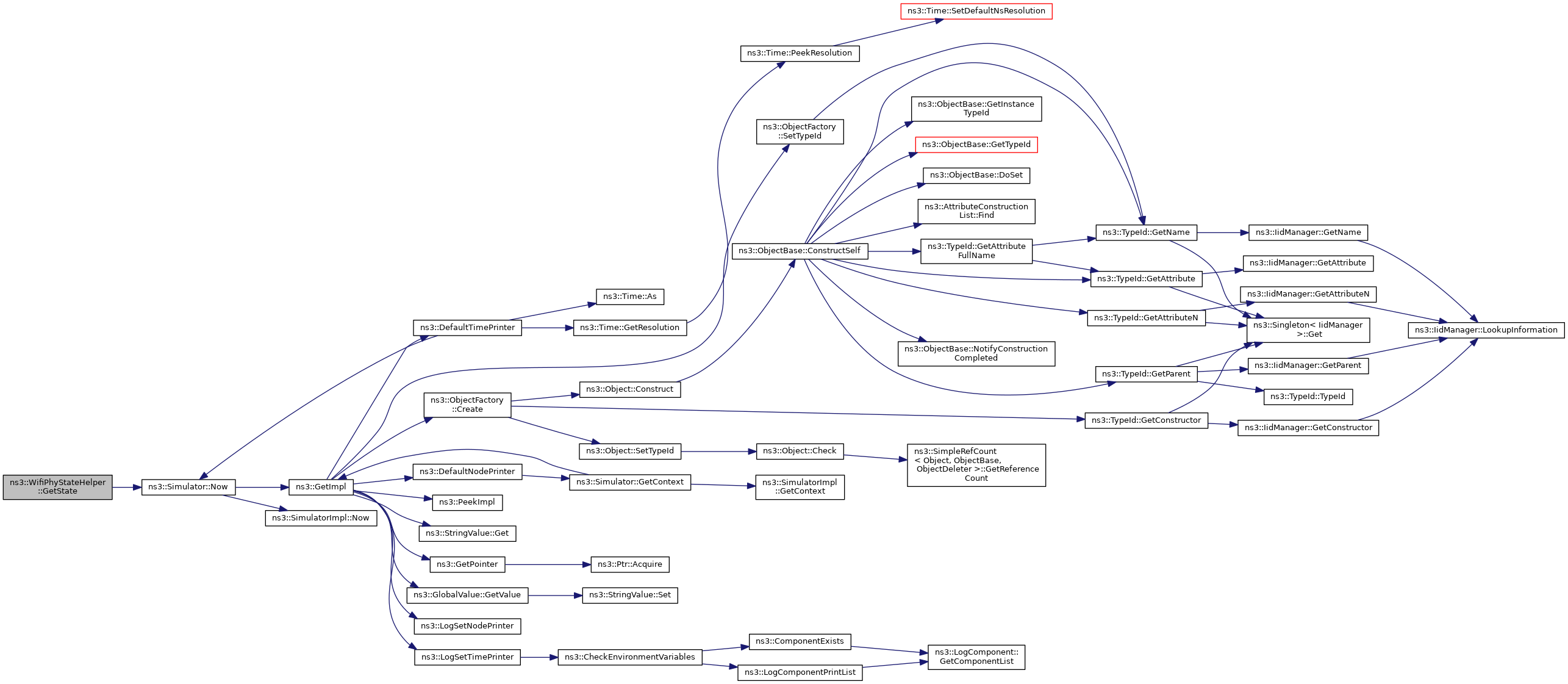

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsStateIdle()

bool ns3::WifiPhyStateHelper::IsStateIdle ( void ) const

Check whether the current state is IDLE.

Returns: true if the current state is IDLE, false otherwise

Definition at line 109 of file wifi-phy-state-helper.cc.

References GetState(), and IDLE.

Referenced by DoSwitchFromRx(), SwitchFromRxAbort(), and SwitchToRx().

Here is the call graph for this function:

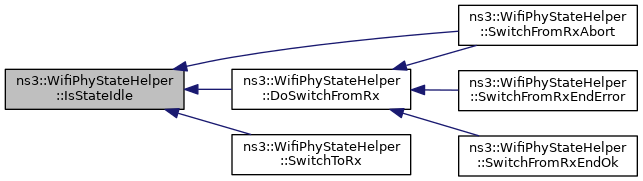

Here is the caller graph for this function:

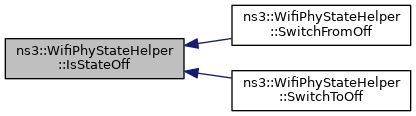

◆ IsStateOff()

bool ns3::WifiPhyStateHelper::IsStateOff ( void ) const

Check whether the current state is OFF.

Returns: true if the current state is OFF, false otherwise

Definition at line 145 of file wifi-phy-state-helper.cc.

References GetState(), and OFF.

Referenced by SwitchFromOff(), and SwitchToOff().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsStateRx()

bool ns3::WifiPhyStateHelper::IsStateRx ( void ) const

Check whether the current state is RX.

Returns: true if the current state is RX, false otherwise

Definition at line 121 of file wifi-phy-state-helper.cc.

References GetState(), and RX.

Referenced by SwitchToRx().

Here is the call graph for this function:

Here is the caller graph for this function:

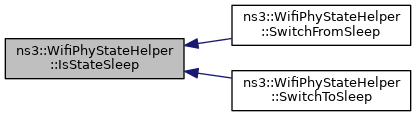

◆ IsStateSleep()

bool ns3::WifiPhyStateHelper::IsStateSleep ( void ) const

Check whether the current state is SLEEP.

Returns: true if the current state is SLEEP, false otherwise

Definition at line 139 of file wifi-phy-state-helper.cc.

References GetState(), and SLEEP.

Referenced by SwitchFromSleep(), and SwitchToSleep().

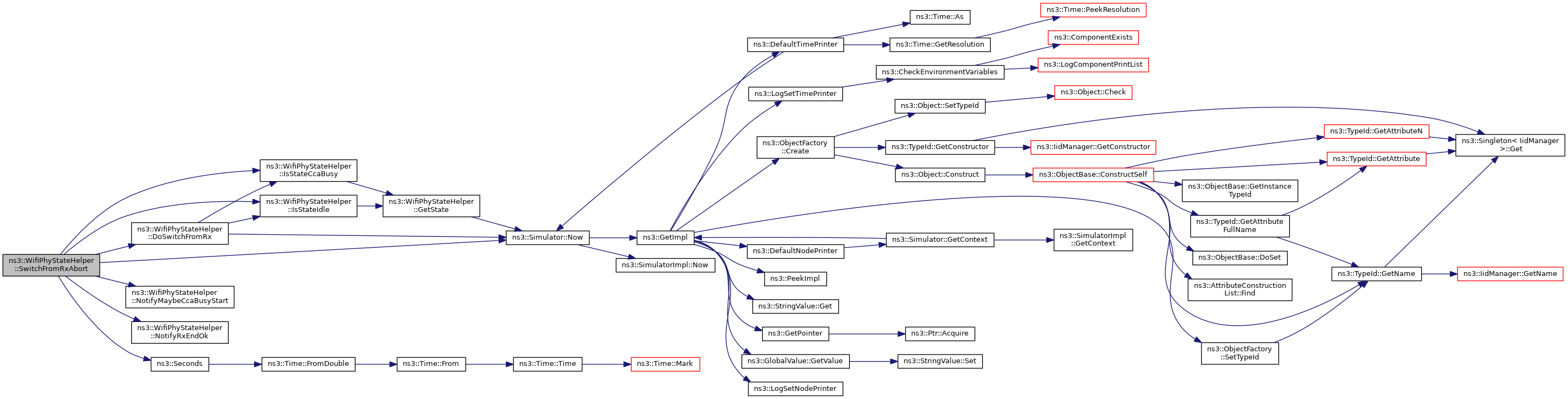

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsStateSwitching()

bool ns3::WifiPhyStateHelper::IsStateSwitching ( void ) const

Check whether the current state is SWITCHING.

Returns: true if the current state is SWITCHING, false otherwise

Definition at line 133 of file wifi-phy-state-helper.cc.

References GetState(), and SWITCHING.

Referenced by SwitchToChannelSwitching().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsStateTx()

bool ns3::WifiPhyStateHelper::IsStateTx ( void ) const

Check whether the current state is TX.

Returns: true if the current state is TX, false otherwise

Definition at line 127 of file wifi-phy-state-helper.cc.

References GetState(), and TX.

Here is the call graph for this function:

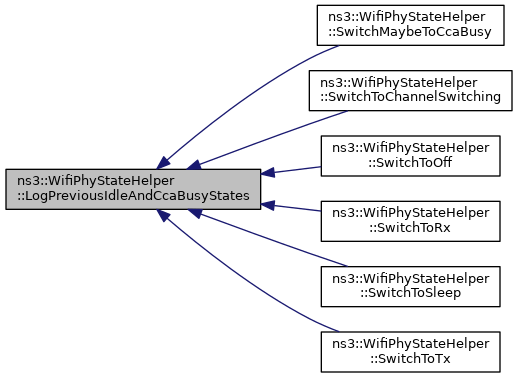

◆ LogPreviousIdleAndCcaBusyStates()

void ns3::WifiPhyStateHelper::LogPreviousIdleAndCcaBusyStates ( void )

private

Log the ideal and CCA states.

Definition at line 329 of file wifi-phy-state-helper.cc.

References CCA_BUSY, IDLE, ns3::Time::IsStrictlyPositive(), m_endCcaBusy, m_endRx, m_endSwitching, m_endTx, m_startCcaBusy, m_stateLogger, ns3::Max(), ns3::Simulator::Now(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by SwitchMaybeToCcaBusy(), SwitchToChannelSwitching(), SwitchToOff(), SwitchToRx(), SwitchToSleep(), and SwitchToTx().

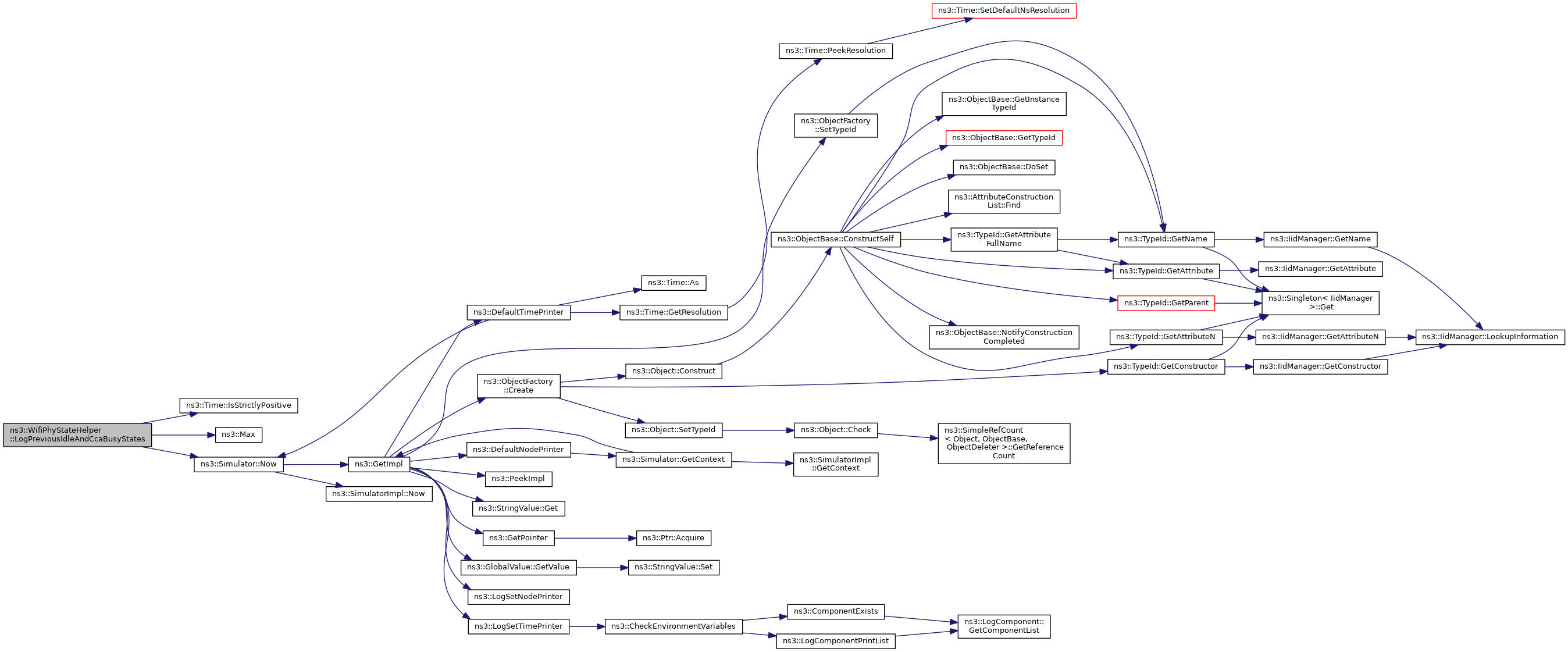

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyMaybeCcaBusyStart()

void ns3::WifiPhyStateHelper::NotifyMaybeCcaBusyStart ( Time duration )

private

Notify all WifiPhyListener that the CCA has started for the given duration.

Parameters

duration the duration of the CCA state

Definition at line 269 of file wifi-phy-state-helper.cc.

References m_listeners, and NS_LOG_FUNCTION.

Referenced by SwitchFromOff(), SwitchFromRxAbort(), SwitchFromSleep(), and SwitchMaybeToCcaBusy().

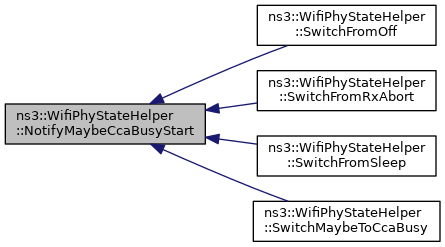

Here is the caller graph for this function:

◆ NotifyOff()

void ns3::WifiPhyStateHelper::NotifyOff ( void )

private

Notify all WifiPhyListener that we are going to switch off.

Definition at line 299 of file wifi-phy-state-helper.cc.

References m_listeners, and NS_LOG_FUNCTION.

Referenced by SwitchToOff().

Here is the caller graph for this function:

◆ NotifyOn()

void ns3::WifiPhyStateHelper::NotifyOn ( void )

private

Notify all WifiPhyListener that we are going to switch on.

Definition at line 319 of file wifi-phy-state-helper.cc.

References m_listeners, and NS_LOG_FUNCTION.

Referenced by SwitchFromOff().

Here is the caller graph for this function:

◆ NotifyRxEndError()

void ns3::WifiPhyStateHelper::NotifyRxEndError ( void )

private

Notify all WifiPhyListener that the reception was not successful.

Definition at line 259 of file wifi-phy-state-helper.cc.

References m_listeners, and NS_LOG_FUNCTION.

Referenced by SwitchFromRxEndError().

Here is the caller graph for this function:

◆ NotifyRxEndOk()

void ns3::WifiPhyStateHelper::NotifyRxEndOk ( void )

private

Notify all WifiPhyListener that the reception was successful.

Definition at line 249 of file wifi-phy-state-helper.cc.

References m_listeners, and NS_LOG_FUNCTION.

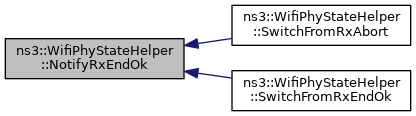

Referenced by SwitchFromRxAbort(), and SwitchFromRxEndOk().

Here is the caller graph for this function:

◆ NotifyRxStart()

void ns3::WifiPhyStateHelper::NotifyRxStart ( Time duration )

private

Notify all WifiPhyListener that the reception has started for the given duration.

Parameters

duration the duration of the reception

Definition at line 239 of file wifi-phy-state-helper.cc.

References m_listeners, and NS_LOG_FUNCTION.

Referenced by SwitchToRx().

Here is the caller graph for this function:

◆ NotifySleep()

void ns3::WifiPhyStateHelper::NotifySleep ( void )

private

Notify all WifiPhyListener that we are going to sleep.

Definition at line 289 of file wifi-phy-state-helper.cc.

References m_listeners, and NS_LOG_FUNCTION.

Referenced by SwitchToSleep().

Here is the caller graph for this function:

◆ NotifySwitchingStart()

void ns3::WifiPhyStateHelper::NotifySwitchingStart ( Time duration )

private

Notify all WifiPhyListener that we are switching channel with the given channel switching delay.

Parameters

duration the delay to switch the channel

Definition at line 279 of file wifi-phy-state-helper.cc.

References m_listeners, and NS_LOG_FUNCTION.

Referenced by SwitchToChannelSwitching().

Here is the caller graph for this function:

◆ NotifyTxStart()

void ns3::WifiPhyStateHelper::NotifyTxStart	(	Time	duration,
		double	txPowerDbm
	)

private

Notify all WifiPhyListener that the transmission has started for the given duration.

Parameters

duration	the duration of the transmission
txPowerDbm	the nominal TX power in dBm

Definition at line 229 of file wifi-phy-state-helper.cc.

References m_listeners, and NS_LOG_FUNCTION.

Referenced by SwitchToTx().

Here is the caller graph for this function:

◆ NotifyWakeup()

void ns3::WifiPhyStateHelper::NotifyWakeup ( void )

private

Notify all WifiPhyListener that we woke up.

Definition at line 309 of file wifi-phy-state-helper.cc.

References m_listeners, and NS_LOG_FUNCTION.

Referenced by SwitchFromSleep().

Here is the caller graph for this function:

◆ RegisterListener()

void ns3::WifiPhyStateHelper::RegisterListener ( WifiPhyListener * listener )

Register WifiPhyListener to this WifiPhyStateHelper.

Parameters

listener the WifiPhyListener to register

Definition at line 93 of file wifi-phy-state-helper.cc.

References m_listeners.

◆ SetReceiveErrorCallback()

void ns3::WifiPhyStateHelper::SetReceiveErrorCallback ( RxErrorCallback callback )

Set a callback for a failed reception.

Parameters

callback the RxErrorCallback to set

Definition at line 87 of file wifi-phy-state-helper.cc.

References m_rxErrorCallback.

◆ SetReceiveOkCallback()

void ns3::WifiPhyStateHelper::SetReceiveOkCallback ( RxOkCallback callback )

Set a callback for a successful reception.

Parameters

callback the RxOkCallback to set

Definition at line 81 of file wifi-phy-state-helper.cc.

References m_rxOkCallback.

◆ SwitchFromOff()

void ns3::WifiPhyStateHelper::SwitchFromOff ( Time duration )

Switch from off mode.

Parameters

duration the duration of CCA busy state

Definition at line 647 of file wifi-phy-state-helper.cc.

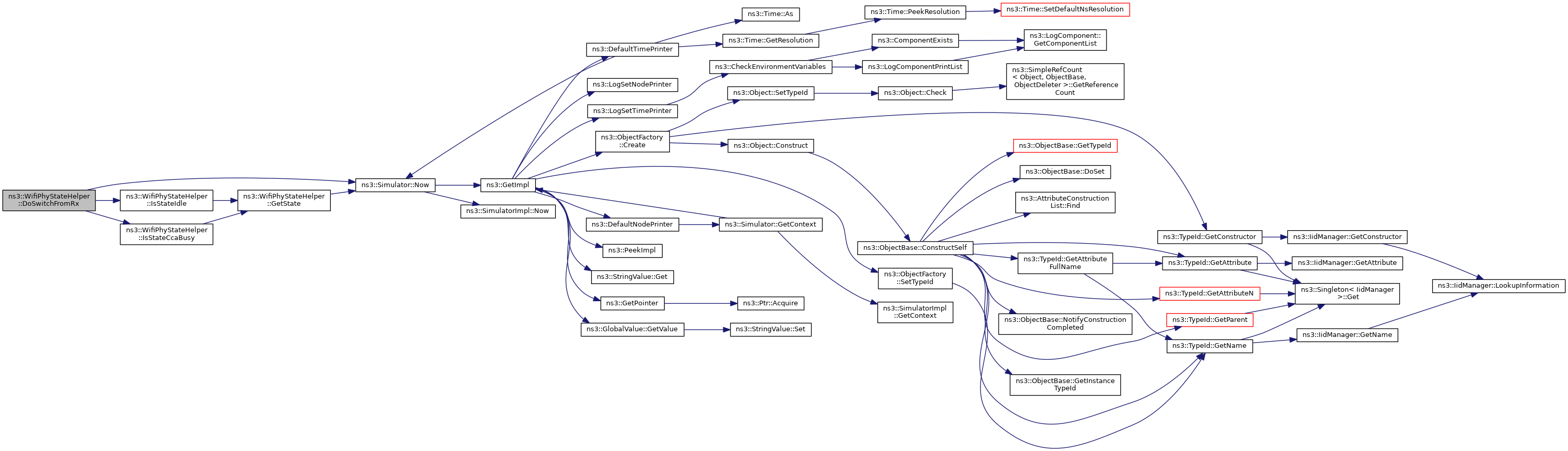

References IsStateOff(), m_endCcaBusy, m_isOff, m_previousStateChangeTime, max, NotifyMaybeCcaBusyStart(), NotifyOn(), ns3::Simulator::Now(), NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SwitchFromRxAbort()

void ns3::WifiPhyStateHelper::SwitchFromRxAbort ( void )

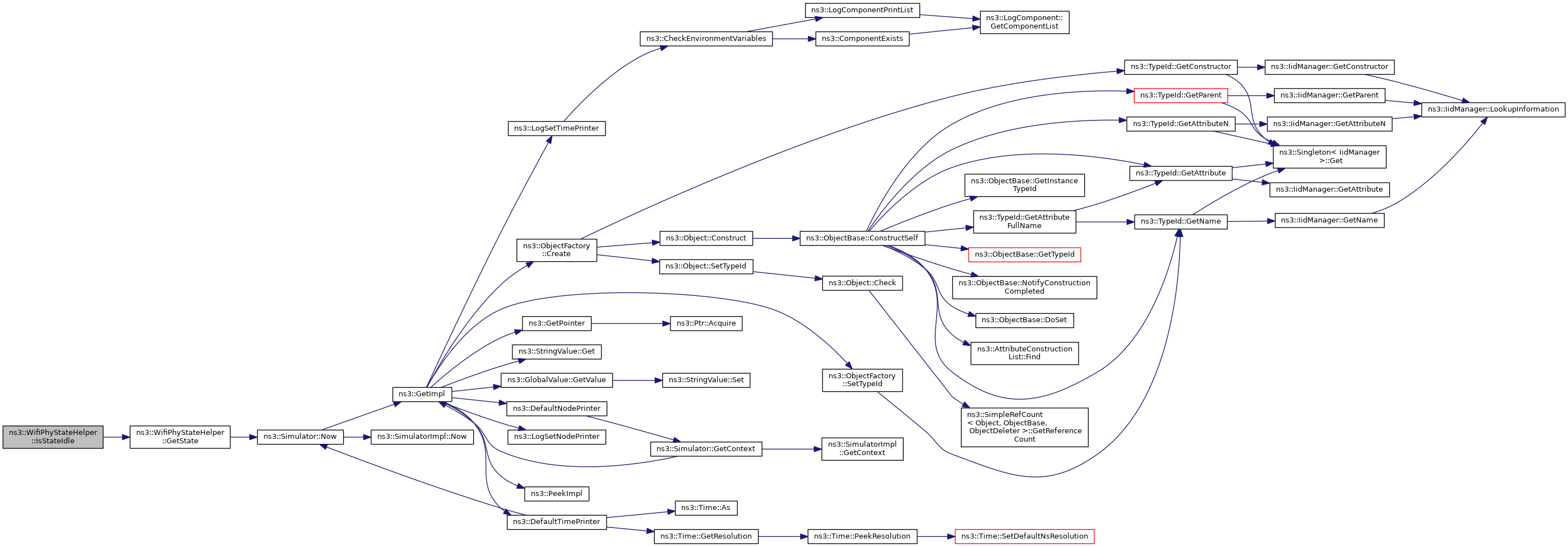

Abort current reception.

Definition at line 594 of file wifi-phy-state-helper.cc.

References DoSwitchFromRx(), IsStateCcaBusy(), IsStateIdle(), m_endCcaBusy, NotifyMaybeCcaBusyStart(), NotifyRxEndOk(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::Seconds().

Here is the call graph for this function:

◆ SwitchFromRxEndError()

void ns3::WifiPhyStateHelper::SwitchFromRxEndError	(	Ptr< WifiPsdu >	psdu,
		double	snr
	)

Switch from RX after the reception failed.

Parameters

psdu	the PSDU that we failed to received
snr	the SNR of the received PSDU in linear scale

Definition at line 496 of file wifi-phy-state-helper.cc.

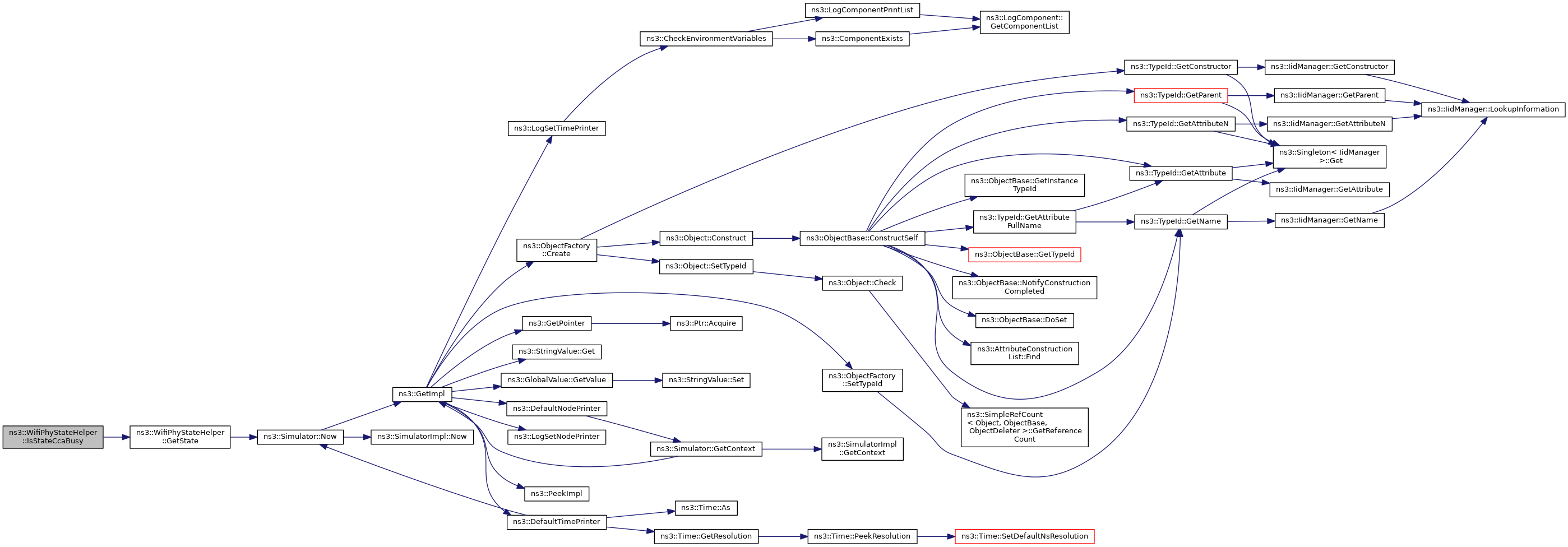

References ns3::Abs(), DoSwitchFromRx(), ns3::WifiPsdu::GetPacket(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_endRx, m_rxErrorCallback, m_rxErrorTrace, ns3::MicroSeconds(), NotifyRxEndError(), ns3::Simulator::Now(), NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SwitchFromRxEndOk()

void ns3::WifiPhyStateHelper::SwitchFromRxEndOk	(	Ptr< WifiPsdu >	psdu,
		RxSignalInfo	rxSignalInfo,
		WifiTxVector	txVector,
		uint16_t	staId,
		std::vector< bool >	statusPerMpdu
	)

Switch from RX after the reception was successful.

Parameters

psdu	the successfully received PSDU
rxSignalInfo	the info on the received signal (

See also: RxSignalInfo)

Parameters

txVector	TXVECTOR of the PSDU
staId	the station ID of the PSDU (only used for MU)
statusPerMpdu	reception status per MPDU

Definition at line 479 of file wifi-phy-state-helper.cc.

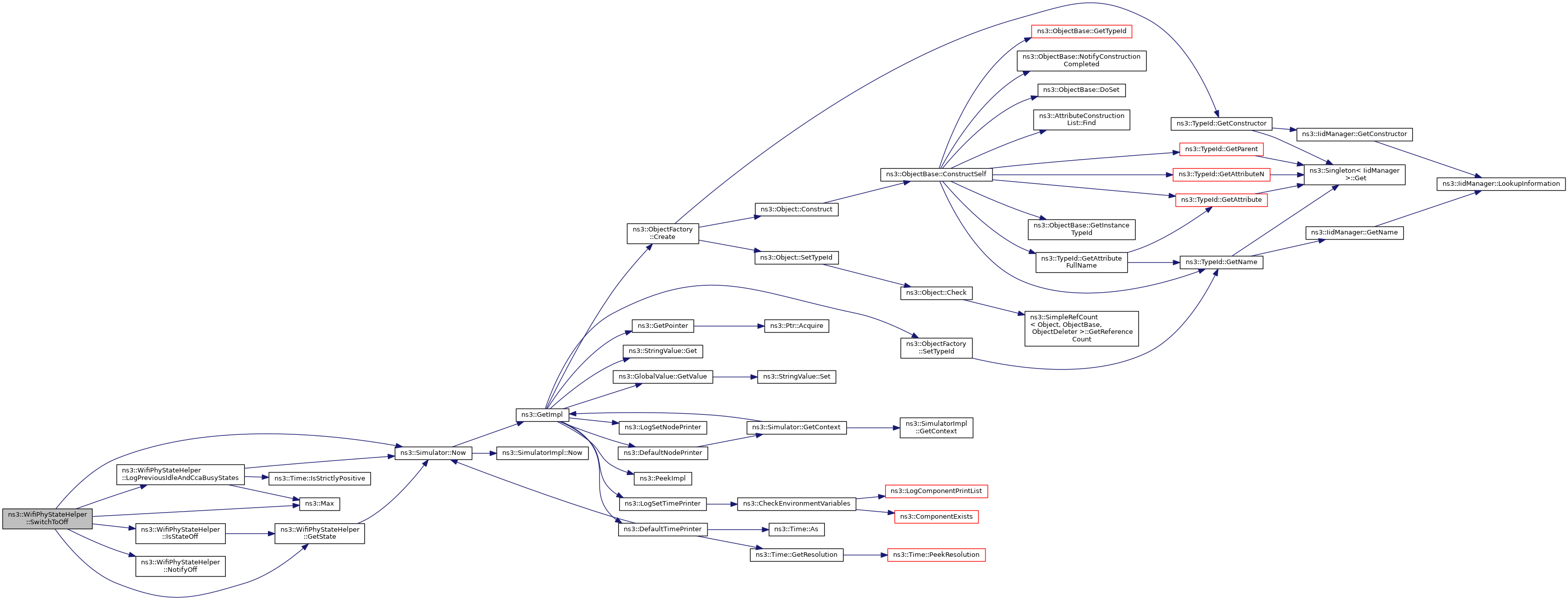

References ns3::Abs(), DoSwitchFromRx(), ns3::WifiTxVector::GetMode(), ns3::WifiPsdu::GetPacket(), ns3::WifiTxVector::GetPreambleType(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_endRx, m_rxOkCallback, m_rxOkTrace, ns3::MicroSeconds(), NotifyRxEndOk(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::RxSignalInfo::snr.

Here is the call graph for this function:

◆ SwitchFromSleep()

void ns3::WifiPhyStateHelper::SwitchFromSleep ( Time duration )

Switch from sleep mode.

Parameters

duration the duration of CCA busy state

Definition at line 576 of file wifi-phy-state-helper.cc.

References IsStateSleep(), m_endCcaBusy, m_previousStateChangeTime, m_sleeping, m_startSleep, m_stateLogger, max, NotifyMaybeCcaBusyStart(), NotifyWakeup(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and SLEEP.

Here is the call graph for this function:

◆ SwitchMaybeToCcaBusy()

void ns3::WifiPhyStateHelper::SwitchMaybeToCcaBusy ( Time duration )

Switch to CCA busy.

Parameters

duration the duration of CCA busy state

Definition at line 522 of file wifi-phy-state-helper.cc.

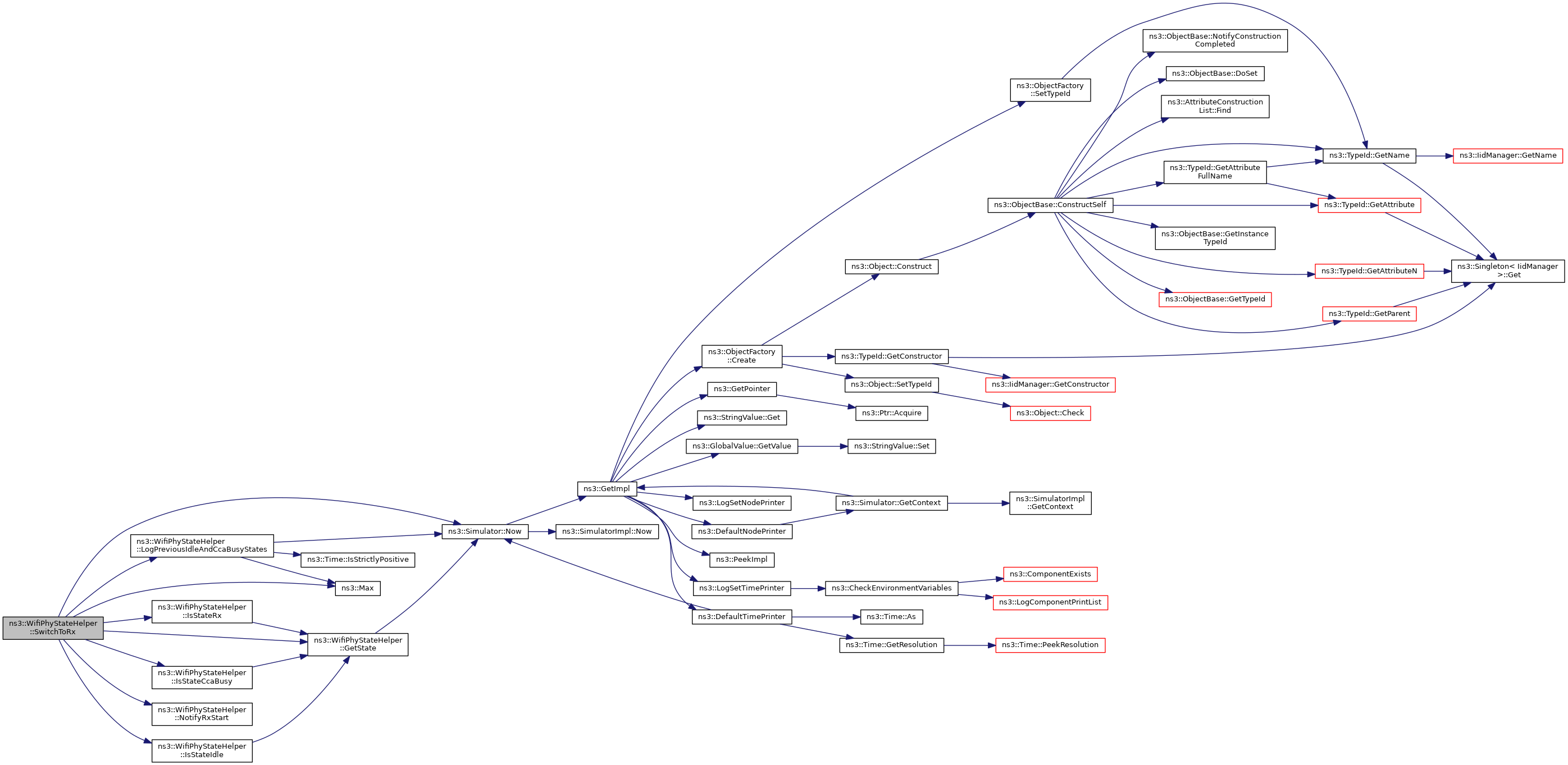

References CCA_BUSY, GetState(), IDLE, LogPreviousIdleAndCcaBusyStates(), m_endCcaBusy, m_startCcaBusy, max, NotifyMaybeCcaBusyStart(), ns3::Simulator::Now(), NS_LOG_FUNCTION, and RX.

Here is the call graph for this function:

◆ SwitchToChannelSwitching()

void ns3::WifiPhyStateHelper::SwitchToChannelSwitching ( Time switchingDuration )

Switch state to channel switching for the given duration.

Parameters

switchingDuration the duration of required to switch the channel

Definition at line 426 of file wifi-phy-state-helper.cc.

References CCA_BUSY, GetState(), IDLE, IsStateSwitching(), LogPreviousIdleAndCcaBusyStates(), m_endCcaBusy, m_endRx, m_endSwitching, m_endTx, m_previousStateChangeTime, m_startCcaBusy, m_startRx, m_startSwitching, m_stateLogger, ns3::Max(), NotifySwitchingStart(), ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, RX, and SWITCHING.

Here is the call graph for this function:

◆ SwitchToOff()

void ns3::WifiPhyStateHelper::SwitchToOff ( void )

Switch to off mode.

Definition at line 606 of file wifi-phy-state-helper.cc.

References CCA_BUSY, GetState(), IDLE, IsStateOff(), LogPreviousIdleAndCcaBusyStates(), m_endRx, m_endSwitching, m_endTx, m_isOff, m_previousStateChangeTime, m_startCcaBusy, m_startRx, m_startTx, m_stateLogger, ns3::Max(), NotifyOff(), ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, RX, and TX.

Here is the call graph for this function:

◆ SwitchToRx()

void ns3::WifiPhyStateHelper::SwitchToRx ( Time rxDuration )

Switch state to RX for the given duration.

Parameters

rxDuration the duration of the RX

Definition at line 397 of file wifi-phy-state-helper.cc.

References CCA_BUSY, GetState(), IDLE, IsStateCcaBusy(), IsStateIdle(), IsStateRx(), LogPreviousIdleAndCcaBusyStates(), m_endRx, m_endSwitching, m_endTx, m_previousStateChangeTime, m_startCcaBusy, m_startRx, m_stateLogger, ns3::Max(), NotifyRxStart(), ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SwitchToSleep()

void ns3::WifiPhyStateHelper::SwitchToSleep ( void )

Switch to sleep mode.

Definition at line 548 of file wifi-phy-state-helper.cc.

References CCA_BUSY, GetState(), IDLE, IsStateSleep(), LogPreviousIdleAndCcaBusyStates(), m_endRx, m_endSwitching, m_endTx, m_previousStateChangeTime, m_sleeping, m_startCcaBusy, m_startSleep, m_stateLogger, ns3::Max(), NotifySleep(), ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SwitchToTx()

void ns3::WifiPhyStateHelper::SwitchToTx	(	Time	txDuration,
		WifiConstPsduMap	psdus,
		double	txPowerDbm,
		WifiTxVector	txVector
	)

Switch state to TX for the given duration.

Parameters

txDuration	the duration of the PPDU to transmit
psdus	the PSDUs in the transmitted PPDU (only one unless it is a MU PPDU)
txPowerDbm	the nominal TX power in dBm
txVector	the TX vector for the transmission

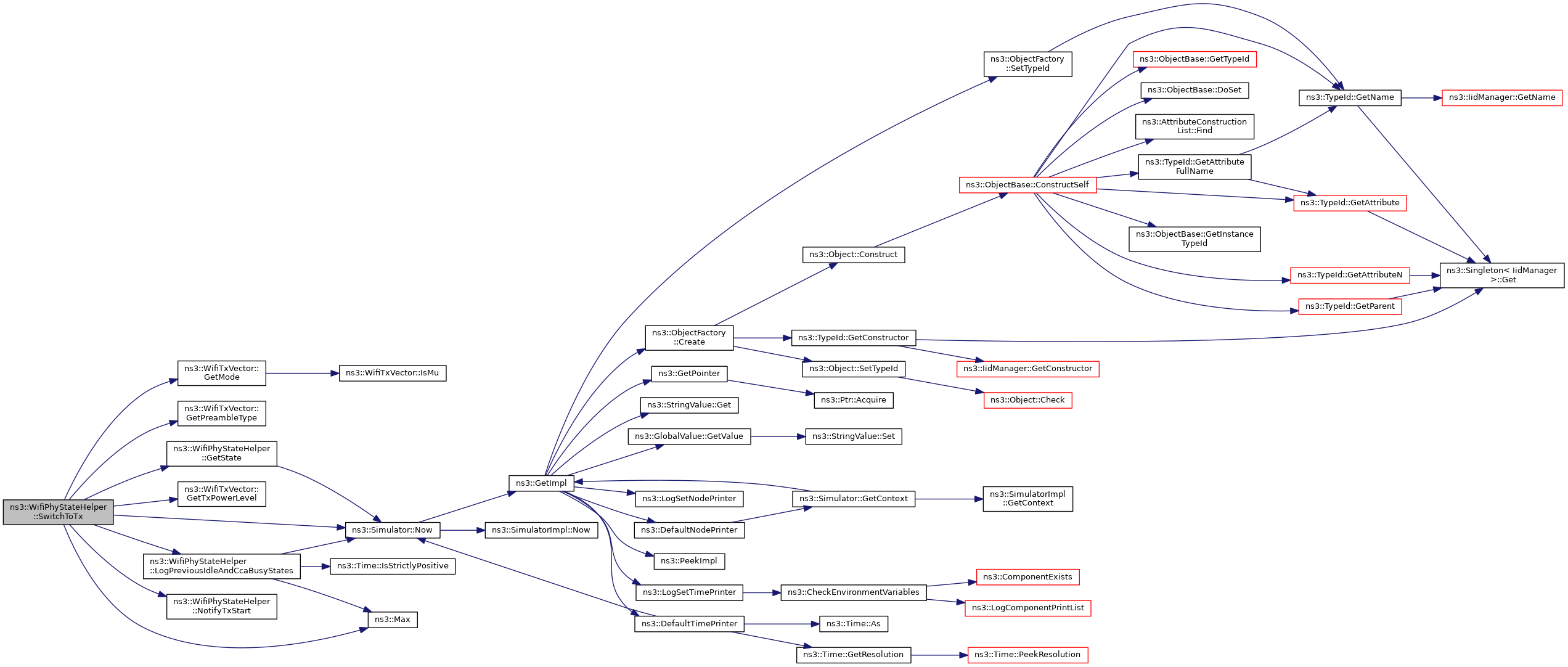

Definition at line 358 of file wifi-phy-state-helper.cc.

References CCA_BUSY, ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetPreambleType(), GetState(), ns3::WifiTxVector::GetTxPowerLevel(), IDLE, LogPreviousIdleAndCcaBusyStates(), m_endRx, m_endSwitching, m_endTx, m_previousStateChangeTime, m_startCcaBusy, m_startRx, m_startTx, m_stateLogger, m_txTrace, ns3::Max(), NotifyTxStart(), ns3::Simulator::Now(), NS_FATAL_ERROR, NS_LOG_FUNCTION, RX, and TX.

Here is the call graph for this function:

◆ UnregisterListener()

void ns3::WifiPhyStateHelper::UnregisterListener ( WifiPhyListener * listener )

Remove WifiPhyListener from this WifiPhyStateHelper.

Parameters

listener the WifiPhyListener to unregister

Definition at line 99 of file wifi-phy-state-helper.cc.

References m_listeners.

Member Data Documentation

◆ m_endCcaBusy

Time ns3::WifiPhyStateHelper::m_endCcaBusy

private

end CCA busy

Definition at line 364 of file wifi-phy-state-helper.h.

Referenced by GetDelayUntilIdle(), GetState(), LogPreviousIdleAndCcaBusyStates(), SwitchFromOff(), SwitchFromRxAbort(), SwitchFromSleep(), SwitchMaybeToCcaBusy(), and SwitchToChannelSwitching().

◆ m_endRx

Time ns3::WifiPhyStateHelper::m_endRx

private

end receive

Definition at line 363 of file wifi-phy-state-helper.h.

Referenced by DoSwitchFromRx(), GetDelayUntilIdle(), GetLastRxEndTime(), GetState(), LogPreviousIdleAndCcaBusyStates(), SwitchFromRxEndError(), SwitchFromRxEndOk(), SwitchToChannelSwitching(), SwitchToOff(), SwitchToRx(), SwitchToSleep(), and SwitchToTx().

◆ m_endSwitching

Time ns3::WifiPhyStateHelper::m_endSwitching

private

end switching

Definition at line 365 of file wifi-phy-state-helper.h.

Referenced by GetDelayUntilIdle(), GetState(), LogPreviousIdleAndCcaBusyStates(), SwitchToChannelSwitching(), SwitchToOff(), SwitchToRx(), SwitchToSleep(), and SwitchToTx().

◆ m_endTx

Time ns3::WifiPhyStateHelper::m_endTx

private

end transmit

Definition at line 362 of file wifi-phy-state-helper.h.

Referenced by GetDelayUntilIdle(), GetState(), LogPreviousIdleAndCcaBusyStates(), SwitchToChannelSwitching(), SwitchToOff(), SwitchToRx(), SwitchToSleep(), and SwitchToTx().

◆ m_isOff

bool ns3::WifiPhyStateHelper::m_isOff

private

switched off

Definition at line 361 of file wifi-phy-state-helper.h.

Referenced by GetState(), SwitchFromOff(), and SwitchToOff().

◆ m_listeners

Listeners ns3::WifiPhyStateHelper::m_listeners

private

listeners

Definition at line 373 of file wifi-phy-state-helper.h.

Referenced by NotifyMaybeCcaBusyStart(), NotifyOff(), NotifyOn(), NotifyRxEndError(), NotifyRxEndOk(), NotifyRxStart(), NotifySleep(), NotifySwitchingStart(), NotifyTxStart(), NotifyWakeup(), RegisterListener(), and UnregisterListener().

◆ m_previousStateChangeTime

Time ns3::WifiPhyStateHelper::m_previousStateChangeTime

private

previous state change time

Definition at line 371 of file wifi-phy-state-helper.h.

Referenced by DoSwitchFromRx(), SwitchFromOff(), SwitchFromSleep(), SwitchToChannelSwitching(), SwitchToOff(), SwitchToRx(), SwitchToSleep(), and SwitchToTx().

◆ m_rxErrorCallback

RxErrorCallback ns3::WifiPhyStateHelper::m_rxErrorCallback

private

receive error callback

Definition at line 378 of file wifi-phy-state-helper.h.

Referenced by SetReceiveErrorCallback(), and SwitchFromRxEndError().

◆ m_rxErrorTrace

TracedCallback<Ptr<const Packet>, double> ns3::WifiPhyStateHelper::m_rxErrorTrace

private

receive error trace callback

Definition at line 375 of file wifi-phy-state-helper.h.

Referenced by GetTypeId(), and SwitchFromRxEndError().

◆ m_rxOkCallback

RxOkCallback ns3::WifiPhyStateHelper::m_rxOkCallback

private

receive OK callback

Definition at line 377 of file wifi-phy-state-helper.h.

Referenced by ContinueRxNextMpdu(), SetReceiveOkCallback(), and SwitchFromRxEndOk().

◆ m_rxOkTrace

TracedCallback<Ptr<const Packet>, double, WifiMode, WifiPreamble> ns3::WifiPhyStateHelper::m_rxOkTrace

private

receive OK trace callback

Definition at line 374 of file wifi-phy-state-helper.h.

Referenced by GetTypeId(), and SwitchFromRxEndOk().

◆ m_sleeping

bool ns3::WifiPhyStateHelper::m_sleeping

private

sleeping

Definition at line 360 of file wifi-phy-state-helper.h.

Referenced by GetState(), SwitchFromSleep(), and SwitchToSleep().

◆ m_startCcaBusy

Time ns3::WifiPhyStateHelper::m_startCcaBusy

private

start CCA busy

Definition at line 368 of file wifi-phy-state-helper.h.

Referenced by LogPreviousIdleAndCcaBusyStates(), SwitchMaybeToCcaBusy(), SwitchToChannelSwitching(), SwitchToOff(), SwitchToRx(), SwitchToSleep(), and SwitchToTx().

◆ m_startRx

Time ns3::WifiPhyStateHelper::m_startRx

private

start receive

Definition at line 367 of file wifi-phy-state-helper.h.

Referenced by DoSwitchFromRx(), GetLastRxStartTime(), SwitchToChannelSwitching(), SwitchToOff(), SwitchToRx(), and SwitchToTx().

◆ m_startSleep

Time ns3::WifiPhyStateHelper::m_startSleep

private

start sleep

Definition at line 370 of file wifi-phy-state-helper.h.

Referenced by SwitchFromSleep(), and SwitchToSleep().

◆ m_startSwitching

Time ns3::WifiPhyStateHelper::m_startSwitching

private

start switching

Definition at line 369 of file wifi-phy-state-helper.h.

Referenced by SwitchToChannelSwitching().

◆ m_startTx

Time ns3::WifiPhyStateHelper::m_startTx

private

start transmit

Definition at line 366 of file wifi-phy-state-helper.h.

Referenced by SwitchToOff(), and SwitchToTx().

◆ m_stateLogger

TracedCallback<Time, Time, WifiPhyState> ns3::WifiPhyStateHelper::m_stateLogger

private

The trace source fired when state is changed.

Definition at line 358 of file wifi-phy-state-helper.h.

Referenced by DoSwitchFromRx(), GetTypeId(), LogPreviousIdleAndCcaBusyStates(), SwitchFromSleep(), SwitchToChannelSwitching(), SwitchToOff(), SwitchToRx(), SwitchToSleep(), and SwitchToTx().

◆ m_txTrace

TracedCallback<Ptr<const Packet>, WifiMode, WifiPreamble, uint8_t> ns3::WifiPhyStateHelper::m_txTrace

private

transmit trace callback

Definition at line 376 of file wifi-phy-state-helper.h.

Referenced by GetTypeId(), and SwitchToTx().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-phy-state-helper.h
src/wifi/model/wifi-phy-state-helper.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

TraceSources

Member Typedef Documentation

◆ Listeners

◆ ListenersI

◆ RxEndErrorTracedCallback

◆ RxOkTracedCallback

◆ StateTracedCallback

◆ TxTracedCallback

Constructor & Destructor Documentation

◆ WifiPhyStateHelper()

Member Function Documentation

◆ ContinueRxNextMpdu()

◆ DoSwitchFromRx()

◆ GetDelayUntilIdle()

◆ GetLastRxEndTime()

◆ GetLastRxStartTime()

◆ GetState()

◆ GetTypeId()

◆ IsStateCcaBusy()

◆ IsStateIdle()

◆ IsStateOff()

◆ IsStateRx()

◆ IsStateSleep()

◆ IsStateSwitching()

◆ IsStateTx()

◆ LogPreviousIdleAndCcaBusyStates()

◆ NotifyMaybeCcaBusyStart()

◆ NotifyOff()

◆ NotifyOn()

◆ NotifyRxEndError()

◆ NotifyRxEndOk()

◆ NotifyRxStart()

◆ NotifySleep()

◆ NotifySwitchingStart()

◆ NotifyTxStart()

◆ NotifyWakeup()

◆ RegisterListener()

◆ SetReceiveErrorCallback()

◆ SetReceiveOkCallback()

◆ SwitchFromOff()

◆ SwitchFromRxAbort()

◆ SwitchFromRxEndError()

◆ SwitchFromRxEndOk()

◆ SwitchFromSleep()

◆ SwitchMaybeToCcaBusy()

◆ SwitchToChannelSwitching()

◆ SwitchToOff()

◆ SwitchToRx()

◆ SwitchToSleep()

◆ SwitchToTx()

◆ UnregisterListener()

Member Data Documentation

◆ m_endCcaBusy

◆ m_endRx

◆ m_endSwitching

◆ m_endTx

◆ m_isOff

◆ m_listeners

◆ m_previousStateChangeTime

◆ m_rxErrorCallback

◆ m_rxErrorTrace

◆ m_rxOkCallback

◆ m_rxOkTrace

◆ m_sleeping

◆ m_startCcaBusy

◆ m_startRx

◆ m_startSleep

◆ m_startSwitching

◆ m_startTx

◆ m_stateLogger

◆ m_txTrace
