build a set of FdNetDevice objects attached to a physical network interface More...

#include "emu-fd-net-device-helper.h"

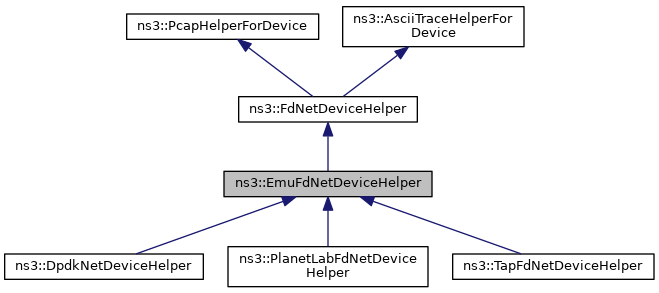

Inheritance diagram for ns3::EmuFdNetDeviceHelper:

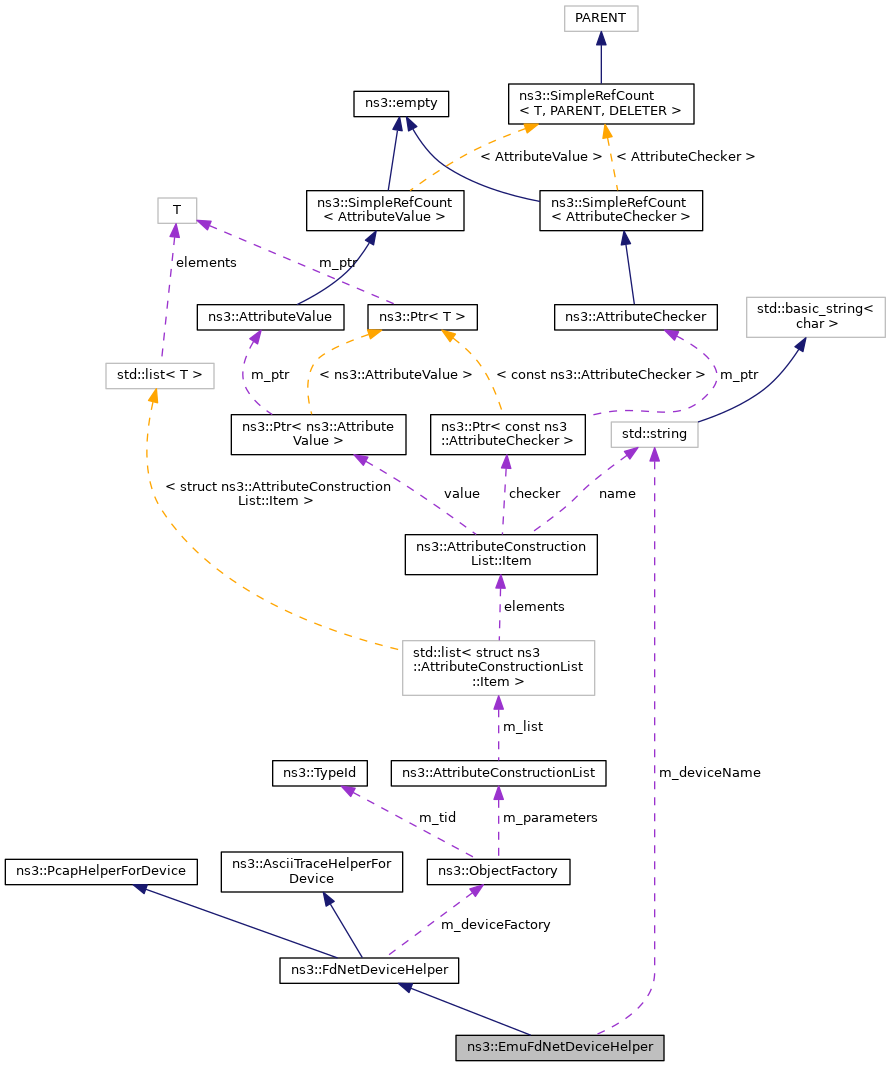

Collaboration diagram for ns3::EmuFdNetDeviceHelper:

Public Member Functions
	EmuFdNetDeviceHelper ()
	Construct a EmuFdNetDeviceHelper. More...

virtual	~EmuFdNetDeviceHelper ()

std::string	GetDeviceName (void)
	Get the device name of this device. More...

void	HostQdiscBypass (bool hostQdiscBypass)
	Request host qdisc bypass. More...

void	SetDeviceName (std::string deviceName)
	Set the device name of this device. More...

Public Member Functions inherited from ns3::FdNetDeviceHelper
	FdNetDeviceHelper ()
	Construct a FdNetDeviceHelper. More...

virtual	~FdNetDeviceHelper ()

virtual NetDeviceContainer	Install (Ptr< Node > node) const
	This method creates a FdNetDevice and associates it to a node. More...

virtual NetDeviceContainer	Install (std::string name) const
	This method creates a FdNetDevice and associates it to a node. More...

virtual NetDeviceContainer	Install (const NodeContainer &c) const
	This method creates a FdNetDevice and associates it to a node. More...

void	SetAttribute (std::string n1, const AttributeValue &v1)

void	SetTypeId (std::string type)
	Set the TypeId of the Objects to be created by this helper. More...

Public Member Functions inherited from ns3::PcapHelperForDevice
	PcapHelperForDevice ()
	Construct a PcapHelperForDevice. More...

virtual	~PcapHelperForDevice ()
	Destroy a PcapHelperForDevice. More...

void	EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device. More...

void	EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
	Enable pcap output on each device in the container which is of the appropriate type. More...

void	EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
	Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnablePcapAll (std::string prefix, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
	AsciiTraceHelperForDevice ()
	Construct an AsciiTraceHelperForDevice. More...

virtual	~AsciiTraceHelperForDevice ()
	Destroy an AsciiTraceHelperForDevice. More...

void	EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (std::string prefix, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (std::string prefix, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAsciiAll (std::string prefix)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

void	EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Protected Member Functions
virtual int	CreateFileDescriptor (void) const
	Call out to a separate process running as suid root in order to get a raw socket. More...

Ptr< NetDevice >	InstallPriv (Ptr< Node > node) const
	This method creates an ns3::FdNetDevice attached to a physical network interface. More...

virtual void	SetFileDescriptor (Ptr< FdNetDevice > device) const
	Sets a file descriptor on the FileDescriptorNetDevice. More...
