build a set of FdNetDevice objects Normally we eschew multiple inheritance, however, the classes PcapUserHelperForDevice and AsciiTraceUserHelperForDevice are treated as "mixins". More...

#include "fd-net-device-helper.h"

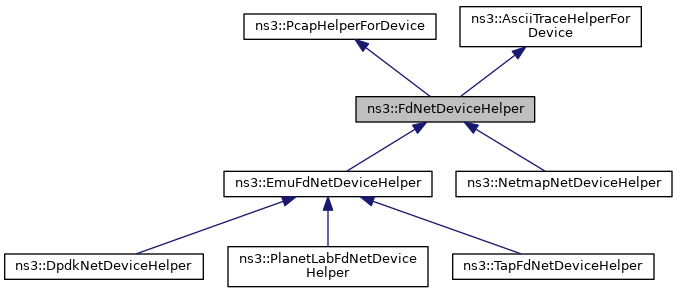

Inheritance diagram for ns3::FdNetDeviceHelper:

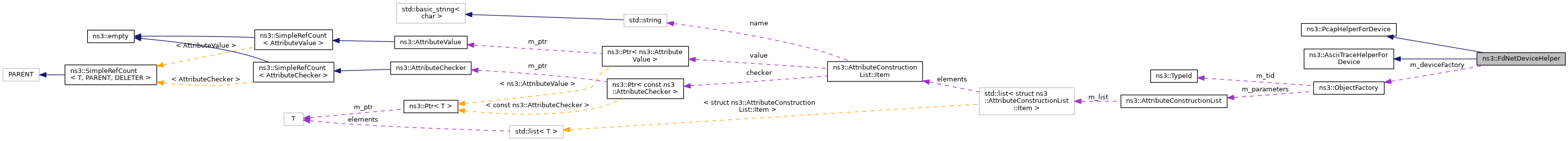

Collaboration diagram for ns3::FdNetDeviceHelper:

Public Member Functions
	FdNetDeviceHelper ()
	Construct a FdNetDeviceHelper. More...

virtual	~FdNetDeviceHelper ()

virtual NetDeviceContainer	Install (Ptr< Node > node) const
	This method creates a FdNetDevice and associates it to a node. More...

virtual NetDeviceContainer	Install (std::string name) const
	This method creates a FdNetDevice and associates it to a node. More...

virtual NetDeviceContainer	Install (const NodeContainer &c) const
	This method creates a FdNetDevice and associates it to a node. More...

void	SetAttribute (std::string n1, const AttributeValue &v1)

void	SetTypeId (std::string type)
	Set the TypeId of the Objects to be created by this helper. More...

Public Member Functions inherited from ns3::PcapHelperForDevice
	PcapHelperForDevice ()
	Construct a PcapHelperForDevice. More...

virtual	~PcapHelperForDevice ()
	Destroy a PcapHelperForDevice. More...

void	EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device. More...

void	EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
	Enable pcap output on each device in the container which is of the appropriate type. More...

void	EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
	Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnablePcapAll (std::string prefix, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
	AsciiTraceHelperForDevice ()
	Construct an AsciiTraceHelperForDevice. More...

virtual	~AsciiTraceHelperForDevice ()
	Destroy an AsciiTraceHelperForDevice. More...

void	EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (std::string prefix, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (std::string prefix, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAsciiAll (std::string prefix)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

void	EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Protected Member Functions
virtual Ptr< NetDevice >	InstallPriv (Ptr< Node > node) const
	This method creates an ns3::FdNetDevice and associates it to a node. More...

Private Member Functions
virtual void	EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename)
	Enable ascii trace output on the indicated net device. More...

virtual void	EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename)
	Enable pcap output on the indicated net device. More...

Private Attributes
ObjectFactory	m_deviceFactory
	factory for the NetDevices More...

Detailed Description

build a set of FdNetDevice objects Normally we eschew multiple inheritance, however, the classes PcapUserHelperForDevice and AsciiTraceUserHelperForDevice are treated as "mixins".

A mixin is a self-contained class that encapsulates a general attribute or a set of functionality that may be of interest to many other classes.

Definition at line 45 of file fd-net-device-helper.h.

Constructor & Destructor Documentation

◆ FdNetDeviceHelper()

ns3::FdNetDeviceHelper::FdNetDeviceHelper ( )

Construct a FdNetDeviceHelper.

Definition at line 40 of file fd-net-device-helper.cc.

References m_deviceFactory, and ns3::ObjectFactory::SetTypeId().

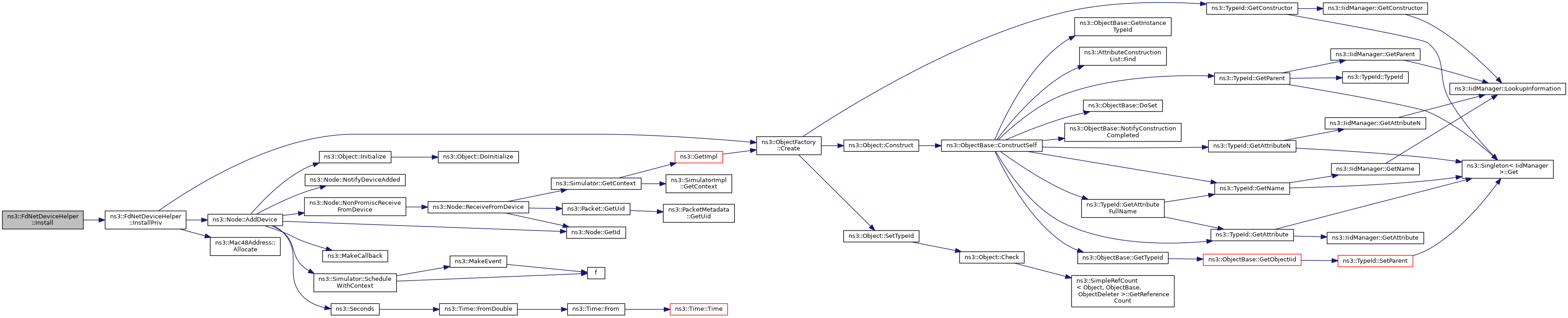

Here is the call graph for this function:

◆ ~FdNetDeviceHelper()

virtual ns3::FdNetDeviceHelper::~FdNetDeviceHelper ( )

inlinevirtual

Definition at line 53 of file fd-net-device-helper.h.

Member Function Documentation

◆ EnableAsciiInternal()

void ns3::FdNetDeviceHelper::EnableAsciiInternal	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		Ptr< NetDevice >	nd,
		bool	explicitFilename
	)

privatevirtual

Enable ascii trace output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

stream	The output stream object to use when logging ascii traces.
prefix	Filename prefix to use for ascii trace files.
nd	Net device for which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::AsciiTraceHelperForDevice.

Definition at line 97 of file fd-net-device-helper.cc.

References ns3::Config::Connect(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::AsciiTraceHelper::DefaultReceiveSinkWithContext(), ns3::Packet::EnablePrinting(), ns3::AsciiTraceHelper::GetFilenameFromDevice(), ns3::AsciiTraceHelper::HookDefaultReceiveSinkWithoutContext(), ns3::MakeBoundCallback(), and NS_LOG_INFO.

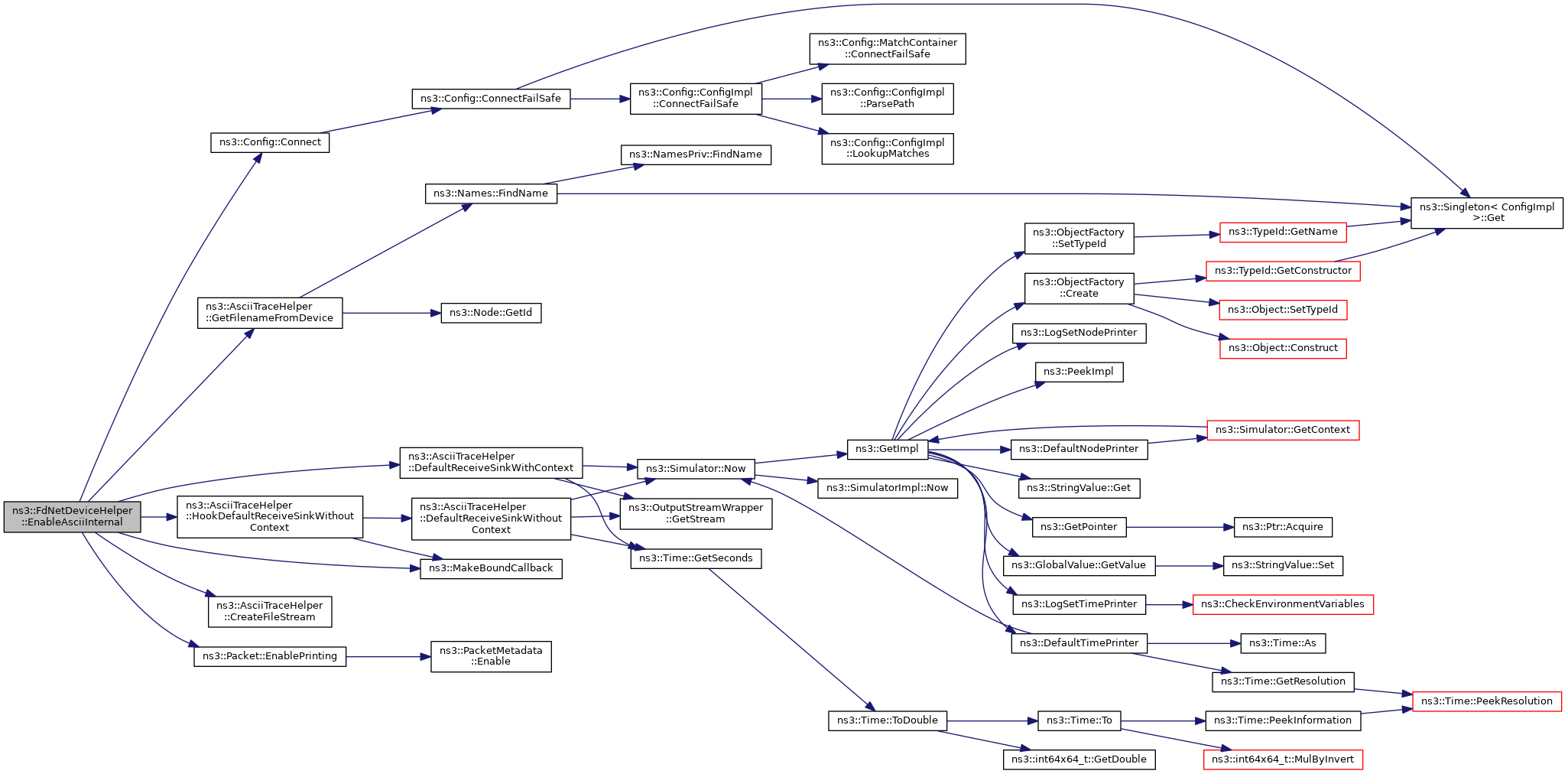

Here is the call graph for this function:

◆ EnablePcapInternal()

void ns3::FdNetDeviceHelper::EnablePcapInternal	(	std::string	prefix,
		Ptr< NetDevice >	nd,
		bool	promiscuous,
		bool	explicitFilename
	)

privatevirtual

Enable pcap output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

prefix	Filename prefix to use for pcap files.
nd	Net device for which you want to enable tracing.
promiscuous	If true capture all possible packets available at the device.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::PcapHelperForDevice.

Definition at line 59 of file fd-net-device-helper.cc.

References ns3::PcapHelper::CreateFile(), ns3::PcapHelper::DLT_EN10MB, create-module::file, ns3::PcapHelper::GetFilenameFromDevice(), ns3::PcapHelper::HookDefaultSink(), and NS_LOG_INFO.

Here is the call graph for this function:

◆ Install() [1/3]

NetDeviceContainer ns3::FdNetDeviceHelper::Install ( Ptr< Node > node ) const

virtual

This method creates a FdNetDevice and associates it to a node.

Parameters

node	The node to install the device in

Returns: A container holding the added net device.

Definition at line 176 of file fd-net-device-helper.cc.

References InstallPriv().

Referenced by ns3::EmuEpcHelper::AddEnb(), and ns3::EmuEpcHelper::EmuEpcHelper().

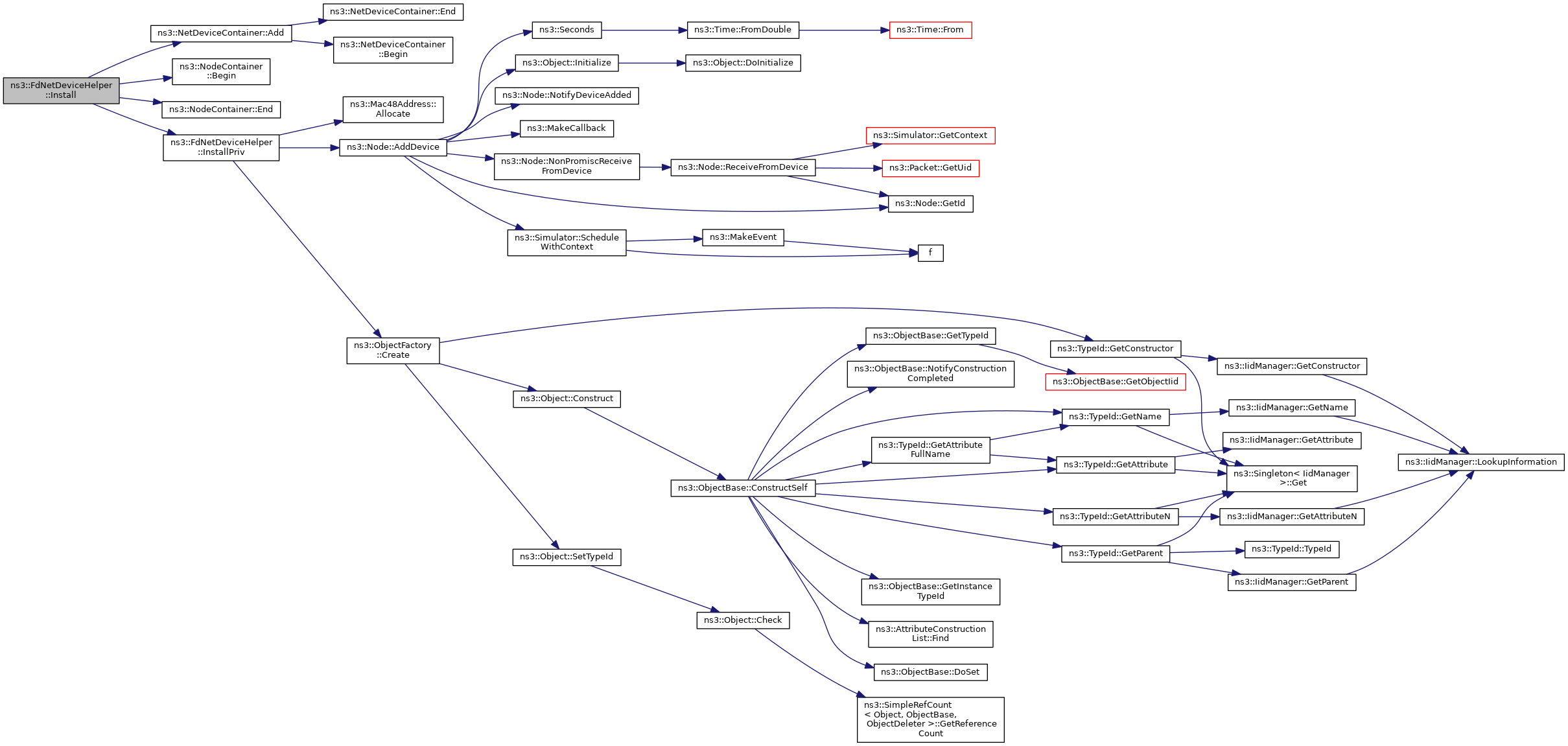

Here is the call graph for this function:

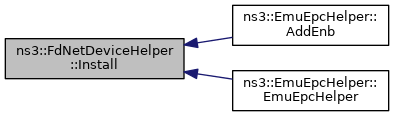

Here is the caller graph for this function:

◆ Install() [2/3]

NetDeviceContainer ns3::FdNetDeviceHelper::Install ( std::string name ) const

virtual

This method creates a FdNetDevice and associates it to a node.

Parameters

name	The name of the node to install the device in

Returns: A container holding the added net device.

Definition at line 182 of file fd-net-device-helper.cc.

References InstallPriv().

Here is the call graph for this function:

◆ Install() [3/3]

NetDeviceContainer ns3::FdNetDeviceHelper::Install ( const NodeContainer & c ) const

virtual

This method creates a FdNetDevice and associates it to a node.

For each Ptr<node> in the provided container: it creates an ns3::FdNetDevice (with the attributes configured by FdNetDeviceHelper::SetDeviceAttribute); adds the device to the node; and attaches the channel to the device.

Parameters
