ns3::Ipv6StaticRouting Class Reference

Static routing protocol for IP version 6 stacks. More...

#include "ipv6-static-routing.h"

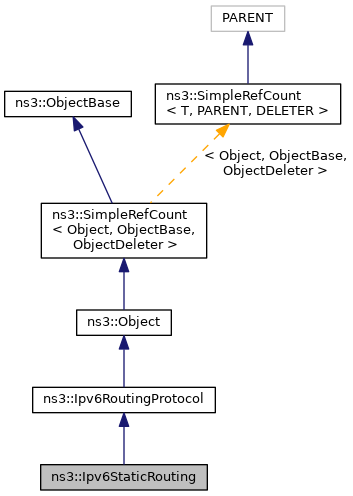

+ Inheritance diagram for ns3::Ipv6StaticRouting:

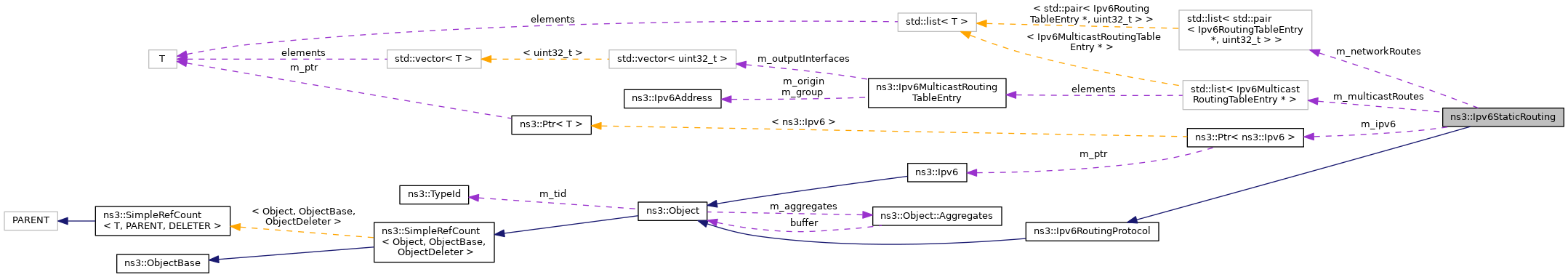

+ Collaboration diagram for ns3::Ipv6StaticRouting:

Public Member Functions

 Ipv6StaticRouting ()

virtual ~Ipv6StaticRouting ()

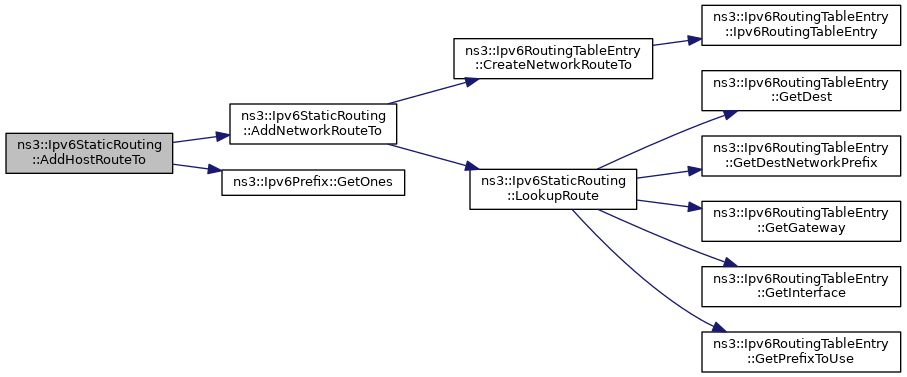

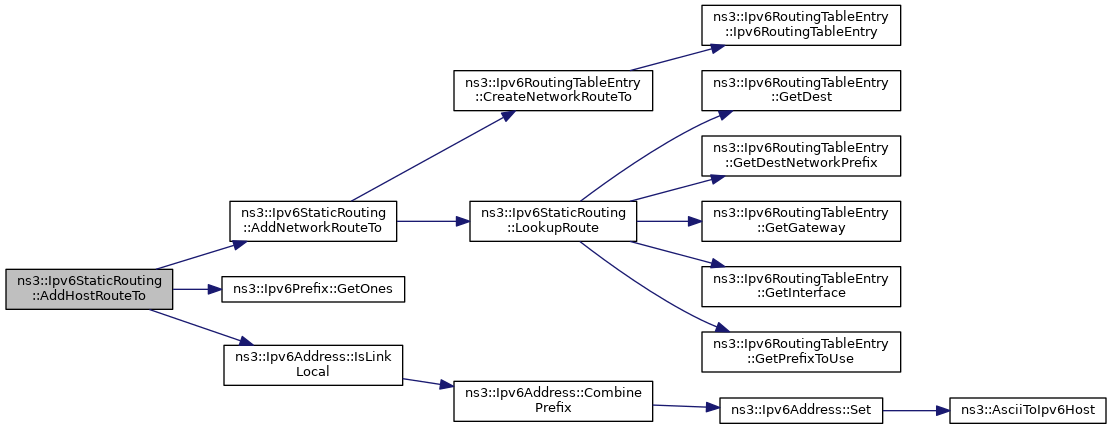

void AddHostRouteTo (Ipv6Address dest, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address("::"), uint32_t metric=0)
 Add route to host. More...

void AddHostRouteTo (Ipv6Address dest, uint32_t interface, uint32_t metric=0)
 Add route to host. More...

void AddMulticastRoute (Ipv6Address origin, Ipv6Address group, uint32_t inputInterface, std::vector< uint32_t > outputInterfaces)
 Add a multicast route for a given multicast source and group. More...

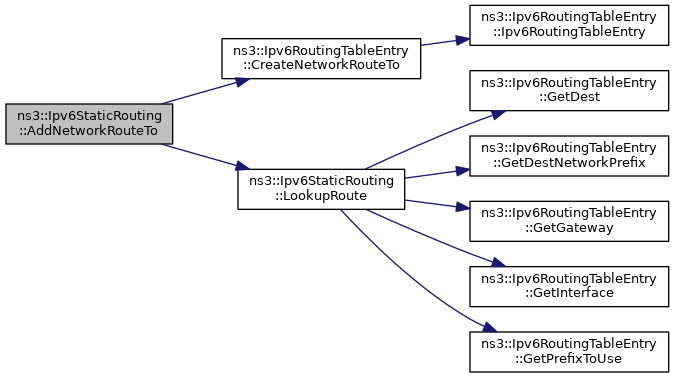

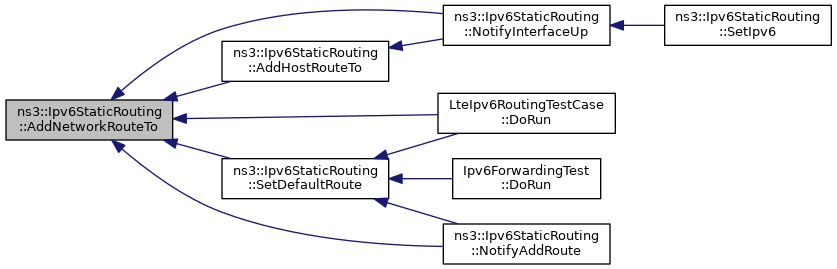

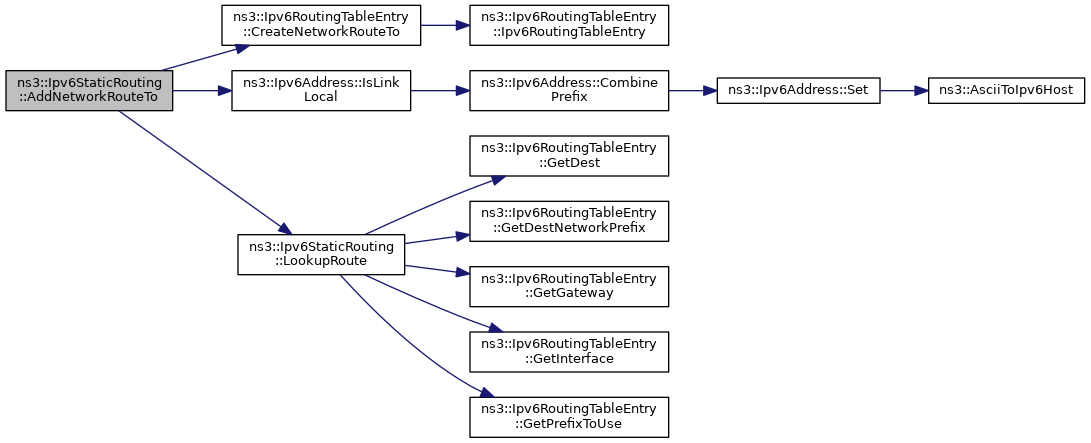

void AddNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface, uint32_t metric=0)
 Add route to network. More...

void AddNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse, uint32_t metric=0)
 Add route to network. More...

void AddNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, uint32_t interface, uint32_t metric=0)
 Add route to network. More...

Ipv6RoutingTableEntry GetDefaultRoute ()
 Get the default route. More...

uint32_t GetMetric (uint32_t index) const
 Get a metric for route from the static unicast routing table. More...

Ipv6MulticastRoutingTableEntry GetMulticastRoute (uint32_t i) const
 Get the specified multicast route. More...

uint32_t GetNMulticastRoutes () const
 Get the number of entries in the multicast routing table. More...

uint32_t GetNRoutes () const
 Get the number or entries in the routing table. More...

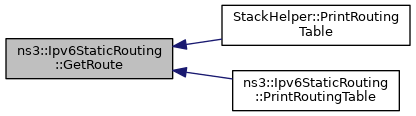

Ipv6RoutingTableEntry GetRoute (uint32_t i) const
 Get a specified route. More...

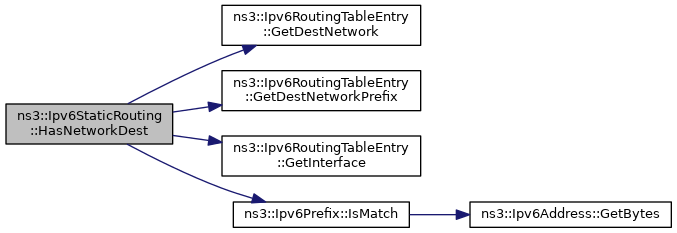

bool HasNetworkDest (Ipv6Address dest, uint32_t interfaceIndex)
 If the destination is already present in network destination list. More...

virtual void NotifyAddAddress (uint32_t interface, Ipv6InterfaceAddress address)
 Notify when specified interface add an address. More...

virtual void NotifyAddRoute (Ipv6Address dst, Ipv6Prefix mask, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address::GetZero())
 Notify a new route. More...

virtual void NotifyInterfaceDown (uint32_t interface)
 Notify when specified interface goes DOWN. More...

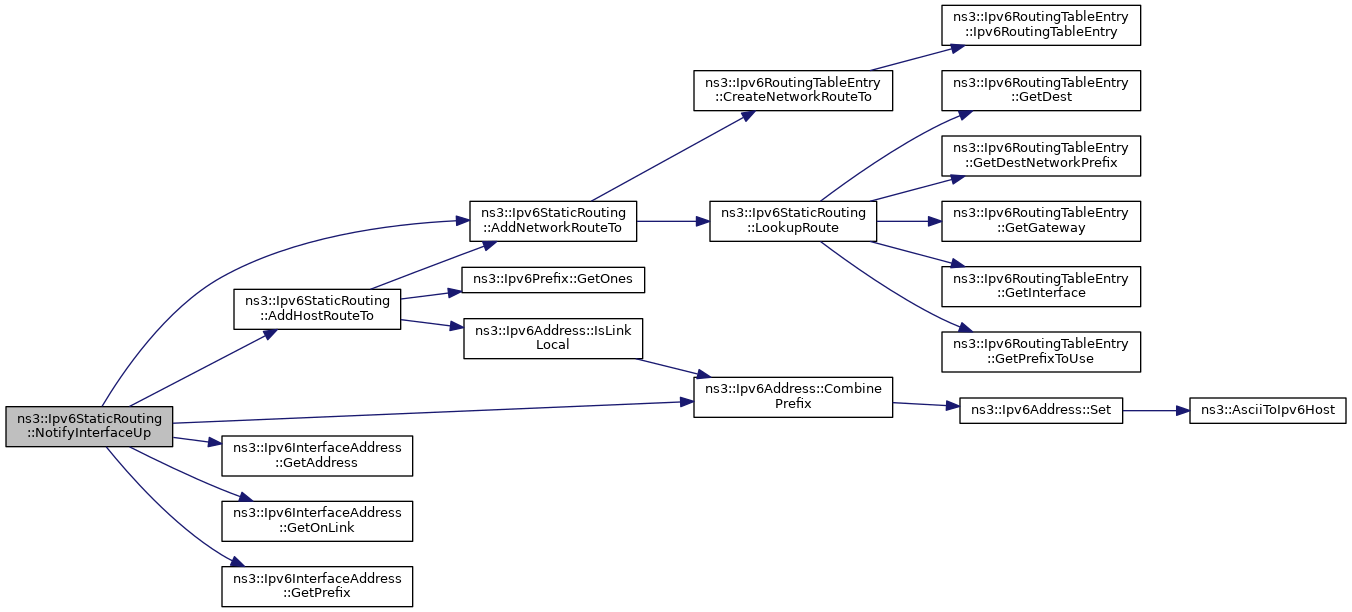

virtual void NotifyInterfaceUp (uint32_t interface)
 Notify when specified interface goes UP. More...

virtual void NotifyRemoveAddress (uint32_t interface, Ipv6InterfaceAddress address)
 Notify when specified interface add an address. More...

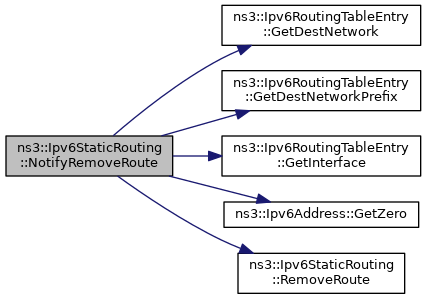

virtual void NotifyRemoveRoute (Ipv6Address dst, Ipv6Prefix mask, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address::GetZero())
 Notify route removing. More...

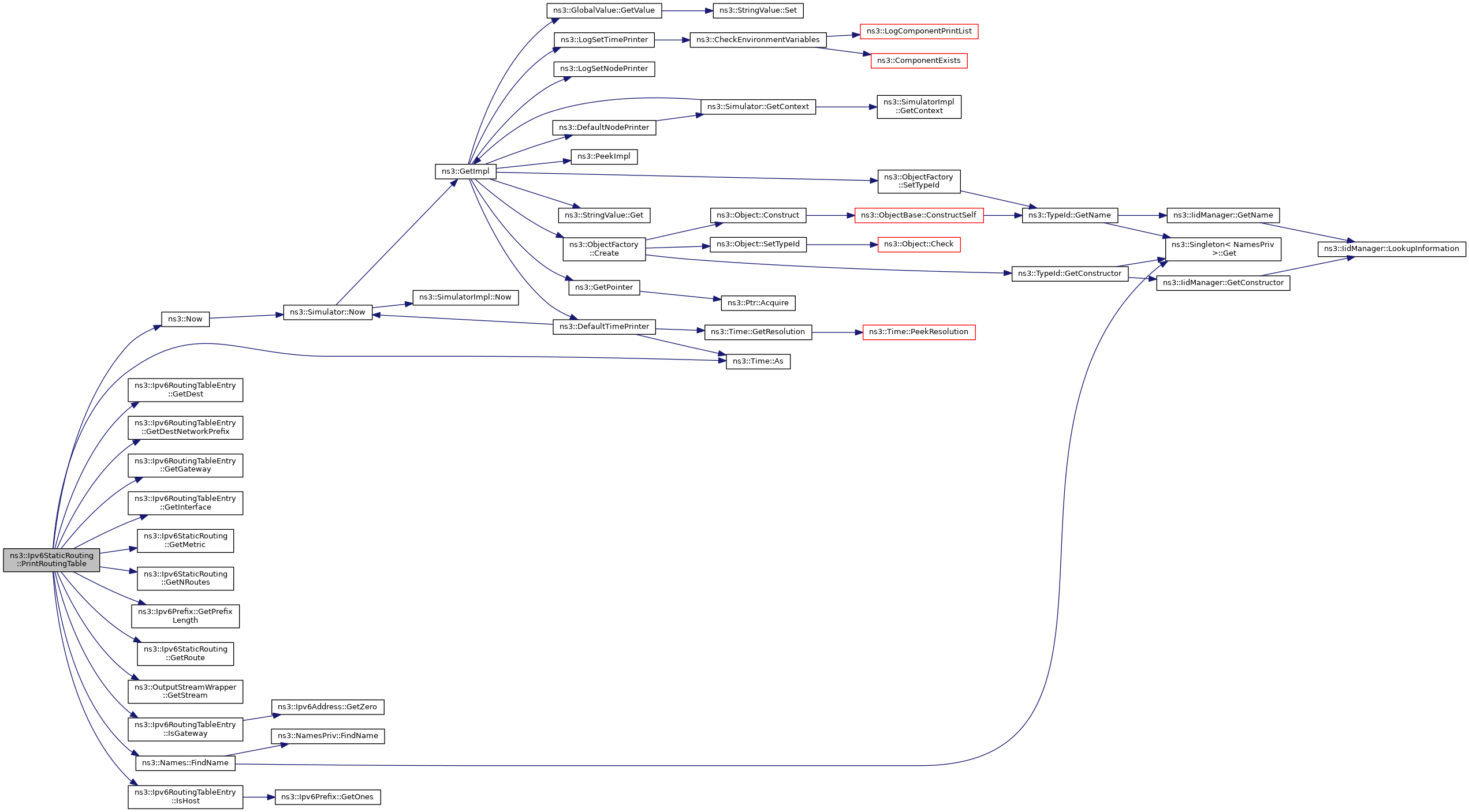

virtual void PrintRoutingTable (Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S) const
 Print the Routing Table entries. More...

bool RemoveMulticastRoute (Ipv6Address origin, Ipv6Address group, uint32_t inputInterface)
 Remove a static multicast route. More...

void RemoveMulticastRoute (uint32_t i)
 Remove a multicast route. More...

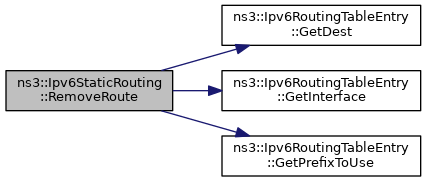

void RemoveRoute (uint32_t i)
 Remove a route from the routing table. More...

void RemoveRoute (Ipv6Address network, Ipv6Prefix prefix, uint32_t ifIndex, Ipv6Address prefixToUse)
 Remove a route from the routing table. More...

virtual bool RouteInput (Ptr< const Packet > p, const Ipv6Header &header, Ptr< const NetDevice > idev, UnicastForwardCallback ucb, MulticastForwardCallback mcb, LocalDeliverCallback lcb, ErrorCallback ecb)
 Route an input packet (to be forwarded or locally delivered) More...

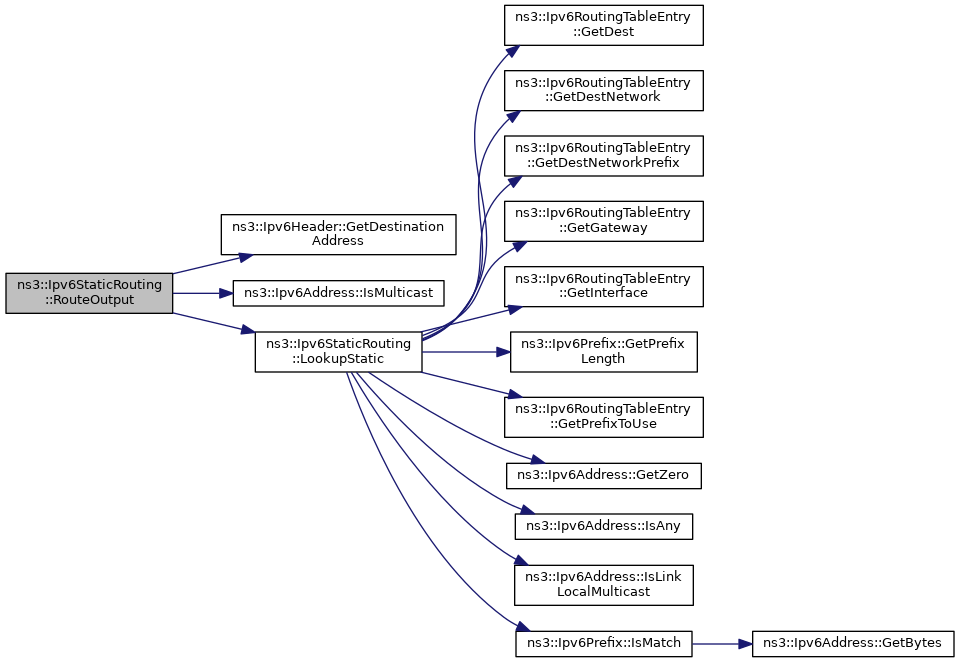

virtual Ptr< Ipv6RouteRouteOutput (Ptr< Packet > p, const Ipv6Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)
 Query routing cache for an existing route, for an outbound packet. More...

void SetDefaultMulticastRoute (uint32_t outputInterface)
 Set the default multicast route. More...

void SetDefaultRoute (Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address("::"), uint32_t metric=0)
 Set the default route. More...

virtual void SetIpv6 (Ptr< Ipv6 > ipv6)
 Typically, invoked directly or indirectly from ns3::Ipv6::SetRoutingProtocol. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 The interface Id associated with this class. More...

- Static Public Member Functions inherited from ns3::Ipv6RoutingProtocol
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose ()
 Dispose this object. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Types

typedef std::list< Ipv6MulticastRoutingTableEntry * > MulticastRoutes
 Container for the multicast routes. More...

typedef std::list< Ipv6MulticastRoutingTableEntry * >::const_iterator MulticastRoutesCI
 Const Iterator for container for the multicast routes. More...

typedef std::list< Ipv6MulticastRoutingTableEntry * >::iterator MulticastRoutesI
 Iterator for container for the multicast routes. More...

typedef std::list< std::pair< Ipv6RoutingTableEntry *, uint32_t > > NetworkRoutes
 Container for the network routes. More...

typedef std::list< std::pair< Ipv6RoutingTableEntry *, uint32_t > >::const_iterator NetworkRoutesCI
 Const Iterator for container for the network routes. More...

typedef std::list< std::pair< Ipv6RoutingTableEntry *, uint32_t > >::iterator NetworkRoutesI
 Iterator for container for the network routes. More...


Private Member Functions

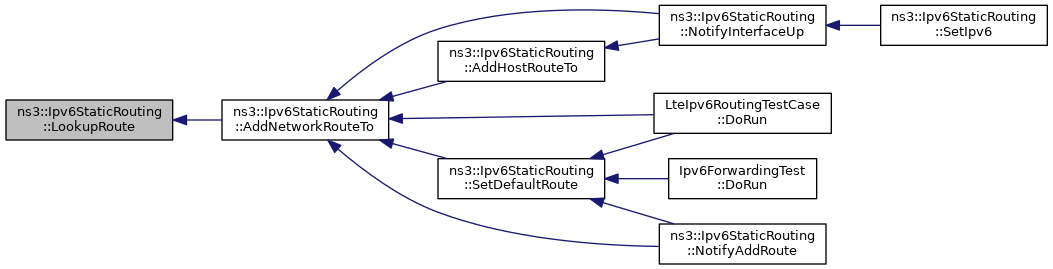

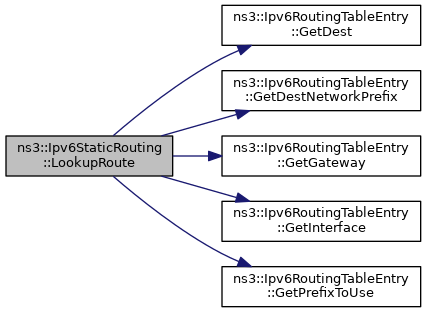

bool LookupRoute (const Ipv6RoutingTableEntry &route, uint32_t metric)
 Checks if a route is already present in the forwarding table. More...

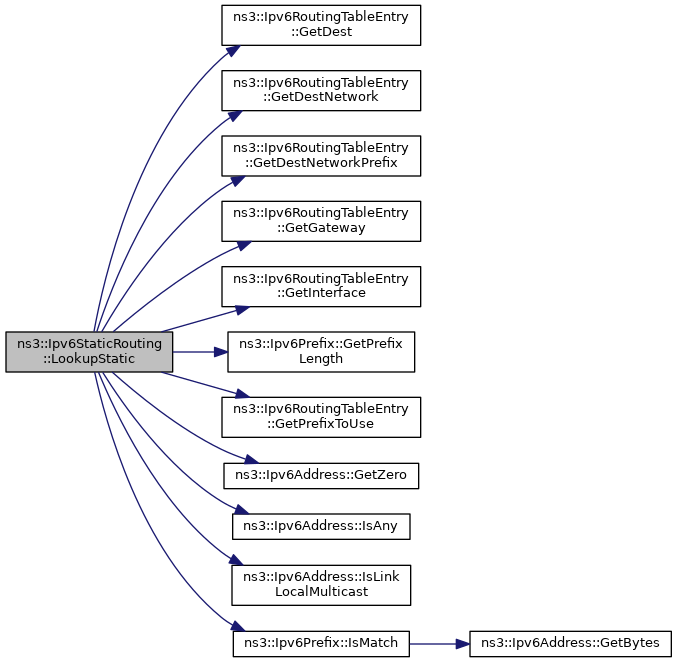

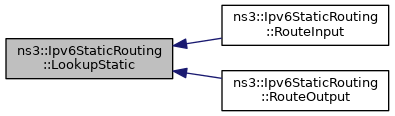

Ptr< Ipv6RouteLookupStatic (Ipv6Address dest, Ptr< NetDevice >=0)
 Lookup in the forwarding table for destination. More...

Ptr< Ipv6MulticastRouteLookupStatic (Ipv6Address origin, Ipv6Address group, uint32_t ifIndex)
 Lookup in the multicast forwarding table for destination. More...


Private Attributes

Ptr< Ipv6m_ipv6
 Ipv6 reference. More...

MulticastRoutes m_multicastRoutes
 the forwarding table for multicast. More...

NetworkRoutes m_networkRoutes
 the forwarding table for network. More...


Additional Inherited Members

- Public Types inherited from ns3::Ipv6RoutingProtocol
typedef Callback< void, Ptr< const Packet >, const Ipv6Header &, Socket::SocketErrnoErrorCallback
 Callback for routing errors (e.g., no route found) More...

typedef Callback< void, Ptr< const Packet >, const Ipv6Header &, uint32_t > LocalDeliverCallback
 Callback for packets to be locally delivered. More...

typedef Callback< void, Ptr< const NetDevice >, Ptr< Ipv6MulticastRoute >, Ptr< const Packet >, const Ipv6Header & > MulticastForwardCallback
 Callback for multicast packets to be forwarded. More...

typedef Callback< void, Ptr< const NetDevice >, Ptr< Ipv6Route >, Ptr< const Packet >, const Ipv6Header & > UnicastForwardCallback
 Callback for unicast packets to be forwarded. More...


Detailed Description

Static routing protocol for IP version 6 stacks.


Introspection did not find any typical Config paths.

This class provides a basic set of methods for inserting static unicast and multicast routes into the Ipv6 routing system. This particular protocol is designed to be inserted into an Ipv6ListRouting protocol but can be used also as a standalone protocol.

The Ipv6StaticRouting class inherits from the abstract base class Ipv6RoutingProtocol that defines the interface methods that a routing protocol must support.

See also
Ipv6RoutingProtocol
Ipv6ListRouting
Ipv6ListRouting::AddRoutingProtocol


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 63 of file ipv6-static-routing.h.

Member Typedef Documentation

◆ MulticastRoutes

Container for the multicast routes.

Definition at line 259 of file ipv6-static-routing.h.

◆ MulticastRoutesCI

Const Iterator for container for the multicast routes.

Definition at line 262 of file ipv6-static-routing.h.

◆ MulticastRoutesI

Iterator for container for the multicast routes.

Definition at line 265 of file ipv6-static-routing.h.

◆ NetworkRoutes

typedef std::list<std::pair <Ipv6RoutingTableEntry *, uint32_t> > ns3::Ipv6StaticRouting::NetworkRoutes
private

Container for the network routes.

Definition at line 250 of file ipv6-static-routing.h.

◆ NetworkRoutesCI

typedef std::list<std::pair <Ipv6RoutingTableEntry *, uint32_t> >::const_iterator ns3::Ipv6StaticRouting::NetworkRoutesCI
private

Const Iterator for container for the network routes.

Definition at line 253 of file ipv6-static-routing.h.

◆ NetworkRoutesI

typedef std::list<std::pair <Ipv6RoutingTableEntry *, uint32_t> >::iterator ns3::Ipv6StaticRouting::NetworkRoutesI
private

Iterator for container for the network routes.

Definition at line 256 of file ipv6-static-routing.h.

Constructor & Destructor Documentation

◆ Ipv6StaticRouting()

ns3::Ipv6StaticRouting::Ipv6StaticRouting ( )

Definition at line 49 of file ipv6-static-routing.cc.

References NS_LOG_FUNCTION.

◆ ~Ipv6StaticRouting()

ns3::Ipv6StaticRouting::~Ipv6StaticRouting ( )
virtual

Definition at line 55 of file ipv6-static-routing.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddHostRouteTo() [1/2]

void ns3::Ipv6StaticRouting::AddHostRouteTo ( Ipv6Address  dest,
Ipv6Address  nextHop,
uint32_t  interface,
Ipv6Address  prefixToUse = Ipv6Address ("::"),
uint32_t  metric = 0
)

Add route to host.

Parameters
destdestination address
nextHopnext hop address to route the packet.
interfaceinterface index
prefixToUseprefix that should be used for source address for this destination
metricmetric of route in case of multiple routes to same destination

Definition at line 139 of file ipv6-static-routing.cc.

References AddNetworkRouteTo(), ns3::Ipv6Prefix::GetOnes(), ns3::Ipv6Address::IsLinkLocal(), NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by NotifyInterfaceUp().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ AddHostRouteTo() [2/2]

void ns3::Ipv6StaticRouting::AddHostRouteTo ( Ipv6Address  dest,
uint32_t  interface,
uint32_t  metric = 0
)

Add route to host.

Parameters
destdestination address.
interfaceinterface index
metricmetric of route in case of multiple routes to same destination

Definition at line 150 of file ipv6-static-routing.cc.

References AddNetworkRouteTo(), ns3::Ipv6Prefix::GetOnes(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ AddMulticastRoute()

void ns3::Ipv6StaticRouting::AddMulticastRoute ( Ipv6Address  origin,
Ipv6Address  group,
uint32_t  inputInterface,
std::vector< uint32_t >  outputInterfaces
)

Add a multicast route for a given multicast source and group.

Parameters
originIPv6 address of the source
groupthe multicast group address.
inputInterfacethe interface index
outputInterfacesthe list of output interface indices over which the packet should be sent (excluding the inputInterface).

Definition at line 203 of file ipv6-static-routing.cc.

References ns3::Ipv6MulticastRoutingTableEntry::CreateMulticastRoute(), m_multicastRoutes, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ AddNetworkRouteTo() [1/3]

void ns3::Ipv6StaticRouting::AddNetworkRouteTo ( Ipv6Address  network,
Ipv6Prefix  networkPrefix,
Ipv6Address  nextHop,
uint32_t  interface,
uint32_t  metric = 0
)

Add route to network.

Parameters
networknetwork address
networkPrefixnetwork prefix*
nextHopnext hop address to route the packet
interfaceinterface index
metricmetric of route in case of multiple routes to same destination

Definition at line 156 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo(), LookupRoute(), m_networkRoutes, and NS_LOG_FUNCTION.

Referenced by AddHostRouteTo(), LteIpv6RoutingTestCase::DoRun(), NotifyAddRoute(), NotifyInterfaceUp(), and SetDefaultRoute().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ AddNetworkRouteTo() [2/3]

void ns3::Ipv6StaticRouting::AddNetworkRouteTo ( Ipv6Address  network,
Ipv6Prefix  networkPrefix,
Ipv6Address  nextHop,
uint32_t  interface,
Ipv6Address  prefixToUse,
uint32_t  metric = 0
)

Add route to network.

Parameters
networknetwork address
networkPrefixnetwork prefix*
nextHopnext hop address to route the packet.
interfaceinterface index
prefixToUseprefix that should be used for source address for this destination
metricmetric of route in case of multiple routes to same destination

Definition at line 169 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo(), ns3::Ipv6Address::IsLinkLocal(), LookupRoute(), m_networkRoutes, NS_LOG_FUNCTION, and NS_LOG_WARN.

+ Here is the call graph for this function:

◆ AddNetworkRouteTo() [3/3]

void ns3::Ipv6StaticRouting::AddNetworkRouteTo ( Ipv6Address  network,
Ipv6Prefix  networkPrefix,
uint32_t  interface,
uint32_t  metric = 0
)

Add route to network.

Parameters
networknetwork address
networkPrefixnetwork prefix
interfaceinterface index
metricmetric of route in case of multiple routes to same destination

Definition at line 185 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo(), LookupRoute(), m_networkRoutes, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ DoDispose()

void ns3::Ipv6StaticRouting::DoDispose ( void  )
protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 412 of file ipv6-static-routing.cc.

References ns3::Object::DoDispose(), m_ipv6, m_multicastRoutes, m_networkRoutes, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ GetDefaultRoute()

Ipv6RoutingTableEntry ns3::Ipv6StaticRouting::GetDefaultRoute ( void  )

Get the default route.

If multiple default routes exist, the one with lowest metric is returned.

Returns
default Ipv6Route

Definition at line 486 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::GetDestNetwork(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6Prefix::GetPrefixLength(), m_networkRoutes, and NS_LOG_FUNCTION.

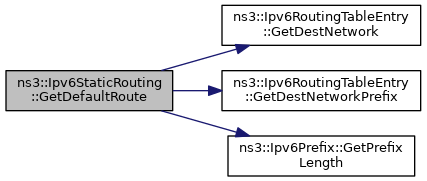

+ Here is the call graph for this function:

◆ GetMetric()

uint32_t ns3::Ipv6StaticRouting::GetMetric ( uint32_t  index) const

Get a metric for route from the static unicast routing table.

Parameters
indexThe index (into the routing table) of the route to retrieve.
Returns
If route is set, the metric is returned. If not, an infinity metric (0xffffffff) is returned

Definition at line 542 of file ipv6-static-routing.cc.

References m_networkRoutes, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by PrintRoutingTable().

+ Here is the caller graph for this function:

◆ GetMulticastRoute()

Ipv6MulticastRoutingTableEntry ns3::Ipv6StaticRouting::GetMulticastRoute ( uint32_t  i) const

Get the specified multicast route.

Parameters
iindex
Returns
the route whose index is i

Definition at line 227 of file ipv6-static-routing.cc.

References m_multicastRoutes, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ GetNMulticastRoutes()

uint32_t ns3::Ipv6StaticRouting::GetNMulticastRoutes ( void  ) const

Get the number of entries in the multicast routing table.

Returns
number of entries

Definition at line 221 of file ipv6-static-routing.cc.

References m_multicastRoutes, and NS_LOG_FUNCTION.

◆ GetNRoutes()

uint32_t ns3::Ipv6StaticRouting::GetNRoutes ( void  ) const

Get the number or entries in the routing table.

Returns
number of entries

Definition at line 481 of file ipv6-static-routing.cc.

References m_networkRoutes.

Referenced by StackHelper::PrintRoutingTable(), and PrintRoutingTable().

+ Here is the caller graph for this function:

◆ GetRoute()

Ipv6RoutingTableEntry ns3::Ipv6StaticRouting::GetRoute ( uint32_t  i) const

Get a specified route.

Parameters
iindex
Returns
the route whose index is i

Definition at line 524 of file ipv6-static-routing.cc.

References m_networkRoutes, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by StackHelper::PrintRoutingTable(), and PrintRoutingTable().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv6StaticRouting::GetTypeId ( void  )
static

The interface Id associated with this class.

Returns
type identifier

Definition at line 39 of file ipv6-static-routing.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ HasNetworkDest()

bool ns3::Ipv6StaticRouting::HasNetworkDest ( Ipv6Address  dest,
uint32_t  interfaceIndex
)

If the destination is already present in network destination list.

Parameters
destdestination address
interfaceIndexinterface index
Returns
true if dest is already in list, false otherwise

Definition at line 282 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::GetDestNetwork(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6RoutingTableEntry::GetInterface(), ns3::Ipv6Prefix::IsMatch(), m_networkRoutes, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ LookupRoute()

bool ns3::Ipv6StaticRouting::LookupRoute ( const Ipv6RoutingTableEntry route,
uint32_t  metric
)
private

Checks if a route is already present in the forwarding table.

Parameters
routeroute
metricmetric of route
Returns
true if the route/metric is already in the forwarding table

Definition at line 303 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::GetDest(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6RoutingTableEntry::GetGateway(), ns3::Ipv6RoutingTableEntry::GetInterface(), ns3::Ipv6RoutingTableEntry::GetPrefixToUse(), and m_networkRoutes.

Referenced by AddNetworkRouteTo().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ LookupStatic() [1/2]

Ptr< Ipv6Route > ns3::Ipv6StaticRouting::LookupStatic ( Ipv6Address  dest,
Ptr< NetDevice interface = 0
)
private

Lookup in the forwarding table for destination.

Parameters
destdestination address
interfaceoutput interface if any (put 0 otherwise)
Returns
Ipv6Route to route the packet to reach dest address

Definition at line 322 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::GetDest(), ns3::Ipv6RoutingTableEntry::GetDestNetwork(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6RoutingTableEntry::GetGateway(), ns3::Ipv6RoutingTableEntry::GetInterface(), ns3::Ipv6Prefix::GetPrefixLength(), ns3::Ipv6RoutingTableEntry::GetPrefixToUse(), ns3::Ipv6Address::GetZero(), ns3::Ipv6Address::IsAny(), ns3::Ipv6Address::IsLinkLocalMulticast(), ns3::Ipv6Prefix::IsMatch(), m_ipv6, m_networkRoutes, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by RouteInput(), and RouteOutput().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ LookupStatic() [2/2]

Ptr< Ipv6MulticastRoute > ns3::Ipv6StaticRouting::LookupStatic ( Ipv6Address  origin,
Ipv6Address  group,
uint32_t  ifIndex
)
private

Lookup in the multicast forwarding table for destination.

Parameters
originsource address
groupgroup multicast address
ifIndexinterface index
Returns
Ipv6MulticastRoute to route the packet to reach dest address

Definition at line 432 of file ipv6-static-routing.cc.

References ns3::Ipv6MulticastRoutingTableEntry::GetGroup(), ns3::Ipv6MulticastRoutingTableEntry::GetInputInterface(), ns3::Ipv6MulticastRoutingTableEntry::GetNOutputInterfaces(), ns3::Ipv6MulticastRoutingTableEntry::GetOrigin(), ns3::Ipv6MulticastRoutingTableEntry::GetOutputInterface(), ns3::Ipv6::IF_ANY, m_multicastRoutes, ns3::Ipv6MulticastRoute::MAX_TTL, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

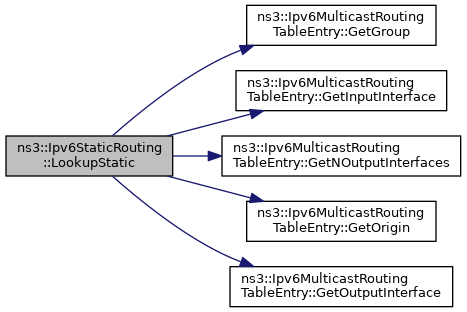

+ Here is the call graph for this function:

◆ NotifyAddAddress()

void ns3::Ipv6StaticRouting::NotifyAddAddress ( uint32_t  interface,
Ipv6InterfaceAddress  address
)
virtual

Notify when specified interface add an address.

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Parameters
interfacethe index of the interface we are being notified about
addressa new address being added to an interface

Implements ns3::Ipv6RoutingProtocol.

Definition at line 728 of file ipv6-static-routing.cc.

References m_ipv6.

◆ NotifyAddRoute()

void ns3::Ipv6StaticRouting::NotifyAddRoute ( Ipv6Address  dst,
Ipv6Prefix  mask,
Ipv6Address  nextHop,
uint32_t  interface,
Ipv6Address  prefixToUse = Ipv6Address::GetZero()
)
virtual

Notify a new route.

Typically this is used to add another route from IPv6 stack (i.e. ICMPv6 redirect case, ...).

Parameters
dstdestination address
maskdestination mask
nextHopnextHop for this destination
interfaceoutput interface
prefixToUseprefix to use as source with this route

Implements ns3::Ipv6RoutingProtocol.

Definition at line 765 of file ipv6-static-routing.cc.

References AddNetworkRouteTo(), ns3::Ipv6Address::GetZero(), NS_LOG_INFO, and SetDefaultRoute().

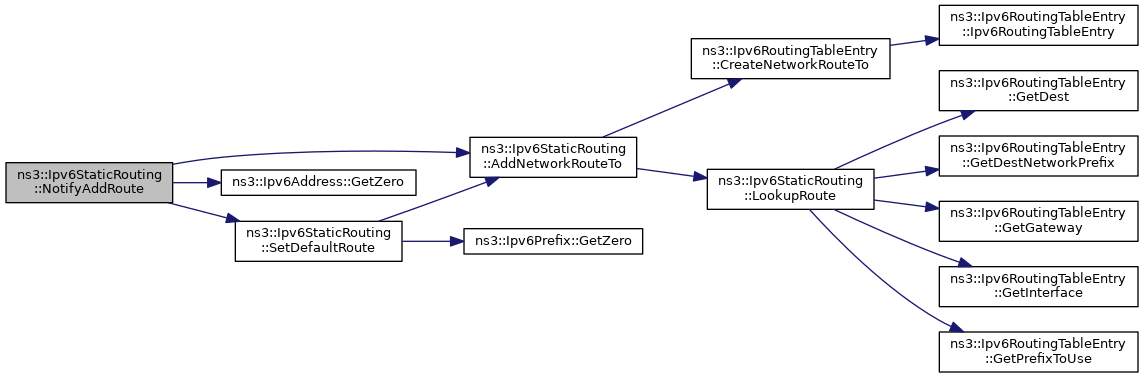

+ Here is the call graph for this function:

◆ NotifyInterfaceDown()

void ns3::Ipv6StaticRouting::NotifyInterfaceDown ( uint32_t  interface)
virtual

Notify when specified interface goes DOWN.

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Parameters
interfacethe index of the interface we are being notified about

Implements ns3::Ipv6RoutingProtocol.

Definition at line 709 of file ipv6-static-routing.cc.

References m_networkRoutes, and NS_LOG_FUNCTION.

Referenced by SetIpv6().

+ Here is the caller graph for this function:

◆ NotifyInterfaceUp()

void ns3::Ipv6StaticRouting::NotifyInterfaceUp ( uint32_t  interface)
virtual

Notify when specified interface goes UP.

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Parameters
interfacethe index of the interface we are being notified about

Implements ns3::Ipv6RoutingProtocol.

Definition at line 683 of file ipv6-static-routing.cc.

References AddHostRouteTo(), AddNetworkRouteTo(), ns3::Ipv6Address::CombinePrefix(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6InterfaceAddress::GetOnLink(), ns3::Ipv6InterfaceAddress::GetPrefix(), and m_ipv6.

Referenced by SetIpv6().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ NotifyRemoveAddress()

void ns3::Ipv6StaticRouting::NotifyRemoveAddress ( uint32_t  interface,
Ipv6InterfaceAddress  address
)
virtual

Notify when specified interface add an address.

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Parameters
interfacethe index of the interface we are being notified about
addressa new address being added to an interface

Implements ns3::Ipv6RoutingProtocol.

Definition at line 736 of file ipv6-static-routing.cc.

References first::address, m_ipv6, and m_networkRoutes.

◆ NotifyRemoveRoute()

void ns3::Ipv6StaticRouting::NotifyRemoveRoute ( Ipv6Address  dst,
Ipv6Prefix  mask,
Ipv6Address  nextHop,
uint32_t  interface,
Ipv6Address  prefixToUse = Ipv6Address::GetZero()
)
virtual

Notify route removing.

Parameters
dstdestination address
maskdestination mask
nextHopnextHop for this destination
interfaceoutput interface
prefixToUseprefix to use as source with this route

Implements ns3::Ipv6RoutingProtocol.

Definition at line 790 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::GetDestNetwork(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6RoutingTableEntry::GetInterface(), ns3::Ipv6Address::GetZero(), m_networkRoutes, NS_LOG_FUNCTION, and RemoveRoute().

+ Here is the call graph for this function:

◆ PrintRoutingTable()

void ns3::Ipv6StaticRouting::PrintRoutingTable ( Ptr< OutputStreamWrapper stream,
Time::Unit  unit = Time::S
) const
virtual

◆ RemoveMulticastRoute() [1/2]

bool ns3::Ipv6StaticRouting::RemoveMulticastRoute ( Ipv6Address  origin,
Ipv6Address  group,
uint32_t  inputInterface
)

Remove a static multicast route.

Parameters
originIPv6 address of the source
groupthe multicast group address.
inputInterfacethe input interface index
Returns
true on success

Definition at line 247 of file ipv6-static-routing.cc.

References ns3::Ipv6MulticastRoutingTableEntry::GetGroup(), ns3::Ipv6MulticastRoutingTableEntry::GetInputInterface(), ns3::Ipv6MulticastRoutingTableEntry::GetOrigin(), m_multicastRoutes, and NS_LOG_FUNCTION.

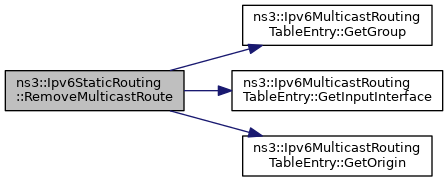

+ Here is the call graph for this function:

◆ RemoveMulticastRoute() [2/2]

void ns3::Ipv6StaticRouting::RemoveMulticastRoute ( uint32_t  i)

Remove a multicast route.

Parameters
iindex of route to remove

Definition at line 265 of file ipv6-static-routing.cc.

References m_multicastRoutes, and NS_LOG_FUNCTION.

◆ RemoveRoute() [1/2]

void ns3::Ipv6StaticRouting::RemoveRoute ( uint32_t  i)

Remove a route from the routing table.

Parameters
iindex

Definition at line 560 of file ipv6-static-routing.cc.

References m_networkRoutes, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by NotifyRemoveRoute().

+ Here is the caller graph for this function:

◆ RemoveRoute() [2/2]

void ns3::Ipv6StaticRouting::RemoveRoute ( Ipv6Address  network,
Ipv6Prefix  prefix,
uint32_t  ifIndex,
Ipv6Address  prefixToUse
)

Remove a route from the routing table.

Parameters
networkIPv6 network
prefixIPv6 prefix
ifIndexinterface index
prefixToUseIPv6 prefix to use with this route (multihoming)

Definition at line 578 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::GetDest(), ns3::Ipv6RoutingTableEntry::GetInterface(), ns3::Ipv6RoutingTableEntry::GetPrefixToUse(), m_networkRoutes, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ RouteInput()

bool ns3::Ipv6StaticRouting::RouteInput ( Ptr< const Packet p,
const Ipv6Header header,
Ptr< const NetDevice idev,
UnicastForwardCallback  ucb,
MulticastForwardCallback  mcb,
LocalDeliverCallback  lcb,
ErrorCallback  ecb
)
virtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv6RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input (). There are four valid outcomes, and a matching callbacks to handle each.

Parameters
preceived packet
headerinput parameter used to form a search key for a route
idevPointer to ingress network device
ucbCallback for the case in which the packet is to be forwarded as unicast
mcbCallback for the case in which the packet is to be forwarded as multicast
lcbCallback for the case in which the packet is to be locally delivered
ecbCallback to call if there is an error in forwarding
Returns
true if the Ipv6RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implements ns3::Ipv6RoutingProtocol.

Definition at line 624 of file ipv6-static-routing.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Header::GetSourceAddress(), ns3::Ipv6Address::IsMulticast(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), LookupStatic(), m_ipv6, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

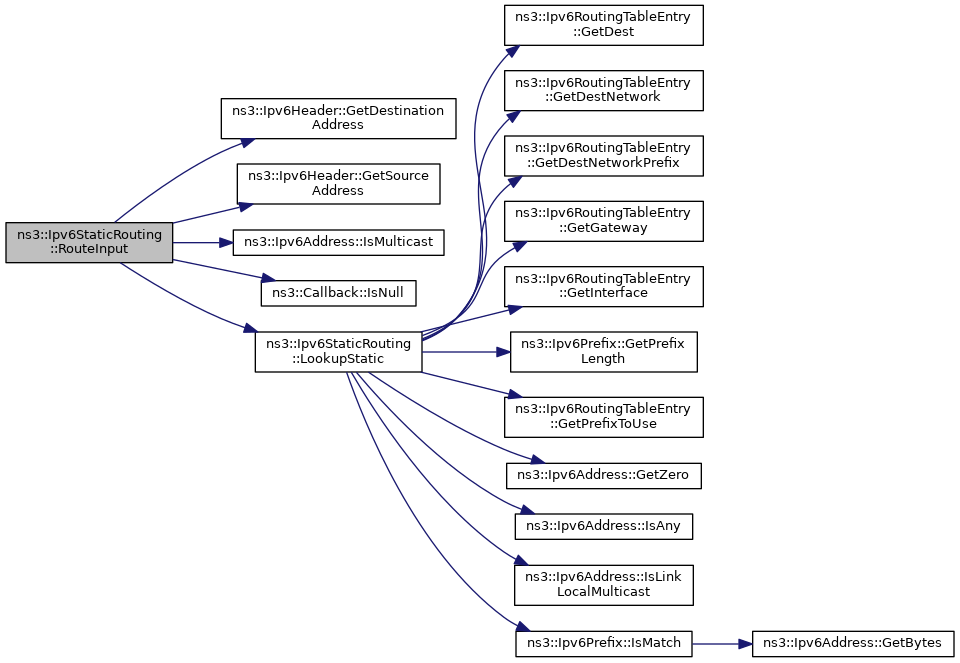

+ Here is the call graph for this function:

◆ RouteOutput()

Ptr< Ipv6Route > ns3::Ipv6StaticRouting::RouteOutput ( Ptr< Packet p,
const Ipv6Header header,
Ptr< NetDevice oif,
Socket::SocketErrno sockerr
)
virtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output ()

Parameters
ppacket to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
headerinput parameter (used to form key to search for the route)
oifOutput interface device. May be zero, or may be bound via socket options to a particular output interface.
sockerrOutput parameter; socket errno
Returns
a code that indicates what happened in the lookup

Implements ns3::Ipv6RoutingProtocol.

Definition at line 595 of file ipv6-static-routing.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Socket::ERROR_NOTERROR, ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Address::IsMulticast(), LookupStatic(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

+ Here is the call graph for this function:

◆ SetDefaultMulticastRoute()

void ns3::Ipv6StaticRouting::SetDefaultMulticastRoute ( uint32_t  outputInterface)

Set the default multicast route.

Parameters
outputInterfacedefault output interface

Definition at line 211 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo(), m_networkRoutes, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ SetDefaultRoute()

void ns3::Ipv6StaticRouting::SetDefaultRoute ( Ipv6Address  nextHop,
uint32_t  interface,
Ipv6Address  prefixToUse = Ipv6Address ("::"),
uint32_t  metric = 0
)

Set the default route.

Parameters
nextHopnext hop address to route the packet
interfaceinterface index
prefixToUseprefix to use (i.e for multihoming)
metricmetric of route in case of multiple routes to same destination

Definition at line 197 of file ipv6-static-routing.cc.

References AddNetworkRouteTo(), ns3::Ipv6Prefix::GetZero(), and NS_LOG_FUNCTION.

Referenced by Ipv6ForwardingTest::DoRun(), LteIpv6RoutingTestCase::DoRun(), and NotifyAddRoute().

+ Here is the call graph for this function:

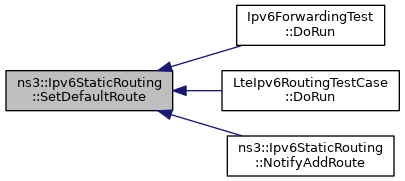

+ Here is the caller graph for this function:

◆ SetIpv6()

void ns3::Ipv6StaticRouting::SetIpv6 ( Ptr< Ipv6 ipv6)
virtual

Typically, invoked directly or indirectly from ns3::Ipv6::SetRoutingProtocol.

Parameters
ipv6the ipv6 object this routing protocol is being associated with

Implements ns3::Ipv6RoutingProtocol.

Definition at line 60 of file ipv6-static-routing.cc.

References m_ipv6, NotifyInterfaceDown(), NotifyInterfaceUp(), NS_ASSERT, and NS_LOG_FUNCTION.

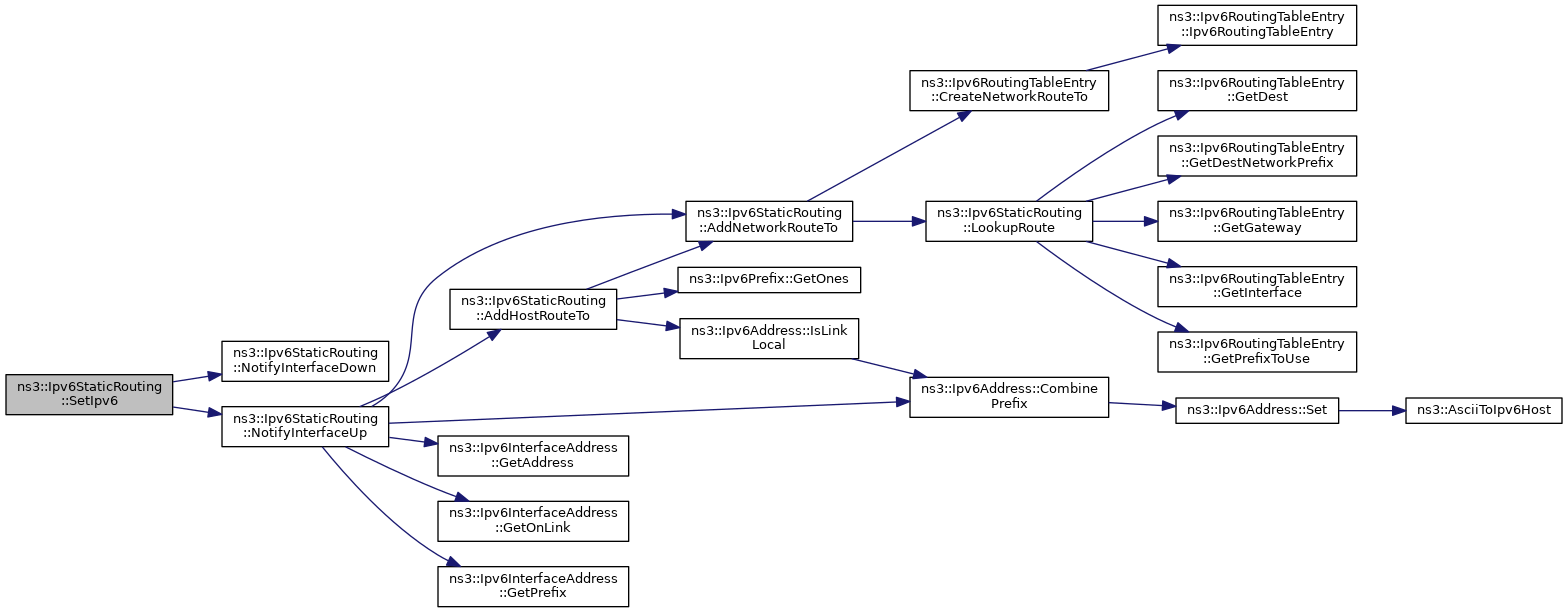

+ Here is the call graph for this function:

Member Data Documentation

◆ m_ipv6

Ptr<Ipv6> ns3::Ipv6StaticRouting::m_ipv6
private

◆ m_multicastRoutes

MulticastRoutes ns3::Ipv6StaticRouting::m_multicastRoutes
private

the forwarding table for multicast.

Definition at line 300 of file ipv6-static-routing.h.

Referenced by AddMulticastRoute(), DoDispose(), GetMulticastRoute(), GetNMulticastRoutes(), LookupStatic(), and RemoveMulticastRoute().

◆ m_networkRoutes


The documentation for this class was generated from the following files:
