Empirical propagation model for the 2.6 GHz frequency. More...

#include "kun-2600-mhz-propagation-loss-model.h"

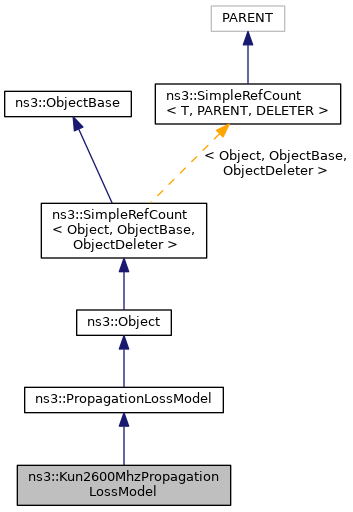

Inheritance diagram for ns3::Kun2600MhzPropagationLossModel:

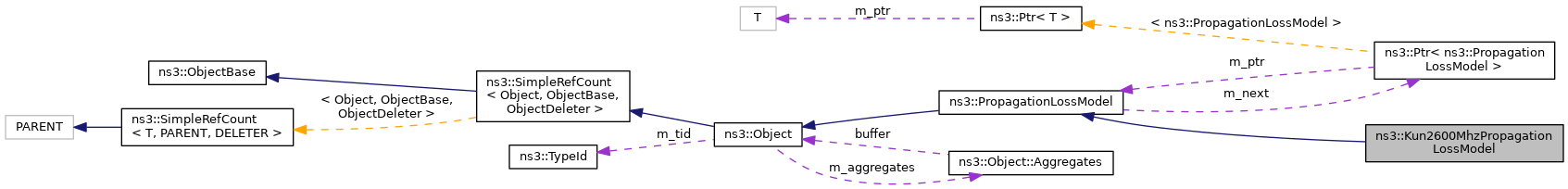

Collaboration diagram for ns3::Kun2600MhzPropagationLossModel:

Public Member Functions
	Kun2600MhzPropagationLossModel ()

virtual	~Kun2600MhzPropagationLossModel ()

double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()

virtual	~PropagationLossModel ()

int64_t	AssignStreams (int64_t stream)
	If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
	Returns the Rx Power taking into account all the PropagationLossModel(s) chained to the current one. More...

Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	Kun2600MhzPropagationLossModel (const Kun2600MhzPropagationLossModel &)
	Copy constructor. More...

virtual int64_t	DoAssignStreams (int64_t stream)
	Subclasses must implement this; those not using random variables can return zero. More...

virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
	Returns the Rx Power taking into account only the particular PropagationLossModel. More...

Kun2600MhzPropagationLossModel &	operator= (const Kun2600MhzPropagationLossModel &)
	Copy constructor. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Empirical propagation model for the 2.6 GHz frequency.

This class implements the empirical model for 2.6 GHz taken from this paper: Sun Kun, Wang Ping, Li Yingze "Path Loss Models for Suburban Scenario at 2.3GHz, 2.6GHz and 3.5GHz" 8th International Symposium on Antennas, Propagation and EM Theory (ISAPE), 2008.

Config Paths

ns3::Kun2600MhzPropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::Kun2600MhzPropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::Kun2600MhzPropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::Kun2600MhzPropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::Kun2600MhzPropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::Kun2600MhzPropagationLossModel"
"/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::Kun2600MhzPropagationLossModel"
"/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::Kun2600MhzPropagationLossModel"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 41 of file kun-2600-mhz-propagation-loss-model.h.

Constructor & Destructor Documentation

◆ Kun2600MhzPropagationLossModel() [1/2]

ns3::Kun2600MhzPropagationLossModel::Kun2600MhzPropagationLossModel ( )

Definition at line 49 of file kun-2600-mhz-propagation-loss-model.cc.

◆ ~Kun2600MhzPropagationLossModel()

ns3::Kun2600MhzPropagationLossModel::~Kun2600MhzPropagationLossModel ( )

virtual

Definition at line 54 of file kun-2600-mhz-propagation-loss-model.cc.

◆ Kun2600MhzPropagationLossModel() [2/2]

ns3::Kun2600MhzPropagationLossModel::Kun2600MhzPropagationLossModel ( const Kun2600MhzPropagationLossModel & )

private

Copy constructor.

Defined and unimplemented to avoid misuse

Member Function Documentation

◆ DoAssignStreams()

int64_t ns3::Kun2600MhzPropagationLossModel::DoAssignStreams ( int64_t stream )

privatevirtual

Subclasses must implement this; those not using random variables can return zero.

Implements ns3::PropagationLossModel.

Definition at line 75 of file kun-2600-mhz-propagation-loss-model.cc.

◆ DoCalcRxPower()

double ns3::Kun2600MhzPropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatevirtual

Returns the Rx Power taking into account only the particular PropagationLossModel.

Parameters

txPowerDbm	current transmission power (in dBm)
a	the mobility model of the source
b	the mobility model of the destination

Returns: the reception power after adding/multiplying propagation loss (in dBm)

Implements ns3::PropagationLossModel.

Definition at line 67 of file kun-2600-mhz-propagation-loss-model.cc.

References GetLoss().

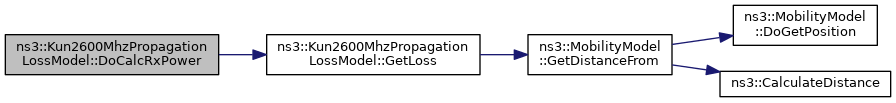

Here is the call graph for this function:

◆ GetLoss()

double ns3::Kun2600MhzPropagationLossModel::GetLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

Parameters

a	the first mobility model
b	the second mobility model

Returns: the loss in dBm for the propagation between the two given mobility models

Definition at line 59 of file kun-2600-mhz-propagation-loss-model.cc.

References ns3::MobilityModel::GetDistanceFrom().

Referenced by DoCalcRxPower(), and Kun2600MhzPropagationLossModelTestCase::DoRun().

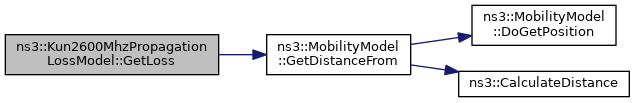

Here is the call graph for this function:

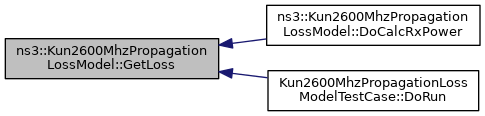

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Kun2600MhzPropagationLossModel::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 38 of file kun-2600-mhz-propagation-loss-model.cc.

References ns3::TypeId::SetParent().

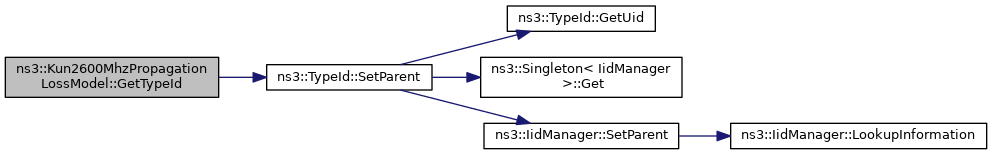

Here is the call graph for this function:

◆ operator=()

Kun2600MhzPropagationLossModel& ns3::Kun2600MhzPropagationLossModel::operator= ( const Kun2600MhzPropagationLossModel & )

private

Copy constructor.

Defined and unimplemented to avoid misuse

Returns

The documentation for this class was generated from the following files:

src/propagation/model/kun-2600-mhz-propagation-loss-model.h
src/propagation/model/kun-2600-mhz-propagation-loss-model.cc
