This class is a helper for the LrWpanMac to manage the Csma/CA state machine according to IEEE 802.15.4-2006, section 7.5.1.4. More...

#include "lr-wpan-csmaca.h"

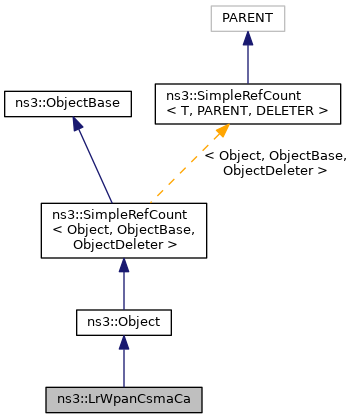

Inheritance diagram for ns3::LrWpanCsmaCa:

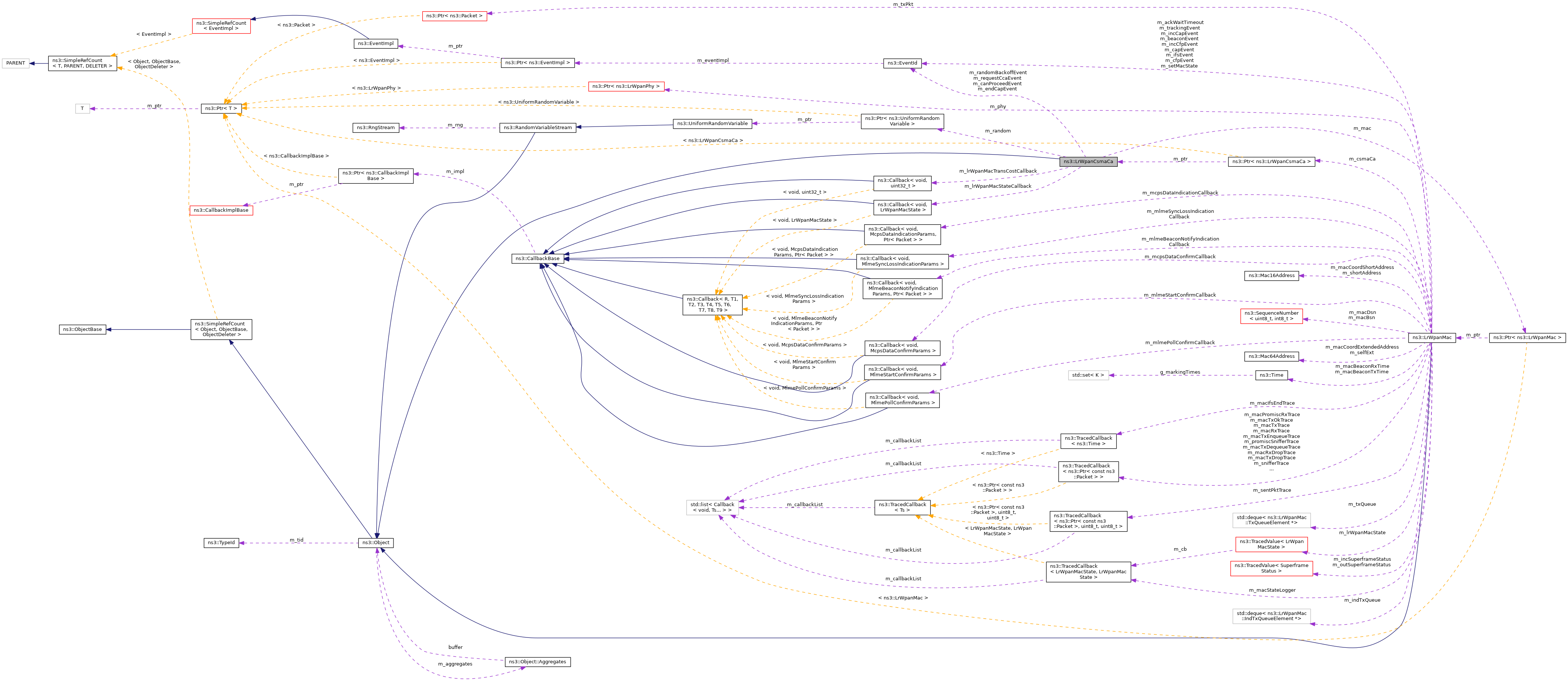

Collaboration diagram for ns3::LrWpanCsmaCa:

Public Member Functions
	LrWpanCsmaCa (void)
	Default constructor. More...

virtual	~LrWpanCsmaCa (void)

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	Cancel (void)
	Cancel CSMA-CA algorithm. More...

void	CanProceed (void)
	In the slotted CSMA-CA, after random backoff, determine if the remaining CSMA-CA operation can proceed, i.e. More...

void	DeferCsmaTimeout (void)
	The CSMA algorithm call this function at the end of the CAP to return the MAC state back to to IDLE after a transmission was deferred due to the lack of time in the CAP. More...

bool	GetBatteryLifeExtension (void)
	Get the value of the Battery Life Extension. More...

Ptr< LrWpanMac >	GetMac (void) const
	Get the MAC to which this CSMA/CA implementation is attached to. More...

uint8_t	GetMacMaxBE (void) const
	Get the maximum backoff exponent value. More...

uint8_t	GetMacMaxCSMABackoffs (void) const
	Get the maximum number of backoffs. More...

uint8_t	GetMacMinBE (void) const
	Get the minimum backoff exponent value. More...

uint8_t	GetNB (void)
	Get the number of CSMA retries. More...

Time	GetTimeToNextSlot (void) const
	Locates the time to the next backoff period boundary in the SUPERFRAME and returns the amount of time left to this moment. More...

uint64_t	GetUnitBackoffPeriod (void) const
	Get the number of symbols forming the basic time period used by the CSMA-CA algorithm. More...

bool	IsSlottedCsmaCa (void) const
	Check if the slotted CSMA/CA version is being used. More...

bool	IsUnSlottedCsmaCa (void) const
	Check if the unslotted CSMA/CA version is being used. More...

void	PlmeCcaConfirm (LrWpanPhyEnumeration status)
	IEEE 802.15.4-2006 section 6.2.2.2 PLME-CCA.confirm status. More...

void	RandomBackoffDelay (void)
	In step 2 of the CSMA-CA, perform a random backoff in the range of 0 to 2^BE -1. More...

void	RequestCCA (void)
	Request the Phy to perform CCA (Step 3) More...

void	SetBatteryLifeExtension (bool batteryLifeExtension)
	Set the value of the Battery Life Extension. More...

void	SetLrWpanMacStateCallback (LrWpanMacStateCallback macState)
	Set the callback function to the MAC. More...

void	SetLrWpanMacTransCostCallback (LrWpanMacTransCostCallback trans)
	Set the callback function to report a transaction cost in slotted CSMA-CA. More...

void	SetMac (Ptr< LrWpanMac > mac)
	Set the MAC to which this CSMA/CA implementation is attached to. More...

void	SetMacMaxBE (uint8_t macMaxBE)
	Set the maximum backoff exponent value. More...

void	SetMacMaxCSMABackoffs (uint8_t macMaxCSMABackoffs)
	Set the maximum number of backoffs. More...

void	SetMacMinBE (uint8_t macMinBE)
	Set the minimum backoff exponent value. More...

void	SetSlottedCsmaCa (void)
	Configure for the use of the slotted CSMA/CA version. More...

void	SetUnitBackoffPeriod (uint64_t unitBackoffPeriod)
	Set the number of symbols forming the basic time period used by the CSMA-CA algorithm. More...

void	SetUnSlottedCsmaCa (void)
	Configure for the use of the unslotted CSMA/CA version. More...

void	Start (void)
	Start CSMA-CA algorithm (step 1), initialize NB, BE for both slotted and unslotted CSMA-CA. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	LrWpanCsmaCa (LrWpanCsmaCa const &)
	Copy constructor - defined and not implemented. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

Time	GetTimeLeftInCap ()
	Get the time left in the CAP portion of the Outgoing or Incoming superframe. More...

LrWpanCsmaCa &	operator= (LrWpanCsmaCa const &)
	Copy constructor - defined and not implemented. More...

Private Attributes
uint64_t	m_aUnitBackoffPeriod
	Number of symbols per CSMA/CA time unit, default 20 symbols. More...

uint8_t	m_BE
	Backoff exponent. More...

EventId	m_canProceedEvent
	Scheduler event for checking if we can complete the transmission before the end of the CAP. More...

bool	m_ccaRequestRunning
	Flag indicating that the PHY is currently running a CCA. More...

bool	m_coorDest
	Indicates whether the CSMA procedure is targeted for a message to be sent to the coordinator. More...

uint8_t	m_CW
	Contention window length (used in slotted ver only). More...

EventId	m_endCapEvent
	Scheduler event for the end of the current CAP. More...

bool	m_isSlotted
	Beacon-enabled slotted or nonbeacon-enabled unslotted CSMA-CA. More...

LrWpanMacStateCallback	m_lrWpanMacStateCallback
	The callback to inform the configured MAC of the CSMA/CA result. More...

LrWpanMacTransCostCallback	m_lrWpanMacTransCostCallback
	The callback to inform the cost of a transaction in slotted CSMA-CA. More...

Ptr< LrWpanMac >	m_mac
	The MAC instance for which this CSMA/CA implemenation is configured. More...

bool	m_macBattLifeExt
	Battery Life Extension. More...

uint8_t	m_macMaxBE
	Maximum backoff exponent. More...

uint8_t	m_macMaxCSMABackoffs
	Maximum number of backoffs. More...

uint8_t	m_macMinBE
	Minimum backoff exponent. More...

uint8_t	m_NB
	Number of backoffs for the current transmission. More...

Ptr< UniformRandomVariable >	m_random
	Uniform random variable stream. More...

EventId	m_randomBackoffEvent
	Scheduler event for the start of the next random backoff/slot. More...

uint64_t	m_randomBackoffPeriodsLeft
	Count the number of remaining random backoff periods left to delay. More...

EventId	m_requestCcaEvent
	Scheduler event when to start the CCA after a random backoff. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class is a helper for the LrWpanMac to manage the Csma/CA state machine according to IEEE 802.15.4-2006, section 7.5.1.4.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 200 bytes (on a 64-bit architecture).

Definition at line 56 of file lr-wpan-csmaca.h.

Constructor & Destructor Documentation

◆ LrWpanCsmaCa() [1/2]

ns3::LrWpanCsmaCa::LrWpanCsmaCa ( void )

Default constructor.

Definition at line 51 of file lr-wpan-csmaca.cc.

References m_aUnitBackoffPeriod, m_BE, m_ccaRequestRunning, m_coorDest, m_CW, m_isSlotted, m_macBattLifeExt, m_macMaxBE, m_macMaxCSMABackoffs, m_macMinBE, m_NB, m_random, and m_randomBackoffPeriodsLeft.

◆ ~LrWpanCsmaCa()

ns3::LrWpanCsmaCa::~LrWpanCsmaCa ( void )

virtual

Definition at line 70 of file lr-wpan-csmaca.cc.

References m_mac.

◆ LrWpanCsmaCa() [2/2]

ns3::LrWpanCsmaCa::LrWpanCsmaCa ( LrWpanCsmaCa const & )

private

Copy constructor - defined and not implemented.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::LrWpanCsmaCa::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 572 of file lr-wpan-csmaca.cc.

References m_random, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

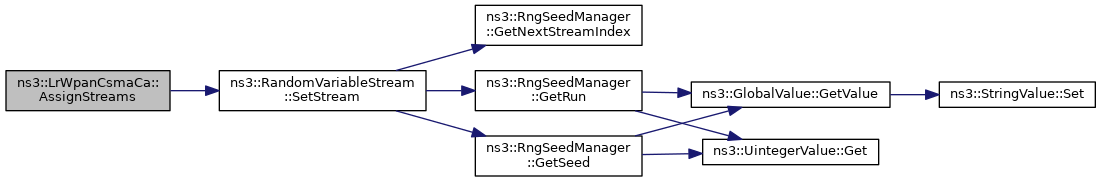

Here is the call graph for this function:

◆ Cancel()

void ns3::LrWpanCsmaCa::Cancel ( void )

Cancel CSMA-CA algorithm.

Definition at line 284 of file lr-wpan-csmaca.cc.

References ns3::EventId::Cancel(), m_canProceedEvent, m_randomBackoffEvent, and m_requestCcaEvent.

Referenced by DoDispose().

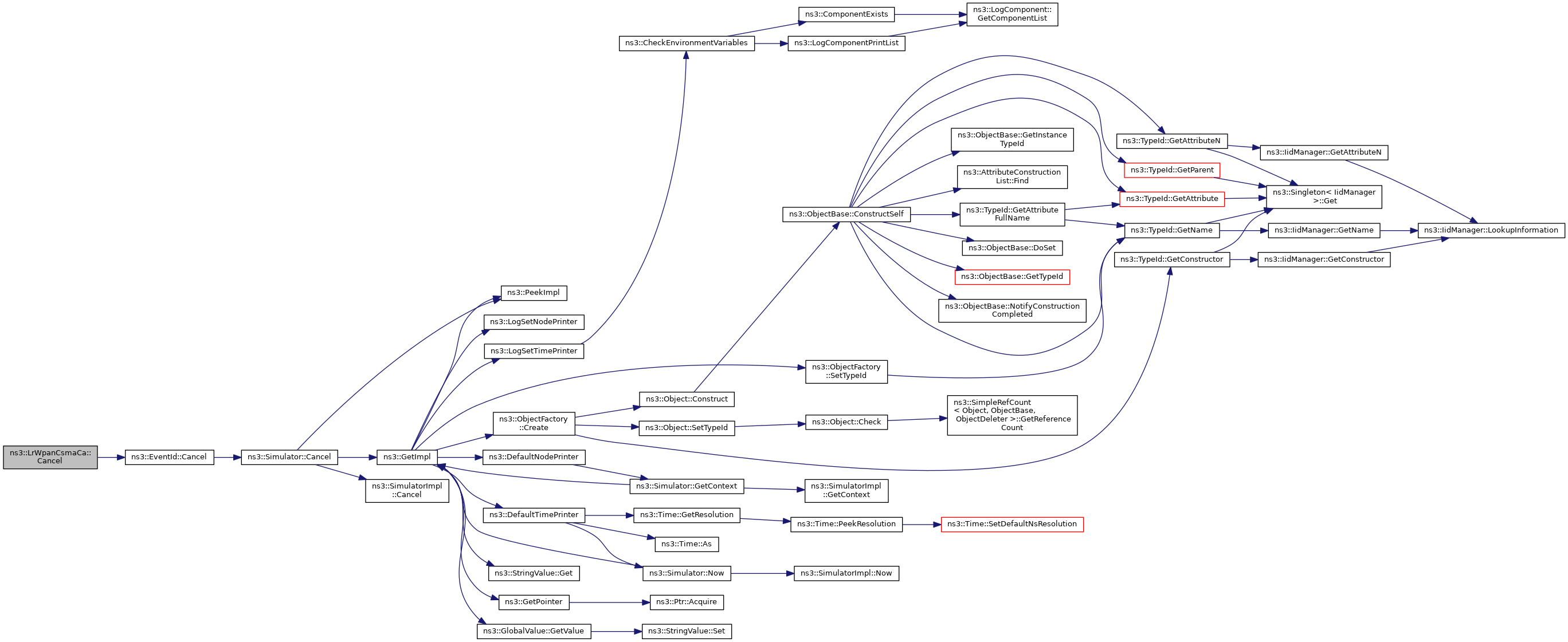

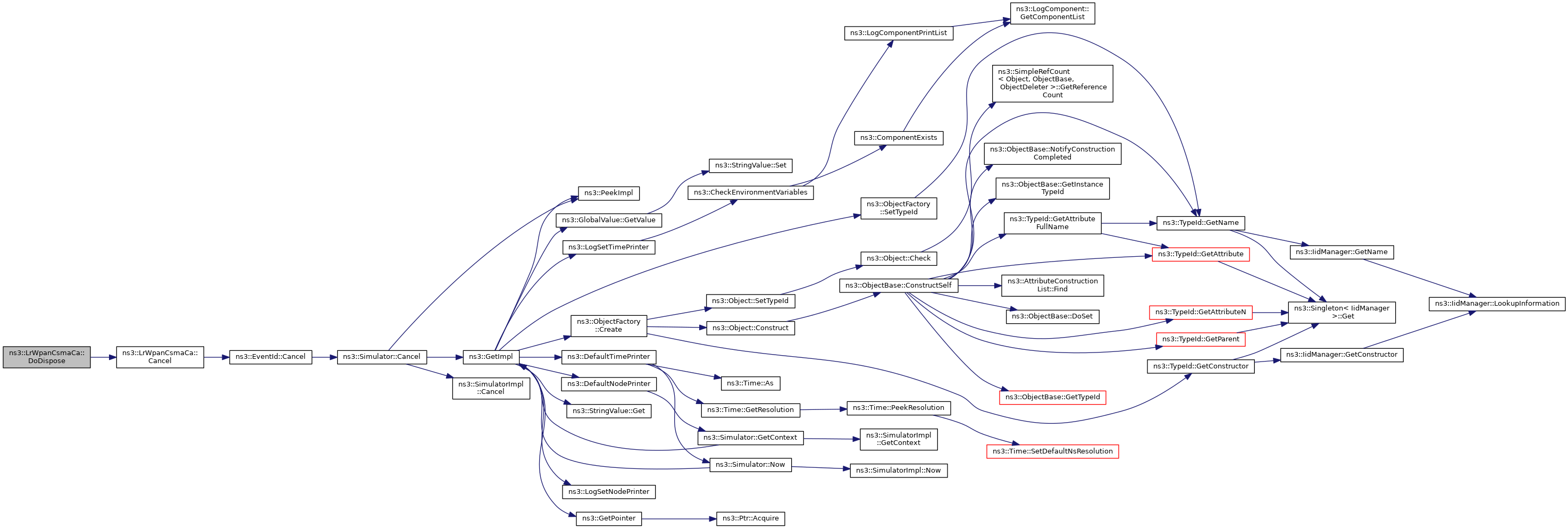

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CanProceed()

void ns3::LrWpanCsmaCa::CanProceed ( void )

In the slotted CSMA-CA, after random backoff, determine if the remaining CSMA-CA operation can proceed, i.e.

can the entire transactions can be transmitted before the end of the CAP. This step is performed between step 2 and 3. This step is NOT performed for the unslotted CSMA-CA. If it can proceed function RequestCCA() is called.

Definition at line 389 of file lr-wpan-csmaca.cc.

References ns3::Time::As(), DeferCsmaTimeout(), ns3::Time::GetSeconds(), GetTimeLeftInCap(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_CW, m_endCapEvent, m_lrWpanMacTransCostCallback, m_mac, m_randomBackoffPeriodsLeft, m_requestCcaEvent, NS_LOG_DEBUG, NS_LOG_FUNCTION, RequestCCA(), ns3::Time::S, ns3::Simulator::Schedule(), ns3::Simulator::ScheduleNow(), and ns3::Seconds().

Referenced by RandomBackoffDelay().

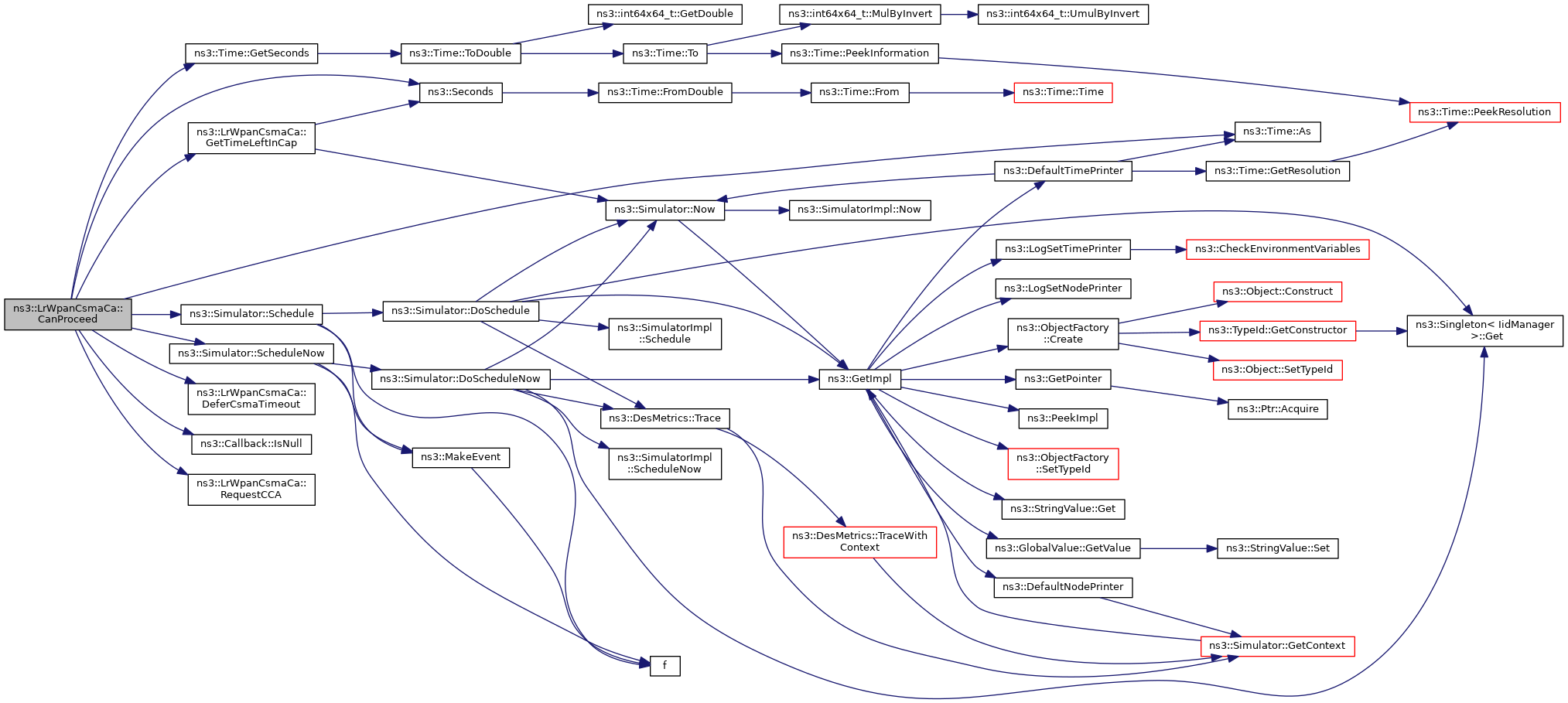

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeferCsmaTimeout()

void ns3::LrWpanCsmaCa::DeferCsmaTimeout ( void )

The CSMA algorithm call this function at the end of the CAP to return the MAC state back to to IDLE after a transmission was deferred due to the lack of time in the CAP.

Definition at line 473 of file lr-wpan-csmaca.cc.

References m_lrWpanMacStateCallback, ns3::MAC_CSMA_DEFERRED, and NS_LOG_FUNCTION.

Referenced by CanProceed(), and RandomBackoffDelay().

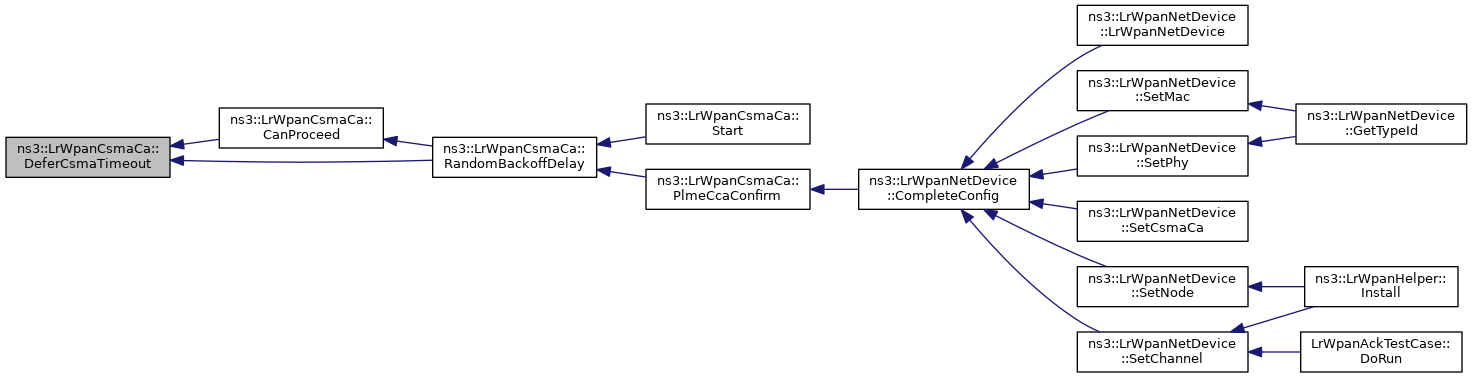

Here is the caller graph for this function:

◆ DoDispose()

void ns3::LrWpanCsmaCa::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 76 of file lr-wpan-csmaca.cc.

References Cancel(), m_lrWpanMacStateCallback, m_lrWpanMacTransCostCallback, and m_mac.

Here is the call graph for this function:

◆ GetBatteryLifeExtension()

bool ns3::LrWpanCsmaCa::GetBatteryLifeExtension ( void )

Get the value of the Battery Life Extension.

Returns: true or false to Battery Life Extension support

Definition at line 586 of file lr-wpan-csmaca.cc.

References m_macBattLifeExt.

◆ GetMac()

Ptr< LrWpanMac > ns3::LrWpanCsmaCa::GetMac ( void ) const

Get the MAC to which this CSMA/CA implementation is attached to.

Returns: the used MAC

Definition at line 92 of file lr-wpan-csmaca.cc.

References m_mac.

◆ GetMacMaxBE()

uint8_t ns3::LrWpanCsmaCa::GetMacMaxBE ( void ) const

Get the maximum backoff exponent value.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Returns: the maximum backoff exponent value

Definition at line 147 of file lr-wpan-csmaca.cc.

References m_macMaxBE, and NS_LOG_FUNCTION.

◆ GetMacMaxCSMABackoffs()

uint8_t ns3::LrWpanCsmaCa::GetMacMaxCSMABackoffs ( void ) const

Get the maximum number of backoffs.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Returns: the maximum number of backoffs

Definition at line 161 of file lr-wpan-csmaca.cc.

References m_macMaxCSMABackoffs, and NS_LOG_FUNCTION.

◆ GetMacMinBE()

uint8_t ns3::LrWpanCsmaCa::GetMacMinBE ( void ) const

Get the minimum backoff exponent value.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Returns: the minimum backoff exponent value

Definition at line 133 of file lr-wpan-csmaca.cc.

References m_macMinBE, and NS_LOG_FUNCTION.

◆ GetNB()

uint8_t ns3::LrWpanCsmaCa::GetNB ( void )

Get the number of CSMA retries.

Returns: the number of CSMA retries

Definition at line 580 of file lr-wpan-csmaca.cc.

References m_NB.

◆ GetTimeLeftInCap()

Time ns3::LrWpanCsmaCa::GetTimeLeftInCap ( )

private

Get the time left in the CAP portion of the Outgoing or Incoming superframe.

Returns: the time left in the CAP

Definition at line 354 of file lr-wpan-csmaca.cc.

References m_coorDest, m_mac, ns3::Simulator::Now(), and ns3::Seconds().

Referenced by CanProceed(), and RandomBackoffDelay().

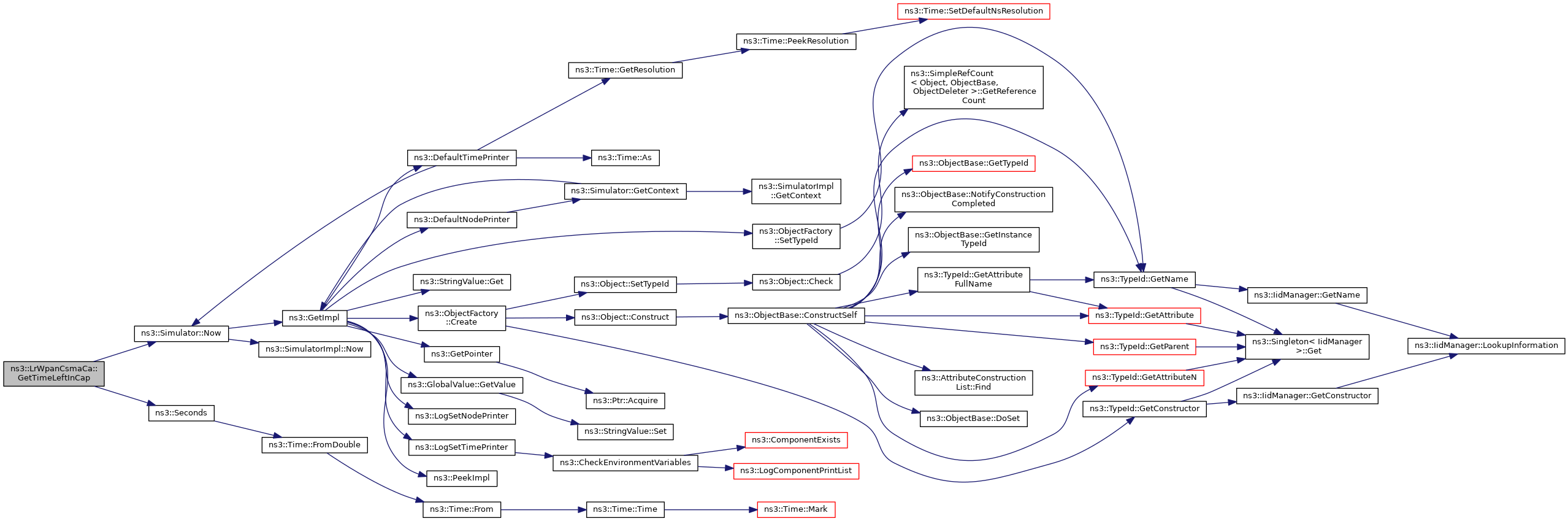

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTimeToNextSlot()

Time ns3::LrWpanCsmaCa::GetTimeToNextSlot ( void ) const

Locates the time to the next backoff period boundary in the SUPERFRAME and returns the amount of time left to this moment.

Returns: time offset to the next slot

Definition at line 183 of file lr-wpan-csmaca.cc.

References ns3::Time::As(), ns3::Time::GetSeconds(), m_aUnitBackoffPeriod, m_coorDest, m_mac, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_UNUSED, ns3::Time::S, and ns3::Seconds().

Referenced by Start().

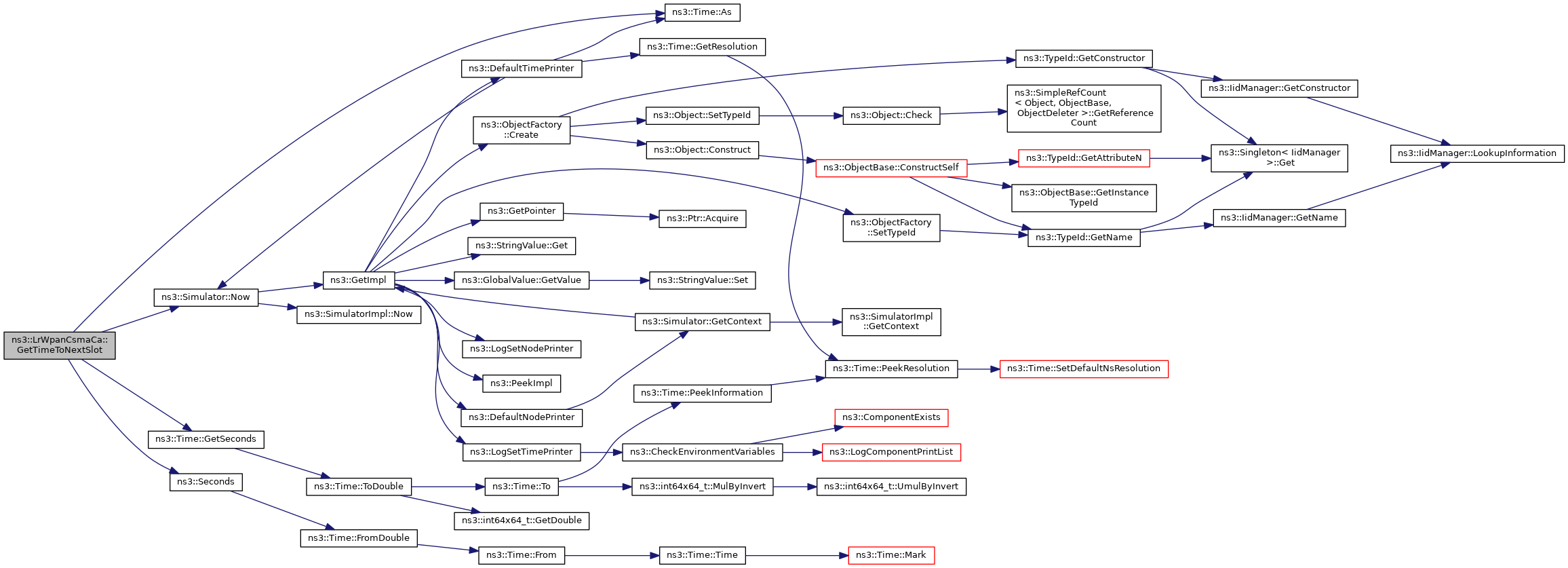

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::LrWpanCsmaCa::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 41 of file lr-wpan-csmaca.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ GetUnitBackoffPeriod()

uint64_t ns3::LrWpanCsmaCa::GetUnitBackoffPeriod ( void ) const

Get the number of symbols forming the basic time period used by the CSMA-CA algorithm.

See IEEE 802.15.4-2006, section 7.4.1, Table 85.

Returns: the period length in symbols

Definition at line 175 of file lr-wpan-csmaca.cc.

References m_aUnitBackoffPeriod, and NS_LOG_FUNCTION.

Referenced by RandomBackoffDelay().

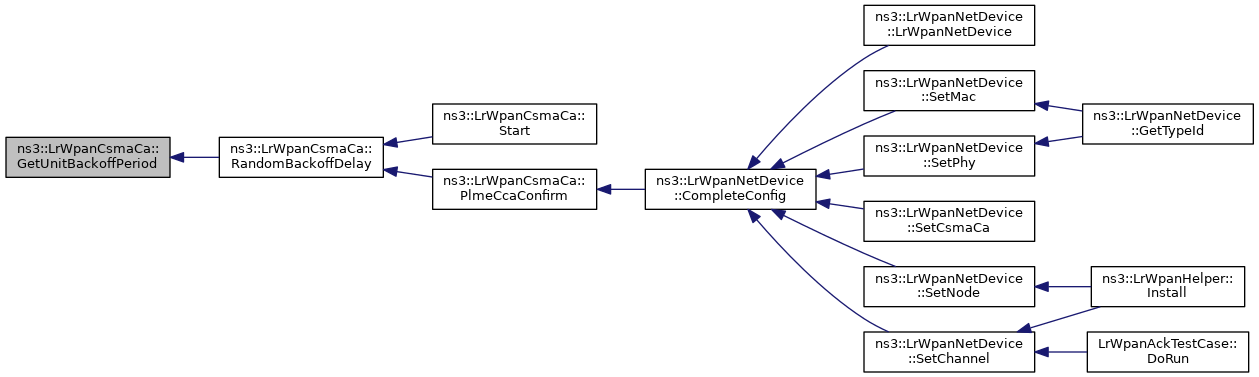

Here is the caller graph for this function:

◆ IsSlottedCsmaCa()

bool ns3::LrWpanCsmaCa::IsSlottedCsmaCa ( void ) const

Check if the slotted CSMA/CA version is being used.

Returns: true, if slotted CSMA/CA is used, false otherwise.

Definition at line 112 of file lr-wpan-csmaca.cc.

References m_isSlotted, and NS_LOG_FUNCTION.

Referenced by PlmeCcaConfirm(), and Start().

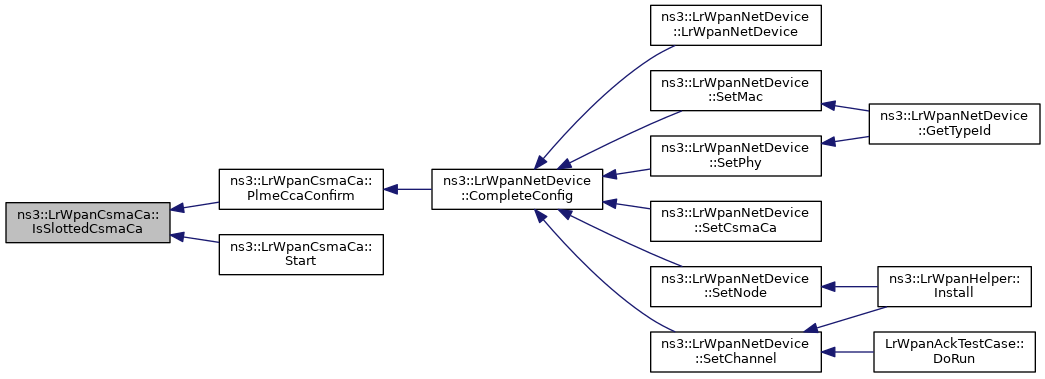

Here is the caller graph for this function:

◆ IsUnSlottedCsmaCa()

bool ns3::LrWpanCsmaCa::IsUnSlottedCsmaCa ( void ) const

Check if the unslotted CSMA/CA version is being used.

Returns: true, if unslotted CSMA/CA is used, false otherwise.

Definition at line 119 of file lr-wpan-csmaca.cc.

References m_isSlotted, and NS_LOG_FUNCTION.

Referenced by RandomBackoffDelay().

Here is the caller graph for this function:

◆ operator=()

LrWpanCsmaCa& ns3::LrWpanCsmaCa::operator= ( LrWpanCsmaCa const & )

private

Copy constructor - defined and not implemented.

Returns

◆ PlmeCcaConfirm()

void ns3::LrWpanCsmaCa::PlmeCcaConfirm ( LrWpanPhyEnumeration status )

IEEE 802.15.4-2006 section 6.2.2.2 PLME-CCA.confirm status.

Parameters

status TRX_OFF, BUSY or IDLE

When Phy has completed CCA, it calls back here which in turn execute the final steps of the CSMA-CA algorithm. It checks to see if the Channel is idle, if so check the Contention window before permitting transmission (step 5). If channel is busy, either backoff and perform CCA again or treat as channel access failure (step 4).

Definition at line 480 of file lr-wpan-csmaca.cc.

References ns3::CHANNEL_ACCESS_FAILURE, ns3::CHANNEL_IDLE, ns3::IEEE_802_15_4_PHY_IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), IsSlottedCsmaCa(), m_BE, m_ccaRequestRunning, m_CW, m_lrWpanMacStateCallback, m_macMaxBE, m_macMaxCSMABackoffs, m_NB, m_randomBackoffEvent, m_requestCcaEvent, min, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, RandomBackoffDelay(), RequestCCA(), and ns3::Simulator::ScheduleNow().

Referenced by ns3::LrWpanNetDevice::CompleteConfig().

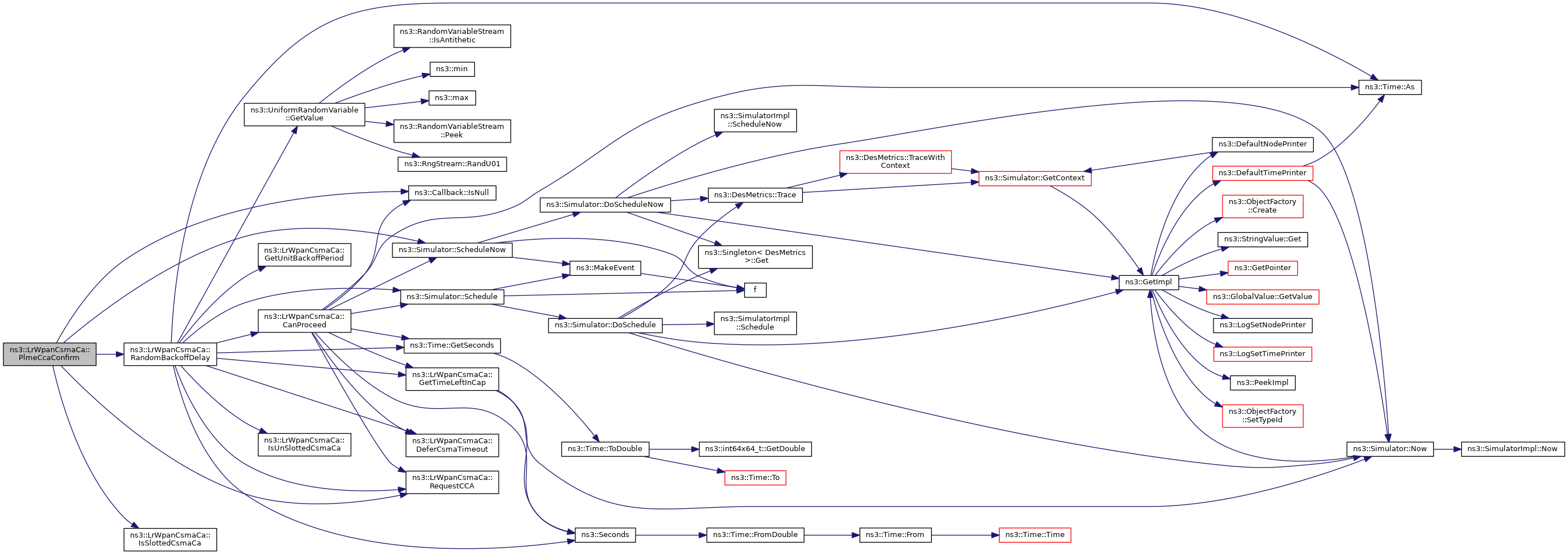

Here is the call graph for this function:

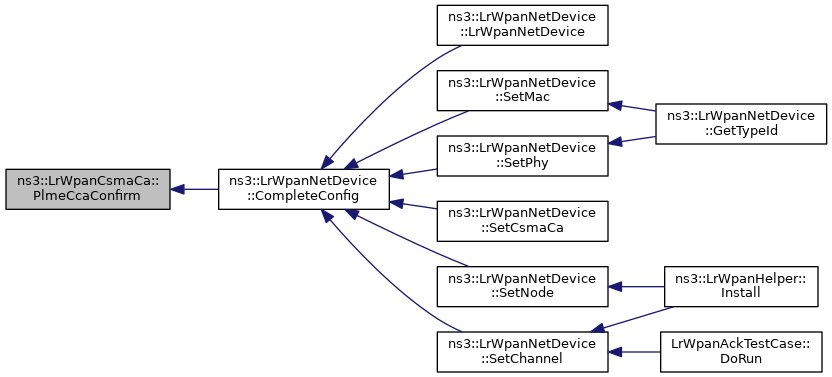

Here is the caller graph for this function:

◆ RandomBackoffDelay()

void ns3::LrWpanCsmaCa::RandomBackoffDelay ( void )

In step 2 of the CSMA-CA, perform a random backoff in the range of 0 to 2^BE -1.

Definition at line 294 of file lr-wpan-csmaca.cc.

References ns3::Time::As(), CanProceed(), DeferCsmaTimeout(), ns3::Time::GetSeconds(), GetTimeLeftInCap(), GetUnitBackoffPeriod(), ns3::UniformRandomVariable::GetValue(), IsUnSlottedCsmaCa(), m_aUnitBackoffPeriod, m_BE, m_canProceedEvent, m_endCapEvent, m_mac, m_random, m_randomBackoffPeriodsLeft, m_requestCcaEvent, NS_LOG_DEBUG, NS_LOG_FUNCTION, RequestCCA(), ns3::Time::S, ns3::Simulator::Schedule(), and ns3::Seconds().

Referenced by PlmeCcaConfirm(), and Start().

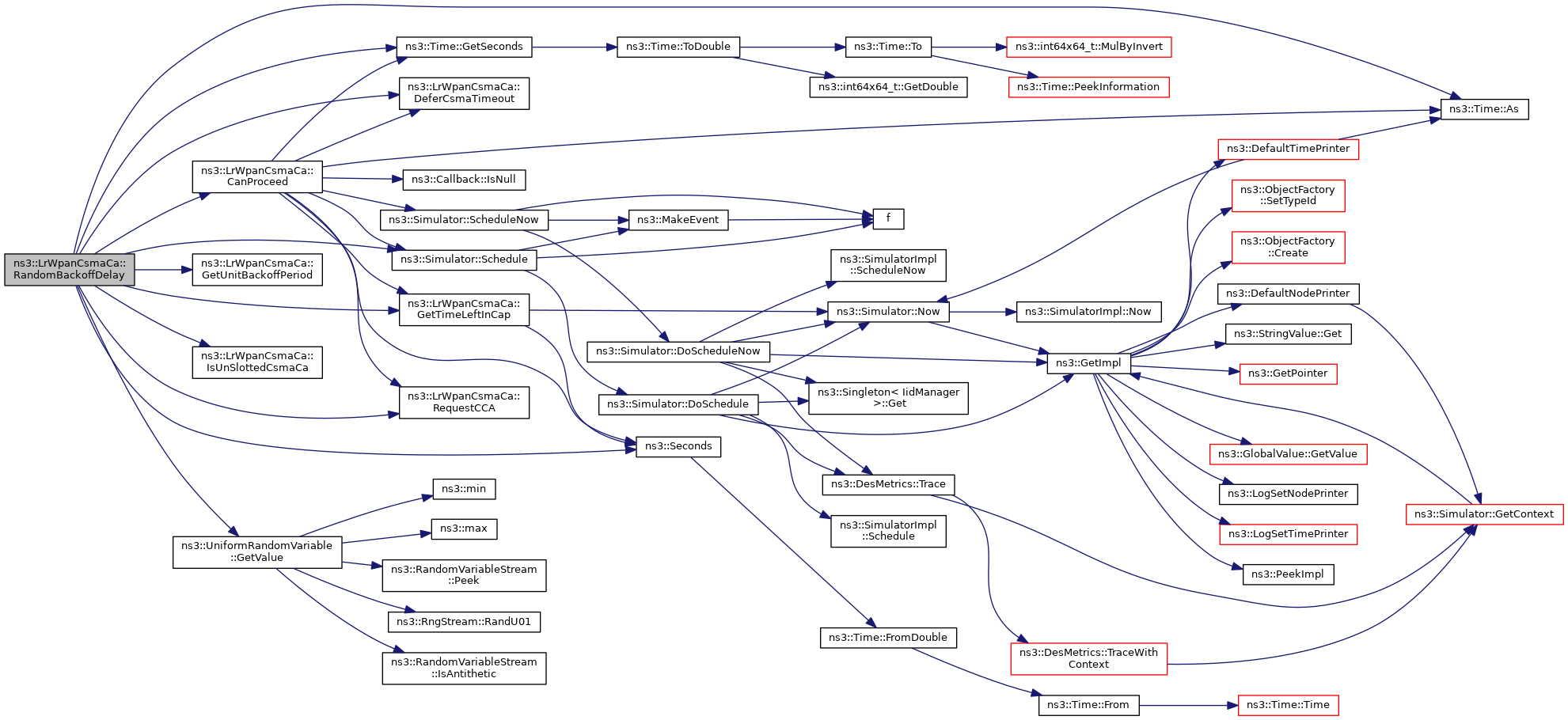

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RequestCCA()

void ns3::LrWpanCsmaCa::RequestCCA ( void )

Request the Phy to perform CCA (Step 3)

Definition at line 465 of file lr-wpan-csmaca.cc.

References m_ccaRequestRunning, m_mac, and NS_LOG_FUNCTION.

Referenced by CanProceed(), PlmeCcaConfirm(), and RandomBackoffDelay().

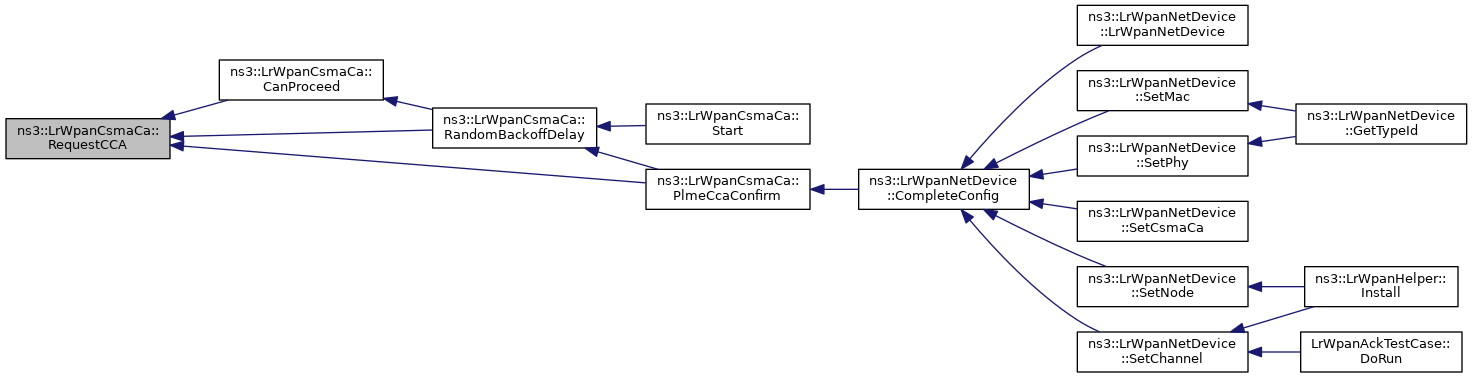

Here is the caller graph for this function:

◆ SetBatteryLifeExtension()

void ns3::LrWpanCsmaCa::SetBatteryLifeExtension ( bool batteryLifeExtension )

Set the value of the Battery Life Extension.

Parameters

batteryLifeExtension the Battery Life Extension value active or inactive

Definition at line 565 of file lr-wpan-csmaca.cc.

References m_macBattLifeExt.

◆ SetLrWpanMacStateCallback()

void ns3::LrWpanCsmaCa::SetLrWpanMacStateCallback ( LrWpanMacStateCallback macState )

Set the callback function to the MAC.

Used at the end of a Channel Assessment, as part of the interconnections between the CSMA-CA and the MAC. The callback lets MAC know a channel is either idle or busy.

Parameters

macState the mac state callback

Definition at line 558 of file lr-wpan-csmaca.cc.

References m_lrWpanMacStateCallback, and NS_LOG_FUNCTION.

◆ SetLrWpanMacTransCostCallback()

void ns3::LrWpanCsmaCa::SetLrWpanMacTransCostCallback ( LrWpanMacTransCostCallback trans )

Set the callback function to report a transaction cost in slotted CSMA-CA.

The callback is triggered in CanProceed() after calculating the transaction cost (2 CCA checks,transmission cost, turnAroundTime, ifs) in the boundary of an Active Period.

Parameters

trans the transaction cost callback

Definition at line 550 of file lr-wpan-csmaca.cc.

References m_lrWpanMacTransCostCallback, and NS_LOG_FUNCTION.

◆ SetMac()

void ns3::LrWpanCsmaCa::SetMac ( Ptr< LrWpanMac > mac )

Set the MAC to which this CSMA/CA implementation is attached to.

Parameters

mac	the used MAC

Definition at line 86 of file lr-wpan-csmaca.cc.

References m_mac, and third::mac.

◆ SetMacMaxBE()

void ns3::LrWpanCsmaCa::SetMacMaxBE ( uint8_t macMaxBE )

Set the maximum backoff exponent value.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Parameters

macMaxBE the maximum backoff exponent value

Definition at line 140 of file lr-wpan-csmaca.cc.

References m_macMinBE, and NS_LOG_FUNCTION.

◆ SetMacMaxCSMABackoffs()

void ns3::LrWpanCsmaCa::SetMacMaxCSMABackoffs ( uint8_t macMaxCSMABackoffs )

Set the maximum number of backoffs.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Parameters

macMaxCSMABackoffs the maximum number of backoffs

Definition at line 154 of file lr-wpan-csmaca.cc.

References m_macMaxCSMABackoffs, and NS_LOG_FUNCTION.

◆ SetMacMinBE()

void ns3::LrWpanCsmaCa::SetMacMinBE ( uint8_t macMinBE )

Set the minimum backoff exponent value.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Parameters

macMinBE the minimum backoff exponent value

Definition at line 126 of file lr-wpan-csmaca.cc.

References m_macMinBE, and NS_LOG_FUNCTION.

◆ SetSlottedCsmaCa()

void ns3::LrWpanCsmaCa::SetSlottedCsmaCa ( void )

Configure for the use of the slotted CSMA/CA version.

Definition at line 98 of file lr-wpan-csmaca.cc.

References m_isSlotted, and NS_LOG_FUNCTION.

◆ SetUnitBackoffPeriod()

void ns3::LrWpanCsmaCa::SetUnitBackoffPeriod ( uint64_t unitBackoffPeriod )

Set the number of symbols forming the basic time period used by the CSMA-CA algorithm.

See IEEE 802.15.4-2006, section 7.4.1, Table 85.

Parameters

unitBackoffPeriod the period length in symbols

Definition at line 168 of file lr-wpan-csmaca.cc.

References m_aUnitBackoffPeriod, and NS_LOG_FUNCTION.

◆ SetUnSlottedCsmaCa()

void ns3::LrWpanCsmaCa::SetUnSlottedCsmaCa ( void )

Configure for the use of the unslotted CSMA/CA version.

Definition at line 105 of file lr-wpan-csmaca.cc.

References m_isSlotted, and NS_LOG_FUNCTION.

◆ Start()

void ns3::LrWpanCsmaCa::Start ( void )

Start CSMA-CA algorithm (step 1), initialize NB, BE for both slotted and unslotted CSMA-CA.

For slotted CSMA-CA initializes CW and starts the backoff slot count.

Definition at line 243 of file lr-wpan-csmaca.cc.

References GetTimeToNextSlot(), IsSlottedCsmaCa(), m_BE, m_coorDest, m_CW, m_mac, m_macBattLifeExt, m_macMinBE, m_NB, m_randomBackoffEvent, min, NS_LOG_FUNCTION, RandomBackoffDelay(), ns3::Simulator::Schedule(), and ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

Member Data Documentation

◆ m_aUnitBackoffPeriod

uint64_t ns3::LrWpanCsmaCa::m_aUnitBackoffPeriod

private

Number of symbols per CSMA/CA time unit, default 20 symbols.

Definition at line 320 of file lr-wpan-csmaca.h.

Referenced by GetTimeToNextSlot(), GetUnitBackoffPeriod(), LrWpanCsmaCa(), RandomBackoffDelay(), and SetUnitBackoffPeriod().

◆ m_BE

uint8_t ns3::LrWpanCsmaCa::m_BE

private

Backoff exponent.

Definition at line 300 of file lr-wpan-csmaca.h.

Referenced by LrWpanCsmaCa(), PlmeCcaConfirm(), RandomBackoffDelay(), and Start().

◆ m_canProceedEvent

EventId ns3::LrWpanCsmaCa::m_canProceedEvent

private

Scheduler event for checking if we can complete the transmission before the end of the CAP.

Definition at line 345 of file lr-wpan-csmaca.h.

Referenced by Cancel(), and RandomBackoffDelay().

◆ m_ccaRequestRunning

bool ns3::LrWpanCsmaCa::m_ccaRequestRunning

private

Flag indicating that the PHY is currently running a CCA.

Used to prevent reporting the channel status to the MAC while canceling the CSMA algorithm.

Definition at line 350 of file lr-wpan-csmaca.h.

Referenced by LrWpanCsmaCa(), PlmeCcaConfirm(), and RequestCCA().

◆ m_coorDest

bool ns3::LrWpanCsmaCa::m_coorDest

private

Indicates whether the CSMA procedure is targeted for a message to be sent to the coordinator.

Used to run slotted CSMA/CA on the incoming or outgoing superframe according to the target.

Definition at line 356 of file lr-wpan-csmaca.h.

Referenced by GetTimeLeftInCap(), GetTimeToNextSlot(), LrWpanCsmaCa(), and Start().

◆ m_CW

uint8_t ns3::LrWpanCsmaCa::m_CW

private

Contention window length (used in slotted ver only).

Definition at line 296 of file lr-wpan-csmaca.h.

Referenced by CanProceed(), LrWpanCsmaCa(), PlmeCcaConfirm(), and Start().

◆ m_endCapEvent

EventId ns3::LrWpanCsmaCa::m_endCapEvent

private

Scheduler event for the end of the current CAP.

Definition at line 336 of file lr-wpan-csmaca.h.

Referenced by CanProceed(), and RandomBackoffDelay().

◆ m_isSlotted

bool ns3::LrWpanCsmaCa::m_isSlotted

private

Beacon-enabled slotted or nonbeacon-enabled unslotted CSMA-CA.

Definition at line 284 of file lr-wpan-csmaca.h.

Referenced by IsSlottedCsmaCa(), IsUnSlottedCsmaCa(), LrWpanCsmaCa(), SetSlottedCsmaCa(), and SetUnSlottedCsmaCa().

◆ m_lrWpanMacStateCallback

LrWpanMacStateCallback ns3::LrWpanCsmaCa::m_lrWpanMacStateCallback

private

The callback to inform the configured MAC of the CSMA/CA result.

Definition at line 280 of file lr-wpan-csmaca.h.

Referenced by DeferCsmaTimeout(), DoDispose(), PlmeCcaConfirm(), and SetLrWpanMacStateCallback().

◆ m_lrWpanMacTransCostCallback

LrWpanMacTransCostCallback ns3::LrWpanCsmaCa::m_lrWpanMacTransCostCallback

private

The callback to inform the cost of a transaction in slotted CSMA-CA.

Definition at line 276 of file lr-wpan-csmaca.h.

Referenced by CanProceed(), DoDispose(), and SetLrWpanMacTransCostCallback().

◆ m_mac

Ptr<LrWpanMac> ns3::LrWpanCsmaCa::m_mac

private

The MAC instance for which this CSMA/CA implemenation is configured.

Definition at line 288 of file lr-wpan-csmaca.h.

Referenced by CanProceed(), DoDispose(), GetMac(), GetTimeLeftInCap(), GetTimeToNextSlot(), RandomBackoffDelay(), RequestCCA(), SetMac(), Start(), and ~LrWpanCsmaCa().

◆ m_macBattLifeExt

bool ns3::LrWpanCsmaCa::m_macBattLifeExt

private

Battery Life Extension.

Definition at line 304 of file lr-wpan-csmaca.h.

Referenced by GetBatteryLifeExtension(), LrWpanCsmaCa(), SetBatteryLifeExtension(), and Start().

◆ m_macMaxBE

uint8_t ns3::LrWpanCsmaCa::m_macMaxBE

private

Maximum backoff exponent.

3 - 8, default 5

Definition at line 312 of file lr-wpan-csmaca.h.

Referenced by GetMacMaxBE(), LrWpanCsmaCa(), and PlmeCcaConfirm().

◆ m_macMaxCSMABackoffs

uint8_t ns3::LrWpanCsmaCa::m_macMaxCSMABackoffs

private

Maximum number of backoffs.

0 - 5, default 4

Definition at line 316 of file lr-wpan-csmaca.h.

Referenced by GetMacMaxCSMABackoffs(), LrWpanCsmaCa(), PlmeCcaConfirm(), and SetMacMaxCSMABackoffs().

◆ m_macMinBE

uint8_t ns3::LrWpanCsmaCa::m_macMinBE

private

Minimum backoff exponent.

0 - macMaxBE, default 3

Definition at line 308 of file lr-wpan-csmaca.h.

Referenced by GetMacMinBE(), LrWpanCsmaCa(), SetMacMaxBE(), SetMacMinBE(), and Start().

◆ m_NB

uint8_t ns3::LrWpanCsmaCa::m_NB

private

Number of backoffs for the current transmission.

Definition at line 292 of file lr-wpan-csmaca.h.

Referenced by GetNB(), LrWpanCsmaCa(), PlmeCcaConfirm(), and Start().

◆ m_random

Ptr<UniformRandomVariable> ns3::LrWpanCsmaCa::m_random

private

Uniform random variable stream.

Definition at line 328 of file lr-wpan-csmaca.h.

Referenced by AssignStreams(), LrWpanCsmaCa(), and RandomBackoffDelay().

◆ m_randomBackoffEvent

EventId ns3::LrWpanCsmaCa::m_randomBackoffEvent

private

Scheduler event for the start of the next random backoff/slot.

Definition at line 332 of file lr-wpan-csmaca.h.

Referenced by Cancel(), PlmeCcaConfirm(), and Start().

◆ m_randomBackoffPeriodsLeft

uint64_t ns3::LrWpanCsmaCa::m_randomBackoffPeriodsLeft

private

Count the number of remaining random backoff periods left to delay.

Definition at line 324 of file lr-wpan-csmaca.h.

Referenced by CanProceed(), LrWpanCsmaCa(), and RandomBackoffDelay().

◆ m_requestCcaEvent

EventId ns3::LrWpanCsmaCa::m_requestCcaEvent

private

Scheduler event when to start the CCA after a random backoff.

Definition at line 340 of file lr-wpan-csmaca.h.

Referenced by Cancel(), CanProceed(), PlmeCcaConfirm(), and RandomBackoffDelay().

The documentation for this class was generated from the following files:

src/lr-wpan/model/lr-wpan-csmaca.h
src/lr-wpan/model/lr-wpan-csmaca.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LrWpanCsmaCa() [1/2]

◆ ~LrWpanCsmaCa()

◆ LrWpanCsmaCa() [2/2]

Member Function Documentation

◆ AssignStreams()

◆ Cancel()

◆ CanProceed()

◆ DeferCsmaTimeout()

◆ DoDispose()

◆ GetBatteryLifeExtension()

◆ GetMac()

◆ GetMacMaxBE()

◆ GetMacMaxCSMABackoffs()

◆ GetMacMinBE()

◆ GetNB()

◆ GetTimeLeftInCap()

◆ GetTimeToNextSlot()

◆ GetTypeId()

◆ GetUnitBackoffPeriod()

◆ IsSlottedCsmaCa()

◆ IsUnSlottedCsmaCa()

◆ operator=()

◆ PlmeCcaConfirm()

◆ RandomBackoffDelay()

◆ RequestCCA()

◆ SetBatteryLifeExtension()

◆ SetLrWpanMacStateCallback()

◆ SetLrWpanMacTransCostCallback()

◆ SetMac()

◆ SetMacMaxBE()

◆ SetMacMaxCSMABackoffs()

◆ SetMacMinBE()

◆ SetSlottedCsmaCa()

◆ SetUnitBackoffPeriod()

◆ SetUnSlottedCsmaCa()

◆ Start()

Member Data Documentation

◆ m_aUnitBackoffPeriod

◆ m_BE

◆ m_canProceedEvent

◆ m_ccaRequestRunning

◆ m_coorDest

◆ m_CW

◆ m_endCapEvent

◆ m_isSlotted

◆ m_lrWpanMacStateCallback

◆ m_lrWpanMacTransCostCallback

◆ m_mac

◆ m_macBattLifeExt

◆ m_macMaxBE

◆ m_macMaxCSMABackoffs

◆ m_macMinBE

◆ m_NB

◆ m_random

◆ m_randomBackoffEvent

◆ m_randomBackoffPeriodsLeft

◆ m_requestCcaEvent
