ns3::NistErrorRateModel Class Reference

A model for the error rate for different modulations. More...

#include "nist-error-rate-model.h"

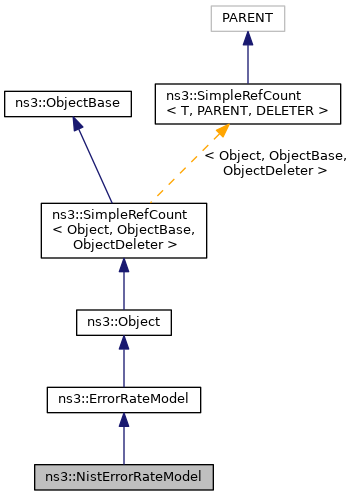

+ Inheritance diagram for ns3::NistErrorRateModel:

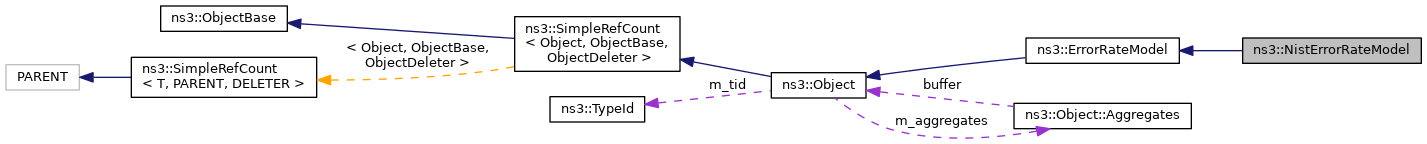

+ Collaboration diagram for ns3::NistErrorRateModel:

Public Member Functions

 NistErrorRateModel ()

- Public Member Functions inherited from ns3::ErrorRateModel
virtual int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

double CalculateSnr (const WifiTxVector &txVector, double ber) const

double GetChunkSuccessRate (WifiMode mode, const WifiTxVector &txVector, double snr, uint64_t nbits, uint8_t numRxAntennas=1, WifiPpduField field=WIFI_PPDU_FIELD_DATA, uint16_t staId=SU_STA_ID) const
 This method returns the probability that the given 'chunk' of the packet will be successfully received by the PHY. More...

virtual bool IsAwgn (void) const

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ErrorRateModel
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

double CalculatePe (double p, uint8_t bValue) const
 Return the coded BER for the given p and b. More...

double DoGetChunkSuccessRate (WifiMode mode, const WifiTxVector &txVector, double snr, uint64_t nbits, uint8_t numRxAntennas, WifiPpduField field, uint16_t staId) const override
 A pure virtual method that must be implemented in the subclass. More...

double GetBpskBer (double snr) const
 Return BER of BPSK at the given SNR. More...

uint8_t GetBValue (WifiCodeRate codeRate) const
 Return the bValue such that coding rate = bValue / (bValue + 1). More...

double GetFecBpskBer (double snr, uint64_t nbits, uint8_t bValue) const
 Return BER of BPSK at the given SNR after applying FEC. More...

double GetFecQamBer (uint16_t constellationSize, double snr, uint64_t nbits, uint8_t bValue) const
 Return BER of QAM for a given constellation size at the given SNR after applying FEC. More...

double GetFecQpskBer (double snr, uint64_t nbits, uint8_t bValue) const
 Return BER of QPSK at the given SNR after applying FEC. More...

double GetQamBer (uint16_t constellationSize, double snr) const
 Return BER of QAM for a given constellation size at the given SNR. More...

double GetQpskBer (double snr) const
 Return BER of QPSK at the given SNR. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

A model for the error rate for different modulations.


Introspection did not find any typical Config paths.

For OFDM modulation, the model description and validation can be found in http://www.nsnam.org/~pei/80211ofdm.pdf. For DSSS modulations (802.11b), the model uses the DsssErrorRateModel.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 37 of file nist-error-rate-model.h.

Constructor & Destructor Documentation

◆ NistErrorRateModel()

ns3::NistErrorRateModel::NistErrorRateModel ( )

Definition at line 45 of file nist-error-rate-model.cc.

Member Function Documentation

◆ CalculatePe()

double ns3::NistErrorRateModel::CalculatePe ( double  p,
uint8_t  bValue
) const
private

Return the coded BER for the given p and b.

Parameters
pthe SNR ratio (in linear scale)
bValuesuch that coding rate = bValue / (bValue + 1)
Returns
the coded BER

Definition at line 112 of file nist-error-rate-model.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetFecBpskBer(), GetFecQamBer(), and GetFecQpskBer().

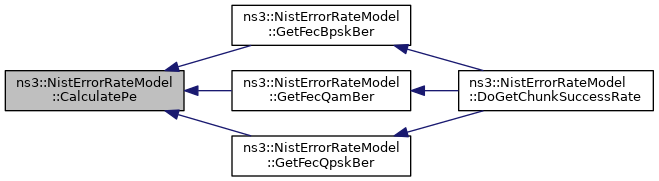

+ Here is the caller graph for this function:

◆ DoGetChunkSuccessRate()

double ns3::NistErrorRateModel::DoGetChunkSuccessRate ( WifiMode  mode,
const WifiTxVector txVector,
double  snr,
uint64_t  nbits,
uint8_t  numRxAntennas,
WifiPpduField  field,
uint16_t  staId
) const
overrideprivatevirtual

A pure virtual method that must be implemented in the subclass.

Parameters
modethe Wi-Fi mode applicable to this chunk
txVectorTXVECTOR of the overall transmission
snrthe SNR of the chunk
nbitsthe number of bits in this chunk
numRxAntennasthe number of active RX antennas
fieldthe PPDU field to which the chunk belongs to
staIdthe station ID for MU
Returns
probability of successfully receiving the chunk

Implements ns3::ErrorRateModel.

Definition at line 220 of file nist-error-rate-model.cc.

References GetBValue(), ns3::WifiMode::GetCodeRate(), ns3::WifiMode::GetConstellationSize(), GetFecBpskBer(), GetFecQamBer(), GetFecQpskBer(), ns3::WifiMode::GetModulationClass(), NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, and ns3::WIFI_MOD_CLASS_VHT.

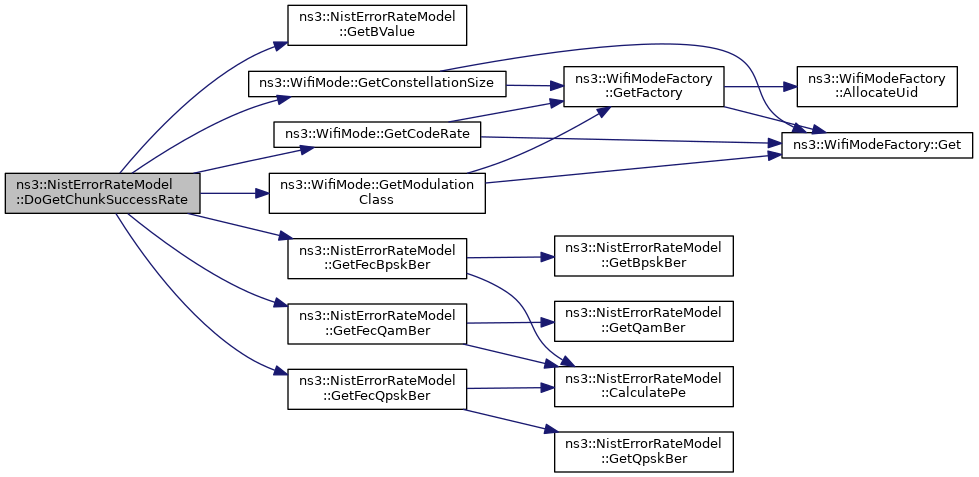

+ Here is the call graph for this function:

◆ GetBpskBer()

double ns3::NistErrorRateModel::GetBpskBer ( double  snr) const
private

Return BER of BPSK at the given SNR.

Parameters
snrSNR ratio (in linear scale)
Returns
BER of BPSK at the given SNR

Definition at line 50 of file nist-error-rate-model.cc.

References NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by GetFecBpskBer().

+ Here is the caller graph for this function:

◆ GetBValue()

uint8_t ns3::NistErrorRateModel::GetBValue ( WifiCodeRate  codeRate) const
private

Return the bValue such that coding rate = bValue / (bValue + 1).

Parameters
codeRatethe coding rate
Returns
the bValue such that coding rate = bValue / (bValue + 1)

Definition at line 199 of file nist-error-rate-model.cc.

References NS_FATAL_ERROR, ns3::WIFI_CODE_RATE_1_2, ns3::WIFI_CODE_RATE_2_3, ns3::WIFI_CODE_RATE_3_4, ns3::WIFI_CODE_RATE_5_6, and ns3::WIFI_CODE_RATE_UNDEFINED.

Referenced by DoGetChunkSuccessRate().

+ Here is the caller graph for this function:

◆ GetFecBpskBer()

double ns3::NistErrorRateModel::GetFecBpskBer ( double  snr,
uint64_t  nbits,
uint8_t  bValue
) const
private

Return BER of BPSK at the given SNR after applying FEC.

Parameters
snrSNR ratio (in linear scale)
nbitsthe number of bits in the chunk
bValuethe bValue such that coding rate = bValue / (bValue + 1)
Returns
BER of BPSK at the given SNR after applying FEC

Definition at line 82 of file nist-error-rate-model.cc.

References CalculatePe(), GetBpskBer(), min, and NS_LOG_FUNCTION.

Referenced by DoGetChunkSuccessRate().

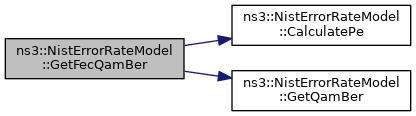

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetFecQamBer()

double ns3::NistErrorRateModel::GetFecQamBer ( uint16_t  constellationSize,
double  snr,
uint64_t  nbits,
uint8_t  bValue
) const
private

Return BER of QAM for a given constellation size at the given SNR after applying FEC.

Parameters
constellationSizethe constellation size (M)
snrSNR ratio (in linear scale)
nbitsthe number of bits in the chunk
bValuethe bValue such that coding rate = bValue / (bValue + 1)
Returns
BER of QAM for a given constellation size at the given SNR after applying FEC

Definition at line 184 of file nist-error-rate-model.cc.

References CalculatePe(), GetQamBer(), min, and NS_LOG_FUNCTION.

Referenced by DoGetChunkSuccessRate().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetFecQpskBer()

double ns3::NistErrorRateModel::GetFecQpskBer ( double  snr,
uint64_t  nbits,
uint8_t  bValue
) const
private

Return BER of QPSK at the given SNR after applying FEC.

Parameters
snrSNR ratio (in linear scale)
nbitsthe number of bits in the chunk
bValuethe bValue such that coding rate = bValue / (bValue + 1)
Returns
BER of QPSK at the given SNR after applying FEC

Definition at line 97 of file nist-error-rate-model.cc.

References CalculatePe(), GetQpskBer(), min, and NS_LOG_FUNCTION.

Referenced by DoGetChunkSuccessRate().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetQamBer()

double ns3::NistErrorRateModel::GetQamBer ( uint16_t  constellationSize,
double  snr
) const
private

Return BER of QAM for a given constellation size at the given SNR.

Parameters
constellationSizethe constellation size (M)
snrSNR ratio (in linear scale)
Returns
BER of QAM for a given constellation size at the given SNR

Definition at line 70 of file nist-error-rate-model.cc.

References NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by GetFecQamBer().

+ Here is the caller graph for this function:

◆ GetQpskBer()

double ns3::NistErrorRateModel::GetQpskBer ( double  snr) const
private

Return BER of QPSK at the given SNR.

Parameters
snrSNR ratio (in linear scale)
Returns
BER of QPSK at the given SNR

Definition at line 60 of file nist-error-rate-model.cc.

References NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by GetFecQpskBer().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::NistErrorRateModel::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 35 of file nist-error-rate-model.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

The documentation for this class was generated from the following files:
