Handle packet fragmentation and retransmissions for QoS data frames as well as MSDU aggregation (A-MSDU) and block ack sessions, for a given access class. More...

#include "qos-txop.h"

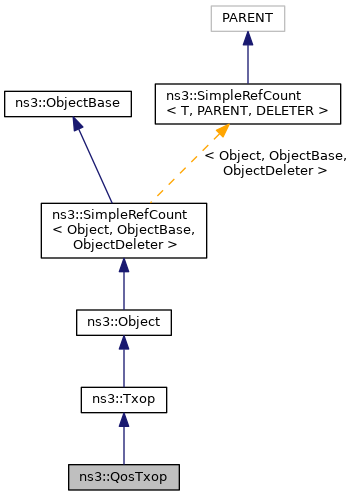

Inheritance diagram for ns3::QosTxop:

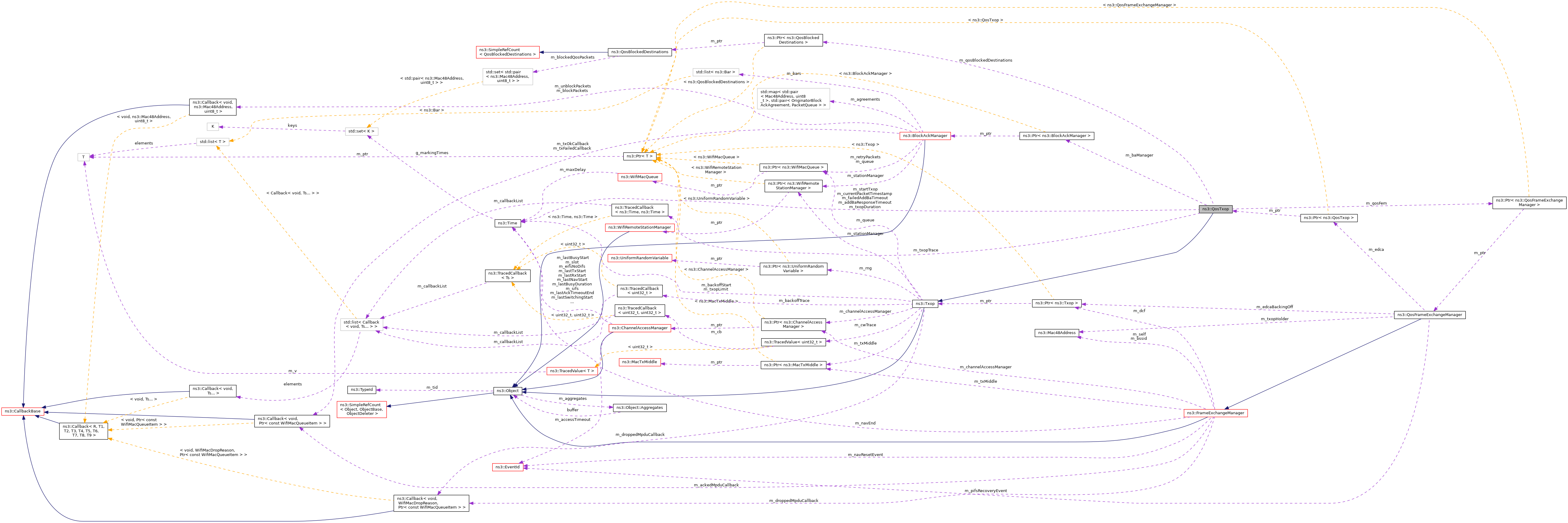

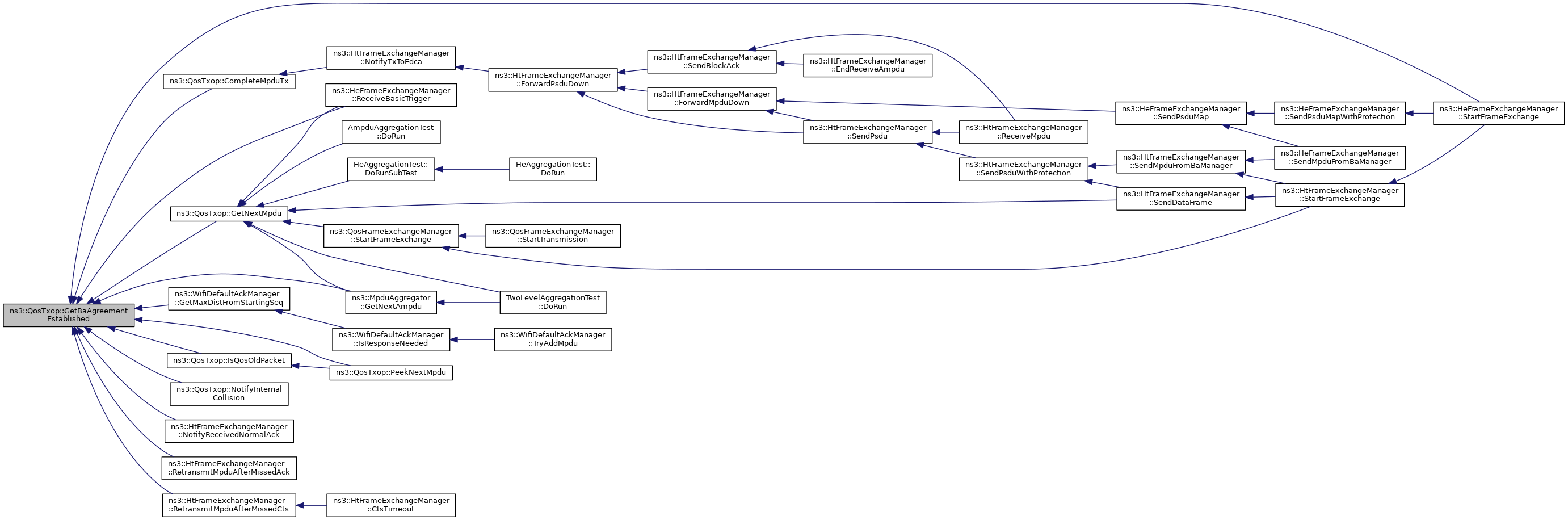

Collaboration diagram for ns3::QosTxop:

Public Member Functions
	QosTxop ()

virtual	~QosTxop ()

void	AddBaResponseTimeout (Mac48Address recipient, uint8_t tid)
	Callback when ADDBA response is not received after timeout. More...

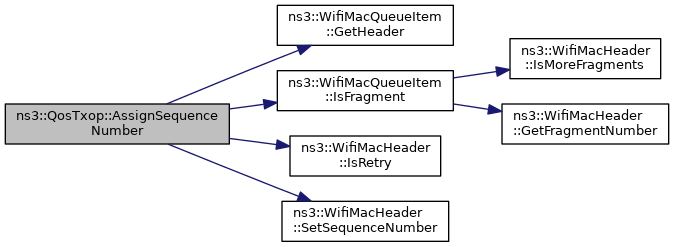

void	AssignSequenceNumber (Ptr< WifiMacQueueItem > mpdu) const
	Assign a sequence number to the given MPDU, if it is not a fragment and it is not a retransmitted frame. More...

void	CompleteMpduTx (Ptr< WifiMacQueueItem > mpdu)
	Stores an MPDU (part of an A-MPDU) in block ack agreement (i.e. More...

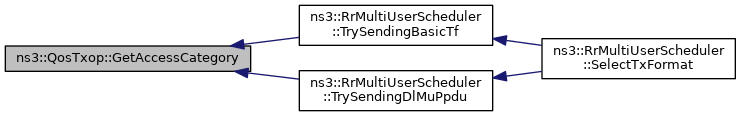

AcIndex	GetAccessCategory (void) const override
	Get the access category. More...

Time	GetAddBaResponseTimeout (void) const
	Get the timeout for ADDBA response. More...

bool	GetBaAgreementEstablished (Mac48Address address, uint8_t tid) const

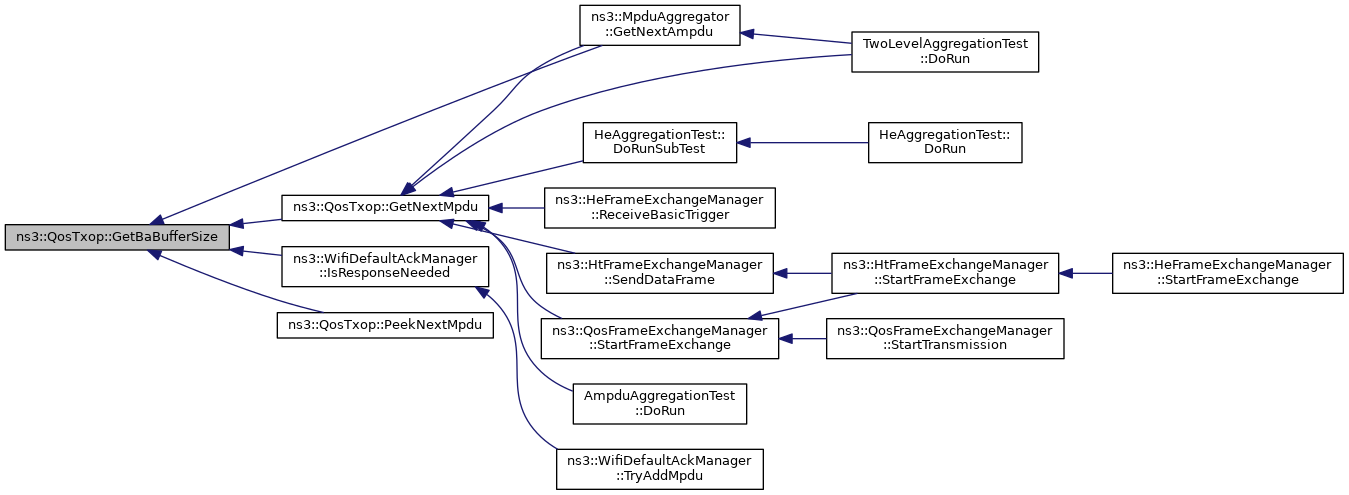

uint16_t	GetBaBufferSize (Mac48Address address, uint8_t tid) const

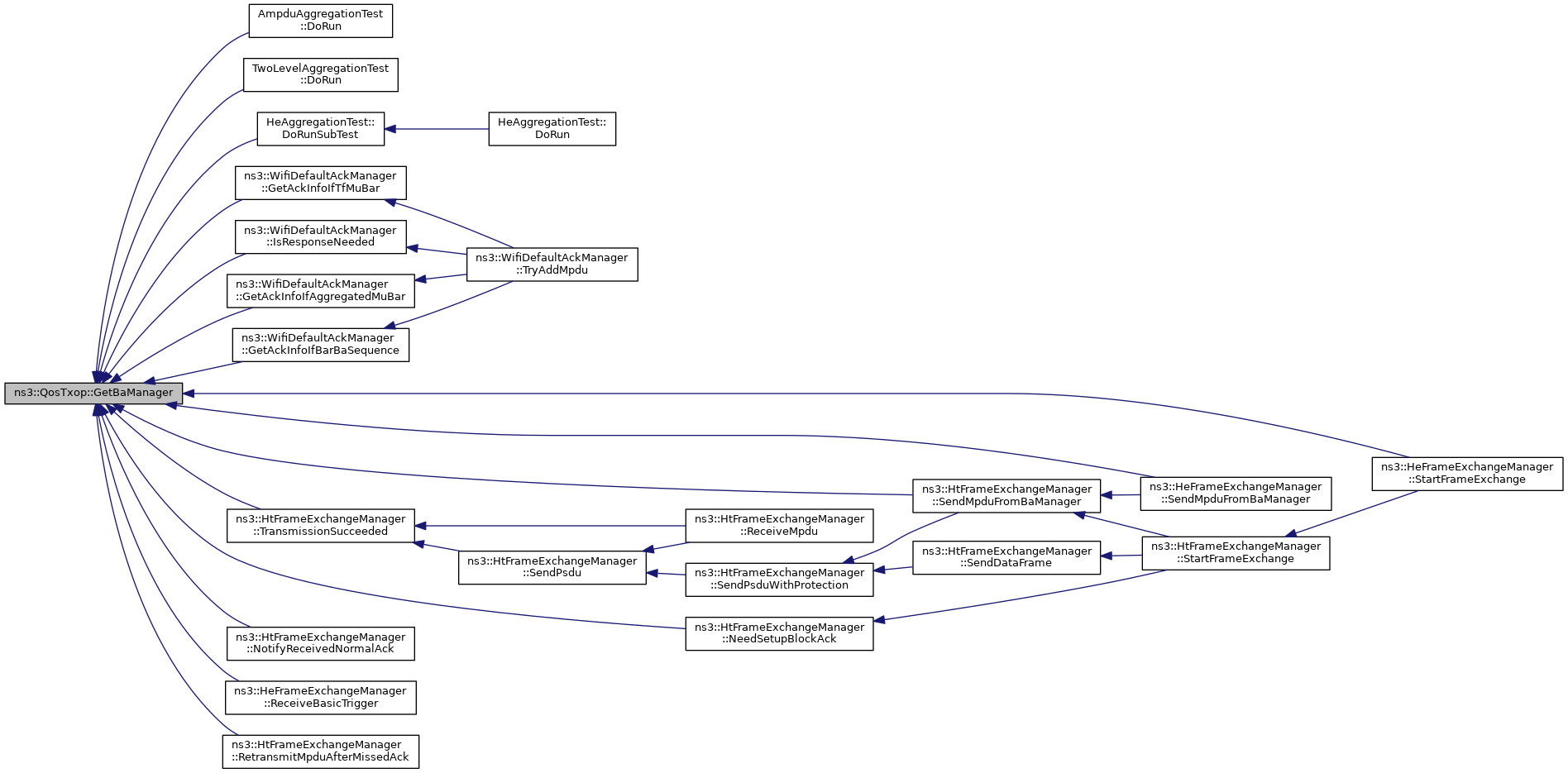

Ptr< BlockAckManager >	GetBaManager (void)
	Get the Block Ack Manager associated with this QosTxop. More...

uint16_t	GetBaStartingSequence (Mac48Address address, uint8_t tid) const

uint16_t	GetBlockAckInactivityTimeout (void) const
	Get the BlockAck inactivity timeout. More...

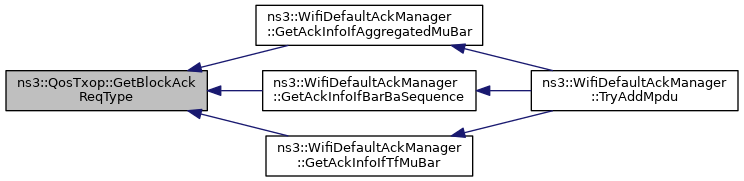

BlockAckReqType	GetBlockAckReqType (Mac48Address recipient, uint8_t tid) const

uint8_t	GetBlockAckThreshold (void) const
	Return the current threshold for block ack mechanism. More...

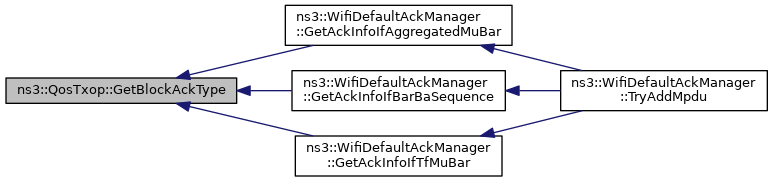

BlockAckType	GetBlockAckType (Mac48Address recipient, uint8_t tid) const

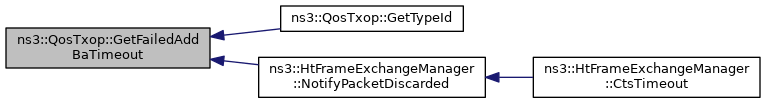

Time	GetFailedAddBaTimeout (void) const
	Get the timeout for failed BA agreement. More...

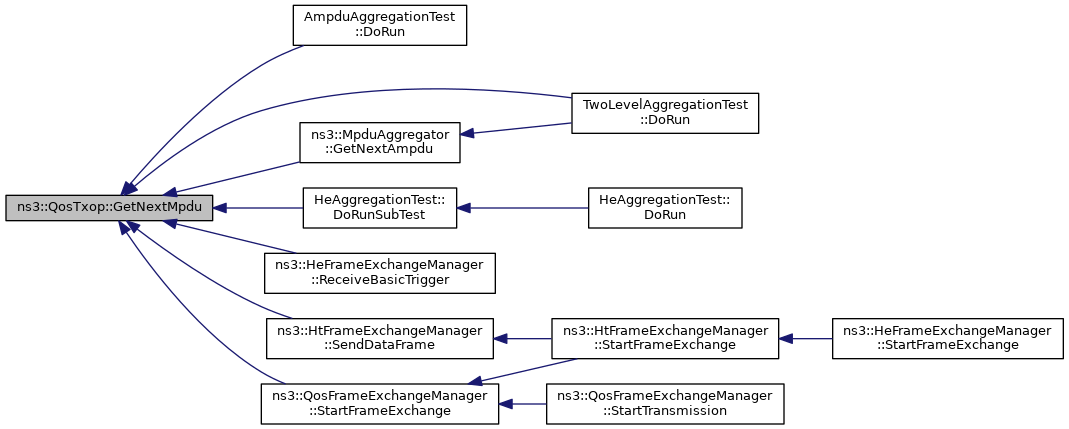

Ptr< WifiMacQueueItem >	GetNextMpdu (Ptr< const WifiMacQueueItem > peekedItem, WifiTxParameters &txParams, Time availableTime, bool initialFrame, WifiMacQueueItem::QueueIteratorPair &queueIt)
	Prepare the frame to transmit starting from the MPDU that has been previously peeked by calling PeekNextMpdu. More...

uint16_t	GetNextSequenceNumberFor (const WifiMacHeader *hdr)
	Return the next sequence number for the given header. More...

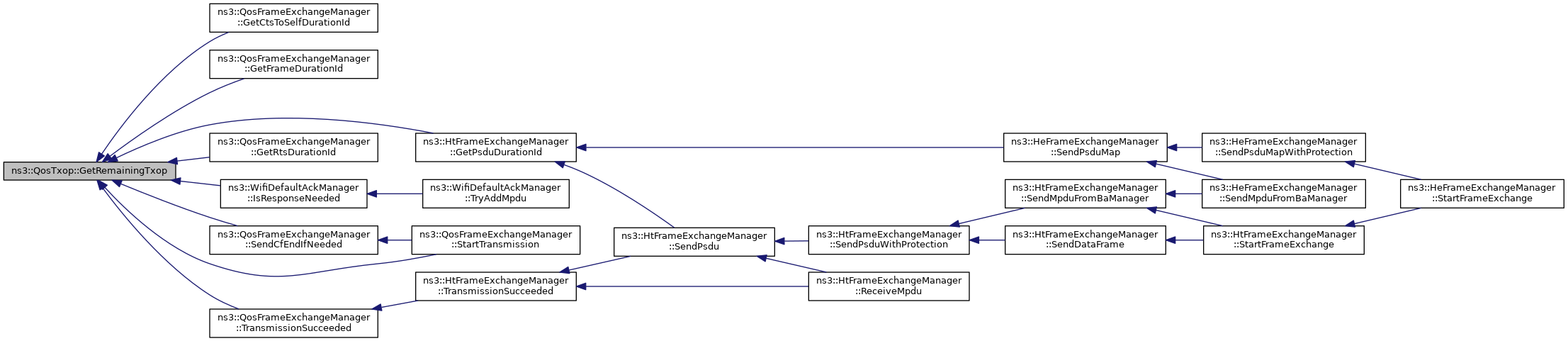

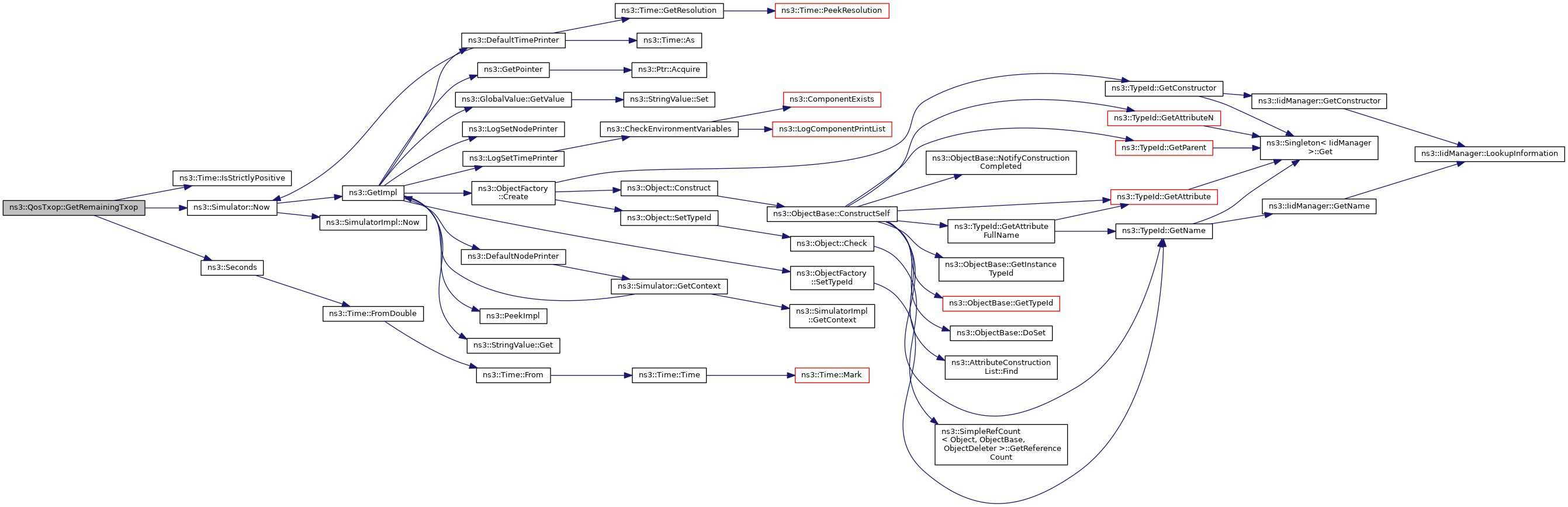

virtual Time	GetRemainingTxop (void) const
	Return the remaining duration in the current TXOP. More...

void	GotAddBaResponse (const MgtAddBaResponseHeader *respHdr, Mac48Address recipient)
	Event handler when an ADDBA response is received. More...

void	GotDelBaFrame (const MgtDelBaHeader *delBaHdr, Mac48Address recipient)
	Event handler when a DELBA frame is received. More...

bool	HasFramesToTransmit (void) override
	Check if the Txop has frames to transmit. More...

bool	IsQosTxop (void) const override
	Check for QoS TXOP. More...

virtual bool	IsTxopStarted (void) const
	Return true if a TXOP has started. More...

void	NotifyChannelAccessed (Time txopDuration) override
	Called by the FrameExchangeManager to notify that channel access has been granted for the given amount of time. More...

void	NotifyChannelReleased (void) override
	Called by the FrameExchangeManager to notify the completion of the transmissions. More...

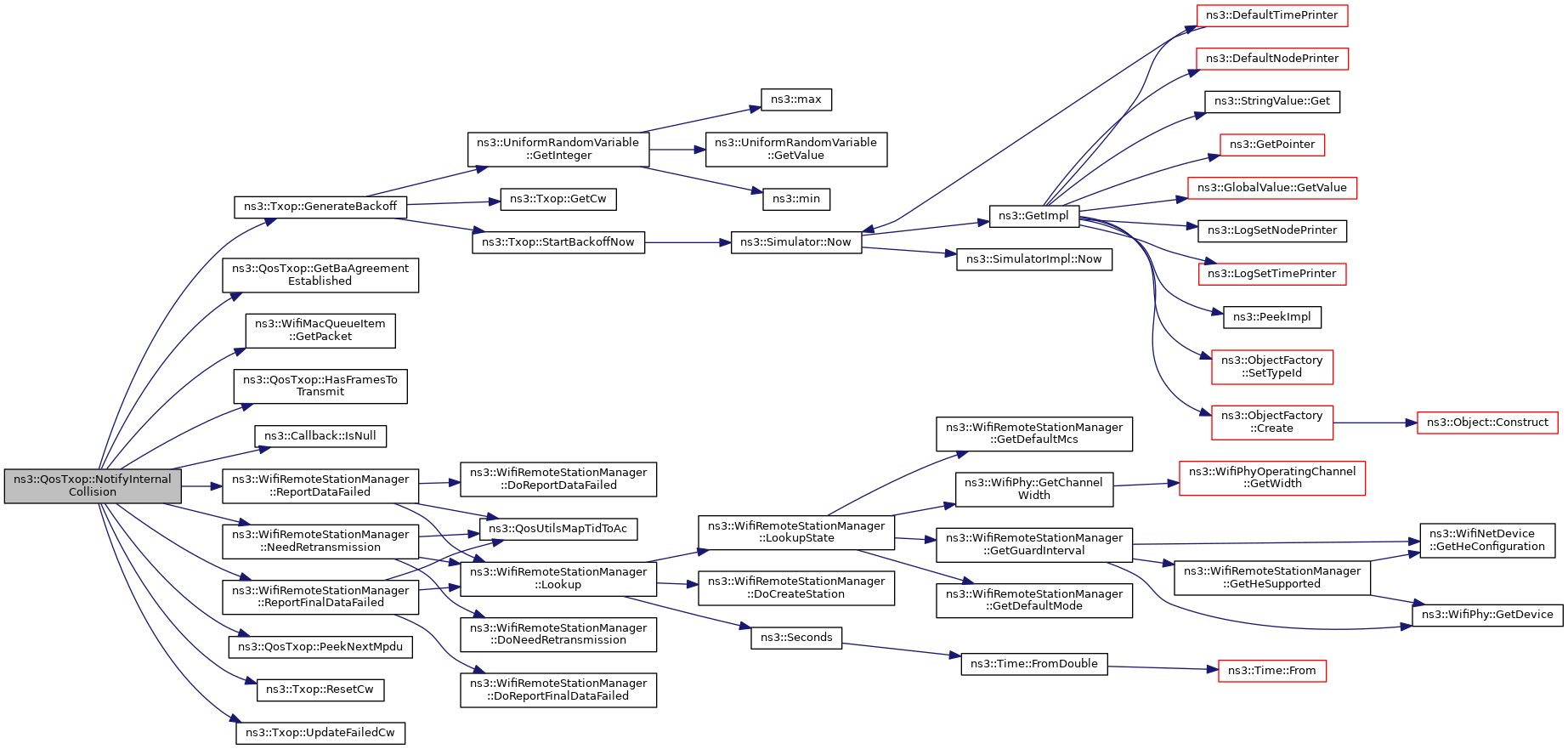

void	NotifyInternalCollision (void) override
	Notify the Txop that internal collision has occurred. More...

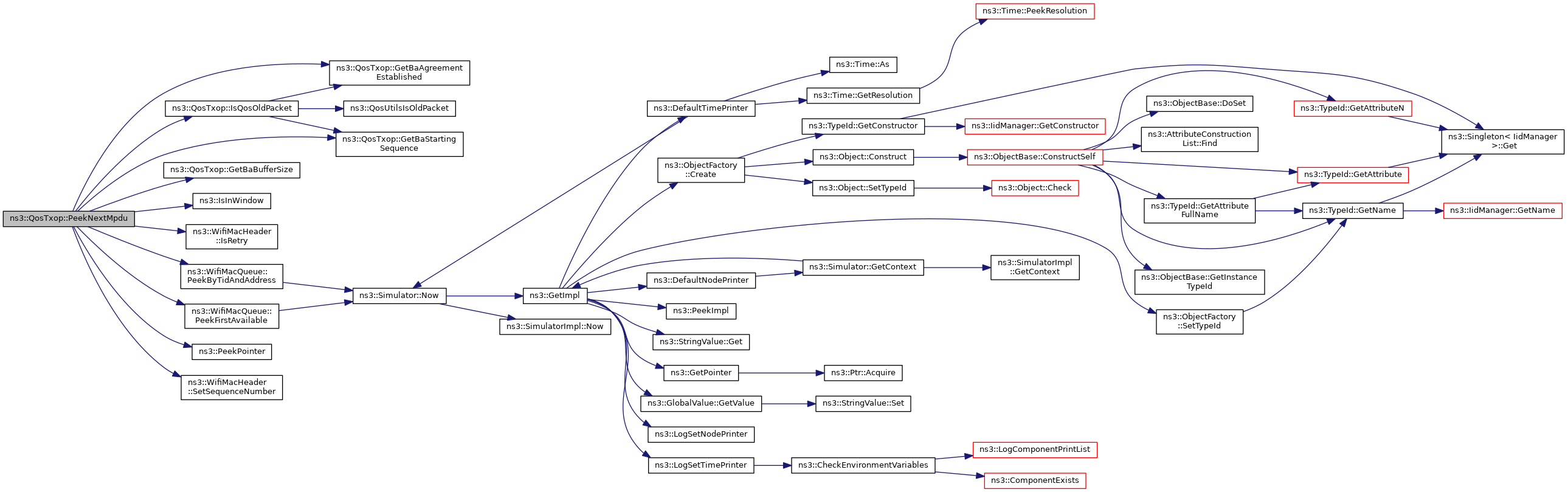

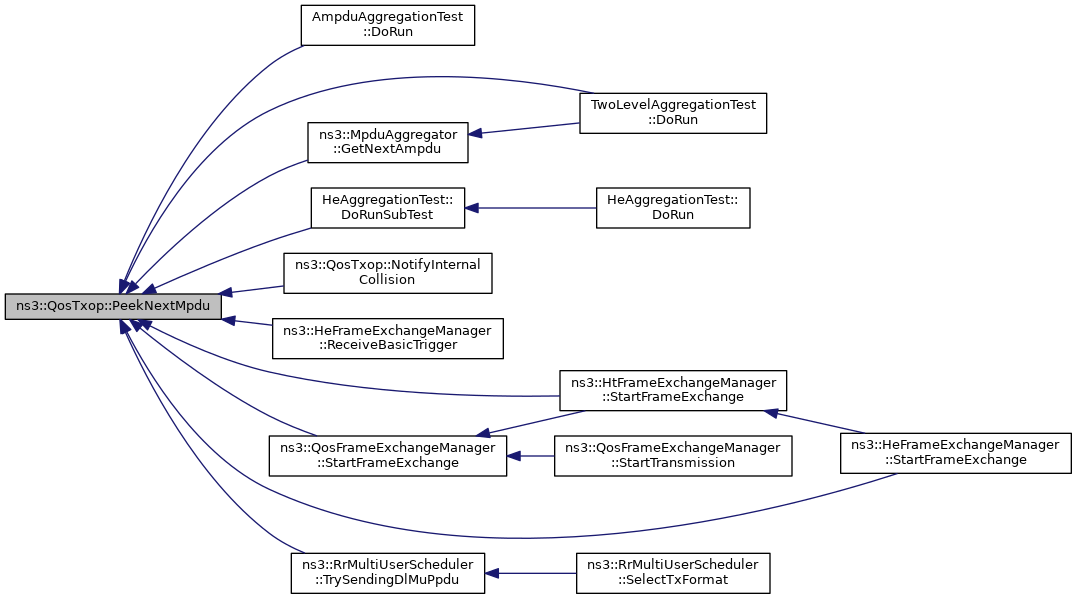

Ptr< const WifiMacQueueItem >	PeekNextMpdu (uint8_t tid=8, Mac48Address recipient=Mac48Address::GetBroadcast())
	Peek the next frame to transmit to the given receiver and of the given TID from the block ack manager retransmit queue first and, if not found, from the EDCA queue. More...

Ptr< const WifiMacQueueItem >	PeekNextMpdu (WifiMacQueueItem::QueueIteratorPair queueIt, uint8_t tid=8, Mac48Address recipient=Mac48Address::GetBroadcast())
	Peek the next frame to transmit to the given receiver and of the given TID from the block ack manager retransmit queue first and, if not found, from the EDCA queue. More...

uint16_t	PeekNextSequenceNumberFor (const WifiMacHeader *hdr)
	Return the next sequence number for the Traffic ID and destination, but do not pick it (i.e. More...

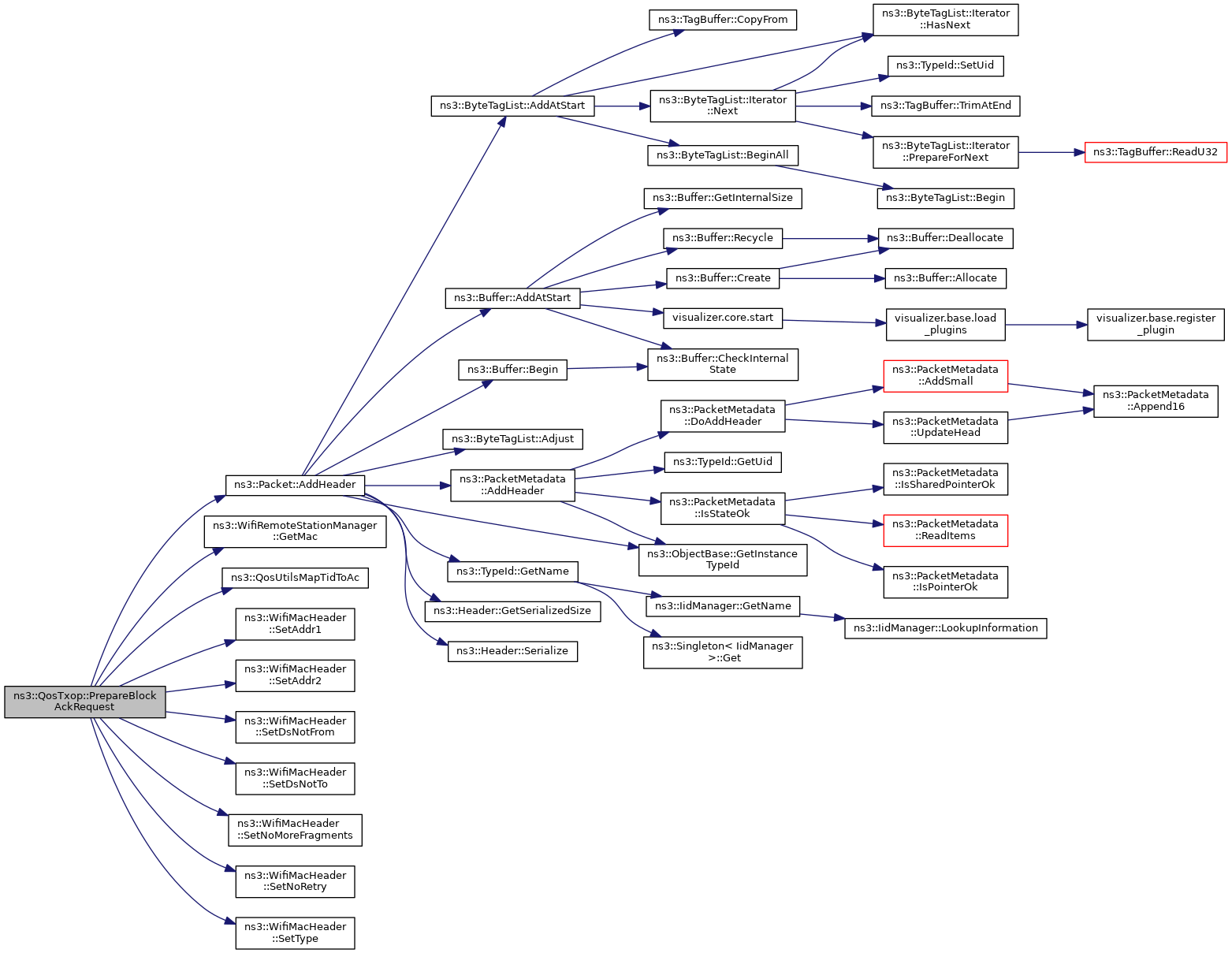

Ptr< const WifiMacQueueItem >	PrepareBlockAckRequest (Mac48Address recipient, uint8_t tid) const

void	PushFront (Ptr< const Packet > packet, const WifiMacHeader &hdr)

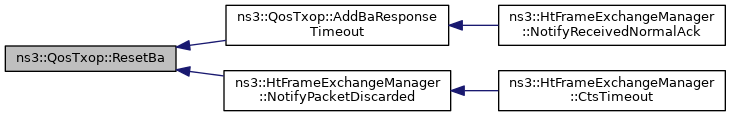

void	ResetBa (Mac48Address recipient, uint8_t tid)
	Reset BA agreement after BA negotiation failed. More...

void	ScheduleBar (Ptr< const WifiMacQueueItem > bar, bool skipIfNoDataQueued=false)

void	SetAccessCategory (AcIndex ac)
	Set the access category of this EDCAF. More...

void	SetAddBaResponseTimeout (Time addBaResponseTimeout)
	Set the timeout to wait for ADDBA response. More...

void	SetBlockAckInactivityTimeout (uint16_t timeout)
	Set the BlockAck inactivity timeout. More...

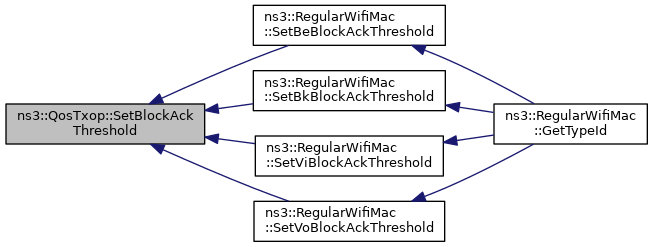

void	SetBlockAckThreshold (uint8_t threshold)
	Set threshold for block ack mechanism. More...

void	SetDroppedMpduCallback (DroppedMpdu callback) override

void	SetFailedAddBaTimeout (Time failedAddBaTimeout)
	Set the timeout for failed BA agreement. More...

void	SetQosFrameExchangeManager (const Ptr< QosFrameExchangeManager > qosFem)
	Set the Frame Exchange Manager associated with this QoS STA. More...

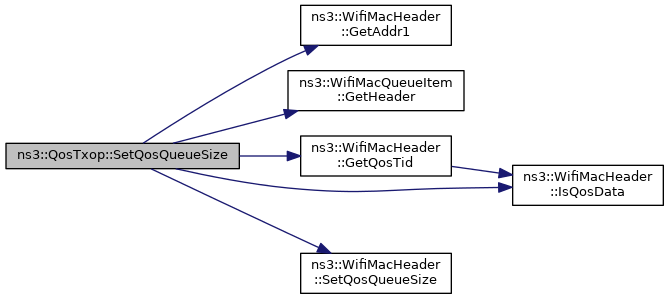

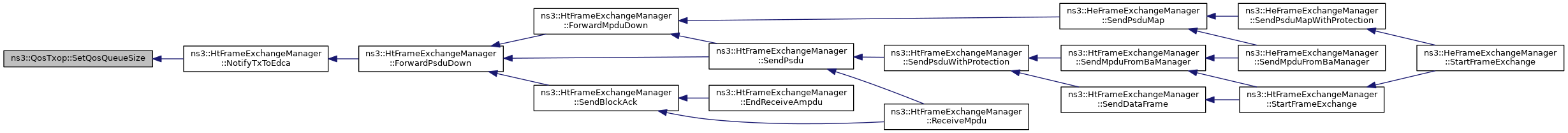

void	SetQosQueueSize (Ptr< WifiMacQueueItem > mpdu)
	Set the Queue Size subfield of the QoS Control field of the given QoS data frame. More...

void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > remoteManager) override
	Set WifiRemoteStationsManager this Txop is associated to. More...

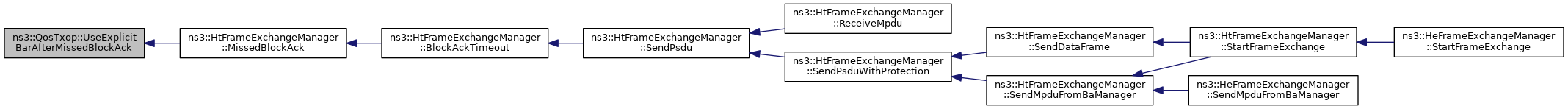

bool	UseExplicitBarAfterMissedBlockAck (void) const
	Return true if an explicit BlockAckRequest is sent after a missed BlockAck. More...

Public Member Functions inherited from ns3::Txop
	Txop ()

virtual	~Txop ()

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual ChannelAccessStatus	GetAccessStatus (void) const

uint8_t	GetAifsn (void) const
	Return the number of slots that make up an AIFS. More...

uint32_t	GetMaxCw (void) const
	Return the maximum contention window size. More...

uint32_t	GetMinCw (void) const
	Return the minimum contention window size. More...

Time	GetTxopLimit (void) const
	Return the TXOP limit. More...

Ptr< WifiMacQueue >	GetWifiMacQueue () const
	Return the packet queue associated with this Txop. More...

virtual void	NotifyChannelSwitching (void)
	When a channel switching occurs, enqueued packets are removed. More...

virtual void	NotifyOff (void)
	When off operation occurs, the queue gets cleaned up. More...

virtual void	NotifyOn (void)
	When on operation occurs, channel access will be started. More...

virtual void	NotifySleep (void)
	When sleep operation occurs, if there is a pending packet transmission, it will be reinserted to the front of the queue. More...

virtual void	NotifyWakeUp (void)
	When wake up operation occurs, channel access will be restarted. More...

virtual void	Queue (Ptr< Packet > packet, const WifiMacHeader &hdr)

void	ResetCw (void)
	Update the value of the CW variable to take into account a transmission success or a transmission abort (stop transmission of a packet after the maximum number of retransmissions has been reached). More...

void	SetAifsn (uint8_t aifsn)
	Set the number of slots that make up an AIFS. More...

void	SetChannelAccessManager (const Ptr< ChannelAccessManager > manager)
	Set ChannelAccessManager this Txop is associated to. More...

void	SetMaxCw (uint32_t maxCw)
	Set the maximum contention window size. More...

void	SetMinCw (uint32_t minCw)
	Set the minimum contention window size. More...

void	SetTxMiddle (const Ptr< MacTxMiddle > txMiddle)
	Set MacTxMiddle this Txop is associated to. More...

void	SetTxopLimit (Time txopLimit)
	Set the TXOP limit. More...

void	StartBackoffNow (uint32_t nSlots)

void	UpdateFailedCw (void)
	Update the value of the CW variable to take into account a transmission failure. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Txop
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	DoDispose (void) override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Txop
void	DoDispose (void) override
	Destructor implementation. More...

void	DoInitialize (void) override
	Initialize() implementation. More...

virtual void	GenerateBackoff (void)
	Generate a new backoff now. More...

uint32_t	GetBackoffSlots (void) const
	Return the current number of backoff slots. More...

Time	GetBackoffStart (void) const
	Return the time when the backoff procedure started. More...

uint32_t	GetCw (void) const

virtual void	NotifyAccessRequested (void)
	Notify that access request has been received. More...

void	RequestAccess (void)
	Request access to the ChannelAccessManager. More...

virtual void	StartAccessIfNeeded (void)
	Request access from Txop if needed. More...

void	UpdateBackoffSlotsNow (uint32_t nSlots, Time backoffUpdateBound)
	Update backoff slots that nSlots has passed. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	DoInitialize (void) override
	Initialize() implementation. More...

bool	IsQosOldPacket (Ptr< const WifiMacQueueItem > mpdu)
	Check if the given MPDU is to be considered old according to the current starting sequence number of the transmit window, provided that a block ack agreement has been established with the recipient for the given TID. More...

Private Attributes
AcIndex	m_ac
	the access category More...

Time	m_addBaResponseTimeout
	timeout for ADDBA response More...

Ptr< BlockAckManager >	m_baManager
	the block ack manager More...

uint16_t	m_blockAckInactivityTimeout
	the BlockAck inactivity timeout value (in TUs, i.e. More...

uint8_t	m_blockAckThreshold
	the block ack threshold (use BA mechanism if number of packets in queue reaches this value. More...

Time	m_currentPacketTimestamp
	the current packet timestamp More...

Time	m_failedAddBaTimeout
	timeout after failed BA agreement More...

Ptr< QosBlockedDestinations >	m_qosBlockedDestinations
	the QoS blocked destinations More...

Ptr< QosFrameExchangeManager >	m_qosFem
	the QoS Frame Exchange Manager More...

Time	m_startTxop
	the start TXOP time More...

Time	m_txopDuration
	the duration of a TXOP More...

TracedCallback< Time, Time >	m_txopTrace
	TXOP trace callback. More...

bool	m_useExplicitBarAfterMissedBlockAck
	flag whether explicit BlockAckRequest should be sent upon missed BlockAck Response More...

Friends
class	AggregationCapableTransmissionListener
	allow AggregationCapableTransmissionListener class access More...

Additional Inherited Members
Public Types inherited from ns3::Txop
enum	ChannelAccessStatus { NOT_REQUESTED = 0, REQUESTED, GRANTED }
	Enumeration for channel access status. More...

typedef Callback< void, WifiMacDropReason, Ptr< const WifiMacQueueItem > >	DroppedMpdu
	typedef for a callback to invoke when an MPDU is dropped. More...

Protected Attributes inherited from ns3::Txop
ChannelAccessStatus	m_access
	channel access status More...

uint8_t	m_aifsn
	the AIFSN More...

uint32_t	m_backoff
	the current backoff More...

uint32_t	m_backoffSlots
	the number of backoff slots More...

Time	m_backoffStart
	the backoffStart variable is used to keep track of the time at which a backoff was started or the time at which the backoff counter was last updated. More...

TracedCallback< uint32_t >	m_backoffTrace
	backoff trace value More...

Ptr< ChannelAccessManager >	m_channelAccessManager
	the channel access manager More...

uint32_t	m_cw
	the current contention window More...

uint32_t	m_cwMax
	the maximum contention window More...

uint32_t	m_cwMin
	the minimum contention window More...

TracedValue< uint32_t >	m_cwTrace
	CW trace value. More...

DroppedMpdu	m_droppedMpduCallback
	the dropped MPDU callback More...

Ptr< WifiMacQueue >	m_queue
	the wifi MAC queue More...

Ptr< UniformRandomVariable >	m_rng
	the random stream More...

Ptr< WifiRemoteStationManager >	m_stationManager
	the wifi remote station manager More...

Ptr< MacTxMiddle >	m_txMiddle
	the MacTxMiddle More...

Time	m_txopLimit
	the TXOP limit time More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Handle packet fragmentation and retransmissions for QoS data frames as well as MSDU aggregation (A-MSDU) and block ack sessions, for a given access class.

This class implements the packet fragmentation and retransmission policy for QoS data frames. It uses the ns3::MacLow and ns3::ChannelAccessManager helper classes to respectively send packets and decide when to send them. Packets are stored in a ns3::WifiMacQueue until they can be sent.

This queue contains packets for a particular access class. Possibles access classes are:

AC_VO : voice, TID = 6,7
AC_VI : video, TID = 4,5
AC_BE : best-effort, TID = 0,3
AC_BK : background, TID = 1,2

This class also implements block ack sessions and MSDU aggregation (A-MSDU). If A-MSDU is enabled for that access class, it picks several packets from the queue instead of a single one and sends the aggregated packet to ns3::MacLow.

The fragmentation policy currently implemented uses a simple threshold: any packet bigger than this threshold is fragmented in fragments whose size is smaller than the threshold.

The retransmission policy is also very simple: every packet is retransmitted until it is either successfully transmitted or it has been retransmitted up until the SSRC or SLRC thresholds.

The RTS/CTS policy is similar to the fragmentation policy: when a packet is bigger than a threshold, the RTS/CTS protocol is used.

Config Paths

ns3::QosTxop is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/Txop/$ns3::QosTxop"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VO_Txop"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VI_Txop"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BE_Txop"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BK_Txop"

Attributes

UseExplicitBarAfterMissedBlockAck: Specify whether explicit BlockAckRequest should be sent upon missed BlockAck Response.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
AddBaResponseTimeout: The timeout to wait for ADDBA response after the Ack to ADDBA request is received.
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +1e+06ns
- Flags: construct write read
FailedAddBaTimeout: The timeout after a failed BA agreement. During this timeout, the originator resumes sending packets using normal MPDU. After that, BA agreement is reset and the originator will retry BA negotiation.
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +2e+08ns
- Flags: construct write read
BlockAckManager: The BlockAckManager object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BlockAckManager>
- Initial value: 0
- Flags: construct write read

Attributes defined in parent class ns3::Txop

MinCw: The minimum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 15
- Flags: construct write read
MaxCw: The maximum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1023
- Flags: construct write read
Aifsn: The AIFSN: the default value conforms to non-QOS.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 2
- Flags: construct write read
TxopLimit: The TXOP limit: the default value conforms to non-QoS.
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
Queue: The WifiMacQueue object
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiMacQueue>
- Flags: read

TraceSources

TxopTrace: Trace source for TXOP start and duration times
Callback signature: ns3::TracedValueCallback::Time

TraceSources defined in parent class ns3::Txop

BackoffTrace: Trace source for backoff values
Callback signature: ns3::TracedCallback::Uint32Callback
CwTrace: Trace source for contention window values
Callback signature: ns3::TracedValueCallback::Uint32

Size of this type is 280 bytes (on a 64-bit architecture).

Definition at line 74 of file qos-txop.h.

Constructor & Destructor Documentation

◆ QosTxop()

ns3::QosTxop::QosTxop ( )

Definition at line 94 of file qos-txop.cc.

References ns3::QosBlockedDestinations::Block(), m_baManager, m_qosBlockedDestinations, ns3::Txop::m_queue, ns3::MakeCallback(), NS_LOG_FUNCTION, and ns3::QosBlockedDestinations::Unblock().

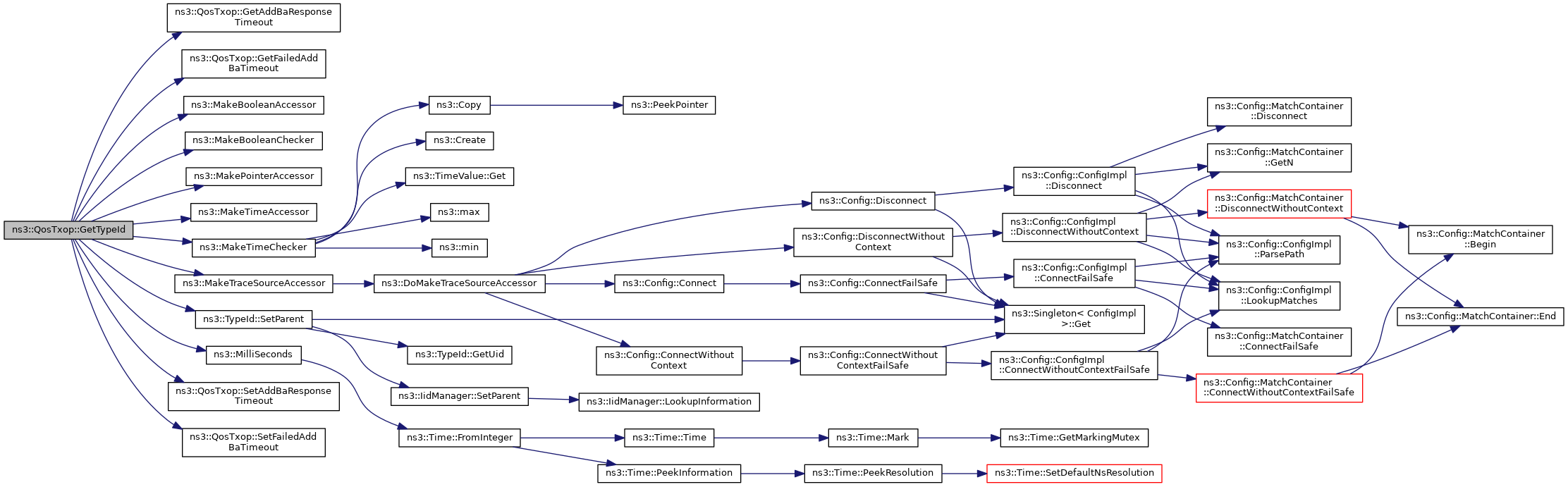

Here is the call graph for this function:

◆ ~QosTxop()

ns3::QosTxop::~QosTxop ( )

virtual

Definition at line 106 of file qos-txop.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddBaResponseTimeout()

void ns3::QosTxop::AddBaResponseTimeout	(	Mac48Address	recipient,
		uint8_t	tid
	)

Callback when ADDBA response is not received after timeout.

Parameters

recipient	MAC address of recipient
tid	traffic ID

Definition at line 721 of file qos-txop.cc.

References ns3::Txop::GenerateBackoff(), HasFramesToTransmit(), ns3::Txop::m_access, m_baManager, ns3::Txop::m_channelAccessManager, m_failedAddBaTimeout, ns3::Txop::NOT_REQUESTED, NS_LOG_FUNCTION, ns3::OriginatorBlockAckAgreement::PENDING, ResetBa(), and ns3::Simulator::Schedule().

Referenced by ns3::HtFrameExchangeManager::NotifyReceivedNormalAck().

Here is the call graph for this function:

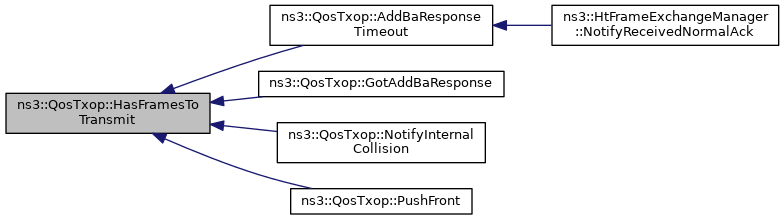

Here is the caller graph for this function:

◆ AssignSequenceNumber()

void ns3::QosTxop::AssignSequenceNumber ( Ptr< WifiMacQueueItem > mpdu ) const

Assign a sequence number to the given MPDU, if it is not a fragment and it is not a retransmitted frame.

Parameters

mpdu the MPDU

Definition at line 460 of file qos-txop.cc.

References ns3::WifiMacQueueItem::GetHeader(), ns3::WifiMacQueueItem::IsFragment(), ns3::WifiMacHeader::IsRetry(), ns3::Txop::m_txMiddle, NS_LOG_FUNCTION, and ns3::WifiMacHeader::SetSequenceNumber().

Referenced by GetNextMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CompleteMpduTx()

void ns3::QosTxop::CompleteMpduTx ( Ptr< WifiMacQueueItem > mpdu )

Stores an MPDU (part of an A-MPDU) in block ack agreement (i.e.

the sender is waiting for a BlockAck containing the sequence number of this MPDU).

Parameters

mpdu	received MPDU.

Definition at line 674 of file qos-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), GetBaAgreementEstablished(), ns3::WifiMacQueueItem::GetHeader(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::IsQosData(), m_baManager, and NS_ASSERT.

Referenced by ns3::HtFrameExchangeManager::NotifyTxToEdca().

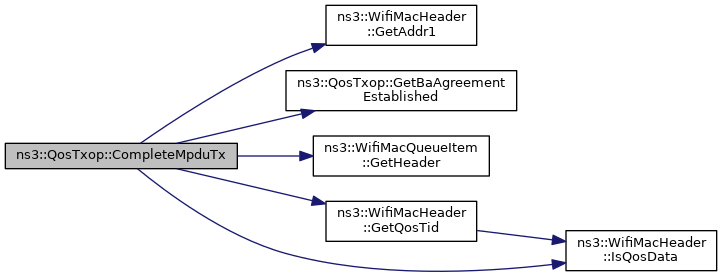

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::QosTxop::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 112 of file qos-txop.cc.

References ns3::Txop::DoDispose(), m_baManager, m_qosBlockedDestinations, m_qosFem, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoInitialize()

void ns3::QosTxop::DoInitialize ( void )

overrideprivatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 713 of file qos-txop.cc.

References ns3::Txop::GenerateBackoff(), NS_LOG_FUNCTION, and ns3::Txop::ResetCw().

Here is the call graph for this function:

◆ GetAccessCategory()

AcIndex ns3::QosTxop::GetAccessCategory ( void ) const

overridevirtual

Get the access category.

Returns: the access category.

Reimplemented from ns3::Txop.

Definition at line 785 of file qos-txop.cc.

References m_ac.

Referenced by ns3::RrMultiUserScheduler::TrySendingBasicTf(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

Here is the caller graph for this function:

◆ GetAddBaResponseTimeout()

Time ns3::QosTxop::GetAddBaResponseTimeout ( void ) const

Get the timeout for ADDBA response.

Returns: the timeout to wait for ADDBA response

Definition at line 760 of file qos-txop.cc.

References m_addBaResponseTimeout.

Referenced by GetTypeId(), and ns3::HtFrameExchangeManager::NotifyReceivedNormalAck().

Here is the caller graph for this function:

◆ GetBaAgreementEstablished()

bool ns3::QosTxop::GetBaAgreementEstablished	(	Mac48Address	address,
		uint8_t	tid
	)		const

Parameters

address	recipient address of the peer station
tid	traffic ID.

Returns: true if a block ack agreement is established, false otherwise.

Checks if a block ack agreement is established with station addressed by recipient for TID tid.

Definition at line 161 of file qos-txop.cc.

References first::address, ns3::OriginatorBlockAckAgreement::ESTABLISHED, and m_baManager.

Referenced by CompleteMpduTx(), ns3::WifiDefaultAckManager::GetMaxDistFromStartingSeq(), ns3::MpduAggregator::GetNextAmpdu(), GetNextMpdu(), IsQosOldPacket(), NotifyInternalCollision(), ns3::HtFrameExchangeManager::NotifyReceivedNormalAck(), PeekNextMpdu(), ns3::HeFrameExchangeManager::ReceiveBasicTrigger(), ns3::HtFrameExchangeManager::RetransmitMpduAfterMissedAck(), ns3::HtFrameExchangeManager::RetransmitMpduAfterMissedCts(), and ns3::HeFrameExchangeManager::StartFrameExchange().

Here is the caller graph for this function:

◆ GetBaBufferSize()

uint16_t ns3::QosTxop::GetBaBufferSize	(	Mac48Address	address,
		uint8_t	tid
	)		const

Parameters

address	recipient address of the peer station
tid	traffic ID.

Returns: the negotiated buffer size during ADDBA handshake.

Returns the negotiated buffer size during ADDBA handshake with station addressed by recipient for TID tid.

Definition at line 167 of file qos-txop.cc.

References first::address, and m_baManager.

Referenced by ns3::MpduAggregator::GetNextAmpdu(), GetNextMpdu(), ns3::WifiDefaultAckManager::IsResponseNeeded(), and PeekNextMpdu().

Here is the caller graph for this function:

◆ GetBaManager()

Ptr< BlockAckManager > ns3::QosTxop::GetBaManager ( void )

Get the Block Ack Manager associated with this QosTxop.

Returns: the Block Ack Manager

Definition at line 155 of file qos-txop.cc.

References m_baManager.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::WifiDefaultAckManager::GetAckInfoIfAggregatedMuBar(), ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), ns3::WifiDefaultAckManager::GetAckInfoIfTfMuBar(), ns3::WifiDefaultAckManager::IsResponseNeeded(), ns3::HtFrameExchangeManager::NeedSetupBlockAck(), ns3::HtFrameExchangeManager::NotifyReceivedNormalAck(), ns3::HeFrameExchangeManager::ReceiveBasicTrigger(), ns3::HtFrameExchangeManager::RetransmitMpduAfterMissedAck(), ns3::HeFrameExchangeManager::SendMpduFromBaManager(), ns3::HtFrameExchangeManager::SendMpduFromBaManager(), ns3::HeFrameExchangeManager::StartFrameExchange(), and ns3::HtFrameExchangeManager::TransmissionSucceeded().

Here is the caller graph for this function:

◆ GetBaStartingSequence()

uint16_t ns3::QosTxop::GetBaStartingSequence	(	Mac48Address	address,
		uint8_t	tid
	)		const

Parameters

address	recipient address of the peer station
tid	traffic ID.

Returns: the starting sequence number of the originator transmit window.

Returns the current starting sequence number of the transmit window on the originator (WinStartO) of the block ack agreement established with the given recipient for the given TID.

Definition at line 173 of file qos-txop.cc.

References first::address, and m_baManager.

Referenced by ns3::WifiDefaultAckManager::GetMaxDistFromStartingSeq(), ns3::MpduAggregator::GetNextAmpdu(), GetNextMpdu(), IsQosOldPacket(), PeekNextMpdu(), and ns3::HtFrameExchangeManager::RetransmitMpduAfterMissedCts().

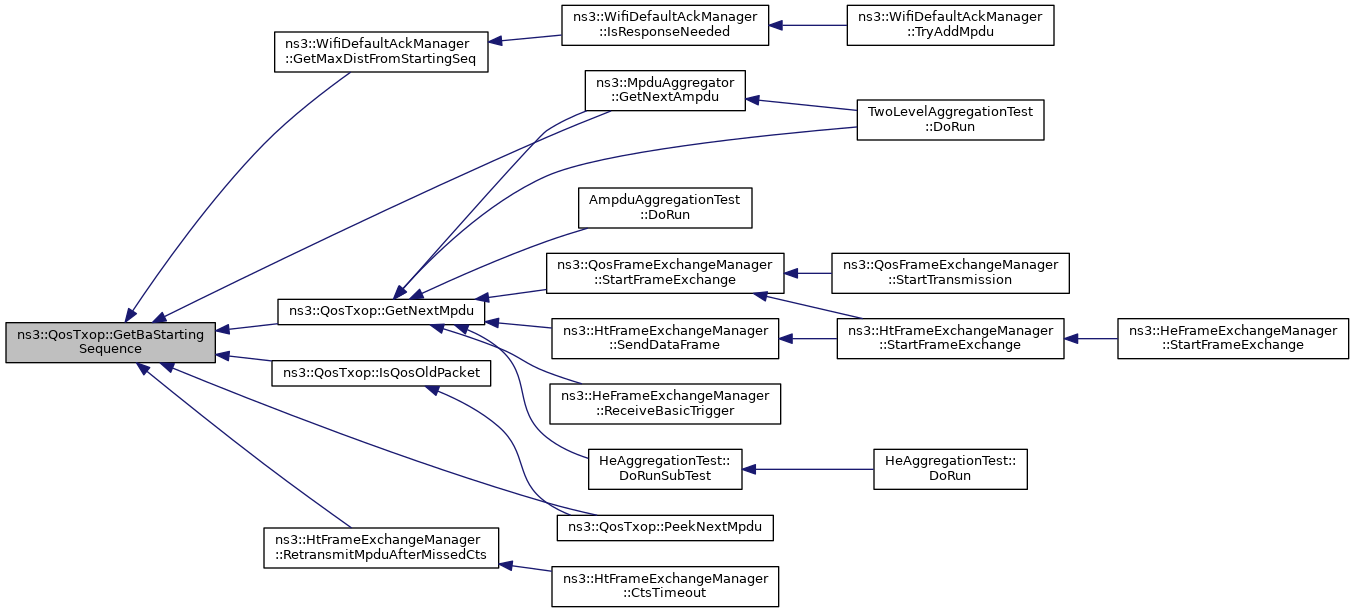

Here is the caller graph for this function:

◆ GetBlockAckInactivityTimeout()

uint16_t ns3::QosTxop::GetBlockAckInactivityTimeout ( void ) const

Get the BlockAck inactivity timeout.

Returns: the BlockAck inactivity timeout.

Definition at line 707 of file qos-txop.cc.

References m_blockAckInactivityTimeout.

Referenced by ns3::HtFrameExchangeManager::StartFrameExchange().

Here is the caller graph for this function:

◆ GetBlockAckReqType()

BlockAckReqType ns3::QosTxop::GetBlockAckReqType	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	MAC address of recipient
tid	traffic ID

Returns: the type of Block Ack Requests sent to the recipient

This function returns the type of Block Ack Requests sent to the recipient.

Definition at line 472 of file qos-txop.cc.

References m_baManager.

Referenced by ns3::WifiDefaultAckManager::GetAckInfoIfAggregatedMuBar(), ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), and ns3::WifiDefaultAckManager::GetAckInfoIfTfMuBar().

Here is the caller graph for this function:

◆ GetBlockAckThreshold()

uint8_t ns3::QosTxop::GetBlockAckThreshold ( void ) const

Return the current threshold for block ack mechanism.

Returns: the current threshold for block ack mechanism.

Definition at line 700 of file qos-txop.cc.

References m_blockAckThreshold, and NS_LOG_FUNCTION.

Referenced by ns3::HtFrameExchangeManager::NeedSetupBlockAck().

Here is the caller graph for this function:

◆ GetBlockAckType()

BlockAckType ns3::QosTxop::GetBlockAckType	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	MAC address
tid	traffic ID

Returns: the type of Block Acks sent by the recipient

This function returns the type of Block Acks sent by the recipient.

Definition at line 478 of file qos-txop.cc.

References m_baManager.

Referenced by ns3::WifiDefaultAckManager::GetAckInfoIfAggregatedMuBar(), ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), and ns3::WifiDefaultAckManager::GetAckInfoIfTfMuBar().

Here is the caller graph for this function:

◆ GetFailedAddBaTimeout()

Time ns3::QosTxop::GetFailedAddBaTimeout ( void ) const

Get the timeout for failed BA agreement.

Returns: the timeout for failed BA agreement

Definition at line 773 of file qos-txop.cc.

References m_failedAddBaTimeout.

Referenced by GetTypeId(), and ns3::HtFrameExchangeManager::NotifyPacketDiscarded().

Here is the caller graph for this function:

◆ GetNextMpdu()

Ptr< WifiMacQueueItem > ns3::QosTxop::GetNextMpdu	(	Ptr< const WifiMacQueueItem >	peekedItem,
		WifiTxParameters &	txParams,
		Time	availableTime,
		bool	initialFrame,
		WifiMacQueueItem::QueueIteratorPair &	queueIt
	)

Prepare the frame to transmit starting from the MPDU that has been previously peeked by calling PeekNextMpdu.

A frame is only returned if it meets the constraint on the maximum A-MPDU size (by assuming that the frame has to be aggregated to an existing A-MPDU as specified by the TX parameters) and its transmission time does not exceed the given PPDU duration limit (if distinct from Time::Min ()). If the peeked MPDU is a unicast QoS Data frame stored in the EDCA queue, attempt to perform A-MSDU aggregation (while meeting the constraints mentioned above) and assign a sequence number to the dequeued frame.

Parameters

	peekedItem	the peeked frame.
	txParams	the TX parameters for the frame
	availableTime	the time available for the transmission of the frame (including protection and acknowledgment); a value of Time::Min() indicates no time constraint
	initialFrame	true if the frame is the initial PPDU of a TXOP
[out]	queueIt	a QueueIteratorPair pointing to the queue item following the last item used to prepare the returned MPDU, if any; if no MPDU is returned, its value is unchanged

Returns: the frame to transmit or a null pointer if no frame meets the time constraints

Definition at line 359 of file qos-txop.cc.

References AssignSequenceNumber(), GetBaAgreementEstablished(), GetBaBufferSize(), GetBaStartingSequence(), ns3::WifiRemoteStationManager::GetHtSupported(), ns3::WifiTxParameters::GetSize(), ns3::Mac48Address::IsBroadcast(), ns3::IsInWindow(), ns3::WifiMacQueueItem::QueueIteratorPair::it, m_baManager, m_qosFem, ns3::Txop::m_queue, ns3::Txop::m_stationManager, ns3::Time::Min(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::PeekPointer(), and ns3::QosUtilsIsOldPacket().

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::MpduAggregator::GetNextAmpdu(), ns3::HeFrameExchangeManager::ReceiveBasicTrigger(), ns3::HtFrameExchangeManager::SendDataFrame(), and ns3::QosFrameExchangeManager::StartFrameExchange().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNextSequenceNumberFor()

uint16_t ns3::QosTxop::GetNextSequenceNumberFor ( const WifiMacHeader * hdr )

Return the next sequence number for the given header.

Parameters

hdr	Wi-Fi header.

Returns: the next sequence number.

Definition at line 239 of file qos-txop.cc.

References ns3::Txop::m_txMiddle.

◆ GetRemainingTxop()

Time ns3::QosTxop::GetRemainingTxop ( void ) const

virtual

Return the remaining duration in the current TXOP.

Returns: the remaining duration in the current TXOP.

Definition at line 598 of file qos-txop.cc.

References ns3::Time::IsStrictlyPositive(), m_startTxop, m_txopDuration, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::Seconds().

Referenced by ns3::QosFrameExchangeManager::GetCtsToSelfDurationId(), ns3::QosFrameExchangeManager::GetFrameDurationId(), ns3::HtFrameExchangeManager::GetPsduDurationId(), ns3::QosFrameExchangeManager::GetRtsDurationId(), ns3::WifiDefaultAckManager::IsResponseNeeded(), ns3::QosFrameExchangeManager::SendCfEndIfNeeded(), ns3::QosFrameExchangeManager::StartTransmission(), and ns3::QosFrameExchangeManager::TransmissionSucceeded().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::QosTxop::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 54 of file qos-txop.cc.

References GetAddBaResponseTimeout(), GetFailedAddBaTimeout(), m_baManager, m_txopTrace, m_useExplicitBarAfterMissedBlockAck, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MilliSeconds(), SetAddBaResponseTimeout(), SetFailedAddBaTimeout(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ GotAddBaResponse()

void ns3::QosTxop::GotAddBaResponse	(	const MgtAddBaResponseHeader *	respHdr,
		Mac48Address	recipient
	)

Event handler when an ADDBA response is received.

Parameters

respHdr	ADDBA response header.
recipient	address of the recipient.

Definition at line 631 of file qos-txop.cc.

References ns3::MgtAddBaResponseHeader::GetStatusCode(), ns3::MgtAddBaResponseHeader::GetTid(), HasFramesToTransmit(), ns3::StatusCode::IsSuccess(), ns3::Txop::m_access, m_baManager, ns3::Txop::m_channelAccessManager, ns3::Txop::m_queue, ns3::Txop::m_txMiddle, ns3::Txop::NOT_REQUESTED, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

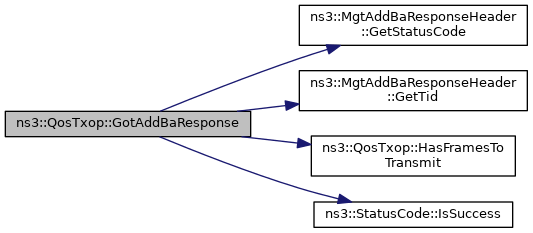

Here is the call graph for this function:

◆ GotDelBaFrame()

void ns3::QosTxop::GotDelBaFrame	(	const MgtDelBaHeader *	delBaHdr,
		Mac48Address	recipient
	)

Event handler when a DELBA frame is received.

Parameters

delBaHdr	DELBA header.
recipient	address of the recipient.

Definition at line 666 of file qos-txop.cc.

References ns3::MgtDelBaHeader::GetTid(), m_baManager, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ HasFramesToTransmit()

bool ns3::QosTxop::HasFramesToTransmit ( void )

overridevirtual

Check if the Txop has frames to transmit.

Returns: true if the Txop has frames to transmit.

Reimplemented from ns3::Txop.

Definition at line 221 of file qos-txop.cc.

References m_baManager, m_qosBlockedDestinations, ns3::Txop::m_queue, and NS_LOG_FUNCTION.

Referenced by AddBaResponseTimeout(), GotAddBaResponse(), NotifyInternalCollision(), and PushFront().

Here is the caller graph for this function:

◆ IsQosOldPacket()

bool ns3::QosTxop::IsQosOldPacket ( Ptr< const WifiMacQueueItem > mpdu )

private

Check if the given MPDU is to be considered old according to the current starting sequence number of the transmit window, provided that a block ack agreement has been established with the recipient for the given TID.

Parameters

mpdu	the given MPDU

Returns: true if the MPDU is to be considered old, false otherwise

Definition at line 251 of file qos-txop.cc.

References GetBaAgreementEstablished(), GetBaStartingSequence(), NS_LOG_FUNCTION, and ns3::QosUtilsIsOldPacket().

Referenced by PeekNextMpdu().

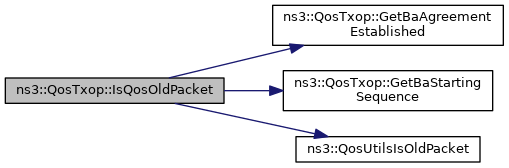

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsQosTxop()

bool ns3::QosTxop::IsQosTxop ( void ) const

overridevirtual

Check for QoS TXOP.

Returns: true if QoS TXOP.

Reimplemented from ns3::Txop.

Definition at line 779 of file qos-txop.cc.

◆ IsTxopStarted()

bool ns3::QosTxop::IsTxopStarted ( void ) const

virtual

Return true if a TXOP has started.

Returns: true if a TXOP has started, false otherwise.

Definition at line 577 of file qos-txop.cc.

References ns3::Time::IsZero(), m_startTxop, and NS_LOG_FUNCTION.

Referenced by ns3::QosFrameExchangeManager::PifsRecovery(), and ns3::QosFrameExchangeManager::StartTransmission().

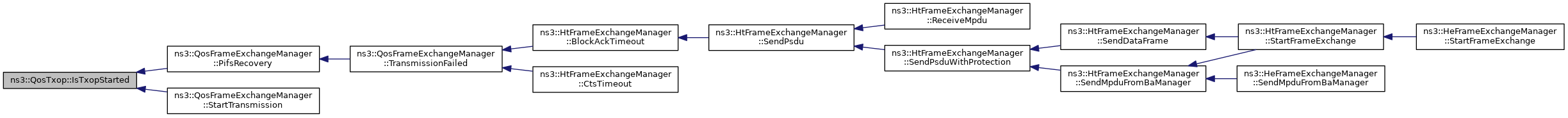

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyChannelAccessed()

void ns3::QosTxop::NotifyChannelAccessed ( Time txopDuration )

overridevirtual

Called by the FrameExchangeManager to notify that channel access has been granted for the given amount of time.

Parameters

txopDuration the duration of the TXOP gained (zero for DCF)

Reimplemented from ns3::Txop.

Definition at line 566 of file qos-txop.cc.

References m_startTxop, m_txopDuration, ns3::Time::Min(), ns3::Txop::NotifyChannelAccessed(), ns3::Simulator::Now(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::QosFrameExchangeManager::StartTransmission().

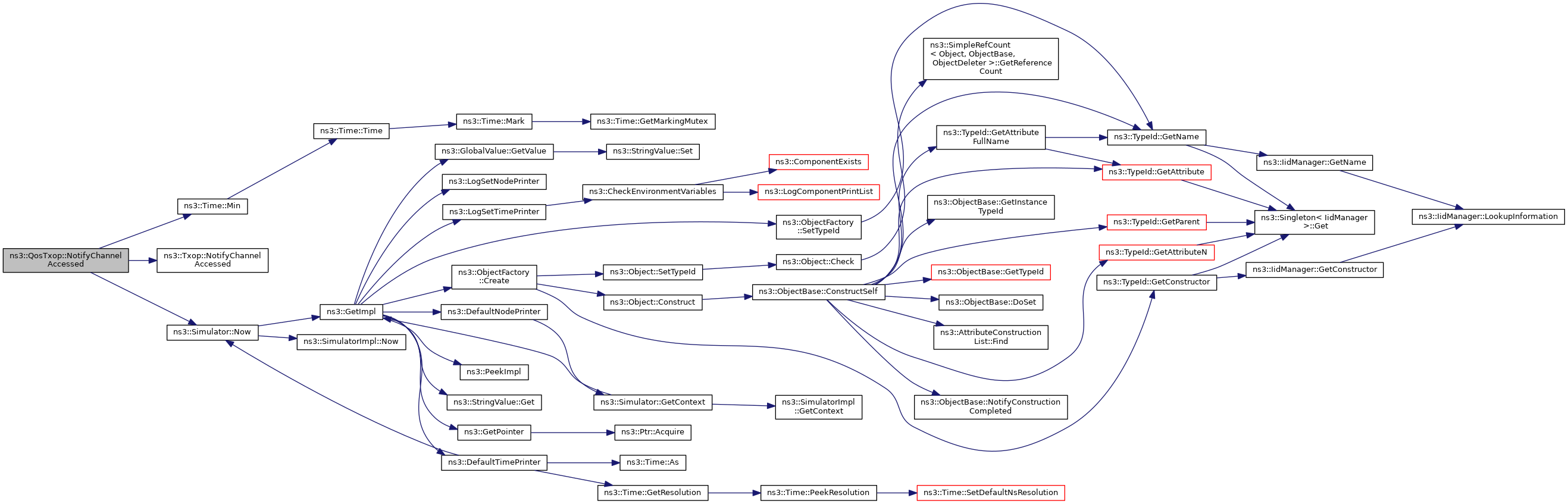

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyChannelReleased()

void ns3::QosTxop::NotifyChannelReleased ( void )

overridevirtual

Called by the FrameExchangeManager to notify the completion of the transmissions.

This method generates a new backoff and restarts access if needed.

Reimplemented from ns3::Txop.

Definition at line 584 of file qos-txop.cc.

References ns3::Time::IsStrictlyPositive(), m_startTxop, m_txopTrace, ns3::Txop::NotifyChannelReleased(), ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Seconds().

Referenced by ns3::QosFrameExchangeManager::CancelPifsRecovery(), ns3::QosFrameExchangeManager::PifsRecovery(), ns3::QosFrameExchangeManager::SendCfEndIfNeeded(), ns3::QosFrameExchangeManager::StartTransmission(), ns3::QosFrameExchangeManager::TransmissionFailed(), and ns3::QosFrameExchangeManager::TransmissionSucceeded().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyInternalCollision()

void ns3::QosTxop::NotifyInternalCollision ( void )

overridevirtual

Notify the Txop that internal collision has occurred.

Reimplemented from ns3::Txop.

Definition at line 484 of file qos-txop.cc.

References ns3::Txop::GenerateBackoff(), GetBaAgreementEstablished(), ns3::WifiMacQueueItem::GetPacket(), HasFramesToTransmit(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::Txop::m_access, m_baManager, ns3::Txop::m_channelAccessManager, ns3::Txop::m_droppedMpduCallback, m_qosBlockedDestinations, ns3::Txop::m_queue, ns3::Txop::m_stationManager, ns3::WifiRemoteStationManager::NeedRetransmission(), ns3::Txop::NOT_REQUESTED, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, PeekNextMpdu(), ns3::WifiRemoteStationManager::ReportDataFailed(), ns3::WifiRemoteStationManager::ReportFinalDataFailed(), ns3::Txop::ResetCw(), ns3::Txop::UpdateFailedCw(), and ns3::WIFI_MAC_DROP_REACHED_RETRY_LIMIT.

Here is the call graph for this function:

◆ PeekNextMpdu() [1/2]

Ptr< const WifiMacQueueItem > ns3::QosTxop::PeekNextMpdu	(	uint8_t	tid = `8`,
		Mac48Address	recipient = `Mac48Address::GetBroadcast ()`
	)

Peek the next frame to transmit to the given receiver and of the given TID from the block ack manager retransmit queue first and, if not found, from the EDCA queue.

If tid is equal to 8 (invalid value) and recipient is the broadcast address, the first available frame is returned. Note that A-MSDU aggregation is never attempted (this is relevant if the frame is peeked from the EDCA queue). If the frame is peeked from the EDCA queue, it is assigned a sequence number peeked from MacTxMiddle.

Parameters

tid	traffic ID.
recipient	the receiver station address.

Returns: the peeked frame.

Definition at line 277 of file qos-txop.cc.

References ns3::WifiMacQueue::EMPTY.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::MpduAggregator::GetNextAmpdu(), NotifyInternalCollision(), ns3::HeFrameExchangeManager::ReceiveBasicTrigger(), ns3::HtFrameExchangeManager::StartFrameExchange(), ns3::HeFrameExchangeManager::StartFrameExchange(), ns3::QosFrameExchangeManager::StartFrameExchange(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

Here is the caller graph for this function:

◆ PeekNextMpdu() [2/2]

Ptr< const WifiMacQueueItem > ns3::QosTxop::PeekNextMpdu	(	WifiMacQueueItem::QueueIteratorPair	queueIt,
		uint8_t	tid = `8`,
		Mac48Address	recipient = `Mac48Address::GetBroadcast ()`
	)

Peek the next frame to transmit to the given receiver and of the given TID from the block ack manager retransmit queue first and, if not found, from the EDCA queue.

If tid is equal to 8 (invalid value) and recipient is the broadcast address, the first available frame is returned. Note that A-MSDU aggregation is never attempted (this is relevant if the frame is peeked from the EDCA queue). If the frame is peeked from the EDCA queue, it is assigned a sequence number peeked from MacTxMiddle.

Parameters

queueIt	the QueueIteratorPair pointing to the queue item from which the search for an MPDU starts, if the QueueIteratorPair is valid
tid	traffic ID.
recipient	the receiver station address.

Returns: the peeked frame.

Definition at line 283 of file qos-txop.cc.

References ns3::WifiMacQueue::EMPTY, GetBaAgreementEstablished(), GetBaBufferSize(), GetBaStartingSequence(), ns3::IsInWindow(), IsQosOldPacket(), ns3::WifiMacHeader::IsRetry(), ns3::WifiMacQueueItem::QueueIteratorPair::it, m_baManager, m_qosBlockedDestinations, ns3::Txop::m_queue, ns3::Txop::m_txMiddle, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMacQueue::PeekByTidAndAddress(), ns3::WifiMacQueue::PeekFirstAvailable(), ns3::PeekPointer(), ns3::WifiMacQueueItem::QueueIteratorPair::queue, and ns3::WifiMacHeader::SetSequenceNumber().

Here is the call graph for this function:

◆ PeekNextSequenceNumberFor()

uint16_t ns3::QosTxop::PeekNextSequenceNumberFor ( const WifiMacHeader * hdr )

Return the next sequence number for the Traffic ID and destination, but do not pick it (i.e.

the current sequence number remains unchanged).

Parameters

hdr	Wi-Fi header.

Returns: the next sequence number.

Definition at line 245 of file qos-txop.cc.

References ns3::Txop::m_txMiddle.

◆ PrepareBlockAckRequest()

Ptr< const WifiMacQueueItem > ns3::QosTxop::PrepareBlockAckRequest	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	Address of recipient.
tid	traffic ID.

Returns: the BlockAckRequest to send

Prepare a BlockAckRequest to be sent to recipient for Traffic ID tid. The header for the BlockAckRequest is requested to the QosTxop corresponding to the given TID. A block ack agreement with the given recipient for the given TID must have been established by such QosTxop.

Definition at line 179 of file qos-txop.cc.

References ns3::Packet::AddHeader(), ns3::WifiRemoteStationManager::GetMac(), m_ac, m_baManager, ns3::Txop::m_stationManager, NS_ASSERT, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_CTL_BACKREQ.

Referenced by ns3::HtFrameExchangeManager::MissedBlockAck(), ns3::HtFrameExchangeManager::SendPsdu(), and ns3::HeFrameExchangeManager::SendPsduMap().

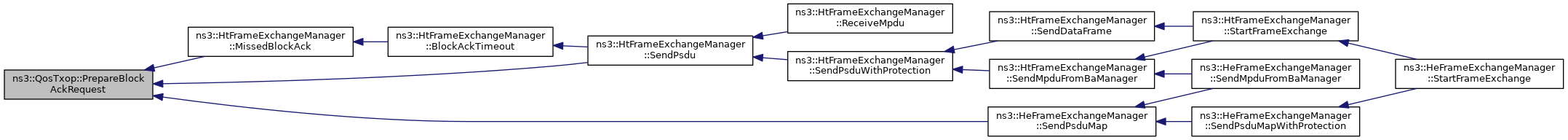

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PushFront()

void ns3::QosTxop::PushFront	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Parameters

packet	packet to send.
hdr	header of packet to send.

Store the packet in the front of the internal queue until it can be sent safely.

Definition at line 619 of file qos-txop.cc.

References HasFramesToTransmit(), ns3::Txop::m_access, ns3::Txop::m_channelAccessManager, ns3::Txop::m_queue, ns3::Txop::NOT_REQUESTED, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ResetBa()

void ns3::QosTxop::ResetBa	(	Mac48Address	recipient,
		uint8_t	tid
	)

Reset BA agreement after BA negotiation failed.

Parameters

recipient	MAC address of recipient
tid	traffic ID

Definition at line 738 of file qos-txop.cc.

References ns3::OriginatorBlockAckAgreement::ESTABLISHED, m_baManager, and NS_LOG_FUNCTION.

Referenced by AddBaResponseTimeout(), and ns3::HtFrameExchangeManager::NotifyPacketDiscarded().

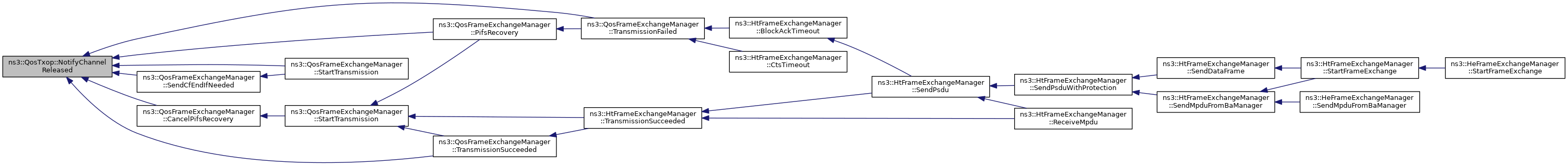

Here is the caller graph for this function:

◆ ScheduleBar()

void ns3::QosTxop::ScheduleBar	(	Ptr< const WifiMacQueueItem >	bar,
		bool	skipIfNoDataQueued = `false`
	)

Parameters

bar	the BlockAckRequest to schedule
skipIfNoDataQueued	do not send if there is no data queued

Request the block ack manager to schedule the transmission of the given BlockAckRequest.

Definition at line 201 of file qos-txop.cc.

References m_baManager.

Referenced by ns3::HtFrameExchangeManager::MissedBlockAck(), ns3::HtFrameExchangeManager::SendPsdu(), and ns3::HeFrameExchangeManager::SendPsduMap().

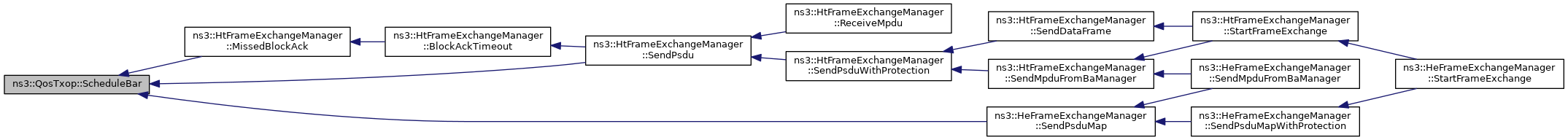

Here is the caller graph for this function:

◆ SetAccessCategory()

void ns3::QosTxop::SetAccessCategory ( AcIndex ac )

Set the access category of this EDCAF.

Parameters

ac	access category.

Definition at line 612 of file qos-txop.cc.

References m_ac, and NS_LOG_FUNCTION.

◆ SetAddBaResponseTimeout()

void ns3::QosTxop::SetAddBaResponseTimeout ( Time addBaResponseTimeout )

Set the timeout to wait for ADDBA response.

Parameters

addBaResponseTimeout the timeout to wait for ADDBA response

Definition at line 753 of file qos-txop.cc.

References m_addBaResponseTimeout, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetBlockAckInactivityTimeout()

void ns3::QosTxop::SetBlockAckInactivityTimeout ( uint16_t timeout )

Set the BlockAck inactivity timeout.

Parameters

timeout the BlockAck inactivity timeout.

Definition at line 693 of file qos-txop.cc.

References m_blockAckInactivityTimeout, NS_LOG_FUNCTION, and timeout.

Referenced by ns3::RegularWifiMac::SetBeBlockAckInactivityTimeout(), ns3::RegularWifiMac::SetBkBlockAckInactivityTimeout(), ns3::RegularWifiMac::SetViBlockAckInactivityTimeout(), and ns3::RegularWifiMac::SetVoBlockAckInactivityTimeout().

Here is the caller graph for this function:

◆ SetBlockAckThreshold()

void ns3::QosTxop::SetBlockAckThreshold ( uint8_t threshold )

Set threshold for block ack mechanism.

If number of packets in the queue reaches the threshold, block ack mechanism is used.

Parameters

threshold block ack threshold value.

Definition at line 685 of file qos-txop.cc.

References m_baManager, m_blockAckThreshold, and NS_LOG_FUNCTION.

Referenced by ns3::RegularWifiMac::SetBeBlockAckThreshold(), ns3::RegularWifiMac::SetBkBlockAckThreshold(), ns3::RegularWifiMac::SetViBlockAckThreshold(), and ns3::RegularWifiMac::SetVoBlockAckThreshold().

Here is the caller graph for this function:

◆ SetDroppedMpduCallback()

void ns3::QosTxop::SetDroppedMpduCallback ( DroppedMpdu callback )

overridevirtual

Parameters

callback the callback to invoke when an MPDU is dropped

Reimplemented from ns3::Txop.

Definition at line 145 of file qos-txop.cc.

References m_baManager, ns3::Txop::m_droppedMpduCallback, NS_LOG_FUNCTION, ns3::Txop::SetDroppedMpduCallback(), and ns3::WIFI_MAC_DROP_EXPIRED_LIFETIME.

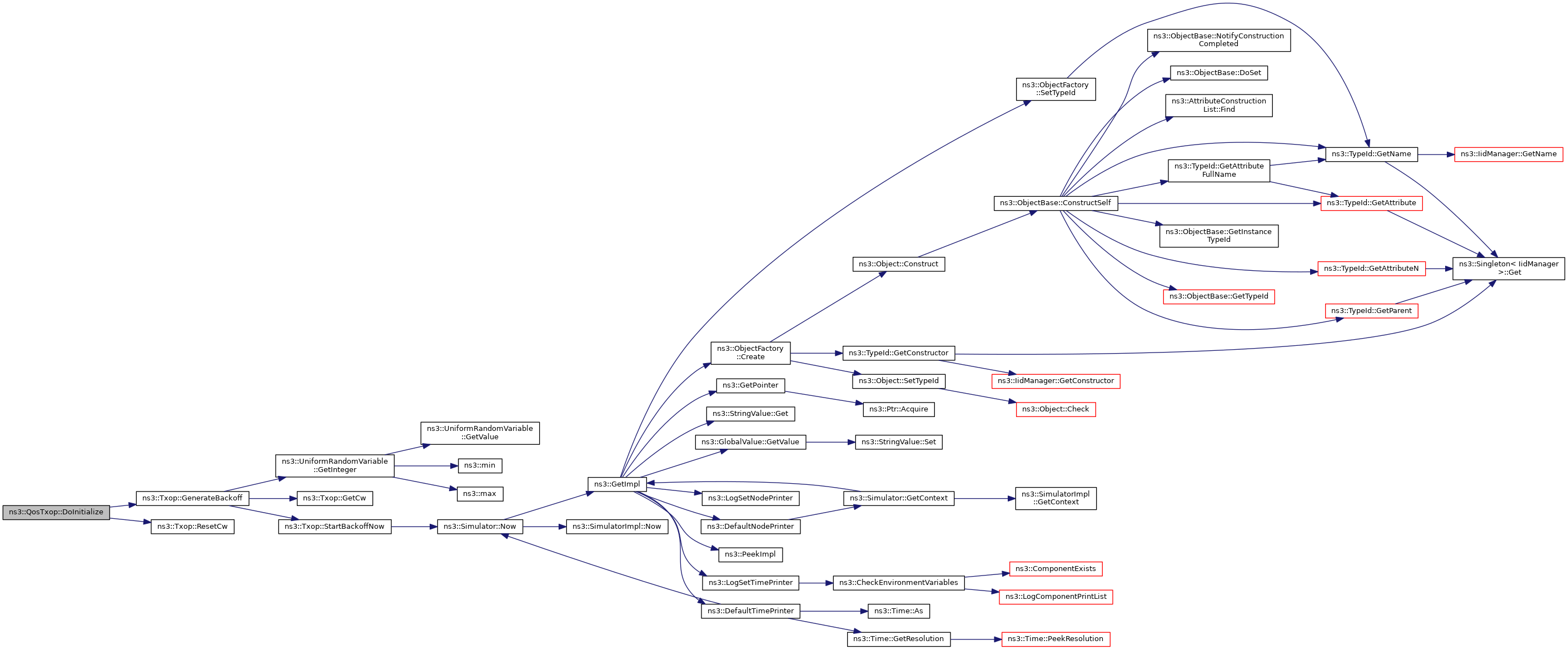

Here is the call graph for this function:

◆ SetFailedAddBaTimeout()

void ns3::QosTxop::SetFailedAddBaTimeout ( Time failedAddBaTimeout )

Set the timeout for failed BA agreement.

During the timeout period, all packets will be transmitted using normal MPDU.

Parameters

failedAddBaTimeout the timeout for failed BA agreement

Definition at line 766 of file qos-txop.cc.

References m_failedAddBaTimeout, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetQosFrameExchangeManager()

void ns3::QosTxop::SetQosFrameExchangeManager ( const Ptr< QosFrameExchangeManager > qosFem )

Set the Frame Exchange Manager associated with this QoS STA.

Parameters

qosFem the associated QoS Frame Exchange Manager.

Definition at line 138 of file qos-txop.cc.

References m_qosFem, and NS_LOG_FUNCTION.

◆ SetQosQueueSize()

void ns3::QosTxop::SetQosQueueSize ( Ptr< WifiMacQueueItem > mpdu )

Set the Queue Size subfield of the QoS Control field of the given QoS data frame.

Parameters

mpdu	the given QoS data frame

Definition at line 122 of file qos-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacQueueItem::GetHeader(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::IsQosData(), m_baManager, ns3::Txop::m_queue, min, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WifiMacHeader::SetQosQueueSize().

Referenced by ns3::HtFrameExchangeManager::NotifyTxToEdca().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetWifiRemoteStationManager()

void ns3::QosTxop::SetWifiRemoteStationManager ( const Ptr< WifiRemoteStationManager > remoteManager )

overridevirtual

Set WifiRemoteStationsManager this Txop is associated to.

Parameters

remoteManager WifiRemoteStationManager to associate.

Reimplemented from ns3::Txop.

Definition at line 207 of file qos-txop.cc.

References m_baManager, ns3::Txop::m_stationManager, NS_LOG_FUNCTION, and ns3::Txop::SetWifiRemoteStationManager().

Here is the call graph for this function:

◆ UseExplicitBarAfterMissedBlockAck()

bool ns3::QosTxop::UseExplicitBarAfterMissedBlockAck ( void ) const

Return true if an explicit BlockAckRequest is sent after a missed BlockAck.

Returns: true if an explicit BlockAckRequest is sent after a missed BlockAck

Definition at line 215 of file qos-txop.cc.

References m_useExplicitBarAfterMissedBlockAck.

Referenced by ns3::HtFrameExchangeManager::MissedBlockAck().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ AggregationCapableTransmissionListener

friend class AggregationCapableTransmissionListener

friend

allow AggregationCapableTransmissionListener class access

Definition at line 396 of file qos-txop.h.

Member Data Documentation

◆ m_ac

AcIndex ns3::QosTxop::m_ac

private

the access category

Definition at line 410 of file qos-txop.h.

Referenced by GetAccessCategory(), PrepareBlockAckRequest(), and SetAccessCategory().

◆ m_addBaResponseTimeout

Time ns3::QosTxop::m_addBaResponseTimeout

private

timeout for ADDBA response

Definition at line 421 of file qos-txop.h.

Referenced by GetAddBaResponseTimeout(), and SetAddBaResponseTimeout().

◆ m_baManager

Ptr<BlockAckManager> ns3::QosTxop::m_baManager

private

the block ack manager

Definition at line 413 of file qos-txop.h.

Referenced by AddBaResponseTimeout(), CompleteMpduTx(), DoDispose(), GetBaAgreementEstablished(), GetBaBufferSize(), GetBaManager(), GetBaStartingSequence(), GetBlockAckReqType(), GetBlockAckType(), GetNextMpdu(), GetTypeId(), GotAddBaResponse(), GotDelBaFrame(), HasFramesToTransmit(), NotifyInternalCollision(), PeekNextMpdu(), PrepareBlockAckRequest(), QosTxop(), ResetBa(), ScheduleBar(), SetBlockAckThreshold(), SetDroppedMpduCallback(), SetQosQueueSize(), and SetWifiRemoteStationManager().

◆ m_blockAckInactivityTimeout

uint16_t ns3::QosTxop::m_blockAckInactivityTimeout

private

the BlockAck inactivity timeout value (in TUs, i.e.

blocks of 1024 microseconds)

Definition at line 418 of file qos-txop.h.

Referenced by GetBlockAckInactivityTimeout(), and SetBlockAckInactivityTimeout().

◆ m_blockAckThreshold

uint8_t ns3::QosTxop::m_blockAckThreshold

private

the block ack threshold (use BA mechanism if number of packets in queue reaches this value.

If this value is 0, block ack is never used. When A-MPDU is enabled, block ack mechanism is used regardless of this value)

Definition at line 414 of file qos-txop.h.

Referenced by GetBlockAckThreshold(), and SetBlockAckThreshold().

◆ m_currentPacketTimestamp

Time ns3::QosTxop::m_currentPacketTimestamp

private

the current packet timestamp

Definition at line 417 of file qos-txop.h.

◆ m_failedAddBaTimeout

Time ns3::QosTxop::m_failedAddBaTimeout

private

timeout after failed BA agreement

Definition at line 422 of file qos-txop.h.

Referenced by AddBaResponseTimeout(), GetFailedAddBaTimeout(), and SetFailedAddBaTimeout().

◆ m_qosBlockedDestinations

Ptr<QosBlockedDestinations> ns3::QosTxop::m_qosBlockedDestinations

private

the QoS blocked destinations

Definition at line 412 of file qos-txop.h.

Referenced by DoDispose(), HasFramesToTransmit(), NotifyInternalCollision(), PeekNextMpdu(), and QosTxop().

◆ m_qosFem

Ptr<QosFrameExchangeManager> ns3::QosTxop::m_qosFem

private

the QoS Frame Exchange Manager

Definition at line 411 of file qos-txop.h.

Referenced by DoDispose(), GetNextMpdu(), and SetQosFrameExchangeManager().

◆ m_startTxop

Time ns3::QosTxop::m_startTxop

private

the start TXOP time

Definition at line 419 of file qos-txop.h.

Referenced by GetRemainingTxop(), IsTxopStarted(), NotifyChannelAccessed(), and NotifyChannelReleased().

◆ m_txopDuration

Time ns3::QosTxop::m_txopDuration

private

the duration of a TXOP

Definition at line 420 of file qos-txop.h.

Referenced by GetRemainingTxop(), and NotifyChannelAccessed().

◆ m_txopTrace

TracedCallback<Time, Time> ns3::QosTxop::m_txopTrace

private

TXOP trace callback.

Definition at line 425 of file qos-txop.h.

Referenced by GetTypeId(), and NotifyChannelReleased().

◆ m_useExplicitBarAfterMissedBlockAck

bool ns3::QosTxop::m_useExplicitBarAfterMissedBlockAck

private

flag whether explicit BlockAckRequest should be sent upon missed BlockAck Response

Definition at line 423 of file qos-txop.h.

Referenced by GetTypeId(), and UseExplicitBarAfterMissedBlockAck().

The documentation for this class was generated from the following files:

src/wifi/model/qos-txop.h
src/wifi/model/qos-txop.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Txop

TraceSources

TraceSources defined in parent class ns3::Txop

Constructor & Destructor Documentation

◆ QosTxop()

◆ ~QosTxop()

Member Function Documentation

◆ AddBaResponseTimeout()

◆ AssignSequenceNumber()

◆ CompleteMpduTx()

◆ DoDispose()

◆ DoInitialize()

◆ GetAccessCategory()

◆ GetAddBaResponseTimeout()

◆ GetBaAgreementEstablished()

◆ GetBaBufferSize()

◆ GetBaManager()

◆ GetBaStartingSequence()

◆ GetBlockAckInactivityTimeout()

◆ GetBlockAckReqType()

◆ GetBlockAckThreshold()

◆ GetBlockAckType()

◆ GetFailedAddBaTimeout()

◆ GetNextMpdu()

◆ GetNextSequenceNumberFor()

◆ GetRemainingTxop()

◆ GetTypeId()

◆ GotAddBaResponse()

◆ GotDelBaFrame()

◆ HasFramesToTransmit()

◆ IsQosOldPacket()

◆ IsQosTxop()

◆ IsTxopStarted()

◆ NotifyChannelAccessed()

◆ NotifyChannelReleased()

◆ NotifyInternalCollision()

◆ PeekNextMpdu() [1/2]

◆ PeekNextMpdu() [2/2]

◆ PeekNextSequenceNumberFor()

◆ PrepareBlockAckRequest()

◆ PushFront()

◆ ResetBa()

◆ ScheduleBar()

◆ SetAccessCategory()

◆ SetAddBaResponseTimeout()

◆ SetBlockAckInactivityTimeout()

◆ SetBlockAckThreshold()

◆ SetDroppedMpduCallback()

◆ SetFailedAddBaTimeout()

◆ SetQosFrameExchangeManager()

◆ SetQosQueueSize()

◆ SetWifiRemoteStationManager()

◆ UseExplicitBarAfterMissedBlockAck()

Friends And Related Function Documentation

◆ AggregationCapableTransmissionListener

Member Data Documentation

◆ m_ac

◆ m_addBaResponseTimeout

◆ m_baManager

◆ m_blockAckInactivityTimeout

◆ m_blockAckThreshold

◆ m_currentPacketTimestamp

◆ m_failedAddBaTimeout

◆ m_qosBlockedDestinations

◆ m_qosFem

◆ m_startTxop

◆ m_txopDuration

◆ m_txopTrace

◆ m_useExplicitBarAfterMissedBlockAck
