Base class for the 3GPP channel condition models. More...

#include "channel-condition-model.h"

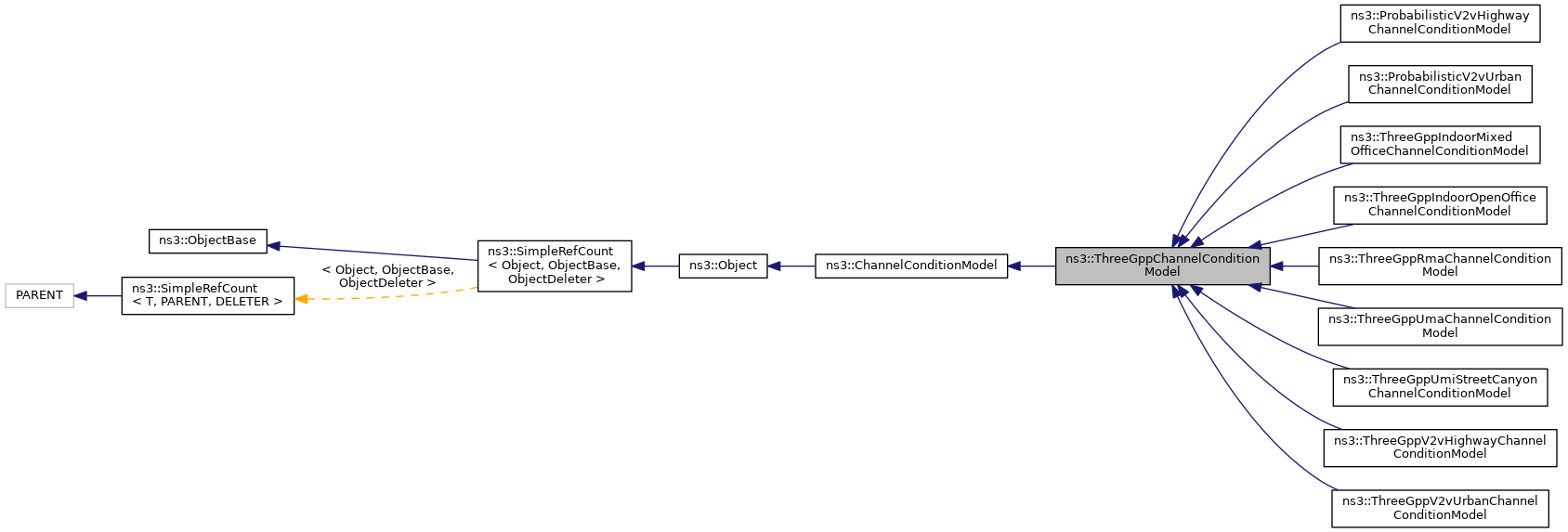

Inheritance diagram for ns3::ThreeGppChannelConditionModel:

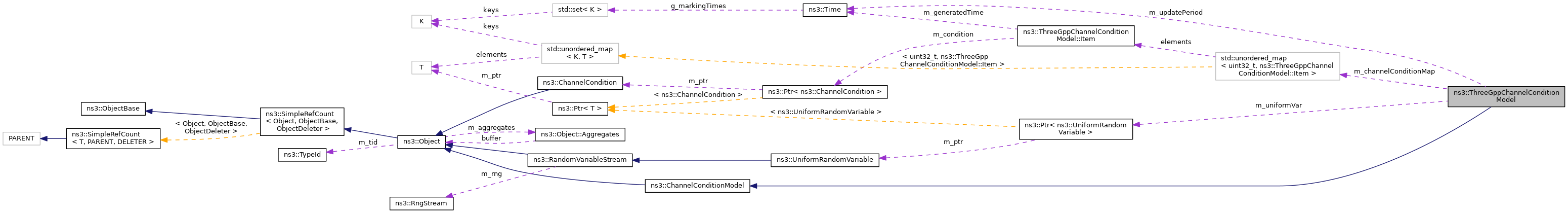

Collaboration diagram for ns3::ThreeGppChannelConditionModel:

Classes
struct	Item
	Struct to store the channel condition in the m_channelConditionMap. More...

Public Member Functions
	ThreeGppChannelConditionModel ()
	Constructor for the ThreeGppRmaChannelConditionModel class. More...

virtual	~ThreeGppChannelConditionModel () override
	Destructor for the ThreeGppRmaChannelConditionModel class. More...

virtual int64_t	AssignStreams (int64_t stream) override
	If this model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

virtual Ptr< ChannelCondition >	GetChannelCondition (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const override
	Retrieve the condition of the channel between a and b. More...

Public Member Functions inherited from ns3::ChannelConditionModel
	ChannelConditionModel ()
	Constructor for the ChannelConditionModel class. More...

	ChannelConditionModel (const ChannelConditionModel &)=delete
	Copy constructor. More...

virtual	~ChannelConditionModel ()
	Destructor for the ChannelConditionModel class. More...

ChannelConditionModel &	operator= (const ChannelConditionModel &)=delete
	Copy constructor. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ChannelConditionModel
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Types
enum	VehicleDensity { LOW, MEDIUM, HIGH, INVALID }
	Determine the density of vehicles in a V2V scenario. More...

Protected Member Functions
virtual void	DoDispose () override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Static Protected Member Functions
static double	Calculate2dDistance (const Vector &a, const Vector &b)
	Computes the 2D distance between two 3D vectors. More...

Protected Attributes
Ptr< UniformRandomVariable >	m_uniformVar
	uniform random variable More...

Private Member Functions
Ptr< ChannelCondition >	ComputeChannelCondition (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const
	This method computes the channel condition based on a probabilistic model that is specific for the scenario of interest. More...

virtual double	ComputePlos (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const =0
	Compute the LOS probability. More...

virtual double	ComputePnlos (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const
	Compute the NLOS probability. More...

Static Private Member Functions
static uint32_t	GetKey (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b)
	Returns a unique and reciprocal key for the channel between a and b. More...

Private Attributes
std::unordered_map< uint32_t, Item >	m_channelConditionMap
	map to store the channel conditions More...

Time	m_updatePeriod
	the update period for the channel condition More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Base class for the 3GPP channel condition models.

Config Paths

ns3::ThreeGppChannelConditionModel is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
"/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
"/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"

Attributes

UpdatePeriod: Specifies the time period after which the channel condition is recomputed. If set to 0, the channel condition is never updated.
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 104 bytes (on a 64-bit architecture).

Definition at line 446 of file channel-condition-model.h.

Member Enumeration Documentation

◆ VehicleDensity

enum ns3::ThreeGppChannelConditionModel::VehicleDensity

protected

Determine the density of vehicles in a V2V scenario.

Enumerator
LOW
MEDIUM
HIGH
INVALID

Definition at line 496 of file channel-condition-model.h.

Constructor & Destructor Documentation

◆ ThreeGppChannelConditionModel()

ns3::ThreeGppChannelConditionModel::ThreeGppChannelConditionModel ( )

Constructor for the ThreeGppRmaChannelConditionModel class.

Definition at line 296 of file channel-condition-model.cc.

References m_uniformVar, and ns3::ObjectBase::SetAttribute().

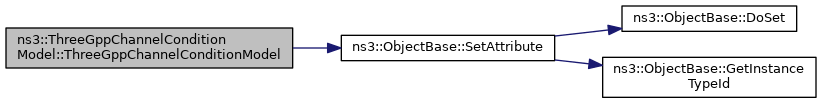

Here is the call graph for this function:

◆ ~ThreeGppChannelConditionModel()

ns3::ThreeGppChannelConditionModel::~ThreeGppChannelConditionModel ( )

overridevirtual

Destructor for the ThreeGppRmaChannelConditionModel class.

Definition at line 304 of file channel-condition-model.cc.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::ThreeGppChannelConditionModel::AssignStreams ( int64_t stream )

overridevirtual

If this model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream the offset used to set the stream numbers

Returns: the number of stream indices assigned by this model

Implements ns3::ChannelConditionModel.

Definition at line 407 of file channel-condition-model.cc.

References m_uniformVar, and ns3::RandomVariableStream::SetStream().

Referenced by V2vUrbanProbChCondModelTestCase::DoRun(), ThreeGppV2vUrbanLosNlosvChCondModelTestCase::DoRun(), V2vHighwayProbChCondModelTestCase::DoRun(), and ThreeGppV2vHighwayLosNlosvChCondModelTestCase::DoRun().

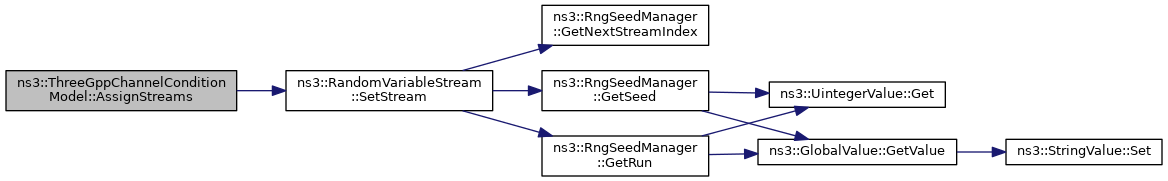

Here is the call graph for this function:

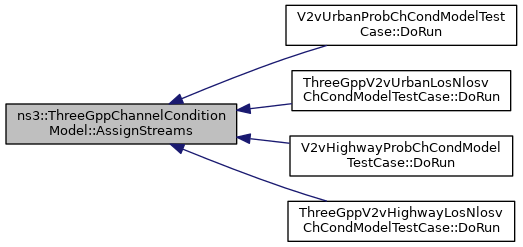

Here is the caller graph for this function:

◆ Calculate2dDistance()

double ns3::ThreeGppChannelConditionModel::Calculate2dDistance	(	const Vector &	a,
		const Vector &	b
	)

staticprotected

Computes the 2D distance between two 3D vectors.

Parameters

a	the first 3D vector
b	the second 3D vector

Returns: the 2D distance between a and b

Definition at line 414 of file channel-condition-model.cc.

References sample-rng-plot::x.

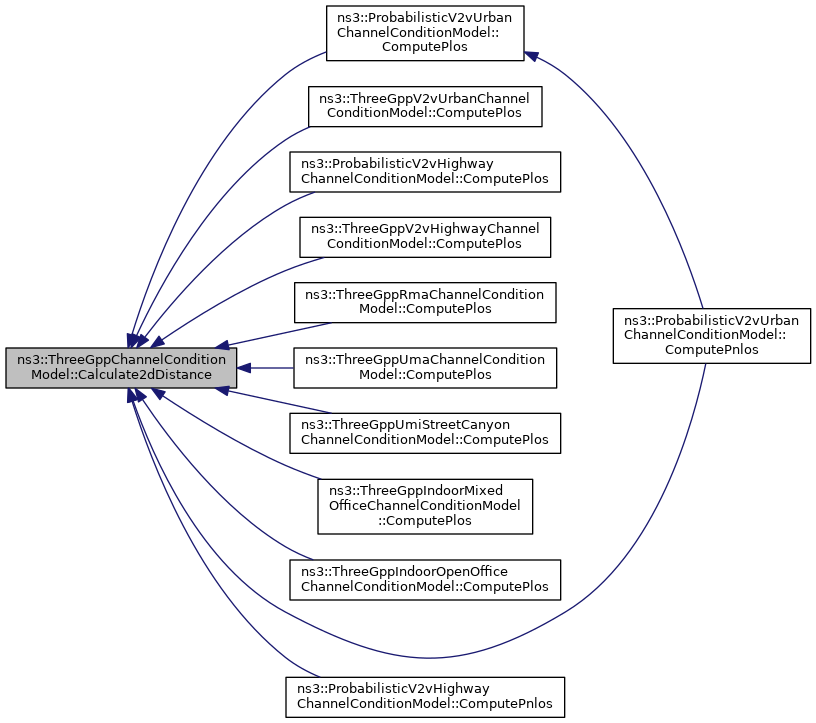

Here is the caller graph for this function:

◆ ComputeChannelCondition()

Ptr< ChannelCondition > ns3::ThreeGppChannelConditionModel::ComputeChannelCondition	(	Ptr< const MobilityModel >	a,
		Ptr< const MobilityModel >	b
	)		const

private

This method computes the channel condition based on a probabilistic model that is specific for the scenario of interest.

Parameters

a	tx mobility model
b	rx mobility model

Returns: the channel condition

Definition at line 362 of file channel-condition-model.cc.

References ComputePlos(), ComputePnlos(), ns3::UniformRandomVariable::GetValue(), m_uniformVar, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by GetChannelCondition().

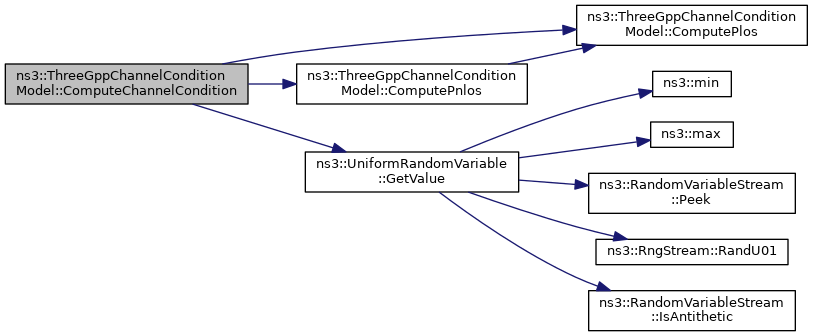

Here is the call graph for this function:

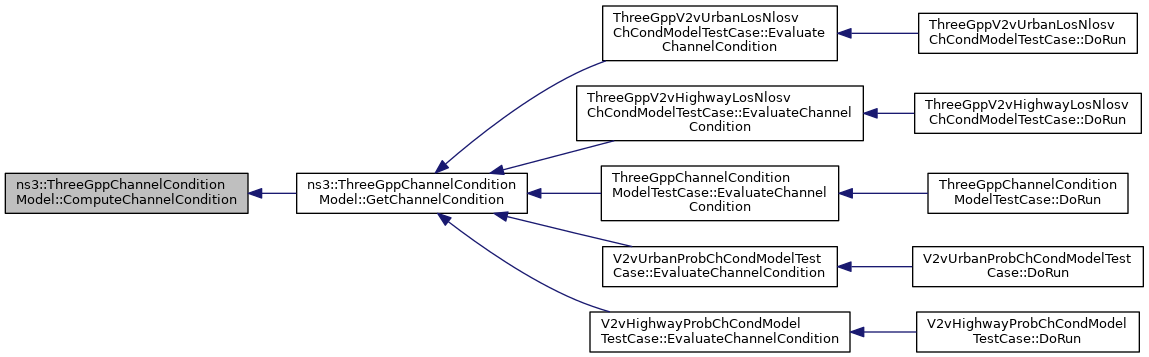

Here is the caller graph for this function:

◆ ComputePlos()

virtual double ns3::ThreeGppChannelConditionModel::ComputePlos	(	Ptr< const MobilityModel >	a,
		Ptr< const MobilityModel >	b
	)		const

privatepure virtual

Compute the LOS probability.

Parameters

a	tx mobility model
b	rx mobility model

Returns: the LOS probability

Implemented in ns3::ThreeGppIndoorOpenOfficeChannelConditionModel, ns3::ThreeGppIndoorMixedOfficeChannelConditionModel, ns3::ThreeGppUmiStreetCanyonChannelConditionModel, ns3::ThreeGppUmaChannelConditionModel, ns3::ThreeGppRmaChannelConditionModel, ns3::ThreeGppV2vHighwayChannelConditionModel, ns3::ProbabilisticV2vHighwayChannelConditionModel, ns3::ThreeGppV2vUrbanChannelConditionModel, and ns3::ProbabilisticV2vUrbanChannelConditionModel.

Referenced by ComputeChannelCondition(), and ComputePnlos().

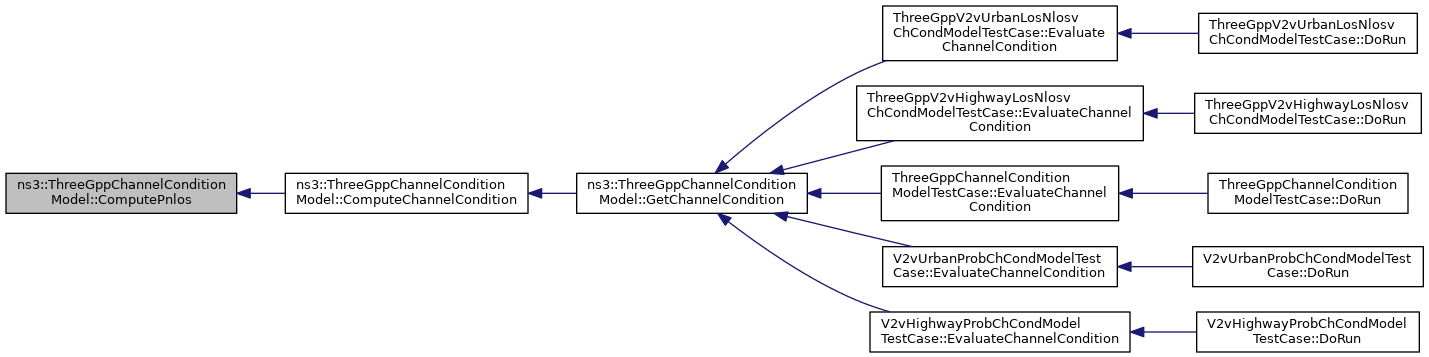

Here is the caller graph for this function:

◆ ComputePnlos()

double ns3::ThreeGppChannelConditionModel::ComputePnlos	(	Ptr< const MobilityModel >	a,
		Ptr< const MobilityModel >	b
	)		const

privatevirtual

Compute the NLOS probability.

By default returns 1 - PLOS

Parameters

a	tx mobility model
b	rx mobility model

Returns: the LOS probability

Reimplemented in ns3::ThreeGppV2vHighwayChannelConditionModel, ns3::ProbabilisticV2vHighwayChannelConditionModel, ns3::ThreeGppV2vUrbanChannelConditionModel, and ns3::ProbabilisticV2vUrbanChannelConditionModel.

Definition at line 398 of file channel-condition-model.cc.

References ComputePlos(), and NS_LOG_FUNCTION.

Referenced by ComputeChannelCondition().

Here is the call graph for this function:

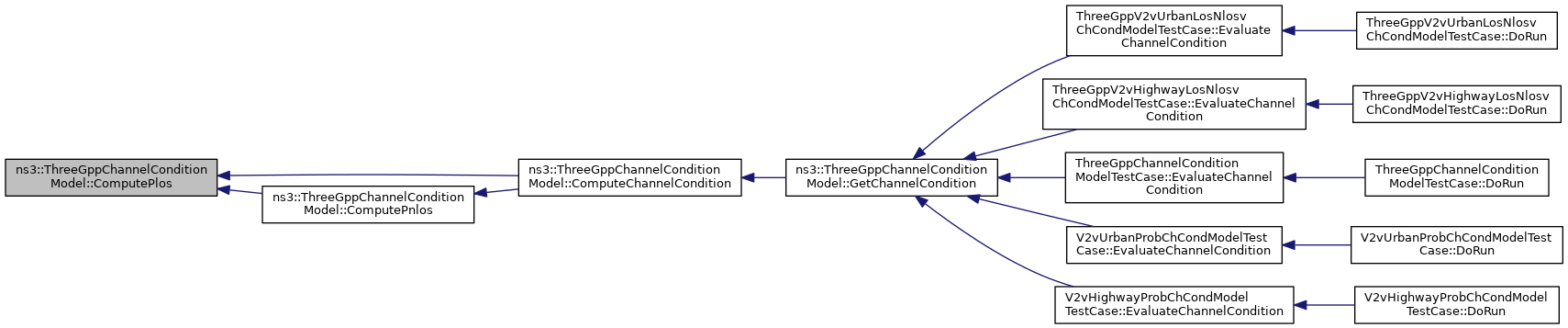

Here is the caller graph for this function:

◆ DoDispose()

void ns3::ThreeGppChannelConditionModel::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 307 of file channel-condition-model.cc.

References m_channelConditionMap, m_updatePeriod, and ns3::Seconds().

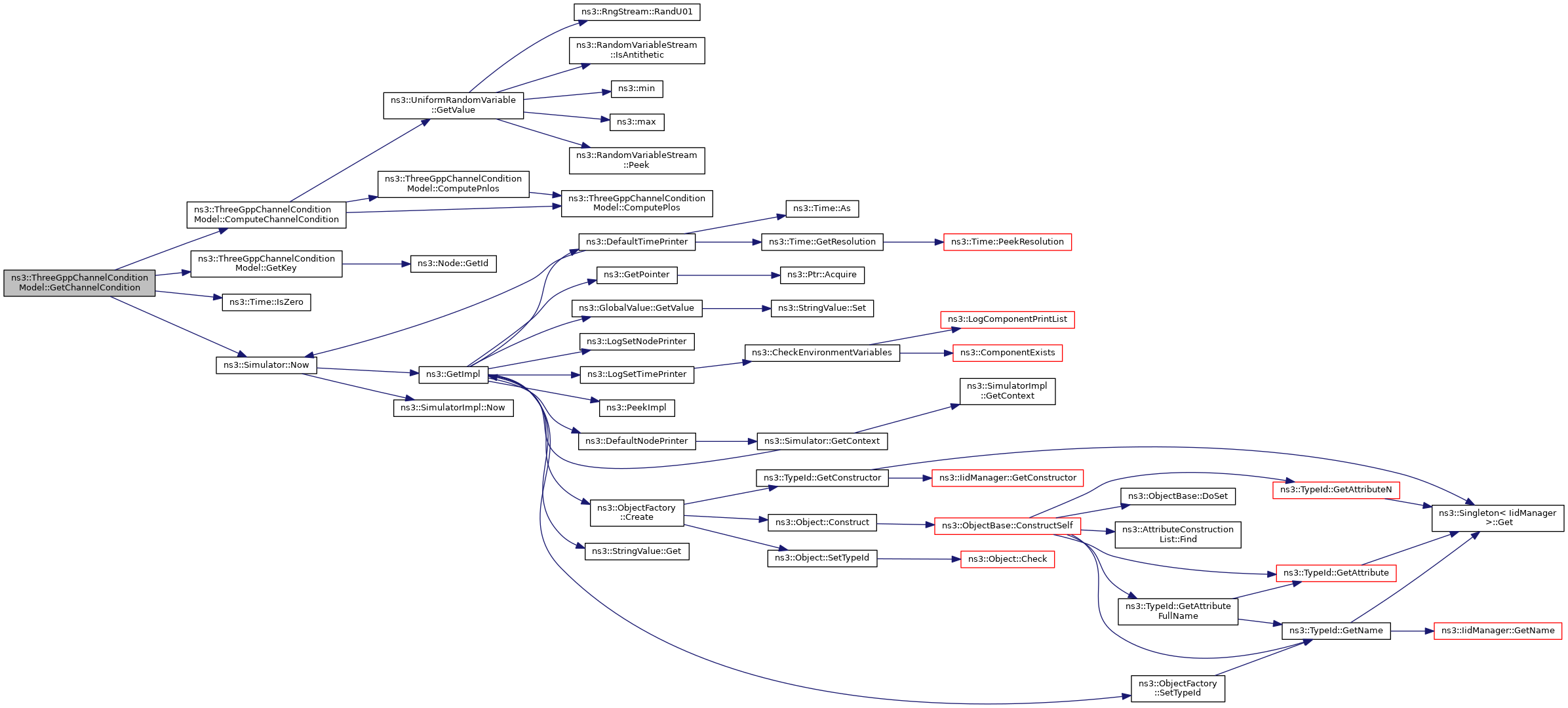

Here is the call graph for this function:

◆ GetChannelCondition()

Ptr< ChannelCondition > ns3::ThreeGppChannelConditionModel::GetChannelCondition	(	Ptr< const MobilityModel >	a,
		Ptr< const MobilityModel >	b
	)		const

overridevirtual

Retrieve the condition of the channel between a and b.

If the channel condition does not exists, the method computes it by calling ComputeChannelCondition and stores it in a local cache, that will be updated following the "UpdatePeriod" parameter.

Parameters
