ns3::UplinkSchedulerMBQoS Class Reference

This class implements a Migration-based Quality of Service uplink scheduler(MBQoS). More...

#include "bs-uplink-scheduler-mbqos.h"

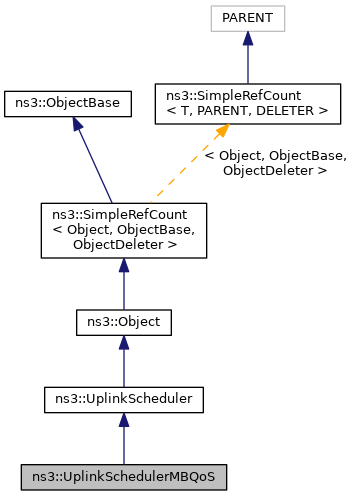

+ Inheritance diagram for ns3::UplinkSchedulerMBQoS:

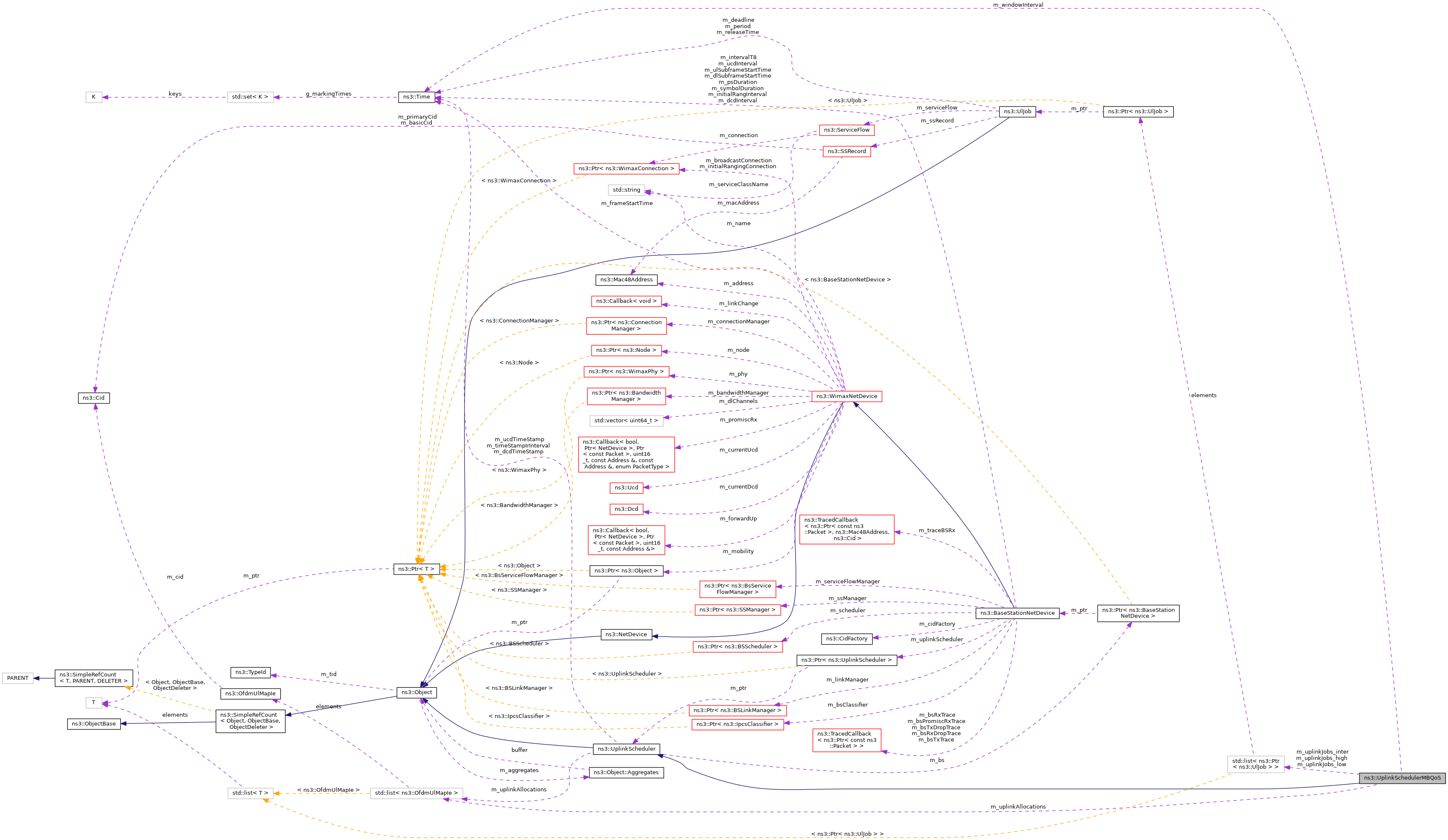

+ Collaboration diagram for ns3::UplinkSchedulerMBQoS:

Public Member Functions

 UplinkSchedulerMBQoS ()

 UplinkSchedulerMBQoS (Time time)
 Constructor. More...

 ~UplinkSchedulerMBQoS (void)

void AddUplinkAllocation (OfdmUlMapIe &ulMapIe, const uint32_t &allocationSize, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
 Add uplink allocation. More...

void AllocateInitialRangingInterval (uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
 Allocate initial ranging interval. More...

uint32_t CalculateAllocationStartTime (void)
 Calculate allocation start time. More...

void CheckDeadline (uint32_t &availableSymbols)
 Check deadline from jobs. Migrate requests if necessary. More...

void CheckMinimumBandwidth (uint32_t &availableSymbols)
 Check if Minimum bandwidth is guarantee. Migrate requests if necessary. More...

uint32_t CountSymbolsJobs (Ptr< UlJob > job)

uint32_t CountSymbolsQueue (std::list< Ptr< UlJob > > jobs)

Ptr< UlJobCreateUlJob (SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedType, ReqType reqType)

Ptr< UlJobDequeueJob (UlJob::JobPriority priority)
 Dequeue a job from a priority queue. More...

Time DetermineDeadline (ServiceFlow *serviceFlow)
 Calculates deadline of a request. More...

void EnqueueJob (UlJob::JobPriority priority, Ptr< UlJob > job)
 Enqueue a job in a priority queue. More...

void GetChannelDescriptorsToUpdate (bool &updateDcd, bool &updateUcd, bool &sendDcd, bool &sendUcd)
 Determines if channel descriptors sent in the current frame are required to be updated. More...

uint32_t GetPendingSize (ServiceFlow *serviceFlow)

std::list< OfdmUlMapIeGetUplinkAllocations (void) const
 Get uplink allocations. More...

void InitOnce (void)
 This method is called once to initialize window. More...

void OnSetRequestedBandwidth (ServiceFlowRecord *sfr)
 Set requested bandwidth. More...

void ProcessBandwidthRequest (const BandwidthRequestHeader &bwRequestHdr)
 Process bandwidth request function. More...

void Schedule (void)
 Schedule function. More...

void ServiceBandwidthRequests (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
 Service bandwidth requests. More...

bool ServiceBandwidthRequests (ServiceFlow *serviceFlow, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
 Service bandwidth requests. More...

bool ServiceBandwidthRequestsBytes (ServiceFlow *serviceFlow, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols, uint32_t allocationSizeBytes)
 Service bandwidth requests bytes. More...

void ServiceUnsolicitedGrants (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
 Service unsolicited grants. More...

void SetupServiceFlow (SSRecord *ssRecord, ServiceFlow *serviceFlow)
 Setup service flow. More...

void UplinkSchedWindowTimer (void)
 Reset the current window. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

std::list< OfdmUlMapIem_uplinkAllocations
 uplink allocations More...

std::list< Ptr< UlJob > > m_uplinkJobs_high
 uplink jobs high priority More...

std::list< Ptr< UlJob > > m_uplinkJobs_inter
 uplink jobs intermedite priority More...

std::list< Ptr< UlJob > > m_uplinkJobs_low
 uplink jobs low priority More...

Time m_windowInterval
 windows interval More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

This class implements a Migration-based Quality of Service uplink scheduler(MBQoS).


This uplink scheduler uses three queues, the low priority queue, the intermediate queue and the high priority queue. The scheduler serves the requests in strict priority order from the high priority queue to the low priority queue. The low priority queue stores the bandwidth requests of the BE service flow. The intermediate queue holds bandwidth requests sent by rtPS and by nrtPS connections. rtPS and nrtPS requests can migrate to the high priority queue to guarantee that their QoS requirements are met. Besides the requests migrated from the intermediate queue, the high priority queue stores periodic grants and unicast request opportunities that must be scheduled in the following frame. To guarantee the maximum delay requirement, the BS assigns a deadline to each rtPS bandwidth request in the intermediate queue. The minimum bandwidth requirement of both rtPS and nrtPS connections is guaranteed over a window of duration T . Implementation of uplink scheduler: Freitag, J.; da Fonseca, N.L.S., "Uplink Scheduling with Quality of Service in IEEE 802.16 Networks," Global Telecommunications Conference, 2007. GLOBECOM '07. IEEE , vol., no., pp.2503-2508, 26-30 Nov. 2007 URL: http://ieeexplore.ieee.org/stamp/stamp.jsp?arnumber=4411386&isnumber=4410910

Config Paths

ns3::UplinkSchedulerMBQoS is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS"

Attributes

  • WindowInterval: The time to wait to reset window
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
    • Initial value: +1e+09ns
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 160 bytes (on a 64-bit architecture).

Definition at line 69 of file bs-uplink-scheduler-mbqos.h.

Constructor & Destructor Documentation

◆ UplinkSchedulerMBQoS() [1/2]

ns3::UplinkSchedulerMBQoS::UplinkSchedulerMBQoS ( )

Definition at line 38 of file bs-uplink-scheduler-mbqos.cc.

◆ UplinkSchedulerMBQoS() [2/2]

ns3::UplinkSchedulerMBQoS::UplinkSchedulerMBQoS ( Time  time)

Constructor.

Parameters
timethe time

Definition at line 42 of file bs-uplink-scheduler-mbqos.cc.

◆ ~UplinkSchedulerMBQoS()

ns3::UplinkSchedulerMBQoS::~UplinkSchedulerMBQoS ( void  )

Definition at line 48 of file bs-uplink-scheduler-mbqos.cc.

References m_uplinkAllocations, and ns3::UplinkScheduler::SetBs().

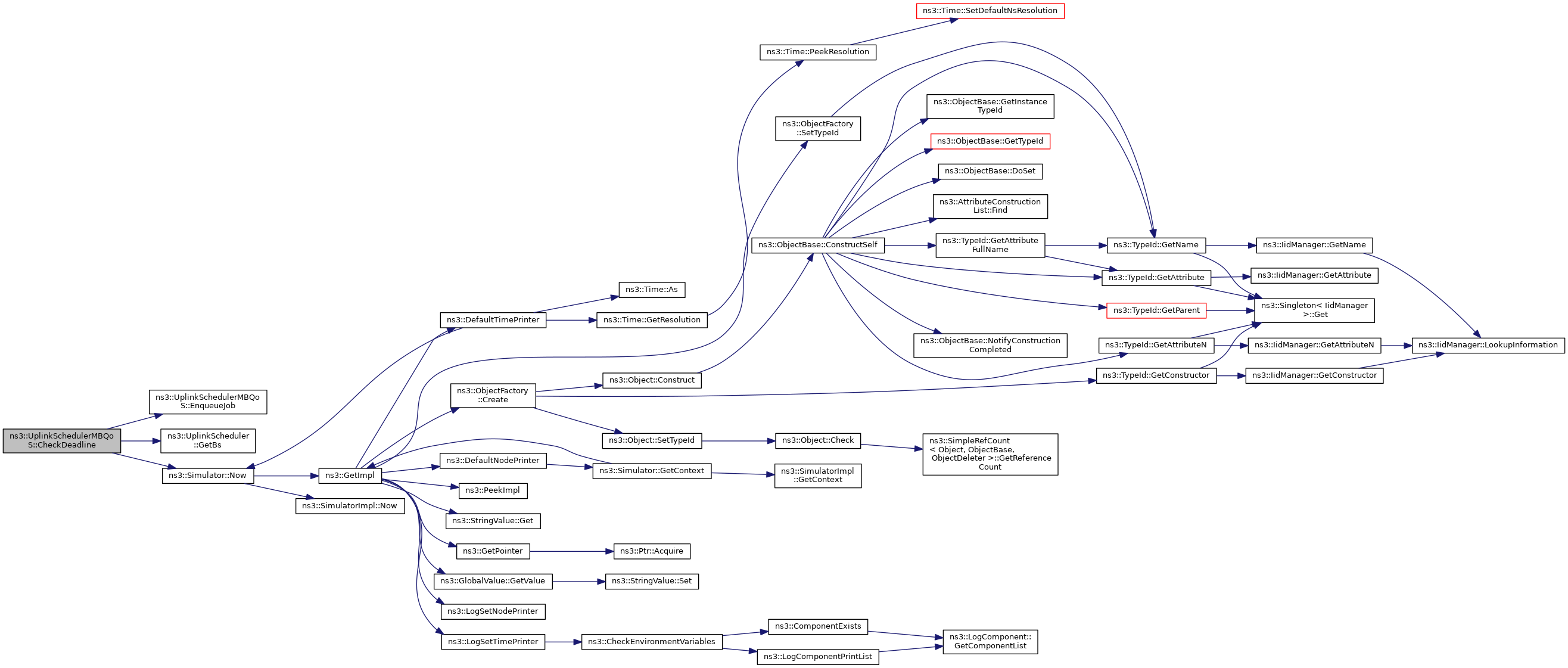

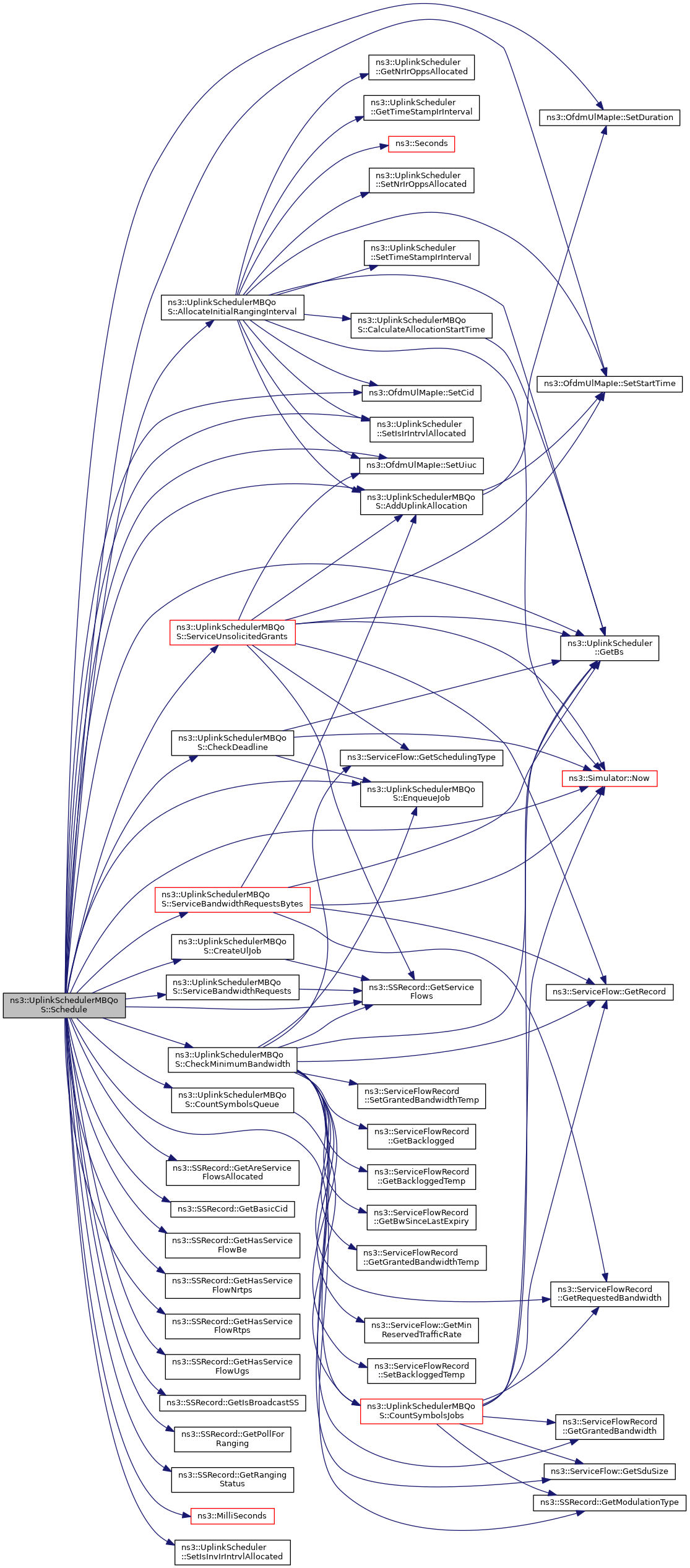

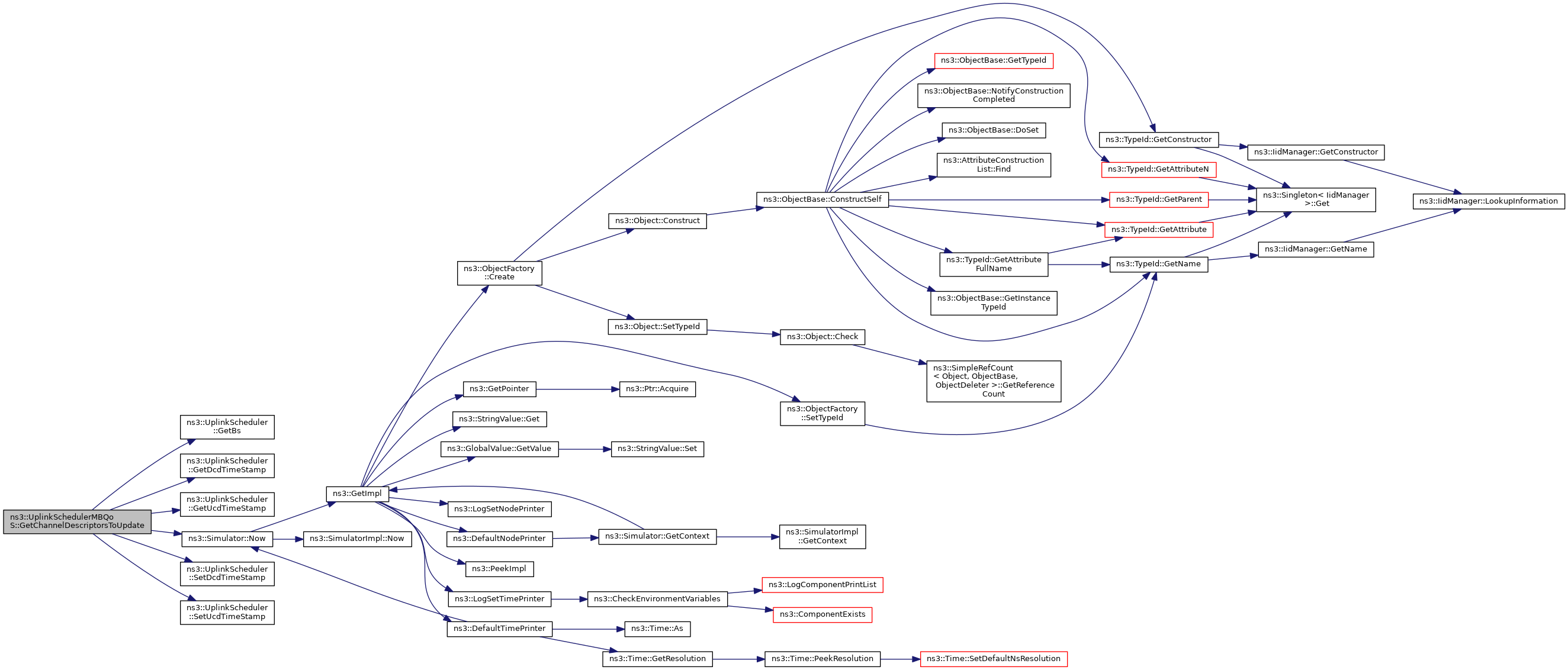

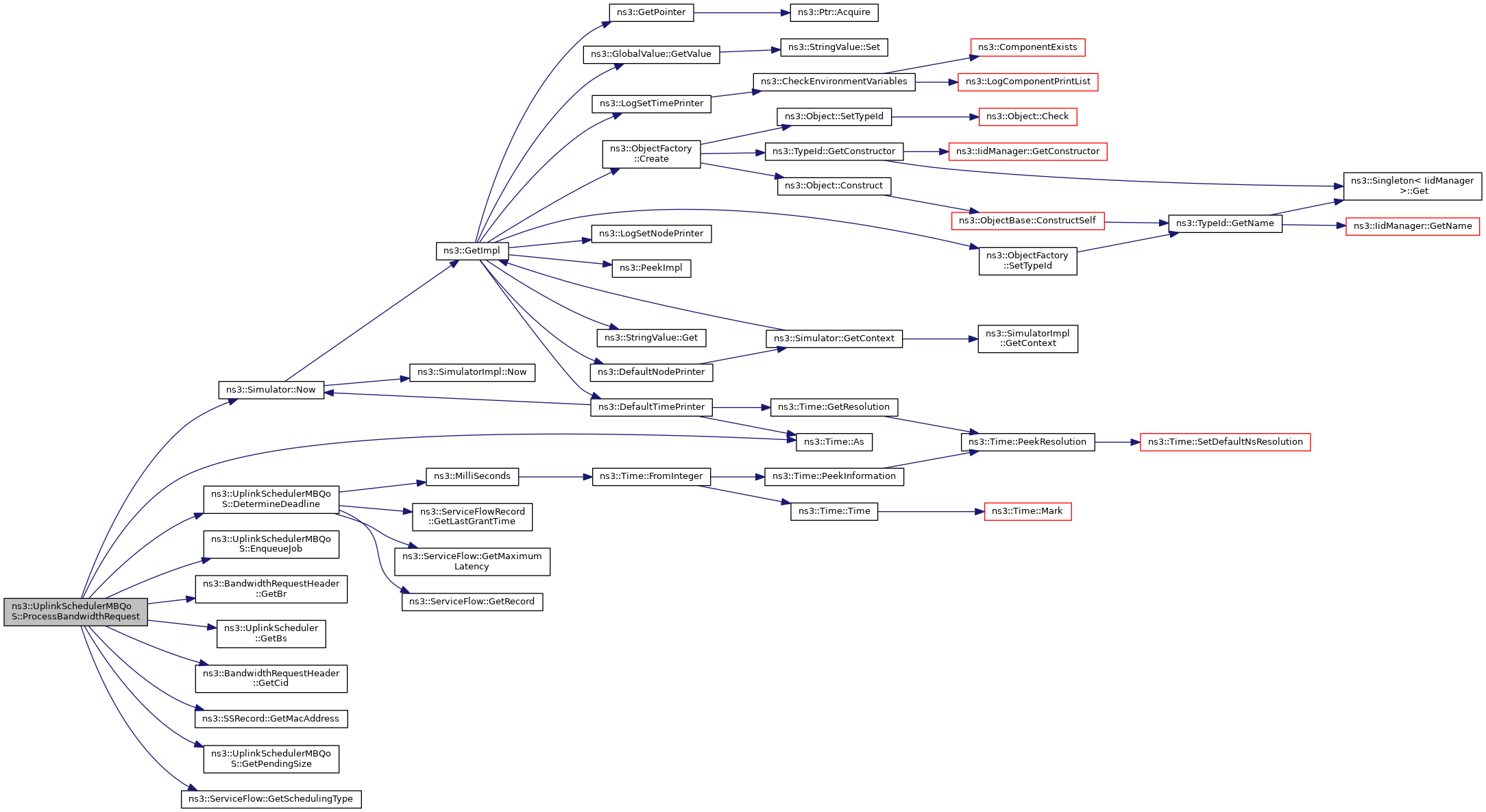

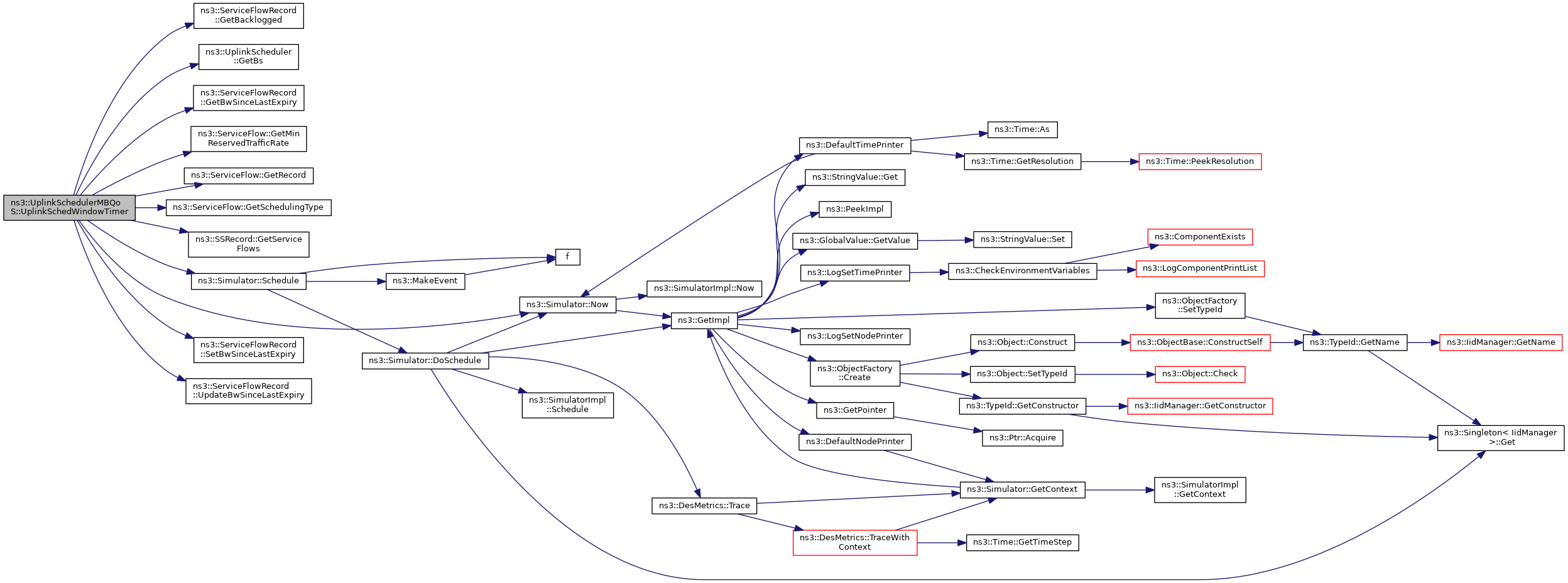

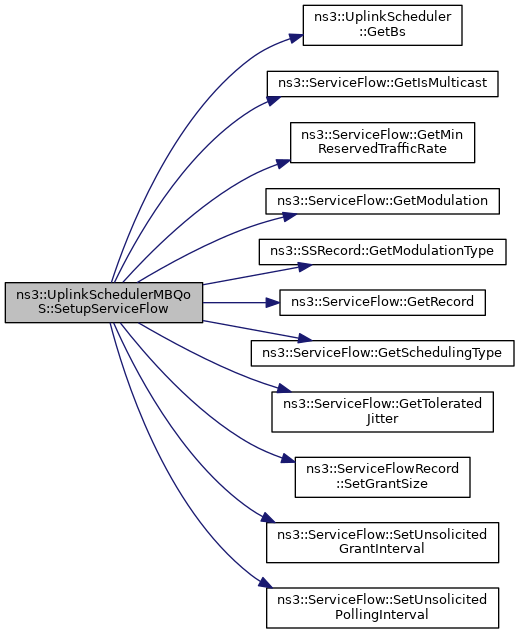

+ Here is the call graph for this function:

Member Function Documentation

◆ AddUplinkAllocation()

void ns3::UplinkSchedulerMBQoS::AddUplinkAllocation ( OfdmUlMapIe ulMapIe,
const uint32_t &  allocationSize,
uint32_t &  symbolsToAllocation,
uint32_t &  availableSymbols
)
virtual

Add uplink allocation.

Parameters
ulMapIethe UL map IE
allocationSizethe allocation size
symbolsToAllocationthe symbols to allocation
availableSymbolsthe available symbols

Implements ns3::UplinkScheduler.

Definition at line 149 of file bs-uplink-scheduler-mbqos.cc.

References m_uplinkAllocations, ns3::OfdmUlMapIe::SetDuration(), and ns3::OfdmUlMapIe::SetStartTime().

Referenced by AllocateInitialRangingInterval(), Schedule(), ServiceBandwidthRequests(), ServiceBandwidthRequestsBytes(), and ServiceUnsolicitedGrants().

+ Here is the call graph for this function:

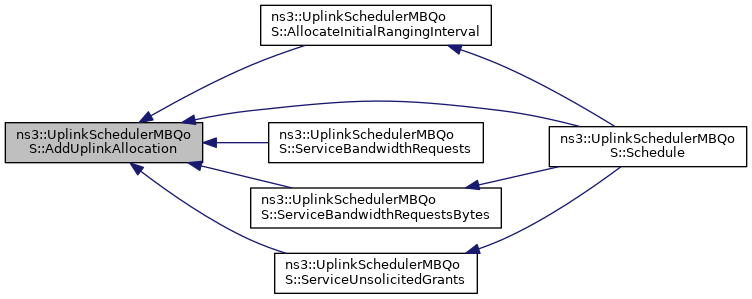

+ Here is the caller graph for this function:

◆ AllocateInitialRangingInterval()

void ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval ( uint32_t &  symbolsToAllocation,
uint32_t &  availableSymbols
)
virtual

◆ CalculateAllocationStartTime()

uint32_t ns3::UplinkSchedulerMBQoS::CalculateAllocationStartTime ( void  )
virtual

Calculate allocation start time.

Returns
the allocation start time

Implements ns3::UplinkScheduler.

Definition at line 143 of file bs-uplink-scheduler-mbqos.cc.

References ns3::UplinkScheduler::GetBs().

Referenced by AllocateInitialRangingInterval().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ CheckDeadline()

void ns3::UplinkSchedulerMBQoS::CheckDeadline ( uint32_t &  availableSymbols)

Check deadline from jobs. Migrate requests if necessary.

Parameters
availableSymbolsavailable symbols in the uplink frame This method verifies for each rtPS request whether it should be migrated to the high priority queue or not. The conditions for migration are: request deadline expires in the frame following the next one, and the amount of bandwidth requested is less than or equal to the amount of available bytes in the next uplink frame.

Definition at line 649 of file bs-uplink-scheduler-mbqos.cc.

References EnqueueJob(), ns3::UplinkScheduler::GetBs(), ns3::UlJob::HIGH, m_uplinkJobs_inter, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Time::S, and ns3::ServiceFlow::SF_TYPE_RTPS.

Referenced by Schedule().

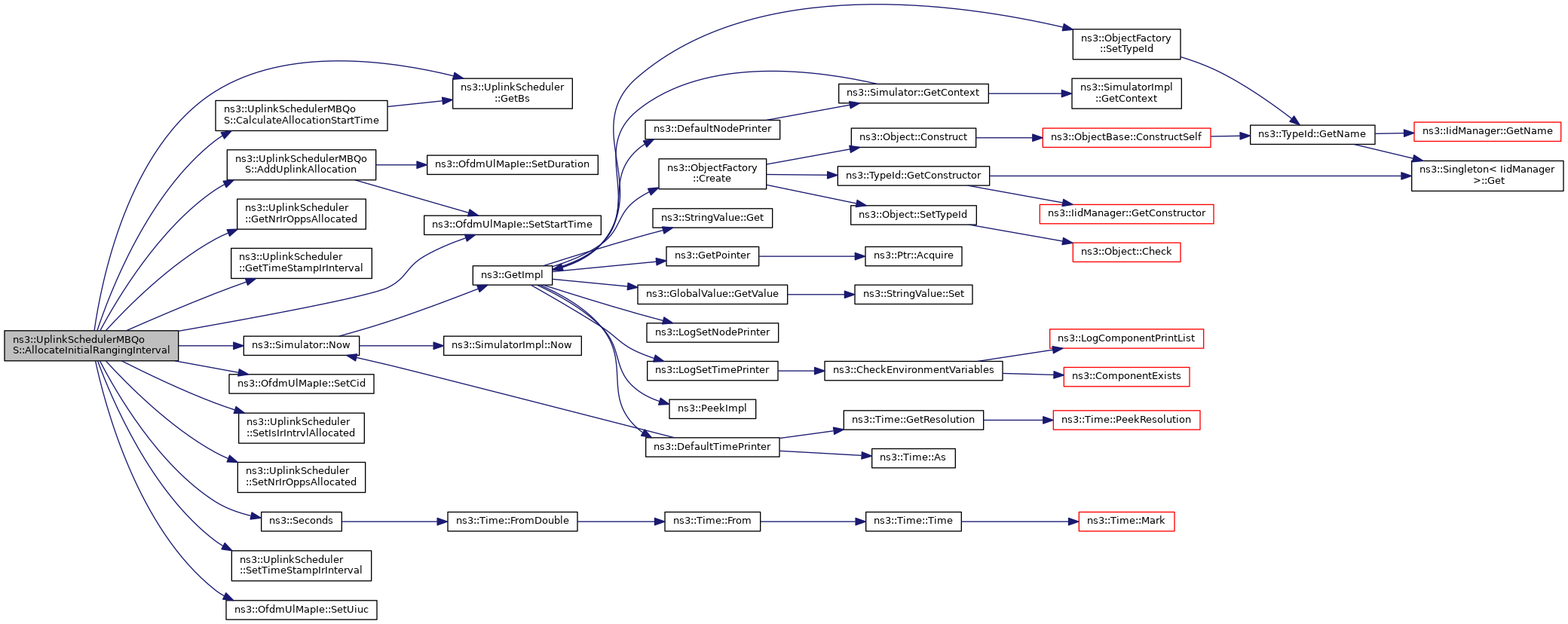

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ CheckMinimumBandwidth()

void ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth ( uint32_t &  availableSymbols)

Check if Minimum bandwidth is guarantee. Migrate requests if necessary.

Parameters
availableSymbolsavailable symbols in the uplink frame. This method first calculate a priority value for each request in the intermediate queue. Then, sorts the intermediate queue according to the priority values. Finally, while there is available bandwidth, the scheduler migrate the requests to the high priority queue.

Definition at line 737 of file bs-uplink-scheduler-mbqos.cc.

References CountSymbolsJobs(), EnqueueJob(), ns3::ServiceFlowRecord::GetBacklogged(), ns3::ServiceFlowRecord::GetBackloggedTemp(), ns3::UplinkScheduler::GetBs(), ns3::ServiceFlowRecord::GetBwSinceLastExpiry(), ns3::ServiceFlowRecord::GetGrantedBandwidth(), ns3::ServiceFlowRecord::GetGrantedBandwidthTemp(), ns3::ServiceFlow::GetMinReservedTrafficRate(), ns3::ServiceFlow::GetRecord(), ns3::ServiceFlowRecord::GetRequestedBandwidth(), ns3::ServiceFlow::GetSchedulingType(), ns3::ServiceFlow::GetSduSize(), ns3::SSRecord::GetServiceFlows(), ns3::UlJob::HIGH, list, m_uplinkJobs_inter, ns3::ServiceFlowRecord::SetBackloggedTemp(), ns3::ServiceFlowRecord::SetGrantedBandwidthTemp(), ns3::ServiceFlow::SF_TYPE_ALL, ns3::ServiceFlow::SF_TYPE_NRTPS, and ns3::ServiceFlow::SF_TYPE_RTPS.

Referenced by Schedule().

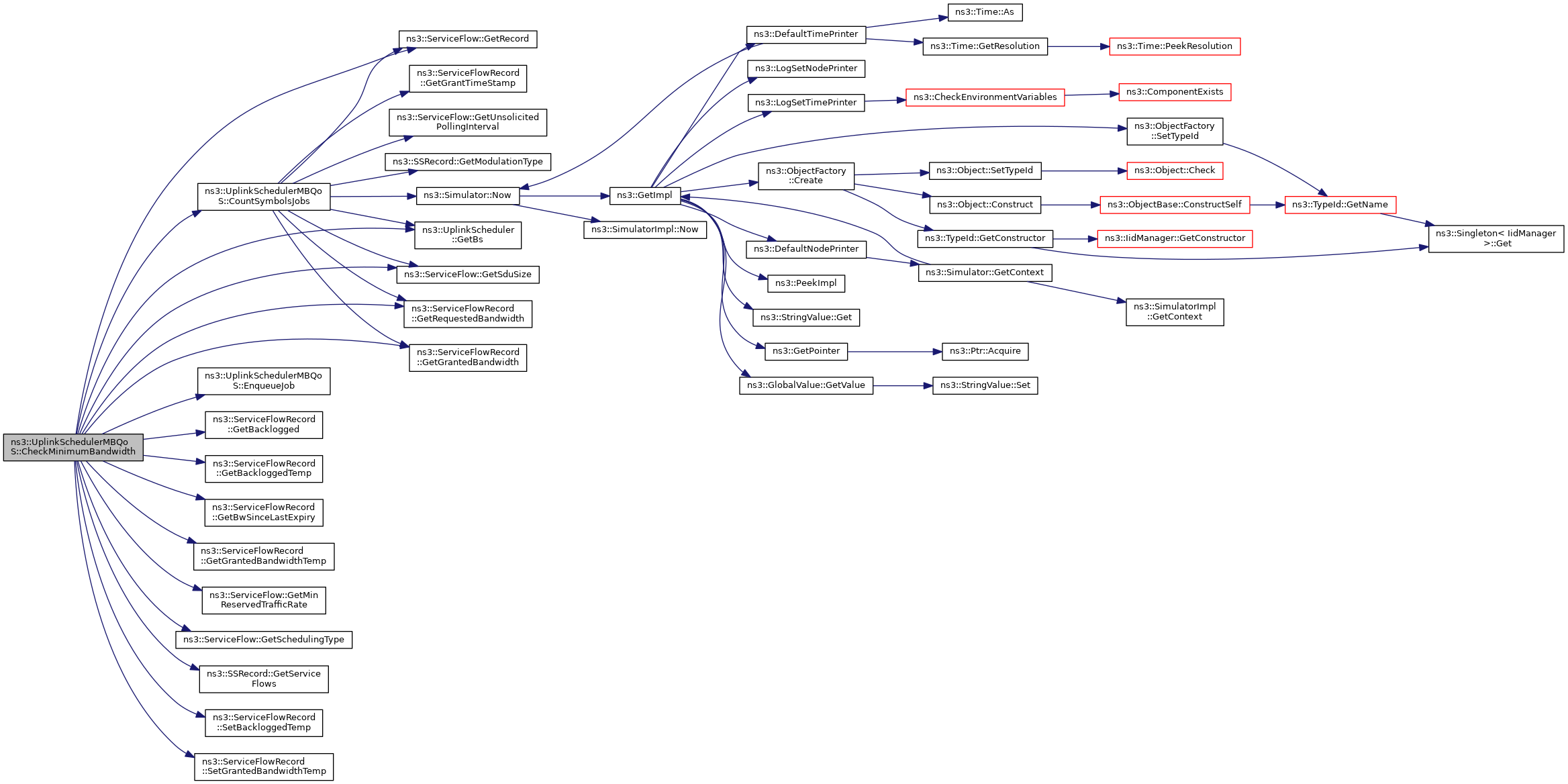

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

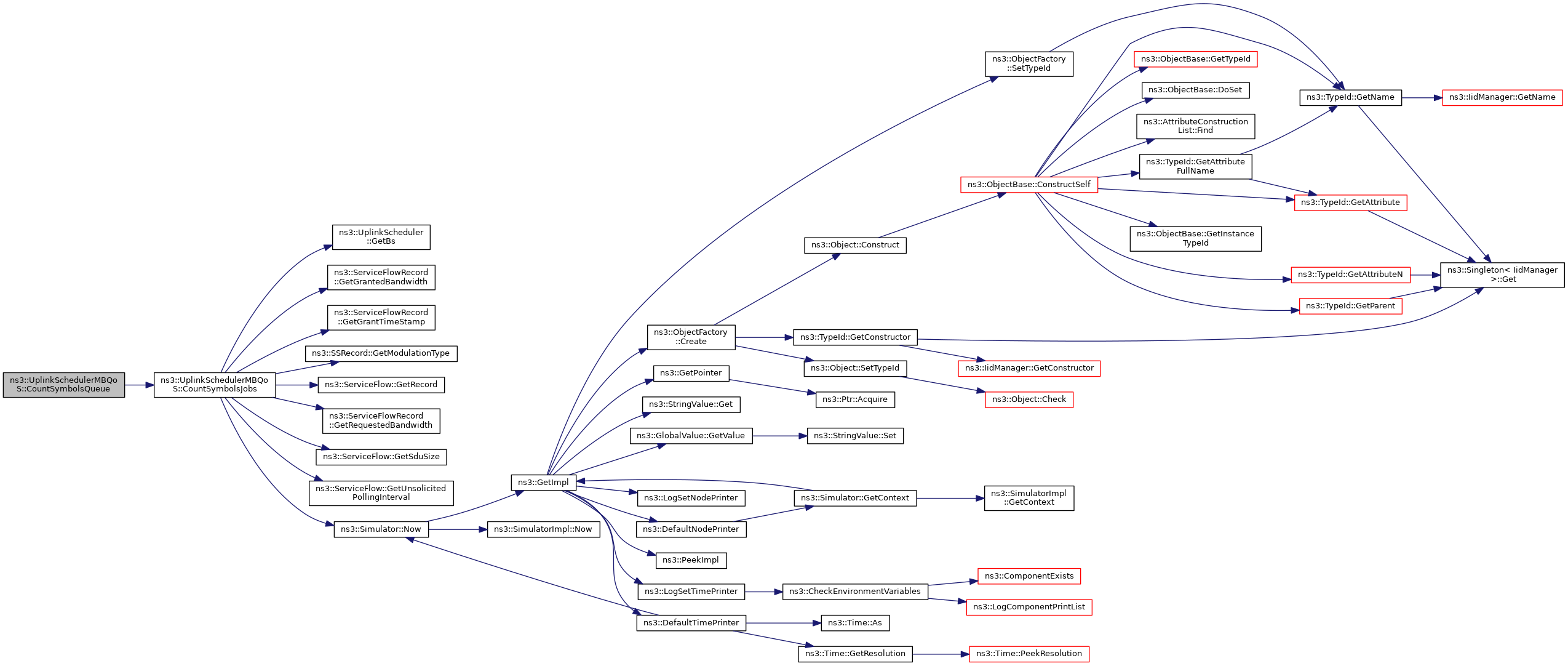

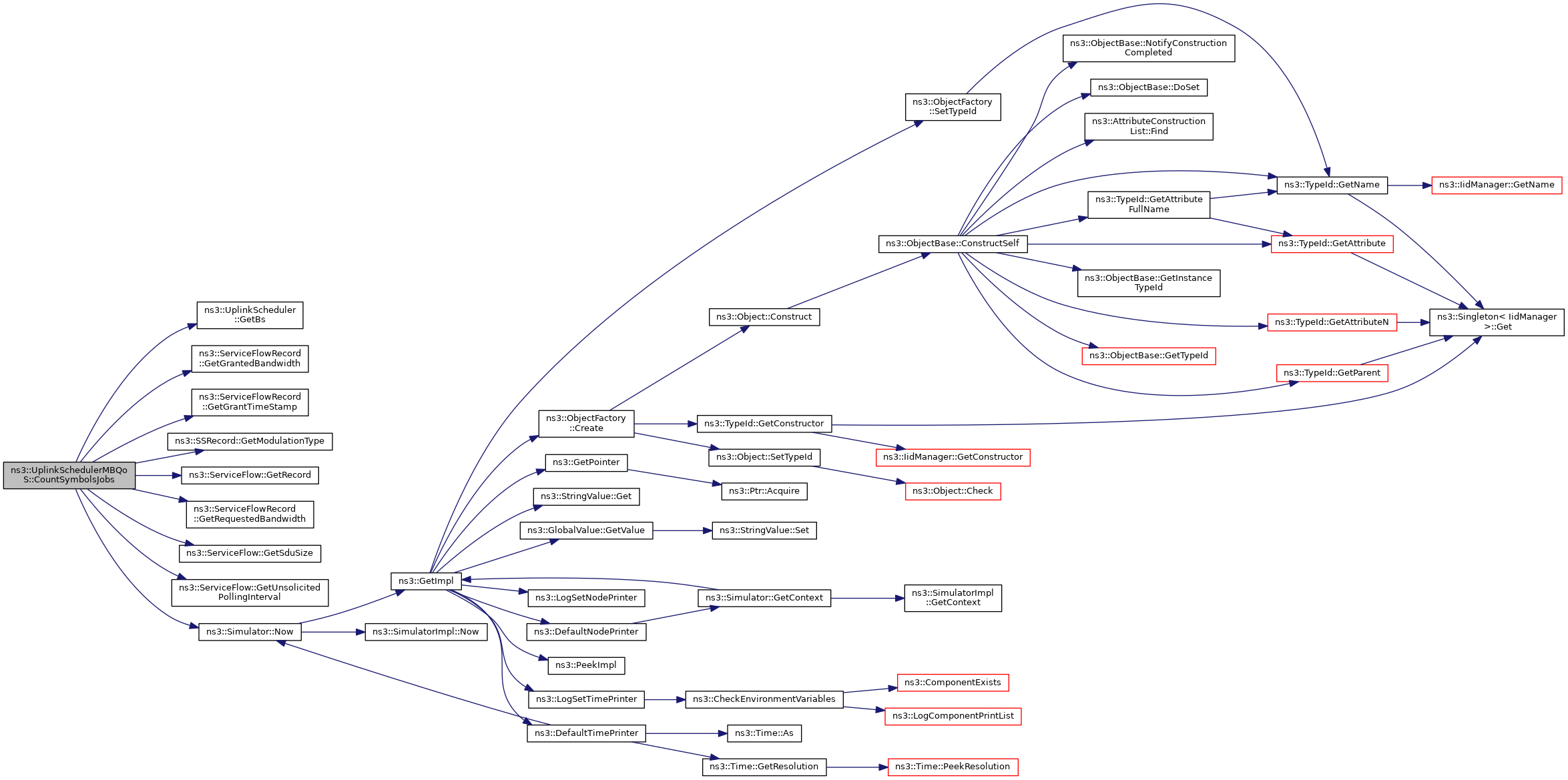

◆ CountSymbolsJobs()

uint32_t ns3::UplinkSchedulerMBQoS::CountSymbolsJobs ( Ptr< UlJob job)

◆ CountSymbolsQueue()

uint32_t ns3::UplinkSchedulerMBQoS::CountSymbolsQueue ( std::list< Ptr< UlJob > >  jobs)
Parameters
jobsList of jobs
Returns
the symbols count

Sum the amount of symbols of each job of a queue

Definition at line 546 of file bs-uplink-scheduler-mbqos.cc.

References CountSymbolsJobs(), and list.

Referenced by Schedule().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ CreateUlJob()

Ptr< UlJob > ns3::UplinkSchedulerMBQoS::CreateUlJob ( SSRecord ssRecord,
enum ServiceFlow::SchedulingType  schedType,
ReqType  reqType
)
Parameters
ssRecordSubscriber station record
schedTypeService flow type
reqTypeType of packet
Returns
Ptr<UlJob>

Create and fill information of a job.

Definition at line 560 of file bs-uplink-scheduler-mbqos.cc.

References ns3::SSRecord::GetServiceFlows().

Referenced by Schedule().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DequeueJob()

Ptr< UlJob > ns3::UplinkSchedulerMBQoS::DequeueJob ( UlJob::JobPriority  priority)

Dequeue a job from a priority queue.

Parameters
priorityPriority of queue
Returns
Ptr<UlJob>

Definition at line 628 of file bs-uplink-scheduler-mbqos.cc.

References ns3::UlJob::HIGH, ns3::UlJob::INTERMEDIATE, ns3::UlJob::LOW, m_uplinkJobs_high, m_uplinkJobs_inter, and m_uplinkJobs_low.

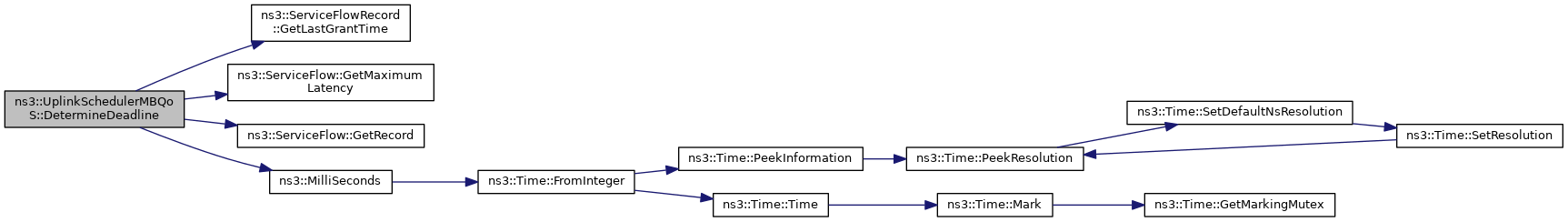

◆ DetermineDeadline()

Time ns3::UplinkSchedulerMBQoS::DetermineDeadline ( ServiceFlow serviceFlow)

Calculates deadline of a request.

Parameters
serviceFlowService flow of connection
Returns
Time

Definition at line 1146 of file bs-uplink-scheduler-mbqos.cc.

References ns3::ServiceFlowRecord::GetLastGrantTime(), ns3::ServiceFlow::GetMaximumLatency(), ns3::ServiceFlow::GetRecord(), and ns3::MilliSeconds().

Referenced by ProcessBandwidthRequest().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ EnqueueJob()

void ns3::UplinkSchedulerMBQoS::EnqueueJob ( UlJob::JobPriority  priority,
Ptr< UlJob job
)

Enqueue a job in a priority queue.

Parameters
priorityPriority of queue
jobjob information

Definition at line 612 of file bs-uplink-scheduler-mbqos.cc.

References ns3::UlJob::HIGH, ns3::UlJob::INTERMEDIATE, ns3::UlJob::LOW, m_uplinkJobs_high, m_uplinkJobs_inter, and m_uplinkJobs_low.

Referenced by CheckDeadline(), CheckMinimumBandwidth(), ProcessBandwidthRequest(), and Schedule().

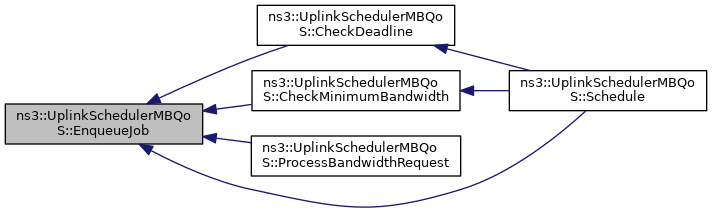

+ Here is the caller graph for this function:

◆ GetChannelDescriptorsToUpdate()

void ns3::UplinkSchedulerMBQoS::GetChannelDescriptorsToUpdate ( bool &  updateDcd,
bool &  updateUcd,
bool &  sendDcd,
bool &  sendUcd
)
virtual

Determines if channel descriptors sent in the current frame are required to be updated.

Parameters
updateDcdupdate DCD if true
updateUcdupdate UCD if true
sendDcdsend DCD if true
sendUcdsend UCD if true

Implements ns3::UplinkScheduler.

Definition at line 84 of file bs-uplink-scheduler-mbqos.cc.

References ns3::UplinkScheduler::GetBs(), ns3::UplinkScheduler::GetDcdTimeStamp(), ns3::UplinkScheduler::GetUcdTimeStamp(), ns3::Simulator::Now(), ns3::UplinkScheduler::SetDcdTimeStamp(), and ns3::UplinkScheduler::SetUcdTimeStamp().

+ Here is the call graph for this function:

◆ GetPendingSize()

uint32_t ns3::UplinkSchedulerMBQoS::GetPendingSize ( ServiceFlow serviceFlow)
Parameters
serviceFlowServiceFlow
Returns
Ptr<UlJob>

Get pending size.

Definition at line 1059 of file bs-uplink-scheduler-mbqos.cc.

References list, and m_uplinkJobs_inter.

Referenced by ProcessBandwidthRequest().

+ Here is the caller graph for this function:

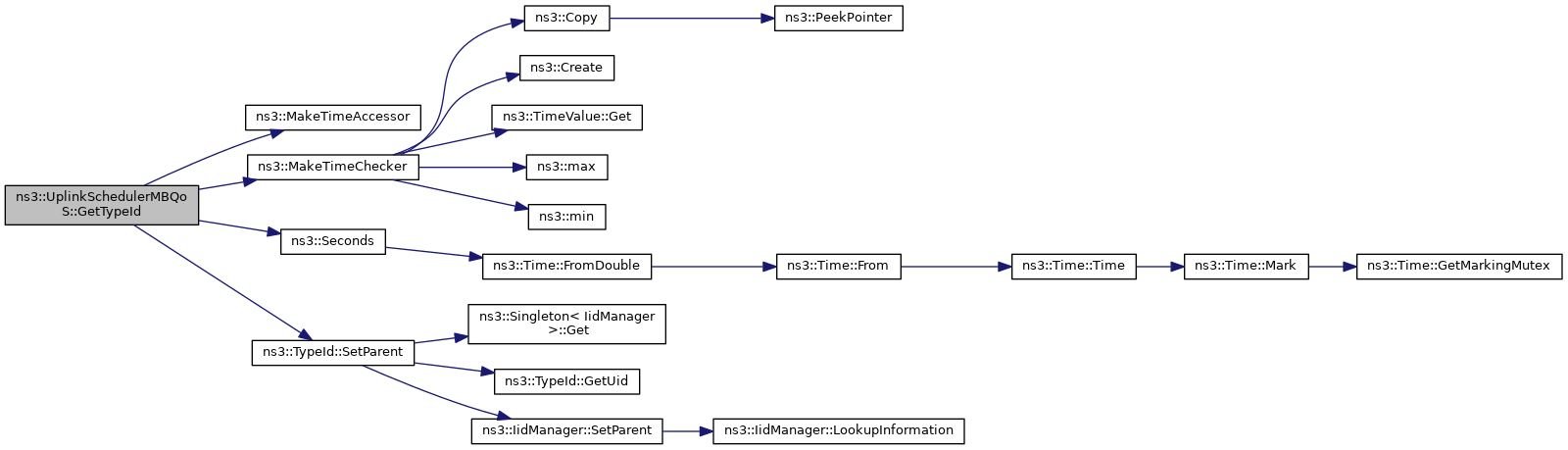

◆ GetTypeId()

TypeId ns3::UplinkSchedulerMBQoS::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 55 of file bs-uplink-scheduler-mbqos.cc.

References m_windowInterval, ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::Seconds(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ GetUplinkAllocations()

std::list< OfdmUlMapIe > ns3::UplinkSchedulerMBQoS::GetUplinkAllocations ( void  ) const
virtual

Get uplink allocations.

Returns
std::list<OfdmUlMapIe>

Reimplemented from ns3::UplinkScheduler.

Definition at line 78 of file bs-uplink-scheduler-mbqos.cc.

References m_uplinkAllocations.

◆ InitOnce()

void ns3::UplinkSchedulerMBQoS::InitOnce ( void  )
virtual

This method is called once to initialize window.

Implements ns3::UplinkScheduler.

Definition at line 72 of file bs-uplink-scheduler-mbqos.cc.

References UplinkSchedWindowTimer().

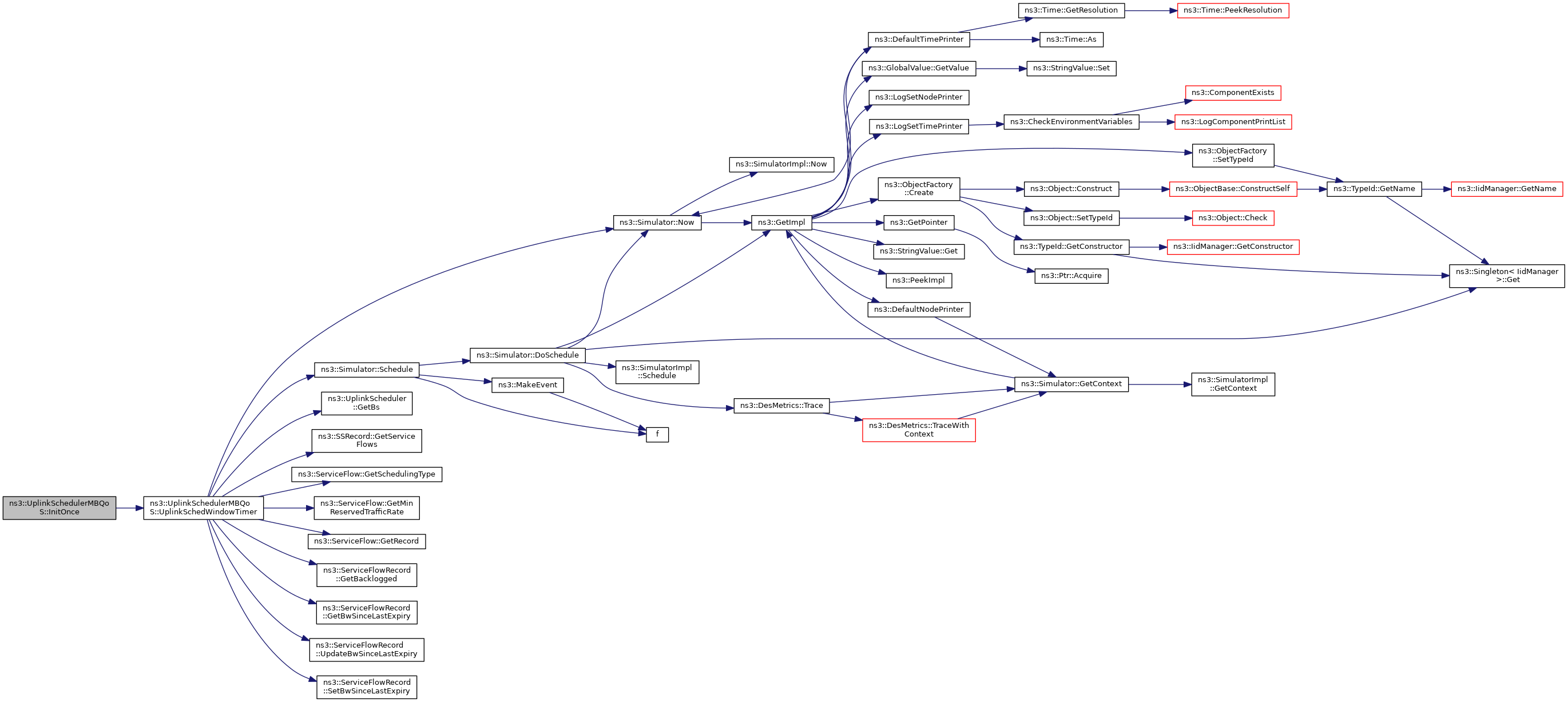

+ Here is the call graph for this function:

◆ OnSetRequestedBandwidth()

void ns3::UplinkSchedulerMBQoS::OnSetRequestedBandwidth ( ServiceFlowRecord sfr)
virtual

Set requested bandwidth.

Parameters
sfrthe service flow record

Implements ns3::UplinkScheduler.

Definition at line 1155 of file bs-uplink-scheduler-mbqos.cc.

◆ ProcessBandwidthRequest()

◆ Schedule()

void ns3::UplinkSchedulerMBQoS::Schedule ( void  )
virtual

Schedule function.

Implements ns3::UplinkScheduler.

Definition at line 218 of file bs-uplink-scheduler-mbqos.cc.

References AddUplinkAllocation(), AllocateInitialRangingInterval(), CheckDeadline(), CheckMinimumBandwidth(), CountSymbolsQueue(), CreateUlJob(), ns3::DATA, ns3::WimaxNetDevice::DIRECTION_UPLINK, EnqueueJob(), ns3::SSRecord::GetAreServiceFlowsAllocated(), ns3::SSRecord::GetBasicCid(), ns3::UplinkScheduler::GetBs(), ns3::SSRecord::GetHasServiceFlowBe(), ns3::SSRecord::GetHasServiceFlowNrtps(), ns3::SSRecord::GetHasServiceFlowRtps(), ns3::SSRecord::GetHasServiceFlowUgs(), ns3::SSRecord::GetIsBroadcastSS(), ns3::SSRecord::GetModulationType(), ns3::SSRecord::GetPollForRanging(), ns3::SSRecord::GetRangingStatus(), ns3::SSRecord::GetServiceFlows(), ns3::UlJob::HIGH, m_uplinkAllocations, m_uplinkJobs_high, m_uplinkJobs_inter, m_uplinkJobs_low, ns3::MilliSeconds(), ns3::Simulator::Now(), NS_FATAL_ERROR, NS_LOG_DEBUG, ns3::WimaxNetDevice::RANGING_STATUS_CONTINUE, ns3::WimaxNetDevice::RANGING_STATUS_SUCCESS, ns3::Time::S, ServiceBandwidthRequests(), ServiceBandwidthRequestsBytes(), ServiceUnsolicitedGrants(), ns3::OfdmUlMapIe::SetCid(), ns3::OfdmUlMapIe::SetDuration(), ns3::UplinkScheduler::SetIsInvIrIntrvlAllocated(), ns3::UplinkScheduler::SetIsIrIntrvlAllocated(), ns3::OfdmUlMapIe::SetStartTime(), ns3::OfdmUlMapIe::SetUiuc(), ns3::ServiceFlow::SF_TYPE_BE, ns3::ServiceFlow::SF_TYPE_NRTPS, ns3::ServiceFlow::SF_TYPE_RTPS, ns3::ServiceFlow::SF_TYPE_UGS, ns3::OfdmUlBurstProfile::UIUC_END_OF_MAP, ns3::OfdmUlBurstProfile::UIUC_INITIAL_RANGING, and ns3::UNICAST_POLLING.

+ Here is the call graph for this function:

◆ ServiceBandwidthRequests() [1/2]

void ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests ( const SSRecord ssRecord,
enum ServiceFlow::SchedulingType  schedulingType,
OfdmUlMapIe ulMapIe,
const WimaxPhy::ModulationType  modulationType,
uint32_t &  symbolsToAllocation,
uint32_t &  availableSymbols
)
virtual

Service bandwidth requests.

Parameters
ssRecordthe SS record
schedulingTypethe scheduling type
ulMapIethe UL map IE
modulationTypethe modulation type
symbolsToAllocationthe symbols to allocation
availableSymbolsthe available symbols

Implements ns3::UplinkScheduler.

Definition at line 882 of file bs-uplink-scheduler-mbqos.cc.

References ns3::SSRecord::GetServiceFlows().

Referenced by Schedule().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

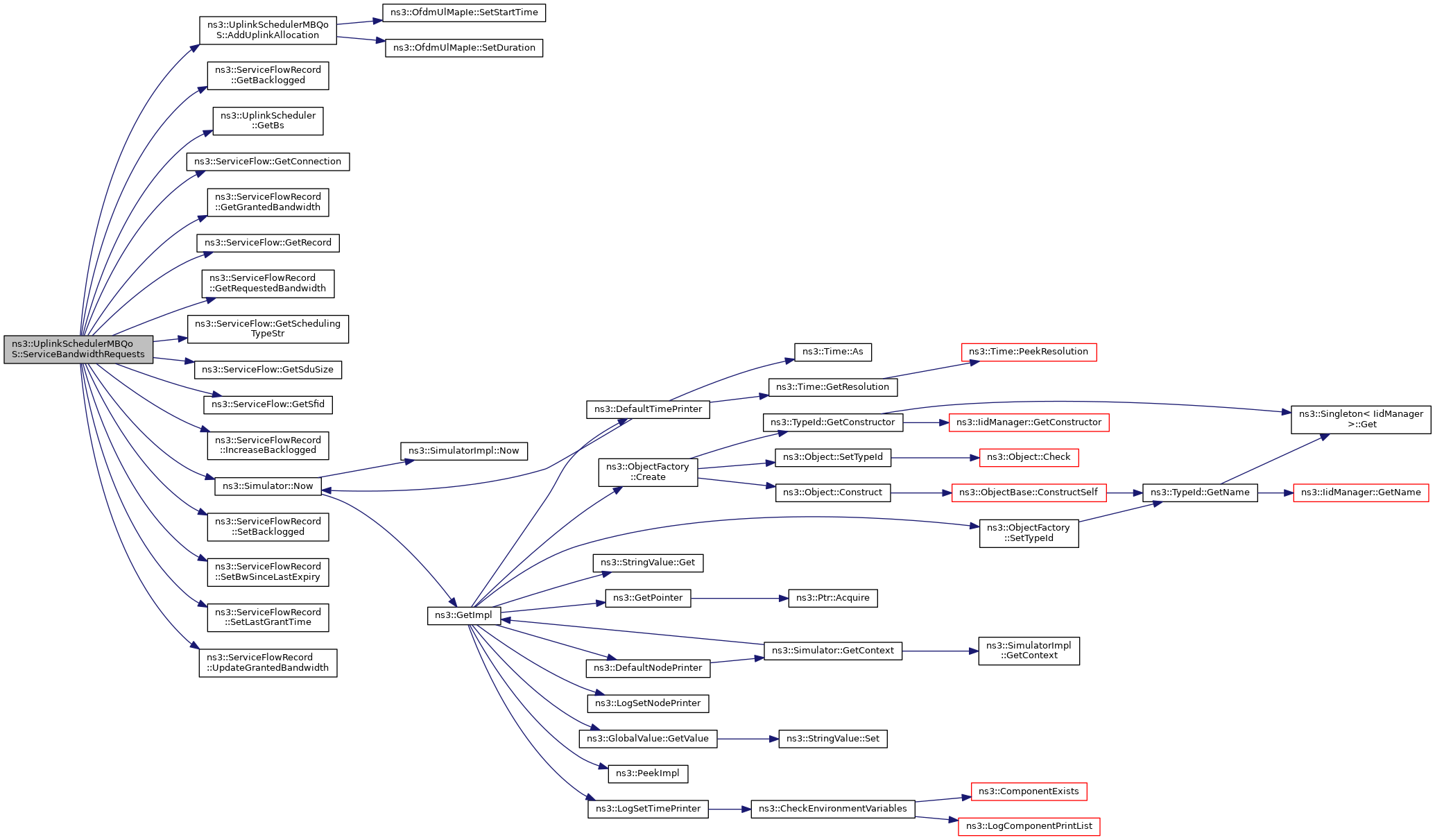

◆ ServiceBandwidthRequests() [2/2]

bool ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests ( ServiceFlow serviceFlow,
enum ServiceFlow::SchedulingType  schedulingType,
OfdmUlMapIe ulMapIe,
const WimaxPhy::ModulationType  modulationType,
uint32_t &  symbolsToAllocation,
uint32_t &  availableSymbols
)
virtual

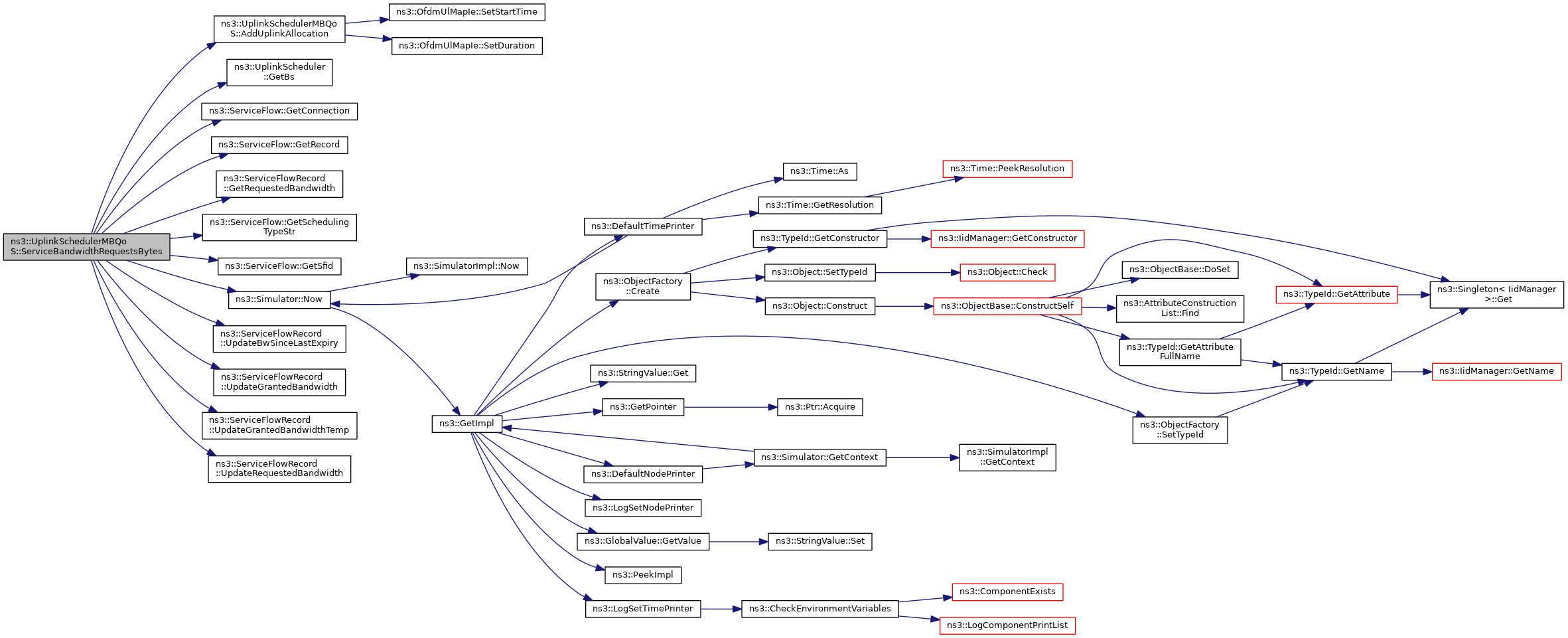

◆ ServiceBandwidthRequestsBytes()

bool ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes ( ServiceFlow serviceFlow,
enum ServiceFlow::SchedulingType  schedulingType,
OfdmUlMapIe ulMapIe,
const WimaxPhy::ModulationType  modulationType,
uint32_t &  symbolsToAllocation,
uint32_t &  availableSymbols,
uint32_t  allocationSizeBytes
)

Service bandwidth requests bytes.

Parameters
serviceFlowthe service flow
schedulingTypethe scheduling type
ulMapIethe UL map IE
modulationTypethe modulation type
symbolsToAllocationthe symbols to allocation
availableSymbolsthe available symbols
allocationSizeBytesthe allocation size in bytes
Returns
true if successful

Definition at line 494 of file bs-uplink-scheduler-mbqos.cc.

References AddUplinkAllocation(), ns3::UplinkScheduler::GetBs(), ns3::ServiceFlow::GetConnection(), ns3::ServiceFlow::GetRecord(), ns3::ServiceFlowRecord::GetRequestedBandwidth(), ns3::ServiceFlow::GetSchedulingTypeStr(), ns3::ServiceFlow::GetSfid(), ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Time::S, ns3::ServiceFlowRecord::UpdateBwSinceLastExpiry(), ns3::ServiceFlowRecord::UpdateGrantedBandwidth(), ns3::ServiceFlowRecord::UpdateGrantedBandwidthTemp(), and ns3::ServiceFlowRecord::UpdateRequestedBandwidth().

Referenced by Schedule().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ServiceUnsolicitedGrants()

void ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants ( const SSRecord ssRecord,
enum ServiceFlow::SchedulingType  schedulingType,
OfdmUlMapIe ulMapIe,
const WimaxPhy::ModulationType  modulationType,
uint32_t &  symbolsToAllocation,
uint32_t &  availableSymbols
)
virtual

Service unsolicited grants.

Parameters
ssRecordthe SS record
schedulingTypethe scheduling type
ulMapIethe UL map IE
modulationTypethe modulation type
symbolsToAllocationthe symbols to allocation
availableSymbolsthe available symbols

Implements ns3::UplinkScheduler.

Definition at line 823 of file bs-uplink-scheduler-mbqos.cc.

References AddUplinkAllocation(), ns3::UplinkScheduler::GetBs(), ns3::ServiceFlow::GetConnection(), ns3::ServiceFlow::GetRecord(), ns3::ServiceFlow::GetSchedulingType(), ns3::ServiceFlow::GetSchedulingTypeStr(), ns3::SSRecord::GetServiceFlows(), ns3::ServiceFlow::GetSfid(), ns3::OfdmUlMapIe::GetUiuc(), ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::ServiceFlowRecord::SetLastGrantTime(), ns3::OfdmUlMapIe::SetStartTime(), ns3::OfdmUlMapIe::SetUiuc(), ns3::ServiceFlow::SF_TYPE_UGS, and ns3::OfdmUlBurstProfile::UIUC_REQ_REGION_FULL.

Referenced by Schedule().

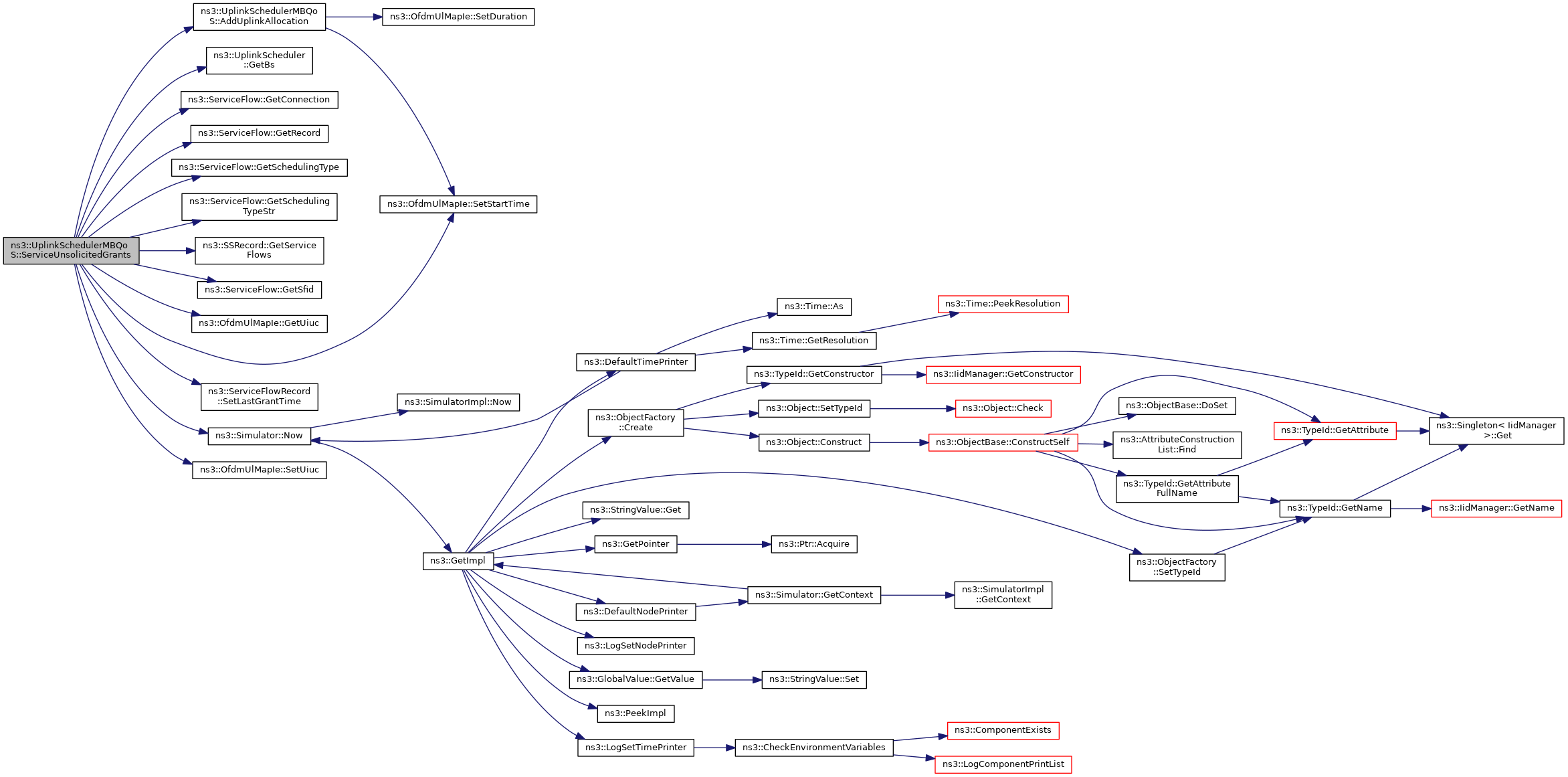

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetupServiceFlow()

◆ UplinkSchedWindowTimer()

Member Data Documentation

◆ m_uplinkAllocations

std::list<OfdmUlMapIe> ns3::UplinkSchedulerMBQoS::m_uplinkAllocations
private

uplink allocations

Definition at line 302 of file bs-uplink-scheduler-mbqos.h.

Referenced by AddUplinkAllocation(), GetUplinkAllocations(), Schedule(), and ~UplinkSchedulerMBQoS().

◆ m_uplinkJobs_high

std::list<Ptr<UlJob> > ns3::UplinkSchedulerMBQoS::m_uplinkJobs_high
private

uplink jobs high priority

Definition at line 305 of file bs-uplink-scheduler-mbqos.h.

Referenced by DequeueJob(), EnqueueJob(), and Schedule().

◆ m_uplinkJobs_inter

std::list<Ptr<UlJob> > ns3::UplinkSchedulerMBQoS::m_uplinkJobs_inter
private

uplink jobs intermedite priority

Definition at line 306 of file bs-uplink-scheduler-mbqos.h.

Referenced by CheckDeadline(), CheckMinimumBandwidth(), DequeueJob(), EnqueueJob(), GetPendingSize(), and Schedule().

◆ m_uplinkJobs_low

std::list<Ptr<UlJob> > ns3::UplinkSchedulerMBQoS::m_uplinkJobs_low
private

uplink jobs low priority

Definition at line 307 of file bs-uplink-scheduler-mbqos.h.

Referenced by DequeueJob(), EnqueueJob(), and Schedule().

◆ m_windowInterval

Time ns3::UplinkSchedulerMBQoS::m_windowInterval
private

windows interval

Definition at line 310 of file bs-uplink-scheduler-mbqos.h.

Referenced by GetTypeId(), and UplinkSchedWindowTimer().


The documentation for this class was generated from the following files:
