Peer link model for 802.11s Peer Management protocol. More...

#include "peer-link.h"

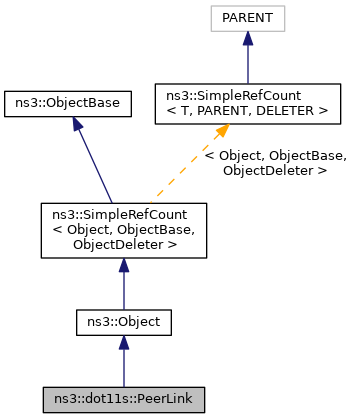

Inheritance diagram for ns3::dot11s::PeerLink:

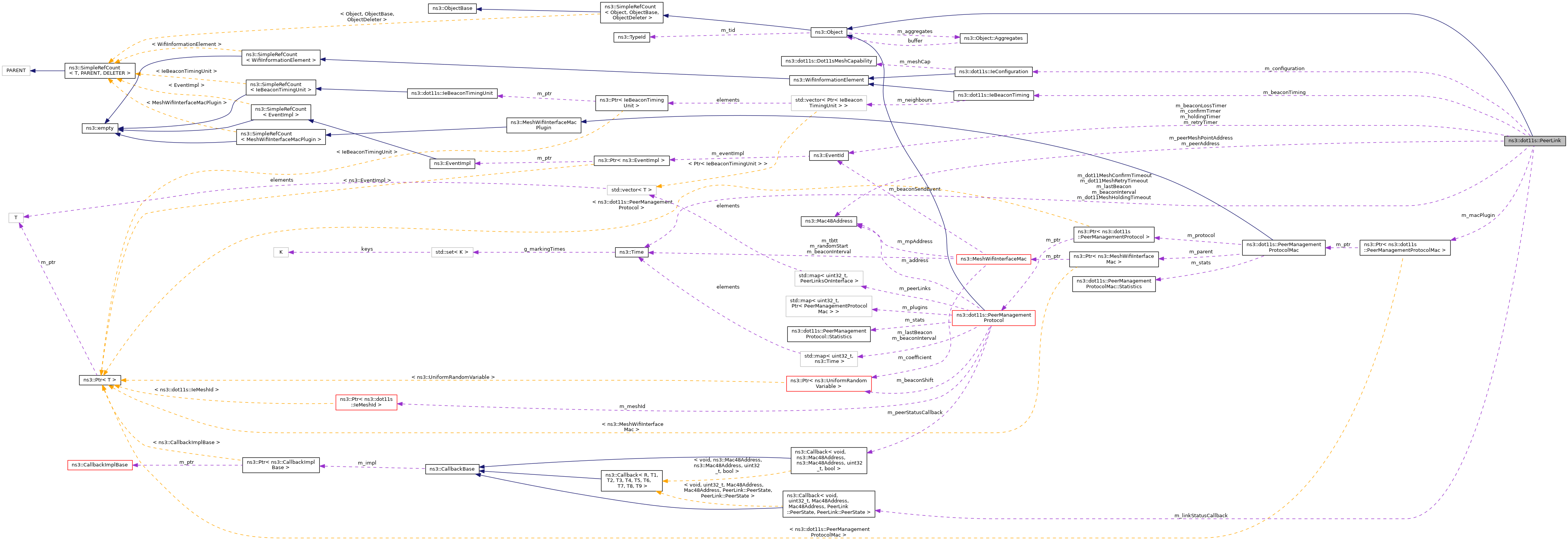

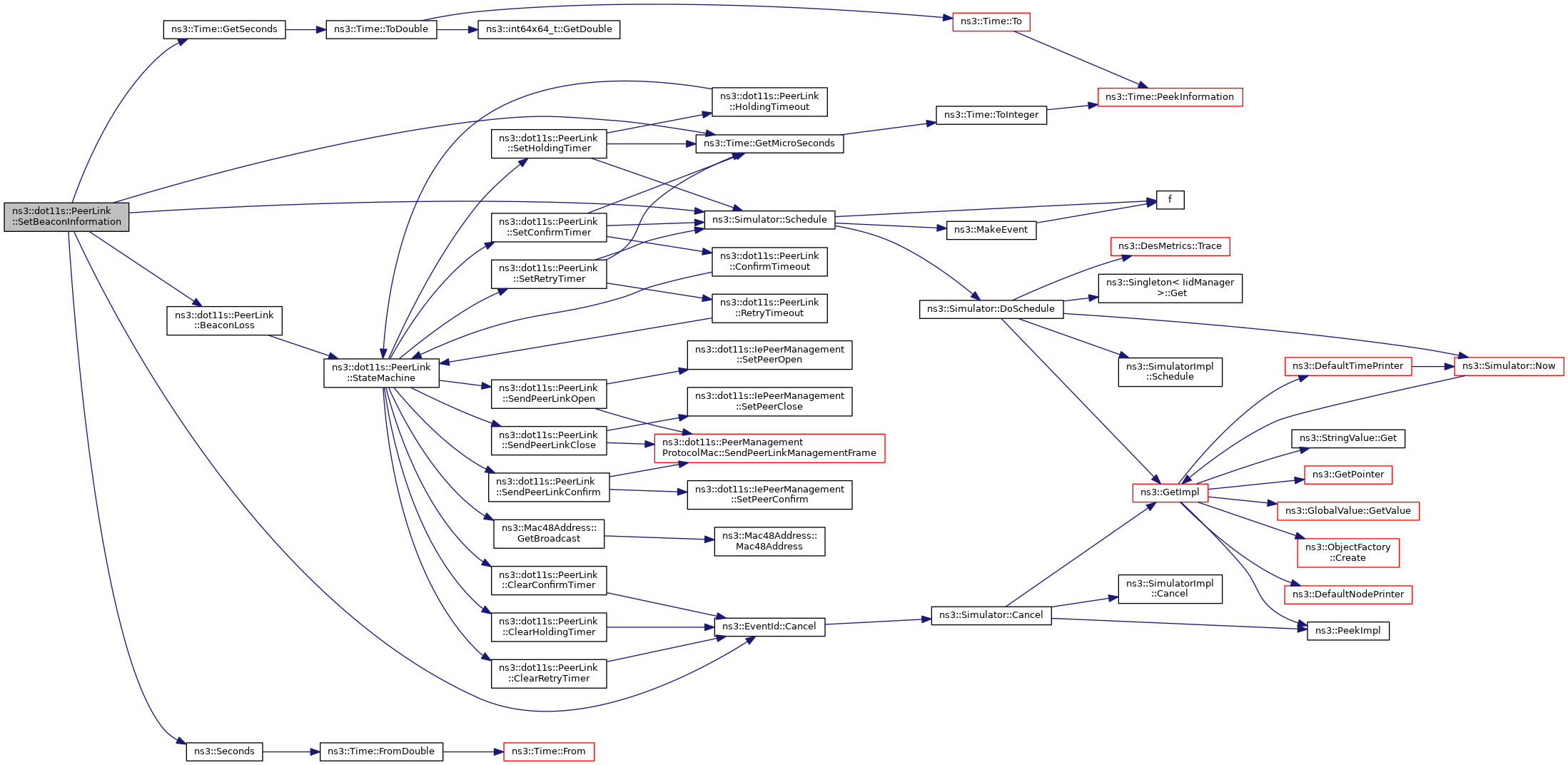

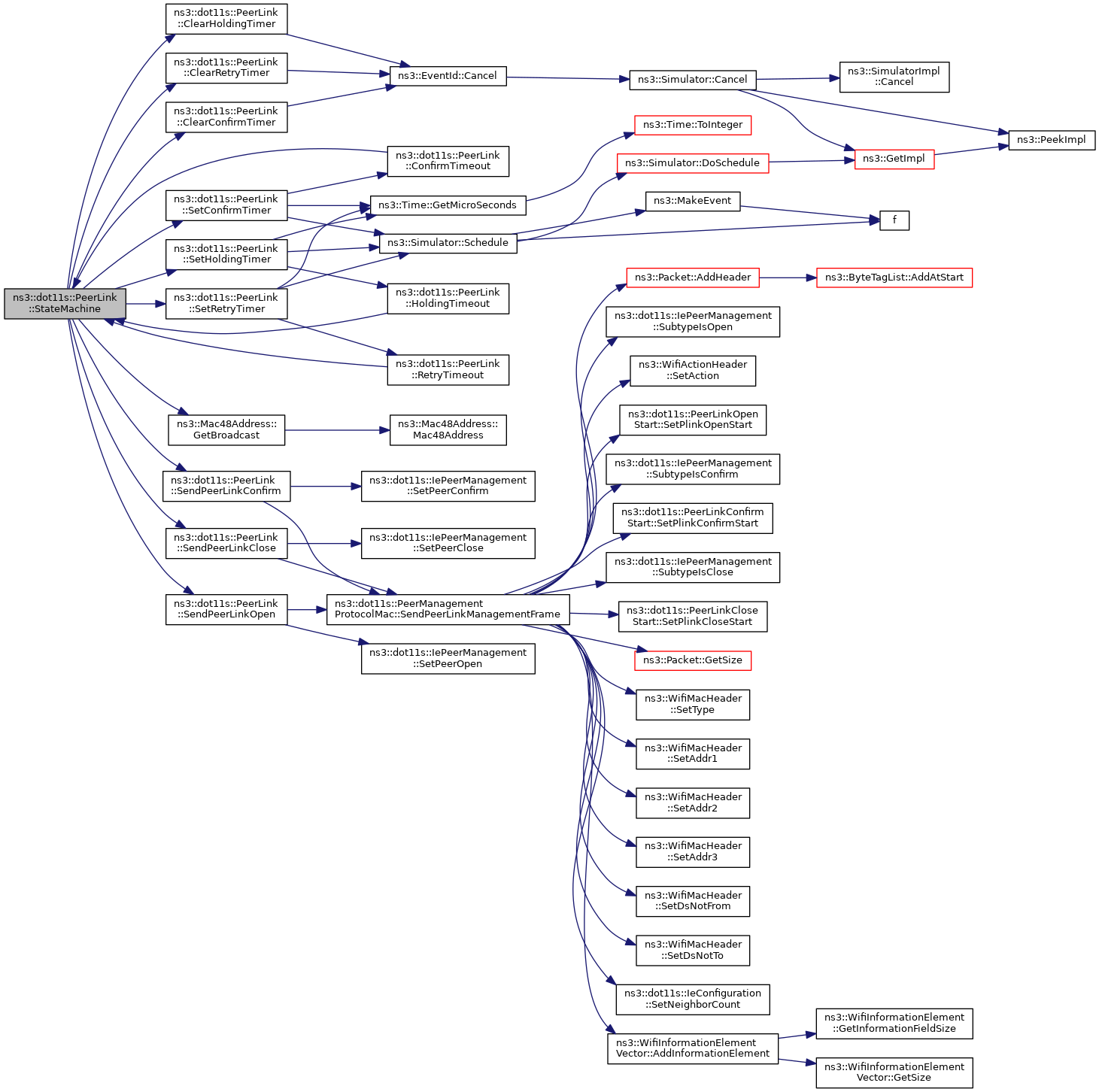

Collaboration diagram for ns3::dot11s::PeerLink:

Public Types
enum	PeerState { IDLE, OPN_SNT, CNF_RCVD, OPN_RCVD, ESTAB, HOLDING }
	Peer Link state: More...

Public Member Functions
	PeerLink ()
	C-tor create empty link. More...

	~PeerLink ()

void	DoDispose ()
	Destructor implementation. More...

void	Report (std::ostream &os) const
	Statistics. More...

void	SetBeaconInformation (Time lastBeacon, Time BeaconInterval)
	Process beacon received from peer. More...

void	SetLinkStatusCallback (Callback< void, uint32_t, Mac48Address, bool > cb)
	Method used to detect peer link changes. More...

Peer link getters/setters
void	SetPeerAddress (Mac48Address macaddr)
	Set the peer address. More...

void	SetPeerMeshPointAddress (Mac48Address macaddr)
	Set the peer mesh point address. More...

void	SetInterface (uint32_t interface)
	Set the interface. More...

void	SetLocalLinkId (uint16_t id)
	Set the local link ID. More...

void	SetLocalAid (uint16_t aid)
	Set the local association ID. More...

uint16_t	GetPeerAid () const
	Set the peer association ID. More...

void	SetBeaconTimingElement (IeBeaconTiming beaconTiming)
	Set the beacon timing element. More...

Mac48Address	GetPeerAddress () const
	Get the peer address. More...

uint16_t	GetLocalAid () const
	Get the local association ID. More...

Time	GetLastBeacon () const
	Get the time of the last received beacon. More...

Time	GetBeaconInterval () const
	Get the beacon interval. More...

IeBeaconTiming	GetBeaconTimingElement () const
	Get the beacon timing element. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const char *const	PeerStateNames [6] = { "IDLE", "OPN_SNT", "CNF_RCVD", "OPN_RCVD", "ESTAB", "HOLDING" }
	Literal names of Mesh Peer Management states for use in log messages. More...

Private Types
enum	PeerEvent { CNCL, ACTOPN, CLS_ACPT, OPN_ACPT, OPN_RJCT, REQ_RJCT, CNF_ACPT, CNF_RJCT, TOR1, TOR2, TOC, TOH }
	Peer link events, see 802.11s draft 11B.3.3.2. More...

Private Member Functions
	PeerLink (const PeerLink &o)
	Copy constructor. More...

void	BeaconLoss ()
	Several successive beacons were lost, close link. More...

bool	LinkIsEstab () const

bool	LinkIsIdle () const

PeerLink &	operator= (const PeerLink &link)
	assignment operator More...

void	SetMacPlugin (Ptr< PeerManagementProtocolMac > plugin)
	Set pointer to MAC-plugin, which is responsible for sending peer link management frames. More...

void	StateMachine (PeerEvent event, PmpReasonCode=REASON11S_RESERVED)
	State transition. More...

Link response to received management frames
Attention In all this methods {local/peer}LinkID correspond to peer station, as written in received frame, e.g. I am peerLinkID and peer link is localLinkID .
void	Close (uint16_t localLinkID, uint16_t peerLinkID, PmpReasonCode reason)
	Close link. More...

void	OpenAccept (uint16_t localLinkId, IeConfiguration conf, Mac48Address peerMp)
	Accept open link. More...

void	OpenReject (uint16_t localLinkId, IeConfiguration conf, Mac48Address peerMp, PmpReasonCode reason)
	Reject open link. More...

void	ConfirmAccept (uint16_t localLinkId, uint16_t peerLinkId, uint16_t peerAid, IeConfiguration conf, Mac48Address peerMp)
	Confirm accept. More...

void	ConfirmReject (uint16_t localLinkId, uint16_t peerLinkId, IeConfiguration conf, Mac48Address peerMp, PmpReasonCode reason)
	Confirm reject. More...

Event handlers
void	ClearRetryTimer ()

void	ClearConfirmTimer ()
	Clear the confirm timer. More...

void	ClearHoldingTimer ()
	Clear the holding timer. More...

void	SetHoldingTimer ()
	Set the holding timer. More...

void	SetRetryTimer ()
	Set the retry timer. More...

void	SetConfirmTimer ()
	Set the confirm timer. More...

Work with management frames
void	SendPeerLinkClose (PmpReasonCode reasoncode)
	Send a peer link close. More...

void	SendPeerLinkOpen ()
	Send a peer link open. More...

void	SendPeerLinkConfirm ()
	Send a peer link confirm. More...

Timeout handlers
void	HoldingTimeout ()

void	RetryTimeout ()
	Retry Timeout event handler. More...

void	ConfirmTimeout ()
	Confirm Timeout event handler. More...

Private Attributes
uint16_t	m_assocId
	My association ID. More...

Time	m_beaconInterval
	Current beacon interval on corresponding interface. More...

IeBeaconTiming	m_beaconTiming
	Beacon timing element received from the peer. Needed by BCA. More...

IeConfiguration	m_configuration
	Mesh interface configuration. More...

uint32_t	m_interface
	The number of interface I am associated with. More...

Time	m_lastBeacon
	When last beacon was received. More...

SignalStatusCallback	m_linkStatusCallback
	How to report my status change. More...

uint16_t	m_localLinkId
	My ID of this link. More...

Ptr< PeerManagementProtocolMac >	m_macPlugin
	pointer to MAC plugin, which is responsible for peer management More...

uint16_t	m_packetFail
	How many successive packets were failed to transmit. More...

Mac48Address	m_peerAddress
	Peer address. More...

uint16_t	m_peerAssocId
	Assoc Id assigned to me by peer. More...

uint16_t	m_peerLinkId
	Peer ID of this link. More...

Mac48Address	m_peerMeshPointAddress
	Mesh point address, equal to peer address in case of single interface mesh point. More...

PeerState	m_state
	Current state. More...

Timers & counters used for internal state transitions
uint16_t	m_dot11MeshMaxRetries
	Maximum number of retries. More...

Time	m_dot11MeshRetryTimeout
	Retry timeout. More...

Time	m_dot11MeshHoldingTimeout
	Holding timeout. More...

Time	m_dot11MeshConfirmTimeout
	Confirm timeout. More...

EventId	m_retryTimer
	Retry timer. More...

EventId	m_holdingTimer
	Holding timer. More...

EventId	m_confirmTimer
	Confirm timer. More...

uint16_t	m_retryCounter
	Retry counter. More...

EventId	m_beaconLossTimer
	Beacon loss timer. More...

uint16_t	m_maxBeaconLoss
	Maximum number of lost beacons before link will be closed. More...

uint16_t	m_maxPacketFail
	Maximum number of failed packets before link will be closed. More...

Friends
class	PeerManagementProtocol
	allow PeerManagementProtocol class friend access More...

MLME
typedef Callback< void, uint32_t, Mac48Address, Mac48Address, PeerLink::PeerState, PeerLink::PeerState >	SignalStatusCallback
	Callback type for MLME-SignalPeerLinkStatus event. More...

void	MLMECancelPeerLink (PmpReasonCode reason)
	MLME-CancelPeerLink.request. More...

void	MLMEActivePeerLinkOpen ()
	MLME-ActivePeerLinkOpen.request. More...

void	MLMEPeeringRequestReject ()
	MLME-PeeringRequestReject. More...

void	MLMESetSignalStatusCallback (SignalStatusCallback cb)
	Set callback. More...

void	TransmissionSuccess ()
	Reports about transmission success/failure. More...

void	TransmissionFailure ()
	Callback type for MLME-SignalPeerLinkStatus event. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Peer link model for 802.11s Peer Management protocol.

Introspection did not find any typical Config paths.

Attributes

RetryTimeout: Retry timeout
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +4.096e+07ns
- Flags: construct write read
HoldingTimeout: Holding timeout
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +4.096e+07ns
- Flags: construct write read
ConfirmTimeout: Confirm timeout
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +4.096e+07ns
- Flags: construct write read
MaxRetries: Maximum number of retries
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 4
- Flags: construct write read
MaxBeaconLoss: Maximum number of lost beacons before link will be closed
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 1:65535
- Initial value: 2
- Flags: construct write read
MaxPacketFailure: Maximum number of failed packets before link will be closed
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 1:65535
- Initial value: 2
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 328 bytes (on a 64-bit architecture).

Definition at line 43 of file peer-link.h.

Member Typedef Documentation

◆ SignalStatusCallback

typedef Callback<void, uint32_t, Mac48Address, Mac48Address, PeerLink::PeerState, PeerLink::PeerState> ns3::dot11s::PeerLink::SignalStatusCallback

Callback type for MLME-SignalPeerLinkStatus event.

Definition at line 161 of file peer-link.h.

Member Enumeration Documentation

◆ PeerEvent

enum ns3::dot11s::PeerLink::PeerEvent

private

Peer link events, see 802.11s draft 11B.3.3.2.

Enumerator
CNCL	Cancel peer link.
ACTOPN	Active peer link open.
CLS_ACPT	PeerLinkClose_Accept.
OPN_ACPT	PeerLinkOpen_Accept.
OPN_RJCT	PeerLinkOpen_Reject.
REQ_RJCT	PeerLinkOpenReject by internal reason.
CNF_ACPT	PeerLinkConfirm_Accept.
CNF_RJCT	PeerLinkConfirm_Reject.
TOR1	Timeout of retry timer.
TOR2	also timeout of retry timer
TOC	Timeout of confirm timer.
TOH	Timeout of holding (graceful closing) timer.

Definition at line 179 of file peer-link.h.

◆ PeerState

enum ns3::dot11s::PeerLink::PeerState

Peer Link state:

Enumerator
IDLE
OPN_SNT
CNF_RCVD
OPN_RCVD
ESTAB
HOLDING

Definition at line 58 of file peer-link.h.

Constructor & Destructor Documentation

◆ PeerLink() [1/2]

ns3::dot11s::PeerLink::PeerLink ( )

C-tor create empty link.

Definition at line 96 of file peer-link.cc.

References NS_LOG_FUNCTION.

◆ ~PeerLink()

ns3::dot11s::PeerLink::~PeerLink ( )

Definition at line 112 of file peer-link.cc.

◆ PeerLink() [2/2]

ns3::dot11s::PeerLink::PeerLink ( const PeerLink & o )

private

Copy constructor.

Intentionally unimplemented

Parameters

o	object to copy

Member Function Documentation

◆ BeaconLoss()

void ns3::dot11s::PeerLink::BeaconLoss ( )

private

Several successive beacons were lost, close link.

Definition at line 166 of file peer-link.cc.

References CNCL, NS_LOG_FUNCTION, and StateMachine().

Referenced by SetBeaconInformation().

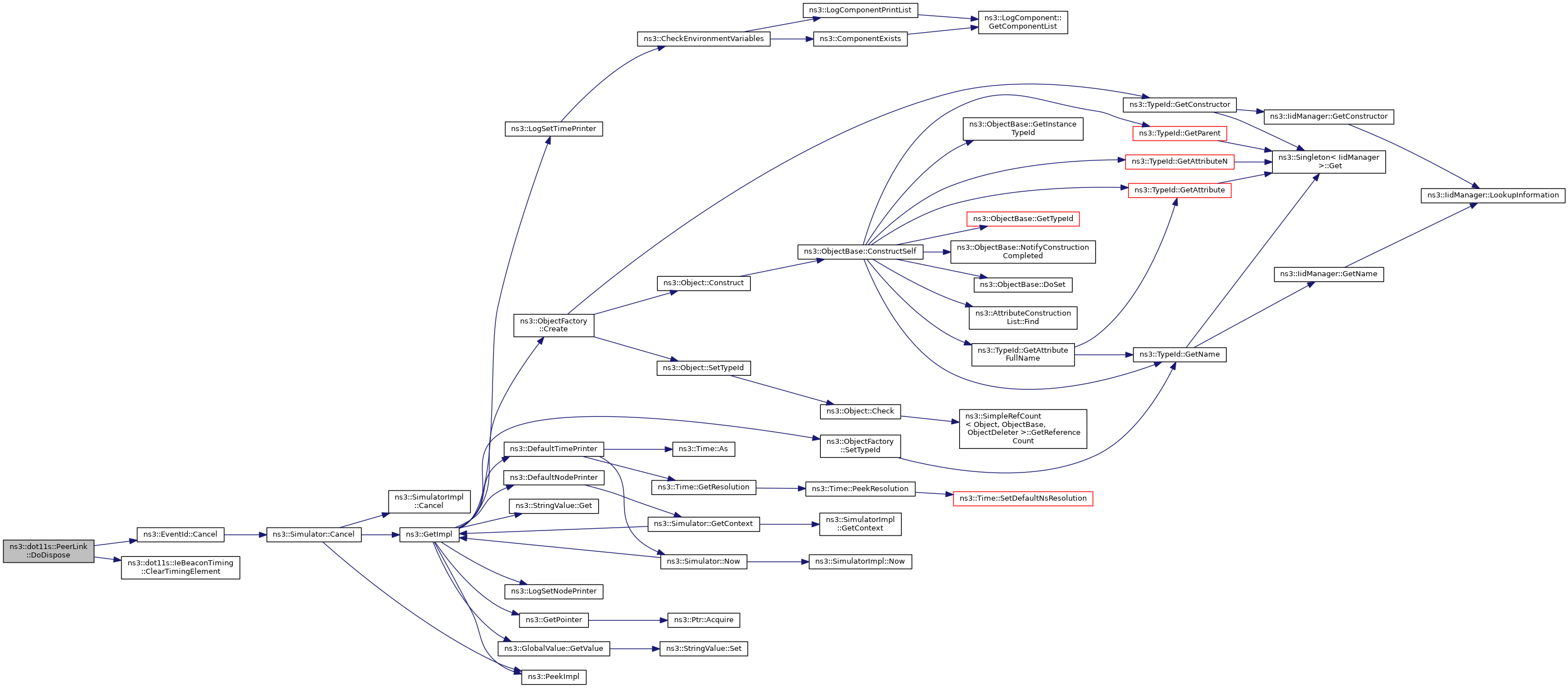

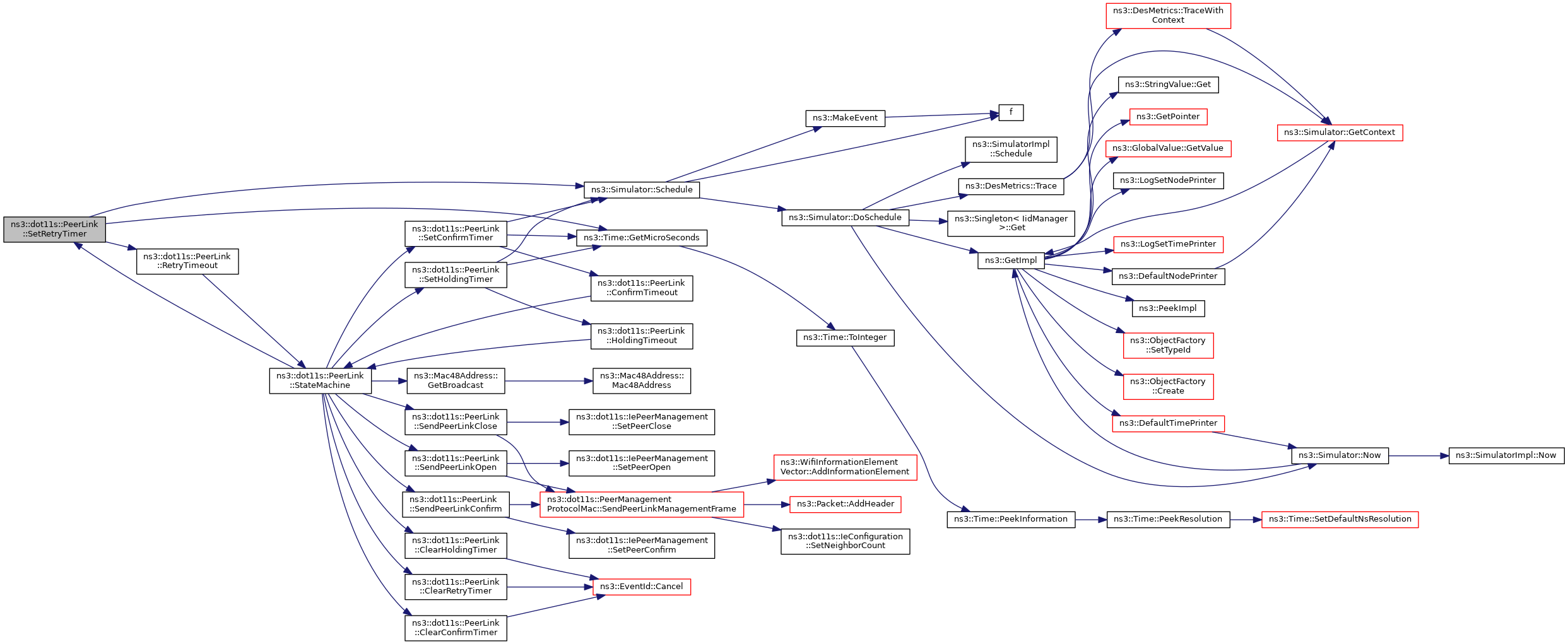

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ClearConfirmTimer()

void ns3::dot11s::PeerLink::ClearConfirmTimer ( )

private

Clear the confirm timer.

Definition at line 627 of file peer-link.cc.

References ns3::EventId::Cancel(), and m_confirmTimer.

Referenced by StateMachine().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ClearHoldingTimer()

void ns3::dot11s::PeerLink::ClearHoldingTimer ( )

private

Clear the holding timer.

Definition at line 632 of file peer-link.cc.

References ns3::EventId::Cancel(), and m_holdingTimer.

Referenced by StateMachine().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ClearRetryTimer()

void ns3::dot11s::PeerLink::ClearRetryTimer ( )

private

Clear the retry timer

Definition at line 622 of file peer-link.cc.

References ns3::EventId::Cancel(), and m_retryTimer.

Referenced by StateMachine().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Close()

void ns3::dot11s::PeerLink::Close	(	uint16_t	localLinkID,
		uint16_t	peerLinkID,
		PmpReasonCode	reason
	)

private

Close link.

Parameters

localLinkID	the local link ID
peerLinkID	the peer link ID
reason	the reason to close

Definition at line 241 of file peer-link.cc.

References CLS_ACPT, m_localLinkId, m_peerLinkId, NS_LOG_FUNCTION, and StateMachine().

Here is the call graph for this function:

◆ ConfirmAccept()

void ns3::dot11s::PeerLink::ConfirmAccept	(	uint16_t	localLinkId,
		uint16_t	peerLinkId,
		uint16_t	peerAid,
		IeConfiguration	conf,
		Mac48Address	peerMp
	)

private

Confirm accept.

Parameters

localLinkId	the local link ID
peerLinkId	the peer link ID
peerAid	the peer AID
conf	the IE configuration
peerMp	the peer MP

Definition at line 297 of file peer-link.cc.

References CNF_ACPT, ns3::Mac48Address::GetBroadcast(), m_configuration, m_localLinkId, m_peerAssocId, m_peerLinkId, m_peerMeshPointAddress, NS_ASSERT, NS_LOG_FUNCTION, and StateMachine().

Here is the call graph for this function:

◆ ConfirmReject()

void ns3::dot11s::PeerLink::ConfirmReject	(	uint16_t	localLinkId,
		uint16_t	peerLinkId,
		IeConfiguration	conf,
		Mac48Address	peerMp,
		PmpReasonCode	reason
	)

private

Confirm reject.

Parameters

localLinkId	the local link ID
peerLinkId	the peer link ID
conf	the IE configuration
peerMp	the peer MP
reason	the reason to close

Definition at line 329 of file peer-link.cc.

References CNF_RJCT, ns3::Mac48Address::GetBroadcast(), m_configuration, m_localLinkId, m_peerLinkId, m_peerMeshPointAddress, NS_ASSERT, NS_LOG_FUNCTION, and StateMachine().

Here is the call graph for this function:

◆ ConfirmTimeout()

void ns3::dot11s::PeerLink::ConfirmTimeout ( )

private

Confirm Timeout event handler.

Definition at line 701 of file peer-link.cc.

References StateMachine(), and TOC.

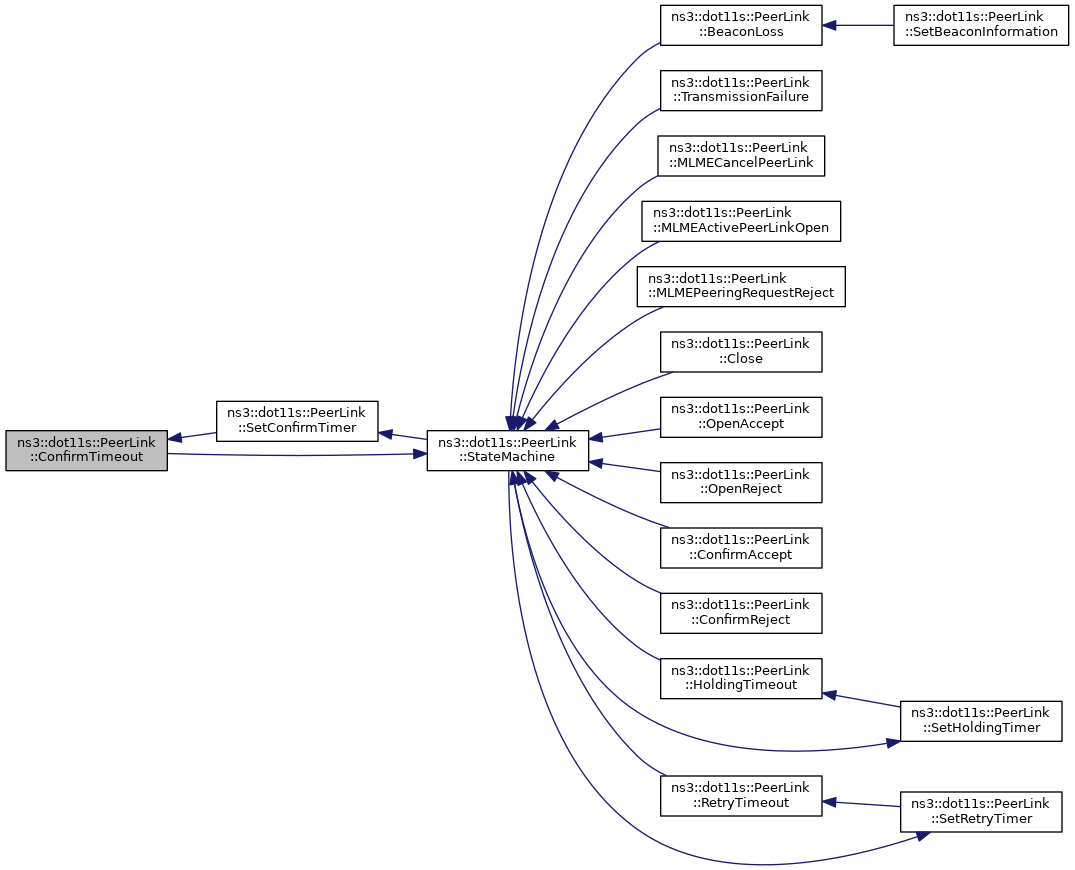

Referenced by SetConfirmTimer().

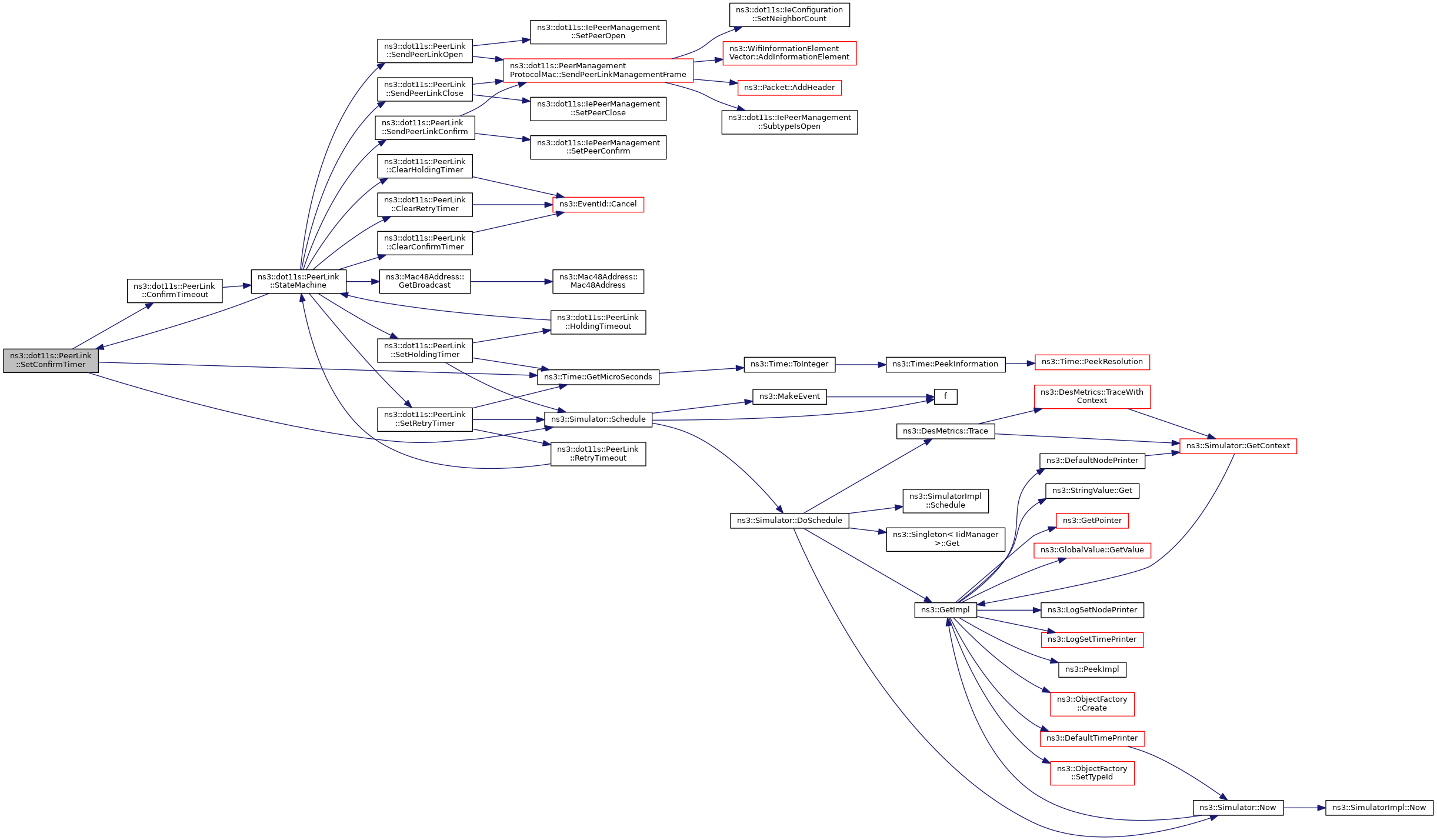

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::dot11s::PeerLink::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 116 of file peer-link.cc.

References ns3::EventId::Cancel(), ns3::dot11s::IeBeaconTiming::ClearTimingElement(), m_beaconLossTimer, m_beaconTiming, m_confirmTimer, m_holdingTimer, m_retryTimer, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetBeaconInterval()

Time ns3::dot11s::PeerLink::GetBeaconInterval ( ) const

Get the beacon interval.

Returns: The beacon interval

Definition at line 216 of file peer-link.cc.

References m_beaconInterval.

◆ GetBeaconTimingElement()

IeBeaconTiming ns3::dot11s::PeerLink::GetBeaconTimingElement ( ) const

Get the beacon timing element.

Returns: The beacon timing element

Definition at line 221 of file peer-link.cc.

References m_beaconTiming.

◆ GetLastBeacon()

Time ns3::dot11s::PeerLink::GetLastBeacon ( ) const

Get the time of the last received beacon.

Returns: The time of the last received beacon

Definition at line 211 of file peer-link.cc.

References m_lastBeacon.

◆ GetLocalAid()

uint16_t ns3::dot11s::PeerLink::GetLocalAid ( ) const

Get the local association ID.

Returns: The local association ID

Definition at line 200 of file peer-link.cc.

References m_assocId.

◆ GetPeerAddress()

Mac48Address ns3::dot11s::PeerLink::GetPeerAddress ( void ) const

Get the peer address.

Returns: The peer address

Definition at line 195 of file peer-link.cc.

References m_peerAddress.

◆ GetPeerAid()

uint16_t ns3::dot11s::PeerLink::GetPeerAid ( ) const

Set the peer association ID.

Returns: The peer association ID

Definition at line 205 of file peer-link.cc.

References m_peerAssocId.

◆ GetTypeId()

TypeId ns3::dot11s::PeerLink::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 38 of file peer-link.cc.

References m_dot11MeshConfirmTimeout, m_dot11MeshHoldingTimeout, m_dot11MeshMaxRetries, m_dot11MeshRetryTimeout, m_maxBeaconLoss, m_maxPacketFail, ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::MicroSeconds(), and ns3::TypeId::SetParent().

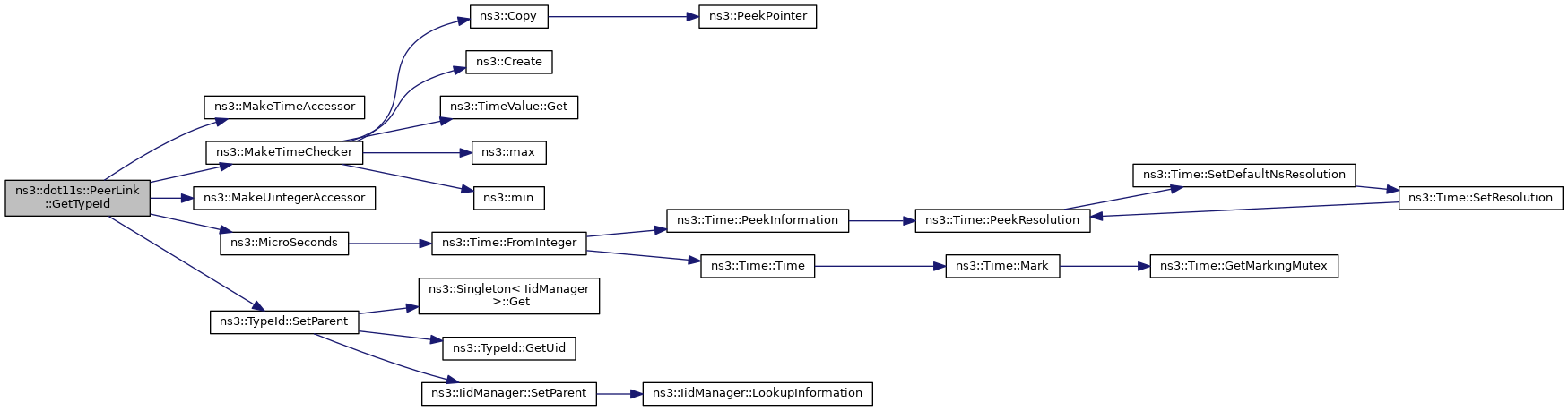

Here is the call graph for this function:

◆ HoldingTimeout()

void ns3::dot11s::PeerLink::HoldingTimeout ( )

private

Holding Timeout event handler

Definition at line 668 of file peer-link.cc.

References NS_LOG_FUNCTION, StateMachine(), and TOH.

Referenced by SetHoldingTimer().

Here is the call graph for this function:

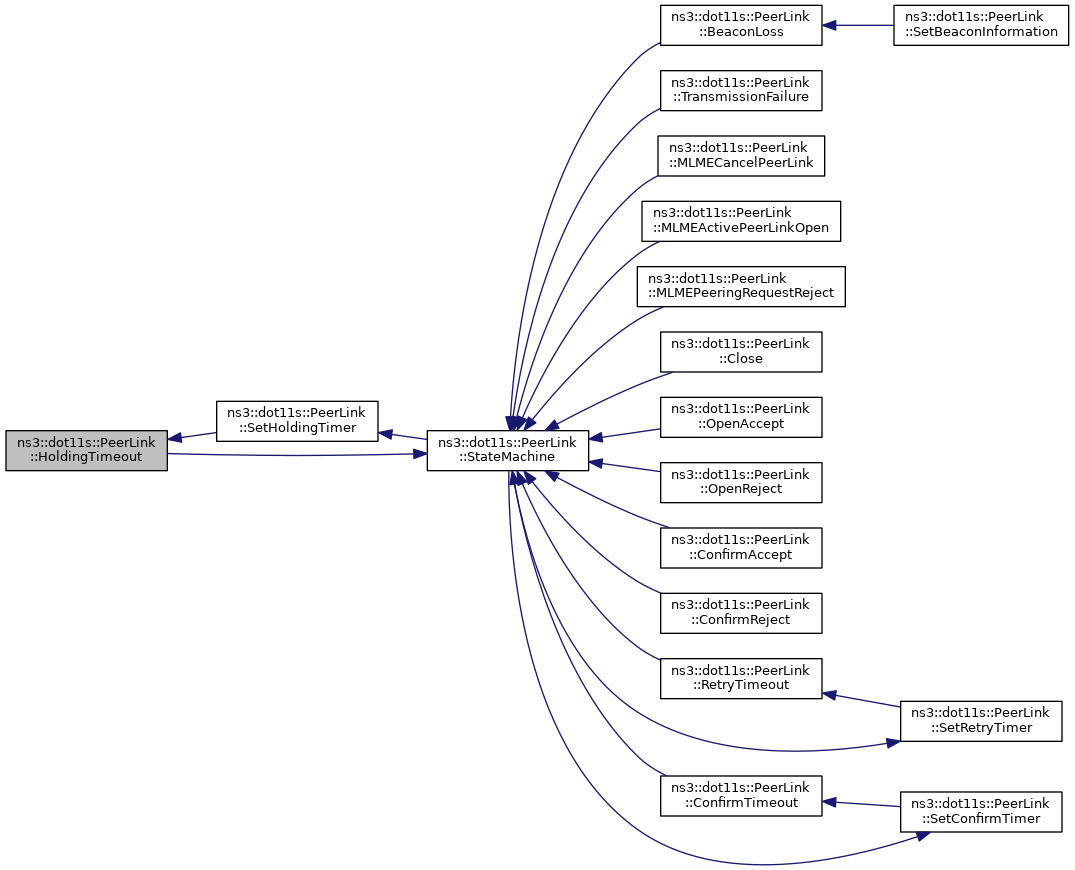

Here is the caller graph for this function:

◆ LinkIsEstab()

bool ns3::dot11s::PeerLink::LinkIsEstab ( ) const

private

Returns: True if link is established

Definition at line 357 of file peer-link.cc.

References ESTAB, and m_state.

◆ LinkIsIdle()

bool ns3::dot11s::PeerLink::LinkIsIdle ( ) const

private

Returns: True if link is idle. Link can be deleted in this state

Definition at line 362 of file peer-link.cc.

References IDLE, and m_state.

◆ MLMEActivePeerLinkOpen()

void ns3::dot11s::PeerLink::MLMEActivePeerLinkOpen ( )

MLME-ActivePeerLinkOpen.request.

Definition at line 231 of file peer-link.cc.

References ACTOPN, and StateMachine().

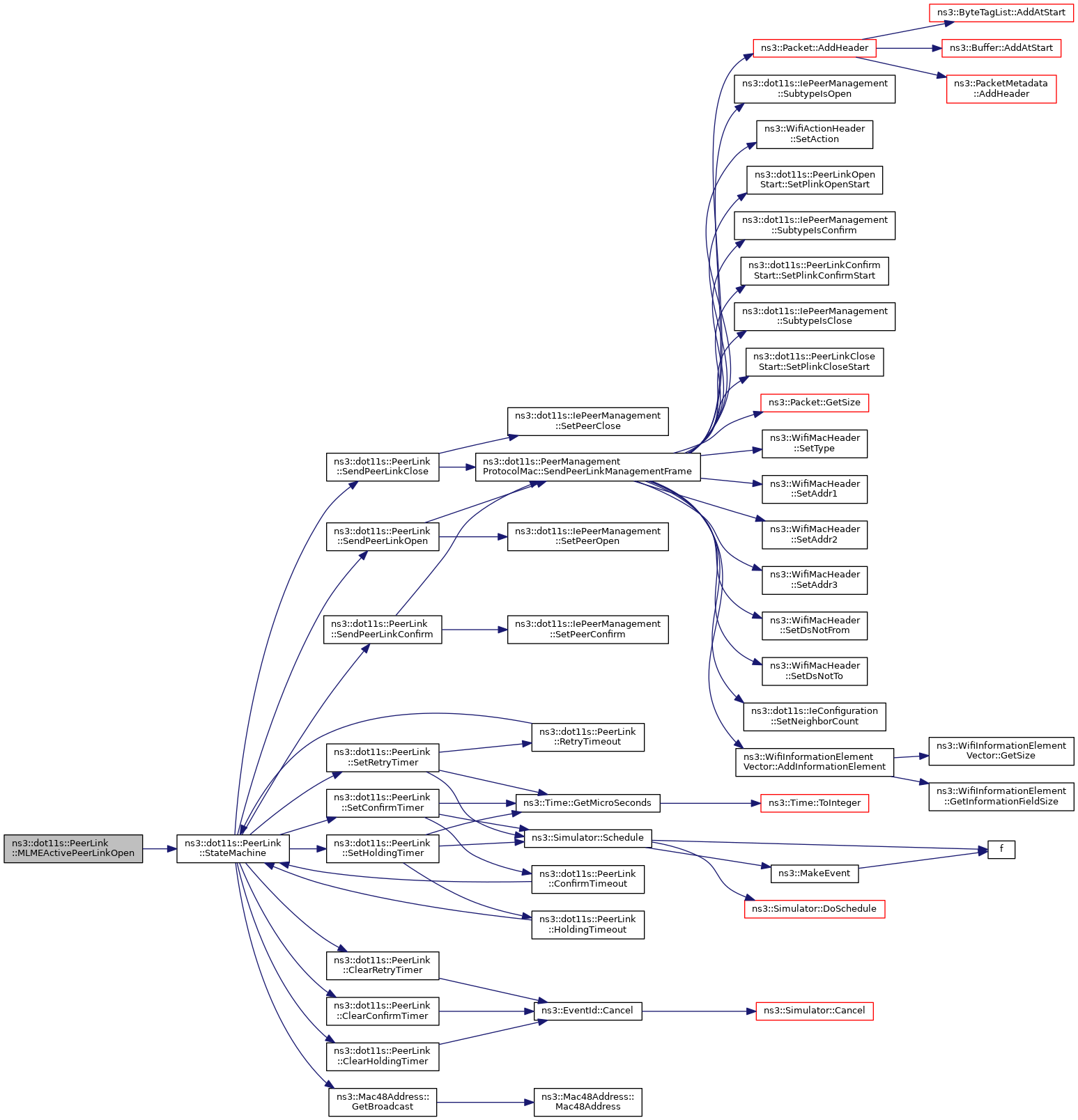

Here is the call graph for this function:

◆ MLMECancelPeerLink()

void ns3::dot11s::PeerLink::MLMECancelPeerLink ( PmpReasonCode reason )

MLME-CancelPeerLink.request.

Parameters

reason the reason for the request

Definition at line 226 of file peer-link.cc.

References CNCL, and StateMachine().

Here is the call graph for this function:

◆ MLMEPeeringRequestReject()

void ns3::dot11s::PeerLink::MLMEPeeringRequestReject ( )

MLME-PeeringRequestReject.

Definition at line 236 of file peer-link.cc.

References ns3::dot11s::REASON11S_PEERING_CANCELLED, REQ_RJCT, and StateMachine().

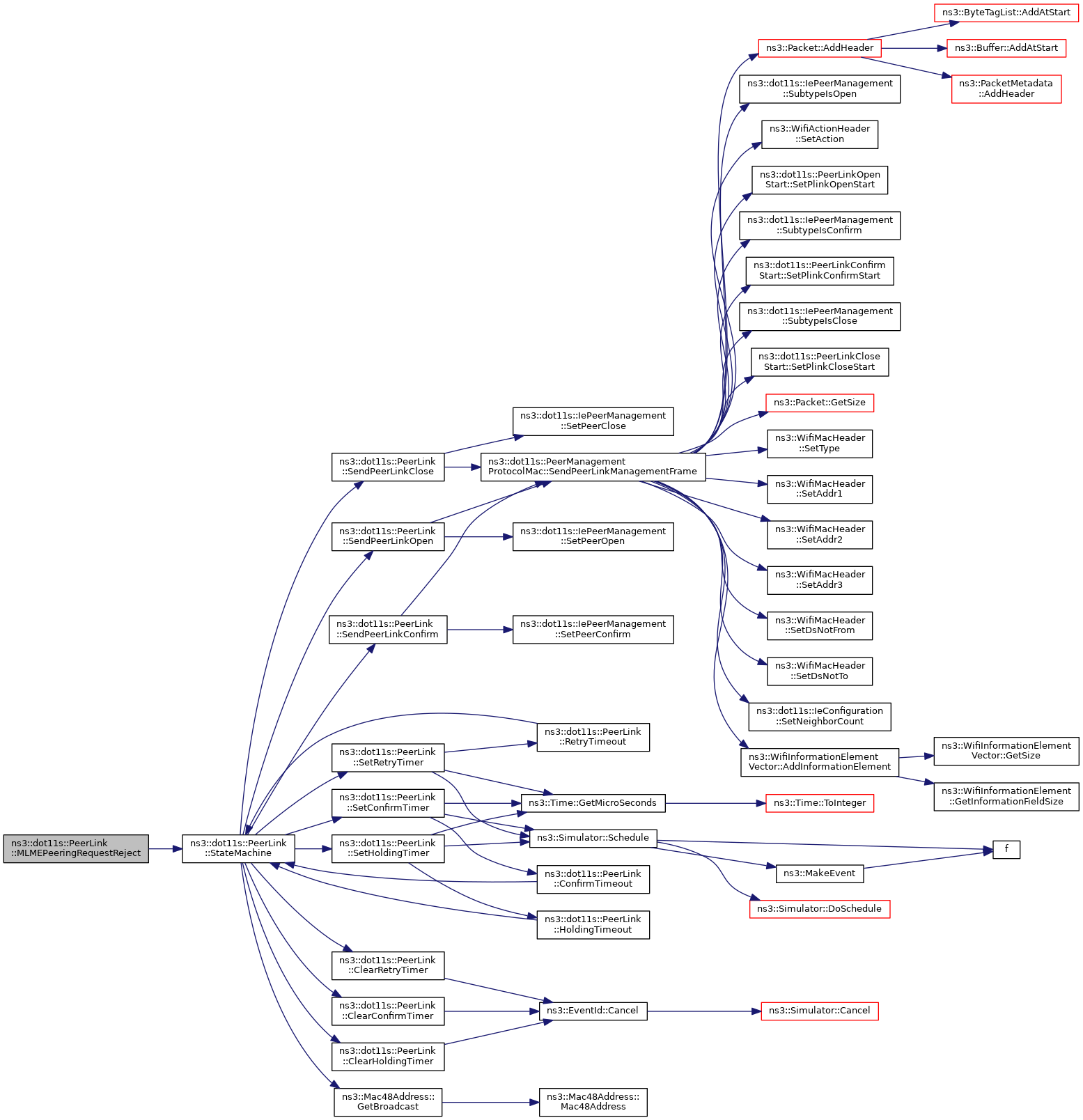

Here is the call graph for this function:

◆ MLMESetSignalStatusCallback()

void ns3::dot11s::PeerLink::MLMESetSignalStatusCallback ( PeerLink::SignalStatusCallback cb )

Set callback.

Parameters

cb	the callback function

Definition at line 161 of file peer-link.cc.

References m_linkStatusCallback.

◆ OpenAccept()

void ns3::dot11s::PeerLink::OpenAccept	(	uint16_t	localLinkId,
		IeConfiguration	conf,
		Mac48Address	peerMp
	)

private

Accept open link.

Parameters

localLinkId	the local link ID
conf	the IE configuration
peerMp	the peer MP

Definition at line 262 of file peer-link.cc.

References ns3::Mac48Address::GetBroadcast(), m_configuration, m_peerLinkId, m_peerMeshPointAddress, NS_ASSERT, NS_LOG_FUNCTION, OPN_ACPT, and StateMachine().

Here is the call graph for this function:

◆ OpenReject()

void ns3::dot11s::PeerLink::OpenReject	(	uint16_t	localLinkId,
		IeConfiguration	conf,
		Mac48Address	peerMp,
		PmpReasonCode	reason
	)

private

Reject open link.

Parameters

localLinkId	the local link ID
conf	the IE configuration
peerMp	the peer MP
reason	the reason to close

Definition at line 278 of file peer-link.cc.

References ns3::Mac48Address::GetBroadcast(), m_configuration, m_peerLinkId, m_peerMeshPointAddress, NS_ASSERT, NS_LOG_FUNCTION, OPN_RJCT, and StateMachine().

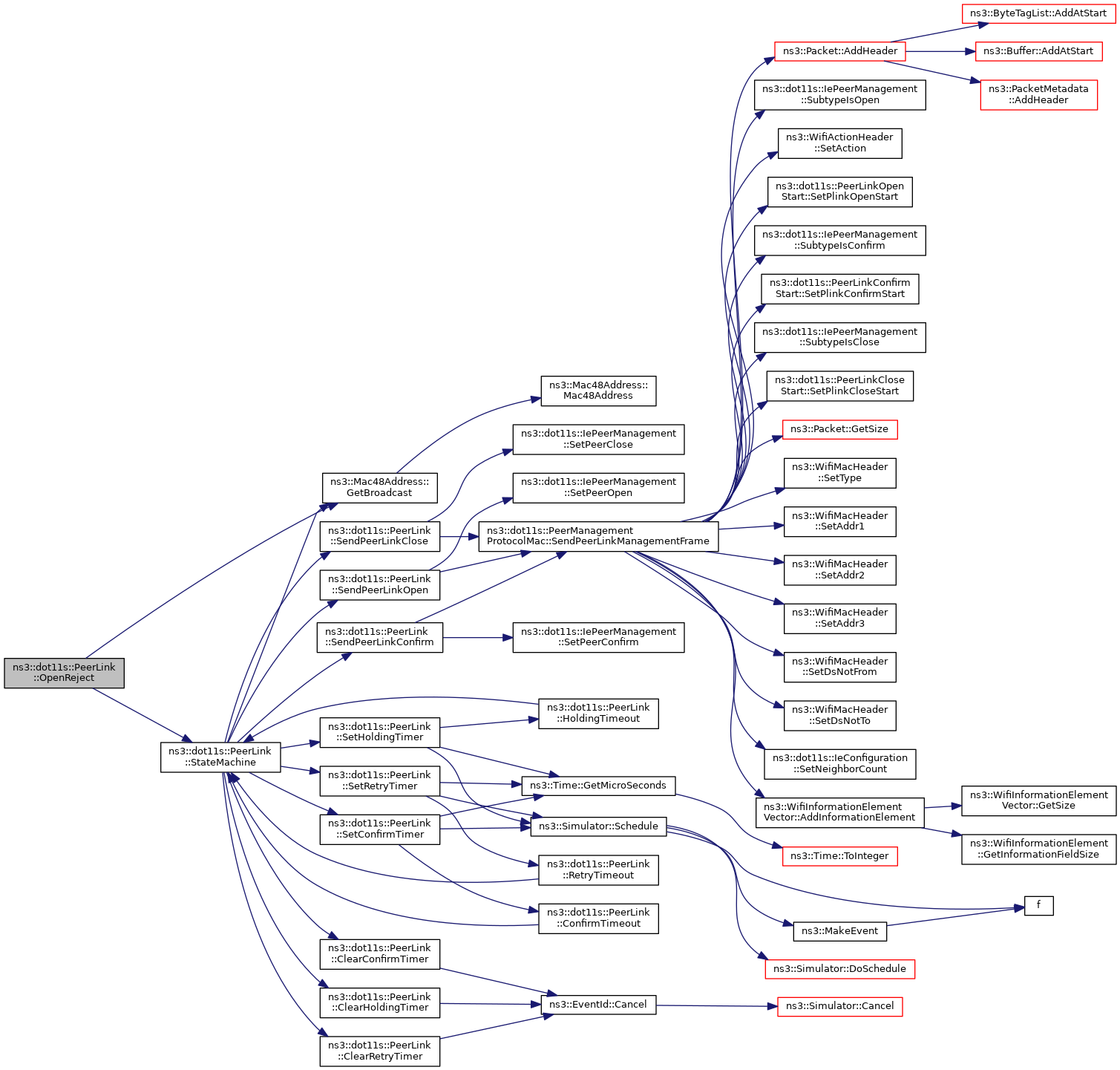

Here is the call graph for this function:

◆ operator=()

PeerLink& ns3::dot11s::PeerLink::operator= ( const PeerLink & link )

private

assignment operator

Parameters

link	the peer link

Returns: the peer link assigned

◆ Report()

void ns3::dot11s::PeerLink::Report ( std::ostream & os ) const

Statistics.

Parameters

os	the output stream

Definition at line 706 of file peer-link.cc.

References ESTAB, ns3::dot11s::PeerManagementProtocolMac::GetAddress(), ns3::dot11s::PeerManagementProtocolMac::GetLinkMetric(), ns3::Time::GetSeconds(), m_assocId, m_lastBeacon, m_localLinkId, m_macPlugin, m_peerAddress, m_peerLinkId, m_peerMeshPointAddress, and m_state.

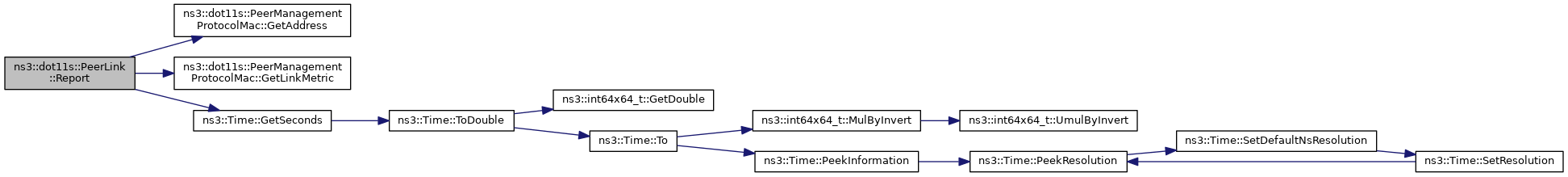

Here is the call graph for this function:

◆ RetryTimeout()

void ns3::dot11s::PeerLink::RetryTimeout ( )

private

Retry Timeout event handler.

Definition at line 680 of file peer-link.cc.

References m_dot11MeshMaxRetries, m_retryCounter, NS_LOG_FUNCTION, NS_LOG_LOGIC, StateMachine(), TOR1, and TOR2.

Referenced by SetRetryTimer().

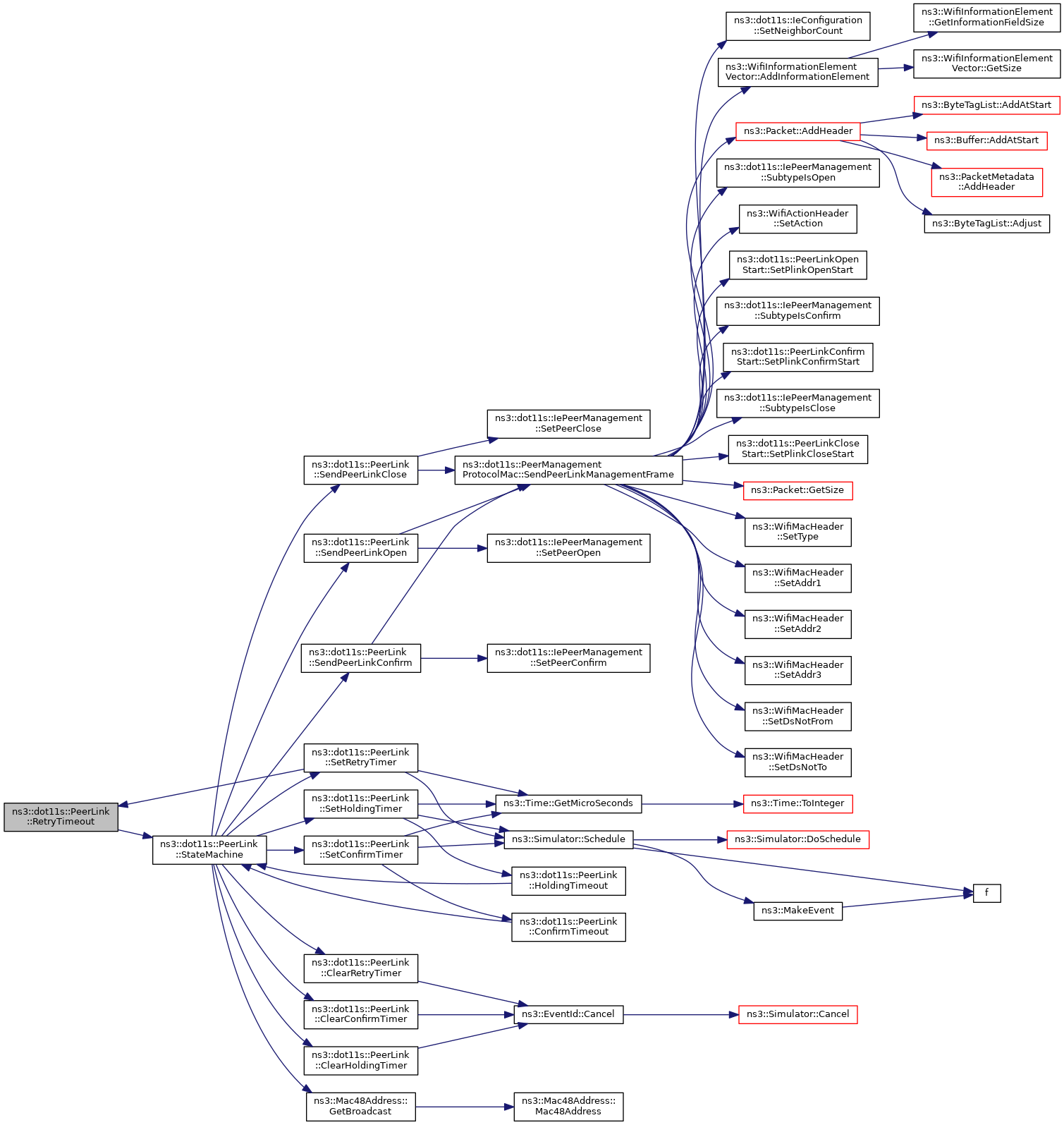

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendPeerLinkClose()

void ns3::dot11s::PeerLink::SendPeerLinkClose ( PmpReasonCode reasoncode )

private

Send a peer link close.

Parameters

reasoncode reason for closing the line

Definition at line 637 of file peer-link.cc.

References m_assocId, m_configuration, m_localLinkId, m_macPlugin, m_peerAddress, m_peerLinkId, m_peerMeshPointAddress, ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), and ns3::dot11s::IePeerManagement::SetPeerClose().

Referenced by StateMachine().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendPeerLinkConfirm()

void ns3::dot11s::PeerLink::SendPeerLinkConfirm ( )

private

Send a peer link confirm.

Definition at line 654 of file peer-link.cc.

References m_assocId, m_configuration, m_localLinkId, m_macPlugin, m_peerAddress, m_peerLinkId, m_peerMeshPointAddress, ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), and ns3::dot11s::IePeerManagement::SetPeerConfirm().

Referenced by StateMachine().

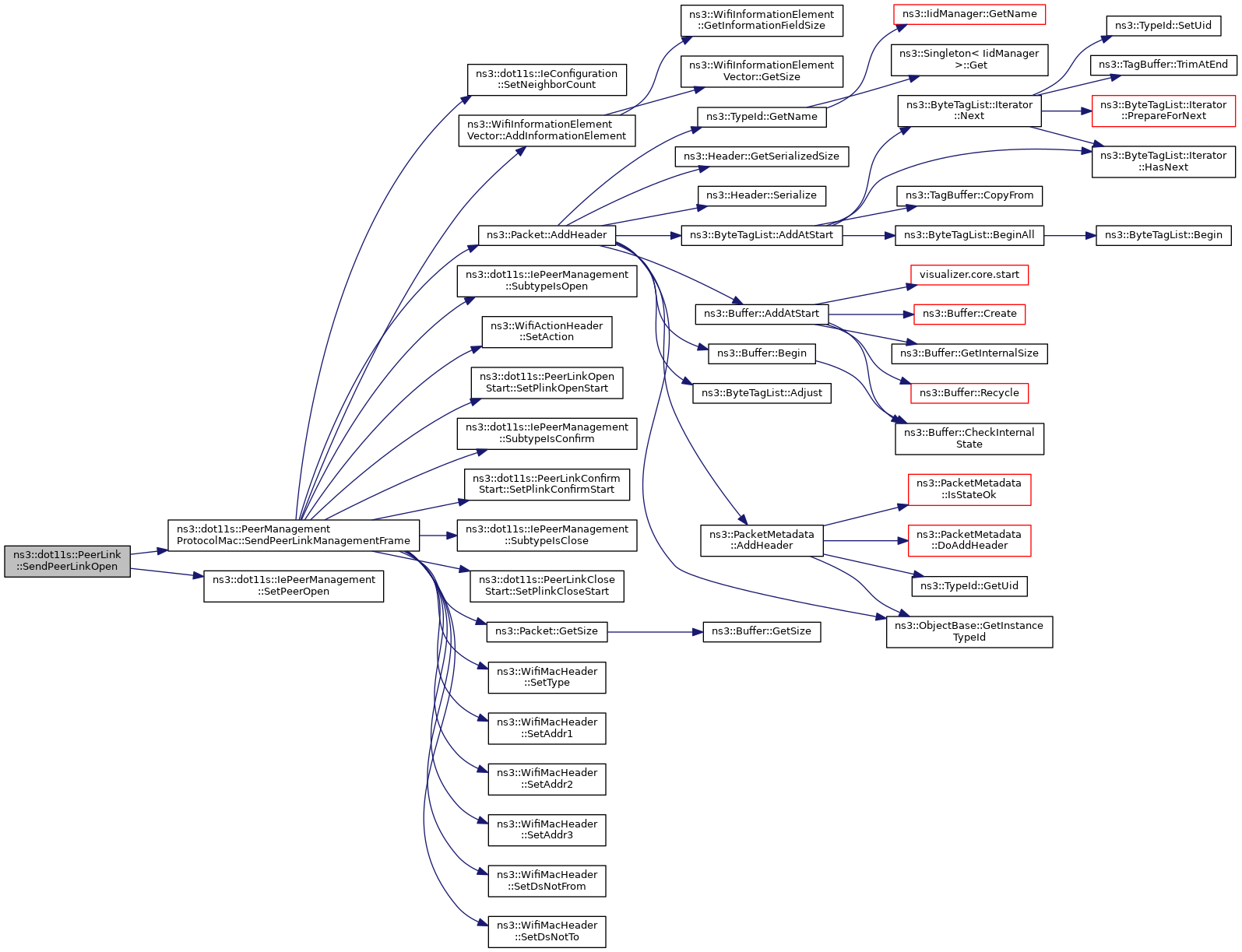

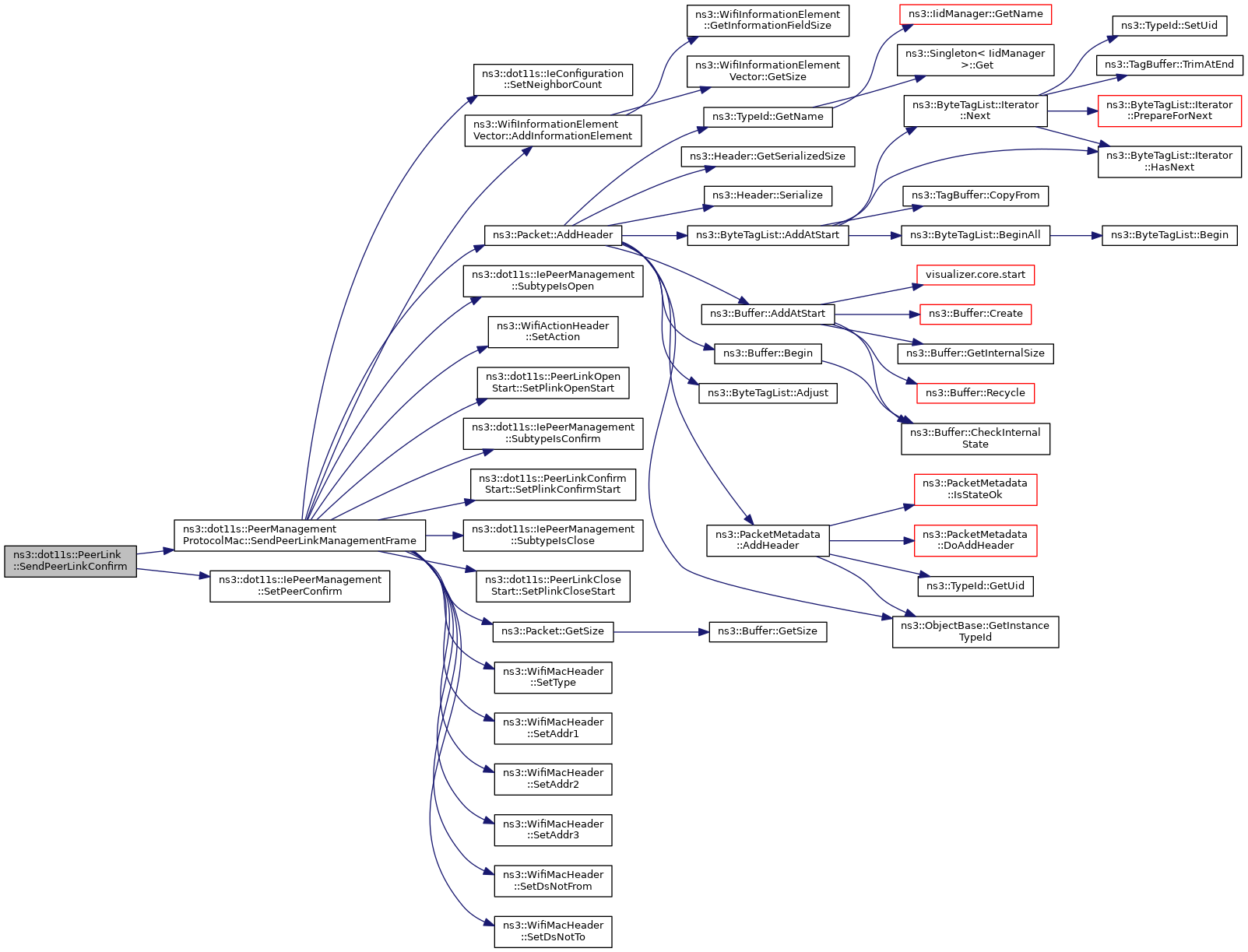

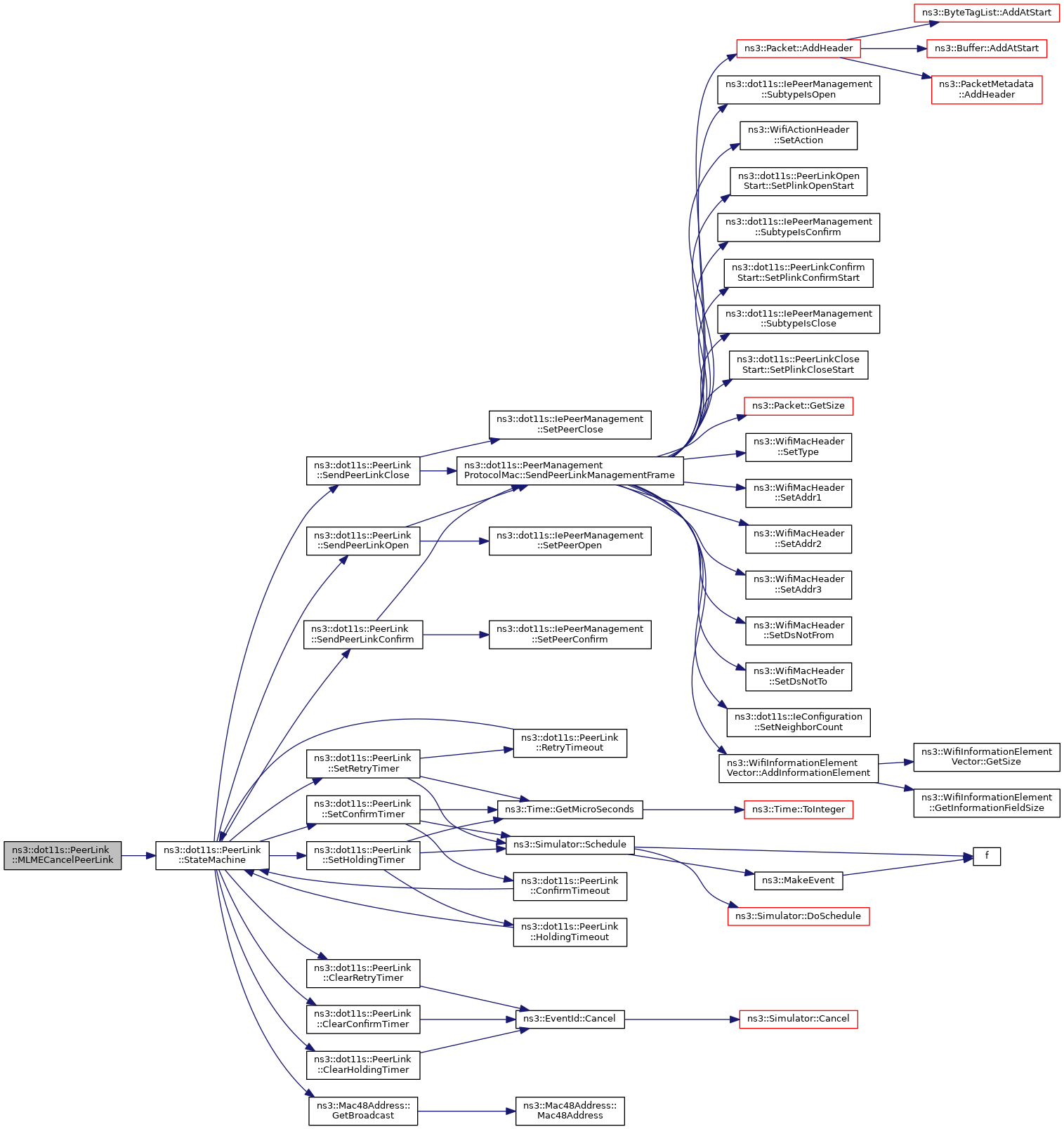

Here is the call graph for this function:

Here is the caller graph for this function:

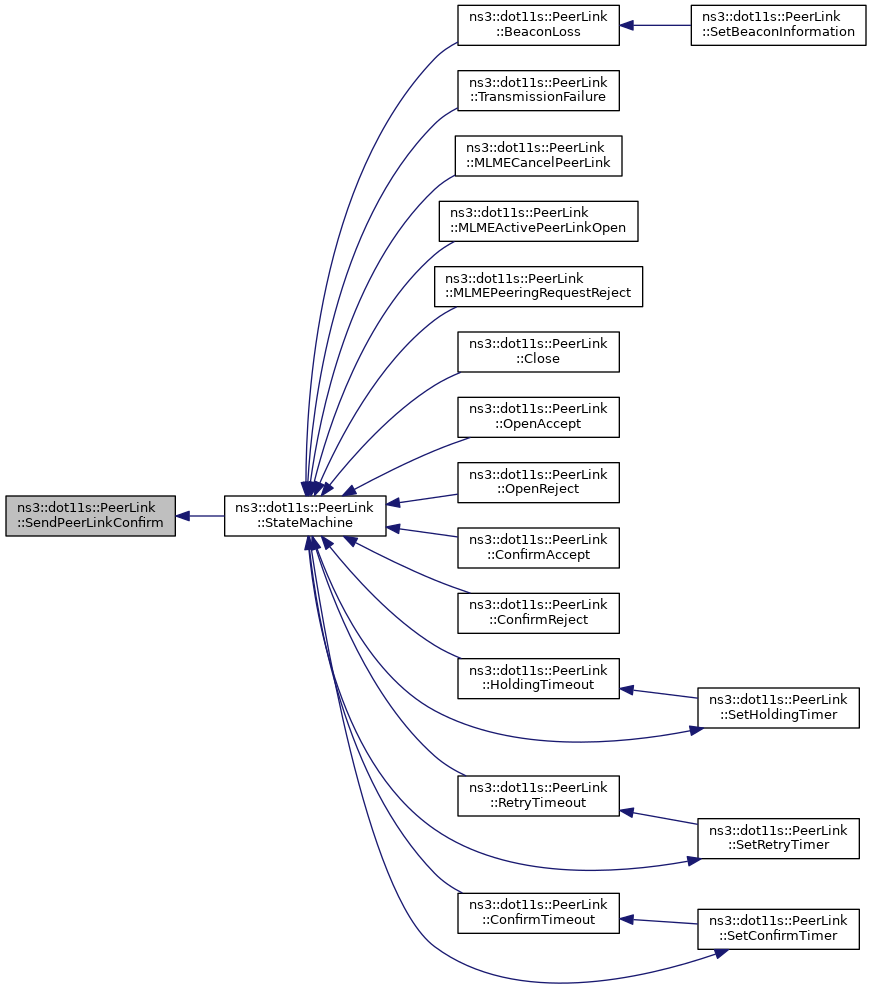

◆ SendPeerLinkOpen()

void ns3::dot11s::PeerLink::SendPeerLinkOpen ( )

private

Send a peer link open.

Definition at line 645 of file peer-link.cc.

References m_assocId, m_configuration, m_localLinkId, m_macPlugin, m_peerAddress, m_peerMeshPointAddress, NS_ASSERT, ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), and ns3::dot11s::IePeerManagement::SetPeerOpen().

Referenced by StateMachine().

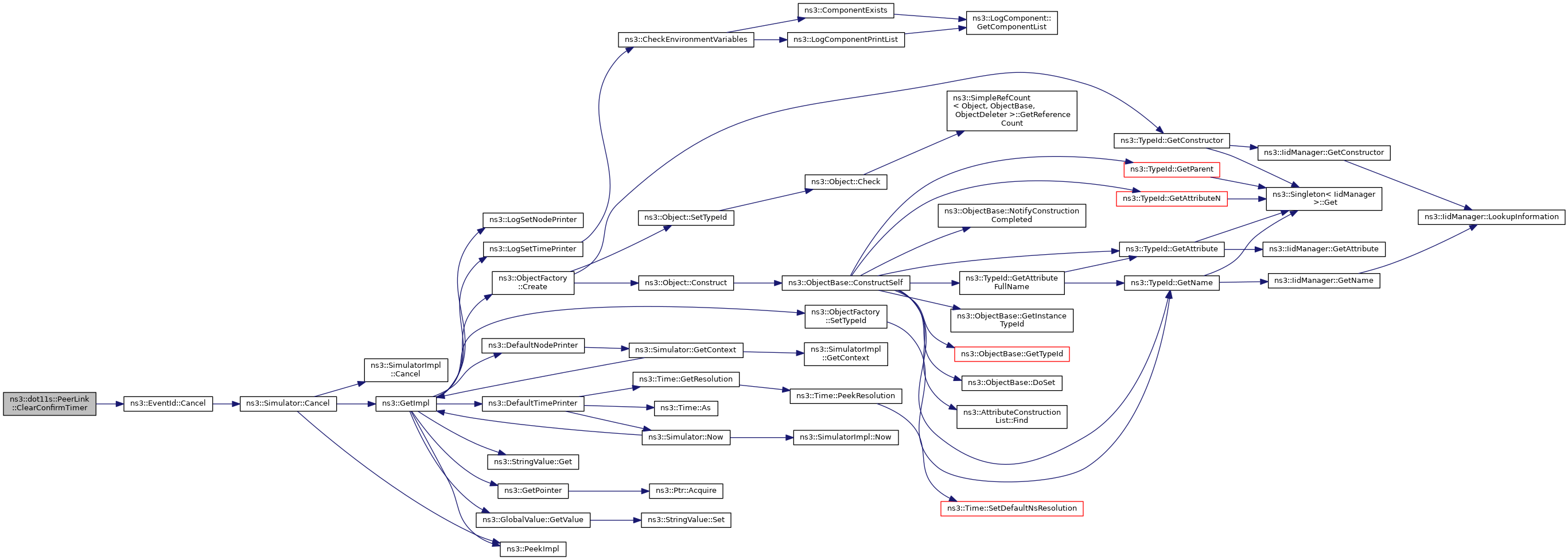

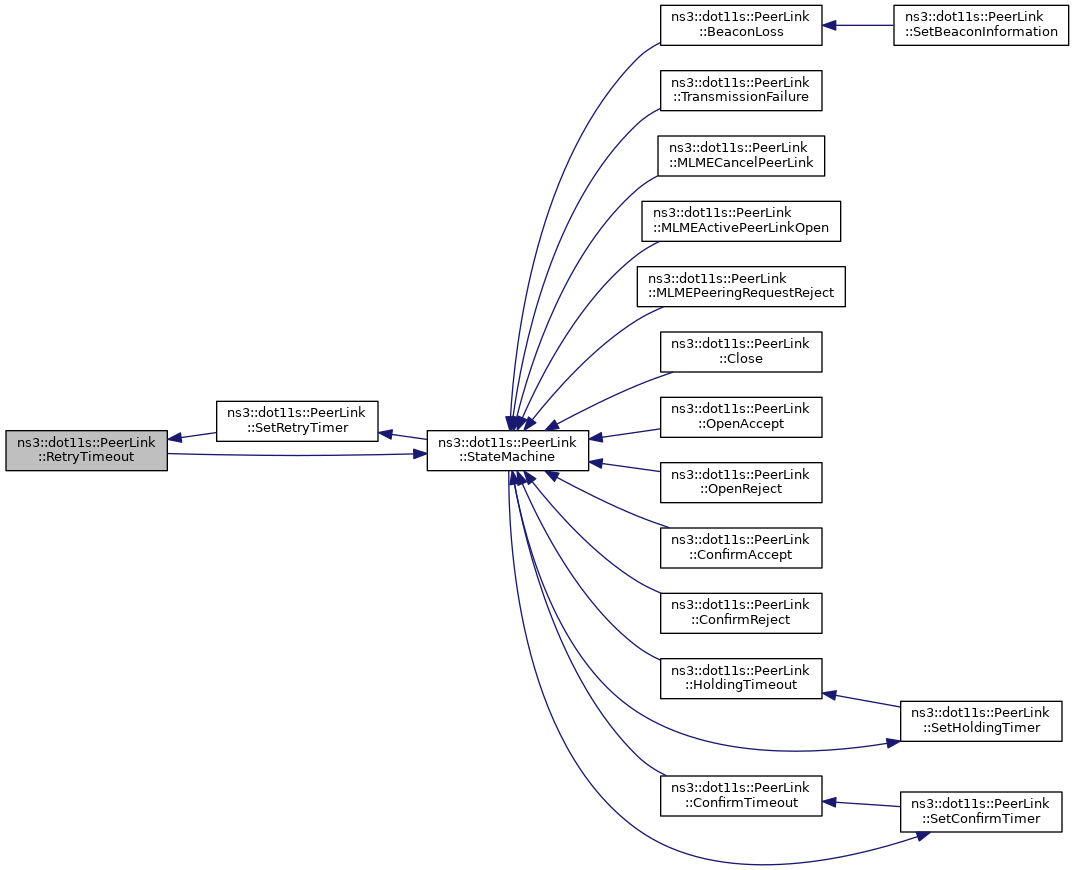

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBeaconInformation()

void ns3::dot11s::PeerLink::SetBeaconInformation	(	Time	lastBeacon,
		Time	BeaconInterval
	)

Process beacon received from peer.

Parameters

lastBeacon	the last beacon
BeaconInterval	the beacon interval

Definition at line 151 of file peer-link.cc.

References BeaconLoss(), ns3::EventId::Cancel(), ns3::Time::GetMicroSeconds(), ns3::Time::GetSeconds(), m_beaconInterval, m_beaconLossTimer, m_lastBeacon, m_maxBeaconLoss, NS_ASSERT, ns3::Simulator::Schedule(), and ns3::Seconds().

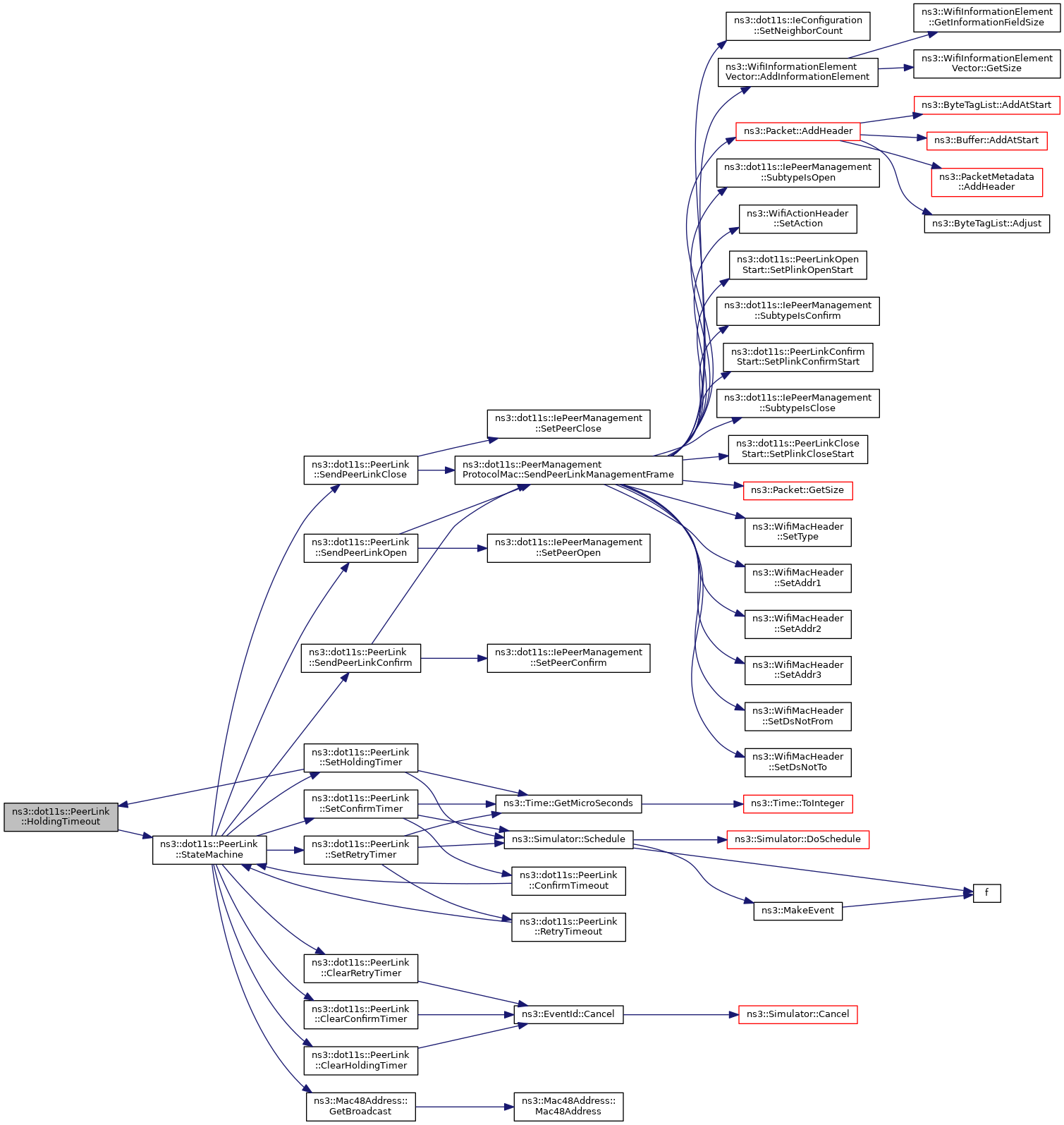

Here is the call graph for this function:

◆ SetBeaconTimingElement()

void ns3::dot11s::PeerLink::SetBeaconTimingElement ( IeBeaconTiming beaconTiming )

Set the beacon timing element.

Parameters

beaconTiming the beacon timing element

Definition at line 190 of file peer-link.cc.

References m_beaconTiming.

◆ SetConfirmTimer()

void ns3::dot11s::PeerLink::SetConfirmTimer ( )

private

Set the confirm timer.

Definition at line 695 of file peer-link.cc.

References ConfirmTimeout(), ns3::Time::GetMicroSeconds(), m_confirmTimer, m_dot11MeshConfirmTimeout, NS_ASSERT, and ns3::Simulator::Schedule().

Referenced by StateMachine().

Here is the call graph for this function:

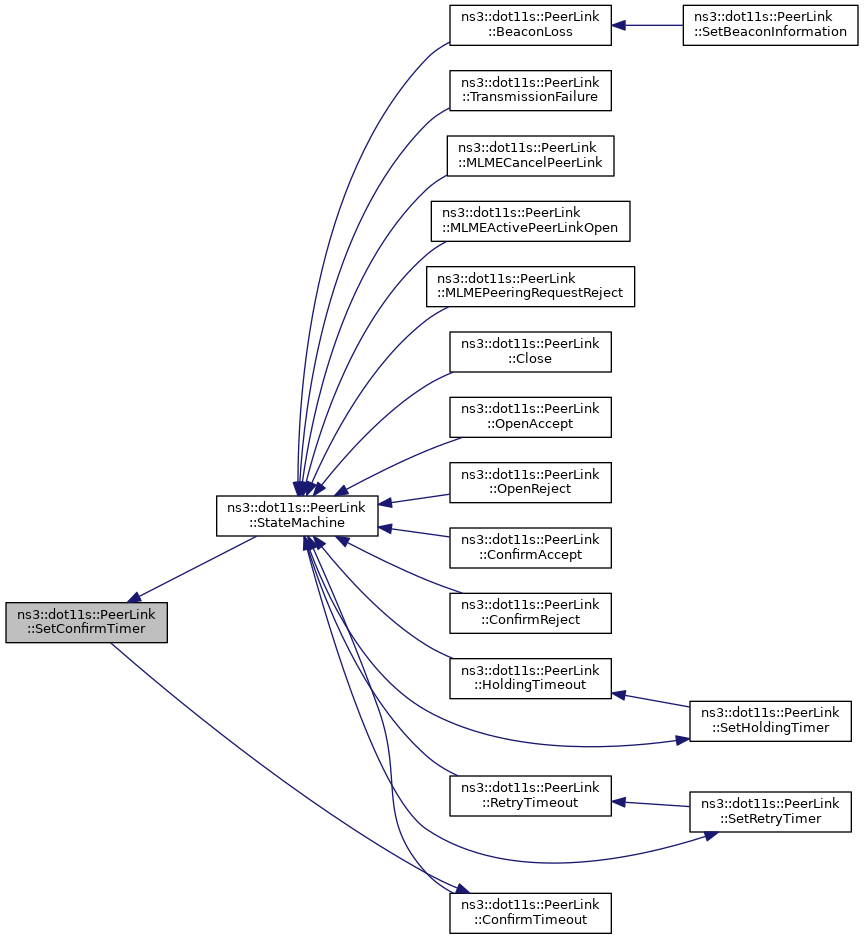

Here is the caller graph for this function:

◆ SetHoldingTimer()

void ns3::dot11s::PeerLink::SetHoldingTimer ( )

private

Set the holding timer.

Definition at line 662 of file peer-link.cc.

References ns3::Time::GetMicroSeconds(), HoldingTimeout(), m_dot11MeshHoldingTimeout, m_holdingTimer, NS_ASSERT, and ns3::Simulator::Schedule().

Referenced by StateMachine().

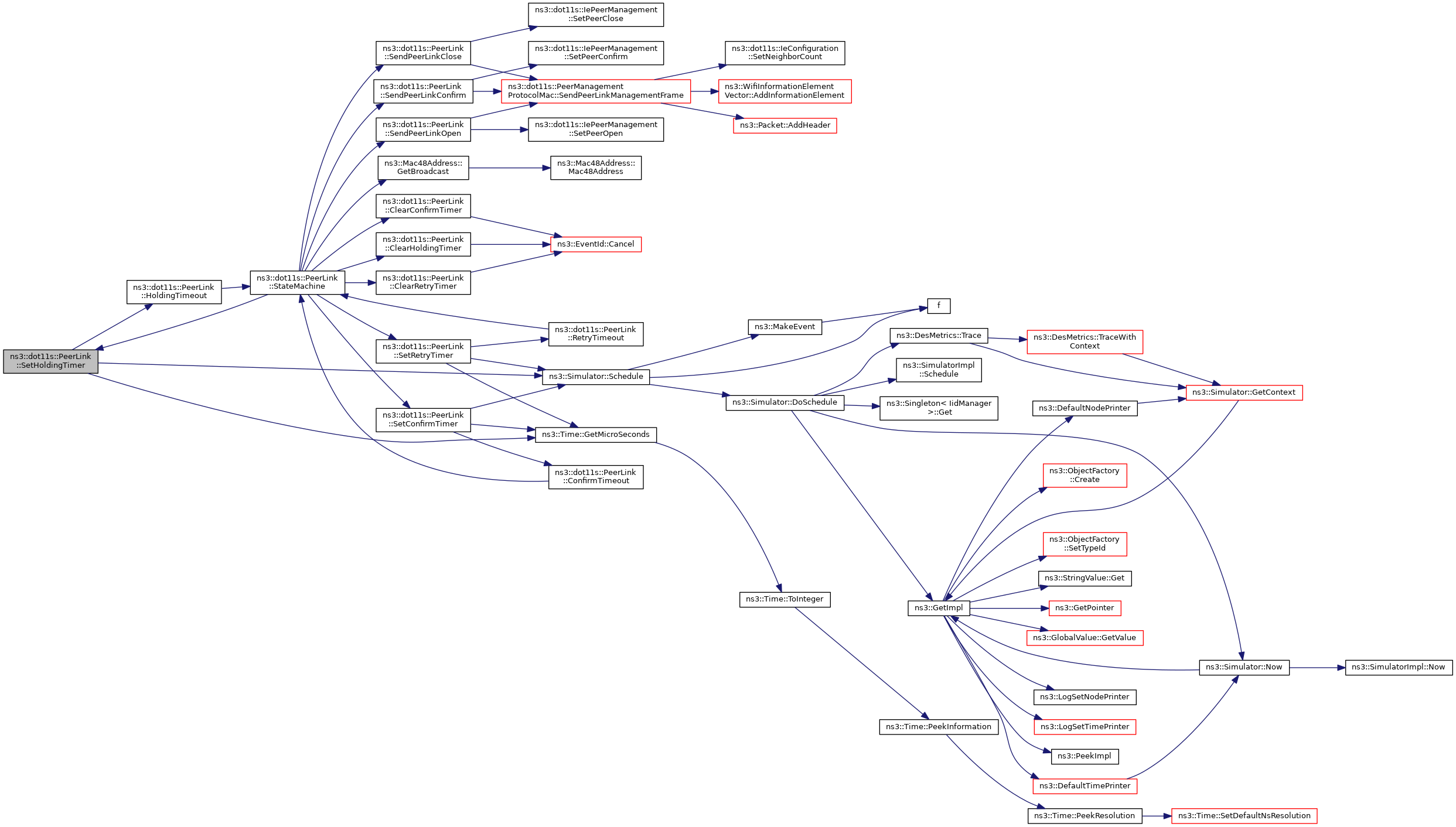

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetInterface()

void ns3::dot11s::PeerLink::SetInterface ( uint32_t interface )

Set the interface.

Parameters

interface the interface

Definition at line 136 of file peer-link.cc.

References m_interface.

◆ SetLinkStatusCallback()

void ns3::dot11s::PeerLink::SetLinkStatusCallback ( Callback< void, uint32_t, Mac48Address, bool > cb )

Method used to detect peer link changes.

Parameters

cb	is a callback, which notifies, that on interface (uint32_t), peer link with address (Mac48Address) was opened (bool is true) or closed (bool is false)

◆ SetLocalAid()

void ns3::dot11s::PeerLink::SetLocalAid ( uint16_t aid )

Set the local association ID.

Parameters

aid	the local association ID

Definition at line 146 of file peer-link.cc.

References m_assocId.

◆ SetLocalLinkId()

void ns3::dot11s::PeerLink::SetLocalLinkId ( uint16_t id )

Set the local link ID.

Parameters

id	the local link ID

Definition at line 141 of file peer-link.cc.

References m_localLinkId.

◆ SetMacPlugin()

void ns3::dot11s::PeerLink::SetMacPlugin ( Ptr< PeerManagementProtocolMac > plugin )

private

Set pointer to MAC-plugin, which is responsible for sending peer link management frames.

Parameters

plugin the peer management protocol MAC

Definition at line 367 of file peer-link.cc.

References m_macPlugin.

◆ SetPeerAddress()

void ns3::dot11s::PeerLink::SetPeerAddress ( Mac48Address macaddr )

Set the peer address.

Parameters

macaddr the peer mac address

Definition at line 126 of file peer-link.cc.

References m_peerAddress.

◆ SetPeerMeshPointAddress()

void ns3::dot11s::PeerLink::SetPeerMeshPointAddress ( Mac48Address macaddr )

Set the peer mesh point address.

Parameters

macaddr the peer mesh point address

Definition at line 131 of file peer-link.cc.

References m_peerMeshPointAddress.

◆ SetRetryTimer()

void ns3::dot11s::PeerLink::SetRetryTimer ( )

private

Set the retry timer.

Definition at line 674 of file peer-link.cc.

References ns3::Time::GetMicroSeconds(), m_dot11MeshRetryTimeout, m_retryTimer, NS_ASSERT, RetryTimeout(), and ns3::Simulator::Schedule().

Referenced by StateMachine().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StateMachine()

void ns3::dot11s::PeerLink::StateMachine	(	PeerEvent	event,
		PmpReasonCode	reasoncode = `REASON11S_RESERVED`
	)

private

State transition.

Parameters

event	the event to update the state machine
reasoncode	the reason for the state transition

Definition at line 375 of file peer-link.cc.

References ACTOPN, ClearConfirmTimer(), ClearHoldingTimer(), ClearRetryTimer(), CLS_ACPT, CNCL, CNF_ACPT, CNF_RCVD, CNF_RJCT, ESTAB, ns3::Mac48Address::GetBroadcast(), HOLDING, IDLE, m_interface, m_linkStatusCallback, m_peerAddress, m_peerMeshPointAddress, m_retryCounter, m_state, NS_ASSERT, OPN_ACPT, OPN_RCVD, OPN_RJCT, OPN_SNT, ns3::dot11s::REASON11S_MESH_CLOSE_RCVD, ns3::dot11s::REASON11S_MESH_CONFIRM_TIMEOUT, ns3::dot11s::REASON11S_MESH_MAX_RETRIES, ns3::dot11s::REASON11S_PEERING_CANCELLED, REQ_RJCT, SendPeerLinkClose(), SendPeerLinkConfirm(), SendPeerLinkOpen(), SetConfirmTimer(), SetHoldingTimer(), SetRetryTimer(), TOC, TOH, TOR1, and TOR2.

Referenced by BeaconLoss(), Close(), ConfirmAccept(), ConfirmReject(), ConfirmTimeout(), HoldingTimeout(), MLMEActivePeerLinkOpen(), MLMECancelPeerLink(), MLMEPeeringRequestReject(), OpenAccept(), OpenReject(), RetryTimeout(), and TransmissionFailure().

Here is the call graph for this function:

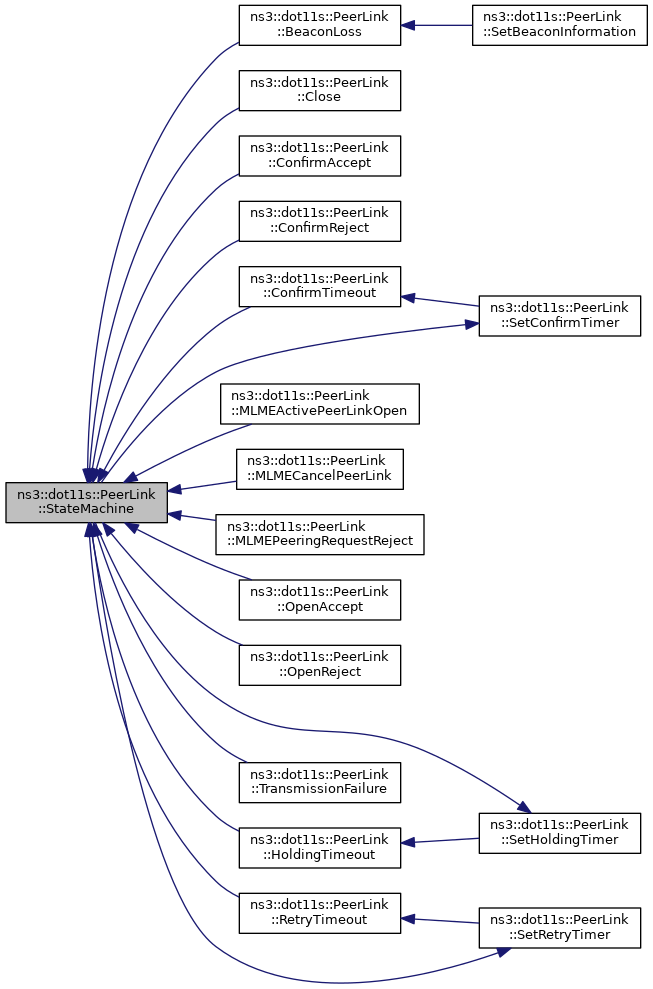

Here is the caller graph for this function:

◆ TransmissionFailure()

void ns3::dot11s::PeerLink::TransmissionFailure ( )

Callback type for MLME-SignalPeerLinkStatus event.

Definition at line 177 of file peer-link.cc.

References CNCL, m_maxPacketFail, m_packetFail, NS_LOG_DEBUG, NS_LOG_FUNCTION, and StateMachine().

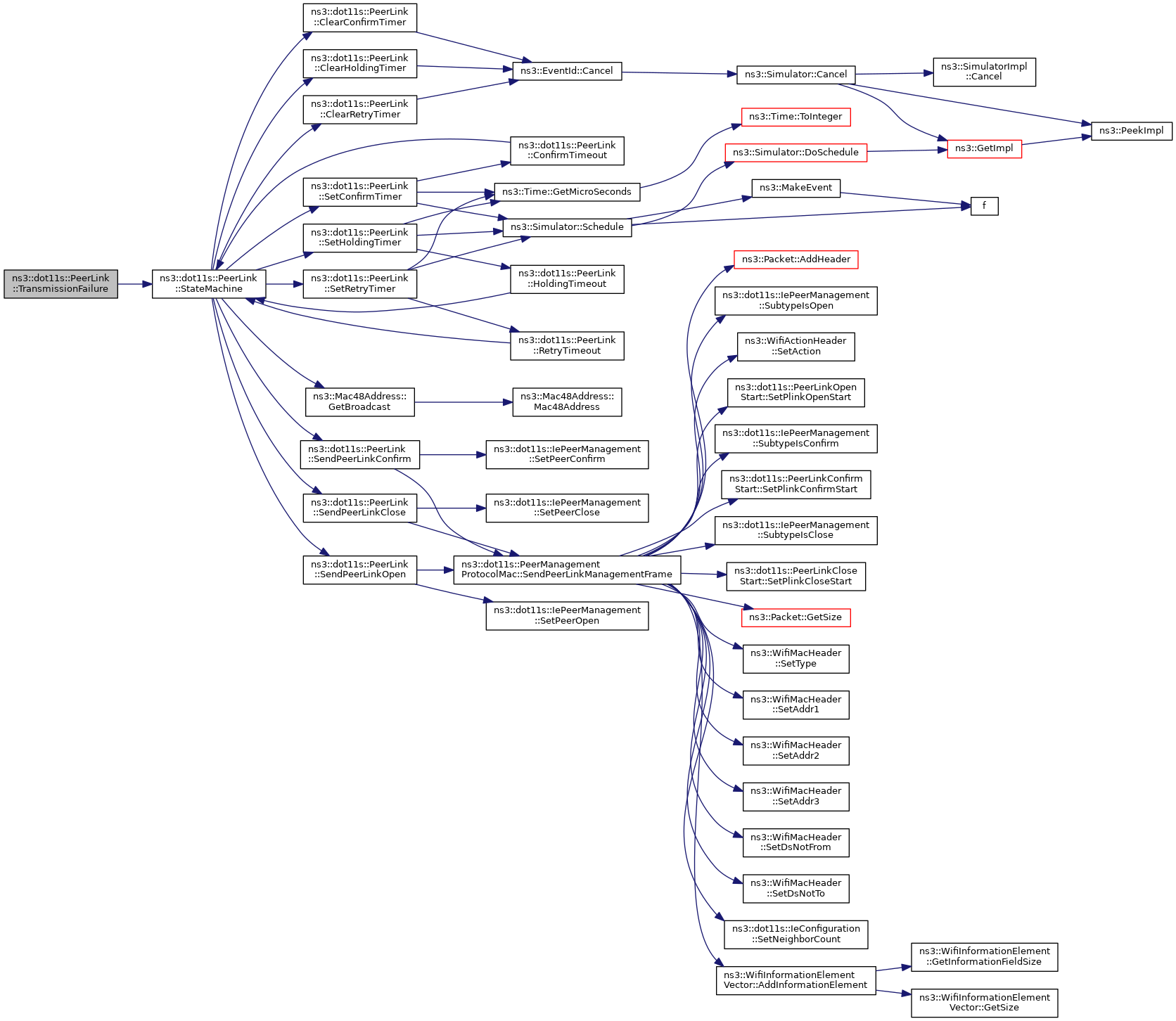

Here is the call graph for this function:

◆ TransmissionSuccess()

void ns3::dot11s::PeerLink::TransmissionSuccess ( )

Reports about transmission success/failure.

Definition at line 172 of file peer-link.cc.

References m_packetFail.

Friends And Related Function Documentation

◆ PeerManagementProtocol

friend class PeerManagementProtocol

friend

allow PeerManagementProtocol class friend access

Definition at line 47 of file peer-link.h.

Member Data Documentation

◆ m_assocId

uint16_t ns3::dot11s::PeerLink::m_assocId

private

My association ID.

Definition at line 357 of file peer-link.h.

Referenced by GetLocalAid(), Report(), SendPeerLinkClose(), SendPeerLinkConfirm(), SendPeerLinkOpen(), and SetLocalAid().

◆ m_beaconInterval

Time ns3::dot11s::PeerLink::m_beaconInterval

private

Current beacon interval on corresponding interface.

Definition at line 364 of file peer-link.h.

Referenced by GetBeaconInterval(), and SetBeaconInformation().

◆ m_beaconLossTimer

EventId ns3::dot11s::PeerLink::m_beaconLossTimer

private

Beacon loss timer.

Definition at line 391 of file peer-link.h.

Referenced by DoDispose(), and SetBeaconInformation().

◆ m_beaconTiming

IeBeaconTiming ns3::dot11s::PeerLink::m_beaconTiming

private

Beacon timing element received from the peer. Needed by BCA.

Definition at line 376 of file peer-link.h.

Referenced by DoDispose(), GetBeaconTimingElement(), and SetBeaconTimingElement().

◆ m_configuration

IeConfiguration ns3::dot11s::PeerLink::m_configuration

private

Mesh interface configuration.

Attention: Is not used now, nothing to configure :)

Definition at line 374 of file peer-link.h.

Referenced by ConfirmAccept(), ConfirmReject(), OpenAccept(), OpenReject(), SendPeerLinkClose(), SendPeerLinkConfirm(), and SendPeerLinkOpen().

◆ m_confirmTimer

EventId ns3::dot11s::PeerLink::m_confirmTimer

private

Confirm timer.

Definition at line 389 of file peer-link.h.

Referenced by ClearConfirmTimer(), DoDispose(), and SetConfirmTimer().

◆ m_dot11MeshConfirmTimeout

Time ns3::dot11s::PeerLink::m_dot11MeshConfirmTimeout

private

Confirm timeout.

Definition at line 385 of file peer-link.h.

Referenced by GetTypeId(), and SetConfirmTimer().

◆ m_dot11MeshHoldingTimeout

Time ns3::dot11s::PeerLink::m_dot11MeshHoldingTimeout

private

Holding timeout.

Definition at line 384 of file peer-link.h.

Referenced by GetTypeId(), and SetHoldingTimer().

◆ m_dot11MeshMaxRetries

uint16_t ns3::dot11s::PeerLink::m_dot11MeshMaxRetries

private

Maximum number of retries.

Definition at line 382 of file peer-link.h.

Referenced by GetTypeId(), and RetryTimeout().

◆ m_dot11MeshRetryTimeout

Time ns3::dot11s::PeerLink::m_dot11MeshRetryTimeout

private

Retry timeout.

Definition at line 383 of file peer-link.h.

Referenced by GetTypeId(), and SetRetryTimer().

◆ m_holdingTimer

EventId ns3::dot11s::PeerLink::m_holdingTimer

private

Holding timer.

Definition at line 388 of file peer-link.h.

Referenced by ClearHoldingTimer(), DoDispose(), and SetHoldingTimer().

◆ m_interface

uint32_t ns3::dot11s::PeerLink::m_interface

private

The number of interface I am associated with.

Definition at line 344 of file peer-link.h.

Referenced by SetInterface(), and StateMachine().

◆ m_lastBeacon

Time ns3::dot11s::PeerLink::m_lastBeacon

private

When last beacon was received.

Definition at line 362 of file peer-link.h.

Referenced by GetLastBeacon(), Report(), and SetBeaconInformation().

◆ m_linkStatusCallback

SignalStatusCallback ns3::dot11s::PeerLink::m_linkStatusCallback

private

How to report my status change.

Definition at line 397 of file peer-link.h.

Referenced by MLMESetSignalStatusCallback(), and StateMachine().

◆ m_localLinkId

uint16_t ns3::dot11s::PeerLink::m_localLinkId

private

My ID of this link.

Definition at line 353 of file peer-link.h.

Referenced by Close(), ConfirmAccept(), ConfirmReject(), Report(), SendPeerLinkClose(), SendPeerLinkConfirm(), SendPeerLinkOpen(), and SetLocalLinkId().

◆ m_macPlugin

Ptr<PeerManagementProtocolMac> ns3::dot11s::PeerLink::m_macPlugin

private

pointer to MAC plugin, which is responsible for peer management

Definition at line 346 of file peer-link.h.

Referenced by Report(), SendPeerLinkClose(), SendPeerLinkConfirm(), SendPeerLinkOpen(), and SetMacPlugin().

◆ m_maxBeaconLoss

uint16_t ns3::dot11s::PeerLink::m_maxBeaconLoss

private

Maximum number of lost beacons before link will be closed.

Definition at line 392 of file peer-link.h.

Referenced by GetTypeId(), and SetBeaconInformation().

◆ m_maxPacketFail

uint16_t ns3::dot11s::PeerLink::m_maxPacketFail

private

Maximum number of failed packets before link will be closed.

Definition at line 393 of file peer-link.h.

Referenced by GetTypeId(), and TransmissionFailure().

◆ m_packetFail

uint16_t ns3::dot11s::PeerLink::m_packetFail

private

How many successive packets were failed to transmit.

Definition at line 366 of file peer-link.h.

Referenced by TransmissionFailure(), and TransmissionSuccess().

◆ m_peerAddress

Mac48Address ns3::dot11s::PeerLink::m_peerAddress

private

Peer address.

Definition at line 348 of file peer-link.h.

Referenced by GetPeerAddress(), Report(), SendPeerLinkClose(), SendPeerLinkConfirm(), SendPeerLinkOpen(), SetPeerAddress(), and StateMachine().

◆ m_peerAssocId

uint16_t ns3::dot11s::PeerLink::m_peerAssocId

private

Assoc Id assigned to me by peer.

Definition at line 359 of file peer-link.h.

Referenced by ConfirmAccept(), and GetPeerAid().

◆ m_peerLinkId

uint16_t ns3::dot11s::PeerLink::m_peerLinkId

private

Peer ID of this link.

Definition at line 355 of file peer-link.h.

Referenced by Close(), ConfirmAccept(), ConfirmReject(), OpenAccept(), OpenReject(), Report(), SendPeerLinkClose(), and SendPeerLinkConfirm().

◆ m_peerMeshPointAddress

Mac48Address ns3::dot11s::PeerLink::m_peerMeshPointAddress

private

Mesh point address, equal to peer address in case of single interface mesh point.

Definition at line 351 of file peer-link.h.

Referenced by ConfirmAccept(), ConfirmReject(), OpenAccept(), OpenReject(), Report(), SendPeerLinkClose(), SendPeerLinkConfirm(), SendPeerLinkOpen(), SetPeerMeshPointAddress(), and StateMachine().

◆ m_retryCounter

uint16_t ns3::dot11s::PeerLink::m_retryCounter

private

Retry counter.

Definition at line 390 of file peer-link.h.

Referenced by RetryTimeout(), and StateMachine().

◆ m_retryTimer

EventId ns3::dot11s::PeerLink::m_retryTimer

private

Retry timer.

Definition at line 387 of file peer-link.h.

Referenced by ClearRetryTimer(), DoDispose(), and SetRetryTimer().

◆ m_state

PeerState ns3::dot11s::PeerLink::m_state

private

Current state.

Definition at line 369 of file peer-link.h.

Referenced by LinkIsEstab(), LinkIsIdle(), Report(), and StateMachine().

◆ PeerStateNames

const char *const ns3::dot11s::PeerLink::PeerStateNames = { "IDLE", "OPN_SNT", "CNF_RCVD", "OPN_RCVD", "ESTAB", "HOLDING" }

static

Literal names of Mesh Peer Management states for use in log messages.

Definition at line 69 of file peer-link.h.

The documentation for this class was generated from the following files:

src/mesh/model/dot11s/peer-link.h
src/mesh/model/dot11s/peer-link.cc

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Friends

MLME

Additional Inherited Members

Detailed Description

Attributes

Member Typedef Documentation

◆ SignalStatusCallback

Member Enumeration Documentation

◆ PeerEvent

◆ PeerState

Constructor & Destructor Documentation

◆ PeerLink() [1/2]

◆ ~PeerLink()

◆ PeerLink() [2/2]

Member Function Documentation

◆ BeaconLoss()

◆ ClearConfirmTimer()

◆ ClearHoldingTimer()

◆ ClearRetryTimer()

◆ Close()

◆ ConfirmAccept()

◆ ConfirmReject()

◆ ConfirmTimeout()

◆ DoDispose()

◆ GetBeaconInterval()

◆ GetBeaconTimingElement()

◆ GetLastBeacon()

◆ GetLocalAid()

◆ GetPeerAddress()

◆ GetPeerAid()

◆ GetTypeId()

◆ HoldingTimeout()

◆ LinkIsEstab()

◆ LinkIsIdle()

◆ MLMEActivePeerLinkOpen()

◆ MLMECancelPeerLink()

◆ MLMEPeeringRequestReject()

◆ MLMESetSignalStatusCallback()

◆ OpenAccept()

◆ OpenReject()

◆ operator=()

◆ Report()

◆ RetryTimeout()

◆ SendPeerLinkClose()

◆ SendPeerLinkConfirm()

◆ SendPeerLinkOpen()

◆ SetBeaconInformation()

◆ SetBeaconTimingElement()

◆ SetConfirmTimer()

◆ SetHoldingTimer()

◆ SetInterface()

◆ SetLinkStatusCallback()

◆ SetLocalAid()

◆ SetLocalLinkId()

◆ SetMacPlugin()

◆ SetPeerAddress()

◆ SetPeerMeshPointAddress()

◆ SetRetryTimer()

◆ StateMachine()

◆ TransmissionFailure()

◆ TransmissionSuccess()

Friends And Related Function Documentation

◆ PeerManagementProtocol

Member Data Documentation

◆ m_assocId

◆ m_beaconInterval

◆ m_beaconLossTimer

◆ m_beaconTiming

◆ m_configuration

◆ m_confirmTimer

◆ m_dot11MeshConfirmTimeout

◆ m_dot11MeshHoldingTimeout

◆ m_dot11MeshMaxRetries
