Implement the header for management frames of type reassociation request. More...

#include "mgt-headers.h"

Inheritance diagram for ns3::MgtReassocRequestHeader:

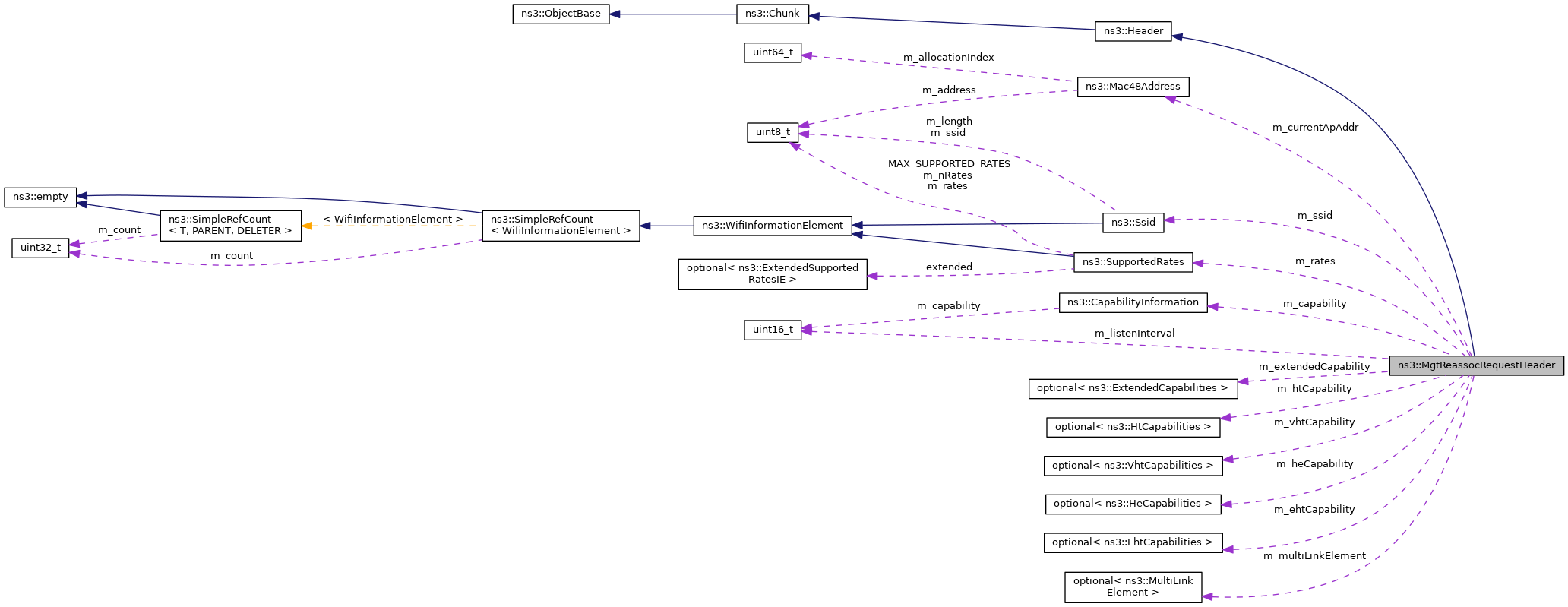

Collaboration diagram for ns3::MgtReassocRequestHeader:

Public Member Functions
	MgtReassocRequestHeader ()

	~MgtReassocRequestHeader () override

uint32_t	Deserialize (Buffer::Iterator start) override

const CapabilityInformation &	GetCapabilities () const
	Return the Capability information. More...

const std::optional< EhtCapabilities > &	GetEhtCapabilities () const
	Return the EHT capabilities, if present. More...

const std::optional< ExtendedCapabilities > &	GetExtendedCapabilities () const
	Return the extended capabilities, if present. More...

const std::optional< HeCapabilities > &	GetHeCapabilities () const
	Return the HE capabilities, if present. More...

const std::optional< HtCapabilities > &	GetHtCapabilities () const
	Return the HT capabilities, if present. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

uint16_t	GetListenInterval () const
	Return the listen interval. More...

const std::optional< MultiLinkElement > &	GetMultiLinkElement () const
	Return the Multi-Link Element information element, if present. More...

uint32_t	GetSerializedSize () const override

const Ssid &	GetSsid () const
	Return the Service Set Identifier (SSID). More...

const SupportedRates &	GetSupportedRates () const
	Return the supported rates. More...

const std::optional< VhtCapabilities > &	GetVhtCapabilities () const
	Return the VHT capabilities, if present. More...

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetCapabilities (CapabilityInformation &&capabilities)
	Set the Capability information. More...

void	SetCapabilities (const CapabilityInformation &capabilities)
	Set the Capability information. More...

void	SetCurrentApAddress (Mac48Address currentApAddr)
	Set the address of the current access point. More...

void	SetEhtCapabilities (const EhtCapabilities &ehtCapabilities)
	Set the EHT capabilities. More...

void	SetEhtCapabilities (EhtCapabilities &&ehtCapabilities)
	Set the EHT capabilities. More...

void	SetExtendedCapabilities (const ExtendedCapabilities &extendedCapabilities)
	Set the Extended Capabilities. More...

void	SetExtendedCapabilities (ExtendedCapabilities &&extendedCapabilities)
	Set the Extended Capabilities. More...

void	SetHeCapabilities (const HeCapabilities &heCapabilities)
	Set the HE capabilities. More...

void	SetHeCapabilities (HeCapabilities &&heCapabilities)
	Set the HE capabilities. More...

void	SetHtCapabilities (const HtCapabilities &htCapabilities)
	Set the HT capabilities. More...

void	SetHtCapabilities (HtCapabilities &&htCapabilities)
	Set the HT capabilities. More...

void	SetListenInterval (uint16_t interval)
	Set the listen interval. More...

void	SetMultiLinkElement (const MultiLinkElement &multiLinkElement)
	Set the Multi-Link Element information element. More...

void	SetMultiLinkElement (MultiLinkElement &&multiLinkElement)
	Set the Multi-Link Element information element. More...

void	SetSsid (const Ssid &ssid)
	Set the Service Set Identifier (SSID). More...

void	SetSsid (Ssid &&ssid)
	Set the Service Set Identifier (SSID). More...

void	SetSupportedRates (const SupportedRates &rates)
	Set the supported rates. More...

void	SetSupportedRates (SupportedRates &&rates)
	Set the supported rates. More...

void	SetVhtCapabilities (const VhtCapabilities &vhtCapabilities)
	Set the VHT capabilities. More...

void	SetVhtCapabilities (VhtCapabilities &&vhtCapabilities)
	Set the VHT capabilities. More...

Public Member Functions inherited from ns3::Header
	~Header () override

uint32_t	Deserialize (Buffer::Iterator start) override=0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	GetSerializedSize () const =0

void	Print (std::ostream &os) const override=0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual void	Print (std::ostream &os) const =0
	Print the object contents. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
CapabilityInformation	m_capability
	Capability information. More...

Mac48Address	m_currentApAddr
	Address of the current access point. More...

std::optional< EhtCapabilities >	m_ehtCapability
	EHT capabilities. More...

std::optional< ExtendedCapabilities >	m_extendedCapability
	Extended capabilities. More...

std::optional< HeCapabilities >	m_heCapability
	HE capabilities. More...

std::optional< HtCapabilities >	m_htCapability
	HT capabilities. More...

uint16_t	m_listenInterval
	listen interval More...

std::optional< MultiLinkElement >	m_multiLinkElement
	Multi-Link Element. More...

SupportedRates	m_rates
	List of supported rates. More...

Ssid	m_ssid
	Service Set ID (SSID) More...

std::optional< VhtCapabilities >	m_vhtCapability
	VHT capabilities. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implement the header for management frames of type reassociation request.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 784 bytes (on a 64-bit architecture).

Definition at line 246 of file mgt-headers.h.

Constructor & Destructor Documentation

◆ MgtReassocRequestHeader()

ns3::MgtReassocRequestHeader::MgtReassocRequestHeader ( )

Definition at line 1212 of file mgt-headers.cc.

◆ ~MgtReassocRequestHeader()

ns3::MgtReassocRequestHeader::~MgtReassocRequestHeader ( )

override

Definition at line 1217 of file mgt-headers.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::MgtReassocRequestHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 1525 of file mgt-headers.cc.

References ns3::WifiInformationElement::Deserialize(), ns3::CapabilityInformation::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), m_capability, m_currentApAddr, m_ehtCapability, m_extendedCapability, m_heCapability, m_htCapability, m_listenInterval, m_multiLinkElement, m_rates, m_ssid, m_vhtCapability, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU16(), visualizer.core::start(), and ns3::WIFI_MAC_MGT_REASSOCIATION_REQUEST.

Referenced by ns3::MultiLinkElement::PerStaProfileSubelement::DeserializeInformationField().

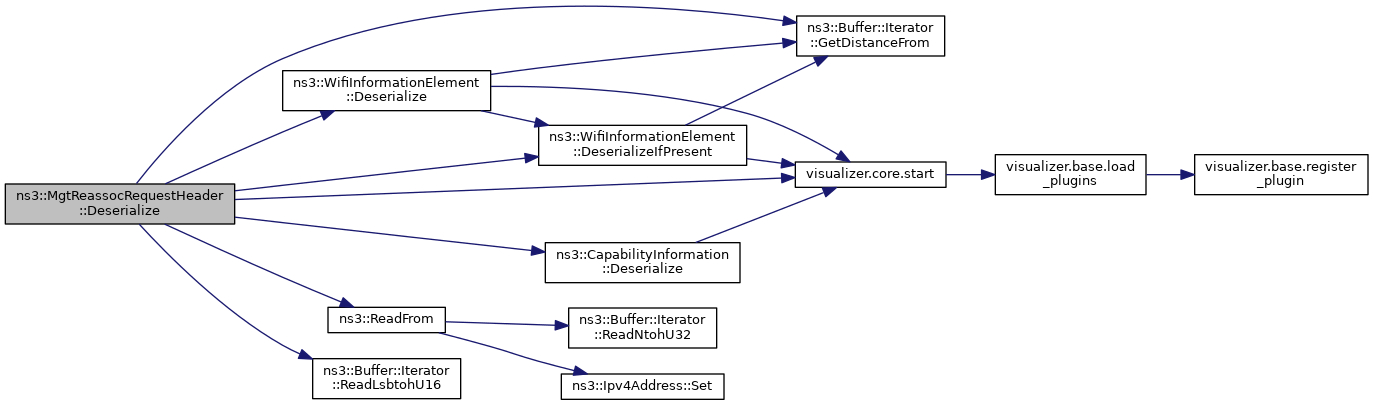

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCapabilities()

const CapabilityInformation & ns3::MgtReassocRequestHeader::GetCapabilities ( ) const

Return the Capability information.

Returns: Capability information

Definition at line 1264 of file mgt-headers.cc.

References m_capability.

◆ GetEhtCapabilities()

const std::optional< EhtCapabilities > & ns3::MgtReassocRequestHeader::GetEhtCapabilities ( ) const

Return the EHT capabilities, if present.

Returns: EHT capabilities, if present

Definition at line 1354 of file mgt-headers.cc.

References m_ehtCapability.

◆ GetExtendedCapabilities()

const std::optional< ExtendedCapabilities > & ns3::MgtReassocRequestHeader::GetExtendedCapabilities ( ) const

Return the extended capabilities, if present.

Returns: the extended capabilities, if present

Definition at line 1282 of file mgt-headers.cc.

References m_extendedCapability.

◆ GetHeCapabilities()

const std::optional< HeCapabilities > & ns3::MgtReassocRequestHeader::GetHeCapabilities ( ) const

Return the HE capabilities, if present.

Returns: HE capabilities, if present

Definition at line 1336 of file mgt-headers.cc.

References m_heCapability.

◆ GetHtCapabilities()

const std::optional< HtCapabilities > & ns3::MgtReassocRequestHeader::GetHtCapabilities ( ) const

Return the HT capabilities, if present.

Returns: HT capabilities, if present

Definition at line 1300 of file mgt-headers.cc.

References m_htCapability.

◆ GetInstanceTypeId()

TypeId ns3::MgtReassocRequestHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 1412 of file mgt-headers.cc.

References GetTypeId().

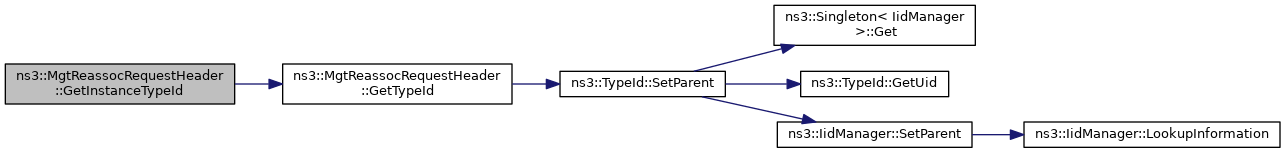

Here is the call graph for this function:

◆ GetListenInterval()

uint16_t ns3::MgtReassocRequestHeader::GetListenInterval ( ) const

Return the listen interval.

Returns: the listen interval

Definition at line 1390 of file mgt-headers.cc.

References m_listenInterval.

◆ GetMultiLinkElement()

const std::optional< MultiLinkElement > & ns3::MgtReassocRequestHeader::GetMultiLinkElement ( ) const

Return the Multi-Link Element information element, if present.

Returns: the Multi-Link Element information element, if present

Definition at line 1372 of file mgt-headers.cc.

References m_multiLinkElement.

◆ GetSerializedSize()

uint32_t ns3::MgtReassocRequestHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1418 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::SupportedRates::GetNRates(), ns3::CapabilityInformation::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_capability, m_ehtCapability, m_extendedCapability, m_heCapability, m_htCapability, m_multiLinkElement, m_rates, m_ssid, and m_vhtCapability.

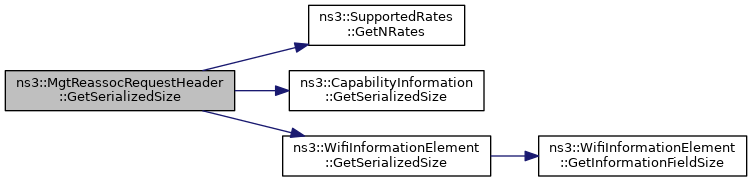

Here is the call graph for this function:

◆ GetSsid()

const Ssid & ns3::MgtReassocRequestHeader::GetSsid ( ) const

Return the Service Set Identifier (SSID).

Returns: SSID

Definition at line 1378 of file mgt-headers.cc.

References m_ssid.

◆ GetSupportedRates()

const SupportedRates & ns3::MgtReassocRequestHeader::GetSupportedRates ( ) const

Return the supported rates.

Returns: the supported rates

Definition at line 1384 of file mgt-headers.cc.

References m_rates.

◆ GetTypeId()

TypeId ns3::MgtReassocRequestHeader::GetTypeId ( )

static

Register this type.

Returns: The TypeId.

Definition at line 1402 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

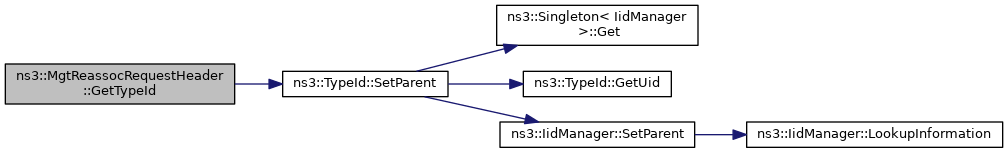

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVhtCapabilities()

const std::optional< VhtCapabilities > & ns3::MgtReassocRequestHeader::GetVhtCapabilities ( ) const

Return the VHT capabilities, if present.

Returns: VHT capabilities, if present

Definition at line 1318 of file mgt-headers.cc.

References m_vhtCapability.

◆ Print()

void ns3::MgtReassocRequestHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1458 of file mgt-headers.cc.

References m_currentApAddr, m_ehtCapability, m_extendedCapability, m_heCapability, m_htCapability, m_rates, m_ssid, and m_vhtCapability.

◆ Serialize()

void ns3::MgtReassocRequestHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1486 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::SupportedRates::GetNRates(), m_capability, m_currentApAddr, m_ehtCapability, m_extendedCapability, m_heCapability, m_htCapability, m_listenInterval, m_multiLinkElement, m_rates, m_ssid, m_vhtCapability, ns3::WifiInformationElement::Serialize(), ns3::CapabilityInformation::Serialize(), visualizer.core::start(), ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::WriteTo().

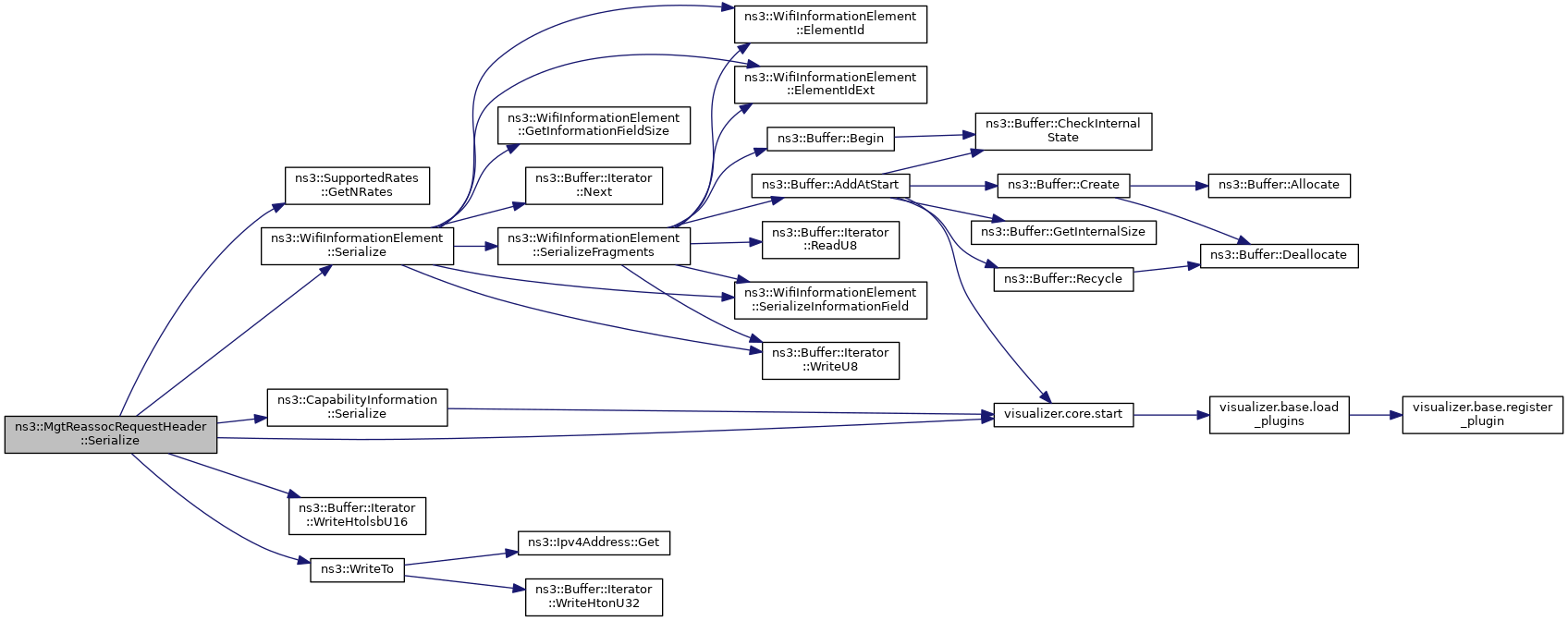

Here is the call graph for this function:

◆ SetCapabilities() [1/2]

void ns3::MgtReassocRequestHeader::SetCapabilities ( CapabilityInformation && capabilities )

Set the Capability information.

Parameters

capabilities Capability information

Definition at line 1258 of file mgt-headers.cc.

References m_capability.

◆ SetCapabilities() [2/2]

void ns3::MgtReassocRequestHeader::SetCapabilities ( const CapabilityInformation & capabilities )

Set the Capability information.

Parameters

capabilities Capability information

Definition at line 1252 of file mgt-headers.cc.

References m_capability.

◆ SetCurrentApAddress()

void ns3::MgtReassocRequestHeader::SetCurrentApAddress ( Mac48Address currentApAddr )

Set the address of the current access point.

Parameters

currentApAddr address of the current access point

Definition at line 1396 of file mgt-headers.cc.

References m_currentApAddr.

Referenced by ns3::StaWifiMac::GetAssociationRequest().

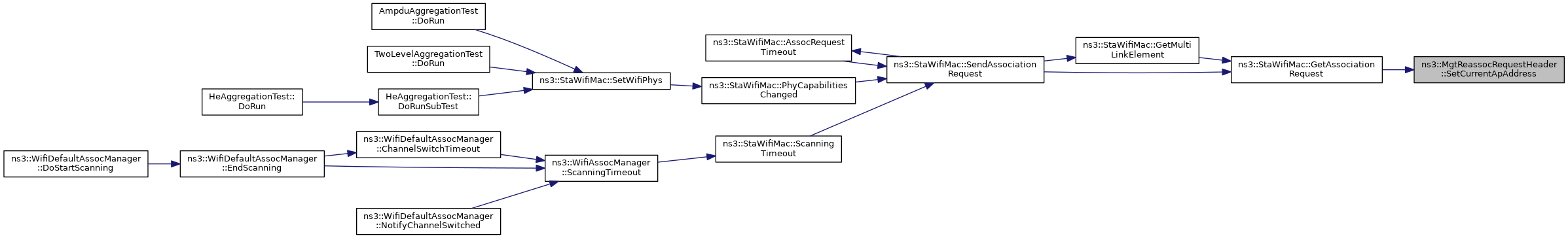

Here is the caller graph for this function:

◆ SetEhtCapabilities() [1/2]

void ns3::MgtReassocRequestHeader::SetEhtCapabilities ( const EhtCapabilities & ehtCapabilities )

Set the EHT capabilities.

Parameters

ehtCapabilities EHT capabilities

Definition at line 1342 of file mgt-headers.cc.

References m_ehtCapability.

◆ SetEhtCapabilities() [2/2]

void ns3::MgtReassocRequestHeader::SetEhtCapabilities ( EhtCapabilities && ehtCapabilities )

Set the EHT capabilities.

Parameters

ehtCapabilities EHT capabilities

Definition at line 1348 of file mgt-headers.cc.

References m_ehtCapability.

◆ SetExtendedCapabilities() [1/2]

void ns3::MgtReassocRequestHeader::SetExtendedCapabilities ( const ExtendedCapabilities & extendedCapabilities )

Set the Extended Capabilities.

Parameters

extendedCapabilities the Extended Capabilities

Definition at line 1270 of file mgt-headers.cc.

References m_extendedCapability.

◆ SetExtendedCapabilities() [2/2]

void ns3::MgtReassocRequestHeader::SetExtendedCapabilities ( ExtendedCapabilities && extendedCapabilities )

Set the Extended Capabilities.

Parameters

extendedCapabilities the Extended Capabilities

Definition at line 1276 of file mgt-headers.cc.

References m_extendedCapability.

◆ SetHeCapabilities() [1/2]

void ns3::MgtReassocRequestHeader::SetHeCapabilities ( const HeCapabilities & heCapabilities )

Set the HE capabilities.

Parameters

heCapabilities HE capabilities

Definition at line 1324 of file mgt-headers.cc.

References m_heCapability.

◆ SetHeCapabilities() [2/2]

void ns3::MgtReassocRequestHeader::SetHeCapabilities ( HeCapabilities && heCapabilities )

Set the HE capabilities.

Parameters

heCapabilities HE capabilities

Definition at line 1330 of file mgt-headers.cc.

References m_heCapability.

◆ SetHtCapabilities() [1/2]

void ns3::MgtReassocRequestHeader::SetHtCapabilities ( const HtCapabilities & htCapabilities )

Set the HT capabilities.

Parameters

htCapabilities HT capabilities

Definition at line 1288 of file mgt-headers.cc.

References m_htCapability.

◆ SetHtCapabilities() [2/2]

void ns3::MgtReassocRequestHeader::SetHtCapabilities ( HtCapabilities && htCapabilities )

Set the HT capabilities.

Parameters

htCapabilities HT capabilities

Definition at line 1294 of file mgt-headers.cc.

References m_htCapability.

◆ SetListenInterval()

void ns3::MgtReassocRequestHeader::SetListenInterval ( uint16_t interval )

Set the listen interval.

Parameters

interval the listen interval

Definition at line 1246 of file mgt-headers.cc.

References m_listenInterval.

◆ SetMultiLinkElement() [1/2]

void ns3::MgtReassocRequestHeader::SetMultiLinkElement ( const MultiLinkElement & multiLinkElement )

Set the Multi-Link Element information element.

Parameters

multiLinkElement the Multi-Link Element information element

Definition at line 1360 of file mgt-headers.cc.

References m_multiLinkElement.

◆ SetMultiLinkElement() [2/2]

void ns3::MgtReassocRequestHeader::SetMultiLinkElement ( MultiLinkElement && multiLinkElement )

Set the Multi-Link Element information element.

Parameters

multiLinkElement the Multi-Link Element information element

Definition at line 1366 of file mgt-headers.cc.

References m_multiLinkElement.

◆ SetSsid() [1/2]

void ns3::MgtReassocRequestHeader::SetSsid ( const Ssid & ssid )

Set the Service Set Identifier (SSID).

Parameters

ssid SSID

Definition at line 1222 of file mgt-headers.cc.

References m_ssid, and third::ssid.

◆ SetSsid() [2/2]

void ns3::MgtReassocRequestHeader::SetSsid ( Ssid && ssid )

Set the Service Set Identifier (SSID).

Parameters

ssid SSID

Definition at line 1228 of file mgt-headers.cc.

References m_ssid, and third::ssid.

◆ SetSupportedRates() [1/2]

void ns3::MgtReassocRequestHeader::SetSupportedRates ( const SupportedRates & rates )

Set the supported rates.

Parameters

rates the supported rates

Definition at line 1234 of file mgt-headers.cc.

References m_rates.

◆ SetSupportedRates() [2/2]

void ns3::MgtReassocRequestHeader::SetSupportedRates ( SupportedRates && rates )

Set the supported rates.

Parameters

rates the supported rates

Definition at line 1240 of file mgt-headers.cc.

References m_rates.

◆ SetVhtCapabilities() [1/2]

void ns3::MgtReassocRequestHeader::SetVhtCapabilities ( const VhtCapabilities & vhtCapabilities )

Set the VHT capabilities.

Parameters

vhtCapabilities VHT capabilities

Definition at line 1306 of file mgt-headers.cc.

References m_vhtCapability.

◆ SetVhtCapabilities() [2/2]

void ns3::MgtReassocRequestHeader::SetVhtCapabilities ( VhtCapabilities && vhtCapabilities )

Set the VHT capabilities.

Parameters

vhtCapabilities VHT capabilities

Definition at line 1312 of file mgt-headers.cc.

References m_vhtCapability.

Member Data Documentation

◆ m_capability

CapabilityInformation ns3::MgtReassocRequestHeader::m_capability

private

Capability information.

Definition at line 431 of file mgt-headers.h.

Referenced by Deserialize(), GetCapabilities(), GetSerializedSize(), Serialize(), and SetCapabilities().

◆ m_currentApAddr

Mac48Address ns3::MgtReassocRequestHeader::m_currentApAddr

private

Address of the current access point.

Definition at line 428 of file mgt-headers.h.

Referenced by Deserialize(), Print(), Serialize(), and SetCurrentApAddress().

◆ m_ehtCapability

std::optional<EhtCapabilities> ns3::MgtReassocRequestHeader::m_ehtCapability

private

EHT capabilities.

Definition at line 437 of file mgt-headers.h.

Referenced by Deserialize(), GetEhtCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetEhtCapabilities().

◆ m_extendedCapability

std::optional<ExtendedCapabilities> ns3::MgtReassocRequestHeader::m_extendedCapability

private

Extended capabilities.

Definition at line 432 of file mgt-headers.h.

Referenced by Deserialize(), GetExtendedCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetExtendedCapabilities().

◆ m_heCapability

std::optional<HeCapabilities> ns3::MgtReassocRequestHeader::m_heCapability

private

HE capabilities.

Definition at line 435 of file mgt-headers.h.

Referenced by Deserialize(), GetHeCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetHeCapabilities().

◆ m_htCapability

std::optional<HtCapabilities> ns3::MgtReassocRequestHeader::m_htCapability

private

HT capabilities.

Definition at line 433 of file mgt-headers.h.

Referenced by Deserialize(), GetHtCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetHtCapabilities().

◆ m_listenInterval

uint16_t ns3::MgtReassocRequestHeader::m_listenInterval

private

listen interval

Definition at line 436 of file mgt-headers.h.

Referenced by Deserialize(), GetListenInterval(), Serialize(), and SetListenInterval().

◆ m_multiLinkElement

std::optional<MultiLinkElement> ns3::MgtReassocRequestHeader::m_multiLinkElement

private

Multi-Link Element.

Definition at line 438 of file mgt-headers.h.

Referenced by Deserialize(), GetMultiLinkElement(), GetSerializedSize(), Serialize(), and SetMultiLinkElement().

◆ m_rates

SupportedRates ns3::MgtReassocRequestHeader::m_rates

private

List of supported rates.

Definition at line 430 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetSupportedRates(), Print(), Serialize(), and SetSupportedRates().

◆ m_ssid

Ssid ns3::MgtReassocRequestHeader::m_ssid

private

Service Set ID (SSID)

Definition at line 429 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetSsid(), Print(), Serialize(), and SetSsid().

◆ m_vhtCapability

std::optional<VhtCapabilities> ns3::MgtReassocRequestHeader::m_vhtCapability

private

VHT capabilities.

Definition at line 434 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetVhtCapabilities(), Print(), Serialize(), and SetVhtCapabilities().

The documentation for this class was generated from the following files:

src/wifi/model/mgt-headers.h
src/wifi/model/mgt-headers.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MgtReassocRequestHeader()

◆ ~MgtReassocRequestHeader()

Member Function Documentation

◆ Deserialize()

◆ GetCapabilities()

◆ GetEhtCapabilities()

◆ GetExtendedCapabilities()

◆ GetHeCapabilities()

◆ GetHtCapabilities()

◆ GetInstanceTypeId()

◆ GetListenInterval()

◆ GetMultiLinkElement()

◆ GetSerializedSize()

◆ GetSsid()

◆ GetSupportedRates()

◆ GetTypeId()

◆ GetVhtCapabilities()

◆ Print()

◆ Serialize()

◆ SetCapabilities() [1/2]

◆ SetCapabilities() [2/2]

◆ SetCurrentApAddress()

◆ SetEhtCapabilities() [1/2]

◆ SetEhtCapabilities() [2/2]

◆ SetExtendedCapabilities() [1/2]

◆ SetExtendedCapabilities() [2/2]

◆ SetHeCapabilities() [1/2]

◆ SetHeCapabilities() [2/2]

◆ SetHtCapabilities() [1/2]

◆ SetHtCapabilities() [2/2]

◆ SetListenInterval()

◆ SetMultiLinkElement() [1/2]

◆ SetMultiLinkElement() [2/2]

◆ SetSsid() [1/2]

◆ SetSsid() [2/2]

◆ SetSupportedRates() [1/2]

◆ SetSupportedRates() [2/2]

◆ SetVhtCapabilities() [1/2]

◆ SetVhtCapabilities() [2/2]

Member Data Documentation

◆ m_capability

◆ m_currentApAddr

◆ m_ehtCapability

◆ m_extendedCapability

◆ m_heCapability

◆ m_htCapability

◆ m_listenInterval

◆ m_multiLinkElement

◆ m_rates

◆ m_ssid

◆ m_vhtCapability
