Qos Wave Mac Helper class. More...

#include "wave-mac-helper.h"

Inheritance diagram for ns3::QosWaveMacHelper:

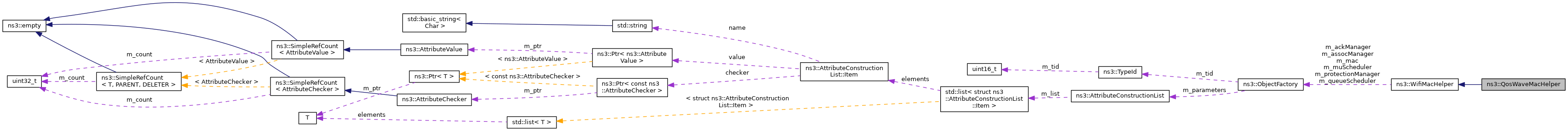

Collaboration diagram for ns3::QosWaveMacHelper:

Public Member Functions
	QosWaveMacHelper ()
	Create a QosWaveMacHelper that is used to make life easier when working with Wifi 802.11p devices using a QOS MAC layer. More...

	~QosWaveMacHelper () override
	Destroy a QosWaveMacHelper. More...

template<typename... Ts>
void	SetType (std::string type, Ts &&... args)

Public Member Functions inherited from ns3::WifiMacHelper
	WifiMacHelper ()
	Create a WifiMacHelper to make life easier for people who want to work with Wifi MAC layers. More...

virtual	~WifiMacHelper ()
	Destroy a WifiMacHelper. More...

virtual Ptr< WifiMac >	Create (Ptr< WifiNetDevice > device, WifiStandard standard) const

template<typename... Args>
void	SetAckManager (std::string type, Args &&... args)
	Helper function used to set the Acknowledgment Manager. More...

template<typename... Args>
void	SetAssocManager (std::string type, Args &&... args)
	Helper function used to set the Association Manager. More...

template<typename... Args>
void	SetMacQueueScheduler (std::string type, Args &&... args)
	Helper function used to set the MAC queue scheduler. More...

template<typename... Args>
void	SetMultiUserScheduler (std::string type, Args &&... args)
	Helper function used to set the Multi User Scheduler that can be aggregated to an HE AP's MAC. More...

template<typename... Args>
void	SetProtectionManager (std::string type, Args &&... args)
	Helper function used to set the Protection Manager. More...

template<typename... Args>
void	SetType (std::string type, Args &&... args)

Static Public Member Functions
static QosWaveMacHelper	Default ()
	Create a mac helper in a default working state. More...

Additional Inherited Members
Protected Attributes inherited from ns3::WifiMacHelper
ObjectFactory	m_ackManager
	Factory to create an acknowledgment manager. More...

ObjectFactory	m_assocManager
	Association Manager. More...

ObjectFactory	m_mac
	MAC object factory. More...

ObjectFactory	m_muScheduler
	Multi-user Scheduler object factory. More...

ObjectFactory	m_protectionManager
	Factory to create a protection manager. More...

ObjectFactory	m_queueScheduler
	MAC queue scheduler. More...

Detailed Description

Qos Wave Mac Helper class.

Definition at line 72 of file wave-mac-helper.h.

Constructor & Destructor Documentation

◆ QosWaveMacHelper()

ns3::QosWaveMacHelper::QosWaveMacHelper ( )

Create a QosWaveMacHelper that is used to make life easier when working with Wifi 802.11p devices using a QOS MAC layer.

Definition at line 51 of file wave-mac-helper.cc.

◆ ~QosWaveMacHelper()

ns3::QosWaveMacHelper::~QosWaveMacHelper ( )

override

Destroy a QosWaveMacHelper.

Definition at line 55 of file wave-mac-helper.cc.

Member Function Documentation

◆ Default()

QosWaveMacHelper ns3::QosWaveMacHelper::Default ( )

static

Create a mac helper in a default working state.

Returns: A mac helper

Definition at line 60 of file wave-mac-helper.cc.

References SetType().

Here is the call graph for this function:

◆ SetType()

template<typename... Ts>

void ns3::QosWaveMacHelper::SetType	(	std::string	type,
		Ts &&...	args
	)

Template Parameters

Ts	[deduced] Argument types

Parameters

	type	the type of ns3::WifiMac to create.
[in]	args	Name and AttributeValue pairs to set.

All the attributes specified in this method should exist in the requested mac.

note: Here we require users set type with OcbWifiMac or its subclass, otherwise it will become error

Definition at line 124 of file wave-mac-helper.h.

References check-style-clang-format::args, NS_FATAL_ERROR, ns3::WifiMacHelper::SetType(), and check-style-clang-format::type.

Referenced by Default().

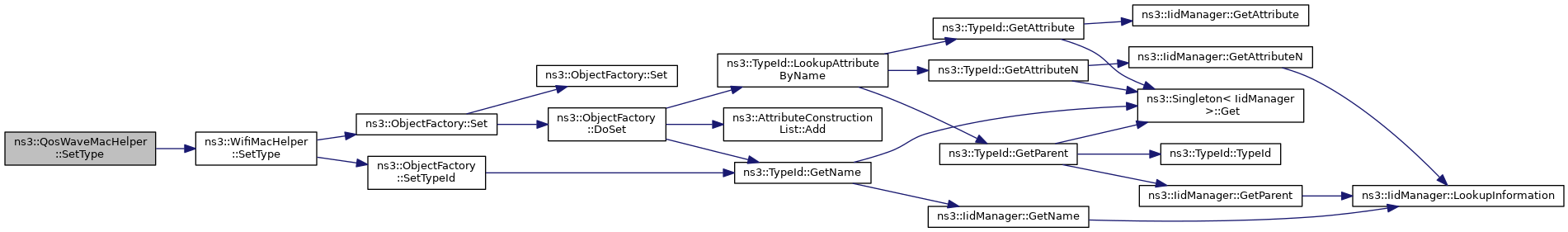

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/wave/helper/wave-mac-helper.h
src/wave/helper/wave-mac-helper.cc
